Thanks guys for the props, its been a while since we've updated the thread.

Here a few random pics of the details stuff.....

Custom made bracket for the Racepac data logger. All the bolts are ARP 12 point stainless that have been milled, blasted and nickel plated

http://i1231.photobucket.com/albums/...psw4jvnvai.jpg

The Smart Wire eliminates all the fuse boxes and relays. It also uses half the wires you's normally would need in a harness. We calculated a weight savings of about 20 lbs .

http://i1231.photobucket.com/albums/...ps7b3jmz0j.jpg

The floor mats were just placed for the pictures. Once installed, they will bold to the floor.


http://i1231.photobucket.com/albums/...pseehpoeeq.jpg

The divider panel is just mocked up. The "R" is missing the center piece. It will be installed once the panels is bolted on.


http://i1231.photobucket.com/albums/...pschftokkk.jpg

The extinguisher was painted a lighter shade of gray. The brackets were blasted and nickle plated.

http://i1231.photobucket.com/albums/...psmlbclhbj.jpg

All the hard lines were polished


http://i1231.photobucket.com/albums/...psqiptv3hg.jpg









http://i1231.photobucket.com/albums/...psnyzb2wwd.jpg

http://i1231.photobucket.com/albums/...psnulgx0qs.jpg

http://i1231.photobucket.com/albums/...psvataoxzt.jpg



The pass through grommet for the fuel line. We also put a grommet on the other side.

http://i1231.photobucket.com/albums/...psulbjgjll.jpg

All the brake line brackets were ethier powder costed or nickel plated.

http://i1231.photobucket.com/albums/...pso3fbmhpx.jpg

http://i1231.photobucket.com/albums/...pse5lqyuie.jpg



http://i1231.photobucket.com/albums/...psbmqwucqt.jpg

http://i1231.photobucket.com/albums/...pscodexbs0.jpg

http://i1231.photobucket.com/albums/...psv1j0aif2.jpg




http://i1231.photobucket.com/albums/...psyciae2ka.jpg

http://i1231.photobucket.com/albums/...psokbkggop.jpg


http://i1231.photobucket.com/albums/...psjvmtlydr.jpg

http://i1231.photobucket.com/albums/...psrf0y6do9.jpg



We replicated the factory tail light plastic covers in carbon and the plastic plugs with Ring Brothers bolts and washers. Only after blasting them and nickle plating them, LOL.

http://i1231.photobucket.com/albums/...pstjhlsvo9.jpg





http://i1231.photobucket.com/albums/...psu7dbiquo.jpg

http://i1231.photobucket.com/albums/...psrasrcxmv.jpg

http://i1231.photobucket.com/albums/...ps9itrye7h.jpg
http://i1231.photobucket.com/albums/...psmqropgqz.jpg
http://i1231.photobucket.com/albums/...ps5u3fxfs1.jpg



http://i1231.photobucket.com/albums/...psziltzto5.jpg
http://i1231.photobucket.com/albums/...pszqutytpp.jpg
http://i1231.photobucket.com/albums/...psy60qwcme.jpg







We prep the roof to run a black candy stripe down the middle.

http://i1231.photobucket.com/albums/...psswxkbptq.jpg

This is after removing the tape.

http://i1231.photobucket.com/albums/...psxo1yz8vk.jpg


http://i1231.photobucket.com/albums/...ps8btjfddw.jpg

Next came three coats of clear fallowed by sanding and another three more coats. Final finish pictures to come.
http://i1231.photobucket.com/albums/...psebpcbgqw.jpg
http://i1231.photobucket.com/albums/...psrffv2cse.jpg

http://i1231.photobucket.com/albums/...psvdadqjqh.jpg

This connector was just used as a mock up to make the hole. The hole was drill exactly on the opposite side of were the steering shaft comes out of the fire wall.

http://i1231.photobucket.com/albums/...ps50g4z4xh.jpg

http://i1231.photobucket.com/albums/...pslezulel7.jpg

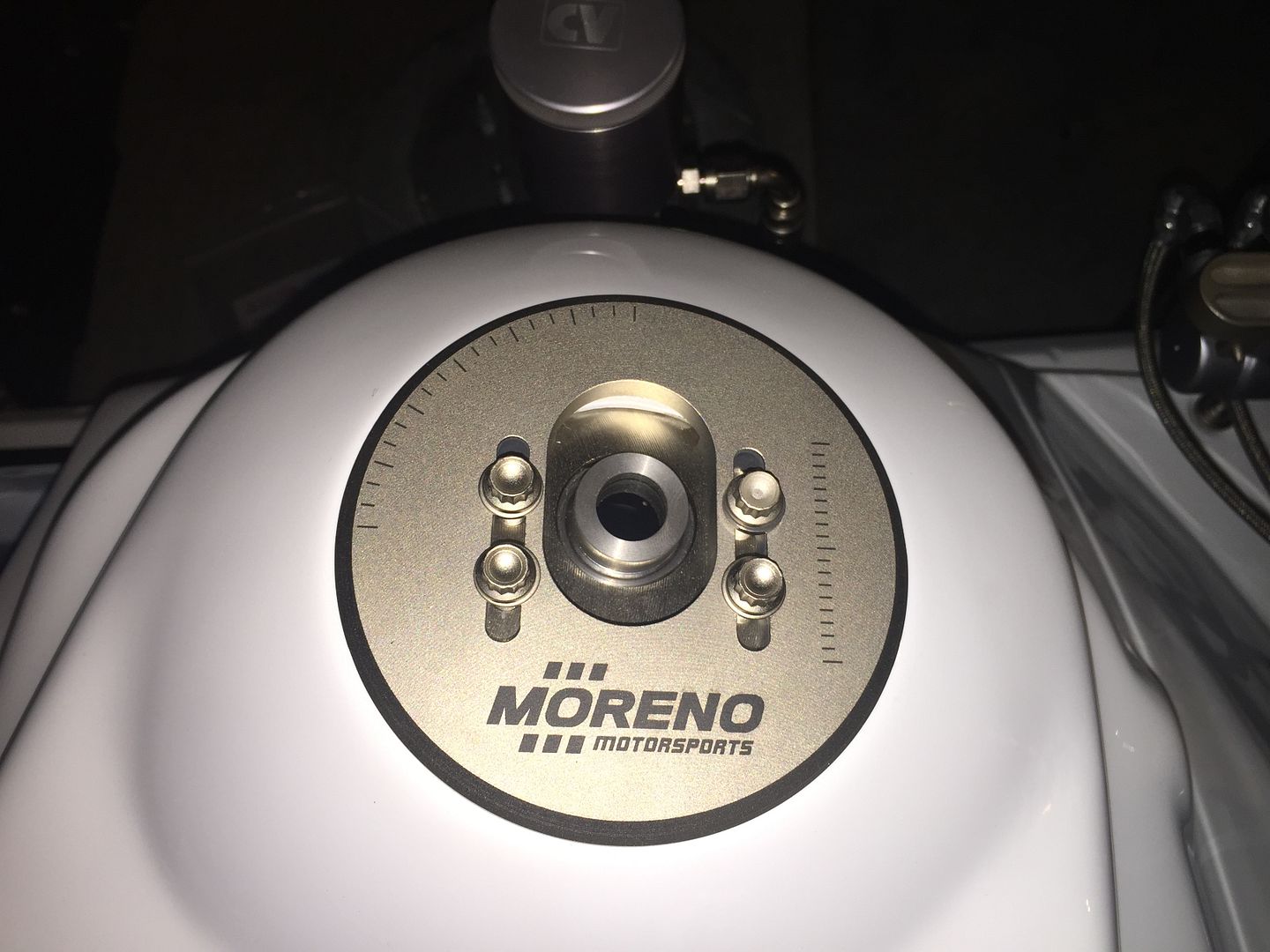

http://i1231.photobucket.com/albums/...psuzjyfla2.jpg

http://i1231.photobucket.com/albums/...pstpaeby2w.jpg

All the clamps were blasted and nickle plated


http://i1231.photobucket.com/albums/...psuiuq8bog.jpg

I think attention to detail is quite the understatement!!!!

http://i1231.photobucket.com/albums/...psqvavwixz.jpg

http://i1231.photobucket.com/albums/...pshui8wuys.jpg

http://i1231.photobucket.com/albums/...psam5jkqkd.jpg


We made a sub splitter out of aluminum to compliment the factory rear spoiler wicker bill. We also had them powder coated in the same color as the Forgeline wheels.

http://i1231.photobucket.com/albums/...ps17guvfci.jpg

http://i1231.photobucket.com/albums/...psncmztdws.jpg

Even the Cobra seats got some love.

http://i1231.photobucket.com/albums/...psofdjtwfe.jpg

It looks amazing Al ! The Carbon part look great.

Al,

Beautiful craftsmanship.

Wow. Just wow!

Thanks guys! one more.... all the bolts and hard lines of the calipers were also blasted and nickle plated. The hubs were replaced with new Z/28 hubs and the studs were replace with the longer ARP. All the suspension bolts were custom made 12 point by ARP.

http://i1231.photobucket.com/albums/...pseqybskid.jpg

Al,

You and your kids have lost control and I love it.


Marty-MJ

Amazing! I did a tiny bit of smoothing some parts for my car, and every time I see your project updates I can't believe the work involved in it. You guys do amazing work.

I think you guys are setting a new standard for how clean, and functional builds should be.


:king:

Thanks guys!

Extinguisher pluming.

Its all about summitry. A lot of thought was given to the routing process. Notice the lines follow the bead roll in the metal.

http://i1231.photobucket.com/albums/...psaoe3gyfx.jpg


This one feed the fuel tank


http://i1231.photobucket.com/albums/...psfefesjj9.jpg


http://i1231.photobucket.com/albums/...ps8u49trjo.jpg

Feeding the foot well

http://i1231.photobucket.com/albums/...psile9lfzh.jpg

Feeding the fuel lines in the engine bay

http://i1231.photobucket.com/albums/...pshpgqgnqp.jpg

http://i1231.photobucket.com/albums/...psd2pacdsv.jpg

http://i1231.photobucket.com/albums/...psxxspcx46.jpg

http://i1231.photobucket.com/albums/...pskrakeidq.jpg

Made some filler panels to fill the factory pockets.

http://i1231.photobucket.com/albums/...ps8o59nxah.jpg

http://i1231.photobucket.com/albums/...pszmgfmojr.jpg

Nice work on the plumbing.

Nice work on everything!!!

Holy be-jebus Al! :lol:

I just stumbled into this thread. Holy moly, this is the most OCD awesome 5th gen ever built! I've owned 3 of the 5th gens, still have a '14 1LE SS. You have a great eye for detail, and obviously a lot of patience. I'd love to see your skills put towards a classic Camaro.

Tony

Thanks Wayne!



LOL Ron!

Tony, in retrospect, we would have rather put the work that has gone into G5.R onto a first gen. There’s not much left that is a Gen5 other than the body. This is just one of those things were it gets away from you.


Getting the paint work completed.

http://i1231.photobucket.com/albums/...pskzdyfdtz.jpg


http://i1231.photobucket.com/albums/...psblcqnsm0.jpg

http://i1231.photobucket.com/albums/...psqkodkful.jpg

http://i1231.photobucket.com/albums/...psujwd84qz.jpg



A little over spray in the corner were its hard for the tape to sit.

http://i1231.photobucket.com/albums/...psgklbvslu.jpg

And the after:

http://i1231.photobucket.com/albums/...psfmerpmql.jpg

Cory is a hell of an artist and we are privilege hes is working on G5.R


http://i1231.photobucket.com/albums/...psmlt90dls.png


This is just one of the murals he is working on at the shop.



http://i1231.photobucket.com/albums/...ps6ofh3c3m.jpg

http://i1231.photobucket.com/albums/...psiaukspck.jpg

Amazing work!

x2 Impressive work.

Nothing in the entire Universe can compare!

Thanks guys, she's getting closer to the finish line.

LOL, too funny bud!

The Tiger mural has to be going on the side of a 77 Chevy Van. LOL God that brings back memories of my youth.LOL

Straight up Boris Vallejo fantesy art. Nice.

It sure does bring back memories. Its a trunk for a 55 Chevy low rider.

Bingo, that's what the customer wanted.

Here a trunk he just finished for a 62 Impala. lots of detail!

http://i1231.photobucket.com/albums/...pstweocq0u.jpg

http://i1231.photobucket.com/albums/...psc8abdhou.jpg

http://i1231.photobucket.com/albums/...ps0qmd49tt.jpg

http://i1231.photobucket.com/albums/...pscwocobrg.jpg

http://i1231.photobucket.com/albums/...pswyuqdvwb.jpg

http://i1231.photobucket.com/albums/...pszisgdfkk.jpg

http://i1231.photobucket.com/albums/...psvt0dprk3.jpg

http://i1231.photobucket.com/albums/...pszrgqrd3t.jpg

On the home front, wet sanding is getting completed.

http://i1231.photobucket.com/albums/...psptqmznox.jpg

fantastic:headspin: :headspin:

Holy smokes that work is insane. Love seeing that talent put to use.

Wow!

Thanks for the props guys. We have some updated to do on the thread when we get a few minutes.

We are at the point were the project is most enjoyable. Most all fab is down and now we are just putting her together.

We received the trans back from RPM. They did their Stage 5 performance upgrade on it. We also replaced every bolt with ARP.

http://imagizer.imageshack.us/v2/128...924/iGfAEy.jpg

We also replaced the stock slave with RAM's through out bearing.

http://imagizer.imageshack.us/v2/102...924/eujBbs.jpg

We also decided to replace the Mantic clutch with RPS twin disc carbon clutch. We have heard nothing but great things about this clutch. More expensive but worth it in the long run.

http://imagizer.imageshack.us/v2/102...922/xCgCzp.jpg

We added a little heat protection to the starter.

http://imagizer.imageshack.us/v2/102...922/6Eq948.jpg

DC Powers made us this alternator to match the 8 lbs Braille battery. They made machined both end out of billet and we had them anodized gun metal gray before they put the unit together.

http://imagizer.imageshack.us/v2/102...924/JveKt7.jpg

http://imagizer.imageshack.us/v2/102...922/8j57n1.jpg

http://imagizer.imageshack.us/v2/102...922/1o90VR.jpg

http://imagizer.imageshack.us/v2/102...921/PdhJ4B.jpg

We used ll Much vapor canister for both the gas tank and the diff. We located on on each wheel well.

http://imagizer.imageshack.us/v2/102...924/57yKTK.jpg

http://imagizer.imageshack.us/v2/102...924/G5gMIi.jpg

http://imagizer.imageshack.us/v2/102...922/81awBr.jpg

Here you can see the breather on the bottom side. Still need to connect the line to the tank in this picture.

http://imagizer.imageshack.us/v2/102...924/sDb8WZ.jpg

Becuase we relocated the gas fill to the trunk, we had to come up with a solution for the vapor line, we used this slick valve that will close if the car were to flip upside down.

http://imagizer.imageshack.us/v2/102...923/y7ofN6.jpg

Had a bunch of interior parts painted to get rid of the plastic look.

http://imagizer.imageshack.us/v2/102...921/py58Ts.jpg

http://imagizer.imageshack.us/v2/102...921/7p0Hmp.jpg

http://imagizer.imageshack.us/v2/102...922/Haczkg.jpg

http://imagizer.imageshack.us/v2/102...923/C3pxgO.jpg

http://imagizer.imageshack.us/v2/102...924/XvBc1I.jpg

Smoothed and painted the underside of the hood vent black.

http://imagizer.imageshack.us/v2/102...921/rCE3iC.jpg

There must be 100 hours into this hood vent! This will give you an idea what we start with. Each vent was slightly enlarged. We removed the 6 studs mounts as we are going to epoxy it onto the hood. Then it was time to smooth it. You just cant skim coat the part as the gray will show through on the to side. So had to build it with high build black primer and sand most of it off. This process was repeated four times before painting it black and cleared. The top side was given three coats of cleared followed by black candy and three more coats of clear. The end results is amazing but most wont know the amount of effort that has gone into just this one piece.

http://imagizer.imageshack.us/v2/102...922/GUC5MZ.jpg

Painted the down bars black on the carbon fiber grille.

http://imagizer.imageshack.us/v2/102...922/I7Lsl9.jpg

http://imagizer.imageshack.us/v2/102...924/CLlZfR.jpg

Couldn't leave the peddles unpainted.

http://imagizer.imageshack.us/v2/102...921/75bwGx.jpg

Could get these powder coated as the rubber would melt, so we painted them to match the powder coating. We might not use them as we are making billet drop spindles and new front control arms.

http://imagizer.imageshack.us/v2/102...921/irxoxG.jpg

http://imagizer.imageshack.us/v2/102...922/8KaBJ2.jpg

http://imagizer.imageshack.us/v2/102...924/UJnrAW.jpg

This was like the fourth rending of the coil wires relocation bracket we made, LOL. Waiting on the ARP custom 12 point stainless bolts to replace those.

http://imagizer.imageshack.us/v2/102...921/tXsJpR.jpg

We used the factory brackets for the emergency brake lines for the trans cooler lines instead.

The diff bolts were replaced with ARP studs.

http://imagizer.imageshack.us/v2/102...923/0VoYoI.jpg

More ARP custom bolts. We drilled them for safety wire. Once we are done and know were not going to take anything apart again, we will wire them up.

http://imagizer.imageshack.us/v2/102...921/jfbvfG.jpg

Those Penskes are sweet!!!!

http://imagizer.imageshack.us/v2/102...923/5Z4Jiy.jpg

Few more pics.....

http://imagizer.imageshack.us/v2/102...923/FwR1PQ.jpg

http://imagizer.imageshack.us/v2/128...922/11yJPs.jpg

http://imagizer.imageshack.us/v2/102...921/jj5ZEw.jpg

Quick mock up of the dash. Going to the upholstery shop to get wrapped in black leather with white stitching.

http://imagizer.imageshack.us/v2/102...922/ccjKmv.jpg

Al the car looks incredible. I am also looking forward to meeting your kids who have been busting there ass on this car.


Marty-MJ

Beautiful !

What brand of shielding are you using in the tunnel and on the starter?

Thanks guys!

DEI


Justin has been design a strut bar that will tie in the firewall to the strut tower. He 3-D printed them first before having them machined.

Camber plates with mount for strut bar. This was his first design rendition.

http://i1231.photobucket.com/albums/...pstqbzqhtp.jpg

He wasnt happy with the first design, so he made a second rendition.

http://i1231.photobucket.com/albums/...pswxclyyfd.jpg


3D printed bracket that mounts to the firewall. He threaded the fire extinguisher nozzle to the center.

http://i1231.photobucket.com/albums/...psm5h7tpqg.jpg

http://i1231.photobucket.com/albums/...pskj47zgsg.jpg

this is a preliminary drawing of the 1" rear drop spindles we are making.

http://i1231.photobucket.com/albums/...ps8kjhynqa.jpg
