Sorry about the wasted time on the supercharger snout. I did mine on the bench. Hardest part was lifting the beast off the engine alone - not a good idea. I used the hoist to put it back.

The brackets look really nice. That is a great idea for guys on a budget like me.

What would happen if you sprayed a layer of gloss over the current finish?

Looking good Waynie,won't be long now:thumbsup: :thumbsup:

gofastwclass, I think it's staying until I get it running, then next winter if it bothers me too much I'll hit it with scotch brite and shoot it gloss.
Thanks tubbed69

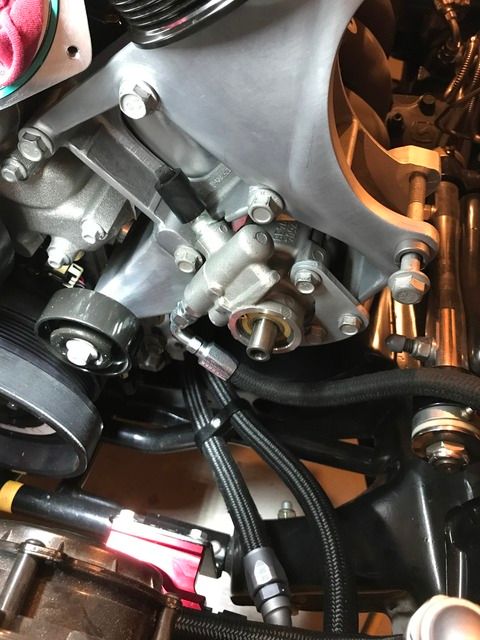

We got a chance to finish some oil cooler lines and route them from the radiator oil cooler back through the filter and to the motor. Finally they all fit.

http://i172.photobucket.com/albums/w...psuki2te05.jpg

http://i172.photobucket.com/albums/w...psxcl87oem.jpg

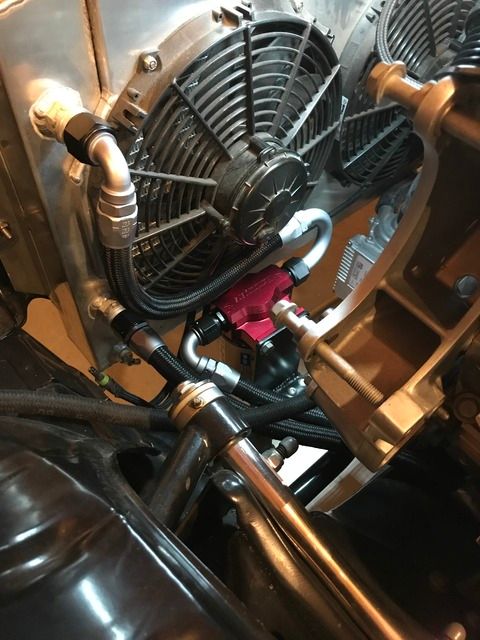

Picture from the other side with some of the inter cooler lines, reservoir and pump .

http://i172.photobucket.com/albums/w...psfk19d2ac.jpg

Next will be where to fit the power steering reservoir. I'm thinking either on the bracket that holds the alternator( If there's room ) or above the Hydroboost it will have two short returns from brakes and power steering pump and one long return to bring fluid back to the pump. not sure if that would work???

Wow does your car look fantastic


Sent from my iPhone using Tapatalk

Thanks!
We did a little in the garage today we decided to put the power steering reservoir next to the brake master. So I took the bracket that holds the Alt,and steering pump off and made a hole above the pump so the return hose could come up and over the bracket then between the bracket and the valve cover. From there it will run over to the reservoir mounted on the inner fender.

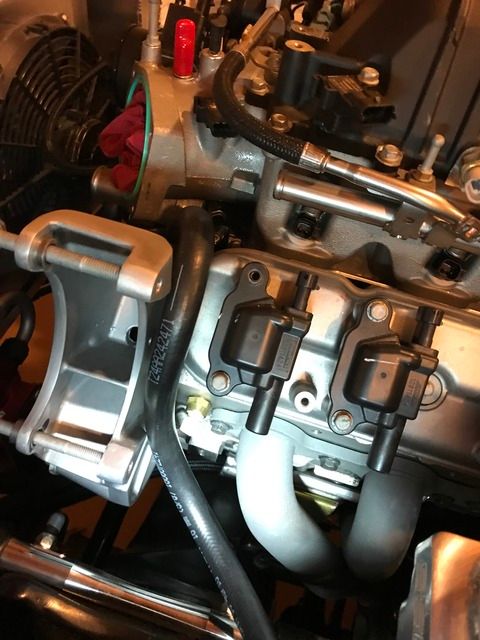

Here's where I made the hole for the hose to come up over the bracket.
http://i172.photobucket.com/albums/w...psa8cmmh2j.jpg

It will run straight and further away from the header heat.

http://i172.photobucket.com/albums/w...ps3w13yhdx.jpg

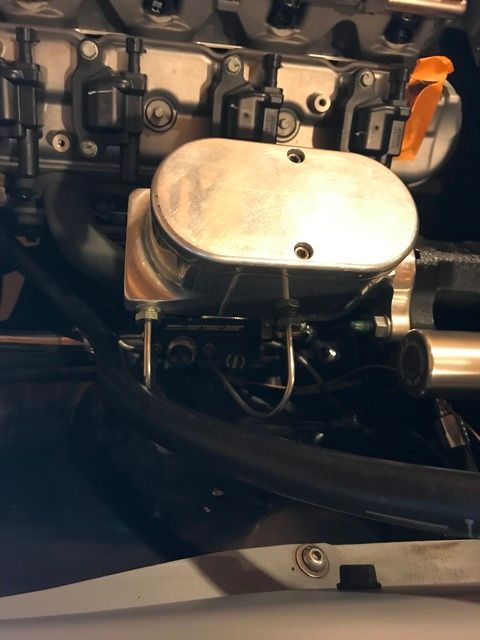

We're going to try to fit it between the fender and the brake reservoir.

http://i172.photobucket.com/albums/w...ps7k4u7h1p.jpg

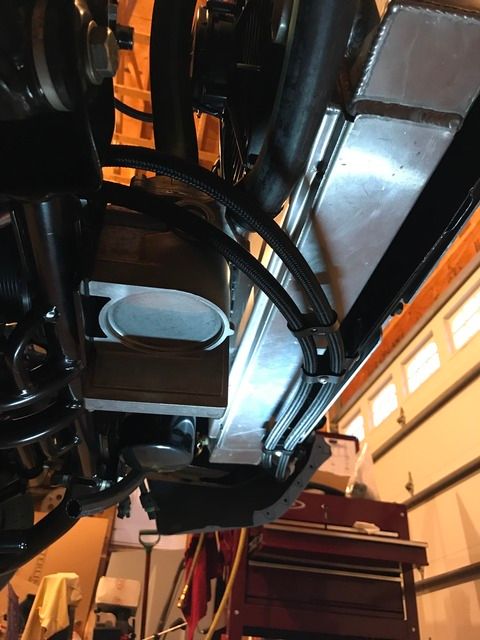

I also secured the trans cooler lines to the Radiator support and test fit them to the cooler.

http://i172.photobucket.com/albums/w...psqu2wqqvy.jpg

I finished making up the top radiator hose with the Finch adapter with a spot for the steam hose connection, tomorrow I'll make the -4 hose for the connection.

Looking good, Wayne:thumbsup: . When you're out playing in the garage again thing you could tell me how tall t hat supercharger hat is? I'm thinking it's right about 4.5"

You got it AJ, just a CH under 4.5"

I made up the steam hose, but would like some opinions. I want to run the hose under the Radiator hose and tap in the bottom of the fitting at about 5 o clock. Where it goes in the fitting is higher than the highest point on the engine that has cooling water. I think it will work but would rather check before I put any Gates shrink clamps on it.

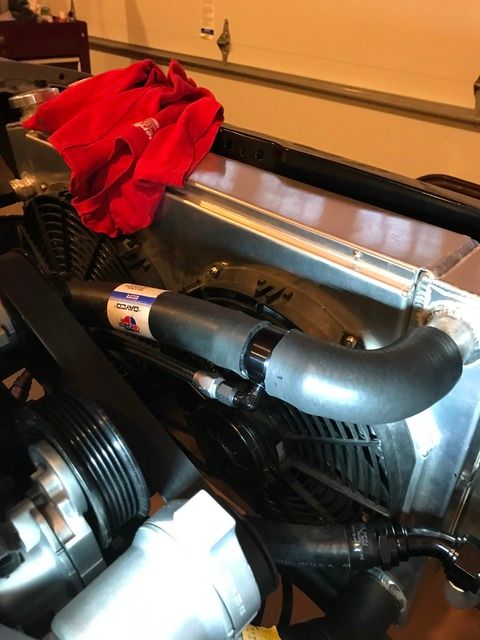

Here it is.
http://i172.photobucket.com/albums/w...psv3jnsyrs.jpg

I put the top heat exchanger line on to test fit. I was going to use short pieces of hose to connect the bends I had to use to get under the radiator support. When I did I figured a way to just have the tubing welded with the angles I needed and weld a -16 fitting on the end to connect the hose that goes to the supercharger lid. The hose you see on it is just to hold it so the welder can set it up to weld.

It comes up on the other side of the Rad support.

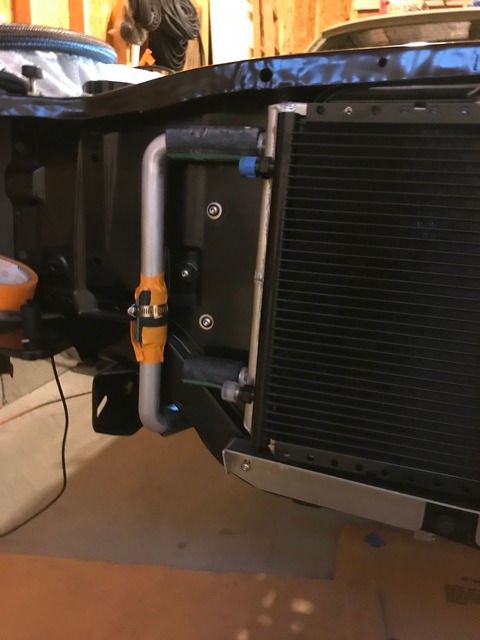

http://i172.photobucket.com/albums/w...psnst64oop.jpg

In this picture you can see the Radiator hose I made up with a coupler between two pieces of hose. It needs to be seperated in the middle so it goes on the waterpump a little further.

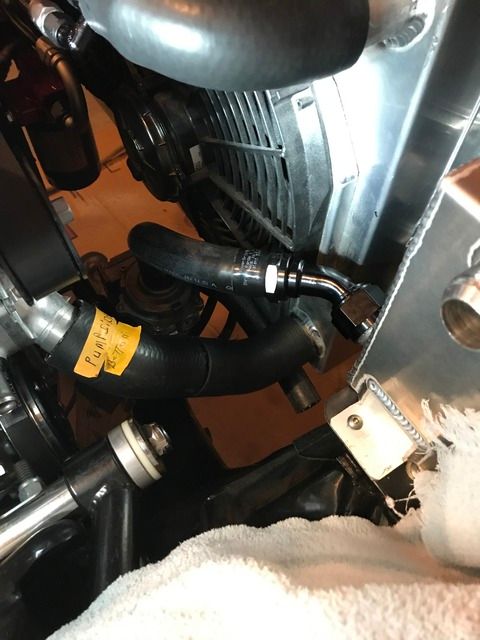

Also in this picture you can see the hose from the intercooler reservoir going into the pump. Because of the way I had to get around the fan it was collapsing a little so I ordered some XRP flat wound internal support coil to keep it open. I installed it and installed the fitting and it's good to go now.

http://i172.photobucket.com/albums/w...psmjtpgvzl.jpg

What are you guys using to cut your braided hose?

What are you guys using to cut your braided hose?[/QUOTE]

Wayne looks awesome....I found using a cut off wheel works better. Although I will wrap it with electrical tape rather than duct tape, it doesn't seem to pull the frayed ends out when you remove it.

Wayne looks awesome....I found using a cut off wheel works better. Although I will wrap it with electrical tape rather than duct tape, it doesn't seem to pull the frayed ends out when you remove it.[/QUOTE]



x 2

Man you are really making progress now. Looking at all the little details is both exciting and terrifying, reminds me how much I have to do still !
