Marty always has to show his is bigger than mine..........:D

Marty. I just went back and read your last post I thought these were the pictures you sent me a couple a weeks ago so I just paned through them . You did'nt tell me about this DSE ordeal ? I do have a question and I'm not trying to be funny here but did you offer to pay for these spring pockets? I'm shocked that DSE would do this !!! If you wanted them for nothing I would tell to go pound sand to! But if you offered to pay and seeing you have everthing else DSE back there I don't understand what the problem is here. I'll have to give you a call when I get some time.

2nd Chance Camaro - Putting the Car on the Rotisserie

Putting the Car on the Rotisserie
*Posted: Nov Oct 31, 2011 www.2ndchancecamaro.com

Time has finally come to get the car on the rotisserie. I really want to see what is hiding under the 40 year old
paint job. Mario from US Collision was kind enough to loan me his rotisserie as we are really trying to keep this car
on a budget.

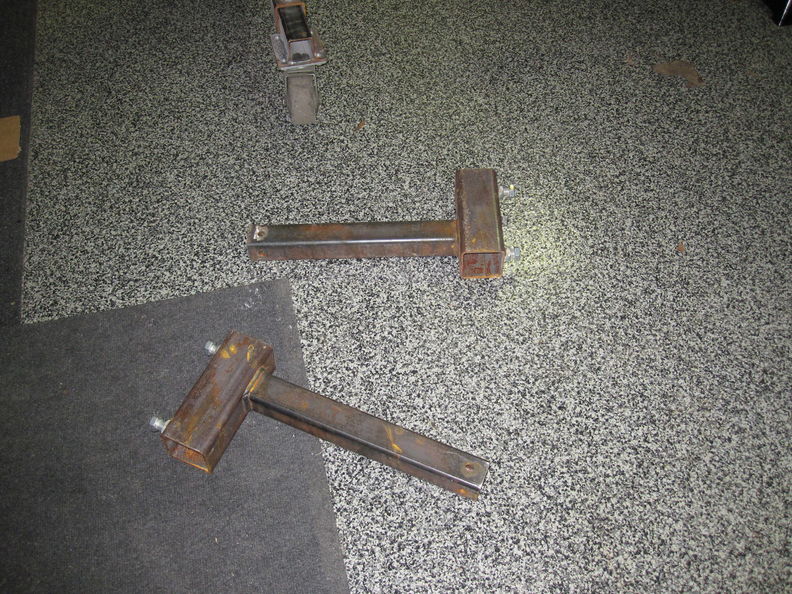

We made a couple modification to Rotisserie to make sure the car was securely mounted and wouldn't fall on Jay
the media blaster. He's got a family and I wouldn't want to be the guy who's car fell on him crushing him.* First thing
we did was to add legs to the Front End Dolly so we could slide the car onto the lift instead of bolting it directly to the lift.

http://garagescene.net/_data/i/uploa...afbb05d-me.jpg

http://garagescene.net/_data/i/uploa...b44176d-me.jpg

I purchased the larger tube from a trailer shop. They use it to make trailer hitches so there is no seam on the inside
and it make for a nice tight fit.

http://garagescene.net/_data/i/uploa...28768f7-me.jpg

Once I hauled the car over to High Speed Welding Dennis quickly made up these support brackets to take the load
off the lower body mounts. It's amazing how much the chassis mounts flexed or should I say bend when it's be
supported by the factory mounts.

http://garagescene.net/_data/i/uploa...3211c81-me.jpg

Getting the rear on the Rotisserie was pretty easy with the help of a chain hoist and a couple guys from the shop.
However, It did cost me breakfast and yes that is the subframe back from Pro-Tek. Super Clean and getting ready
for some clean up work.

http://garagescene.net/_data/i/uploa...017c8d0-me.jpg

In the rear we used the rear spring shackle mount to anchor the car to the rotisserie.

http://garagescene.net/_data/i/uploa...18c5937-me.jpg

Four Hours later back in the trailer and heading to Pro-Tek Powder Coating to get stripped off all it's paint.

http://garagescene.net/_data/i/uploa...4b03cfc-me.jpg

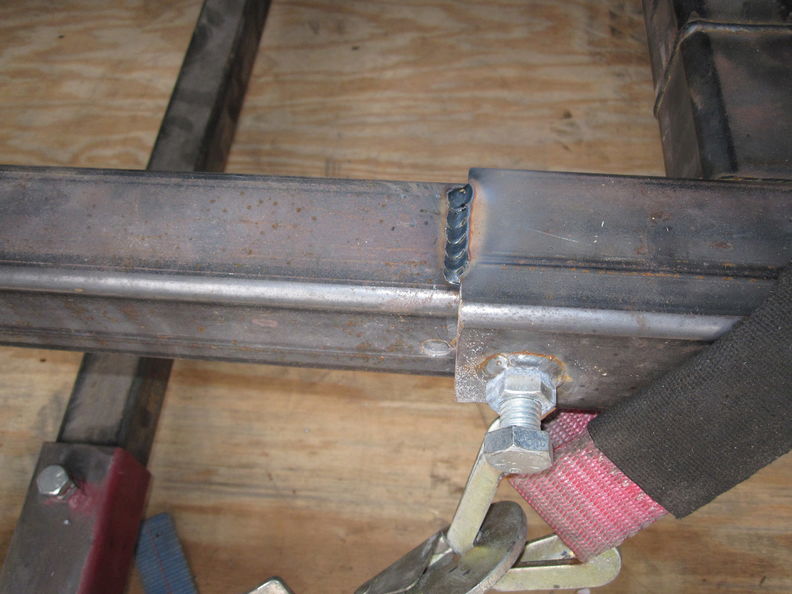

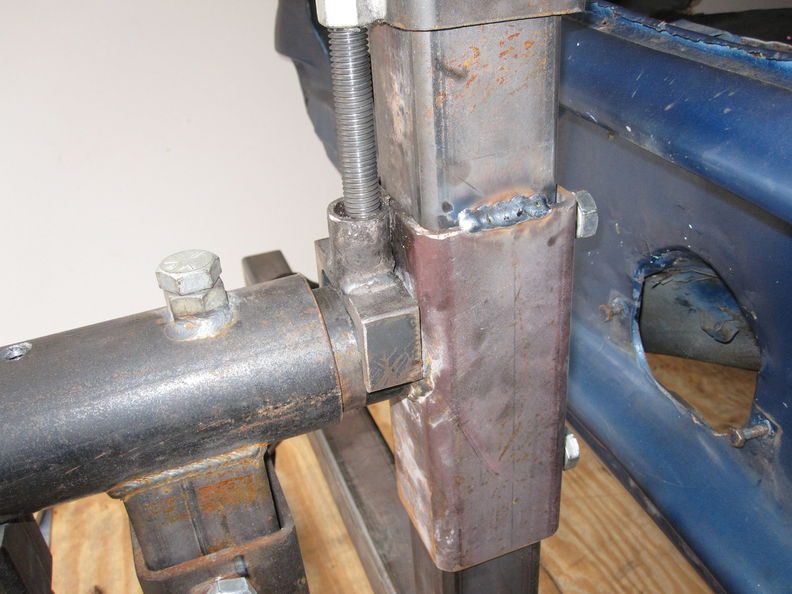

Dennis also put a couple extra welds on to prevent the car from sliding around. When the car is off the lift for the last
time I will just grind the welds off and it will be back to the way it was when I picked it up from Mario.

http://garagescene.net/_data/i/uploa...d86a395-me.jpg

http://garagescene.net/_data/i/uploa...af7c1ce-me.jpg

www.boommat.com

Quote:

Originally Posted by MarkM66 (Post 376951)

I found this in another post about the front shackles:

"another way is to just flip sides.

The right pocket goes on the inside of the drivers side frame and visa versa. Make mounts for it and reinforce the floor. You have to move the dif and rear mounts in equally too. A better solution would be running a link type suspension."

Yep I ordered up the rear set up from Ride Tech Looks like I am going Coil-Over. Ride Tech customer service is top notch.

Quote:

Originally Posted by DOOM (Post 377114)

Yep Offered to pay and no dice & I never asked them for anything free. Heck I just spent $2500.00 with them in the last 8 weeks.

Quote:

Originally Posted by DOOM (Post 376952)

Marty always has to show his is bigger than mine..........:D

Really I am not going to comment here ................

2nd Chance Camaro - ProTek Powder Coating Time for Media Blasting

ProTek Powder Coating Time for Media Blasting
Posted: Nov Nov 16, 2011 www.2ndchancecamaro.com

Good Morning,

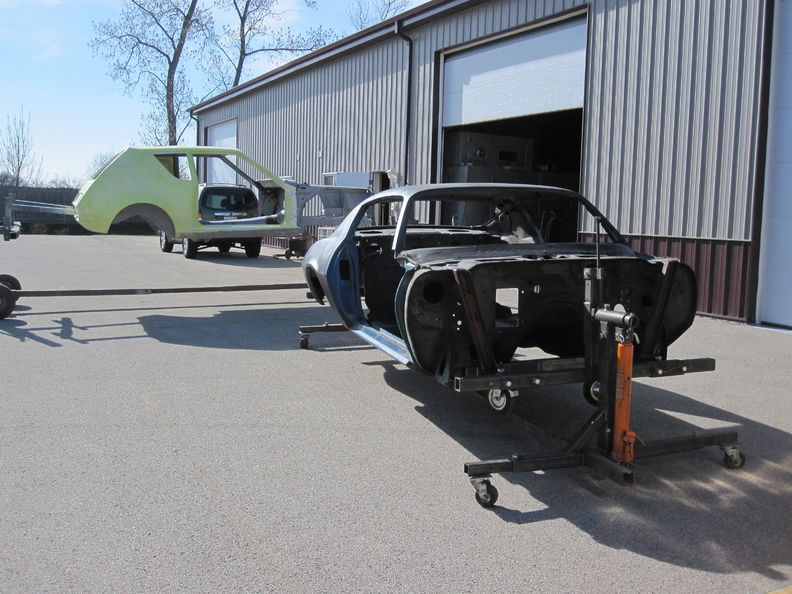

The car is in the hands of Jay over at ProTek Media blasting. In a couple days we are finally going to know what is hiding under what's left of the paint.

http://garagescene.net/_data/i/uploa...49aceb4-me.jpg

http://garagescene.net/_data/i/uploa...61c71e0-me.jpg

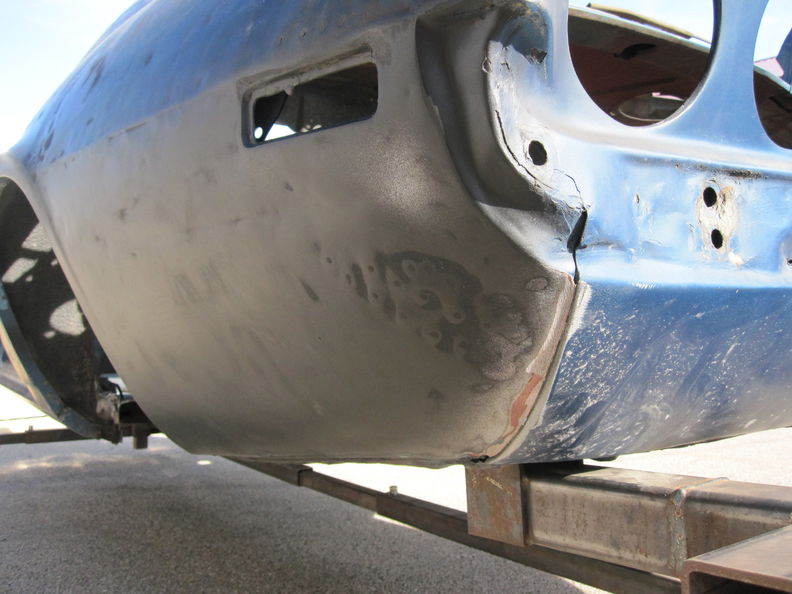

You can see the car took a small hit on the Drivers Side rear but it*doesn't look to bad.

http://garagescene.net/_data/i/uploa...cedc381-me.jpg

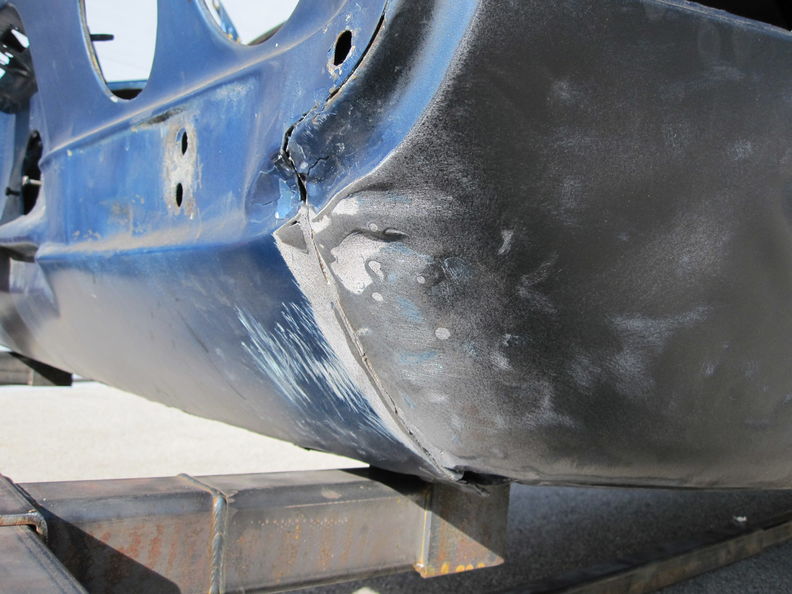

Mario & I both agreed that I should look for a new rear panel since this one is to far gone. Time to see if Tom from Courtyard Camaro
(( [email protected]*)) *has a NOS piece he is willing to sell. If you need Camaro parts he is your guy.

http://garagescene.net/_data/i/uploa...9df2bcf-me.jpg

We've got a few holes to fix*from previous body work.

http://garagescene.net/_data/i/uploa...79e2ce6-me.jpg

Really, right on the body line - that stinks.

http://garagescene.net/_data/i/uploa...8feda8e-me.jpg

pictures hosted by www.garagescene.net

Looking good Marty! As much crap as I give you I really love this build. Can't wait to see this done.
Mike

Quote:

Originally Posted by syborg tt (Post 376914)

2nd Chance Camaro - Size Does Matter - Which in the end might not Matter

http://garagescene.net/gallery3/var/...ceLogo_100.jpg

Size Does Matter- Which in the end might not Matter

Posted: Nov 04, 2011 www.2ndchancecamaro.com

Last week I was looking at the tires stored in Mario's 69 Camaro. I couldn't help but notice that his tire looked skinny compared to the 335 BFG tire sitting in my garage. I kept telling Mario that my 335 was much bigger then his 345 and he said no way. So I took his tire home to find out if I was correct. I figured a side by side test would be the only way to prove that the BFG KDW 2 are indeed bigger.

Left: BFG 335 35 18 ( 14" Wide )
Middle: Michelin 345 __ 19 ( 13" Wide )
Right: BFG 295 35 18 ( 12" Wide )

http://i996.photobucket.com/albums/a...compare001.jpg

Close up of the BFG 335 & Michelin 345 -- The BFG is 1" Wider

http://i996.photobucket.com/albums/a...compare002.jpg

Close Up of the Michelin 345 & the BFG 295 -- Not much of a difference

http://i996.photobucket.com/albums/a...compare003.jpg

The BFG 335 height compared to the BFG 295 - you can see the difference is much greater

http://i996.photobucket.com/albums/a...recompare1.jpg

Also the height is much taller on the Michelin.

http://i996.photobucket.com/albums/a...compare004.jpg

The plan has to been to run the 295's on the street and the 335's for Good-Guys events. In the end I may only be able to run the 295 on the back of 2nd Chance Camaro because I can't get the bracket from DSE.

Why you ask ?
The Mini-Tubs I purchased from DSE will fit the 335's. However, since I didn't buy there complete leaf spring conversion kit I am unable to purchase the front offset sping pocket I need to complete the conversion. Where I am confused is I can buy offset shackle & spring perch's but not the lower spring pocket - odd. I had the Allen (really nice sales guy) ask Kyle if I could purchase them and Kyle said no dice which kinda sucks.

So now I may be forced to run only the 295's full time. So Buyer Beware if buy the DSE Mini-Tubs you are going to have to make your own lower mounts for the front or by one of there 3 kits DSE offers. Sometimes you
win sometimes you lose.

I do have a couple Options

Option A:
Buy there Mini-Tub Kit # 041221 $1699.00 which doesn't include Leaf Springs & Shocks which will give you an 1.5" drop and then sell the other parts you don't need. Seems expensive but it's only money and you can't take it with you.

Option B:
Would be to have a local fab shop make a set of offset shackle mounts to complete the conversion. If I go this route I will make a couple extra to help out the two other guys I know that are in the same boat as me.

Marty bring the car down I can move the frame rail in so you can run the 335.:thumbsup:or you can install the new ridetech 4-bar rear suspension which will let you run a 335 also.Call me Bud.

Quote:

Originally Posted by coolwelder62 (Post 379148)

Marty bring the car down I can move the frame rail in so you can run the 335.:thumbsup:or you can install the new ridetech 4-bar rear suspension which will let you run a 335 also.Call me Bud.

Thank you for the offer brother you are the best.

However the Good news is I am dropping the car off at High Speed Welding Monday morning for them to move the sping pocket over & finish the exhaust & the Bike rack.
