Quote:

Originally Posted by DFRESH (Post 498019)

I'm pretty sure we need a photo of that in this thread for a visual.

DF

http://www.ssr-wheels.com/gallery/im...4953edited.png

Couldn't find a herrafrush Torino :bang:

Quote:

Originally Posted by DFRESH (Post 498019)

I'm pretty sure we need a photo of that in this thread for a visual.

DF

http://cdn.stanceworks.com/wp-conten...-lozzz-213.jpg

Couldn't find a herrafrush Torino :bang:

Quote:

Originally Posted by Sieg (Post 498028)

http://www.ssr-wheels.com/gallery/im...4953edited.png

Couldn't find a herrafrush Torino :bang:

:topic:

Quote:

Originally Posted by 67goatman455 (Post 497940)

you guys aren't saying it right.

It's Herrafrush

you have to talk Asian

:bitchslap: :twak: : bad taste :guns:

Quote:

Originally Posted by Ron Sutton (Post 497899)

How did that pump look internally?

.

Well good and bad? :lol:

These pumps are elegant in their simplicity.

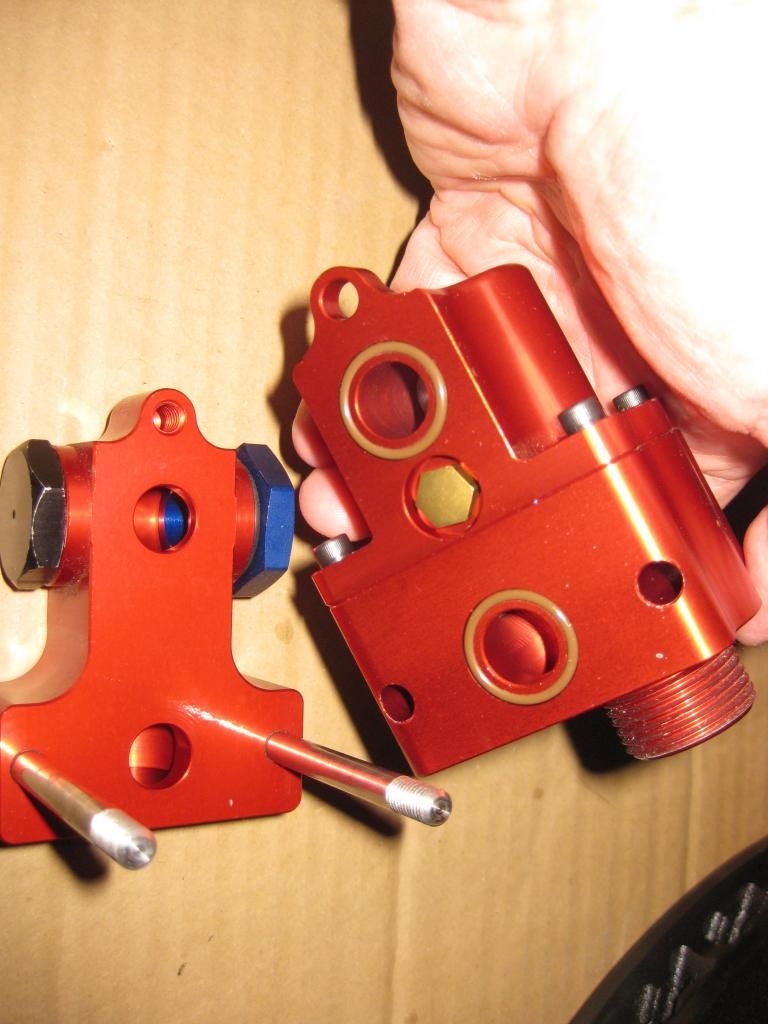

This is the optional side pickup manifold is what I think they call it. It has two long studs and one small allen bolt that attaches it to the pump housing and two small o-rings around the fuel passages.

http://i291.photobucket.com/albums/l...psd7a62afd.jpg

The housing is machined out of AL and hard anodized. The drive shaft and the secondary shaft ride in 4 small roller bearings. One on each half of the housing.

The good is my housing looks great. Clean with no pitting or corrosion to be found. The pump gears are shimmed on the shaft, I presume to obtain spot on operating height within the two steel plates that surround them within the housing. There the gears in the shim stack have a small amount of vertical play on the shafts but don't rock or move horizontally on the shafts. So I assume they are within operating tolerances and normal.

http://i291.photobucket.com/albums/l...ps5eab8f26.jpg http://i291.photobucket.com/albums/l...psf3e73ce4.jpg

Now some bad

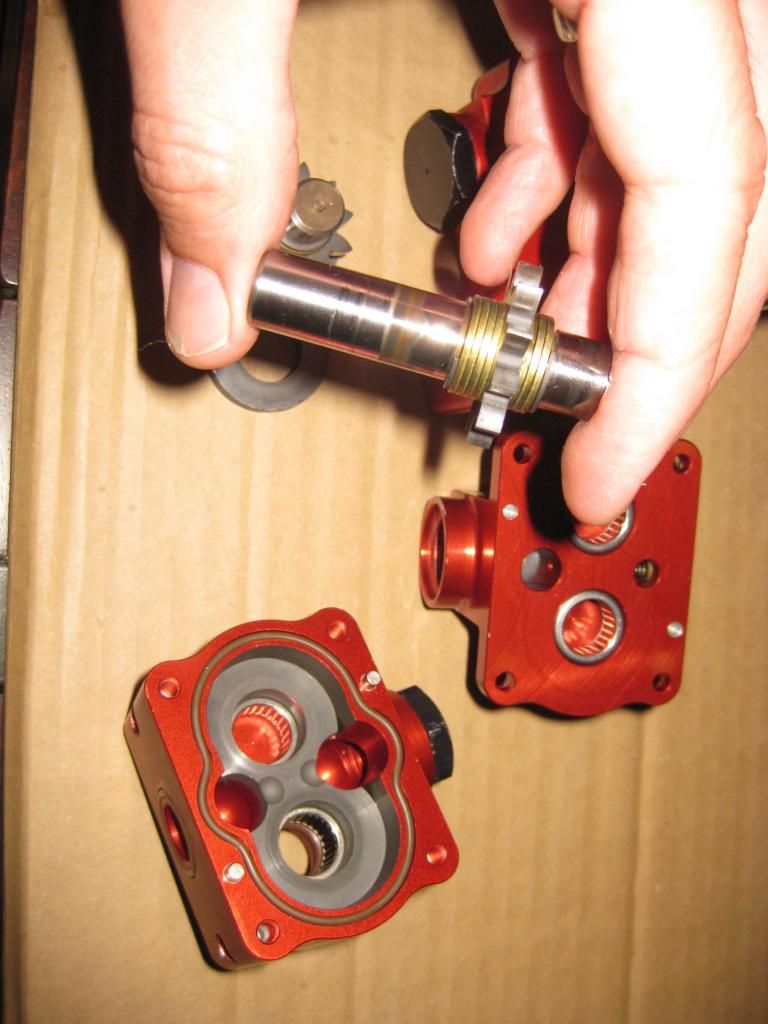

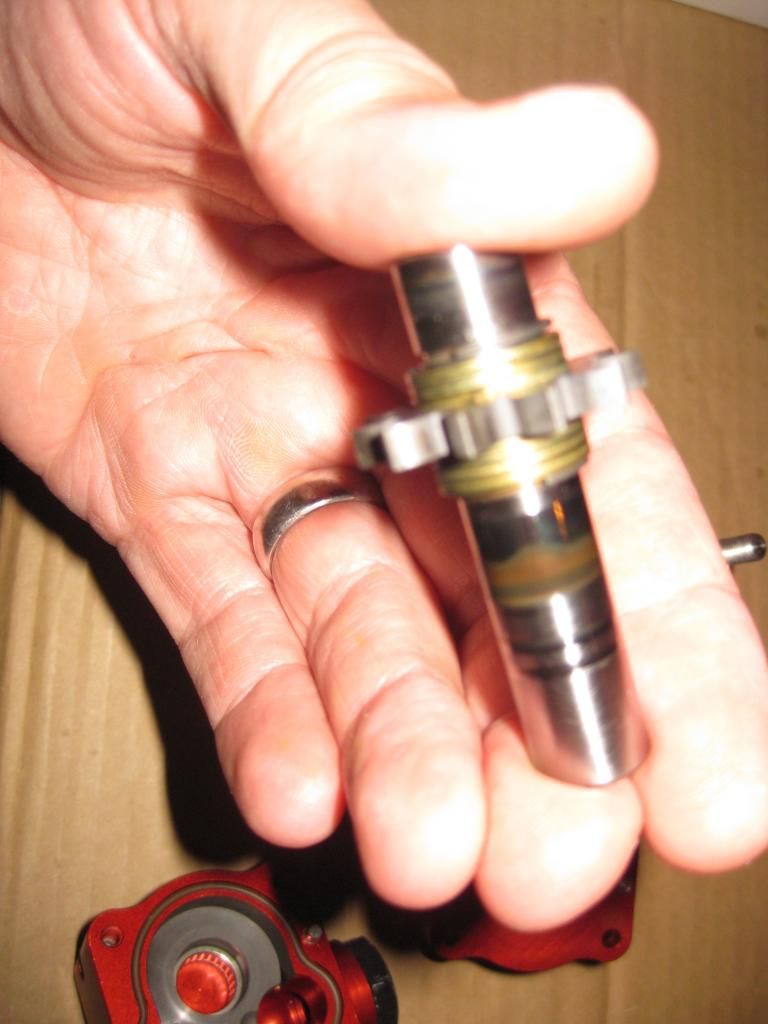

The main shaft has some bluing where it rides in the bearing. The bearing also has a roller or two with a faint coloring to them. So it appears I have one of four bearing bad in the housing.

Scratching the shaft with my fingernail (yes JerDog my manicurist would be horrified:hairpullout: ) I don't feel any scoring and no pitting is evident. I checked the shaft with a mic and there isn't any difference in Dia so I'm pretty sure just a bearing swap and I'm in business.

I think:headscratch:

http://i291.photobucket.com/albums/l...ps56b82d57.jpg http://i291.photobucket.com/albums/l...psc468d8d7.jpg

:cheers:

Dude that pump is neat-o. Definitely pro tracking.. I mean Pro Touring. :sieg:

Would be very cool if you decided to run it.

Wow! That is a niece piece!

Quote:

Originally Posted by FETorino (Post 498156)

Well good and bad? :lol:

These pumps are elegant in their simplicity.
Yes, part of what makes them so durable.

This is the optional side pickup manifold is what I think they call it. It has two long studs and one small allen bolt that attaches it to the pump housing and two small o-rings around the fuel passages.

The housing is machined out of AL and hard anodized. The drive shaft and the secondary shaft ride in 4 small roller bearings. One on each half of the housing.

The good is my housing looks great. Clean with no pitting or corrosion to be found.
That's the key. Everything else is replacable.

The pump gears are shimmed on the shaft, I presume to obtain spot on operating height within the two steel plates that surround them within the housing. There the gears in the shim stack have a small amount of vertical play on the shafts but don't rock or move horizontally on the shafts. So I assume they are within operating tolerances and normal.

Now some bad

The main shaft has some bluing where it rides in the bearing. The bearing also has a roller or two with a faint coloring to them. So it appears I have one of four bearing bad in the housing.

Scratching the shaft with my fingernail (yes JerDog my manicurist would be horrified:hairpullout: ) I don't feel any scoring and no pitting is evident. I checked the shaft with a mic and there isn't any difference in Dia so I'm pretty sure just a bearing swap and I'm in business.

I think:headscratch:

:cheers:

Yes. New bearings & lube. Micro polish those shafts & put it back together.

I PM'd you about the bearings, but now that I see the photos, our Waterman pumps are different. So ignore that message.

Quote:

Originally Posted by Ron Sutton (Post 498239)

Yes. New bearings & lube. Micro polish those shafts & put it back together.

I PM'd you about the bearings, but now that I see the photos, our Waterman pumps are different. So ignore that message.

So I gave Waterman call. I can send the pump to them and they will rebuild and flow it for $110 + parts which a set of 4 bearings runs $54.

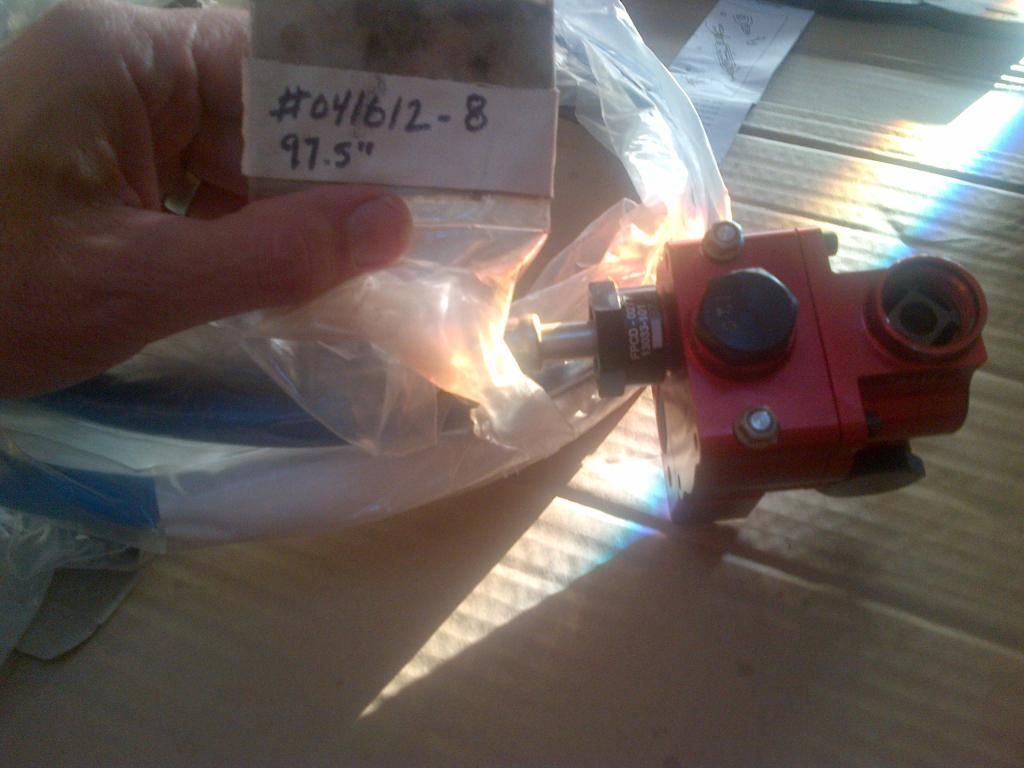

$40 for the pump + $110 + $54 = $204 for a fresh fuel pump ready to run. WTH I'm in, I bought a cable.

I just need the adapter plate for the back of the PS pump and I'm set. actually I need to start shopping for a PS pump.

http://i291.photobucket.com/albums/l...ps4a862f00.jpg

Cool. Good move. Did you talk to Allan ?

Quote:

Originally Posted by Ron Sutton (Post 499397)

Cool. Good move. Did you talk to Allan ?

Yes sir I did.:D

Man this thread is getting way to high tech for me! Rob I thought you were just building a Ford?? :mock:
