Good progress Marty. :thumbsup:

You are definitely putting your own unique McFly touch on it!
:P

Afco Fan Shroud Redo (( 08-02-20 ))


So being honest this part has not been fun.

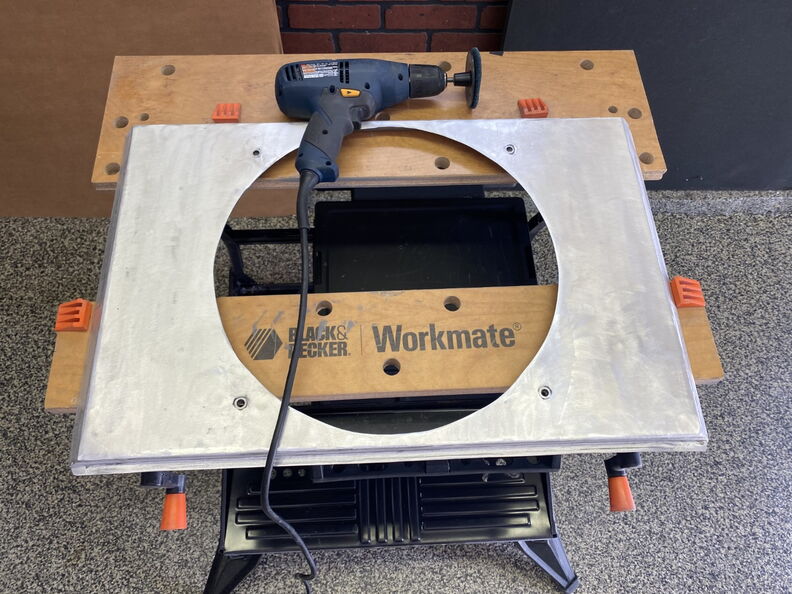

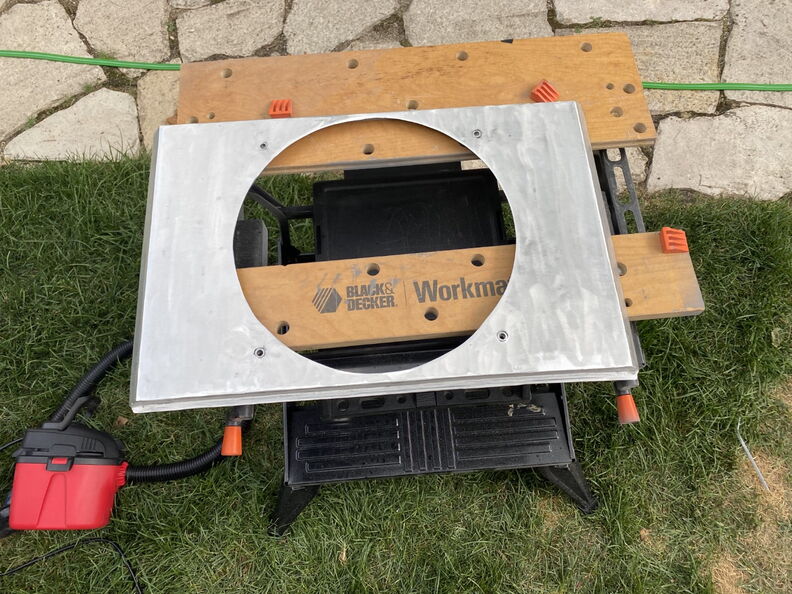

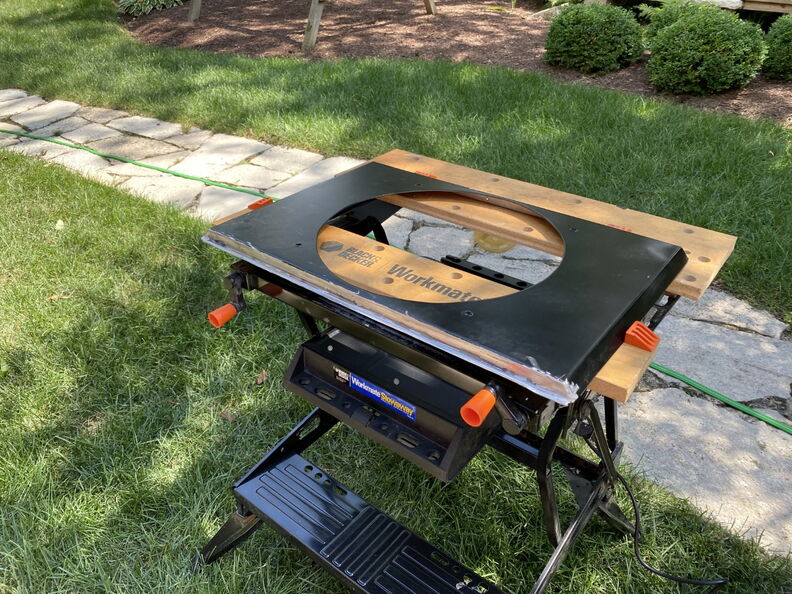

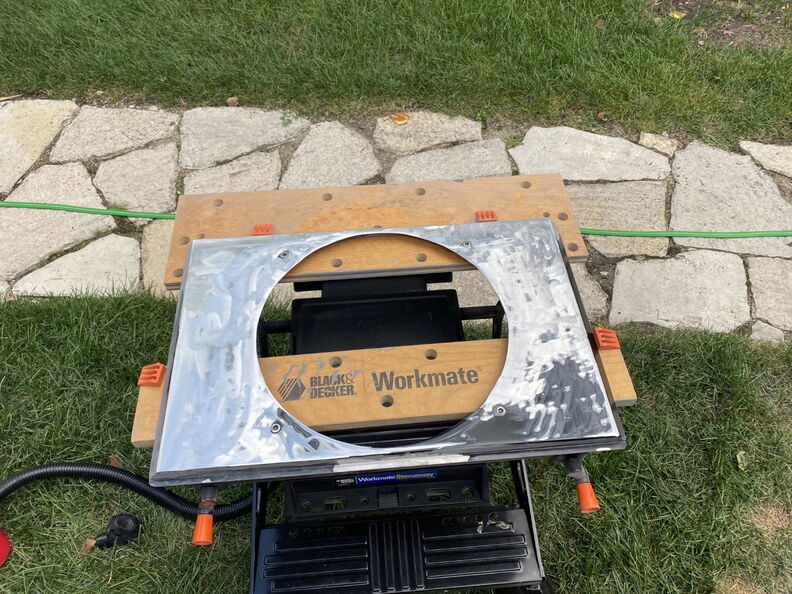

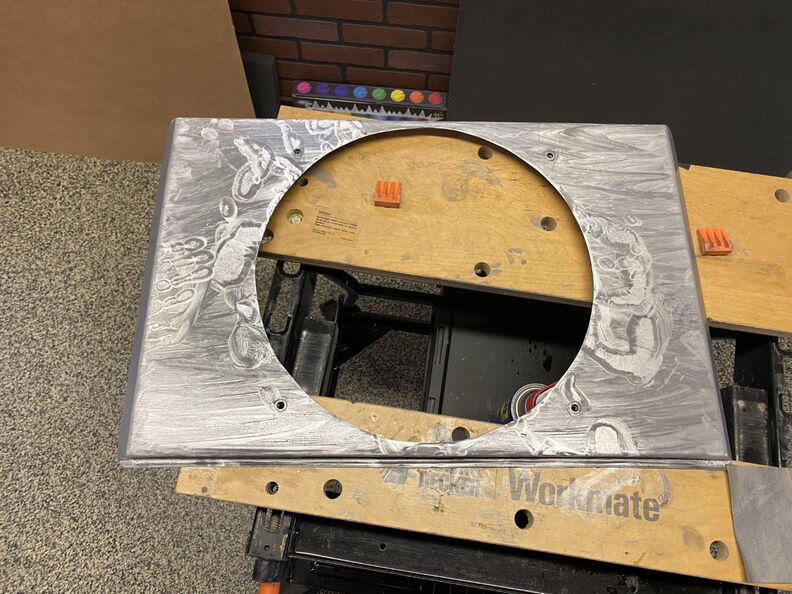

Time to remove all of the paint and create a new way to mount the fan shroud.

http://www.garagescene.net/_data/i/u...6c08a05-me.jpg

http://www.garagescene.net/_data/i/u...93ff0dc-me.jpg

http://www.garagescene.net/_data/i/u...93d9253-me.jpg

http://www.garagescene.net/_data/i/u...c8f47f3-me.jpg

http://www.garagescene.net/_data/i/u...74946a0-me.jpg

http://www.garagescene.net/_data/i/u...756c241-me.jpg

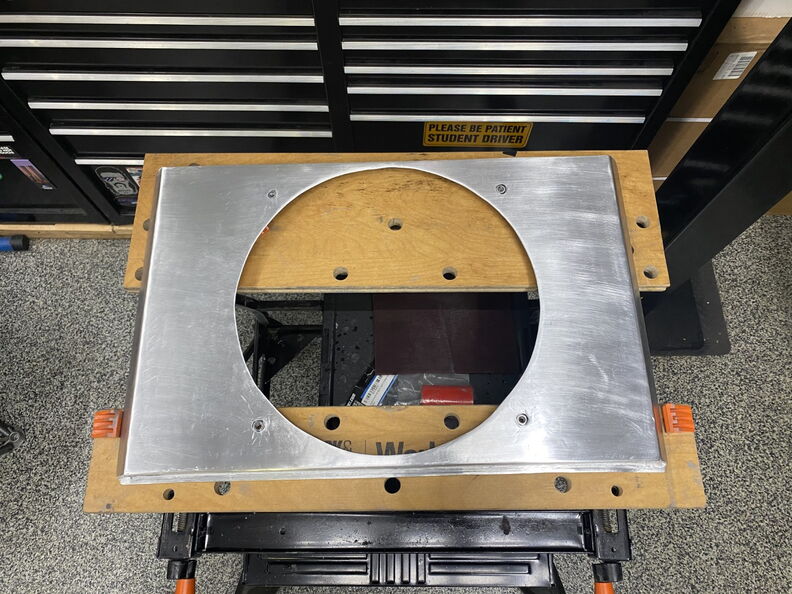

Close enough to take it over to get painted.

http://www.garagescene.net/_data/i/u...4e80df8-me.jpg

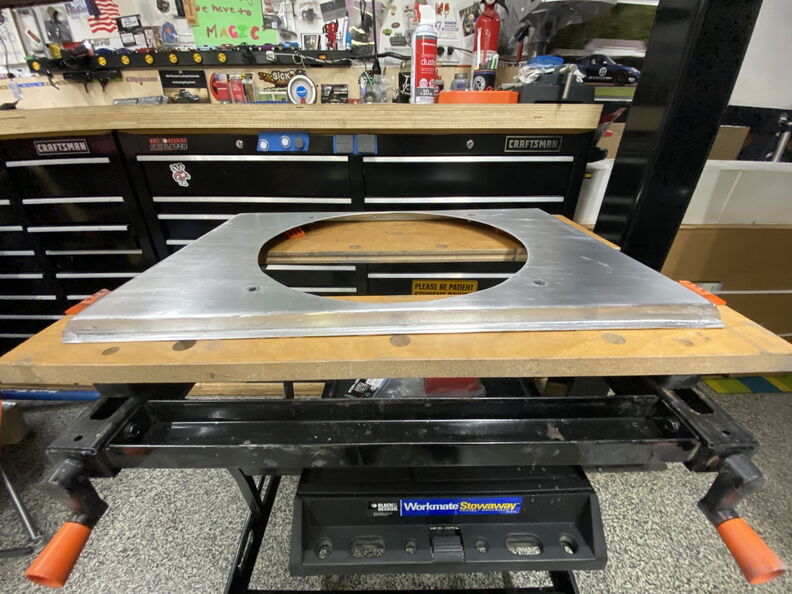

Remember this edge from the first picture.

http://www.garagescene.net/_data/i/u...858df1f-me.jpg

Marty,
Your level of detail surpasses mine and the Camaro is really nice. It took me the last few evenings to get through all the pages. Very informative and I took a few notes ! I need to learn to use more blue tape. Is there a preferred brand and best place to purchase?

Thank you for the kind words.

I like the 3M tape the best and even though I pass two Home Depot’s on my way home from work I still go to Ace Hardware hoping to get a chunky bar.


Sent from my iPhone using Tapatalk

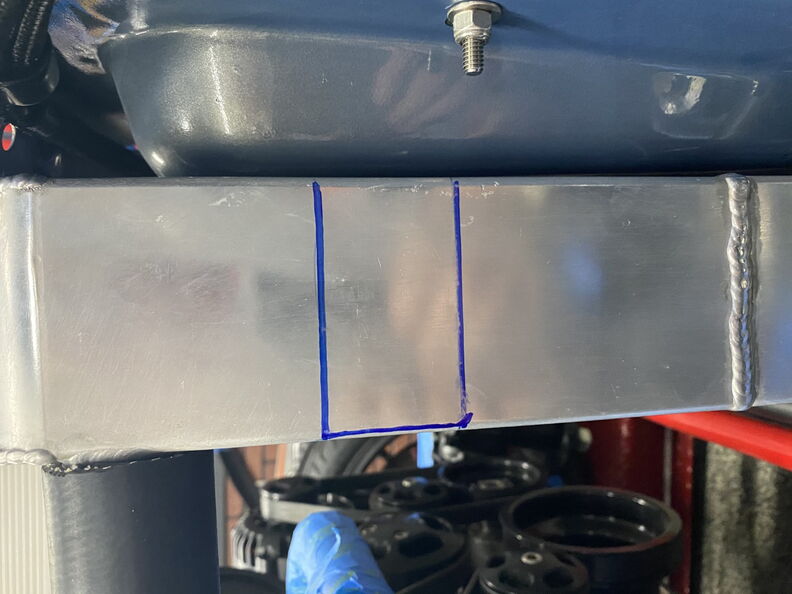

New Upper Mounts for the Radiator (( 08-17-20 ))


Time to make a better mouse trap.

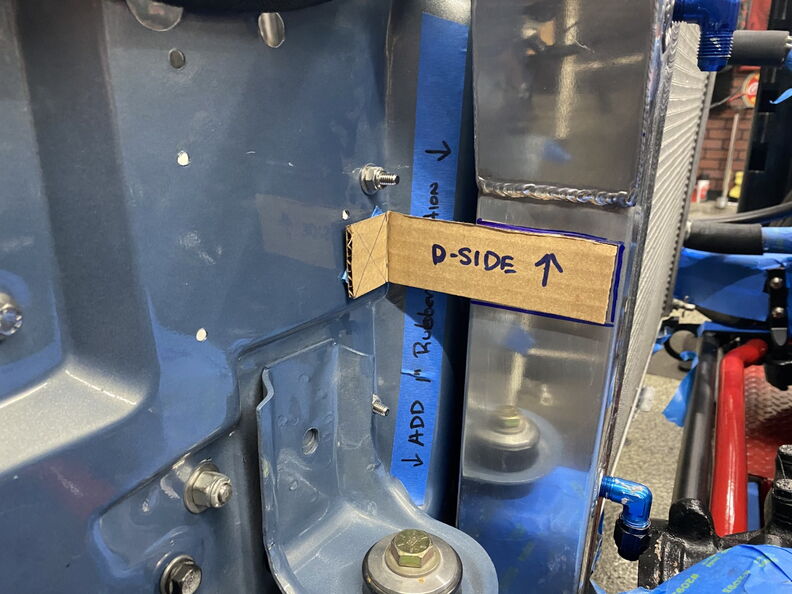

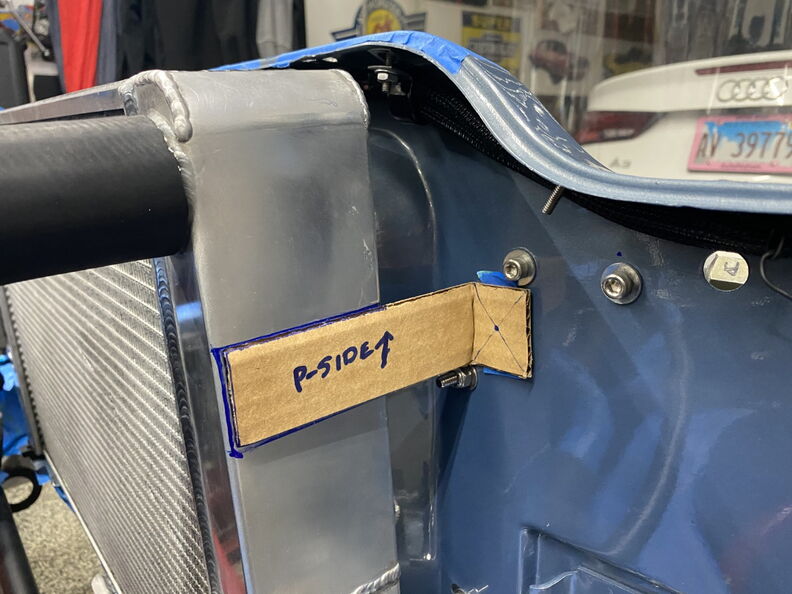

I decided to go in a new direction with how the radiator was secured in place. Keeping with the "KISS Principle - Keep It Stupid Simple" I decide to make a flat bracket they will attach directly to the Core support with rubber Well Nuts.

http://www.garagescene.net/_data/i/u...492e9ac-me.jpg

http://www.garagescene.net/_data/i/u...0899992-me.jpg

http://www.garagescene.net/_data/i/u...92ad2ea-me.jpg

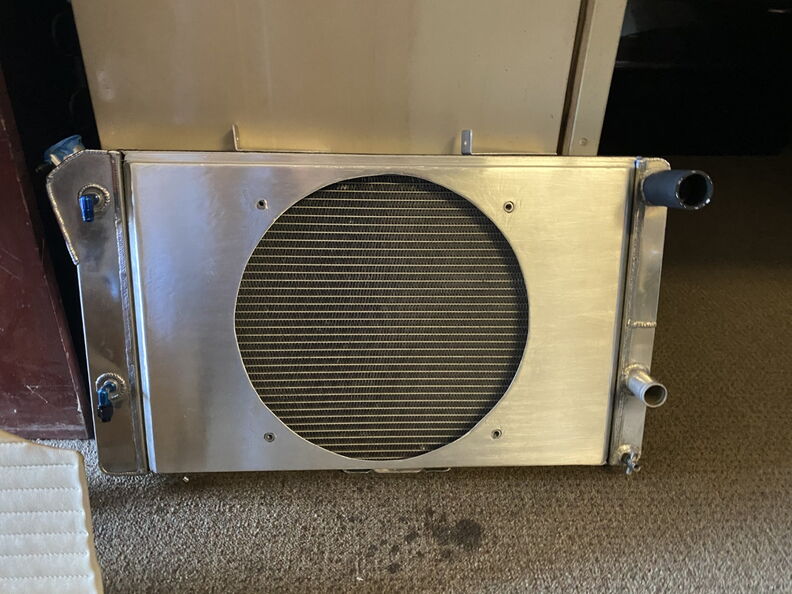

And I might as well have Dennis "High Speed Welding" create a different way to mount the fan shroud.

http://www.garagescene.net/_data/i/u...0d9b34f-me.jpg

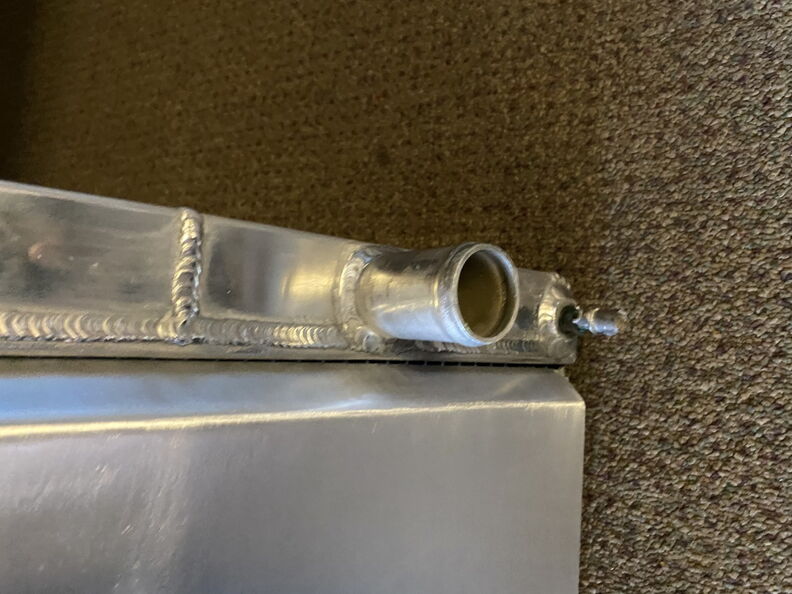

and might as well fix the inlets/outlets so they match the waterpump.

http://www.garagescene.net/_data/i/u...3a42601-me.jpg

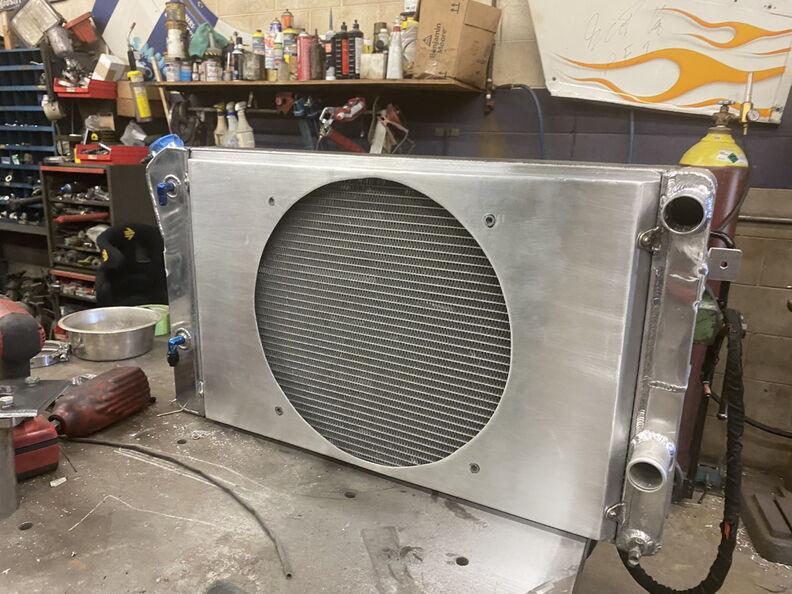

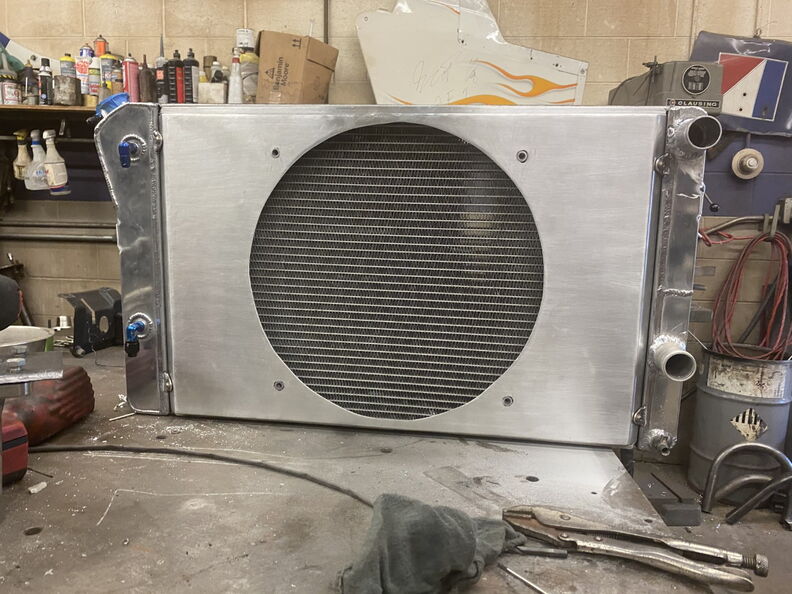

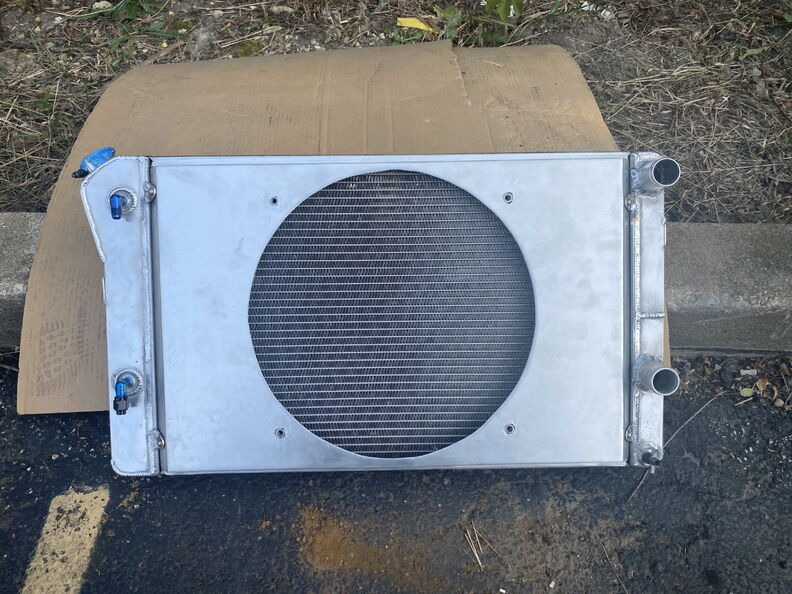

Only one day later it's ready for me to pick up.

http://www.garagescene.net/_data/i/u...b1380bb-me.jpg

http://www.garagescene.net/_data/i/u...1b83d69-me.jpg

http://www.garagescene.net/_data/i/u...056e2ee-me.jpg

http://www.garagescene.net/_data/i/u...be03338-me.jpg

Making progress!

Andrew

Test Fitting the Radiator (( 08-26-20 ))

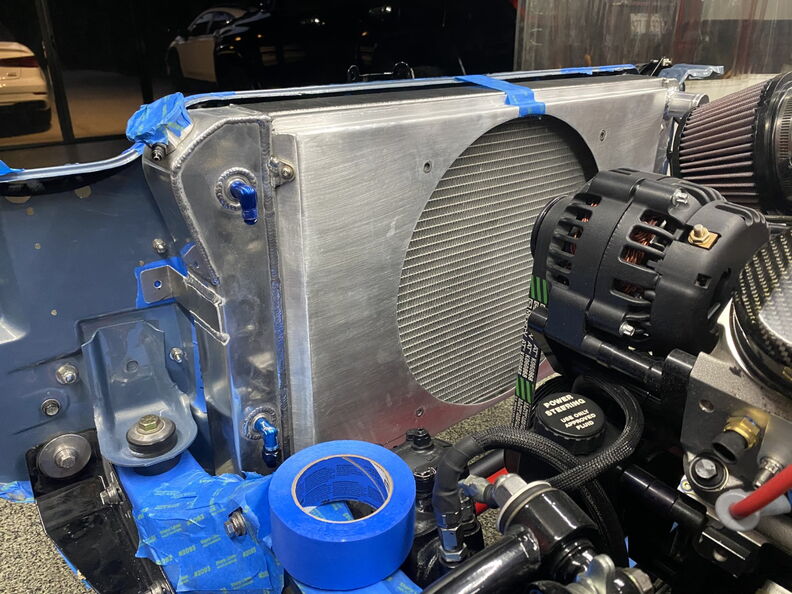

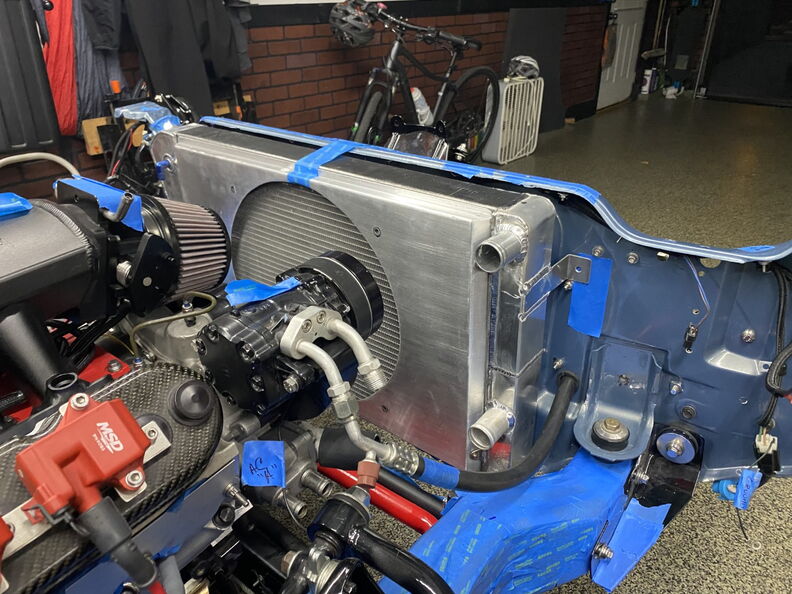

Now that the Afco "Direct Fit" Radiator is home and modified so it will work I might as well test fit it.

http://www.garagescene.net/_data/i/u...c94e256-me.jpg

http://www.garagescene.net/_data/i/u...248358c-me.jpg

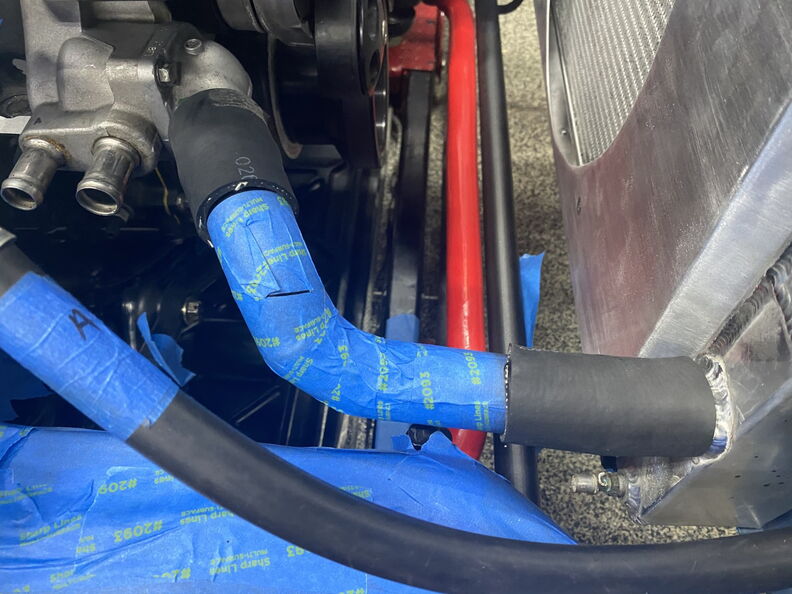

Cutting up some cheap radiator hose to make make sure I order the correct size hoses.

http://www.garagescene.net/_data/i/u...a9a373b-me.jpg

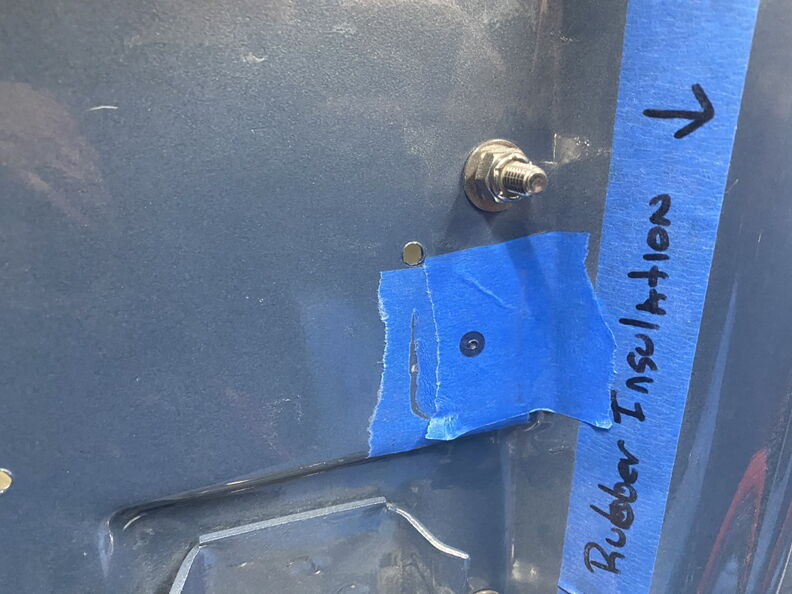

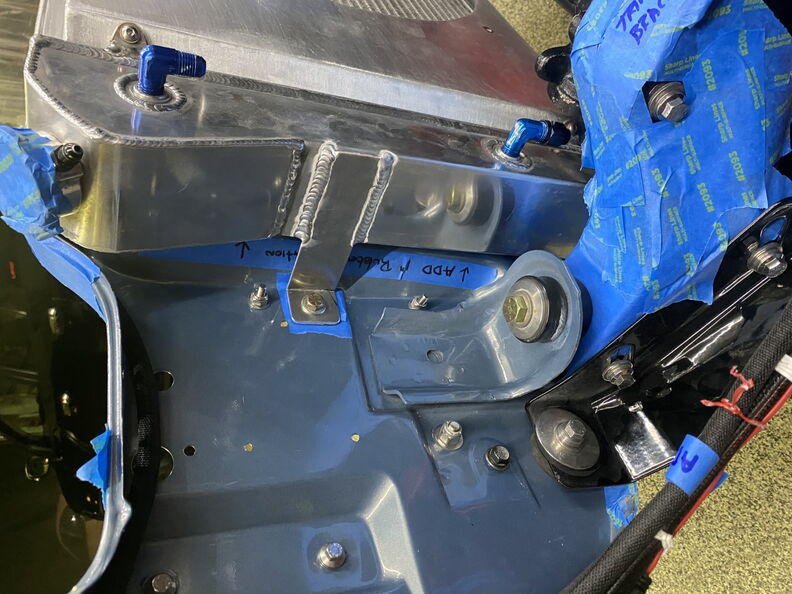

Next up...drill holes in the Core Support.

http://www.garagescene.net/_data/i/u...cda4fbd-me.jpg

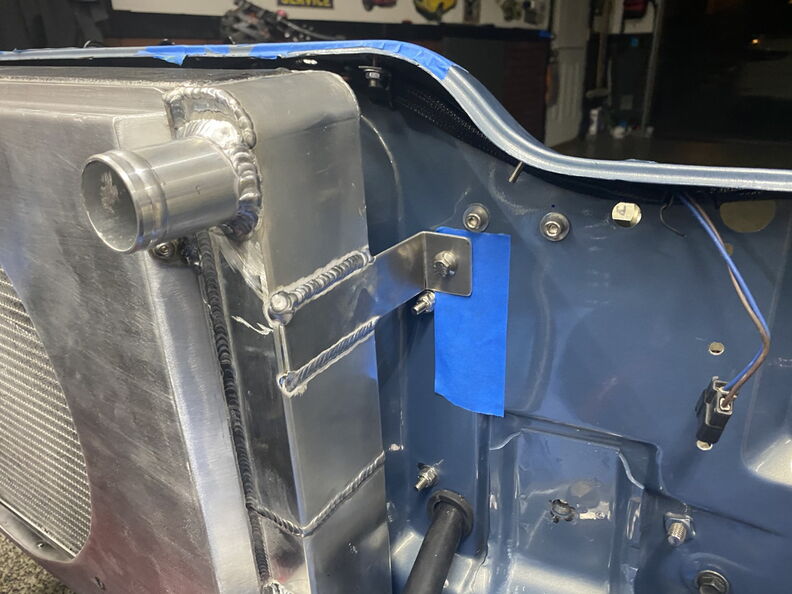

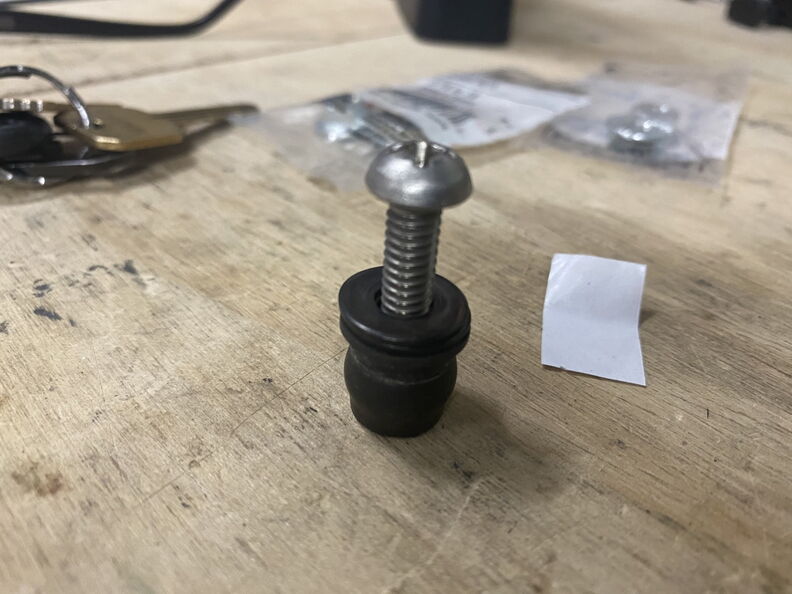

Eventually I will drill the holes larger and install "Well Nuts"

http://www.garagescene.net/_data/i/u...b5a3c32-me.jpg

Works perfect

http://www.garagescene.net/_data/i/u...875303b-me.jpg

http://www.garagescene.net/_data/i/u...d7fe394-me.jpg

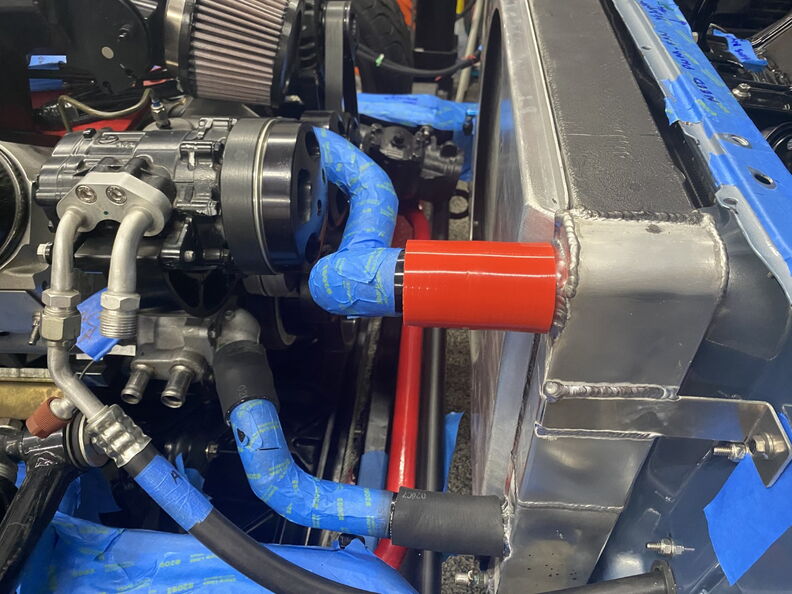

Testing a 3" Hose that I borrowed from a friend

http://www.garagescene.net/_data/i/u...5029626-me.jpg

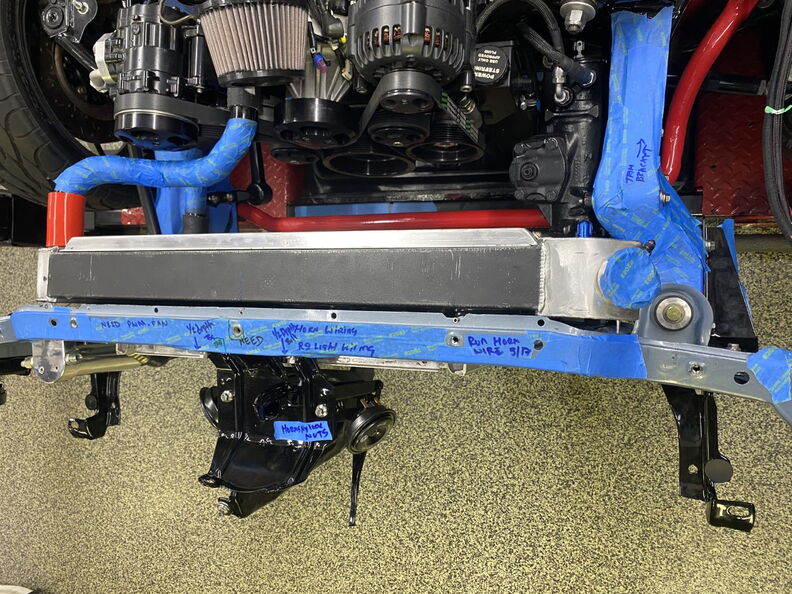

Perfect Gap.

http://www.garagescene.net/_data/i/u...f33e868-me.jpg

Looking good, Marty. Are you going to use pipe and couplings for the coolant hoses? Those glass coolant pipes are cool!

Billet Optima Front Mount Battery Tray. (( 09-07-20 ))

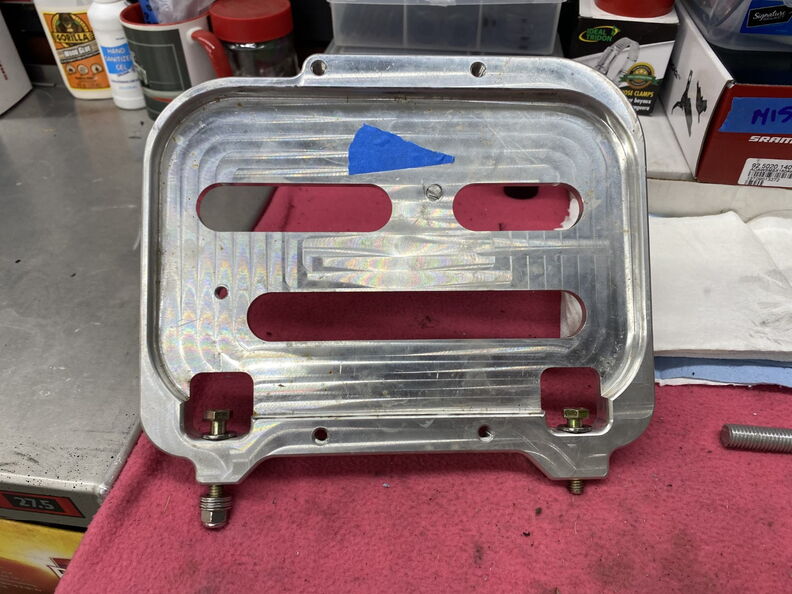

Since I plan to drive this car and really don't want the hassle of having a battery in the trunk. Ron from Wilson Muscle Cars and I designed a factory fit Billet Tray for the battery. Actually it was my idea and Ron drew it up and I had TJ make a few of these.

http://www.garagescene.net/_data/i/u...b3bed5f-me.jpg

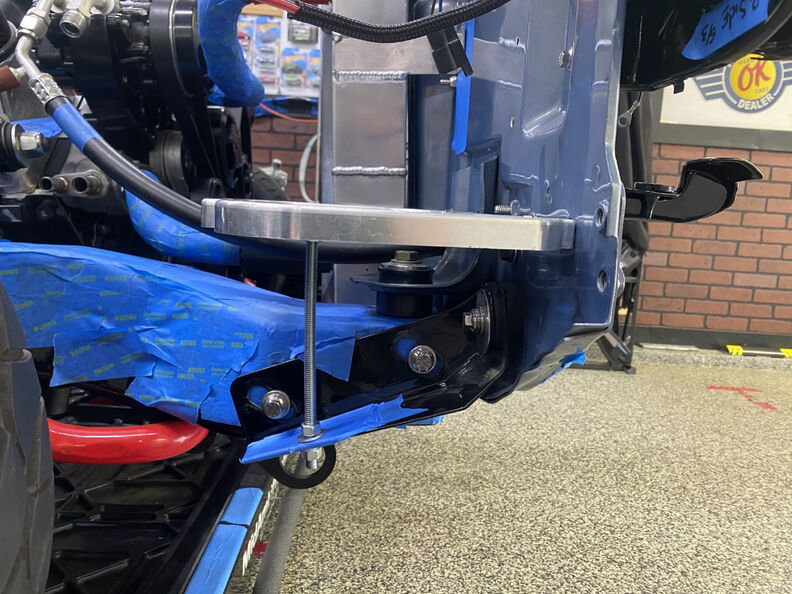

Since I am running the Anvil Carbon/Fiberglass Inner fenders. I can't use the inner fender to support the battery tray in the front. My solution is to drill a hole in my inner fender and run a support rod up from the Core Support bracket.

http://www.garagescene.net/_data/i/u...966e10a-me.jpg

Good News...I found something to replace the Chunky Bars.

http://www.garagescene.net/_data/i/u...cedfe8b-me.jpg

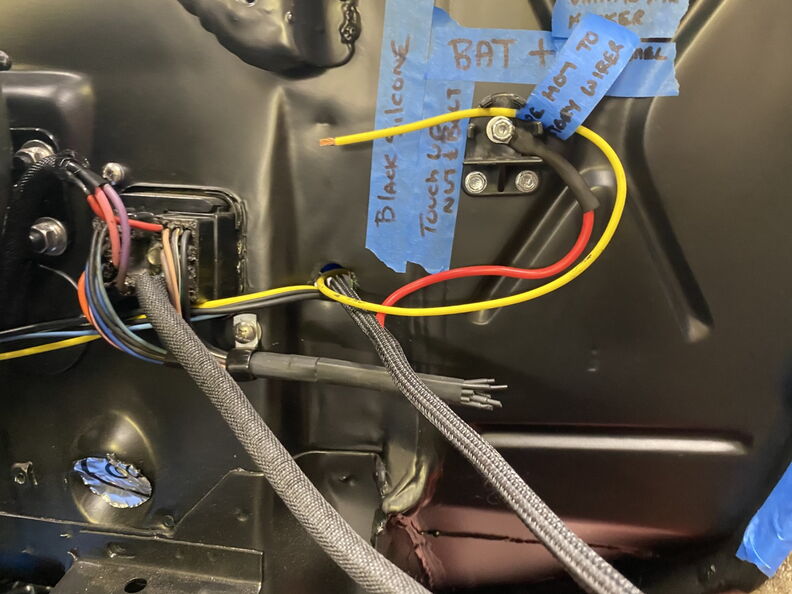

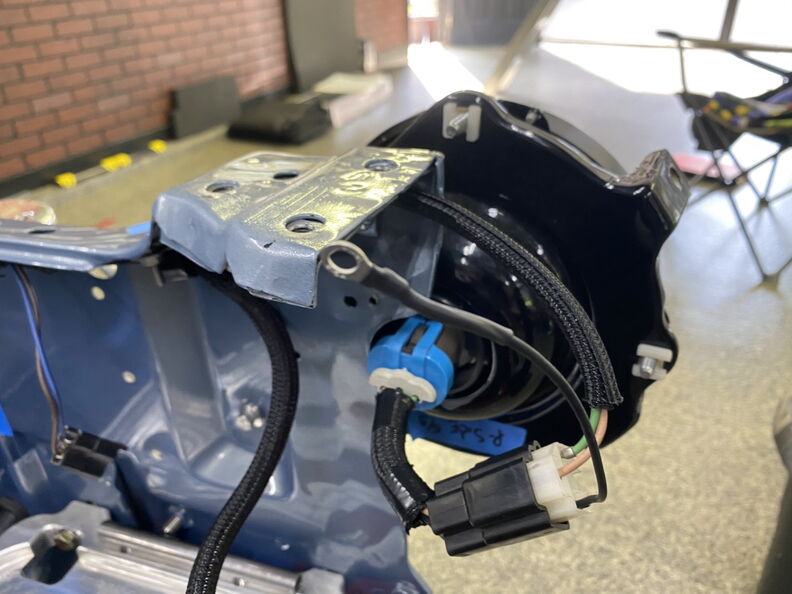

Wiring, Wiring & more Wiring ((09-07-20 ))

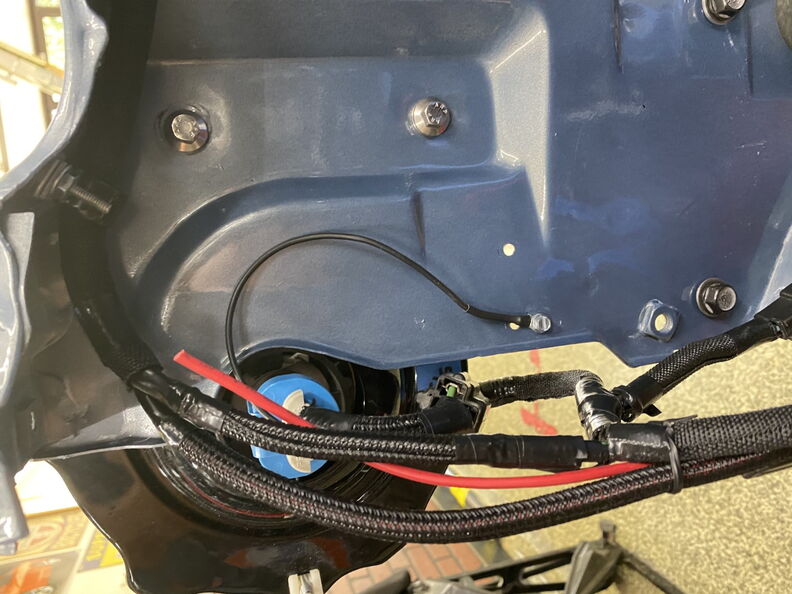

Just cleaning up things a little bit.

http://www.garagescene.net/_data/i/u...5c31d32-me.jpg

http://www.garagescene.net/_data/i/u...d432165-me.jpg

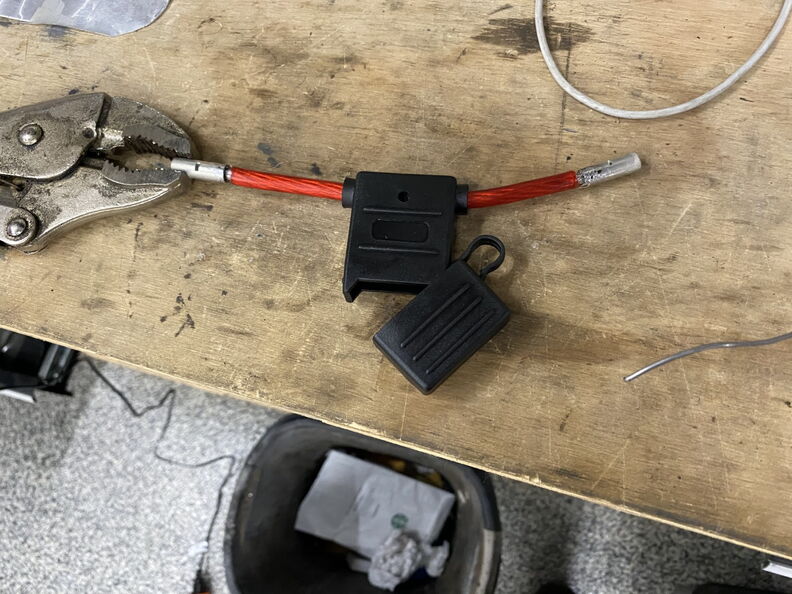

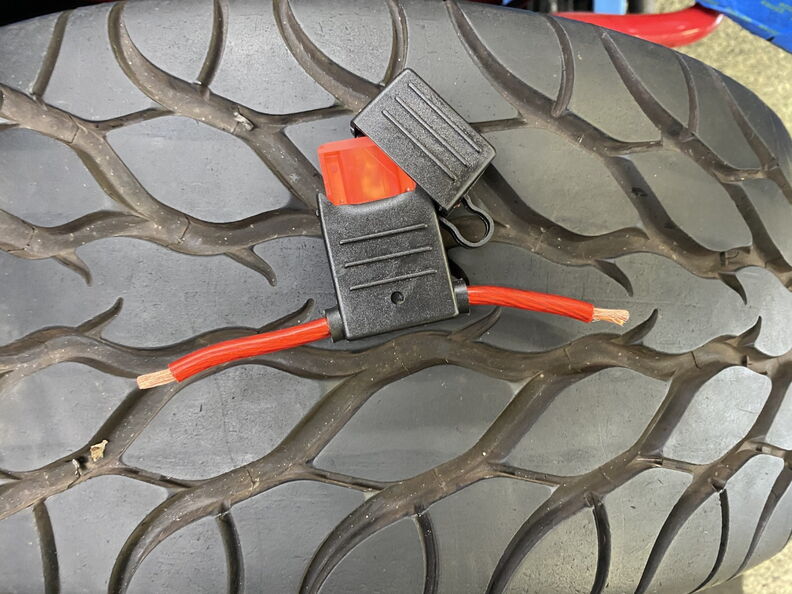

Adding 40amp fuse which will also act as my kill switch.

http://www.garagescene.net/_data/i/u...359a320-me.jpg

http://www.garagescene.net/_data/i/u...49c2d16-me.jpg

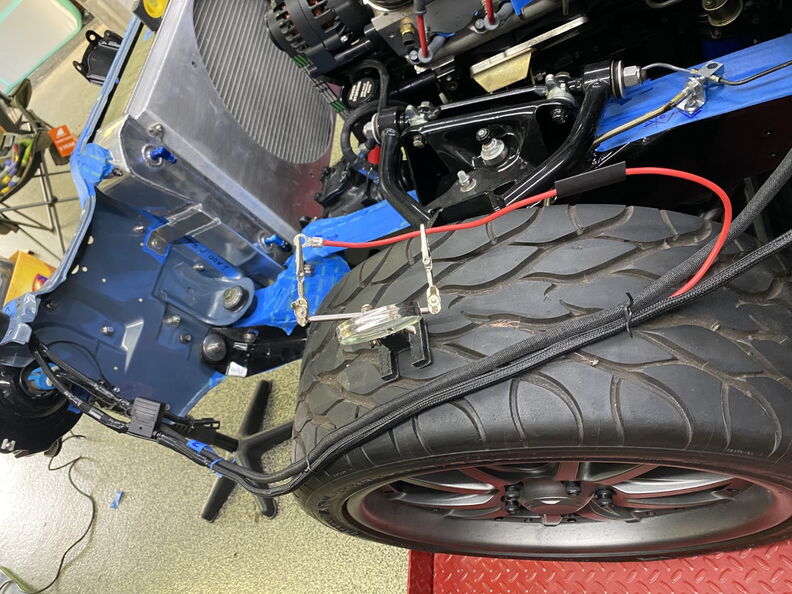

The best $10.00 I have ever spent.

http://www.garagescene.net/_data/i/u...bbbacf6-me.jpg

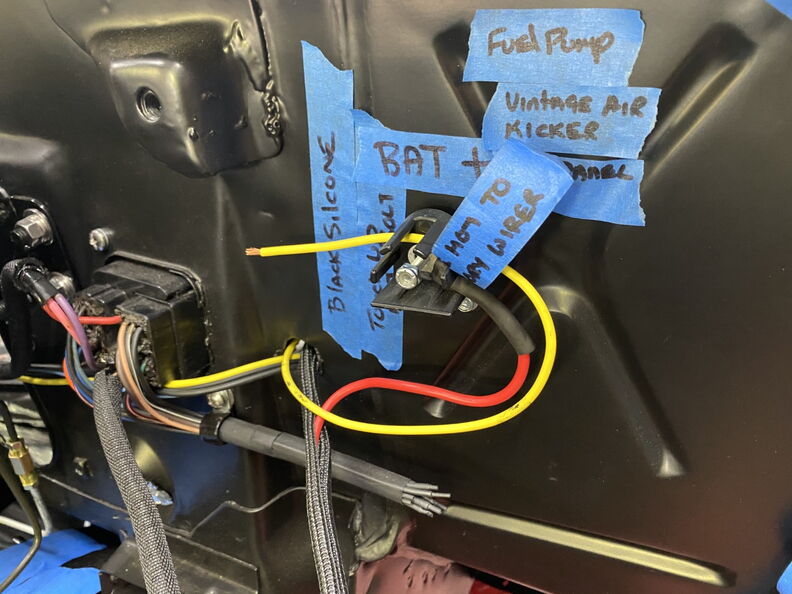

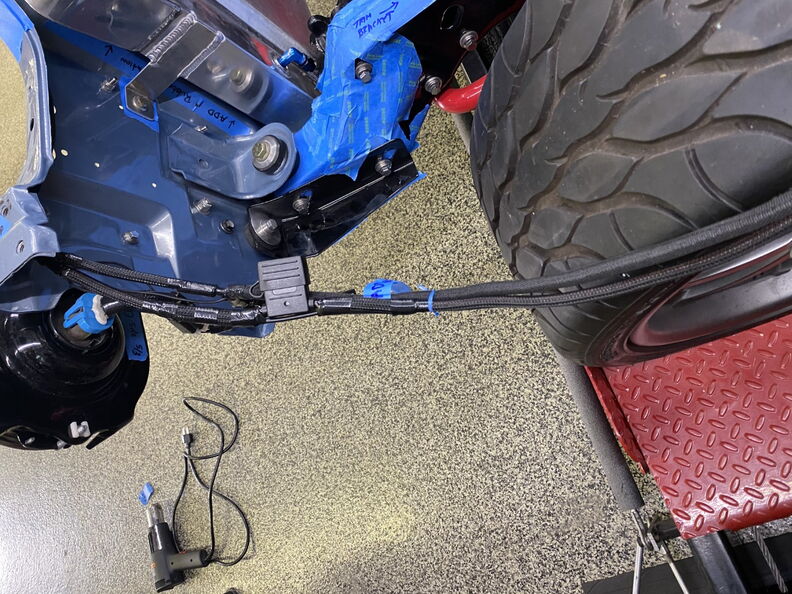

Final destination is the distribution block.

http://www.garagescene.net/_data/i/u...e1fe592-me.jpg

http://www.garagescene.net/_data/i/u...f390d34-me.jpg

http://www.garagescene.net/_data/i/u...458e84d-me.jpg
