Hey Marty,

Thanks for the detailed update and the progress looks great! Look forward to future updates,

Brian


Sent from my iPad using Tapatalk

Wiring, Wiring & more Wiring - The Clean Up ((09-07-20 )) Part 2

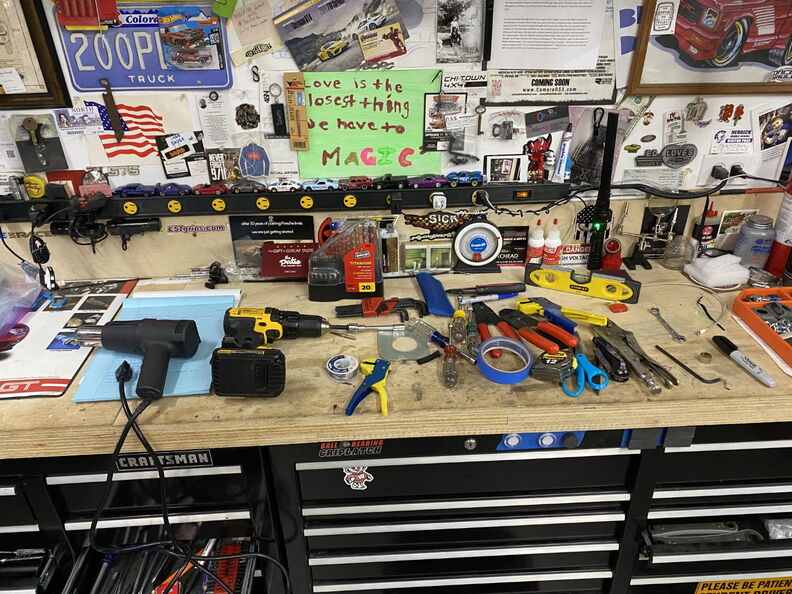

So how is it possible that I used all of these tools.

http://www.garagescene.net/_data/i/u...2991cbb-me.jpg

Moving to my next project.

I don't have many wires that I want to label so as much as I want the really nice label maker I am going to do it the poor

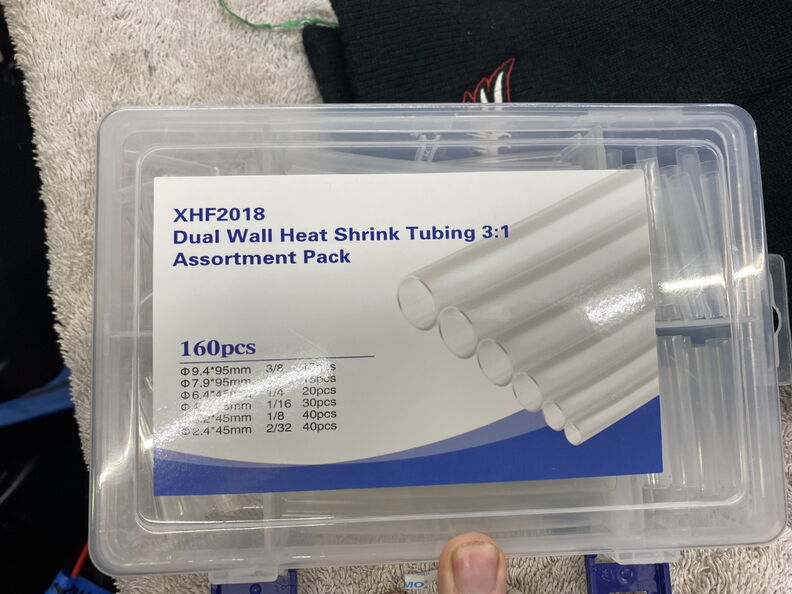

man way. So off to Office Depot to Dymo Label maker for $40.00 and some clear heat shrink tubing.

http://www.garagescene.net/_data/i/u...1aa06aa-me.jpg

http://www.garagescene.net/_data/i/u...c2eb9d3-me.jpg

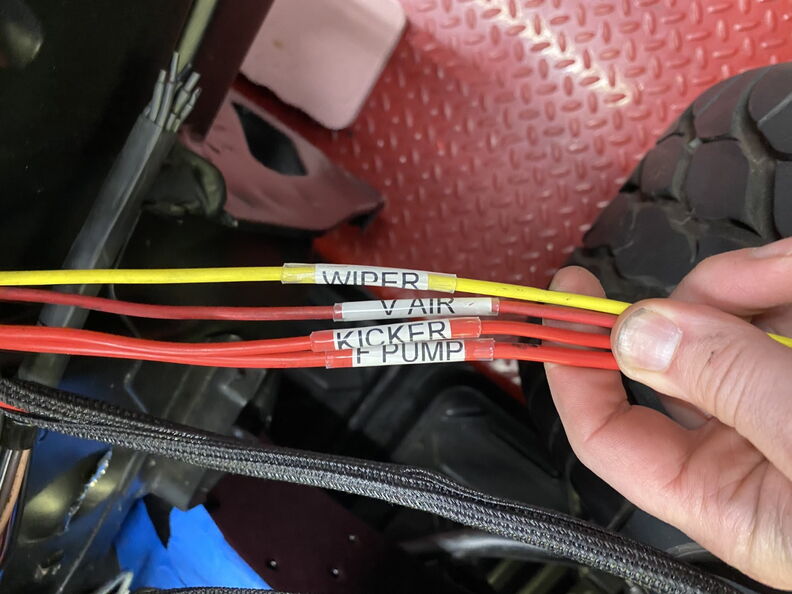

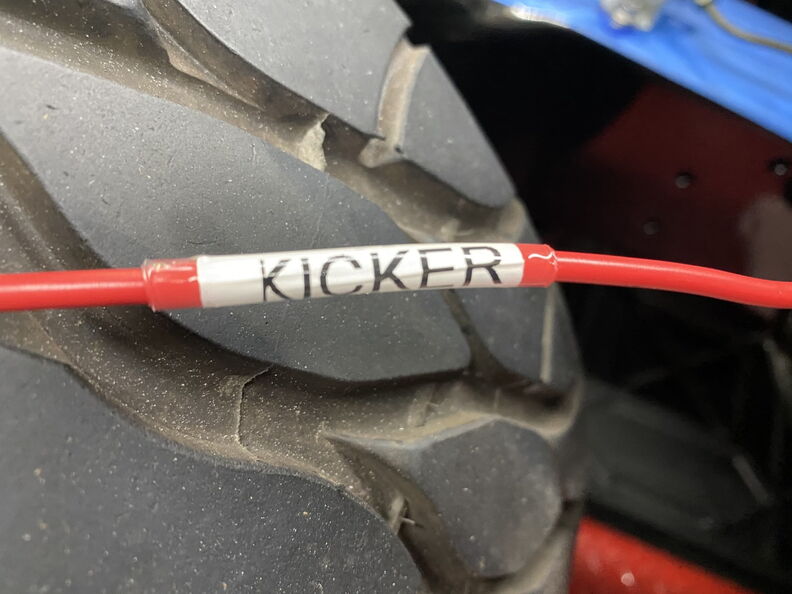

So here is my first try and I think it worked good enough for my little project.

http://www.garagescene.net/_data/i/u...2ea359b-me.jpg

http://www.garagescene.net/_data/i/u...94989aa-me.jpg

http://www.garagescene.net/_data/i/u...5484189-me.jpg

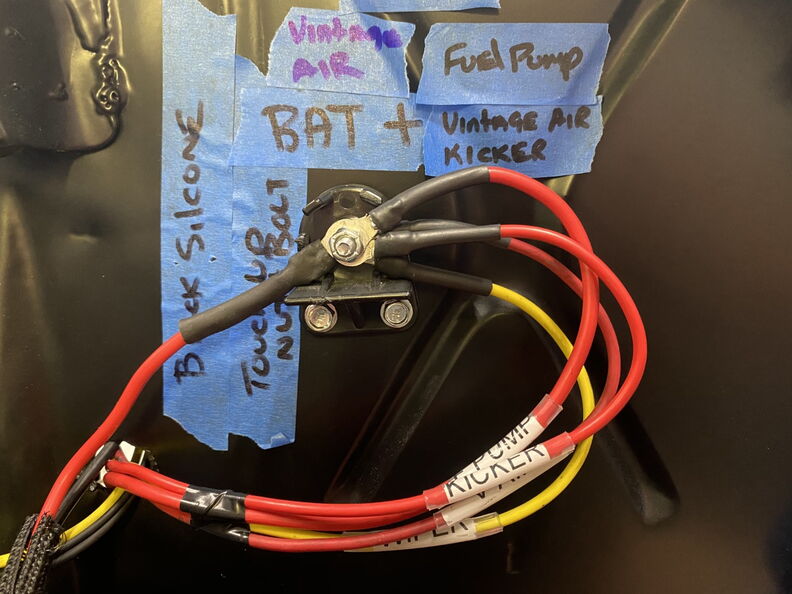

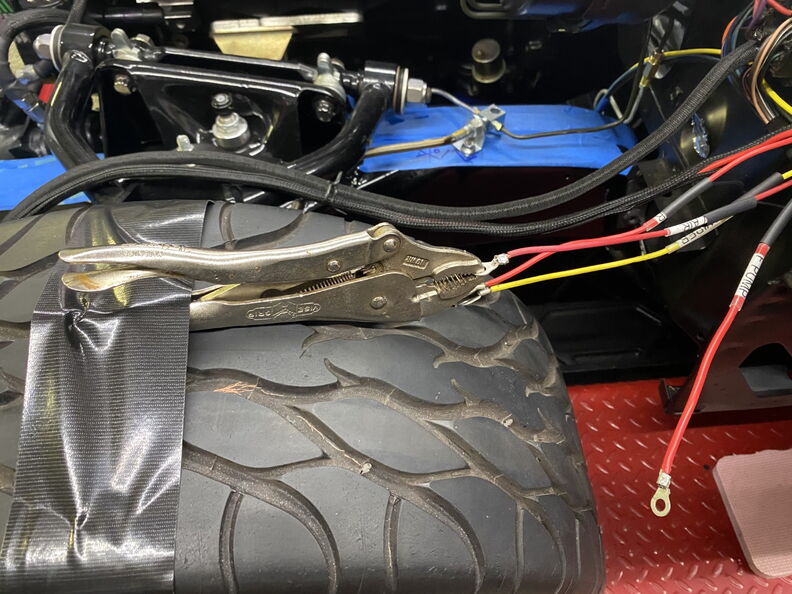

Sometime I wish I had a 3rd arm to help hold wires while I am soldering.

http://www.garagescene.net/_data/i/u...b681cea-me.jpg

http://www.garagescene.net/_data/i/u...bac86cc-me.jpg

My Dymo uses heat sensitive label material, they turn black when heated.. found out the hard way :D

2nd Chance Camaro - Let the Project Begin


Well it looks like I am going to do some testing with a hair dryer. Not sure how much of and issue it will be on the inside of the car. More worried about the stuff in the inner fender.

Edit
I did use a heat gun to shrink the heat shrink tubing. What’s your thoughts ??

Sent from my iPhone using Tapatalk

Marty,
Can you tell us where you got that clear heat shrink assortment?

Thanks in advance.

Hi Bill.

Sure not a problem

XHF 160 PCS 3/32" 1/8" 3/16" 1/4" 5/16" 3/8" Clear 3:1 Waterproof Automotive Electrical Heat Shrink Tubing Assortmen Kit Marine Grade Adhesive Lined Tube, Insulation Sealing Oil-Proof Wear-Resistant

https://www.amazon.com/160-pcs-kit%E...P3E6A70&dchild

Hella Horns - Gotta Have Them (( 09-12-20 ))

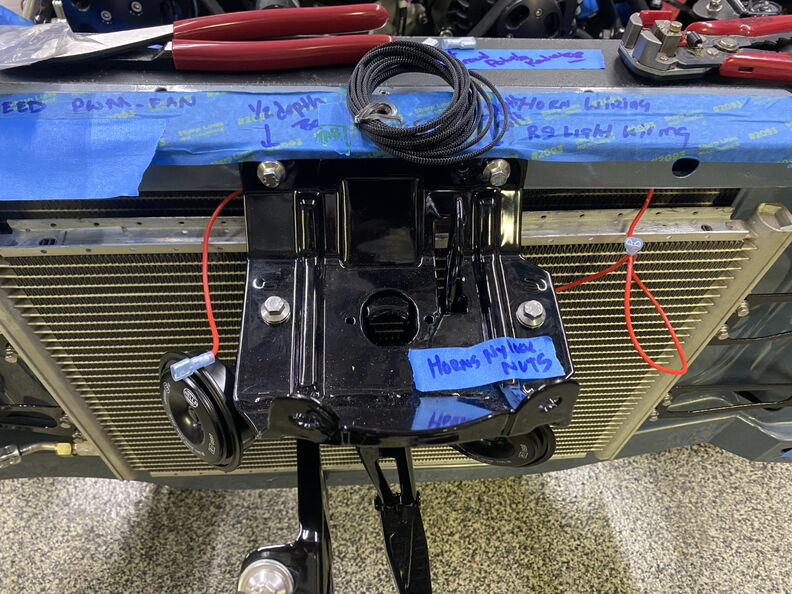

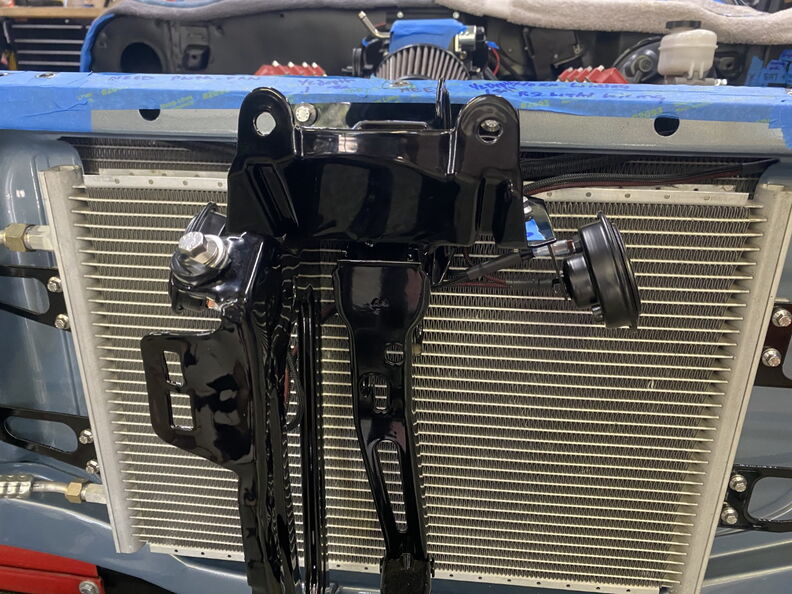

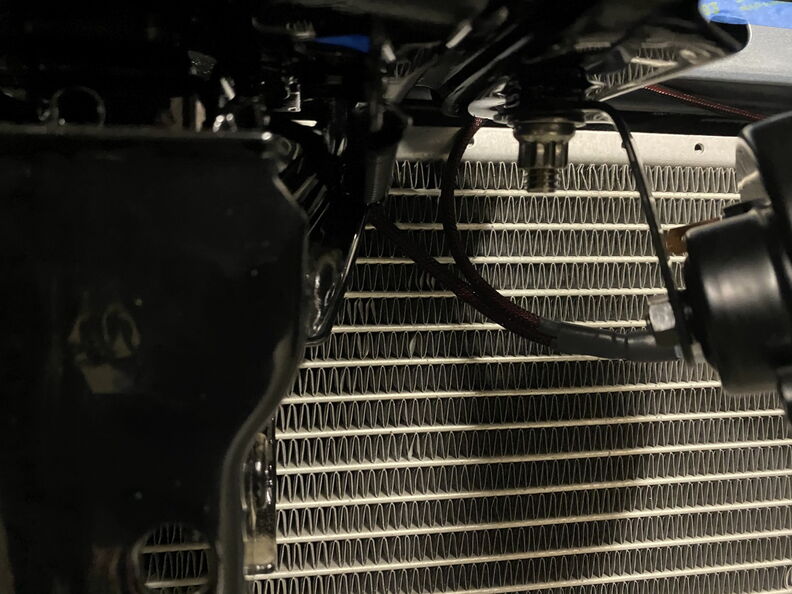

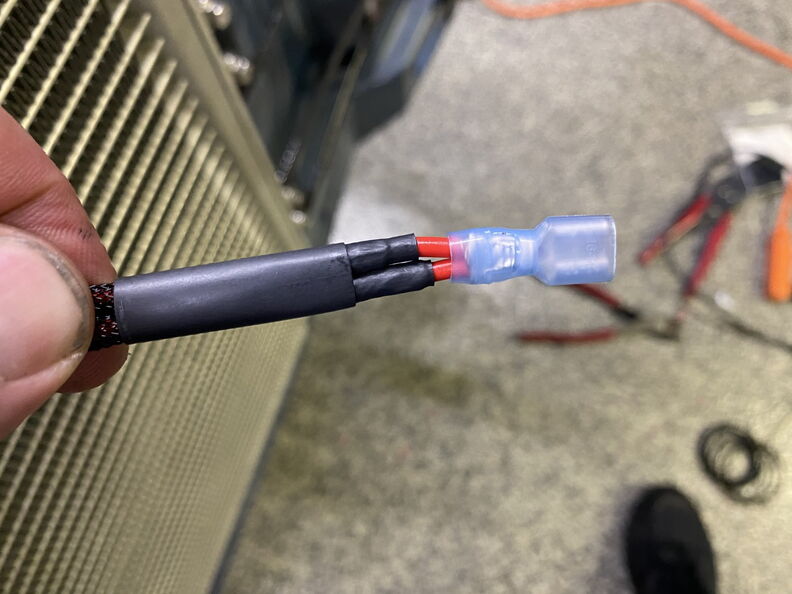

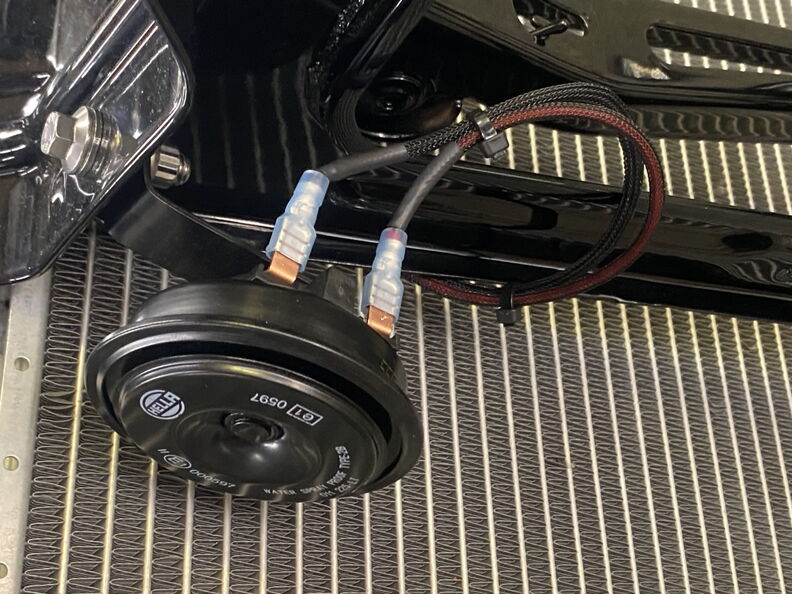

One thing that I really wanted was a nice loud set of horns and I am pretty confident these will work just fine.

Hella Part # 011225802 $12.83

http://www.garagescene.net/_data/i/u...64eb888-me.jpg


http://www.garagescene.net/_data/i/u...fcdc701-me.jpg


http://www.garagescene.net/_data/i/u...f9474ac-me.jpg


http://www.garagescene.net/_data/i/u...0e65300-me.jpg


http://www.garagescene.net/_data/i/u...8e7089f-me.jpg

Holley EFI Relays - Weld Studs (( 09-13-20 )

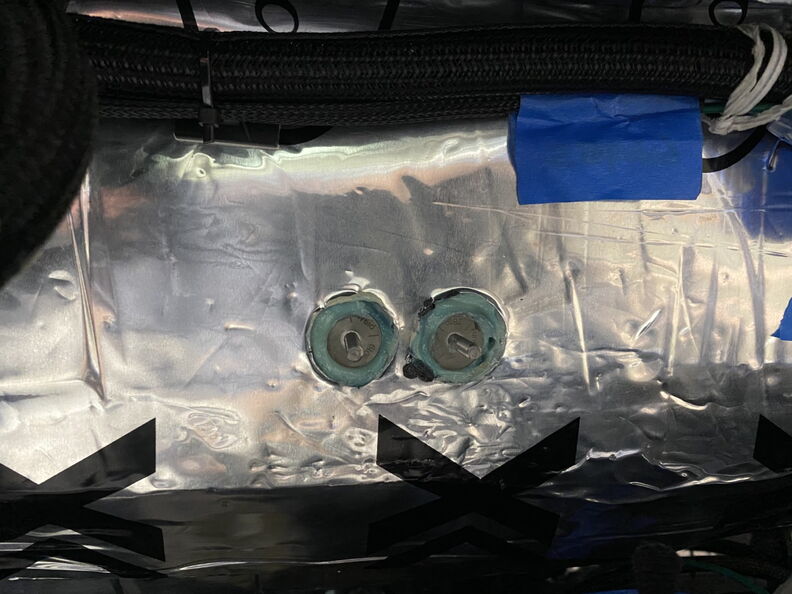

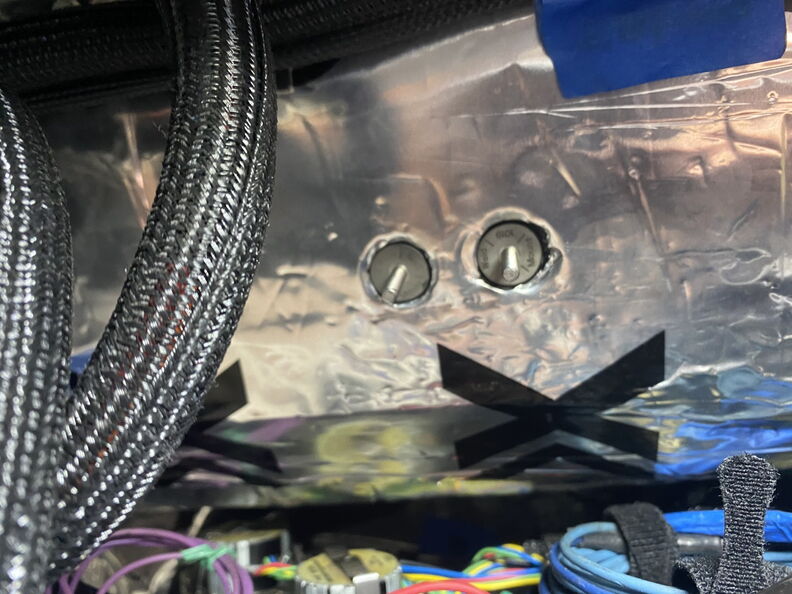

One of the benefits of the DEI X-Mat is you can push the weld studs into and make a perfect circle. I will be mounting the Holley Relays to these studs.

http://www.garagescene.net/_data/i/u...0703807-me.jpg

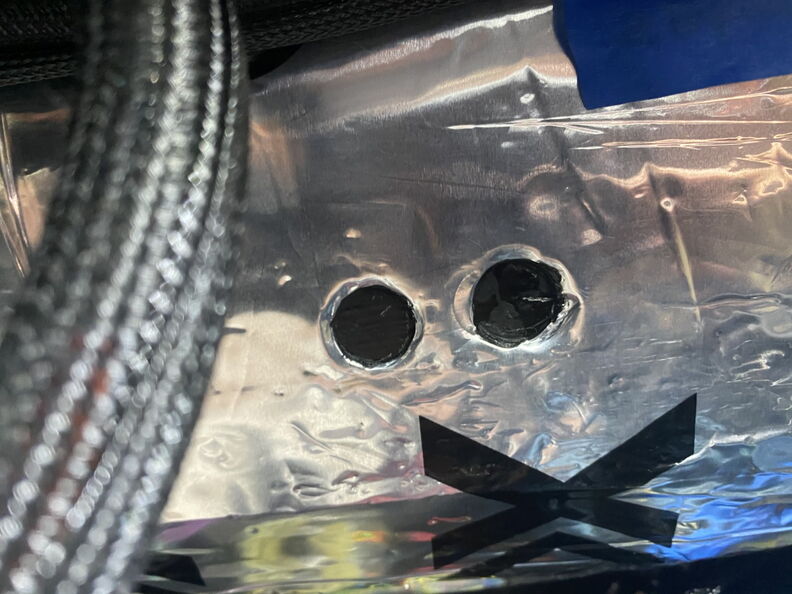

It's important that you remove all the paint before you bond them.

http://www.garagescene.net/_data/i/u...f878ee3-me.jpg

http://www.garagescene.net/_data/i/u...b32c86c-me.jpg

Organizing my mess (( 09-15-20 ))


Not only do I take a lot of notes I do my best to keep them very organized so I can find things when I need them.

http://www.garagescene.net/_data/i/u...fbb3e82-me.jpg

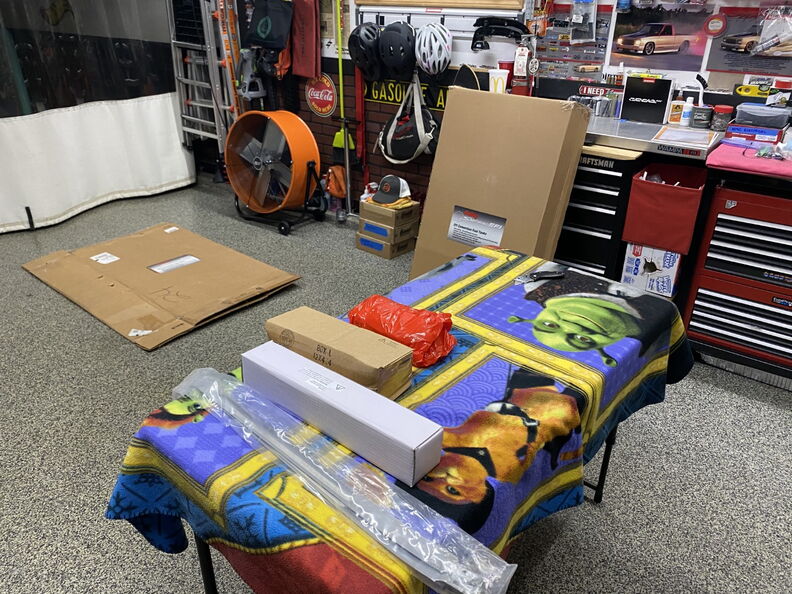

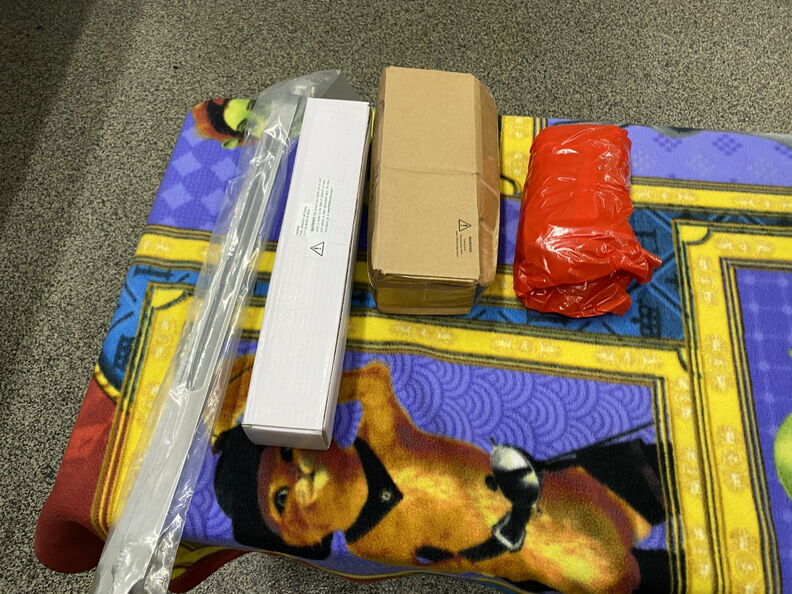

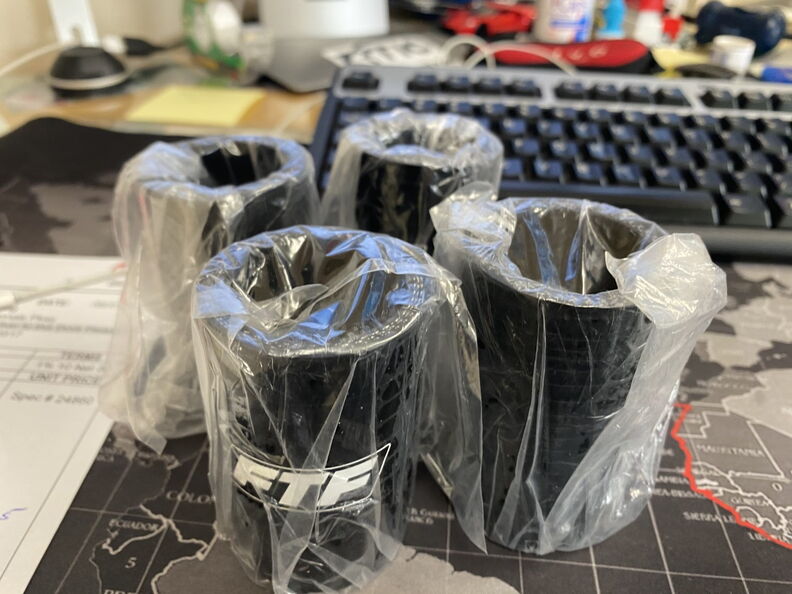

More parts showing up daily ( Thankfully I ship everything to work. )

http://www.garagescene.net/_data/i/u...9fd574b-me.jpg

http://www.garagescene.net/_data/i/u...c458a55-me.jpg

http://www.garagescene.net/_data/i/u...a9d5d50-me.jpg

http://www.garagescene.net/_data/i/u...4c95568-me.jpg

Holley EFI Tank (( 09-17-20 ))


It's time to put the tank together and it was a very nice day to be out in the garage.

http://www.garagescene.net/_data/i/u...82394e6-me.jpg

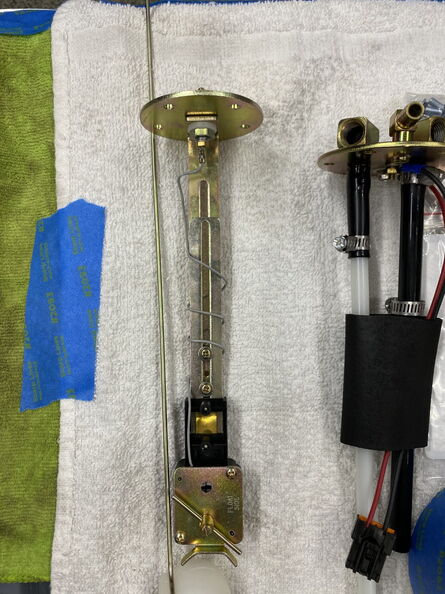

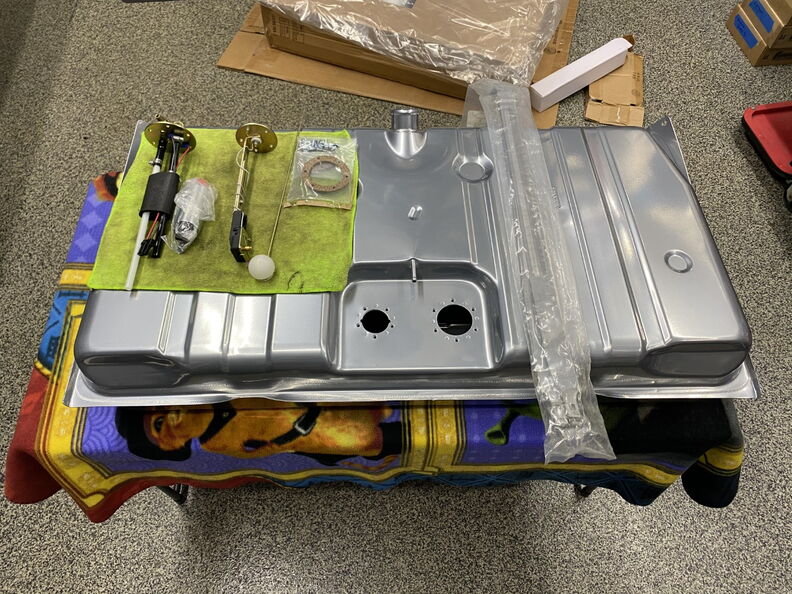

Pieces & Parts

http://www.garagescene.net/_data/i/u...c77eace-me.jpg

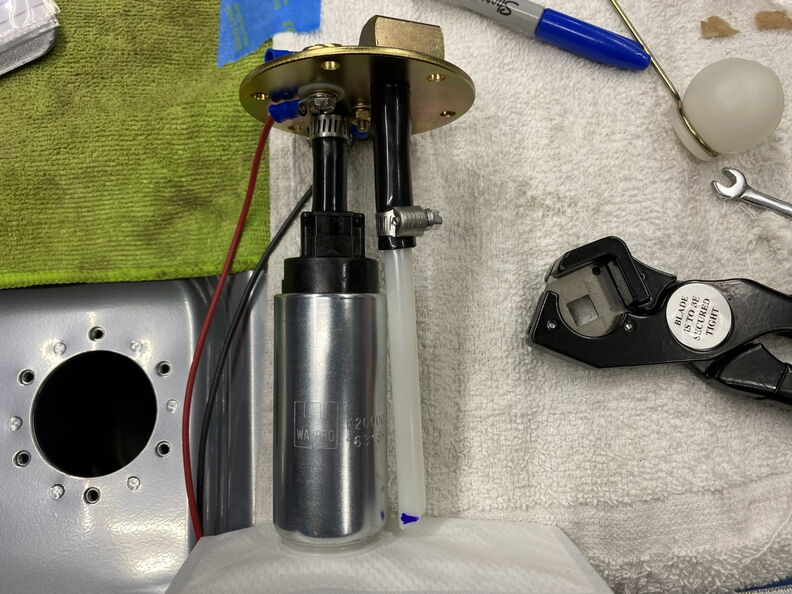

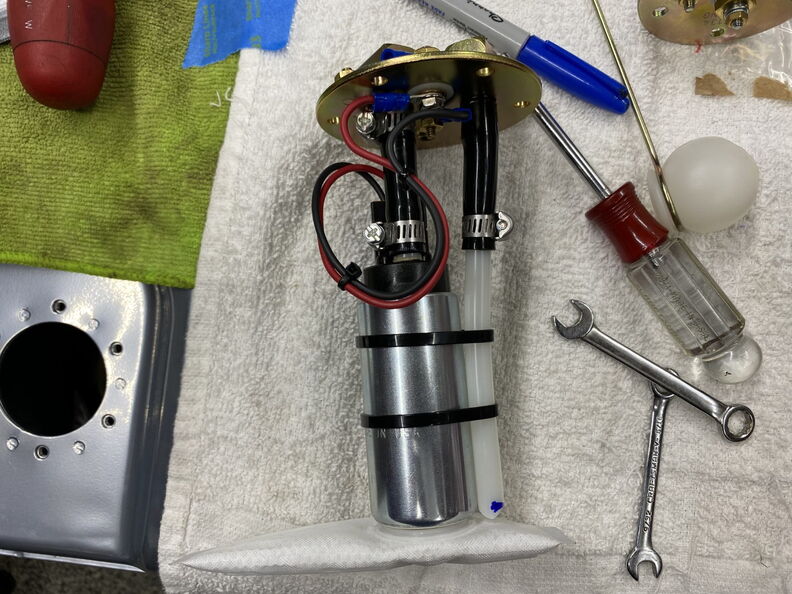

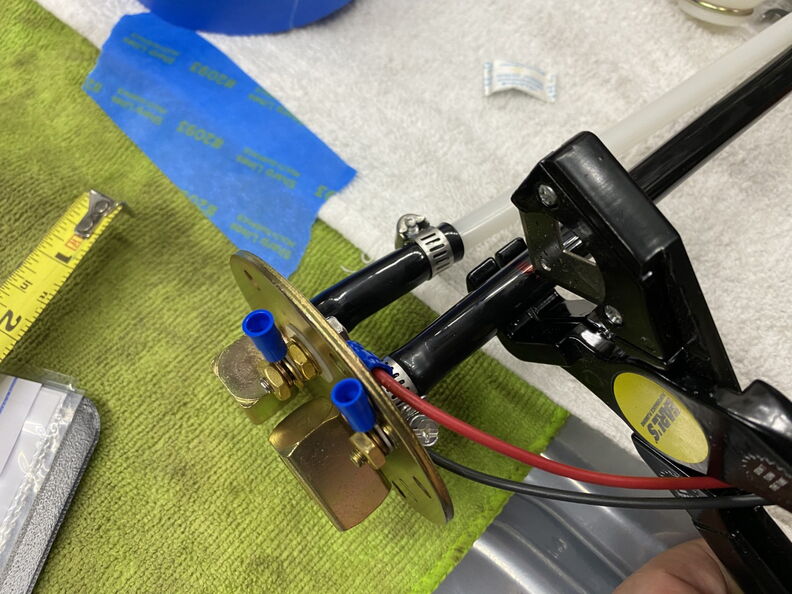

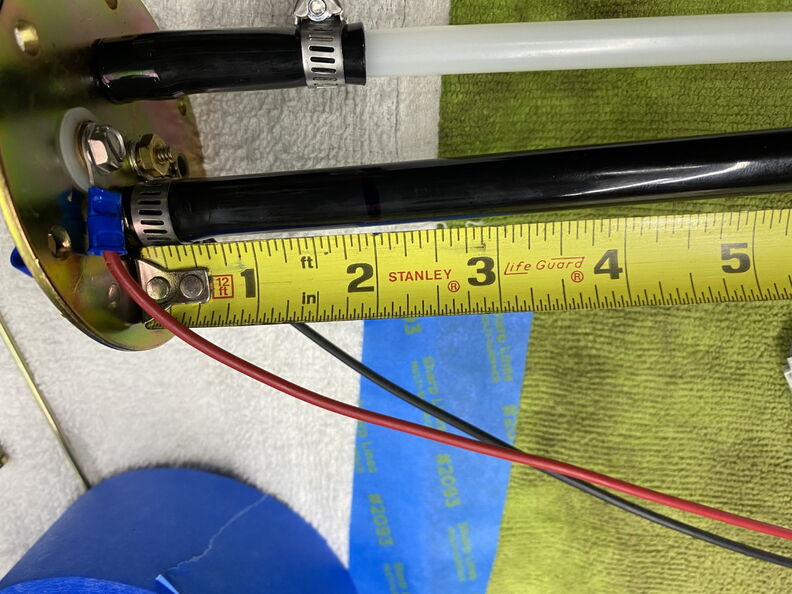

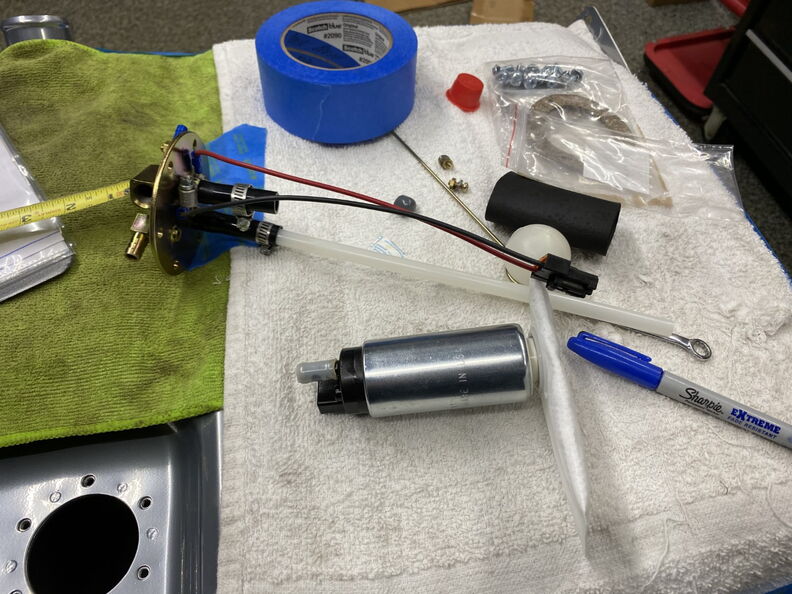

Time to build the the fuel pump/fuel level assembly.

http://www.garagescene.net/_data/i/u...251f27b-me.jpg

http://www.garagescene.net/_data/i/u...654c3b0-me.jpg

http://www.garagescene.net/_data/i/u...73eac60-me.jpg

http://www.garagescene.net/_data/i/u...bc79b38-me.jpg

http://www.garagescene.net/_data/i/u...50a1b4b-me.jpg

http://www.garagescene.net/_data/i/u...e607a91-me.jpg

http://www.garagescene.net/_data/i/u...e88e67b-me.jpg

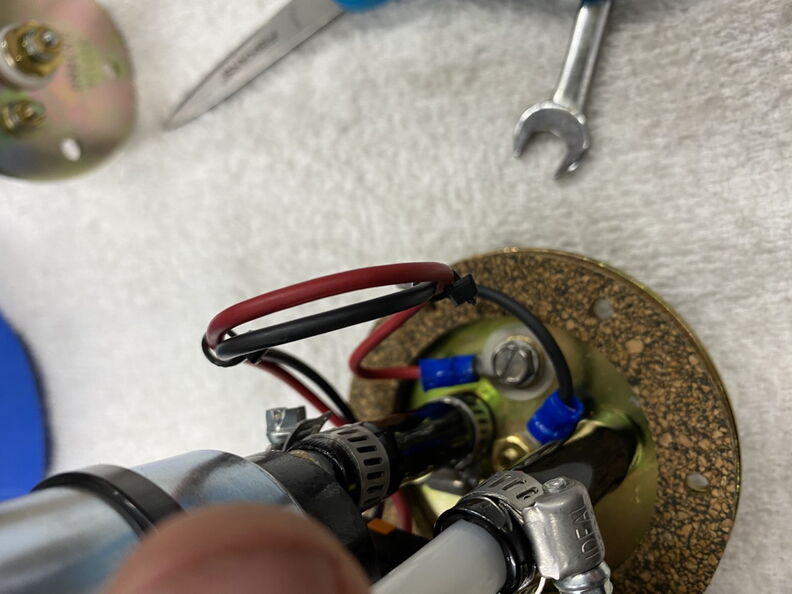

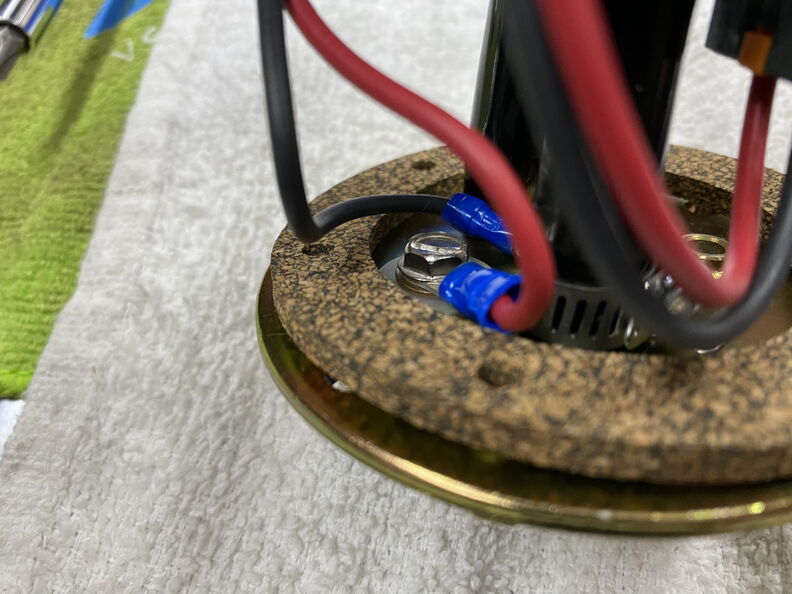

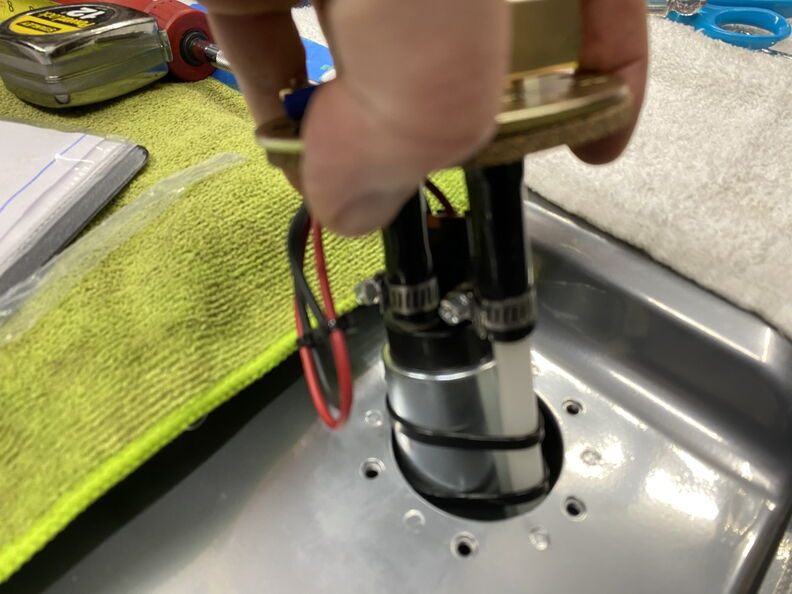

You may have to move the wires over a little bit so make sure you look.

http://www.garagescene.net/_data/i/u...2e67b0b-me.jpg

http://www.garagescene.net/_data/i/u...bb3ba8f-me.jpg

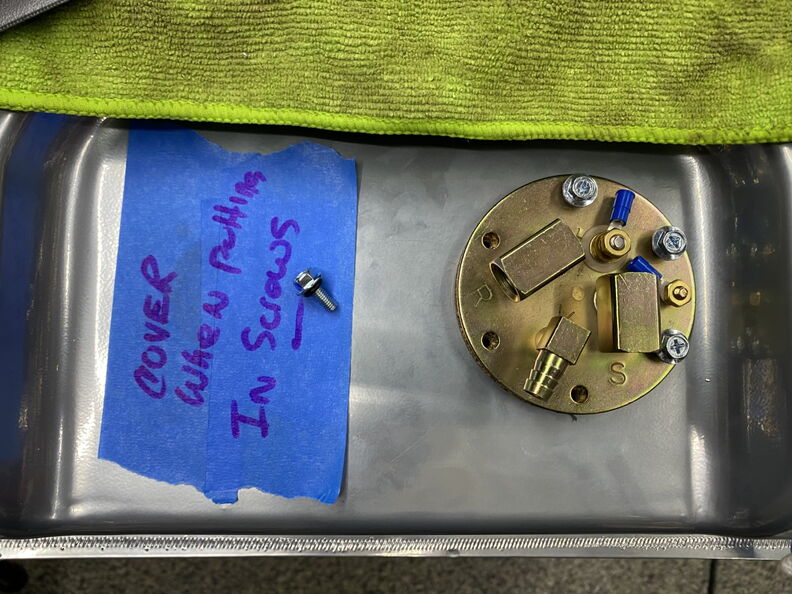

Very important note here. Make sure you cover the hole for the float. Because if it can happen it will happen.

http://www.garagescene.net/_data/i/u...856e502-me.jpg

Just in case you wanted to know yes I dropped a bolt inside the tank. Ugh !!!

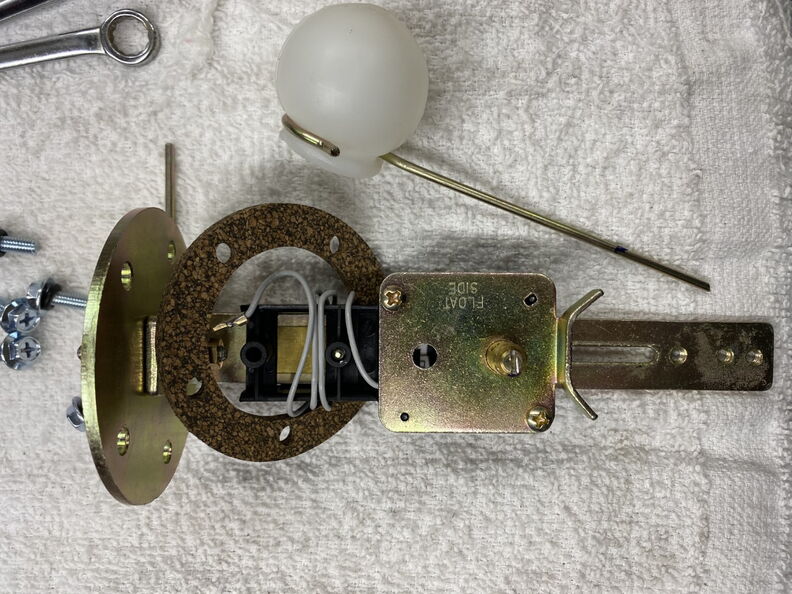

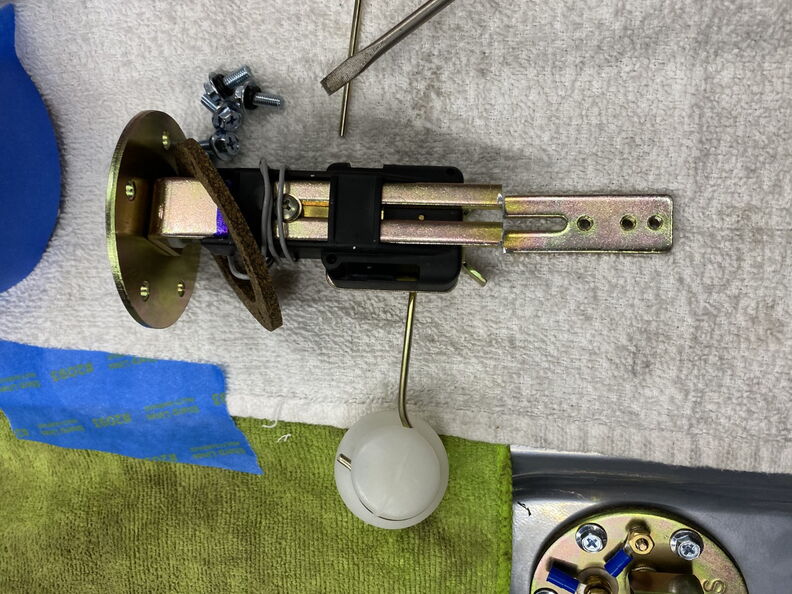

The float assembly ready to drop in after it was modified per the instructions.

http://www.garagescene.net/_data/i/u...cd8d790-me.jpg

Remove the access off the bottom.

http://www.garagescene.net/_data/i/u...96a28c6-me.jpg

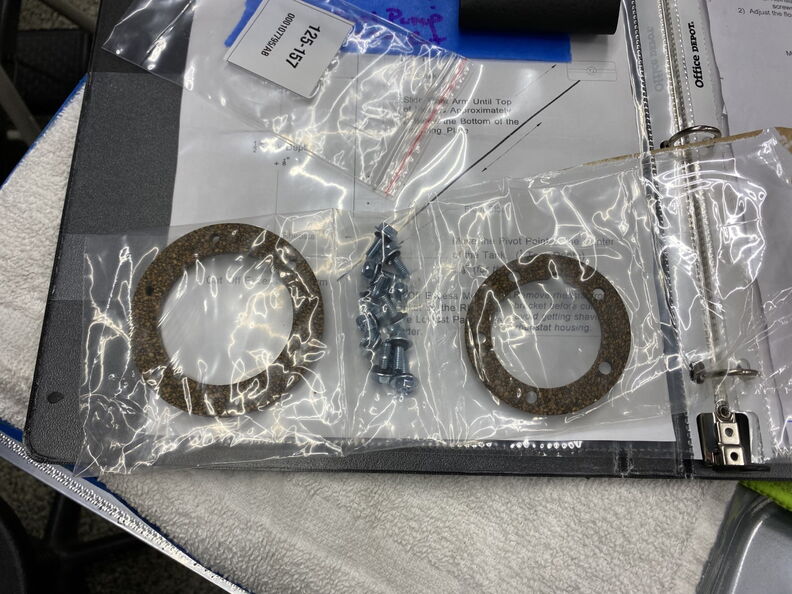

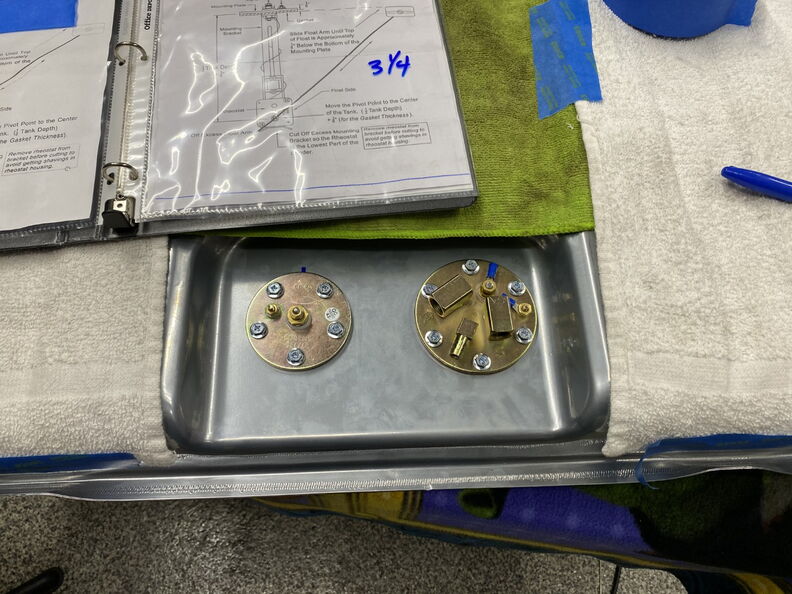

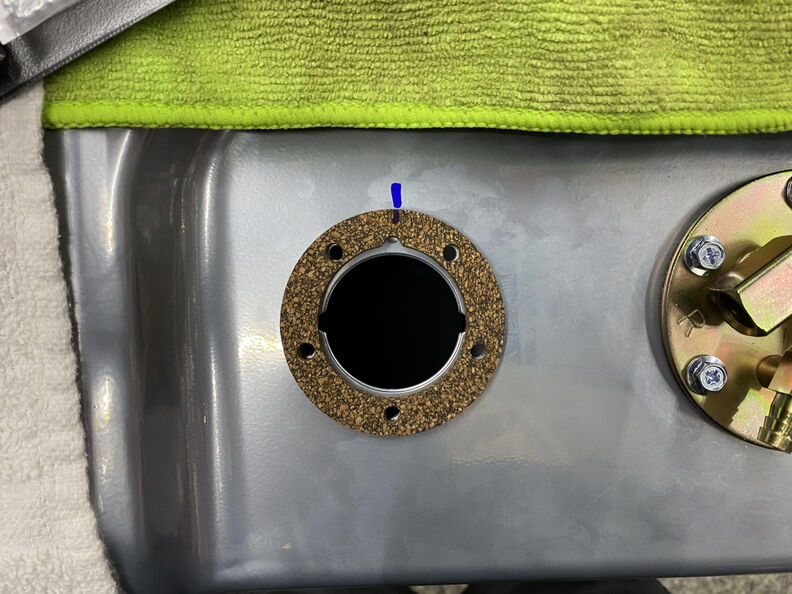

Make sure you line up the gasket correctly.

http://www.garagescene.net/_data/i/u...a887308-me.jpg

http://www.garagescene.net/_data/i/u...9ddcf9a-me.jpg

http://www.garagescene.net/_data/i/u...2d73643-me.jpg

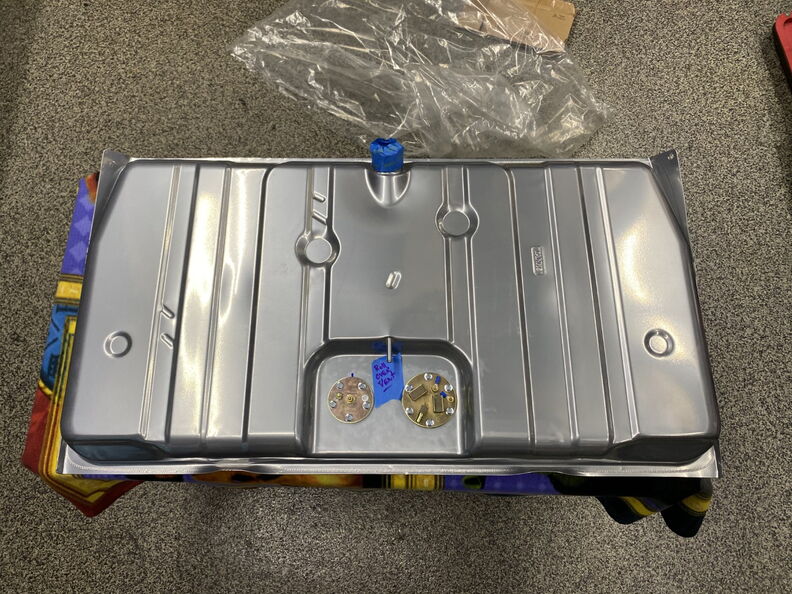

Call your daughter and ask her to help you pack it up and put it back in the box.

http://www.garagescene.net/_data/i/u...2d73643-me.jpg
