Eak it kinda sounds like I might actually have an issue.

Thank you

Thank You

Look what I found at Lowe’s.

https://uploads.tapatalk-cdn.com/202...b1792c9cec.jpg


Sent from my iPhone using Tapatalk

Throttle Cable Bracket (( 11-12-20 ))

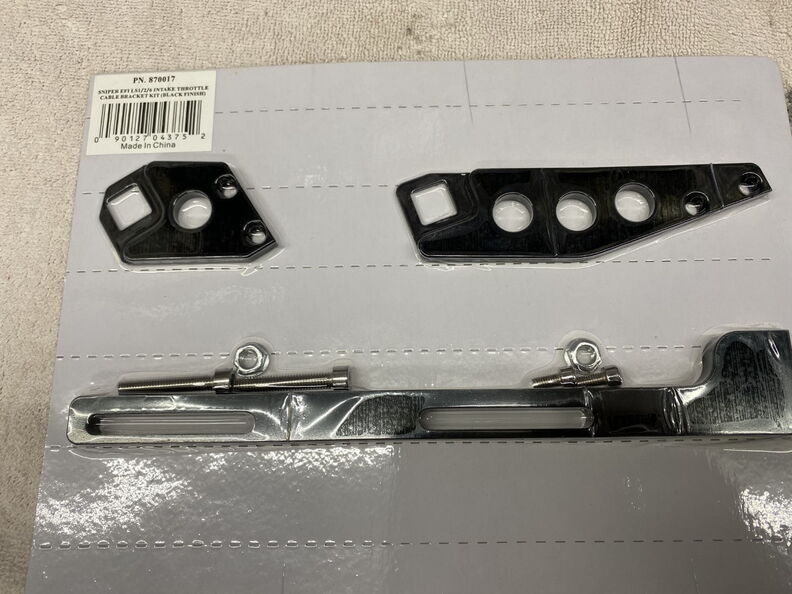

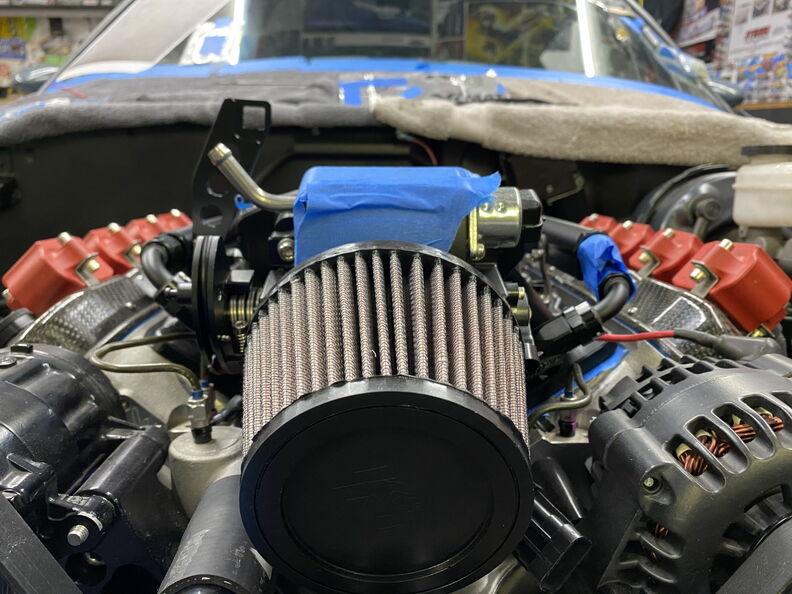

As previously stated I have no love for the Holley Throttle Cable bracket as it's just fugly looking and there has to be a better solution.

http://www.garagescene.net/_data/i/u...ef07277-me.jpg

http://www.garagescene.net/_data/i/u...34ebe8d-me.jpg

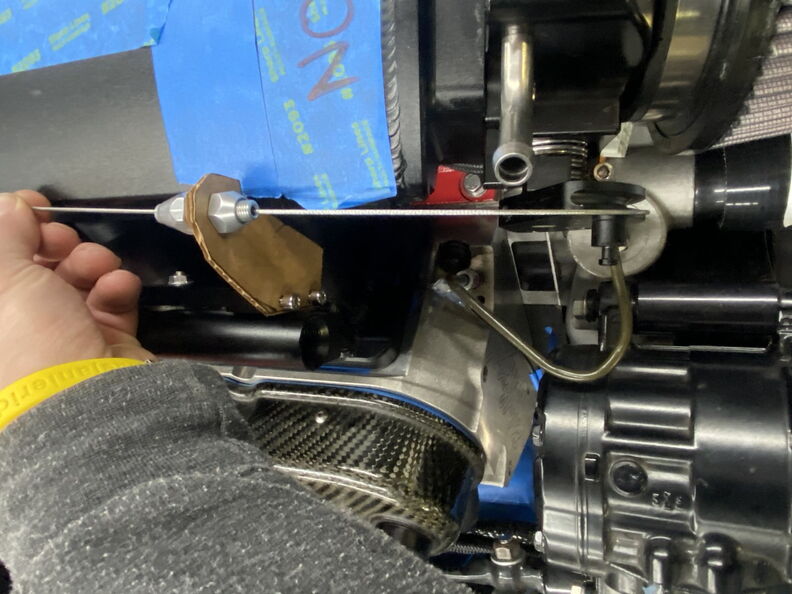

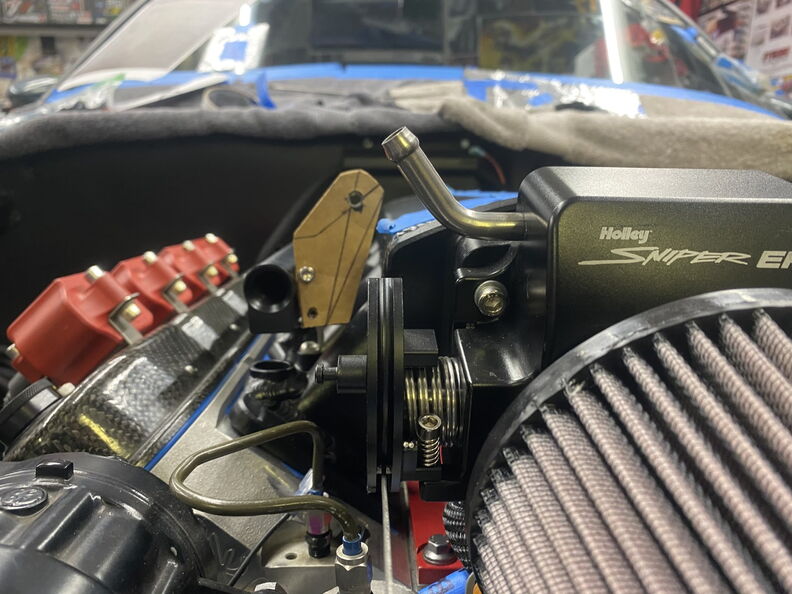

Attempt # 1 - The cable alignment was off a little bit

http://www.garagescene.net/_data/i/u...56da09e-me.jpg

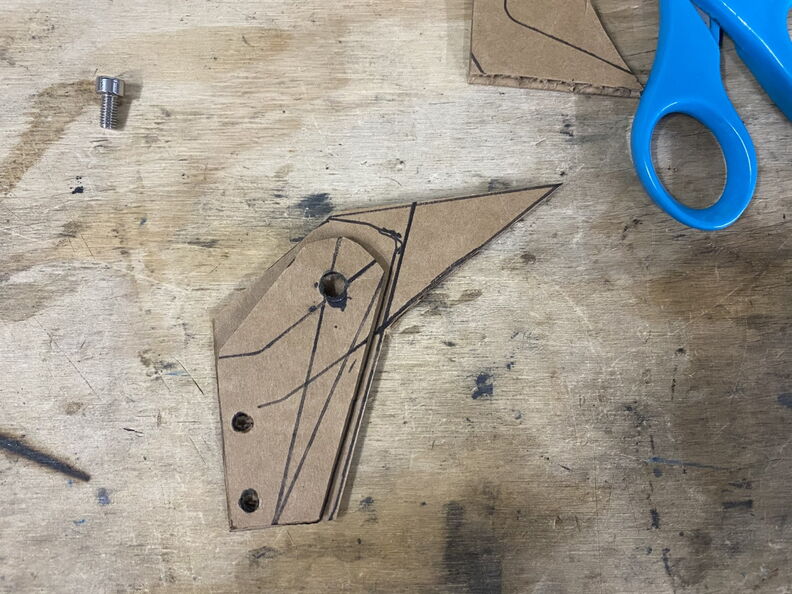

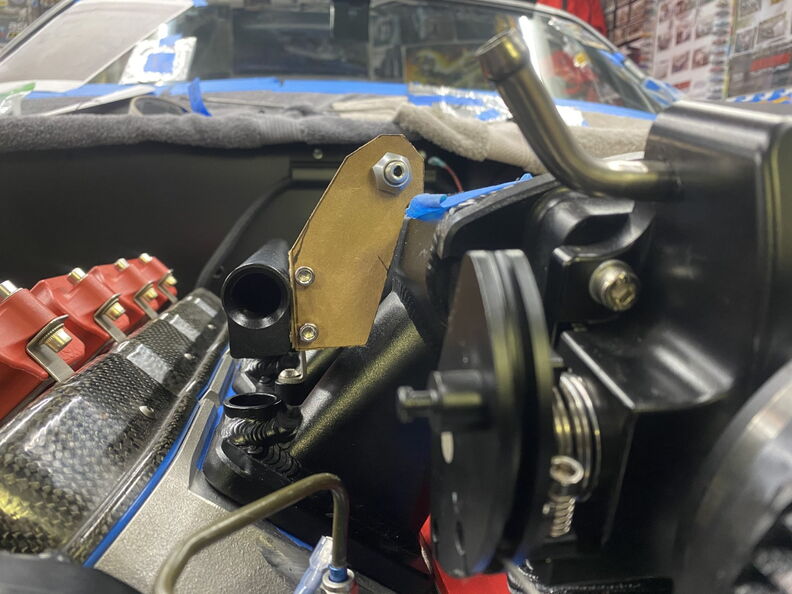

Attempt # 2 - At least I was a little closer

http://www.garagescene.net/_data/i/u...a62746a-me.jpg

http://www.garagescene.net/_data/i/u...69e35bd-me.jpg

http://www.garagescene.net/_data/i/u...75018e2-me.jpg

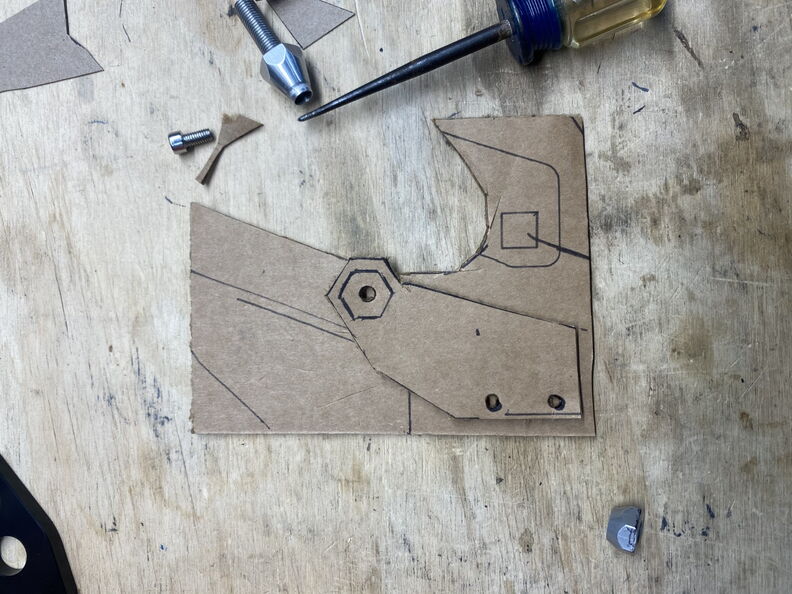

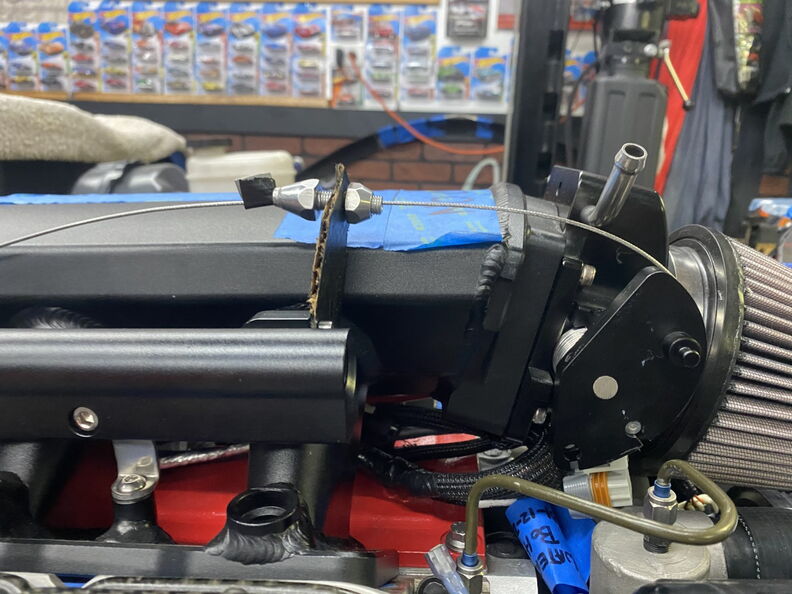

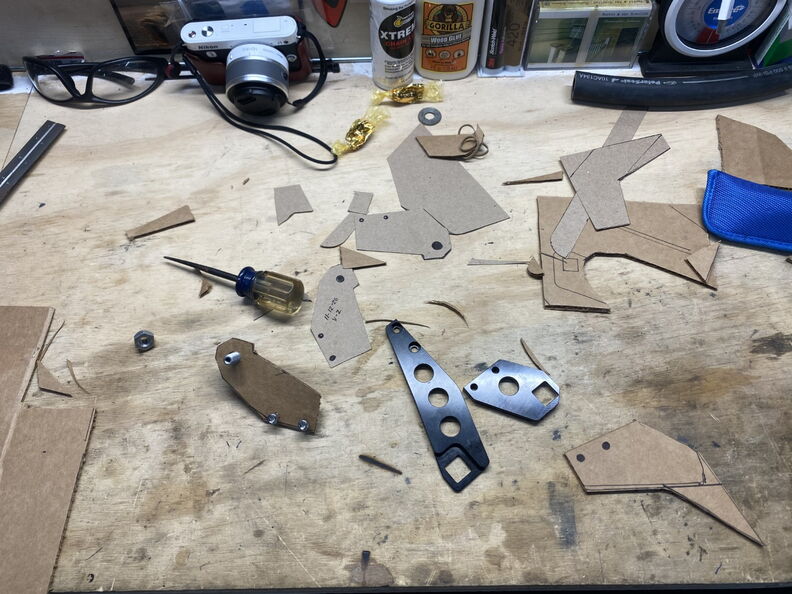

Attempt #3 - Looks like I am ready to make a Prototype

http://www.garagescene.net/_data/i/u...0dd80f1-me.jpg

http://www.garagescene.net/_data/i/u...af41ef0-me.jpg

http://www.garagescene.net/_data/i/u...d9fc5f7-me.jpg

http://www.garagescene.net/_data/i/u...bf92e51-me.jpg

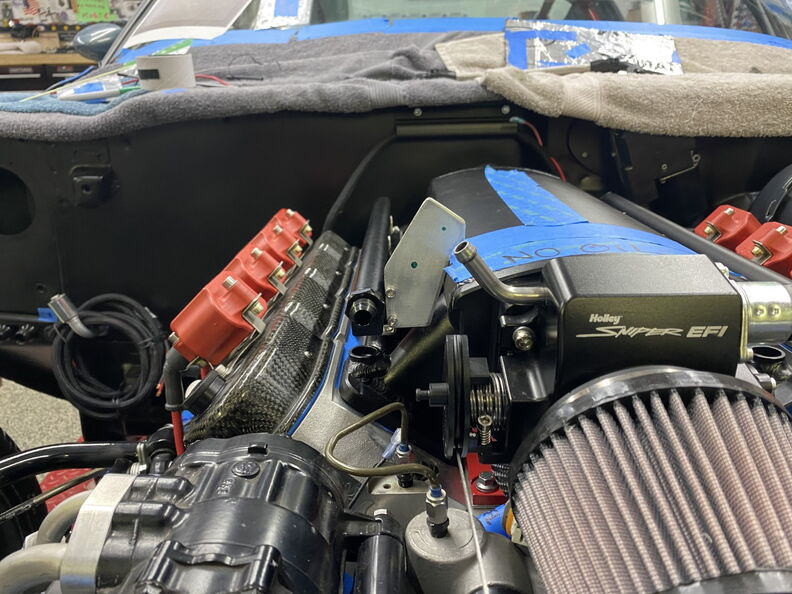

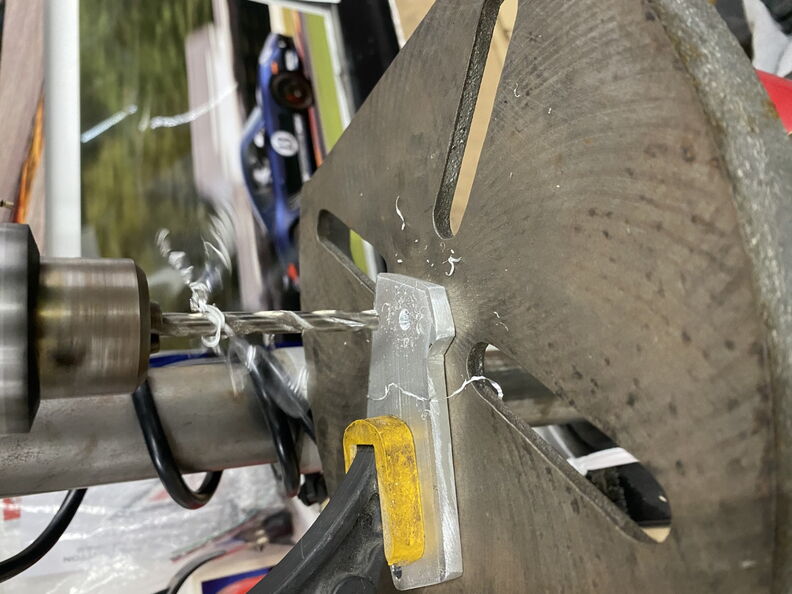

Off to High Speed Welding to make a prototype out of Aluminum.

http://www.garagescene.net/_data/i/u...d69540e-me.jpg

http://www.garagescene.net/_data/i/u...181ae26-me.jpg

http://www.garagescene.net/_data/i/u...64d8ff9-me.jpg

http://www.garagescene.net/_data/i/u...853cac8-me.jpg

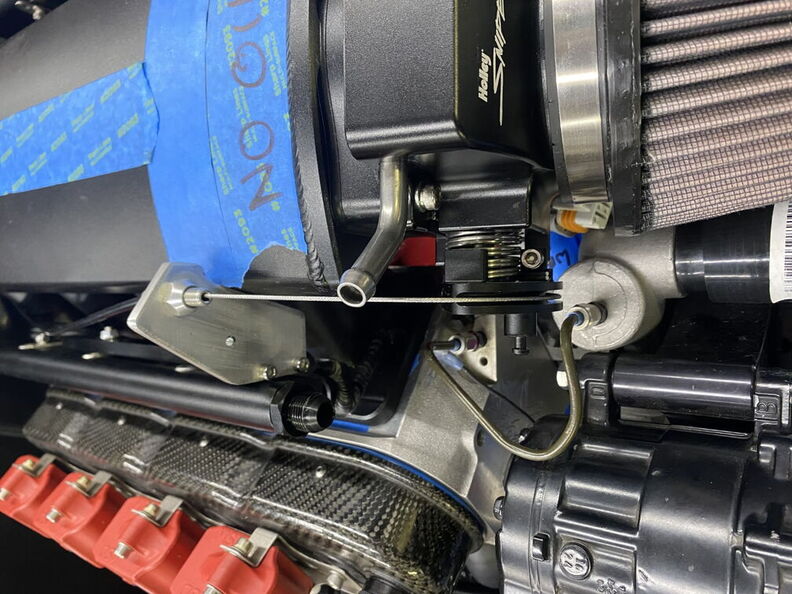

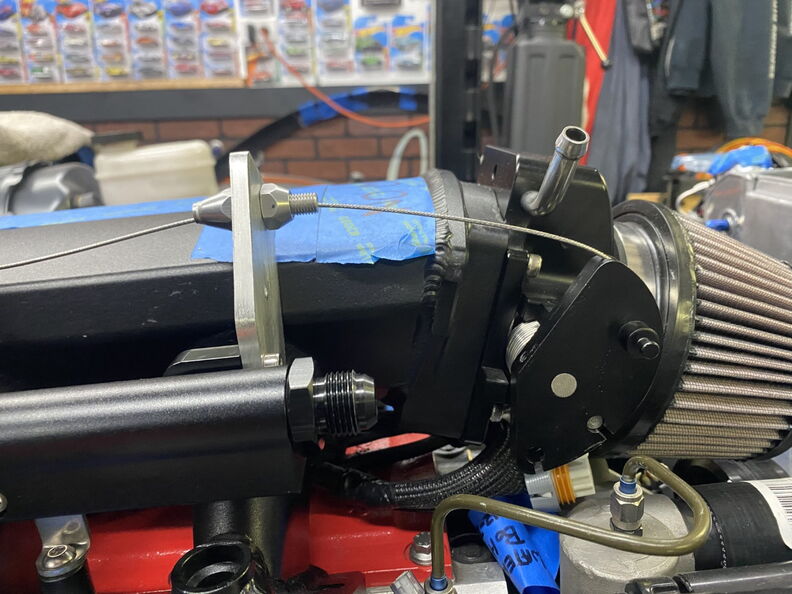

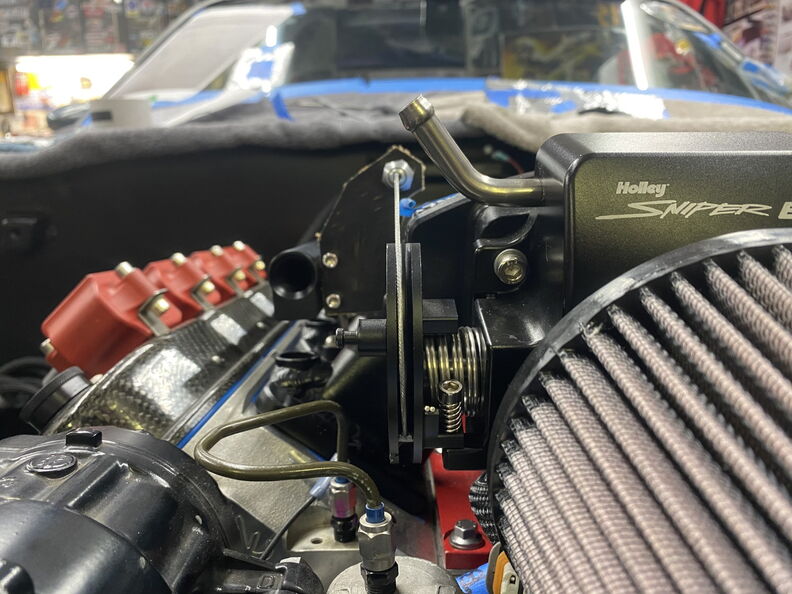

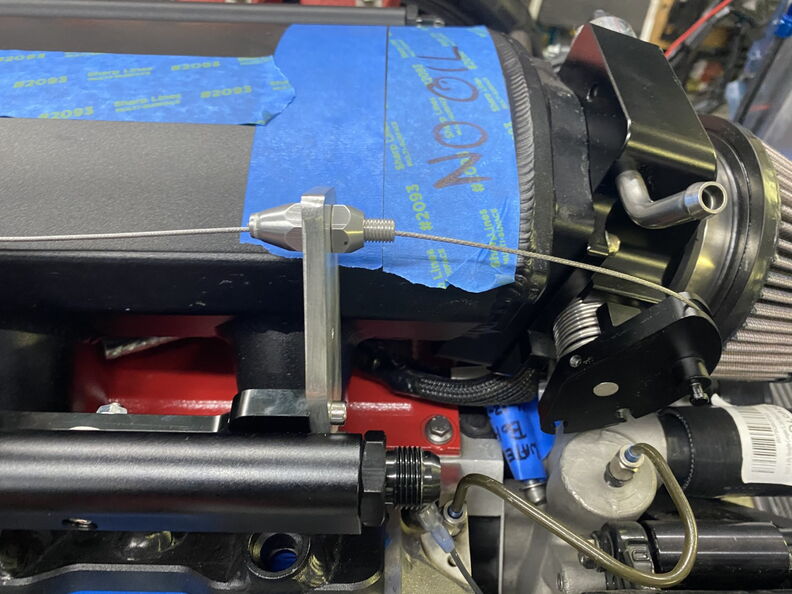

Alignment is spot on.

http://www.garagescene.net/_data/i/u...e2fff60-me.jpg

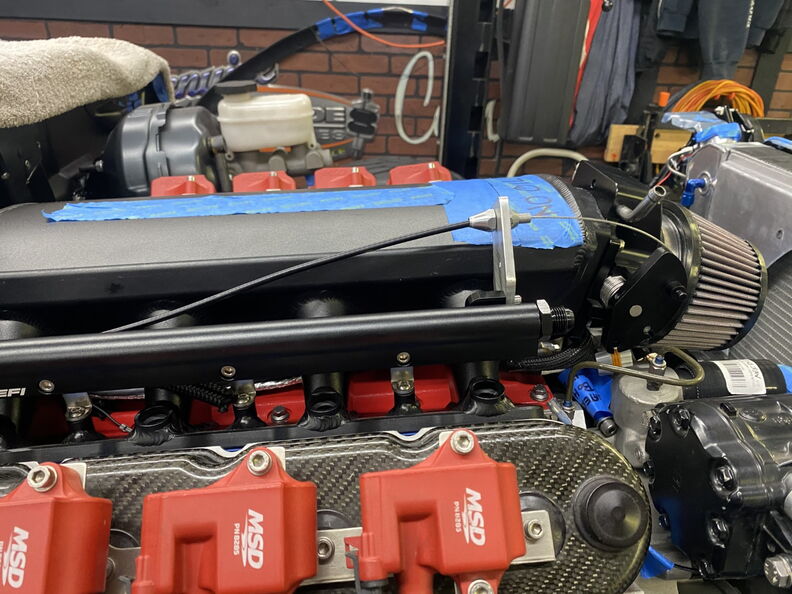

Since I am a mountain biker and I build bikes I grabbed an old school brake cable and mocked up a throttle cable so I could make sure the gas pedal would open the throttle blades completely.

http://www.garagescene.net/_data/i/u...cc79d38-me.jpg


http://www.garagescene.net/_data/i/u...2f8d9c8-me.jpg

My OCD is killing me (( 11-12-20 ))


Yes, I am aware I have a problem and after I finish this car I will seek therapy.

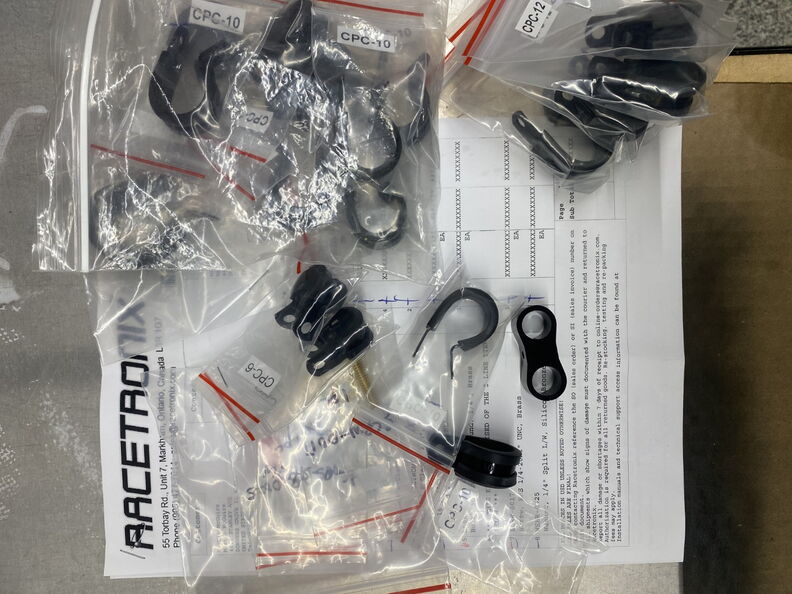

Racetronix sell black anodized adel clamps and I had to have them even though now one will every notice them.

http://www.garagescene.net/_data/i/u...b2f6e28-me.jpg

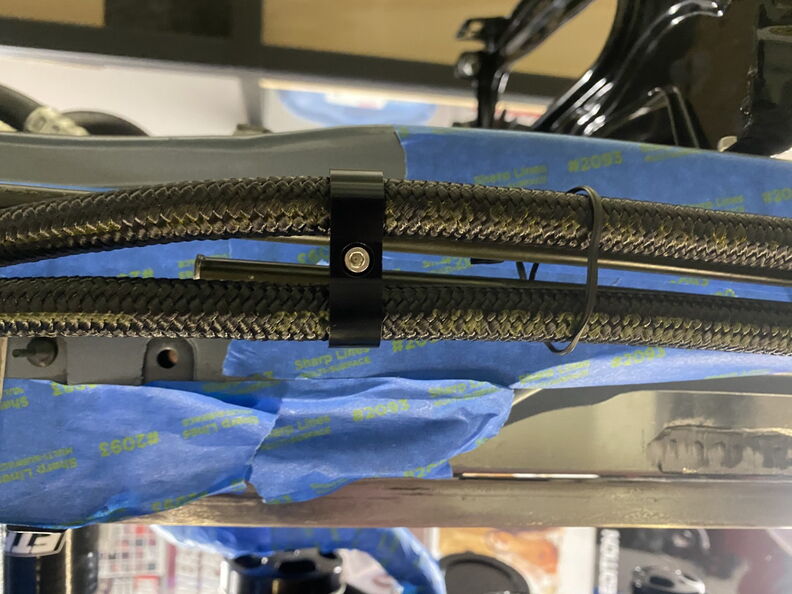

They also sell a very nice aluminum -6 line clamps.

http://www.garagescene.net/_data/i/u...dfc7439-me.jpg

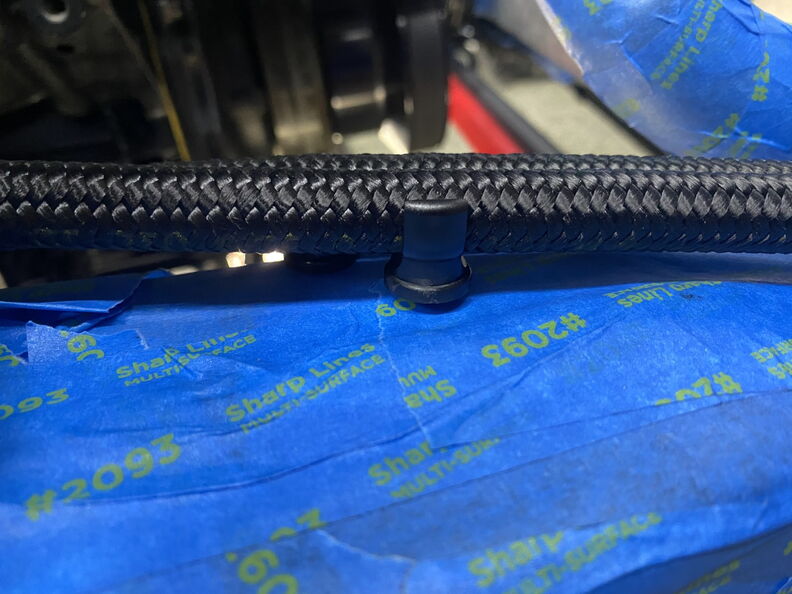

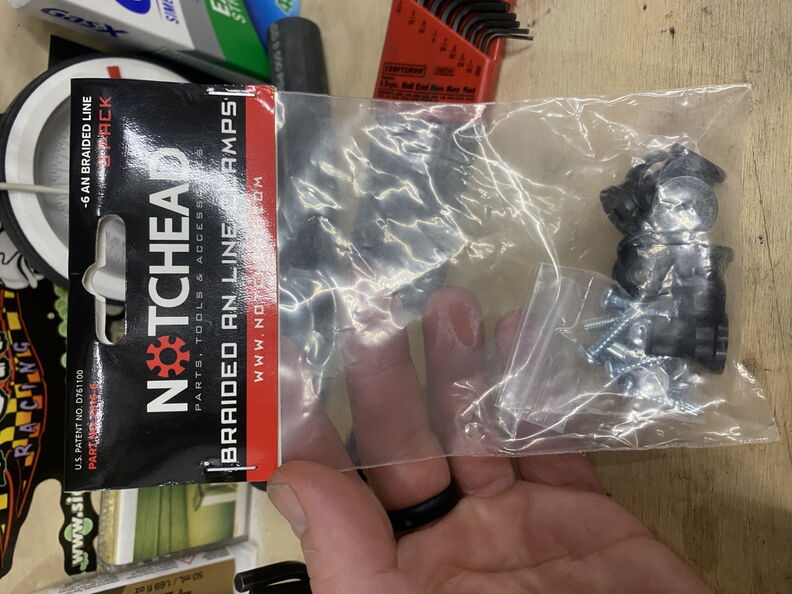

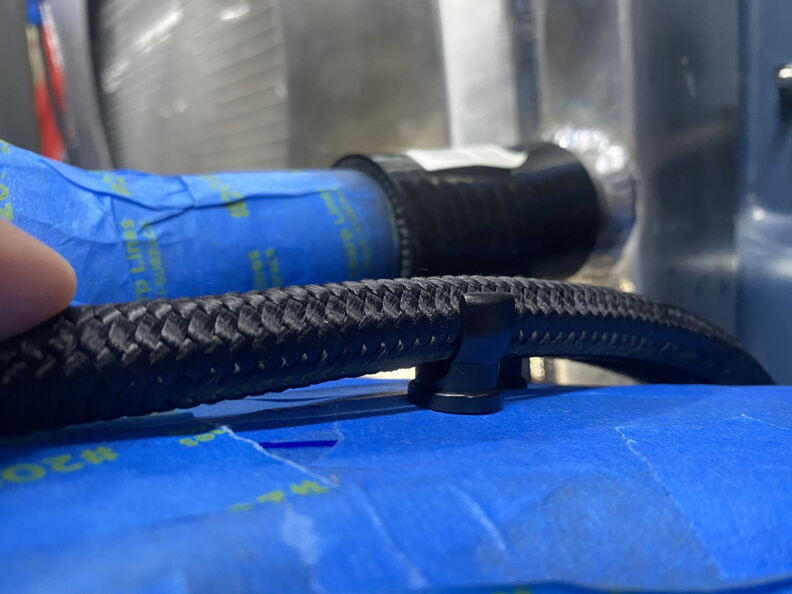

I also picked up some Knotchead -6 soft line clamps.

http://www.garagescene.net/_data/i/u...28a61e1-me.jpg

http://www.garagescene.net/_data/i/u...8d5e3ac-me.jpg

http://www.garagescene.net/_data/i/u...930dc72-me.jpg

Not going to lie to you guys it's been 20+ years since I have bent brake lines (( 11-14-20 ))


So it has been years since I made brake lines and I figured what the heck I have nothing but time so why not give it a shot. I decided I
was going to make the mock up line in the 3 pieces and then come back and attempt to make the line in one piece.

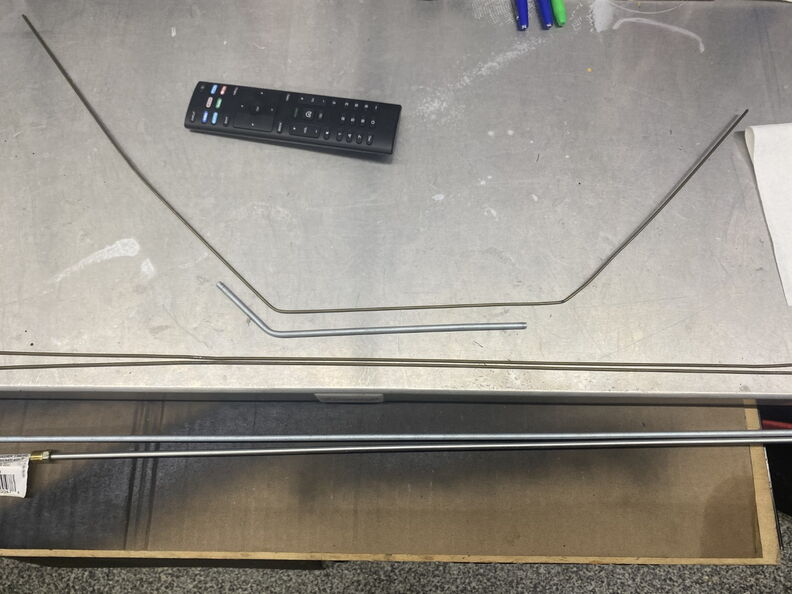

So out comes the trusty metal coat hangers and I made my first pattern.


http://www.garagescene.net/_data/i/u...af7b423-me.jpg

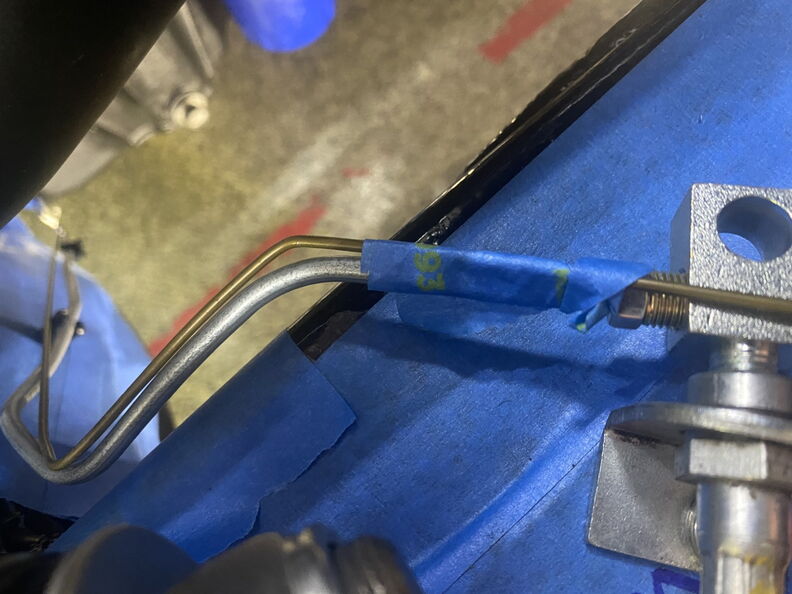

Then the next


http://www.garagescene.net/_data/i/u...f5db7b8-me.jpg

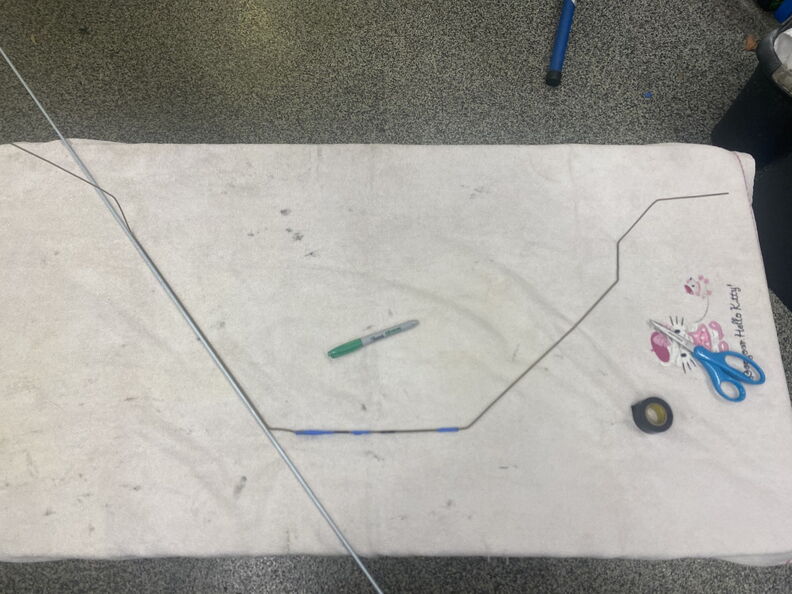

and finally I made the complete pattern.


http://www.garagescene.net/_data/i/u...07f9153-me.jpg

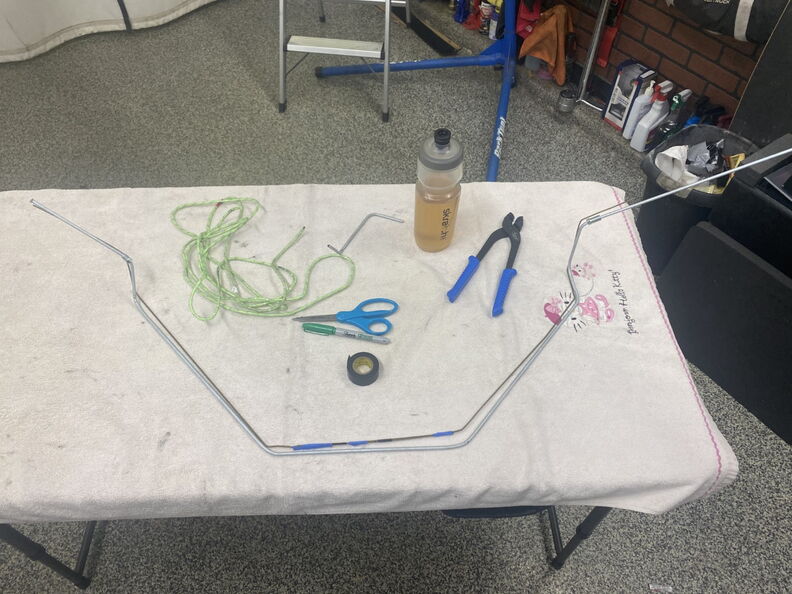

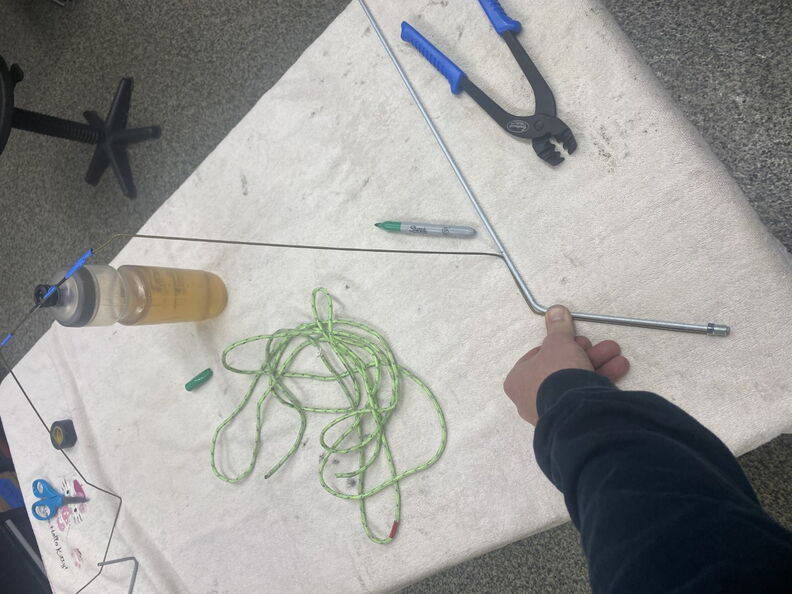

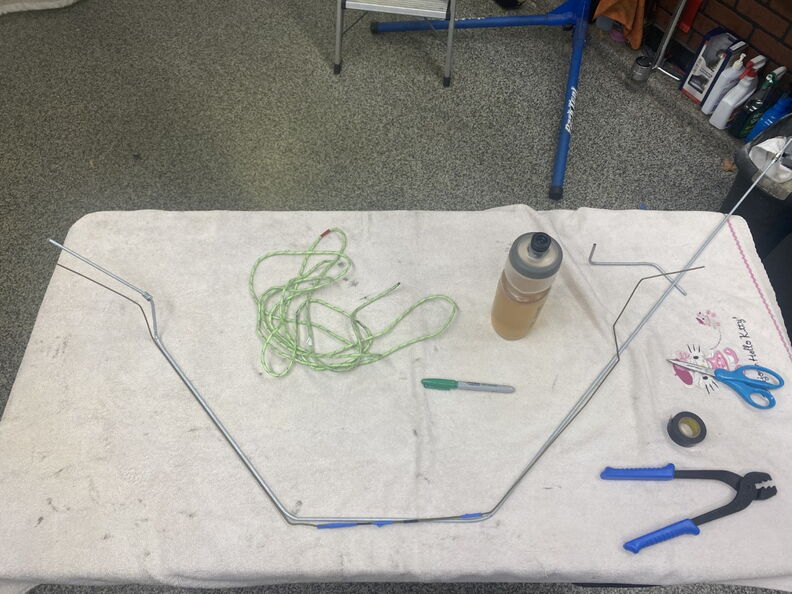

Here goes nothing !


http://www.garagescene.net/_data/i/u...cacd916-me.jpg


http://www.garagescene.net/_data/i/u...a815fb2-me.jpg


http://www.garagescene.net/_data/i/u...44690e1-me.jpg

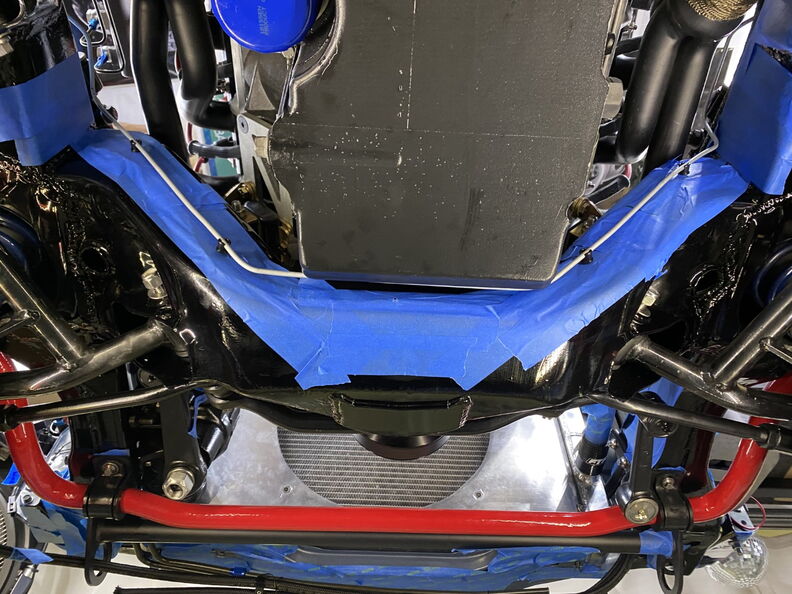

Hard to believe my first attempt went so well.


http://www.garagescene.net/_data/i/u...615a2ec-me.jpg

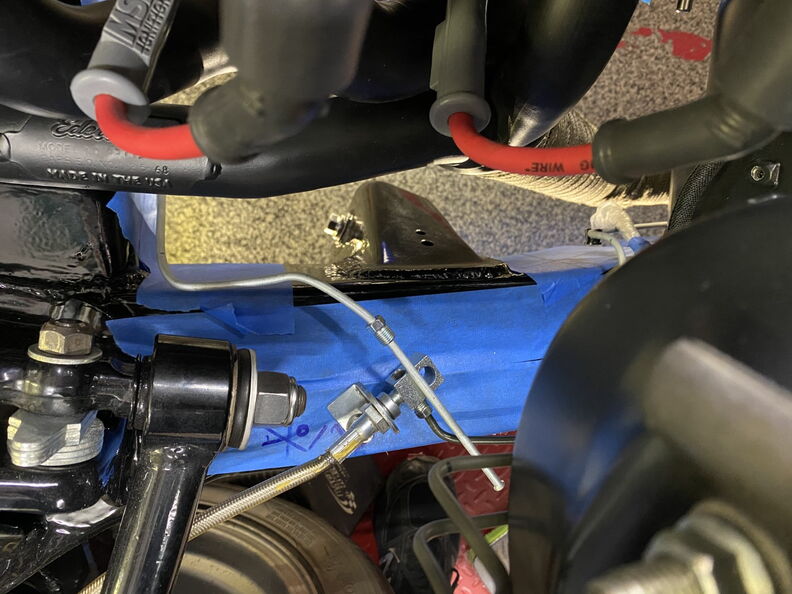

The final bends on the drivers side went well however I was way off on the passenger side.


http://www.garagescene.net/_data/i/u...3953e19-me.jpg

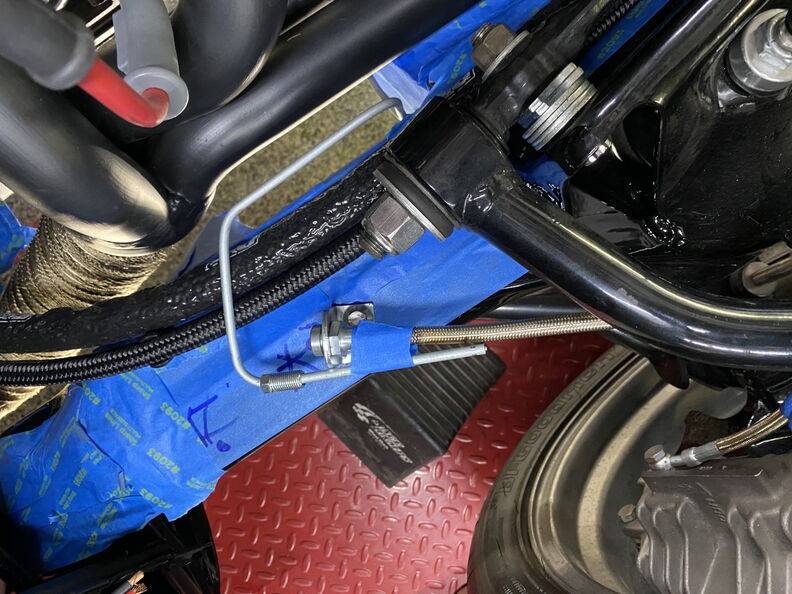

Opps - oh well I will give it another shot in a couple days.


http://www.garagescene.net/_data/i/u...ee1710e-me.jpg

2nd Attempt at the brake lines (( 11-15-20 ))


No one ever called me a quitter.


I am going to skip most everything I did to get to this point.


http://www.garagescene.net/_data/i/u...49a2243-me.jpg

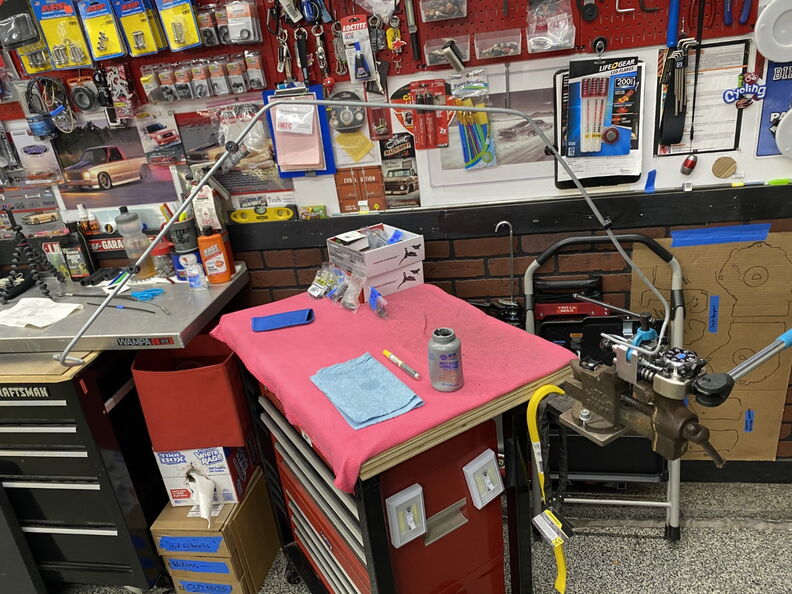

Love this tool from Eastwood.


http://www.garagescene.net/_data/i/u...44a3ea7-me.jpg

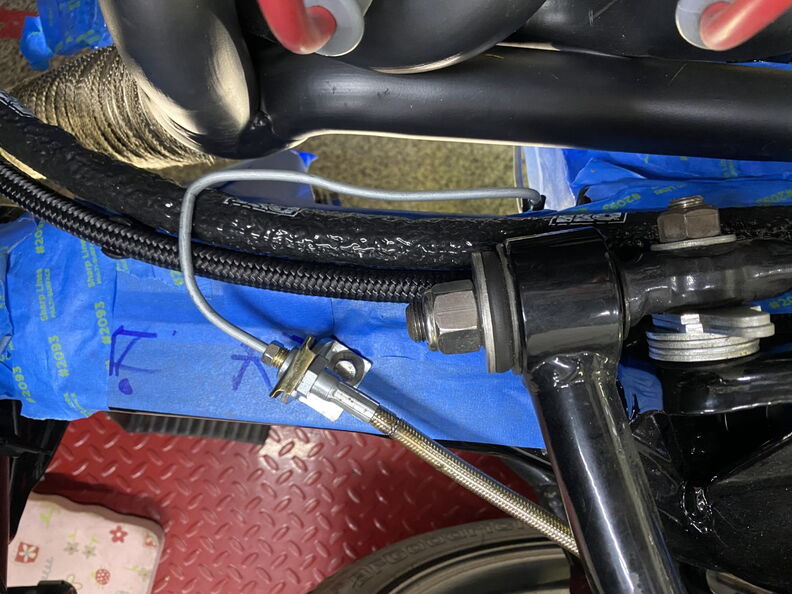

Looks like I will be doing it again as I miss-calculated where I needed to bend the lines so I straightened it and bent again so I could get closer on the next attempt.


http://www.garagescene.net/_data/i/u...67f2f8d-me.jpg

Thankfully brake lines are cheap.

Don't ever call me a quitter (( 11-20-20 ))

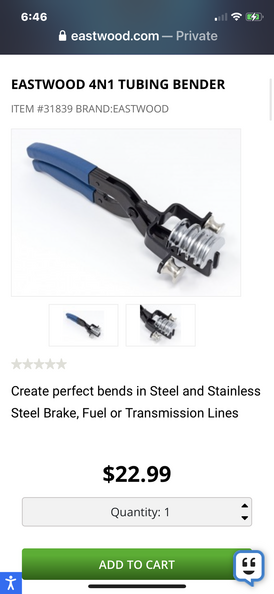

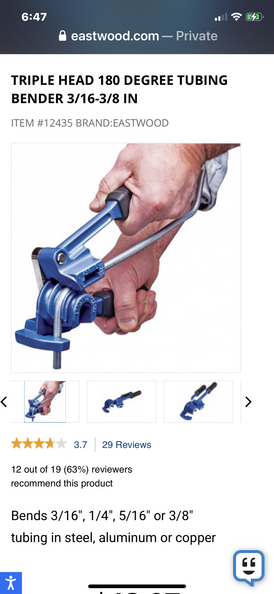

Since I am still not happy with the brake line it's off to Eastwood for a couple more tools.


http://www.garagescene.net/_data/i/u...99ad451-me.png http://www.garagescene.net/_data/i/u...21a77c9-me.png

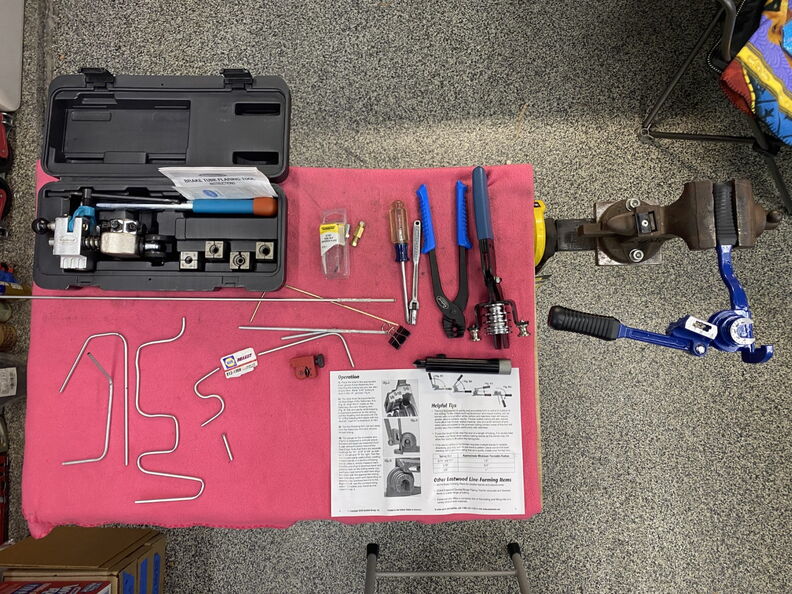

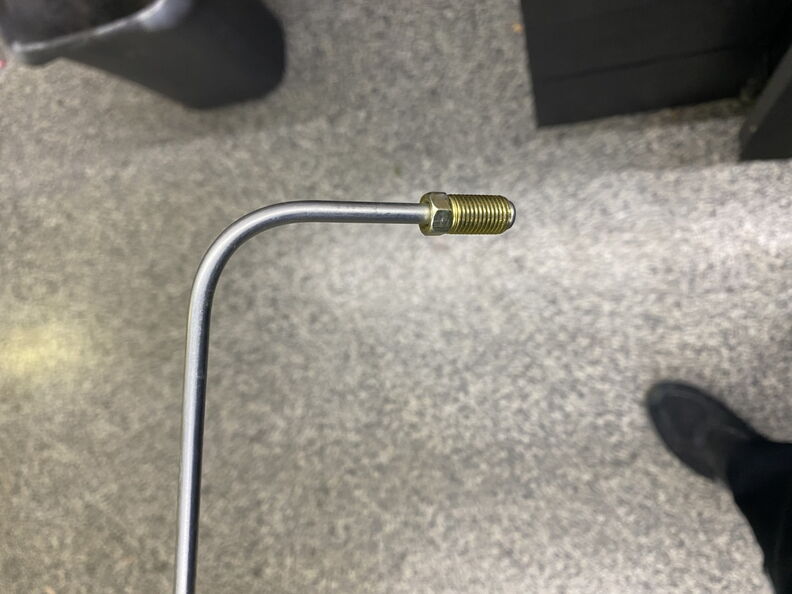

Here we go again. As you can see I was practicing the bends that each tool was able to do and making reference marks on each piece so I would have a much better chance of bending the lines exactly where & how I want them to turn out.


http://www.garagescene.net/_data/i/u...09c0b53-me.jpg

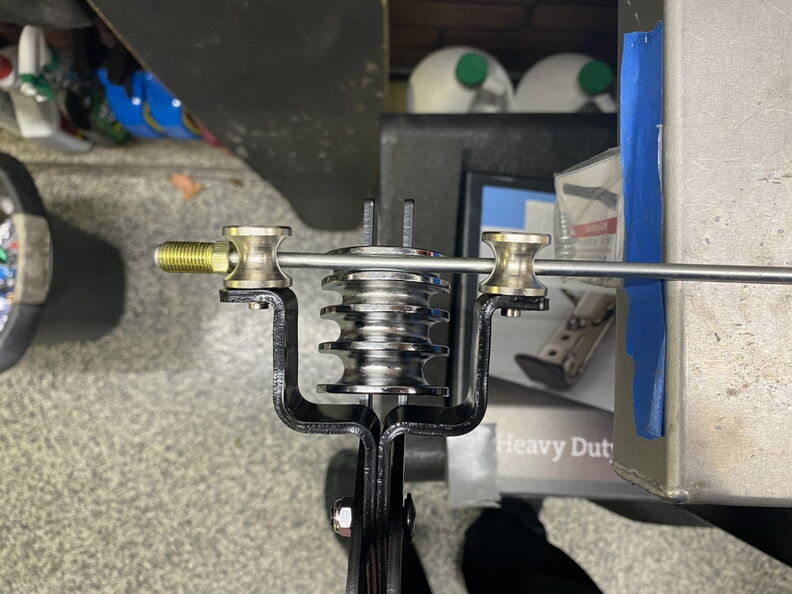

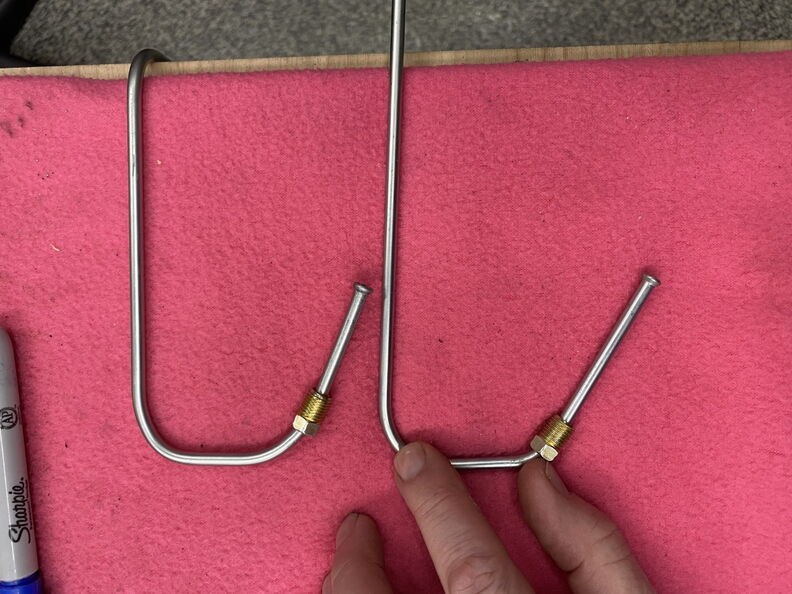

More practice bends


http://www.garagescene.net/_data/i/u...77c5563-me.jpg


http://www.garagescene.net/_data/i/u...ca73c65-me.jpg


http://www.garagescene.net/_data/i/u...de6cd5b-me.jpg

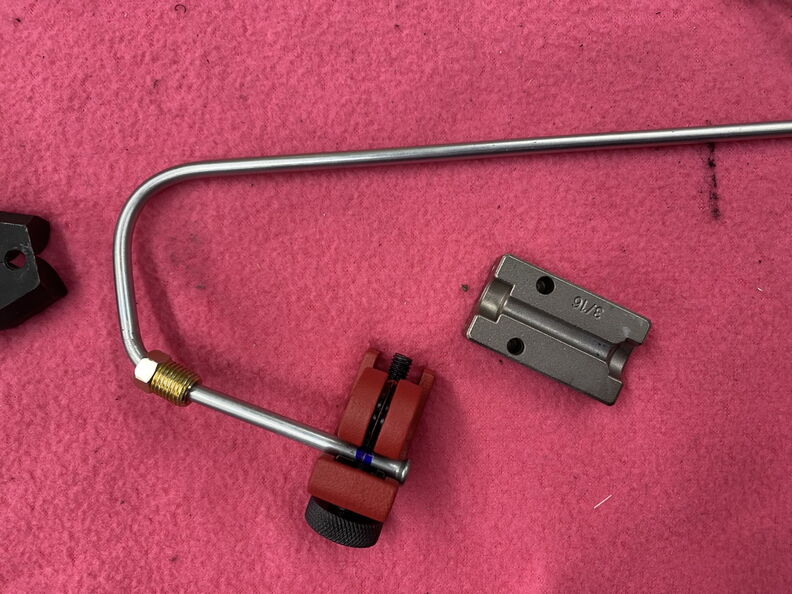

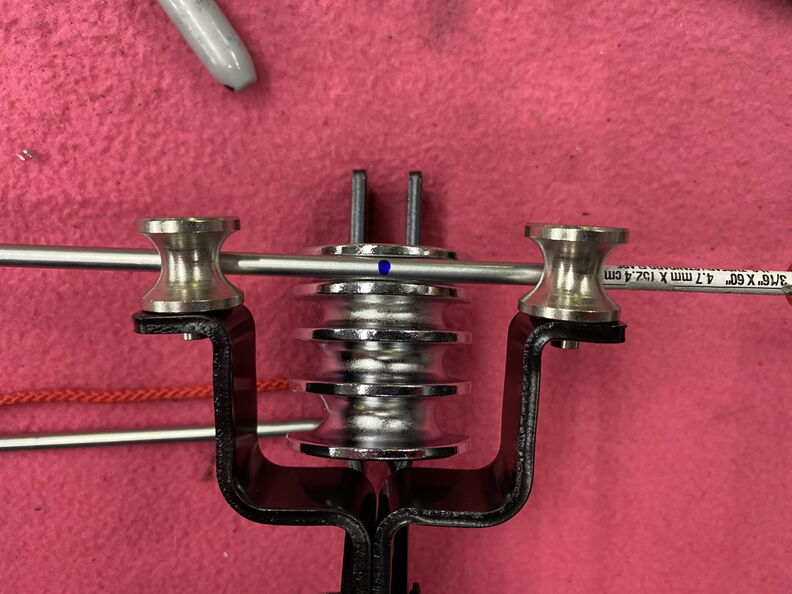

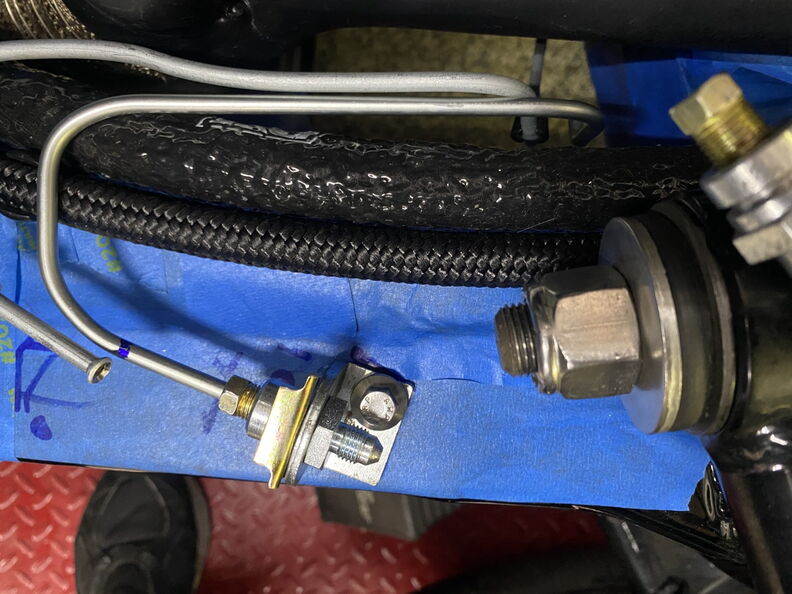

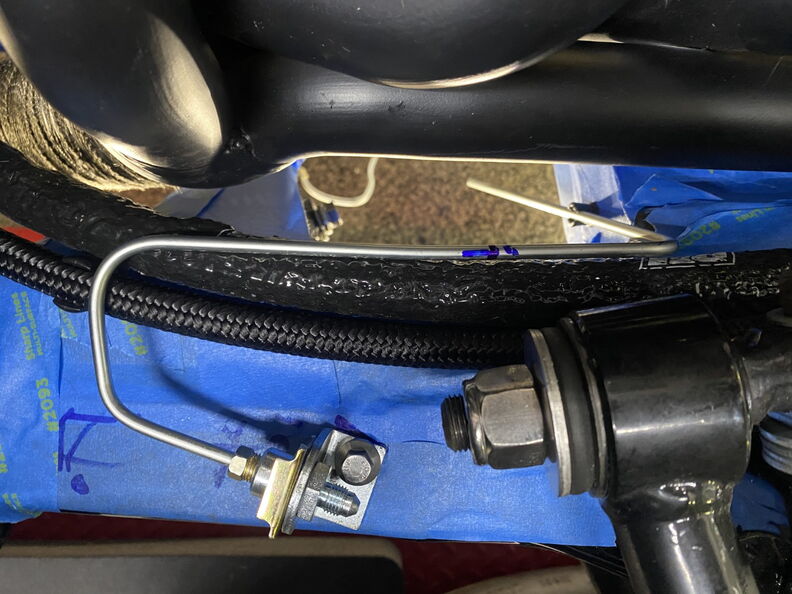

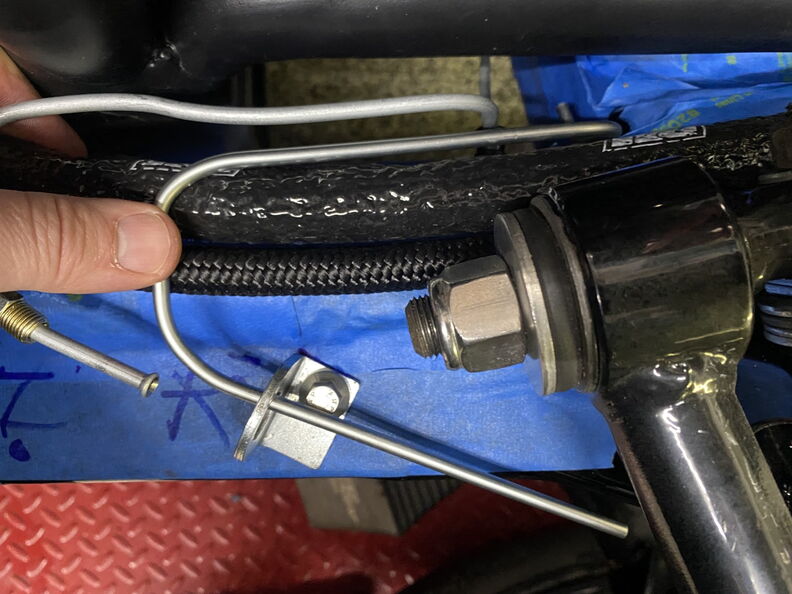

You can see the refence marks on the line.


http://www.garagescene.net/_data/i/u...062802a-me.jpg

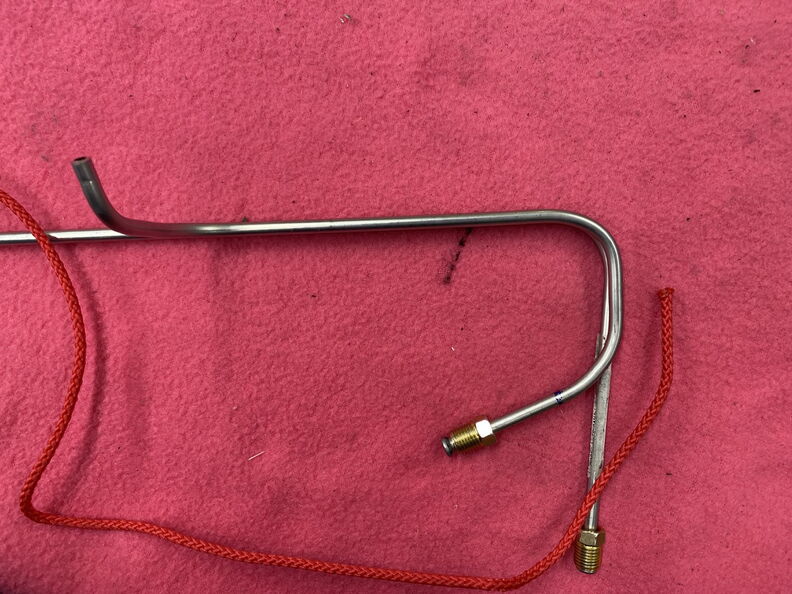

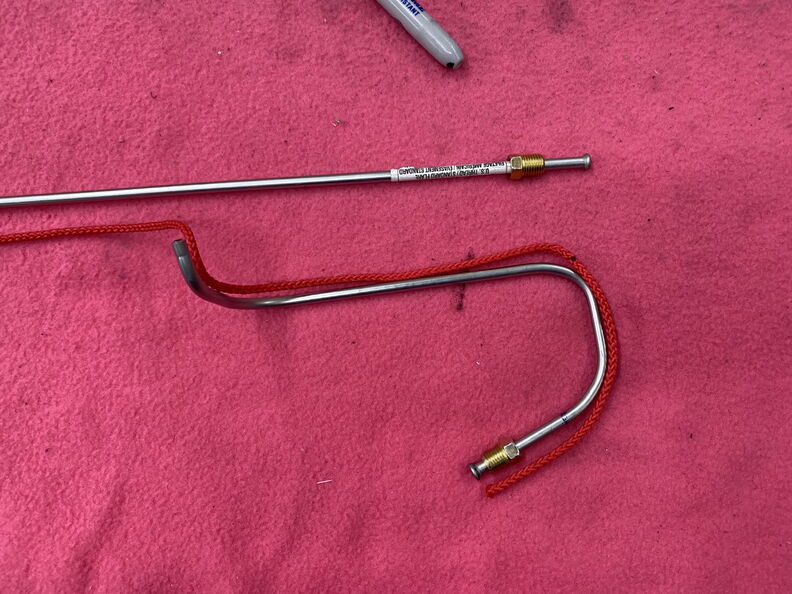

I used the string to determine exactly how much brake line I will need to make the desired piece.


http://www.garagescene.net/_data/i/u...6662a75-me.jpg


http://www.garagescene.net/_data/i/u...6661fb8-me.jpg


http://www.garagescene.net/_data/i/u...7381341-me.jpg


http://www.garagescene.net/_data/i/u...470272f-me.jpg


http://www.garagescene.net/_data/i/u...0456e99-me.jpg


http://www.garagescene.net/_data/i/u...53af238-me.jpg


http://www.garagescene.net/_data/i/u...d6d3dbf-me.jpg

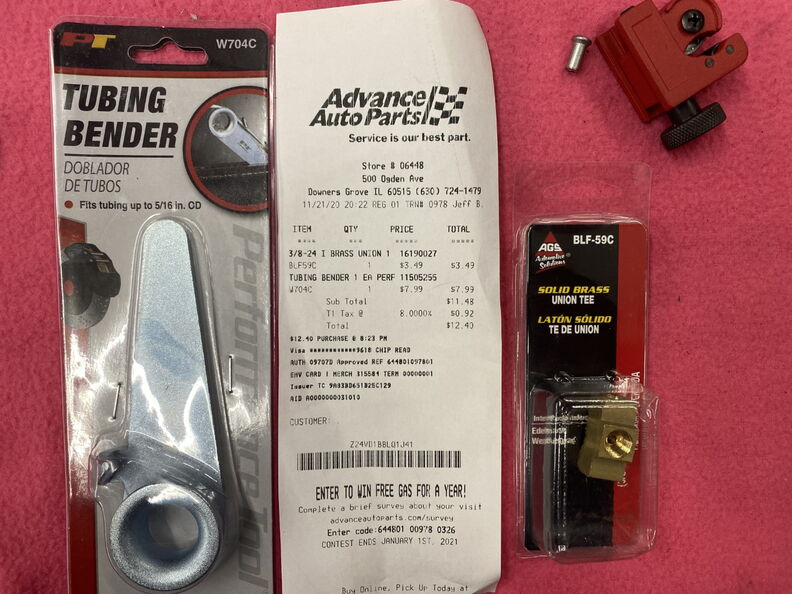

Back to the Autoparts store.


http://www.garagescene.net/_data/i/u...a190087-me.jpg

Good job Marty!

Professional tools make all the difference in the end product.

Andrew

I am amazed at the work and quality you get done.


Few understand how much work it is to get this stuff done right. Humbled by your quality and drive.

Brake Lines Brake Lines Brake Lines (( 11-21-20 ))

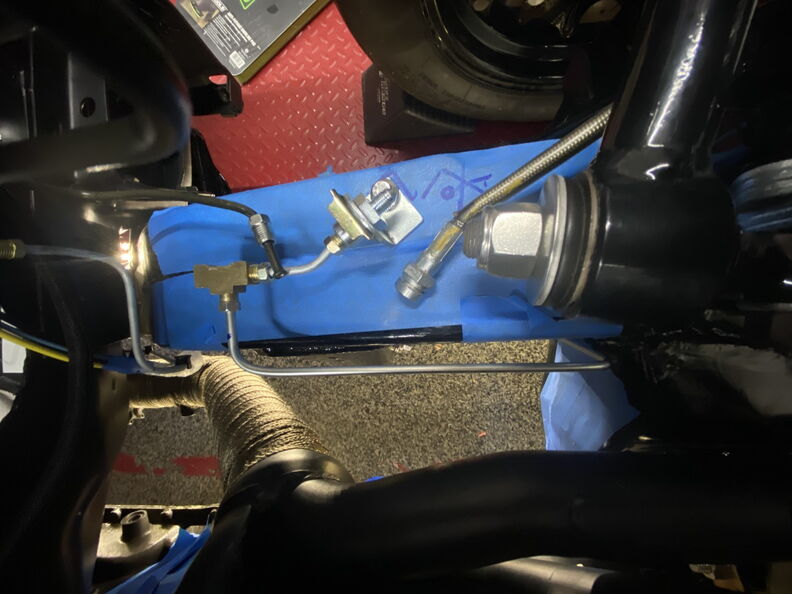

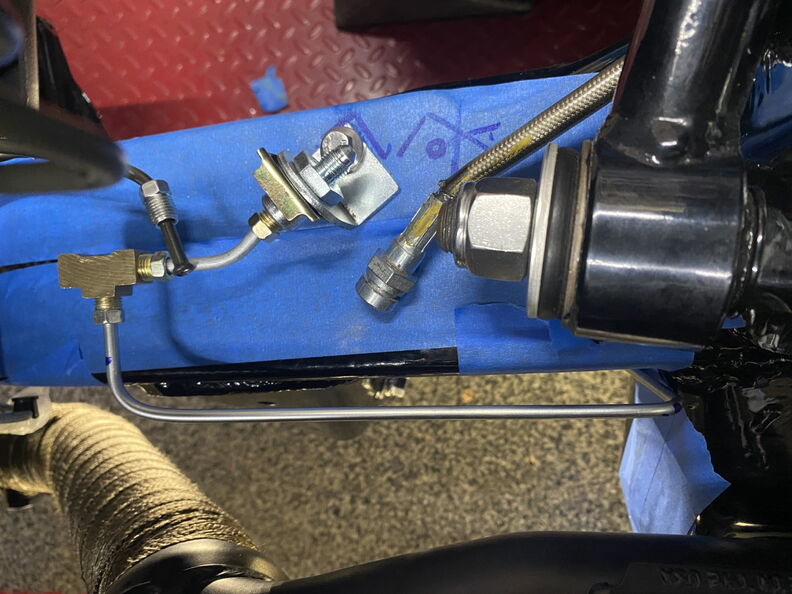

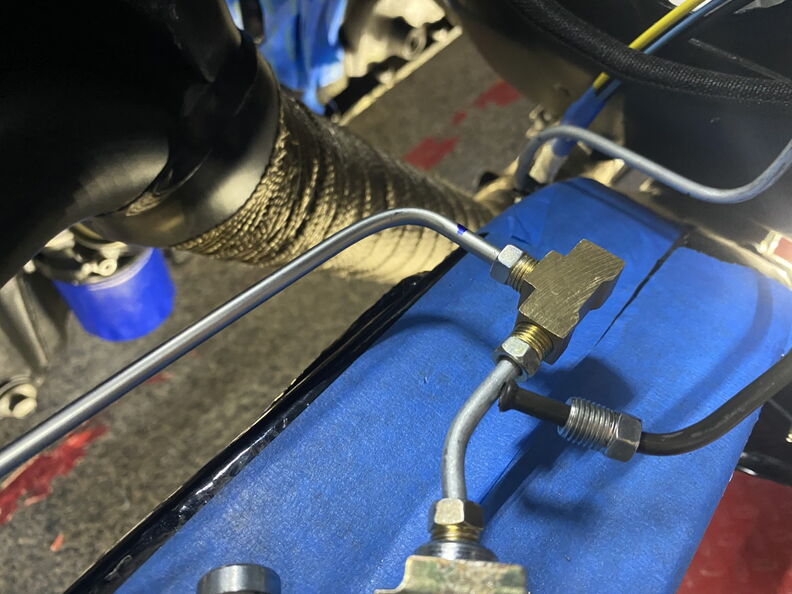

Picking up where I left off I need to connect both front calipers to the master and my goal was to keep is simple and fairly
easy build. I plan to install a Knotchead line clamp under it to support it.


http://www.garagescene.net/_data/i/u...d09f1c4-me.jpg


http://www.garagescene.net/_data/i/u...e777d45-me.jpg


http://www.garagescene.net/_data/i/u...af5e9c7-me.jpg


Time to make the final line.

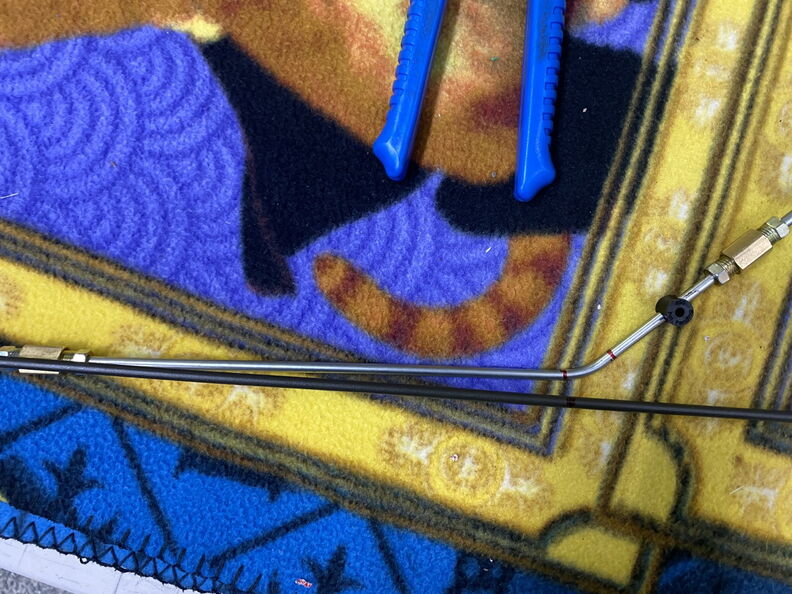

Since I made reference marks on the practice line I used those to make the new line all in one piece and it turned out exactly how I wanted it.


http://www.garagescene.net/_data/i/u...df0b308-me.jpg

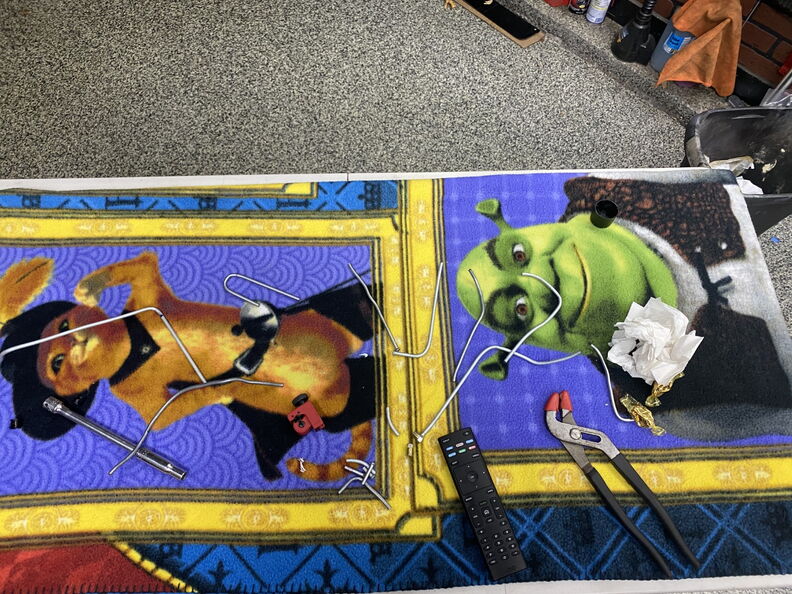

Yep, I kept practicing with the scrap pieces to help me learn where to line up the tools so I can get the desired bends.


http://www.garagescene.net/_data/i/u...e4b2047-me.jpg

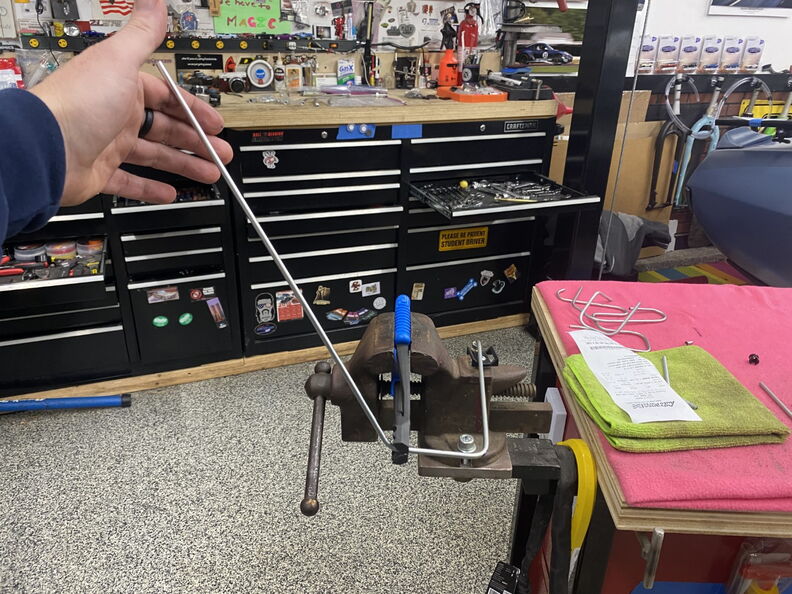

So I was feeling a little bit ambitious and I gave it another crack on the crossover line on the subframe.


http://www.garagescene.net/_data/i/u...54c9daa-me.jpg

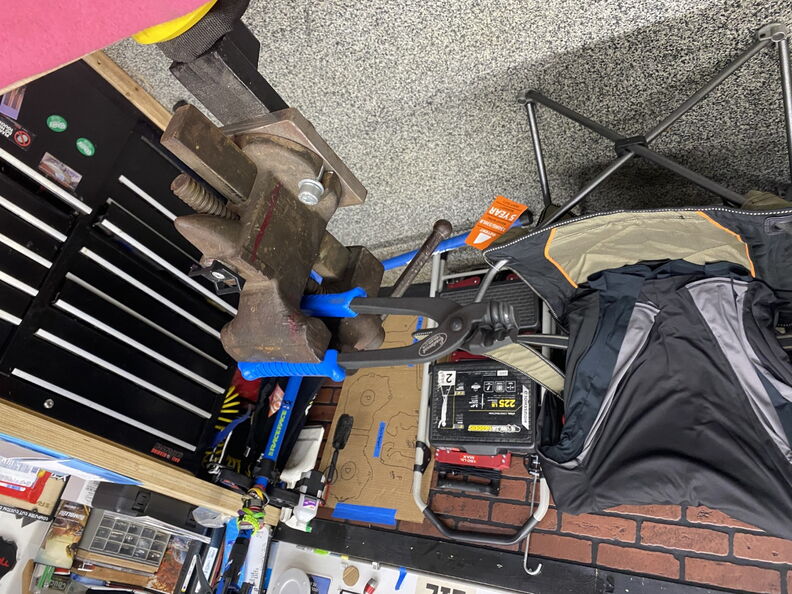

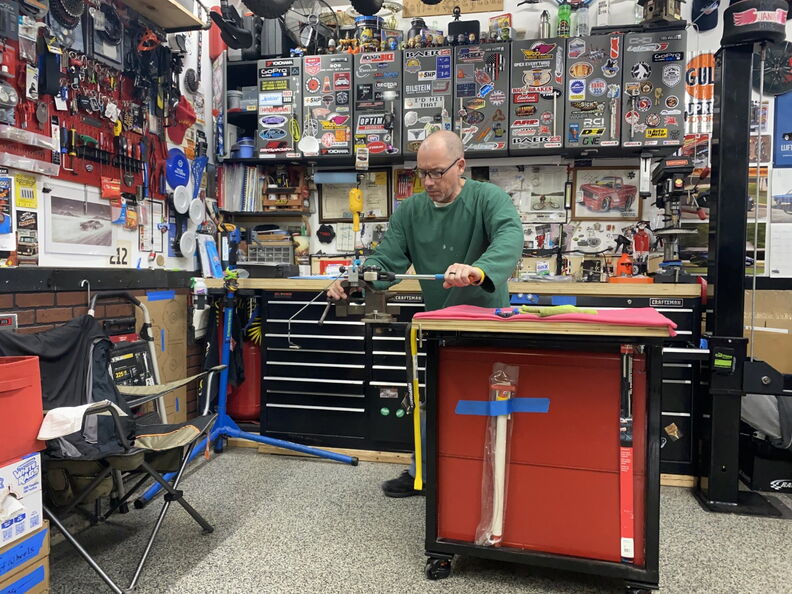

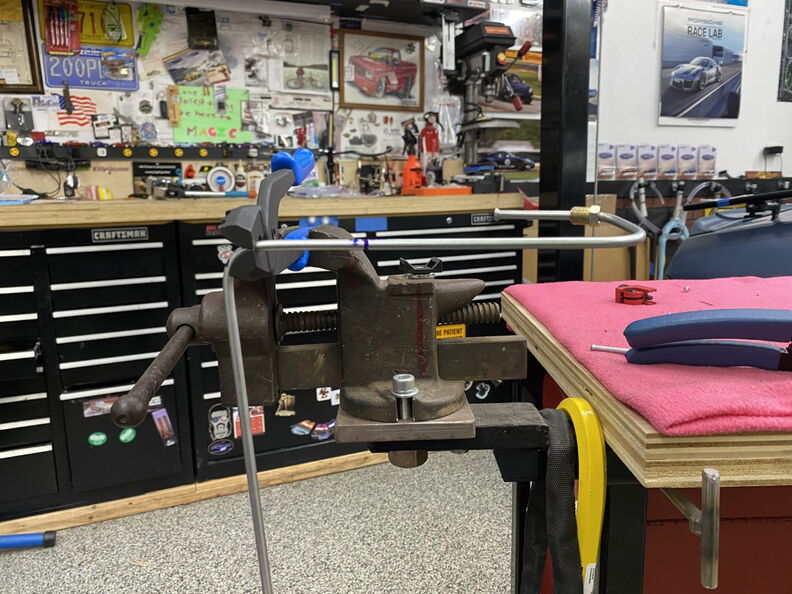

I needed an extra hand so I put the brake line bender in my Grandfathers Vice and wow was this a total game changer it was like having Mike in the garage helping me.


http://www.garagescene.net/_data/i/u...80e7394-me.jpg


http://www.garagescene.net/_data/i/u...179c939-me.jpg


I just realized the sweatshirt that I am wearing in this picture was the last gift I received from my Grandmother before she died
in 1989. It had moved with me many times over the years and I never wore it. A few years back I pulled it out and decided I would
finally where it.


http://www.garagescene.net/_data/i/u...f86dbaf-me.jpg


http://www.garagescene.net/_data/i/u...b5fd26e-me.jpg

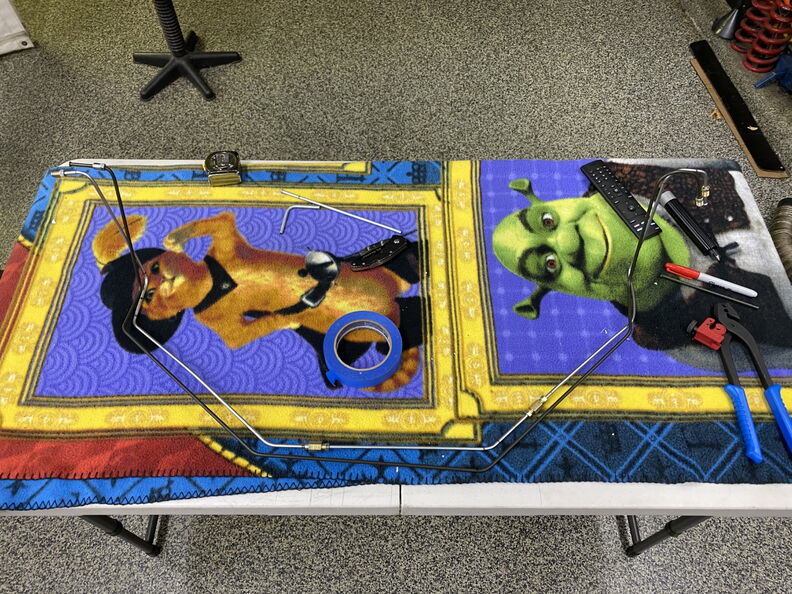

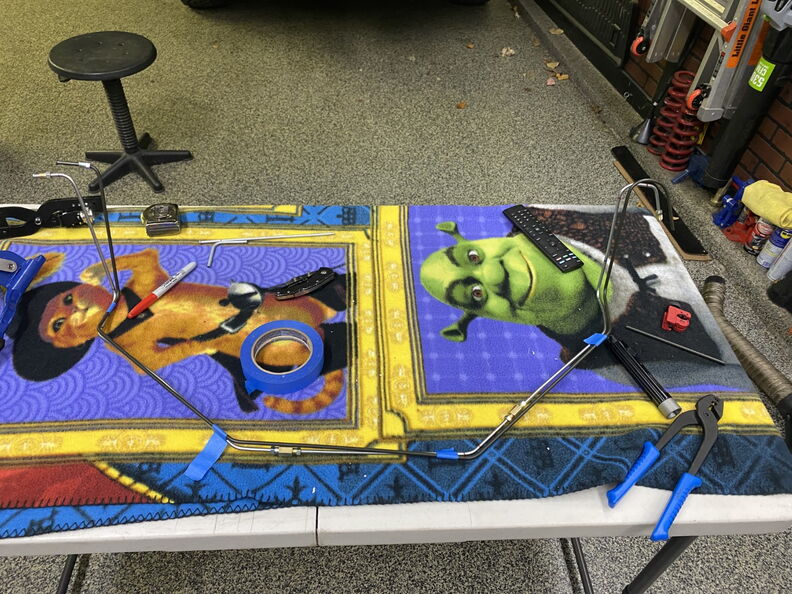

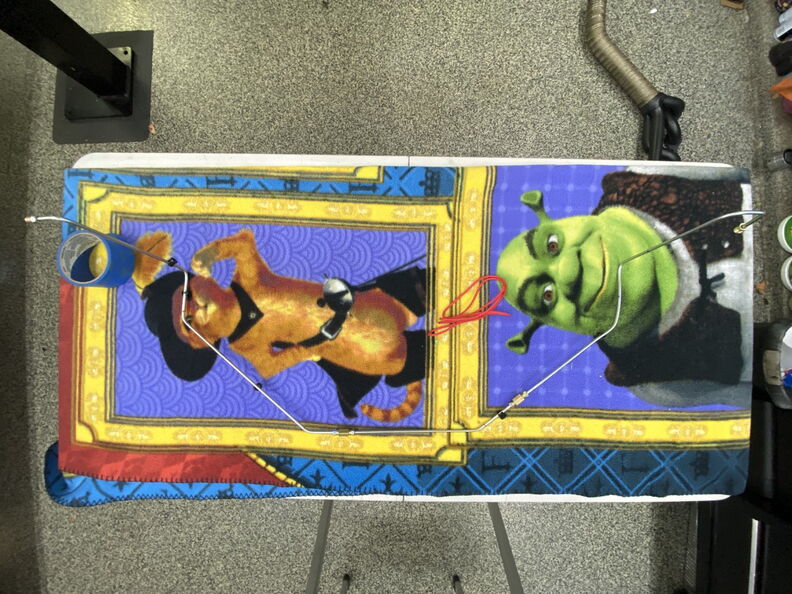

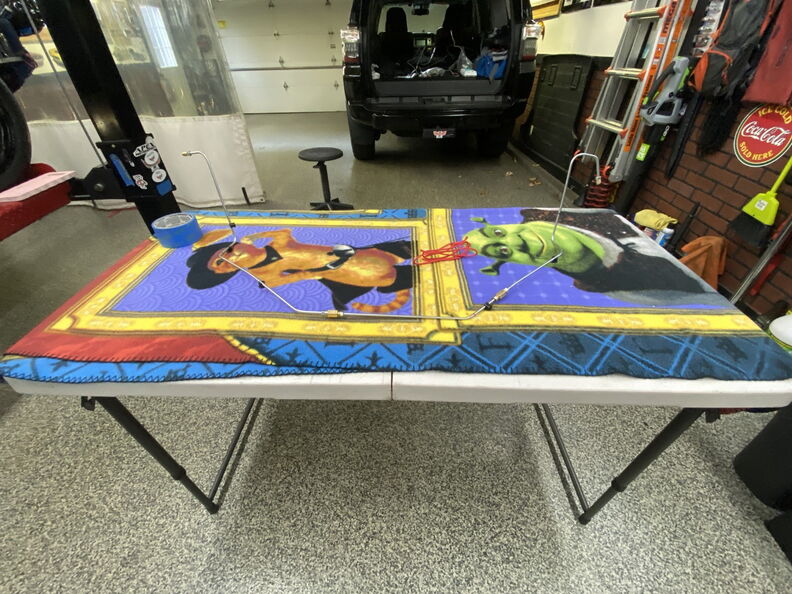

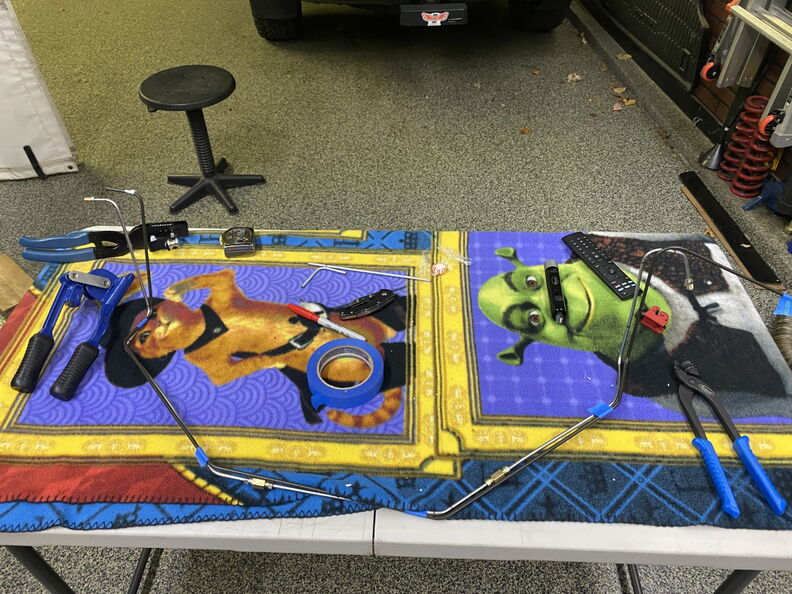

Using the reference marks I made allowed me to duplicate the final line all in one piece. I also traced out the line with sting so I new exactly how much line was necessary. It would have sucked if I had started with a 60" line as this line turned out to be 62" in length.


http://www.garagescene.net/_data/i/u...da81bf1-me.jpg


http://www.garagescene.net/_data/i/u...2f9d0d4-me.jpg

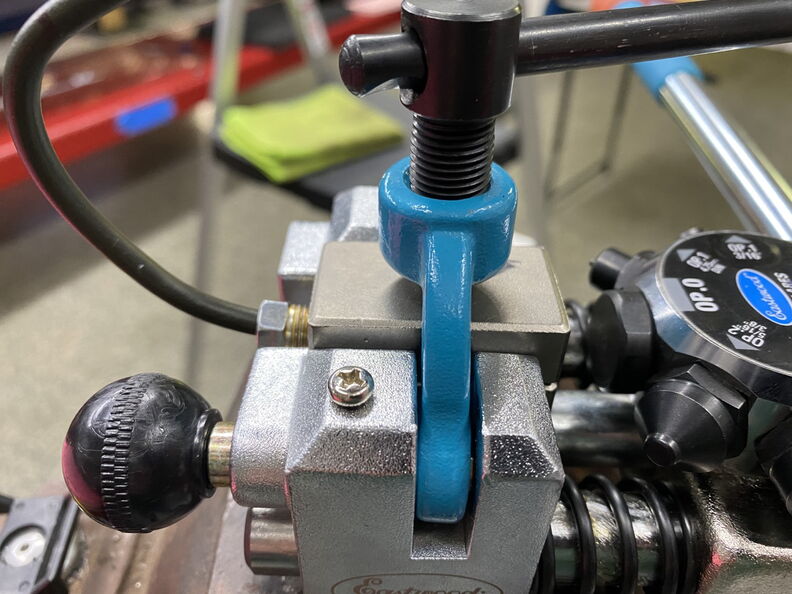

The final flare and yes the fitting is on !!!


http://www.garagescene.net/_data/i/u...5472f4e-me.jpg


http://www.garagescene.net/_data/i/u...1bc1f5b-me.jpg

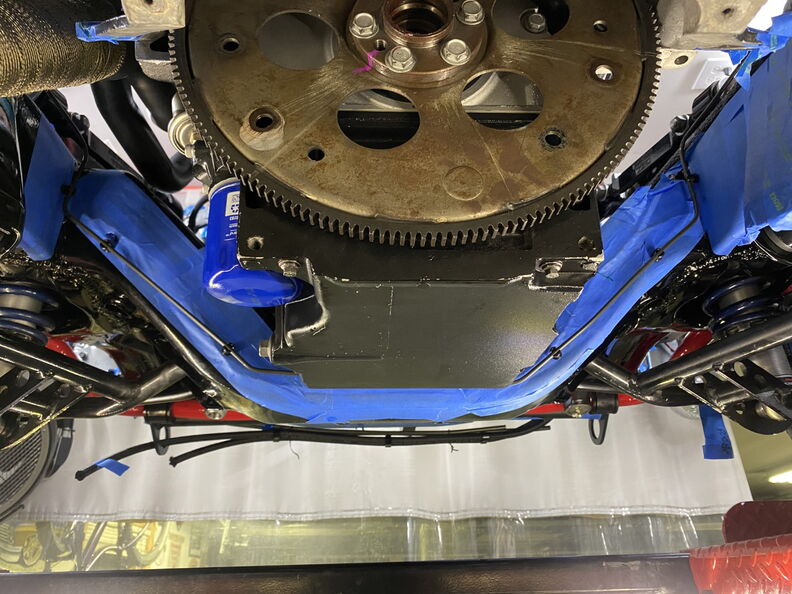

The tape makes the line not look centered but it is actually almost perfect.


http://www.garagescene.net/_data/i/u...452887e-me.jpg
