It is hard to tell in the pics, but the area around the hood bumpers is slightly raised to form a small crown. The body filler defined the crown a little bit more. We ran a small stream of water down the channel on each side of the trunk and the water never did climb the crown, it just went right around.

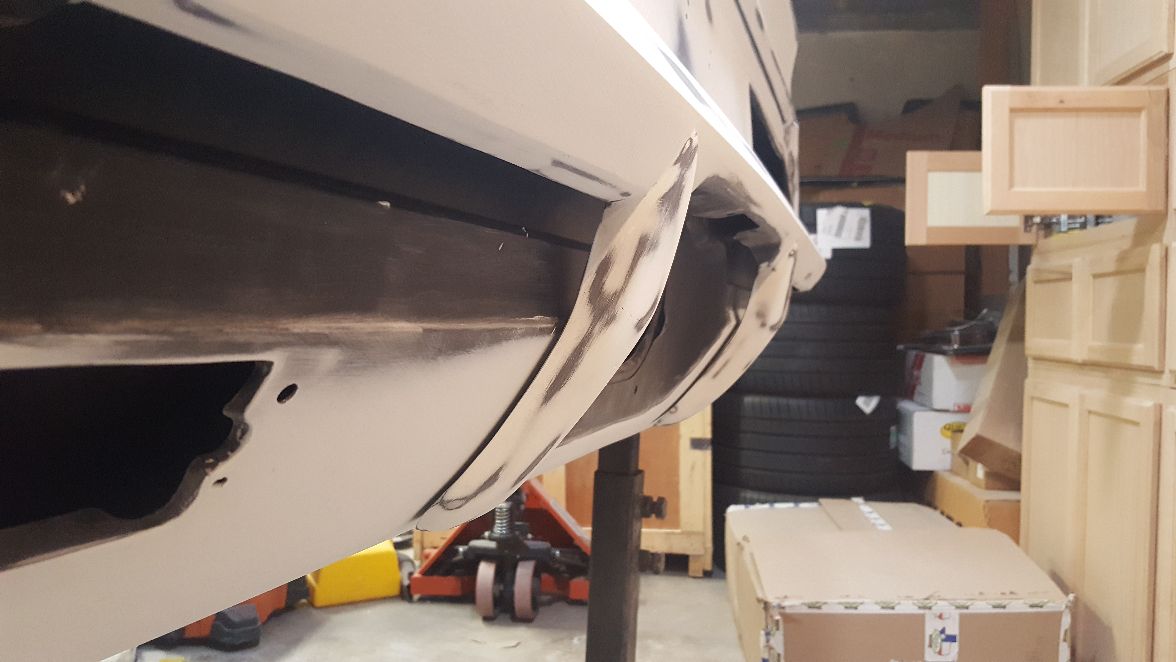

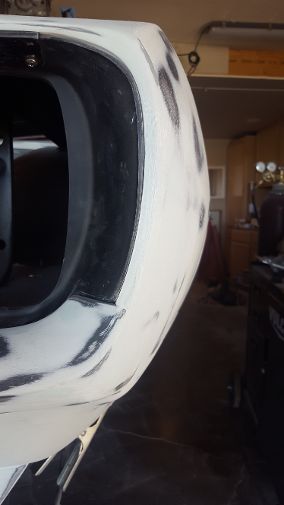

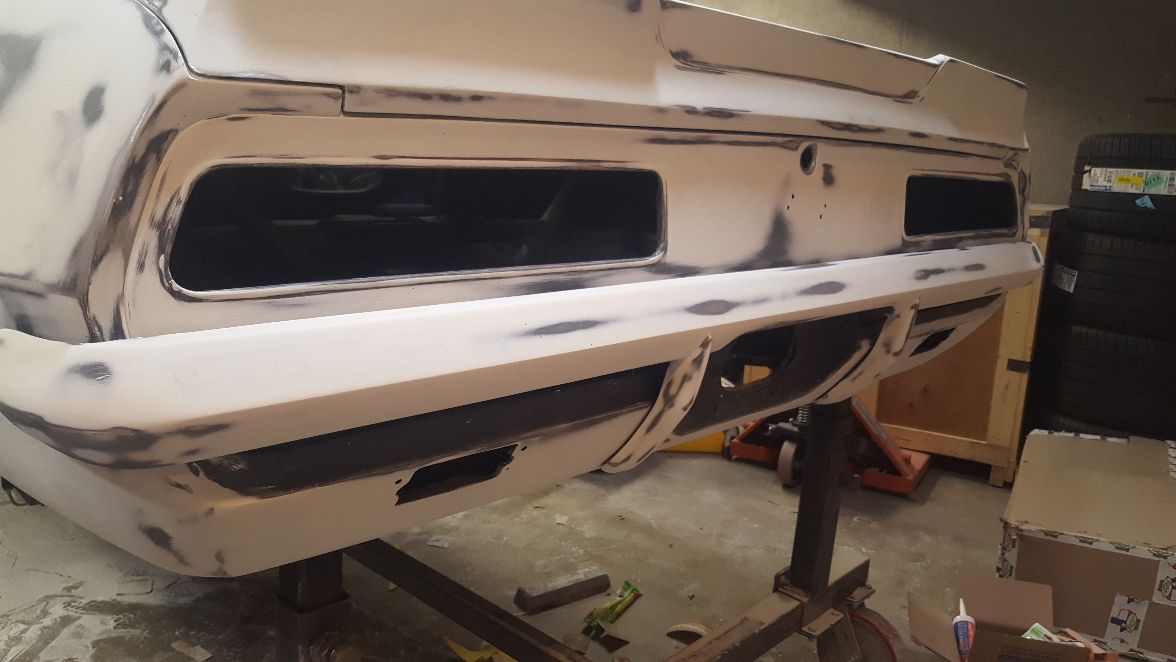

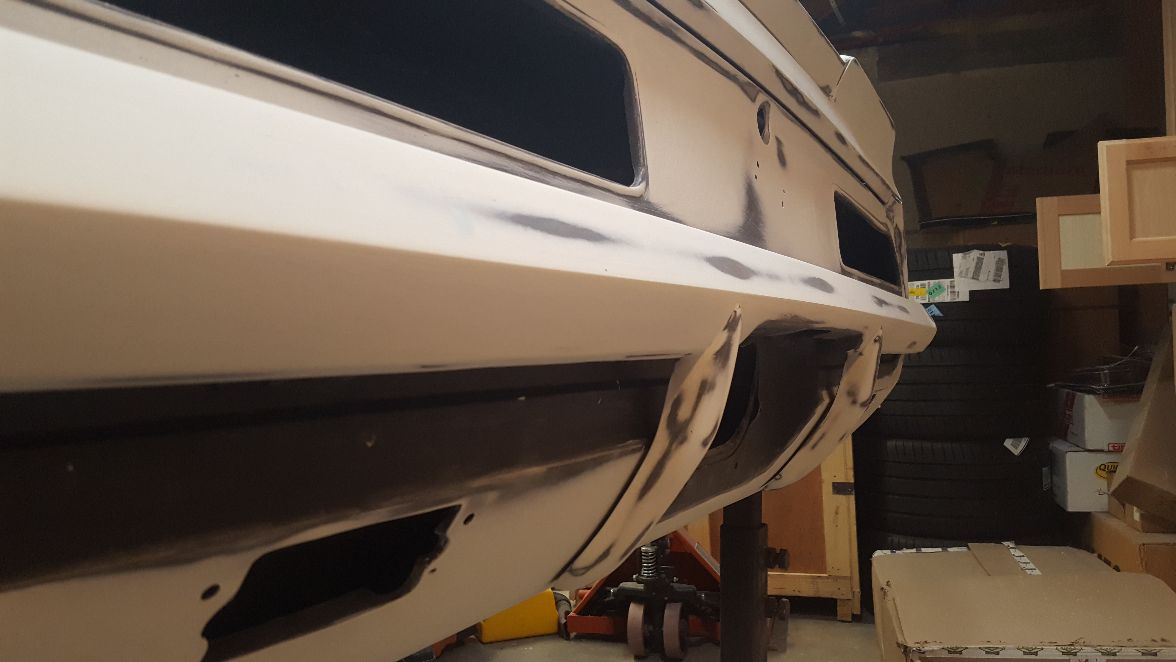

Since the rear bumper will be painted body color, we spent an entire day body working it and getting it fitted for the final time.

Attachment 77994

Attachment 77995

Attachment 77996

Attachment 77997

just wait till its painted, and then start scratching your head wondering why it won't go back together just as perfectly as you took it apart to paint.

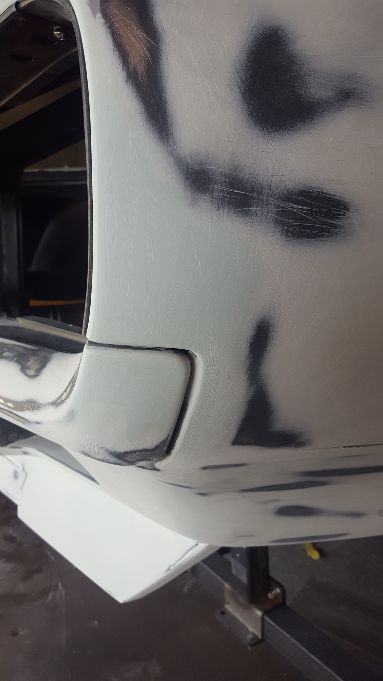

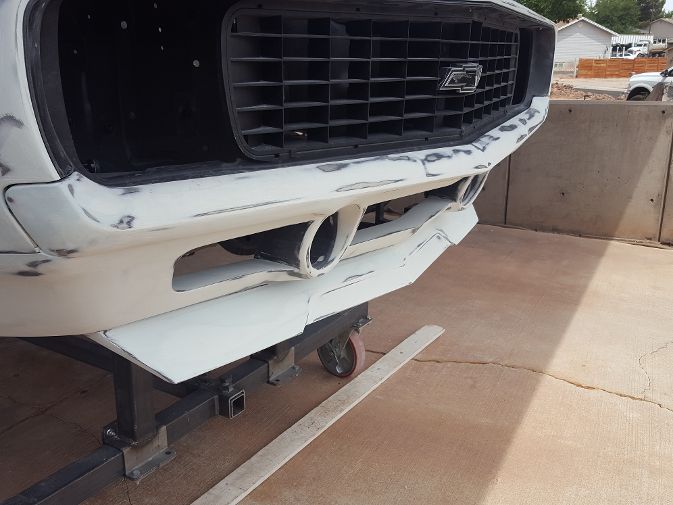

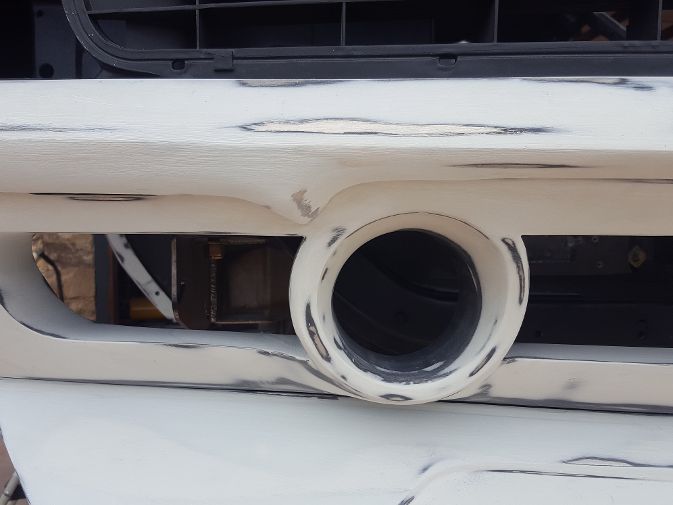

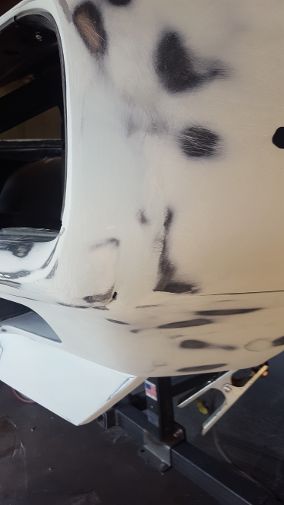

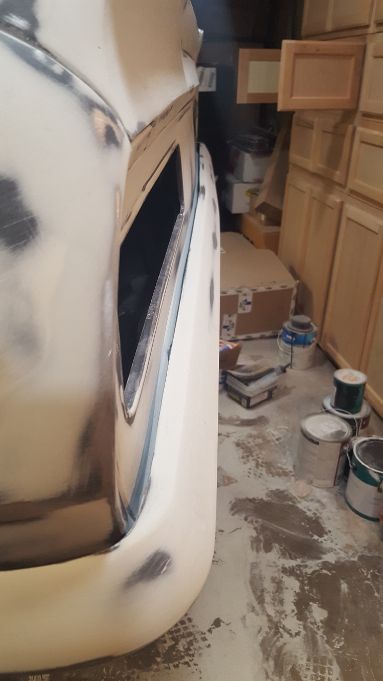

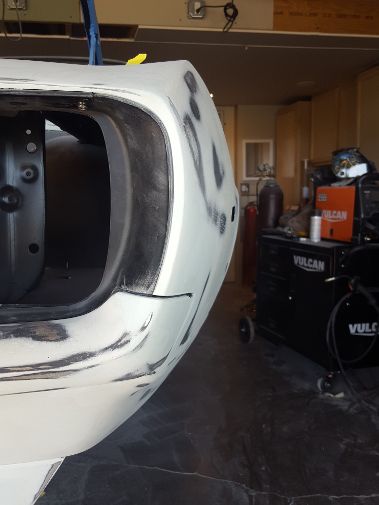

When I originally fit the front bumper, it was in bare metal along with the fenders and header panel and everything fit perfect except the grille. I had never done this before so I figured I would trim and sand the grille where needed to make it fit. Then when my body guy came back, he did not want to modify the grille at all because it would weaken it around the edges because the grille is stepped in the back. So we spent countless hours metal working the fenders to make the grille fit perfect. Which it does.

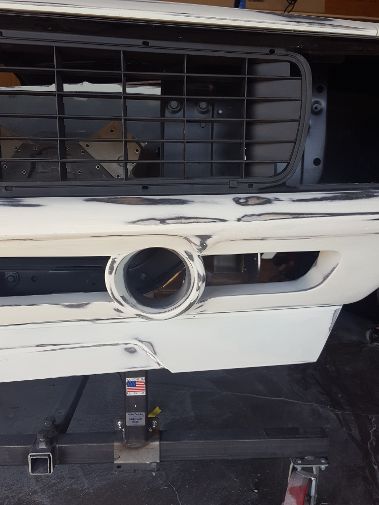

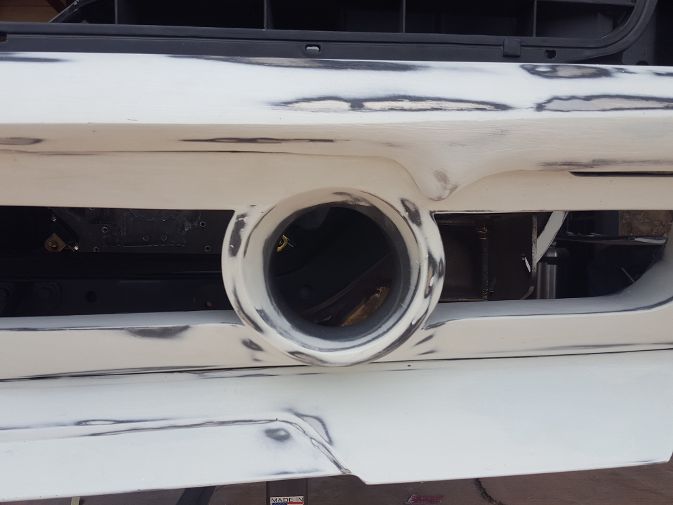

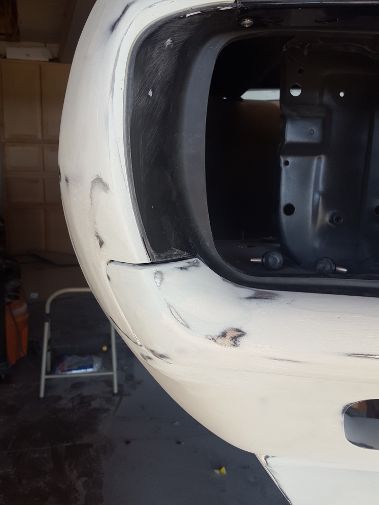

Now came time to fit the front bumper and obviously it did not fit as perfect as it once did. We spent 6 1/2 more hours on the front bumper and only got the drivers side done. It was basically on-off-cut-weld-grind and repeat. We took the grille on and off again 6 times and had the bumper on and off a total of 12 times. I'm sure we will be doing the same for the passenger side.

Attachment 78125

Attachment 78126

Attachment 78127

Attachment 78128

Attachment 78129

Attachment 78130

Looks great :thumbsup:

Thanks! I'm diggin' Plan Bee.

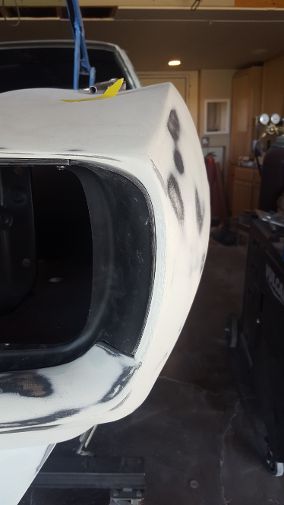

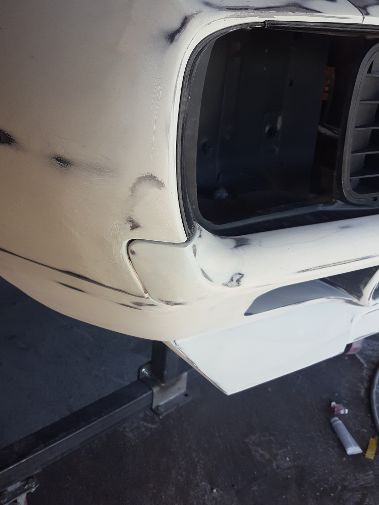

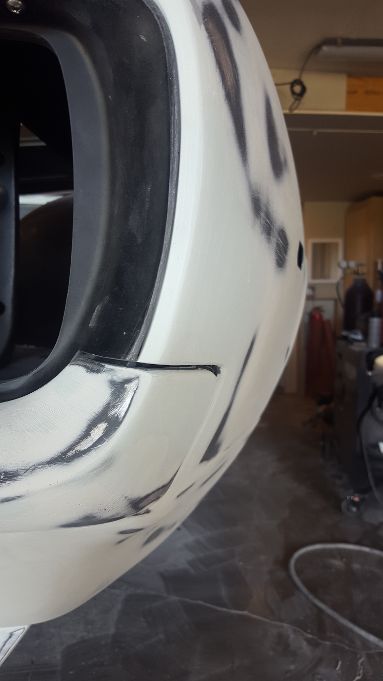

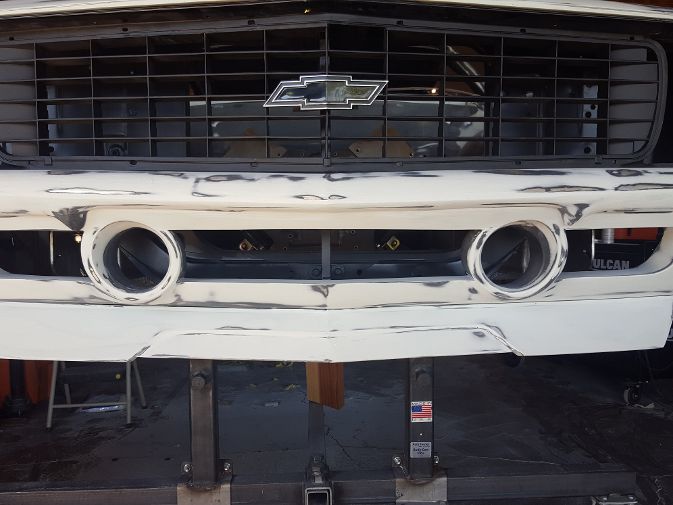

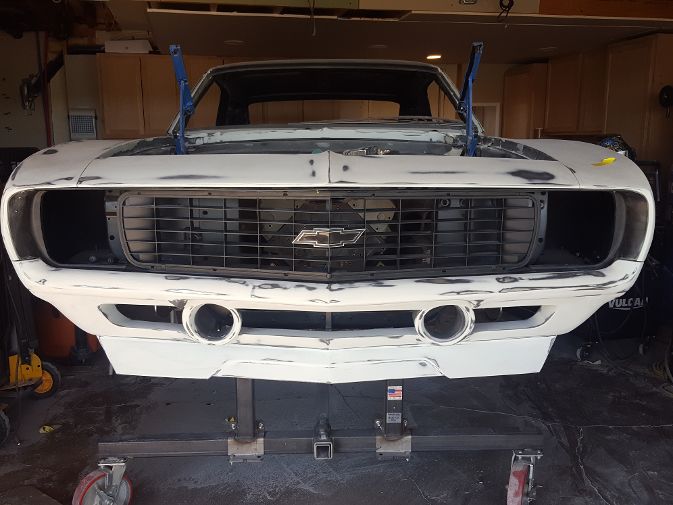

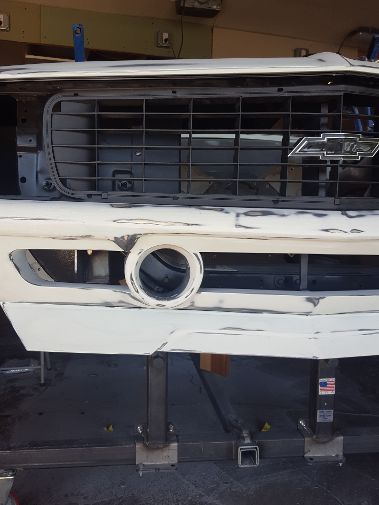

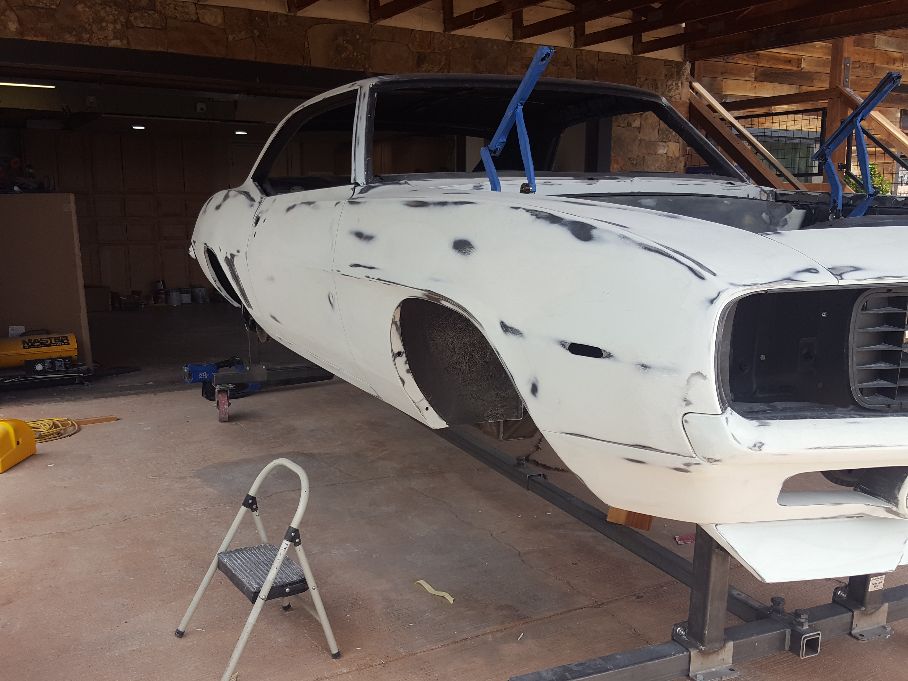

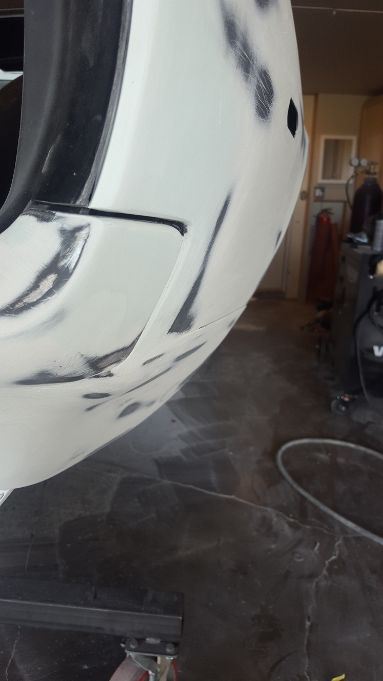

Got the passenger side of the bumper all dialed in with the grille and fender. Gaps on each side are perfect matches and the "V" in the bumper sits perfect with "V" in the grille, header panel and lower valance. Did notice that the passenger side "fang" is off by about an 1/8th of an inch. Probably won't be noticeable to anyone, but I know it's off so it will be cut off and moved to the center by 1/8th. Should have about 50 hours into the grille, bumper, fender fitment. Well worth the effort though.

Attachment 78244

Attachment 78245

Attachment 78246

Attachment 78247

Attachment 78248

Attachment 78249

Attachment 78250

Well that was a little more work than I thought, but the "fangs" are perfect. We used masking tape to make a template of the drivers side"fang" and then reversed it for the pattern of the passenger side "fang". Although the majority of work was done to the passenger side, we ended up working both of them to get them the same. We are really close, probably another 10-15 hours of final prep work before my guy lays down the polyester.

Attachment 78251

Attachment 78252

Attachment 78253

Attachment 78254

Attachment 78255

Can't wait to see her in primer :gitrdun:

I’m with you Mike.
