DSE Top Post Battery Terminals ( 02-13-22 )

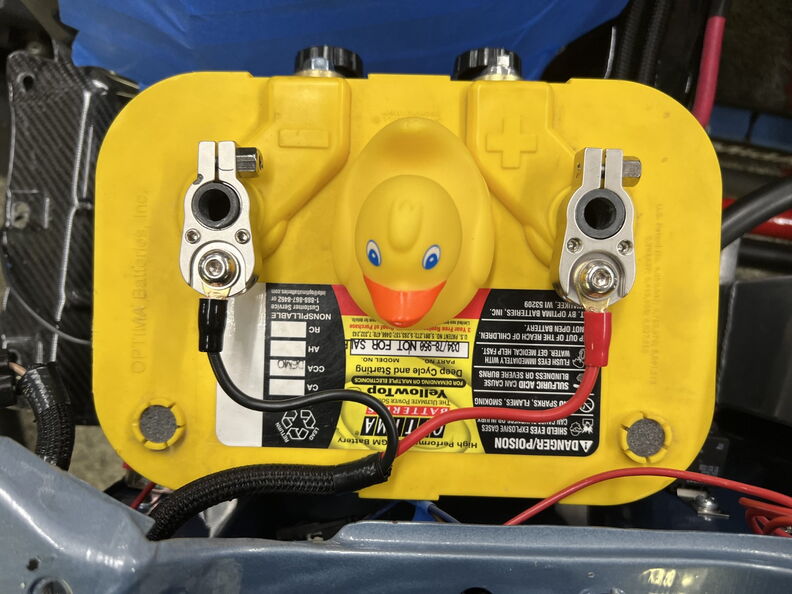

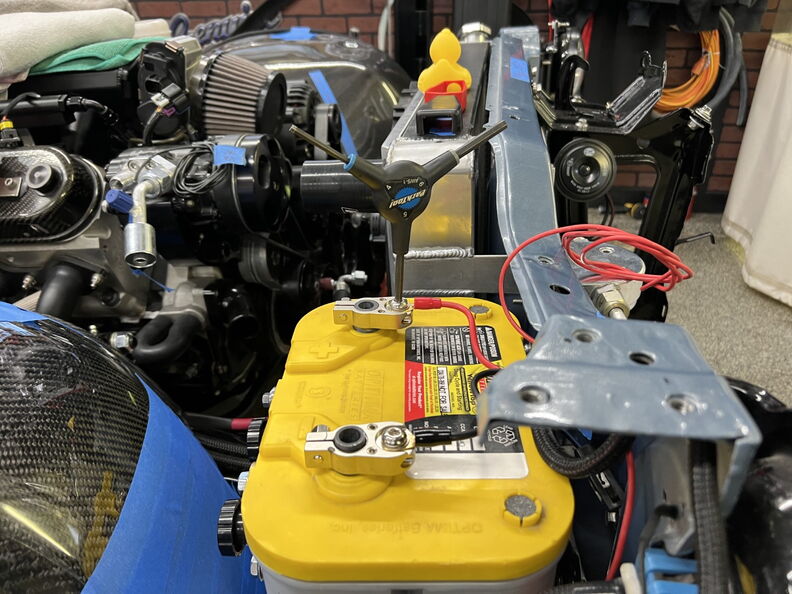

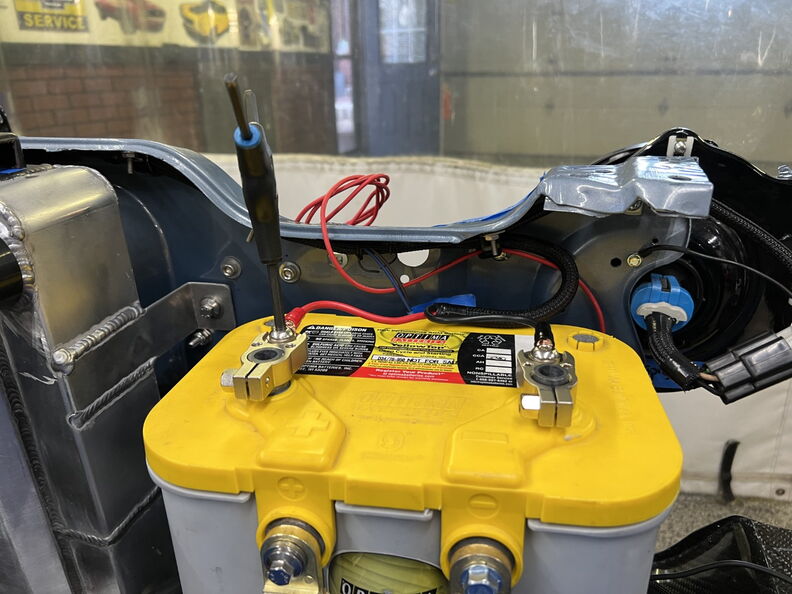

So I have finally decided that I am going to use the DSE Battery Terminals as they are the nicest looking and I just like them.

http://www.garagescene.net/_data/i/u...51487dc-me.jpg

http://www.garagescene.net/_data/i/u...851e487-me.jpg

http://www.garagescene.net/_data/i/u...a7838be-me.jpg

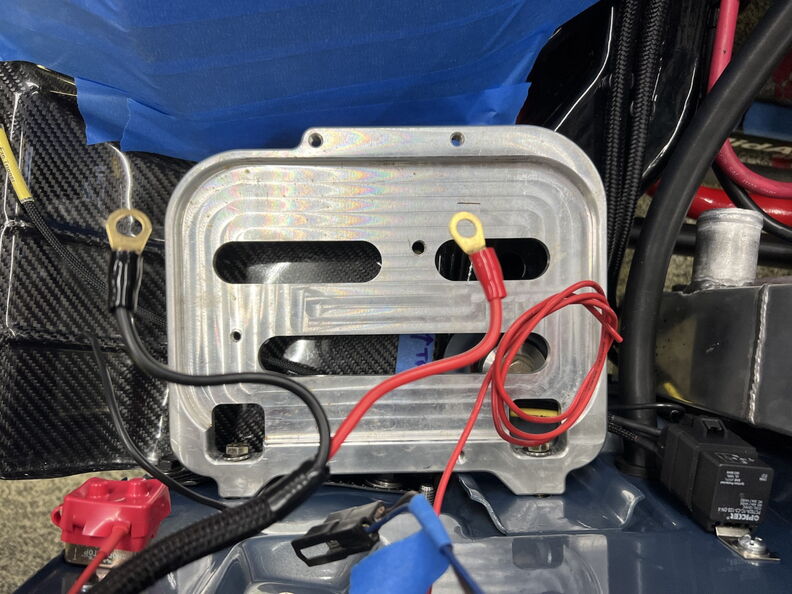

Now that I have made my final decision I can complete the wires that are going to the battery terminals.

http://www.garagescene.net/_data/i/u...480b29f-me.jpg

Fan Relay all wrapped & labeled in Tech Flex wire wrap.

http://www.garagescene.net/_data/i/u...399bbd7-me.jpg

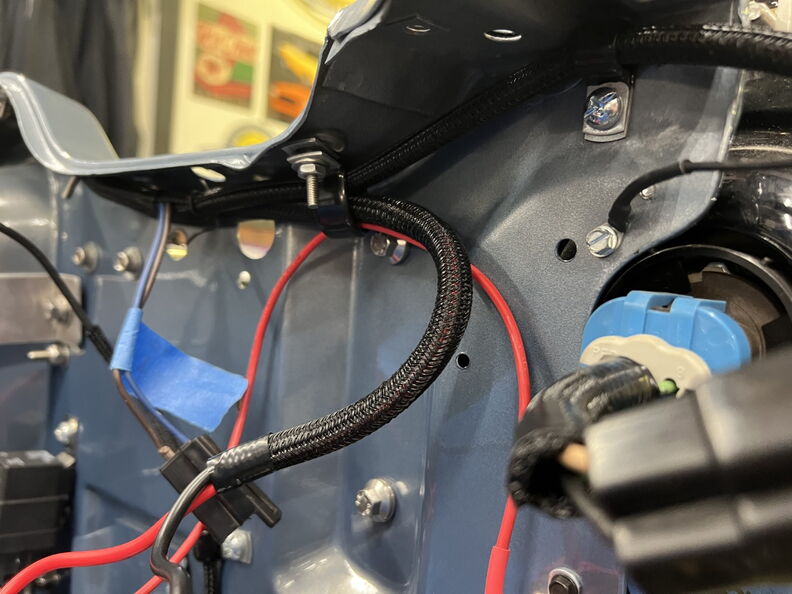

Playing with the wire routing to see if I like it.

http://www.garagescene.net/_data/i/u...7195d48-me.jpg

Trimming the weld stud.

http://www.garagescene.net/_data/i/u...6b5f36a-me.jpg

http://www.garagescene.net/_data/i/u...6d1a8d9-me.jpg

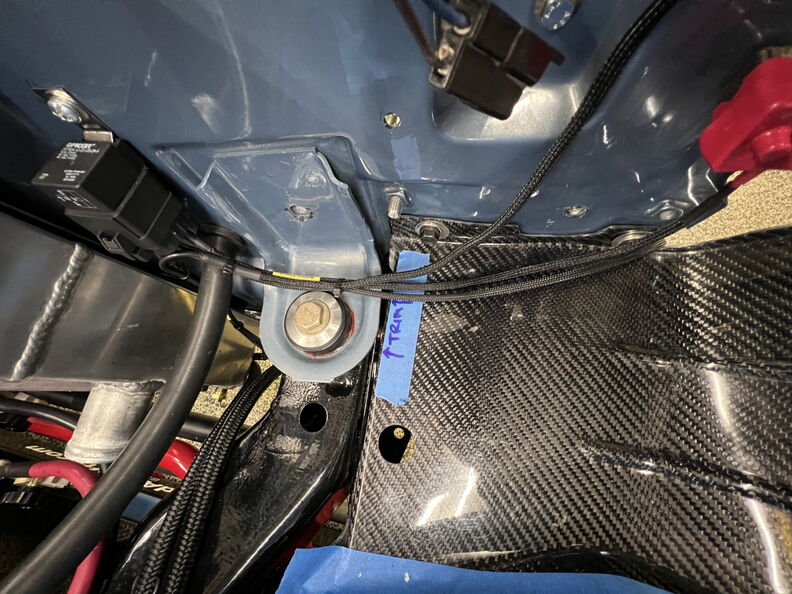

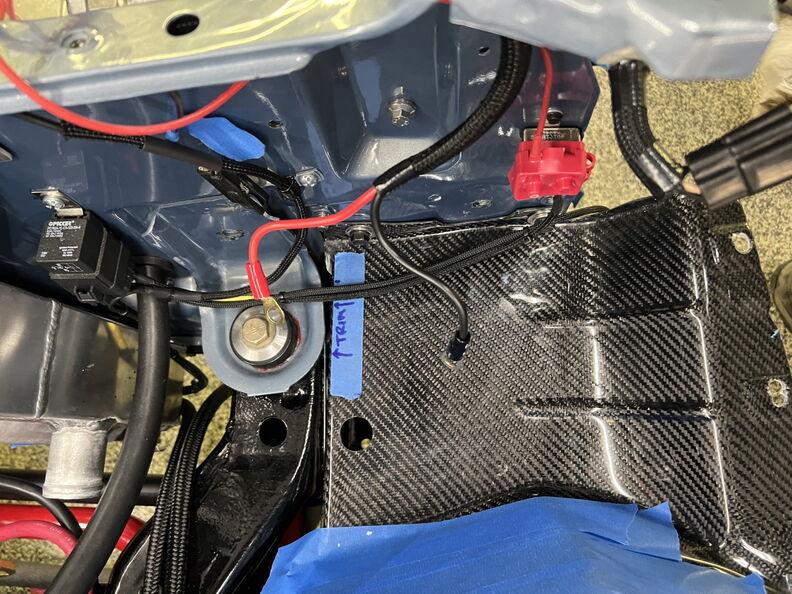

Hard to tell in this picture but if you look closely you can see I added a line clamp to secure the wire behind the battery tray.

http://www.garagescene.net/_data/i/u...1df1ee4-me.jpg

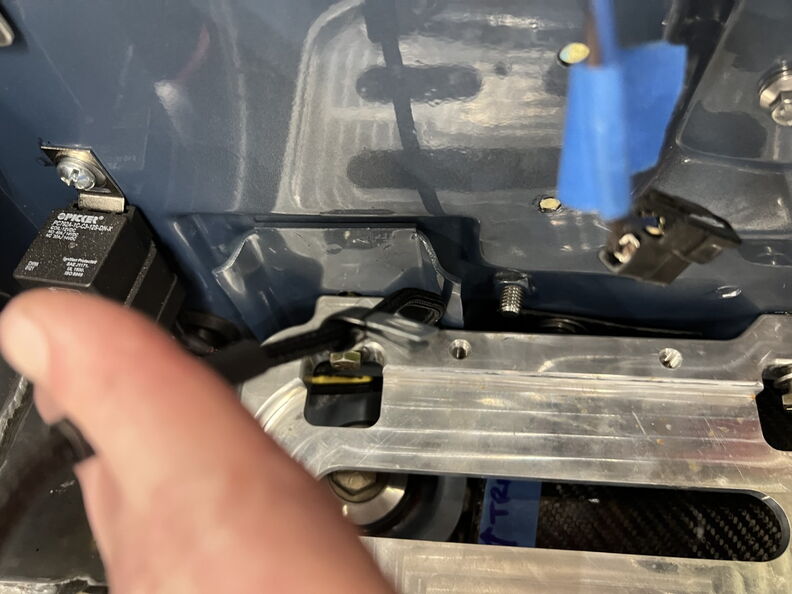

The fan relay trigger runs under the battery tray and I will connect it to the holley ECU wires that are running on top of the inner fender.

http://www.garagescene.net/_data/i/u...09e6a83-me.jpg

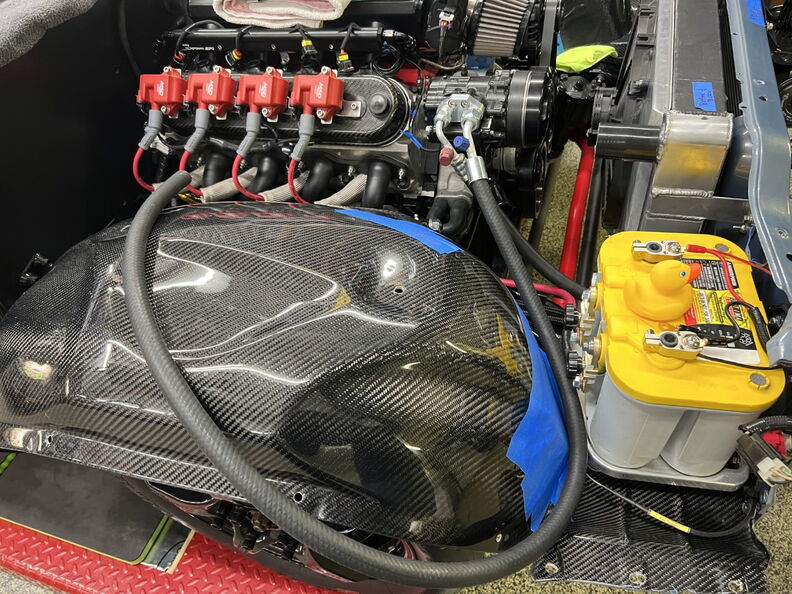

I am also looking at options for the Vintage Air Coolant & AC Line.

http://www.garagescene.net/_data/i/u...09e6a83-me.jpg

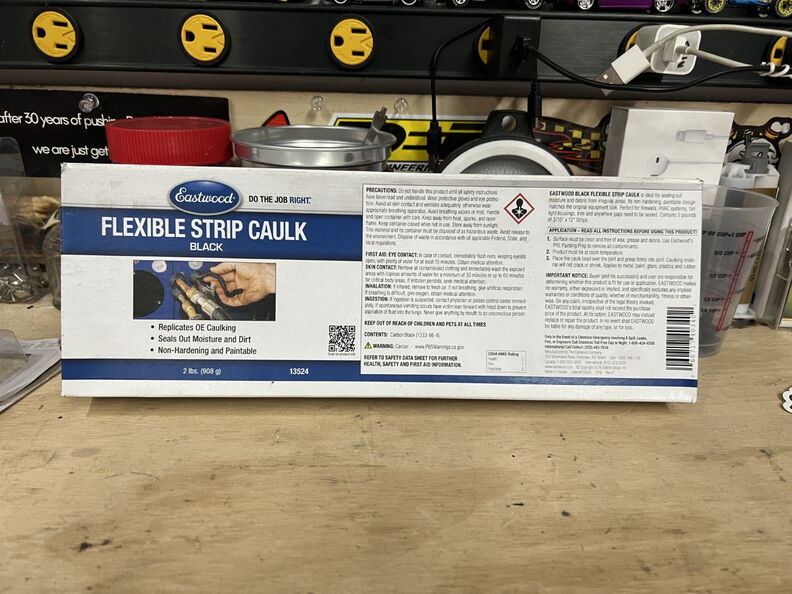

Need a break from the car so I ran over to the Eastwood store and picked up some Flexible strip caulk that I am going to use on the back of the Bolt On DSE Firewall closeout panel.

http://www.garagescene.net/_data/i/u...59bae83-me.jpg

Shiftworks Shifter Cable & Detent thingy ( 02-17-22 )

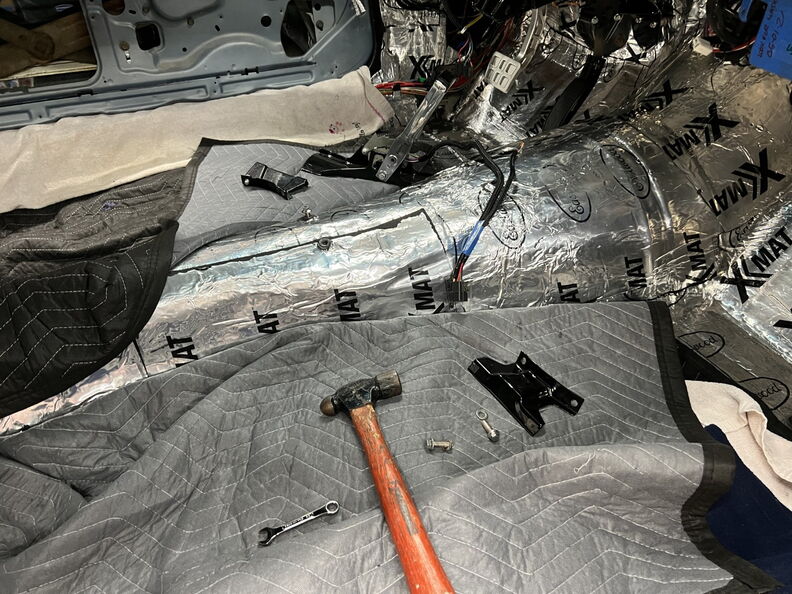

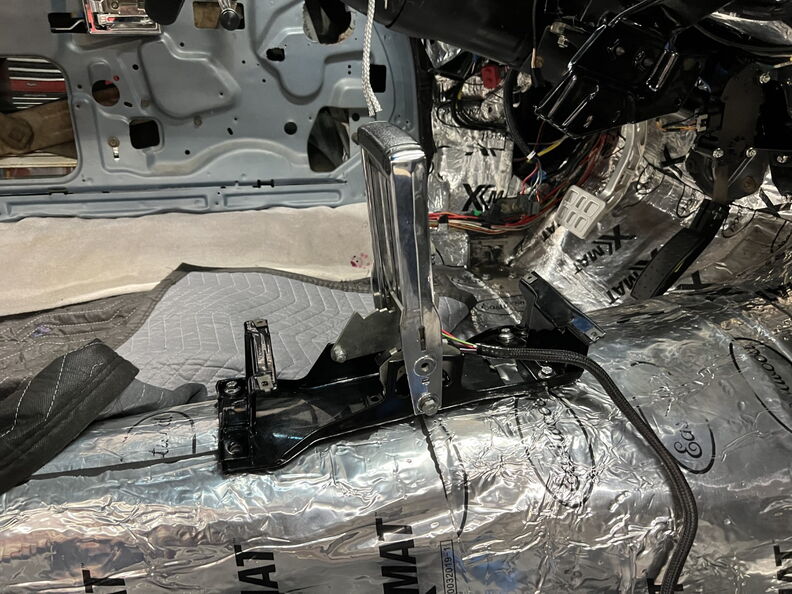

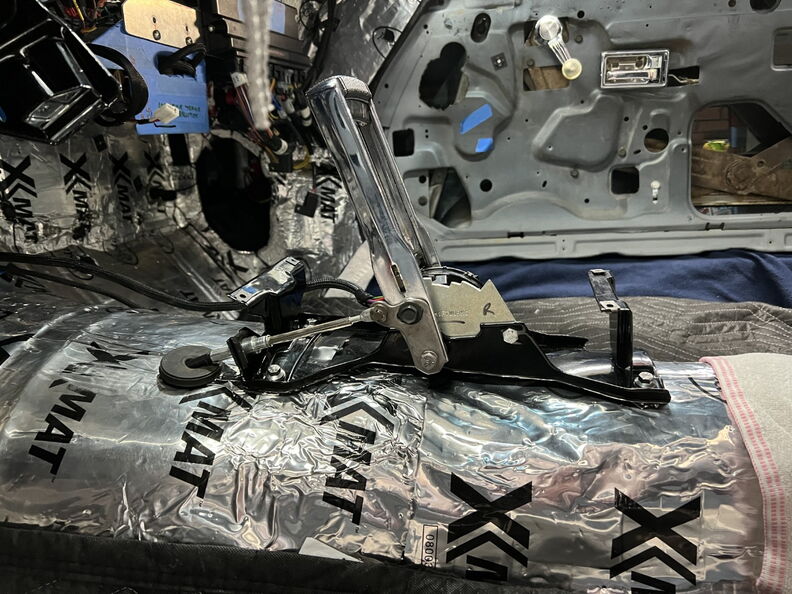

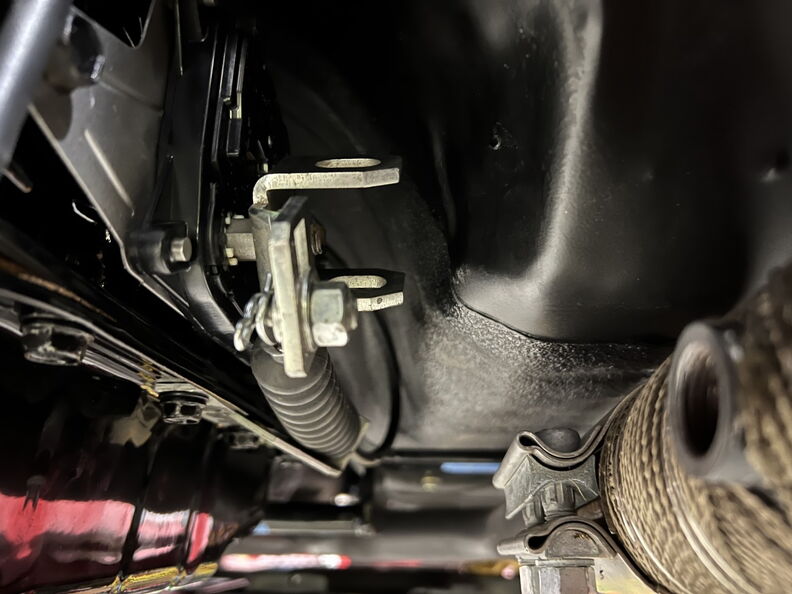

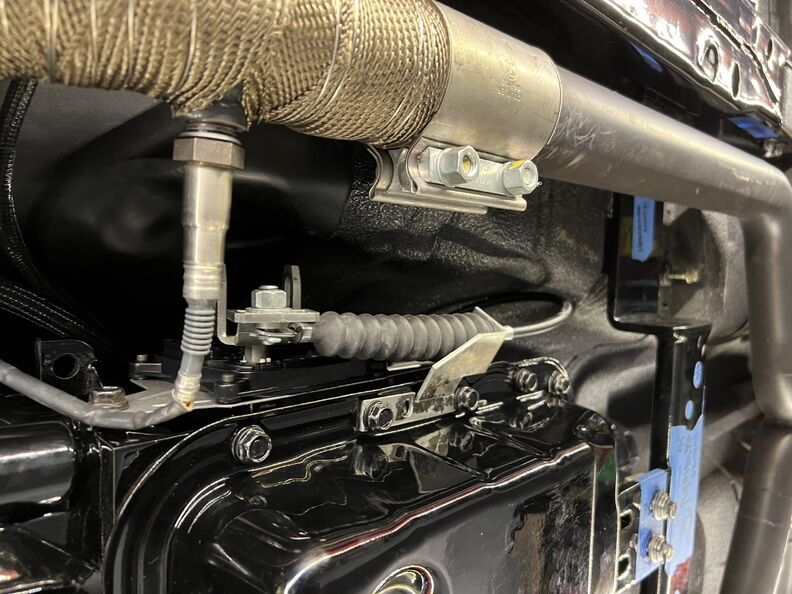

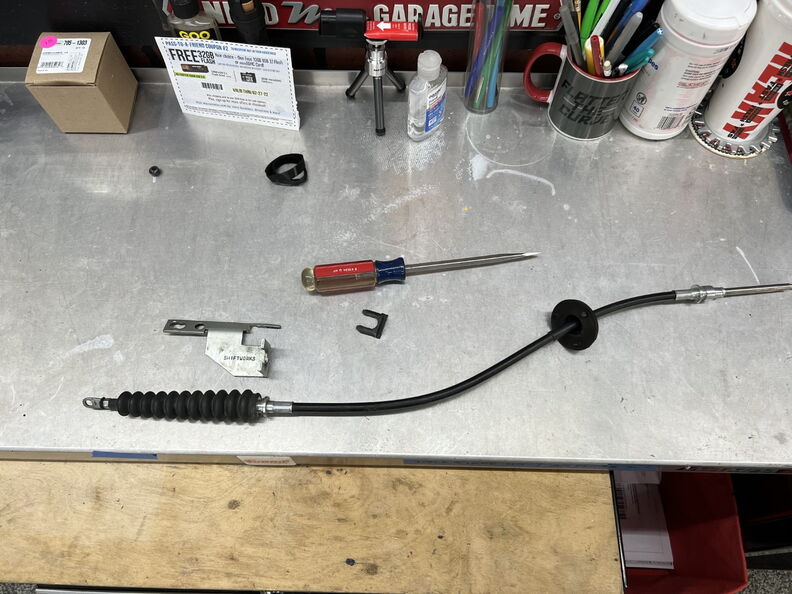

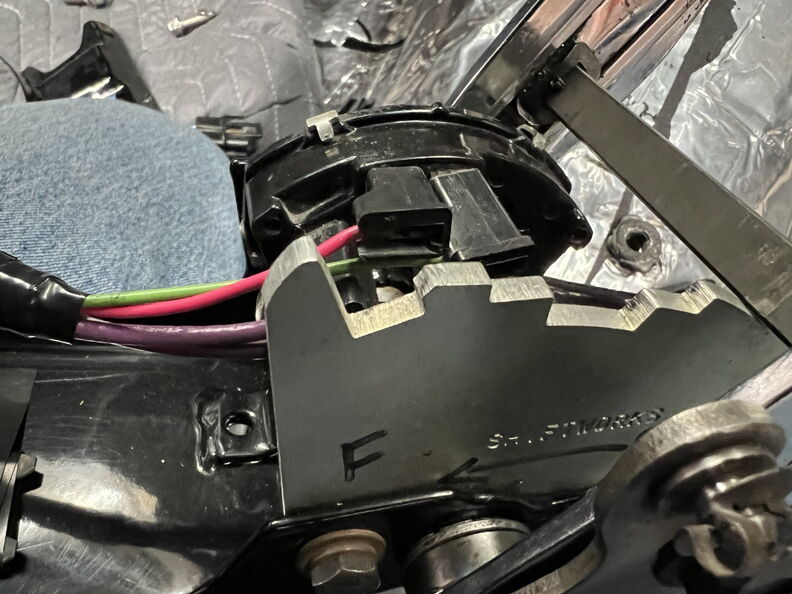

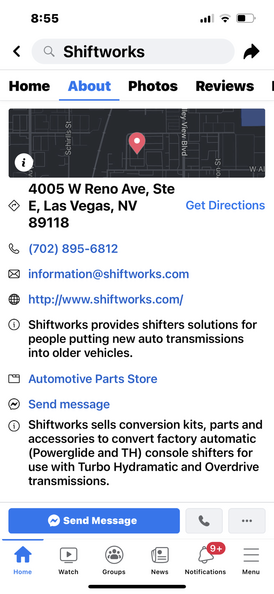

I needed a simple project as I didn't have much time to work on the car. So I decided I would install the shifter cable and the Detent piece.

http://www.garagescene.net/_data/i/u...a5f85f0-me.png

http://www.garagescene.net/_data/i/u...127abcf-me.jpg

http://www.garagescene.net/_data/i/u...d00f2ab-me.jpg

http://www.garagescene.net/_data/i/u...47d7d9c-me.jpg

http://www.garagescene.net/_data/i/u...6ec866a-me.jpg

http://www.garagescene.net/_data/i/u...c59035e-me.jpg

http://www.garagescene.net/_data/i/u...690fe3b-me.jpg

http://www.garagescene.net/_data/i/u...b039143-me.jpg

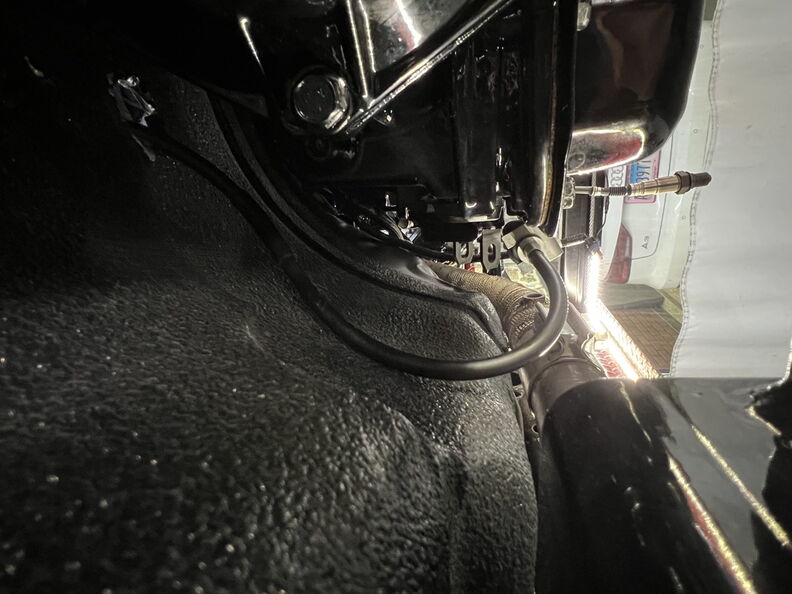

The 30'' cable seems very long. I am going call them to see if they have a 27" or 28" cable as I think the shorter cable will work better.

http://www.garagescene.net/_data/i/u...3c6673b-me.jpg

Shiftworks Shifter Cable & Detent thingy ( 02-17-22 )


I needed a simple project as I didn't have much time to work on the car. So I decided I would install the shifter cable and the Detent piece.

http://www.garagescene.net/_data/i/u...a5f85f0-me.png

http://www.garagescene.net/_data/i/u...127abcf-me.jpg

http://www.garagescene.net/_data/i/u...d00f2ab-me.jpg

http://www.garagescene.net/_data/i/u...47d7d9c-me.jpg

http://www.garagescene.net/_data/i/u...6ec866a-me.jpg

http://www.garagescene.net/_data/i/u...c59035e-me.jpg

http://www.garagescene.net/_data/i/u...690fe3b-me.jpg

http://www.garagescene.net/_data/i/u...b039143-me.jpg

The 30'' cable seems very long. I am going call them to see if they have a 27" or 28" cable as I think the shorter cable will work better.

http://www.garagescene.net/_data/i/u...3c6673b-me.jpg

Plugging away at all the little things ( 03-03-22 )

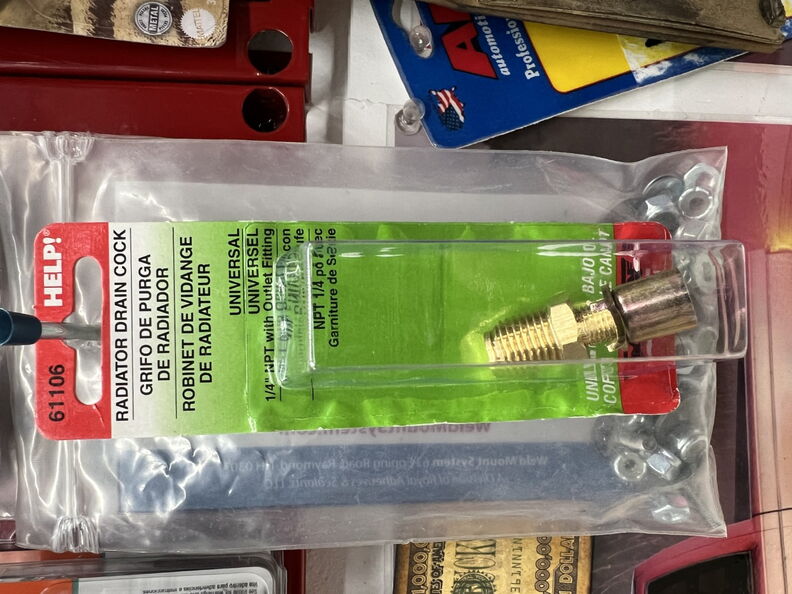

Man are these hard to find and I have five Autoparts stores within four miles of my house and the good news is I finally
found them at Autozone. I needed one for the radiator and one for the over flow tank. I like these as I can attach a 3/8's hose
so I can control where the coolant goes if I have to drain the radiator or overflow tank.

http://garagescene.net/_data/i/uploa...62059c9-me.jpg

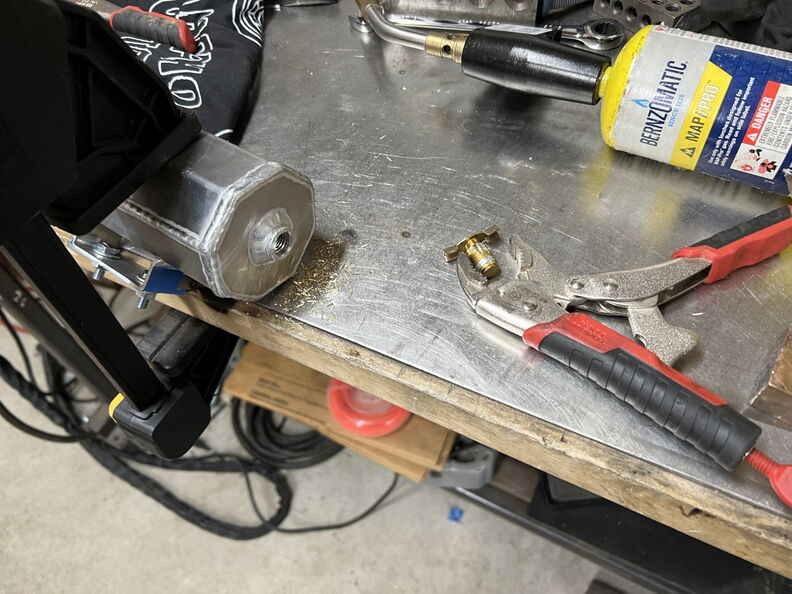

Of course I couldn't get the old one out so a quick trip to my buddy Ben's house and the job of getting the old one out has begun.

http://garagescene.net/_data/i/uploa...48c6012-me.jpg

http://garagescene.net/_data/i/uploa...b25b875-me.jpg

http://garagescene.net/_data/i/uploa...dbea4c5-me.jpg

A couple wraps of "Oatey FASTape" to prevent the fitting from getting stuck again.

http://garagescene.net/_data/i/uploa...a936dca-me.jpg

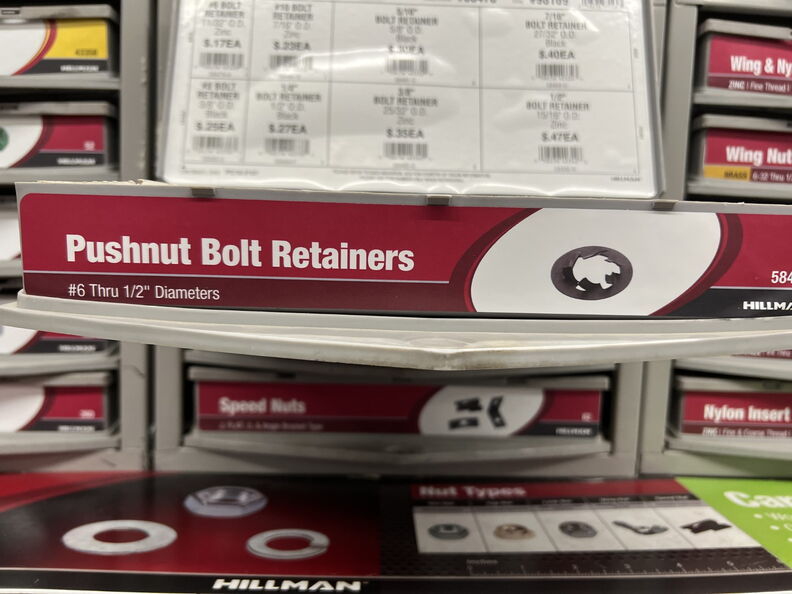

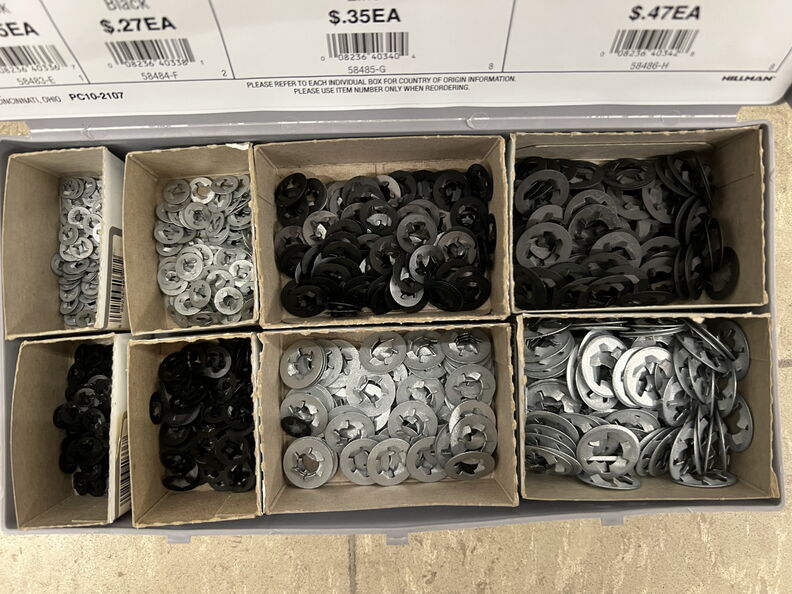

Another Quick trip to Ace Hardware for some small hardware and of course I need some animal crackers

http://garagescene.net/_data/i/uploa...77930ff-me.jpg

http://garagescene.net/_data/i/uploa...e97c0c8-me.jpg

http://garagescene.net/_data/i/uploa...9895f6f-me.jpg

Yes, another quick note.

http://garagescene.net/_data/i/uploa...7368be1-me.jpg

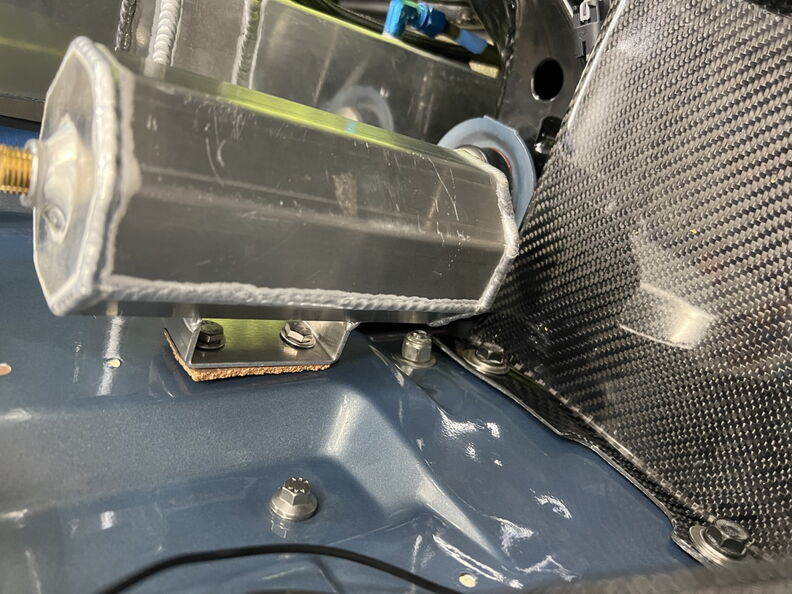

I use the "Pushnut" bolt retainers to hold the bolt to the tank which makes installing the tank much easier. I also installed
a layer of cork on the tank bracket to protect the paint on the core support.

http://garagescene.net/_data/i/uploa...3ab977a-me.jpg

http://garagescene.net/_data/i/uploa...c3a021c-me.jpg

http://garagescene.net/_data/i/uploa...518b7ba-me.jpg

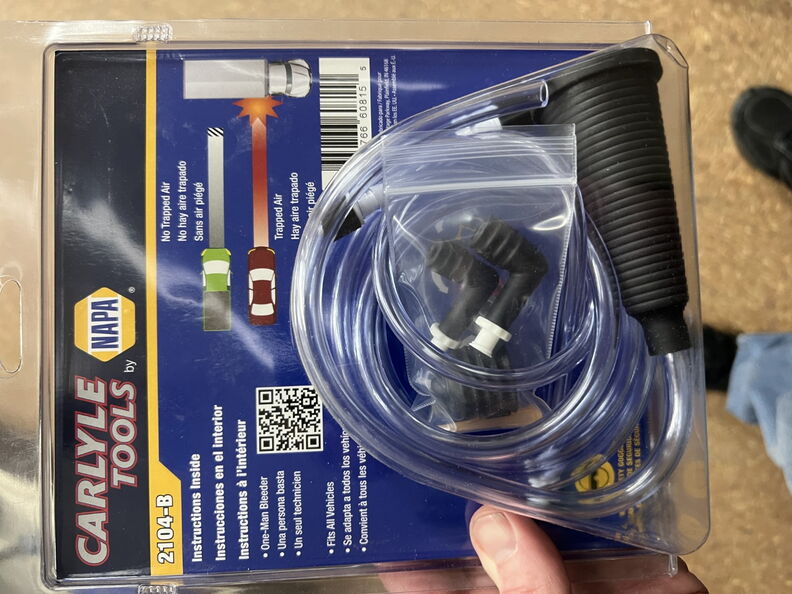

Has anyone use one of these as I might try this so I can bleed the brakes by myself ?

http://garagescene.net/_data/i/uploa...9039560-me.jpg

http://garagescene.net/_data/i/uploa...c4edece-me.jpg

Your attention to detail makes me feel like I'm in your garage with you building this thing! Only I'm in California where it's in the mid 70's right now!! 🤣

https://i.postimg.cc/7PBnqyp7/9307-F...BADB7-D752.jpg

:P

G-Force Crossmember going back in. ( 03-05-22 )

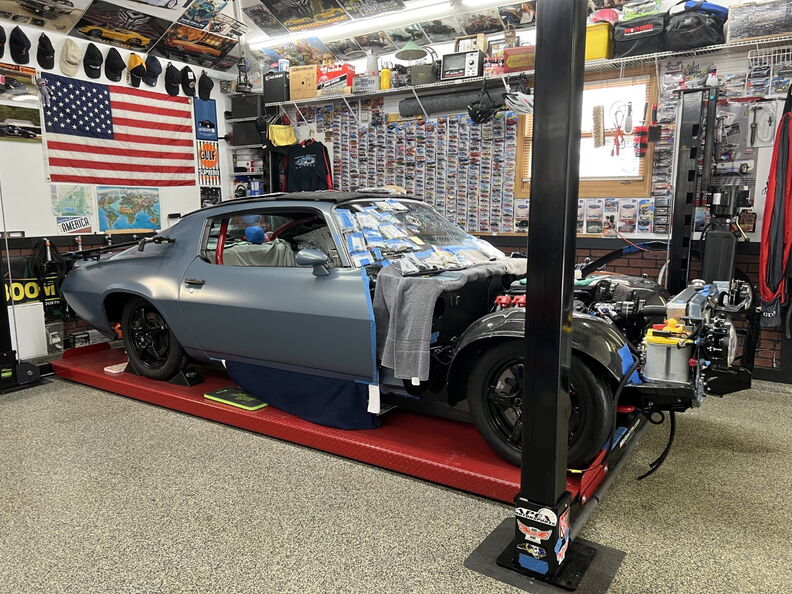

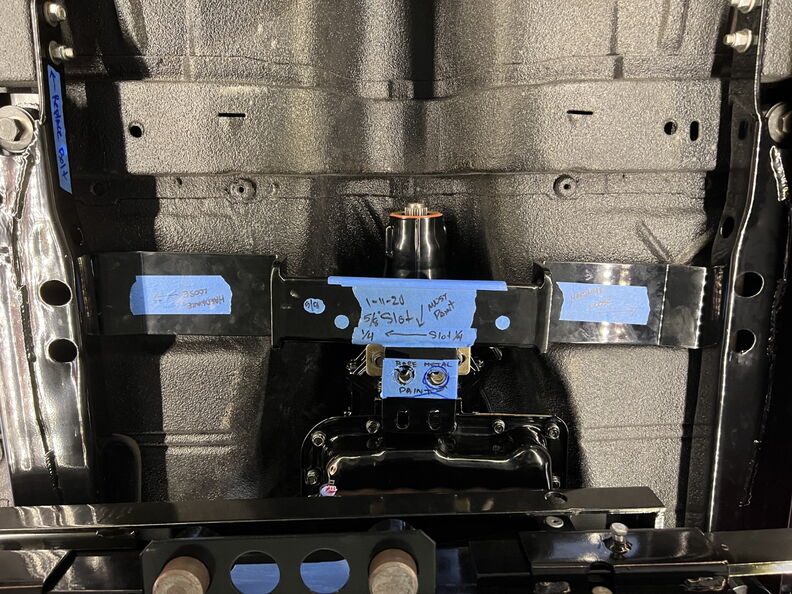

I needed to remove the G-Force Crossmember to slot the holes so the bolts would go in a little bit easier.

http://www.garagescene.net/_data/i/u...6572ef5-me.jpg

Of course Remy was supervising the entire job until he saw a squirrel.

http://www.garagescene.net/_data/i/u...468b99a-me.jpg

I am happy we designed the exhaust so it could be easily removed.

http://www.garagescene.net/_data/i/u...9c53c5c-me.jpg

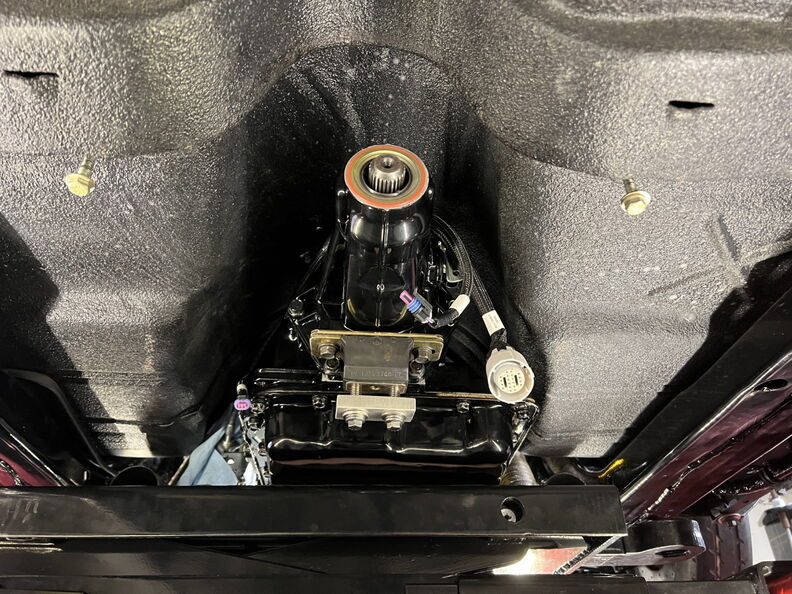

Remy is very happy with used the Lift-Jack to support the transmission.

http://www.garagescene.net/_data/i/u...66fc52f-me.jpg

http://www.garagescene.net/_data/i/u...a328414-me.jpg

Noah Hard at Work

http://www.garagescene.net/_data/i/u...d3c9528-me.jpg

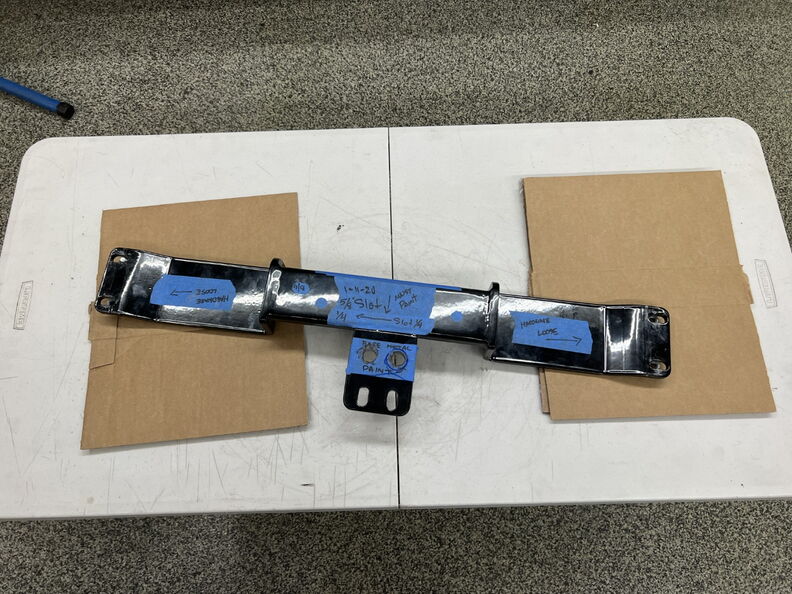

Back to the Powder Coater to get recoated.

http://www.garagescene.net/_data/i/u...c3743b8-me.jpg

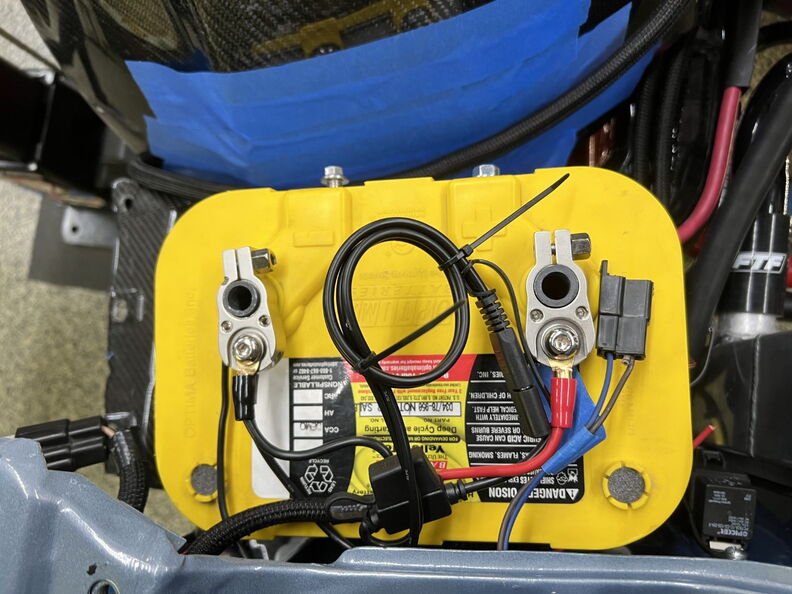

Retraining the charge lead for the optima charge as it wants to go the opposite way. So I wrapped and zip-tied to so it would lose it's shipping memory.

http://www.garagescene.net/_data/i/u...8818a74-me.jpg

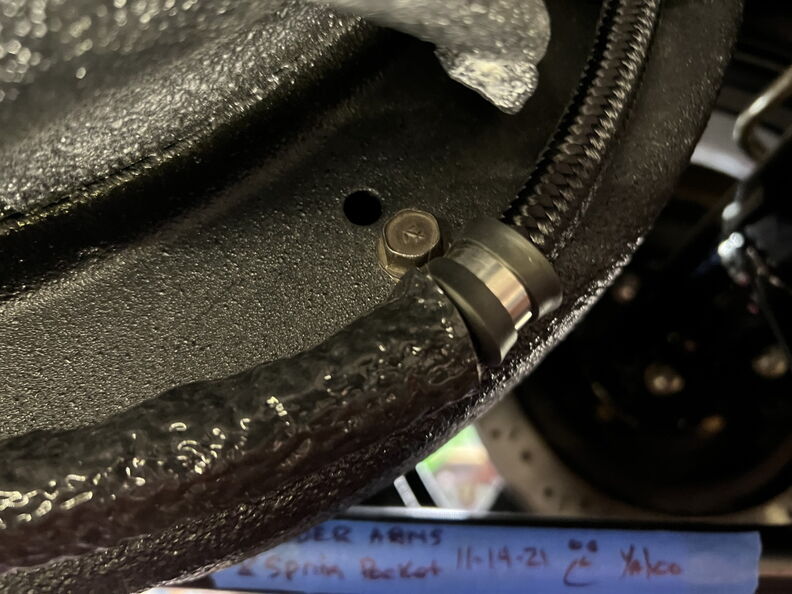

Now that I am 100% happy with the fuel line routing I going to tape the ends of the DEI heat sleeve.

http://www.garagescene.net/_data/i/u...2c57217-me.jpg

Yet another to do list.

http://www.garagescene.net/_data/i/u...abf2a38-me.jpg

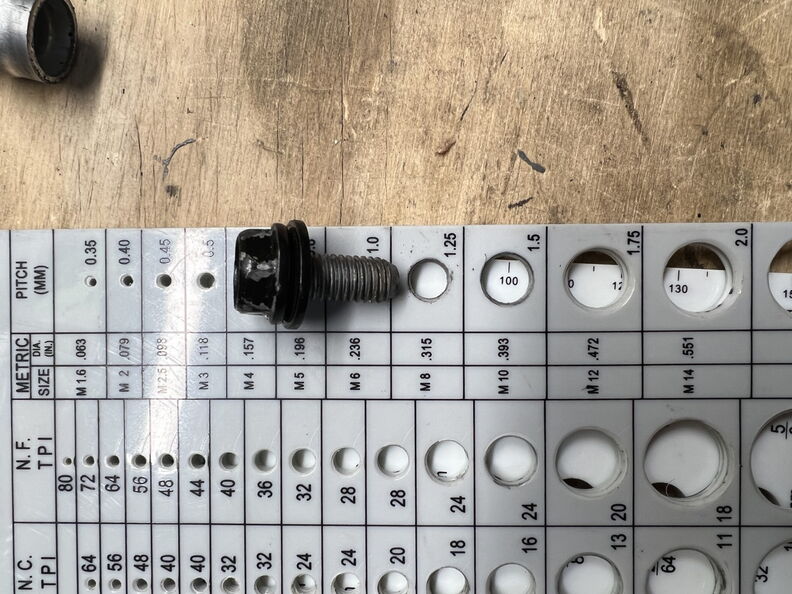

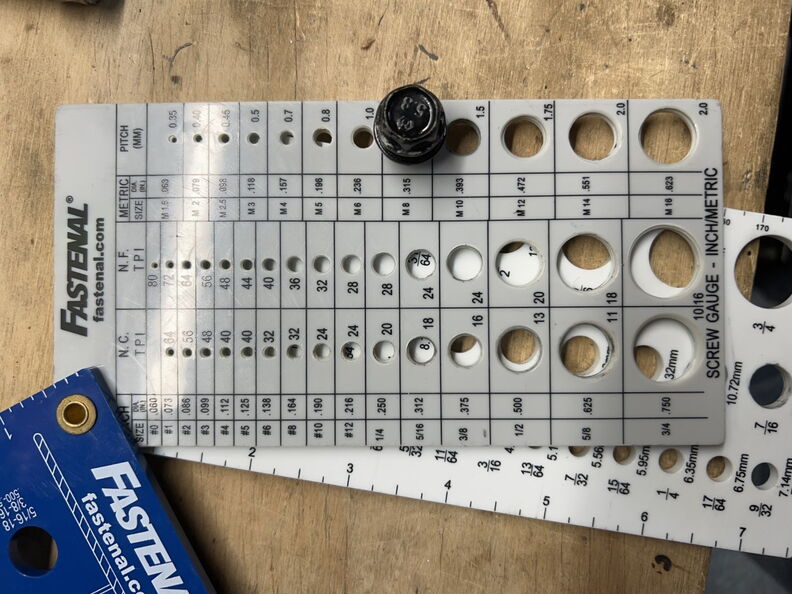

I decided I am going to use the stock Trans pan so I will be ordering ARP 6 Point hardware to match the rest of the hardware on the car.

http://www.garagescene.net/_data/i/u...5d66fae-me.jpg

http://www.garagescene.net/_data/i/u...40c2e9a-me.jpg

I like to use heavy heat shrink for sleeve ends. Even the best tape always seems to come undone, plus the heat shrink sleeve looks really clean.

https://www.mcmaster.com/heat-shrinks/

WOW! Such an amazingly phenomenal and attention-to-detail project! There are so many great ideas and "money is no object" goodies, I don't even know where to begin!

I am definitely looking forward to your finished product and applying many of your ideas to my build! Although, mine will be more on the "budget" side. My money tree died, so I need to pick up more shifts at the Fire Station.

Thank you and it's hard to believe I have been collecting parts and working on this car for the last 14 years. I really hope to have it running and driving this summer.

Thank you and steel as many idea's as you want as I have been watching so many builds for the last 20+ years which have given me all of these crazy idea's. As for your car it is freaking awesome. My dad had a NOS restoration 62 Bel Air Bubble Top that he recently sold and your car is one of my favorites as I love the Flat Roof cars. I can't wait to see what you do with it.
