Marty,
What size shop do you have? It looks pretty big. Great digs to wrench in.

Thanks,
Jimbo

The garage from the front looks like a standard two car garage. However, it’s Forty feet deep with a 12 foot ceiling in the back. I have a sliding curtain wall that allows me to heat just back half of the garage. If I had to do it over again I would make it 22 x 44 which would allow me to have two full two car garages with a full work bench on the back wall.


Sent from my iPhone using Tapatalk

Getting closer day by day (( 10-04-22 ))


I am getting really close to starting this car with Andrew. Hopefully this weekend.

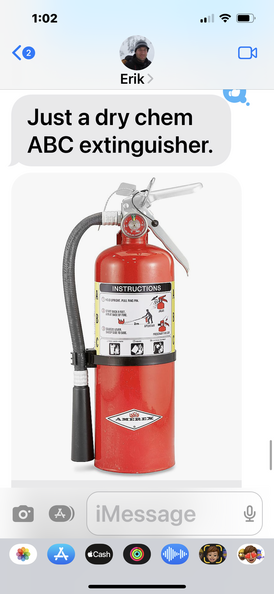

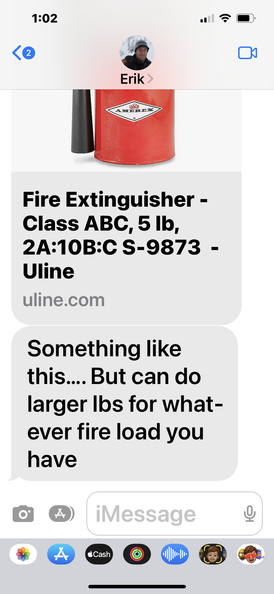

Just in case all this all goes bad I asked my buddy Erik (Fireman/EMT) what Fire Extinguisher I should get and this is what he recommended. So I will be picking one up this week.

http://garagescene.net/_data/i/uploa...a3bf5ab-me.png

http://garagescene.net/_data/i/uploa...f90e28b-me.png

A long time ago I ordered a set of black headlight rings from Anvil and when I attempted to install them with the original hardware

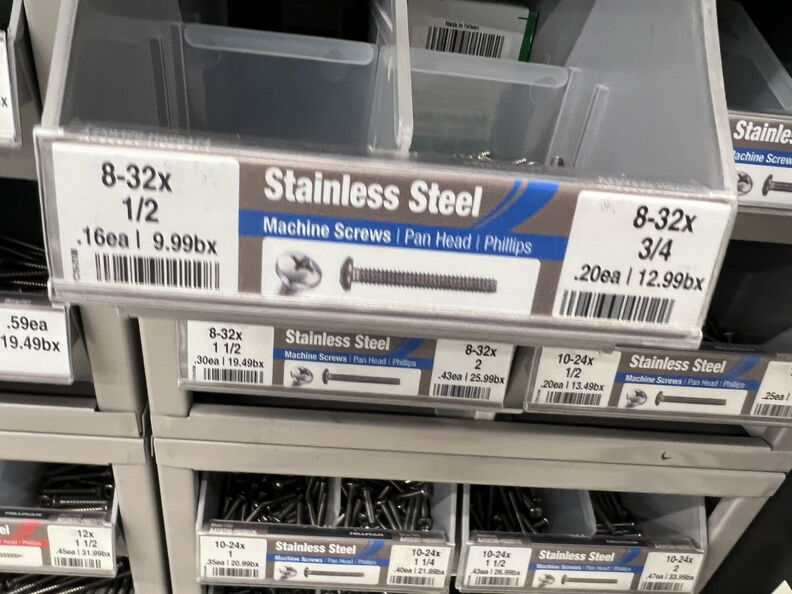

the bolts were not long enough. So once again I am heading back to Ace Hardware for some Stainless Steel hardware.

http://garagescene.net/_data/i/uploa...1503b16-me.jpg

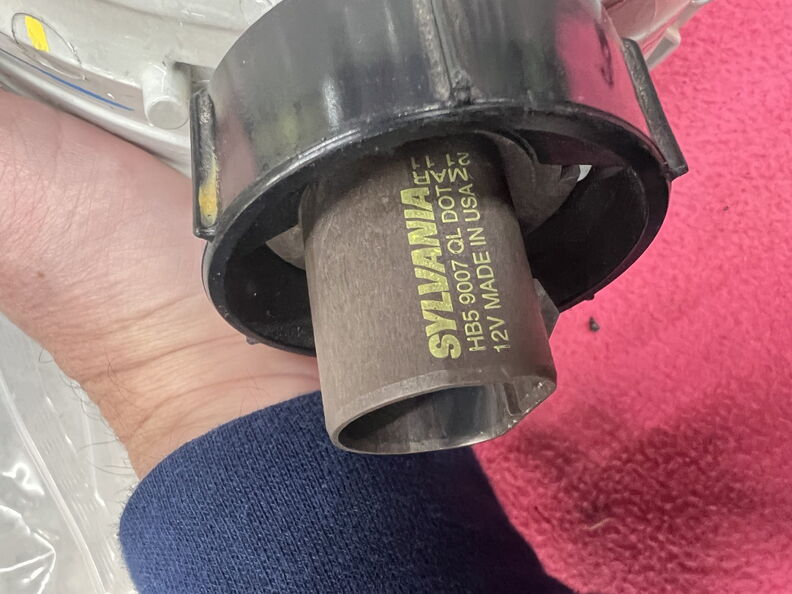

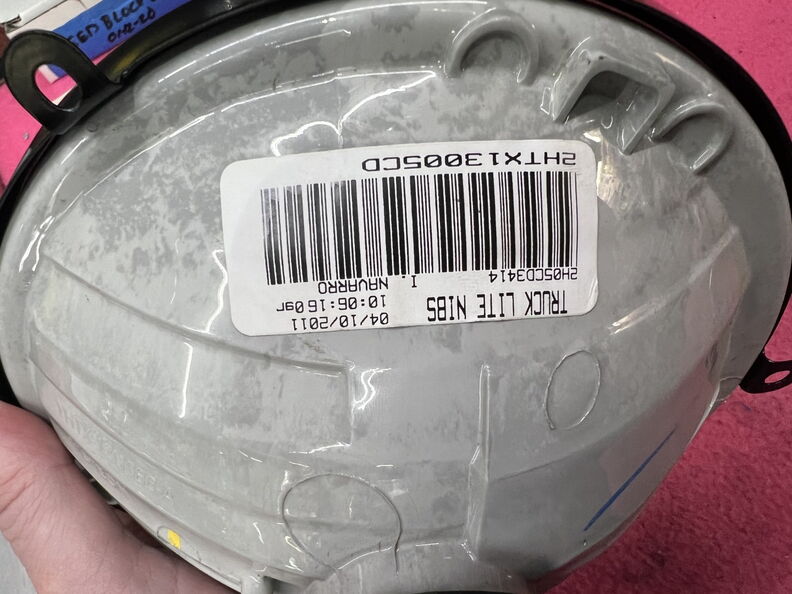

For reference I am installing the DSE Truck Lights.

http://garagescene.net/_data/i/uploa...46c48b4-me.jpg

http://garagescene.net/_data/i/uploa...b382514-me.jpg

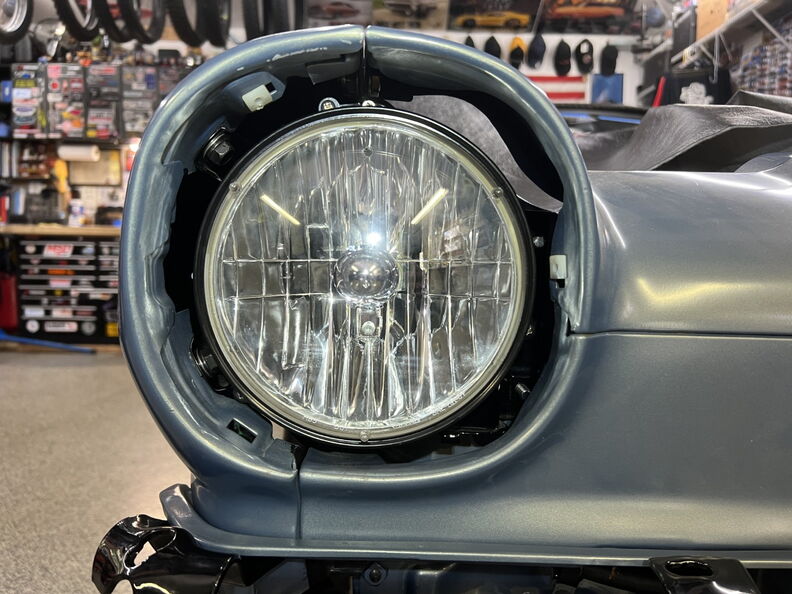

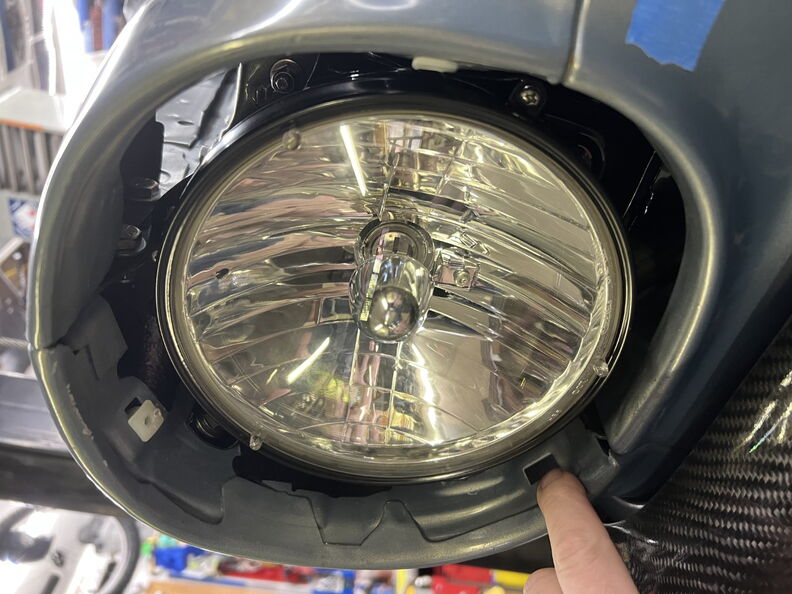

I misplaced one of the plastic things that the headlight trim ring screws into so I will be searching all of my bags of parts later today or sometime in the near future.

http://garagescene.net/_data/i/uploa...7d0b97b-me.jpg

http://garagescene.net/_data/i/uploa...3f94e2c-me.jpg

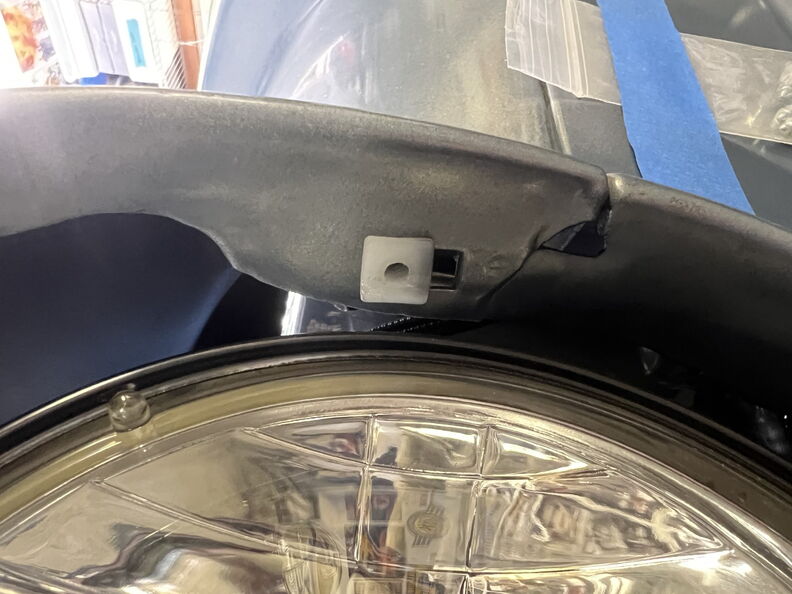

This is what I will be looking for.

http://garagescene.net/_data/i/uploa...ac14a9b-me.jpg

It's the little things that seem to slow projects down.

Lower Valance ARP Hardware (( 10-08-22 ))


Thankfully I have lots of ARP hardware hanging on my wall.

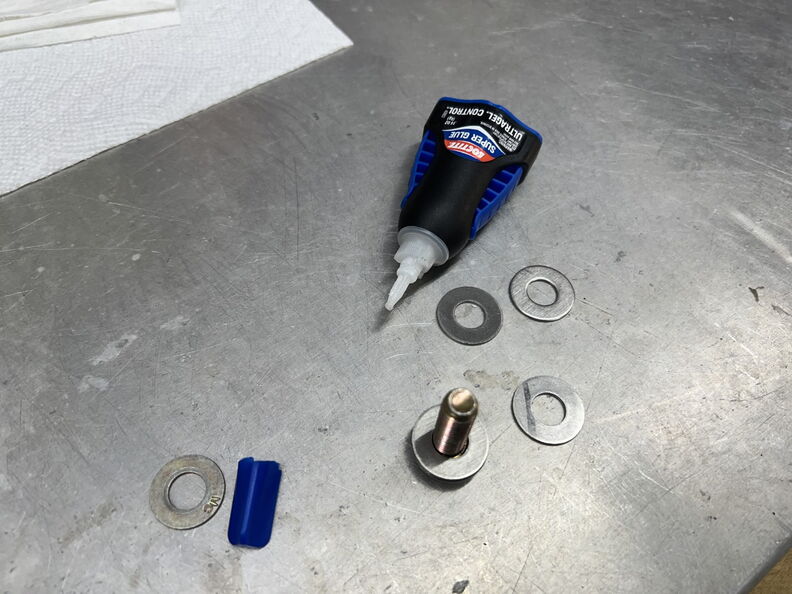

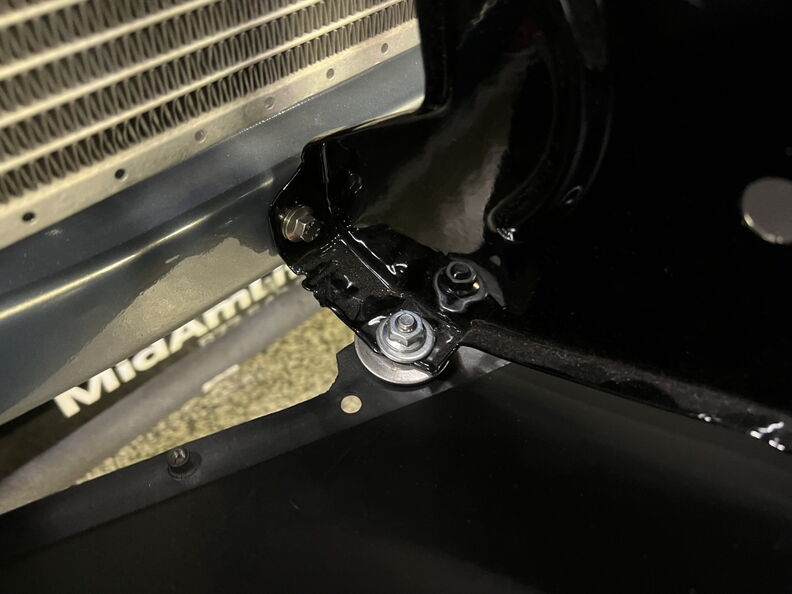

I needed to add a spacer so I used four stainless steel washer and to make it easy I Super Glued them together. I found that if you
stack and glue each one on a bolt with three little dots of Super Glue it works perfect.

http://garagescene.net/_data/i/uploa...9088bc2-me.jpg

http://garagescene.net/_data/i/uploa...4b29be0-me.jpg

http://garagescene.net/_data/i/uploa...ec6e047-me.jpg

Vintage Air Hose Routing (( 10-08-22 ))

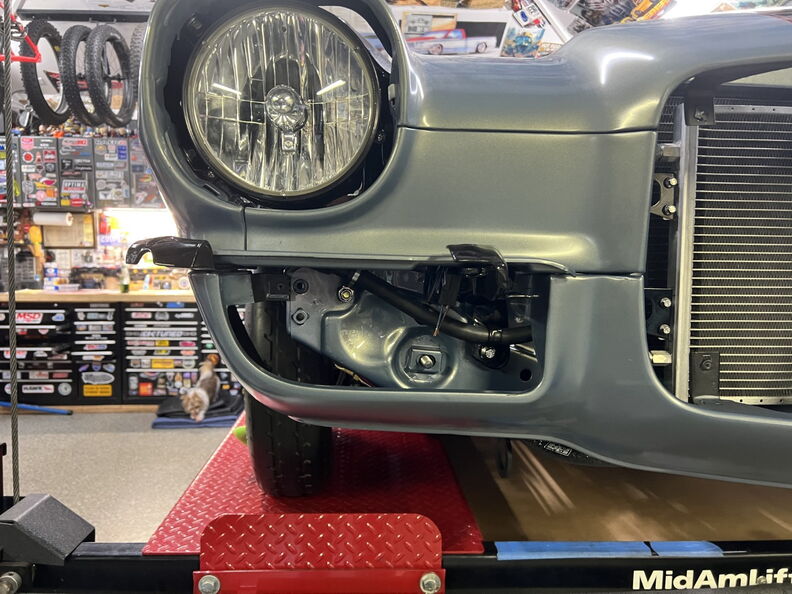

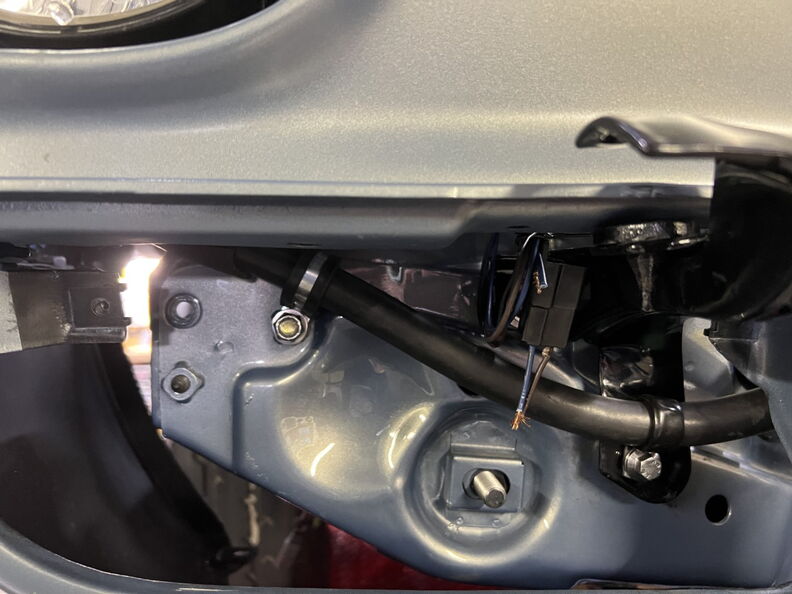

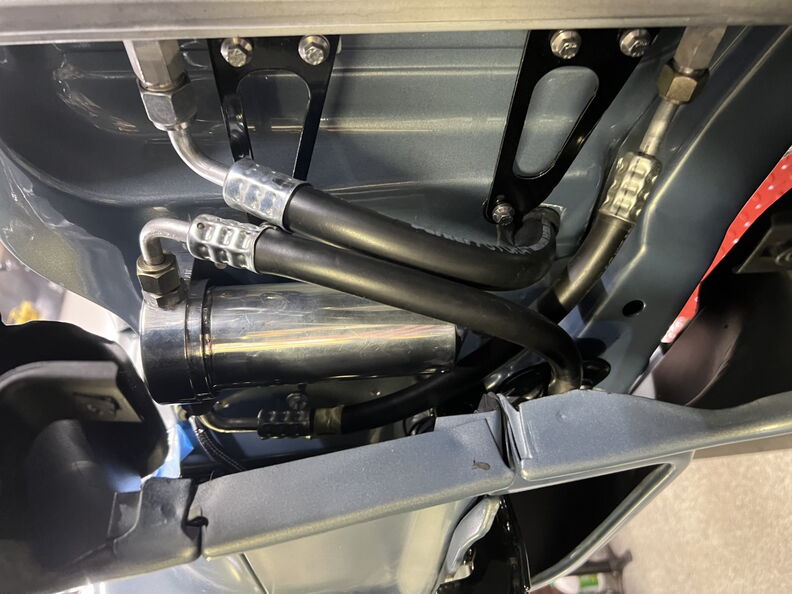

I spent a lot of time planning the Vintage Air hose routing on this car. You can see the hose is secured in two location on the front
of the core support and the other on the bumper bracket. If you look closely on the left you can see that I installed a longer bolt in
the battery tray bolt that protrudes through the core support which allows me to secure the line.

http://garagescene.net/_data/i/uploa...43fc606-me.jpg

http://garagescene.net/_data/i/uploa...306773d-me.jpg

http://garagescene.net/_data/i/uploa...c914d21-me.jpg

Looks great Marty. Are those DSE Truck Lights LED? I seems Will’s 69 427LS TT build had Truck Lights. LEDs that he had looked fricken awesome. By chance do you recall the price? Ball parks fine.

Thank you and unfortunately I don't remember the price as I bought them way back in 2013.

Anvil RS Bumpers & Totally Stainless Core Support Hardware (( 10-09-22 ))

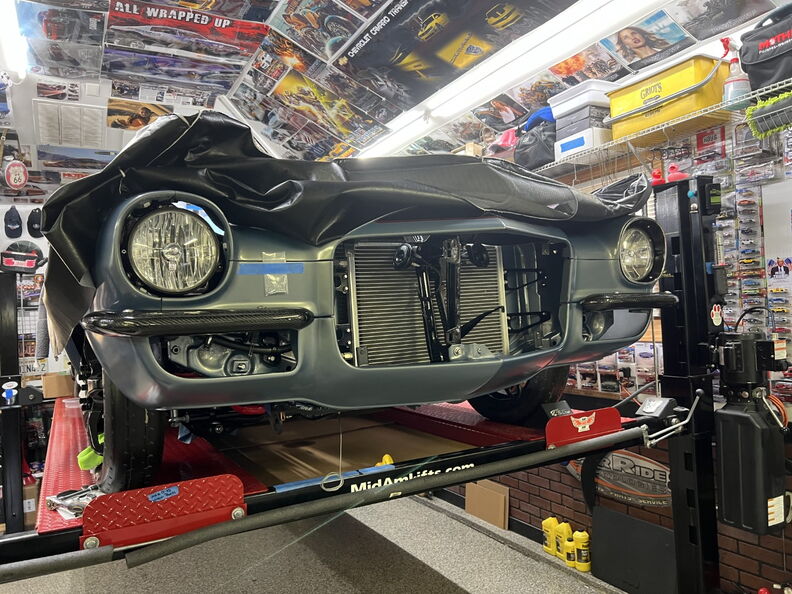

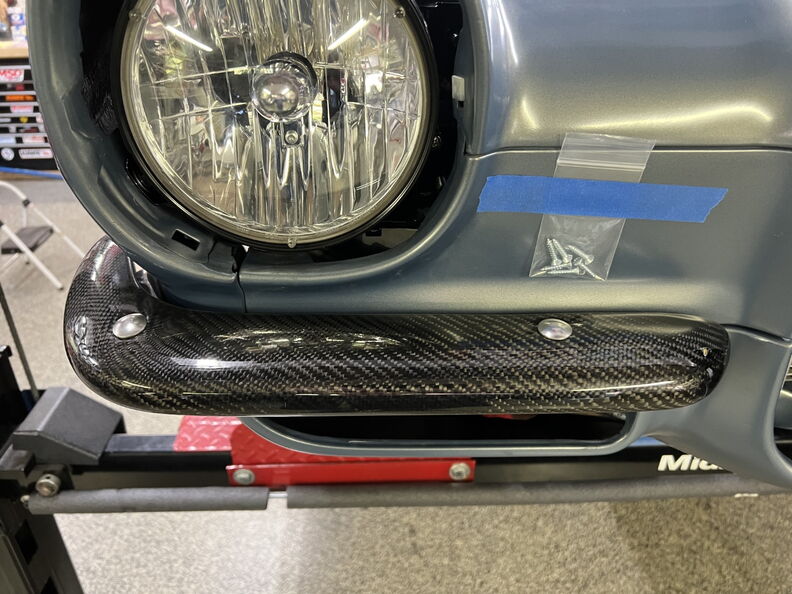

Sometimes it's all about the simple projects and today I worked on the RS bumpers and making them as close to level as possible.

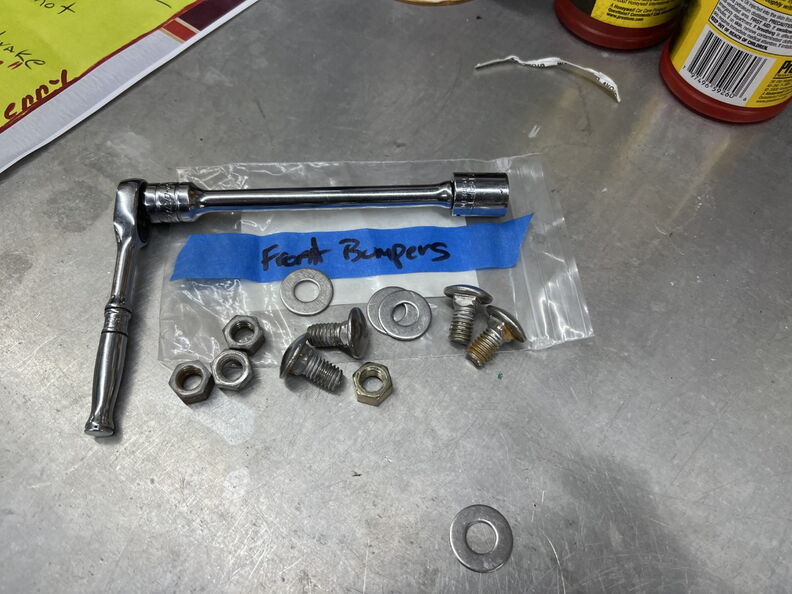

I used the original hardware which looks really bad. Who new this would happen being in my garage attic for the last three years.

http://garagescene.net/_data/i/uploa...0c97347-me.jpg

http://garagescene.net/_data/i/uploa...0d86a8b-me.jpg

http://garagescene.net/_data/i/uploa...f61ba10-me.jpg

Uhm, Any chance you see this gap well the carbon inner fenders should be in between here. So when Mike said don't the
inner fenders have to go on first and of course I replied "Nope". Well, I was wrong, incorrect, brain dead and or just a
dumb butt. Which means the lower valance will have to come back off.

http://garagescene.net/_data/i/uploa...5a2a735-me.jpg

It feels good to finally put in the last Totally Stainless ARP body bolt kit.

http://garagescene.net/_data/i/uploa...8e702e0-me.jpg

Out with the old and in with the new.

http://garagescene.net/_data/i/uploa...8720266-me.jpg

http://garagescene.net/_data/i/uploa...c7c5d06-me.jpg

Of course the battery try will need to come out so I can get to the passenger side bolt.

http://garagescene.net/_data/i/uploa...a0ae531-me.jpg

Reference picture.

http://garagescene.net/_data/i/uploa...4aa467d-me.jpg

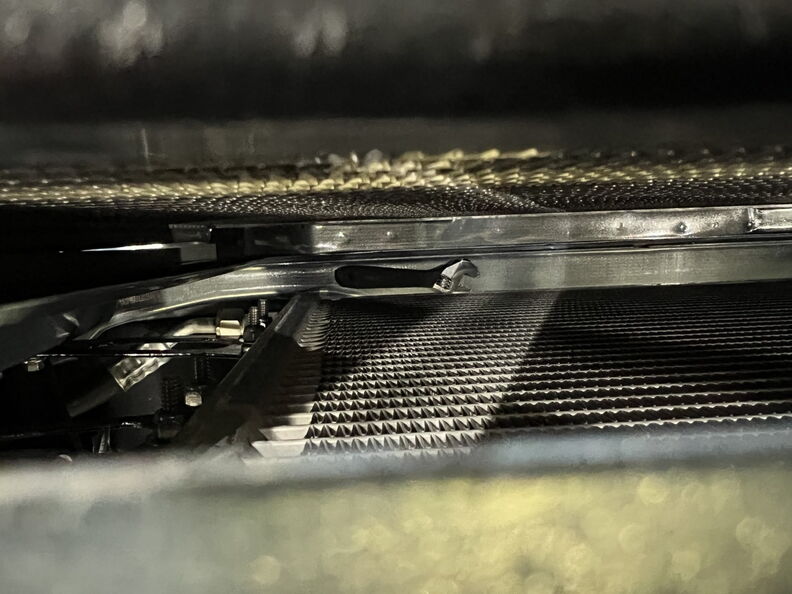

Well that wonderful Mini Cresent wrench fell in between the AC condenser and the Radiator and landed smack dab on the bottom of the core support.

http://garagescene.net/_data/i/uploa...4c9c709-me.jpg

Back to the core support bolts. This is a simple little trick I learn years ago when you have to put a washer in an impossible location
all you need to do is add a little grease to the back side and slide it up and in. Gravity will have ne effect on it and it will stay in it's
place so you can easily install the nylock nut.

http://garagescene.net/_data/i/uploa...e63301e-me.jpg

http://garagescene.net/_data/i/uploa...d19d9f0-me.jpg

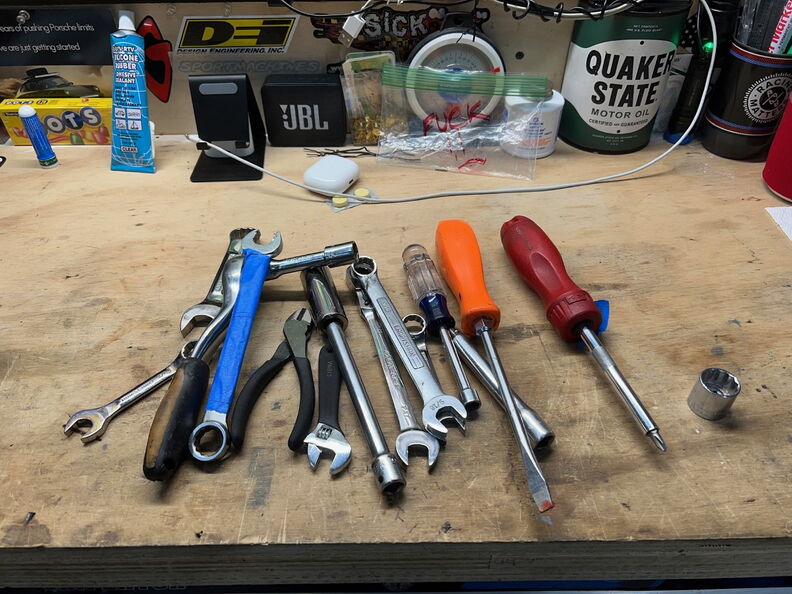

Yes, I was able to get the little Cresent wrench out !!!

http://garagescene.net/_data/i/uploa...04ed766-me.jpg

Holley Brake Light Switch Wiring. (( 10-13-22 ))

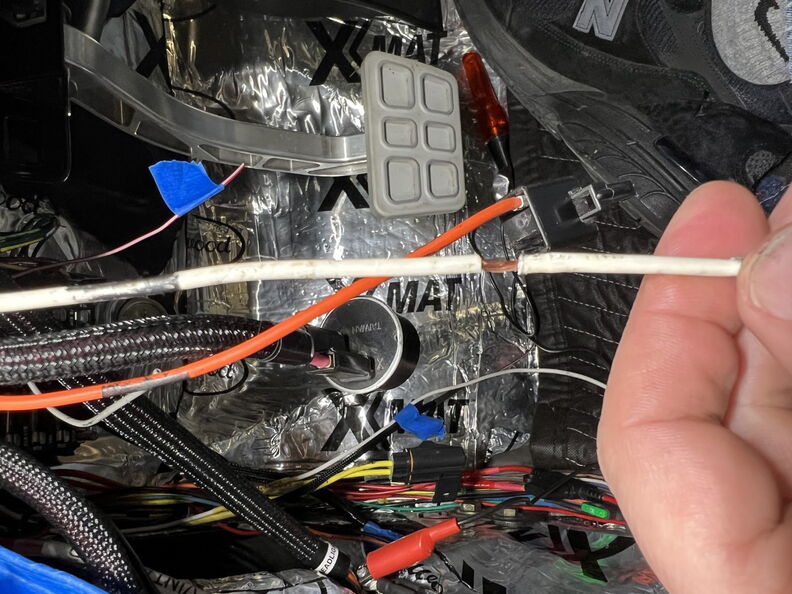

Finally getting close to the end and today I am working on the wiring that goes to the brake pedal switch. In the American Auto Wire harness the white wire is hot when the brake pedal is applied.

In order to solder in the two wires that need to be added to this wire I removed it from the plug.

http://garagescene.net/_data/i/uploa...6f1864d-me.jpg

http://garagescene.net/_data/i/uploa...75f9dfb-me.jpg

http://garagescene.net/_data/i/uploa...3ba517e-me.jpg

I also added the Drive By Wire.

http://garagescene.net/_data/i/uploa...de66c62-me.jpg

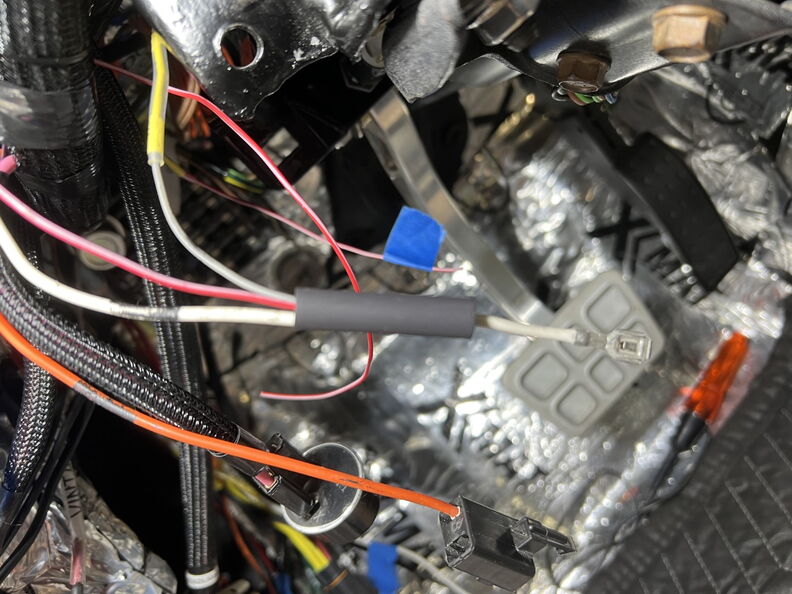

Little bit of Heat Shrink.

http://garagescene.net/_data/i/uploa...68de517-me.jpg

http://garagescene.net/_data/i/uploa...322a023-me.jpg

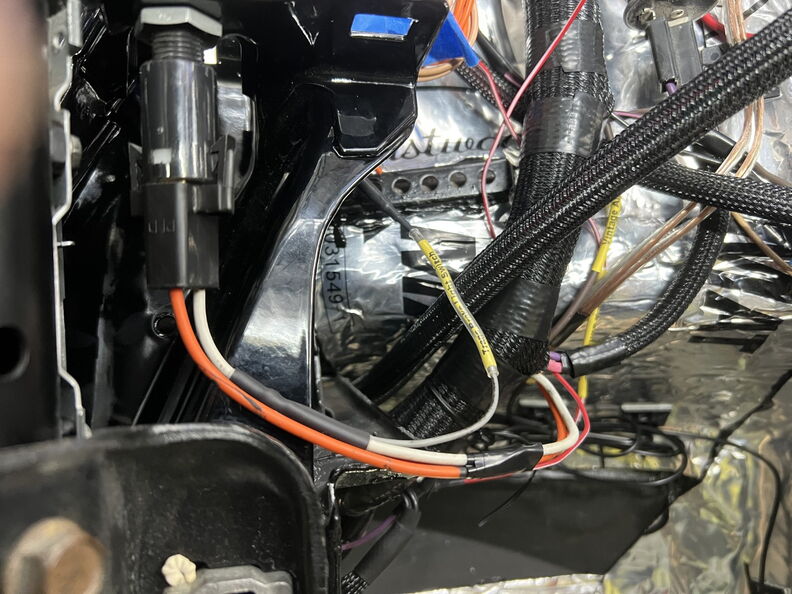

The Drive By Wire is temporally tucked up here while I wait for a really cool push button switch.

http://garagescene.net/_data/i/uploa...d5b8e5f-me.jpg

I probably shouldn't have eaten these as my stomach didn't feel good later that evening. It sucks to get old.

http://garagescene.net/_data/i/uploa...3c42a10-me.jpg

Humm! looks like you can't use this stuff on a Ford?
