Very nice job on the mold.

Pics from yesterday
http://i148.photobucket.com/albums/s.../DSC012601.jpg

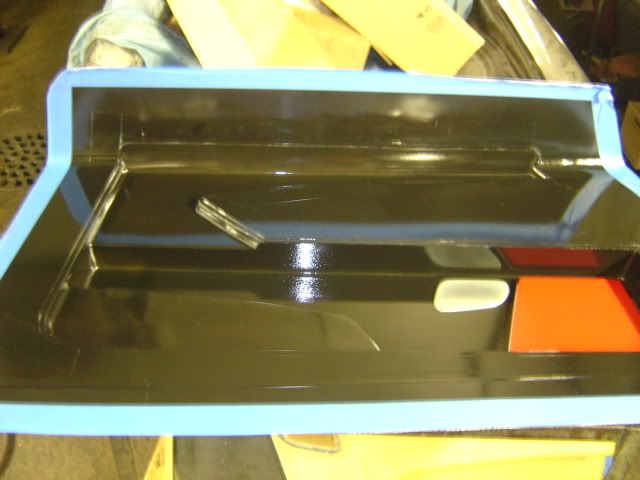

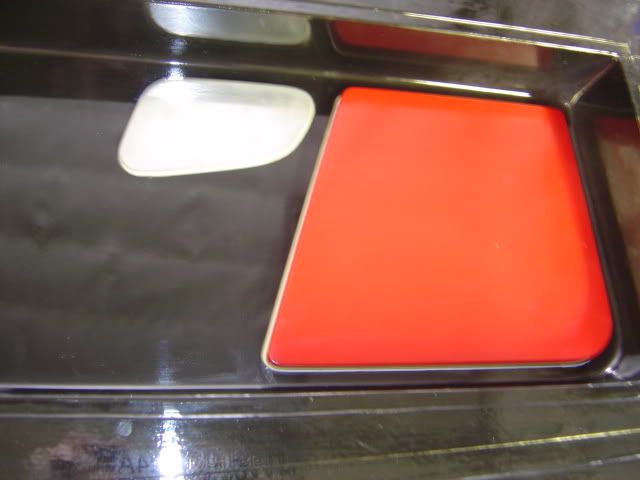

PVA sprayed
http://i148.photobucket.com/albums/s.../DSC012631.jpg

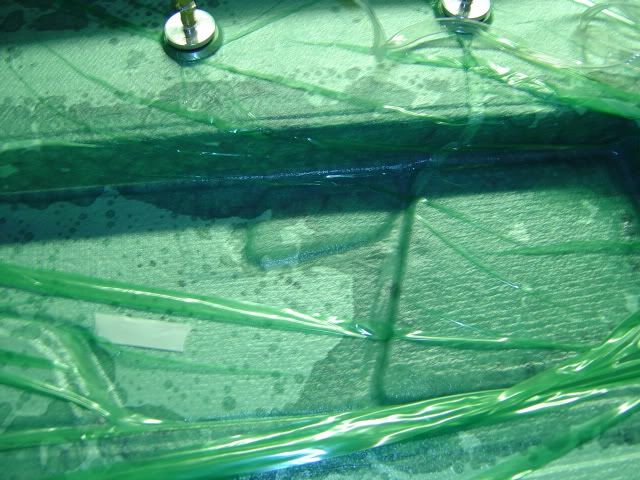

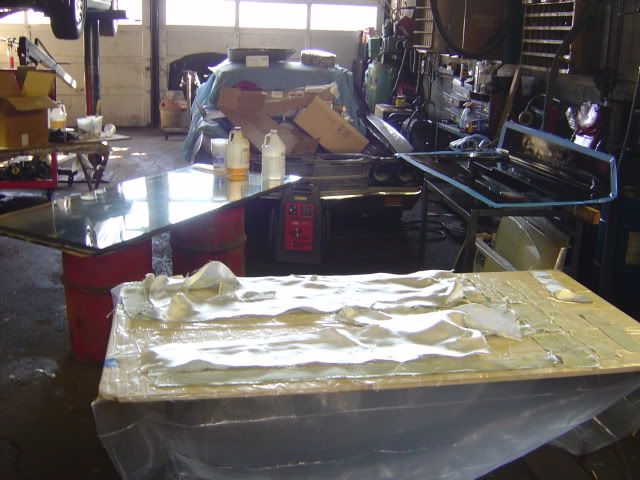

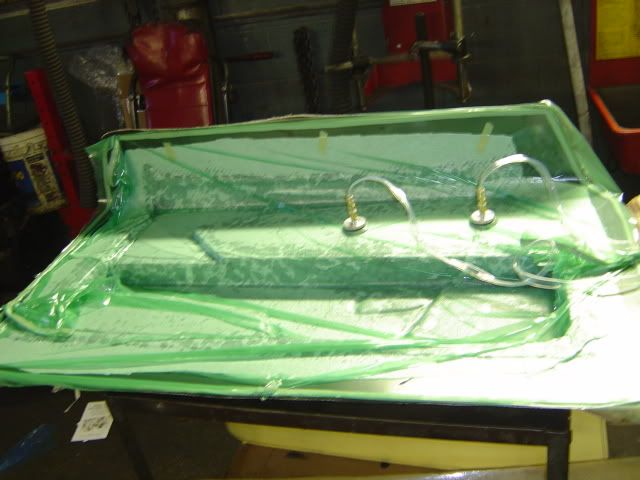

Ready to roll
http://i148.photobucket.com/albums/s.../DSC012641.jpg
http://i148.photobucket.com/albums/s.../DSC012651.jpg
http://i148.photobucket.com/albums/s.../DSC012661.jpg

I pulled it from the mold today. I'm really happy I remade the mold. At the last minute I made the decision to add some Nomex honeycomb and I'm really happy I did.The panel is extremely rigid.

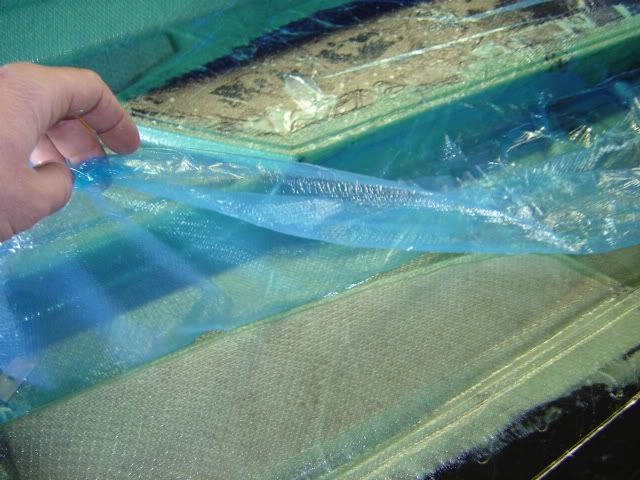

Release film.
http://i148.photobucket.com/albums/s...v/DSC01271.jpg

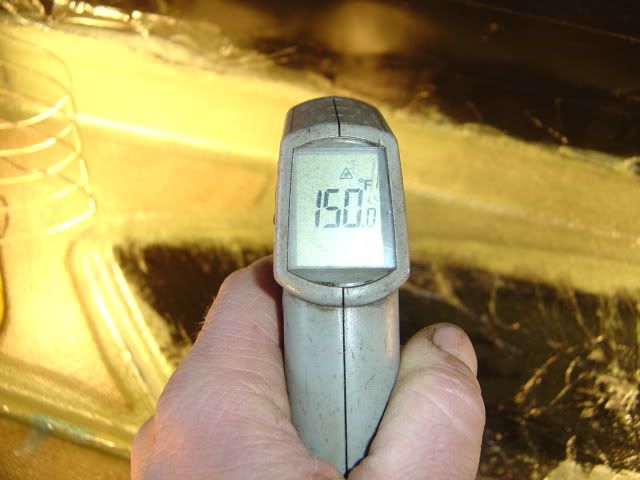

After the bagging materials were removed I cooked for a day and a half with some flood lamps
http://i148.photobucket.com/albums/s...v/DSC01274.jpg

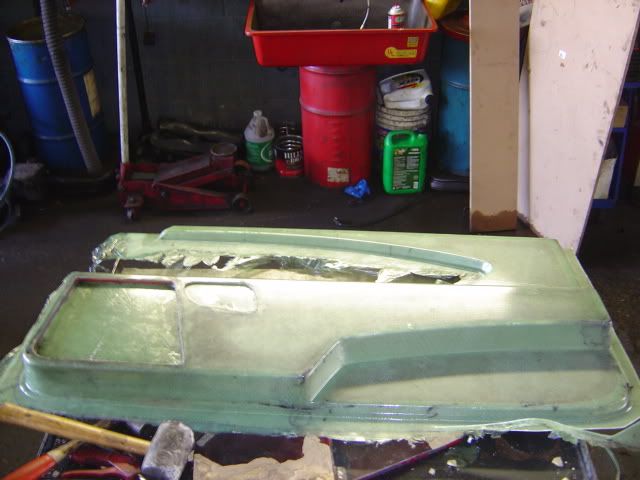

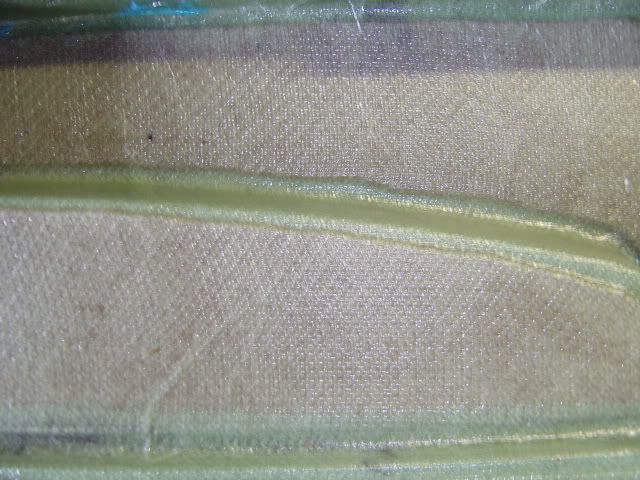

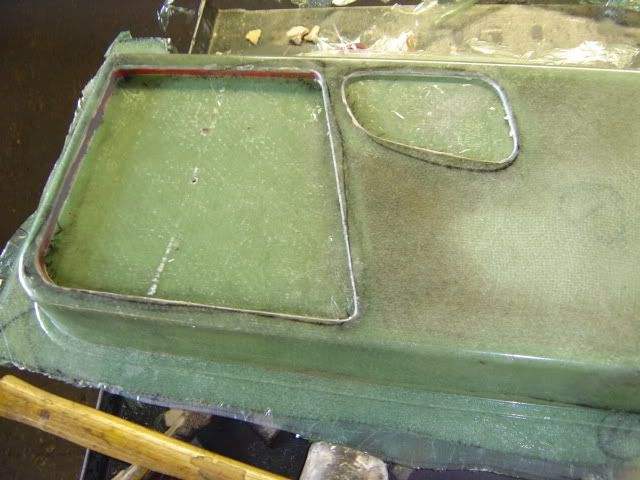

Out of the mold
http://i148.photobucket.com/albums/s...v/DSC01277.jpg
http://i148.photobucket.com/albums/s...v/DSC01278.jpg
http://i148.photobucket.com/albums/s...v/DSC01272.jpg

Trimmed up
http://i148.photobucket.com/albums/s...v/DSC01279.jpg

those look great! what are you using to vacuum the air out of the bag?

Very nice your very talented.

Nice work, can't wait to see the finished product.

A robinair 15600. You can use any vacuum source as long as you use clear lines to visually make sure you do not get any resin into the pump. You should install some type of resin trap just to make sure there is no chance of resin ever making it's way into the pump. I've had luck with just placing my vacuum source within the bag so that it does not sit directly over resin but over a completely dry area and about 6 inches from the wet resin.

Thanks for the comps guys.

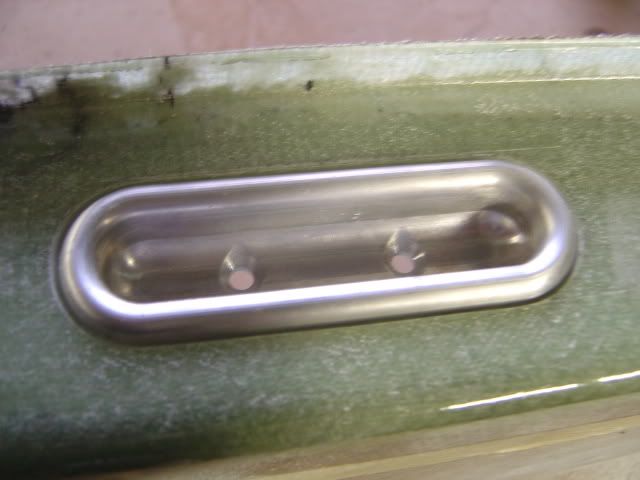

Slow but steady progress. I did not like the look of the door pull just sitting in a surface hole so I made a pocket for it.
http://i148.photobucket.com/albums/s.../DSC012921.jpg
http://i148.photobucket.com/albums/s.../DSC012941.jpg

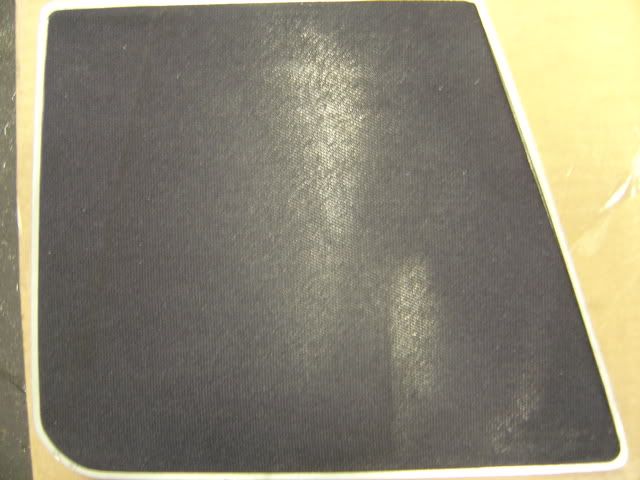

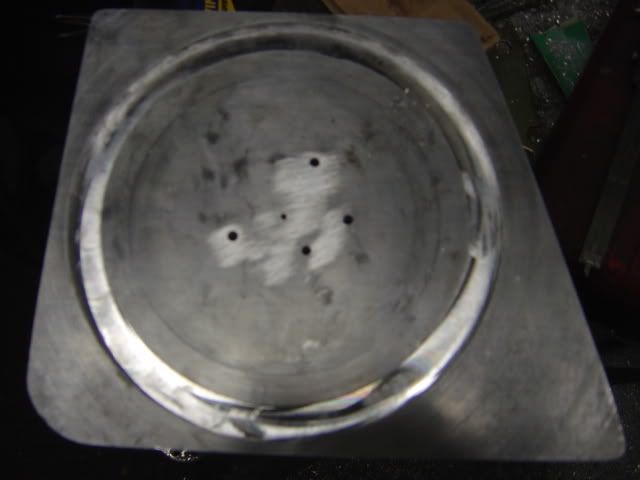

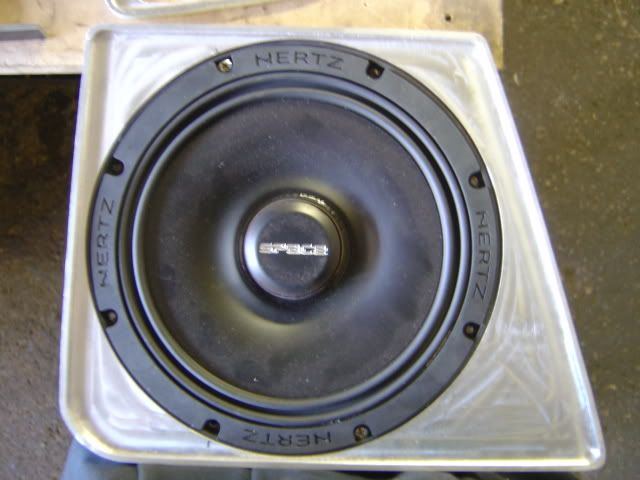

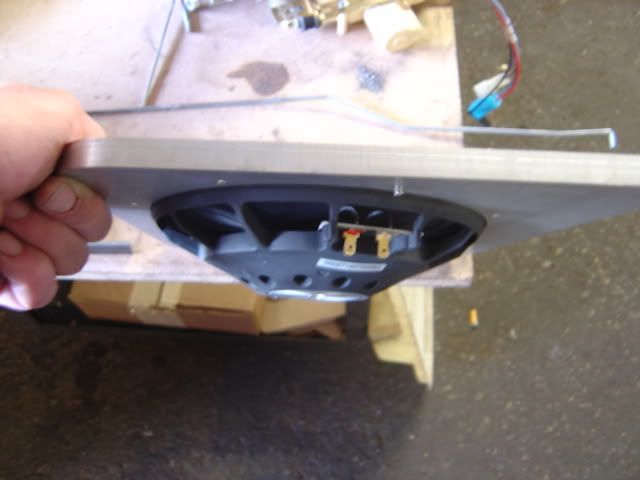

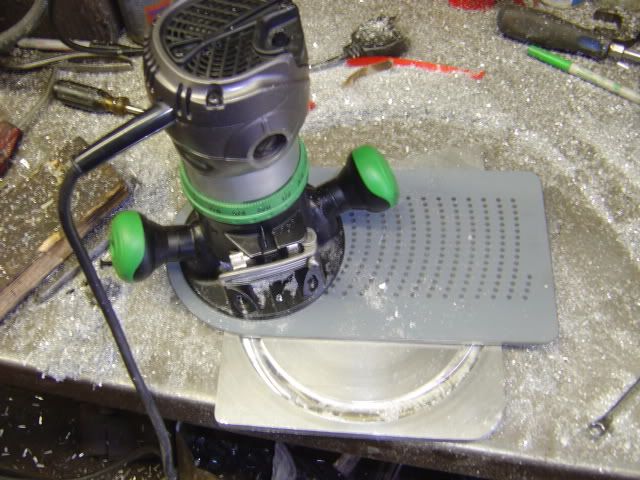

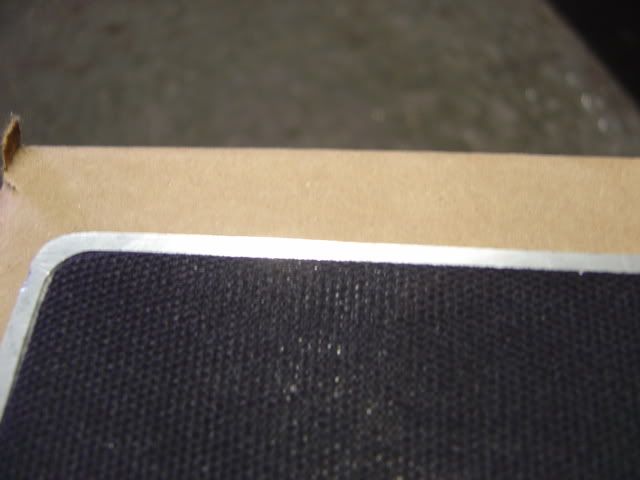

1/2 inch aluminum speaker baffles for 8 inch midbass taking shape
http://i148.photobucket.com/albums/s.../DSC012901.jpg
http://i148.photobucket.com/albums/s.../DSC012911.jpg
http://i148.photobucket.com/albums/s.../DSC013141.jpg
http://i148.photobucket.com/albums/s.../DSC013151.jpg
http://i148.photobucket.com/albums/s.../DSC013001.jpg
http://i148.photobucket.com/albums/s.../DSC013011.jpg

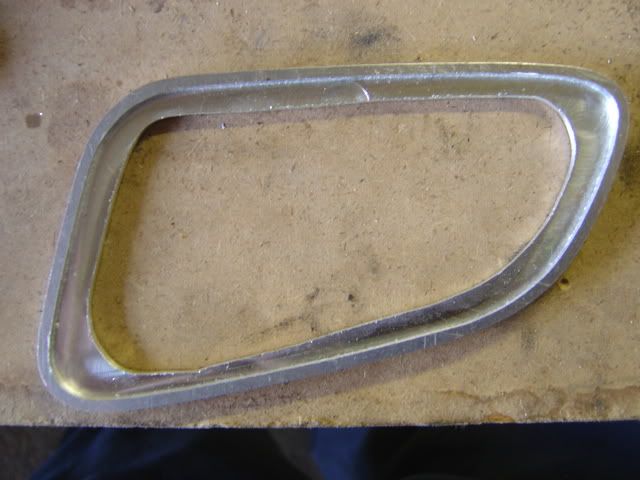

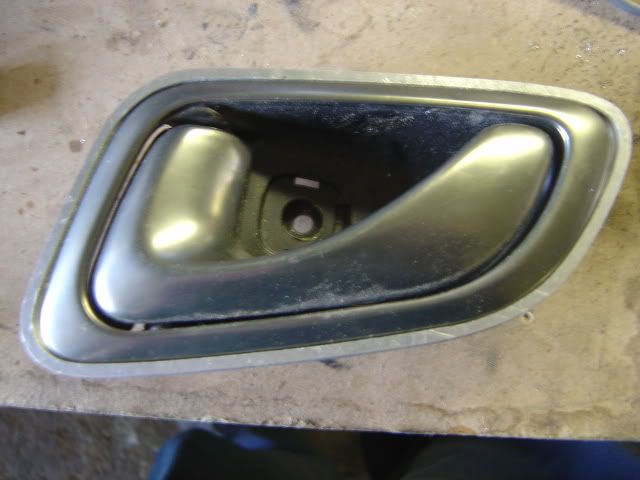

Made trims for the inner door handle to match the speaker baffle
http://i148.photobucket.com/albums/s.../DSC013131.jpg
http://i148.photobucket.com/albums/s.../DSC013121.jpg

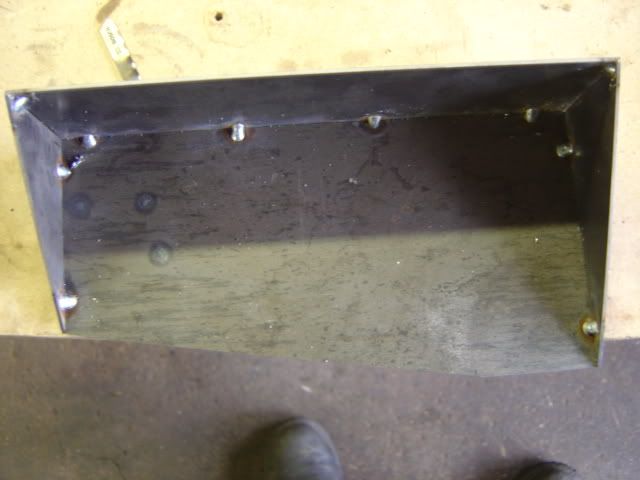

Door pull boxes. I wanted to keep door modifications to a minimum because the original doors are rust free. I also wanted the door pulls to mount directly to the door so there was no stress on the panel itself when using the door pull.I also had to come up with a way to connect the new inner door handles to the latch. I accomplished this only having to cut a one inch square out of the door with this box.
http://i148.photobucket.com/albums/s.../DSC013031.jpg

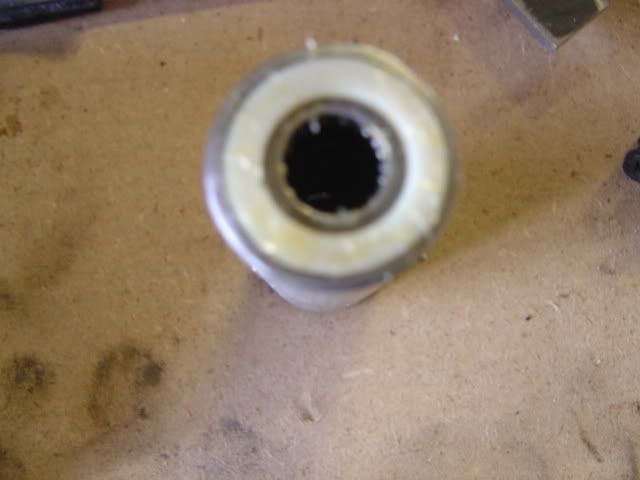

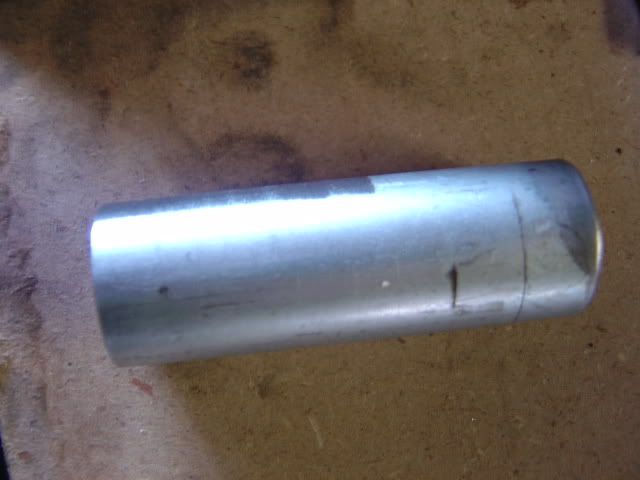

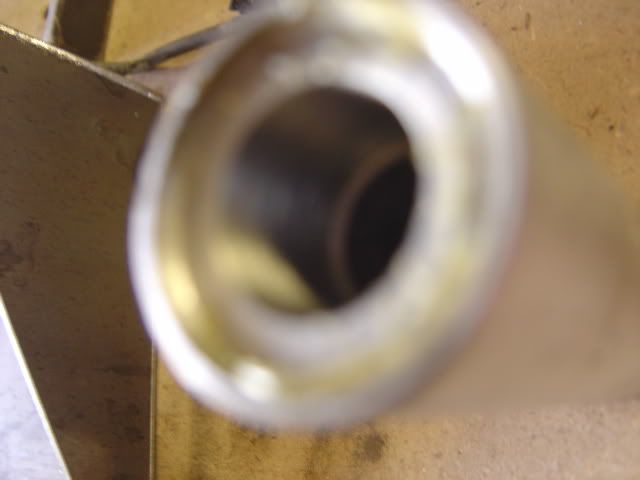

I then started with a one inch piece of bar stock that I threw in the lathe and took 1/2 inch out of the center and machined the ends to accept a 9/16 od roller bearing. The ends of the stock were machined to accept a nylon washer so the arms would not rattle against the body.

http://i148.photobucket.com/albums/s.../DSC013051.jpg
http://i148.photobucket.com/albums/s.../DSC013081.jpg
http://i148.photobucket.com/albums/s.../DSC013101.jpg

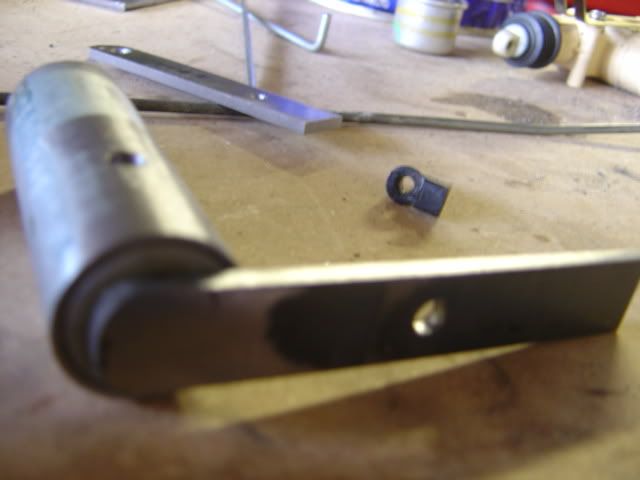

I then burned in some arms to connect the original door rods to . I left them a little long to make adjustments later if need be. Also drilled for zerk fittings.
http://i148.photobucket.com/albums/s.../DSC013111.jpg

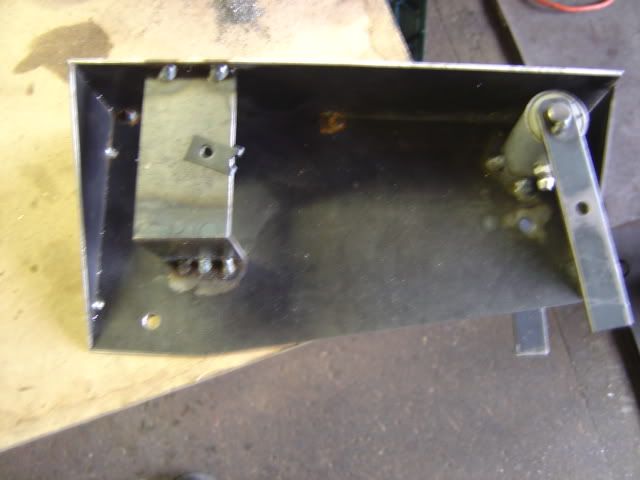

Burned them in and made some inner door handle mounts.
http://i148.photobucket.com/albums/s.../DSC013041.jpg

You do good work Tony. Keep us posted please.:thumbsup:

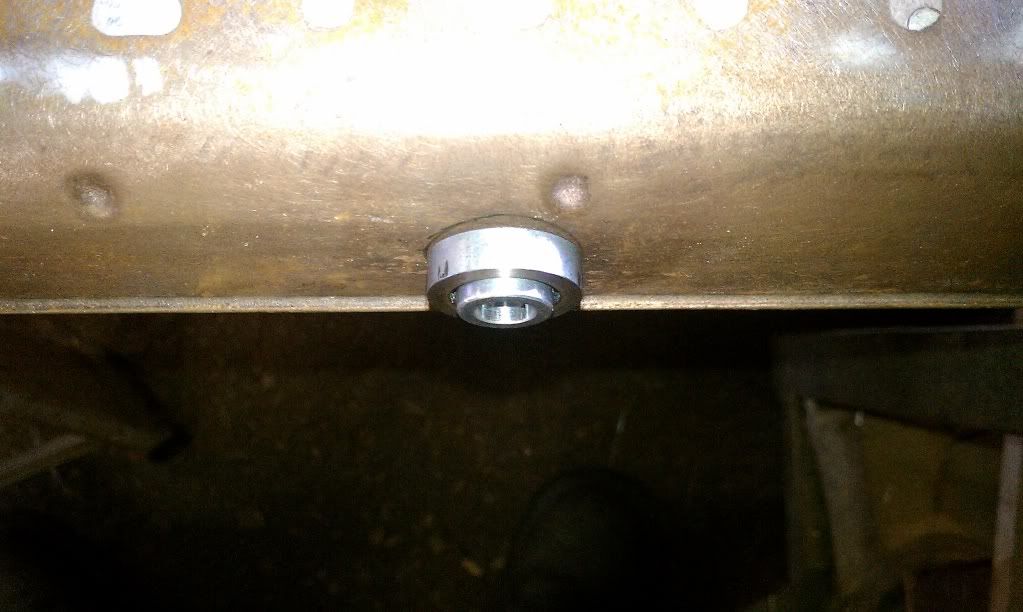

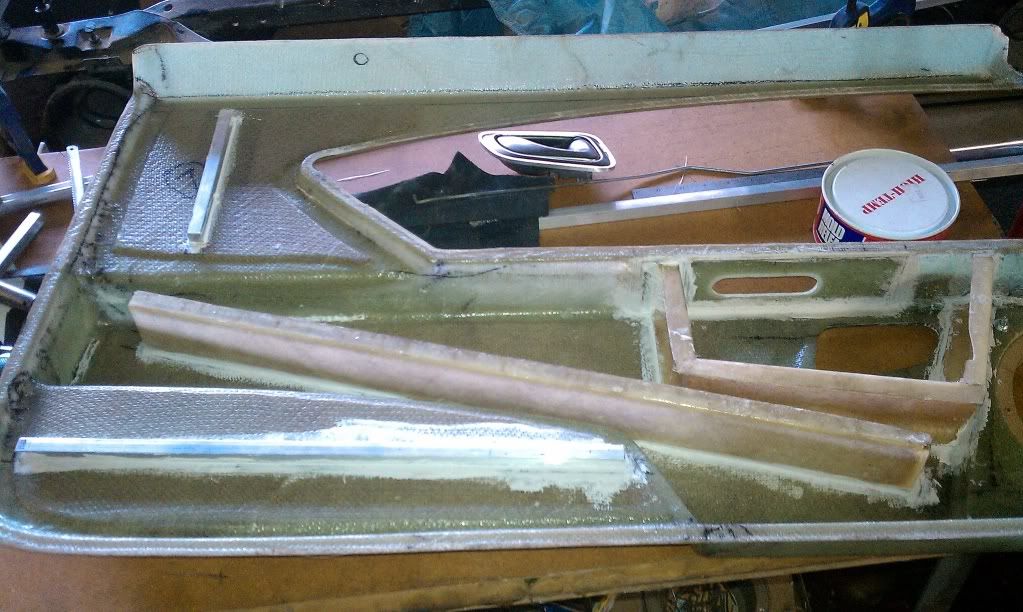

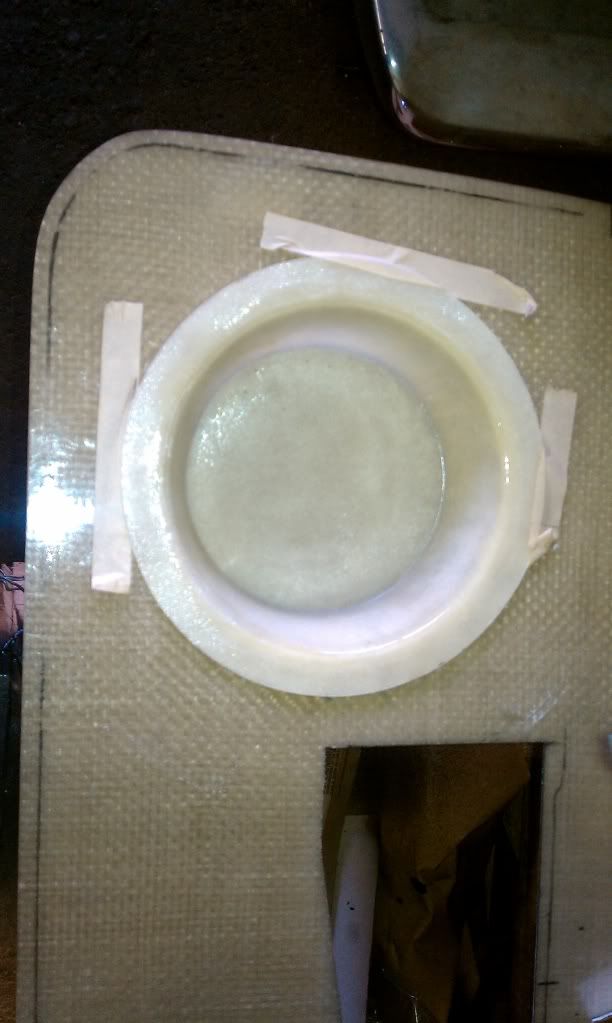

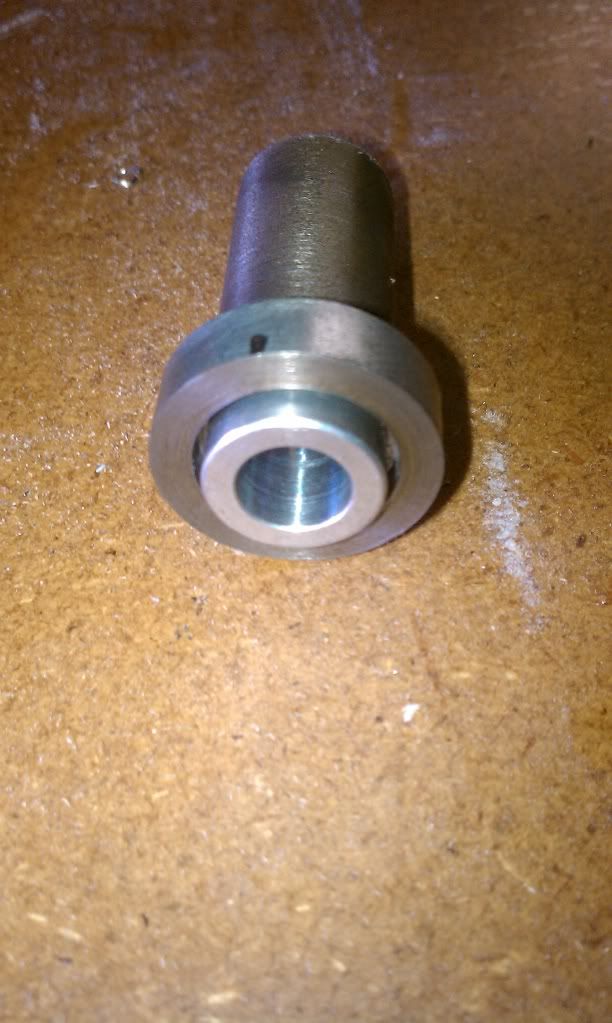

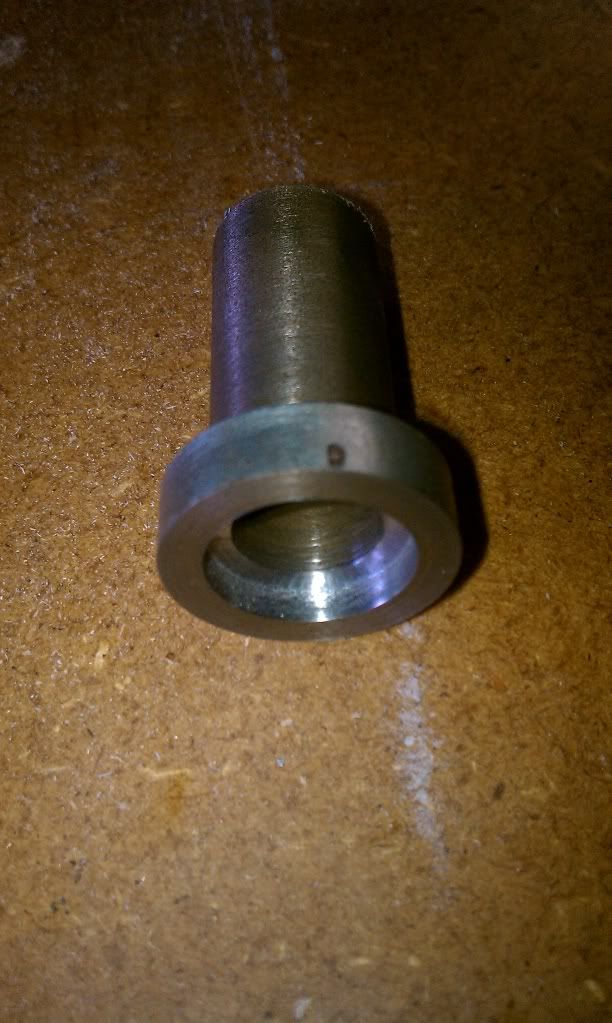

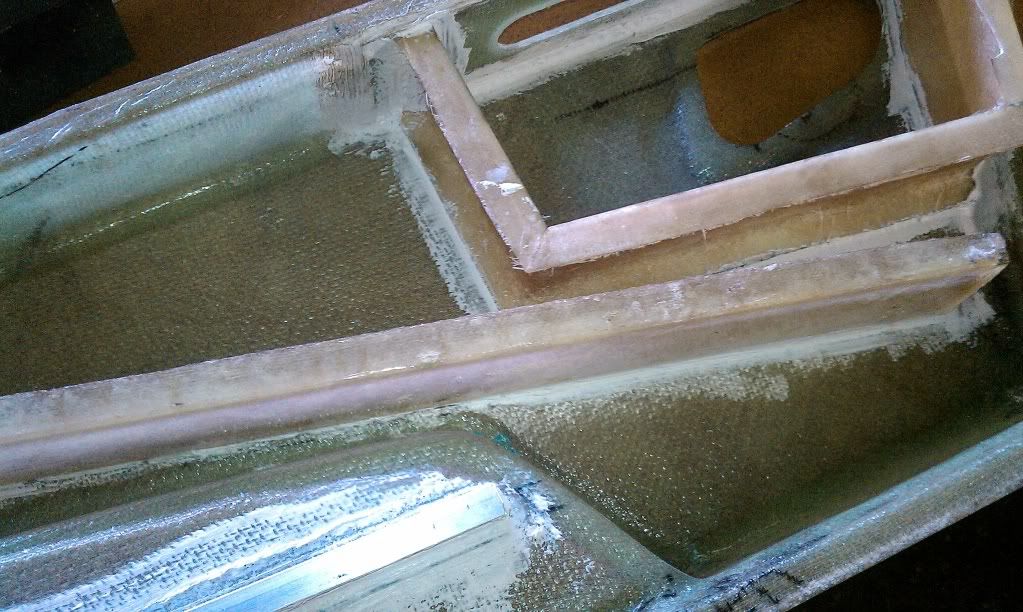

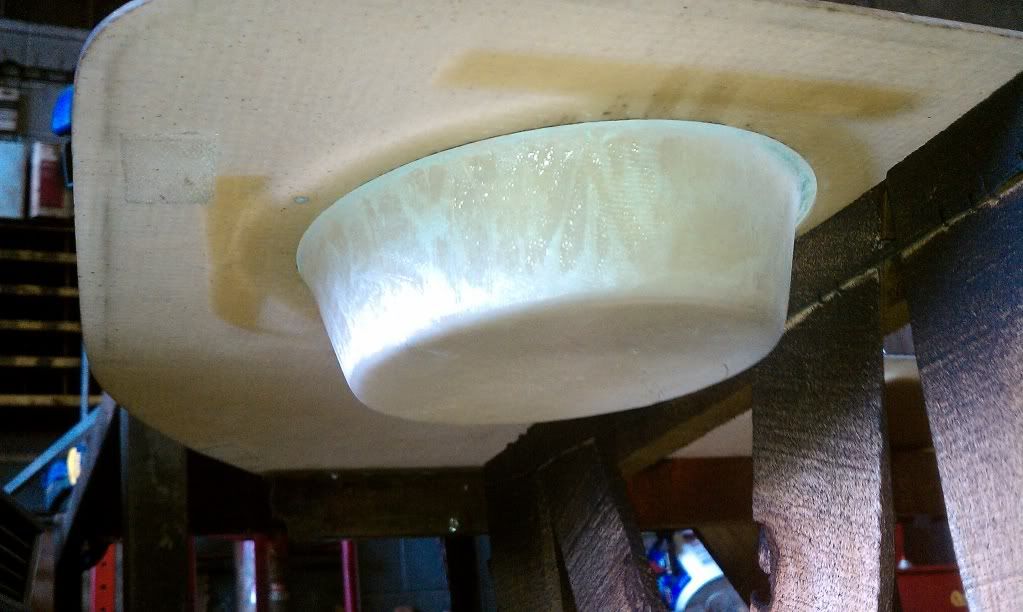

Some progress. I had to change things around a little because the speakers I was going to use are being discontinued. I could not sit around and hop that something would fit by the time the car was finished so I just added as much depth as the door would allow. The downside being having to cut the door a little. I made molds for internal bracing and speaker depth. After popping the parts out of the molds I got the bracing bonded in. I then machined the base for the base for the lock knob trim. Hopefully by this time next week I will have mounted the base and finally bonded the panel together.


http://i148.photobucket.com/albums/s...v/9e040922.jpg
http://i148.photobucket.com/albums/s...v/3673ffb1.jpg
http://i148.photobucket.com/albums/s...v/b2dc09ee.jpg
http://i148.photobucket.com/albums/s...v/75e65b8d.jpg
http://i148.photobucket.com/albums/s...v/86edce58.jpg
http://i148.photobucket.com/albums/s...v/6cba2d02.jpg
http://i148.photobucket.com/albums/s...v/7244ff99.jpg

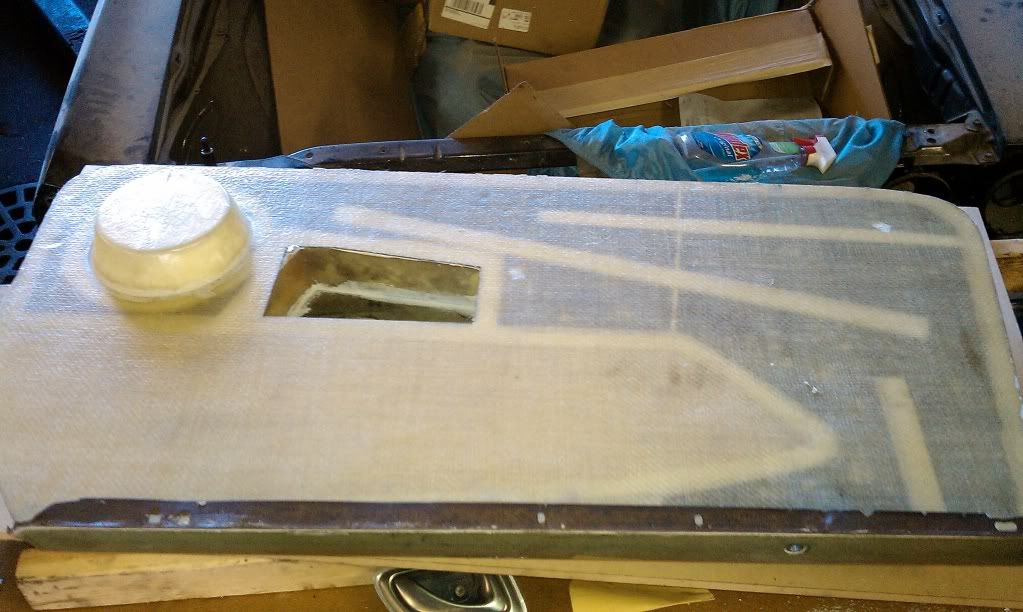

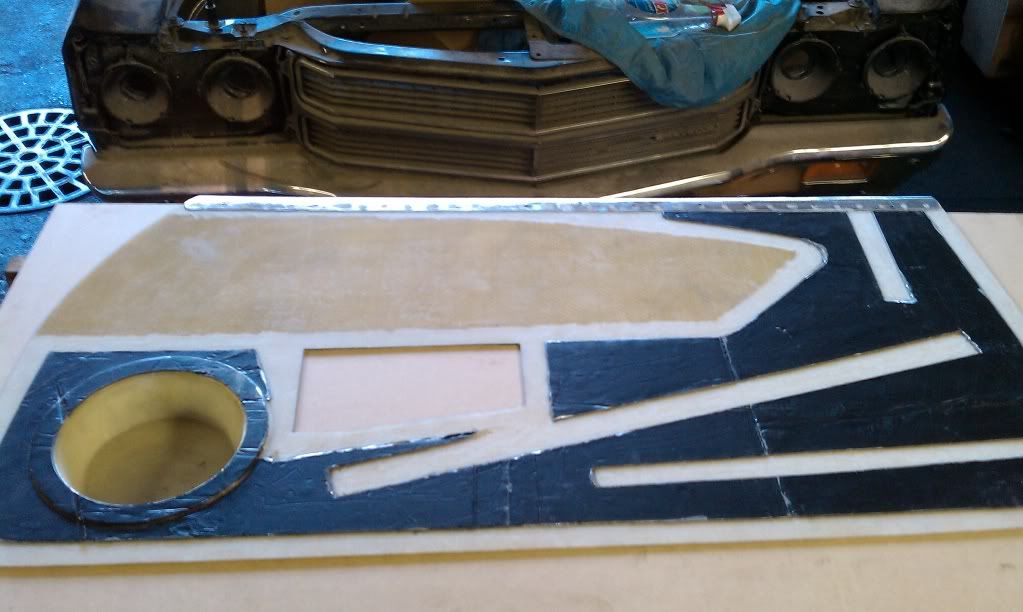

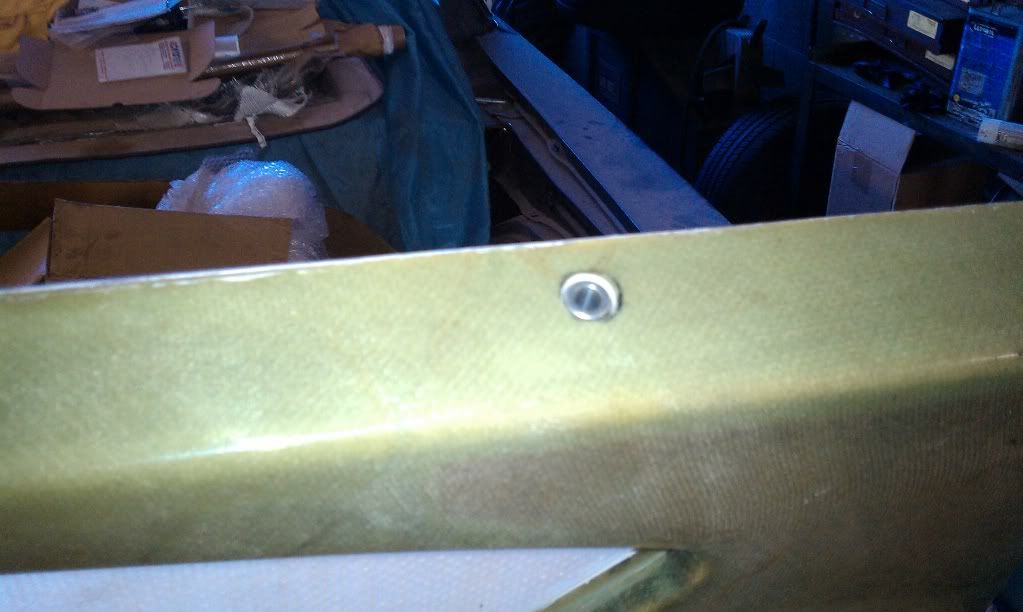

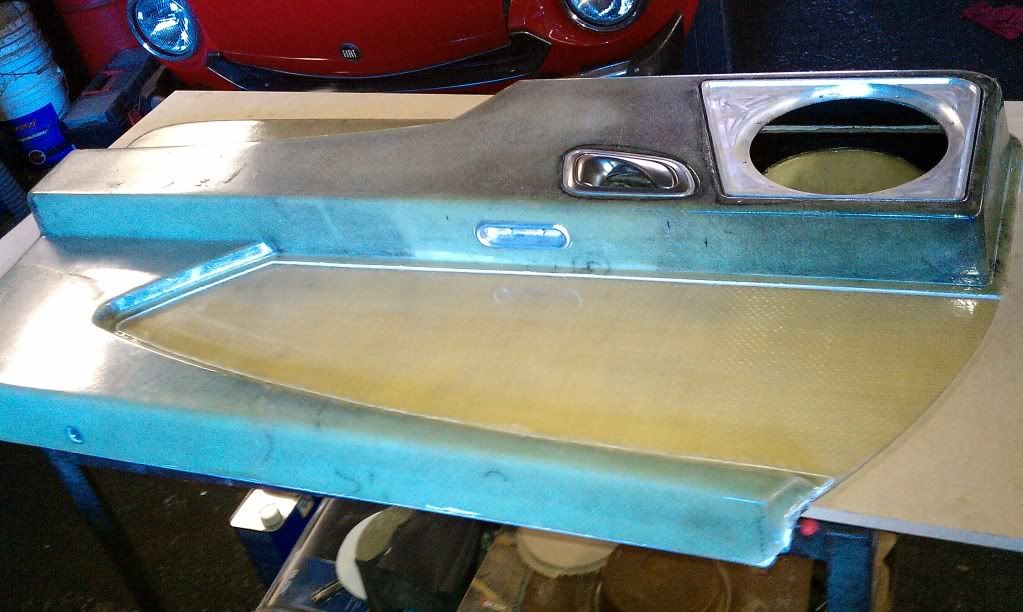

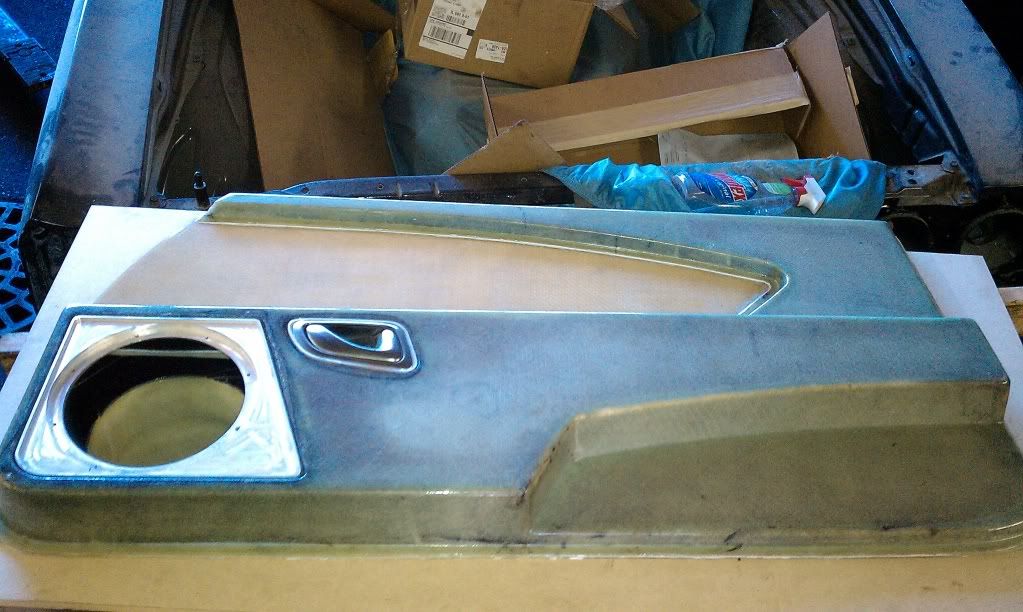

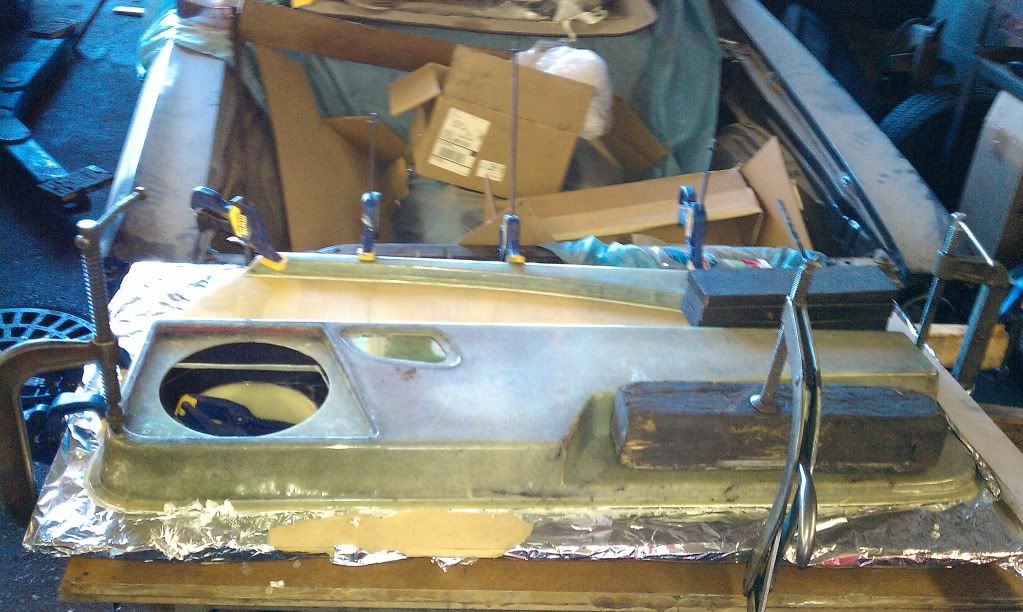

Finally. One panel done.

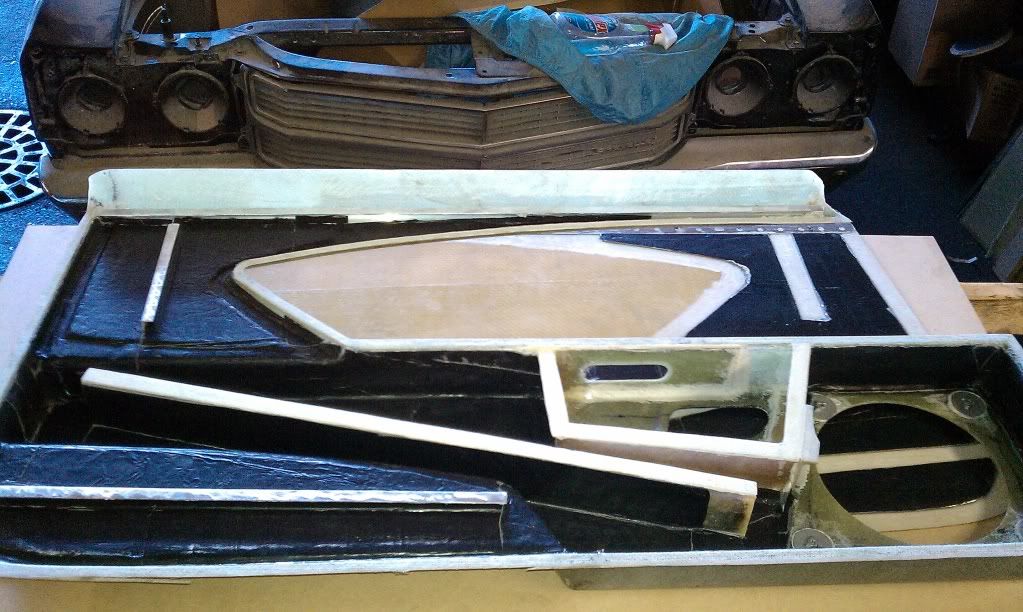

http://i148.photobucket.com/albums/s...v/74ab4e02.jpg
http://i148.photobucket.com/albums/s...v/a54c1c8f.jpg
http://i148.photobucket.com/albums/s...v/cd87e32b.jpg
http://i148.photobucket.com/albums/s...v/e451b081.jpg
http://i148.photobucket.com/albums/s...v/7cd6fc1d.jpg
http://i148.photobucket.com/albums/s...v/966b5cda.jpg
http://i148.photobucket.com/albums/s...v/683250e9.jpg

looks like a ton of work, very nice work

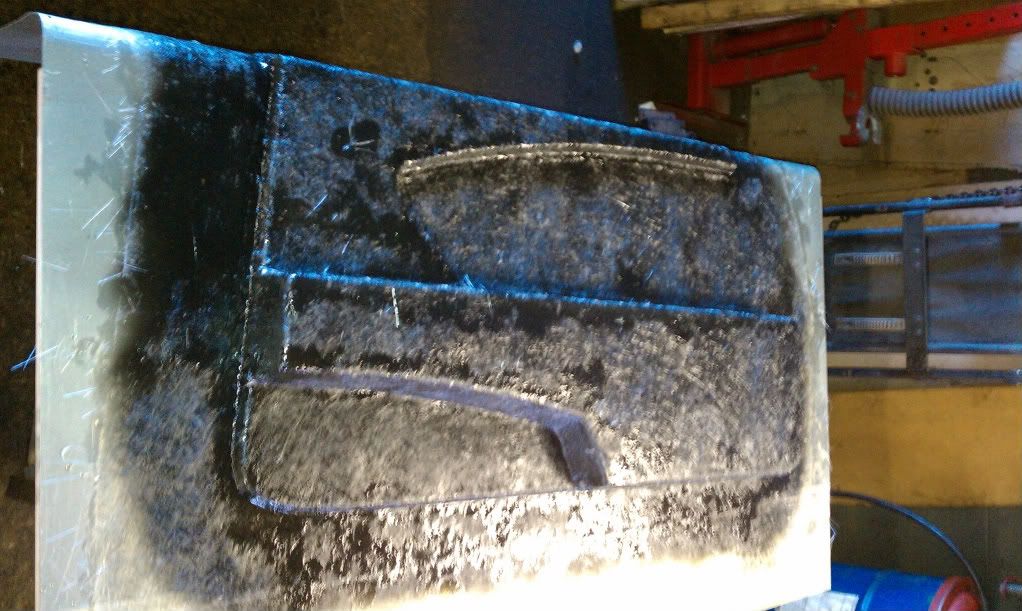

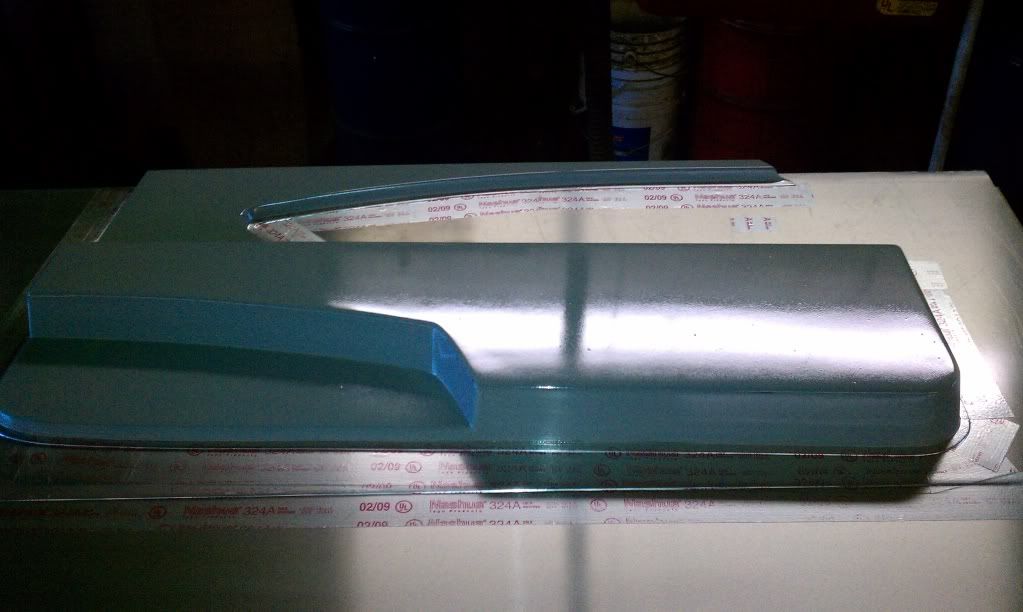

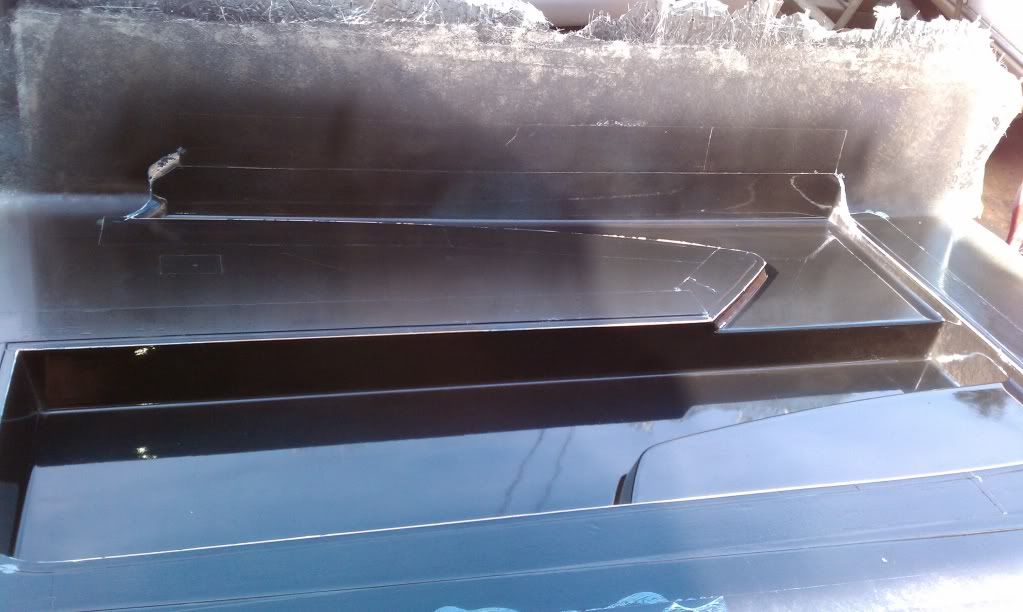

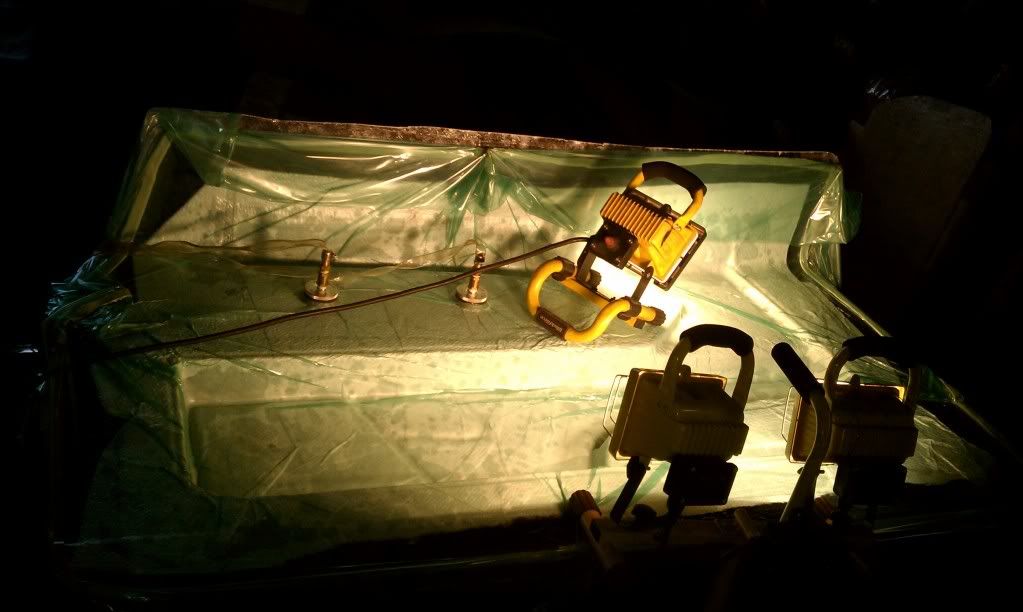

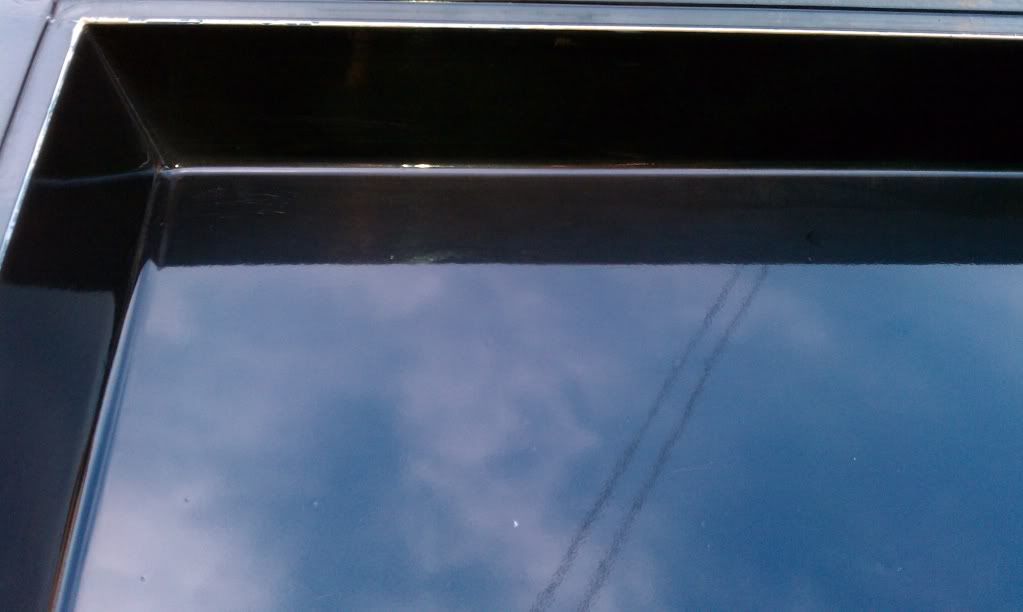

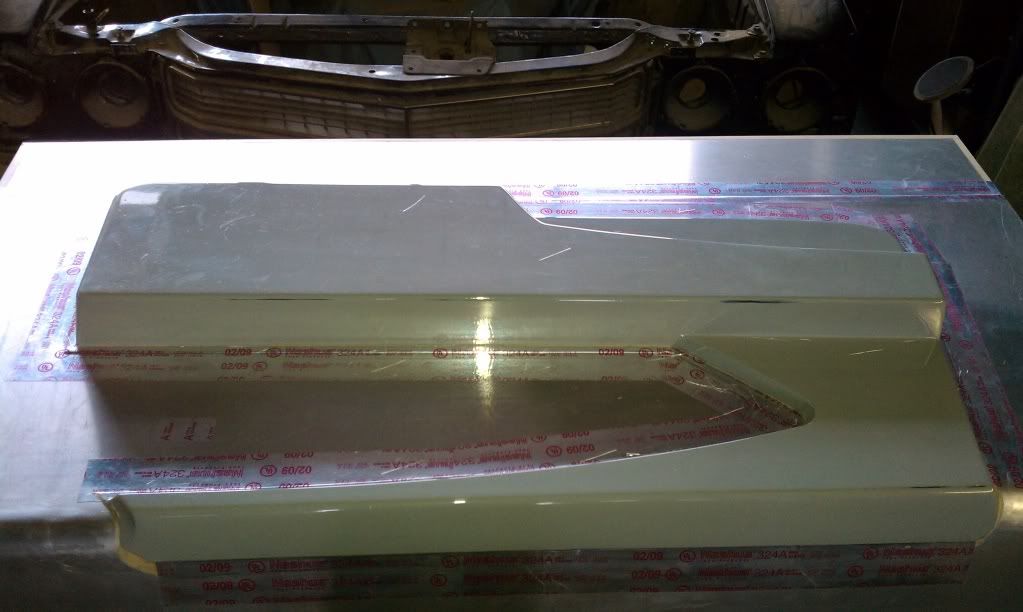

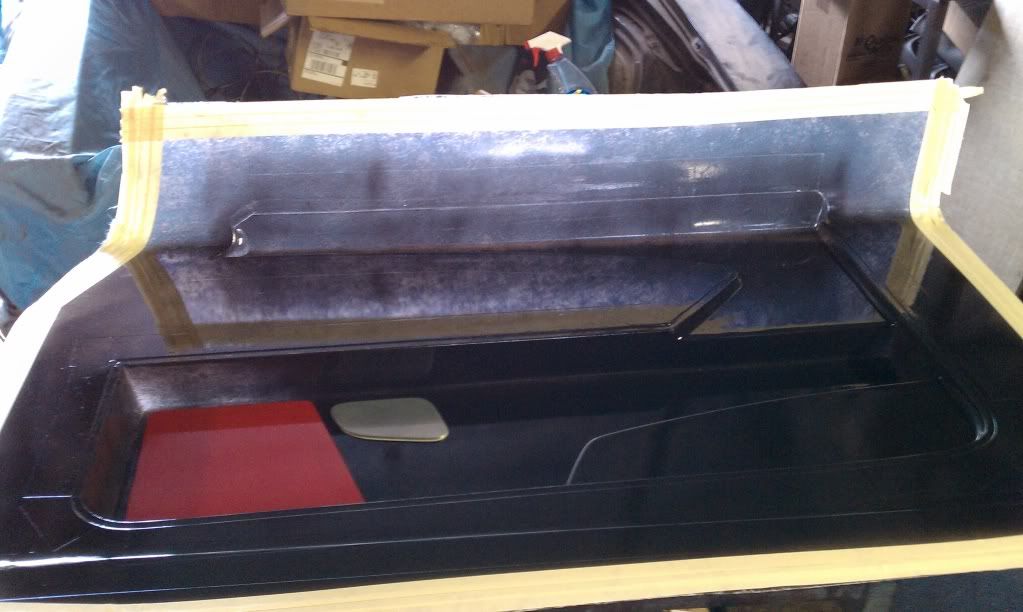

Drivers side
http://i148.photobucket.com/albums/s...v/46ee4056.jpg
http://i148.photobucket.com/albums/s...v/25f34d67.jpg
http://i148.photobucket.com/albums/s...v/3037d169.jpg
http://i148.photobucket.com/albums/s...v/93ed7163.jpg
http://i148.photobucket.com/albums/s...v/5d28319b.jpg
http://i148.photobucket.com/albums/s...v/aa31f1af.jpg
http://i148.photobucket.com/albums/s...v/b351df8e.jpg

cool.
rick k

Looks good Tony!:thumbsup:

Thanks guys. Panel spent the day in the sun today curing. I'll set it out tomorrow too. Depending on how hot it is tomorrow I might pop it out Saturday.

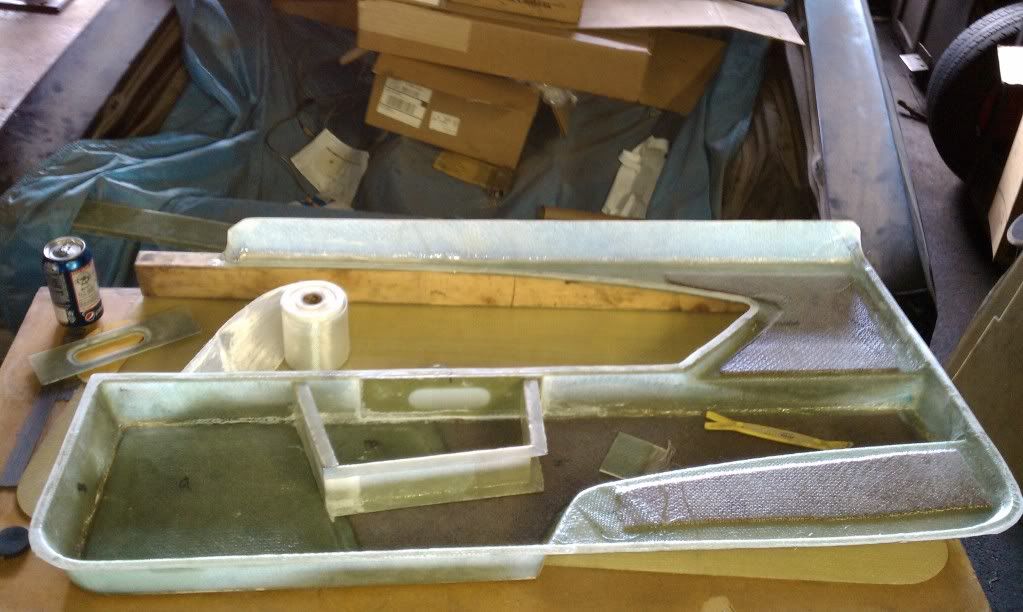

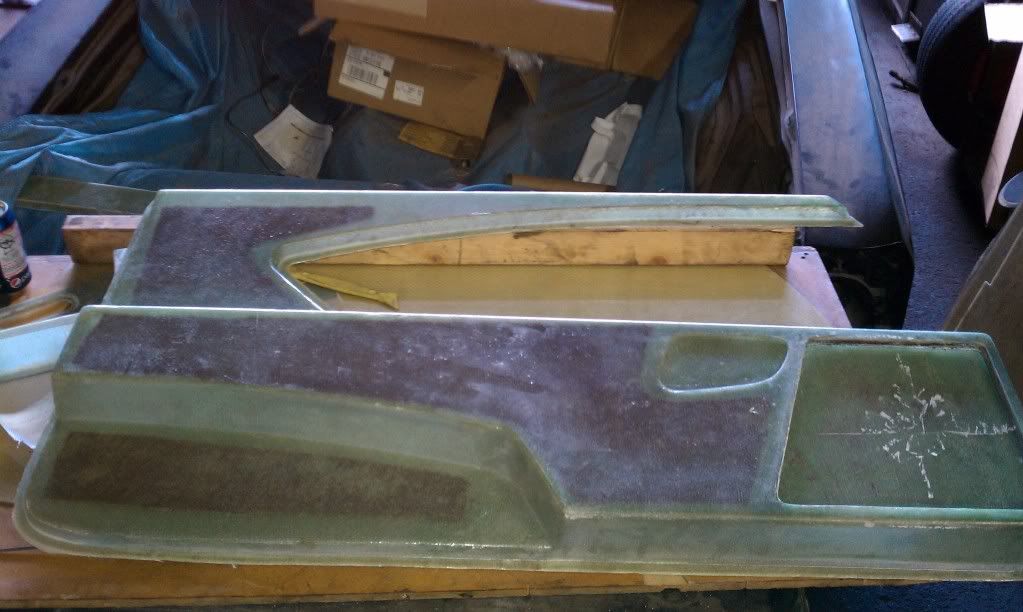

Out of the mold.
http://i148.photobucket.com/albums/s...v/316f6a4d.jpg
http://i148.photobucket.com/albums/s...v/d27107d8.jpg

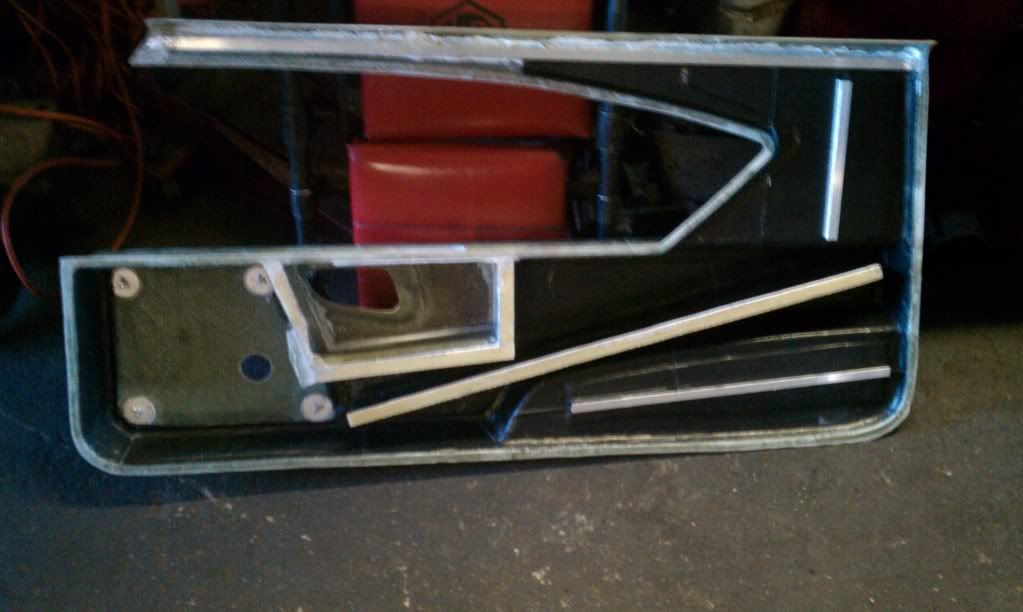

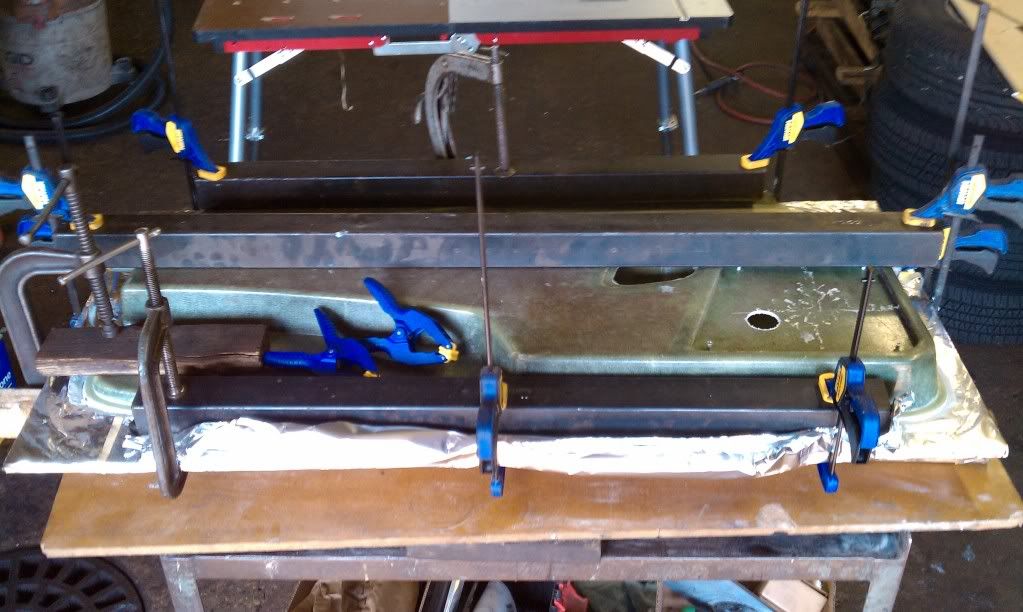

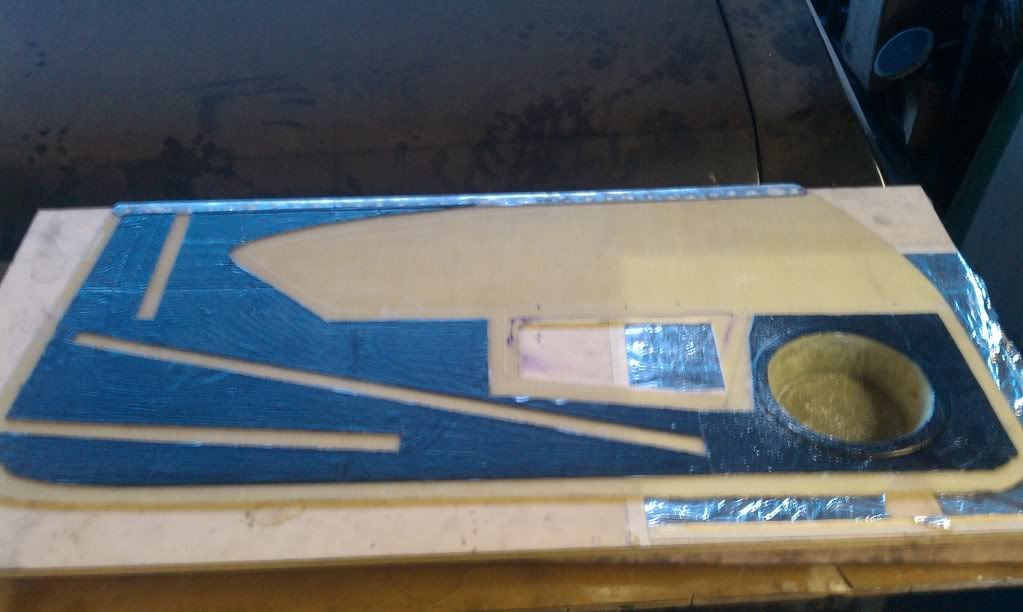

Slowly but surely.
http://i148.photobucket.com/albums/s...v/IMAG0132.jpg
http://i148.photobucket.com/albums/s...v/IMAG0131.jpg
http://i148.photobucket.com/albums/s...v/IMAG0134.jpg

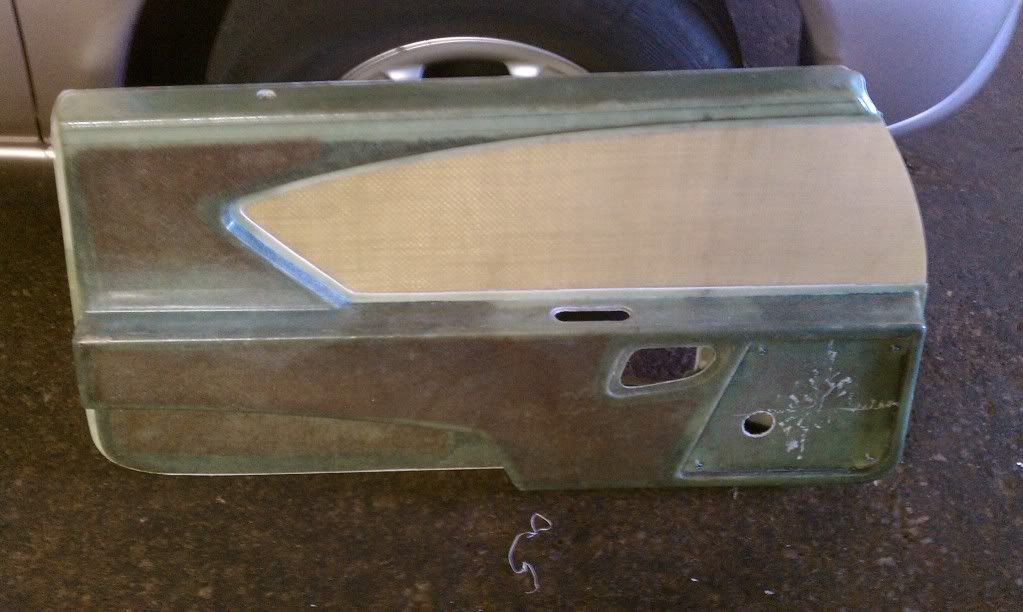

2 down
http://i148.photobucket.com/albums/s...v/IMAG0135.jpg

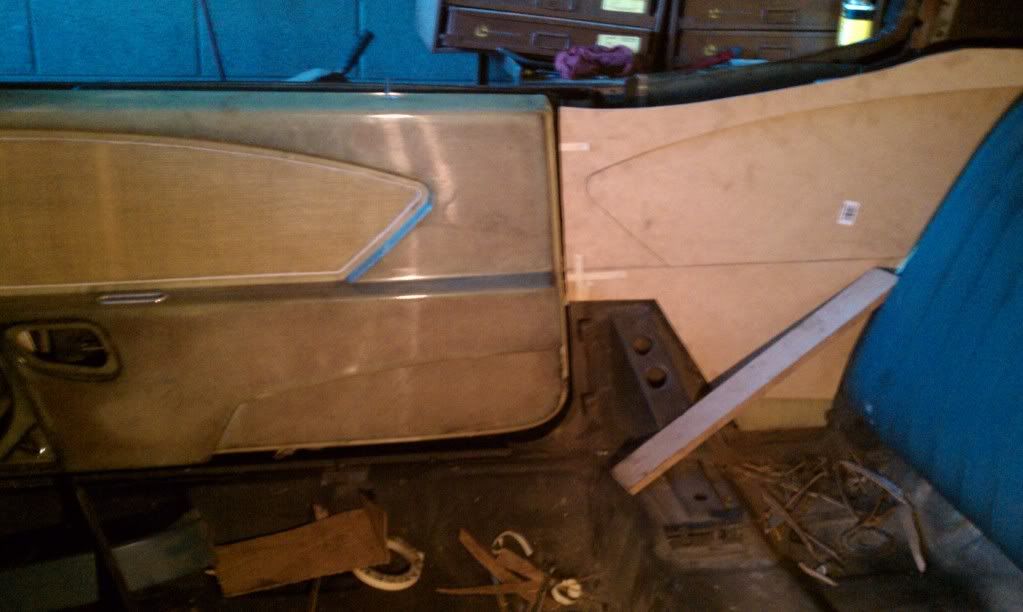

Started on the layout for the rear.
http://i148.photobucket.com/albums/s...v/IMAG0139.jpg

Simply fantastic!

Shiny Side Up!
Bill

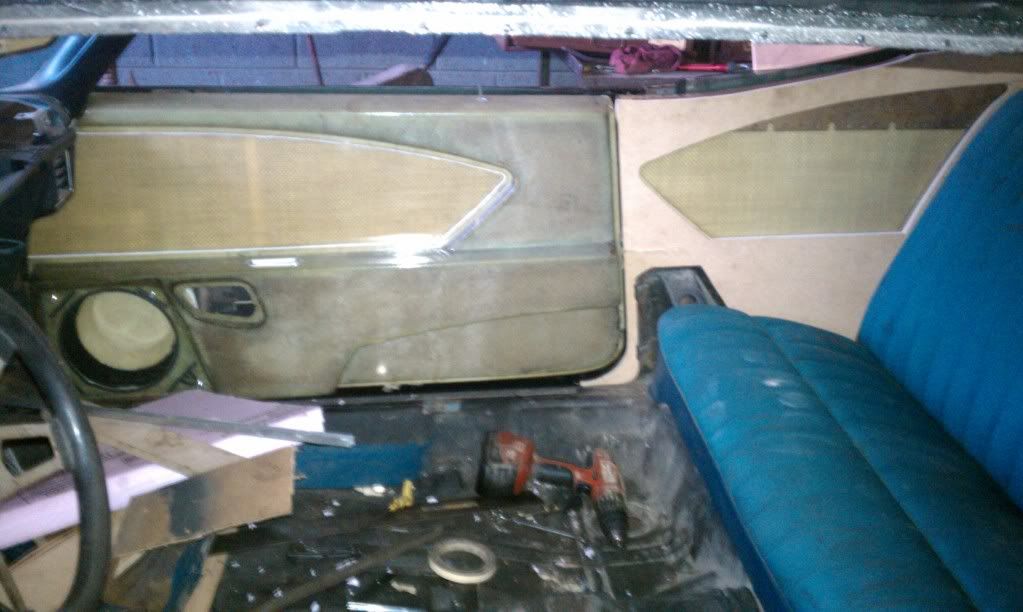

I cut the rear panel pattern and started the rear deck.
http://i148.photobucket.com/albums/s...v/IMAG0143.jpg

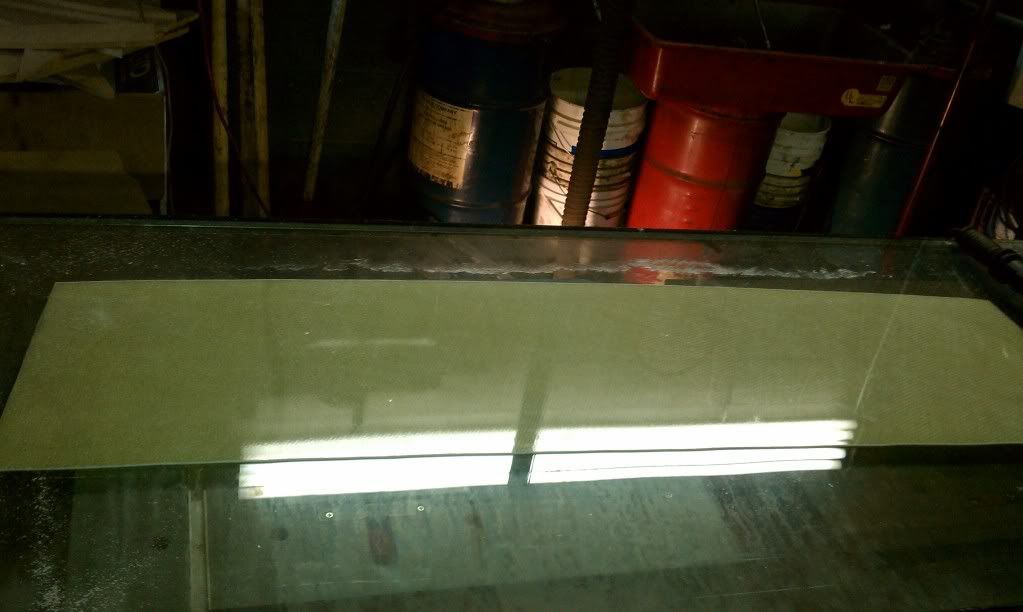

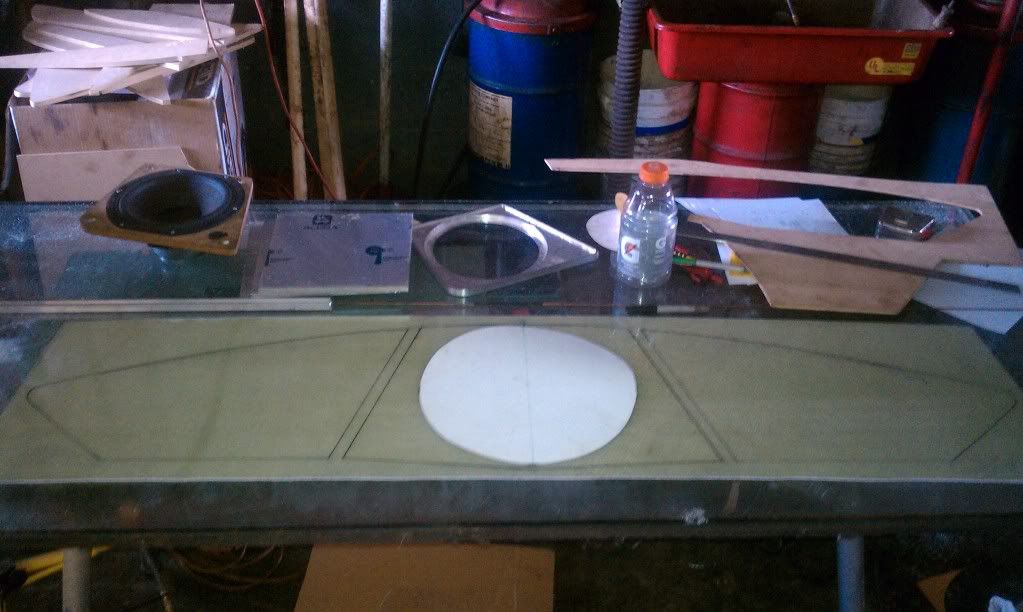

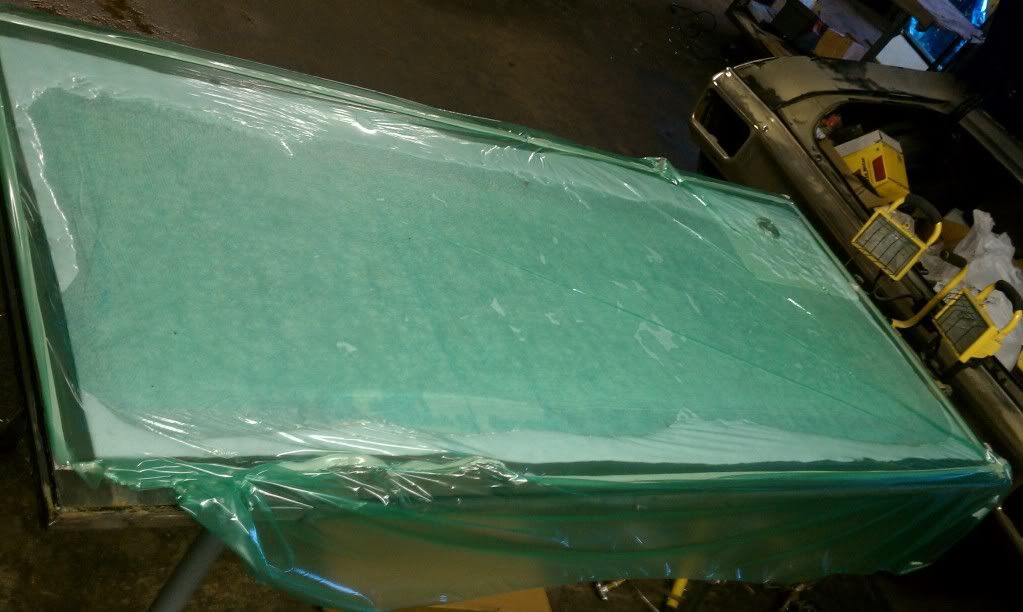

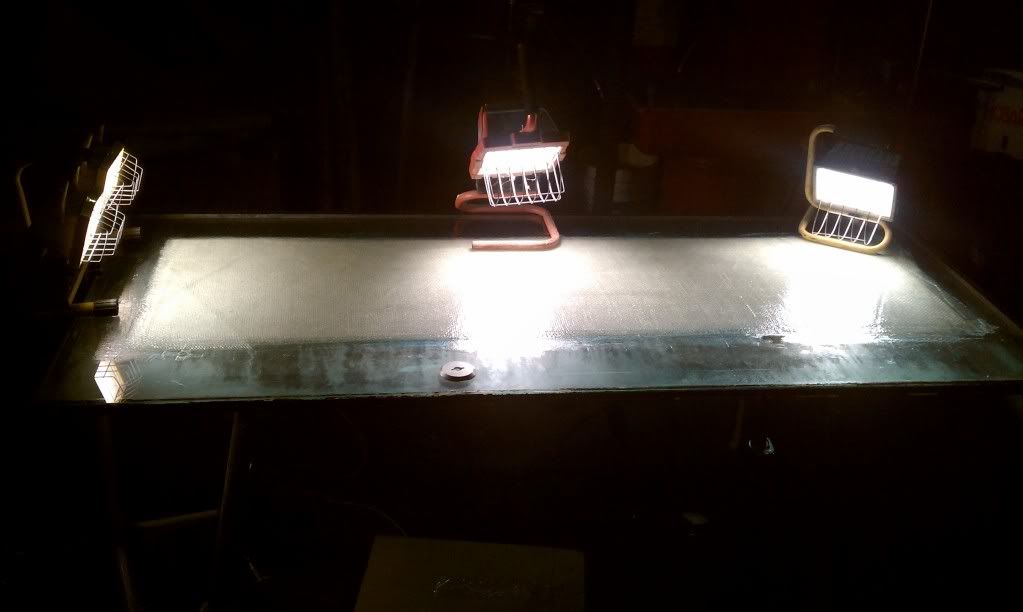

Base for the rear deck.
http://i148.photobucket.com/albums/s...v/IMAG0140.jpg
http://i148.photobucket.com/albums/s...v/IMAG0141.jpg
http://i148.photobucket.com/albums/s...v/IMAG0146.jpg
http://i148.photobucket.com/albums/s...v/IMAG0147.jpg

Looks good Tony. Nice work man!:thumbsup:

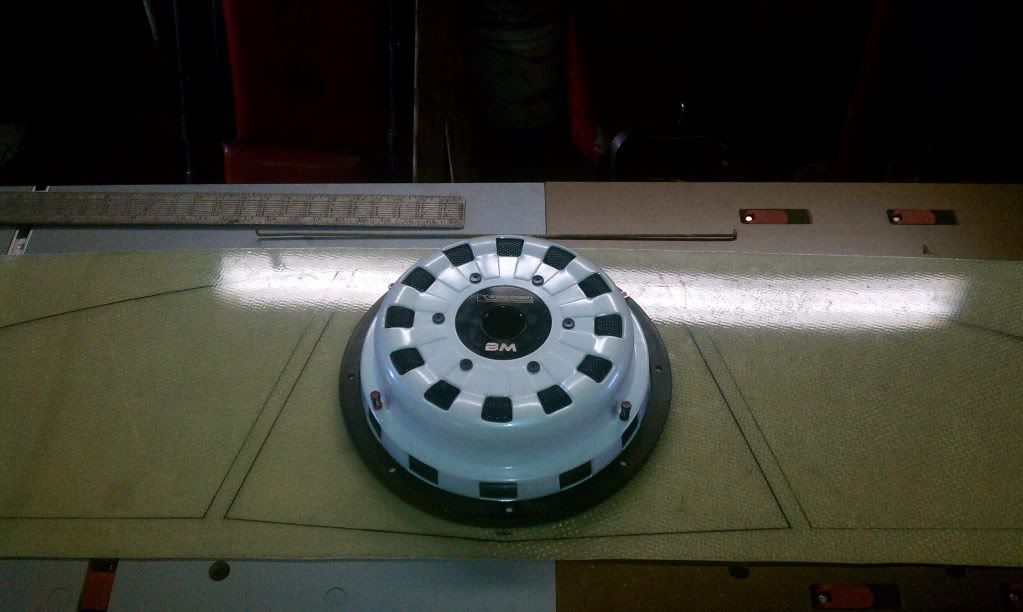

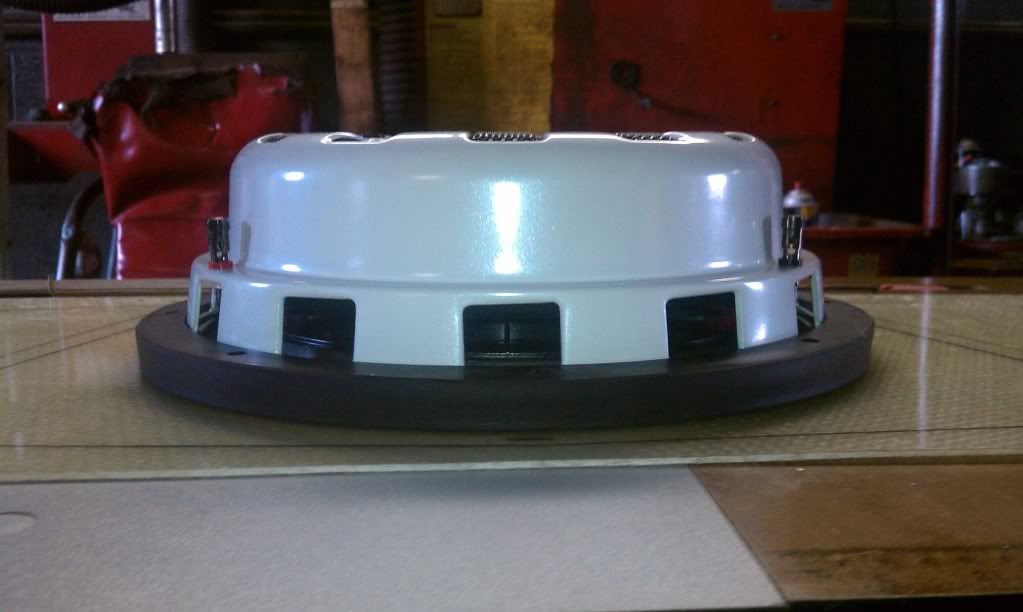

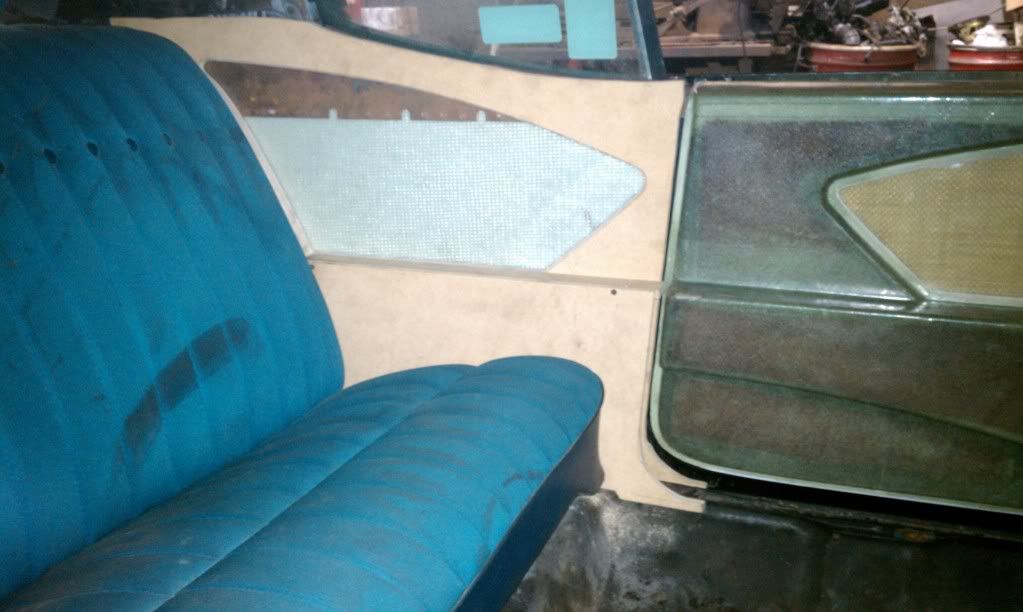

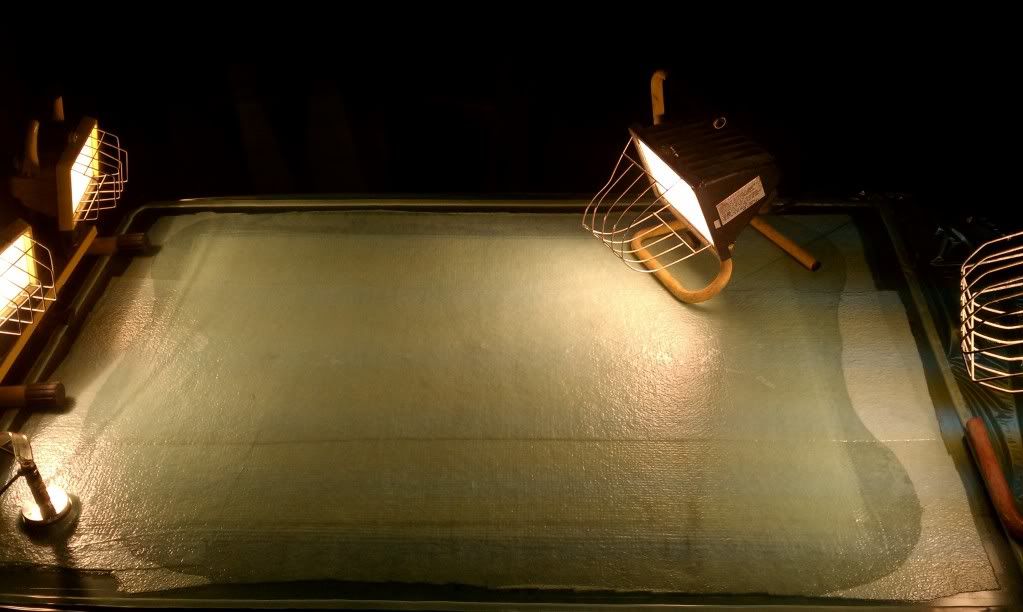

Smooth progress lately. Made the last backer panel. Made the armrests. And the sub came in.
http://i148.photobucket.com/albums/s...v/IMAG0151.jpg
http://i148.photobucket.com/albums/s...v/IMAG0152.jpg
http://i148.photobucket.com/albums/s...v/IMAG0153.jpg
http://i148.photobucket.com/albums/s...v/IMAG0154.jpg

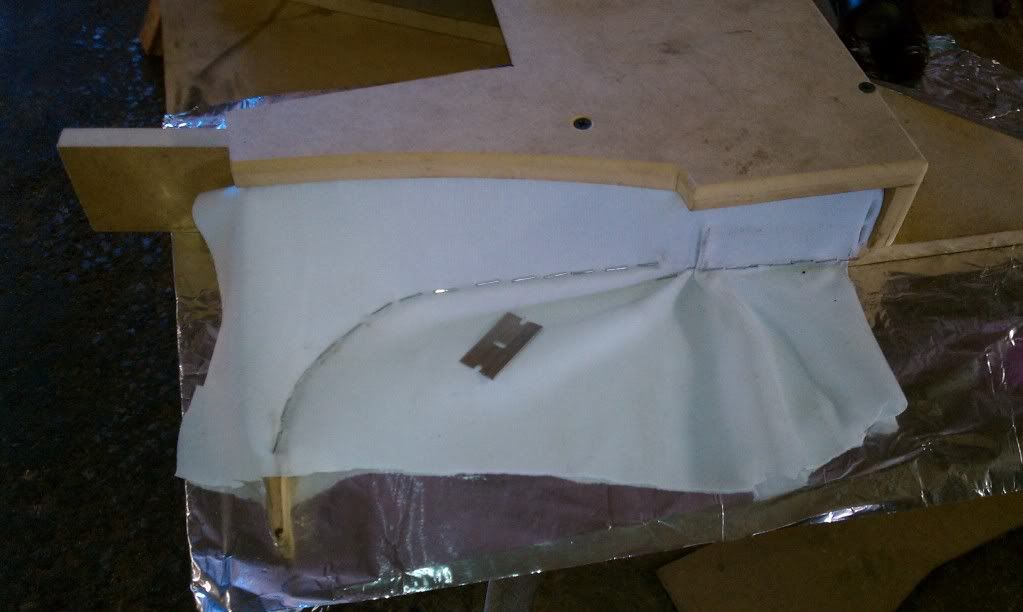

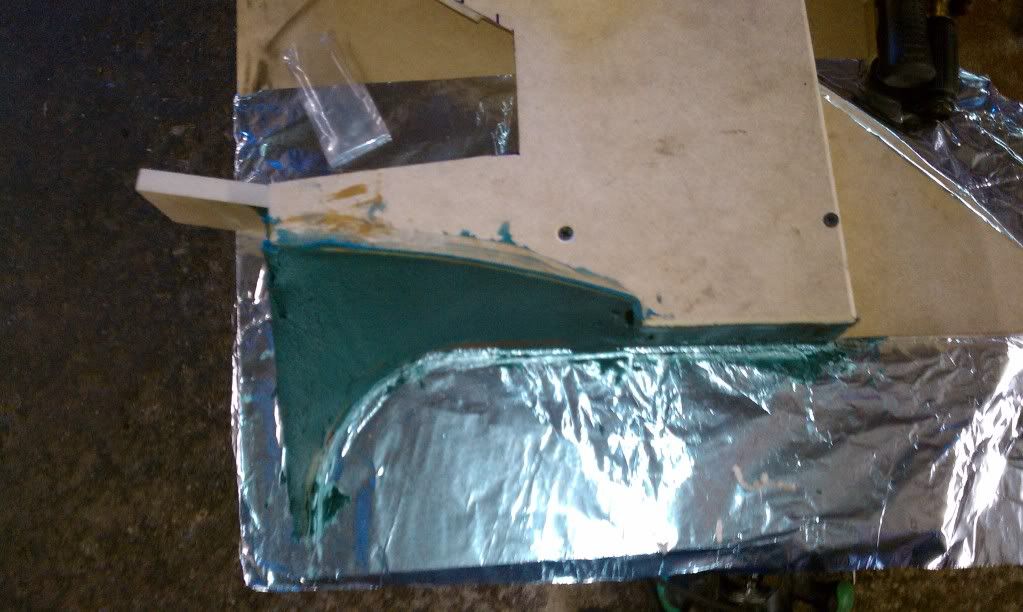

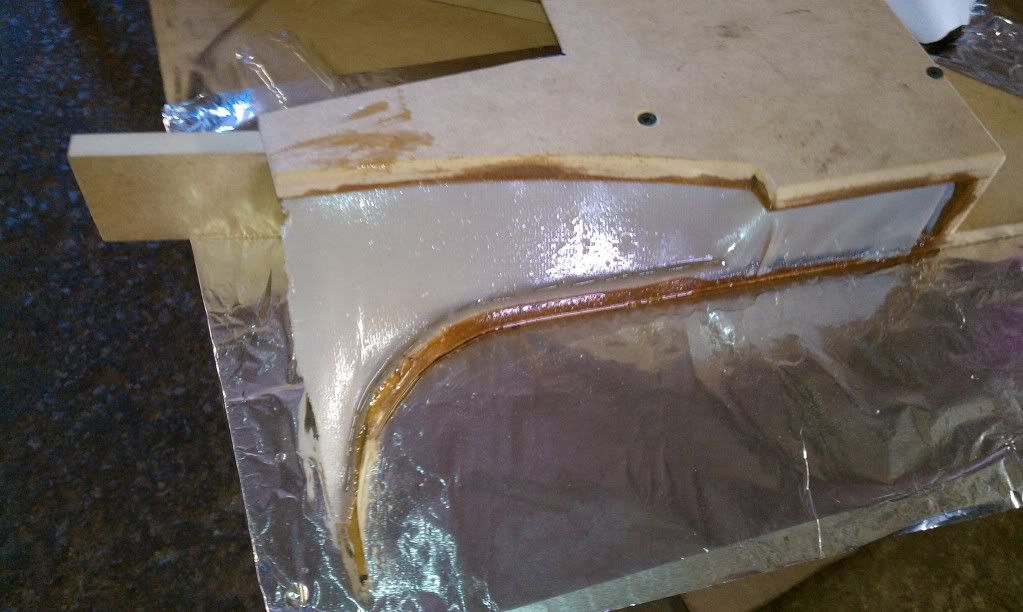

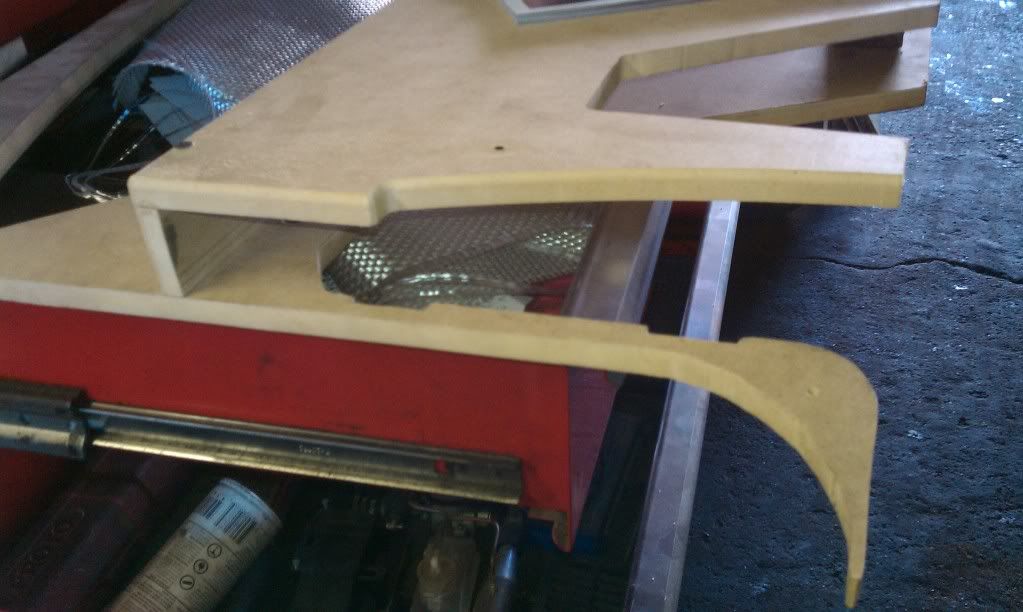

Spent some time figuring out how to shape the lower half of the rear panels.
http://i148.photobucket.com/albums/s...v/IMAG0159.jpg
http://i148.photobucket.com/albums/s...v/IMAG0157.jpg
http://i148.photobucket.com/albums/s...v/IMAG0158.jpg
http://i148.photobucket.com/albums/s...v/IMAG0162.jpg
http://i148.photobucket.com/albums/s...v/IMAG0163.jpg

Great work.:thumbsup:

This really is amazing work. I like your attention to details and doing everything right the first time!

2 thumbs up!


X2. That is one clean and classic interior!!!:wow: You know how to lay some glass!

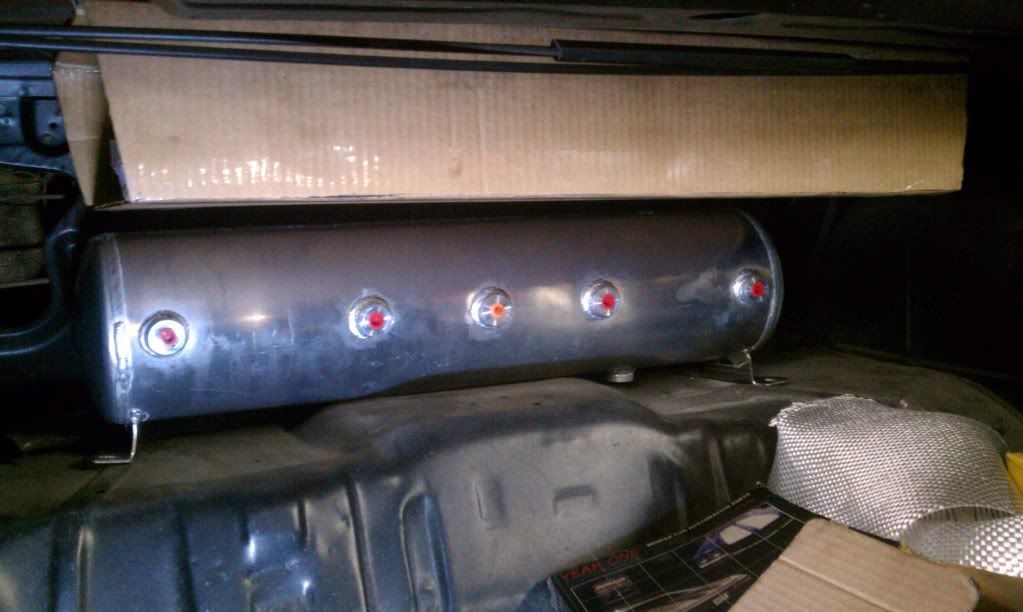

I should never have said things were going smooth. The Holidays came and crushed my progress. I need to get the sub box sorted out so I can make the rear deck. Once the deck is finished I can finish off the tops of the rear panels. That required getting my air tank . Everything is currently laid in there with a cardboard box to check for clearences.

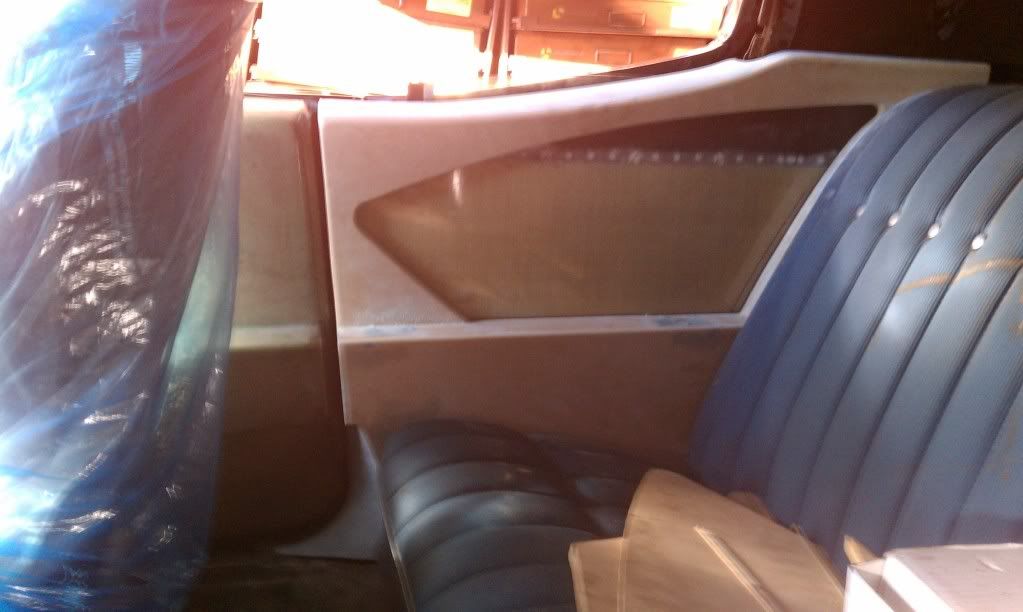

Almost all the mud work is done.
http://i148.photobucket.com/albums/s...v/IMAG0190.jpg

Cardboard mock up sub box
http://i148.photobucket.com/albums/s...v/IMAG0189.jpg

Tony, my oh my, how many hours did you put in these door panels?

They look sublime!!!

Can you make me a pair? :D

Thak you. If they didn't take soo long to make I would gladly do it. I lost track of hours invested. Mabye thats a good thing......

Wow. You are gifted with the "glass". Thats something I wish I had the patience to do. Looks amazing. Keep it up.
