Sweet....so how did she run...?

T,

Haven't driven it yet..........Darn !!!!!!!!(Weather)

Nice ken, it's ready when you are. I hope the weather clears so you can take it for a blast.

Nice number Ken. I bet you are going to take her out today!

How much boost are you running?

Andrew

Nice numbers, Ken. That will help the car move out quickly for sure.

I got a chance to drive the car today for the first time with the Supercharger installed..........The drivetrain I built the car with came out of a 2006 GTO......LS2 / 4L65E rated at 400 HP............All I can say is the idle quality and drive ability are just like driving a stocker...........But....the added useable torque when getting in it a little is phenomenal.......Remember that this is a garage built daily driver and Power Tour car that has just been moved to the next level........And this is a "Puppy" compared to the cars that are built on this site..........But........Technology, Fuel Injection,and Supercharging with Computer controls is the way to go........I don't miss any of my old Muscle cars at all........LOL

http://i13.photobucket.com/albums/a2...2884909A35.jpg

\




As I remember it's around 6 lbs of boost ....................

Ken

It looks sweet out in the sun Ken. I'm glad the weather cleared up so you could take it out and enjoy it.

Hey Ken - how did you run the PCV system on the passenger side?

It looks like on the drivers side you ran from the bottom of the blower - to a catch can - into the drivers side rear vent port on the valve cover.

I'm looking into those same Holley covers on my Vette E-force install.

Thanks,
Craig

The Edelbrock set-up is a little different from the way GM runs their PCV system...........The fresh air from the air intake runs into the passenger valve cover and comes out the drivers side......then go's thru the catch can and finally sucked in to the throttle body..........Just be aware that in the Edelbrock valve covers.......the connection ports for the lines are not restricted......the GM covers have an approximate .105 restrictor hole in the tube to limit the air flow thru the PCV system...(thanks to Donny at Frame-up for that info ).......I made a inline fitting with the .105 hole in it that went into the PCV line from the air intake to the pass valve cover to duplicate the GM flow pattern............

Ken

Craig..........Another thing to watch is.......The Edelbrock kit that I ordered, was the one they told me to get.........when I was finished and ASSC tuned it he discovered that even though the kit was ordered for a 2006 GTO LS2 and ECM......the TMAP sensor was a 2 1/2 Bar unit and the GTO ECM was calibrated for a 1 Bar sensor.........Took a while to figure that out.....and also he had to decrease sensitivity of the knock sensors by 20% to keep the Timing in the engine.........Just Say'in !!!.........

Ken

Hey Ken - just now seeing this.

I got my car back from the tuner last Friday. I had looked up my TMAP sensor and discovered that it was a 2 bar Ford sensor - and let my tuner know.

My car ended up making 580 HP / 523 ft lbs - making 8.5 PSI with the 3.25" pulley installed.

I also got the Holley valve covers installed and discovered one of my coil park harnesses had a bolt screwed through it and tore up the wires. I ordered a new harness - and all is well.

Thanks for the info!

Great Numbers............Superchargers forever........LOL

Ken

Update...........The refining process continues......(Does it ever end).........After installing the Supercharger and Hydro-Boost, everything got a lot better.......But.....Fitting everything together with parts in place at that time left a little room for fine tuning.........the car was perfectly fine, but a couple of little issues.......#1.....using the existing down flow radiator with the Supercharger caused a issue........to clear the new drive system, I had to run the upper hose up and over the system and the hose ended up slightly above the radiator tank leaving it with a large air pocket........it ran and cooled fine, but it wasn't a recommended way to do things........I decided to get a cross flow Radiator with both fittings on the passenger side of the car to correct that issue........After seeing the quality of the Auto Rad set-up for the Nomad, I decided to buy one from them........I made the right decision ..................Quality, Quality, and Quality........
Second Issue........After installing the Hydro Boost........I had a little minor issue of while turning, I would get a little intermittent loss of power assist.......I did some research and was told there was a slight amount of air in the system........I noticed that in the reservoir there was some turbulence from the return line in the tank with possible aeration..........I checked online and found that Concept One had a tank they specifically built for these applications that controlled the flow and softened the flow entering the tank to eliminate this problem......So.....
I took the car to Frame-Up Wheelworks and they went thru and installed everything as well as neatened up my mess of wires around the battery........after getting the car back all I can say is....getting everything close and working is O.K..........But......Putting the Bow on the Package and Fine tuning everything makes driving the car nothing but sheer enjoyment......Damm!!.......This Beater is Fun !!!

http://i13.photobucket.com/albums/a2...4BB21B5919.jpg

http://i13.photobucket.com/albums/a2...t/IMG_7323.jpg

http://i13.photobucket.com/albums/a2...t/IMG_7324.jpg

http://i13.photobucket.com/albums/a2...t/IMG_7379.jpg

http://i13.photobucket.com/albums/a2...t/IMG_7381.jpg

I didn't know Auto Dad would just sell a radiator. What gears are in the rear? How is the acceleration? How does it compare to the LSA Chevelle SS?

I'm glad things are coming together.

3:55 Gears........The Chevelle is much faster.......this thing is a Linear Torque Monster.........(100 R.W.H.P. less that the Chevelle)

So..........The refining process continues.......But.....We are getting very close........When I did the car originally, I didn't know how to deal with the LS "Rappy" exhaust sound.........after getting the exhaust on the Impala during the initial build.........I had to go thru 3 sets of Mufflers to get the sound to go away and to quiet it down..........Ended up putting Cadillac Mufflers on it (Choke ,Choke).......since then I've learned that LS engines don't like long exhaust pipes (these go all the way back to the rear Bumper)..........and a "X" pipe helps kill the "Rappy" sound also.......

So....After finishing Gary's 65 and getting the exhaust completed with DynoMax Super Turbo Mufflers, an "X" pipe and tail pipes that exit behind the rear tires........His car sounded perfect........So.....I decided with last Winters mods to the Impala I needed to free up the Exhaust system.........It's going to the Exhaust shop on Monday for this "Correction" ....LOL.....I also bought a set of Headers off eBay that are supposed to fit........We will see........

http://i13.photobucket.com/albums/a2...t/DSC02529.jpg

http://i13.photobucket.com/albums/a2...t/DSC02530.jpg

I hate a raspy exhaust too, I don't know how the MagnaFlows are going to be. Did you try MagnaFlows on yours ? I don't have a warm fuzzy feeling that they'll be what I like.

The Story continues..........Just to go back in time.......the 66 Impala has a complete RideTech suspension front and rear (Coil-overs)......since completion the car has had a Ackermann issue.......driving straight it was a slot car.......turning was a different story.......Pull into the garage and the tires would leave black marks on the driveway, and sharp turns were pretty nasty.........so.....not being a suspension guy and the car driving normal when not turning.....I just accepted it as some nuance with the Ridetech suspension with slightly wider rims.........Keep in mind this car was finished 5 years ago...We drove the car on two Power Tours without any issues.......Then the Chevelle came into the picture and the Impala sat in the garage for two years
After driving the Chevelle during that time (no steering issues) and then getting back into driving the Impala.......I was determined to find out what was going on here.....At Barrett-Jackson last January I happened to stop at the RideTech display and talked to the people there and explained my concerns about the Ackermann issues..........To make a long story short, if this issue was going to get resolved I was going to have to do it myself........So, In talking with Mark Webster, he informed me that GM changed the 65-66 "B" body steering geometry to a new configuration in 67.........Hummmm !!!!
What changed and why???.............After a lot of research and asking stupid questions on a lot of web sites.......I found out that GM knew there were issues with the 65-66 models with wider rims such as Police cars and in Sept of 66 there was a Service Bulletin to address these issues.......This Bulletin basically gave the part numbers of all the new 67 design parts and the position and templates for the mounting holes for the repositioning of the 67 design Idler Arm assy........The Biggest difference is the mounting location of the Idler Arm .......In the 65-66 model years, the Idler arm was mounted thru a hole inside the frame rail.........67 and up it was mounted inside the frame rail and forward of the thru frame position.....



http://i13.photobucket.com/albums/a2...A86B593FFA.jpg




http://i13.photobucket.com/albums/a2...0EDF19E067.jpg



It's pretty obvious by this picture the differences............Here's a picture of the difference in the spindle steering arms....



http://i13.photobucket.com/albums/a2...8481BEEE76.jpg



Pictures of the supplied templates provided in the 1966 Service Bulletin.......



http://i13.photobucket.com/albums/a2...55AAF377C8.jpg



http://i13.photobucket.com/albums/a2...F0EBC02852.jpg



So........What I did was make the required steering arm spacer with tapped holes......got it in position .....and welded it in......



http://i13.photobucket.com/albums/a2...D73EA3B130.jpg





After installing the new Pitman Arm , centerlink, and Idler Arm.......It was apparent that there was something wrong as the centerlink went up on an angle and back towards the rear of the car........Hummmm!!!!..........After thinking about it and looking at what could be the problem.....I noticed that the 67 Pitman arm was about a 1/2" lower than the 66.........The Template must have been made with the 66 arm...........I made the centerlink parallel to the frame and the front crossmember.........Drilled new holes for the Idler arm (which corresponded to the lower 67 arm...........Makes perfect sense now ) and bolted everything in........Installed new Tie Rod ends.........Now everything is new.......Adjusted the toe roughly and when I pulled out of the garage to go to the alignment shop..........I knew right away there was a major difference as there wasn't any tire squeeling or scrubbing...........after alignment.........It is now the complete package.....Ackermann issue solved.........drives and steer's perfectly...............

Thanks for sharing. This should help others.

Good to hear it's fixed, and another great write up that will help someone else with this problem.

The Evolution continues.......When the car was finished 5 years ago, I installed the Dakota Digital Instrument cluster available at the time......As with everything, product development moves on....Since then they have developed and improved their product.........they also came out with a module that plugs into the OBD plug and feeds all the info to the cluster from the ECM directly.......Pretty neat stuff......Here are the latest changes.......

Old Cluster

http://i13.photobucket.com/albums/a2...E55A8161_1.jpg

New Set-up........

http://i13.photobucket.com/albums/a2...0ED2549B7A.jpg

http://i13.photobucket.com/albums/a2...BAF451F3F1.jpg

http://i13.photobucket.com/albums/a2...83D8B712ED.jpg

Dash


MUCH better Ken, I never liked the 1970's Timex digital watch look

Nicely done'
Cheers
Steve

You have to admit that look WAS cool... in 1970. Hahaha.

I like the VHX gauges much better than the old stuff too, they're on the list of parts for my car.

Big improvement.

I like the new gauges, they make some really nice dashes.

the best never rests... them are cool

Been a couple of years since posting about this "Beater"....... The car has been absolutely trouble free except for a Alternator going bad..... 38,000 miles of great driving across the country in various Road Tours...... So, yesterday I went out to the Drag strip to watch friends race and at the last minute I decided to just run it down the track..... Had the trunk loaded and just left everything in and ran it down the track....... 12.53 @ 114 mph with a 2.1 second 60' time....... LOL.... These engines are crazy...... and I get 23 MPG on the highway.....Awsum for a street car

That's fantastic, Ken! Really happy to hear the car has worked so well for you.

Thats funny Ken. I'm just glad you didn't road course it or auto-x with stuff in the trunk. I wouldn't know anything about that LOL.

Is the GG road trip still on for you guys?
I pulled my app, not because of Covid but because of timing, and I will miss it for sure!

M

The G-G tour was cancelled but we are going on the Barrett-Jackson tour with Ed..... Starts Oct 7th Atlanta to Key West......

Ken what date will they be in Daytona Beach, and will there be somewhere to see the cars?

https://barrettjacksonroadtours.com/


For Security reasons that info will be given out when we start the Tour


Ken

Looking real good!

Agree the new cluster is much nicer.

A little late for the rest of the Story....... But better late than never as this might help somebody else in this situation......So.... After installing the Edelbrock Supercharger, I put 15,000 trouble free miles on the car...even with only 6 lbs of boost the car was a ball to drive with the added Torque........So... In July of last year we were driving to Des Moines, Iowa for the Good-Guys show......I was driving on I-80 around 80 MPH and all of a sudden I lose power steering and the engine went into Limp home mode.......WTF...... I coast over to the side of the Highway and open the hood......Here's what I seehttps://hosting.photobucket.com/imag...=278&crop=fill

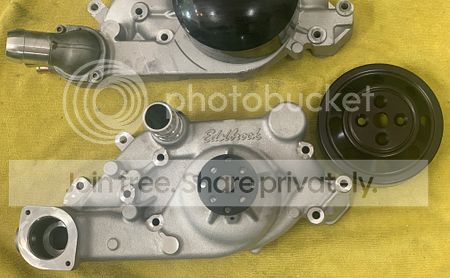

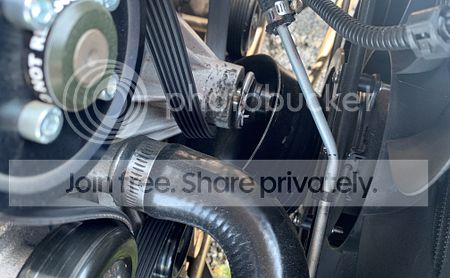

The Pulley broke off the water pump......... Hummmm !!!!.........https://hosting.photobucket.com/imag...=278&crop=fill




I called Mark Stielow and sent him a picture and asked him if he had ever seen this before........ He asked me what car that was off of and I told him the Impala......Then he Educates me on the Edelbrock single belt drive set-up..... He explained that all the torque of turning the supercharger is transfered to the belt wrap around the water pump pulley....... Once he told me that it made perfect sense...... Then I wondered why Edelbrock didn't have any reference to this in their instructions...... So..... I go on their website and I see they are now selling a replacement pump with heavy duty bearings and a Flanged pump shaft with a bolt on Billet Pulley.....

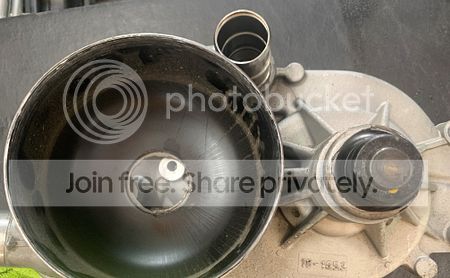

https://hosting.photobucket.com/imag...=278&crop=fill


So... I told Mark about the pump and said I ordered one..... Then he tells me the same pressure was put thru the Power Steering Pump and I should order one of the TurnOne Power Steering Pumps that are designed to absorb the pressure ..... Put all the new stuff on and I now have the confidence to drive the car across the country again........LOL

I already clicked the thanks button but wanted to comment how great follow-up and trouble shooting posts are... so Thanks!!



Jeff-

x2. Especially for those not in 'the circle'.

Thanks for the update Ken.

Great info to have Ken. Appreciate the update.

So..... The engine in the car is a perfectly stock 2006 GTO LS2 with the added Edelbrock supercharger........ Because of the higher compression in these engines Edelbrock has the pulleys configured to only make 6 lbs of boost .....Other than the pulley breaking off the water pump I have about 16000 miles on this set-up....... So.. last Saturday I went out to the drag strip and made just one pass on the car just the way I have been driving it ....................12.25 @ 115 mph........ LS engines "ROCK" !!!!!!!!!
