Prepping for Dr EFI (( 01-27-23 ))

Custom Funnel for Lokar Trans Dip Stick.

http://garagescene.net/_data/i/uploa...4f33b6b-me.jpg

Cam Specs for Andrew Dr EFI

http://garagescene.net/_data/i/uploa...653b2c0-me.jpg

Injector Specs

http://garagescene.net/_data/i/uploa...2874ec0-me.jpg

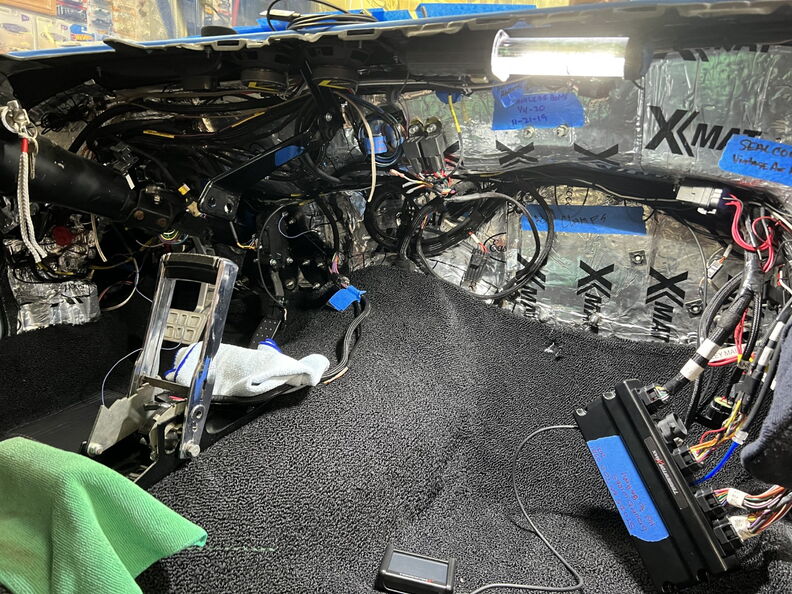

Plugged everything back in and checked to see of the Handheld connected with the ECU.

http://garagescene.net/_data/i/uploa...a388356-me.jpg

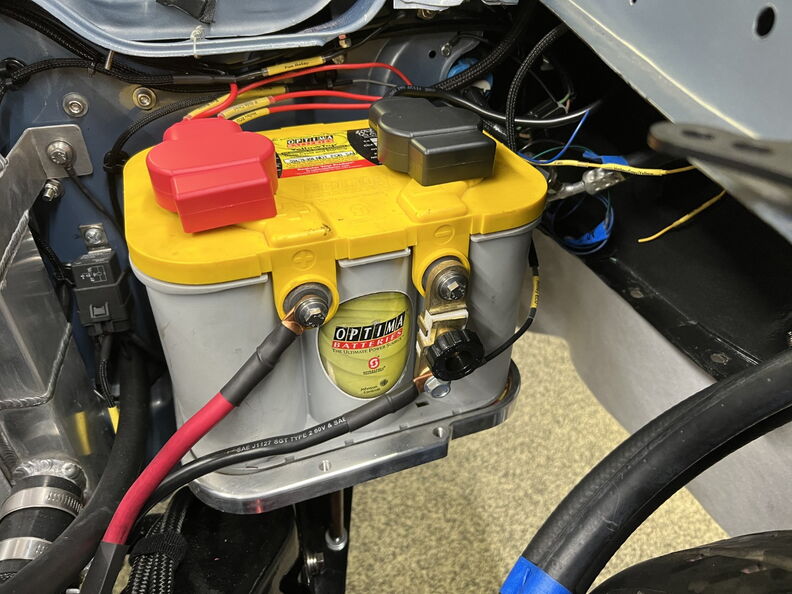

I also moved the Holley ECU ground to the battery shut off post.

http://garagescene.net/_data/i/uploa...79a5d9c-me.jpg

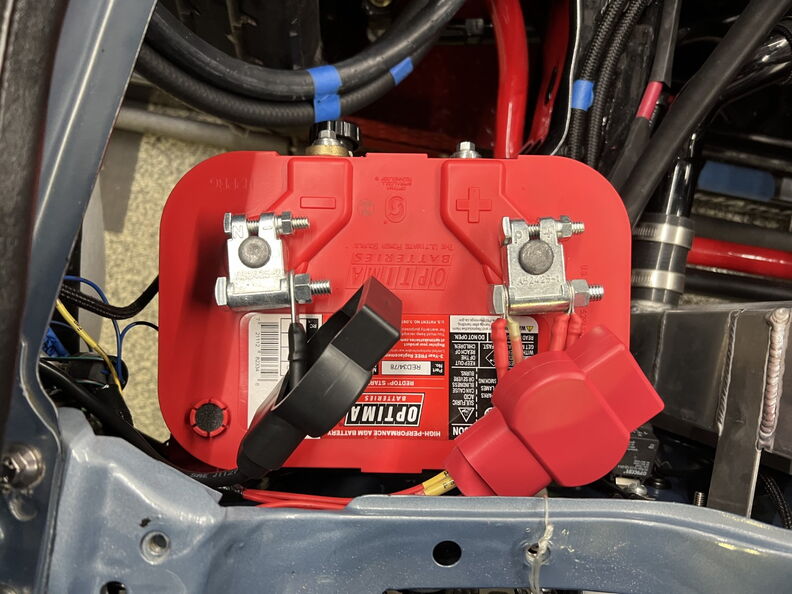

Last minute change up. I really didn't like the top post terminals so I quickly next day air with Amazon a set of Marine top post
terminals. These actually grip the battery post like they should.

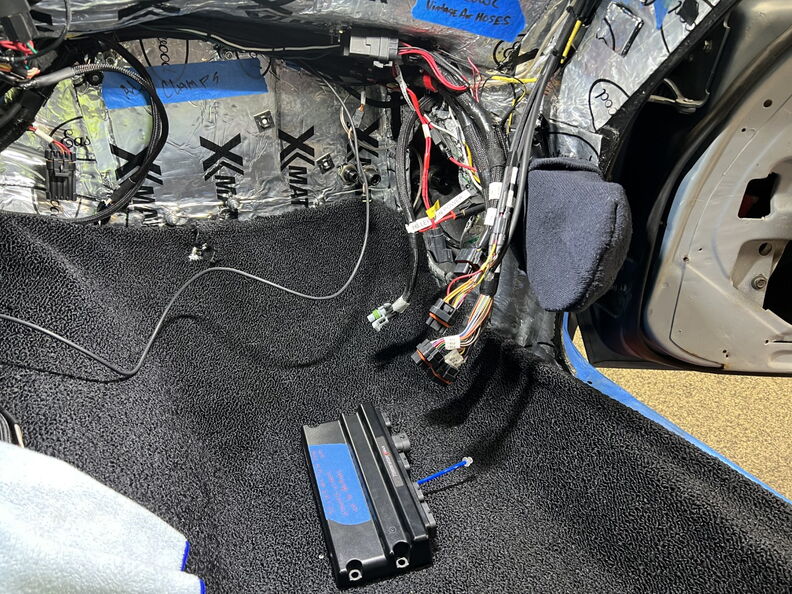

I completely disconnected the Holley ECU.

http://garagescene.net/_data/i/uploa...9b68b83-me.jpg

http://garagescene.net/_data/i/uploa...bc958de-me.jpg

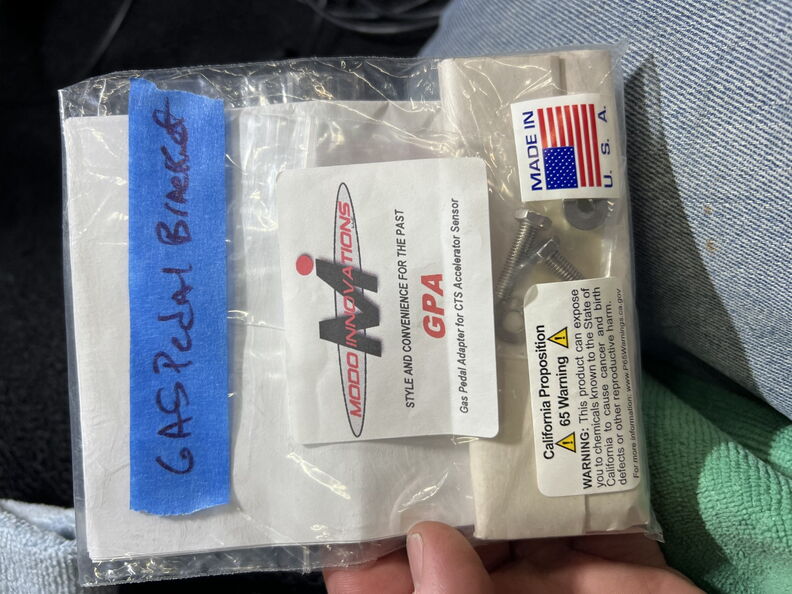

I also cleaned out the car to make sure there was nothing in the car that wasn't needed. Low and behold I found the pedal bracket
that I ordered over a year ago. It's funny because I told Dave a Screaming Chicken the best way to find lost parts is to order a new
one. Unfortunately I was correct as I found it before I opened the box.

http://garagescene.net/_data/i/uploa...8ae640d-me.jpg

I put the rear view mirror with my bike stuff.

http://garagescene.net/_data/i/uploa...5ebc44c-me.jpg

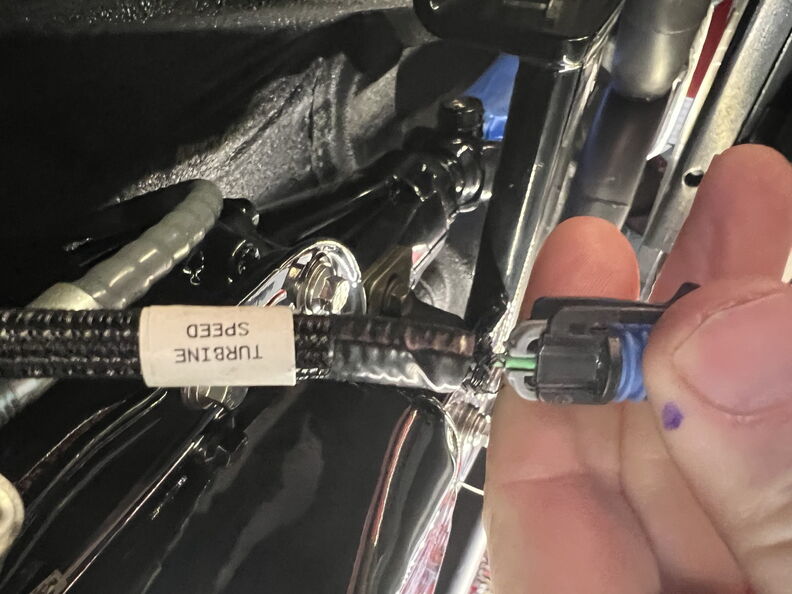

Since I am running a 4l60e I will not be using this wire.

http://garagescene.net/_data/i/uploa...d8e38c1-me.jpg

It's about to Get Real...We Have Gas !!! (( 01-28-23 ))

Well, things are finally feeling real as I am pouring gas into the car for the first time in almost three years.

https://www.lateral-g.net/forums/cac...5047a0b-me.jpg

http://garagescene.net/_data/i/uploa...1ed15cb-me.jpg

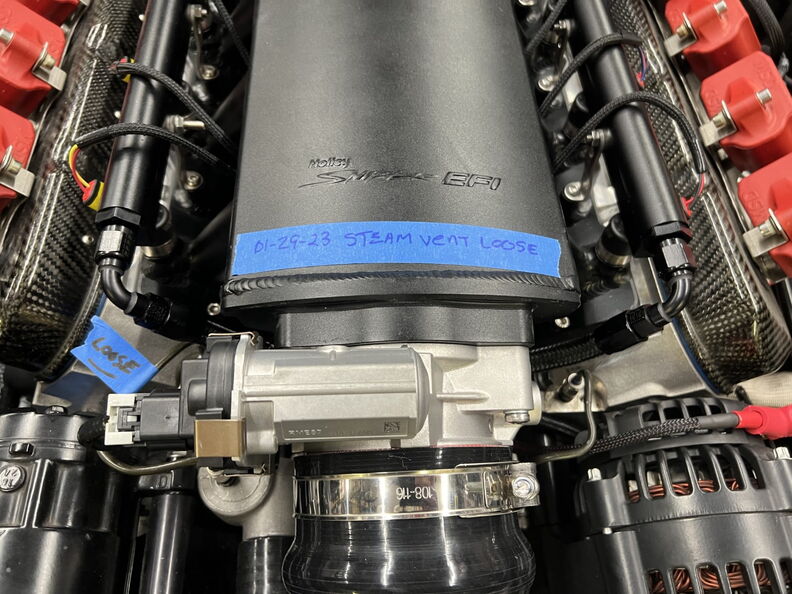

I also went over my start up check list and oddly enough I missed a few more things.

http://garagescene.net/_data/i/uploa...6f8c607-me.jpg

http://garagescene.net/_data/i/uploa...19f746c-me.jpg

http://garagescene.net/_data/i/uploa...e2634a8-me.jpg

Somehow, I missed a few things and of course one of the most important things.

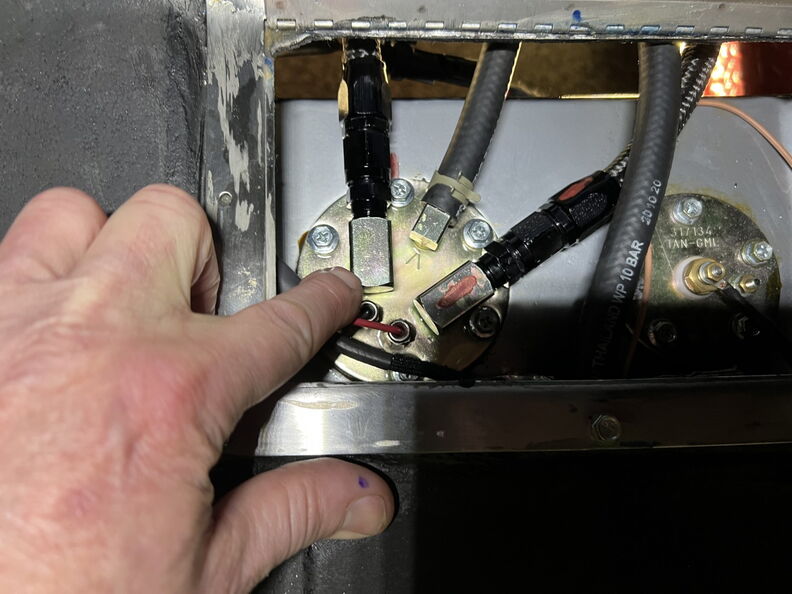

Yep, I missed the PFT tape on the NPT fitting going into the tank and thankfully Dan was over and he noticed all of the fuel on the ground.

http://garagescene.net/_data/i/uploa...8609484-me.jpg

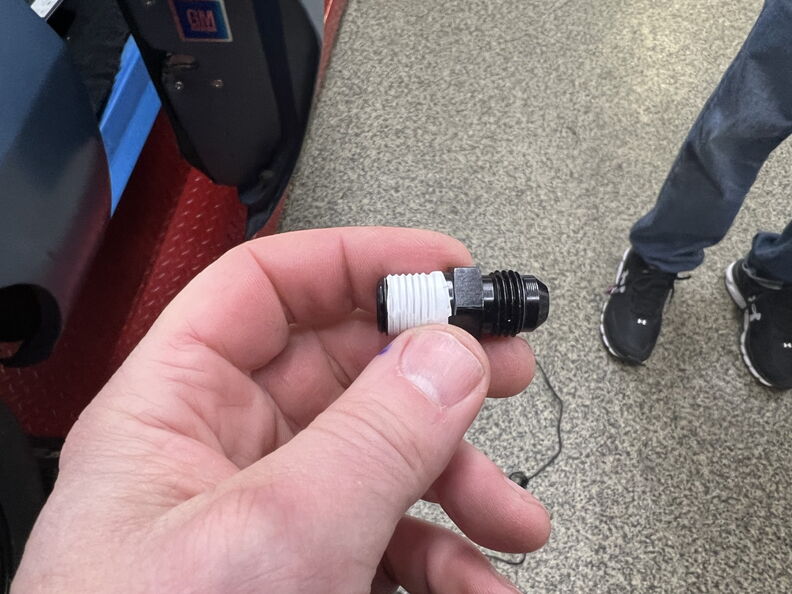

Problem solved.

http://garagescene.net/_data/i/uploa...d585a7f-me.jpg

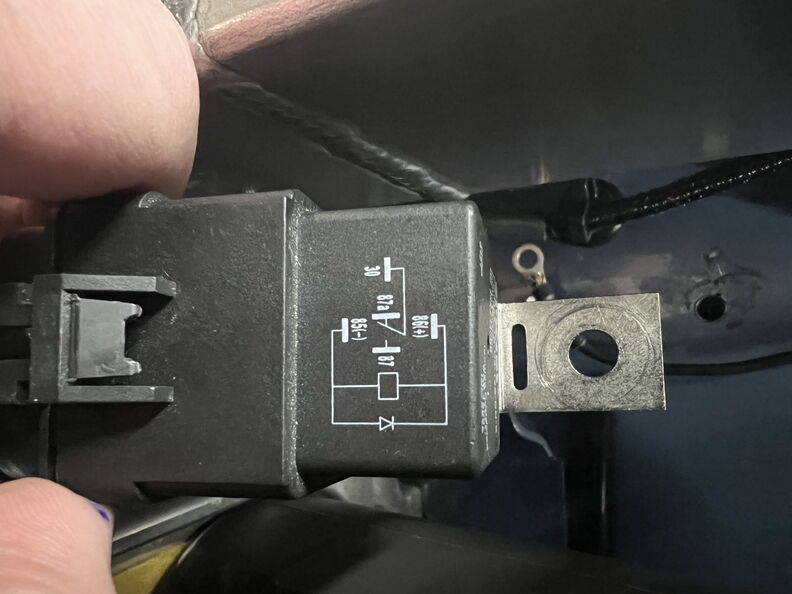

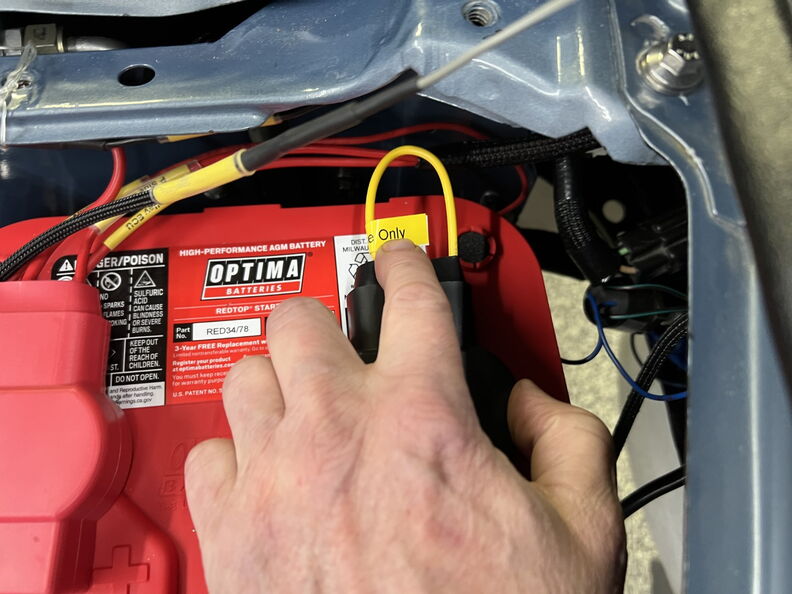

Andrew continued running test before we fired up the car and he notice that I wired the Fan relay incorrectly.
Instead of rewiring it while we were on the phone I just snipped the trigger wire and I will just manually connect it to the battery.

http://garagescene.net/_data/i/uploa...f25fd77-me.jpg

Here we go first start attempt in 3 years. Well it fired right up and boy did it sound terrible.

Then we started again so Andrew could remotely diagnosis the problem. He discovered the entire left "Odd" bank was not firing correctly.

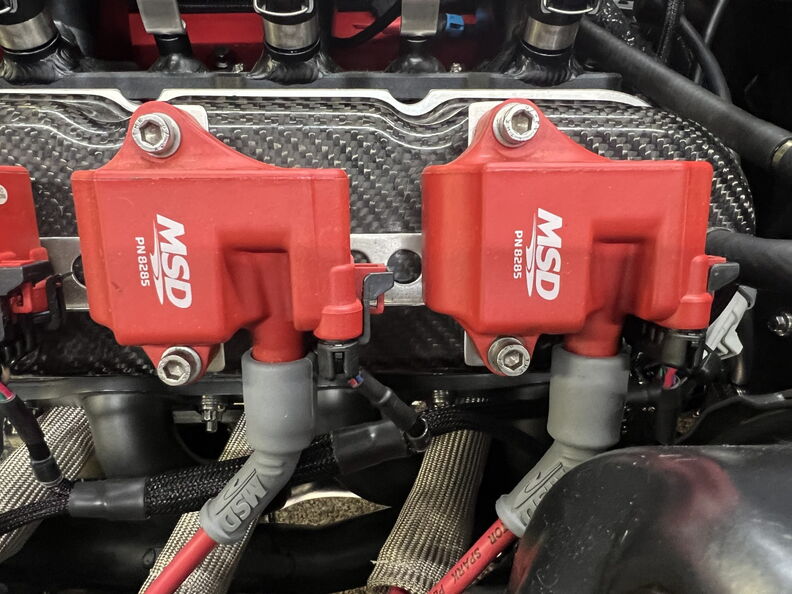

We shut it down and started looking at the coil harness as that seemed to be the issue.

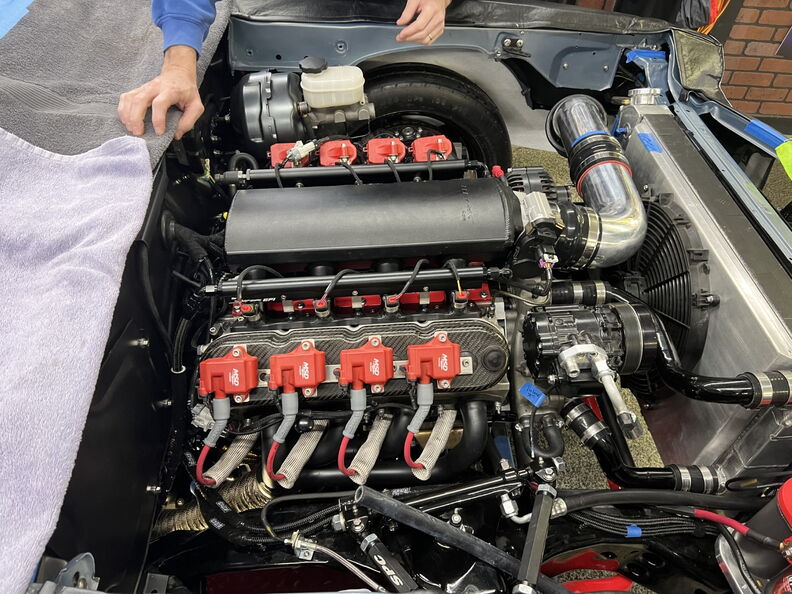

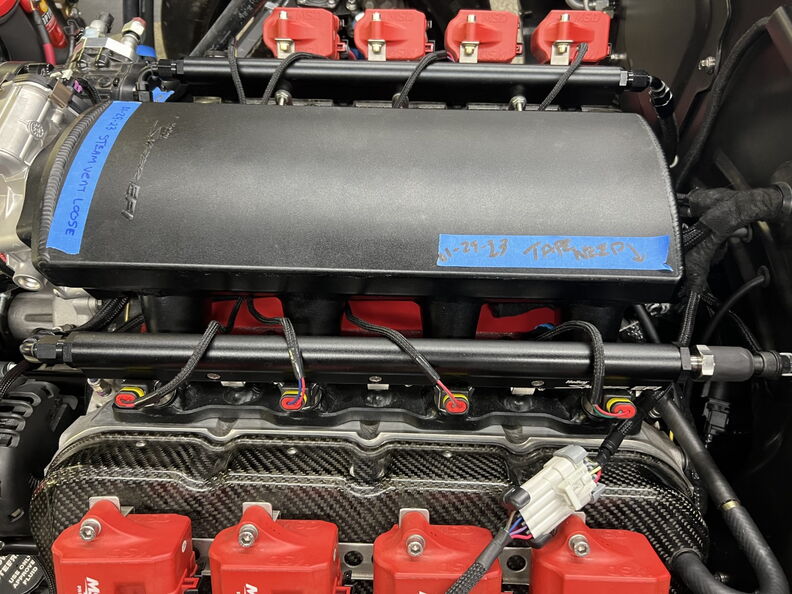

As you can see from the pictures the Holley plug is at the rear of the valve cover and of course it's just plug and play. Well in this case this
case we discover the issue. What we quickly discovered was the wiring was 180 degree's off. Ugh !!! Somehow number 7 is at the front of the
motor. So we called it a day and I will be calling Wiring Specialties on Monday.

http://garagescene.net/_data/i/uploa...3b43821-me.jpg

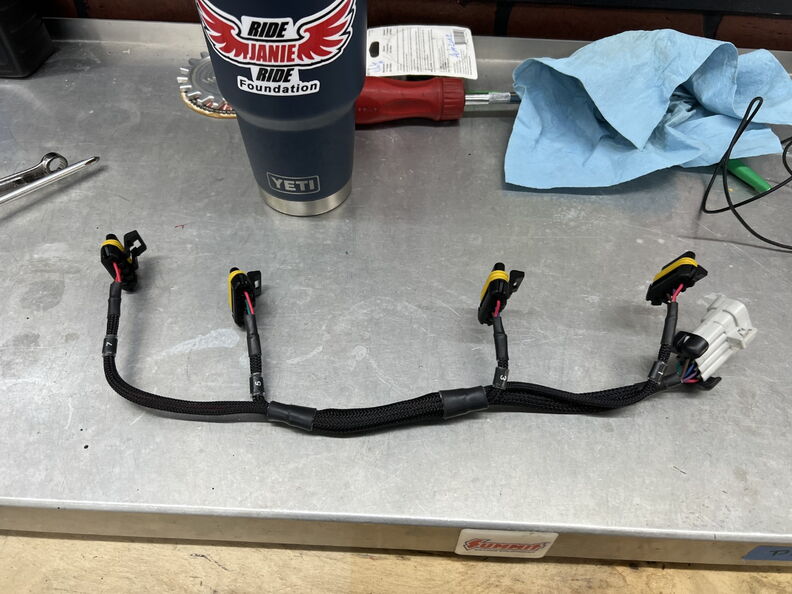

I pulled the harness out and noticed they were numbered (( DA !!!! ))

http://garagescene.net/_data/i/uploa...798cfde-me.jpg

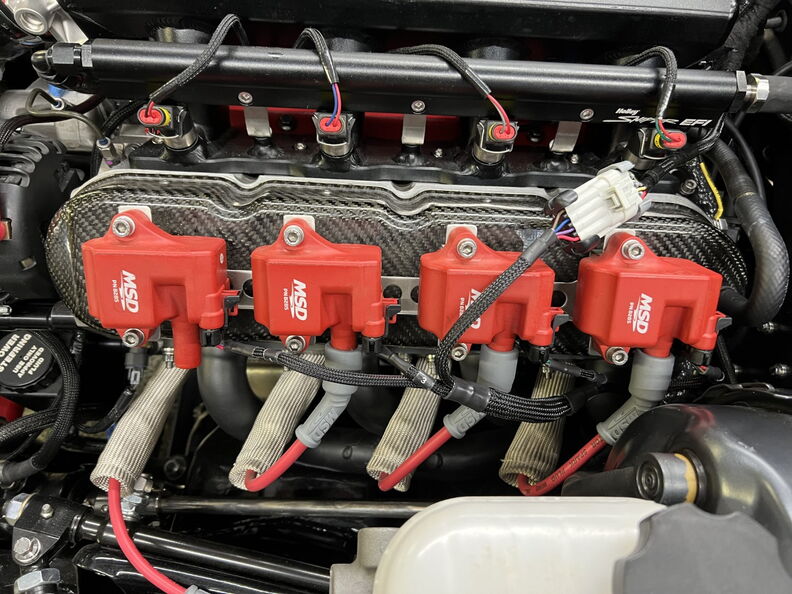

Hours later .... You know right before you are supposed to be at dinner for a good friends Birthday stupid idea's run through your head.

What if I flip the coil harness around and push some of the main harness from the inside of the car into the engine bay will it actually reach.

Yep, But it's tight.

http://garagescene.net/_data/i/uploa...f662810-me.jpg

I figured I could start the car when I got home as it's already snowing and I have a 30 minute drive to the restaurant. So I will just start it when I get home.

Home from Dinner and we have an Oil Leak !!! (( 01-28-23 ))

Yep, We have an oil leak.

http://garagescene.net/_data/i/uploa...1e7942c-me.jpg

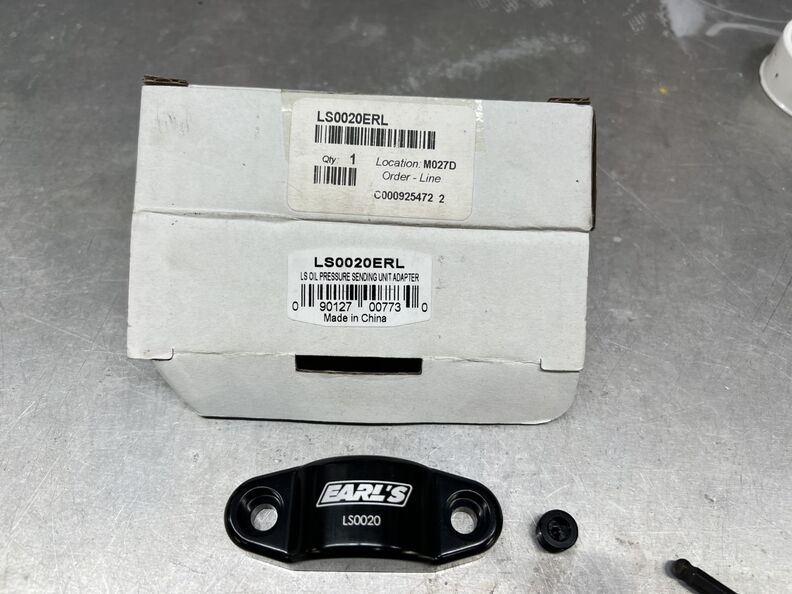

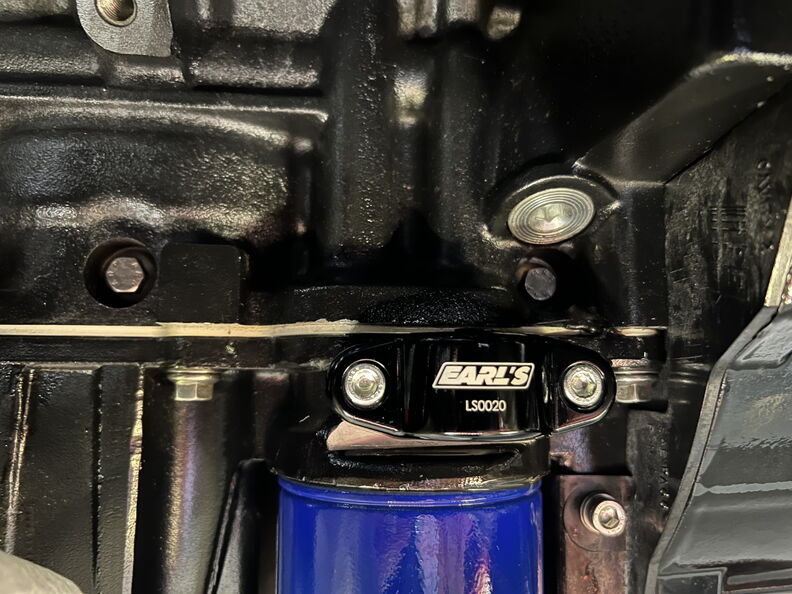

Thankfully I picked up the Earls "O-Ring" version a couple weeks ago.

http://garagescene.net/_data/i/uploa...b2c2ad2-me.jpg

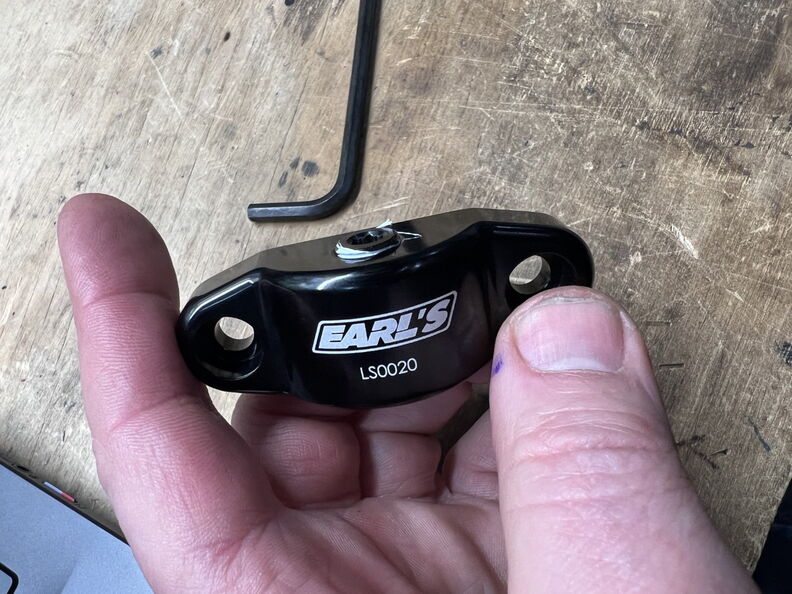

This time I added the PFT tape before it leaked.

http://garagescene.net/_data/i/uploa...ef8d888-me.jpg

http://garagescene.net/_data/i/uploa...61d91ee-me.jpg

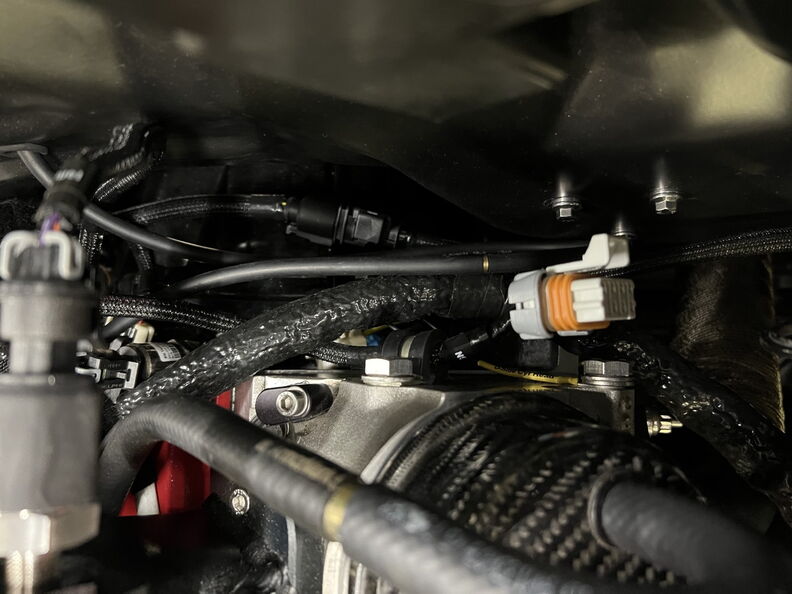

Looks like I have a second leak as the Oil Pressure switch at the back on the block is leaking and most likely the culprit.

http://garagescene.net/_data/i/uploa...b19991e-me.jpg

Congrats MJ…sounds great too!

:drive:

Oil Pressure Switch is still leaking (( 01-29-23 ))

Happy Sunday Morning,

It's Sunday and I am feeling good.

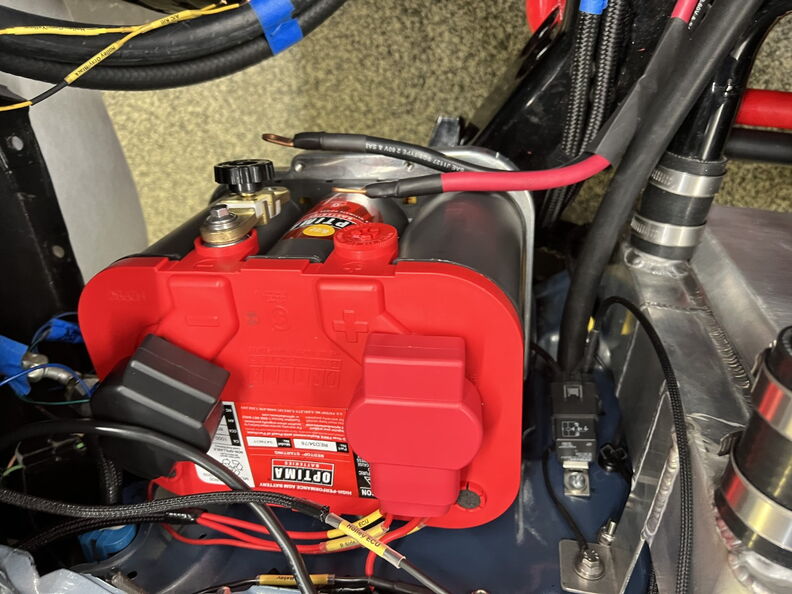

Today I am going to change up my top post battery wires for the last time.

http://garagescene.net/_data/i/uploa...a1734da-me.jpg

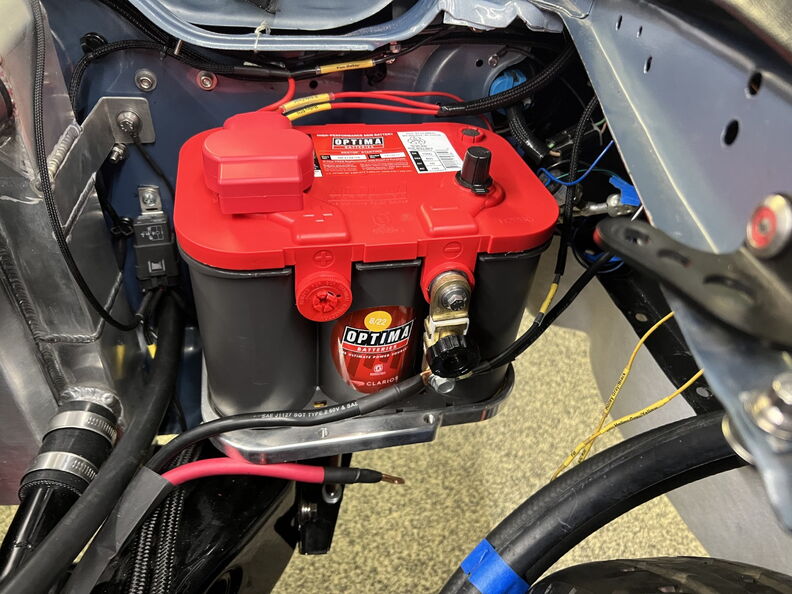

I move the ground wire that was on the top post to the side post so all the grounds are killed when I twist the switch on the battery.

http://garagescene.net/_data/i/uploa...5342876-me.jpg

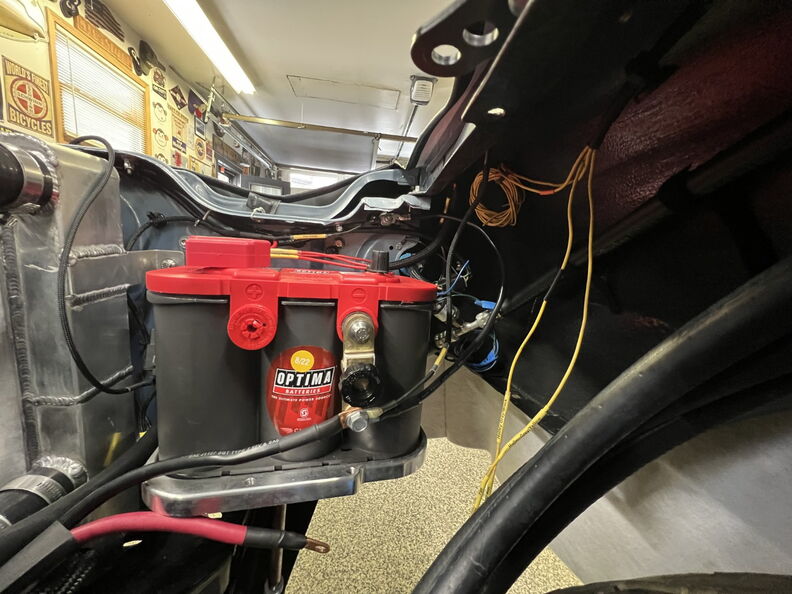

I will eventually clean the wires up in the inner fender.

http://garagescene.net/_data/i/uploa...27d6f84-me.jpg

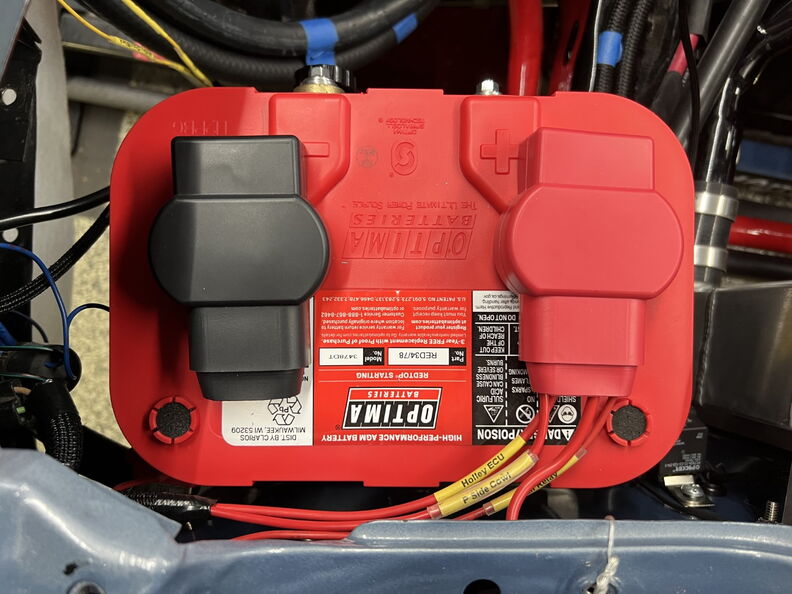

Something is missing.

http://garagescene.net/_data/i/uploa...6a5c3ab-me.jpg

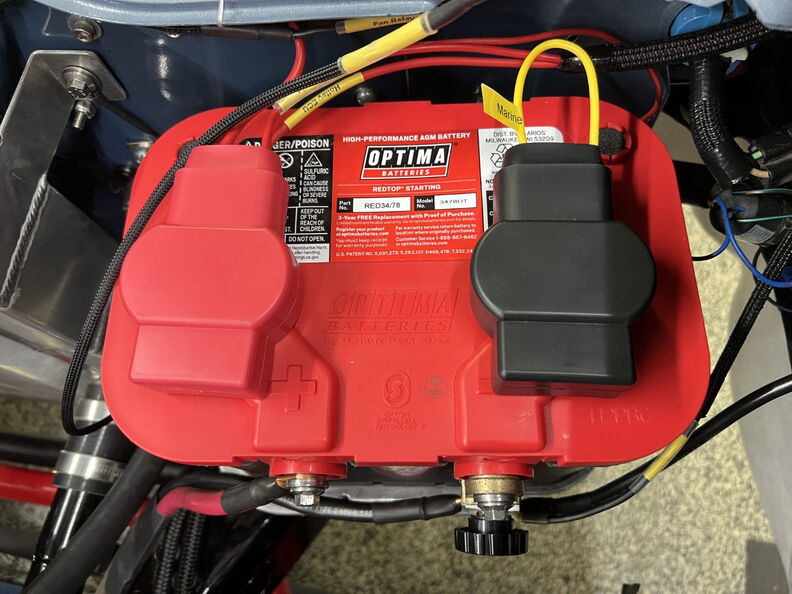

All better

http://garagescene.net/_data/i/uploa...9c3ae55-me.jpg

http://garagescene.net/_data/i/uploa...e76fde8-me.jpg

I sent Andrew a text of how nice it was running and he called me and said let's finish this thing and so here we go.

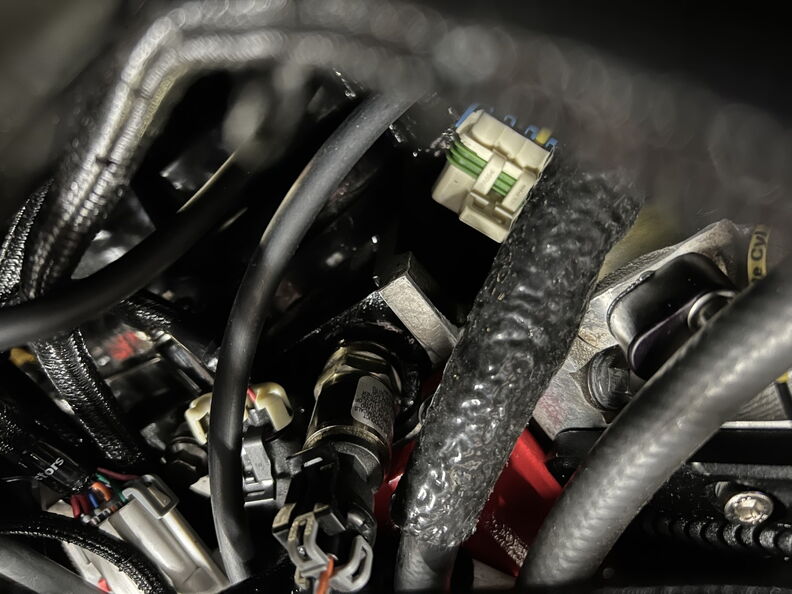

I told he we still have and oil leak so I am going back to fix it with PFT tape instead of the paste.

http://garagescene.net/_data/i/uploa...169f2fb-me.jpg

It's Sunday Morning and I am going to go start the car (( 01-29-23 ))

It's Sunday Morning and I have one goal and that is to here the car running and running correctly.

Fixed and now I am finally going to start it and hopefully it sounds better.

https://www.lateral-g.net/forums/cac...5047a0b-me.jpg

Time to call Andrew and give him the good news.

Quote:

Originally Posted by syborg tt (Post 721800)

Here we go first start attempt in 3 years. Well it fired right up and boy did it sound terrible.

I thought it was because you still had the injector wires over the fuel rails instead of under... :lol:

Quote:

Originally Posted by Cosmo mentis (Post 721803)

Congrats MJ…sounds great too!

:drive:

Thank you Thank you

Quote:

Originally Posted by camcojb (Post 721806)

I thought it was because you still had the injector wires over the fuel rails instead of under... :lol:

Trust me it's killing me to have them like that.

Quote:

Originally Posted by syborg tt (Post 721807)

Thank you Thank you

Trust me it's killing me to have them like that.

Fix it?? :)

Couple more small leaks (( 01-29-23 ))
