Nice pedals! Making good progress.

Very good progress as usual Marty...

Thank you so much I really appreciate it.

If it wasn't for your bracket I wouldn't be able to use this pedal and I can't wait to show everyone the other stuff I bought from you.

Slowly but surely I will get this car back on the road. On a side note I have a new appreciation for the guys that do this full time. Man is it a bunch of work.

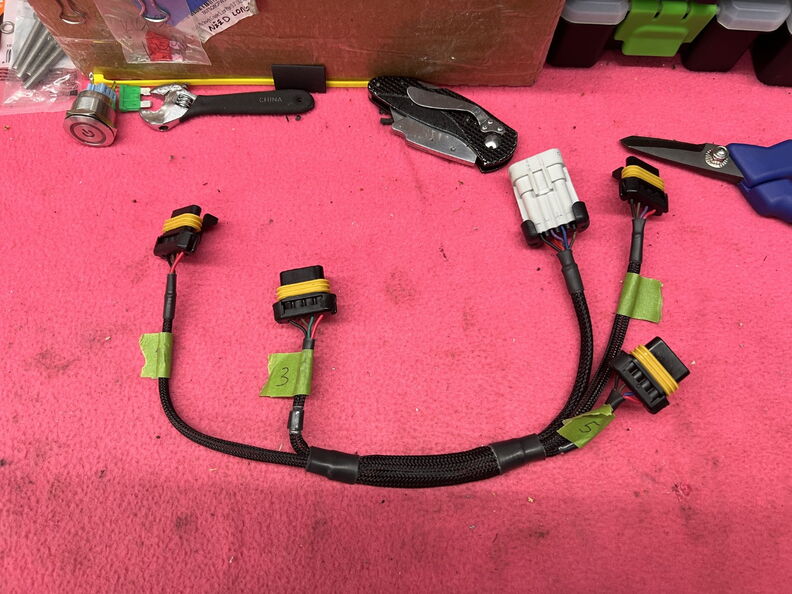

Dr EFI Andrew - Wiring Specialties Coil Harness Redo (( 03-02-23 ))


Once again Dr EFI Andrew to the rescue. Since, I had given up on moving the wire (Yes I failed and so did a couple other Guys ) Andrew
told me to ship it to him and less then a week later it was back and it worked perfect.

Thank you again Andrew you are the best !!!

http://garagescene.net/_data/i/uploa...36fffb0-me.jpg

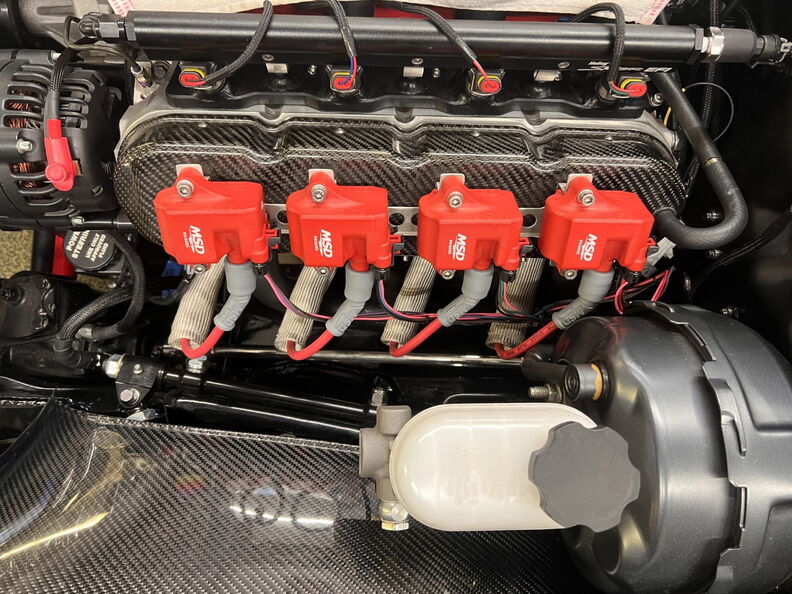

I remove the Painless Harness that I borrowed from a friend.

http://garagescene.net/_data/i/uploa...85ff1d8-me.jpg

As you can see it's not as pretty as the Wiring Specialties Harness

http://garagescene.net/_data/i/uploa...20bea52-me.jpg

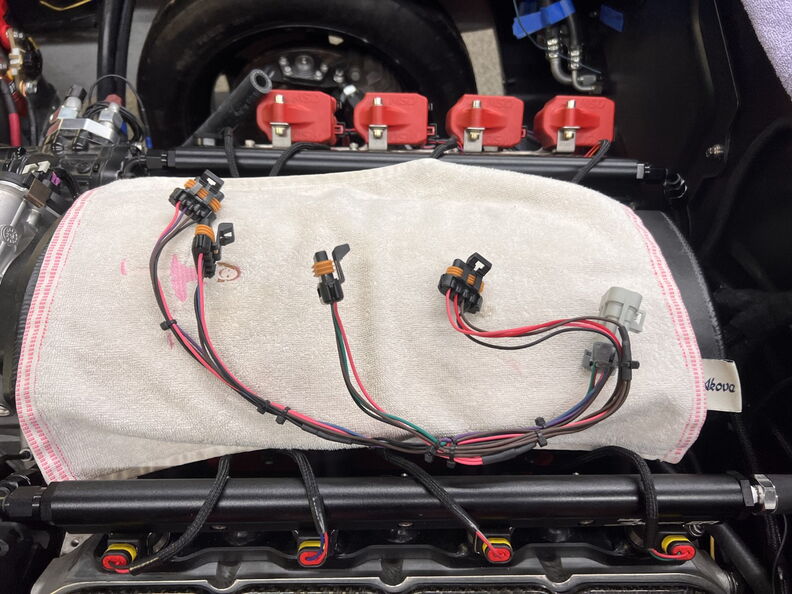

Wiring Specialties Harness going back in.

http://garagescene.net/_data/i/uploa...a90f40a-me.jpg

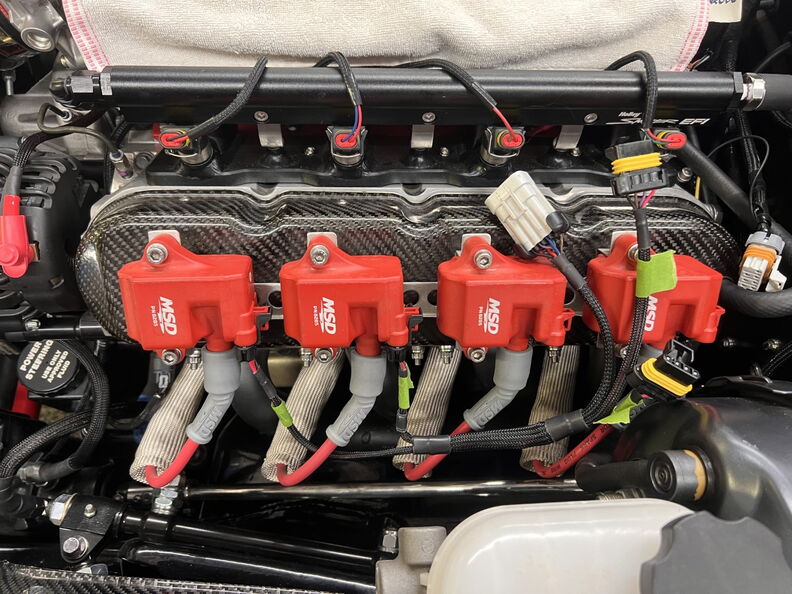

All Better

http://garagescene.net/_data/i/uploa...1b5c5a7-me.jpg

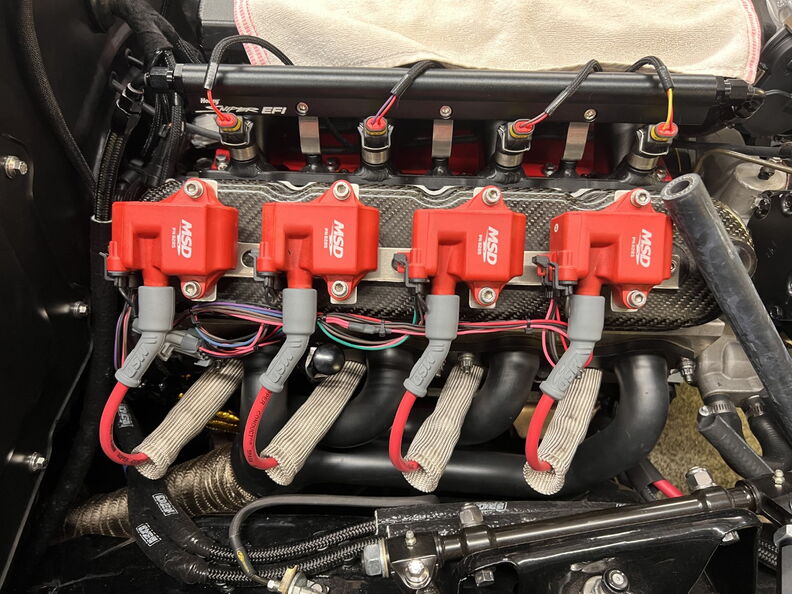

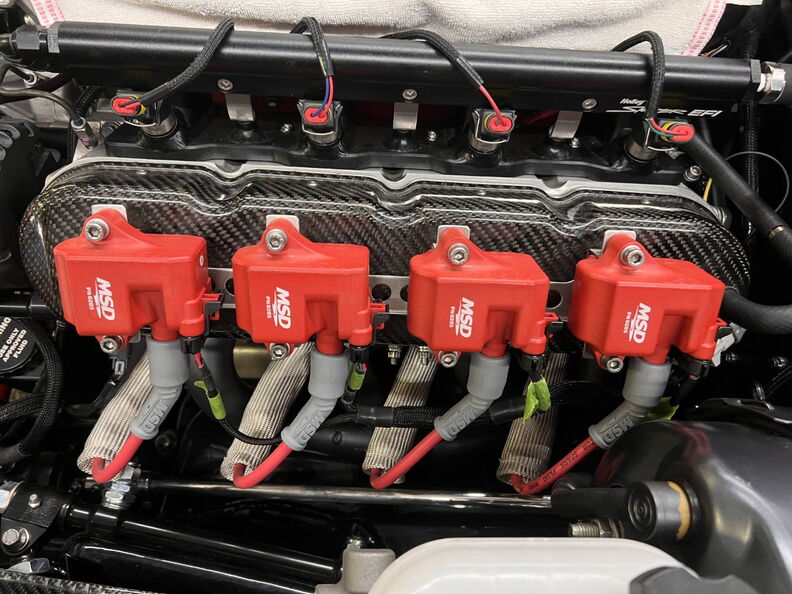

Let's not forget the passenger side.

http://garagescene.net/_data/i/uploa...4e51745-me.jpg

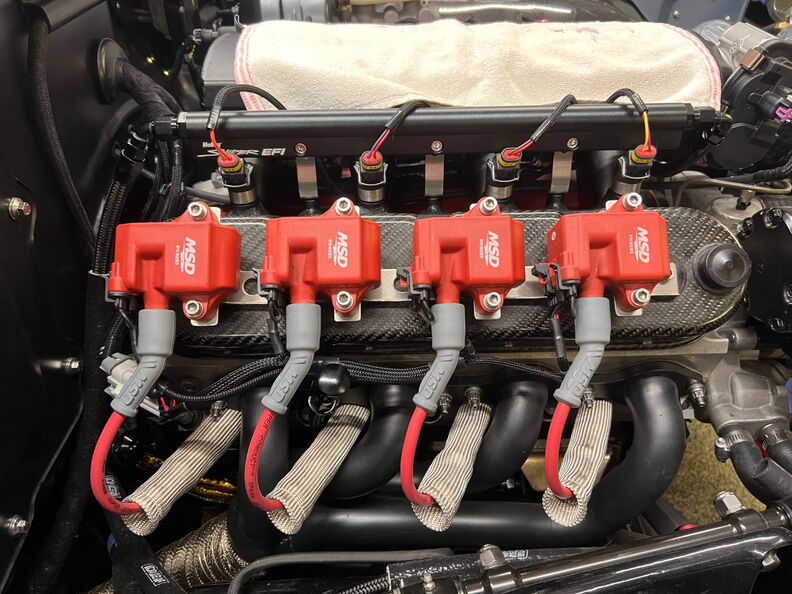

All Better.

http://garagescene.net/_data/i/uploa...38aa77e-me.jpg

Holley Dash Wiring (( 03-03-23 ))

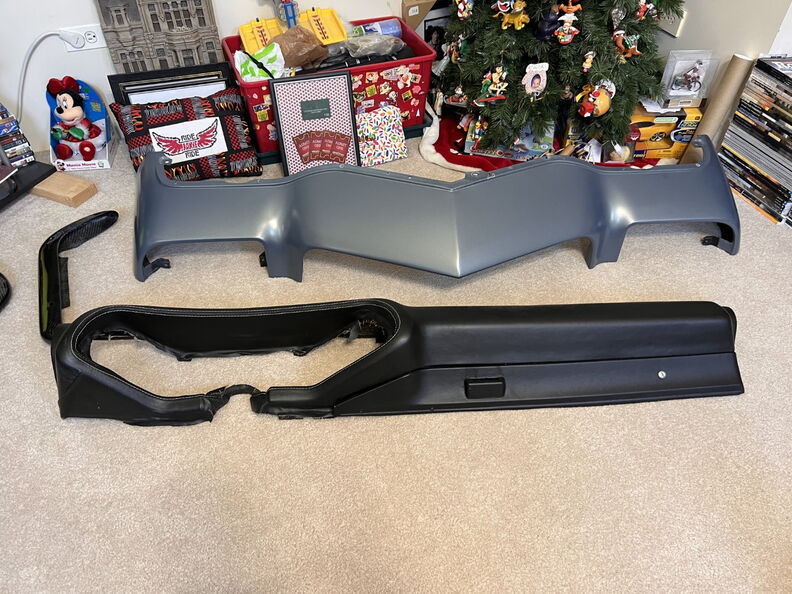

I can't tell you how excited I am to be working on the interior and yes the Christmas Tree is still up and it has not come down since 2002.

http://garagescene.net/_data/i/uploa...004cc44-me.jpg

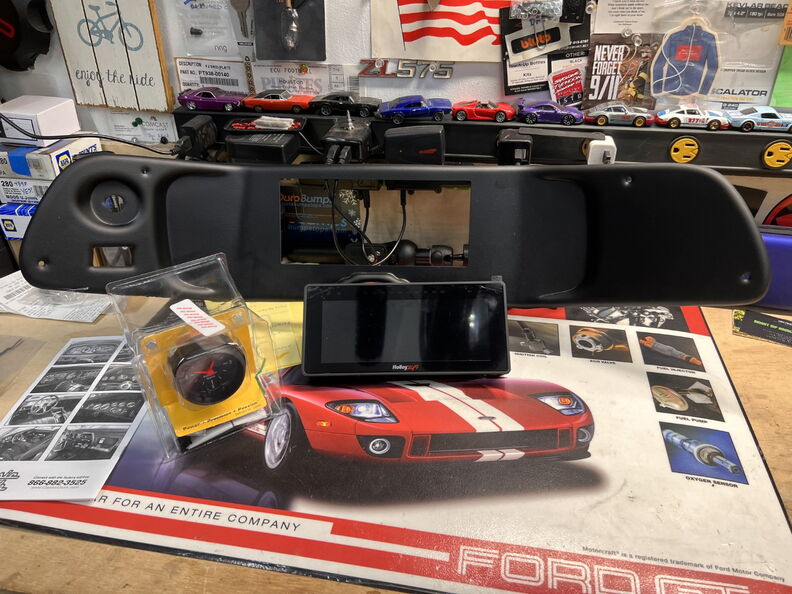

Pieces and Parts

http://garagescene.net/_data/i/uploa...95134ea-me.jpg

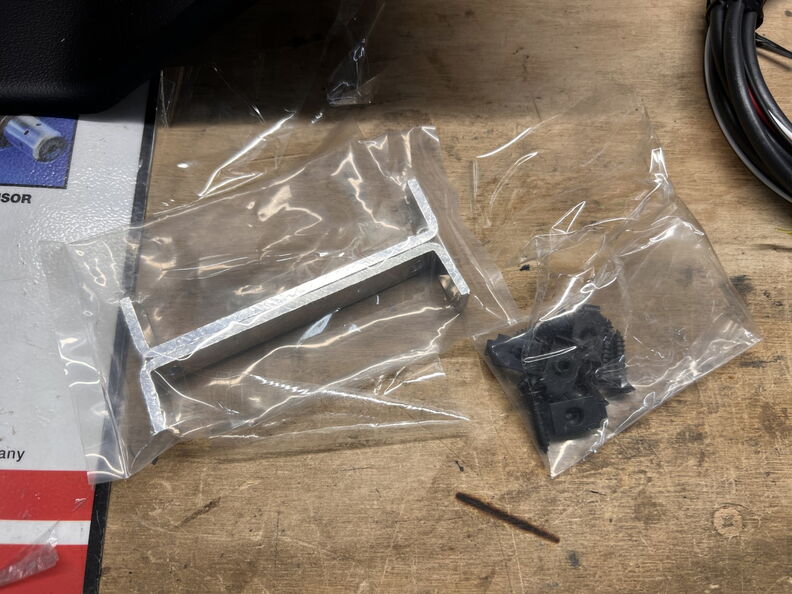

The Dash insert comes with a very nice bracket to support the Holley Dash.

http://garagescene.net/_data/i/uploa...009f59f-me.jpg

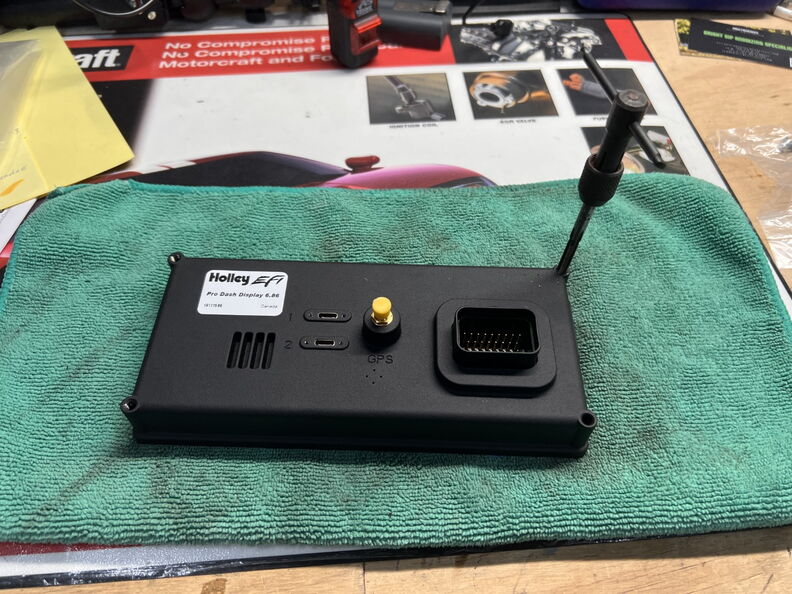

I needed to clean out the threads as the supplied hardware would not screw in.

http://garagescene.net/_data/i/uploa...f05becc-me.jpg

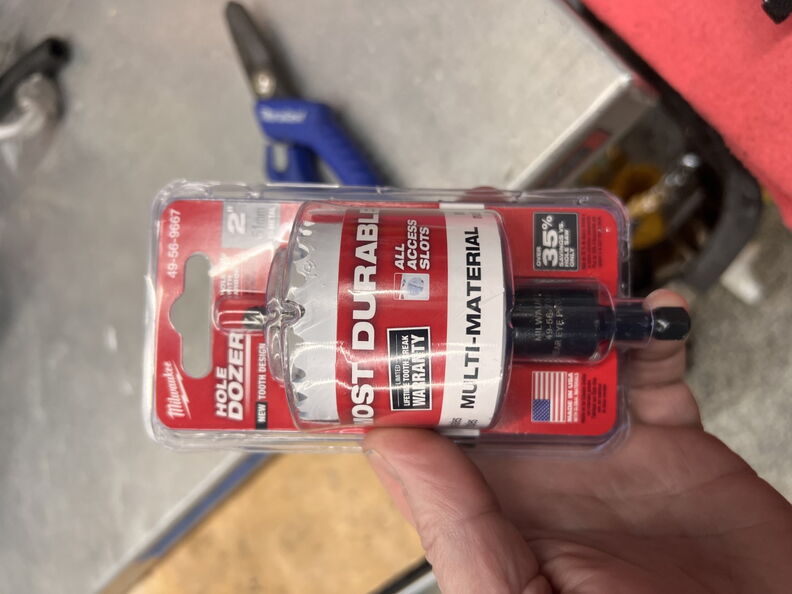

Another quick trip to on the four Home Depots within 3 miles of my home. I purchase yet another (can't find mine)
2" Hole Saw. My plan is to drill a slightly smaller hole then necessary which will allow for a tighter fit.

http://garagescene.net/_data/i/uploa...5696d71-me.jpg

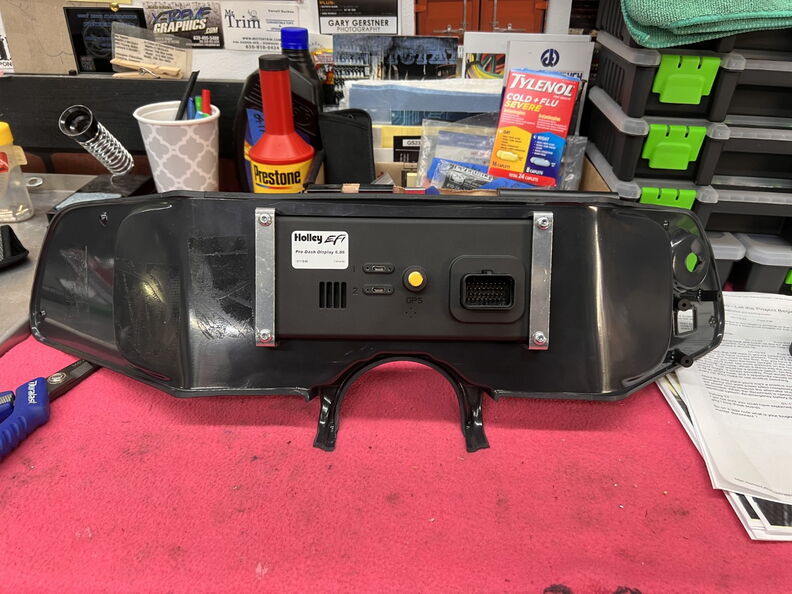

Cluster Installed.

http://garagescene.net/_data/i/uploa...73c55f7-me.jpg

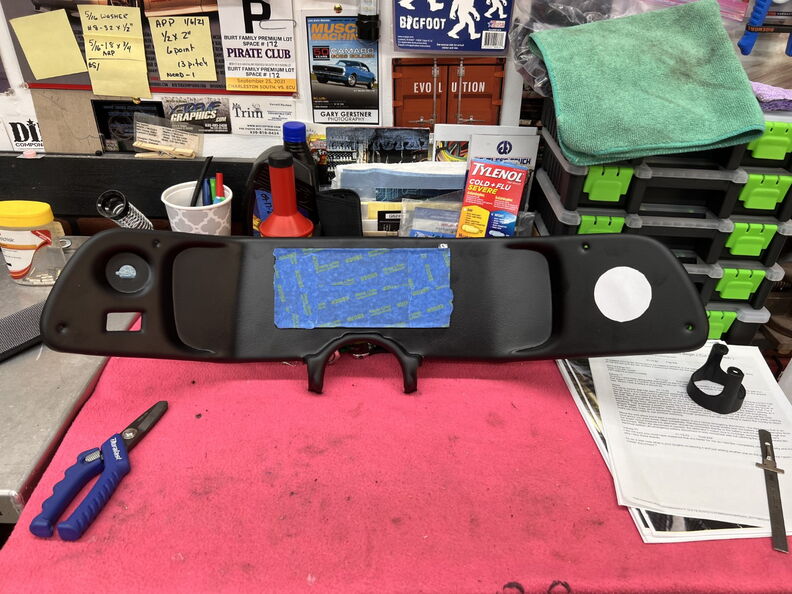

You can see where I plan to install the Autometer Analog Clock.

http://garagescene.net/_data/i/uploa...ec732ff-me.jpg

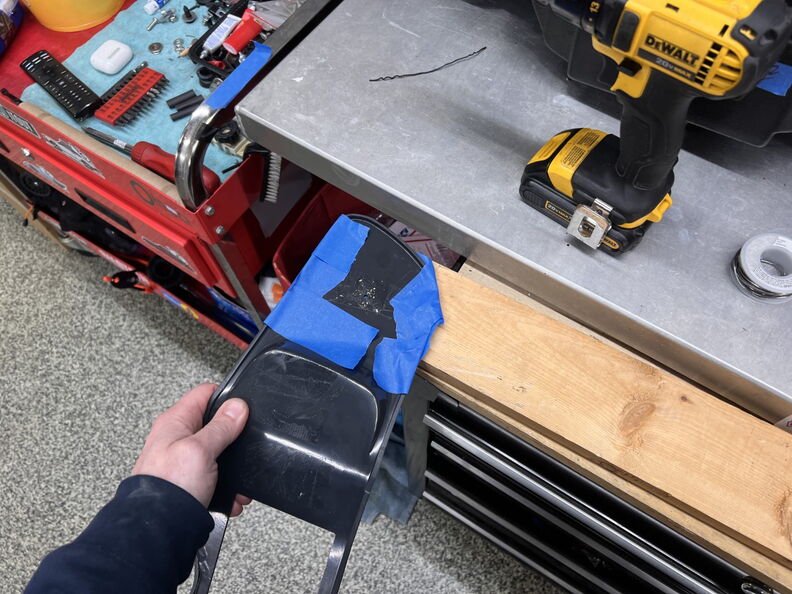

I poke a small hole in the ''Classic Dash" Surround.

Link to the surround https://classicdash.com/product/1970...ck-dash-panel/

http://garagescene.net/_data/i/uploa...23c8b8b-me.jpg

I put down multiple layers of blue tape to protect the Dash Surround.

http://garagescene.net/_data/i/uploa...24807de-me.jpg

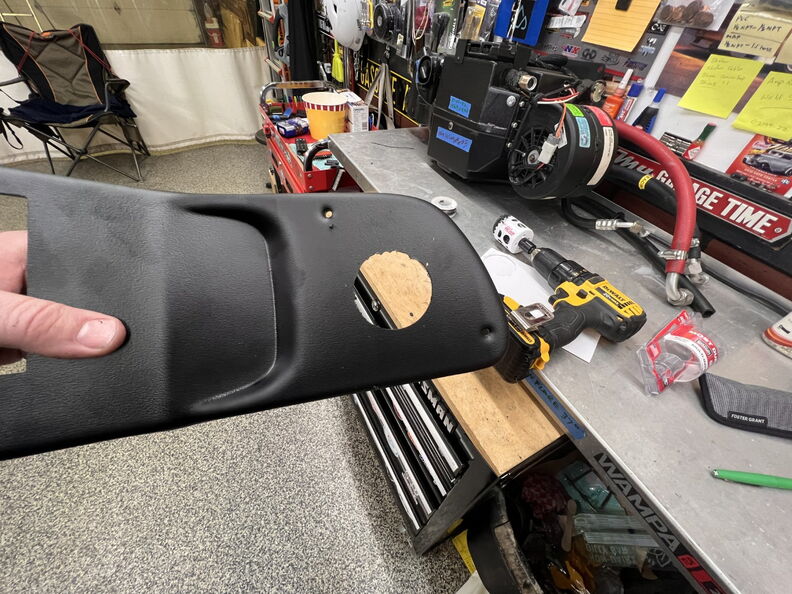

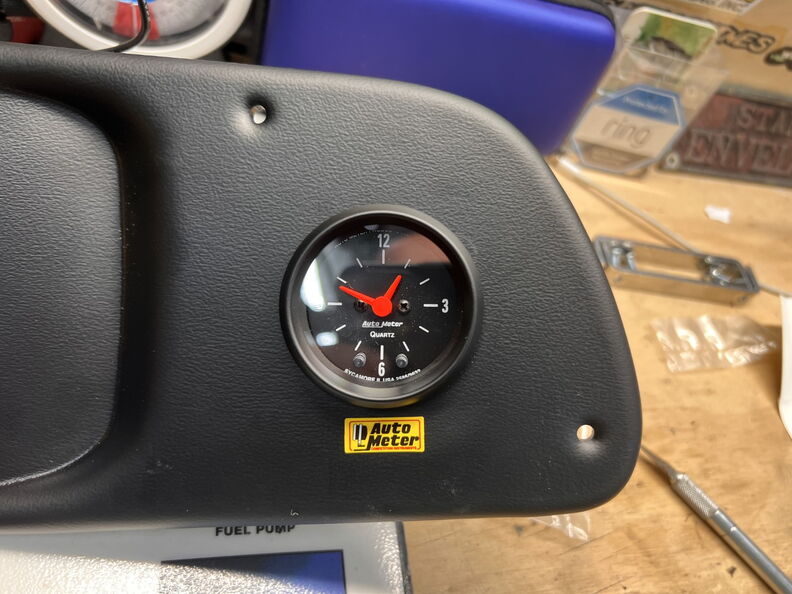

Hole is drilled and I will clean it up with a Dremel & round sanding disk.

http://garagescene.net/_data/i/uploa...64c6447-me.jpg

http://garagescene.net/_data/i/uploa...9c9b509-me.jpg

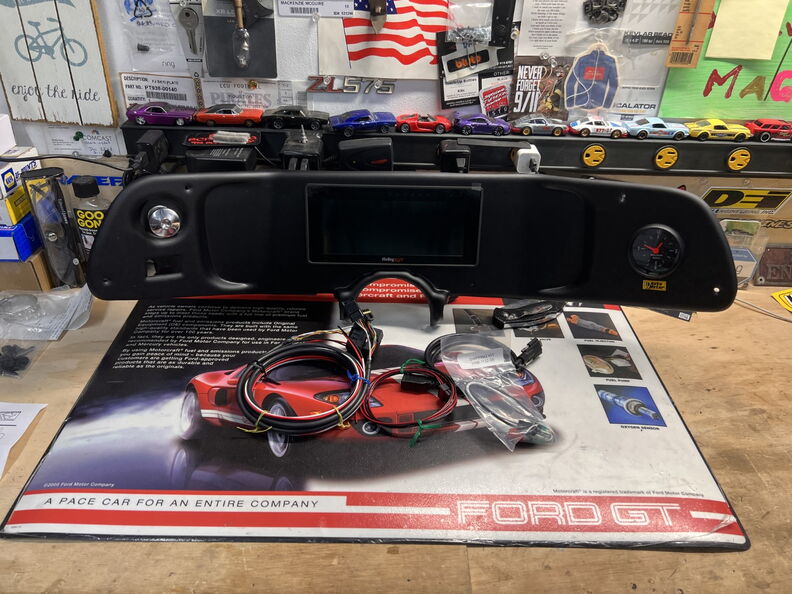

Ugh more wires...

http://garagescene.net/_data/i/uploa...84b75b7-me.jpg

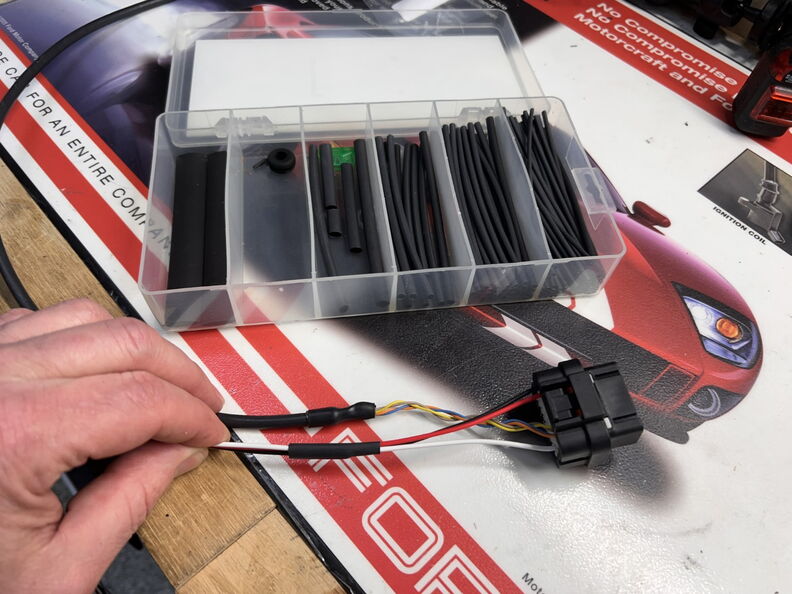

I installed a 3/16'' heat shrink on the three loose wires.

http://garagescene.net/_data/i/uploa...e54451c-me.jpg

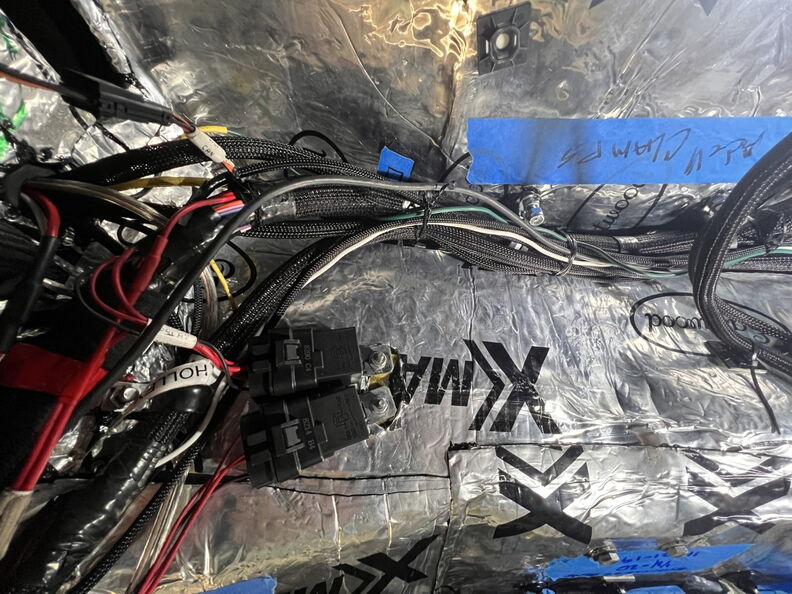

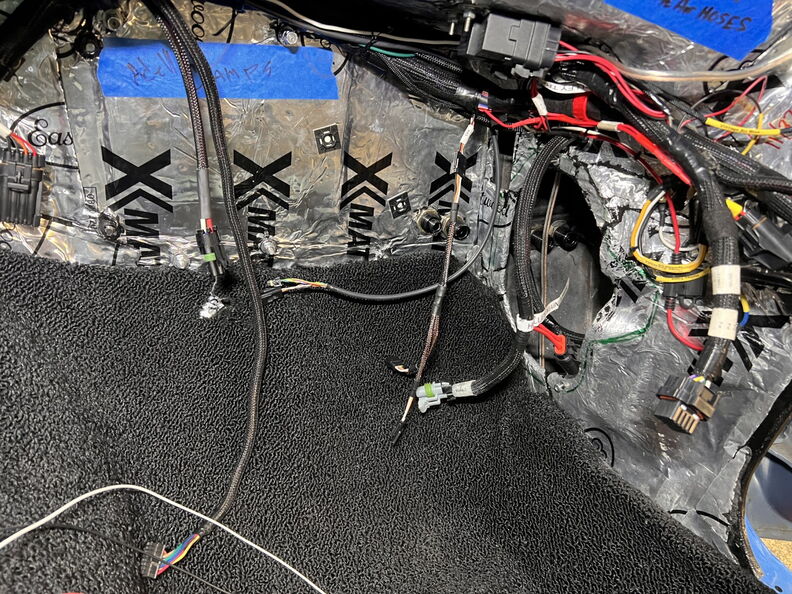

The main harness is secured to the firewall ad all other loose wires are currently being held in by twist ties. Once the wiring
is complete some of the twist ties will be replaced with zip ties.

http://garagescene.net/_data/i/uploa...cd40816-me.jpg

http://garagescene.net/_data/i/uploa...a3749c8-me.jpg

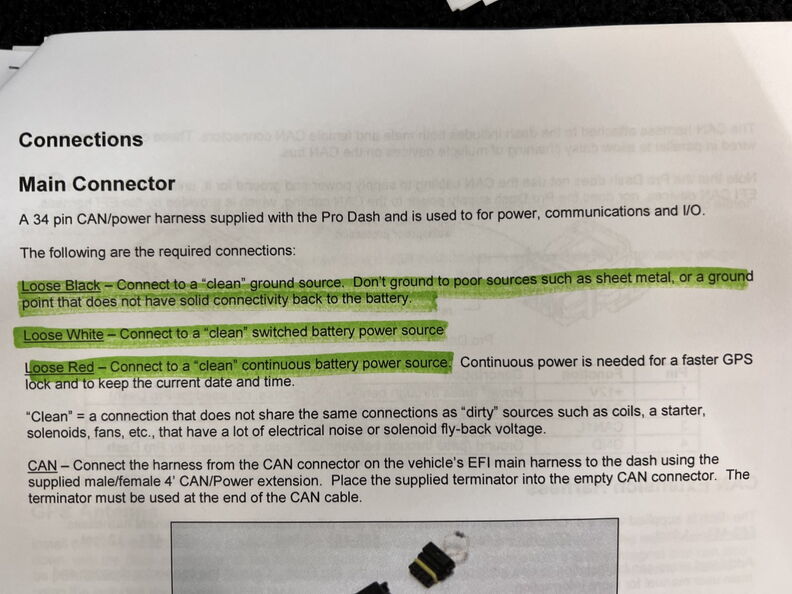

Wiring Notes

http://garagescene.net/_data/i/uploa...7caec52-me.jpg

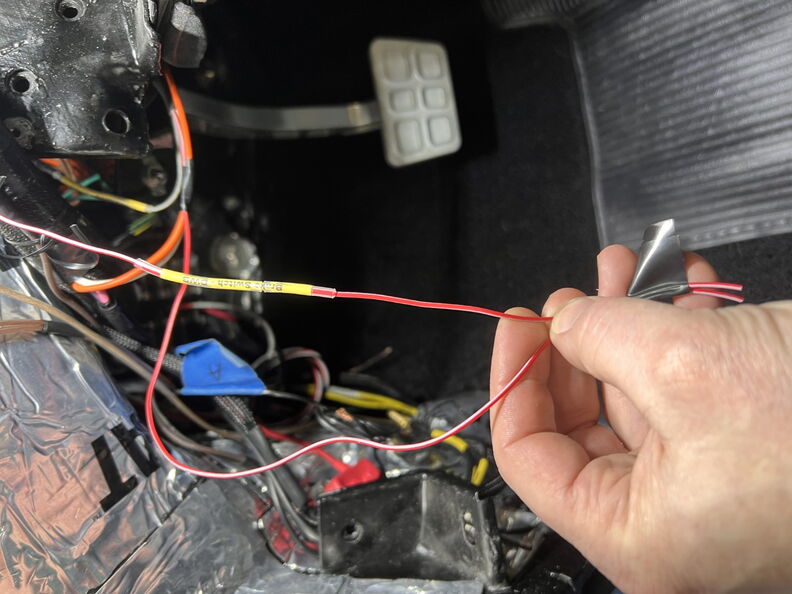

Opps I found another wire I need to connect and yes I am going to use a switch on this one.

http://garagescene.net/_data/i/uploa...305390b-me.jpg

Autometer Clock Wiring (( 03-05-23 ))

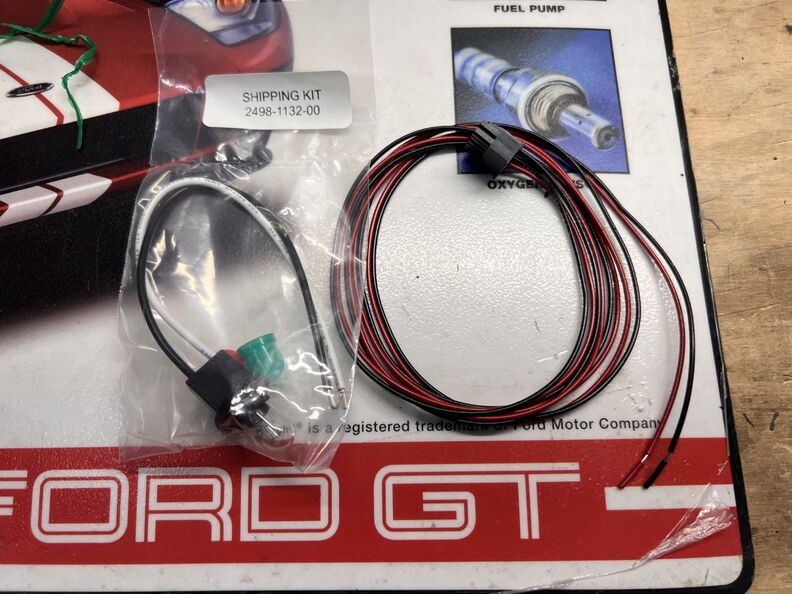

Finally wiring that is stupid simple.

http://garagescene.net/_data/i/uploa...3af6407-me.jpg.

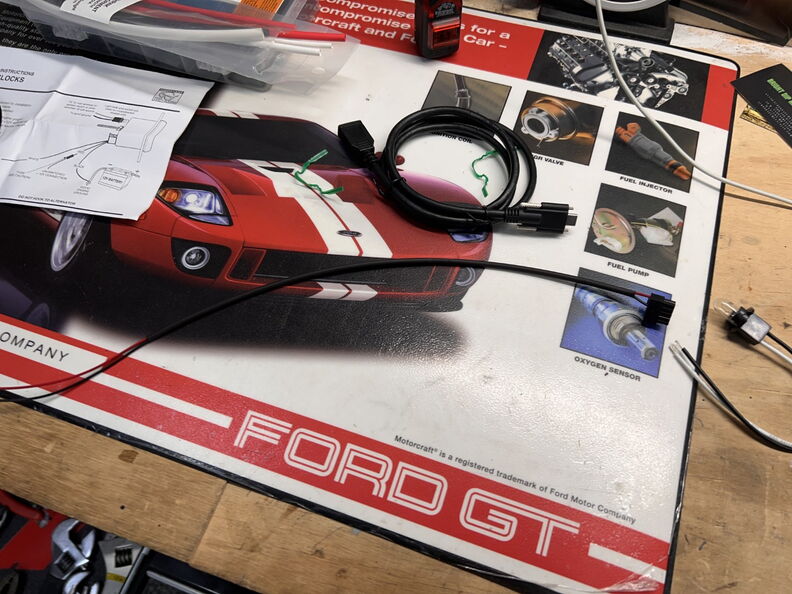

I installed a little bit of the Tech-Flex sleeve on the power & ground.

http://garagescene.net/_data/i/uploa...be16b21-me.jpg

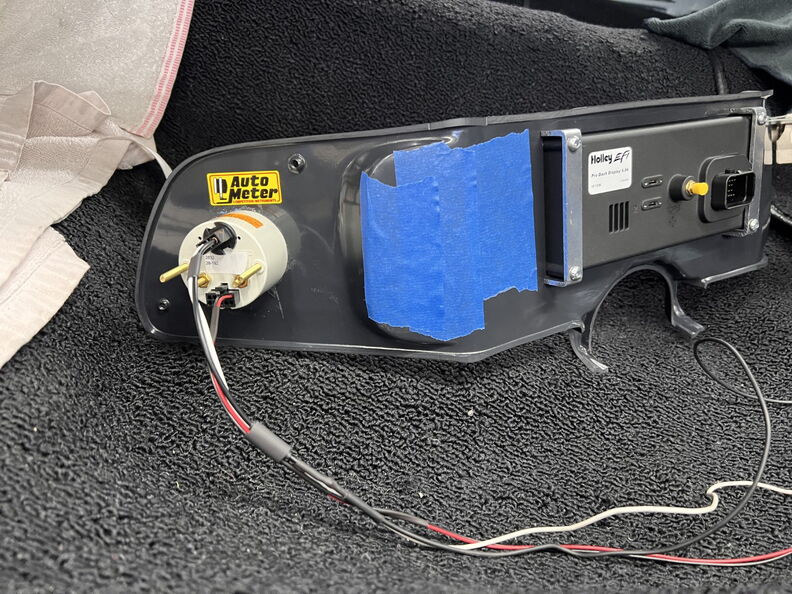

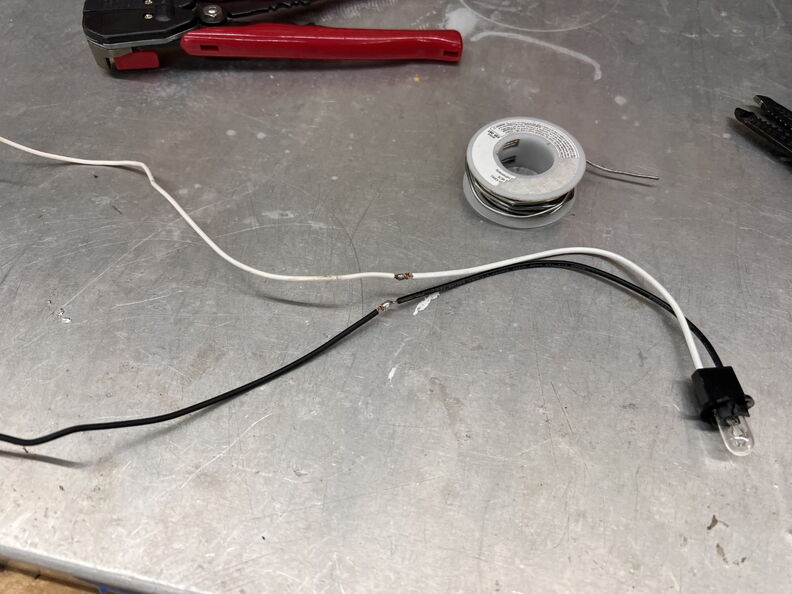

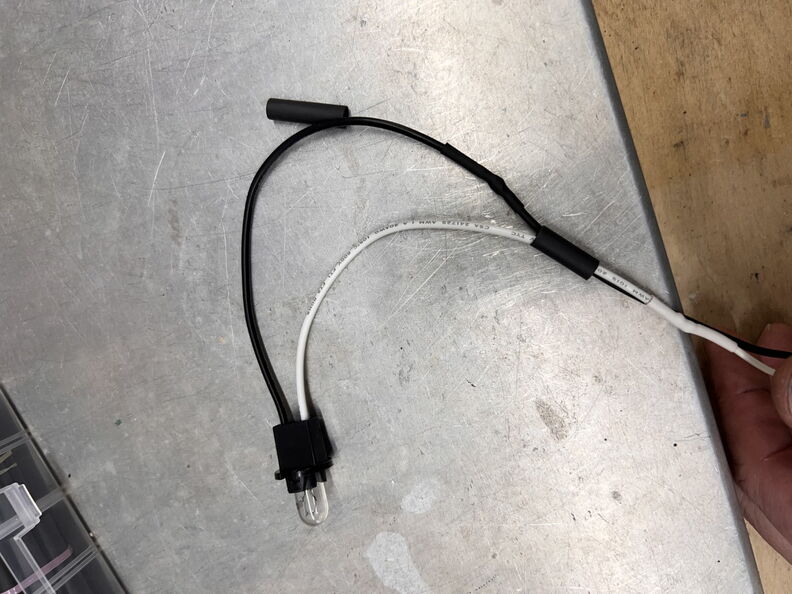

I need to extend the illumination wires.

http://garagescene.net/_data/i/uploa...b8ca5b0-me.jpg

http://garagescene.net/_data/i/uploa...b748690-me.jpg

http://garagescene.net/_data/i/uploa...a85d1f1-me.jpg

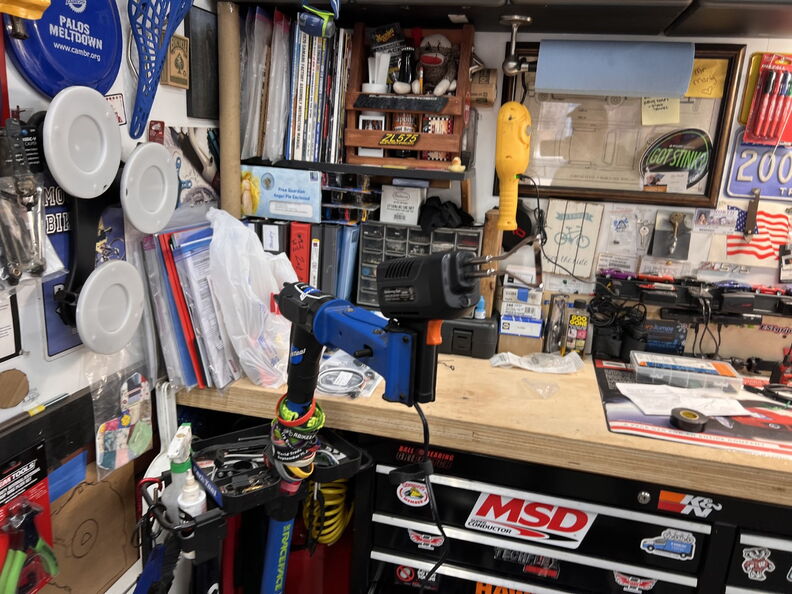

I am telling you guys you all need a bike Mechanics stand.

http://garagescene.net/_data/i/uploa...c91b0d3-me.jpg

Holley Dash Wiring (( 03-05-23 ))

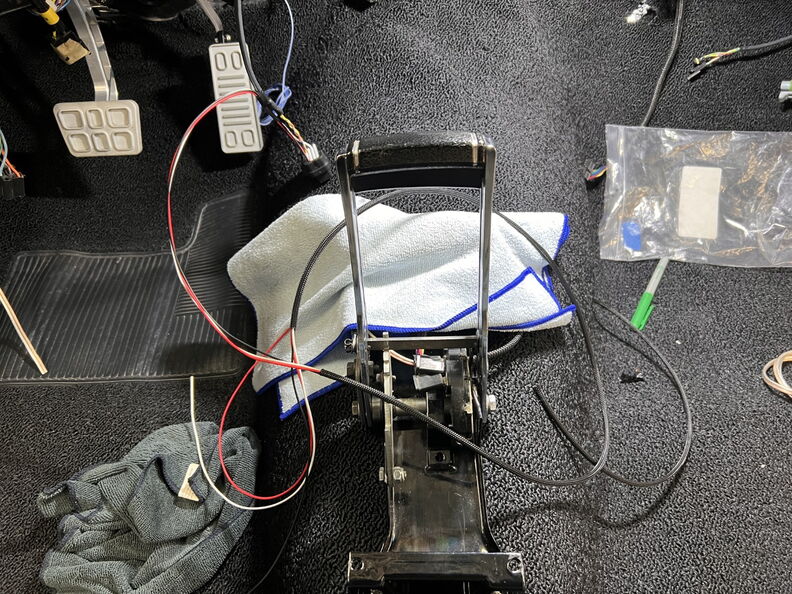

Routing the wires for the Holley Dash

http://garagescene.net/_data/i/uploa...2316542-me.jpg

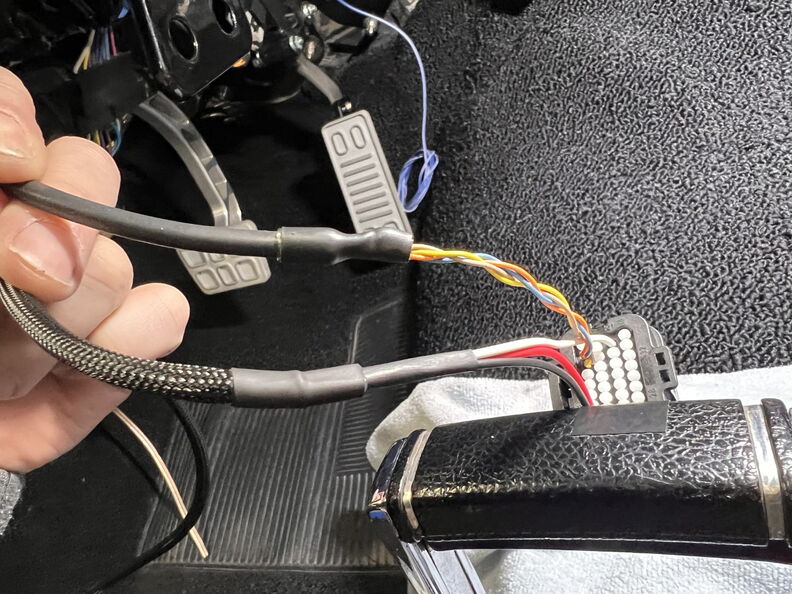

I tried to make the power wires look factory even though no one will ever see them.

http://garagescene.net/_data/i/uploa...c32a32a-me.jpg

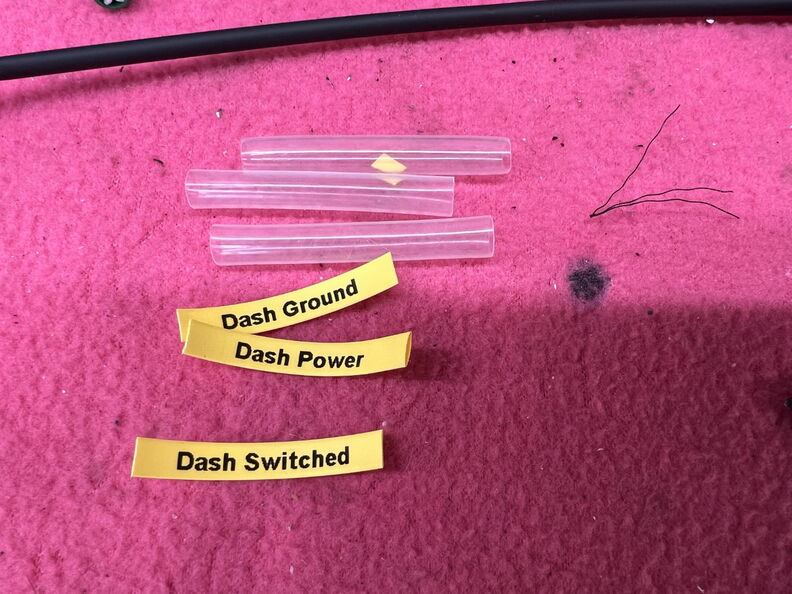

Of course I labeled all of them.

http://garagescene.net/_data/i/uploa...fe6bab3-me.jpg

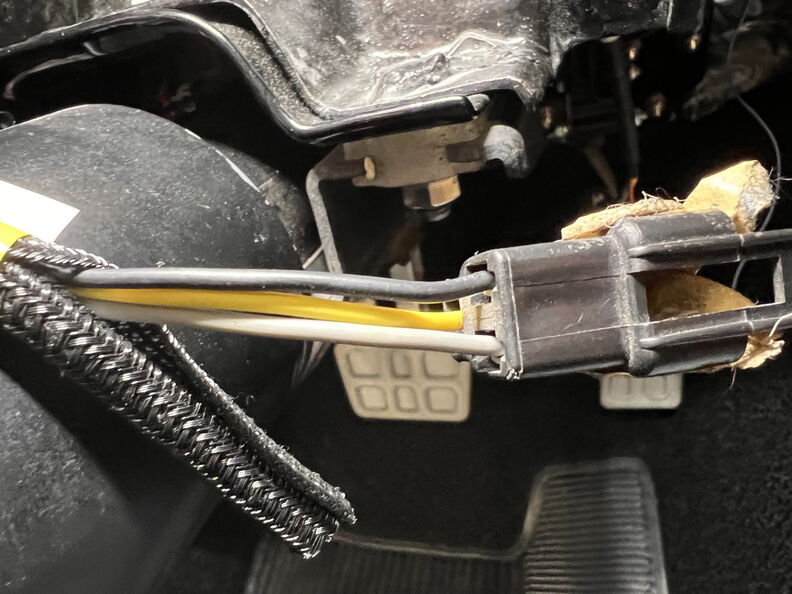

Since I am not using the factory radio I am going to use the power from the radio harness to power the Holley Dash.

http://garagescene.net/_data/i/uploa...88c4f64-me.jpg

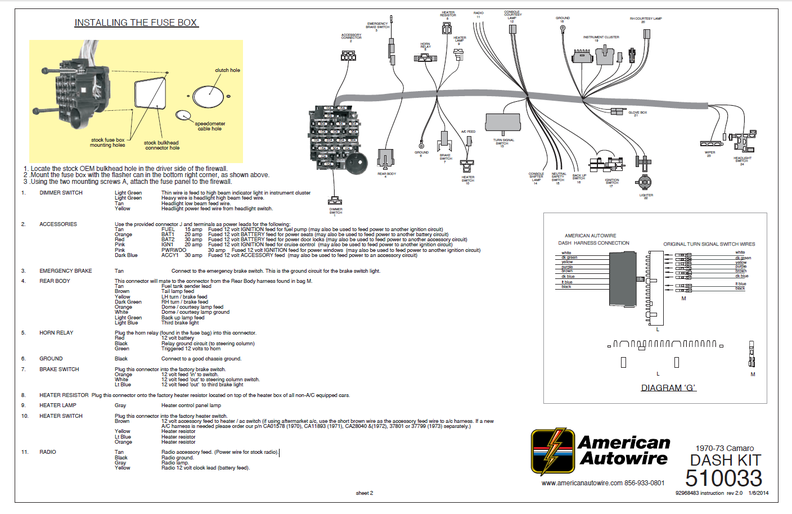

I dug out the wiring diagram for the radio so I know where to connect the wires.

http://garagescene.net/_data/i/uploa...ecde559-me.png

Anvil Radiator Close Out. (( 03-09-23 ))


I just want to say the guys at Anvil are the best. I called them and told them my closeout panel didn't match the inner fenders
and the new radiator cover. Immediately I received an email from them and they took unbelievable care of me.

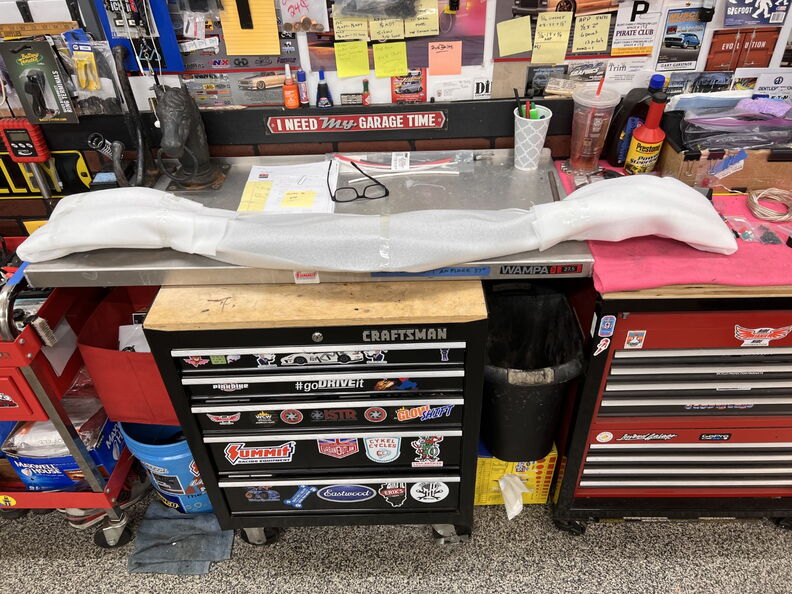

Here is the new piece that arrived in the mail days later.

http://garagescene.net/_data/i/uploa...b0391c4-me.jpg

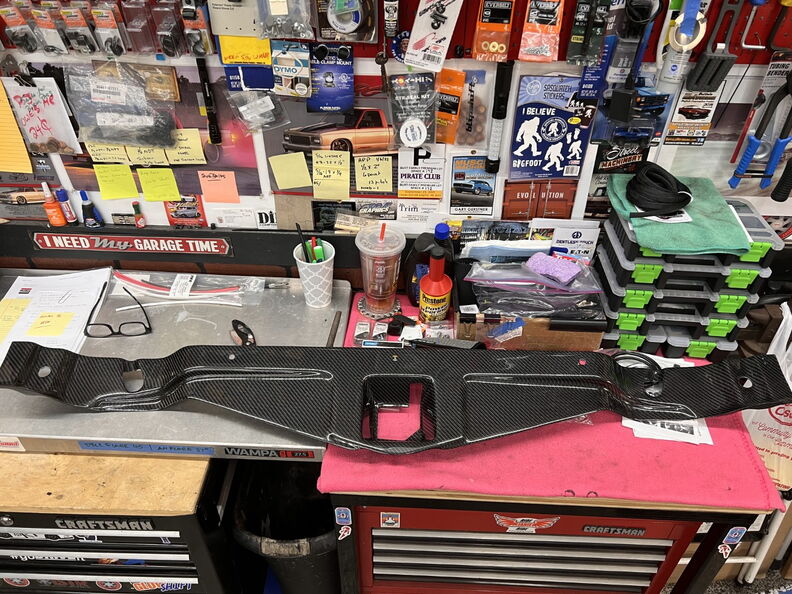

It's a perfect match and they have unbelievable, customer service and I can't say enough kind words.

http://garagescene.net/_data/i/uploa...6ef3218-me.jpg

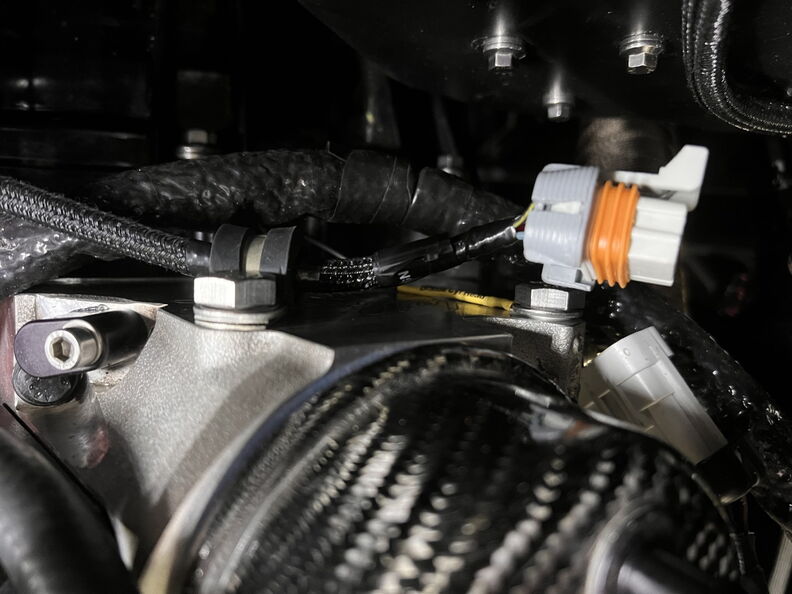

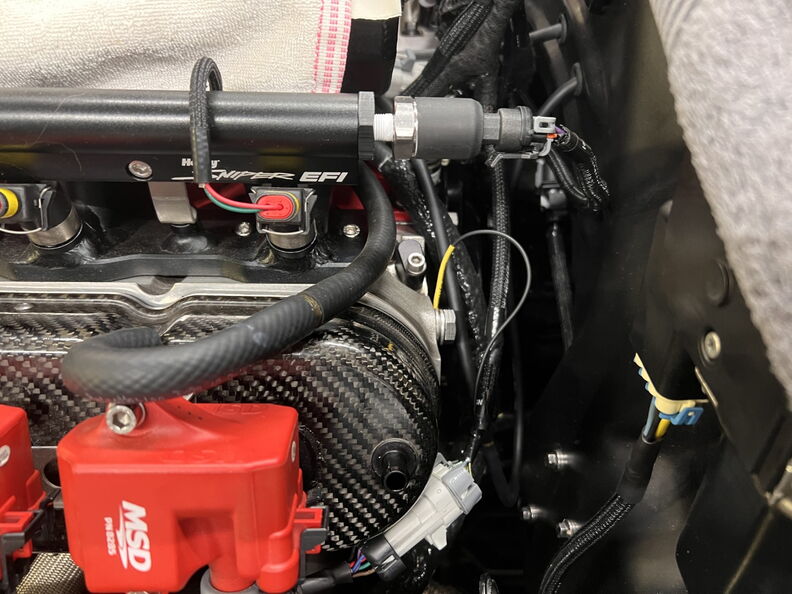

Since the Coil Harness is new perfect (( Thank You Andrew AKA Dr EFI )) I secured the harness to the back of the cylinder head.

http://garagescene.net/_data/i/uploa...1075dff-me.jpg

Secured

http://garagescene.net/_data/i/uploa...0de9ce1-me.jpg

Anvil Carbon Inner Fender Install (( 03-11-23 ))


I can't tell you how excited I am to get both of the inner fenders in the car and thankfully Mike is coming over to help me with the passenger side.

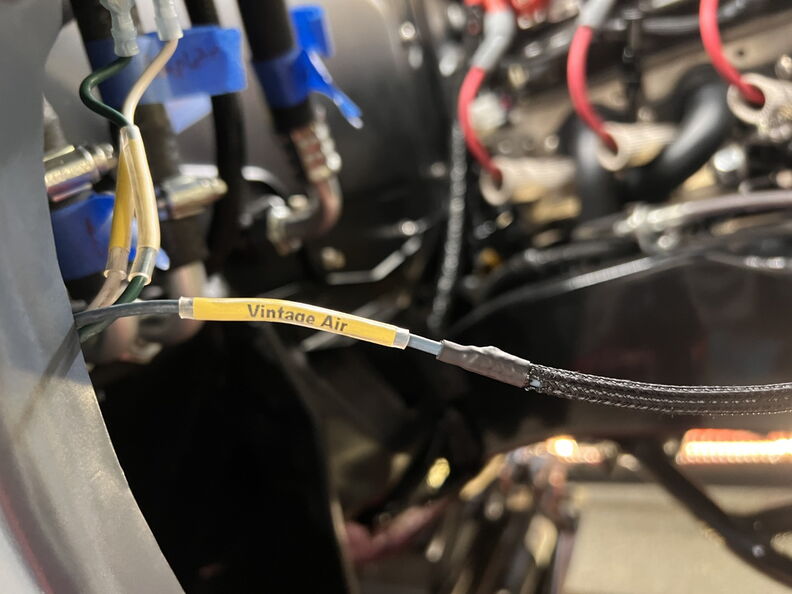

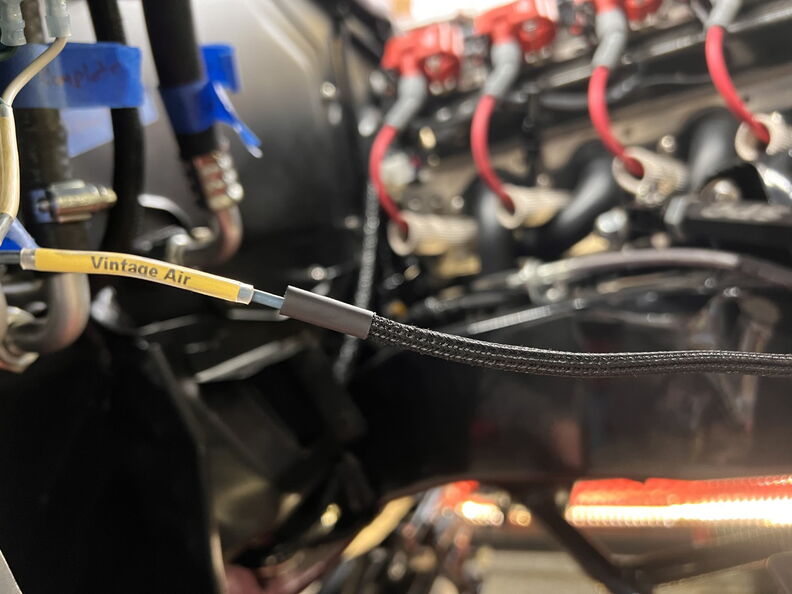

::poke: Certain wire will need to be extended.

http://garagescene.net/_data/i/uploa...db8b342-me.jpg

http://garagescene.net/_data/i/uploa...dd2e166-me.jpg

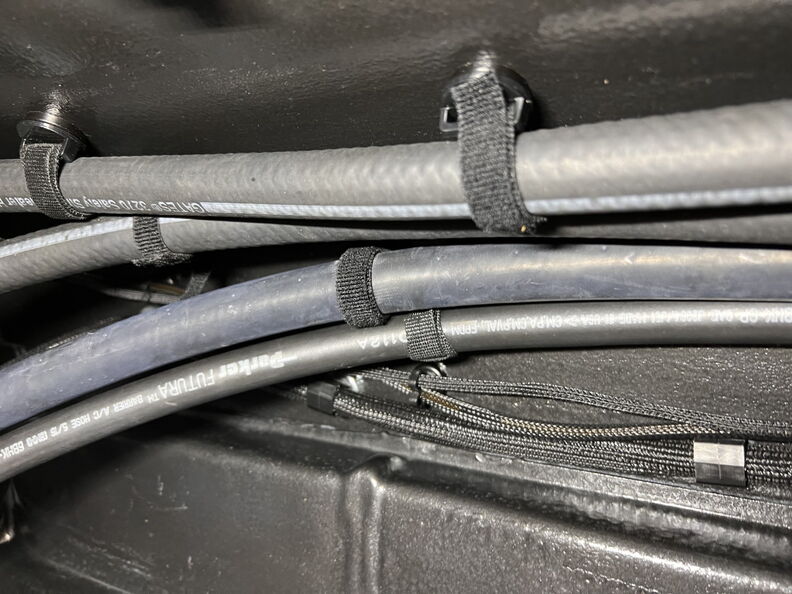

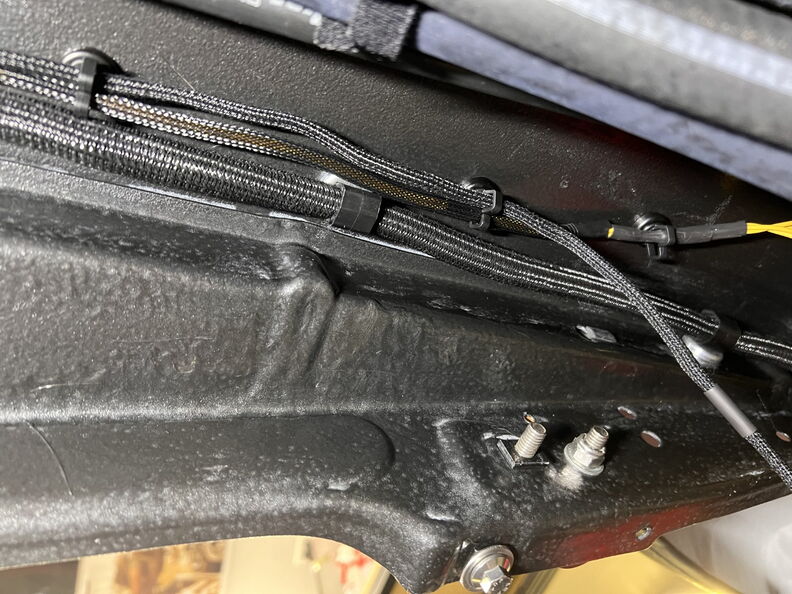

You can see how the wires are routed under the fender.

http://garagescene.net/_data/i/uploa...2af2d28-me.jpg

http://garagescene.net/_data/i/uploa...fb9b47b-me.jpg

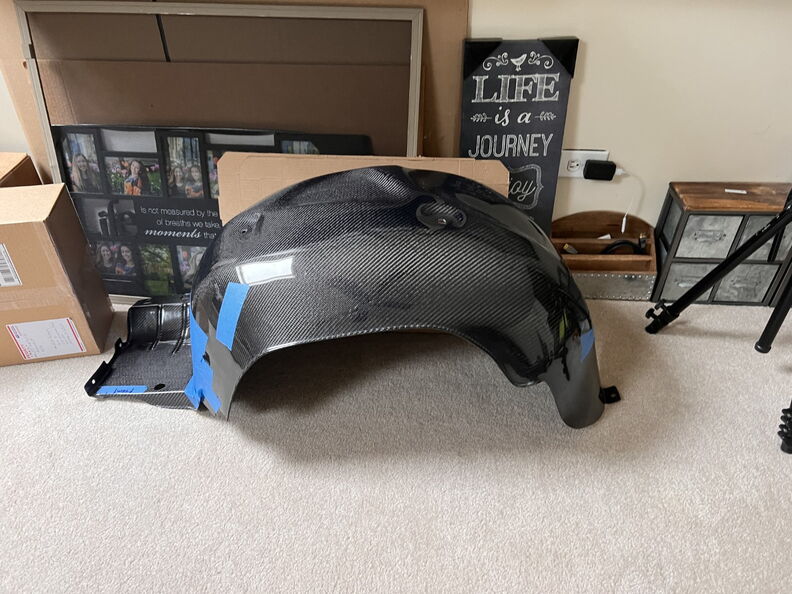

One more piece of the car out of my attic office.

http://garagescene.net/_data/i/uploa...3469f39-me.jpg

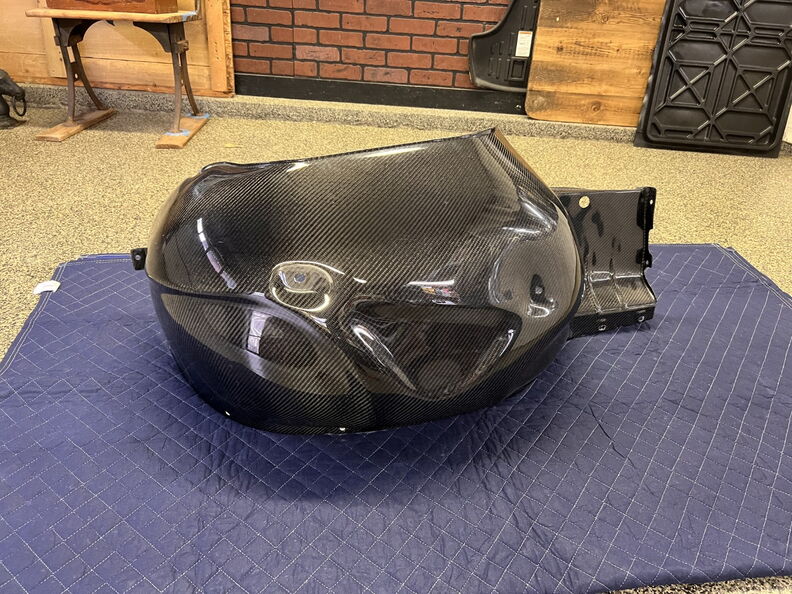

If you look closely on the left you can see a very cool old stadium seat.

http://garagescene.net/_data/i/uploa...4cc2632-me.jpg

http://garagescene.net/_data/i/uploa...daf921c-me.jpg

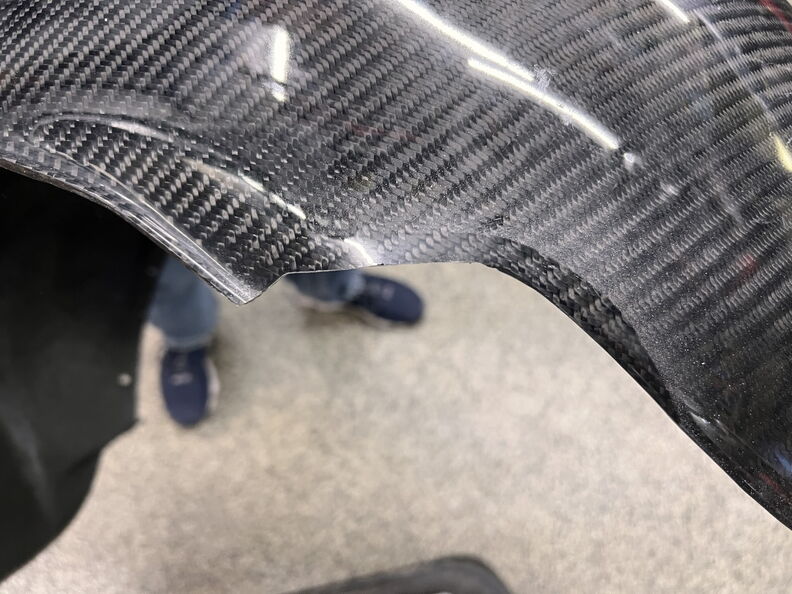

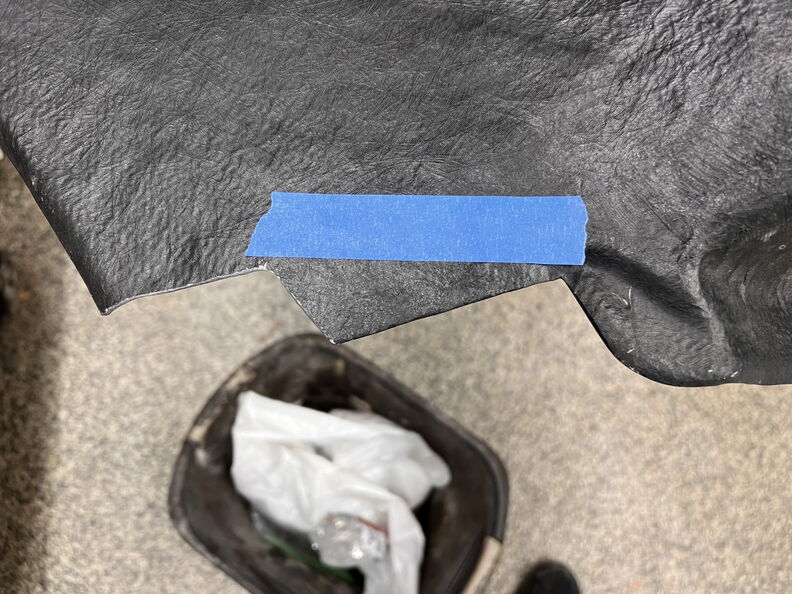

Mike and I slid the inner fender in and of course we needed to modify it just a little bit to clear the brake line bracket.

http://garagescene.net/_data/i/uploa...02dca41-me.jpg

http://garagescene.net/_data/i/uploa...8854324-me.jpg

http://garagescene.net/_data/i/uploa...702bffc-me.jpg

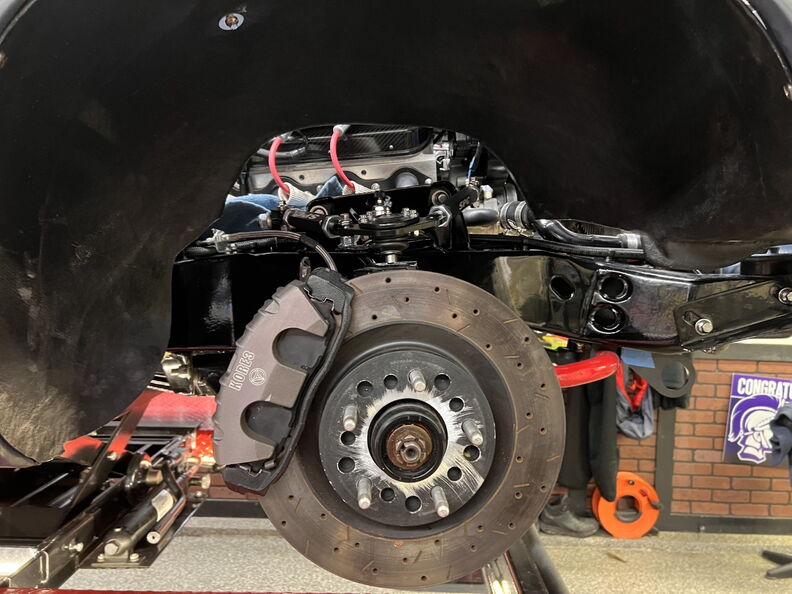

All better however I am considering making a rubber rain shield to close up the opening.

http://garagescene.net/_data/i/uploa...6dc48c1-me.jpg

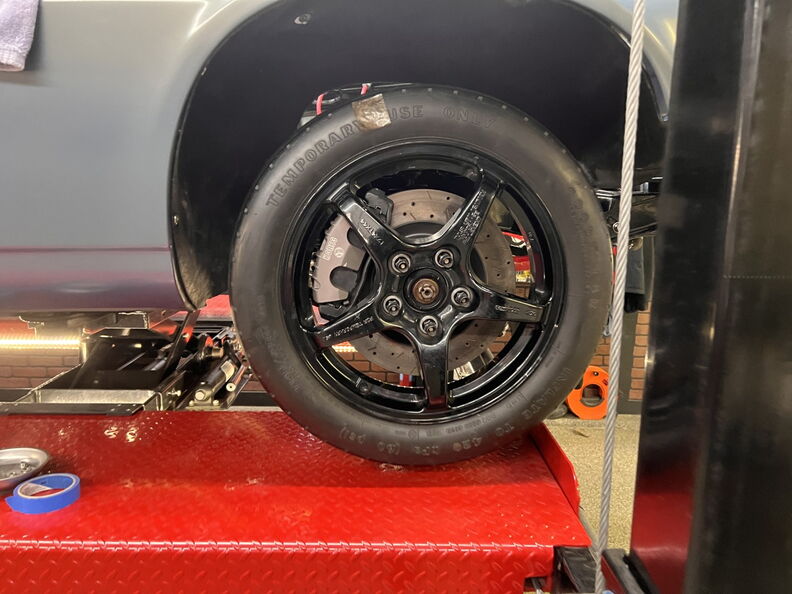

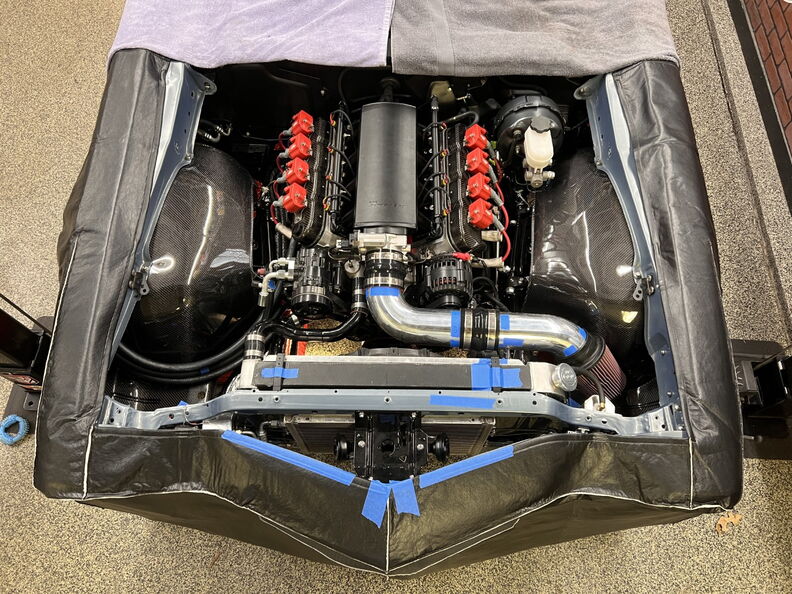

Roller is back on

http://garagescene.net/_data/i/uploa...9b43b69-me.jpg

http://garagescene.net/_data/i/uploa...bd675fd-me.jpg

Looks awesome! :king:
