Cleaning Up ((03-12-23 ))

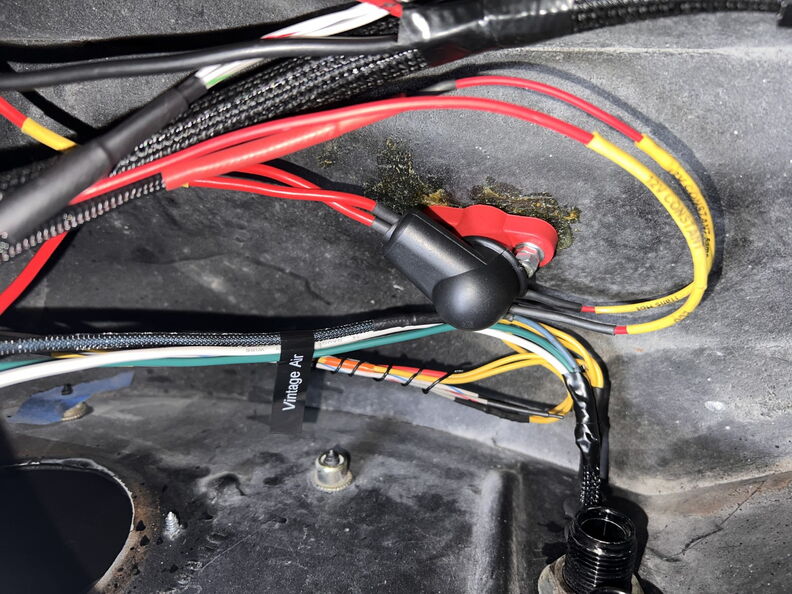

Cleaning Up the last little bit of wiring before I install the Vintage Air Unit.

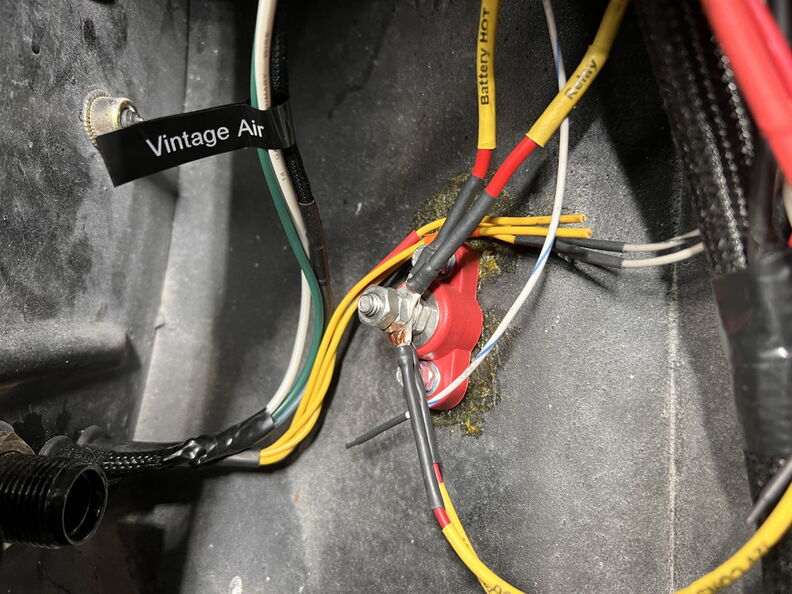

I put labels on a few of the wires just in case I ever need to look at them.

http://garagescene.net/_data/i/uploa...f1b4690-me.jpg

http://garagescene.net/_data/i/uploa...4dee8d8-me.jpg

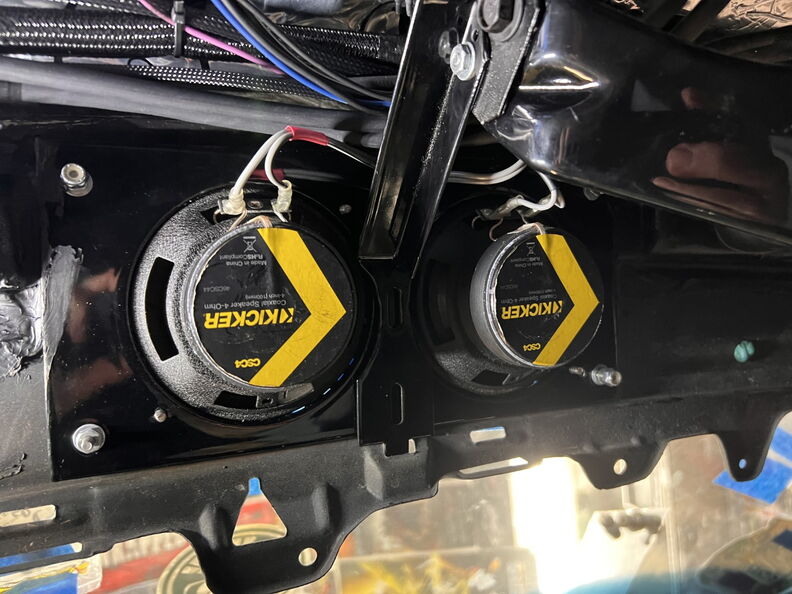

I put Nylock nuts on the speaker bracket

http://garagescene.net/_data/i/uploa...6372ea7-me.jpg

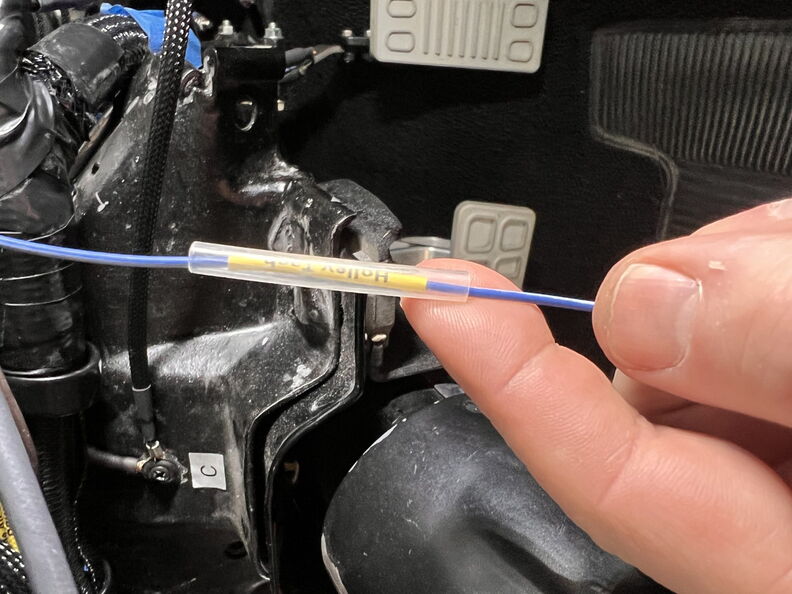

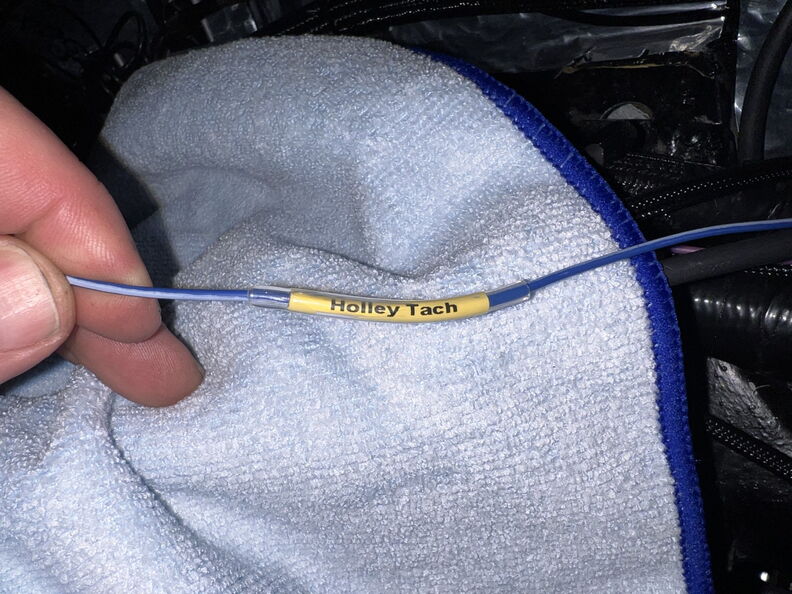

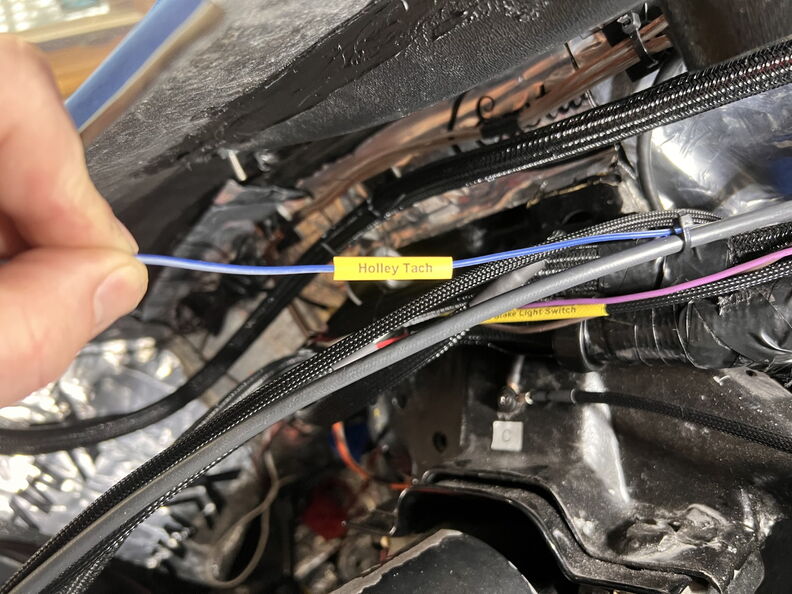

I also labeled a few more wires from the Holley ECU

http://garagescene.net/_data/i/uploa...d60e894-me.jpg

http://garagescene.net/_data/i/uploa...0e0d5b0-me.jpg

http://garagescene.net/_data/i/uploa...1611daa-me.jpg

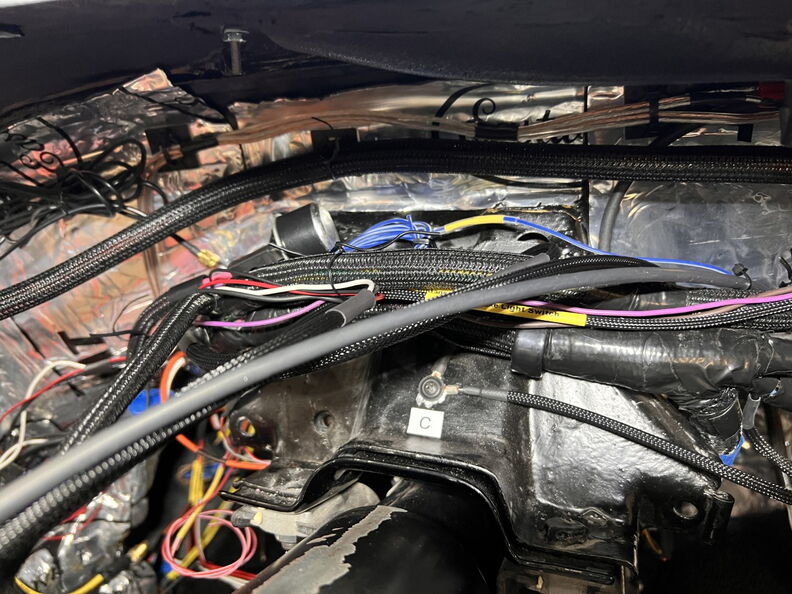

Tucked it neatly on the firewall above the steering column.

http://garagescene.net/_data/i/uploa...cc52568-me.jpg

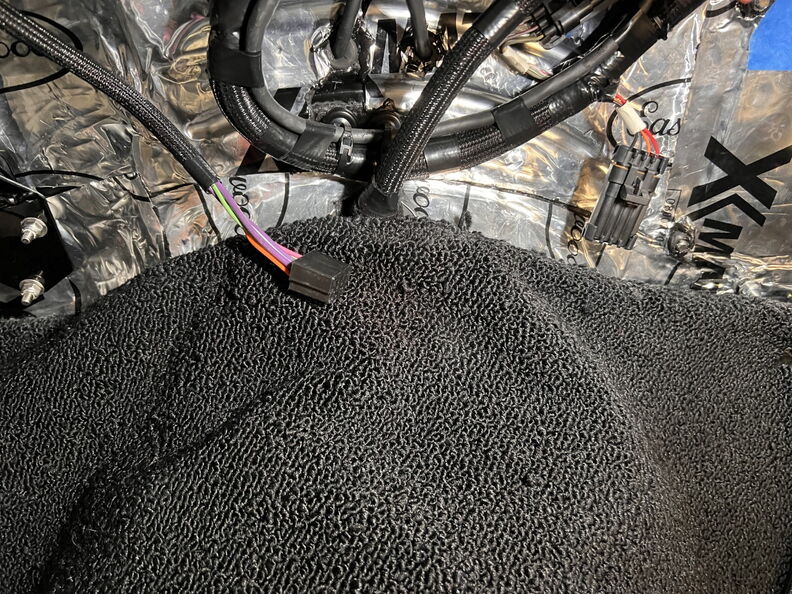

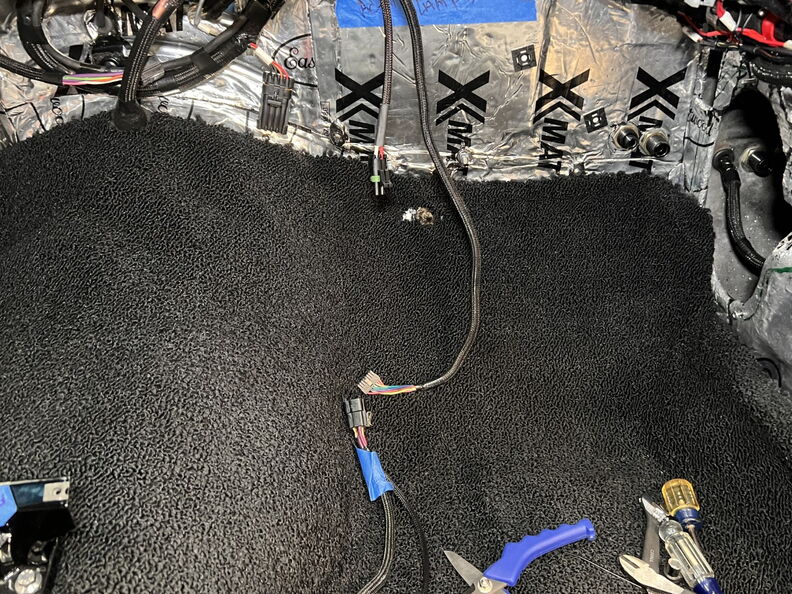

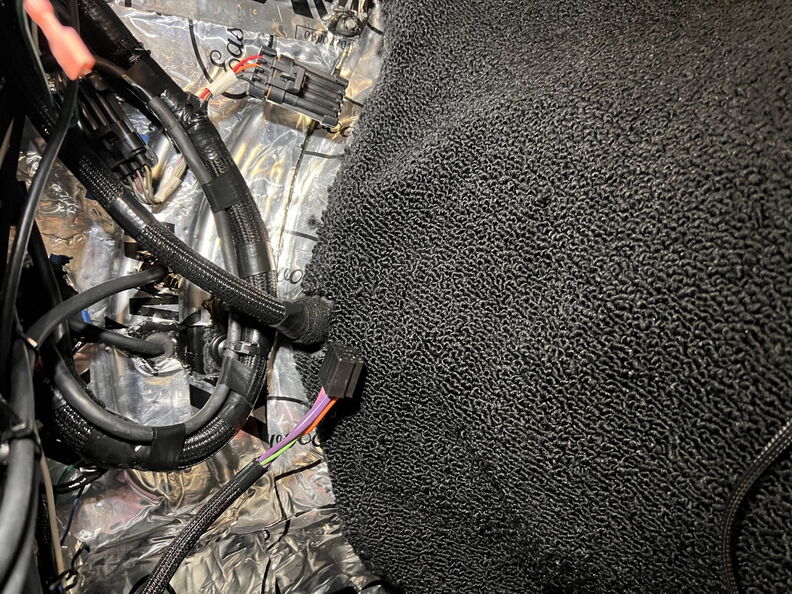

Time to trim the carpet around the Holley Transmission Harness.

http://garagescene.net/_data/i/uploa...d7eb389-me.jpg

http://garagescene.net/_data/i/uploa...2c1d4b4-me.jpg

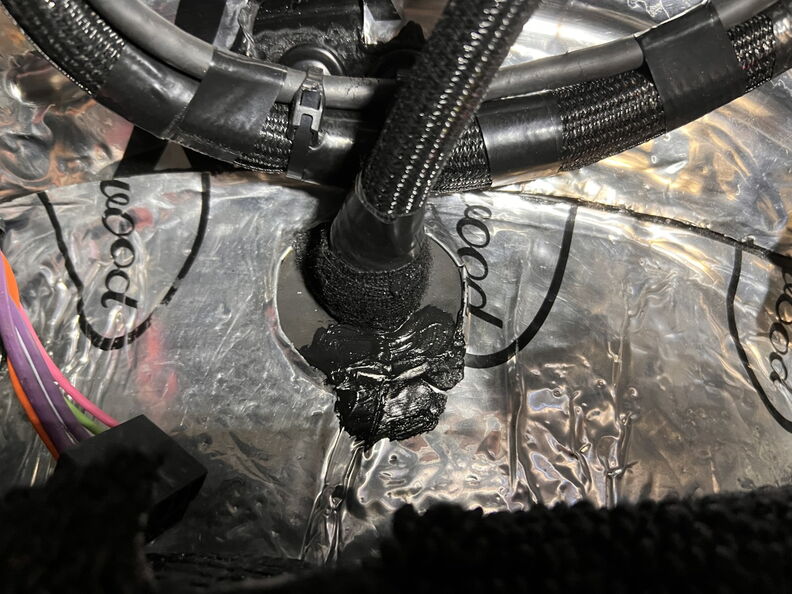

There was a minor gap in the grommet so I filled it with Silicone.

http://garagescene.net/_data/i/uploa...fa4e454-me.jpg

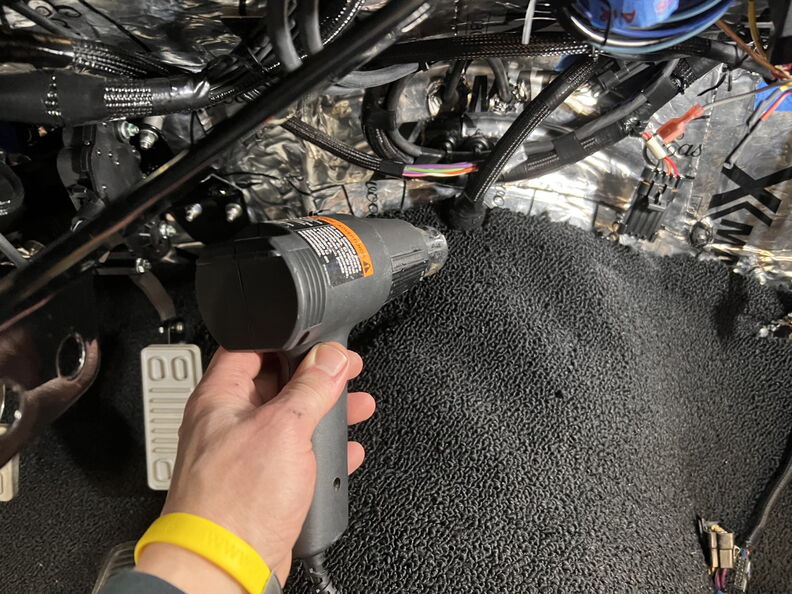

Okay, this was fun. Time to reshape the carpet with the Heat Gun and it is very important that you heat the backside of the carpet not the front.

http://garagescene.net/_data/i/uploa...03b4a0d-me.jpg

All better.


http://garagescene.net/_data/i/uploa...737d872-me.jpg

You sure got your moneys worth with the label maker. Lol. I def want one. :secret:

I bought one just because of him ... lol

Yes, I did and since I have memory issues (side effect of chemo) this really helps me when I am working on the car.

That's awesome !!!

Neutral Saftey Switch (( 03-12-23 ))


It's all about the detail and being able to service / get to / find all of the wires if your on the side of the road broke down.

I need/want to route the wiring for the neutral safety switch through one of the shifter brackets versus around the bracket. Doing this will

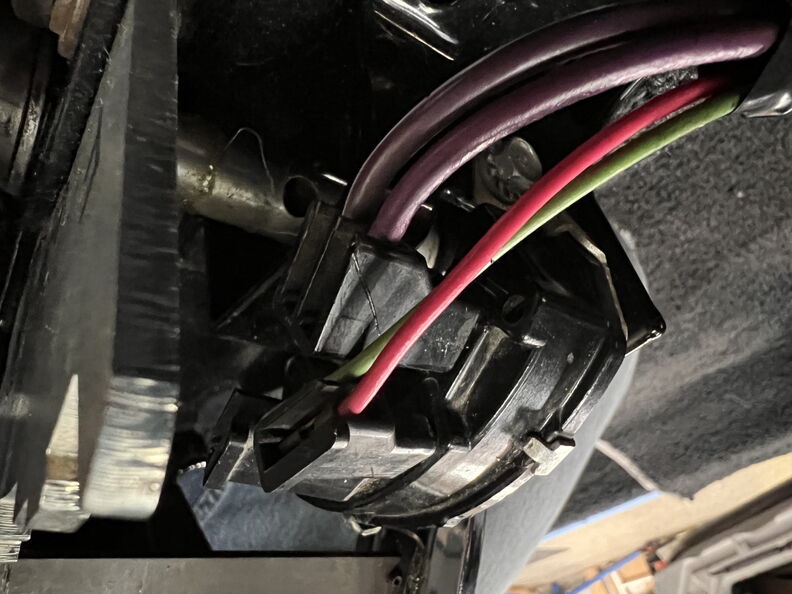

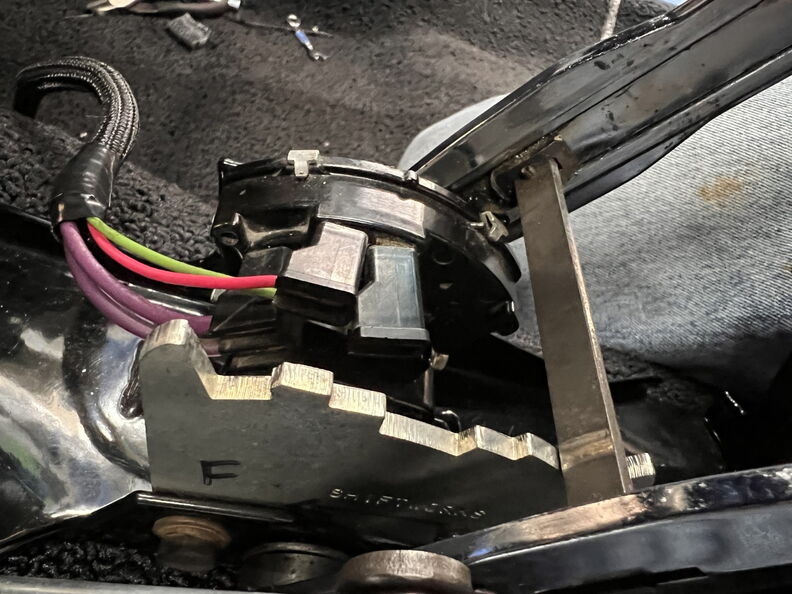

direct it straight up to the firewall. I took a couple reference pictures so I don't have to try to remember where the wires plug in. The
good news is I can only actually screw up two of the wires.

http://garagescene.net/_data/i/uploa...d6215e7-me.jpg

http://garagescene.net/_data/i/uploa...31887a1-me.jpg

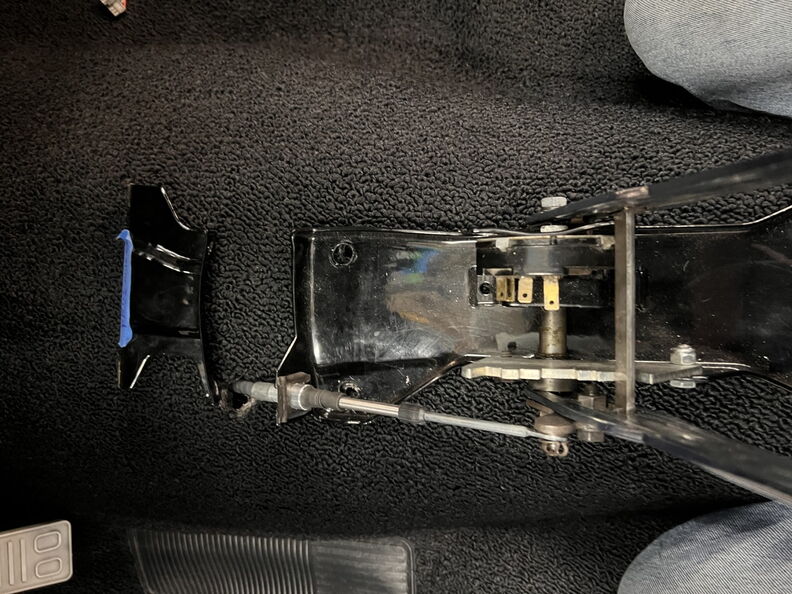

Sorry this is a terrible picture but the bracket is laying on the carpet is the one that needs to be modified.

http://garagescene.net/_data/i/uploa...f9c71c5-me.jpg

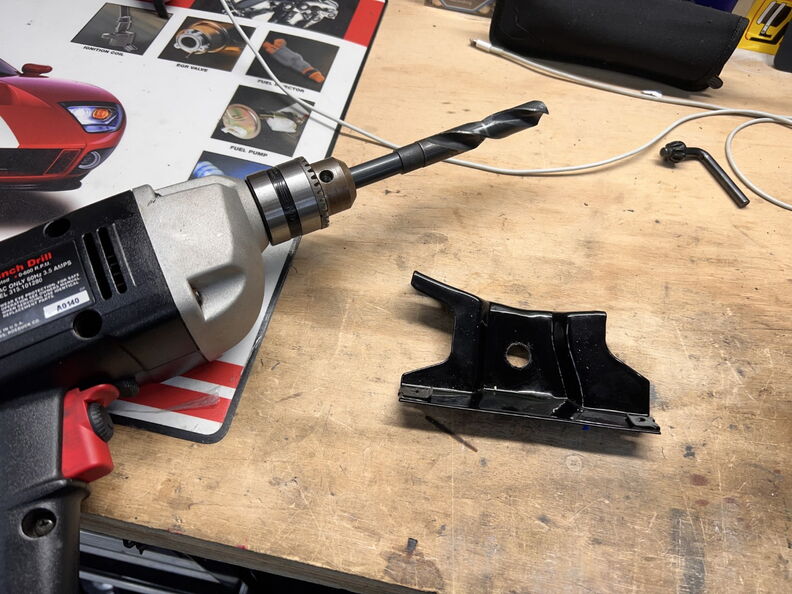

I started by using smaller drill bits stepping them up slowly till I got to the 5/8'' bit. I tried to use a step bit but that SOB ripped
the bracket right out of my hand.

Trust me using the 1/2 drill scares me but I did drill very slow.

http://garagescene.net/_data/i/uploa...413cbfa-me.jpg

After the hole was drilled I filed it into a square hole since no one make a square drill bit. Well that is a lie as the do
make them for wood working. Trust me look it up.

http://garagescene.net/_data/i/uploa...0bbbbf7-me.jpg

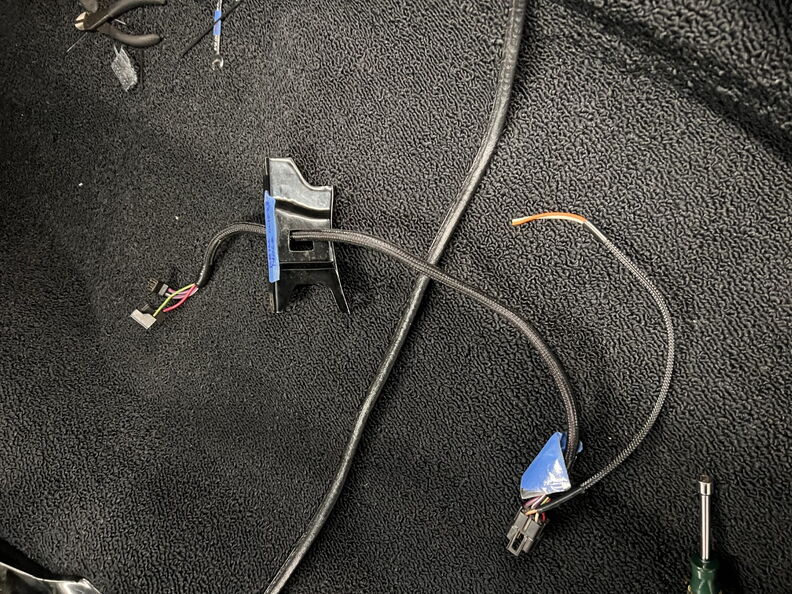

It took a couple tries to get the size correct.

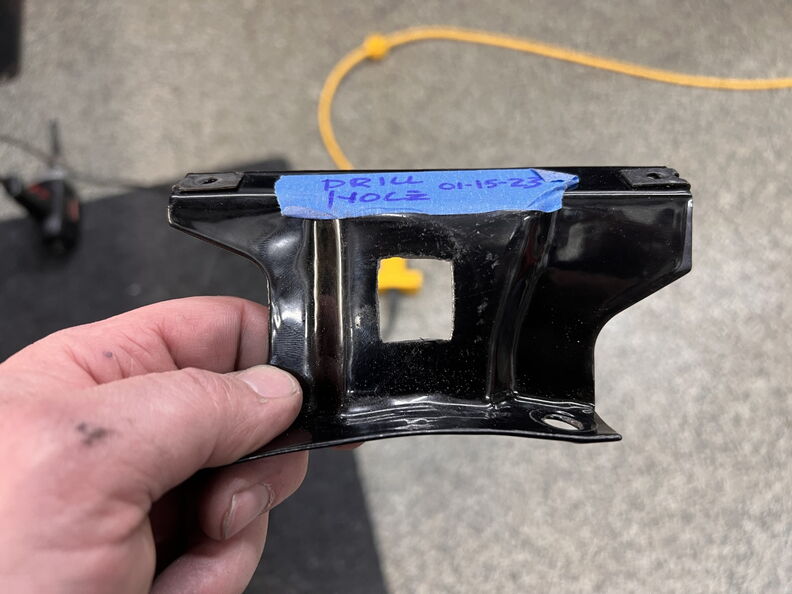

http://garagescene.net/_data/i/uploa...9bd1371-me.jpg

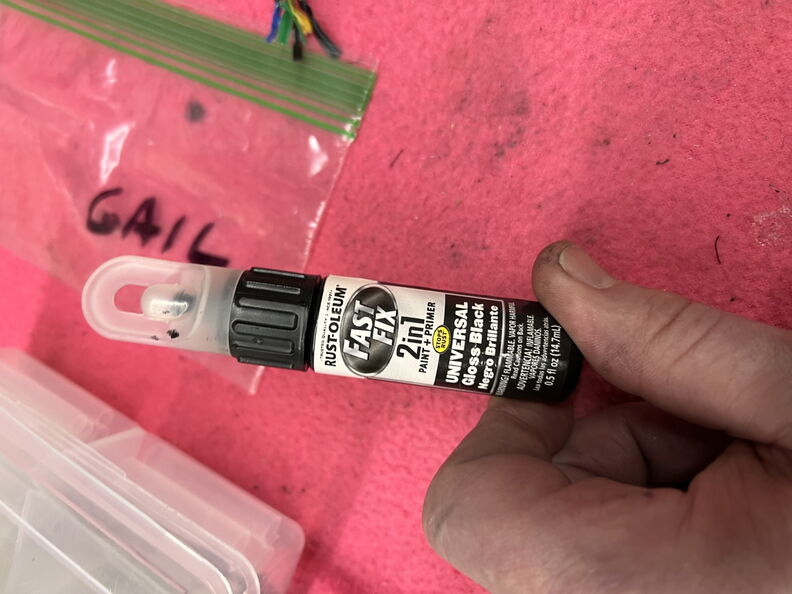

A little bit of touch up paint.

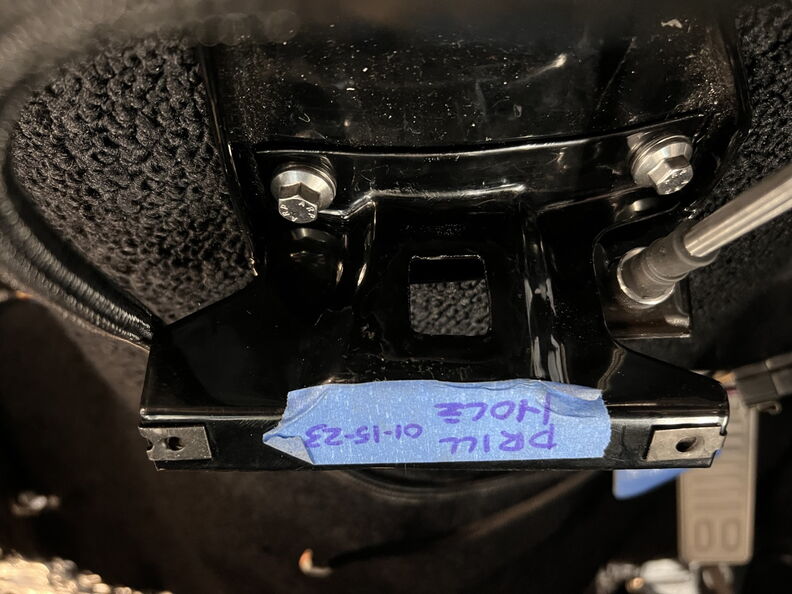

http://garagescene.net/_data/i/uploa...1e89a41-me.jpg

http://garagescene.net/_data/i/uploa...2d3311a-me.jpg

I have one stashed in my garage as well now :lol:

Will come in very handy with my next project.

Misc Stuff (( 03-12-23 ))

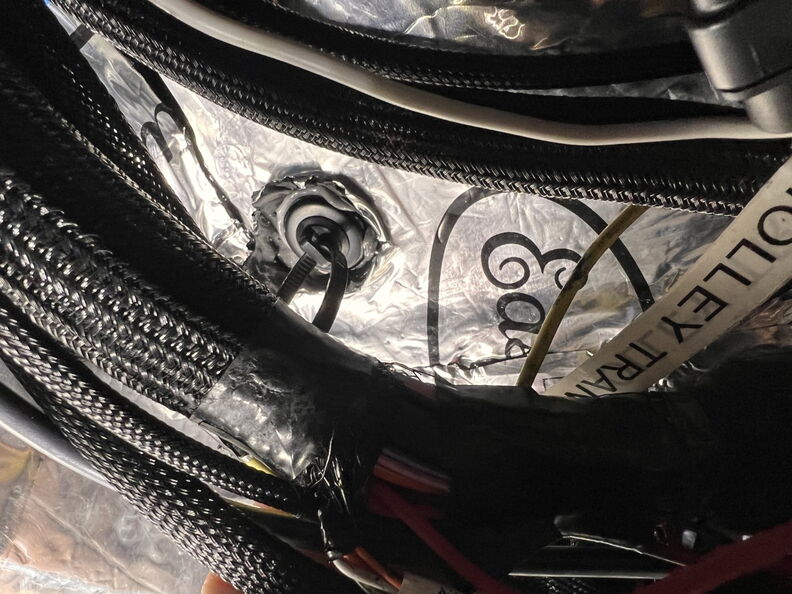

I figured I might as well label this wire as I know 6 months from not I am going to have no clue what it is for.

http://garagescene.net/_data/i/uploa...0e0d5b0-me.jpg

http://garagescene.net/_data/i/uploa...1611daa-me.jpg

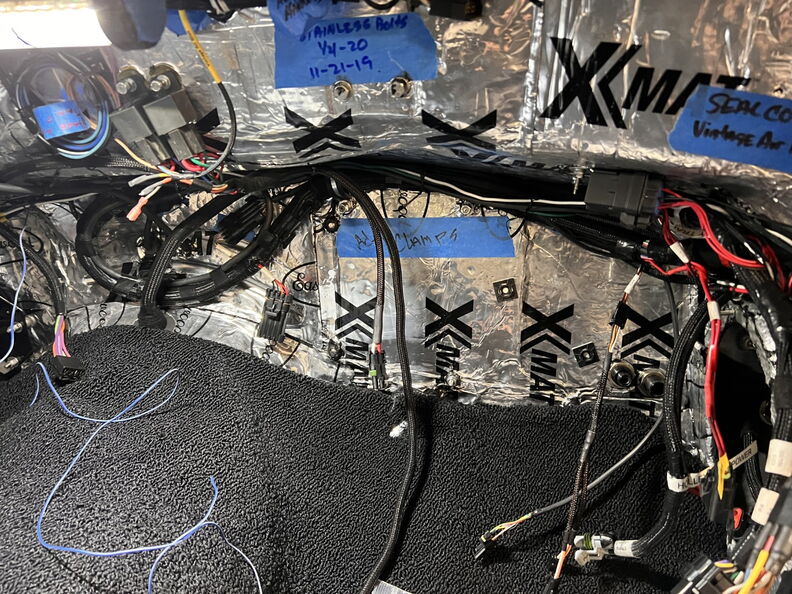

Last mounting point for the Holley Harness is being installed today.

http://garagescene.net/_data/i/uploa...a4873e8-me.jpg

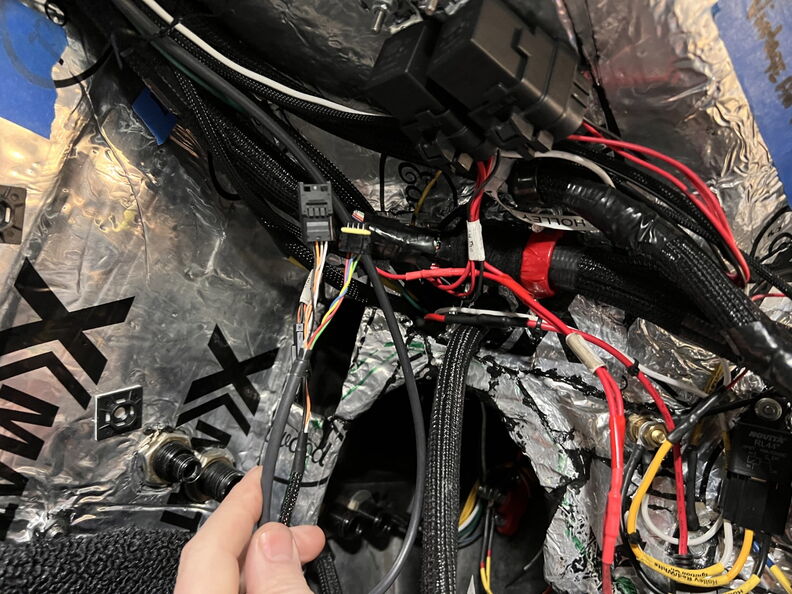

Plugging in the Holley Dash

http://garagescene.net/_data/i/uploa...ed892f6-me.jpg

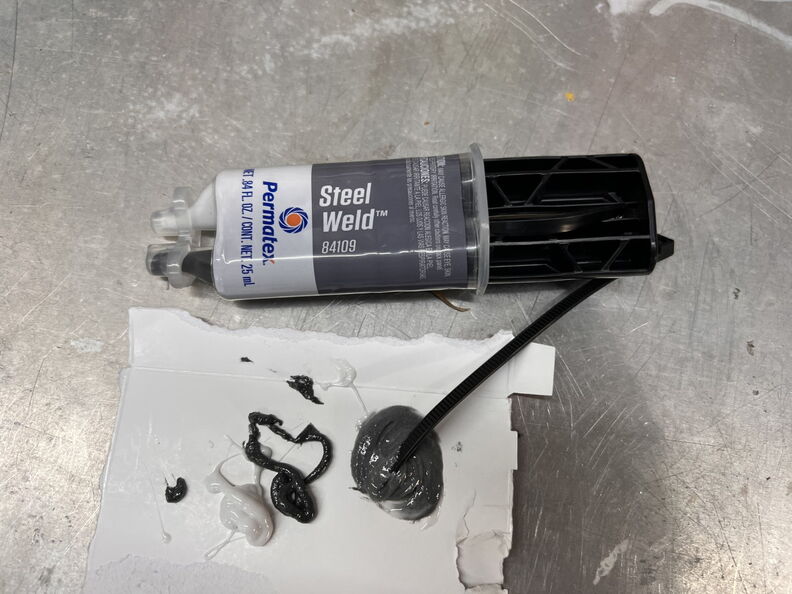

Love this stuff

http://garagescene.net/_data/i/uploa...6243197-me.jpg

I put a little to much on the base of the Mag Daddy Magnet mount...Opps

http://garagescene.net/_data/i/uploa...7230c20-me.jpg

I moved back the sound deadening so I could bound them directly to metal. I love using the Mag Daddy magnets while
the I am working on the car as i can move the mounts around as needed.

http://garagescene.net/_data/i/uploa...60fa3c6-me.jpg

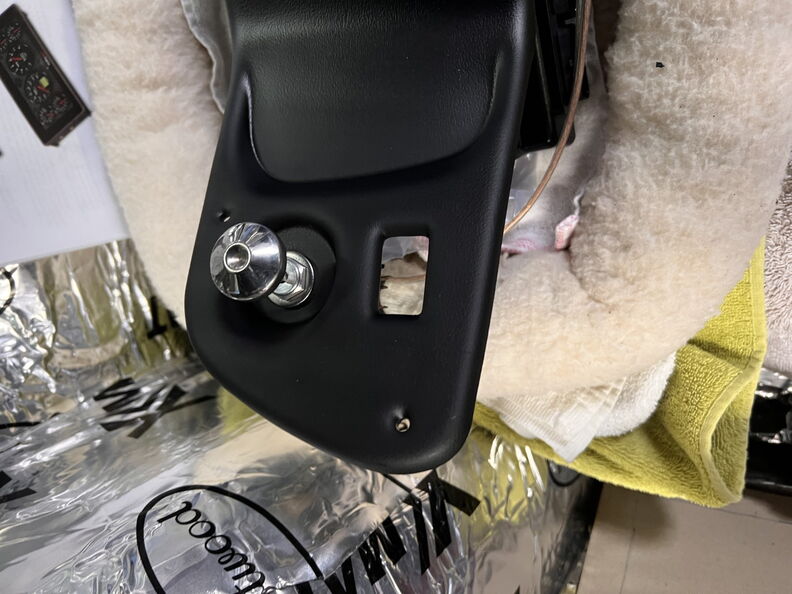

I am still on the fence if I am going to install Kick panel speakers. Right now I am looking at these from Kicker.

http://garagescene.net/_data/i/uploa...64a4230-me.png

Vintage Air Heater Hose Routing (( 03-17-23 ))


I started working on the hose routing and the good news I don't plan to make it permanent just yet as I keep changing my mind.

http://garagescene.net/_data/i/uploa...e5b79b0-me.jpg

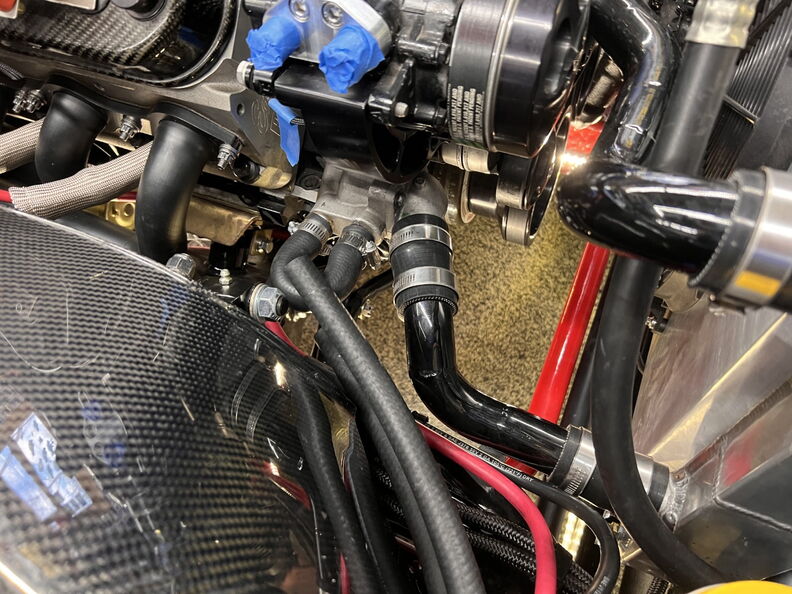

I need to find a pre-bent hose from the Autoparts store that will jog around the massive Anvil Carbon Inner Fenders.

http://garagescene.net/_data/i/uploa...0b54fe0-me.jpg

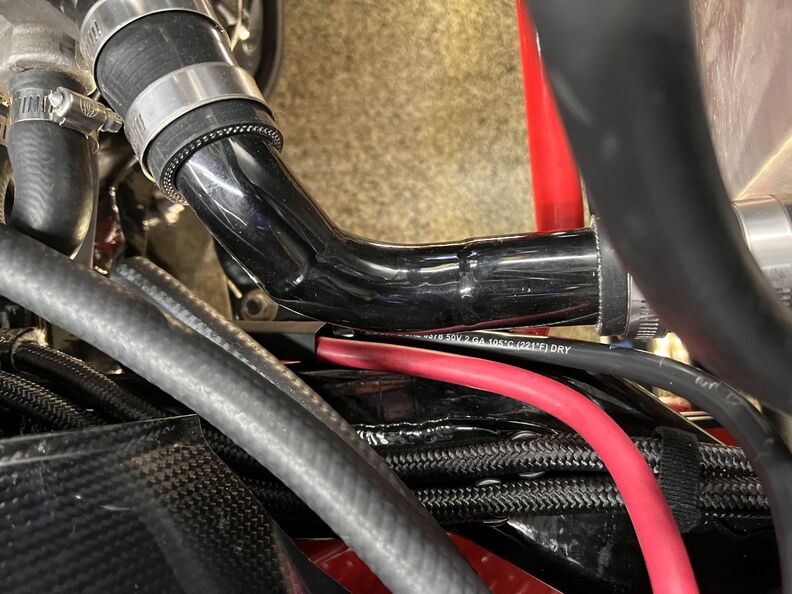

I also need to make sure the battery wires are not effected by the location of the hoses.

http://garagescene.net/_data/i/uploa...180efac-me.jpg

Hose # 1 would have been perfect if only it was a 5/8's hose.

http://garagescene.net/_data/i/uploa...c087061-me.jpg

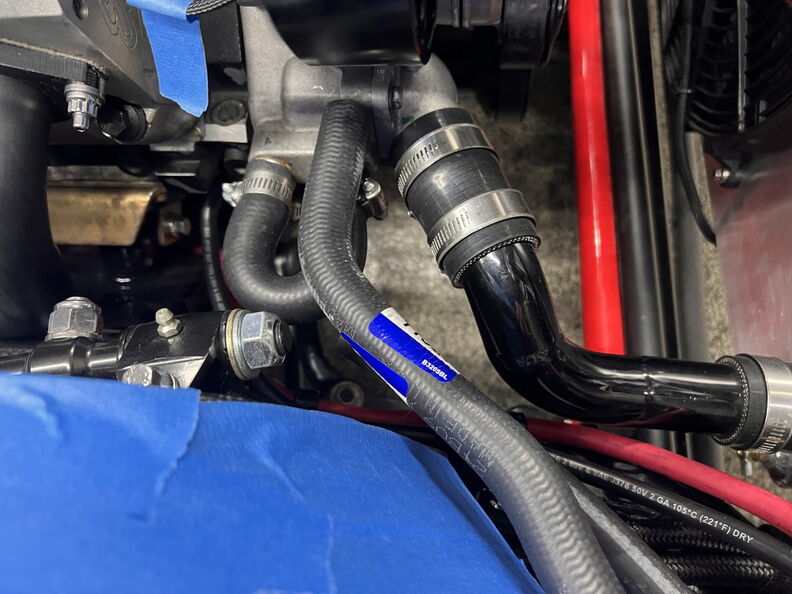

Hose #2 looks like it will work and it's a 5/8's hose.

http://garagescene.net/_data/i/uploa...7ae0e1f-me.jpg

http://garagescene.net/_data/i/uploa...5b56718-me.jpg

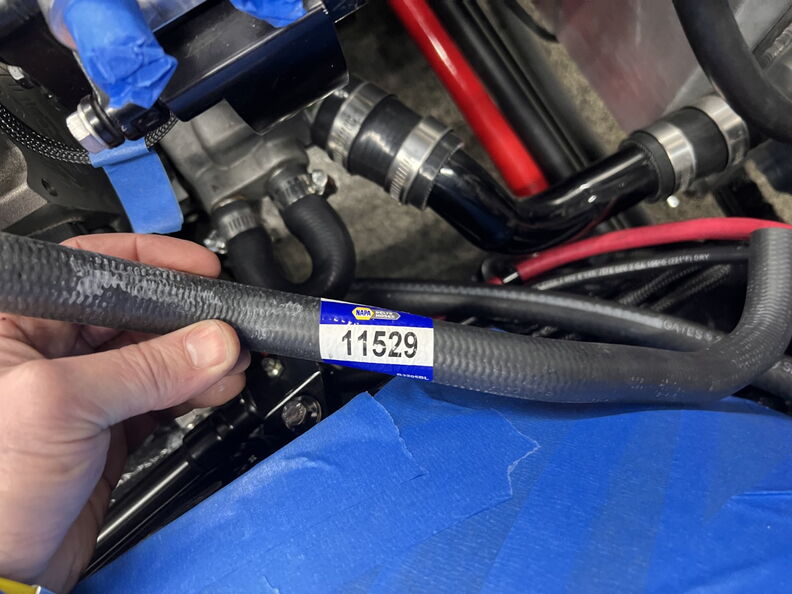

Napa Part # 11529

http://garagescene.net/_data/i/uploa...7d7c01c-me.jpg

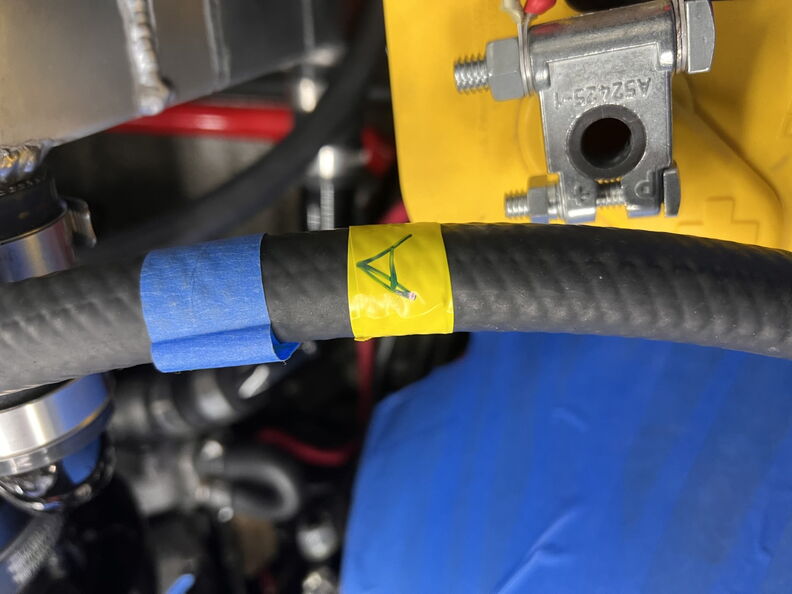

Yes, I label everything

http://garagescene.net/_data/i/uploa...7619cc2-me.jpg

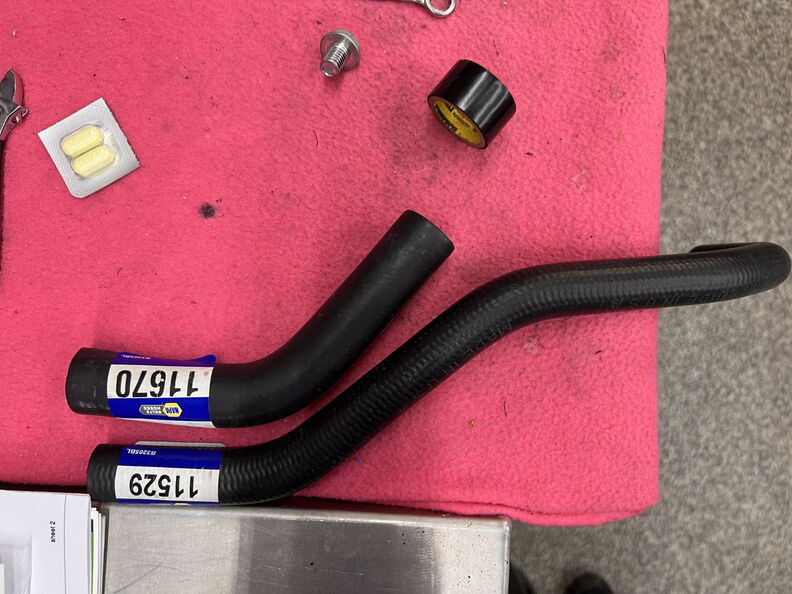

I settled on these two hoses.

http://garagescene.net/_data/i/uploa...e772ed2-me.jpg

and NO I am not making the final connections as my brain isn't convince this is going to work.

Bruh,

Yer prolific…and scary!

:peepwall:


:thumbsup:

Holley Dash & Autometer Clock Wiring (( 03-18-23 ))


I am finally installing the Autometer Clock wire harness and as you can see I stacked the clocks instructions with
the American Auto Wire instructions below it.

http://garagescene.net/_data/i/uploa...1a8e27b-me.jpg

Since I am going to pull the power and lights on from the headlight switch I needed to find the switch. Well, I search for
it for 20 minutes and then realized I had already installed on the Classic Dash surround. DA !!!!

http://garagescene.net/_data/i/uploa...4be3cf0-me.jpg

I powered the car back up and plugged in the switch and started testing the circuits
till I found the two I needed. The one that is labeled Ign On is actually lights on.

http://garagescene.net/_data/i/uploa...bec2d09-me.jpg

Labeled the Clocks harness.

http://garagescene.net/_data/i/uploa...a611688-me.jpg

http://garagescene.net/_data/i/uploa...6ead7e1-me.jpg

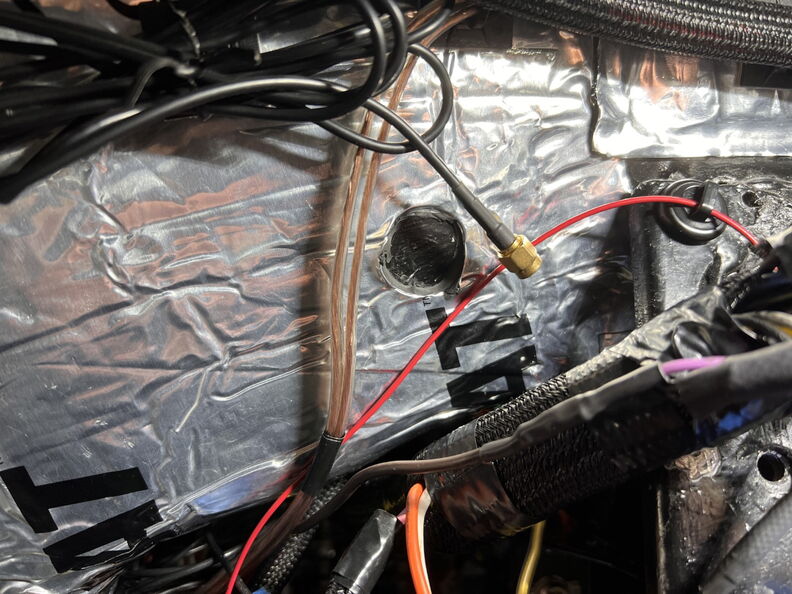

I then moved on to wire routing and installed a few more Mag Daddy Magnets. I love these things !!!

http://garagescene.net/_data/i/uploa...3c6c9f6-me.jpg

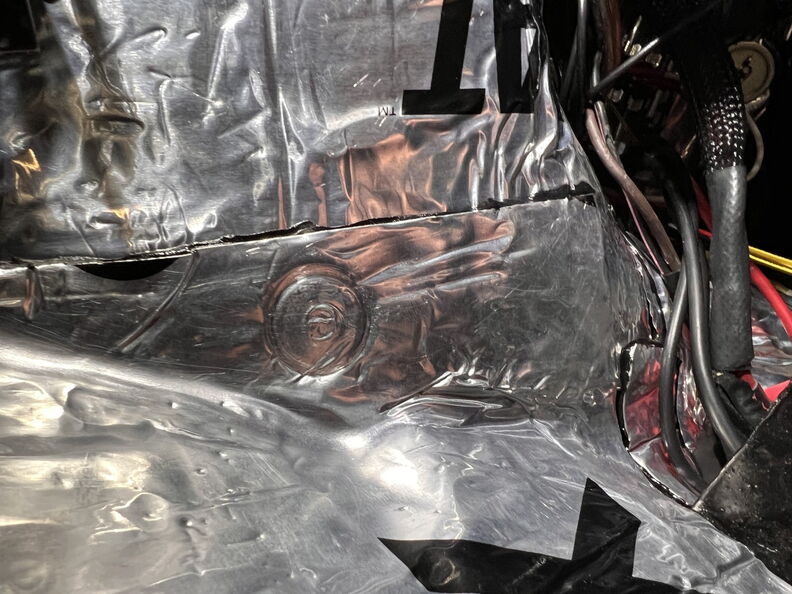

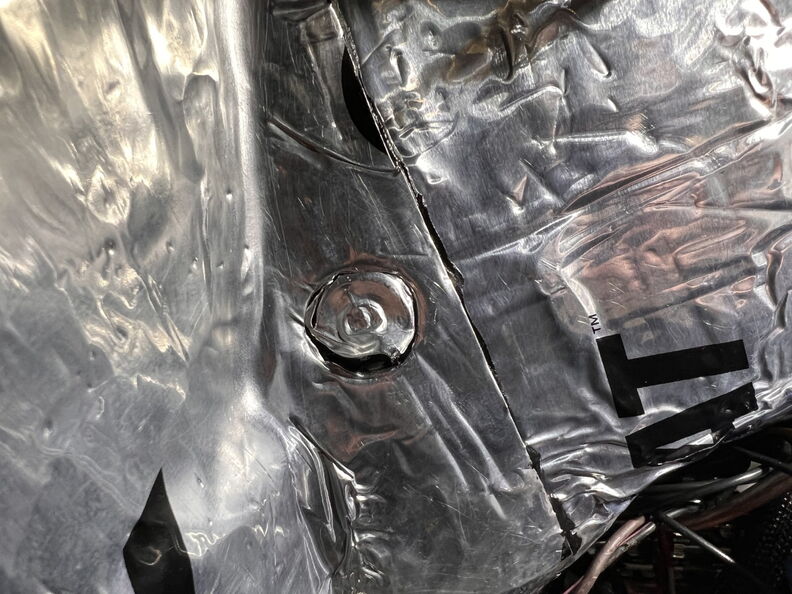

Simple push them into the sound deadening and then trim it out with an Exacto Knife.

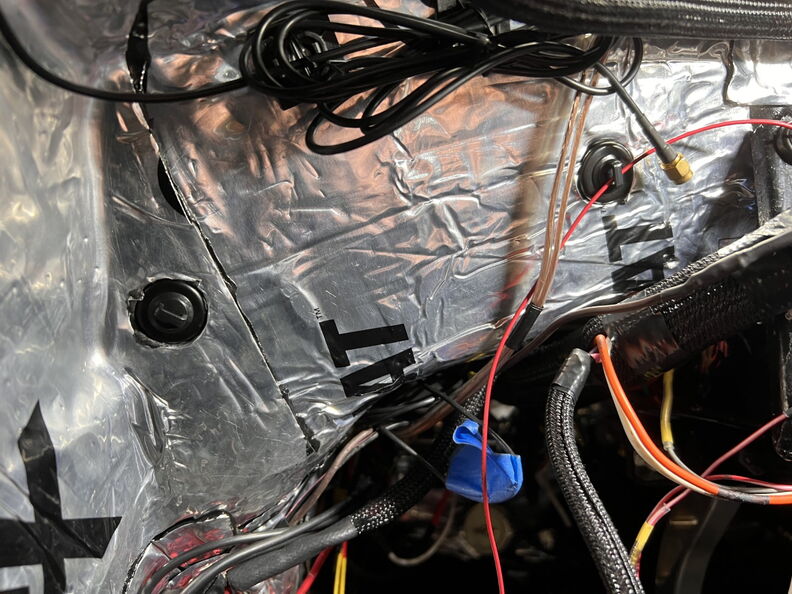

http://garagescene.net/_data/i/uploa...f6f8547-me.jpg

http://garagescene.net/_data/i/uploa...36e0d9e-me.jpg

http://garagescene.net/_data/i/uploa...1456d6e-me.jpg

http://garagescene.net/_data/i/uploa...b7da049-me.jpg

Note to self the Blue/White wire is for a Tach Signal.

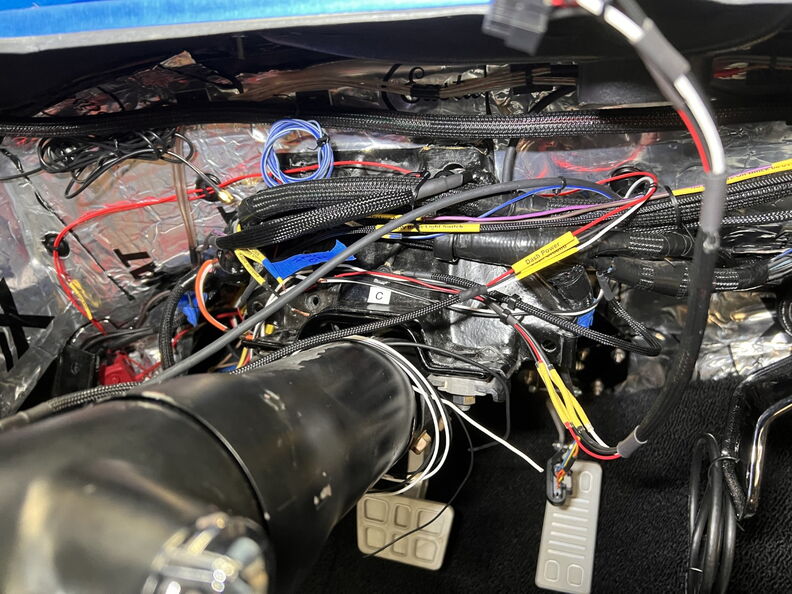

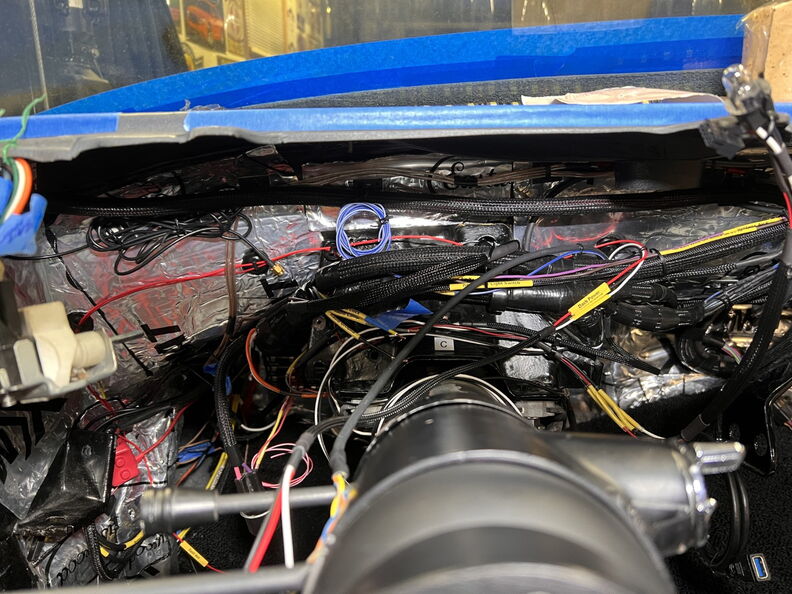

http://garagescene.net/_data/i/uploa...990c364-me.jpg

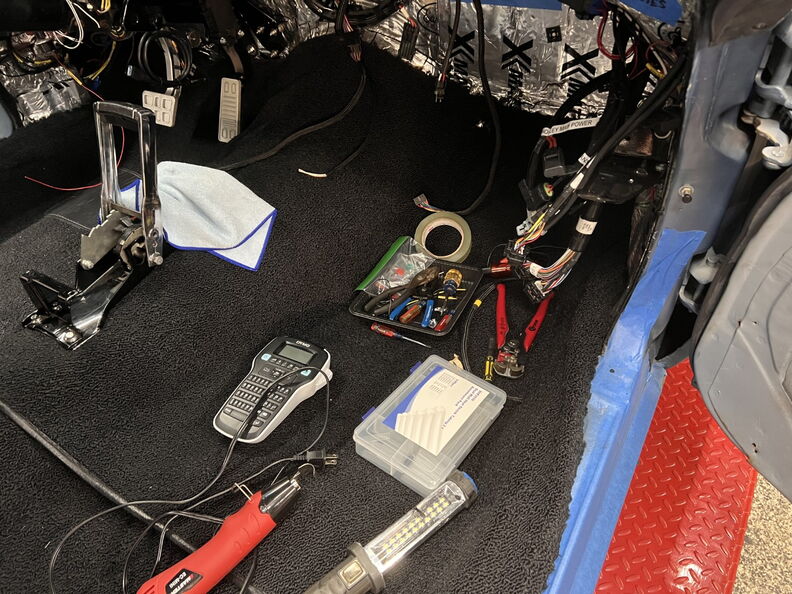

Calling it a night.

http://garagescene.net/_data/i/uploa...ff5bbe9-me.jpg

http://garagescene.net/_data/i/uploa...80045d6-me.jpg
