Personally -- I'd plate all three sides...


I stayed at a Holiday Inn Express last night --- so I'm a chassis engineer today.


EEEEEEEEEEEHHHHHHHHHHHAAAAAAAAAAAA

Russ called me back this afternoon. He's got a full time gig but offered to fix me up the weekend after next at his father in laws shop. That just happens to be about 5 streets up the hill. :D

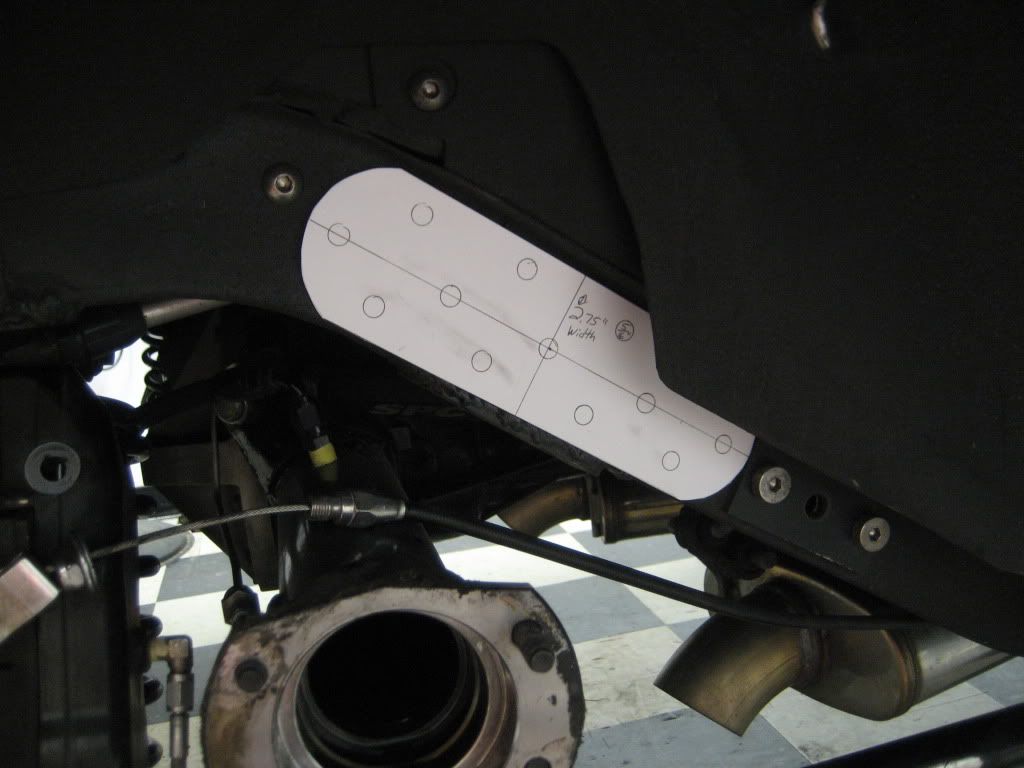

I redesigned the plate to be longer with a radius and smaller holes. The frame is already basically plated on the inside with the cradle but I agree, I'll have Russ add some metal to connect the cradle to the exterior plate on a longer run to distribute more load.
http://i200.photobucket.com/albums/a...1969/001-6.jpg

Great design! I recommend boxing up all 3 sides :thumbsup:

Glad to hear its gonna work out!
Because I was definatly looking forward to you spanking that brad penny!lol

Todd,that design looks real good.:thumbsup: Scott M.

As many of you know, I've been fighting some pretty wicked brake pad knockback since I built the car. Part of dealing with it this long is do to procrastination:D , but it was mostly due to figuring out an economical solution that didn't have to many side effects. Like a full floating rear end that needs serviced way to often, loss of my internal parking brake(Which I really like and use), looked good, and didn't break the bank.(I've already got to much money tied up in this car. :lol:

Big thanks go out to Dustin Burr at Wilwood engineering. We talked and came up with an economical solution. What I did was adapt a GM metric caliper fitment to the rear of my car. A metric caliper came on the front of a boat load of cars from 68 on up. Wilwood just came out with their own version that looks great and maches my fronts well. This is a floating caliper design. It was important that I kept the e brake set up but Wilwood doesn't make a bracket to adapt this caliper to there parking brake set up. Dustin hinted around about a company that does and I have to keep that a secret. They don't normally sell this bracket individually so we'll just leave it at that.

This is as step DOWN in brake performance. Meaning, full out road racing and heat disipation. I stepped down to a 12.2" x .81 rotor. (Old was 12.98 x 1.01)They offer the caliper in 3 piston diameters. I picked a diameter slightly smaller than what I had before. My thought was that I feel most of these cars are built with larger brakes than needed out back. Take a look at any Corvette, minus the c6 z06. It's only 30% of the braking. I feel it will meet the needs of my car. I don't endurance race.

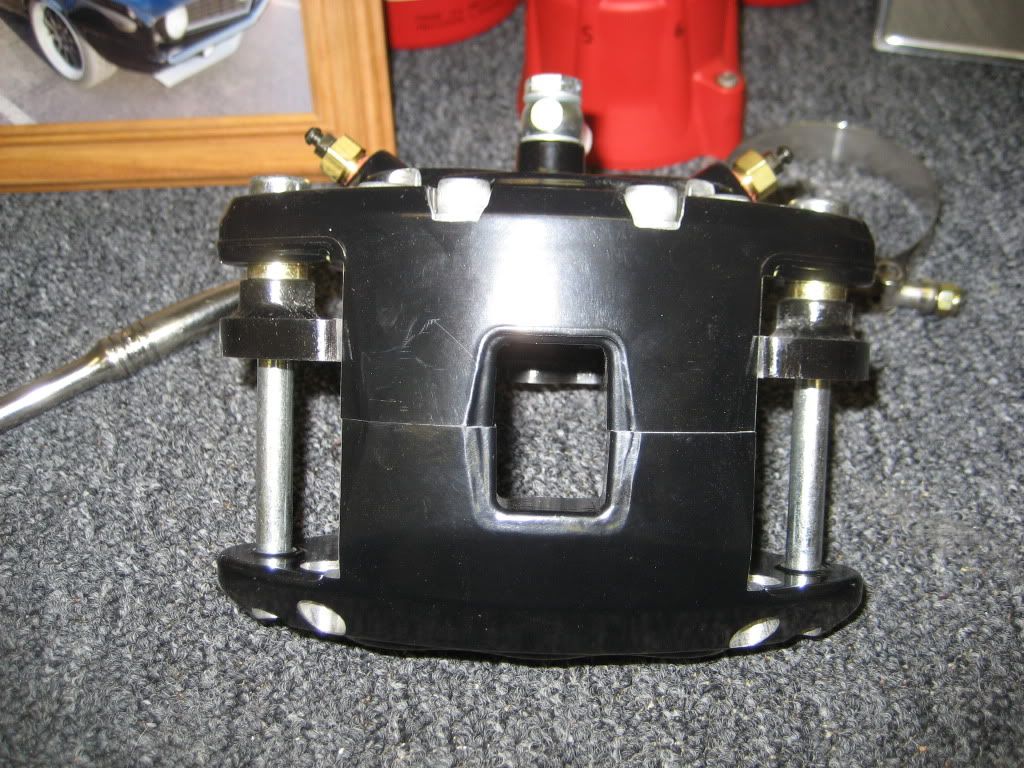

http://i200.photobucket.com/albums/a...kBrakes002.jpg

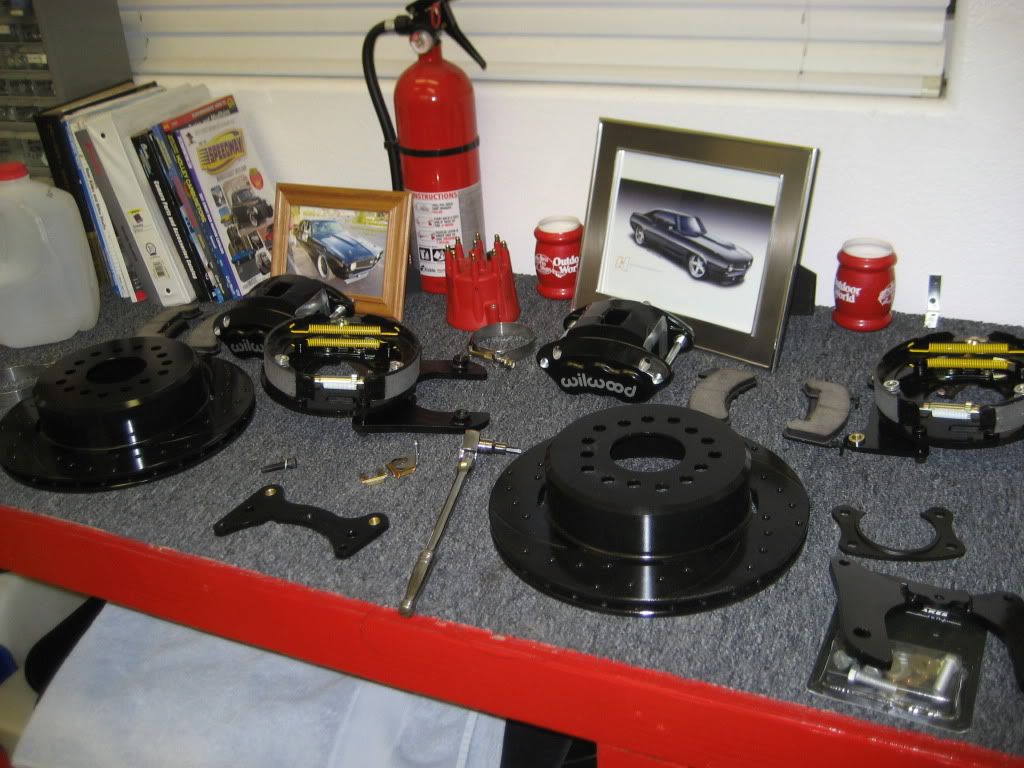

http://i200.photobucket.com/albums/a...kBrakes001.jpg

As usual, when you put your own swing on things, it comes with it's problems. Just a couple little things to make it work. The brackets I sourced were to tight to fit over the caliper so I had to clearance them and come up with my own spec of how loose I wanted them. A steel bracket and aluminum caliper made me a little nervous due to the difference in expansion rates. I settled on .015 as a minimum on each side. I was really scratching my head mounting up these brackets. I knew the spacing was wrong. Turns out they forgot to send the spacers and hardware with the brackets. Once I recieved teh missing link, things went well. I didi find the center mounting bolt to pass into the e brake slide so I ground the bolts down about 1/8 so the e brake shoes could move as designed.

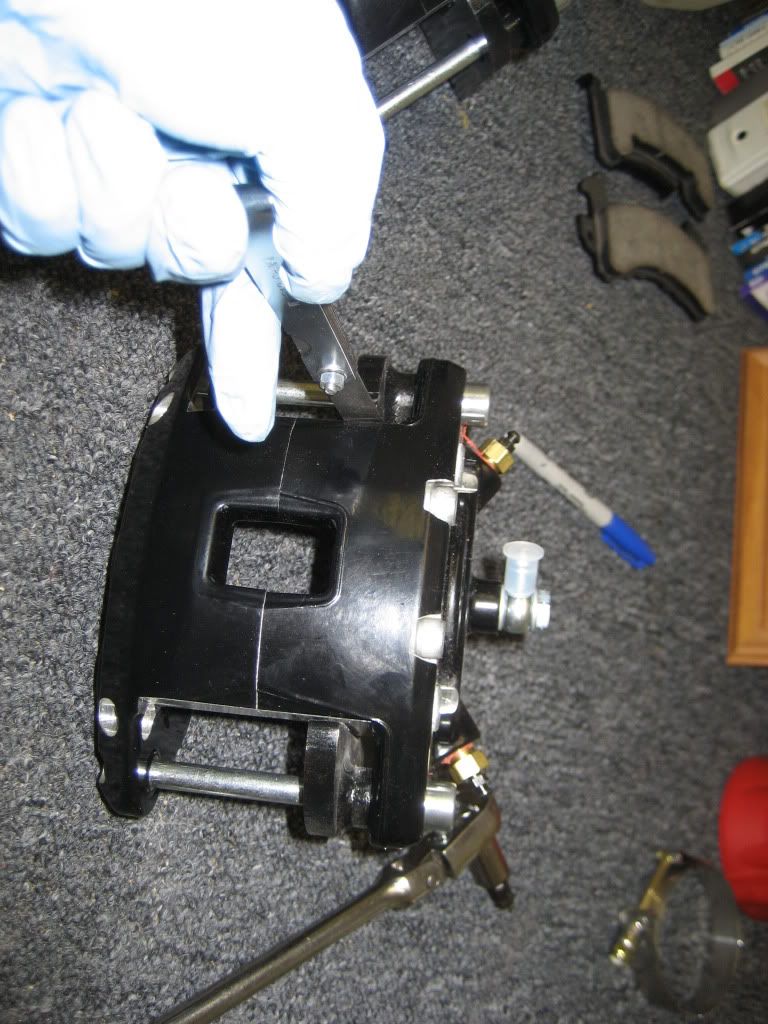

http://i200.photobucket.com/albums/a...kBrakes003.jpg
I'm really happy with how they look. I took her out for a ride tonight and it stops great. The pedal is high and hard. I put it through the paces that would've induced the pedal drop in the past and I was only able to detect a hint of knockback. If the track results back this up. I'm going to be a happy dude! I'll report back after my next event.

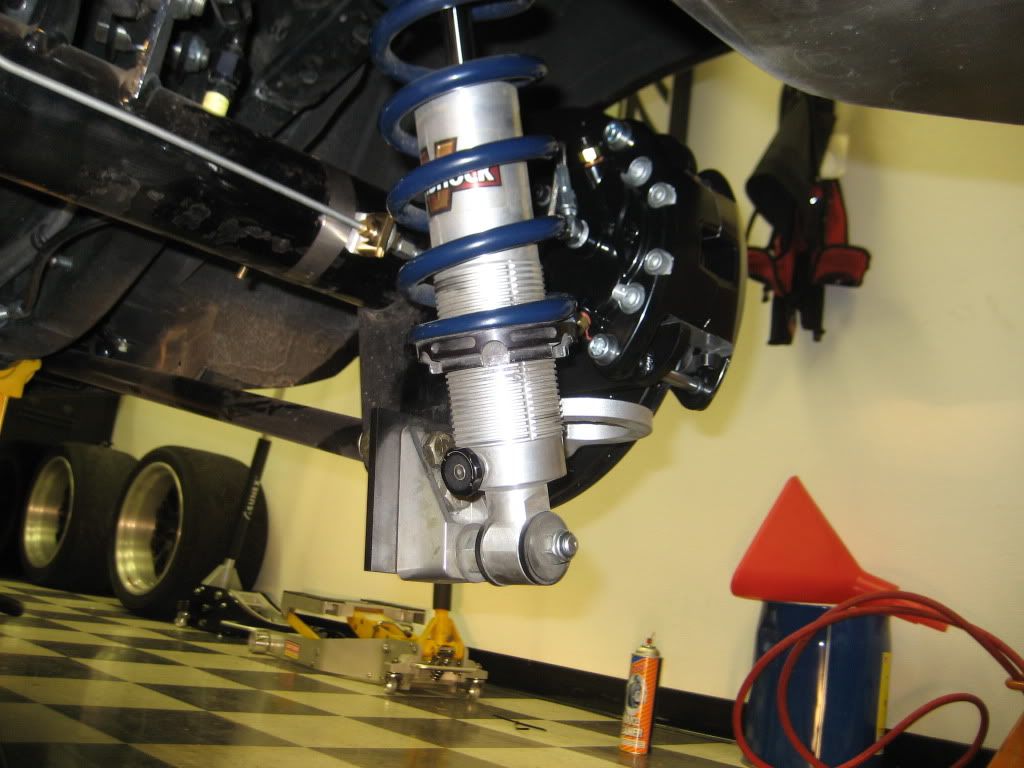

http://i200.photobucket.com/albums/a...kBrakes010.jpg
http://i200.photobucket.com/albums/a...kBrakes009.jpg

Hope that solves the issue once and for all. Be interested in hearing the after action report on this fix.

Way to keep after it brother.

:thumbsup: :thumbsup:

Good luck,At your next racng event.:thumbsup:

So was Kelly helping you, or are you one of those guys that don't like to get his hands dirty?

Is this a single, dual, or four piston caliper?
