2nd Chance Camaro - Mocking up the Kore3 Brakes

2012 03-20 Update - Mocking up the Kore3 Brakes
www.2ndchancecamaro.com

Good Evening all,

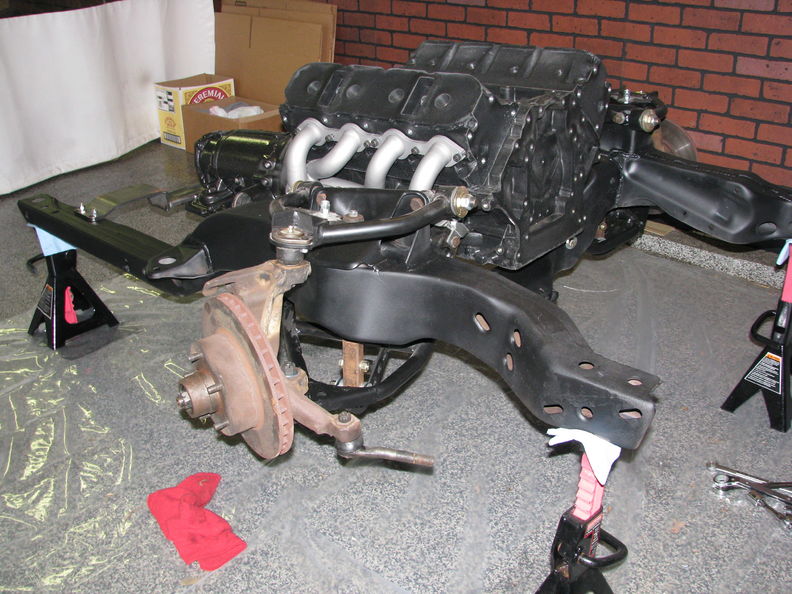

Time to start putting on all of the cool parts I've acquired. First to go back on were the old spindles.

http://garagescene.net/_data/i/uploa...6dc1d21-me.jpg

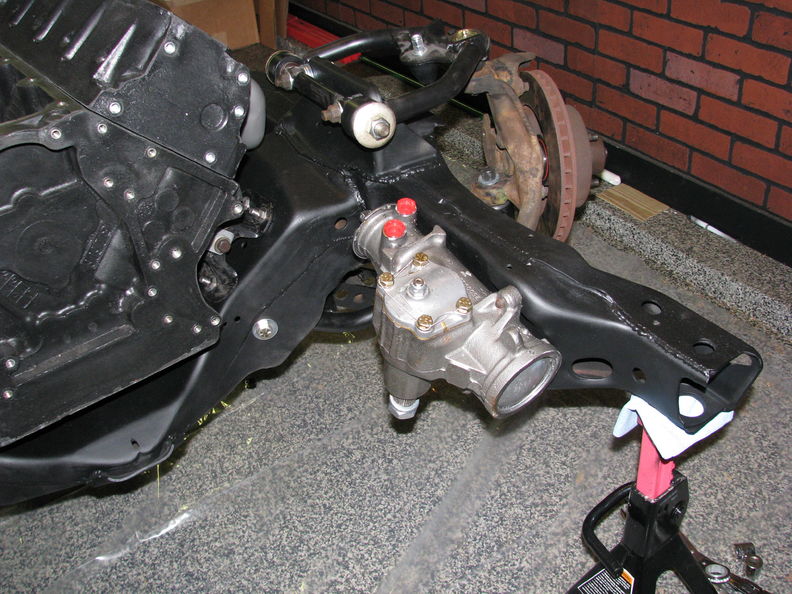

Then I installed the AFCO steering box from www.hoodpins.net .

http://garagescene.net/_data/i/uploa...9f0e152-me.jpg

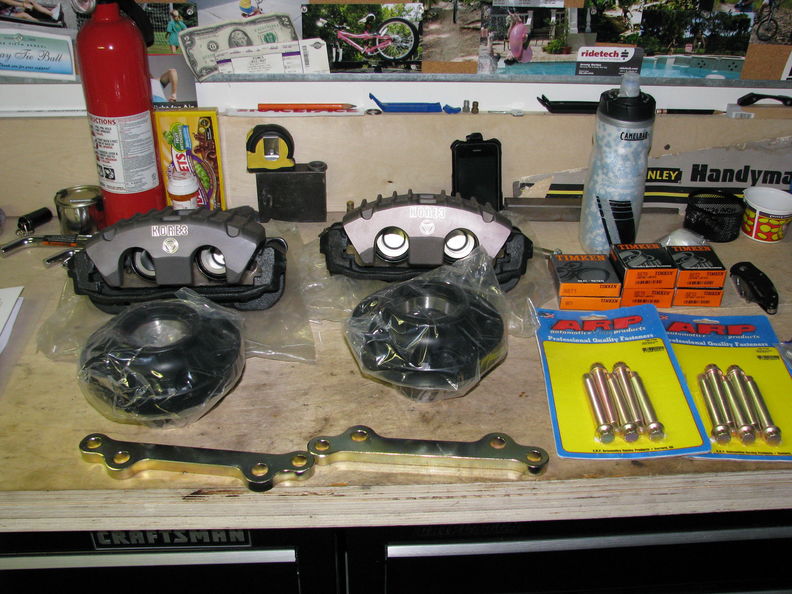

Next to install was the Kore3 Front Brakes it is a very complete kit and simple to install.

http://garagescene.net/_data/i/uploa...16e7ec1-me.jpg

Per the easy to follow instructions.
First cut off the ears to make room for the new brackets. I took a little off at a time remember once it's gone it's gone so don't go
crazy. Be safe take off a little at a time.

http://garagescene.net/_data/i/uploa...8c57da4-me.jpg

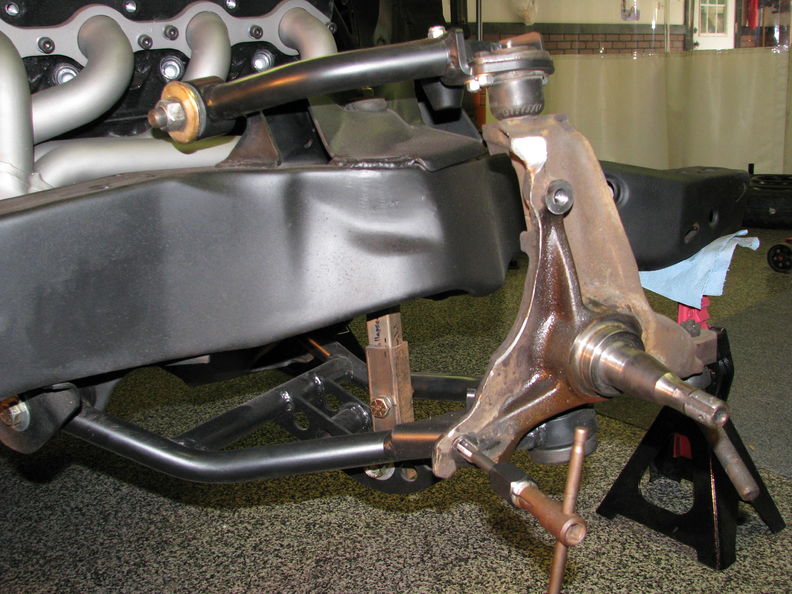

Here is what the final spindle modification looked like. The next step it to drill out two of the dust shield bolt holes and re-tap them for new
hardware.

http://garagescene.net/_data/i/uploa...9622dd2-me.jpg

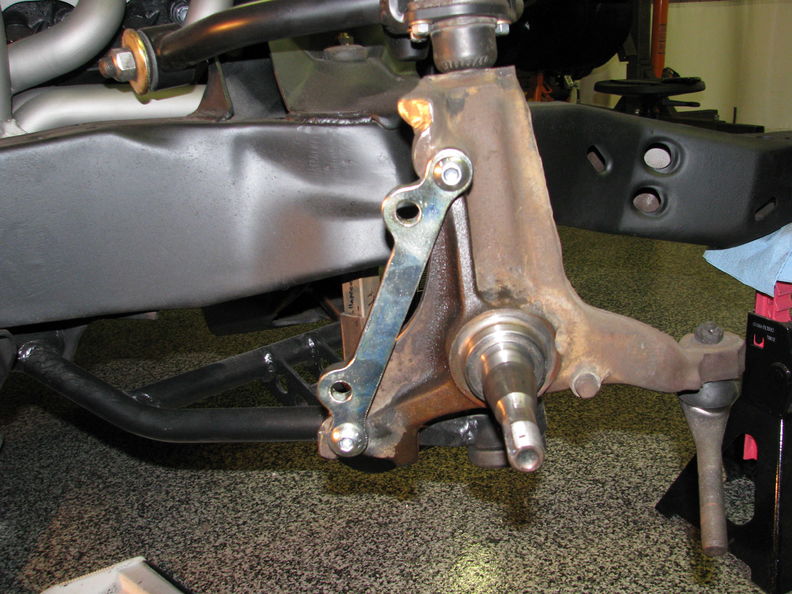

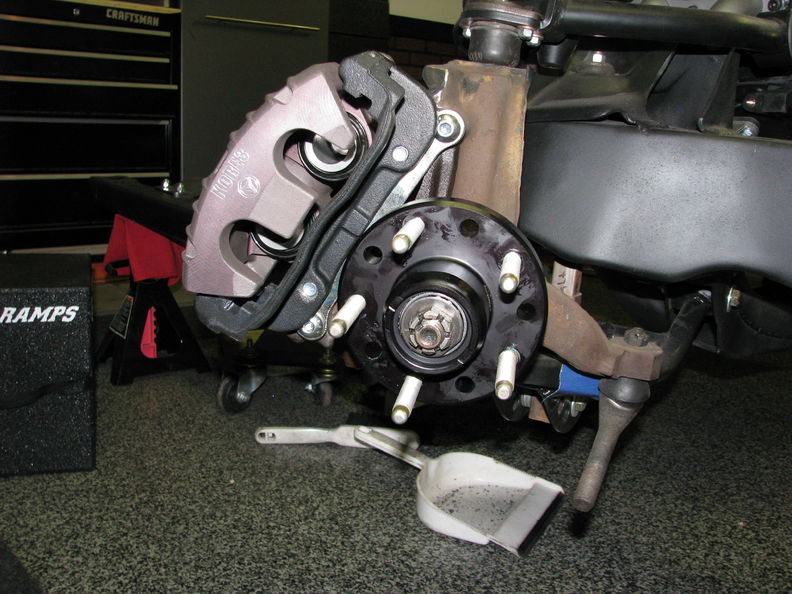

Now you can install the Bracket, Caliper & Hub

http://garagescene.net/_data/i/uploa...011452e-me.jpg

http://garagescene.net/_data/i/uploa...fa29840-me.jpg

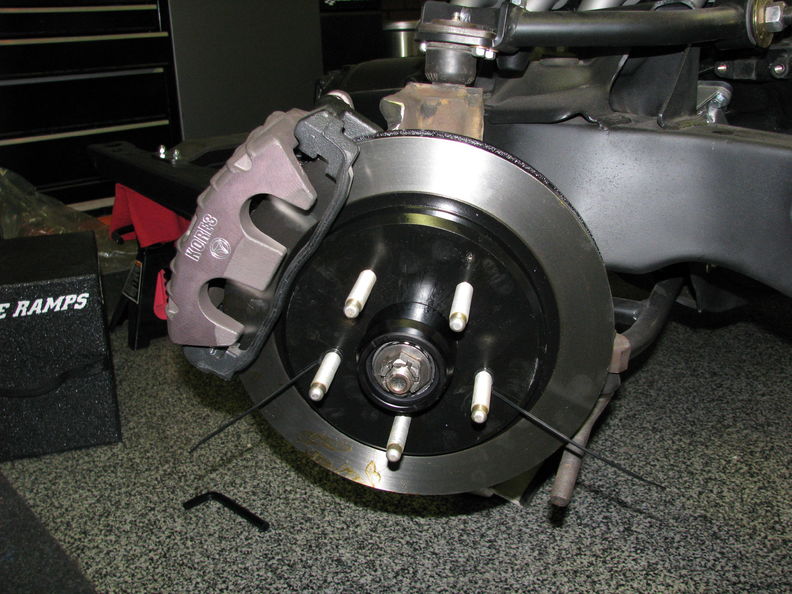

All I need now is the correct rotor however I left it at my warehouse so for now I am going to use the rear rotor. I just wanted to see
how the brakes will look installed. I am very happy with this kit and the total install time was less then 2 hours.

http://garagescene.net/_data/i/uploa...e76a990-me.jpg

More to come later this week.

Pictures hosted by www.garagescene.net

Tobin does make some nice stuff.

Marty,:thumbsup: :thumbsup: :thumbsup:

I have the exact same kit on my Firebird! Upgraded to Z51 rotors front and rear though so it's a C5 caliper/C6 rotor hybrid. 13.4" up front and 13" out back.

http://i691.photobucket.com/albums/v...-05Sema840.jpg

I think it fills the 18" Rushforth SuperSpokes out nicely! :D

Yep, We are going to be upgrading the rotors for sure. These were bought just for Mock up. Wait till you see what were doing it's going to be very cool.

ps - I can't tell you yet but it's going to be blow peoples mind.

2nd Chance Camaro - Rear Axle Prep

2012 03-22 Update - Rear Axle Prep
www.2ndchancecamaro.com


Good Morning all,

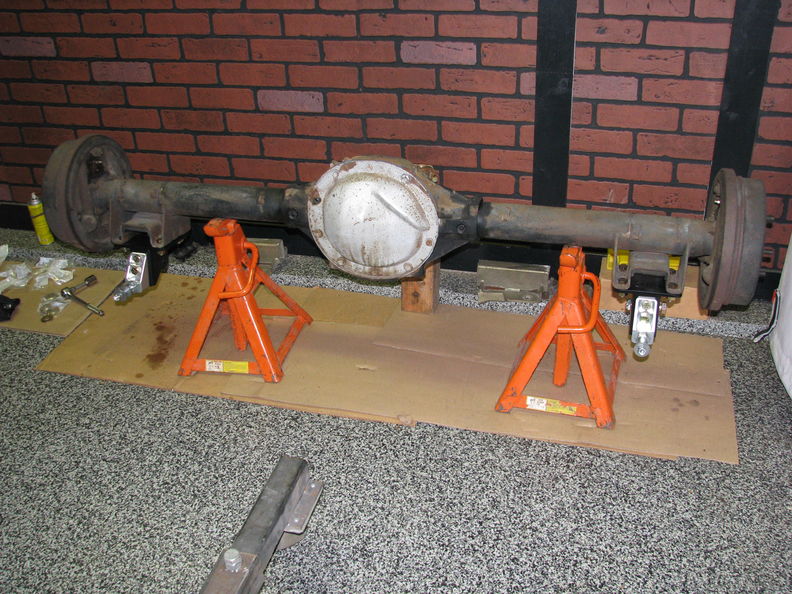

It's time to get the rear suspension on the car so I can get it off Mario's Rotissorie. The Rear suspension is a pretty straight forward install.

http://garagescene.net/_data/i/uploa...20378dd-me.jpg

My oldest daughter figured I was hungry so she made me lunch. Now that is a good kid!

http://garagescene.net/_data/i/uploa...0ef6aed-me.jpg

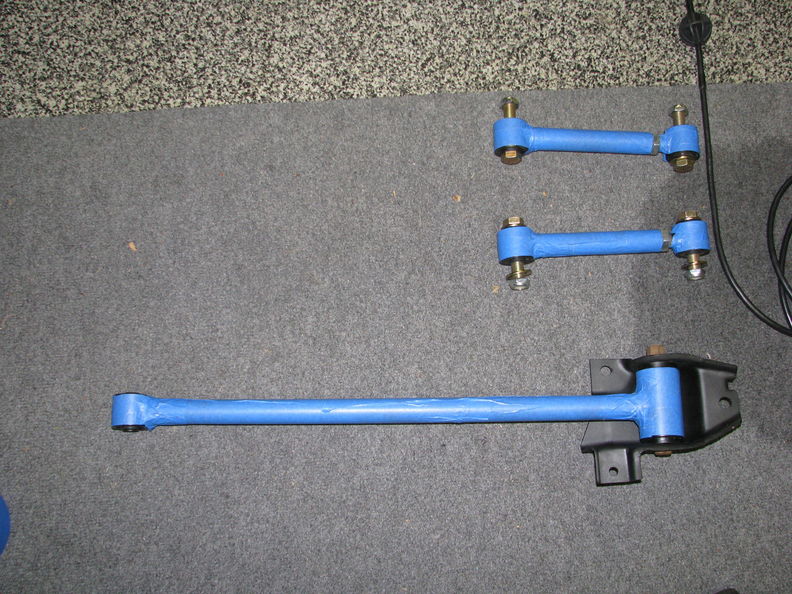

Since the upper link bar brackets needs to be welded to the axle I wanted to make sure the Powder Coating wouldn't get damaged on the
upper bars. Time to take stock in the 3m Blue Painters Tape.

http://garagescene.net/_data/i/uploa...fa2d16d-me.jpg

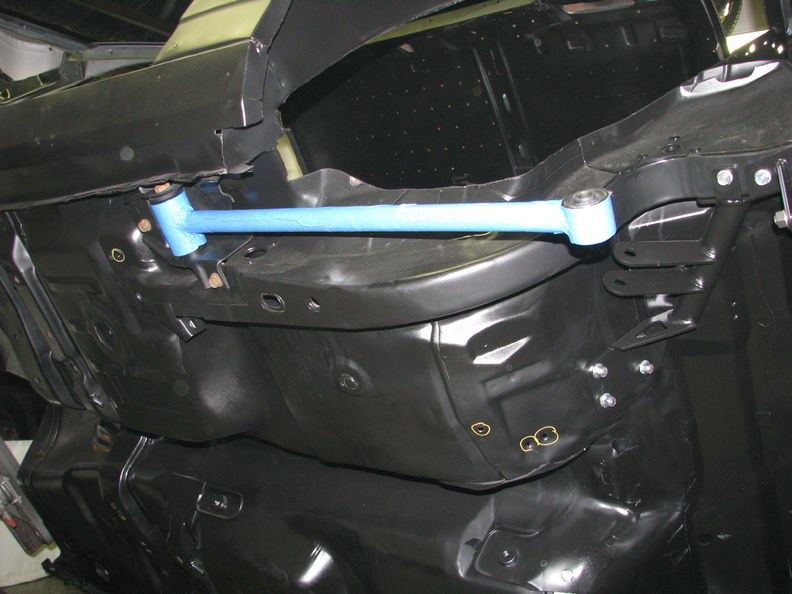

Lower Bar installed

http://garagescene.net/_data/i/uploa...b3d4fcd-me.jpg

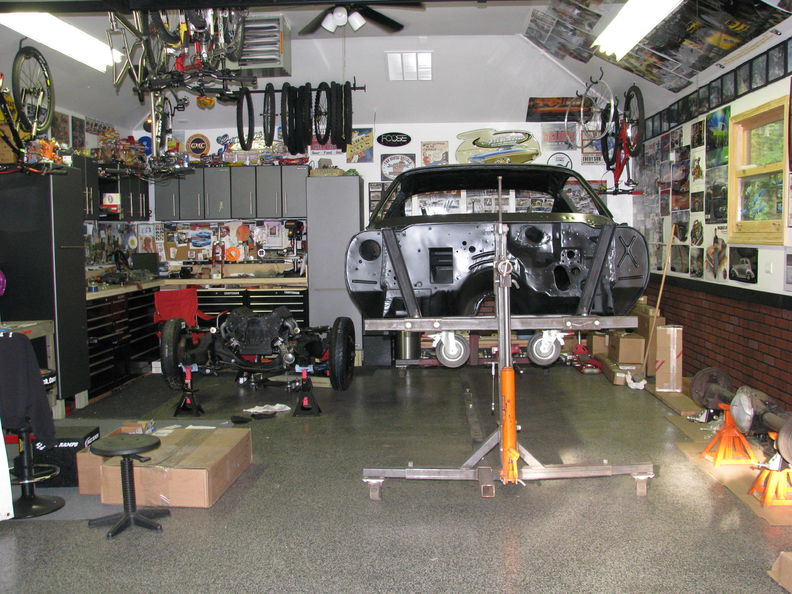

I just like this picture.

http://garagescene.net/_data/i/uploa...34fde13-me.jpg

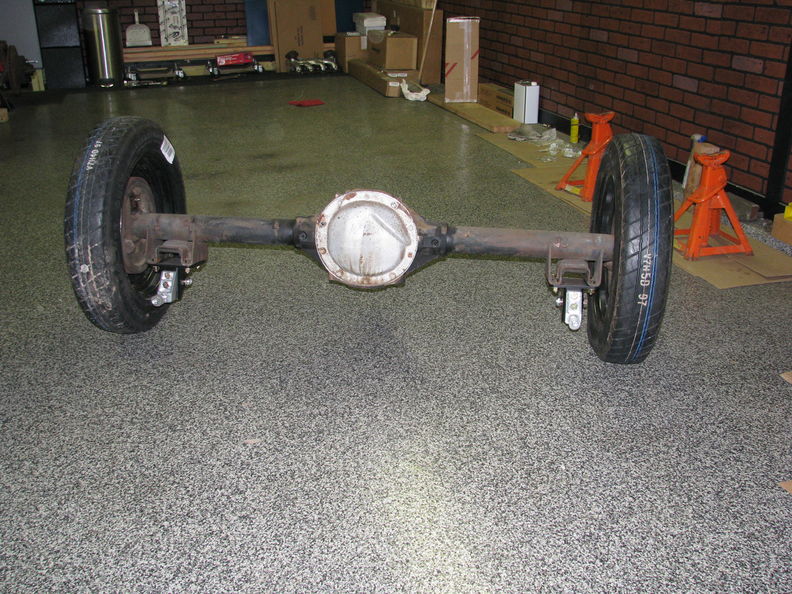

I needed to get the rear differential in the trailer so my daughter Kenzie and I installed the rear tires so she could roll the rear differential into the trailer.


http://garagescene.net/_data/i/uploa...e4f06de-me.jpg

and yes she did it all by herself. Man is this little girl strong.

http://garagescene.net/_data/i/uploa...3f074e2-me.jpg

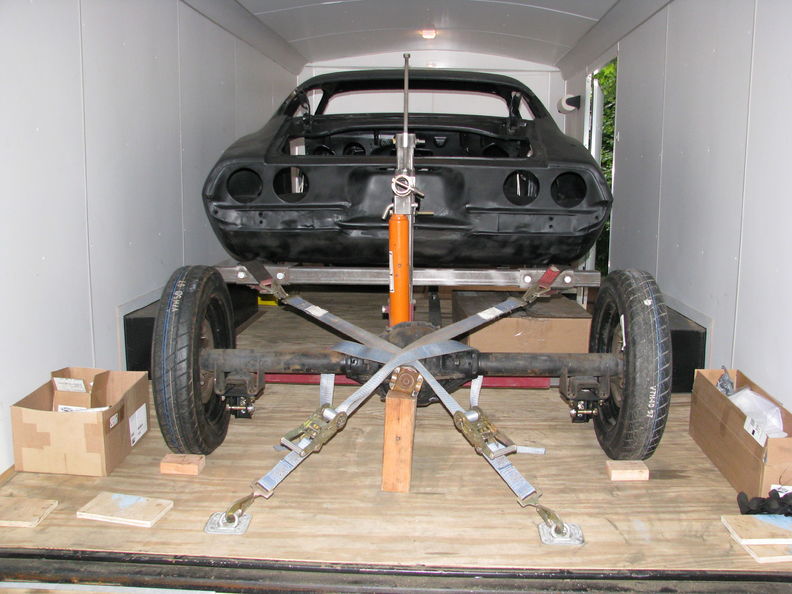

In the trailer and heading over to High Speed Welding so they can weld on the rear differential brackets.

http://garagescene.net/_data/i/uploa...58444db-me.jpg

Pictures hosted by www.garagescene.net

2nd Chance Camaro - Installing the Ride Tech Rear Brackets

2012 03-26 Update - Installing the Ride Tech Rear Brackets
www.2ndchancecamaro.com

Good Evening all,

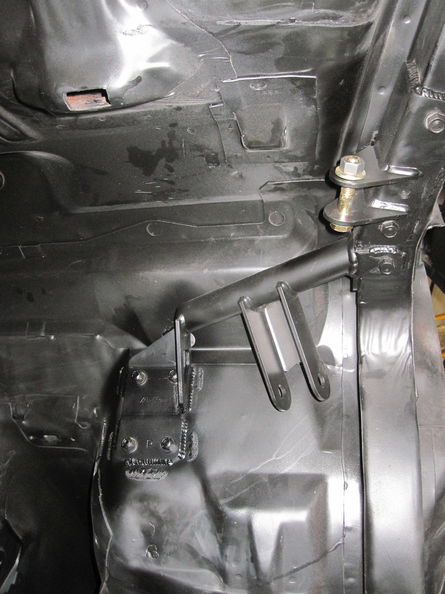

While the car was at High Speed Welding the guy's flattened the passenger side bracket to match this cars
floor pan. Very simple tweak that had to be done. Even though these parts are meant to be bolt-on some-times
they require a little work to fit better.

http://garagescene.net/_data/i/uploa...9a9e194-me.jpg

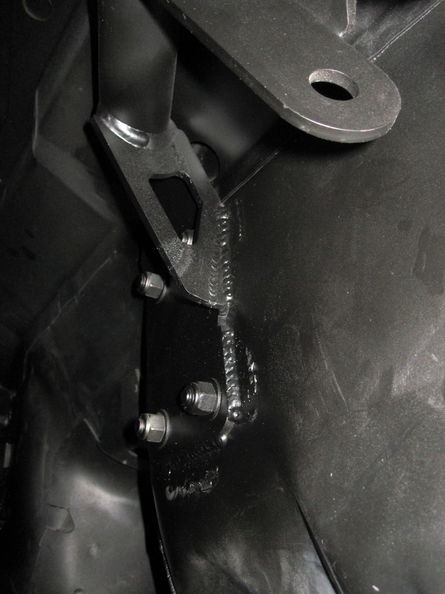

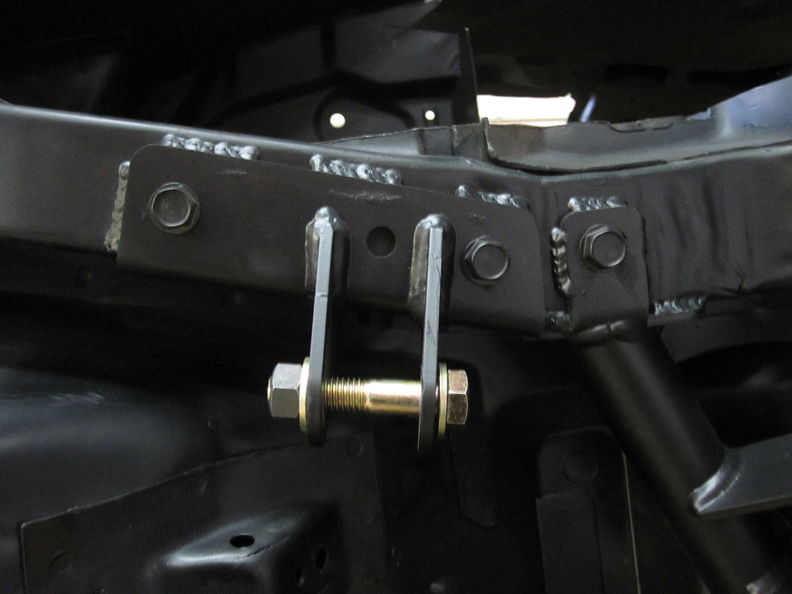

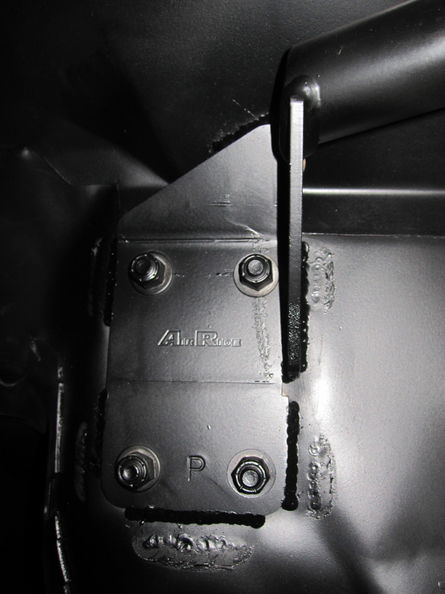

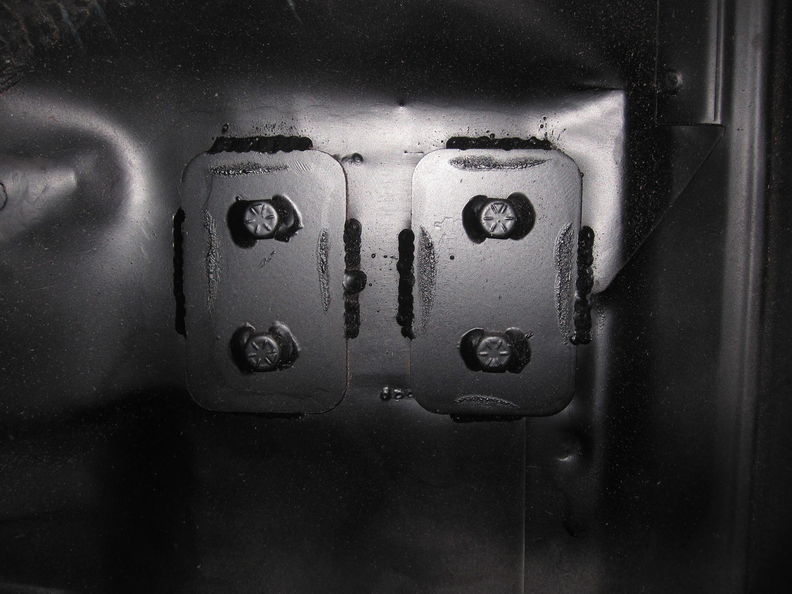

After some discussion Dennis at High Speed Welding felt it was important to retain the hardware supplied
by Ride-Tech and to weld the brackets to the stock subframe to help distribute the load on the stock frame rails.

http://garagescene.net/_data/i/uploa...32cab53-me.jpg

http://garagescene.net/_data/i/uploa...bf4424b-me.jpg

http://garagescene.net/_data/i/uploa...e739a1c-me.jpg

http://garagescene.net/_data/i/uploa...1dc9ee1-me.jpg


More to come later this week.

Pictures hosted by www.garagescene.net

2nd Chance Camaro - Finishing Up the Mini-Tub Install

2012 03-27 Update - Finishing Up the Mini-Tub Install
www.2ndchancecamaro.com

Good Morning all,

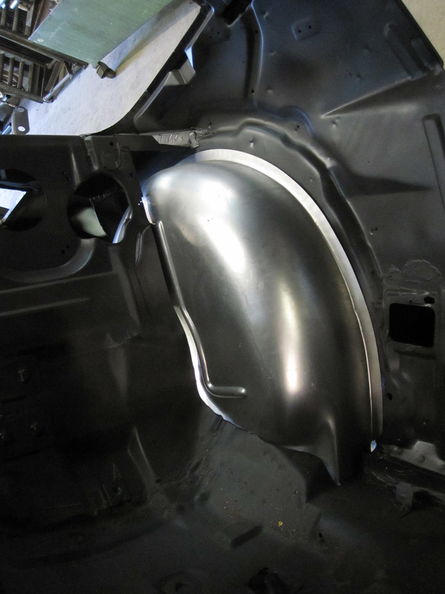

The guys at High Speed finished off the install of the Mini-Tubs.
Mario did a such great job cutting out the original tubs it made short work for the guys.

http://garagescene.net/_data/i/uploa...766c2d3-me.jpg

You can see that they have already bent up one side.

http://garagescene.net/_data/i/uploa...ade87e4-me.jpg

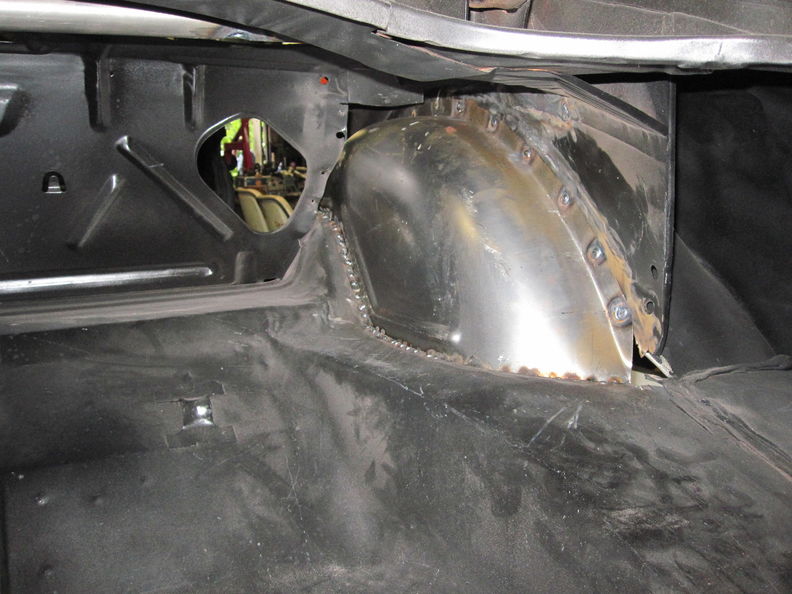

The passenger side is in and still needs a little patch work.

http://garagescene.net/_data/i/uploa...a3886ae-me.jpg

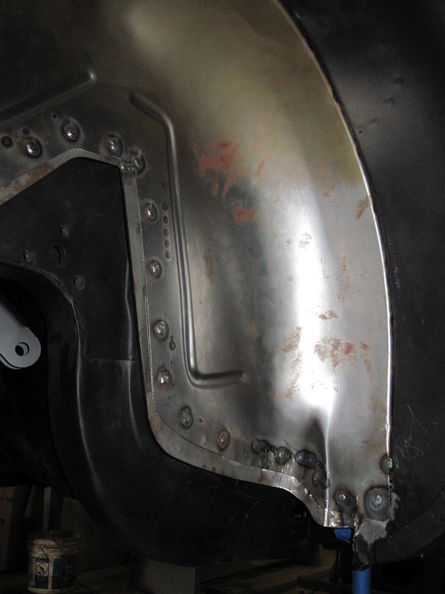

Quick look from inside the wheel well

http://garagescene.net/_data/i/uploa...450ac8d-me.jpg

Passenger Side Completed

http://garagescene.net/_data/i/uploa...dee2b60-me.jpg

More to come later this week.

Pictures hosted by www.garagescene.net
