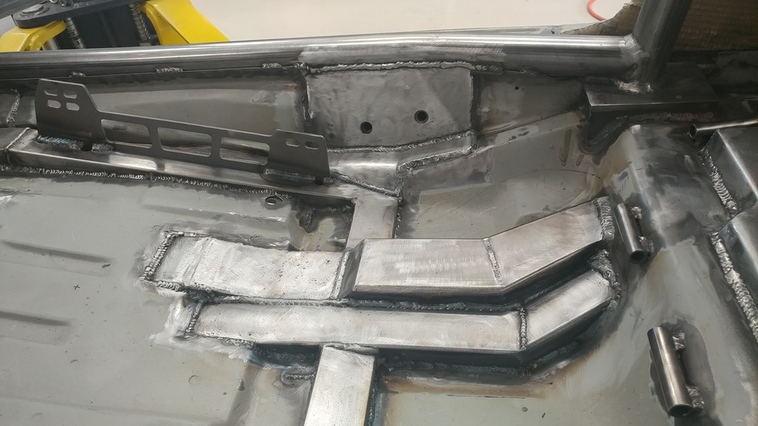

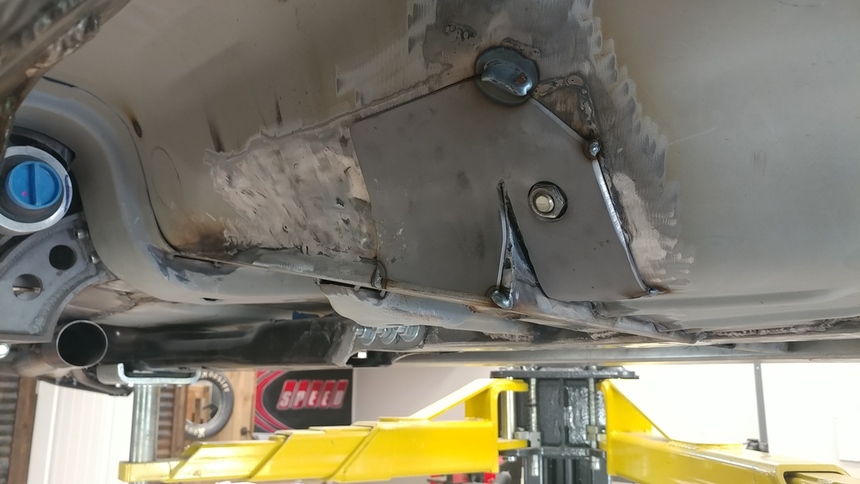

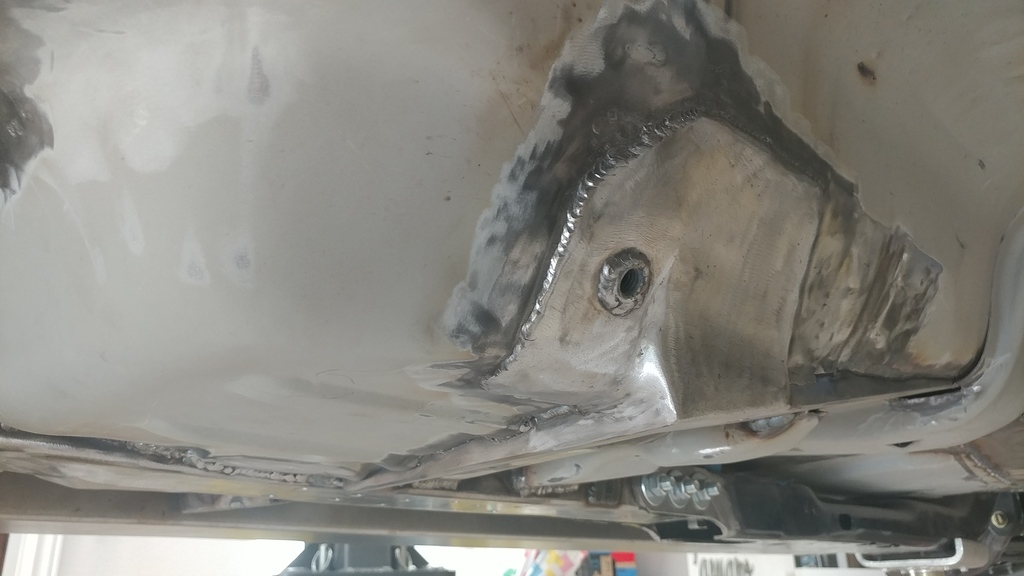

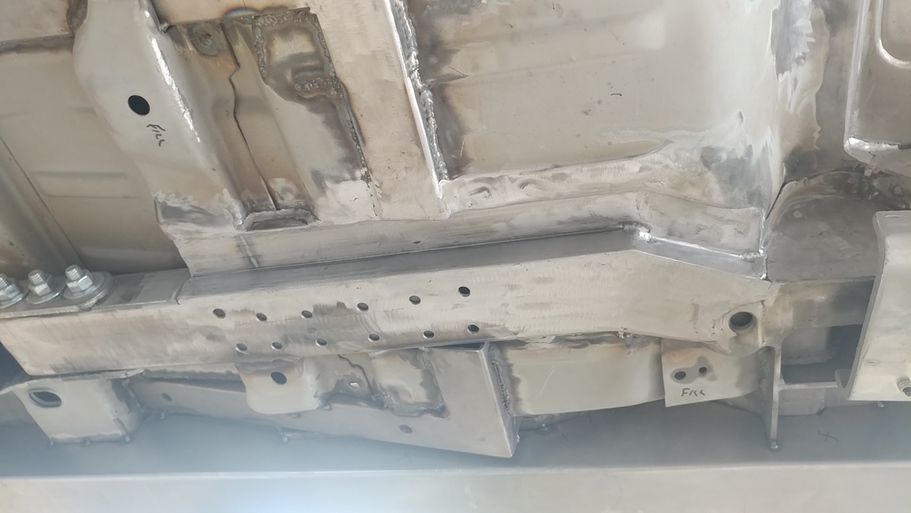

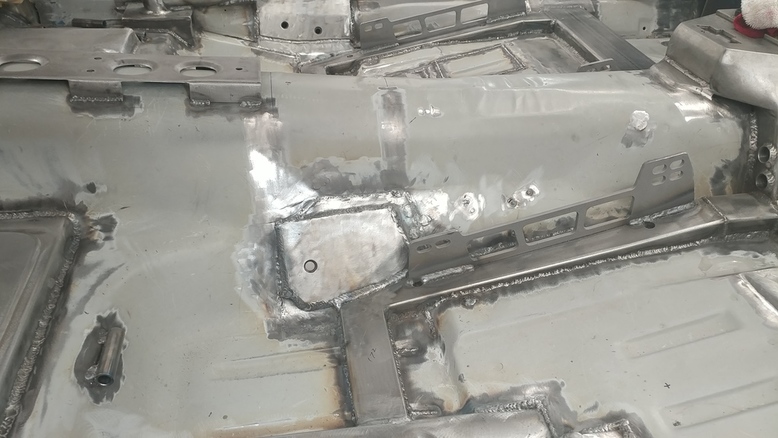

Seat Belt attachment points are done. All have Grade 8 nuts welded to 1/8" plate. I completely removed the factory attachment points on the tunnel side and created all new pieces. I left the factory points on the door side and then added my own plates and a new mounting point further back. All the plates are connected to the seat mounting tubes and/or the roll cage.
Attachment 66842
Attachment 66843
Attachment 66844
Attachment 66845
Attachment 66846

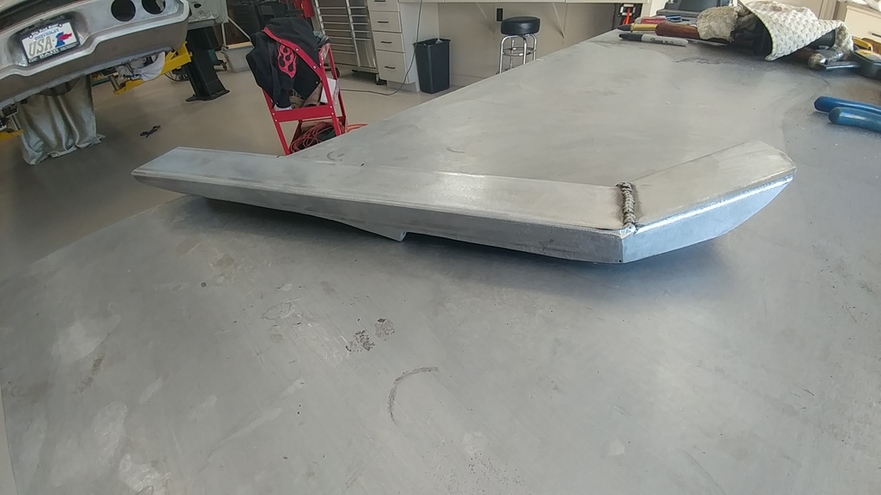

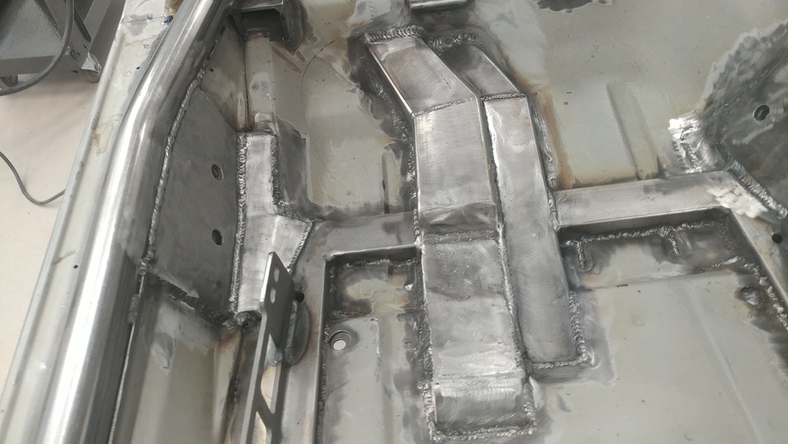

Fabbed up a channel for the fuel line and the brake line. I'll clean up all the welds and finish the rest once it's back on the rotisserie.
Attachment 66847
Attachment 66848

This car is just incredible


Sent from my iPhone using Tapatalk

My guess is the improved belt attachments are only about 400% better.... LOL


Nice work as we've come to expect from you!

Most definitely!

Thanks! Should work pretty well..... I expect to have it back on the rotisserie in next month or so and I'll laminate them then.

Thank you Marty!! Your car has always been an inspriration to me, since seeing it at SEMA and meeting you...think it was 2011? Maybe 2012? Geez, where has the time gone.

Looking really good. I’ll be keeping an eye on this to see how you run your fuel lines. I put the same channel in my floor right next to the DSE subframe connectors and an not real happy with how mine are routed currently.
