So....yeah.....more photos.....

I have the fill plates on the drivers side complete.

http://i490.photobucket.com/albums/r...e/CIMG3932.jpg

Still working on the passenger side. Nothing happened tonight. I decided to make a really nice lobster/scallop risotto for my wife tonight. BTW, Girgich Cellars Chardonnay.....get some.

So yeah....not all is grinding, wire-brushing and burning my junk with weld spatter.

We have some parts porn!

Front suspension coming together....

http://i490.photobucket.com/albums/r...e/CIMG3934.jpg

ATS spindle
Speed-Tech Upper/Lower Control Arms
LG Motorsports brake backing plate
$2.00 worth of angle iron from Lowes pretending to be a shock absorber

http://i490.photobucket.com/albums/r...e/CIMG3935.jpg

ATS/Lee Manufacturing Steering gear:

http://i490.photobucket.com/albums/r...e/CIMG3936.jpg

I know, I know...the nice cad plating.....CA EPA said Lee can't use the stuff anymore.....freakin hippies.

Something light and itchy and strangely similar to a decklid

http://i490.photobucket.com/albums/r...e/CIMG3938.jpg

One of my favorites up there on the top shelf......The Twist-Machine / Jakes Rod Shop rear spoiler. That thing makes me tingle in my special place.

http://i490.photobucket.com/albums/r...e/CIMG3940.jpg

One of my next projects is to create a bulkhead out of all of these holes. Haven't decided if I want to weld a bit of metal into each of those openings, or just cover the whole thing up with a couple of sheets bent to fit. Suggestions?

http://i490.photobucket.com/albums/r...e/CIMG3939.jpg

Ok...totally unrelated..... my wifes father installed this sink in the house. Her parents have both long since passed and we've totally renovated the entire house. I still have some of her Dad's tools and they still get used quite a bit which I think is kinda cool.

http://i490.photobucket.com/albums/r...e/CIMG3941.jpg

.....and a couple months ago in Grassroots Motorsports Magazine they did this silly test of commercial hand cleaners. They found that something rather odd worked better. That's whats in the white tub. A couple of days worth of coffee grounds and a few tablespoons of dawn. Seriously, it works amazingly well and sure is cheaper than commercial hand cleaners.

Thats all for now.....

I now have my wife saving her coffee grounds.

Well the drivers side tub is all but finished. Just need to grind the welds down a bit, close over that flap on the lower forward bit and hit it with the seam sealer.

I have a quart of seam sealer from Eastwood, but I'm wondering if it might be better to use a different product that is more of a caulk type. Any thoughts?

http://i490.photobucket.com/albums/r...e/CIMG3943.jpg

http://i490.photobucket.com/albums/r...e/CIMG3944.jpg

http://i490.photobucket.com/albums/r...e/CIMG3945.jpg

http://i490.photobucket.com/albums/r...e/CIMG3948.jpg

http://i490.photobucket.com/albums/r...e/CIMG3949.jpg

Very nice :thumbsup: :thumbsup: :cheers:

Awesome job so for, can't wait to see more.:thumbsup:

A caulk type seam sealer might be easier to put in that inner to outer wheelhouse seam.

Any good seam sealer would do, but the tube type that goes into your caulking gun would be easier to apply and force into the gap. Just be sure the degrease the bare steel and shoot it with some type of etch prime to avoid future rust before you apply the seam sealer.

My dad told me that "your caulk shrinks after 35 years". This has me concerned.

My dad told me that "your caulk shrinks after 35 years". This has me concerned.


HAHAHA LMFAO

Why was your pop's looking in my windows 5 years ago?

LOL. I guess that's why they make the Corvette.

HA HA, yeah I prefer pics to reading!! :lol:

Nice progress!! :thumbsup:

It really works quite well.

Ahhhh the tubs are done. Thank God allmighty the tubs are done!

Well, I still need to seam seal everything, but I think I'm going to wait until after I finish the rear suspension install and seam seal the whole shootin match at once.

The black stuff is Eastwood "Rust Encapsulator". They said it makes a primer/sealer for underbody stuff so I went with it. I'll seam seal then cover everything in "Lizard Skin" sound/heat attenuation material.

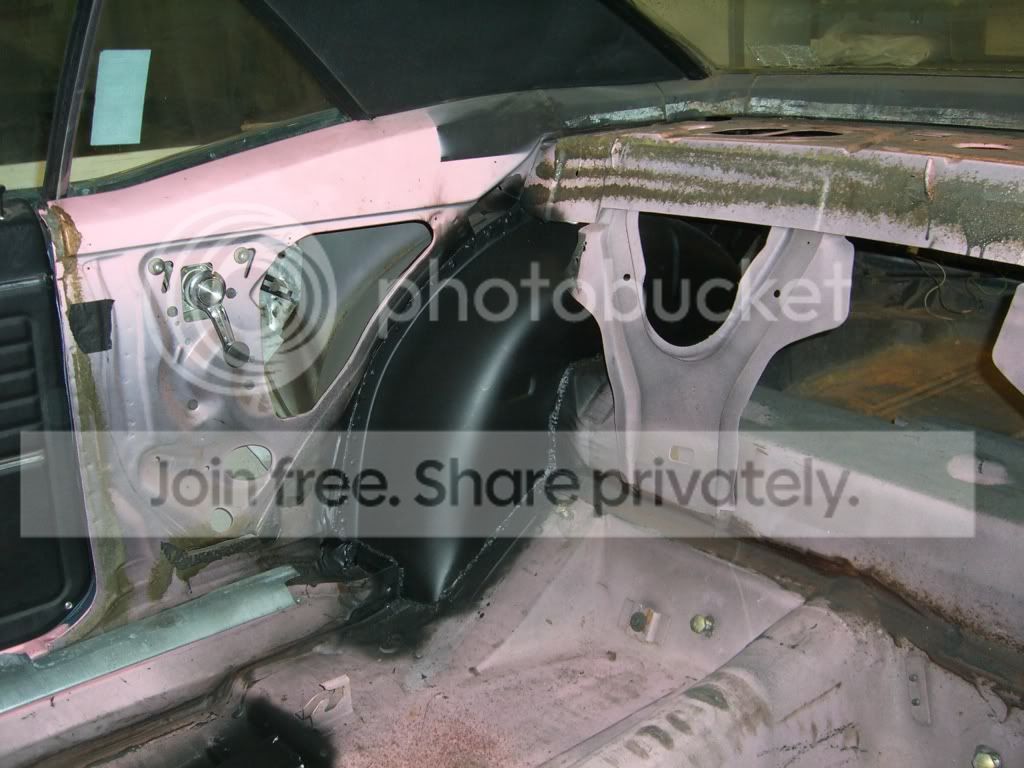

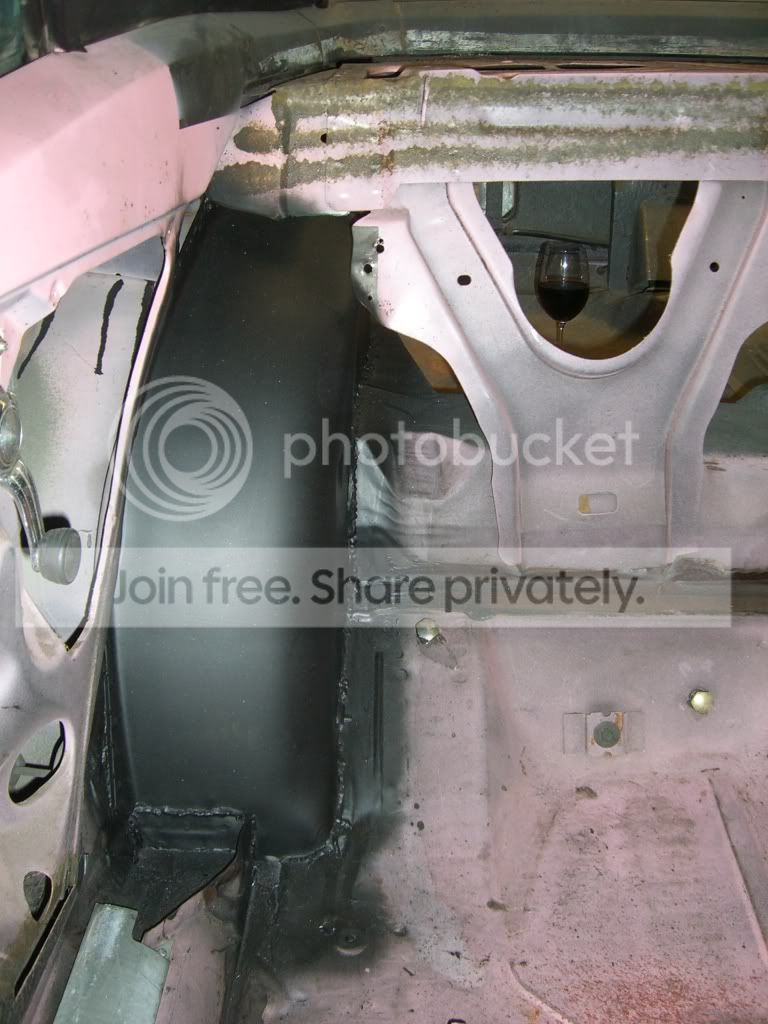

Pax side tub from the inside:

http://i490.photobucket.com/albums/r...e/CIMG4003.jpg

http://i490.photobucket.com/albums/r...e/CIMG3998.jpg

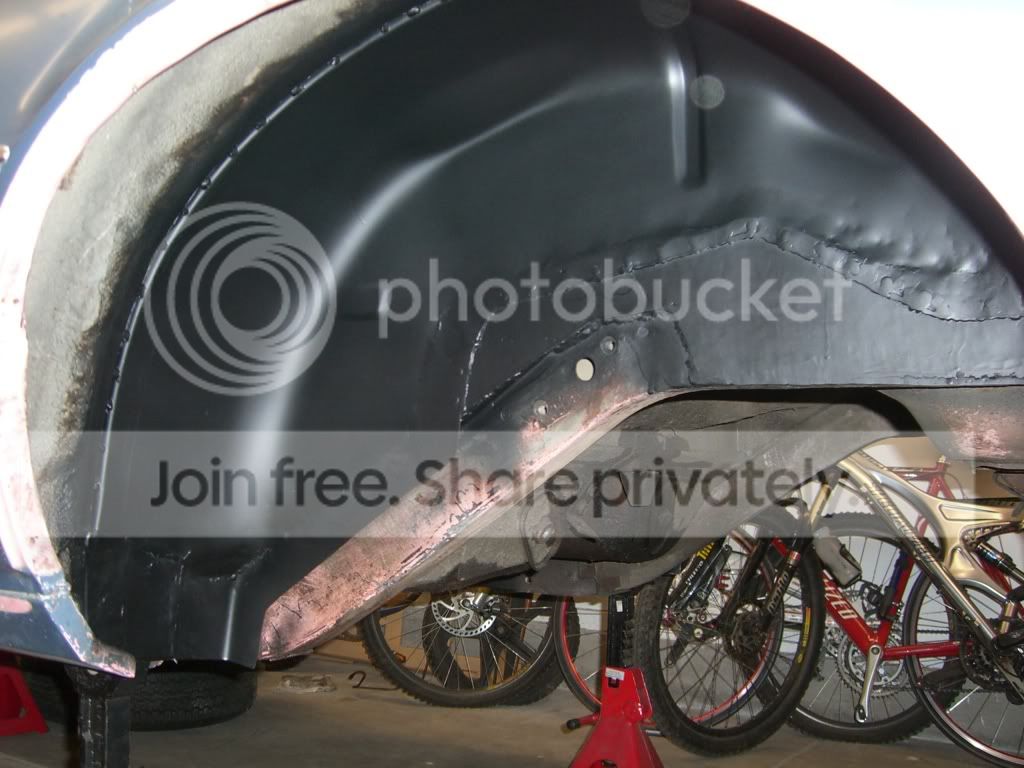

Drivers side tub, from the outside:

http://i490.photobucket.com/albums/r...e/CIMG3997.jpg

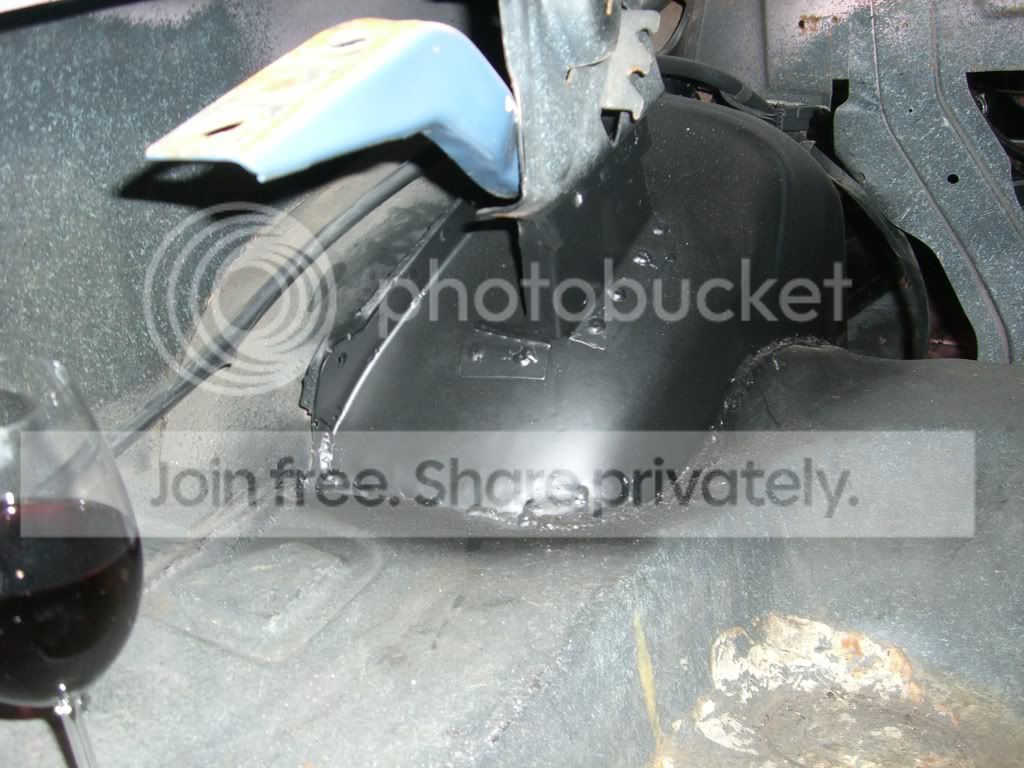

Drivers side from inside the trunk.

Tweaking the trunk hinge support to fit the profile of the new tub was quite a challenge. I bent, unbent and rebent each of them at least 1/2-doz times.

The sheetmetal is a bit ugly just above the weld. I had to hammer the tub to fit the curvature of the cutout. I'll hit it with a little trunk spatter and if that doesn't hide the ripples I'll break out the hammer/dolly and smooth it.......I hope to not have to though.

http://i490.photobucket.com/albums/r...e/CIMG3992.jpg


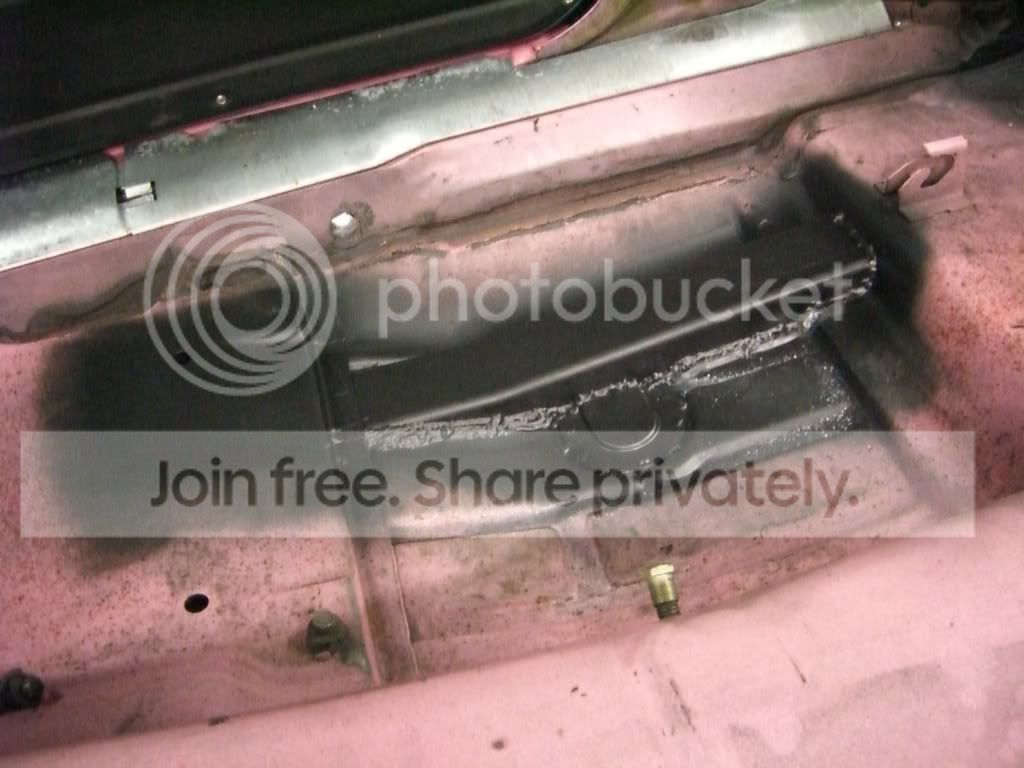

Finished up the subframe connector as well. Welded back in the relief cut in the seat pan trimmed the body drain plug to fit, welded that in and primed the whole mess.

http://i490.photobucket.com/albums/r...e/CIMG4000.jpg



Next up on the hit parade.....stripping all the undercoat from the bottom of the car. This is gonna be a messy freakin job. I am not looking forward to it, but it's got to be done prior to installing the 3-link and sending it off for a cage.

Thanks for watching.....

Nice progress!! I know you are glad the tubs are done!! :woot:

Hey, is that pink paint I spy?? ;)

Nice progress so far. I keep thinking I should have mini-tubbed the Rat.. oh well, can always do it later.

What's the next big project on the car?

So do you drink wine before, during, or after your shop time for the day? :lol:

I'd just finished dinner when I went out to the garage to take the photos.

Beer while working, wine after.

Weld spatter does not complement a Carignane.

Lot's of it!

Well I tell ya....1/2-way through I was second guessing the tubs. I have room for a 335, though I really don't see running anything larger than a 315.

Up next is getting all the undercoat off the bottom prior to installing the 3-link.

I know I said the next task was to remove undercoating from the car but I just couldn't bring myself to crawl around on the floor tonight. My back has been bothering me a bit and......oh now I'm just making excuses....I didn't freakin feel like it. Ok?

So anyway I got a bit of lightweight goodness in the mail a few weeks back:

http://i490.photobucket.com/albums/r...CIMG3938-1.jpg

Fiberglass decklid from VFN fiberglass. Weighs less than 10lbs :D

http://i490.photobucket.com/albums/r...e/CIMG4004.jpg

Pretty darn smooth right out of the box. I'm hoping for minimal bodywork. But...it is delivered a bit oversized which is, I suppose, better than undersized.

[Michael Scott] Thats what she said! [/Michael Scott]

Sooo I had to take a template from the OE decklid and transfer it to the fiberglass replacement. You can see here that the fiberglass decklid is about 1/4" larger than the template. It's oversized by about that much on each axis.

http://i490.photobucket.com/albums/r...e/CIMG4008.jpg

Transferring the template. I am totally good at coloring!!!!

http://i490.photobucket.com/albums/r...e/CIMG4013.jpg

The line is actually at least 3/16" fat all the way around. So what I'll do is cut to the line then begin test fitting and sneak up on the final dimension little by little.

http://i490.photobucket.com/albums/r...e/CIMG4014.jpg

After a bit of sanding....but quite a bit more to go.

http://i490.photobucket.com/albums/r...e/CIMG4016.jpg

Can't believe how much progress you've made...puts the progress on my car to shame! Do you have a goal date set? 1/2-Trak and Trackday gotta tear up Norcal ASAP.

Are you kidding? You are practically running. I'm still doing fab work and haven't even started on the biggest part, putting in the rear suspension.

No goal date. Originally I wanted it to move under it's own power before my 40th birthday (September) but that isn't going to happen. I'm just doing all the stuff that doesn't cost any real money right now. Just time and elbow grease. I still need to get our front and back yards landscaped. House is built, but no yard. Can't do anything expensive until that is done. Gotta keep the wife happy.

As for the last bit. You are on! I plan to auto-x the thing A LOT and get to as many track days as I can.

Knocked out a couple of things tonight.

Had to re-clock the brake cooling ducts on the spindles because they were going to hit the frame. So I had to disassemble the spindle & hub. Easier than it sounds with the fine instructions on Tylers website. How many mfr's post this kind of detail on their website?

Data sheets and install instructions here: http://www.t56kit.com/downloads/

The spindle instructions here: http://www.americantouringspecialtie...ds/files/7.pdf

In the process of re-clocking the backing plate/duct I had to relocate the three holes that are used to clamp the backing plate between the spindle and hub. In doing so I have discovered my new favorite tool.

The uni-bit is freaking awesome! Where have these things been all my life!?!?!?!

http://i490.photobucket.com/albums/r...e/CIMG4089.jpg

So got that done on both sides pretty easily and went to work on a little more lightweight love.

http://i490.photobucket.com/albums/r...e/CIMG4092.jpg

These things weigh NO-THING. Two of them together weigh a tick under 1/2 of just one of the steel OE units. And......super-bonus.....they FIT! I did have to drill all the holes, but hell, that's a whole lot easier than......don't get me started.....

http://i490.photobucket.com/albums/r...e/CIMG4093.jpg

See....they fit! Sweet.

http://i490.photobucket.com/albums/r...e/CIMG4091.jpg


...and yeah....I'm blowing off the VFN decklid and getting this:

http://i44.tinypic.com/1zwp66r.jpg

Anyone wanna take on the task of finishing fitting that fiberglass unit is welcome to it. I'm out of talent and patience with it. PM me and we can agree on a fair price.

Very nice project, DT. And well planned out, I might add. :) I look forward to your progress reports.

Holy schnikey work has been busy. Haven't had a day off in close to three weeks and thus haven't had much time to work on the car lately but found myself with a couple of free hours tonight. So I decided to remove a big heavy thing from the car:

http://i490.photobucket.com/albums/r...e/CIMG4099.jpg

The heater core. Lead, brass, ugly and GONE!

http://i490.photobucket.com/albums/r...e/CIMG4100.jpg

But.....a big gaping hole. A number of different things I could do here. I could buy one of those DSE panels and pay quite a lot for what in reality is a simple hunk of steel with a bevel rolled on the edge.....nah! I could do the street-rod-esque firewall smoothing bit......nah!

Which begs the question; "What Would Smokey Do?"

Well.....I'd like to think Smokey would have just tossed the factory delete plate on the hole and moved on. I went a tad further than just that, by welding up the mounting holes from the OE heater core, and welding in a fill plate in the original hole. Then drilled and cleco'd in the panels to check the fit. Took me just shy of two hours.

http://i490.photobucket.com/albums/r...e/CIMG4104.jpg

http://i490.photobucket.com/albums/r...e/CIMG4105.jpg

I'll finish it up with seam sealer and rivets after I paint the firewall. Of course that won't happen till the cage is finished.

There will be a heat/def unit of course. Vintage Air makes this nifty little heat only (no AC) unit.

http://good-times.webshots.com/photo...65608932BKChyx
