Morning All,

My buddy rick came over to help me clean up the mini-tubs. Seem he was the supervisor.

http://garagescene.net/gallery3/var/...%20%285%29.JPG

Its a tuff job your lucky you have a good friend to do it!

Hey Marty - Thx for the tip on the Boommat. I finally spoke to your friend and he gave me a smokin deal...:thumbsup:

Your welcome, Like I said these guys are the best.

Marty,Camaro's turnin out nice.:thumbsup: :thumbsup:

2nd Chance Camaro - DSE Brake Booster Install

2012 07-02 Update - DSE Brake Booster Install
www.2ndchancecamaro.com

Good Evening All,

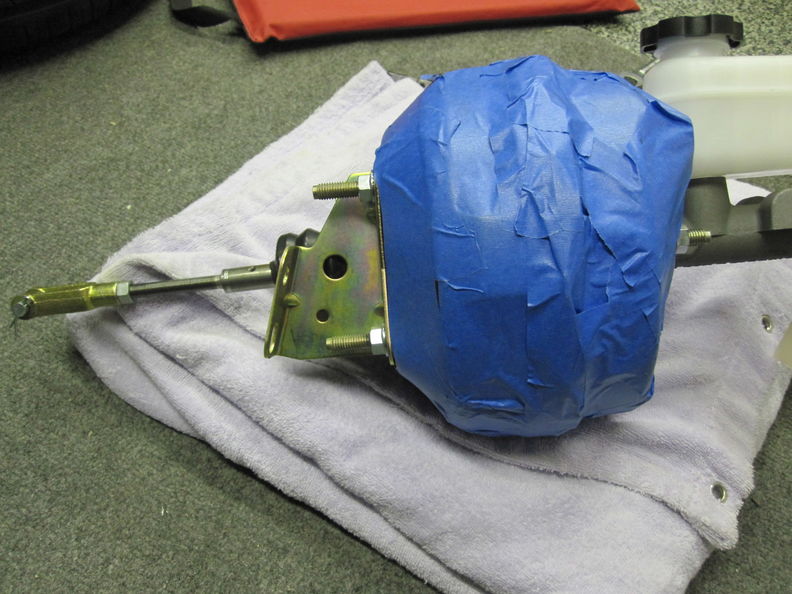

It's very important to mock everything up before paint and final assembly. The perfect example is what happened when I installed
the Brake Booster. The angle is off even though this is the correct DSE part number for a 70 Camaro.

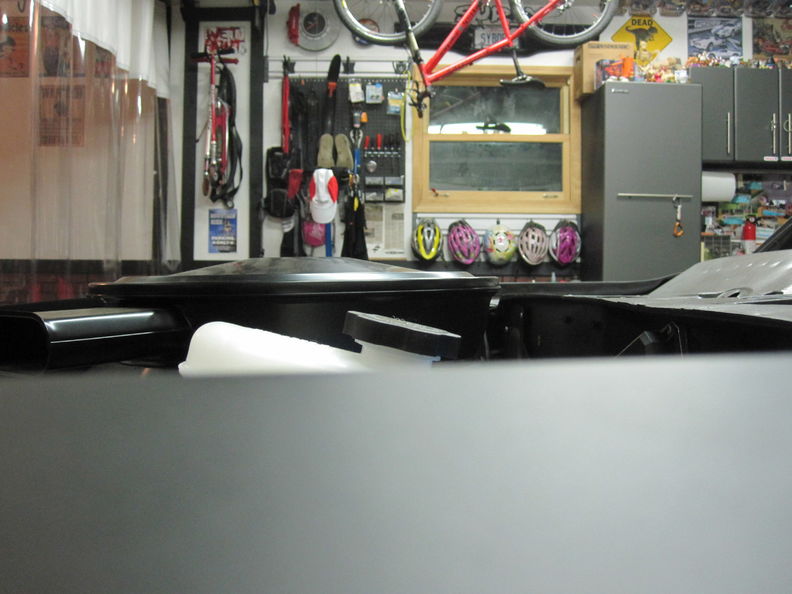

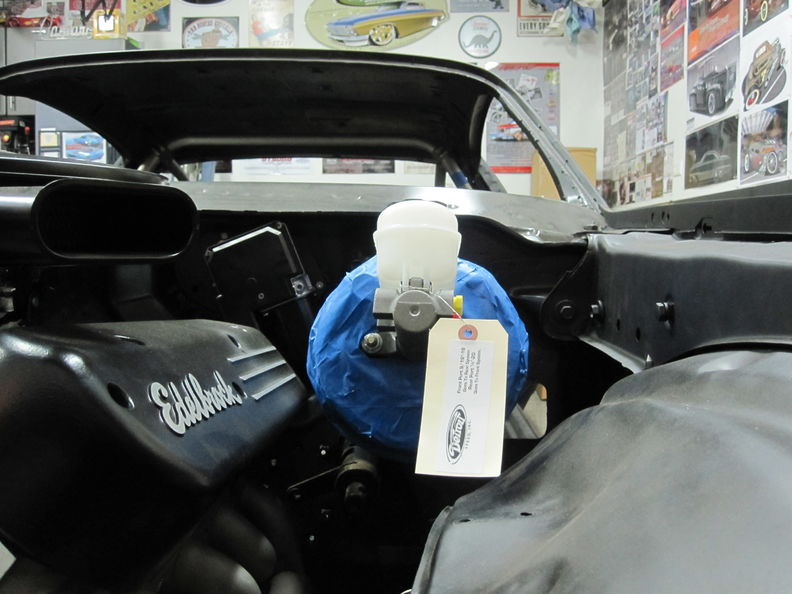

You can see that the hood won't close with the supplied bracket. So back on the phone with DSE to talk with Tech Support,
send some pictures and wait for a response & solution.

http://garagescene.net/_data/i/uploa...911949c-me.jpg

http://garagescene.net/_data/i/uploa...ac6f538-me.jpg

http://garagescene.net/_data/i/uploa...16bf704-me.jpg

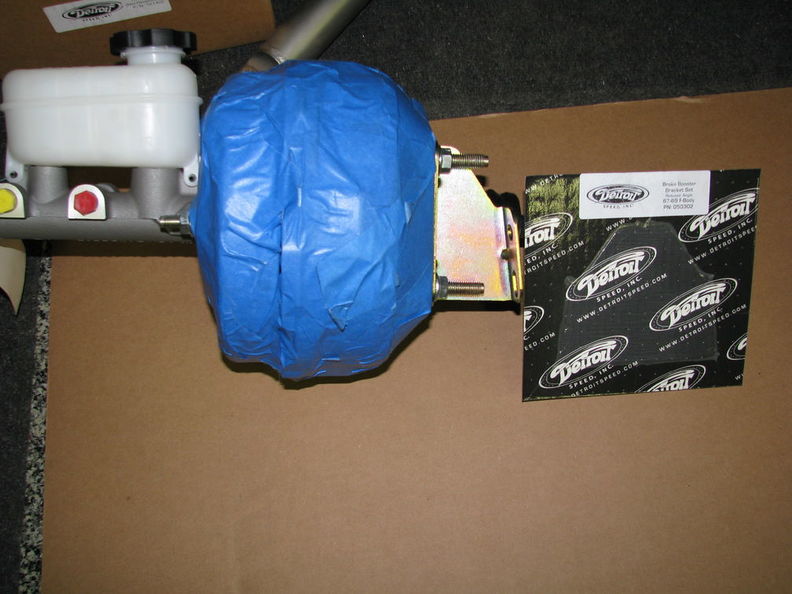

A few weeks later DSE has a solution and it's simple bracket swap. I like simple, especially when your trying to build a bolt-on
Camaro.

http://garagescene.net/_data/i/uploa...847ec38-me.jpg

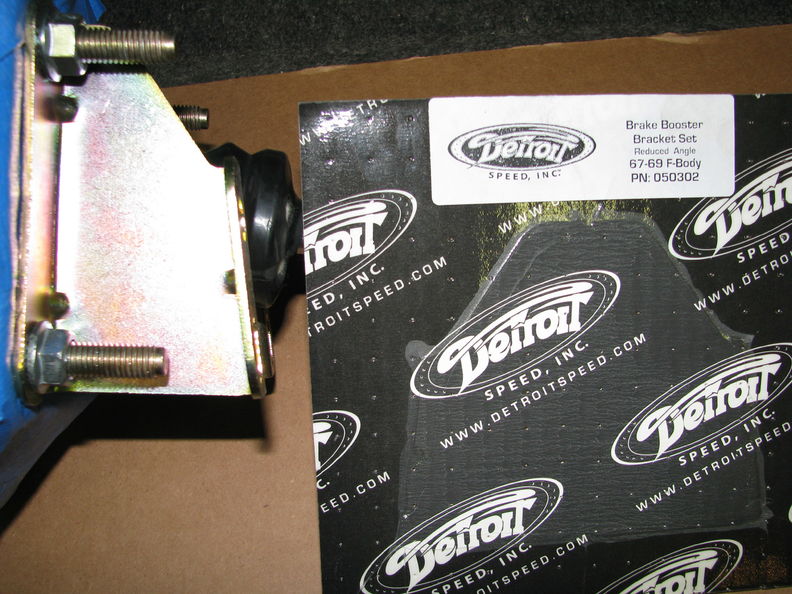

The new bracket part # 050302 if you need one.

http://garagescene.net/_data/i/uploa...3487531-me.jpg

Problem Solved - Thank you DSE

Pictures hosted by www.garagescene.net

Thanks it's getting there.

2nd Chance Camaro - Wiper Motor & Firewall Modification

2012 07-03 Update - Wiper Motor & Firewall Modification
www.2ndchancecamaro.com

Good Morning All,

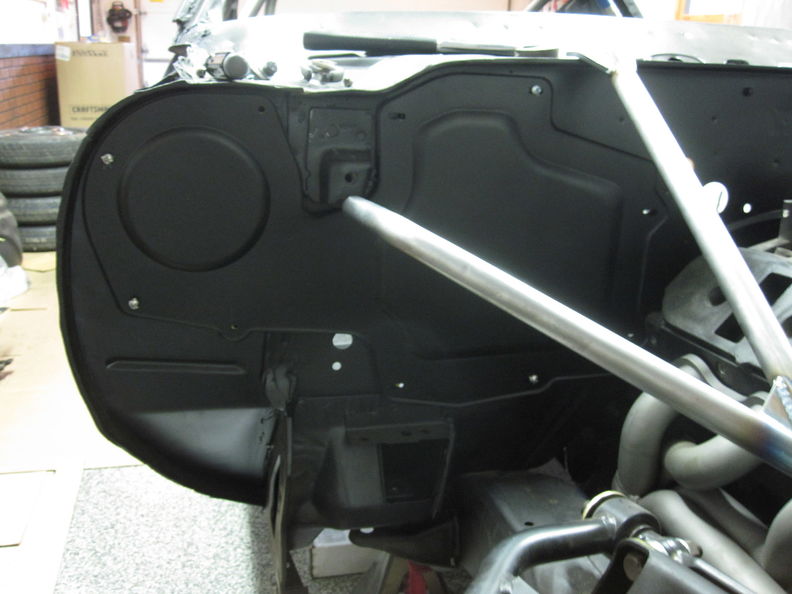

First up order the DSE closeout panel.

http://garagescene.net/_data/i/uploa...c5e075c-me.jpg

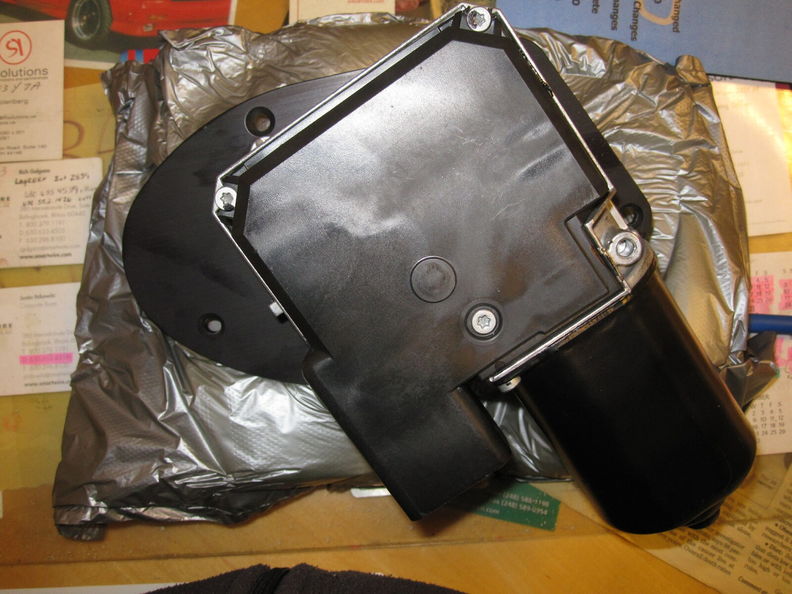

Since the plan is to actually drive this car I am certain it will be caught in the rain more then once. Quick call to the guys
at DSE and a Wiper motor is on the way.

http://garagescene.net/_data/i/uploa...b23d933-me.jpg

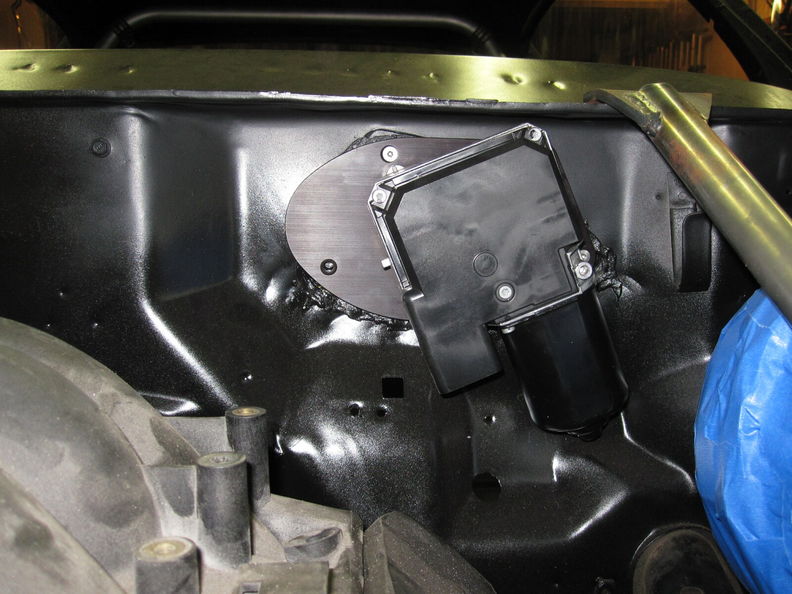

I remember back in the day when Mark Steilow was building the Mule and he did this modification. I knew that I would be
ordering one of these for future projects.

http://garagescene.net/_data/i/uploa...d2a2b4b-me.jpg

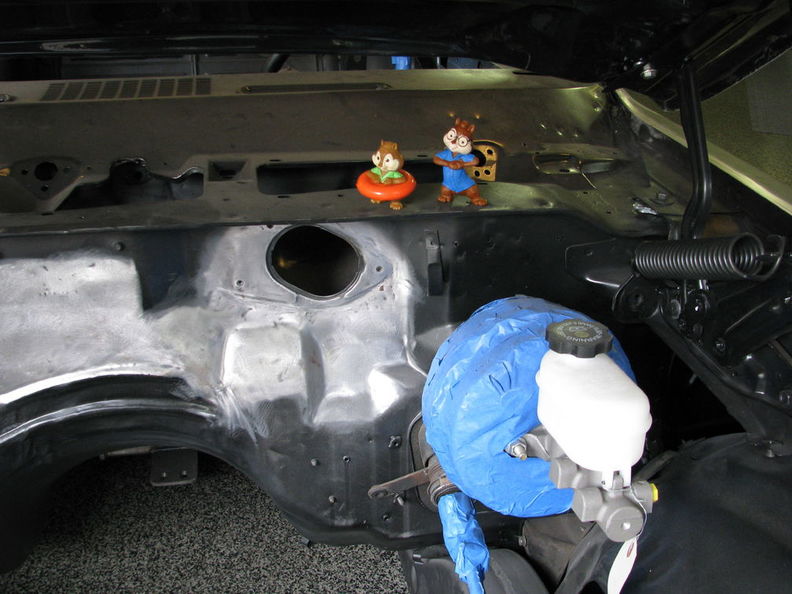

Troy & the guys at BBT Fab started working their magic on the firewall. The goal is to have a very clean look once it's complete.

http://garagescene.net/_data/i/uploa...d5d4ece-me.jpg

http://garagescene.net/_data/i/uploa...6d472c9-me.jpg

http://garagescene.net/_data/i/uploa...1934763-me.jpg

http://garagescene.net/_data/i/uploa...af30d00-me.jpg

http://garagescene.net/_data/i/uploa...a066f3c-me.jpg

Pictures hosted by www.garagescene.net

2nd Chance Camaro - Fitting the LS1

2012 07-04 Update - Fitting the LS1
www.2ndchancecamaro.com

Morning All,

It's time to put the actually motor in the car so the guys at High Speed Welding can finish up the edelbrock exhaust.

http://garagescene.net/_data/i/uploa...48ad7ef-me.jpg

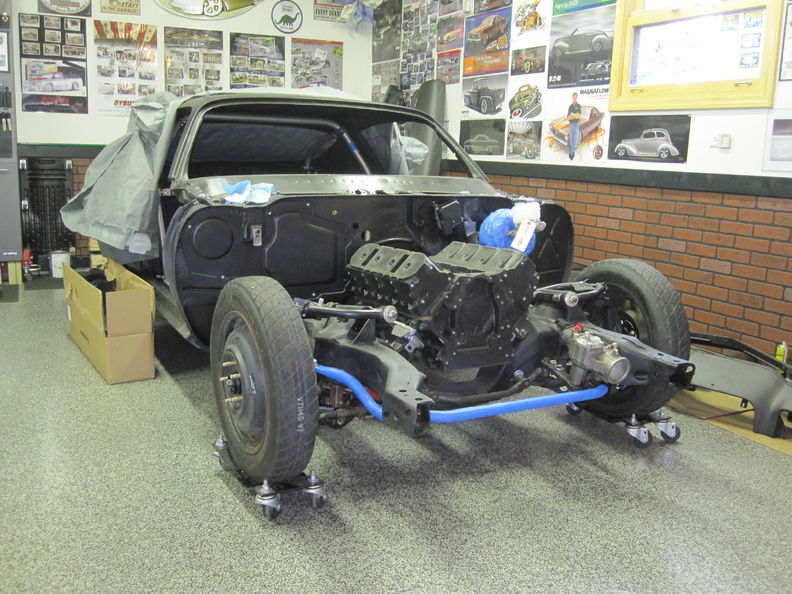

The plastic blocks are sure awesome it's to bad I am not strong enough to lift the real motor.

http://garagescene.net/_data/i/uploa...a543fb7-me.jpg

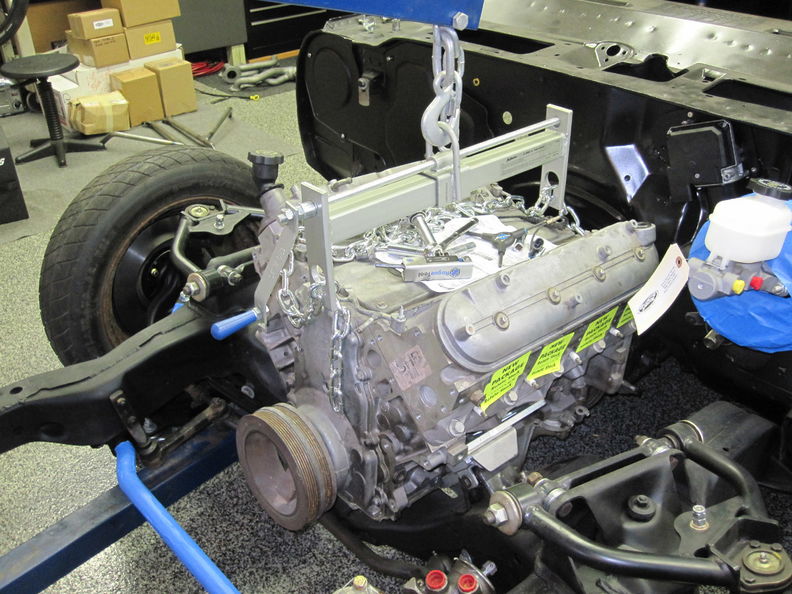

I purchased the LS1 from Travis at Kenny Davis Hot Rods it came out of a 98 Camaro.

http://garagescene.net/_data/i/uploa...62b122f-me.jpg

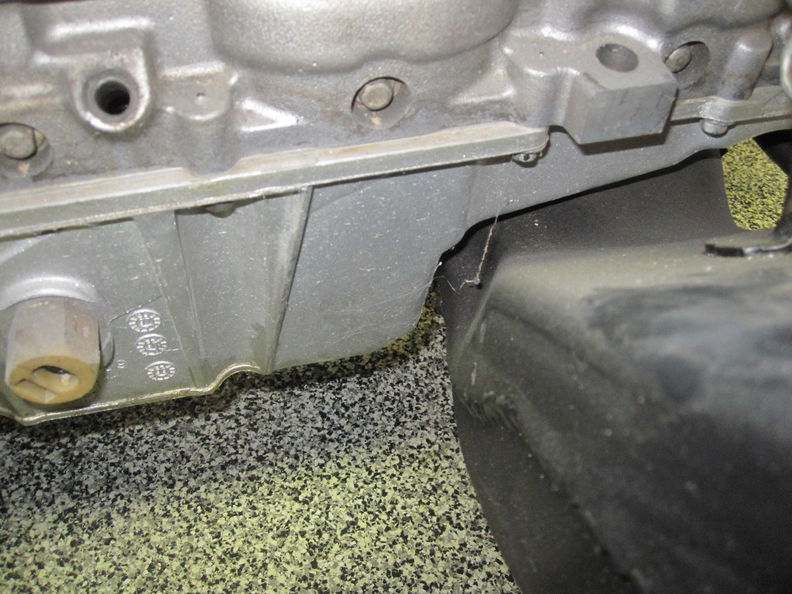

I used Edelbrock adaptors to mount the motor and you can see the F-Body oil pan clears the subframe perfectly.

http://garagescene.net/_data/i/uploa...1dea5b7-me.jpg

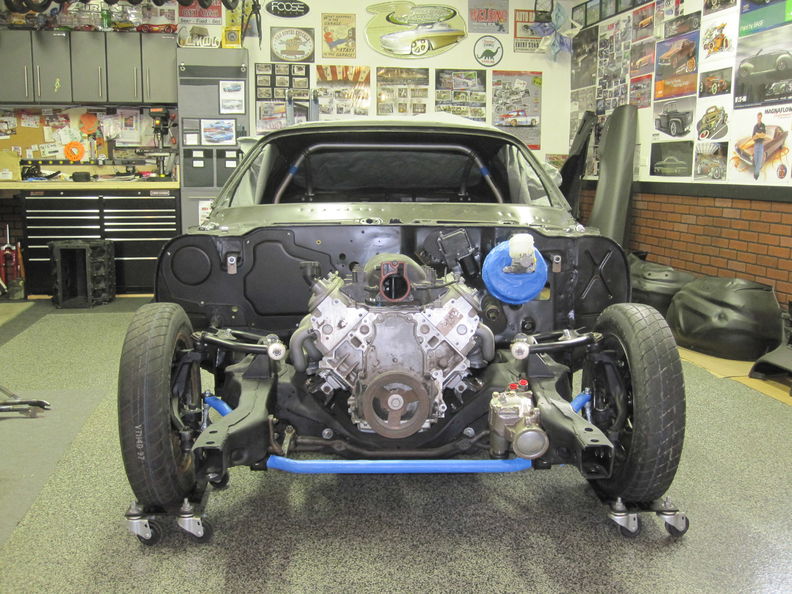

Motor is in and there is plenty of hood clearance with the stock intake manifold.

http://garagescene.net/_data/i/uploa...ddc99ea-me.jpg

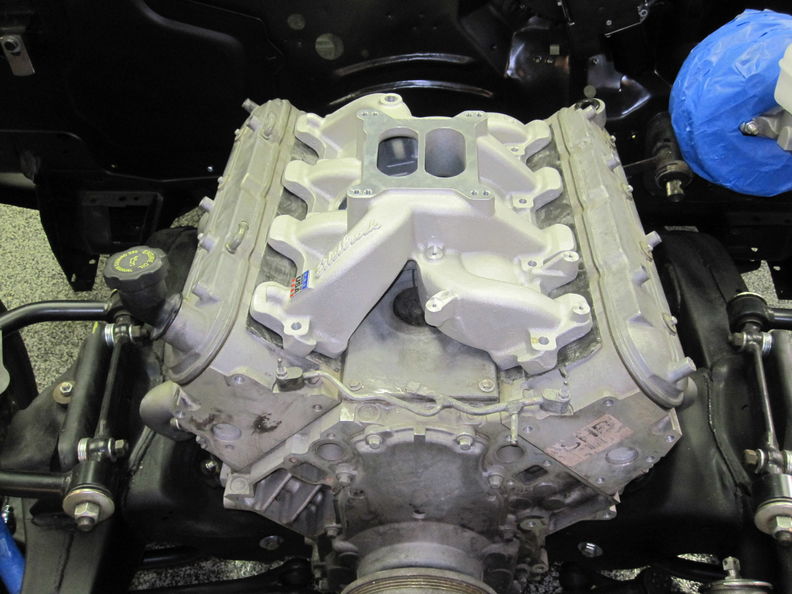

But of course I have no intention of using the stock manifold as this motor is going to have a Carb.

http://garagescene.net/_data/i/uploa...55a71aa-me.jpg

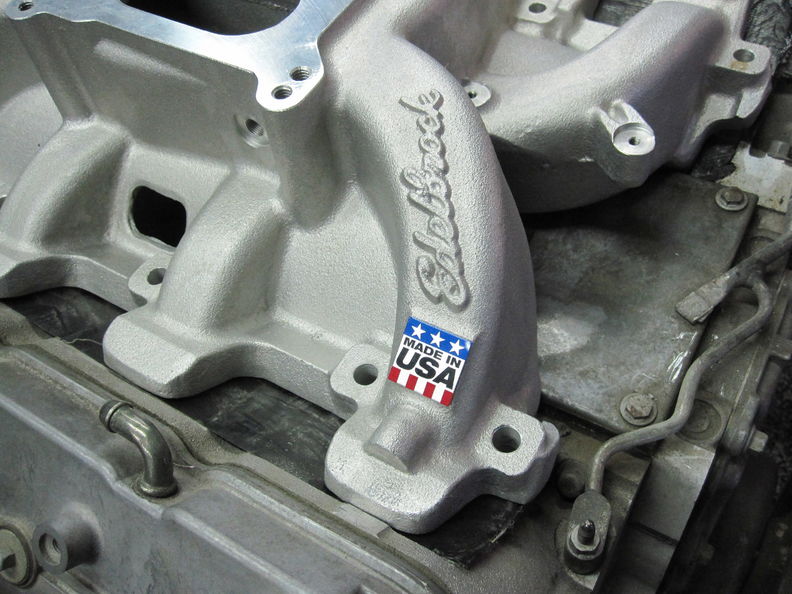

Did I mention it's made in America.

http://garagescene.net/_data/i/uploa...4c2898d-me.jpg

Once again you can see I am using as many Edlebrock products as possible. Nothing say vintage race car and Americana
then Edelbrock !!!

http://garagescene.net/_data/i/uploa...f9c3379-me.jpg

Pictures hosted by www.garagescene.net

Looks great Marty! What's the plan for the motor, just intake or you going to change the cam and other mods? I love all the bolt on parts you are using should be a really fun car when it's done!

It looks great in there Marty it must feel good doing the final fitting.
