Dry Sump Tank

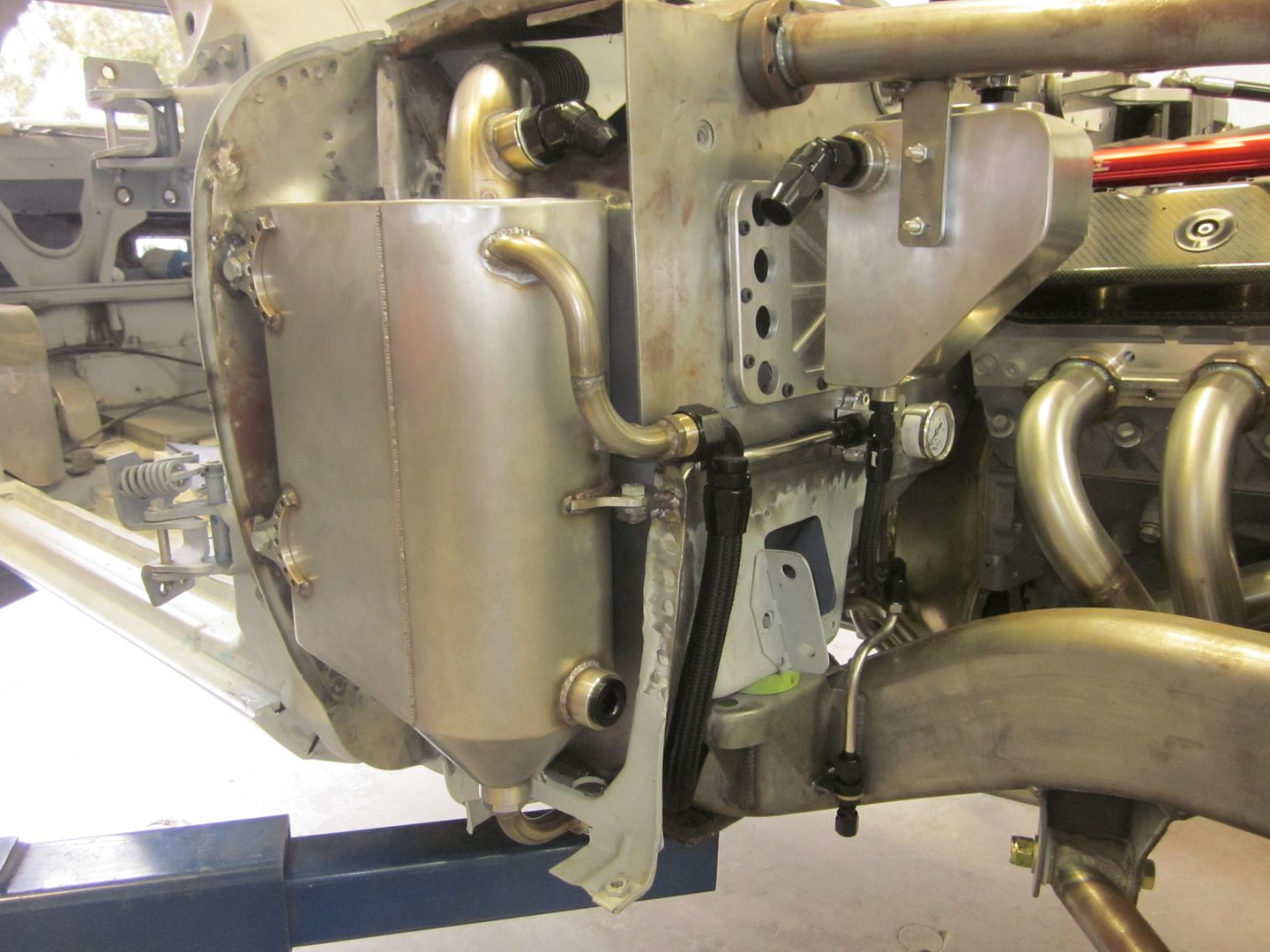

Here is what the dry sump oil tank is looking like... Basically a 6 inch cylinder with a rectangular addition to it for added capacity & to fit in the cowl tulip.. All internals are like any standard tanks you would buy from aftermarket companies.. We are stopping for now & going to assemble the fender on the car & wait for a few pcs. I need for the oil fill I need on the firewall..


http://i1015.photobucket.com/albums/...n/IMG_1302.jpg

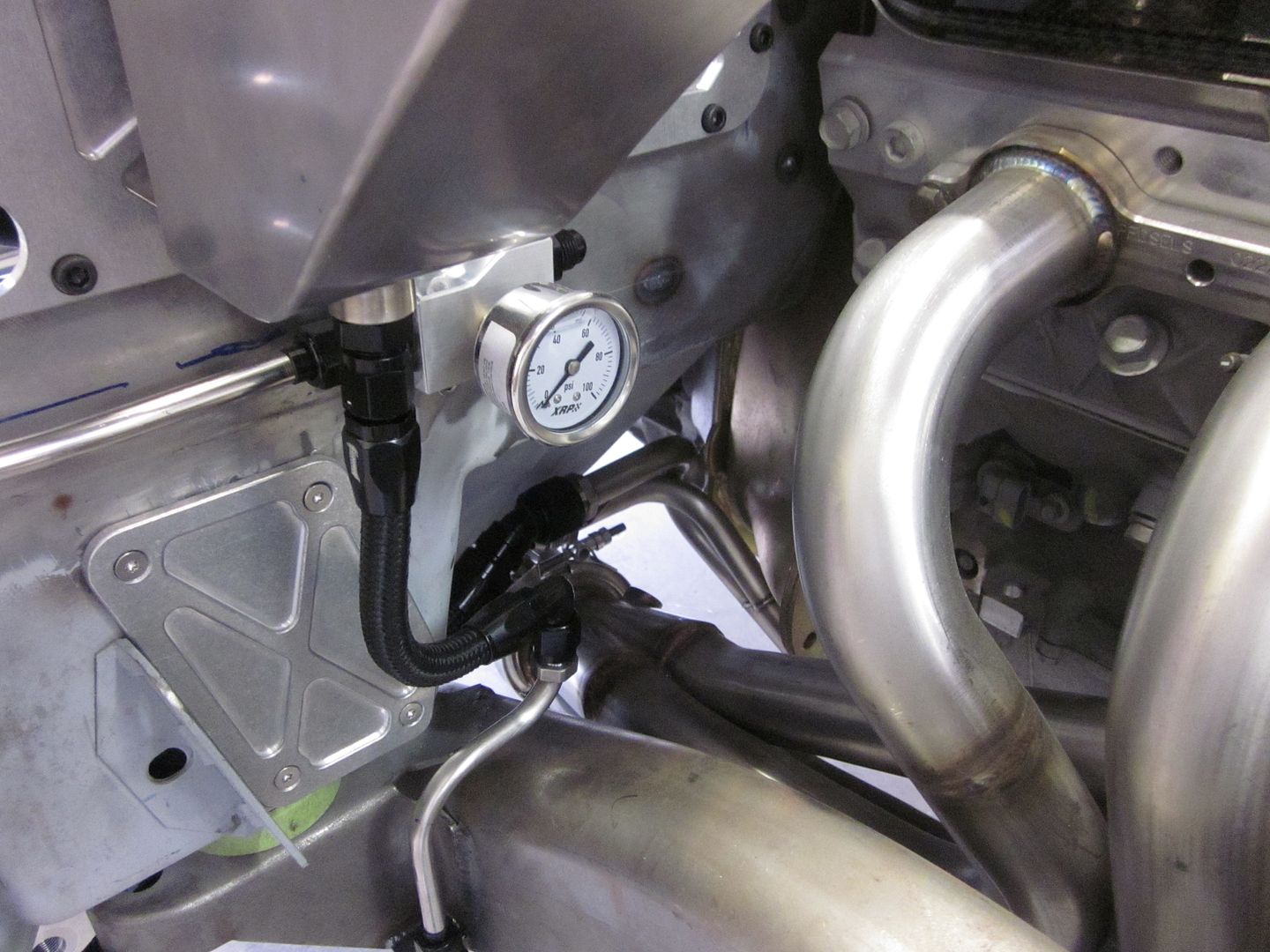

We hard lined the on the side of the engine to cross over the header.. Here is a pic of it.. Sorta!

http://i1015.photobucket.com/albums/...n/IMG_1305.jpg

Very Nice install Chris. Great place to put the tank.

Great stuff guys!:yes:

Small details!

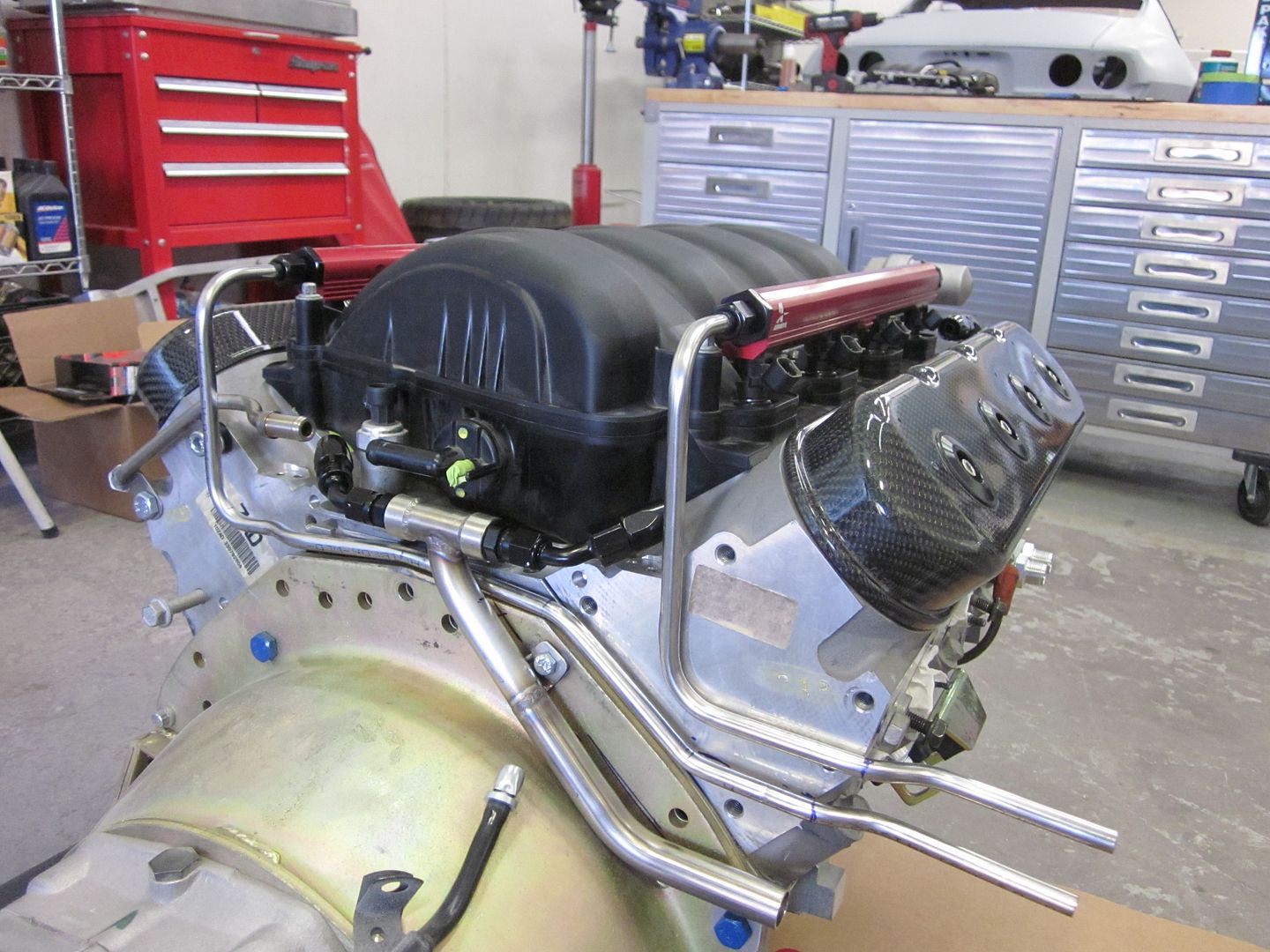

Last nite I spent 2 hrs trying to figure out how the hell I was going to run the valve cover hoses to the oil breather tank.. 10 & 12 hoses are huge not to mention the fittings.. So, this moring we came up with a game plan & strarted plumbing.. DAMM firewall to engine clearance was making it tough.. Made a punch list if we pulled the motor if we would work faster.. It was worth it.. These details you will never see but make a world of difference..

http://i1015.photobucket.com/albums/...n/IMG_1313.jpg

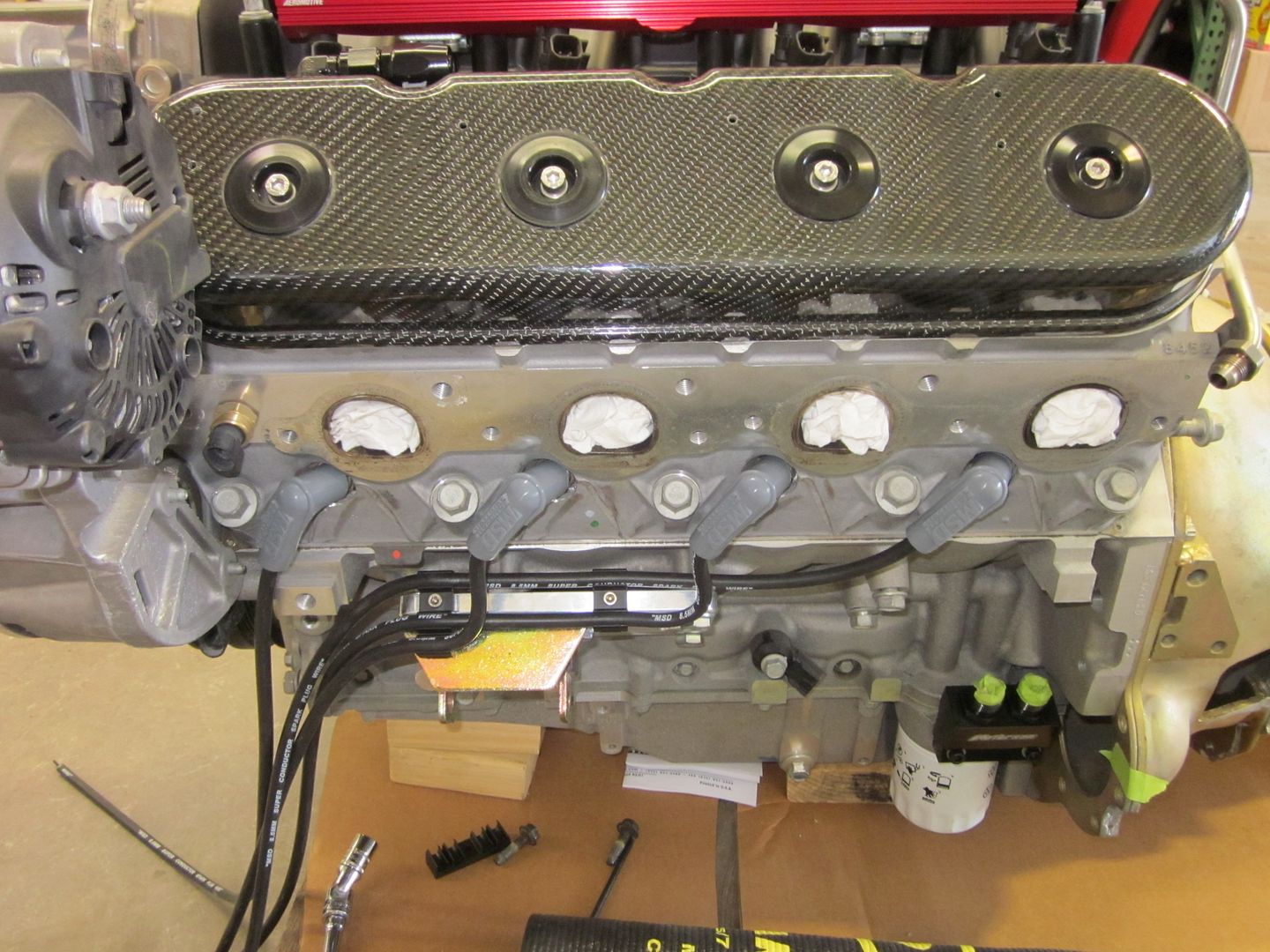

MSD makes some great products for routing wires..

http://i1015.photobucket.com/albums/...n/IMG_1315.jpg

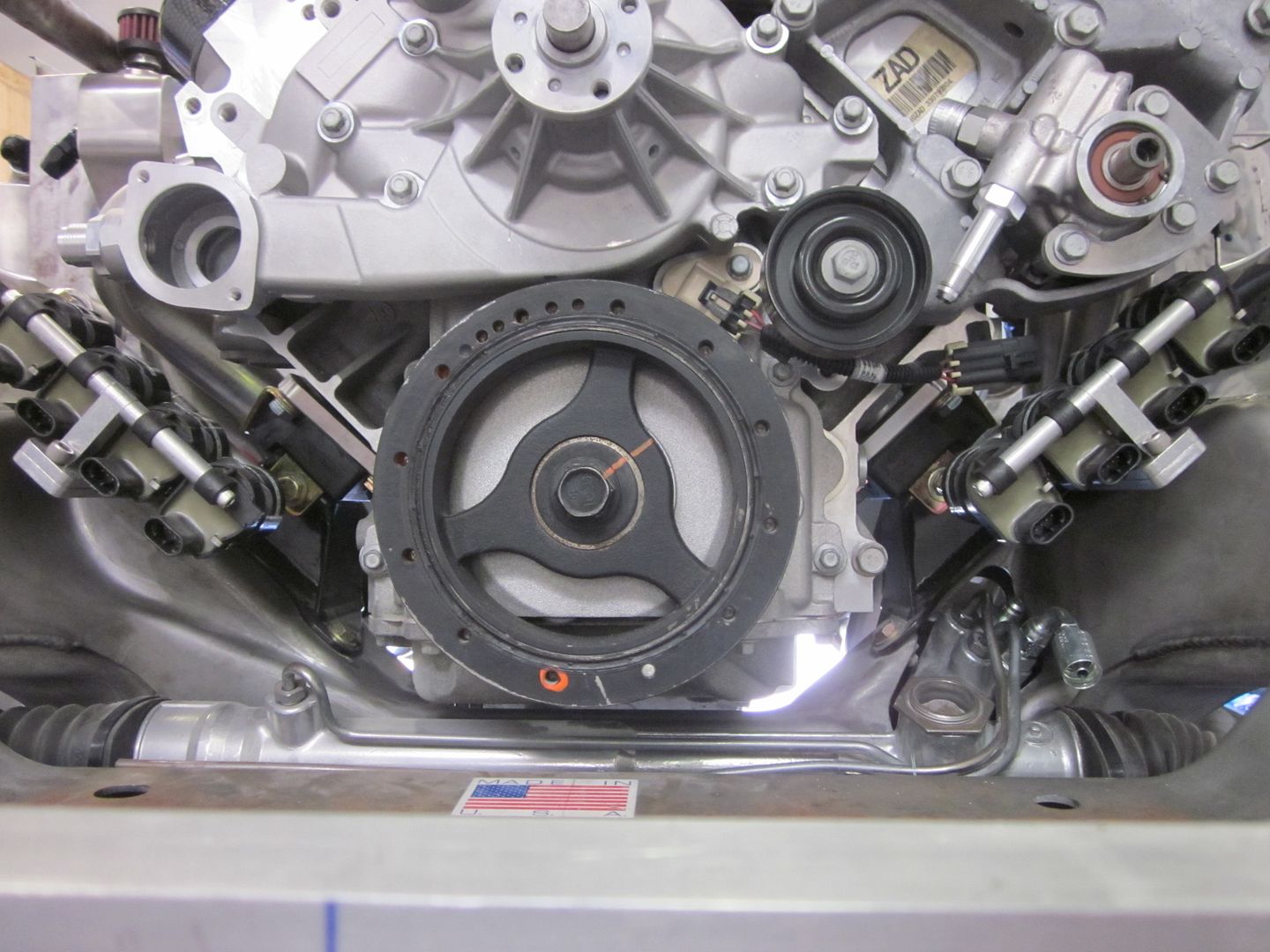

Coil re-location!

http://i1015.photobucket.com/albums/...n/IMG_1310.jpg

Awesome work Chris - really diggin' on the dry-sump block. Very nicely packaged.

Gregg

Wow...you're like a packaging Jedi!

:D

That's ridiculous, I'm headed back to my garage and my prehistoric car. :D

Cris,as alway's Awesome.

Thanks Greg! Looking forward to seeing your 69 done here pretty soon..

Trying to hide things & making them servicable @ times can be a challenge.. but we are moving along pretty smooth with a few bumps here & their..

& don't forget to take a six pack with you Todd.. :D
Your 9 is one of favorite's! well with a BB in it!:D

Thanks Scott!

Yea, you and me both.. stuff like this makes my car look like it was built in auto shop.. lol
