Beautiful piece of machine work.

No problem Al... Glad that I can be of some help.. currently we are super busy & I try to commit to realistic small projects I can be participate in.. I have some great ideas for the for your Gen 5 Camaro.. Looking forward to making these parts for you..

BTW- As soon a you & the boys left .. I came up with the idea on how I am going to make the reservoir for your M/C..

Thank you for the props Marty!

Incredible work, can't wait to see more. Way to go, guys!

This reminded me of a video we shot several years ago of the Rad Rides crew cleaning up the block on the Ridler car. This was the first time I had ever seen anyone block-sanding an cylinder head...

http://v8tvshow.com/index.php?option...=333&Itemid=45

Cris, I could hear your wheels spinning all the way home as your creative juices were flowing, LOL Thanks again for all the help!

Kevin and all the guys on here, the boy really appreciate all the kind words as they know its coming from the best of the best.

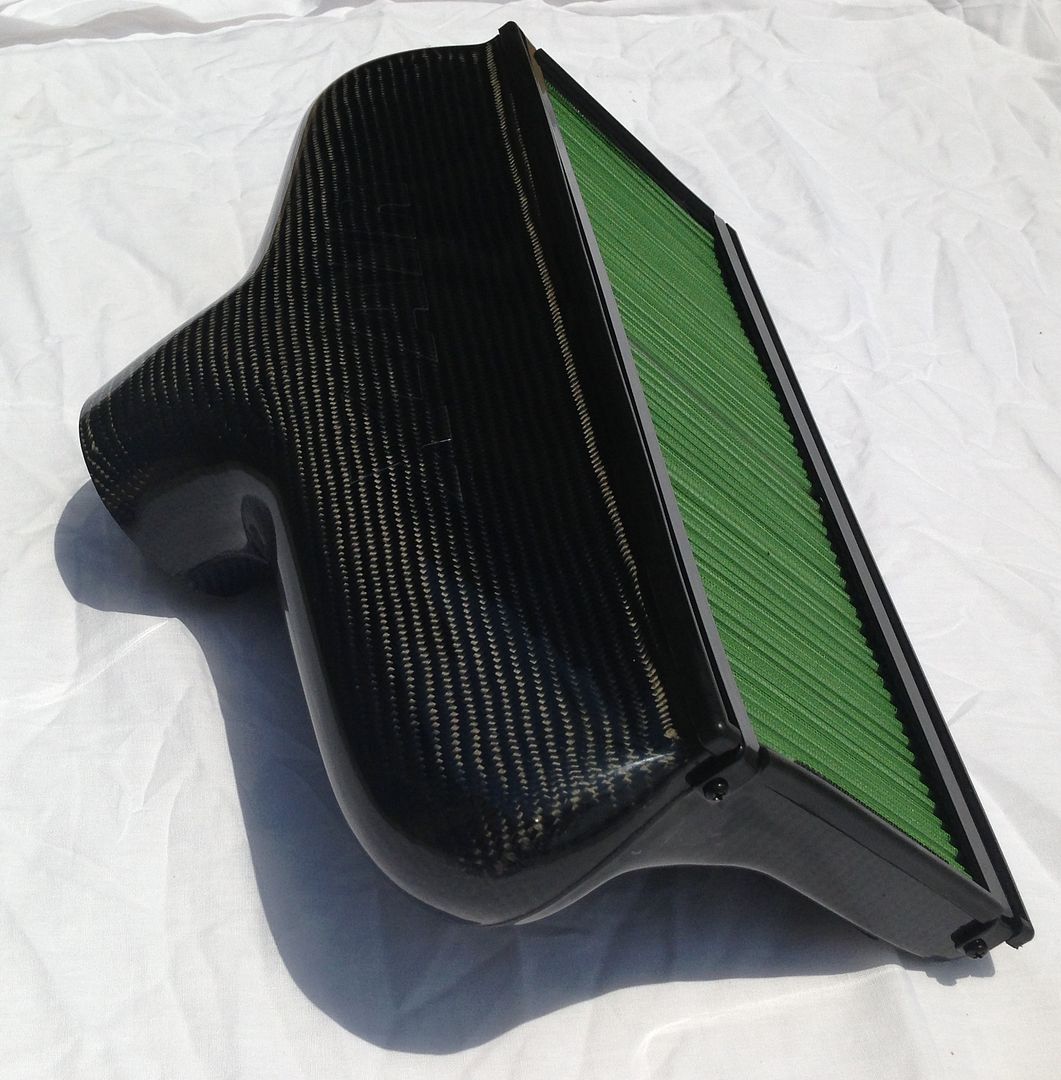

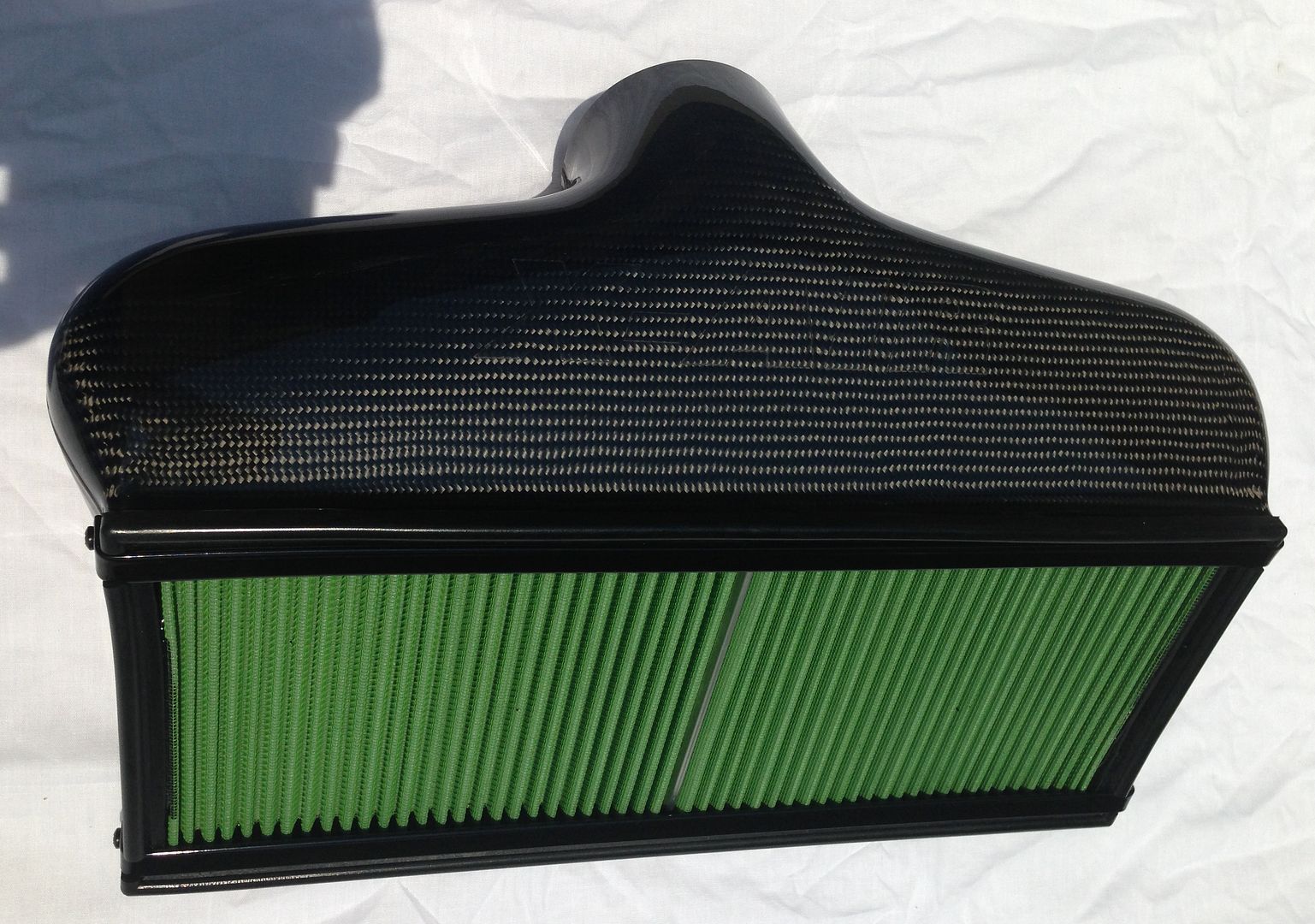

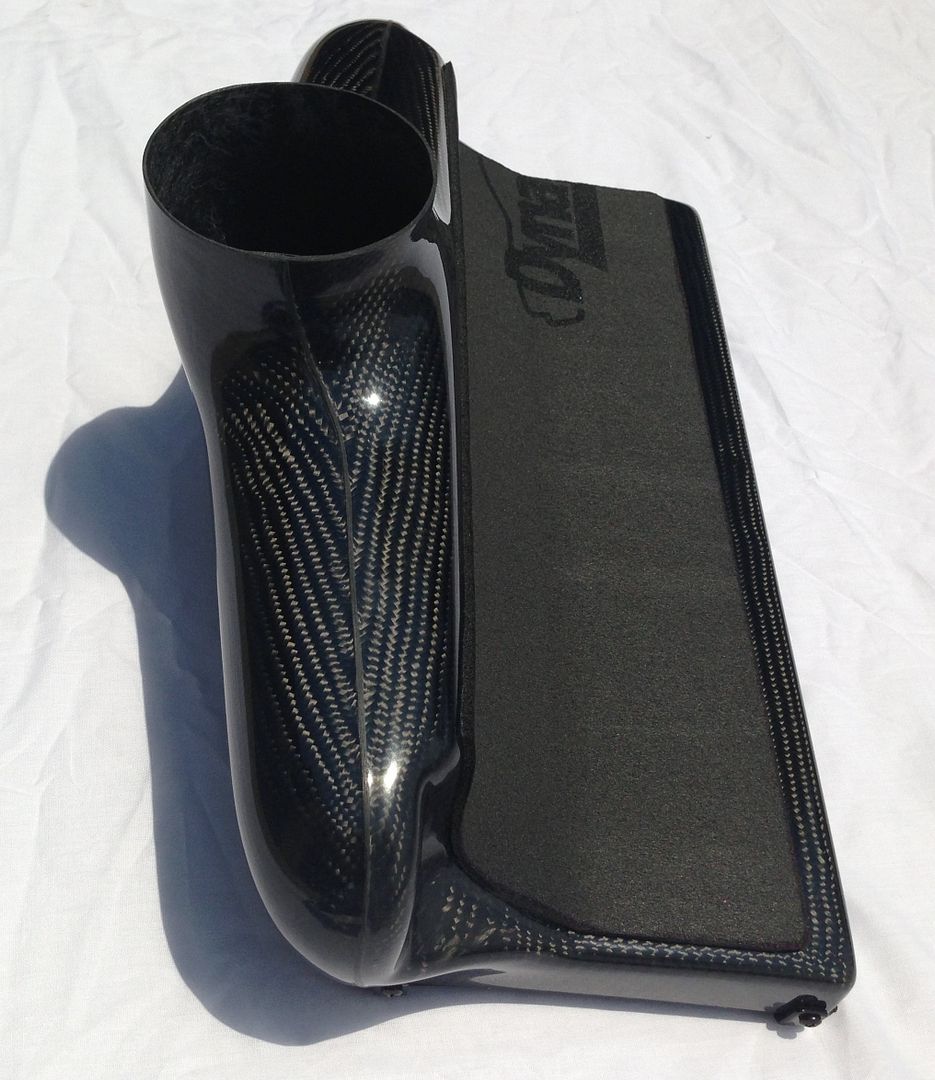

Here is a neat piece that came in yesterday from New Zealand. It's meant for the Holden's but with some mods, it will work great on the project.

http://i1231.photobucket.com/albums/...psa8af6a3f.jpg

http://i1231.photobucket.com/albums/...ps696a69f4.jpg

http://i1231.photobucket.com/albums/...ps7f4a0a92.jpg

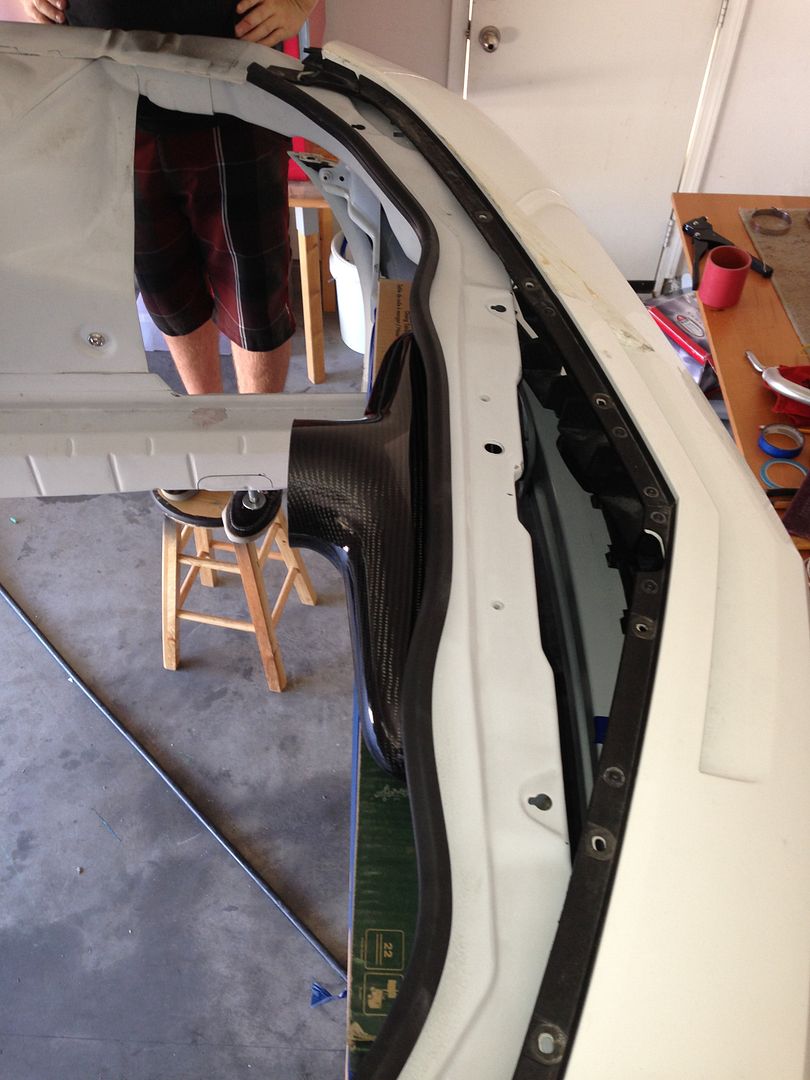

Normally these cars have an intake that makes an 90 degree bend from the TB to an air box on the drivers side. The wanted to have a true ram air effect, so this one will sit over the radiator and under the core. To make it work, the section mark off in the picture will need to be removed and boxed in.

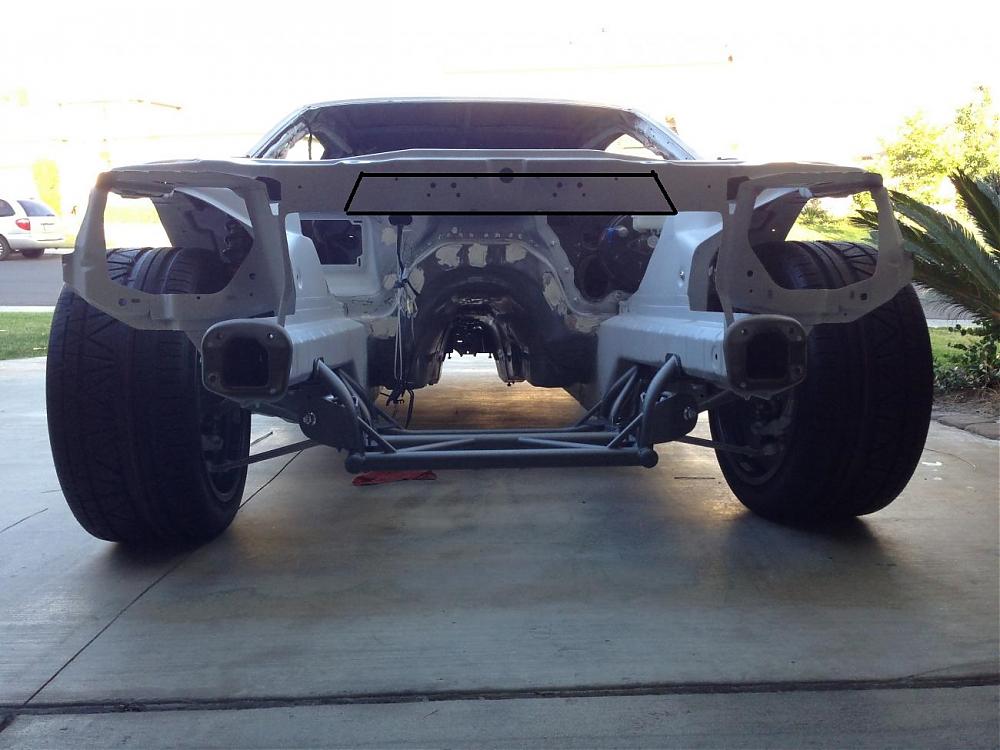

What you don't see anymore in this pic are the 100 or so holes they've welded in on the frame rails and other sections.

Attachment 40359

You can see in this pics all the holes that hadn't gotten welded in yet. The over hang was also cut out (Still on in this picture) and now they are in the process of making a flat fire wall. I will say that it's not easy making these engine bays look good.

Attachment 40360

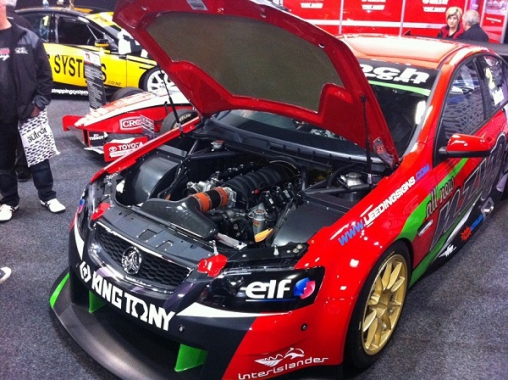

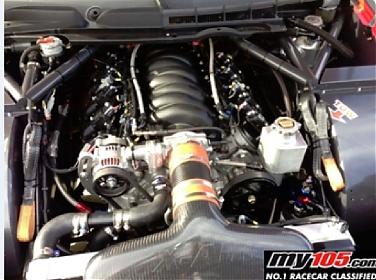

This is the same intake used on a race series in NZ and AU.

Attachment 40361

Attachment 40362

Al you guys are incredible! :thumbsup:

On a side note, those 5th gen rails are stout!

:hail: :bow: :hail: :bow: :hail: :bow: :hail: :bow:

Al looking great!!

Looking good Al !! :gitrdun:


Mark

Wow this looks amazing! Very Nice.

Yeah Al... very nice stuff. Cant wait to see more.

Thanks Ron, saw your car at Best of Show and all I can say is WOW!

Thanks Rick

Hey Mark, the boys spent all the 4th of July weekend working on the car, they are pushing.

Thanks Wayne!

Hey Jeff, can't wait to see your car in person, sounds like your pretty close.

Here are a few pics of some of the work they did.

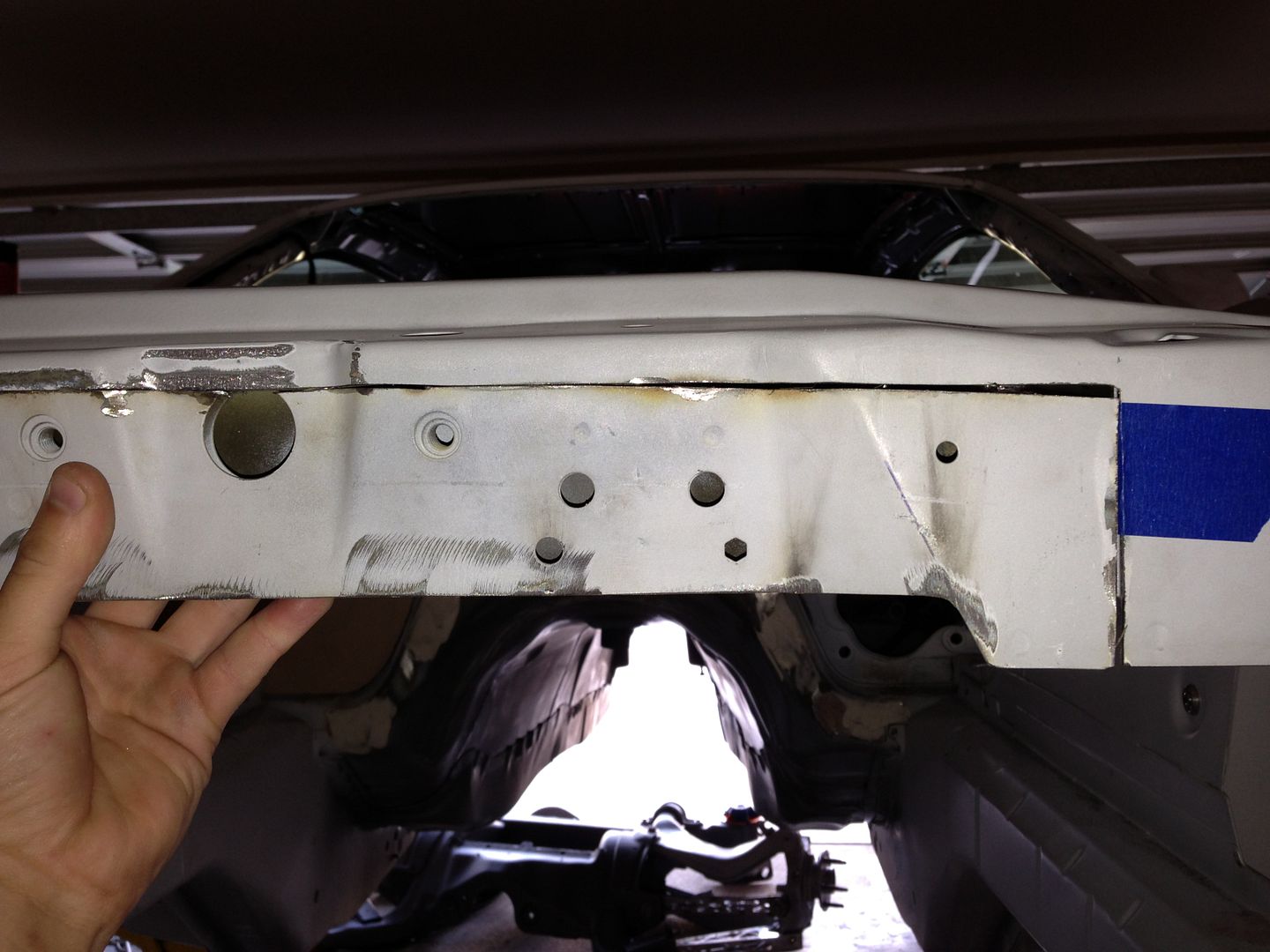

In order to make room for the intake,the rad support needed some massaging. They cut out a portion of the center section to make room.

http://i1231.photobucket.com/albums/...ps55e1d689.jpg

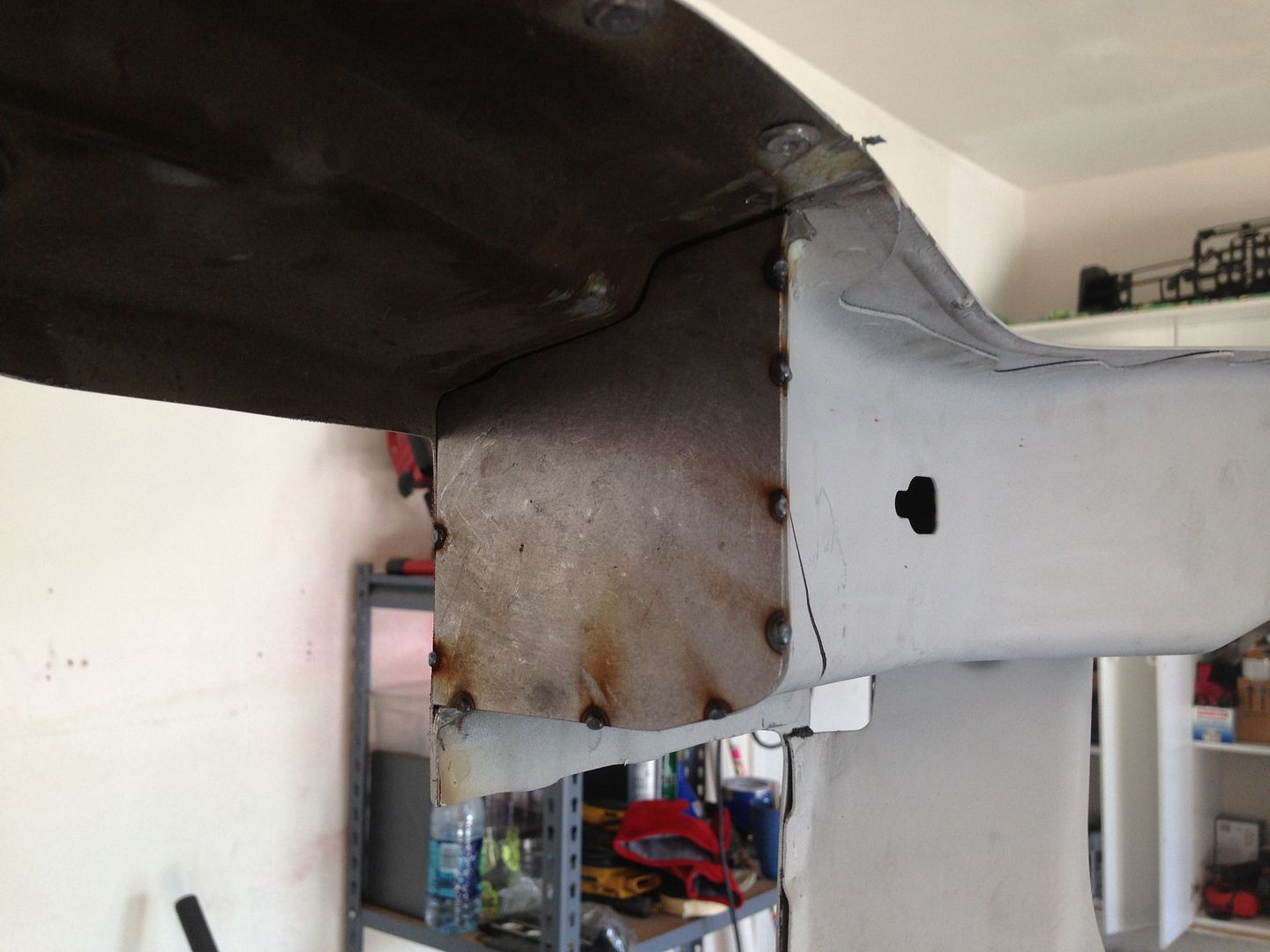

To give it a finish look, the boxed the ends.

http://i1231.photobucket.com/albums/...psb4083d08.jpg

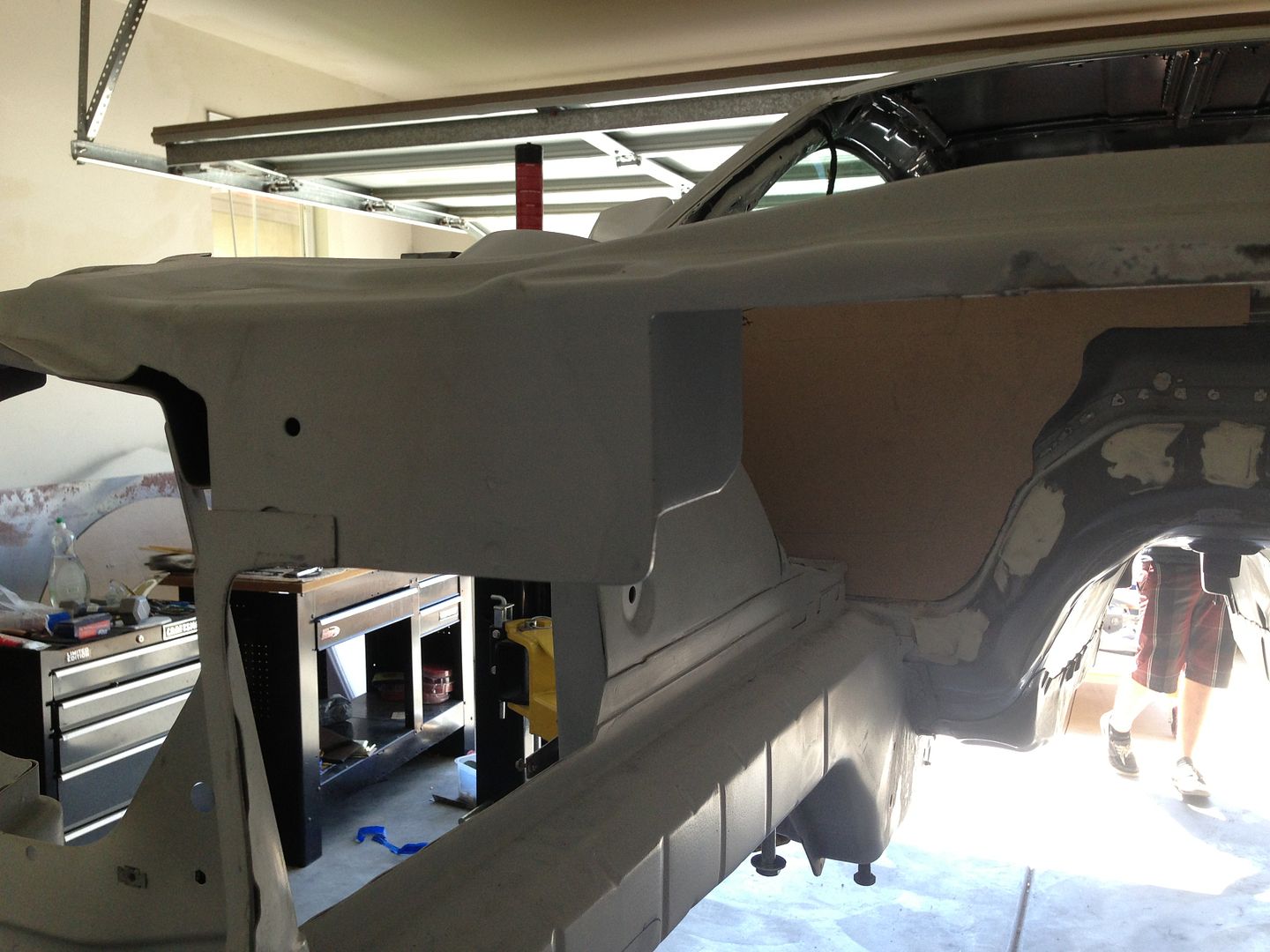

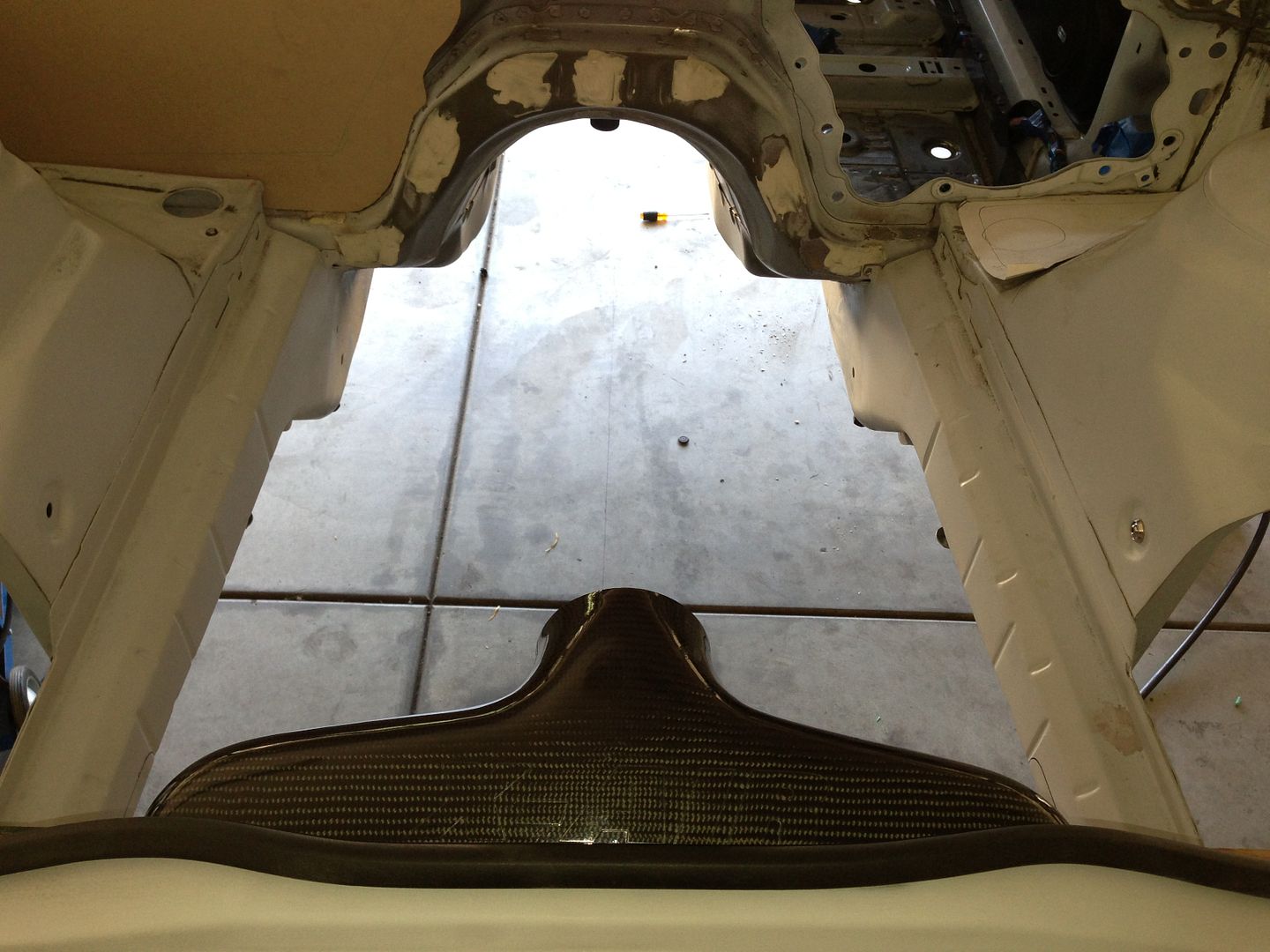

After metal finishing it, let's just say I was proud, LOL

http://i1231.photobucket.com/albums/...ps05774663.jpg

http://i1231.photobucket.com/albums/...psf5d16a0f.jpg

http://i1231.photobucket.com/albums/...ps2819372e.jpg

Very nice modification Al. Looks like it was born from the factory there. :thumbsup:

Thanks Marcus.

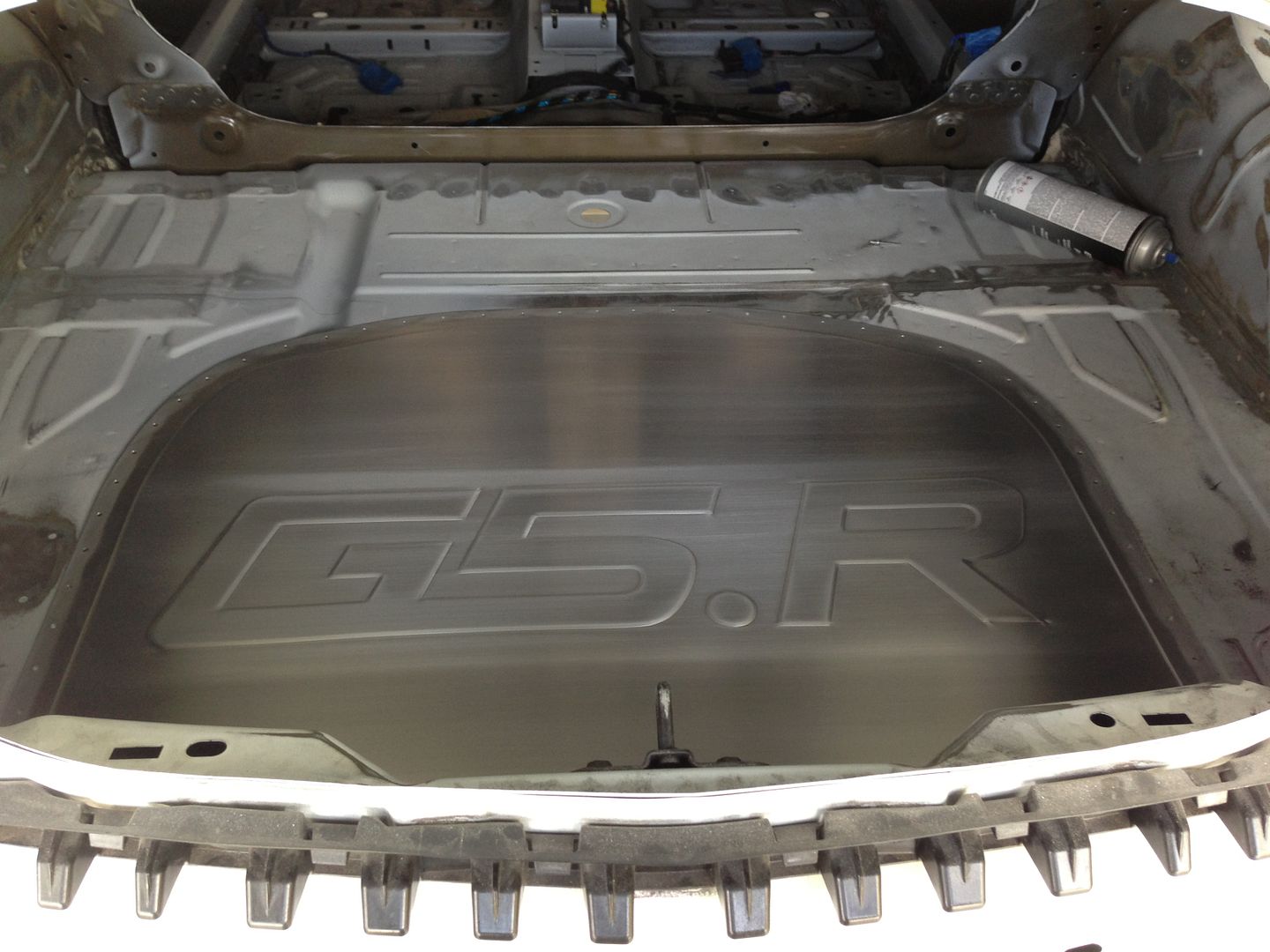

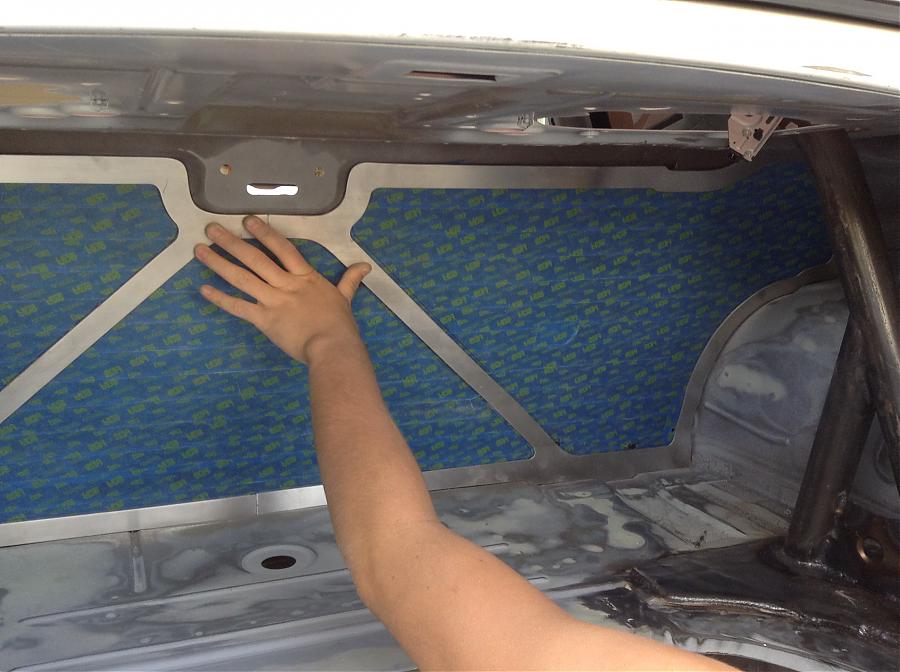

Here is a quickie of what going on at the other end. A lot of work has gone into the trunk cutting, slicing and dicing. Goten rid of something like 50 lbs of metal all together. I will post more pics later but here is a quick shot of the panel. Received the billet trunk hinges, they will also save a few ounces, LOL. I will post pics later.

The logo will have a brush finish while the panel and the rest of the trunk will be done in a satin gun metal. Thinking of doing a carbon panel for the divider.

http://i1231.photobucket.com/albums/...psf4c9cdcb.jpg

:thumbsup: I like it!

The car is looking great and there are plenty of great idea's going into this build. I am looking forward to seeing it at Sema.

Me too !

Love the build, great job!

Thanks guys! What they lack in experience they are making up in innovation. What till you see what they are up to next.

Here are a few progress pics. My buddy Kevin at HM Racing Design helped the boys with the roll bar and bumpers. They specialize in $500,000 Trophy trucks, so this was a cake walk for them.

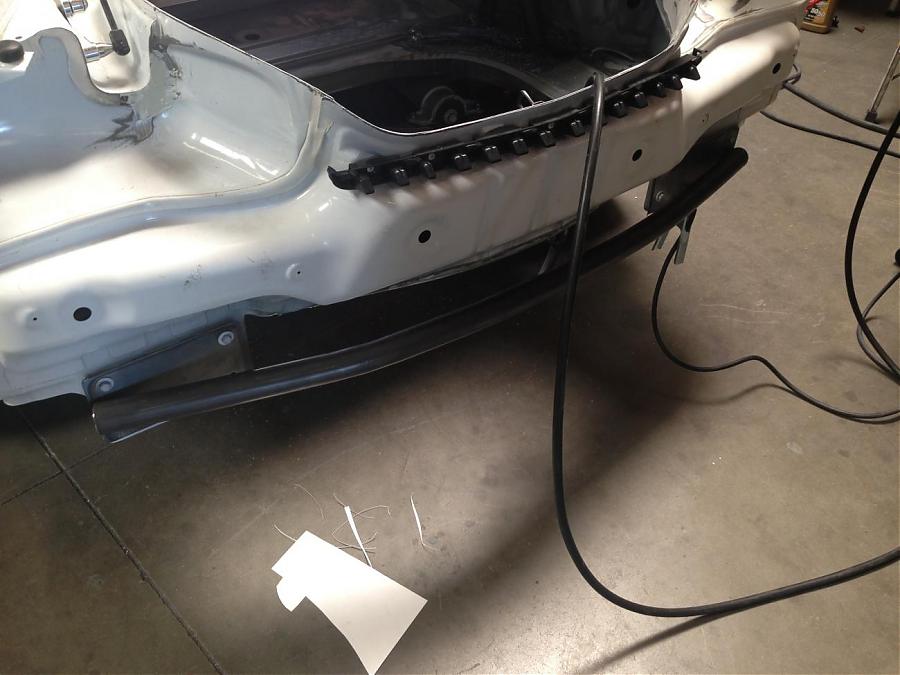

Replaced the front and rear bumper which are made from sheet metal with chromoly tubing and dropped over 30 lbs.

Attachment 41397


Attachment 41398

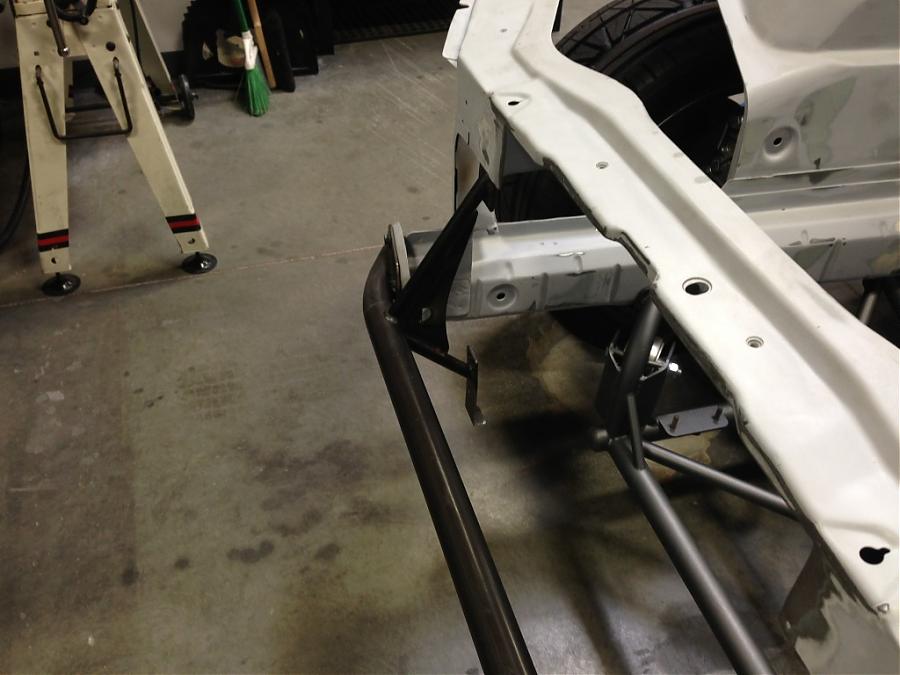

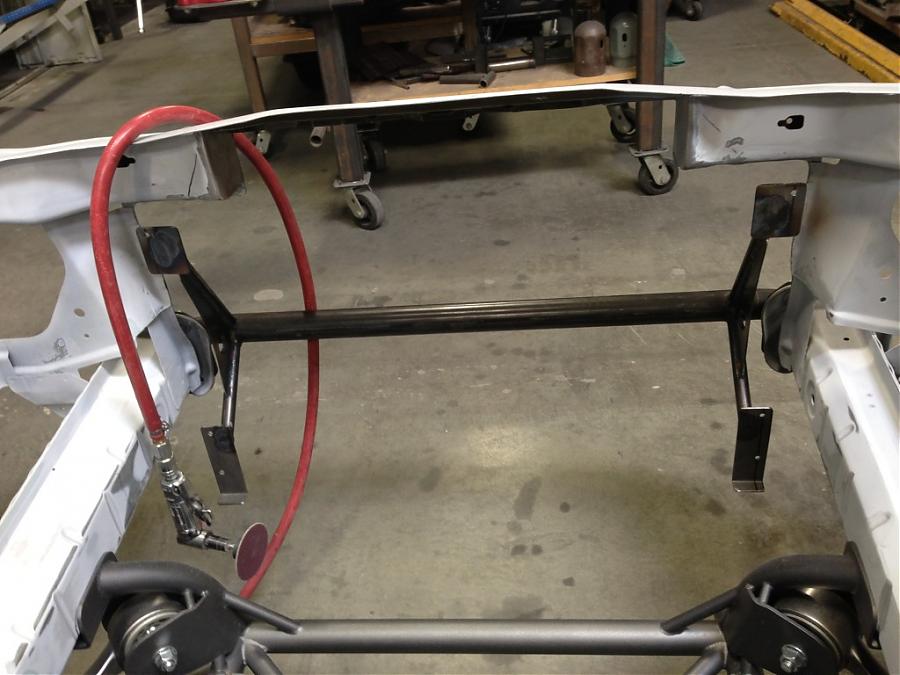

They also tied in the mounting points for the rad off the new bumper. From the inside of the engine bay, the rad will have a floating look to it.

Attachment 41399


Attachment 41400

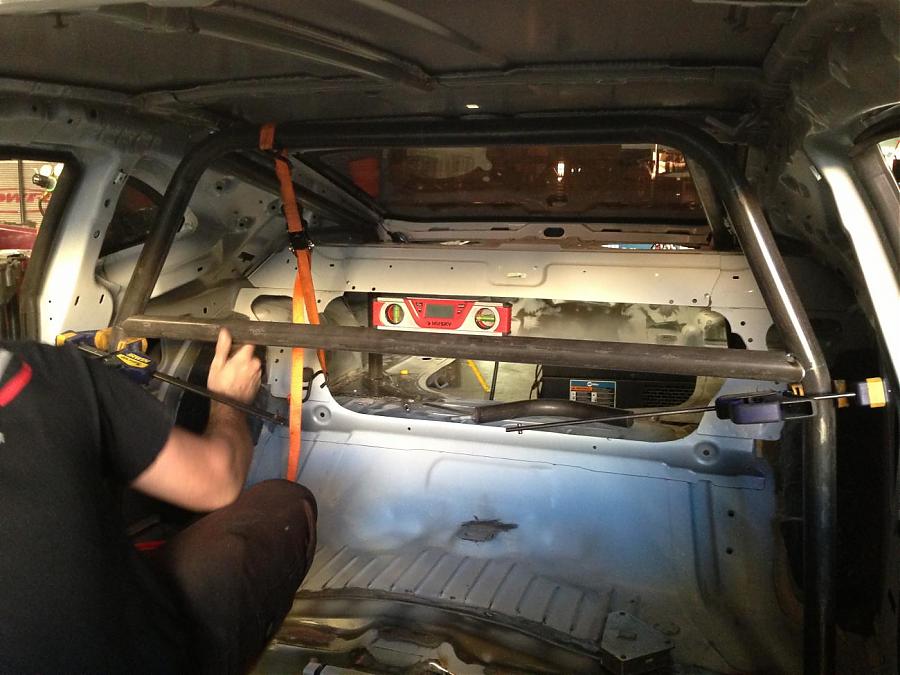

Since they got rid of the rear seat, they were able to mount the main hoop on the ledge were the rear seat would normally be. This allowed to set it back were you can't see it from the side view. All the other bars we've seen, come off the floor by the front seats, so they are always visible.

Attachment 41407


Attachment 41401

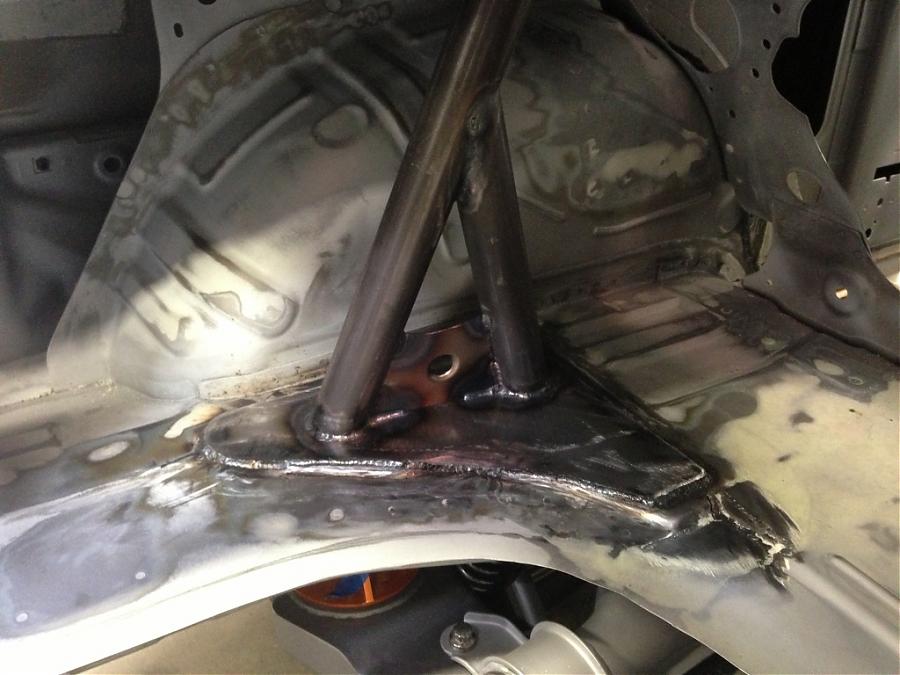

Check out how the down bar came down just above the rear solid mount. The secondary bar fall right above the strut mount solidifying the rear section. Finished it up with a gusset and small dimple.

Attachment 41402

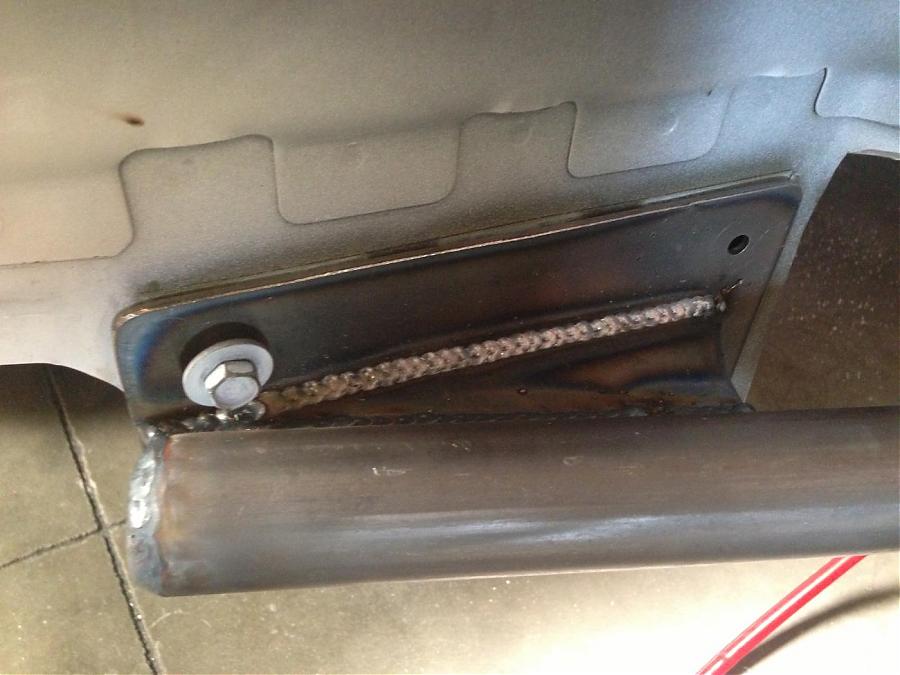

For future planning, they welded in the mounting plates for the front down bar in case they want to go the a full cage down the road.

Attachment 41403

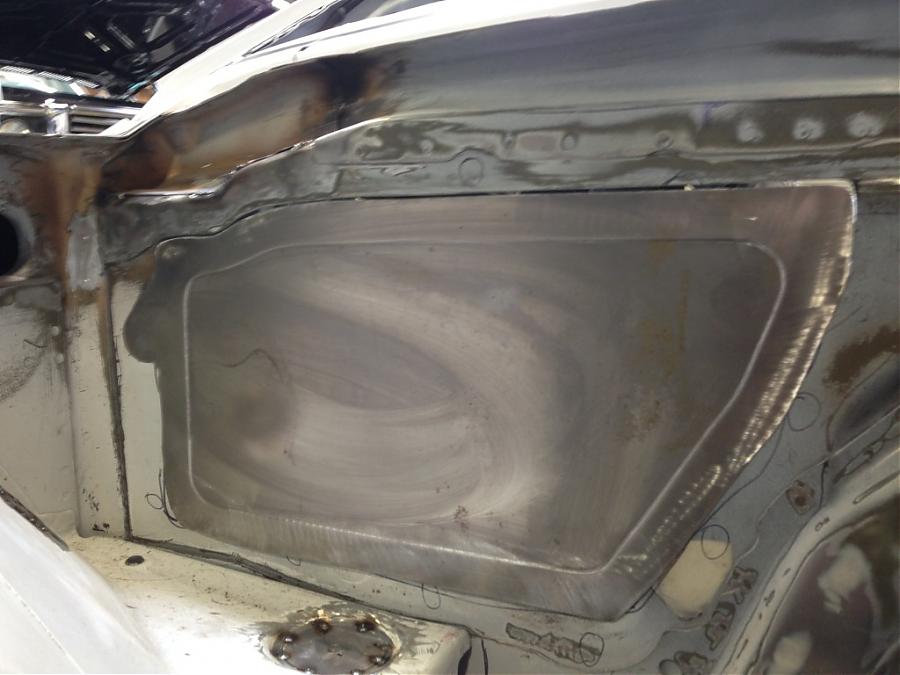

Filler panel for passenger side of the firewall. This is were the factory cabin filter use to be.

Attachment 41404

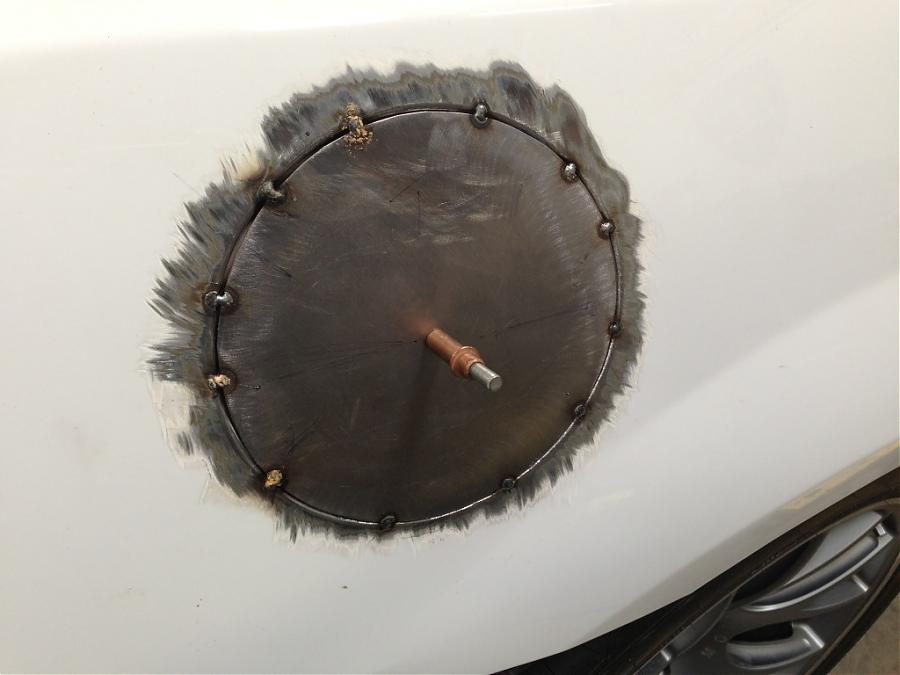

Gas filler is being relocated to the trunk.

Attachment 41405

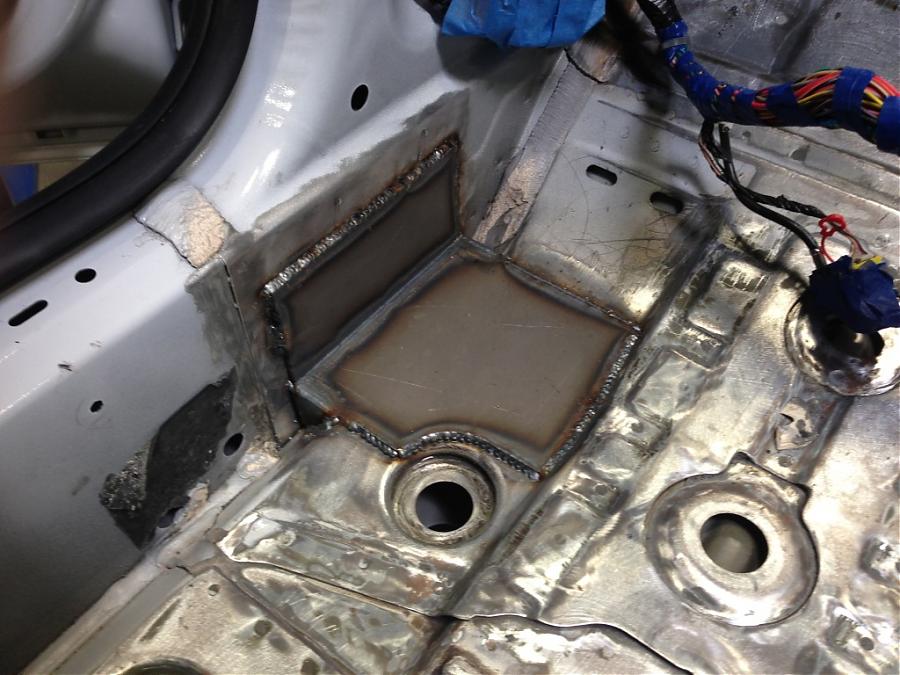

This is a preview of things to come. They have gotten rid of 30 lbs of metal bracing that was there to support the rear seats.

Attachment 41406

Wow big changes! Should make a big difference.

Thanks Wayne, pushing to get it done for SEMA. Going to be Line-Xing the entire floor panel next.

The boys did a tremendous amount of work for something that will look so simple in the end. Creating a flat firewall on the driver side.

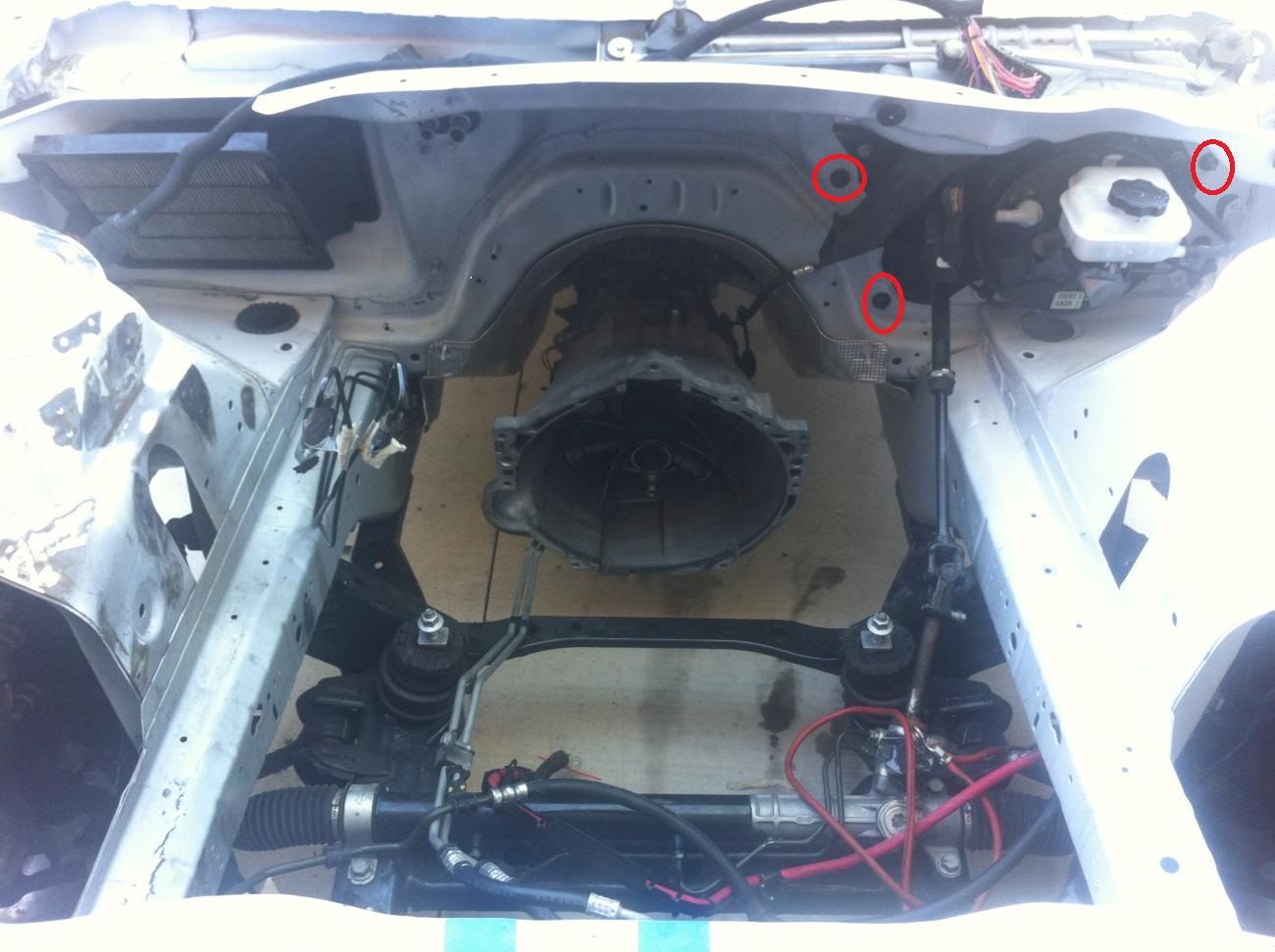

Here is a pic of the original engine bay. The red circle represent studs (total of 11 studs) that were sticking out about an inch through the firewall into the engine bay. These studs are welded to the plate that hold the buster and pedal assembly.

http://i1231.photobucket.com/albums/...ps3c098fea.jpg

In order to create a flat firewall driver side, the first step was to cut off the studs off the plate.

Next they had to come up with a way to mount the plate to the firewall.

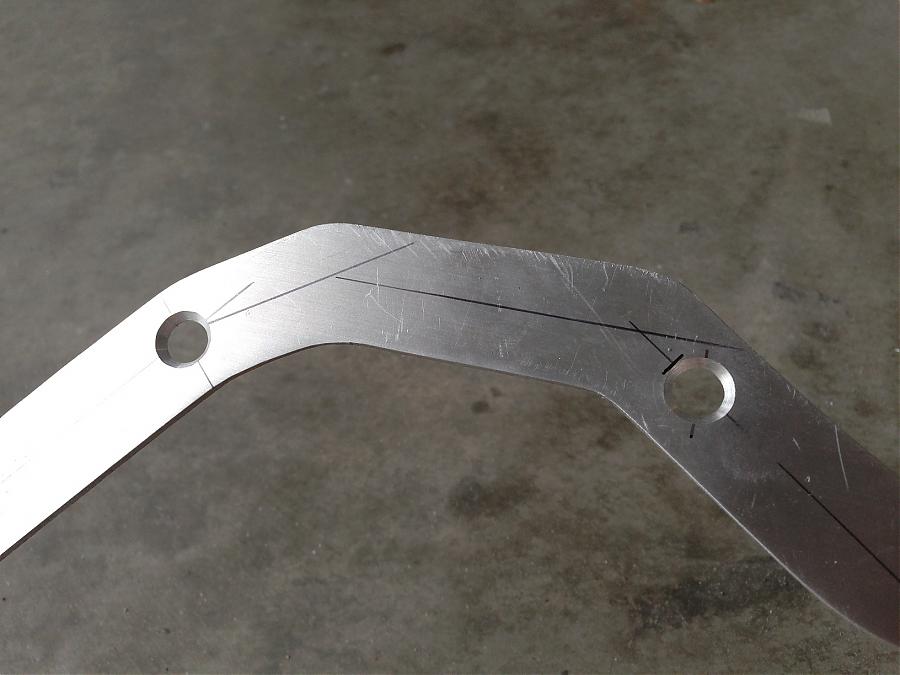

Seth made the template for what would become a ring the shape of the hole.

http://i1231.photobucket.com/albums/...ps566cbd31.jpg

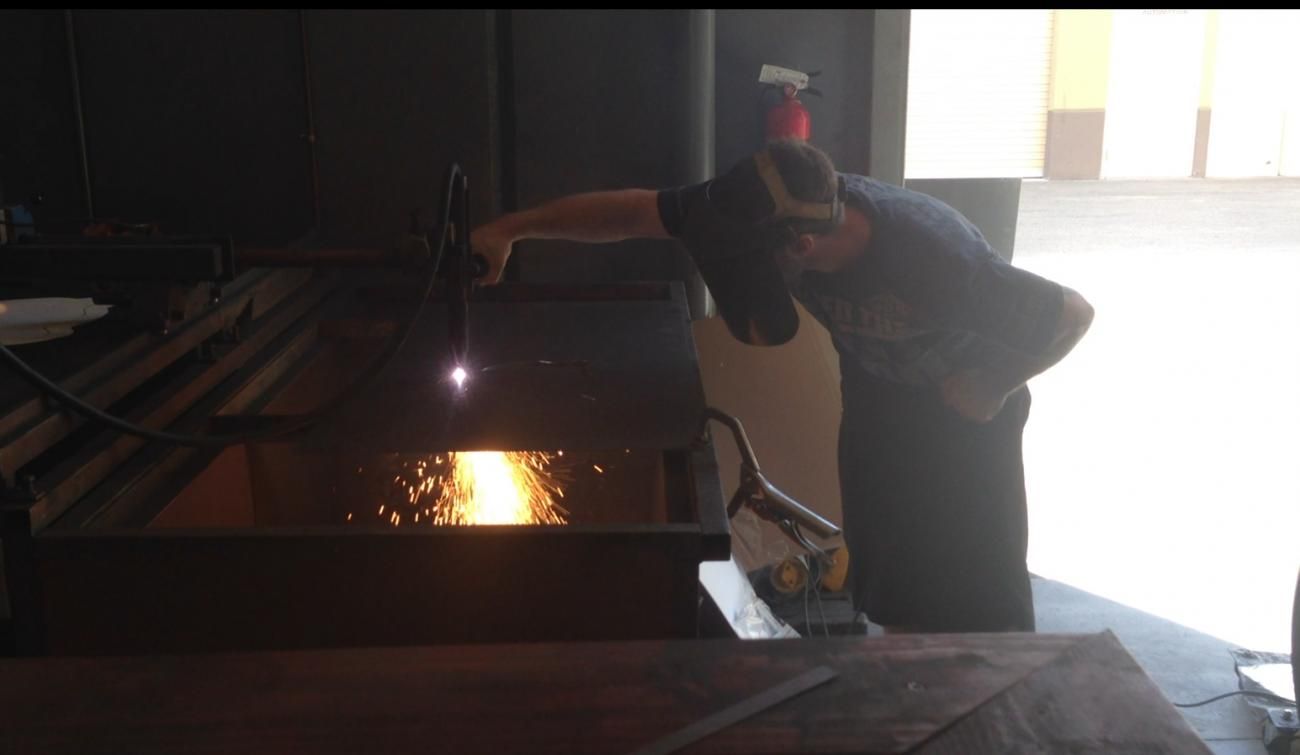

Next came cutting the shape out on the plasma cutter

http://i1231.photobucket.com/albums/...ps6d63793f.jpg

Nathan cleaning out the edges.

http://i1231.photobucket.com/albums/...ps8fc9e452.jpg

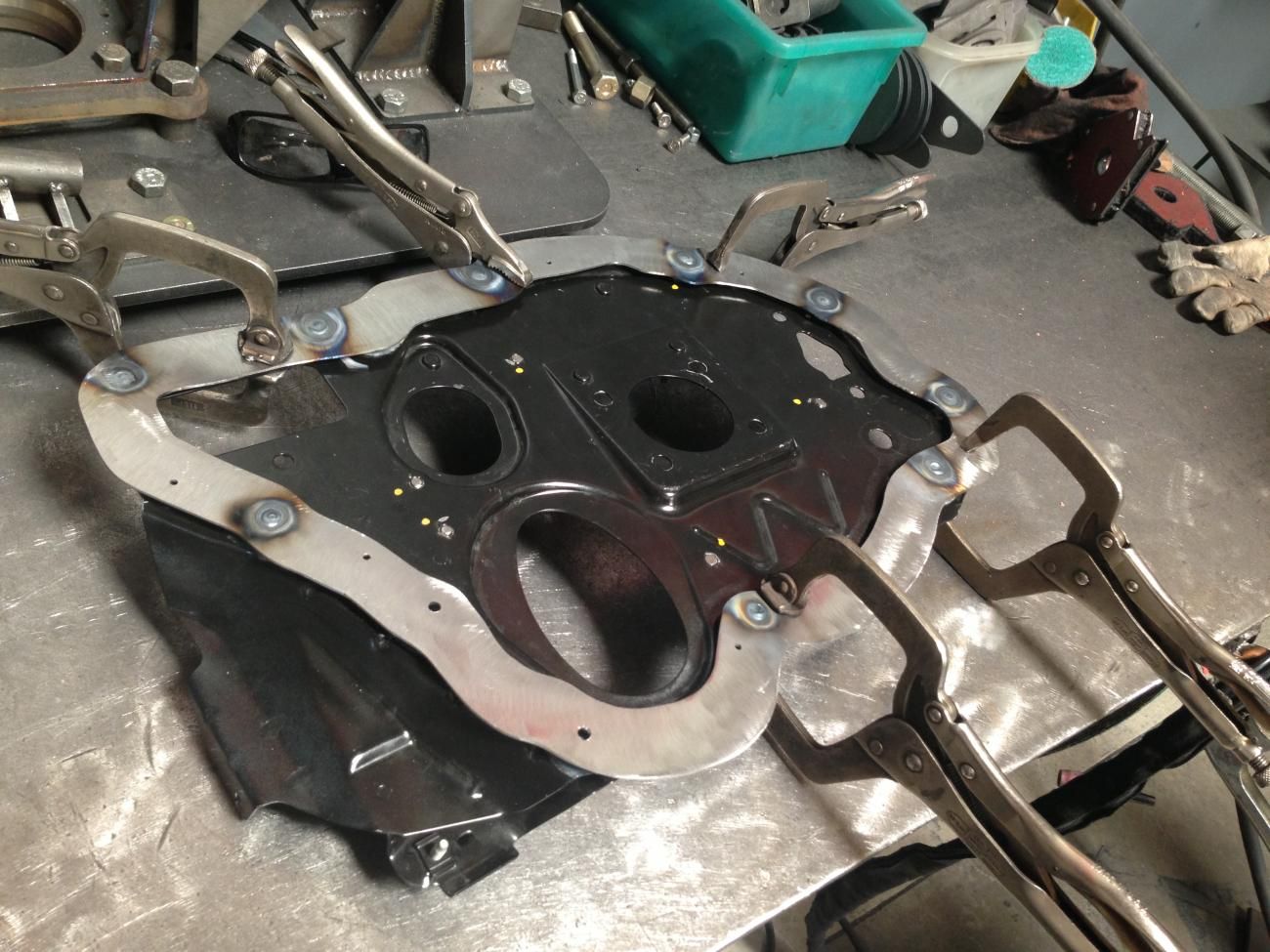

They cut the heads off the bolts and here they used the plate as a fixture to weld the bolts to the ring.

http://i1231.photobucket.com/albums/...psfcb0a46c.jpg

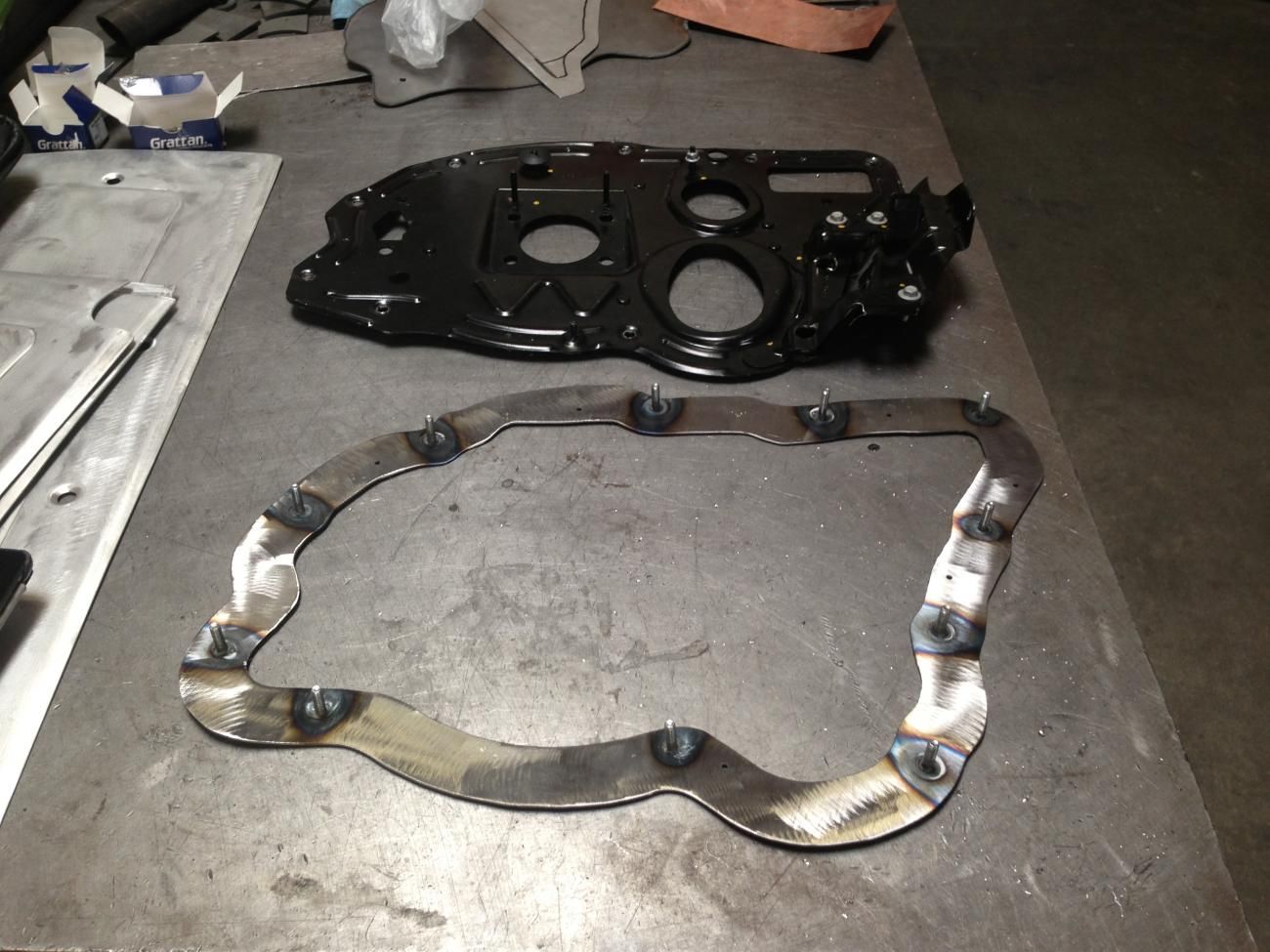

There's was about another 20 more steps to get to where they welded the ring

http://i1231.photobucket.com/albums/...ps189354e2.jpg

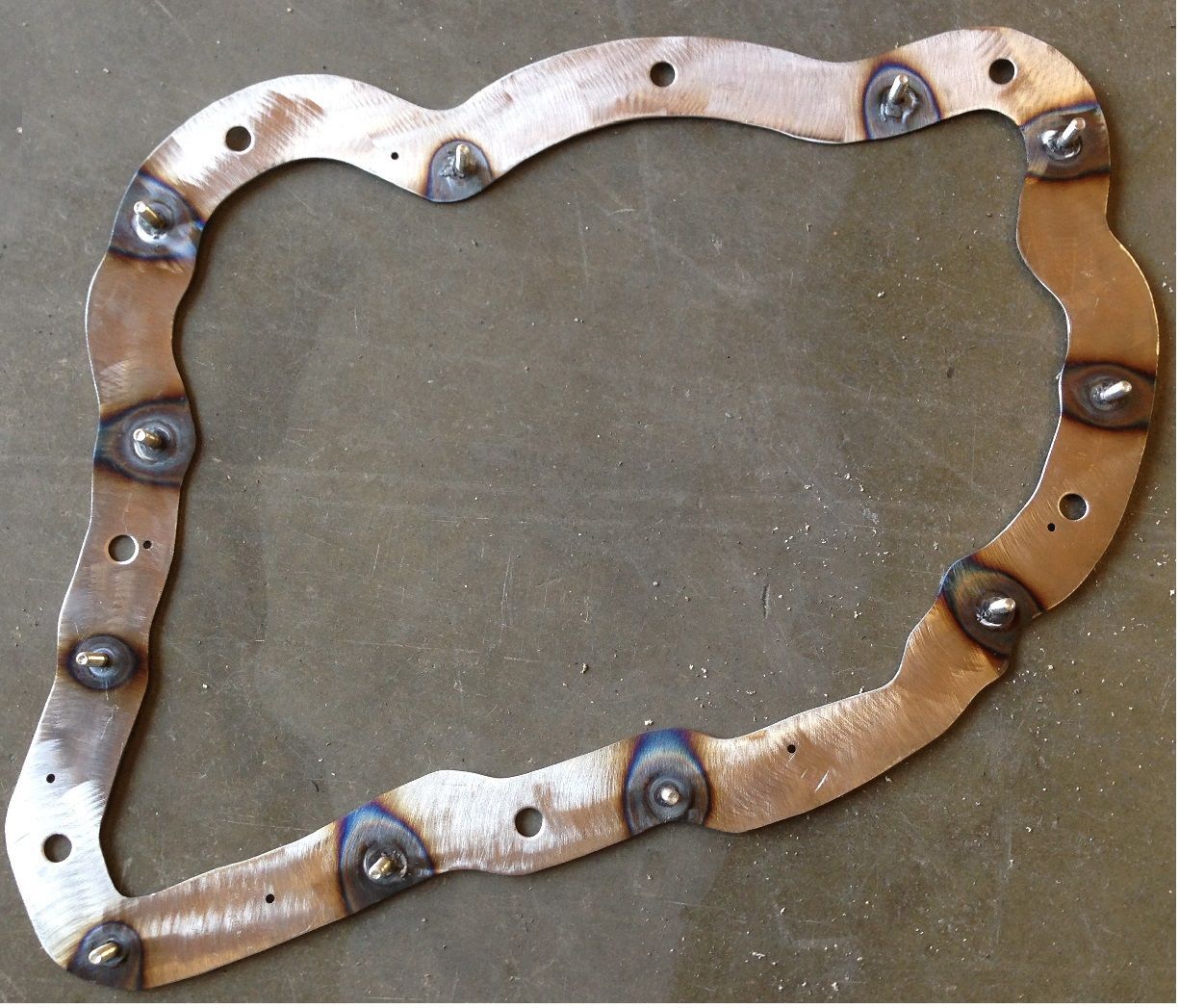

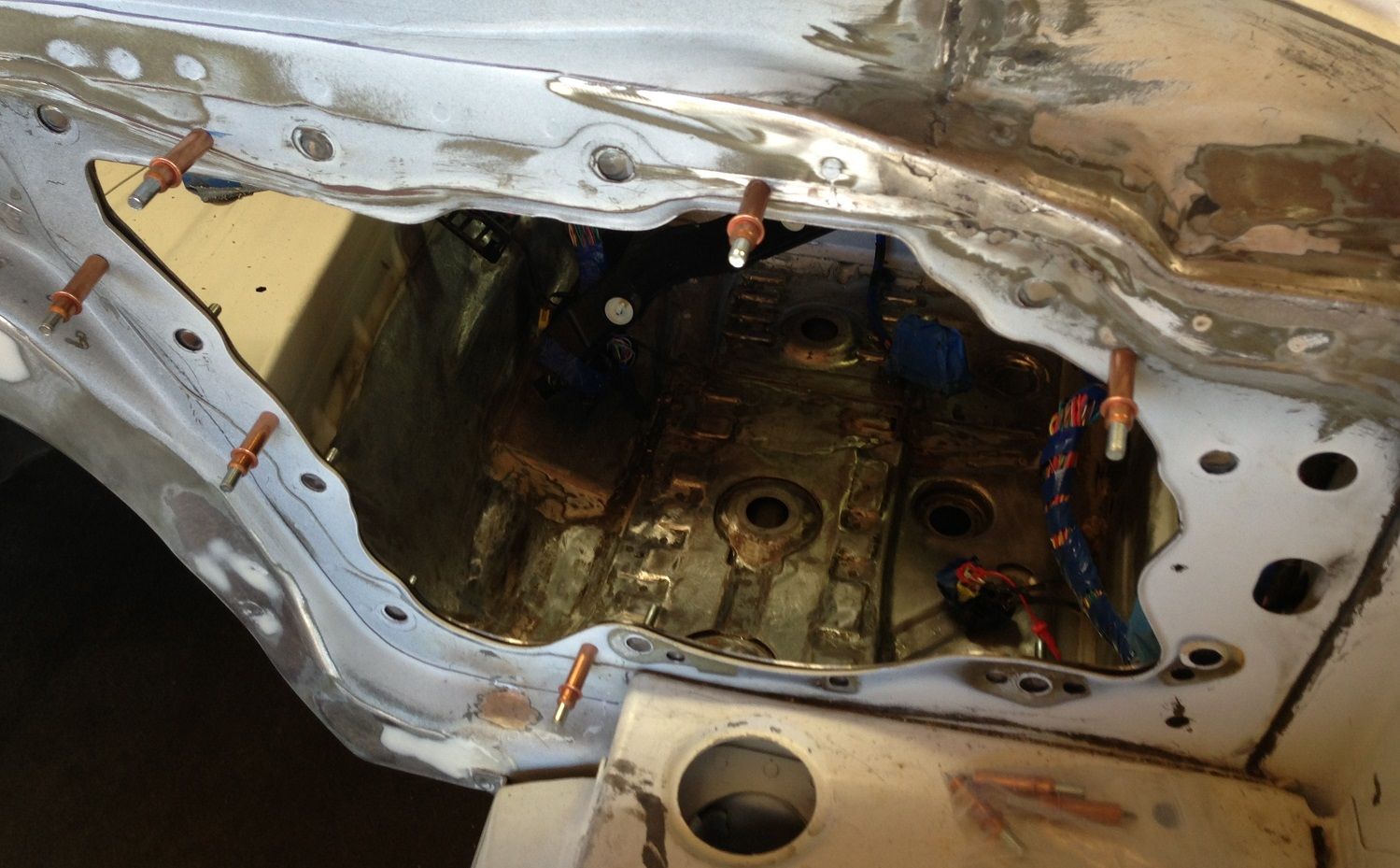

The holes were use to rosette weld the ring to the firewall.

http://i1231.photobucket.com/albums/...psfc82bed5.jpg

http://i1231.photobucket.com/albums/...ps3bd6fa19.jpg

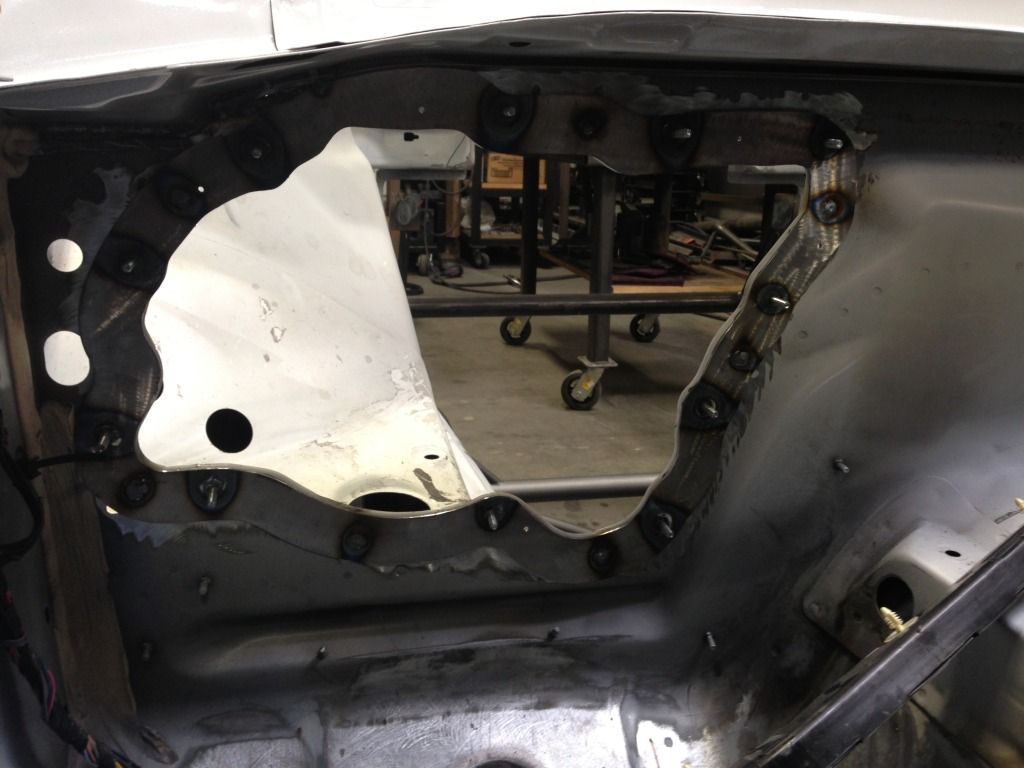

Finally, they welded the ring to the firewall with the stud now facing the cabin. Next on the list is making a carbon fiber firewall.

http://i1231.photobucket.com/albums/...ps0727af6f.jpg

So mount from inside now?

Nice.

I think we have the next ring brothers here!

Wow! So many little details.

Is the line-x going to counter productive of the weight reduction program? BTW, love what your kids are doing, going to make good fabricators in the future.:thumbsup:

Awesome is the only word that describes it Al. I love seeing the boys working on it---it's my own wish for my son---hoping he will one day get involved with me on the cars. Amazing work bro!

Thanks Wayne, they wish they had more time before SEMA to do more but time is working against them.

Thanks Mike for the props. They were going to go with Raptor but we saw a truck where the whole body was shot with Linex and the consistency was incredible. Your right on the weight gain but we're thinking no more than a couple of pounds.


Thanks D, it is kinda cool that they will be keeping our hobby going forward in the future.


Here is a quick update. I have got to give all the credit to Justin on this one as this has been his pet project.

Over the past several days he's been working on a close out panel for the trunk to separate it from the interior since we lost the rear seats. This stuff has taken time. lots of it. It is one of those things that though it may look pretty simple, not many people realize how much time and effort is put into it. Here are some pics.

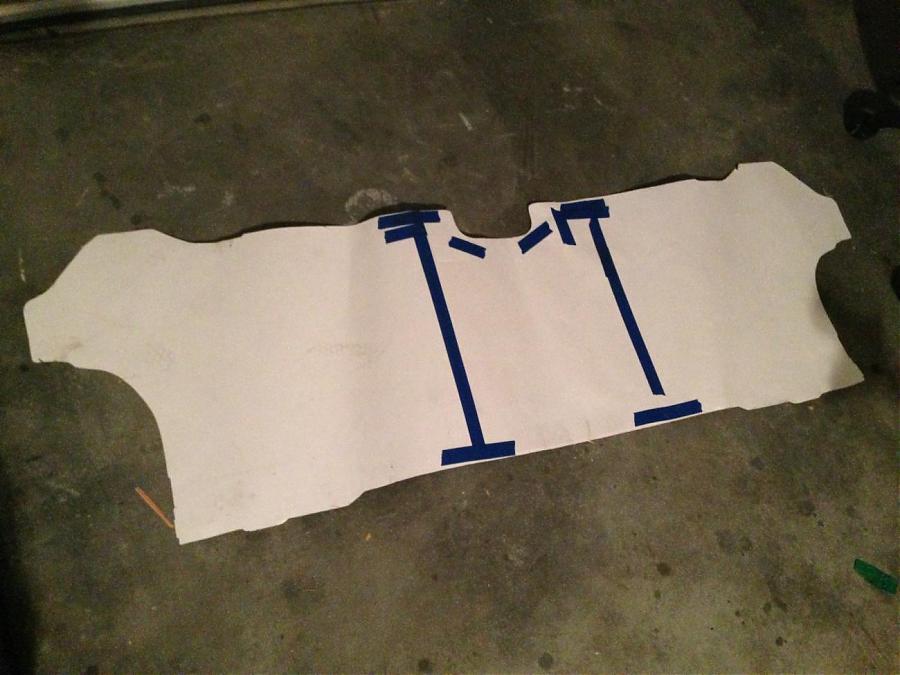

The template was the first step. Hours of fitting, checking, trimming, trashing, cutting, checking, trimming, you get the idea... the driver and passenger sides were not identical as well so had to do a separate template for each side.

Attachment 41724

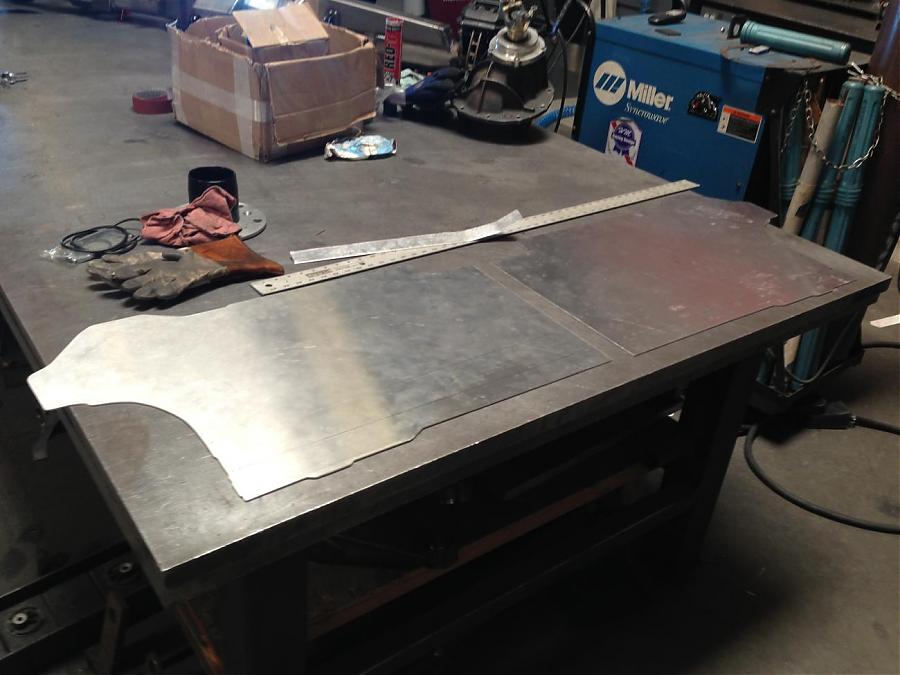

Hand cut the panels from the template

Attachment 41725

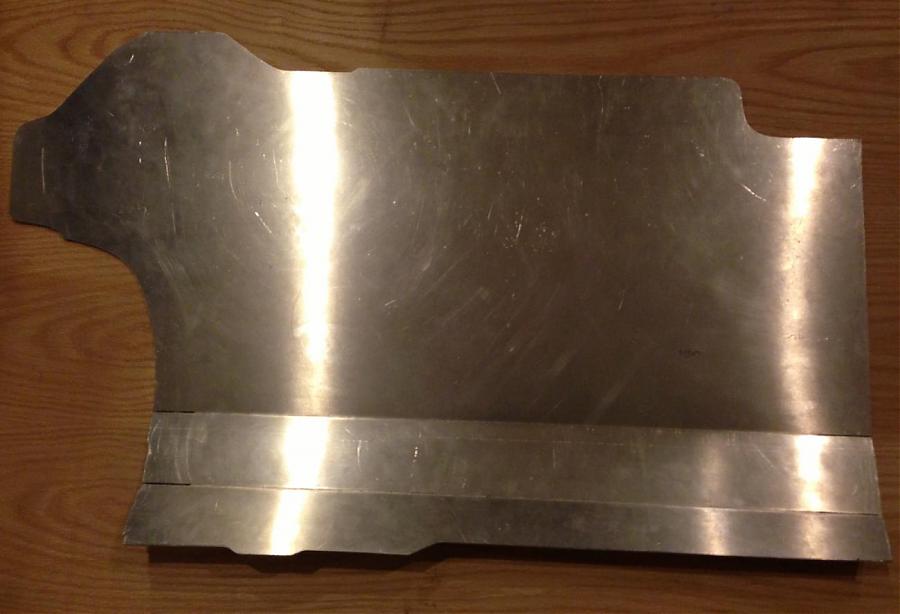

Made two bends to comply with the frame it will sit against in the trunk.

Attachment 41726

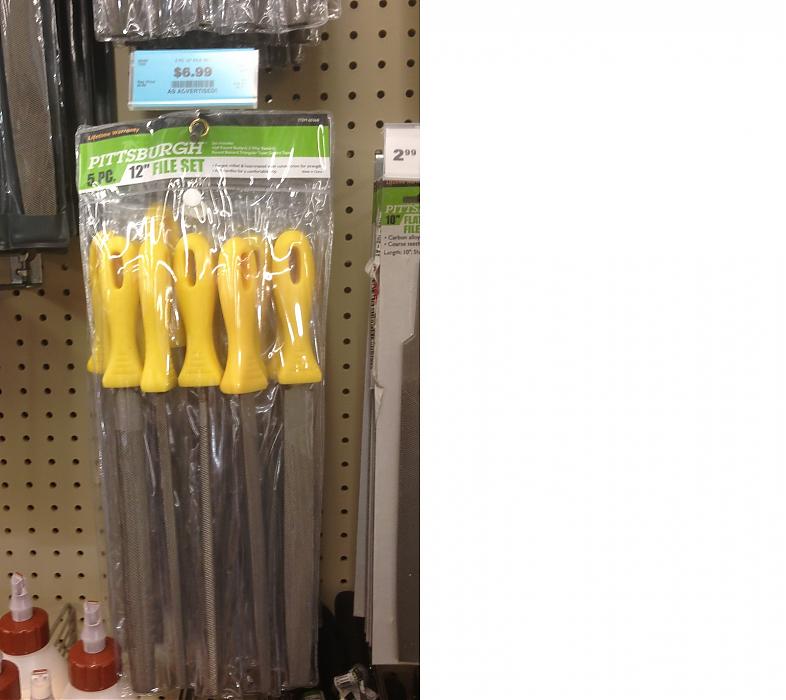

Next came carving out the bezel. Your not going to believe this but he did a lot of the work with a $6.99 set of files from Harbor Freight.

Attachment 41727

We had a sheet of carbon made by APR performance. These guys specialize in wings and aero. They will be making one for G5.R. This has got to be the largest piece of flat carbon in the "UNIVERSE". That was for you GW, LOL

Attachment 41719

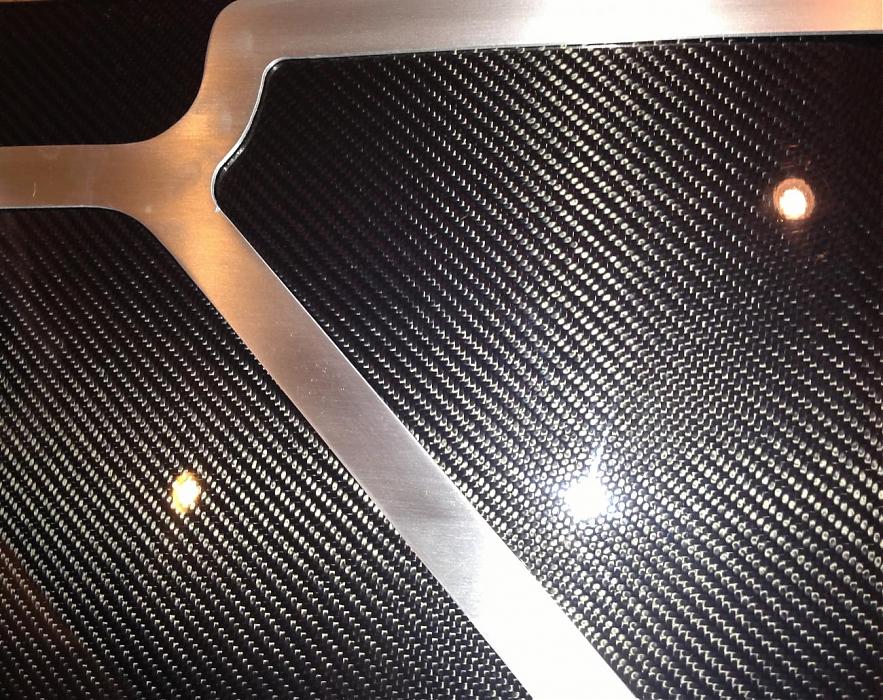

Here is a close up.

Attachment 41723

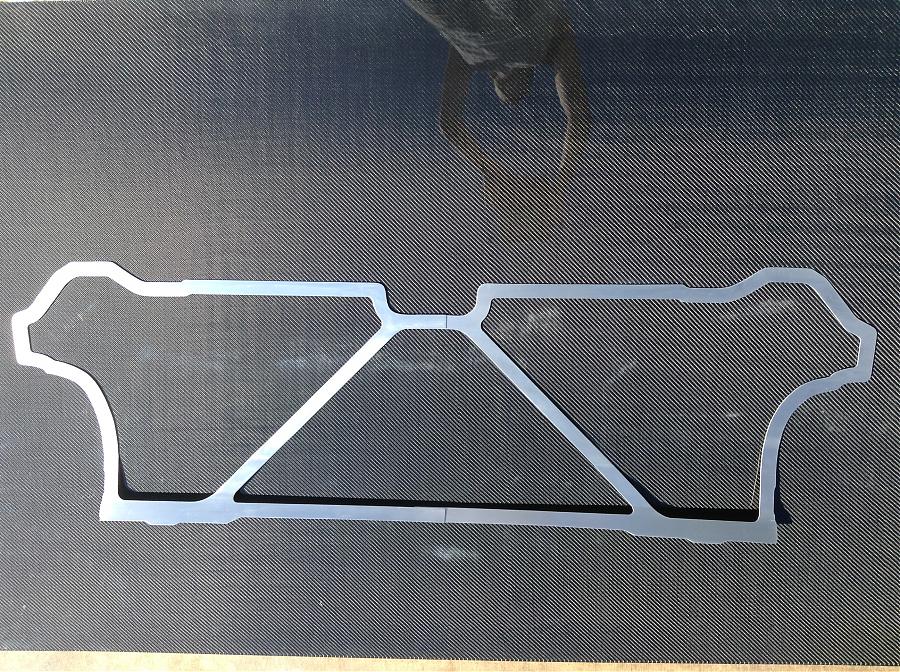

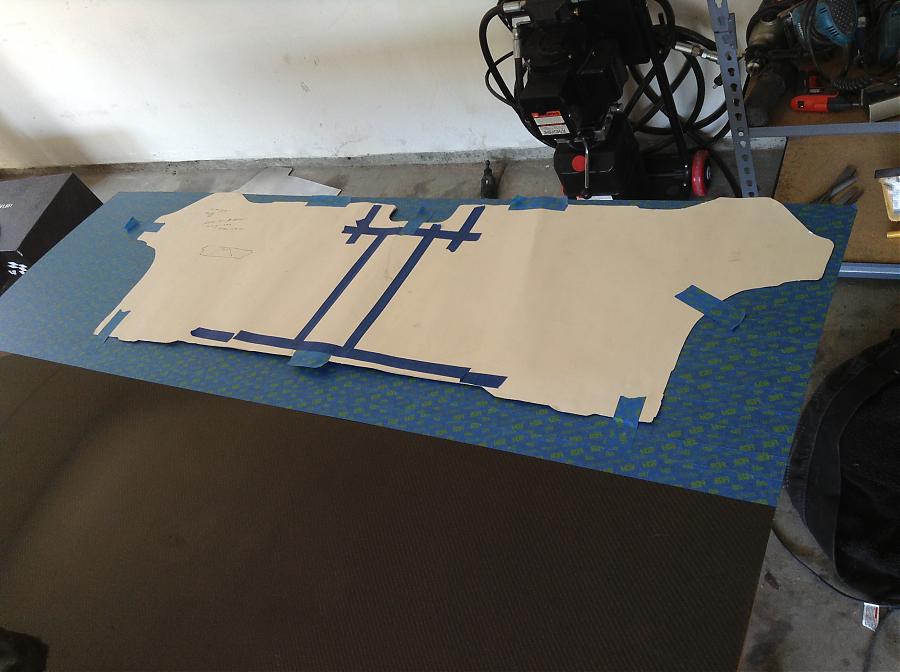

Tracing the template.

Attachment 41720

After some online research, he found the best way to cut this carbon was with a jig saw and a carbide blade.

Attachment 41721

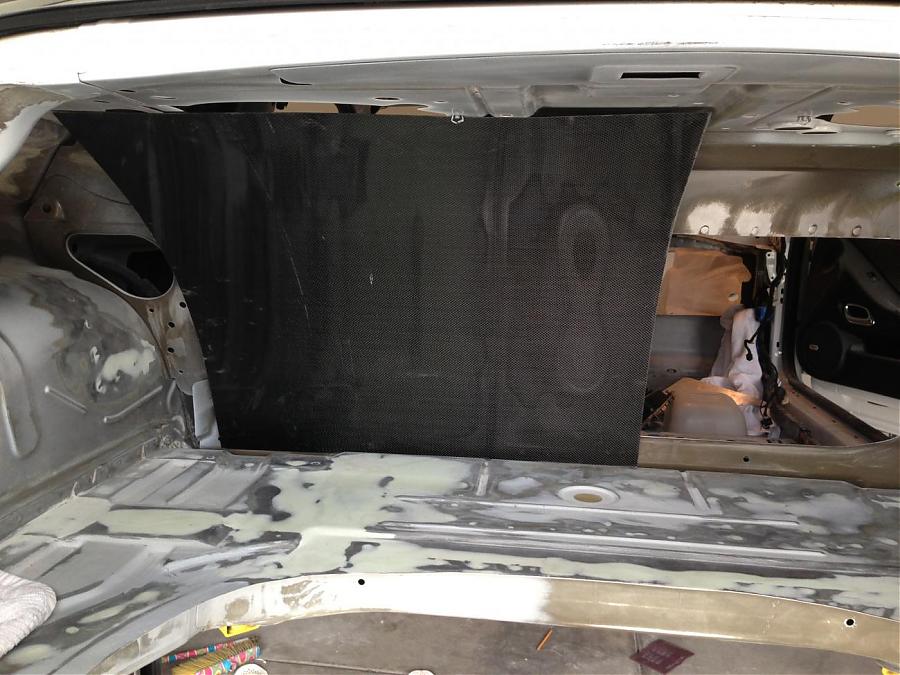

here a mock up. Next in line will be drilling the counter sunken holes and bolting.


Attachment 41722

On a different note, the steering wheels is being sent to get completely redone at DCT. These guys do amazing work, mostly for exotics, lambos, Ferrari, etc.

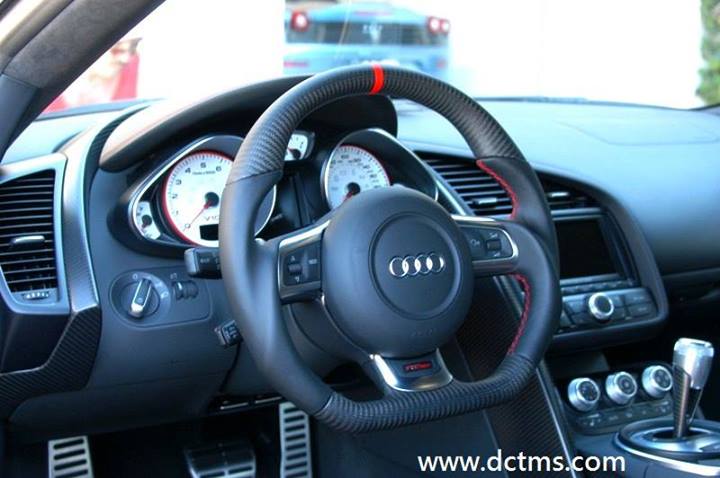

GW this is a wheel they did for a R8. I think it would look killer on your car.

Attachment 41728

Here is a link to their face-book: https://www.facebook.com/DCTMotorSports/photos_stream

Al,Congrat's for rising kid's that are not afraid to work hard.The Camaro is turning out Amazing.:gitrdun:

Great job guys, Al they are really taking it to the next level for sure!!

As for next Ring boys, why can't they do this on the side?? Most of us have to have our day job? Doesn't mean they can't build SMOY cars at night?!

Al, i may have missed this from earlier, where's it going to be featured at SEMA?

thnx,Mike

Good point Rick, wouldn't that be a hoot, building a SMOY contender from the garage.

Mike, your right, I must have missed it, It will be at the Race Ramp booth....... God willing.

Love the steering wheel Al!!


Tell me something I may have missed. Is this project being built in a school shop?? I thought it was your son building the car -- so is he a shop teacher??

Signed,
Clueless in Sun Valley....

It's Mr. Clueless to you sir, LOL.

G that's a buddy of mine who owns HM racing Design. They specialize in $500,000 trophy trucks. He lets the boys use the shop for the stuff they can't do at home.

I thought you'd like the wheel.

Very nice work! Good luck getting ti done for SEMA!

Thanks Trey, it's a lot of work, so they will need all the luck they can get!

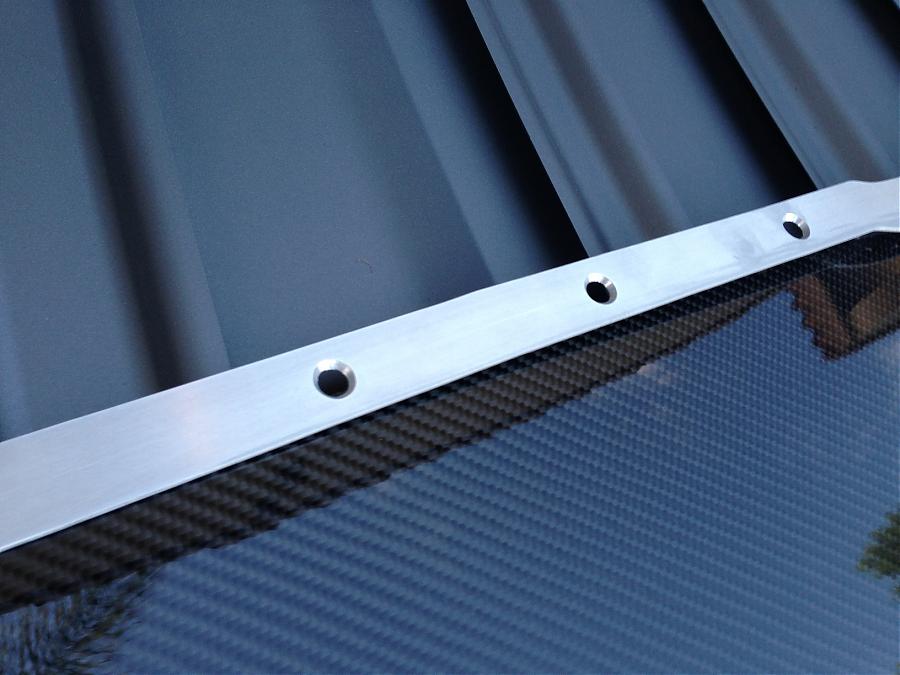

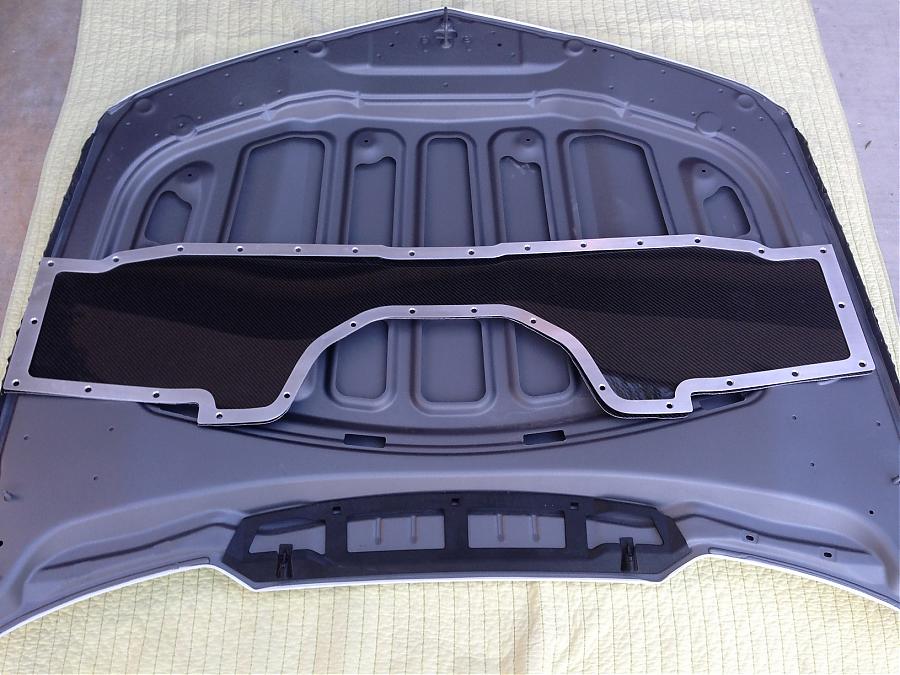

Here a quickie of the firewall bezel, the carbon is going to get tone down will a mat finish. We used the factory hood as a test panel. That's going to be the color of the engine bay, floor and trunk.


Justin counter sunk all the holes with a hand held drill!

Attachment 41857


Attachment 41858


Attachment 41859

Very Nice!

that is Awesome !!!

Where did you guys get the Carbon Fiber sheets as I need a couple sheets.

Thnaks Wayne!

Thanks Marty, I think one sheet is all you'll need as they come in 4' by 8'. Speak with KC at APR Performance Inc. Tel (909) 594-3796

and thank you

Well, cars is off to paint. There is no kidding, over 10 days of skimming, sanding and primer in the engine bay. They even skimmed the inside of the fire wall were the filler panel was welded in. There more hours in the trunk than I can count. Every single spot weld has been smooth.

The boys are thinking of going with the same color as the Z/28 concept. What do you guys think?

http://i1231.photobucket.com/albums/...ps11bfcdc3.jpg

It will look Awesome if thet choose this color.

Pearl white mat would look really cool, but remember to keep your hands VERY clear or always wear gloves if you plan on touching the car!! It will show every little touch to the car!
