We have the jig locked to the floor and if it sat there too long with nothing on it junk could pile up. Nature abhors a vacuum I guess? Let’s toss a few sub-frames and some tubing up there and see what goes down!
https://lateral-g.net/forums/attachm...1&d=1620000417

pics pics pics
https://lateral-g.net/forums/attachm...1&d=1620000634

My buddy Brent who you will get to know better later dropped by and while he was here we decided to experiment with the tires. I got it in my head that I had left clearance for a really big tire up front. Well we had the rear tire so let’s try that? Damn, it fits really nicely! Doesn’t hit the frame anywhere.
https://lateral-g.net/forums/attachm...1&d=1620175999

Naturally I started a project in a garage that needs to be taken down and replaced. I managed to talk the wife into a shipping container for the current garages contents while we rebuild. It also gives me room to store the Cougars extra parts for a few years.
https://lateral-g.net/forums/attachm...1&d=1620176552

Well the cars last few days as a complete car are coming to an end. We are stripping this thing down and we are gonna save and tag everything! SURE WE ARE……………
https://lateral-g.net/forums/attachm...1&d=1620425754

Never afraid to admit I don’t know stuff, but it doesn’t seem to make me stop working.
You will see as I go along that I pull off some ridiculous feats through sheer stubbornness.
https://lateral-g.net/forums/attachm...1&d=1620427471

The chassis jig is a tremendous tool but like our car projects it is dynamic and always changing.
The thing I knew from the start was that it would have to be capable of more than just being a level surface.
https://lateral-g.net/forums/attachm...1&d=1620503663

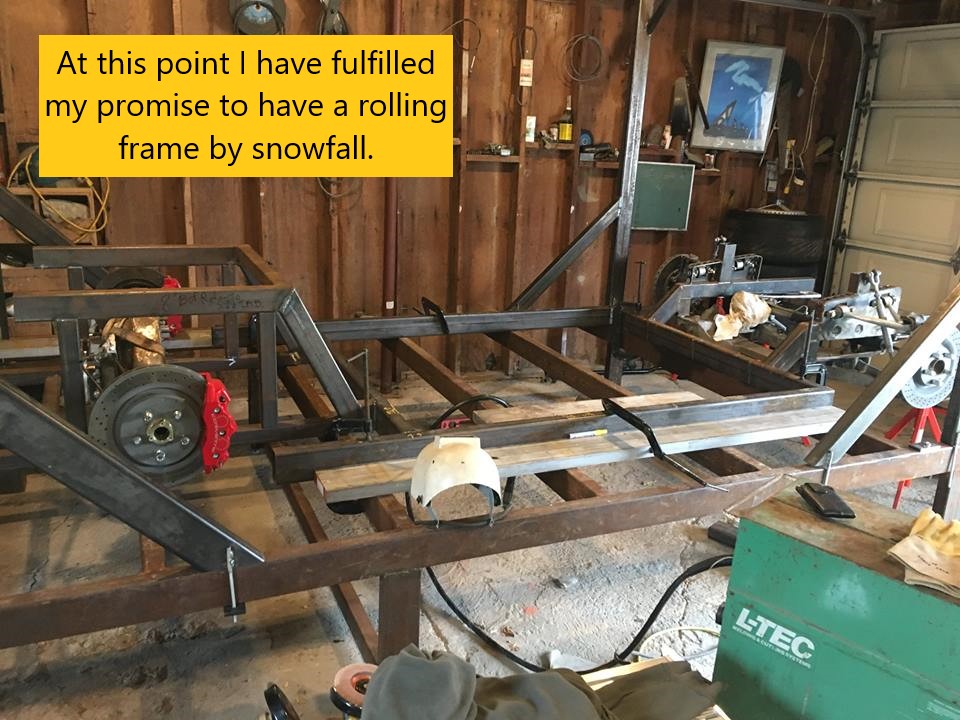

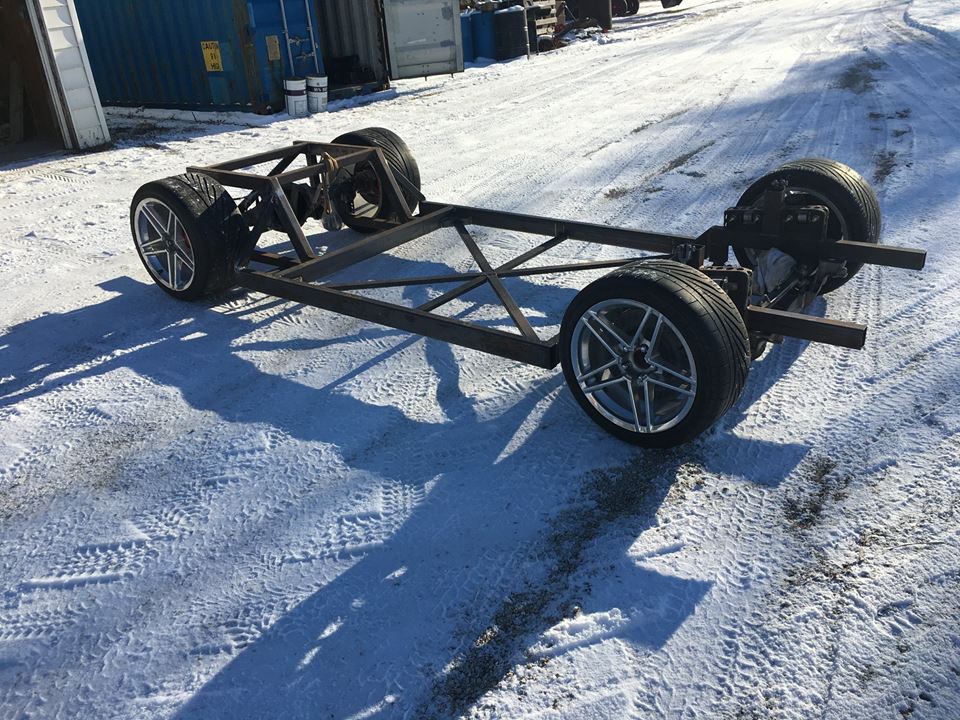

I swore to myself that this would be a rolling chassis before the snow flew. Luckily I am fat and can work when it is too cold for most.
https://lateral-g.net/forums/attachm...1&d=1620505219

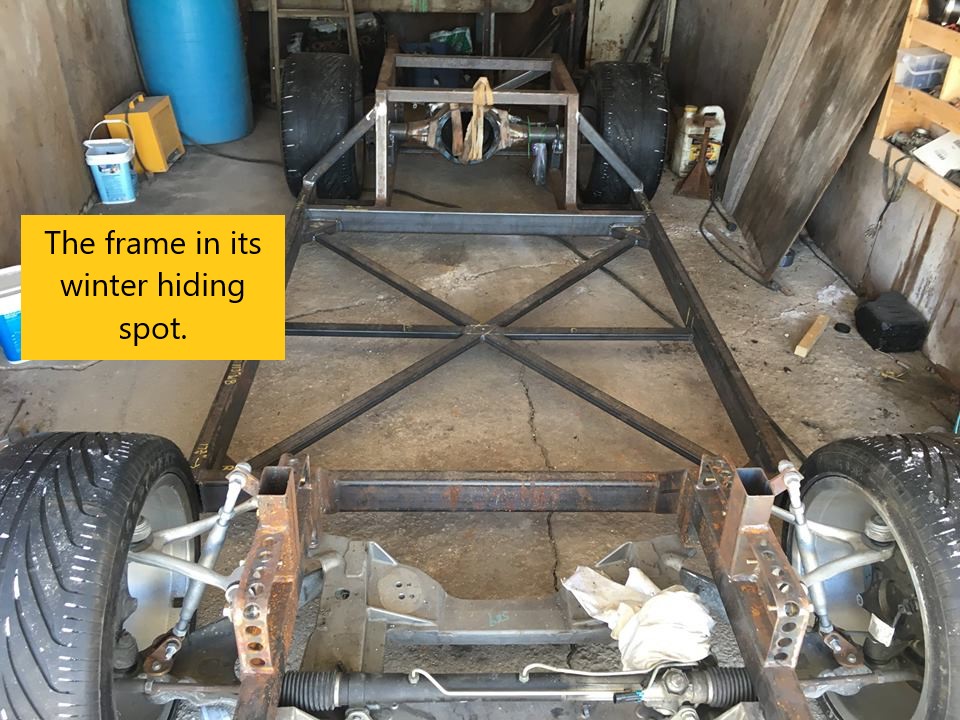

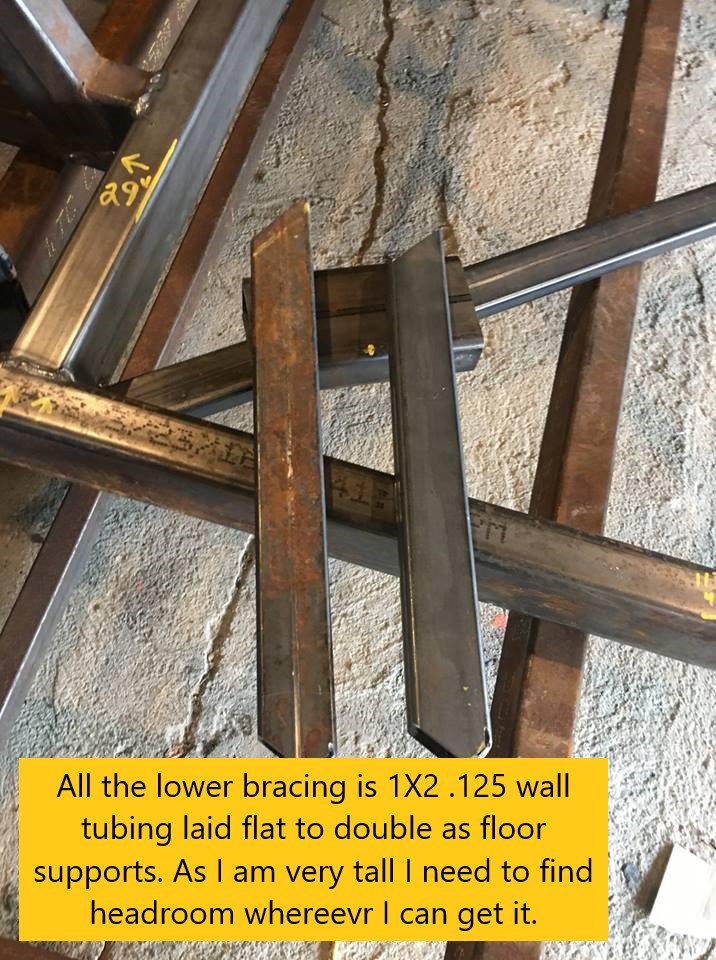

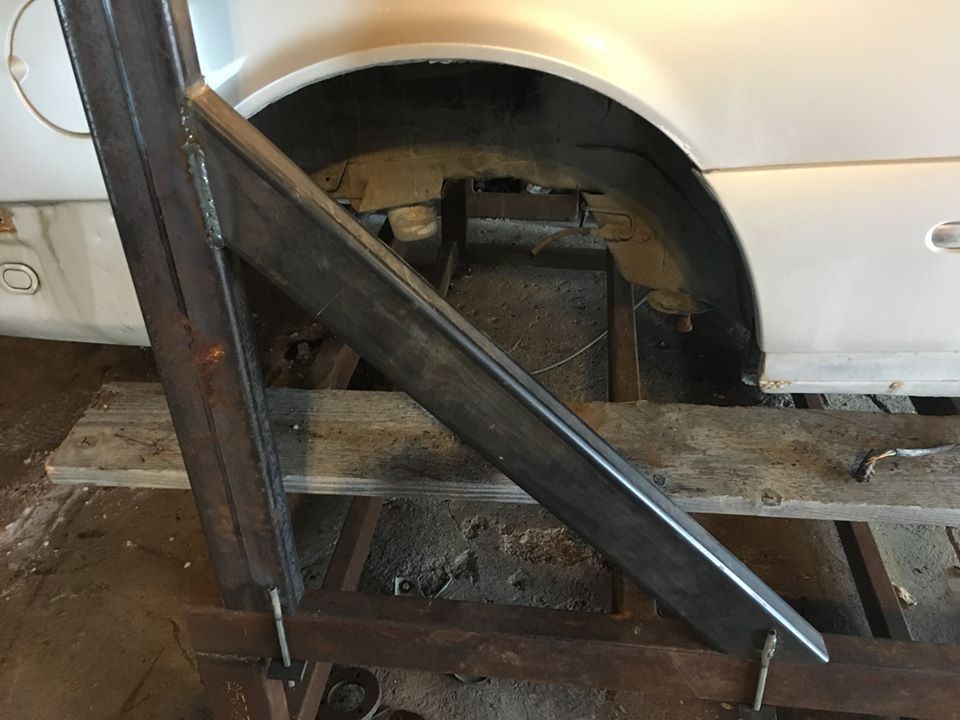

Before we put the chassis away for winter I wanted to put diagonals in to prevent any shifting as it’s removed from and reattached to the jig. Don’t need to diamond the frame by running into it with my tractor, do I?
https://lateral-g.net/forums/attachm...1&d=1620506707

I am quite lucky. As a school teacher I occasionally have the opportunity to let the kids help on my projects. Teaching a vocational program the opportunities to use tools and smarts at the same time is a gift. When we have some spare time we just start to tear into something and have a little fun. Occasionally plumbing code requires us to take a break.
https://lateral-g.net/forums/attachm...1&d=1620772006

Remember when I said plumbing code could get a little boring? Well that happened on this day and the kids were more than happy to take out some frustration.
https://lateral-g.net/forums/attachm...1&d=1620772625

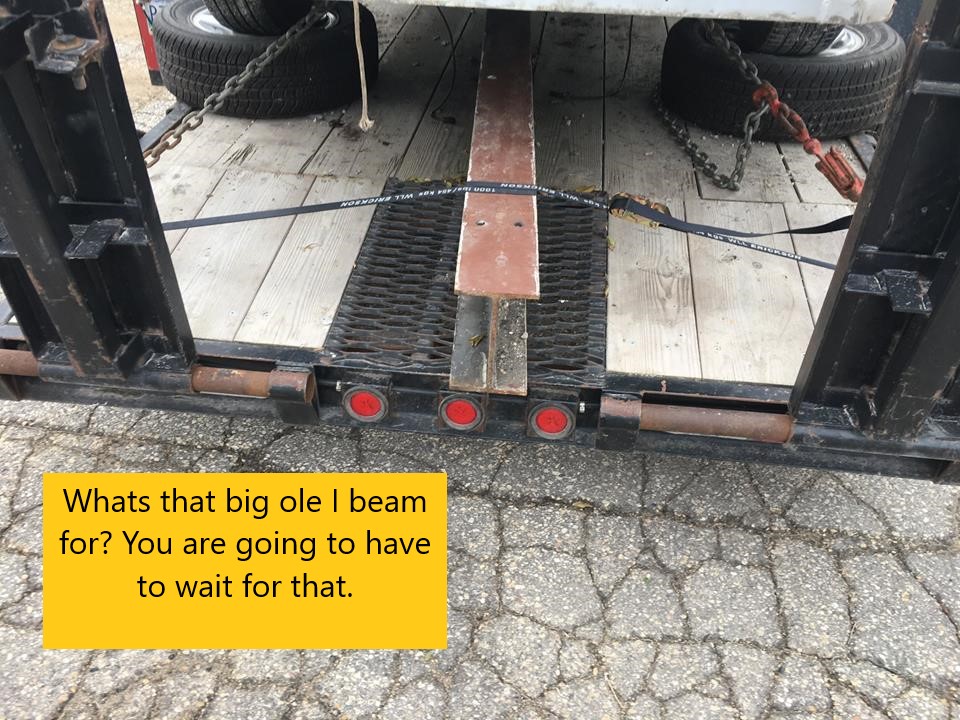

Now I can answer and show you why the steel I beam was in the previous posts.
I promised that the jig was an evolving unit and it appears this is just another period in that development.
https://lateral-g.net/forums/attachm...1&d=1620773327

Of course with a trolley beam on the jig I needed a few trollies to roll back and forth on them.
I ordered them through Amazon to get a good deal. After a lot of time being pissed off at them the order was cancelled and good old Princess Auto came through.
https://lateral-g.net/forums/attachm...1&d=1621128789

As the car gets loaded on the jig the new trolley system gives us the freedom to move in ways that are helpful in construction and convenience.
https://lateral-g.net/forums/attachm...1&d=1621129561

As the car gets loaded on the jig the new trolley system gives us the freedom to move in ways that are helpful in construction and convenience.
https://lateral-g.net/forums/attachm...1&d=1621130496

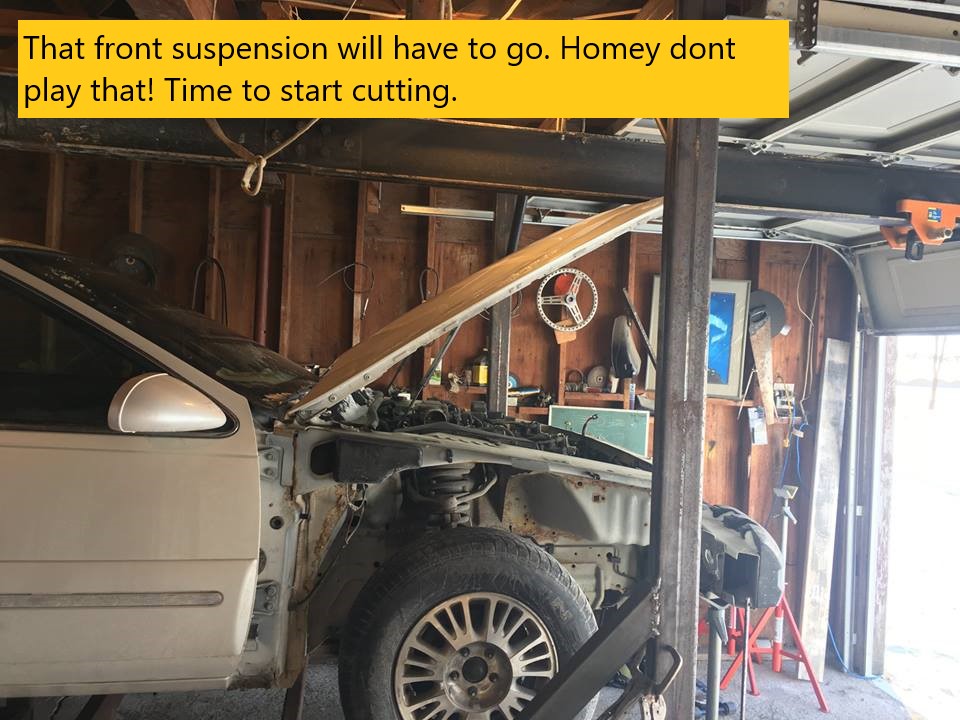

With the car set on the jig we need to get rid of a lot of “Cougar”. It saves weight for moving it around and it also helps my scrap metal pile grow. Can’t look like a true hillbilly without a large scrap pile can you?
https://lateral-g.net/forums/attachm...1&d=1621131512

The project for today is to be able to support the car and be able to move it around. Another project that takes a ton of time and doesn’t look like you did anything.
https://lateral-g.net/forums/attachm...1&d=1621132403

First I pull the engine and I didn’t even miss that annoying ground that goes from the firewall to the engine. Naturally when I have some success I can’t just leave it alone can I? Good thing that the rear end came out with no hassle?
https://lateral-g.net/forums/attachm...1&d=1621133184

If you have not checked out this thread in a few days you need to go way back and get caught up. I have realized that as far ahead as I currently am that I could be dead before all the posts are completed.
While the project is still a ways off from being finished, I have extensively documented the build.
If you remember from the start I promised a lot of pictures, an intense build and that it wasn't another F-Body.
I believe that I have held up my end and hope that you continue watching.
Comments are always appreciated as I make mistakes frequently and maybe you can catch something that I have not down the road.
Please don't be intimidated by anything that I have done here. I started off just like anyone else with more guts than brains. Unfortunately as I get older I wish I still had some of that young mans drive again.
Thanks to all of you for following along and good luck on your own projects!

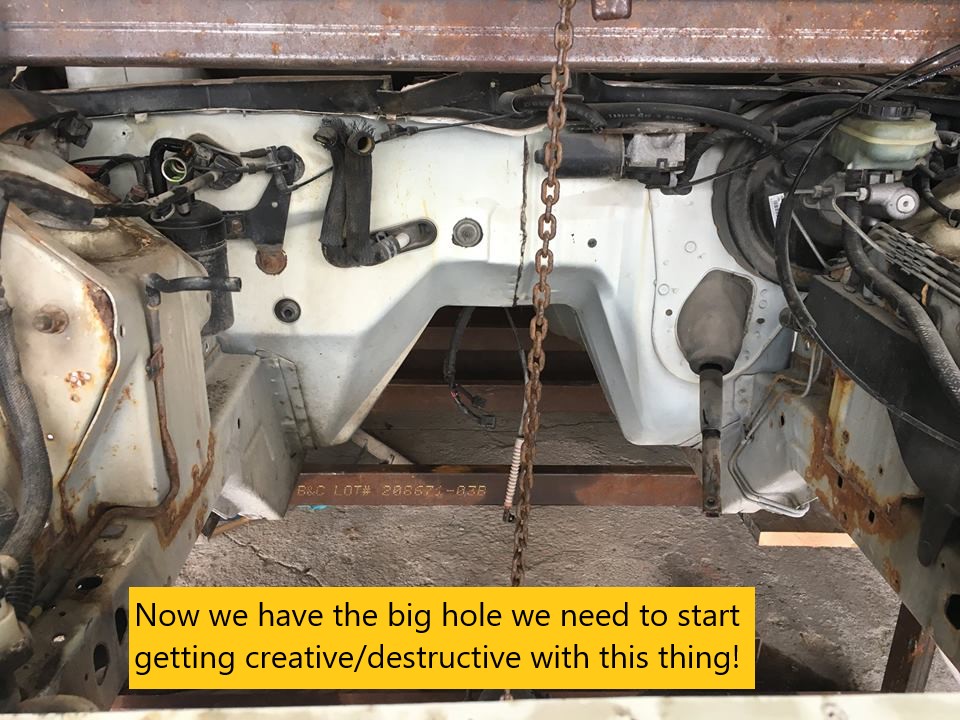

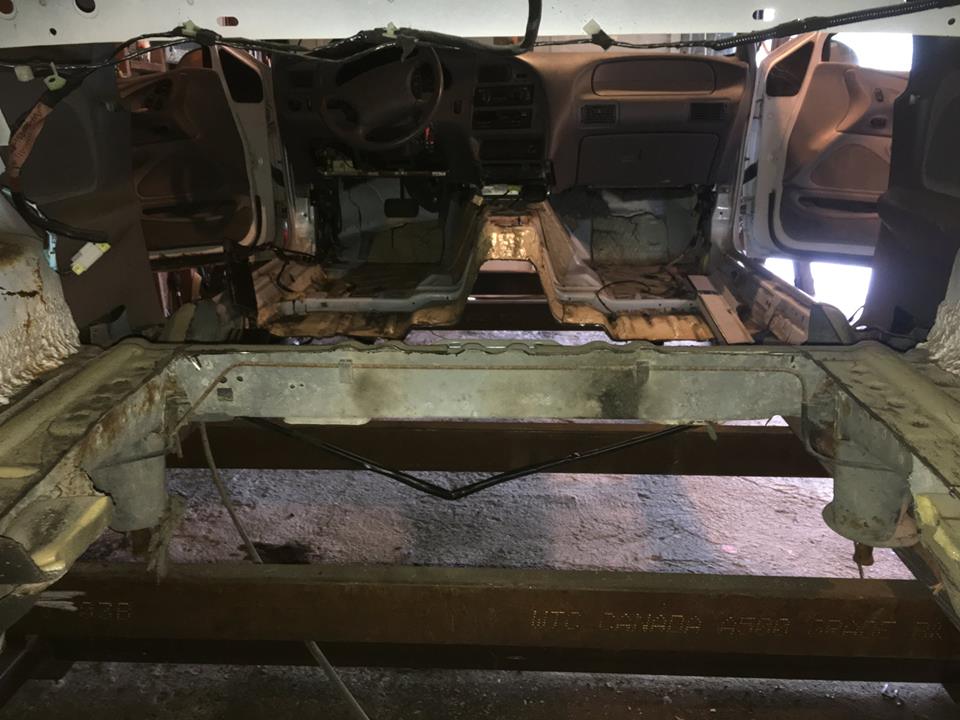

Time to get some working room. I knew from the start that a stock floor-pan would never work. This is a zip cut and sawzall deal for the most part.
https://lateral-g.net/forums/attachm...1&d=1621712314

I was quite tentative when I first started cutting. Don’t worry I got over my hesitancy quite quickly.
https://lateral-g.net/forums/attachm...1&d=1621713667

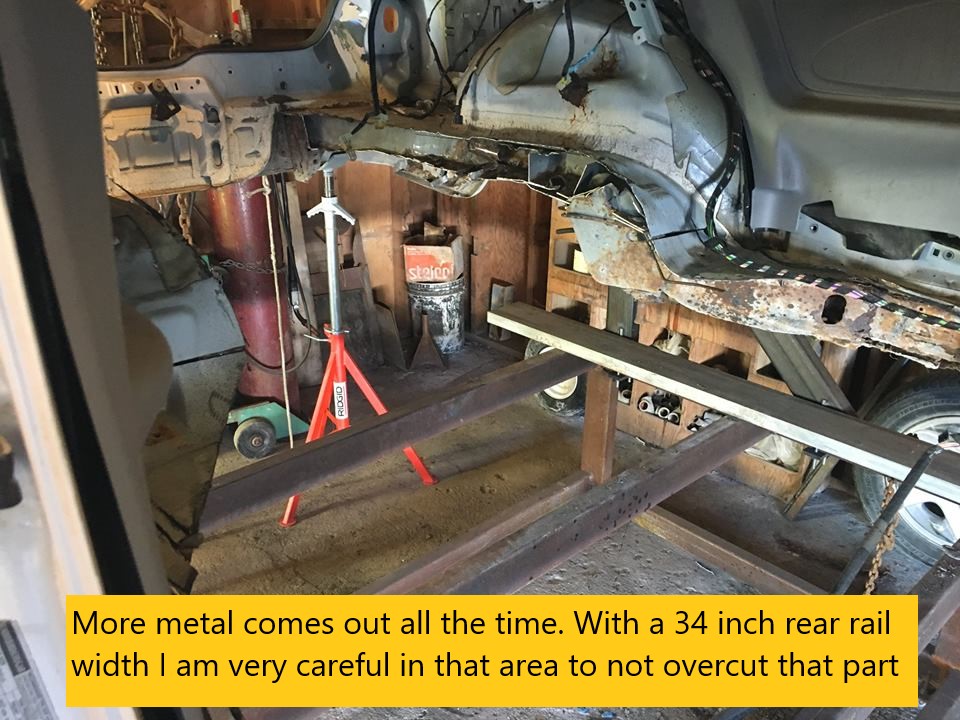

We are getting a little braver with our cutting. The body is hanging from its 2 lifting fixtures. When I am underneath I also add the rigid pipe stands for extra safety.
https://lateral-g.net/forums/attachm...1&d=1621714239

As you follow my build you will notice that I buy stuff just for mockup. These shocks may have had aspirations of fame on Transcona but they are just the stunt doubles.
https://lateral-g.net/forums/attachm...1&d=1621714737

I removed the dash. Then the dash removed some of my skin. I loosened and shook and pried on the dash assembly and it wouldn’t move. When I was at my absolute limit of POed, it just fell down, WTF!
https://lateral-g.net/forums/attachm...1&d=1621715065
