Water Neck and Intake Manifold Plumbing ( 10-31-21 )


I had time to do a couple simple projects so out to the garage I went.

http://www.garagescene.net/_data/i/u...eca7330-me.jpg

http://www.garagescene.net/_data/i/u...29562b4-me.jpg

http://www.garagescene.net/_data/i/u...1cb3325-me.jpg

I decided to mock up some of the hoses.

http://www.garagescene.net/_data/i/u...ff64cb2-me.jpg

Thankfully the auto parts store is close

http://www.garagescene.net/_data/i/u...0dd4d2d-me.jpg

Nope, I don't like the way this hose looks.

http://www.garagescene.net/_data/i/u...9e36dca-me.jpg

http://www.garagescene.net/_data/i/u...ba7b82e-me.jpg

I ordered this custom hose with all kinds of crazy bends in it.

http://www.garagescene.net/_data/i/u...44281a9-me.png

http://www.garagescene.net/_data/i/u...88d06fa-me.png

Yep, I've made good use of those molded smaller hoses for certain vacuum lines, turn out much cleaner looking.

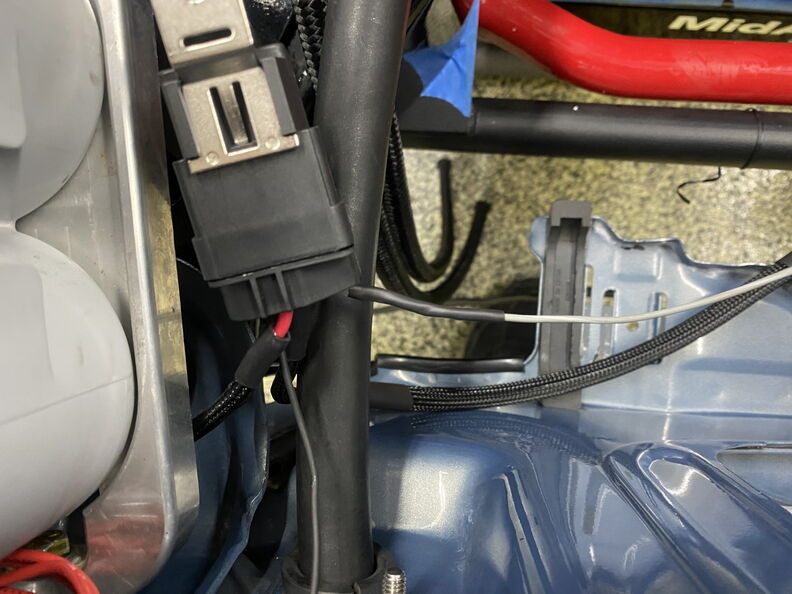

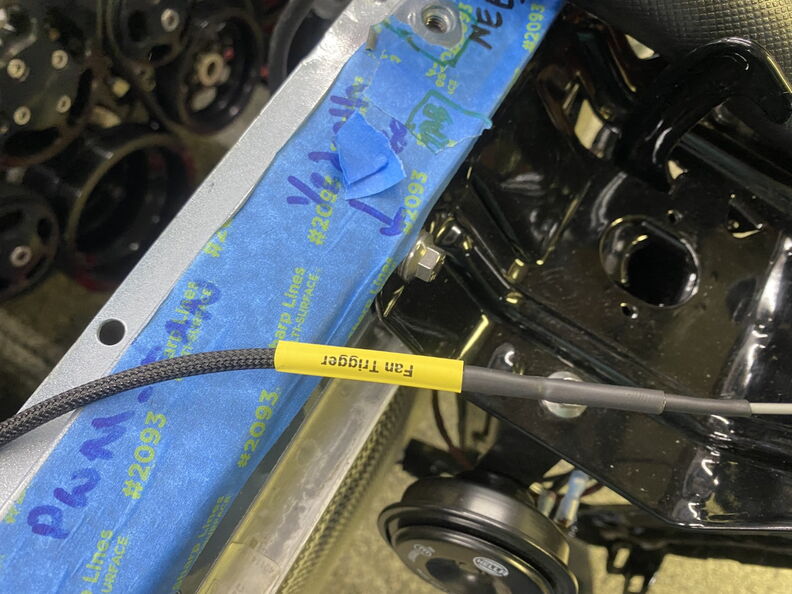

Last one for the night Upgrading to a Waterproof Relay ( 10-31-22 )


Way back somewhere in this thread I installed Painless fan relay and I screwed up and didn't order a standard fan relay. So I ordered a new Water Proof Fan Relay kit.

http://www.garagescene.net/_data/i/u...e422402-me.jpg

Since it is in between the battery and the radiator the batter once again needs to come out.

http://www.garagescene.net/_data/i/u...62a3498-me.jpg

http://www.garagescene.net/_data/i/u...716f201-me.jpg

http://www.garagescene.net/_data/i/u...eb77955-me.jpg

http://www.garagescene.net/_data/i/u...aa95809-me.jpg

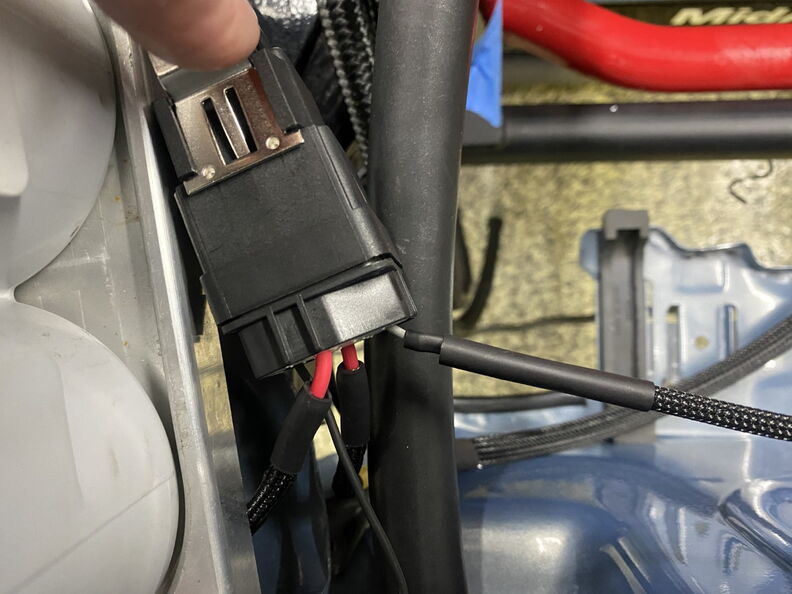

Thankfully I used a weather pack connector as I was able to just remove the ground from the plug.

http://www.garagescene.net/_data/i/u...b4d4ab8-me.jpg

http://www.garagescene.net/_data/i/u...7cc5636-me.jpg

http://www.garagescene.net/_data/i/u...49927c9-me.jpg

http://www.garagescene.net/_data/i/u...f70b3d6-me.jpg

Vacuum Hose Installed ( 11-09-21 )


My molded hose arrived

http://www.garagescene.net/_data/i/u...0328a55-me.jpg

http://www.garagescene.net/_data/i/u...3ab7079-me.jpg

http://www.garagescene.net/_data/i/u...12061c5-me.jpg

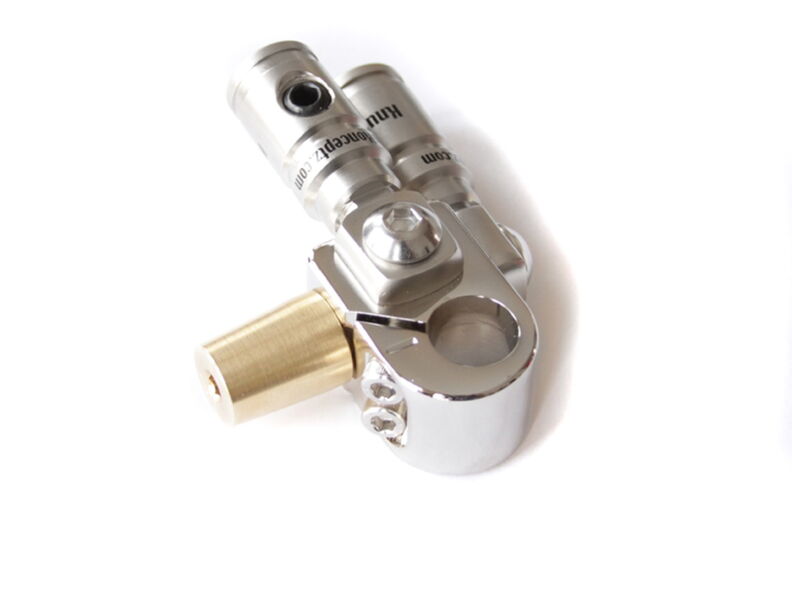

I also received another fitting for the Fuel Pressure Sensor

http://www.garagescene.net/_data/i/u...6a76dfd-me.jpg

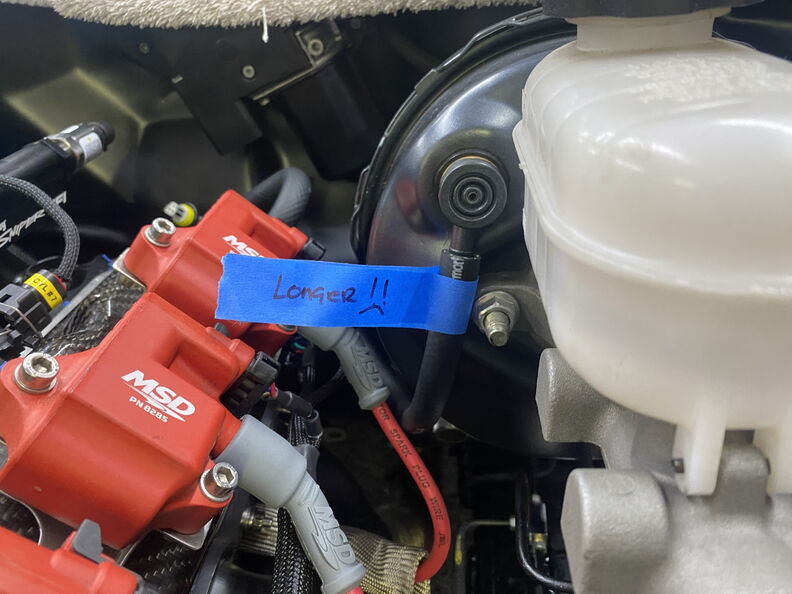

Looks like I need a longer hose.

http://www.garagescene.net/_data/i/u...35b907f-me.jpg

Found an all in one fitting that will be replacing two of the fittings.

http://www.garagescene.net/_data/i/u...54b1b80-me.jpg

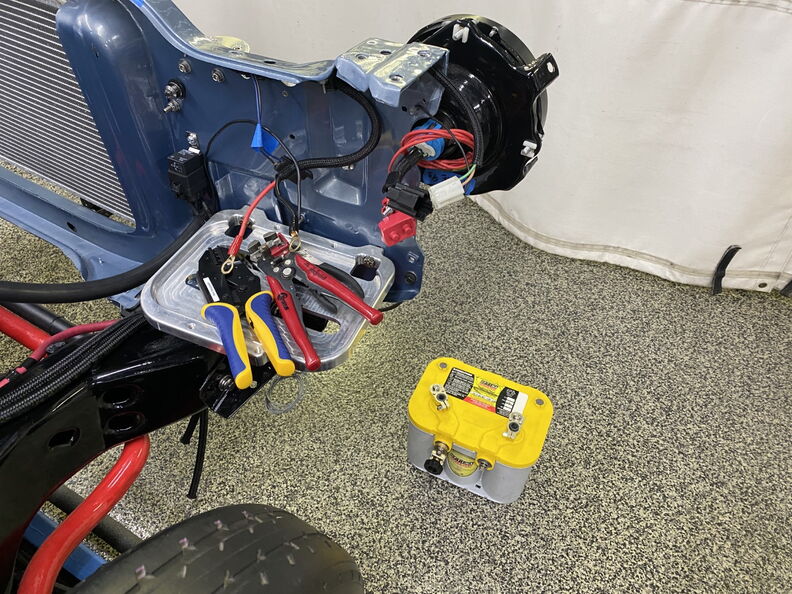

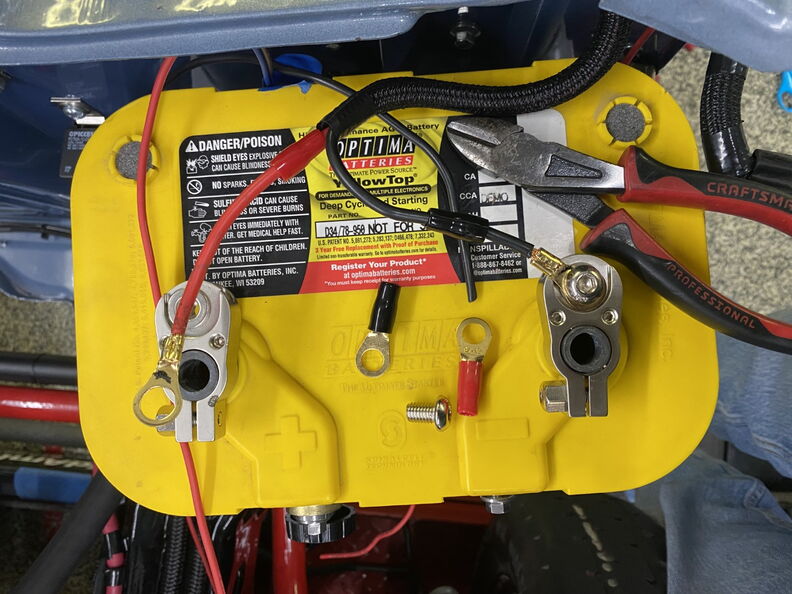

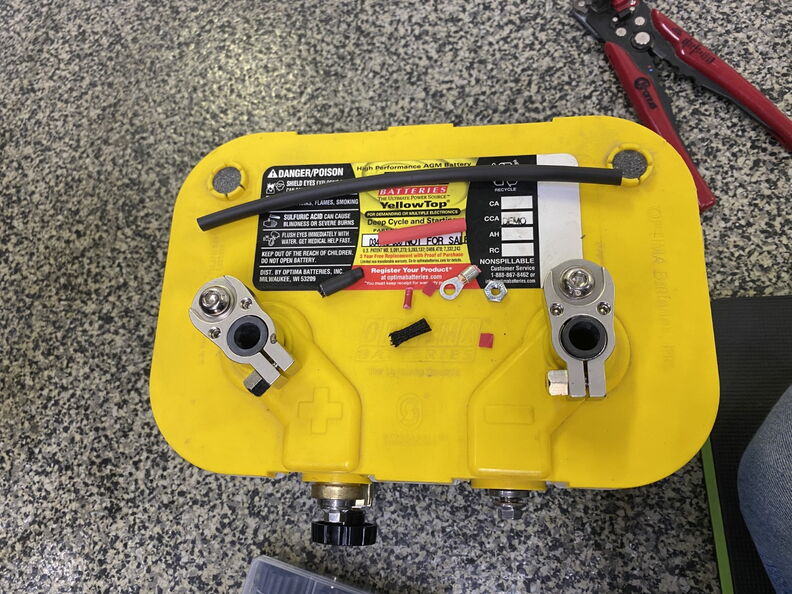

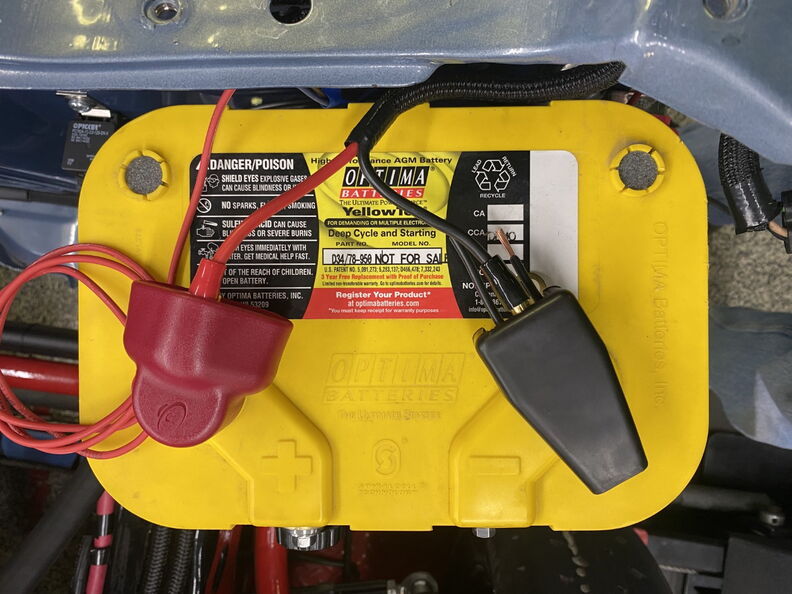

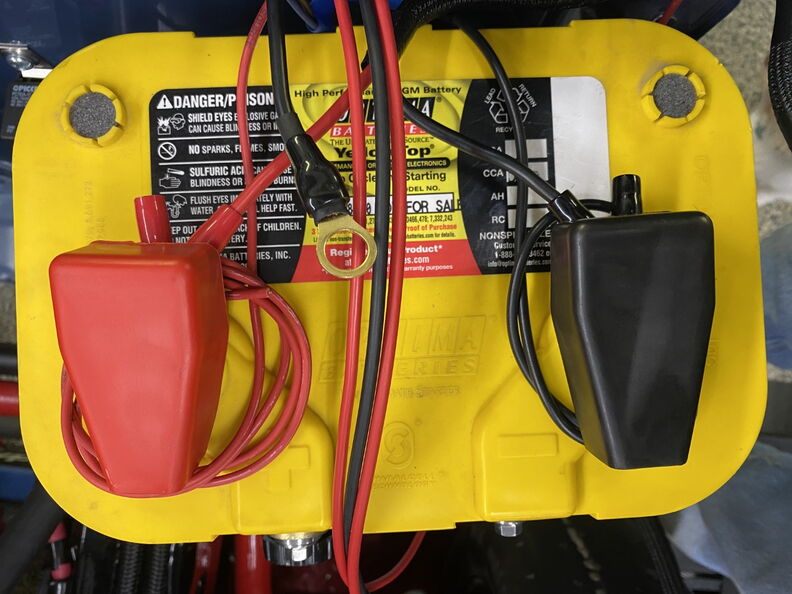

Optima Batter Charger Plug ( 11-09-21 )


Since I keep the car on the optima charger when it is parked in the garage I decided to mock up the wire and see if I could hide it when it's not in use.

http://www.garagescene.net/_data/i/u...08e838a-me.jpg

http://www.garagescene.net/_data/i/u...75a09f7-me.jpg

I can easily tuck it in the frame rail when not in use.

http://www.garagescene.net/_data/i/u...36739ac-me.jpg

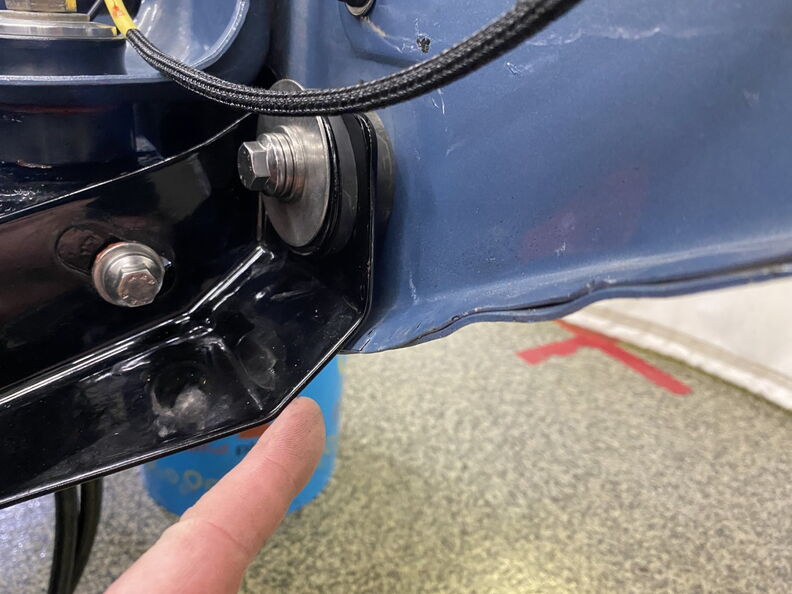

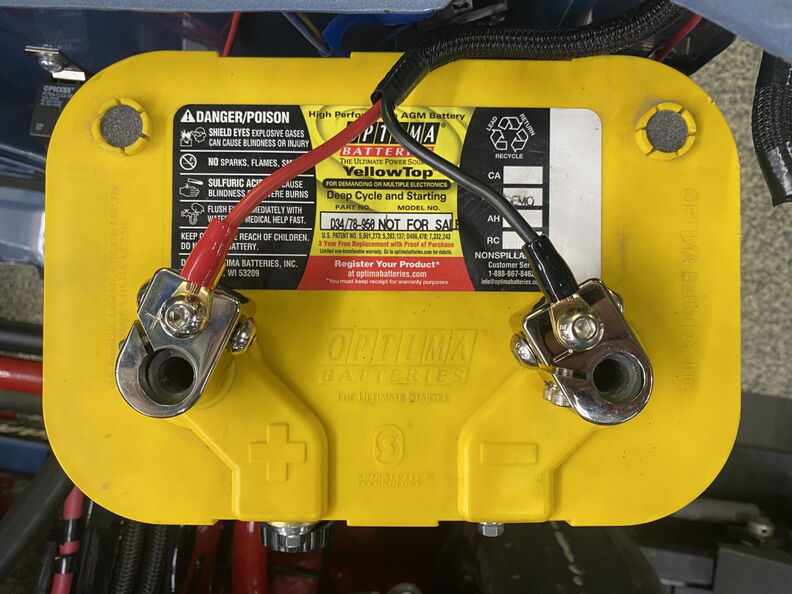

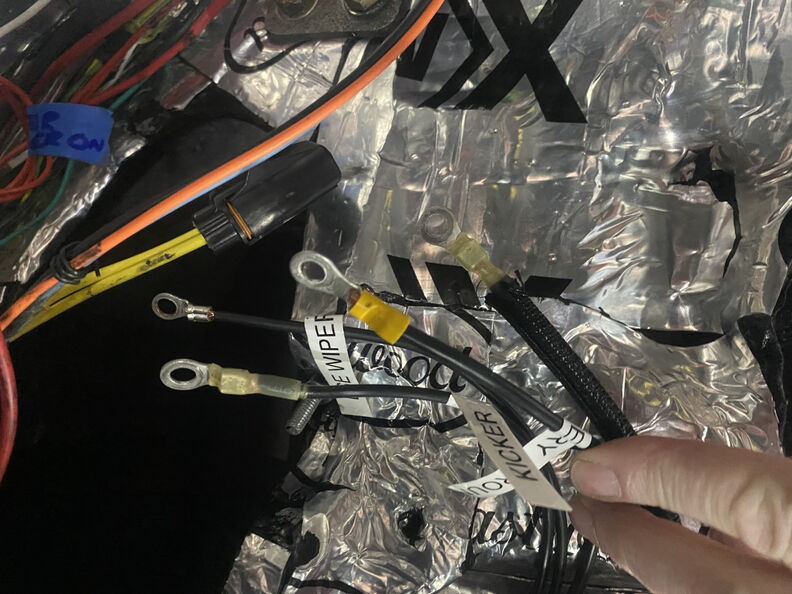

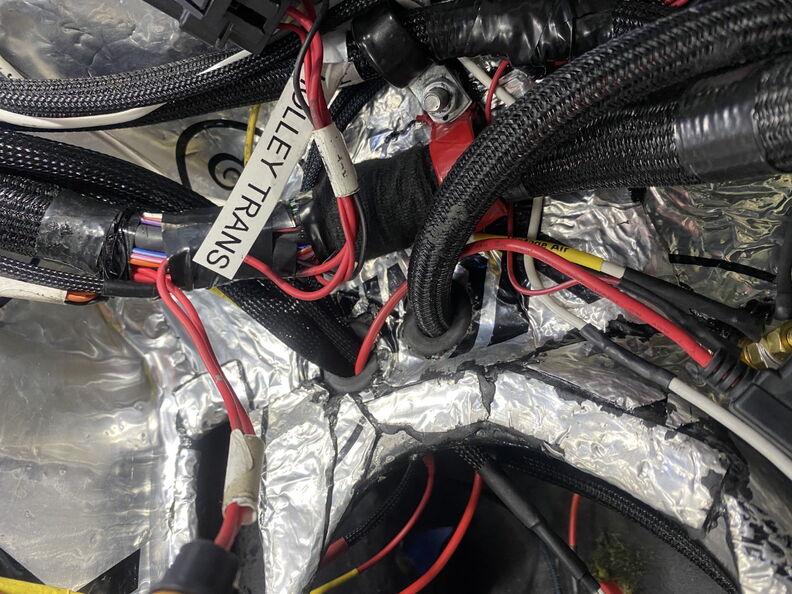

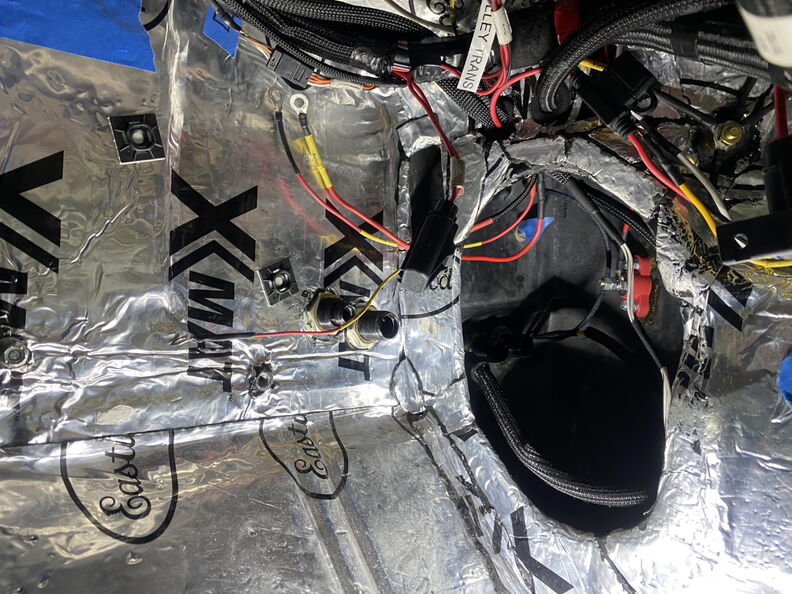

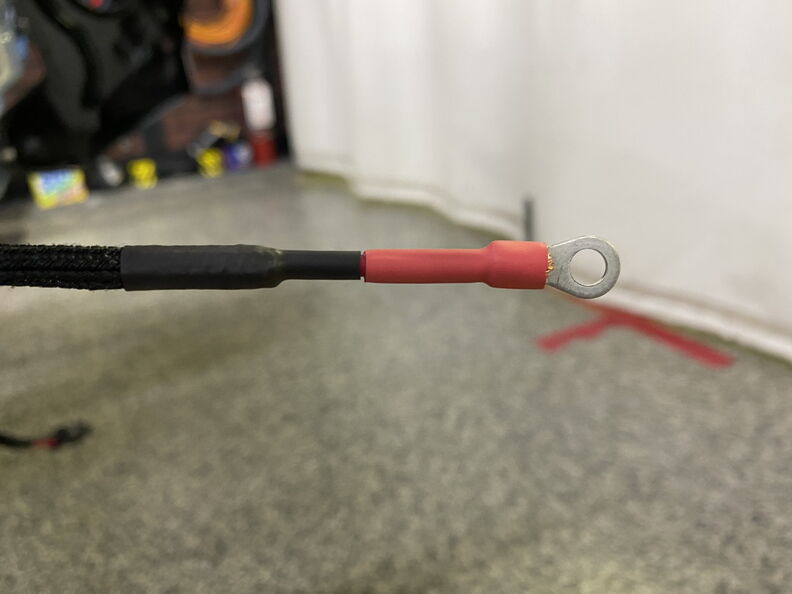

Trunk Grounds Wires ( 11-12-22 )

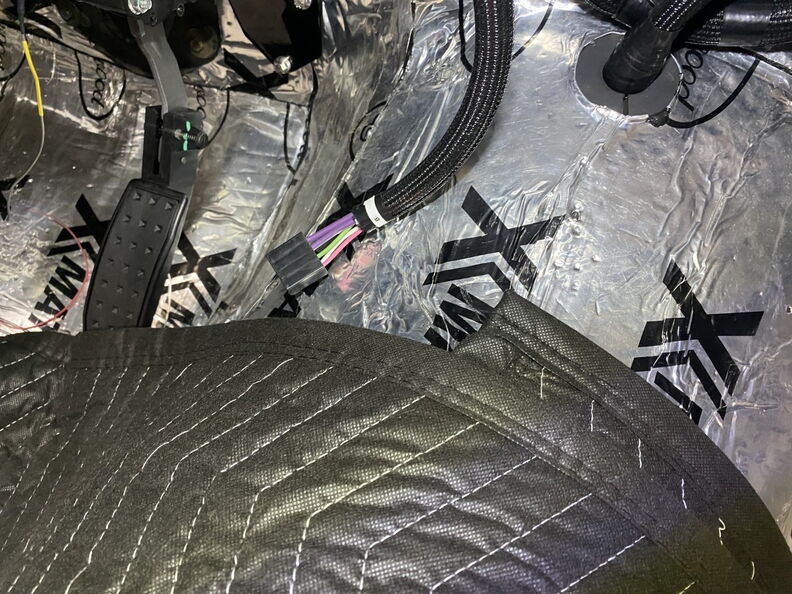

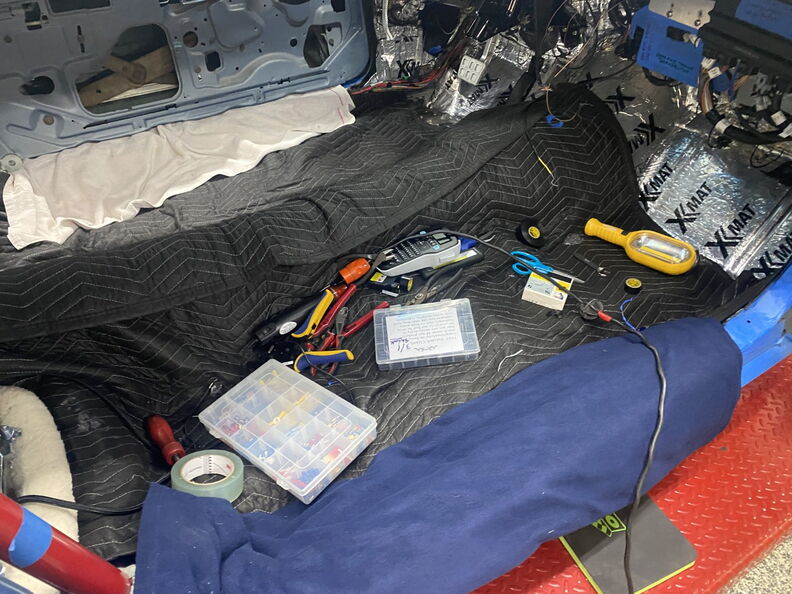

Today I will be working on all of the various ground wires.

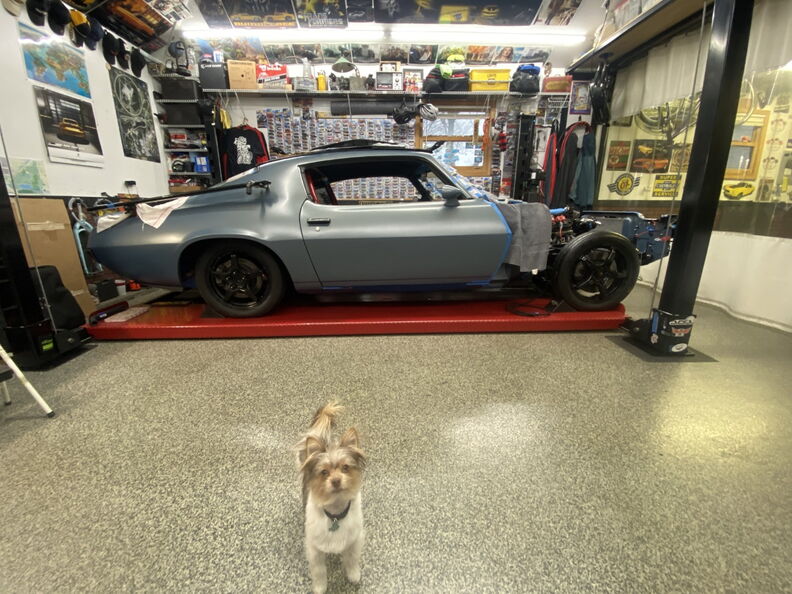

My goal is to make then looks nice and I even have some company in the garage today.

http://www.garagescene.net/_data/i/u...f40fa15-me.jpg

http://www.garagescene.net/_data/i/u...150f2af-me.jpg

http://www.garagescene.net/_data/i/u...0e10a87-me.jpg

Ground wire from the block to the frame

http://www.garagescene.net/_data/i/u...e4fe6f4-me.jpg

http://www.garagescene.net/_data/i/u...b6b3aa6-me.jpg

Wires running back to the battery ( I think I have a cool idea and I hope to share it soon )

http://www.garagescene.net/_data/i/u...a004733-me.jpg

http://www.garagescene.net/_data/i/u...4379820-me.jpg

http://www.garagescene.net/_data/i/u...fffa429-me.jpg

Securing the ground wire to the motor mount bolt.

http://www.garagescene.net/_data/i/u...b99cd63-me.jpg

http://www.garagescene.net/_data/i/u...d98cd4e-me.jpg

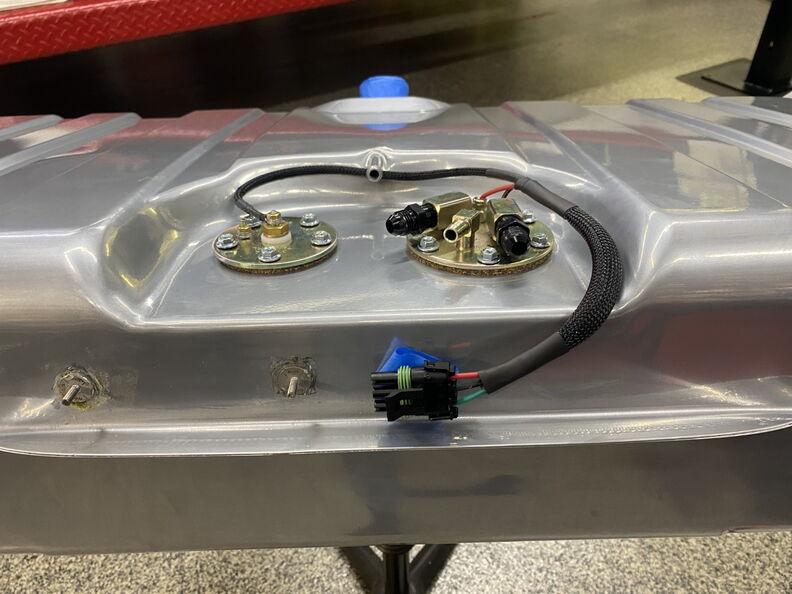

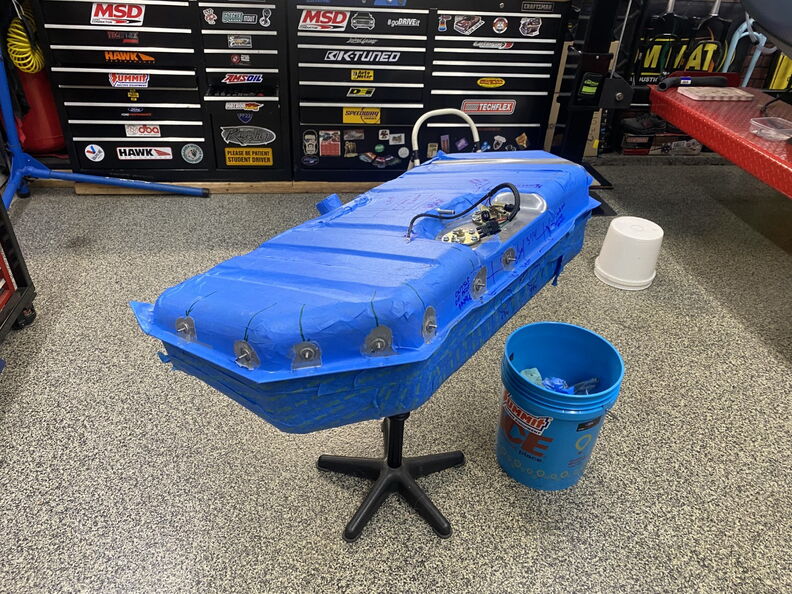

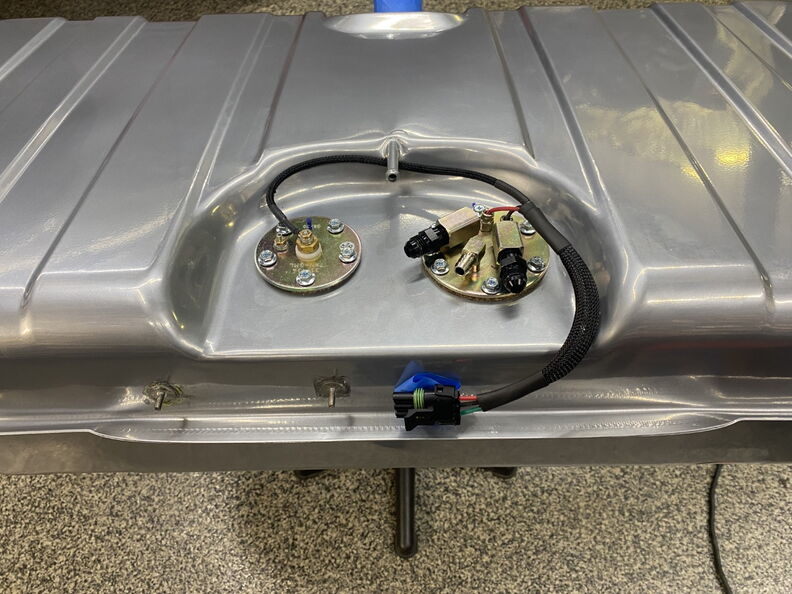

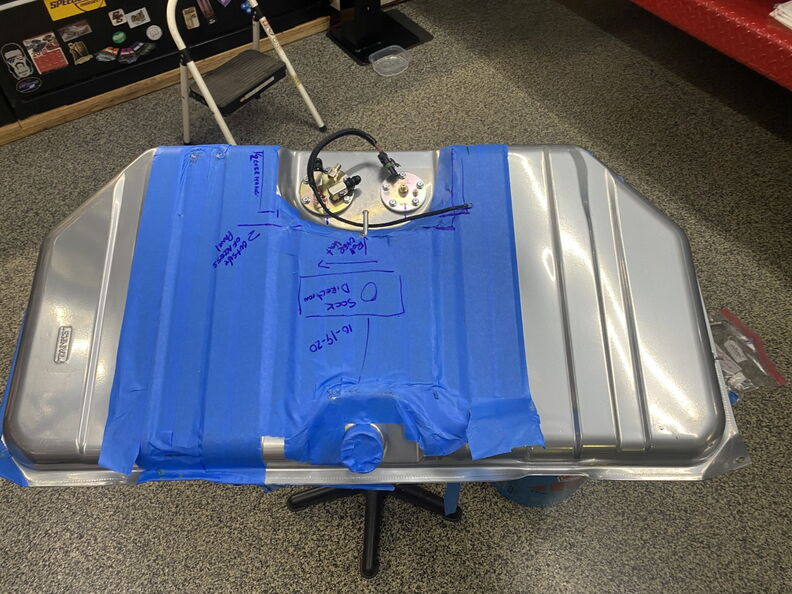

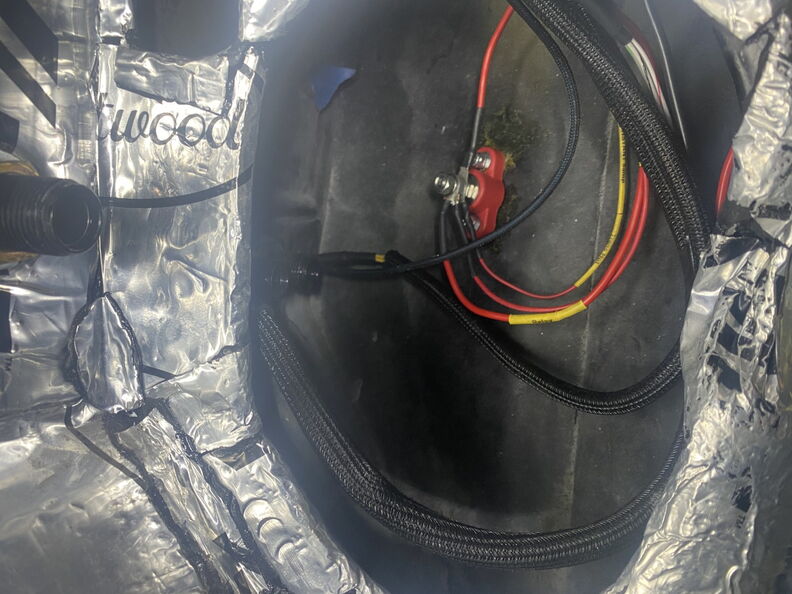

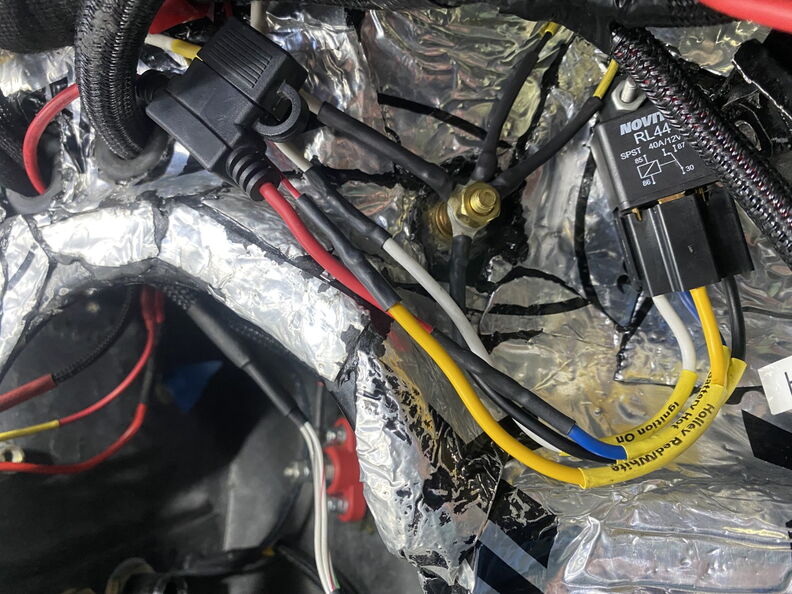

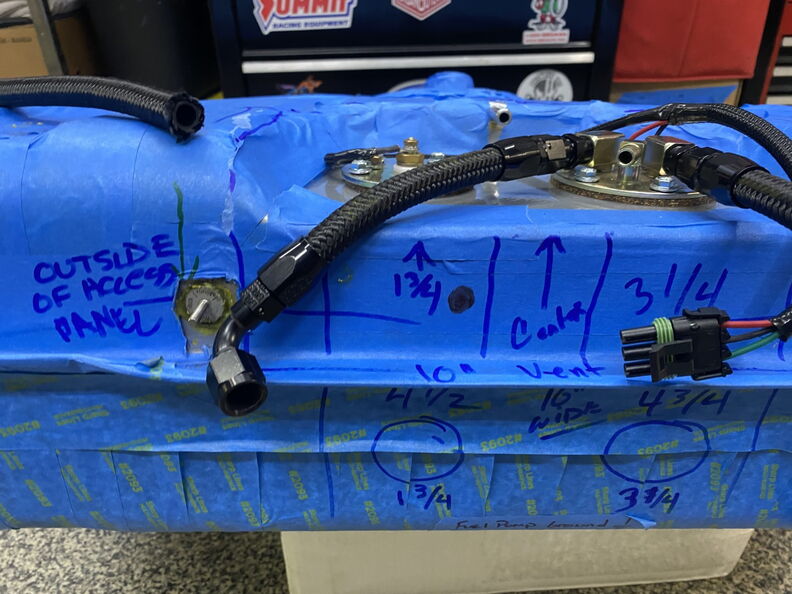

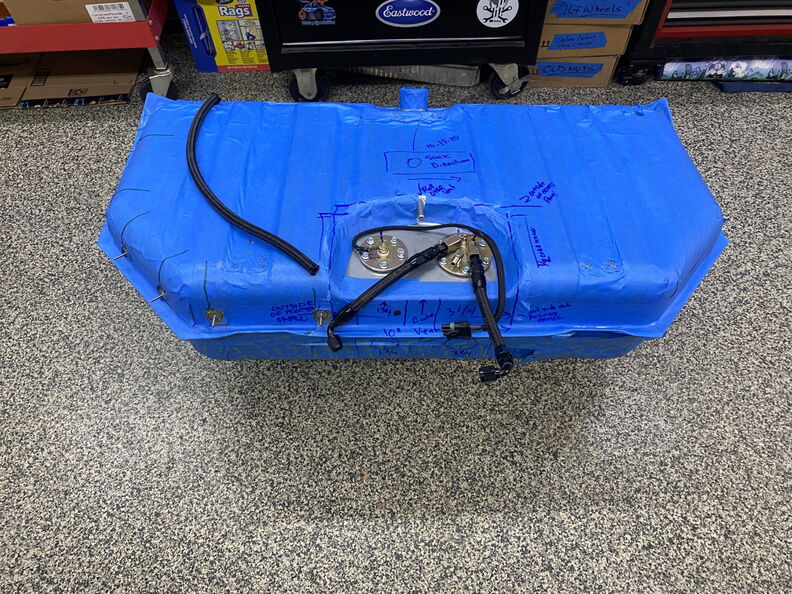

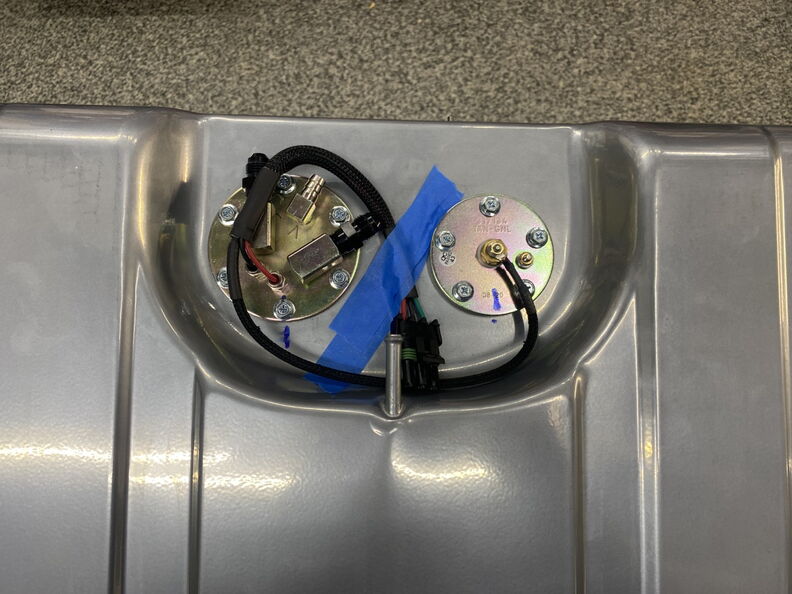

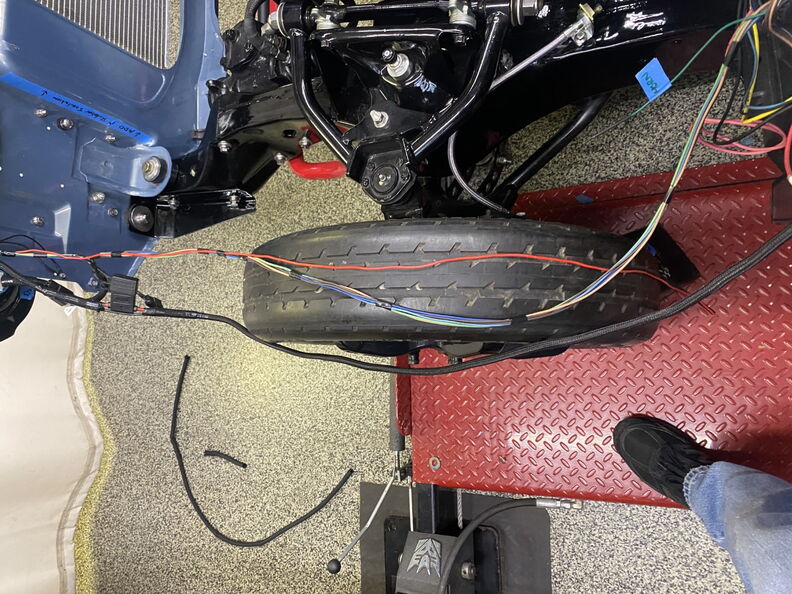

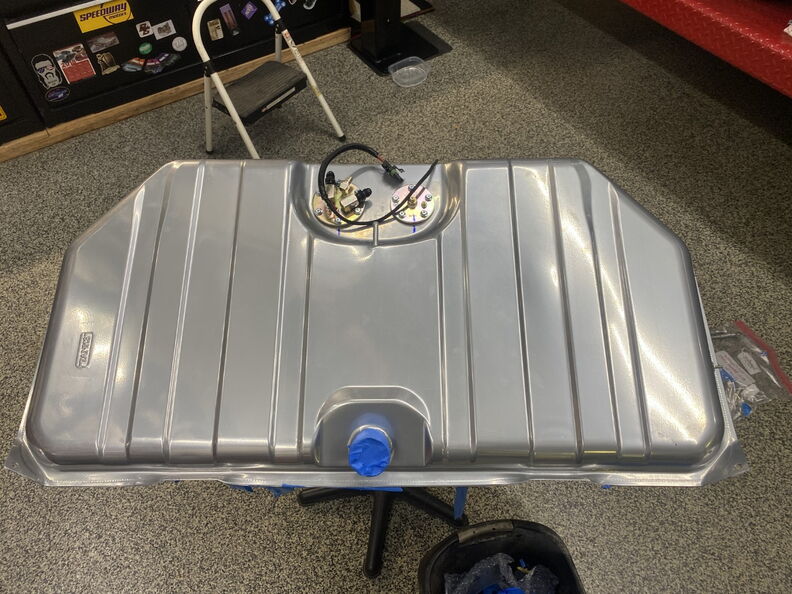

I am finally connecting the wires from the relay to my gas tank.

http://www.garagescene.net/_data/i/u...b732fa2-me.jpg

http://www.garagescene.net/_data/i/u...2d789a7-me.jpg

http://www.garagescene.net/_data/i/u...c3aa081-me.jpg

http://www.garagescene.net/_data/i/u...102a230-me.jpg

http://www.garagescene.net/_data/i/u...04e54e4-me.jpg

http://www.garagescene.net/_data/i/u...a45f169-me.jpg

http://www.garagescene.net/_data/i/u...2f43f47-me.jpg

I also purchased this bad ass headlight switch from a gentleman on Facebook. I am going to have it anodized
black so it blends in with the Covan dash insert.

http://www.garagescene.net/_data/i/u...86bca89-me.jpg

I have been looking for Intake Tube idea's and I think I found one that I love.

http://www.garagescene.net/_data/i/u...7e9601b-me.jpg

Fuel Line Routing ( 11-14-21 )


Another reminder while I am here to powder coat the spring pocket and the lower arms.

http://www.garagescene.net/_data/i/u...6ff019d-me.jpg

The fuel lines runs right over the spring pocket and I am going to trim a little bit of it off to protect the fuel line.

http://www.garagescene.net/_data/i/u...782bf8a-me.jpg

I started slowly removing just a little bit.

http://www.garagescene.net/_data/i/u...7968ff9-me.jpg

Then I took just a little more off.

http://www.garagescene.net/_data/i/u...0058286-me.jpg

Out comes them death wheel.

http://www.garagescene.net/_data/i/u...7e82dfe-me.jpg

http://www.garagescene.net/_data/i/u...db4172f-me.jpg

A little clean up.

http://www.garagescene.net/_data/i/u...2474b73-me.jpg

All better now and I am still going to run the line through DEI ExoSleeve.

http://www.garagescene.net/_data/i/u...ac03f3d-me.jpg

http://www.garagescene.net/_data/i/u...1811f19-me.jpg

Kore3 FlexKORE Brake Line ( 11-14-21 )


I am finally installing the FlexKore brake lines.

http://www.garagescene.net/_data/i/u...e2ec22f-me.jpg

Old lines are coming out.

http://www.garagescene.net/_data/i/u...3c5d55b-me.jpg

http://www.garagescene.net/_data/i/u...149ea7d-me.jpg

http://www.garagescene.net/_data/i/u...80c4ff1-me.jpg

http://www.garagescene.net/_data/i/u...896cd18-me.jpg

That looks really good.

As for the single fan set up. It was part of the Afco LS Radiator / Fan shroud set up that I purchased years ago for the first version of the car. I didn’t change it because it worked so well I’m just going to leave it. I’m still trying to decide if I am going to paint the radiator, shroud and AC condenser. I might leave that for version 3.0.


Sent from my iPhone using Tapatalk

What should have been a simple project ( 11-14-21 )


What should have been a simple pan swap turned out to be a no go.

Since the current pan on the new transmission from Atomic was a standard depth I ordered a stock depth pan
as I didn't want the pan to hang down and lower then it was. Well this one didn't works so I guess at some point
I will order another one.

http://www.garagescene.net/_data/i/u...f9825b3-me.jpg

http://www.garagescene.net/_data/i/u...5de39d3-me.png

http://www.garagescene.net/_data/i/u...fa2fe41-me.jpg

http://www.garagescene.net/_data/i/u...b6ee237-me.jpg

Just in case anyone needs to know what size the bolt is

http://www.garagescene.net/_data/i/u...abdc231-me.jpg

http://www.garagescene.net/_data/i/u...ab730aa-me.jpg

http://www.garagescene.net/_data/i/u...a648904-me.jpg

Yes, I know this is overkill ( 11-14-21 )


I think I am going to rename this car to Project Overkill

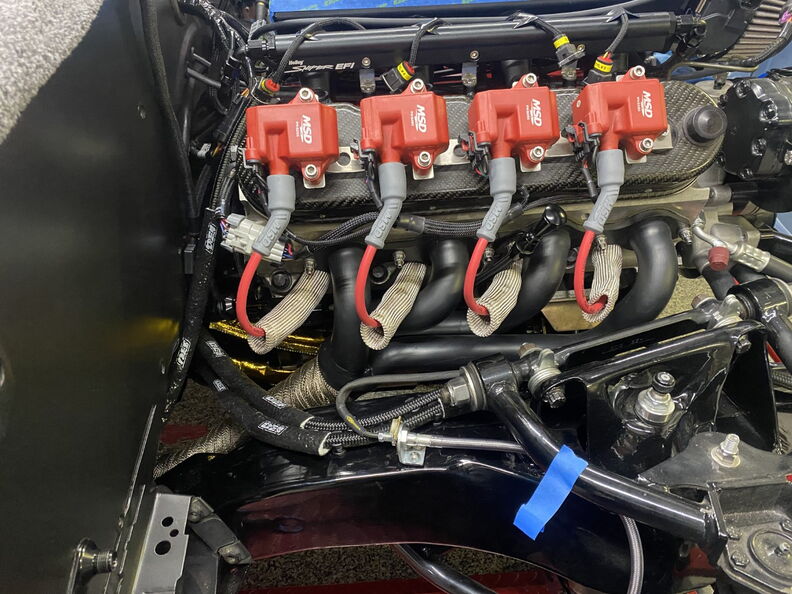

Once again I am taking the passenger side header off so I can get to the wiring at the starter.

http://www.garagescene.net/_data/i/u...600dd95-me.jpg

http://www.garagescene.net/_data/i/u...3caad2d-me.jpg

http://www.garagescene.net/_data/i/u...ec15a7d-me.jpg

So I dropped the lock washer of course my floor is speckled gray so it blended right in.

http://www.garagescene.net/_data/i/u...71be25a-me.jpg

Eventually I laid on the ground with the flashlight so I could find the freaking thing.

http://www.garagescene.net/_data/i/u...842f304-me.jpg

http://www.garagescene.net/_data/i/u...e812c0d-me.jpg

http://www.garagescene.net/_data/i/u...4eb29fb-me.jpg

Wiring toolbox ( 11-14-21 )


So the other day I was looking at all of the tools I have collected for wiring this car and I thought I would share pictures of my tool box that is completed dedicated to wiring. So when the car is done it will be going back to my warehouse.

http://www.garagescene.net/_data/i/u...087c1bc-me.jpg

http://www.garagescene.net/_data/i/u...2b3ed48-me.jpg

http://www.garagescene.net/_data/i/u...4107d19-me.jpg

http://www.garagescene.net/_data/i/u...9dea6ac-me.jpg

http://www.garagescene.net/_data/i/u...676d7d0-me.jpg

http://www.garagescene.net/_data/i/u...51a08b5-me.jpg

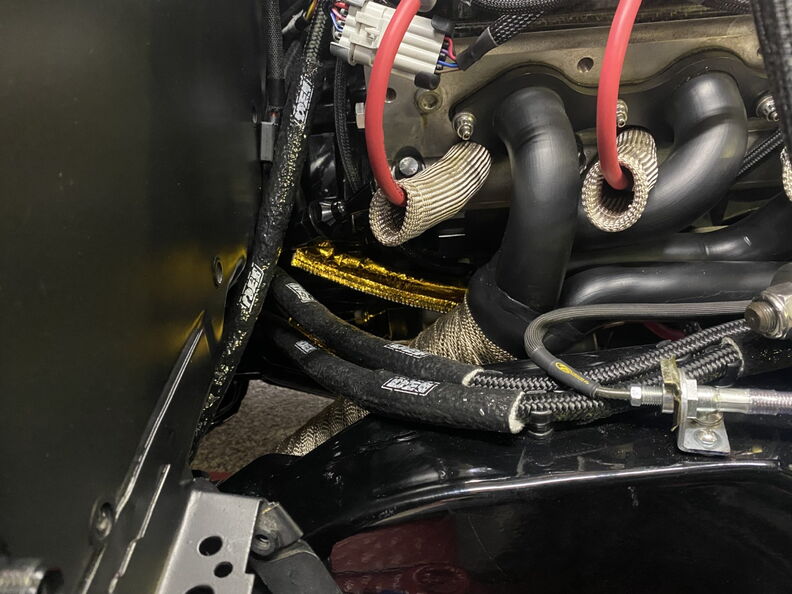

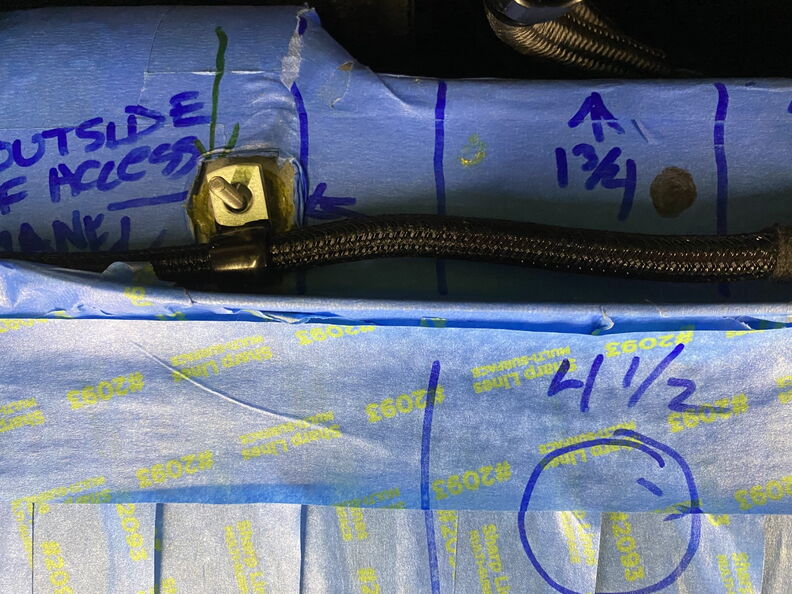

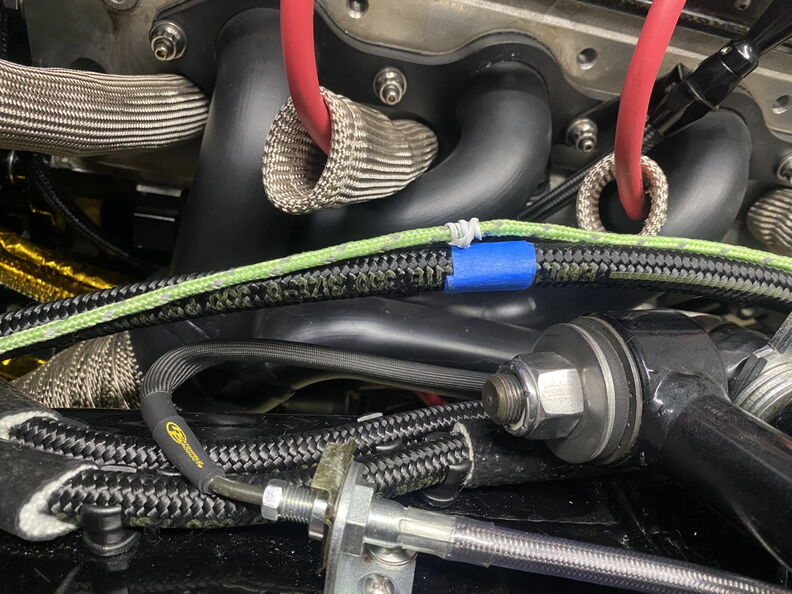

Fuel Line Routing & DEI Heat Protection ( 11-20-21 )


http://www.garagescene.net/_data/i/u...05d136b-me.jpg

http://www.garagescene.net/_data/i/u...2f1bc09-me.jpg

http://www.garagescene.net/_data/i/u...800f4fc-me.jpg

I need to widen this rectangular hole so the fuel line can pass through this opening safely.

http://www.garagescene.net/_data/i/u...14429b1-me.jpg

http://www.garagescene.net/_data/i/u...3d6d02d-me.jpg

http://www.garagescene.net/_data/i/u...97b3dc0-me.jpg

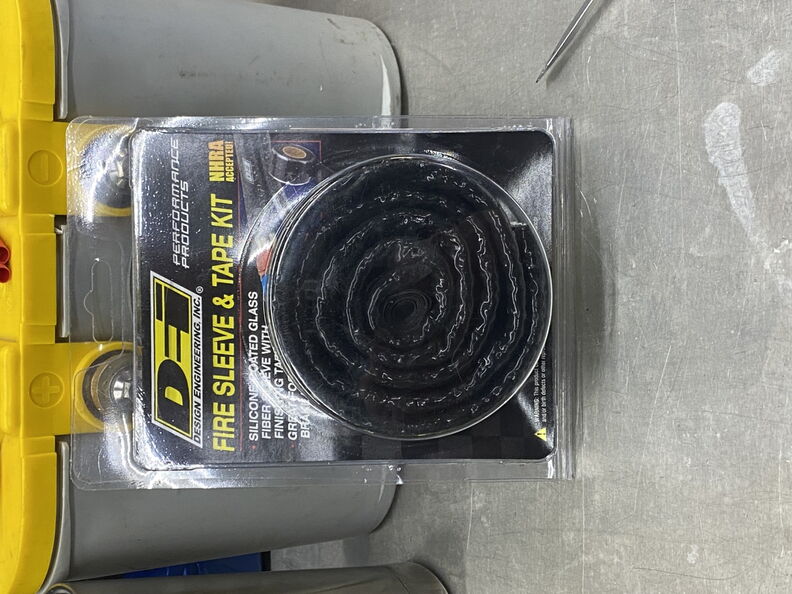

I installed the DEI Heat shield and EXO-Sleeve.

http://www.garagescene.net/_data/i/u...162f1ae-me.jpg

http://www.garagescene.net/_data/i/u...ca5147b-me.jpg

I am still trying to figure out if I am going to secure the line to the firewall or just let it hang from the fuel rail. Which doesn't sound good as I type this.

http://www.garagescene.net/_data/i/u...f3131d9-me.jpg

This is the final AN fitting that I need to finish the fuel line.

http://www.garagescene.net/_data/i/u...560874b-me.jpg

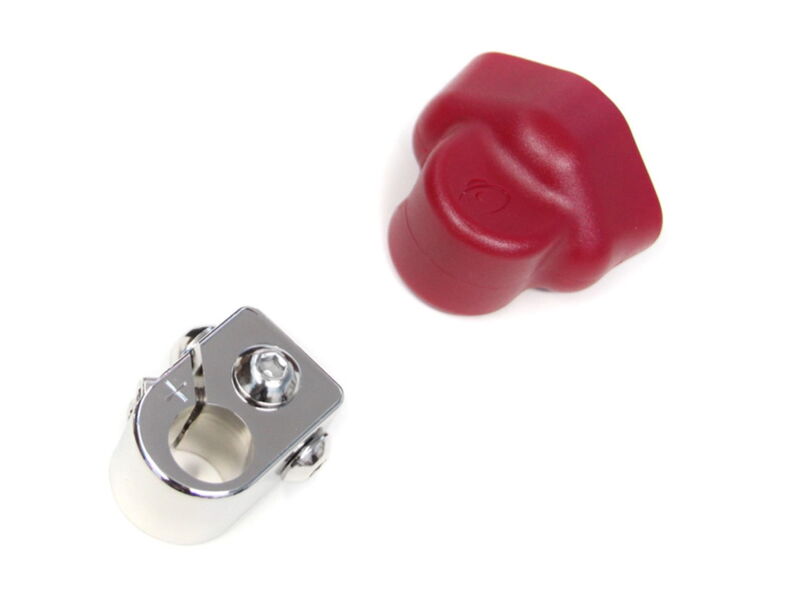

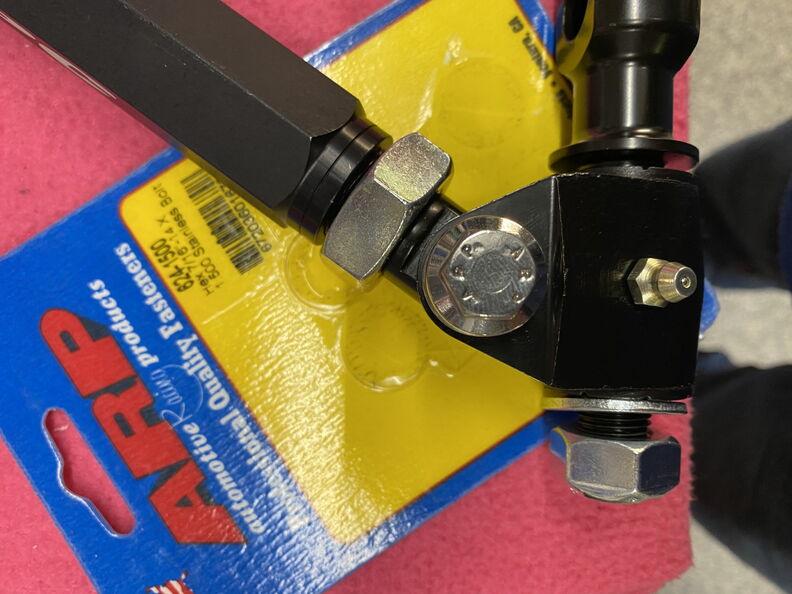

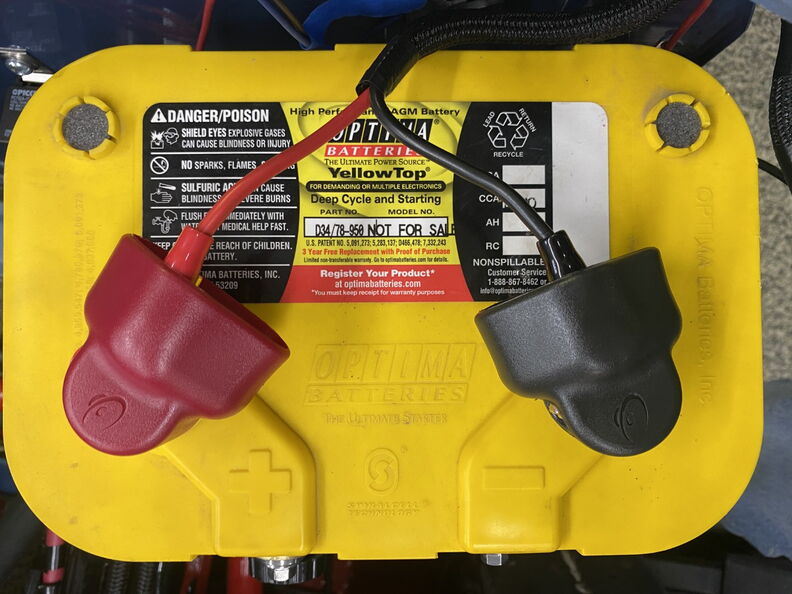

ARP Battery Bolts ( 11-25-21 )

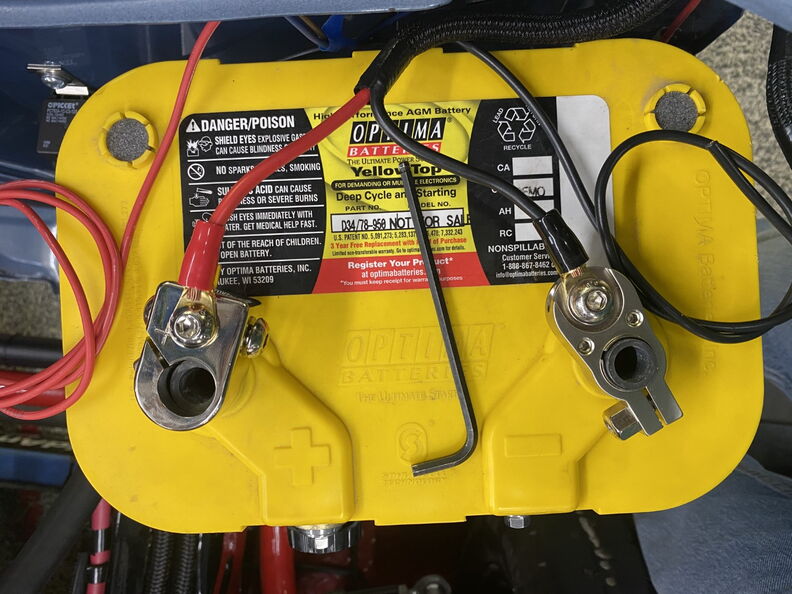

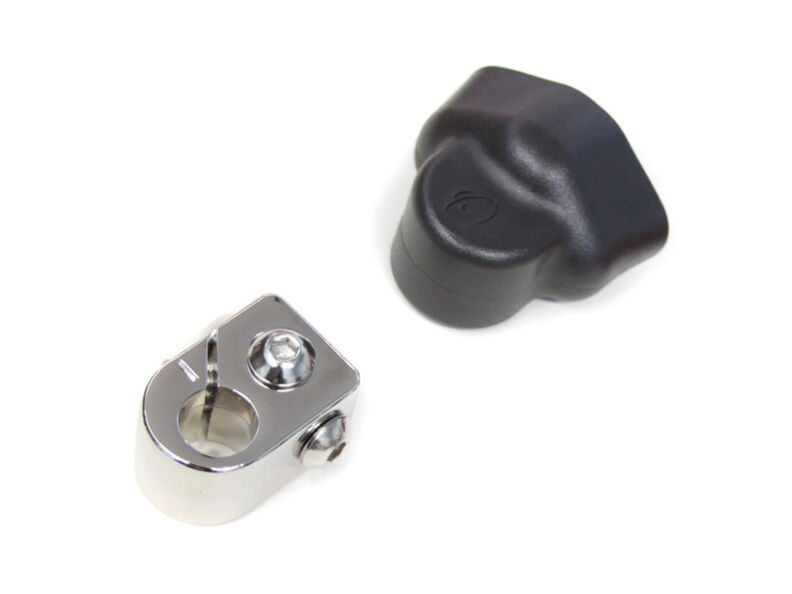

I am not a fan of battery bolts and I really like ARP bolts. Since Rad Rides uses them on their builds I might as well use them on my car.

http://www.garagescene.net/_data/i/u...7aa8ee7-me.jpg

Apparently the bolt got a little warm.

http://www.garagescene.net/_data/i/u...157fc59-me.jpg

I ran the bolt all the way in to make sure it wasn't to long. Eventually I will order the correct bolt.

http://www.garagescene.net/_data/i/u...6a658a1-me.jpg

http://www.garagescene.net/_data/i/u...524cf4e-me.jpg

http://www.garagescene.net/_data/i/u...3aa16b5-me.jpg

“Project Overkill”?

…or



:P

Skip thank you for making me laugh

MJ,



You’re welcome…cuz anyone who does this to himself building a car deserves a laff!

:D

I Know I Know this is so not necessary ( 11-27-21 )

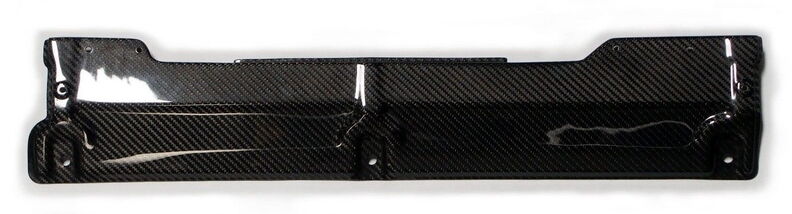

So totally not necessary but I did it and it looks really nice as it made the lines disappear.

http://www.garagescene.net/_data/i/u...14073d9-me.jpg

http://www.garagescene.net/_data/i/u...318ec43-me.jpg

http://www.garagescene.net/_data/i/u...7e680b8-me.jpg

He's almost full grown.

http://www.garagescene.net/_data/i/u...1441696-me.jpg

http://www.garagescene.net/_data/i/u...9c33fa2-me.jpg

http://www.garagescene.net/_data/i/u...9b676e4-me.jpg

While I cleaning up the lines I noticed the passenger side line was really close to the trans coolant lines. So added a couple washers under the bracket to raise the line up.

http://www.garagescene.net/_data/i/u...59bd137-me.jpg

http://www.garagescene.net/_data/i/u...65f1f66-me.jpg

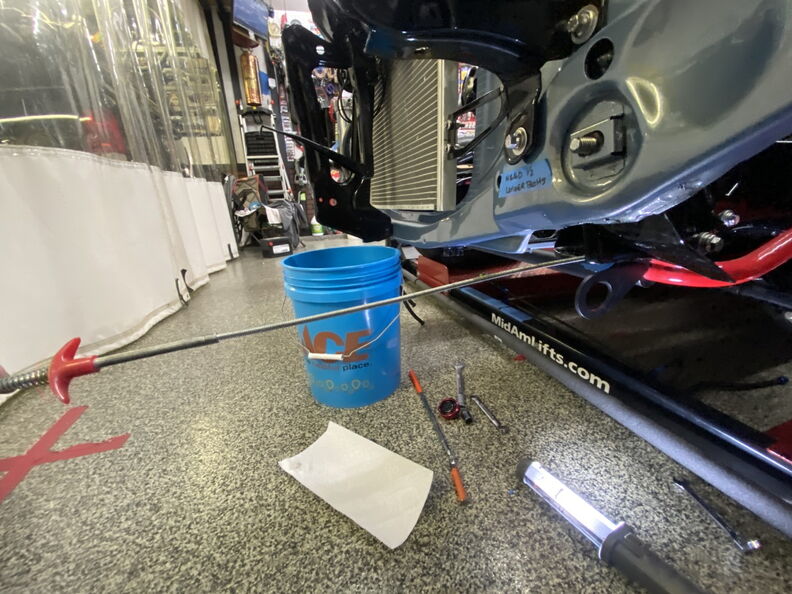

I finally received the black dipsticks from Lokar. So I figured I would install them while I was here.

http://www.garagescene.net/_data/i/u...0199a89-me.jpg

http://www.garagescene.net/_data/i/u...701c49c-me.jpg

http://www.garagescene.net/_data/i/u...f7b3e62-me.jpg

Trans Dipstick.

http://www.garagescene.net/_data/i/u...5b480e8-me.jpg

Looks great,it’s almost like a step-by-step instructions for my build.:thankyou:

So I think I am going to leave it ( 11-28-21 )


I have been going back and fourth on this for weeks if not months.

Do I have Mario paint the Radiator, Fan Shroud and A/C Condenser or leave it natural for this version of the car.

http://www.garagescene.net/_data/i/u...8eb7fed-me.jpg

Today I am going back and touch up all of the holes I drilled in things. No reason to let things start rusting.

http://www.garagescene.net/_data/i/u...6cdf232-me.jpg

http://www.garagescene.net/_data/i/u...fc95942-me.jpg

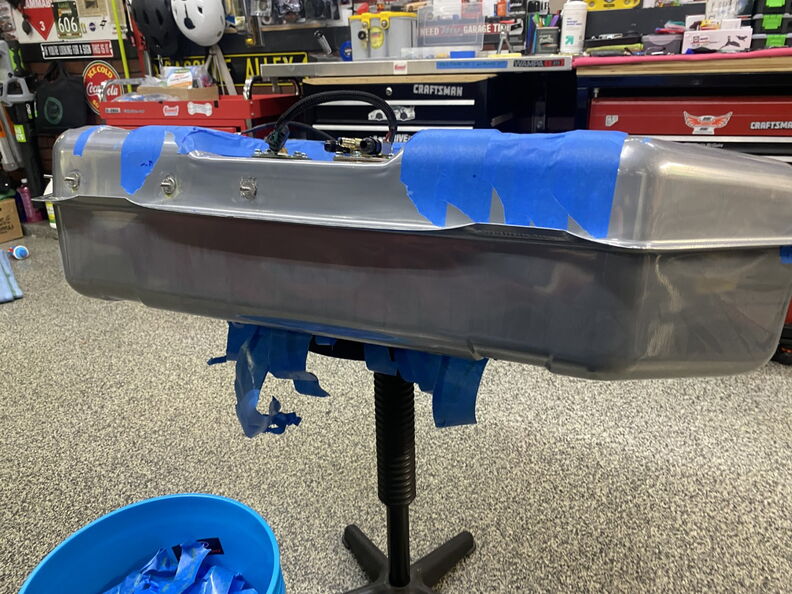

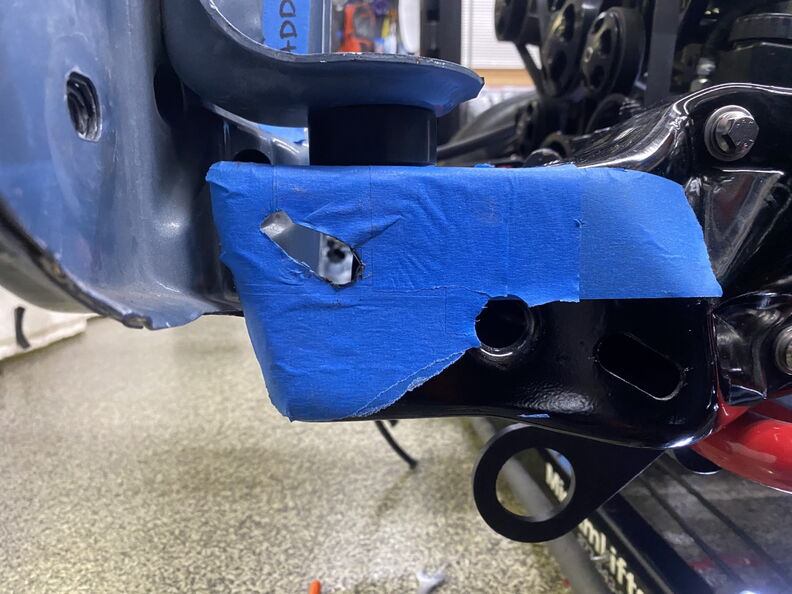

I am also removing the blue tape on the frame for the last time.

http://www.garagescene.net/_data/i/u...a7f0f26-me.jpg

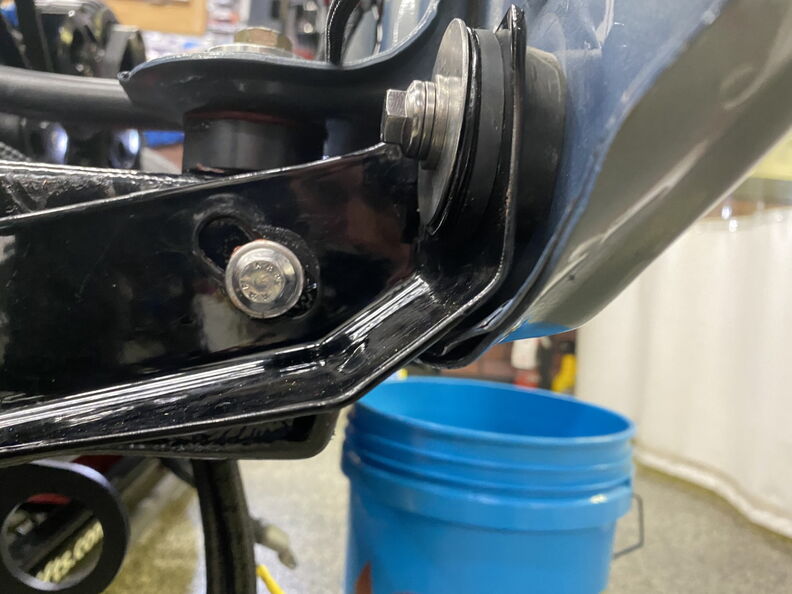

So I learned this trick when I was still in High School. My buddy's father put grease on the core support body mount to stop the creaking that old cars made and still make.

http://www.garagescene.net/_data/i/u...4d254f0-me.jpg

http://www.garagescene.net/_data/i/u...a7bef97-me.jpg

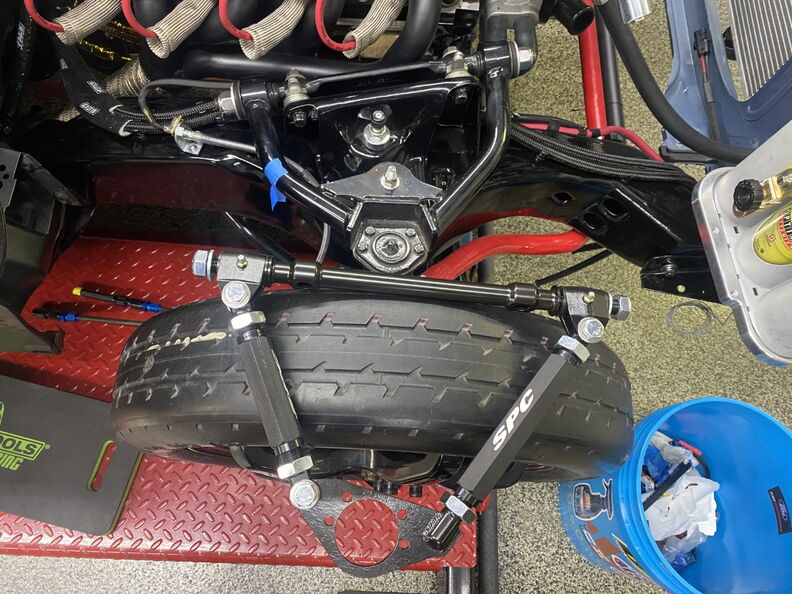

It's hard to tell what I am doing here but this was the only way I could get the washer on the Core Support upright brackets.

http://www.garagescene.net/_data/i/u...280d8de-me.jpg

http://www.garagescene.net/_data/i/u...9ada73b-me.jpg

http://www.garagescene.net/_data/i/u...a775a57-me.jpg

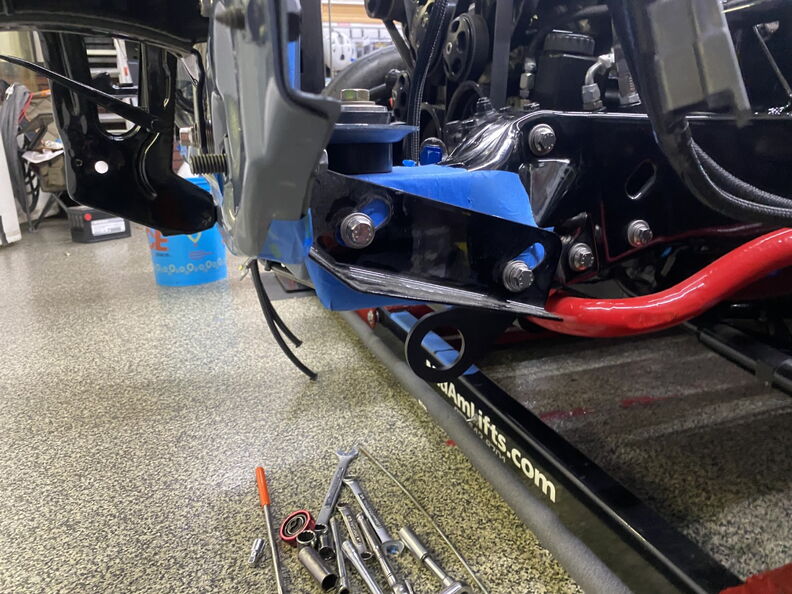

It's hard to believe I used all of these tools to install three bolts

http://www.garagescene.net/_data/i/u...215b1a5-me.jpg

I had mine painted eggshell black on Malitude and loved the look. Plan on doing the same with the current 70 Chevelle. Depends on the colors in the engine compartment; if everything is black already I might opt for leaving it aluminum.

I’m so torn and I know Mario is beyond busy. So I would hate to ask him to paint it. If you saw his shop and the amount of quality work he puts out, it’s just incredible.


Sent from my iPhone using Tapatalk

Mario is one of the best guys I've met. It's going to look great regardless.

And that is why I didn't put much flake down over my floor when I epoxied it, too hard to find dropped parts.

So true and as Covid is ending I am certain I will drive by his shop just to say hi and of course pick on him a little bit. Because without a doubt he will bust my balls.

I never thought about that and I will remember this for the next garage.

AFV, Truck Wires & the other side ( 11-29-21

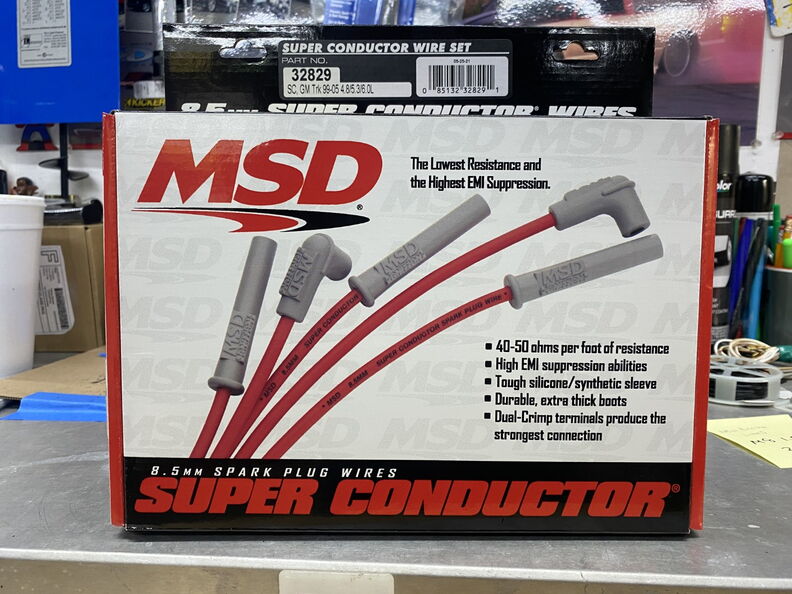

Good news I was able to get the MSD LS Truck Wires

http://www.garagescene.net/_data/i/u...39aabb8-me.jpg

Yesterday 11-28-21 didn't end well as my dog ran into the slider, has a concussion and I had to stay up all night with him. The
good thing is our Ring Camera caught it and we submitted it to America's Funniest Video and they accepted it.

**** Post AFV airing I will add the video ****

So back to the drivers side and I will just do pictures as you all know what it looks like.

http://www.garagescene.net/_data/i/u...41dd780-me.jpg

http://www.garagescene.net/_data/i/u...2d02d4f-me.jpg

http://www.garagescene.net/_data/i/u...dde7f46-me.jpg

http://www.garagescene.net/_data/i/u...bdb985d-me.jpg

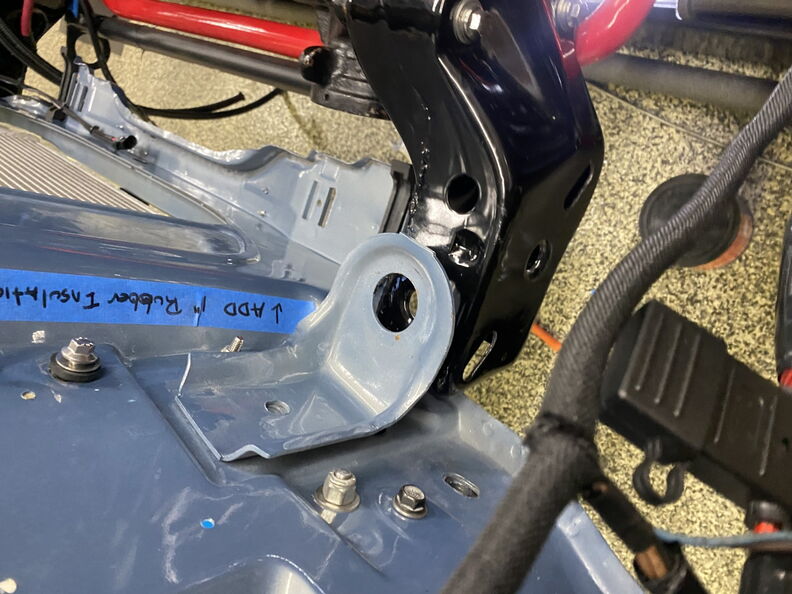

I also noticed that core support was hitting the support bracket

http://www.garagescene.net/_data/i/u...890c2f6-me.jpg

Fixed

http://www.garagescene.net/_data/i/u...aee816a-me.jpg

Battery Terminal Options ( 12-01-21 )


I currently have the DSE terminal and I love how they look however is there something better is what my brain
keeps saying. So I jumped on some car audio websites and found some cool options.

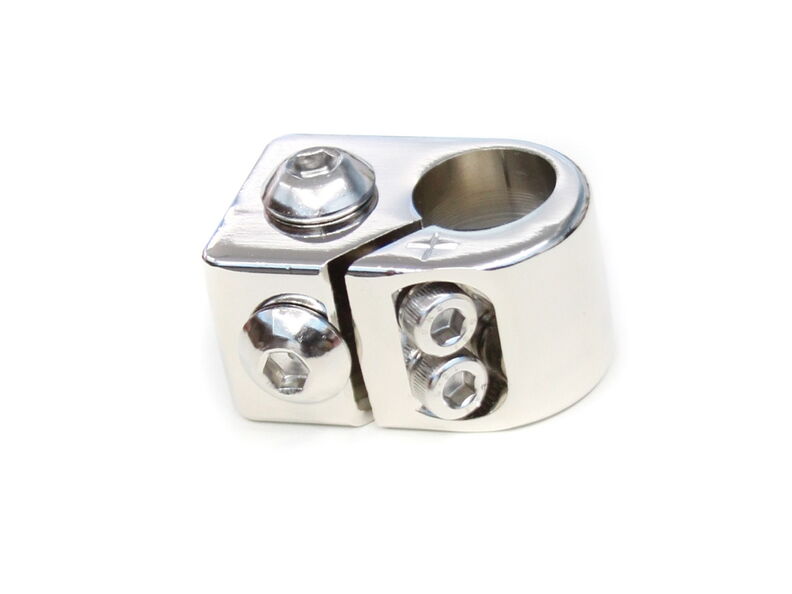

I really like these as they allow you to connect ring terminals.

http://www.garagescene.net/_data/i/u...6ca4a6e-me.jpg

http://www.garagescene.net/_data/i/u...1cf7fc7-me.jpg

http://www.garagescene.net/_data/i/u...d363c31-me.jpg

Option 1

http://www.garagescene.net/_data/i/u...87b0a4e-me.jpg

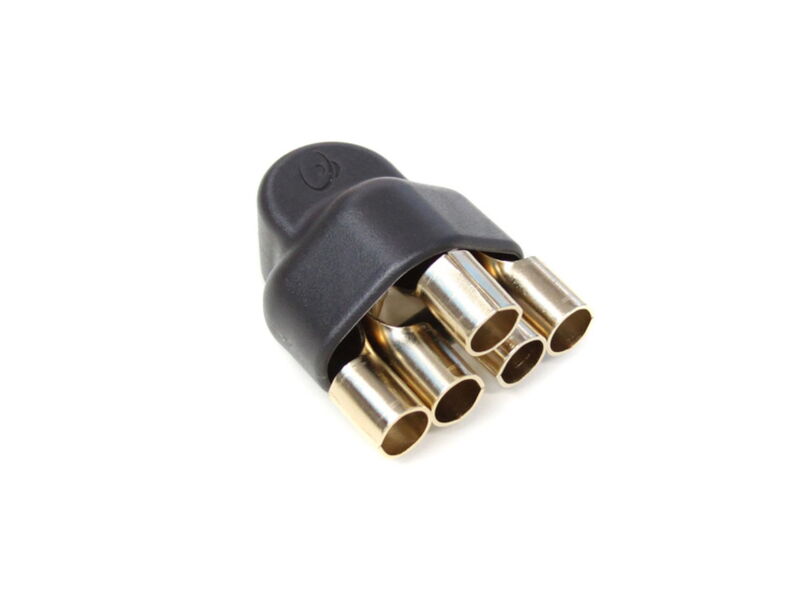

Option 2

http://www.garagescene.net/_data/i/u...0c5c04c-me.jpg

My Christmas Present to myself from my wife ( 12-01-21 )


So way back in February of 2021 I saw this 3D printed honeycomb grille on Taylor's 2nd Gen. I messaged him on Facebook and asked
him where and how do I get one. He told me he 3D printed it and he would be selling them. I was lucky enough to get in line to get one
and the quality is excellent and I can not wait to install it on the car.

http://www.garagescene.net/_data/i/u...5e61689-me.jpg

http://www.garagescene.net/_data/i/u...f1d520b-me.jpg

http://www.garagescene.net/_data/i/u...2a2e089-me.jpg

Here is the grille that was shipped to me the first week of December. To say I am excited is an understatement.

http://www.garagescene.net/_data/i/u...683132a-me.jpg

http://www.garagescene.net/_data/i/u...dcb8847-me.jpg

http://www.garagescene.net/_data/i/u...294568f-me.jpg

http://www.garagescene.net/_data/i/u...93eb712-me.jpg

MSD Truck Wires & DEI Spark Plug Boots ( 12-05-21 )

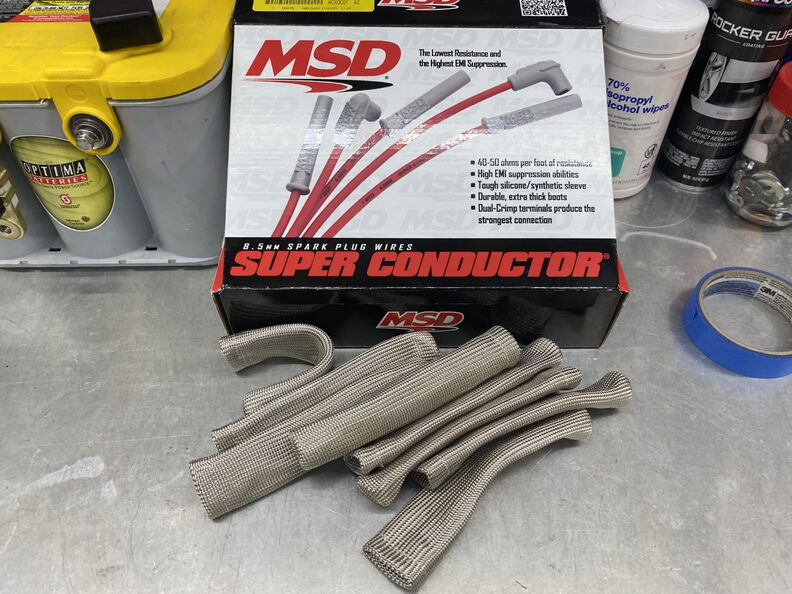

It was late and I was tired and just got home from work with my MSD Plug Wires so I decided to put them on before I went in the house.

http://www.garagescene.net/_data/i/u...af702d1-me.jpg

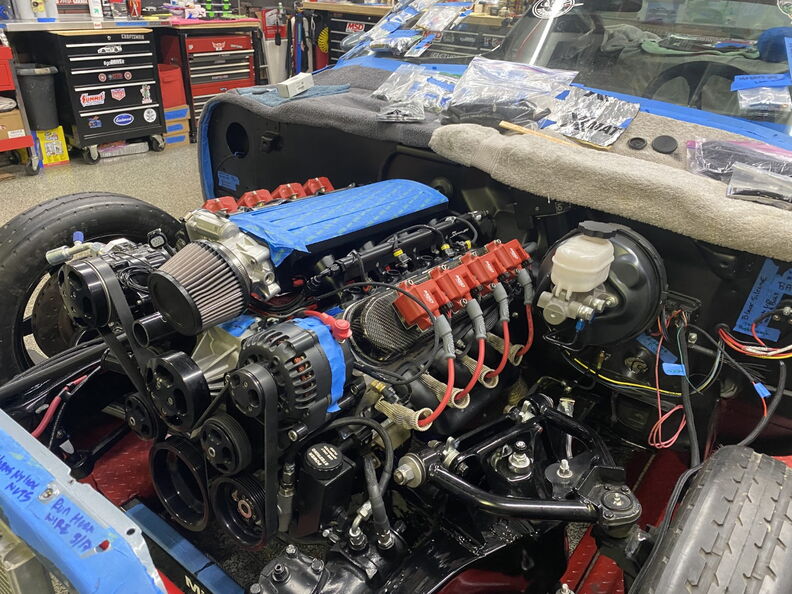

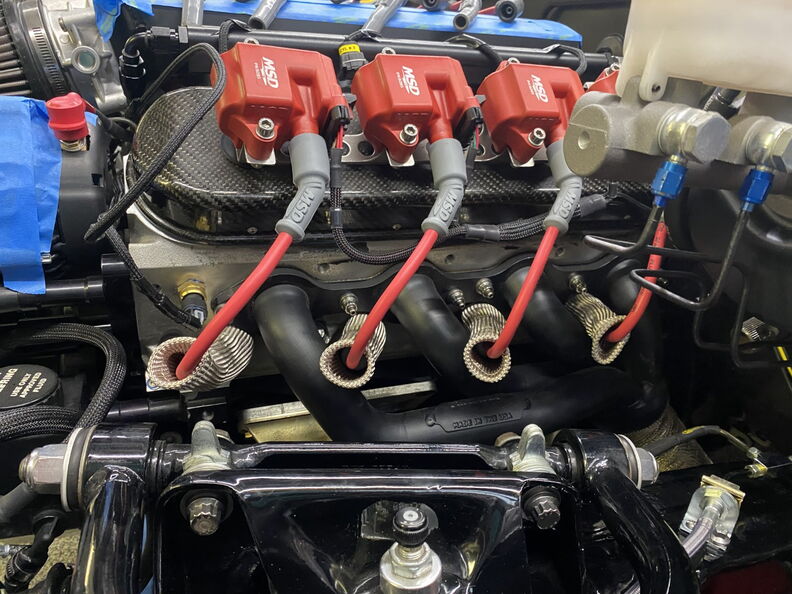

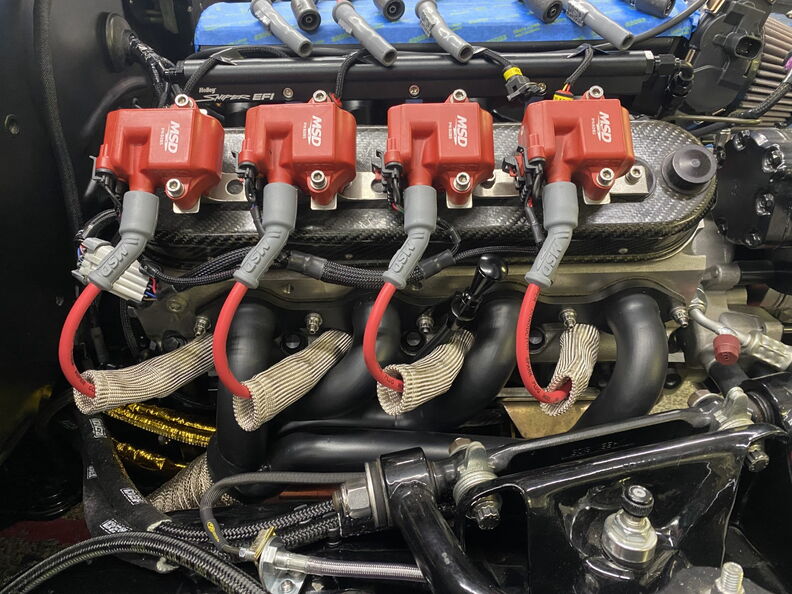

As you can see the wires are no longer stretched.

http://www.garagescene.net/_data/i/u...d5ac7bf-me.jpg

http://www.garagescene.net/_data/i/u...a46c630-me.jpg

http://www.garagescene.net/_data/i/u...57b1946-me.jpg

Apparently Remy new I was home so my wife let him out so he could come visit me in the garage.

http://www.garagescene.net/_data/i/u...7e7ca00-me.jpg

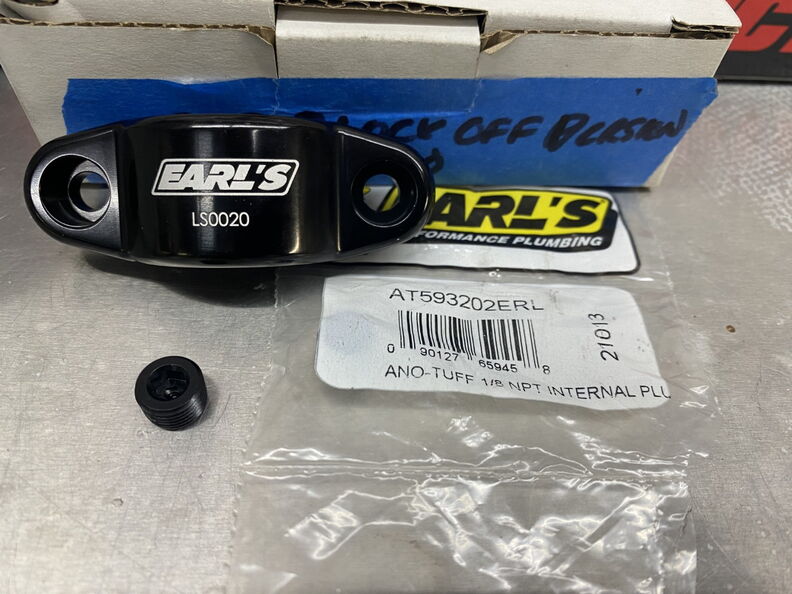

Oil Pump Block off.

http://www.garagescene.net/_data/i/u...38d87b2-me.jpg

After looking at the wiring on the tank I decided it needed one more "Weld Stud"

http://www.garagescene.net/_data/i/u...de6df0f-me.jpg

http://www.garagescene.net/_data/i/u...3451d11-me.jpg

Apparently all the planning I did when I installed the tank makes it very easy to service and remove.

http://www.garagescene.net/_data/i/u...5defde4-me.jpg

http://www.garagescene.net/_data/i/u...4cb9ee7-me.jpg

http://www.garagescene.net/_data/i/u...73d81a8-me.jpg

Nap time for Remy

http://www.garagescene.net/_data/i/u...7ec4884-me.jpg

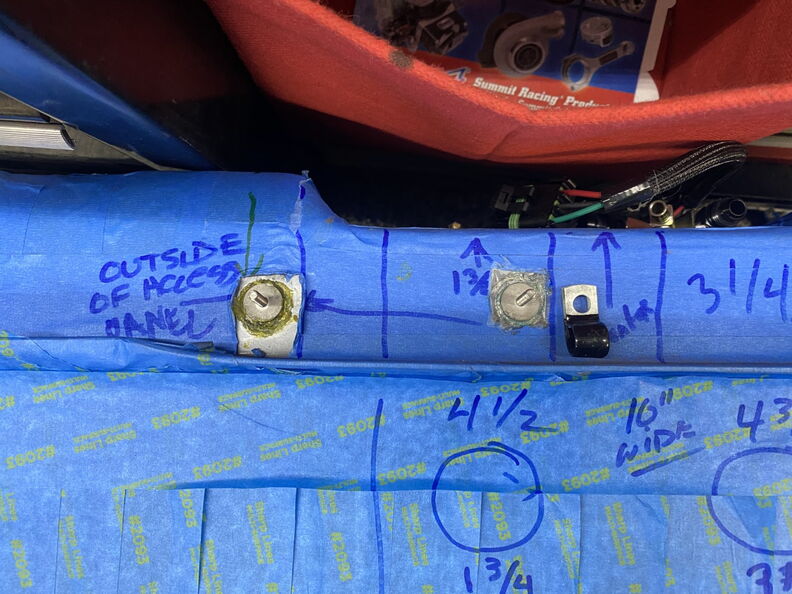

New Weld Stud installed and I will clean up all of the excess before the Tank goes to Remes Autobody for paint.

http://www.garagescene.net/_data/i/u...5c56884-me.jpg

Holley EFI Tank off to paint at Remes Autobody ( 12-08-21 )

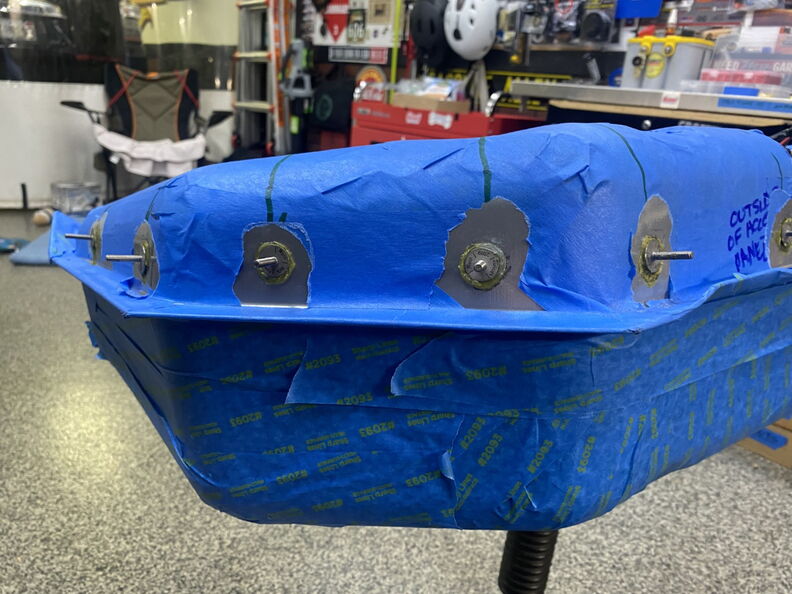

I figured while the tank was out I might as well clean up the epoxy around the wed stud mounts.

http://www.garagescene.net/_data/i/u...6c533e5-me.jpg

http://www.garagescene.net/_data/i/u...c12e54d-me.jpg

It feels so nice talking off all of the tape.

http://www.garagescene.net/_data/i/u...9d3100b-me.jpg

Yes, I am going print this picture so I don't have to try to remember the sock direction in the tank.

http://www.garagescene.net/_data/i/u...4f8f89f-me.jpg

No More Tape !!

http://www.garagescene.net/_data/i/u...8adc34c-me.jpg

I think I put this stud in the correct location.

Only time will tell.

http://www.garagescene.net/_data/i/u...ad1d211-me.jpg

http://www.garagescene.net/_data/i/u...19416c1-me.jpg

Off to Remes Autobody to get the tank painted.

http://www.garagescene.net/_data/i/u...4a58248-me.jpg

Measure Twice Cut Once ( 12-09-21 )


Yep, I screwed up and cut the hose to short

http://www.garagescene.net/_data/i/u...9525aa3-me.jpg

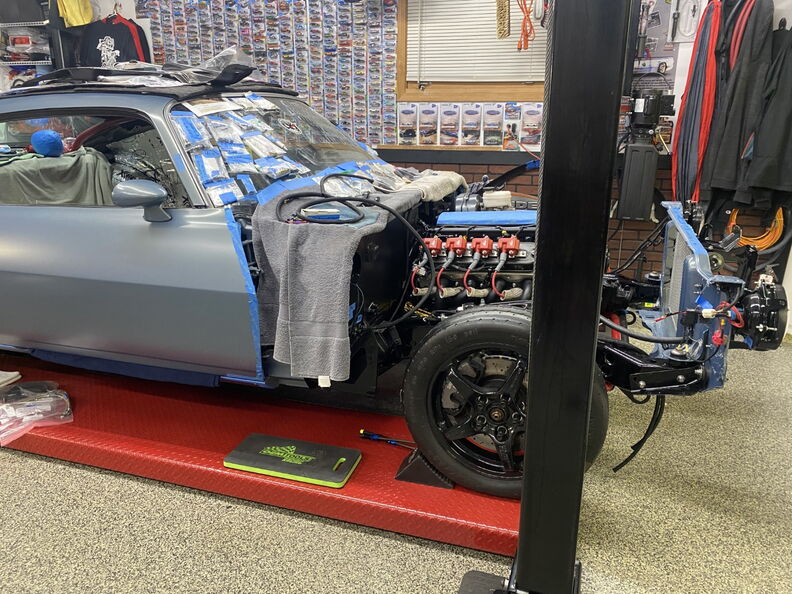

I installed the DEI Fire Sleeve on the fuel line and I doubt I will be cutting the fuel line as I already screwed up once today.

http://www.garagescene.net/_data/i/u...321dda5-me.jpg

http://www.garagescene.net/_data/i/u...39cdd3f-me.jpg

This time I am going to use my green paracord.

http://www.garagescene.net/_data/i/u...8a0ac96-me.jpg

http://www.garagescene.net/_data/i/u...aa1cbbc-me.jpg

http://www.garagescene.net/_data/i/u...3f414bb-me.jpg

2nd Chance Camaro - Let the Project Begin


The one's that DSE offers and it is really nice looking



http://www.garagescene.net/_data/i/u...13770e3-me.jpg



http://www.garagescene.net/_data/i/u...e41febf-me.jpg



I finally made the time to finish off all of the wire terminations.



http://www.garagescene.net/_data/i/u...458321b-me.jpg



I'm making sure all of the wires are long enough and I will need to replace these ring terminals as they are not the correct size.



http://www.garagescene.net/_data/i/u...a547e25-me.jpg



I did find some covers for the DSE terminals.



http://www.garagescene.net/_data/i/u...499b92f-me.jpg



Since the Shifter will be going in soon I figured it was time to look for the harness and I had tucked it up neatly under the dash.



http://www.garagescene.net/_data/i/u...b9f0272-me.jpg



I really want the Radiator Cover from Anvil so I am adding this to my Christmas list and hoping my wife buys it for me.



http://www.garagescene.net/_data/i/u...54ae0f5-me.jpg

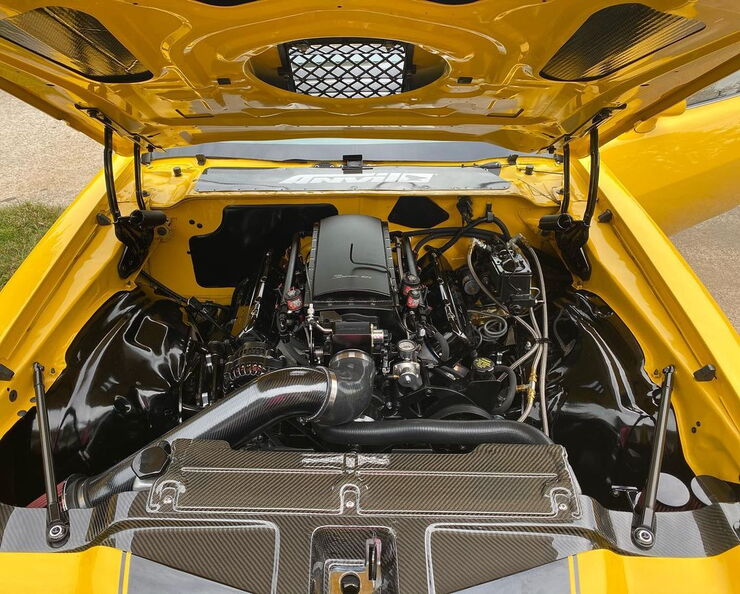

Not my car the picture is for reference.

http://www.garagescene.net/_data/i/u...e0644eb-me.jpg

I am blaming Ron for this ( 12-14-21 )


So, I have wanted these upper control arms since I started building the car. After talking with Keith at Custom Works Performance
for years I finally pulled the trigger and ordered a set. I also ordered a set of Tall Ball Joints and once I received them I ordered some
ARP Hardware.

http://www.garagescene.net/_data/i/u...470c201-me.jpg

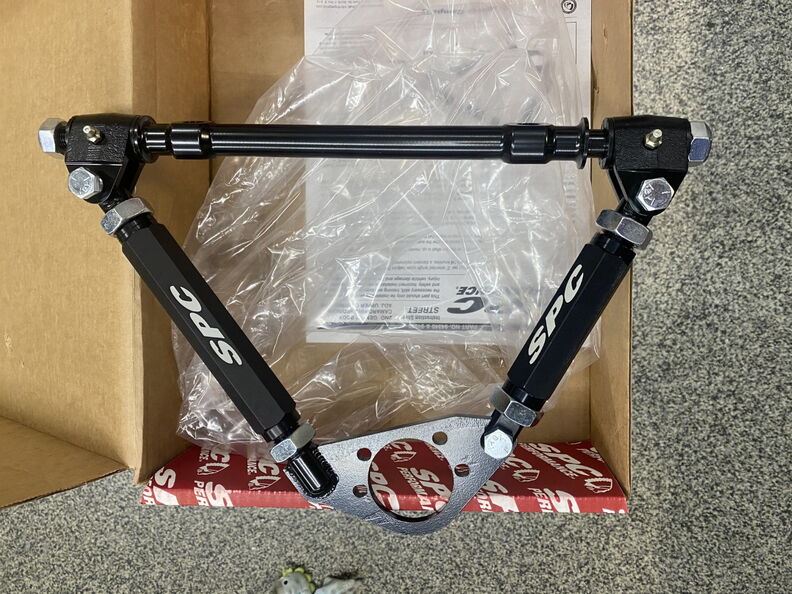

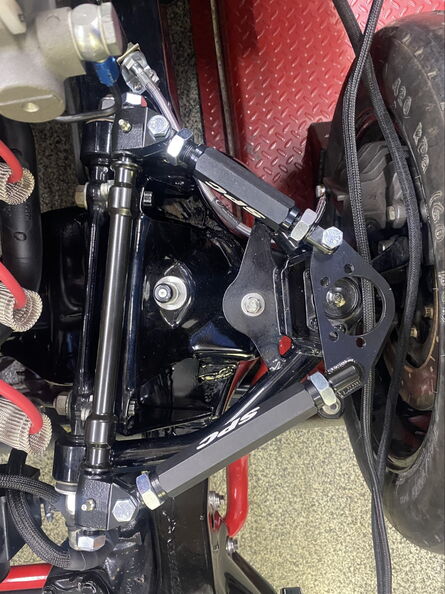

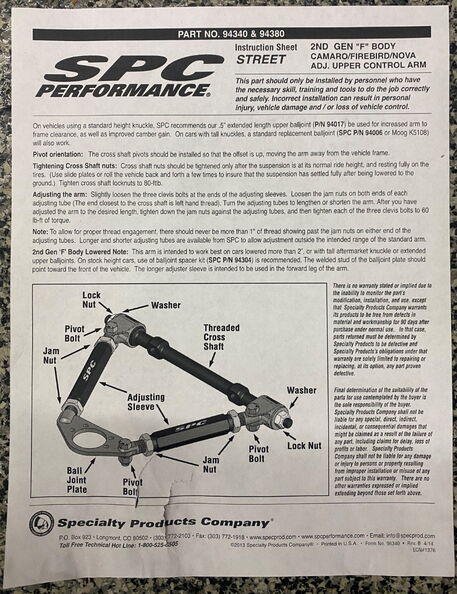

They sure are pretty and no more pivot shaft shims.

http://www.garagescene.net/_data/i/u...f794320-me.jpg

http://www.garagescene.net/_data/i/u...b0dbc15-me.jpg

http://www.garagescene.net/_data/i/u...6f04f27-me.jpg

http://www.garagescene.net/_data/i/u...0796520-me.jpg

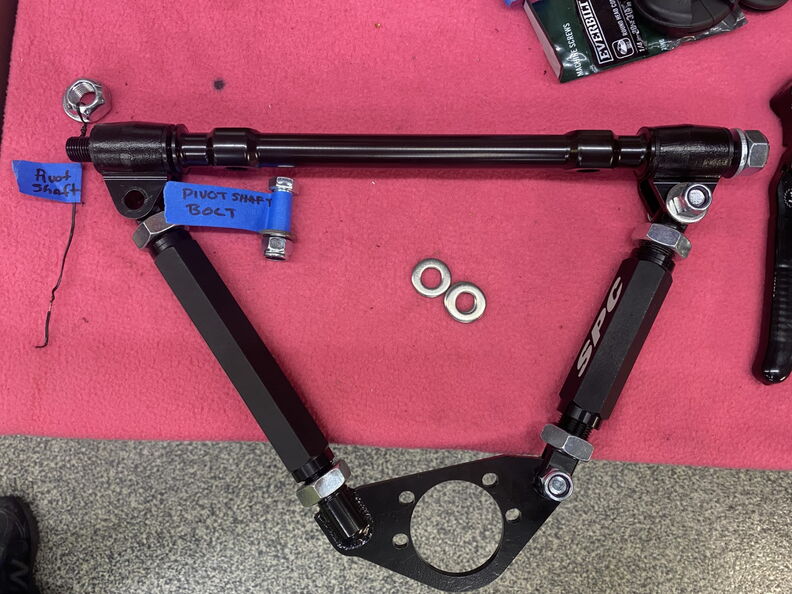

Yes, I am replacing the hardware.

http://www.garagescene.net/_data/i/u...55733a5-me.jpg

http://www.garagescene.net/_data/i/u...8993031-me.jpg

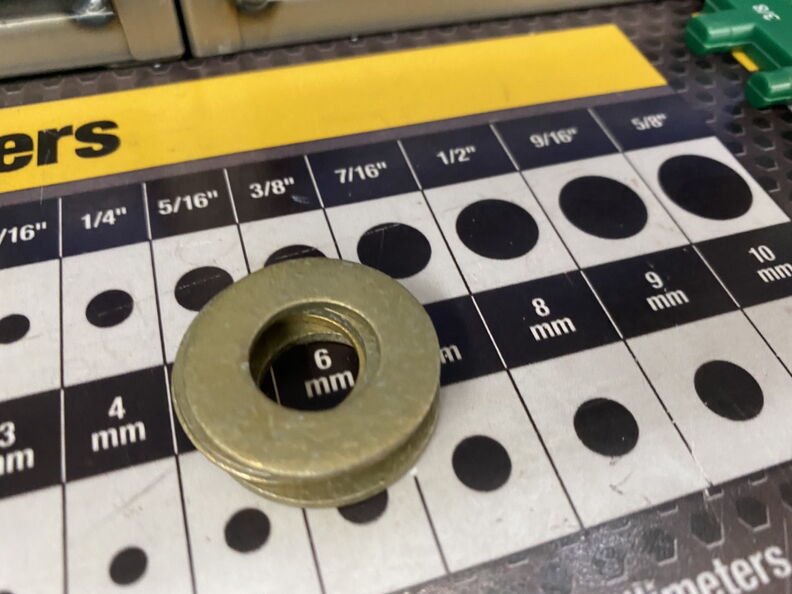

I picked up some zinc coated grad 8 washers since one of the arms was missing the pivot shaft washers.

http://www.garagescene.net/_data/i/u...b0071ac-me.jpg

Back to the Battery Terminals ( 12-18-21 )


Yes, I am still going back and fourth on this battery terminal mental block. I have even ordered another one that I hope to play with next week.

http://www.garagescene.net/_data/i/u...64f8588-me.jpg

Comparing the two next to each other.

http://www.garagescene.net/_data/i/u...6404f79-me.jpg

http://www.garagescene.net/_data/i/u...80e8181-me.jpg

http://www.garagescene.net/_data/i/u...66d8050-me.jpg

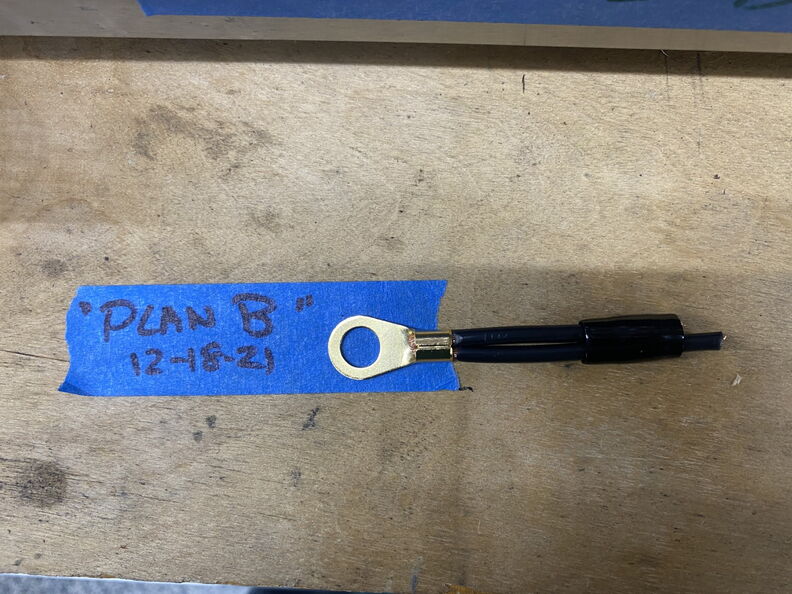

In order to reduce the number of ring terminals I am going to double up one of the grounds.

http://www.garagescene.net/_data/i/u...64f0962-me.jpg

Finishing off the New New Fan Relay Wiring ( 12-18-21 )


Needed something quick and easy to finish when I went back out to the garage at 10pm. So I finished up the details on the relay wire tech flex wrap.

Since the wire is so small I am going to step the heat shrink so it looks like finished. The first layer of heat shrink (2 to 1 shrink ratio ) fits tightly before I hit it with the heat gun. This still needs to be trimmed to length which should roughly be 3/4 of an inch. Smaller if you want less to show and make sure you shrink this before moving on to the next step.

http://www.garagescene.net/_data/i/u...95aad24-me.jpg

I then installed the tech flex sleeve and then a slightly larger piece of heat shrink (3 to 1 shrink ration) that fits over the tech flex and lays on the recently installed heat shrink. When everything is lined up hit it with the heat gun.

http://www.garagescene.net/_data/i/u...c9283b2-me.jpg

http://www.garagescene.net/_data/i/u...e4b38bd-me.jpg

Another while I am here moment. ( 12-26-21 )

http://www.garagescene.net/_data/i/u...6aed835-me.jpg

http://www.garagescene.net/_data/i/u...2b3f3a9-me.jpg

I finally get to make the final "Hot" connections in the passenger side cowl panel.

http://www.garagescene.net/_data/i/u...f975a79-me.jpg

http://www.garagescene.net/_data/i/u...157bf0f-me.jpg

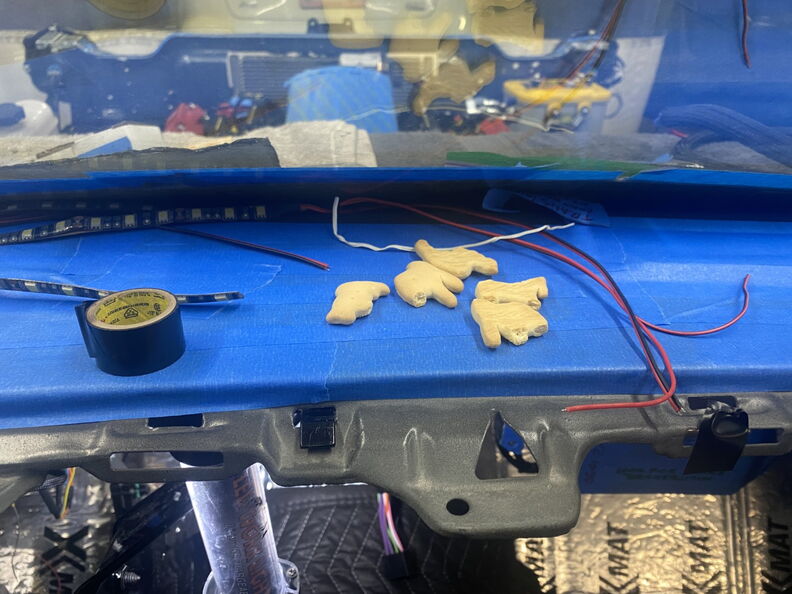

Don't every buy Animal Crackers as they are like CRACK !!!!!

http://www.garagescene.net/_data/i/u...5d18869-me.jpg

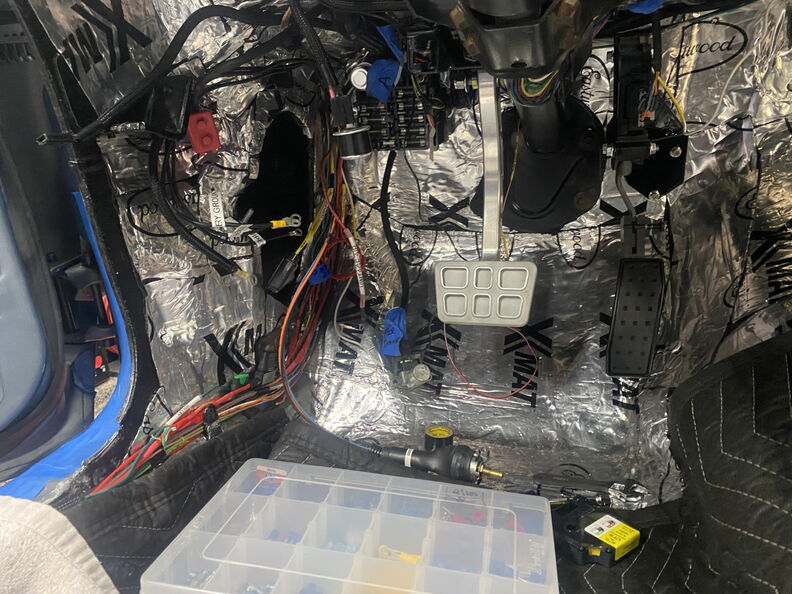

Finishing up all of the passenger side grounds

http://www.garagescene.net/_data/i/u...982a644-me.jpg

http://www.garagescene.net/_data/i/u...a64d2d9-me.jpg

Clean Up which means bed time or was it Taco time.

http://www.garagescene.net/_data/i/u...68e3596-me.jpg

Look up OCD... :lol:

Your OCD is as pleasing as always, And your workspace is as expectedly clean, makes me want to redo my garage again once I'm in final assembly. many beers could be had.

Back to the Battery Terminals ( 12-18-21 )


Yes, I am still going back and fourth on this battery terminal mental block. I have even ordered another one that I hope to play with next week.

http://www.garagescene.net/_data/i/u...64f8588-me.jpg

Comparing the two next to each other.

http://www.garagescene.net/_data/i/u...6404f79-me.jpg

http://www.garagescene.net/_data/i/u...80e8181-me.jpg

http://www.garagescene.net/_data/i/u...66d8050-me.jpg

In order to reduce the number of ring terminals I am going to double up one of the grounds.

http://www.garagescene.net/_data/i/u...64f0962-me.jpg

Finishing off 2021 by spending my Christmas cash on myself. ( 12-27-21 )


Since both my girls were home for the holidays I spent my free time with them instead of working on the car.

First project was to upgrade the hardware on the Customworks Performance SPC Control Arms. So I set up my makeshift desk and started
measuring bolts. It was quite relaxing and I think I need to get a computer for my garage because trying to find the correct ARP bolt on Summit's
website/app on my phone was a pain in the backside.

If anyone wants or needs a part # list shoot me a message.

http://www.garagescene.net/_data/i/u...9800ca3-me.jpg

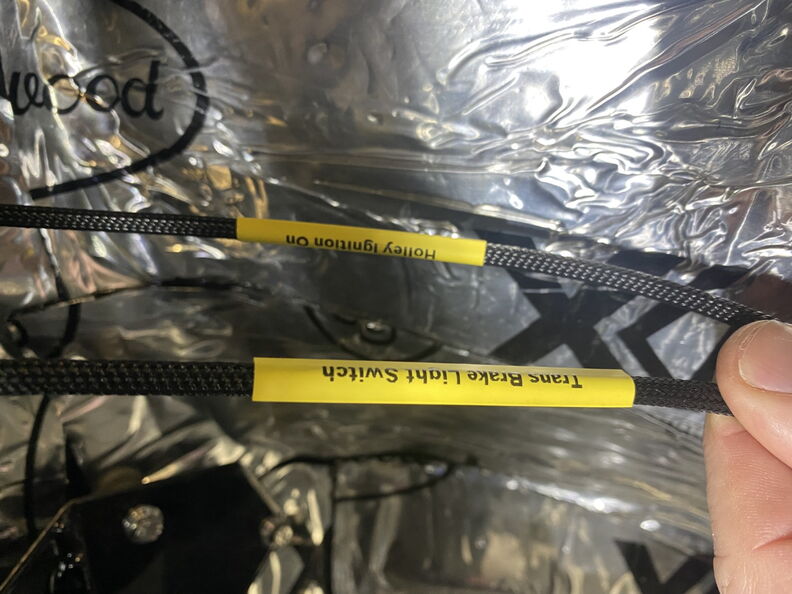

So these are the last two wires that I need to connect to the brake light switch. One is from the DBW and the other is from
the transmission harness. I need to figure out which wire it needs to go to.

http://www.garagescene.net/_data/i/u...2bdea2a-me.jpg

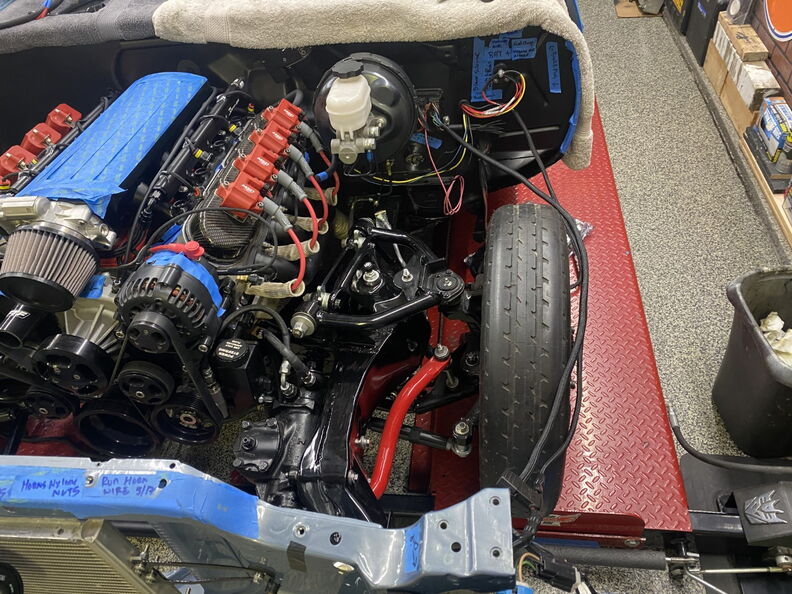

This was the last thing I worked on. I added the red wire into the loom and wrapped it with matching Tech-Flex wire wrap.

http://www.garagescene.net/_data/i/u...d4d5672-me.jpg

http://www.garagescene.net/_data/i/u...be0743a-me.jpg

The first step is realizing I have a problem. <-- I am working on this

Thank you and if you are ever in the Chicagoland area hit me up as I love having company in my garage. On a side note I think I have redone my garage at least 4 times and this one has lasted the longest.
