Originally Posted by 65_LS1_T56 (Post 604483)

Some more machining pictures for those interested. I posted a few in our 66 Vette build thread, but I thought this would be a better place.

I'm building these for a customer of B&B Classics. Billy has done a lot of upgrades to this guys '67 Chevelle 300. The car is beautiful, a very nice, clean car. It has a BBC 572 that Billy put a Hilborn fuel injection unit on it last year. The owner wanted to dress up the appearance over the sheetmetal formed stacks. I came up with this:

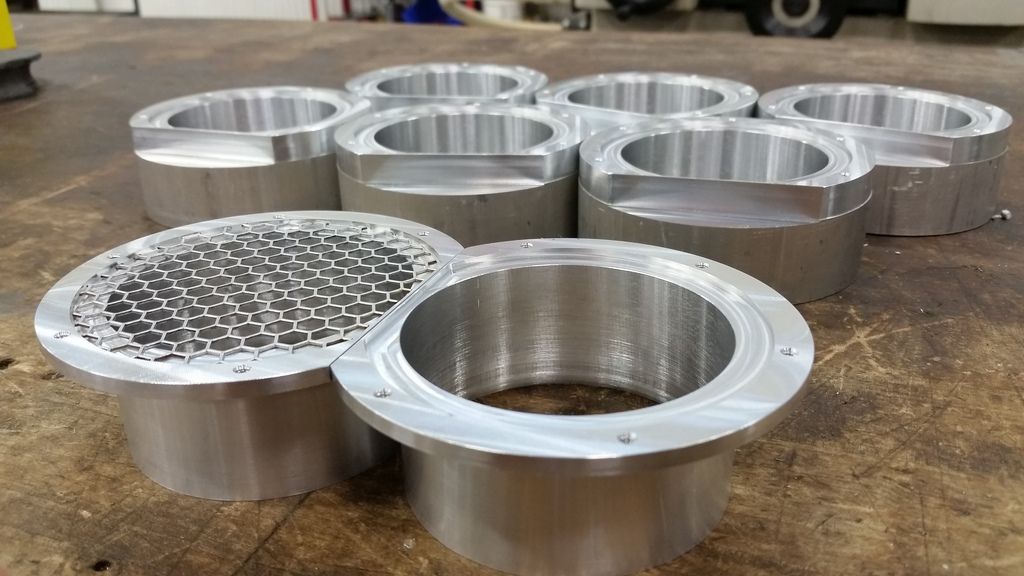

Lower stacks, one operation in the mill, one in the lathe
http://i1207.photobucket.com/albums/...ps8snksgmz.jpg

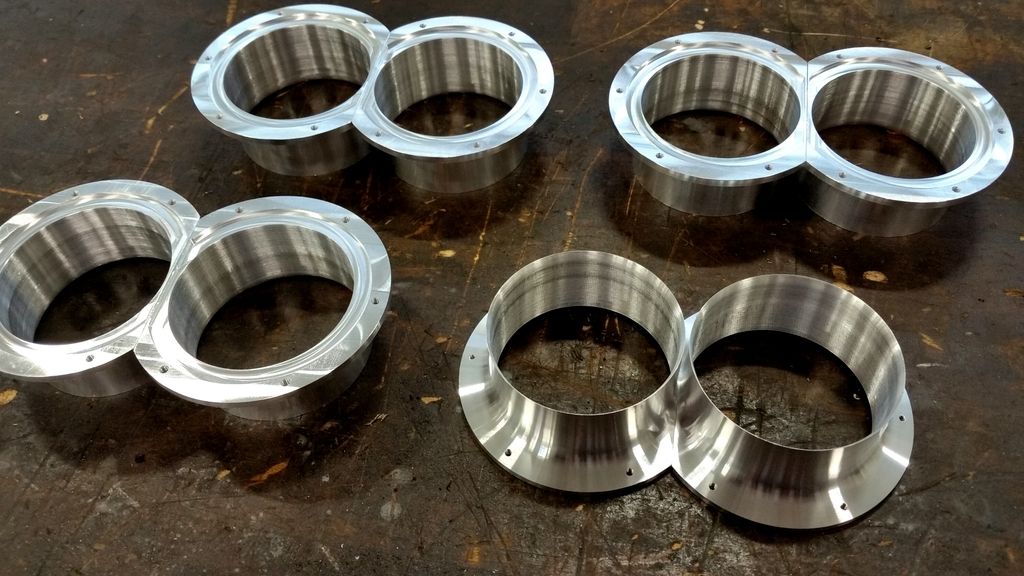

After turning, these are complete. Two flipped over to see the bottom side
http://i1207.photobucket.com/albums/...psfo2xm98r.jpg

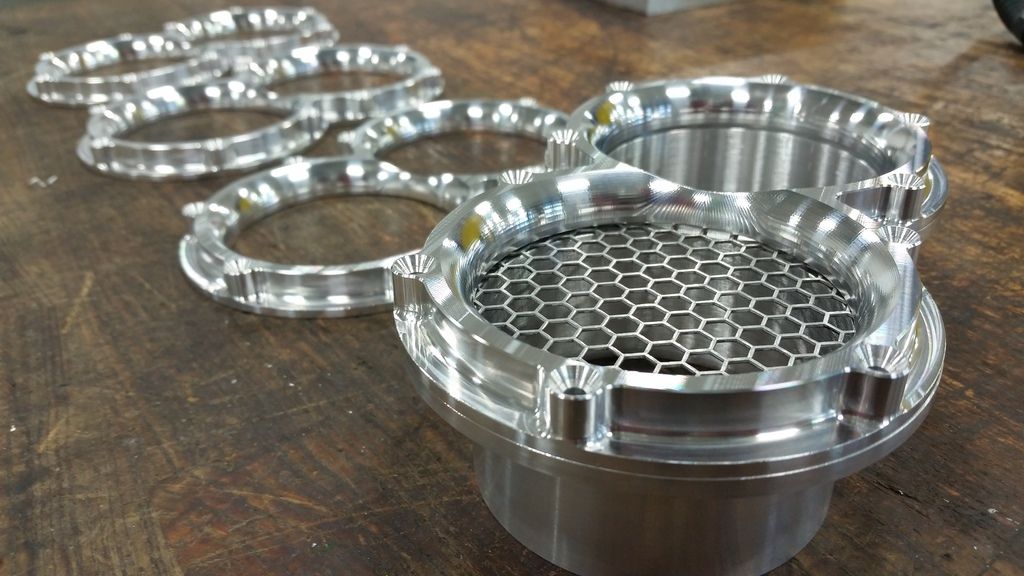

Here is the top cover plates all machined, three setups in the mill including 3D machining the inlet radius
http://i1207.photobucket.com/albums/...psaoywp9zu.jpg

this one shows the tool marks left (totally intentional) in the inlet radius
http://i1207.photobucket.com/albums/...psgtiezne8.jpg

The screens are cut on my laser. It's really a marking or engraving laser, but it will cut this 0.032" aluminum. There will be two screens in each horn with a layer of pre-filter material in between them.

Hope you guys enjoy the pics!

Originally Posted by Vince@MSperfab (Post 604732)

LOL, I was just going to ask you where you sourced your screen. Ive been looking for that in Stainless. 1/4" honeycomb?

You have a laser? :thumbsup:

Originally Posted by 65_LS1_T56 (Post 604729)

Thanks!

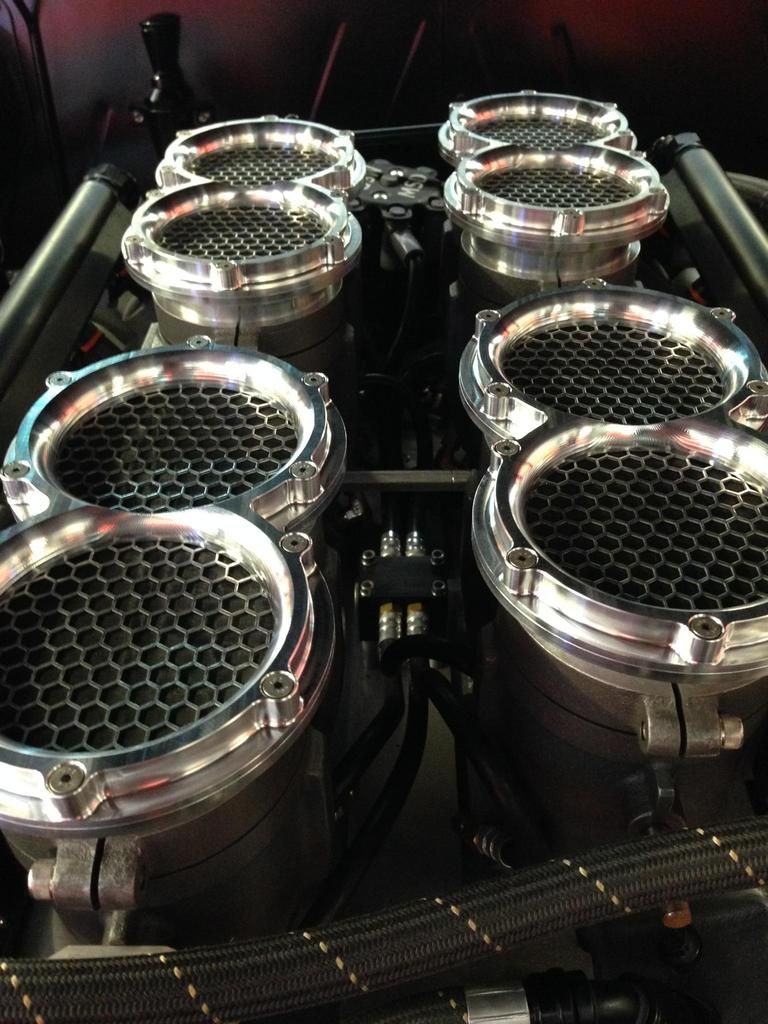

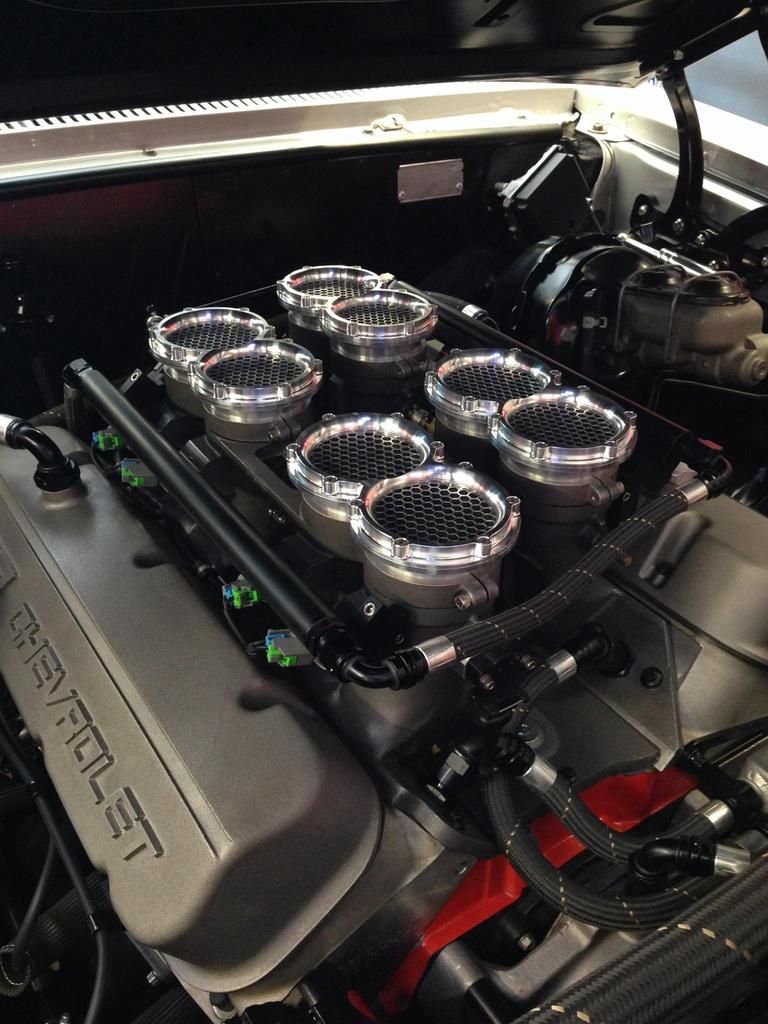

Here they are installed
http://i1207.photobucket.com/albums/...sozgmdb32.jpeghttp://i1207.photobucket.com/albums/...sn9fbz7ou.jpeg
