Slip Yolk Travel (( 07-16-22 ) Got a Question...Need Advice


Back out in the garage and back at it.

http://garagescene.net/_data/i/uploa...d79dcd7-me.jpg

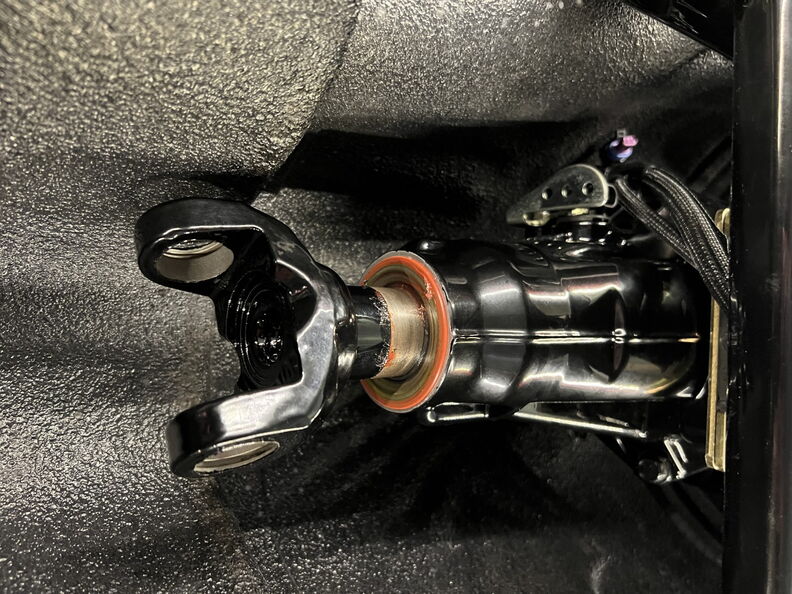

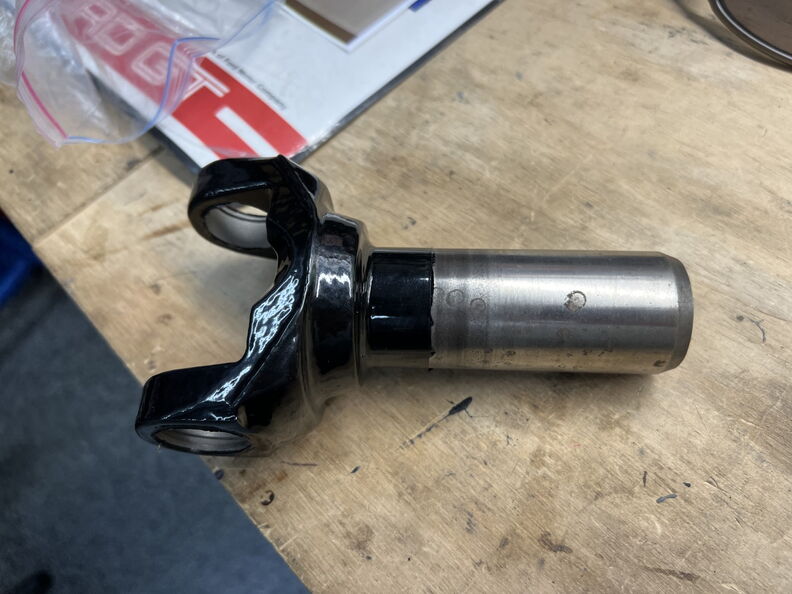

The guys at Pro-Tek Powder Coating did an incredible job on the Yolk. However he may have put a little bit to much powder coating on the shaft.

http://garagescene.net/_data/i/uploa...9df4bdc-me.jpg

http://garagescene.net/_data/i/uploa...f2857e3-me.jpg

So I have question how much inward travel should I expect ??

So how far in does it go until it bottoms out? If it bottoms out before hitting the powdercoated section you're good. Dennys Driveshafts wants 3/4" for forward movement, so if the driveshaft is installed and car at ride height, if the powdercoated area is 1" or more back from the seal you're good.

Of course you can always sand some coating off to give yourself more room if needed. Tape off the clean part of the yoke and touch up the end of the powdercoating with matching paint, nobody will notice.

https://www.dennysdriveshaft.com/fre....html#faq_id10

:secret::goggles: Except Marty will know...

Thank You and I was hoping that is what you would say. It looks like I am going to remove another 3/8" of the powder coating which will give me 1.25" of inward travel.




:-)

Torque Convertor Shim (( 07-16-22 ))


Have I ever mention how much I love shimming a Torque Convertor....

http://garagescene.net/_data/i/uploa...9165357-me.jpg

Once again the passenger side header needs to come off.

http://garagescene.net/_data/i/uploa...52efe3c-me.jpg

Note... Don't forget to ZipTie the starter wires together.

http://garagescene.net/_data/i/uploa...1a1e54f-me.jpg

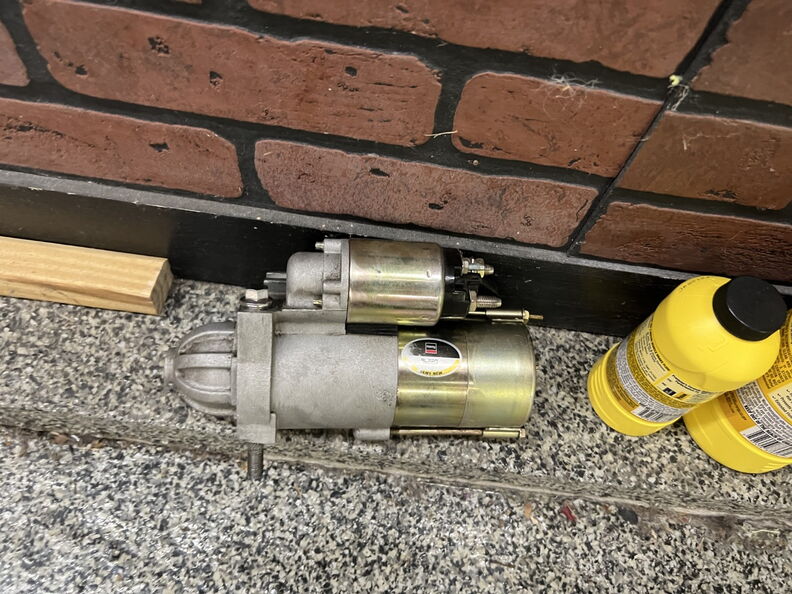

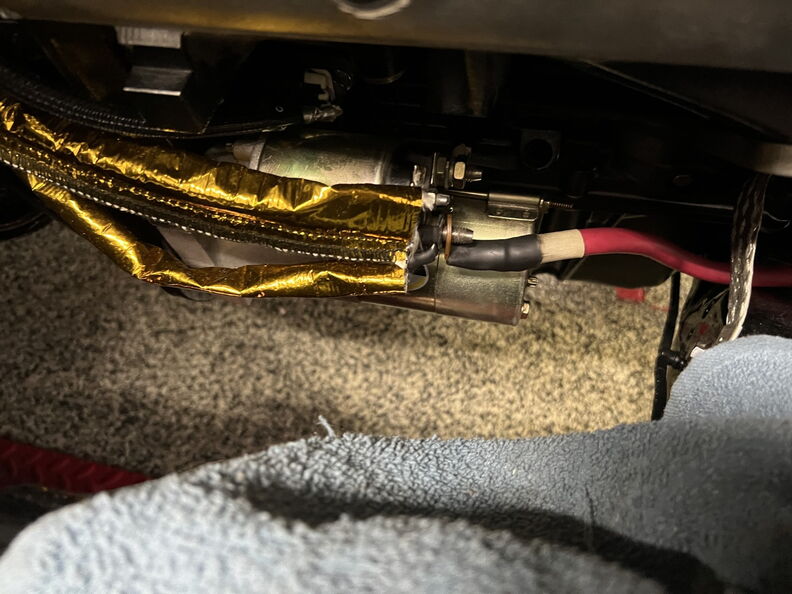

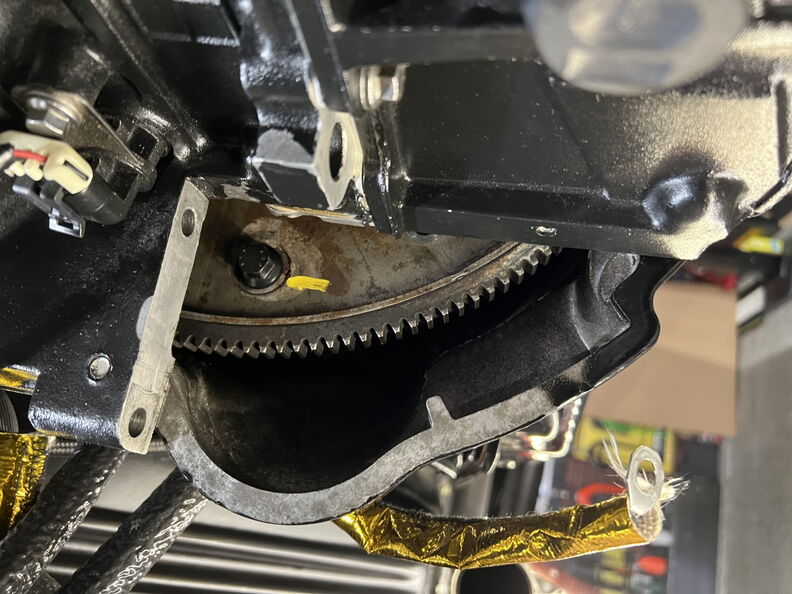

Starter back off once again.

http://garagescene.net/_data/i/uploa...791fd92-me.jpg

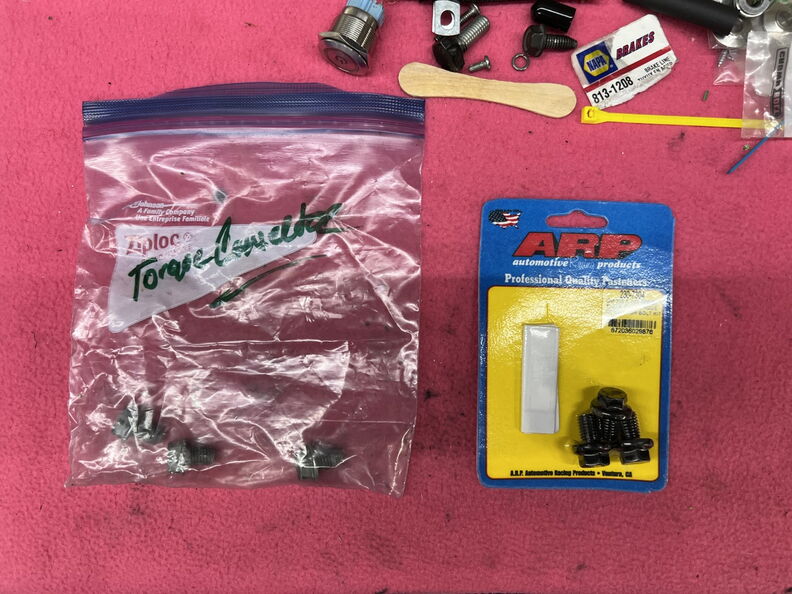

New ARP bolts

http://garagescene.net/_data/i/uploa...6c55ab8-me.jpg

Here we go

http://garagescene.net/_data/i/uploa...55653bf-me.jpg

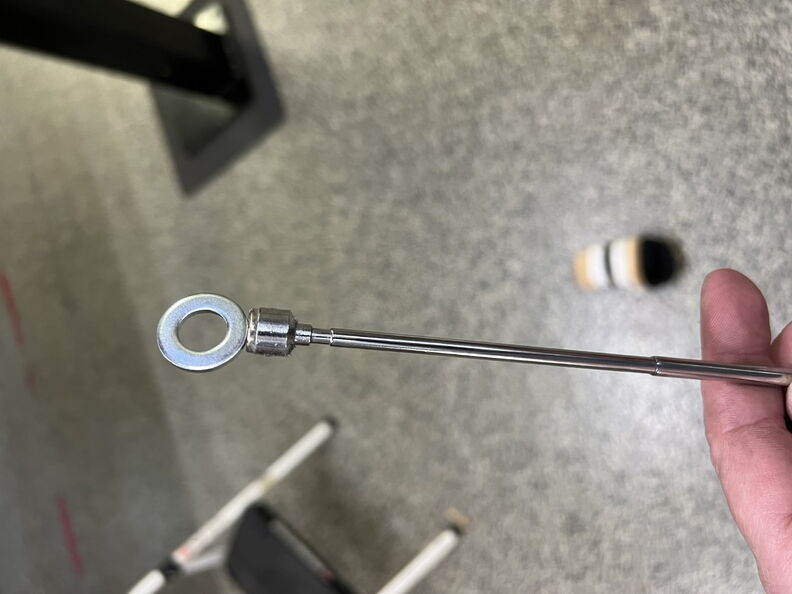

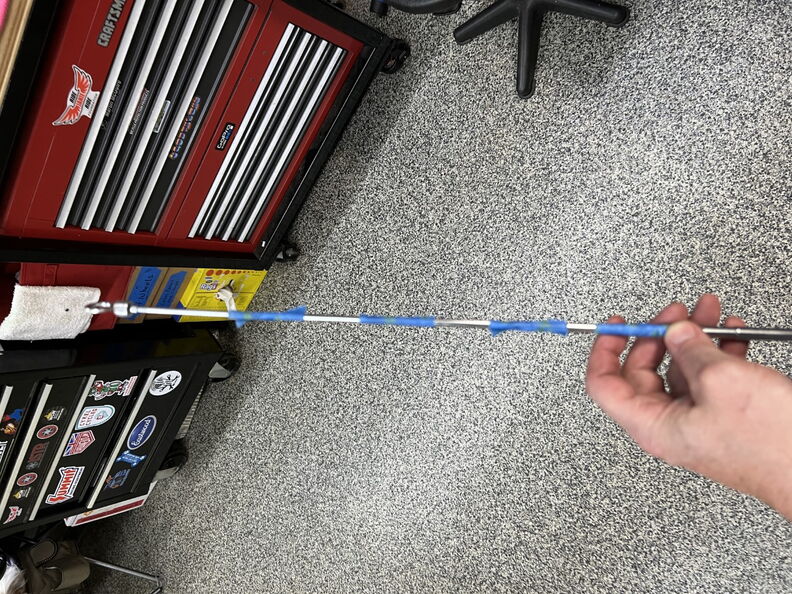

I needed to add tape to my collapsible magnet magnet.

http://garagescene.net/_data/i/uploa...eae1682-me.jpg

First Bolt in.

http://garagescene.net/_data/i/uploa...779a70a-me.jpg

Well the tool cart is sure looking full.

http://garagescene.net/_data/i/uploa...7f95581-me.jpg

In order to roll the motor over the plugs must come out.

http://garagescene.net/_data/i/uploa...d799fa2-me.jpg

So I don't have the pictures of me putting the last two bolts in but let's just say this job sucked !!!

Instead you get a nice picture of Remy.

http://garagescene.net/_data/i/uploa...4cbee01-me.jpg

Header going back in.

http://garagescene.net/_data/i/uploa...e3b2f78-me.jpg

If you look close you will see that I forgot to zip tie the starter wires. I should have put a blue tape note on it.

http://garagescene.net/_data/i/uploa...86c1fcd-me.jpg

I also moved the Lokar Dip Stick back one bank and it has a much better engagement with the block.

http://garagescene.net/_data/i/uploa...ca48189-me.jpg

Finally finishing up the Ground Wiring (( 07-17-22 ))


I am back trying to finish up the ground wiring.

http://garagescene.net/_data/i/uploa...31785eb-me.jpg

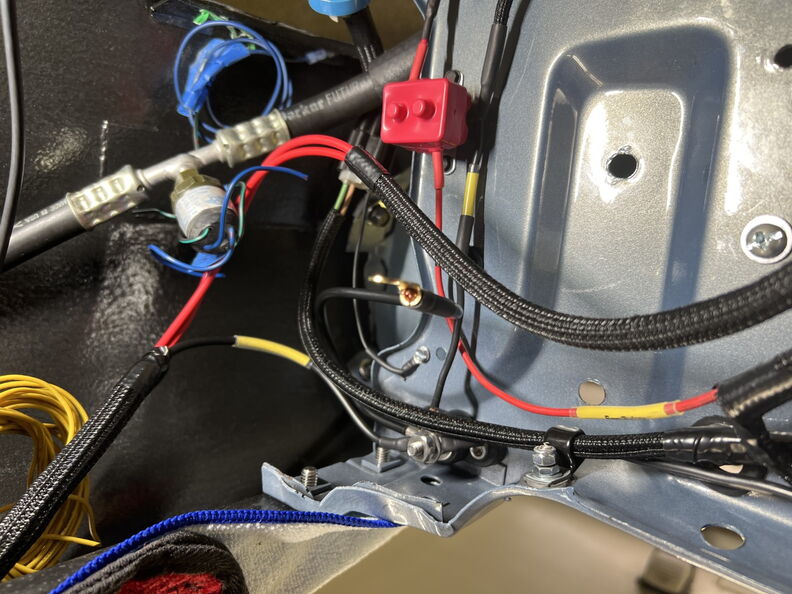

I am going to remove the mock up wiring and replace it with the 6AWG wire.

http://garagescene.net/_data/i/uploa...e4cbeed-me.jpg

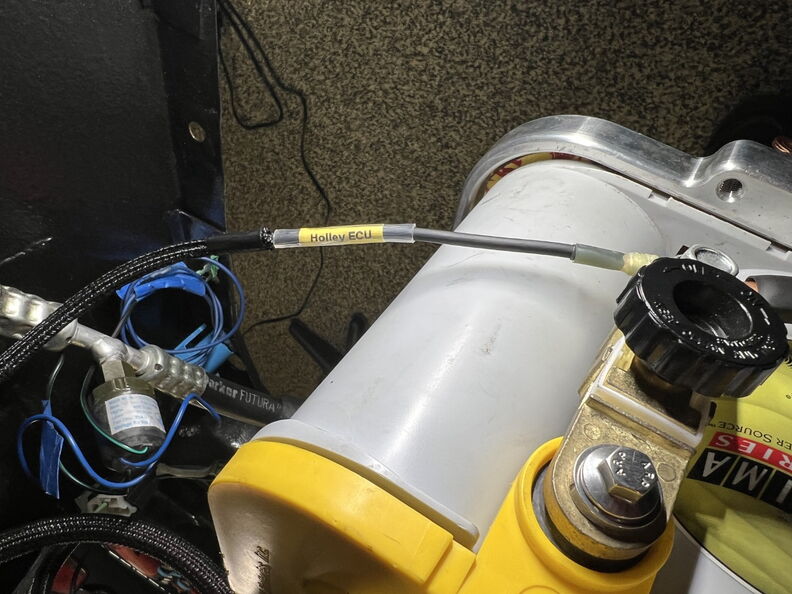

I also move the Holley ground wire to the remote shut off.

http://garagescene.net/_data/i/uploa...89f7865-me.jpg

http://garagescene.net/_data/i/uploa...f695a28-me.jpg

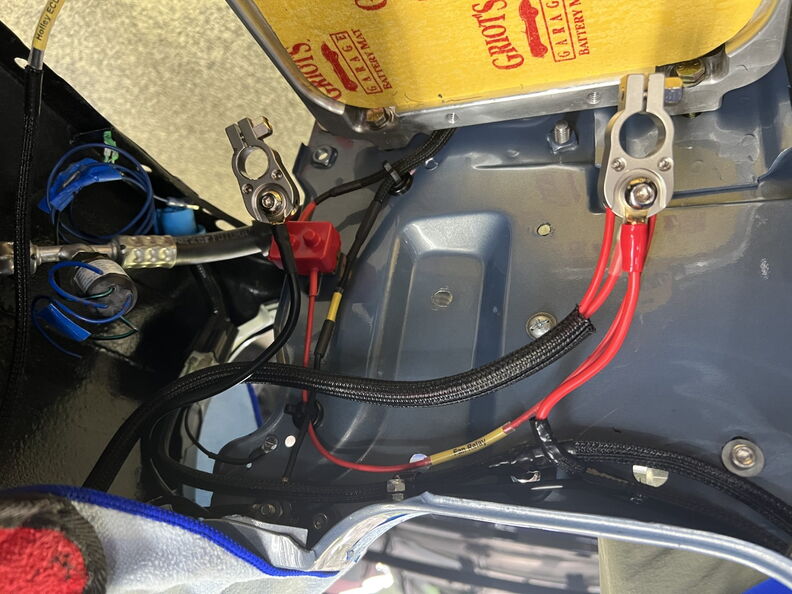

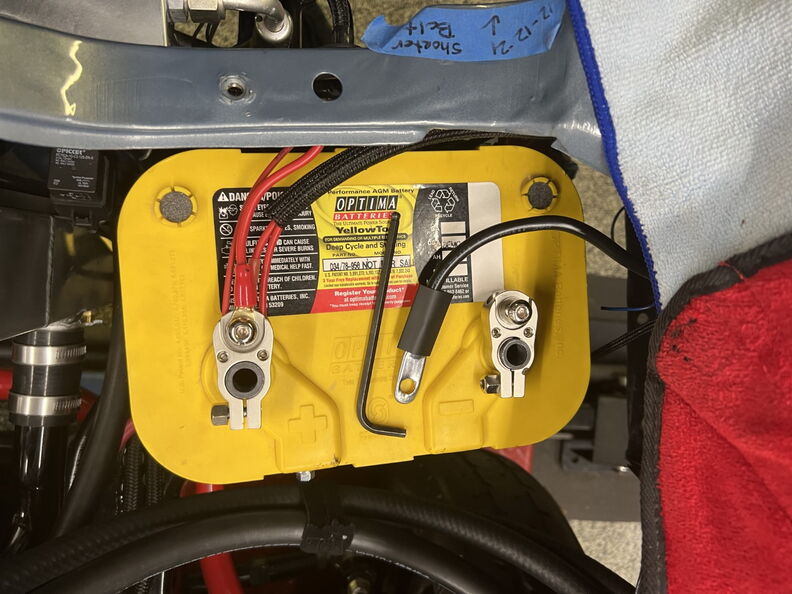

The wire was a little long and the lug for the batter was just a little bit big.

http://garagescene.net/_data/i/uploa...d52a461-me.jpg

http://garagescene.net/_data/i/uploa...bf770ab-me.jpg

http://garagescene.net/_data/i/uploa...3389f8d-me.jpg

http://garagescene.net/_data/i/uploa...b93af82-me.jpg

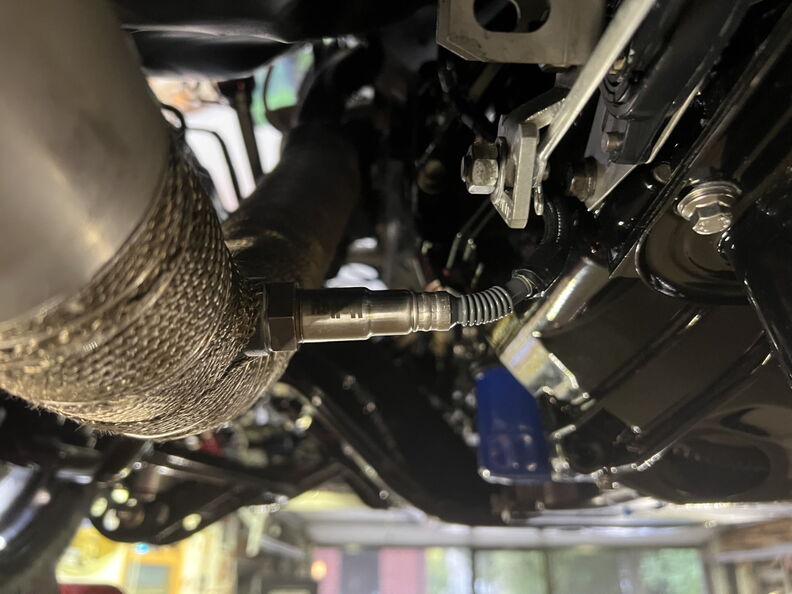

Holley O2 Sensor (( 07-23-22 ))

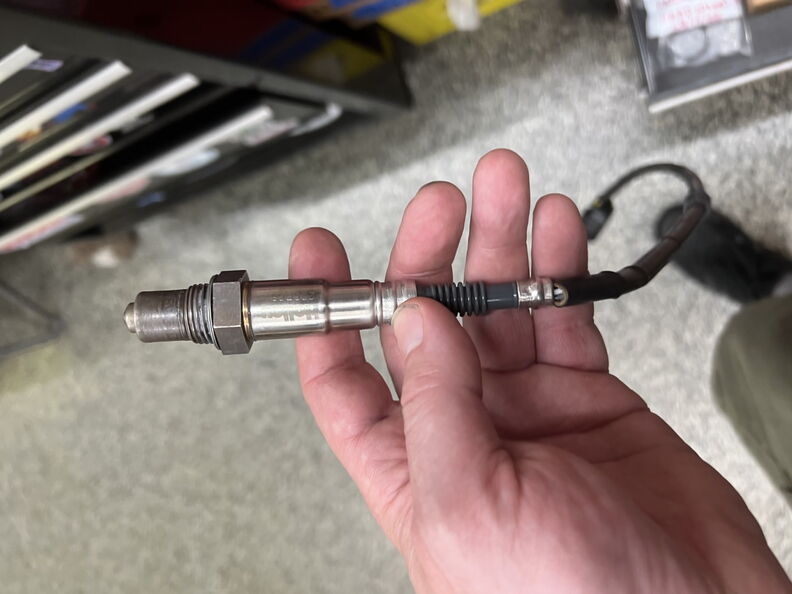

Nice Simple project

http://garagescene.net/_data/i/uploa...1f33f81-me.jpg

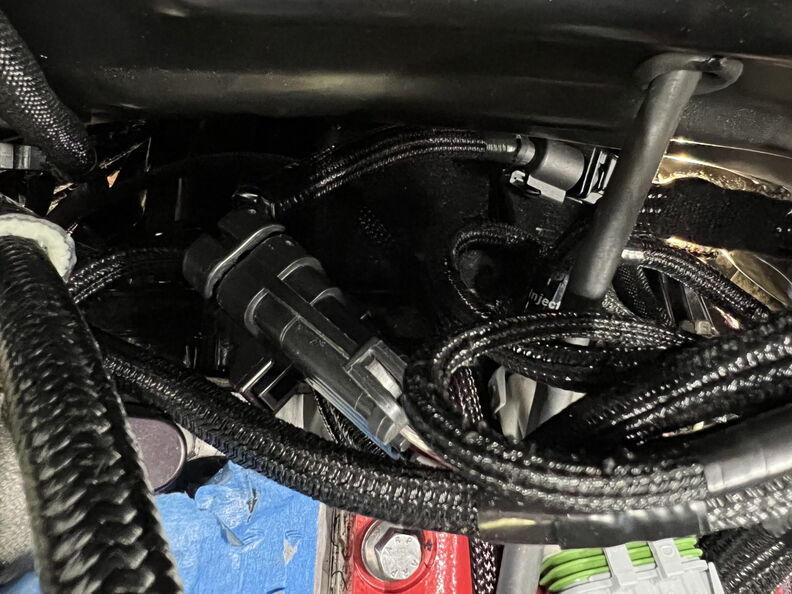

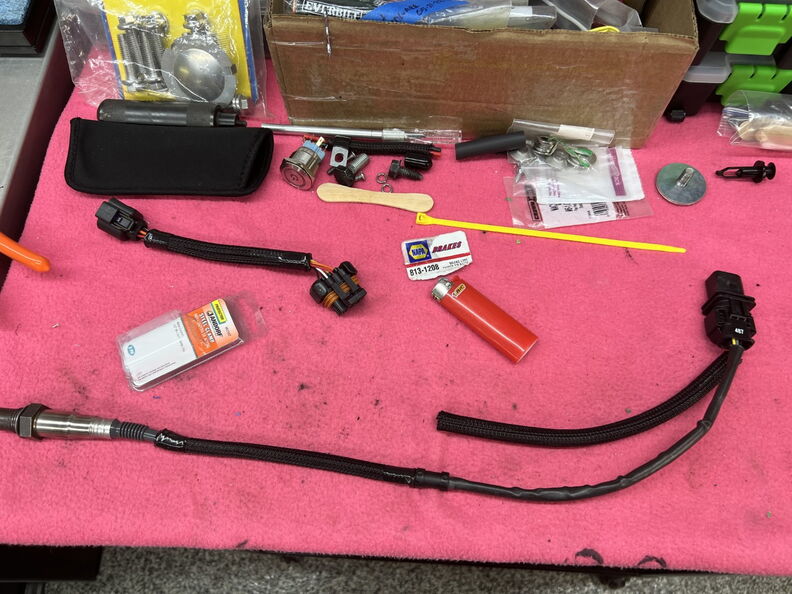

Added Techflex wrap to the harness.

http://garagescene.net/_data/i/uploa...1e51132-me.jpg

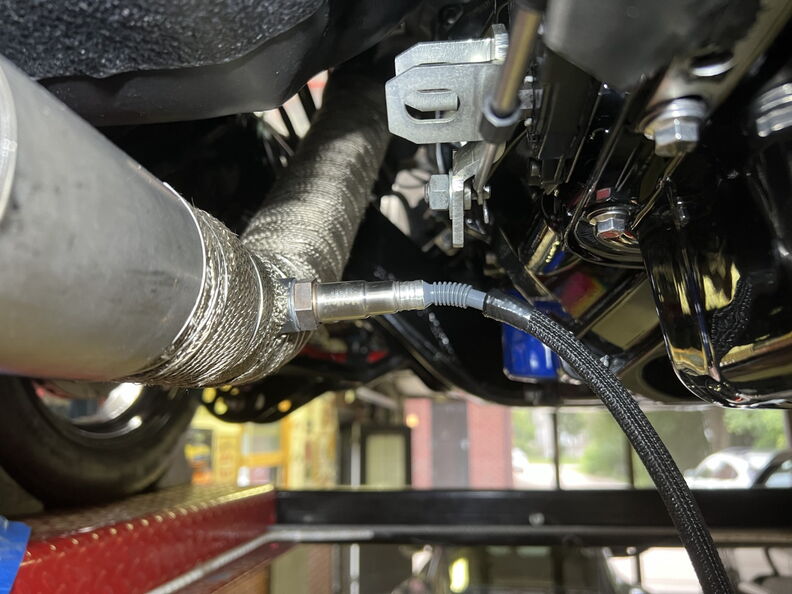

I added some copper Anti-Seize to the threads

http://garagescene.net/_data/i/uploa...b44600a-me.jpg

Thanks fully all of this is hidden behind the motor.

http://garagescene.net/_data/i/uploa...7aeb089-me.jpg

http://garagescene.net/_data/i/uploa...1071409-me.jpg

Love what stuff you need goes on sale at your local auto parts store.

http://garagescene.net/_data/i/uploa...065ec72-me.jpg

http://garagescene.net/_data/i/uploa...405fe84-me.jpg

Now I can finally tighten that nut.

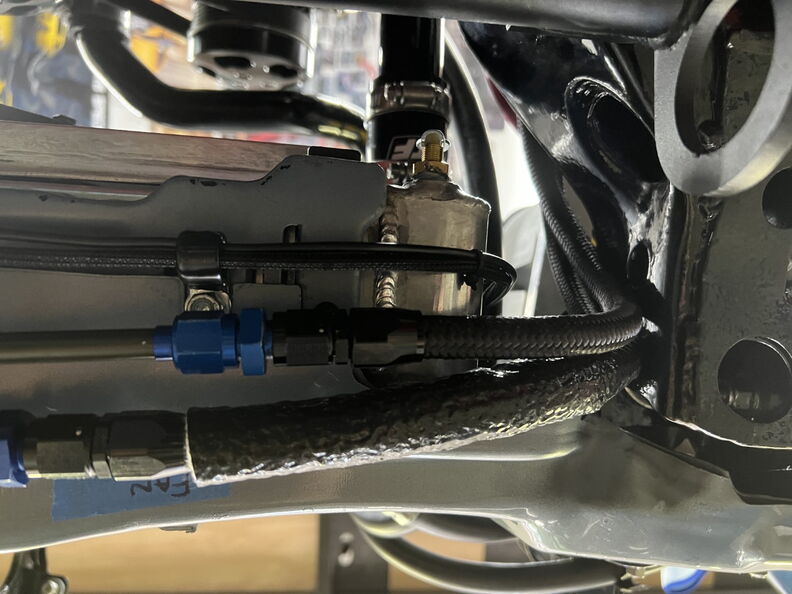

Trans Coolant Lines Final Connections (( 07-23-22 ))

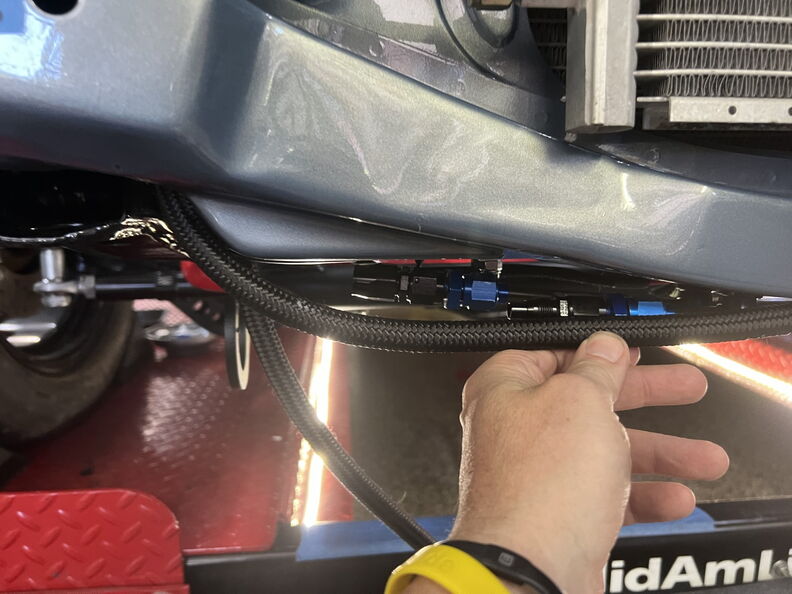

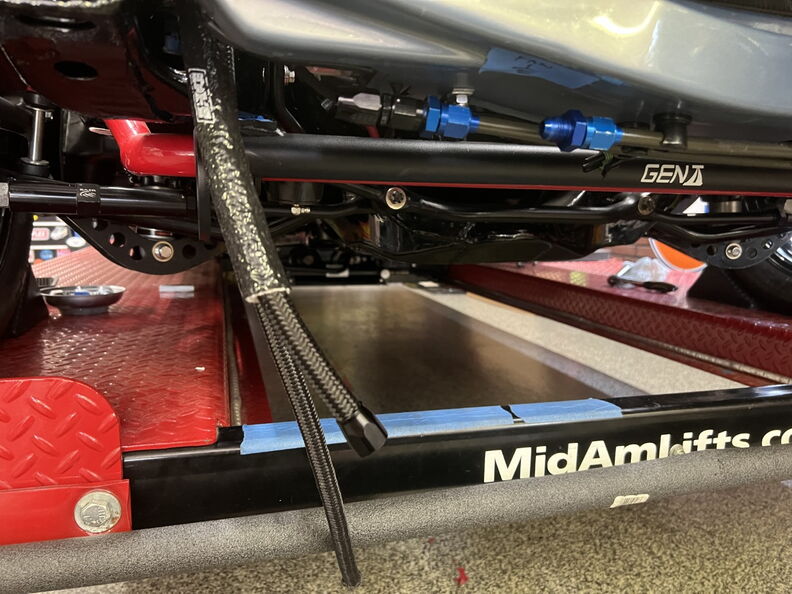

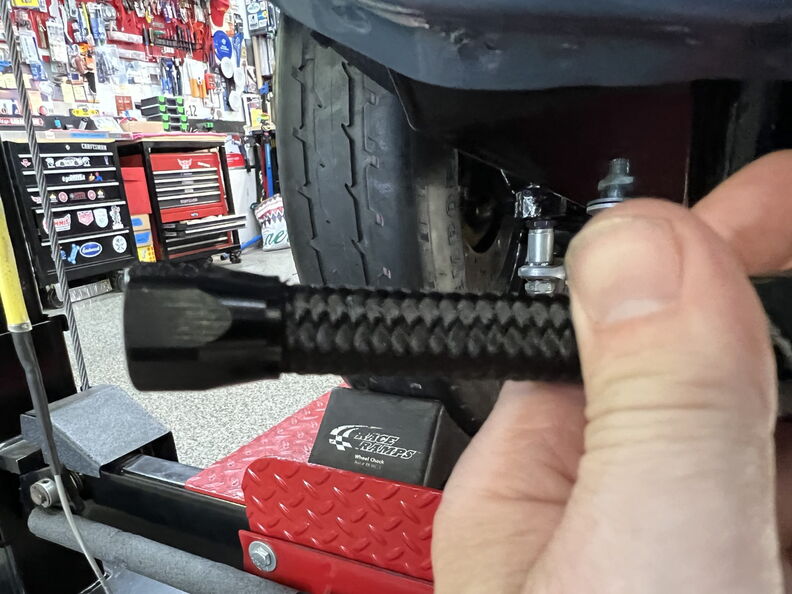

You only get one chance to cut these lines once so don't screw up.

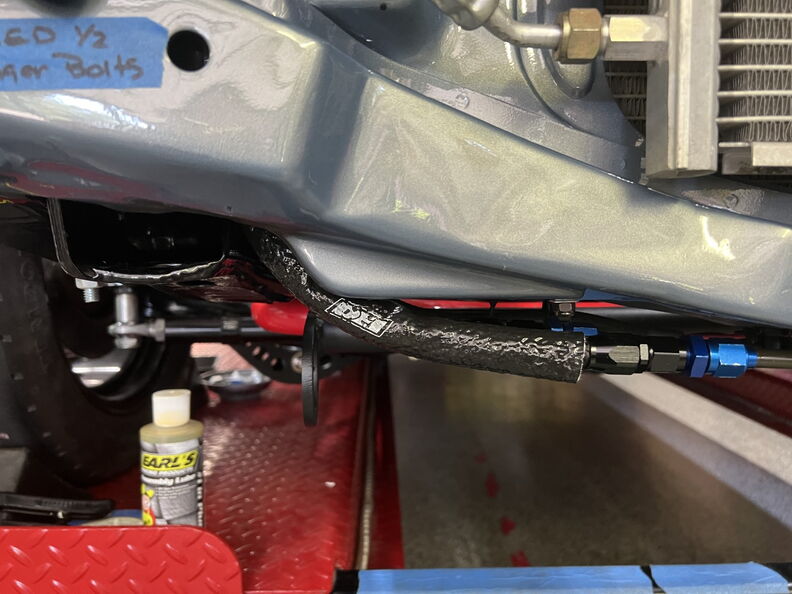

http://garagescene.net/_data/i/uploa...9e2a3b0-me.jpg

http://garagescene.net/_data/i/uploa...07b1886-me.jpg

http://garagescene.net/_data/i/uploa...168ef87-me.jpg

http://garagescene.net/_data/i/uploa...5fc1e5c-me.jpg

http://garagescene.net/_data/i/uploa...9858dcd-me.jpg

http://garagescene.net/_data/i/uploa...227a9b2-me.jpg

Nice Bud!
You going to drive it? lol
Going to Luft next week with Mark.
Cheers....

Thank you and I hope to drive it soon & I wish I bought tickets to Luft so you are going to have to take a bunch of pics for me.


Sent from my iPhone using Tapatalk

syborg tt,
What do you use to wrap at the ends of your braided loom?
Would you mind showing a pic of the label maker that you use to label your wires? One last question, lol. Where do you source your shrink wrap.

Your thread makes me want do a nicer job on the details lol.

Thanks,
Jim

This truly is an awesome build and sets the bar of organization and execution!

Thats exciting, you've been on a long journey Marty:excited:

Hi Jim

Thanks for the compliments I really appreciate it.

Tessa Tape

https://uploads.tapatalk-cdn.com/202...355bb46b28.jpg

https://uploads.tapatalk-cdn.com/202...fbb7b31031.jpg

https://uploads.tapatalk-cdn.com/202...1620c661a2.jpg

https://uploads.tapatalk-cdn.com/202...2c9dbeb738.jpg

https://uploads.tapatalk-cdn.com/202...b57e9d23da.jpg


Sent from my iPhone using Tapatalk

Thanks so much. I really appreciate it.

Yesterday was a big day as Mike & I cranked it over which means at least the starter is wired correctly.

Hope to start it possible this weekend.

Holy **** the manifold is finally being bolted down. (( 07-24-22 ))


It's hard to believe but the manifold is finally being bolted down.

Off with the Blue Tape.

http://garagescene.net/_data/i/uploa...d64e66e-me.jpg

One last look at everything under the manifold.

http://garagescene.net/_data/i/uploa...1158eb0-me.jpg

Just a little bit of lube on the O Rings

http://garagescene.net/_data/i/uploa...01091df-me.jpg

One last look

http://garagescene.net/_data/i/uploa...6e7ed20-me.jpg

Opps I just going to protect this just in case I ever need it.

http://garagescene.net/_data/i/uploa...473c313-me.jpg

I almost forgot to tighten the Oil Pressure Sensor.

http://garagescene.net/_data/i/uploa...aa25ec5-me.jpg

Here we go

http://garagescene.net/_data/i/uploa...265311e-me.jpg

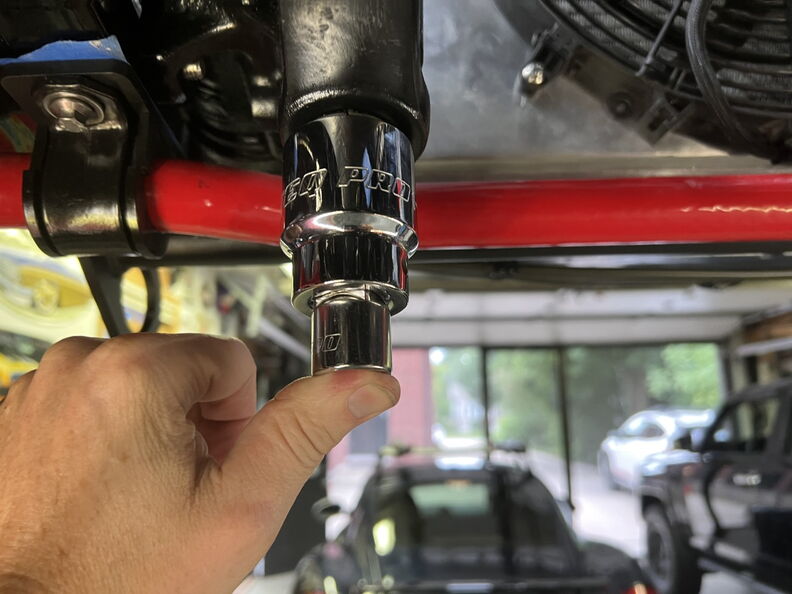

I have had this tool for years and once again I found it useful.

http://garagescene.net/_data/i/uploa...0f1b10f-me.jpg

http://garagescene.net/_data/i/uploa...f62de4d-me.jpg

http://garagescene.net/_data/i/uploa...b8af680-me.jpg

http://garagescene.net/_data/i/uploa...37603de-me.jpg

Well it's on.

http://garagescene.net/_data/i/uploa...64a8bfd-me.jpg

That little tool is something my wife would throw away if I left it out in the garage. She’d think it’s worthless and toss it. :EmoteClueless:

and thankfully my wife doesn't go out to the garage much and mess with my stuff

Have you every had that feeling (( 07-25-22 ))


So have you ever had that feeling that you didn't torque something correctly so just to be safe I rechecked everything
and good news it was correct.

http://garagescene.net/_data/i/uploa...629baba-me.jpg

http://garagescene.net/_data/i/uploa...d4e2141-me.jpg

http://garagescene.net/_data/i/uploa...335d4f4-me.jpg

It's starting to feel real as I am finally connecting the fuel line to the fuel rail.

http://garagescene.net/_data/i/uploa...03827c4-me.jpg

http://garagescene.net/_data/i/uploa...b859a98-me.jpg

http://garagescene.net/_data/i/uploa...388e23d-me.jpg

ARP Transmission Bolts (( 08-07-22 ))


I know it's not needed but I have gone this far so why stop now.

http://garagescene.net/_data/i/uploa...35309ba-me.jpg

http://garagescene.net/_data/i/uploa...40d6ab6-me.jpg

Not going to lie a couple of these where a bitch to get to.

http://garagescene.net/_data/i/uploa...ec2d6f0-me.jpg

Remy had no interest in what I was doing so he decided to take a nap.

http://garagescene.net/_data/i/uploa...ac05fcb-me.jpg

If you look really close you can see the Lokar Black Dipstick.

http://garagescene.net/_data/i/uploa...84616b8-me.jpg

Driveshaft is back from the Pro Tek Powder Coating.

http://garagescene.net/_data/i/uploa...500654e-me.jpg

So don't ask me where this grommet came from as I would love to have another one.

http://garagescene.net/_data/i/uploa...8ec7f64-me.jpg

I think it makes the wire loom exit look much cleaner.

http://garagescene.net/_data/i/uploa...06e3388-me.jpg

Without.

http://garagescene.net/_data/i/uploa...9d9bcff-me.jpg

http://garagescene.net/_data/i/uploa...9a857fd-me.jpg

http://garagescene.net/_data/i/uploa...34082f1-me.jpg

Where do I get a dust cover for this or do I have to make something ?

http://garagescene.net/_data/i/uploa...66f1d43-me.jpg

Geeeeesh. More ARP SS bolts. Go figure. LOL I dig them myself. Just have to many other things looking for $$$

Trans close out panels:
Dealer. I seen the part numbers listed on LS1tech a while back. I’ll have to check into it

Yahoooo I found them


Found them - Thank you so much

Part # 24261714 - Drivers Side
Part # 24261712 - Passenger Side

Checking the fuel lines and building the new AC Line (( 08-13-22 ))


I am finally getting closer to starting this car so I need to start making sure all of the lines are tight.

http://garagescene.net/_data/i/uploa...051f0ba-me.jpg

I have to remake one of the AC lines so today was the perfect day.

http://garagescene.net/_data/i/uploa...d1ac835-me.jpg

Note to Self...Next time I will take the tire off.

http://garagescene.net/_data/i/uploa...25a2fa3-me.jpg

http://garagescene.net/_data/i/uploa...ff04e15-me.jpg

http://garagescene.net/_data/i/uploa...bcb6603-me.jpg

http://garagescene.net/_data/i/uploa...a17f43f-me.jpg

Next time I will take the blue tape off the fitting prior to crimping.

http://garagescene.net/_data/i/uploa...6833240-me.jpg

http://garagescene.net/_data/i/uploa...05e32d8-me.jpg

Installing the Driveshaft (( 08-14-22 )) WTF !!!


So, I had a little bit of free time so I decided I would install the U-Joints and put the driveshaft in. Well, that didn't go so well
as I couldn't get the U-Joint seated. I was able to install the axle side with no issue's but the tailshaft side was a no go.

http://garagescene.net/_data/i/uploa...4ea08b3-me.jpg

http://garagescene.net/_data/i/uploa...a5392bb-me.jpg


http://garagescene.net/_data/i/uploa...3a78709-me.jpg

2 days later and two new U-Joints

http://garagescene.net/_data/i/uploa...61bb99b-me.jpg

http://garagescene.net/_data/i/uploa...676addd-me.jpg

http://garagescene.net/_data/i/uploa...d5f51ba-me.jpg


http://garagescene.net/_data/i/uploa...cab6e04-me.jpg

http://garagescene.net/_data/i/uploa...da46fc0-me.jpg

http://garagescene.net/_data/i/uploa...45181b2-me.jpg

http://garagescene.net/_data/i/uploa...f09f3c3-me.jpg

In the end I am walking away !!!!

Brake Line Swap and just another small detail (( 08-21-22 ))


Putting the old brake lines back on to see if they leak and I might as well clean them up a little bit.

http://garagescene.net/_data/i/uploa...3f8961f-me.jpg

I have seen this done on a few cars and I like how it looks.

http://garagescene.net/_data/i/uploa...9a41260-me.jpg

http://garagescene.net/_data/i/uploa...ec8ceca-me.jpg

http://garagescene.net/_data/i/uploa...591a862-me.jpg

http://garagescene.net/_data/i/uploa...b14b019-me.jpg

Power Probe 3 and the Driveshaft Yet Again (( 09-04-22 ))


So, I went out and bought the Power Probe 3 for the final wiring and to figure out a couple wiring issue's. I picked it up at Harbor Freight with a 25% discount & gift card when it was on sale so I paid $125. It's kind of one of those tools that I will use a few time but boy is it fun to play with.

http://garagescene.net/_data/i/uploa...475f4dc-me.jpg

http://garagescene.net/_data/i/uploa...26c2722-me.jpg

So back to the driveshaft and good news is I get to use my Grandfathers Vice to crush this bitch.

http://garagescene.net/_data/i/uploa...cc60abb-me.jpg

http://garagescene.net/_data/i/uploa...ccdf7f6-me.jpg

Finally the snap ring is seated !!!

http://garagescene.net/_data/i/uploa...2e98d5f-me.jpg

Install time for the last time I hope.

http://garagescene.net/_data/i/uploa...db28a75-me.jpg

http://garagescene.net/_data/i/uploa...fdbfd18-me.jpg

okay I lied i forgot I still need to remove some powder coating.

http://garagescene.net/_data/i/uploa...60af149-me.jpg

Might as well plug in all of the sensors.

http://garagescene.net/_data/i/uploa...374c31a-me.jpg

http://garagescene.net/_data/i/uploa...87dab22-me.jpg

Not using this one.

http://garagescene.net/_data/i/uploa...0357818-me.jpg

I also spent a little time cleaning up the top drawer of my wiring box.

http://garagescene.net/_data/i/uploa...952a1d4-me.jpg

Looking good. Sorry I couldn’t find those part numbers before you did. I got sidetracked. My-bad lol But thanks for posting them. I always thought they were metal. When I seen a post before referencing them, I just assumed just that brand was plastic.

How do you like the Master Cool A/C crimper tool. I can only imagine how high the cost went up from before Covid-19

Ignition on Wiring-figuring out what is left (( 09-08-22 ))


Holley wires that need to go to the brake pedal switch. You are looking for the wire that is hot when the pedal is depressed.

http://garagescene.net/_data/i/uploa...4382701-me.jpg

http://garagescene.net/_data/i/uploa...7ee9155-me.jpg

More Holley wire that need to Hot while cranking and still hot once cranking stop.

http://garagescene.net/_data/i/uploa...e31a53b-me.jpg

Couple more wires that need to be connected

http://garagescene.net/_data/i/uploa...c3f3f41-me.jpg

Don't worry about your post gave the clue of what to search for and I accidently found and of course ordered it. Should be here on Tuesday the 11th. Which means I once again have to take the darn starter out. Ugh !!!

Super easy to use and saved me hours of driving back and fourth to Midwest Hot Rods to have them crimp my lines.

Confirming we have enough inward travel on the driveshaft (( 09-10-22 ))


My OCD is slowly killing me and I just want to make sure that there is sufficient inward trave for the driveshaft.

http://garagescene.net/_data/i/uploa...02d6f9c-me.jpg

So I slid it in till it bottom out and it looks like I have just shy of 7/8" of travel.

I also took a few pictures of everything that will be behind the dash so I can reference these pictures in the future. Looking back I may do a quick video just in case.

http://garagescene.net/_data/i/uploa...d869e57-me.jpg

http://garagescene.net/_data/i/uploa...ec26914-me.jpg

Holly ECU Map Sensor Plumbing (( 09-10-22 ))


I have had several people ask me what parts I used to connect the Map Sensor to the ECU.

http://garagescene.net/_data/i/uploa...200d458-me.jpg

http://garagescene.net/_data/i/uploa...fd605d5-me.jpg

http://garagescene.net/_data/i/uploa...7856e96-me.jpg

http://garagescene.net/_data/i/uploa...9978b7a-me.jpg

I picked up this brass fitting from Amazon.

http://garagescene.net/_data/i/uploa...56be05b-me.jpg

http://garagescene.net/_data/i/uploa...29b85f9-me.jpg

http://garagescene.net/_data/i/uploa...47f91c5-me.jpg

Holley Gas Tank Filler Neck (( 09-10-22 ))


http://garagescene.net/_data/i/uploa...fcf584a-me.jpg

http://garagescene.net/_data/i/uploa...a49609d-me.jpg

Well it's just a little to long so I am going to cut a little bit off. I searched the garage and found this bottle of
Funk Away that fit perfectly inside the hose and it made cutting it so much easier.

http://garagescene.net/_data/i/uploa...be48116-me.jpg

http://garagescene.net/_data/i/uploa...e80f13d-me.jpg

Test fitting found it was just a little bit to long so I cut off just a little more.

http://garagescene.net/_data/i/uploa...9d6a3c0-me.jpg

Holy Crud is it hard to get in their and tighten the hose clamp.

http://garagescene.net/_data/i/uploa...5c4af1d-me.jpg

It's finally in and holy crap did this simple job suck.

Looking back it would of been so much easier to drop the tank and put the neck on.

http://garagescene.net/_data/i/uploa...c18ed5f-me.jpg

Time to call it a night a go inside and lay on the couch with the dog.

http://garagescene.net/_data/i/uploa...62a74dd-me.jpg

Aviation Gasket Sealant (( 09-12-22 ))


Found it and thank you Andrew

http://garagescene.net/_data/i/uploa...277de09-me.jpg

Time to seal the cork gasket

http://garagescene.net/_data/i/uploa...03dd7ea-me.jpg

Did I mention how happy I am that I installed the access panel

http://garagescene.net/_data/i/uploa...eaecb0a-me.jpg

http://garagescene.net/_data/i/uploa...7e6b3f2-me.jpg

http://garagescene.net/_data/i/uploa...c12f6b6-me.jpg

The red line helped me line up the gasket on the fuel pump side.

http://garagescene.net/_data/i/uploa...26faff6-me.jpg

http://garagescene.net/_data/i/uploa...c4941a9-me.jpg

I reconnected all the fuel lines and the vent hoses.

http://garagescene.net/_data/i/uploa...5b62571-me.jpg

Well the quality of this picture is terrible.

http://garagescene.net/_data/i/uploa...edec454-me.jpg

Holley Fuel Pressure Regulator (( 09-17-22 ))


I had a couple option for the fuel pressure regulator throughout this thread and I have settled on this version.

http://garagescene.net/_data/i/uploa...abf955f-me.jpg

Did I mention how much I dislike Cancer Warnings.

http://garagescene.net/_data/i/uploa...fcdf7f6-me.jpg

Details.

http://garagescene.net/_data/i/uploa...45e521b-me.jpg

http://garagescene.net/_data/i/uploa...00ba748-me.jpg

Lokar Dip Stick Fill Tube Modification (( 09-17-22 ))


In order to fill the trans I needed to find a safe way to fill the trans without spilling the trans fluid all over the place.

A quick trip to Home Depot so I can figure out a decent solution.

http://garagescene.net/_data/i/uploa...fa9f045-me.jpg

Lokar Supply's a little 3" fill tube which is quite useless in my opinion. You can see the fill tube they supplied slides in with resistance so it shouldn't leak.

http://garagescene.net/_data/i/uploa...d411903-me.jpg

More Blue Tape Notes.

http://garagescene.net/_data/i/uploa...e420170-me.jpg

Time to tighten the motor mounts and it looks like I need to go grab some lock washer since I can't seem to find them.

http://garagescene.net/_data/i/uploa...8364c6b-me.jpg

Thankfully Ace Hardware is only a few miles away.

http://garagescene.net/_data/i/uploa...c8bcdec-me.jpg

All Better

http://garagescene.net/_data/i/uploa...ec31c16-me.jpg

Picked up my new new Optima Battery today wow has the price gone up.

http://garagescene.net/_data/i/uploa...5a3bf1c-me.jpg

Another while I am here job. I added the charge wire that came with the Optima battery charger.

http://garagescene.net/_data/i/uploa...2497ecf-me.jpg

I snaked the wire down the back of the battery & core support. You can see it neatly hiding under the battery tray.

http://garagescene.net/_data/i/uploa...339eb81-me.jpg

I finally added a zip tie to the starter wires.

http://garagescene.net/_data/i/uploa...3c98503-me.jpg

http://garagescene.net/_data/i/uploa...0eb892d-me.jpg

Holy Crap I am finally putting Oil back in the motor.

http://garagescene.net/_data/i/uploa...4d8a5f9-me.jpg

http://garagescene.net/_data/i/uploa...e9eff0a-me.jpg

http://garagescene.net/_data/i/uploa...772f18d-me.jpg

Finally installed the 45mm Throttle Body Hardware.

http://garagescene.net/_data/i/uploa...4922e2c-me.jpg

Sorry these pictures suck. I finally figured out a good way to run the vintage air drain.

http://garagescene.net/_data/i/uploa...593974b-me.jpg

Looking up

http://garagescene.net/_data/i/uploa...0fc8f30-me.jpg

I snaked it up and over the frame rail.

http://garagescene.net/_data/i/uploa...2a29b5f-me.jpg

http://garagescene.net/_data/i/uploa...3299abb-me.jpg

I also took a few reference pictures so I can draw up a battery wiring diagram.

http://garagescene.net/_data/i/uploa...086fd47-me.jpg

You can see I moved the Holley ECU ground to the battery disconnect side.


http://garagescene.net/_data/i/uploa...3a45a11-me.jpg

All the grounds going to the stud on the back of the core support.

http://garagescene.net/_data/i/uploa...7cbb150-me.jpg

Tomorrow it get's the trans fluid.

The VA drain line routing photos reminded me I need to do the same. I've been using the cheap plastic drain line they supplied and, even with heat shielding over it, it's deformed from header heat.

Do you happen to recall the size of your Gates hose? I can't seem to make out the size from these photos.

Daniel

Hi Daniel,

I am doing this from memory and I am fairly certain I am correct that it is 3/8". On a side note I went with the Gate's hose is the hose wasn't as flimsy as the generic 3/8" hose that I had laying around.
