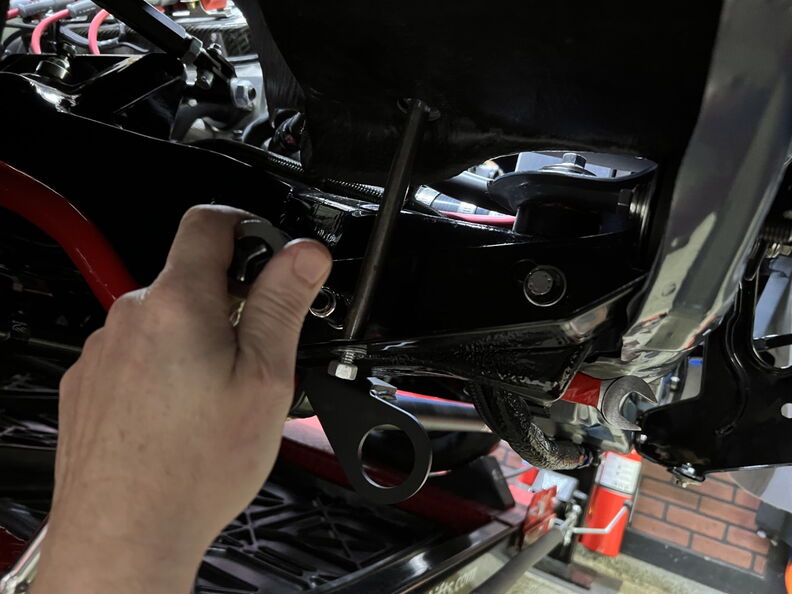

Door Pull Hardware (( 08-04-23 ))


Sticking with the ARP theme I ordered more bolts.

These will be used to Red Pull Straps.

http://garagescene.net/_data/i/uploa...ce728d9-me.jpg

Final Battery Wiring (( 08-05-23 )) Well Maybe ???

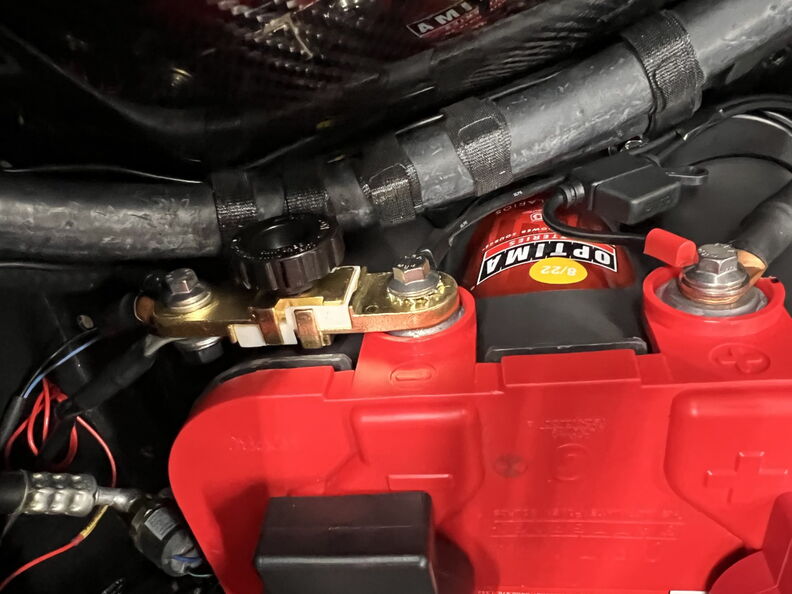

Trying to decide if I want to move the battery shut off to the top or leave it on the Side Posts.


http://garagescene.net/_data/i/uploa...91de067-me.jpg

I also noticed it was bent and preventing which was preventing it from actually killing the battery.

http://garagescene.net/_data/i/uploa...7efa8d0-me.jpg

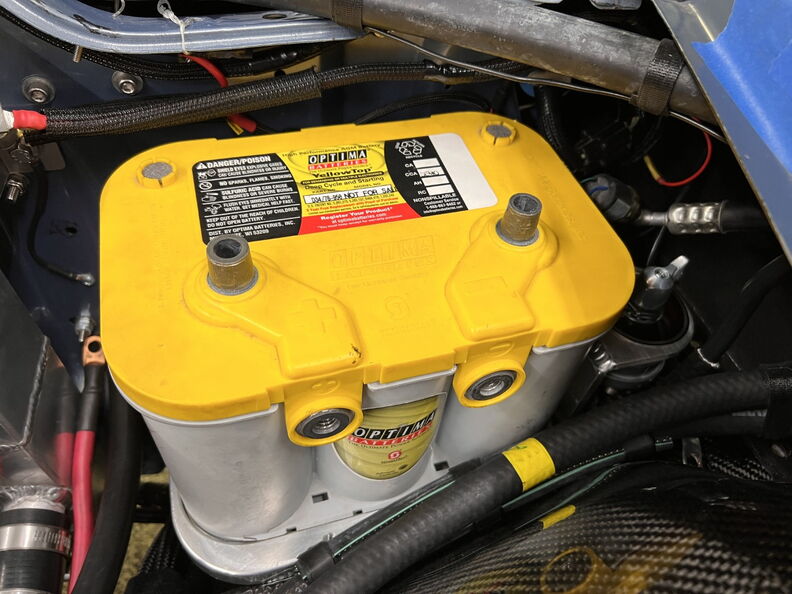

I added SAE washers to the top post wires so they would stop moving when I tightened the bolt.

http://garagescene.net/_data/i/uploa...fd4ea5b-me.jpg

http://garagescene.net/_data/i/uploa...aeff106-me.jpg

http://garagescene.net/_data/i/uploa...0075124-me.jpg

I also put the battery on the Optima charger since it was dead.

http://garagescene.net/_data/i/uploa...f7b5ccb-me.jpg

Remy the Supervisor.

http://garagescene.net/_data/i/uploa...8e54247-me.jpg

Kinda funny Mike and I were talking about this bolt the other day and yes it seized up while we were installing it.

http://garagescene.net/_data/i/uploa...c5796a5-me.jpg

I learned long ago to use anti-sieze on all stainless bolts and nuts. Learned the hard way that is. :lol:

Part of the reason I went to zinc plated bolts in my latest build, plus I like the OEM look.

Inner Fender Bolt (( 08-05-23 ))


Just being safe here.

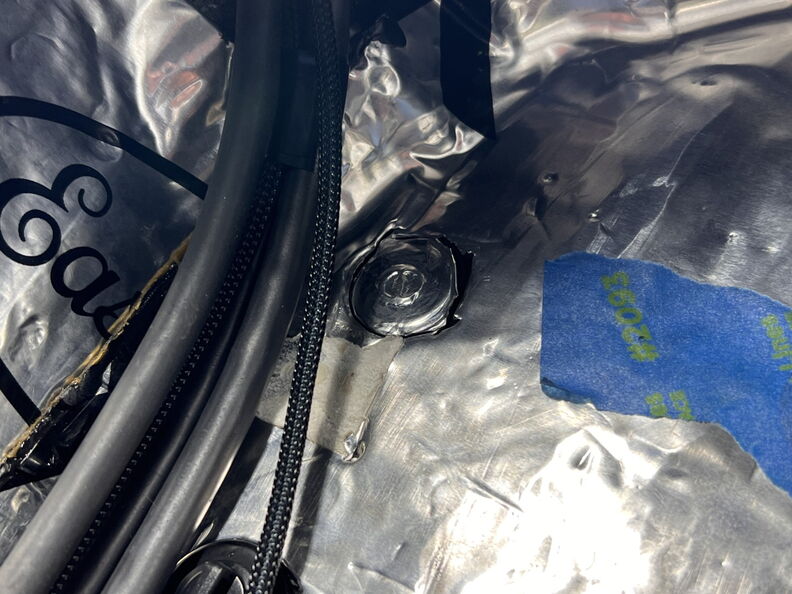

This inner fender bolt was protruding into the area near where the coolant hoses are. So just to be safe I shortened the bolt a little bit.

http://garagescene.net/_data/i/uploa...aed1eec-me.jpg

http://garagescene.net/_data/i/uploa...4553b51-me.jpg

Whatever you do don't let that hit your hand.

http://garagescene.net/_data/i/uploa...3e081d2-me.jpg

I quickly pulled the bolt out before it fused it self to the clip.

http://garagescene.net/_data/i/uploa...ff32ea4-me.jpg

and the good news is my hand is healing for the cut off wheel.

http://garagescene.net/_data/i/uploa...09d3e8a-me.jpg

Trust me we put on anti-seize however I can confirm it was not enough

In the late 70's I had a 71 Camaro with a small block and 6-71 blower. I remember installing some Moroso anodized aluminum blower studs in the new Weiand intake by hand. Next day I went to remove them and several were like welded in place. Couldn't believe it, destroyed them getting them out. That's when I first learned about anti-sieze and the reason for using it lol.

If you don't end up looking like the Tinman from the Wizard of Oz when you use anti-seize, you didn't use enough.

Andrew

:lol:

There was that one time that I went to bed and didn't think their was some left on my hand and I rubbed (picked) my nose.

🤣🤣🤣

That’s almost as good as cutting up jalapeños and then having to pee and you forget to wash your hands before you do.

Classic Industries Door Panels (( 08-05-23 ))


Back on the door panels

http://garagescene.net/_data/i/uploa...2fac428-me.jpg

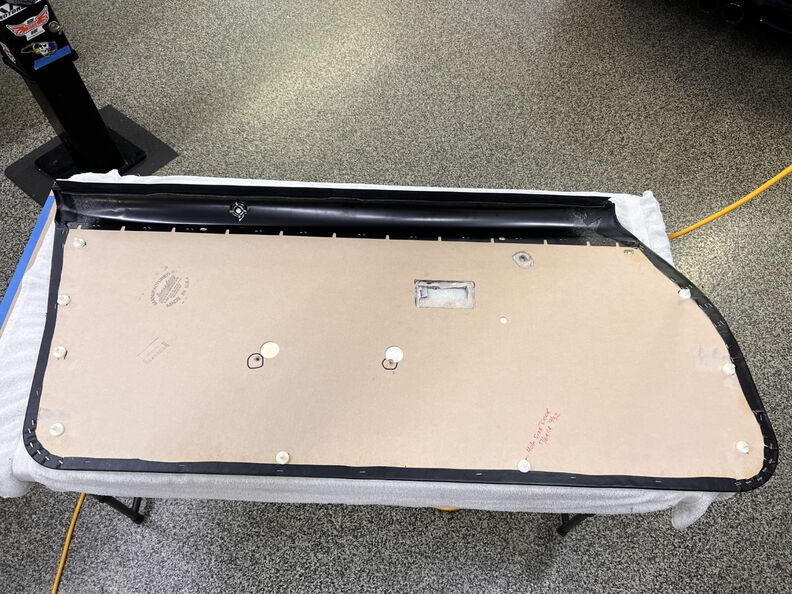

I set up a table so I can easily work on them.

http://garagescene.net/_data/i/uploa...32e9726-me.jpg

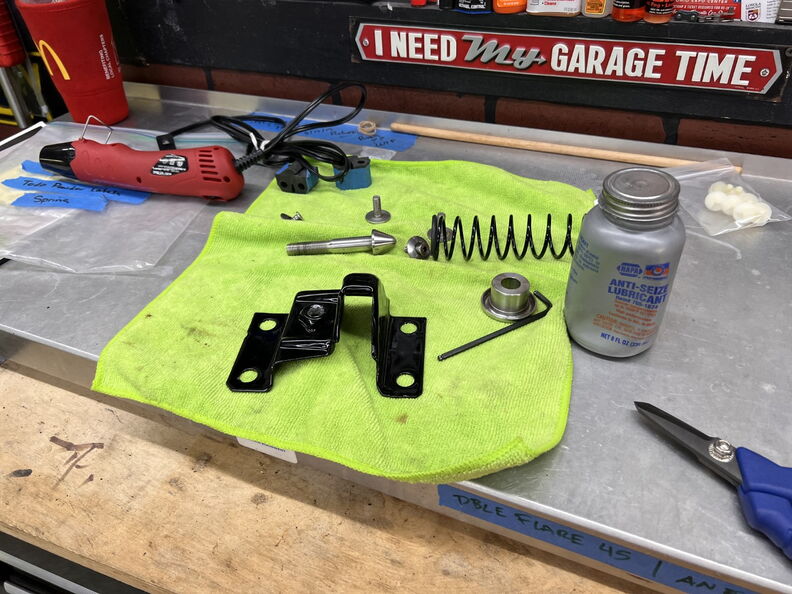

Need go modify a couple bolts

http://garagescene.net/_data/i/uploa...5d09bab-me.jpg

http://garagescene.net/_data/i/uploa...9fd7ee0-me.jpg

Time to see how close or far off the door handle hole is.

http://garagescene.net/_data/i/uploa...8a2cf03-me.jpg

Once again I ran the bolts in from the backside so I could get an idea as to how far off they are.

http://garagescene.net/_data/i/uploa...5be6be4-me.jpg

The modified ARP bolts worked.

http://garagescene.net/_data/i/uploa...0a91af9-me.jpg

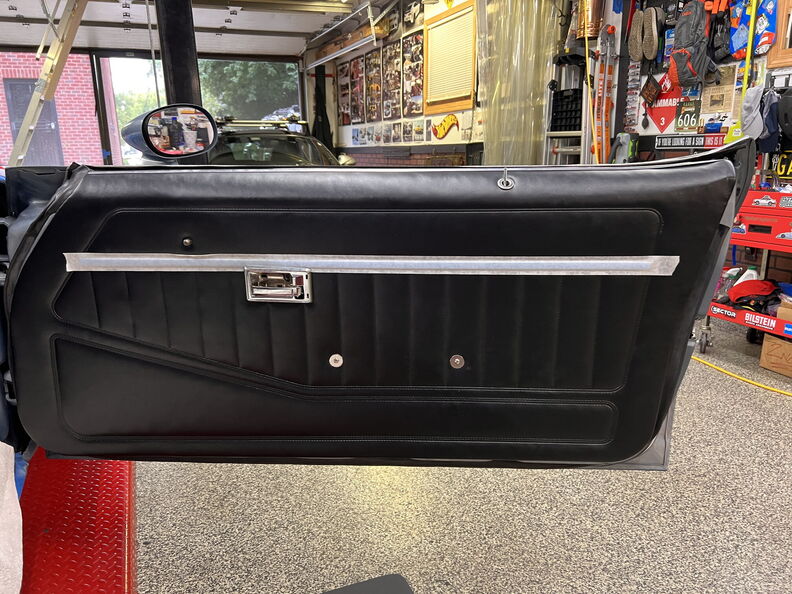

Door handle is in.

http://garagescene.net/_data/i/uploa...a155f55-me.jpg

http://garagescene.net/_data/i/uploa...1d49a44-me.jpg

I am going to need to get a hold of D&R Classics as I can't seem to find the door handle escutcheons.

Oh my god this is the funniest thing I have ever heard.

Battery is charged and ready to start this car. (( 08-06-23 ))


I put the battery on the charger so I could start it up net weekend. It took about 20 hours to get to a full charge.


http://garagescene.net/_data/i/uploa...db60c26-me.jpg

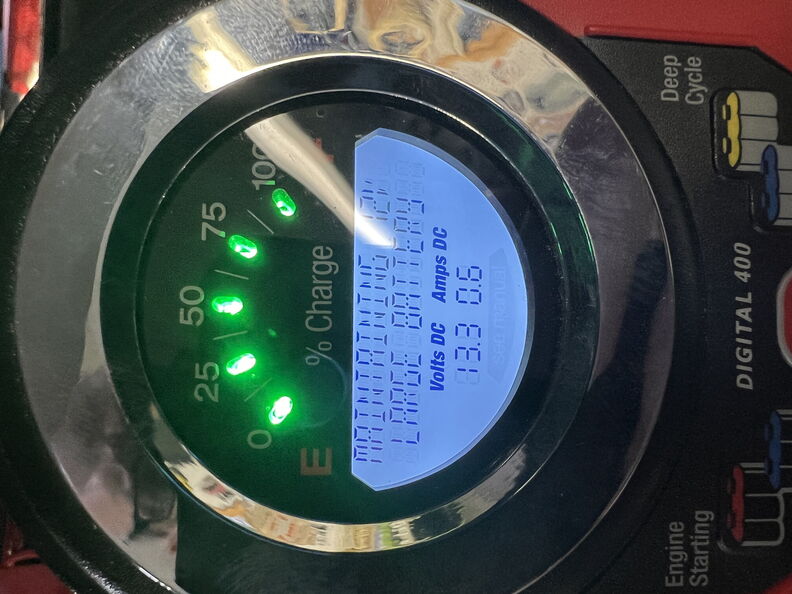

http://garagescene.net/_data/i/uploa...5f7b990-me.jpg

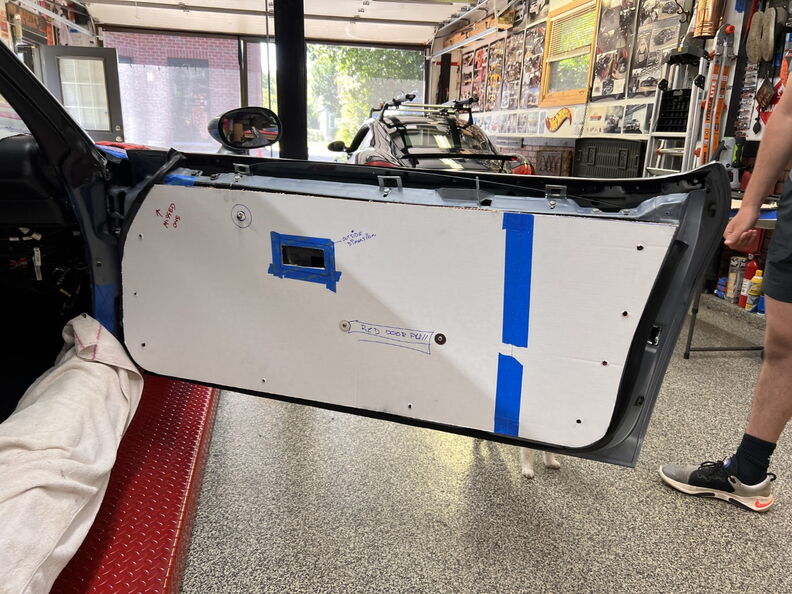

Back on the Door Panels (( 08-06-23 )) AM Shift !!!


Back out in the garage tonight working on the passenger side door panel.

http://garagescene.net/_data/i/uploa...b1a2284-me.jpg

My new work table

http://garagescene.net/_data/i/uploa...bc9b75d-me.jpg

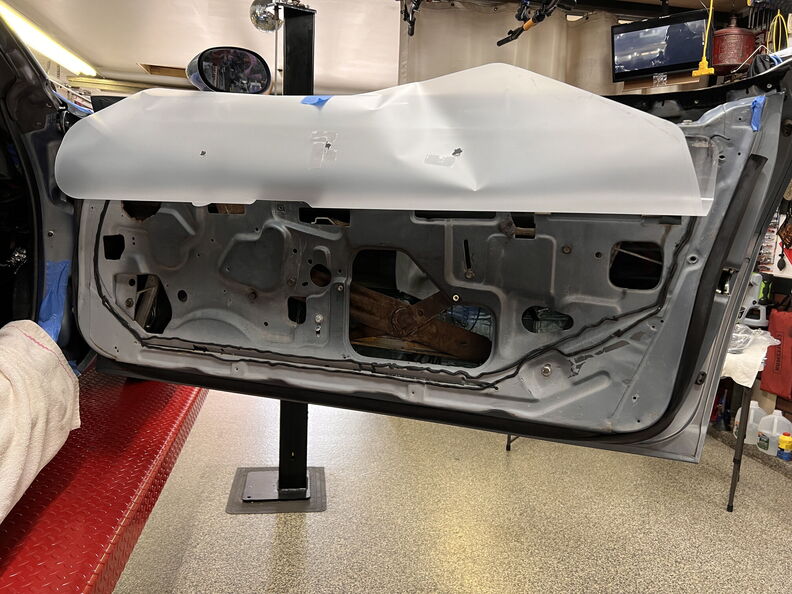

Working on the water shield.

http://garagescene.net/_data/i/uploa...bf61200-me.jpg

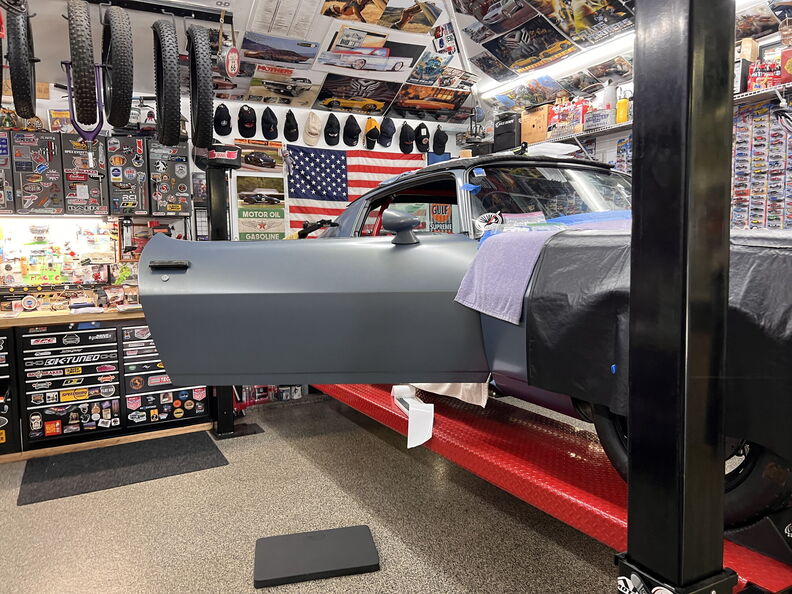

To make my life easier I raised the car and I was even able to set up a chair so I could sit and work on the door panel.

http://garagescene.net/_data/i/uploa...0c73ac6-me.jpg

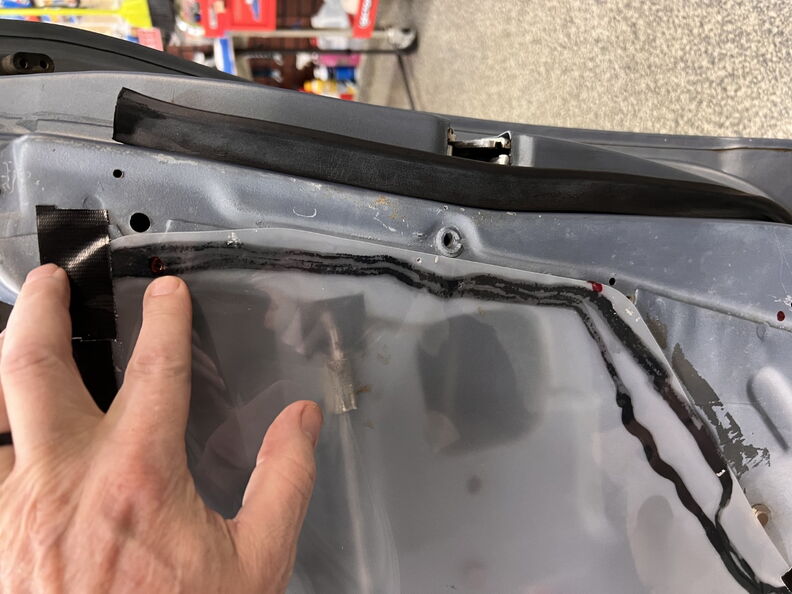

I am using the Eastwood Flexible Strip Caulk Bk 2lbs

http://garagescene.net/_data/i/uploa...973bcee-me.jpg

http://garagescene.net/_data/i/uploa...87fd6ed-me.jpg

I found this to be the best way to smooth out the caulk strips.

http://garagescene.net/_data/i/uploa...ead4aad-me.jpg

Added another strip to the top of the door.

http://garagescene.net/_data/i/uploa...373a346-me.jpg

I also added a little bit of Gorilla Tape.

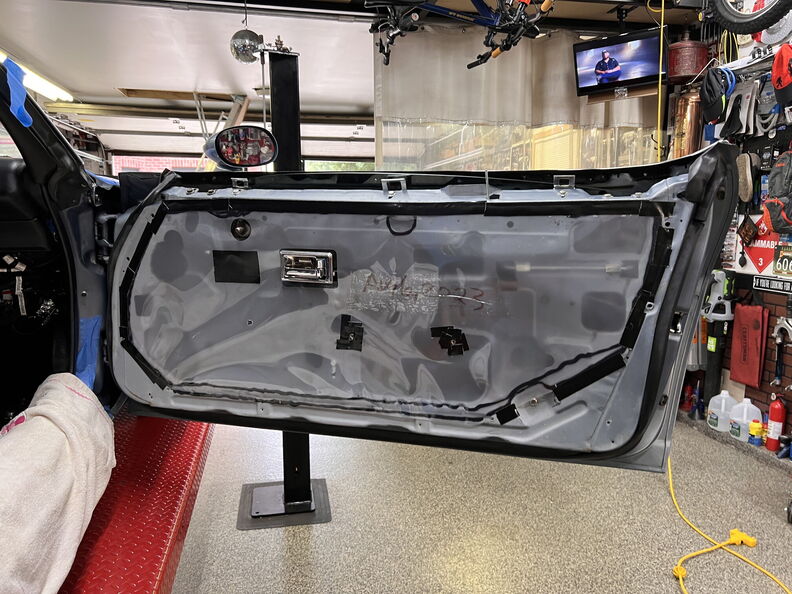

http://garagescene.net/_data/i/uploa...69e64f8-me.jpg

It's late I m bored so out the Garage I go (( 08-06-23 )) PM Shift


Back out the garage I go.

http://garagescene.net/_data/i/uploa...5d6d125-me.jpg

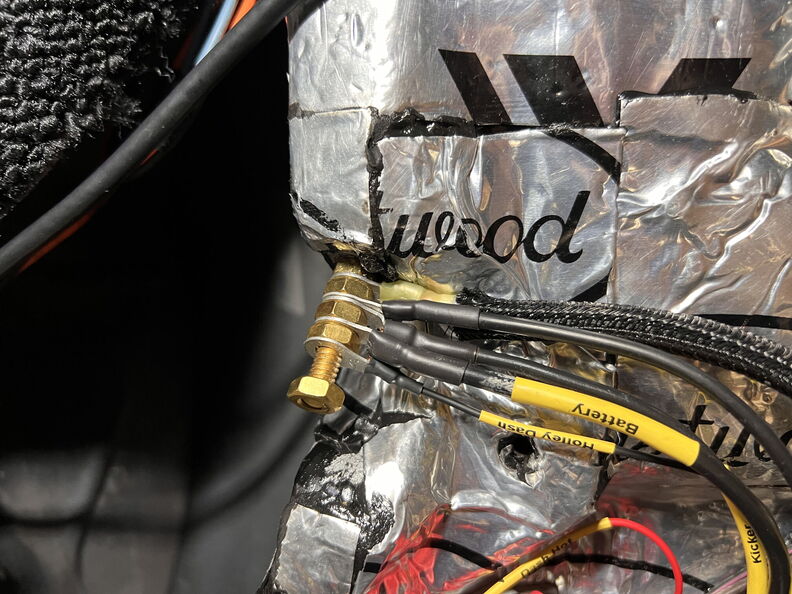

Opps looks like I missed a nut .

http://garagescene.net/_data/i/uploa...6a443ac-me.jpg

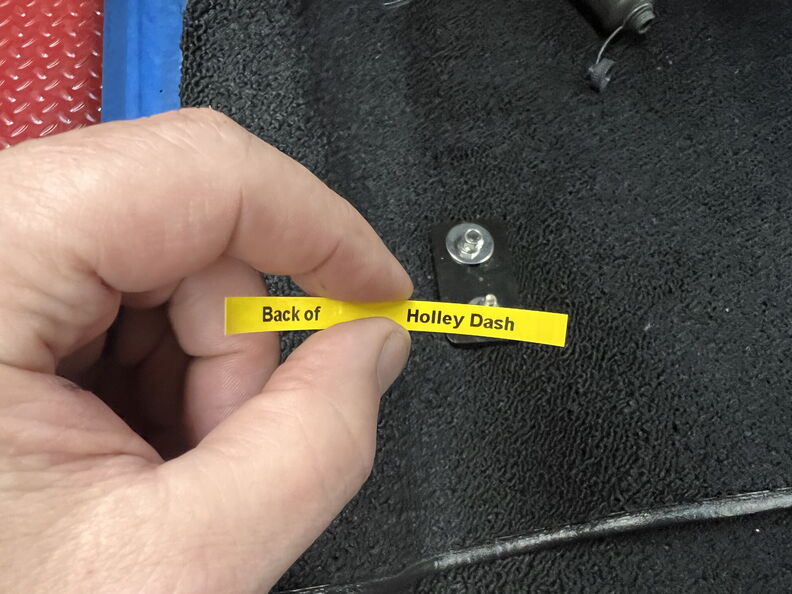

Six months from now I am going to no clue where this wire goes to so once again I am adding a label.

http://garagescene.net/_data/i/uploa...4879502-me.jpg

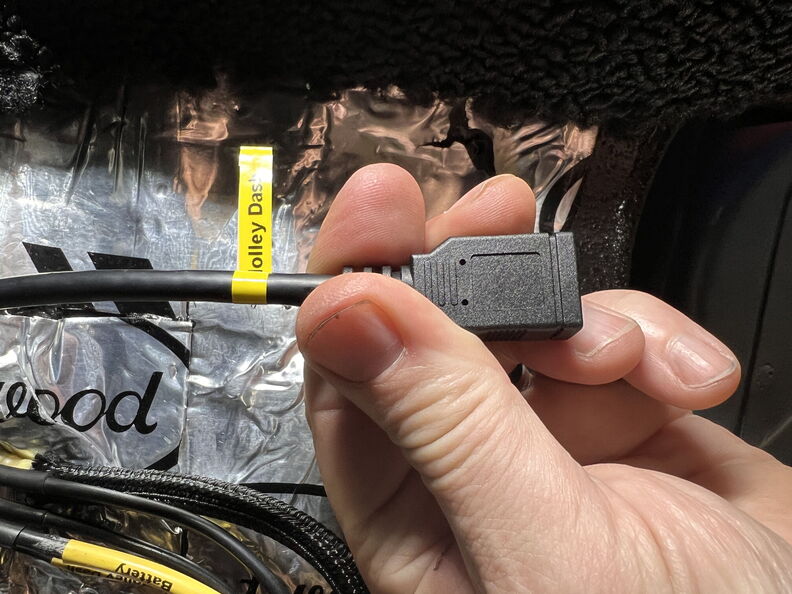

http://garagescene.net/_data/i/uploa...1d106bd-me.jpg

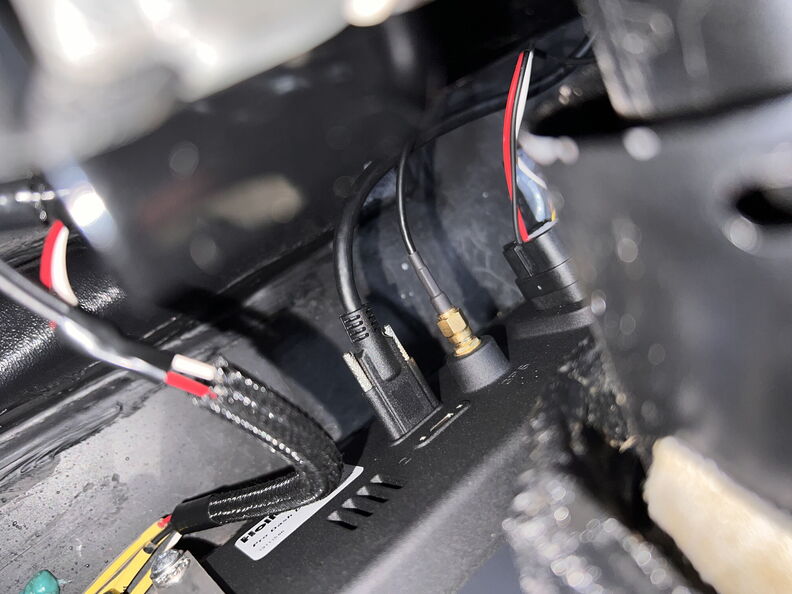

http://garagescene.net/_data/i/uploa...4d0458d-me.jpg

I don’t speak from experience, but one of the guys at my station actually did that. It quite a sight to see. 🤣🤣🤣

I have an Optima Red Top. Hopefully I won’t need to invest in the charger to get mine fired up.

Loving the progress and updates, Marty! :thumbsup:

Opps my bad (( 08-06-23 )) PM 3rd Shift


Went for Tacos and I decided to go back out in the garage.

I noticed my battery shutoff wasn't working correctly and I think I found the problem. This is supposed to be perfectly flat
and as you can see it is bent which most likely was from me bending negative battery wires terminal.

http://garagescene.net/_data/i/uploa...e6b7e70-me.jpg

I was temporarily able to straighten it and problem is solved and a new one is on order.

http://garagescene.net/_data/i/uploa...df04579-me.jpg

Hand is healing.

http://garagescene.net/_data/i/uploa...09d3e8a-me.jpg

Matt
You should get one of these chargers regardless, the new optimas are not as good as the old ones, and you should use these charges if you leave the car sit for any amount of time.
Mike

OER Kick Panels Modifications (08-07-23) I am still out here


Drivers Side

Getting a bunch of little stuff done today was the goal.

I picked up some OER Kick Panels from D&R Classic the other day and today I am going to modify
them to fit. I can say these are a very nice piece and I highly recommend them.

http://garagescene.net/_data/i/uploa...b1c782e-me.jpg

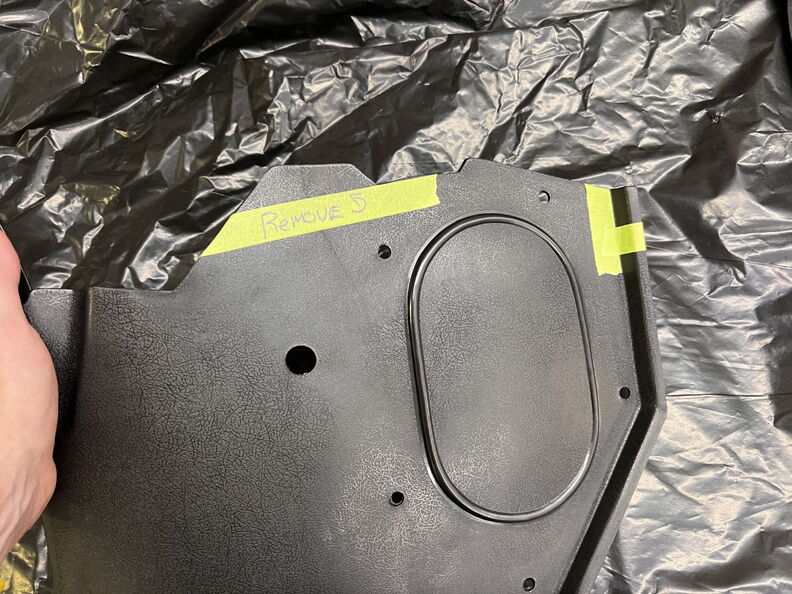

Need to make sone modifications so I can get them in.

[IMG]http://garagescene.net/_data/i/uploa...6c72004-me.jpg[/IMG]

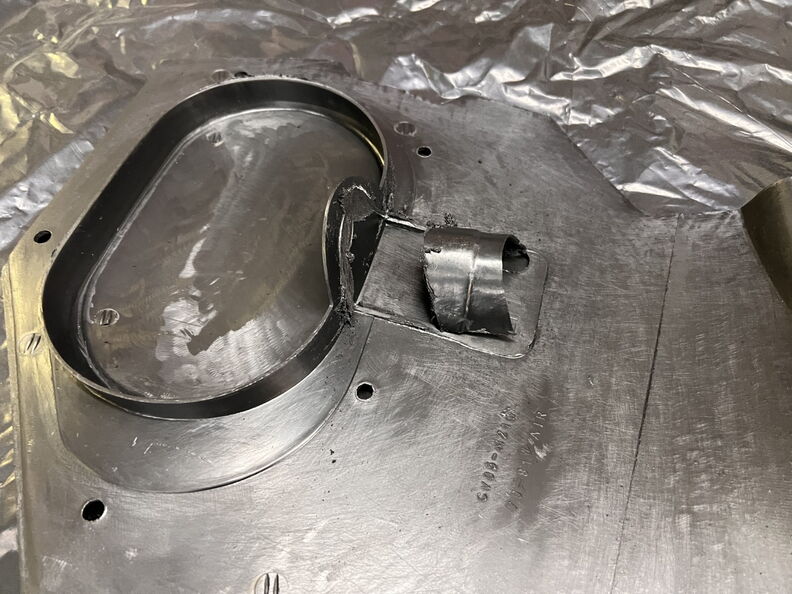

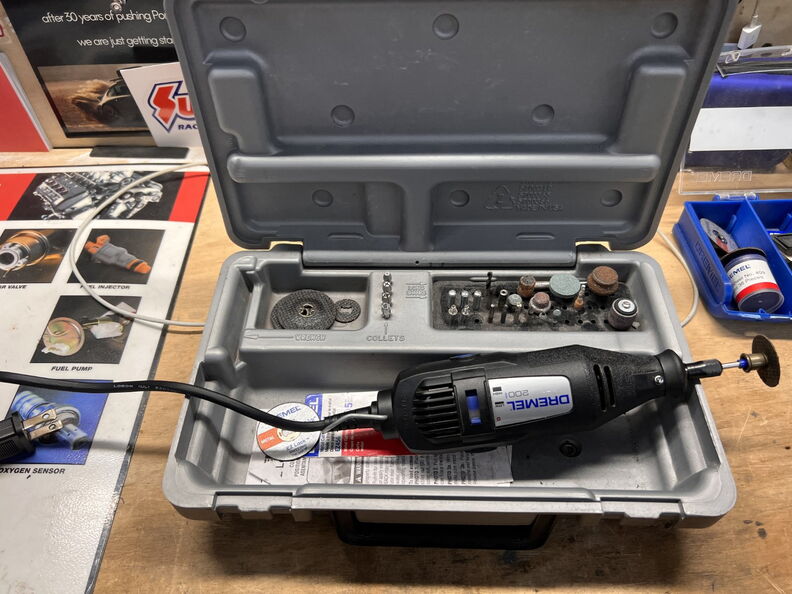

http://garagescene.net/_data/i/uploa...7e53840-me.jpg

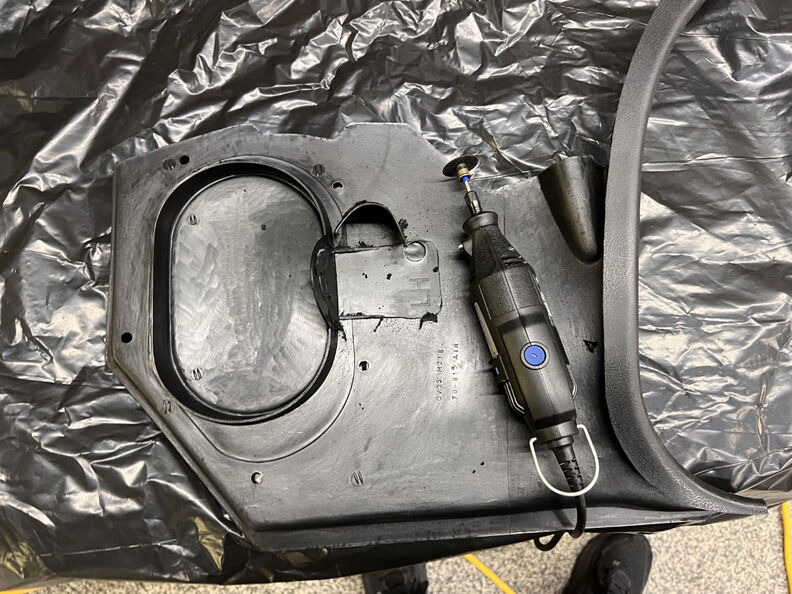

http://garagescene.net/_data/i/uploa...e510e6a-me.jpg

http://garagescene.net/_data/i/uploa...b558b61-me.jpg

Test fitting and they fit exactly how they are supposed to fit. Now I just need to make the modification needed so they work
around all of the wiring that I have added to this area.

http://garagescene.net/_data/i/uploa...10d6c41-me.jpg

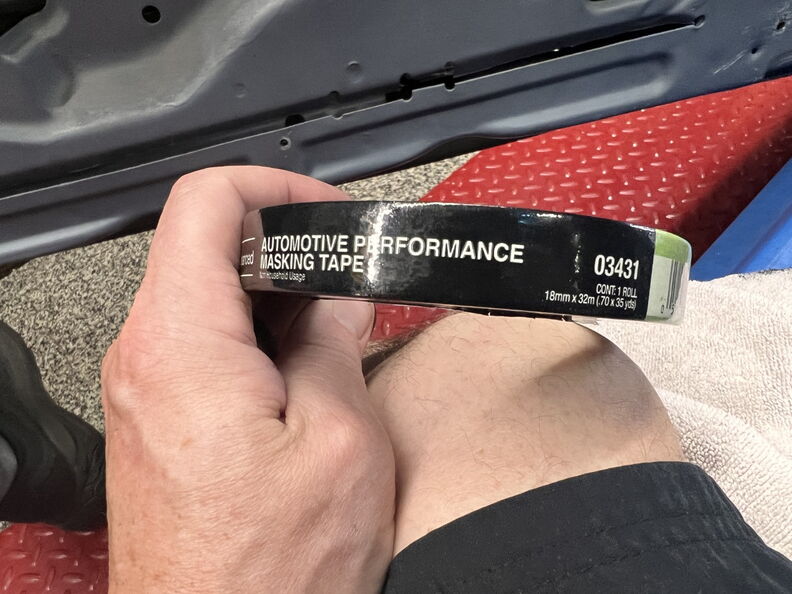

Love this tape.

http://garagescene.net/_data/i/uploa...0383601-me.jpg

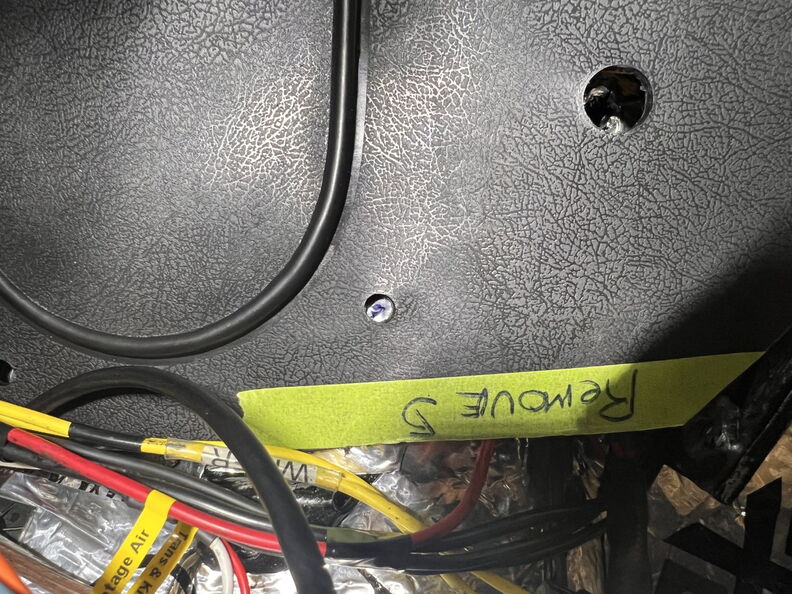

Cut Notes

http://garagescene.net/_data/i/uploa...5b61bb0-me.jpg

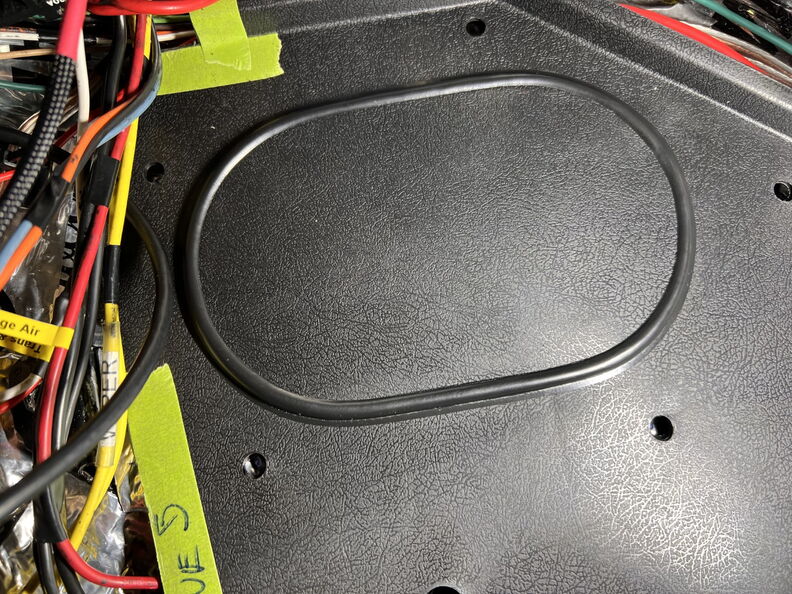

http://garagescene.net/_data/i/uploa...c11804f-me.jpg

I am going to take a little bit more off this side.

http://garagescene.net/_data/i/uploa...5b61bb0-me.jpg

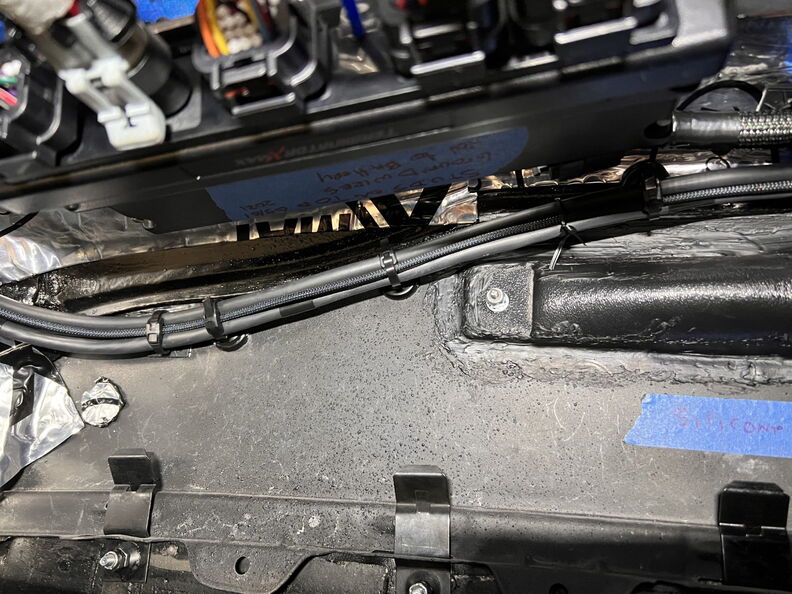

Once I am happy I will put some Tech-Flex wrap around these wires.

OER Kick Panels Modifications (08-07-23) Cont...


Passenger Side

As you can see there will be more cutting on the Passenger side.

http://garagescene.net/_data/i/uploa...eb42fb5-me.jpg

I still need to clean up the back side

http://garagescene.net/_data/i/uploa...354e6dd-me.jpg

http://garagescene.net/_data/i/uploa...26614f8-me.jpg

Test Fitting

http://garagescene.net/_data/i/uploa...1df8735-me.jpg

First Cut

http://garagescene.net/_data/i/uploa...4719f87-me.jpg

then some more

http://garagescene.net/_data/i/uploa...bc2003f-me.jpg

Test Fitting

http://garagescene.net/_data/i/uploa...675e398-me.jpg

Need to remove a little bit more.

http://garagescene.net/_data/i/uploa...61e0c33-me.jpg

Looking much better

http://garagescene.net/_data/i/uploa...25ff4ea-me.jpg

http://garagescene.net/_data/i/uploa...11a842b-me.jpg

and were taking off some more

http://garagescene.net/_data/i/uploa...50cfd0c-me.jpg

It's hard to tell but I lowered the tap again and made a new cut line.

http://garagescene.net/_data/i/uploa...ca85acf-me.jpg

http://garagescene.net/_data/i/uploa...c1d2ada-me.jpg

Cutting is complete !!!!

http://garagescene.net/_data/i/uploa...f3ddeeb-me.jpg

I plan to fill in the holes and then drop these off at Mr Trim's so they can wrap them in leather.

08-08-12 Weird Day in the Garage


Today was a very weird day as this was my 11 year chemo start date anniversary and I really didn't feel like working on the
car so I decided to go out and look for the Holley EFI communication cable that I misplaced and whatever else I could find.

I spent an hour cleaning up and organizing parts and pieces and then I found the Holley Cable on the wiper cowl.

Which of course was right in front of my face the entire time.

http://garagescene.net/_data/i/uploa...e4f6561-me.jpg

I put the Anvil Radiator cover on and wow is this a nice piece.

http://garagescene.net/_data/i/uploa...c2a217c-me.jpg

http://garagescene.net/_data/i/uploa...ff65624-me.jpg

Made Remy new napping place and I think he likes it.

http://garagescene.net/_data/i/uploa...ea5762a-me.jpg

Found my hood hinges that Pro-Tek Powder Coating did for me many years ago. They are coated in dust (top rack in my warehouse)
and since I don't need them now they are going to stay right where they are.

http://garagescene.net/_data/i/uploa...b8ebfd6-me.jpg

:thumbsup:

Nice work Marty, and i love the spot for Remy :walkingdog:

My Jack Russell is scared of loud noises so he wont come in the shop.

Ron Wilson is in Town (( 08-11-23 ))


My good buddy Ron happened to be traveling through the area and he decided to spend the night. Ron also happens to
be building my old Green 70 Camaro. His brother is doing the paint and body and it is stunning.

http://garagescene.net/_data/i/uploa...a1a44d5-me.jpg

While he was here he went over my car looking at everything and taking mental notes. I had just made a comment that
I couldn't find the G-Force Crossmember shim stack and 1 second later he goes this one.

I spent at least an hour looking for it and it was still on the rack right where I put it.

http://garagescene.net/_data/i/uploa...374be8d-me.jpg

We climbed in the car and he looked at everything and I did my best to show him as much as I could remember. The of
course the Garage Supervisor showed up to have a talk Man to Dog with him.

http://garagescene.net/_data/i/uploa...2afb471-me.jpg

Final Top Post Batter Wiring (( 08-13-23 ))


I had a little bit of time tonight so I went out and did another small project.

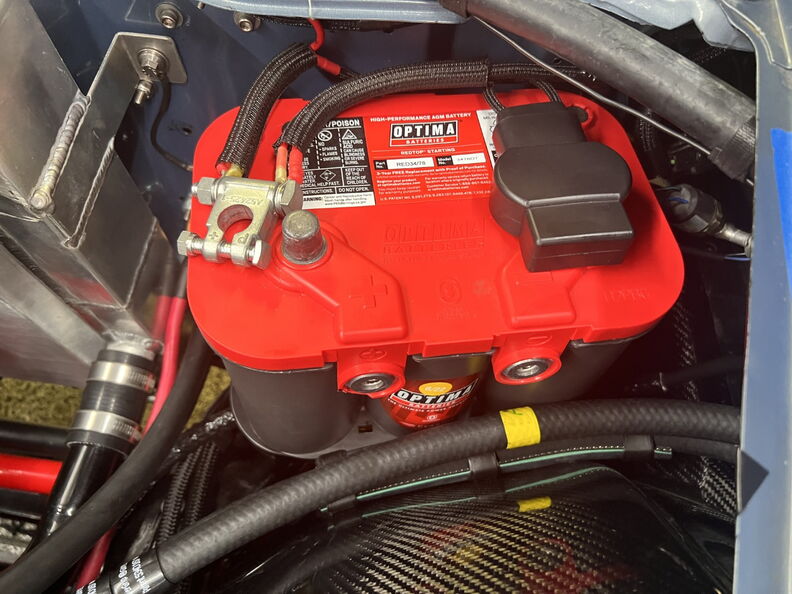

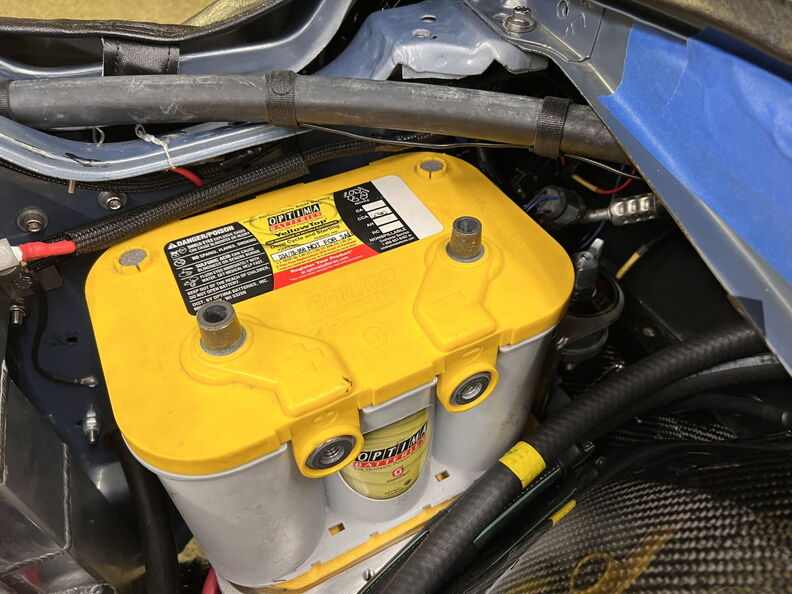

My plan is to add Techflex wrap to the battery wires to give it a finished look.

http://garagescene.net/_data/i/uploa...29ef8b7-me.jpg

Need to get out the hot knife to recut Techflex wrap.

http://garagescene.net/_data/i/uploa...69b594f-me.jpg

http://garagescene.net/_data/i/uploa...1ad236e-me.jpg

The yellow wire loop is strictly there to hold the terminal cover on. I plan to come up with a tag that says something funny or absurd.

http://garagescene.net/_data/i/uploa...7303040-me.jpg

Added a small piece of electrical tape to get the fuse at the right angle so I could easily see it.

http://garagescene.net/_data/i/uploa...fd24da1-me.jpg

All Better or should I say good enough.

http://garagescene.net/_data/i/uploa...5774be3-me.jpg

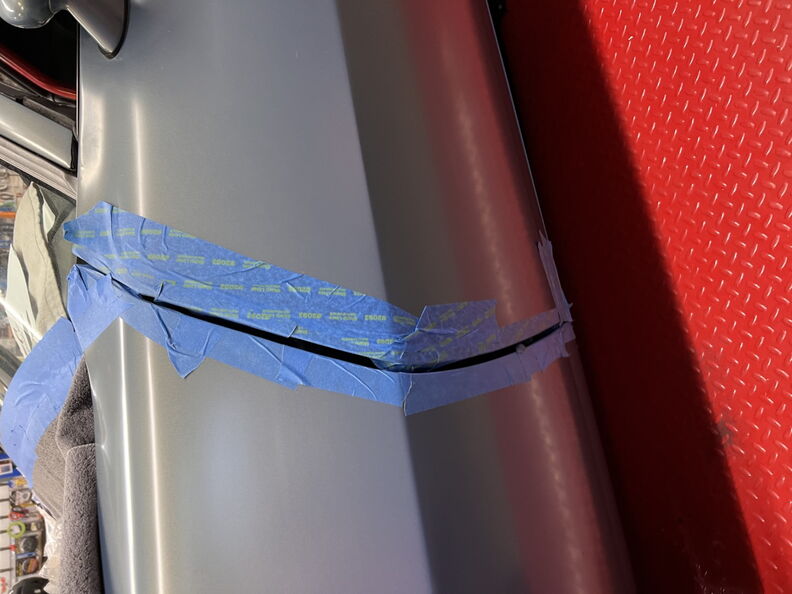

I also removed the blue tape off the Anvil Carbon Inner Fender.

http://garagescene.net/_data/i/uploa...235878b-me.jpg

It's slowly but surely getting there.

http://garagescene.net/_data/i/uploa...d230bd3-me.jpg

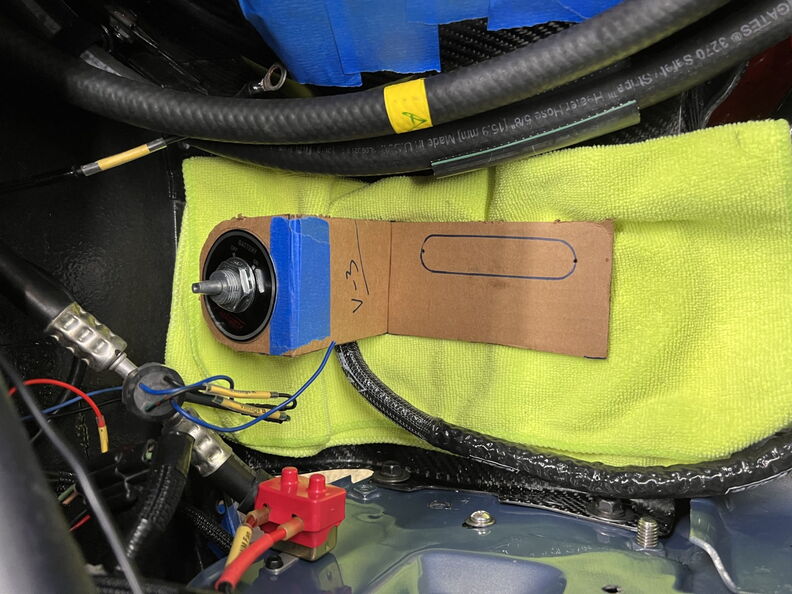

I still need to figure out something for the ground kill switch.

http://garagescene.net/_data/i/uploa...3e658c9-me.jpg

Side Post Battery Wiring (( 08-13-23 ))

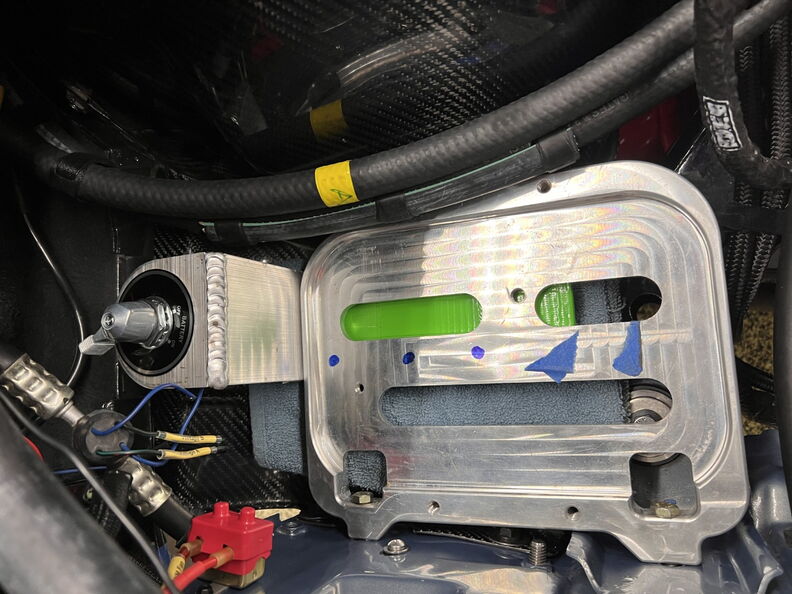

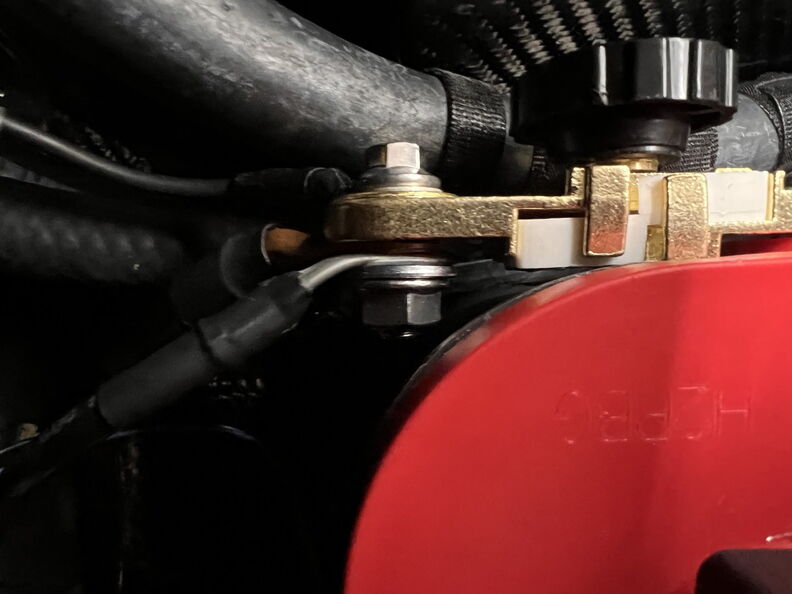

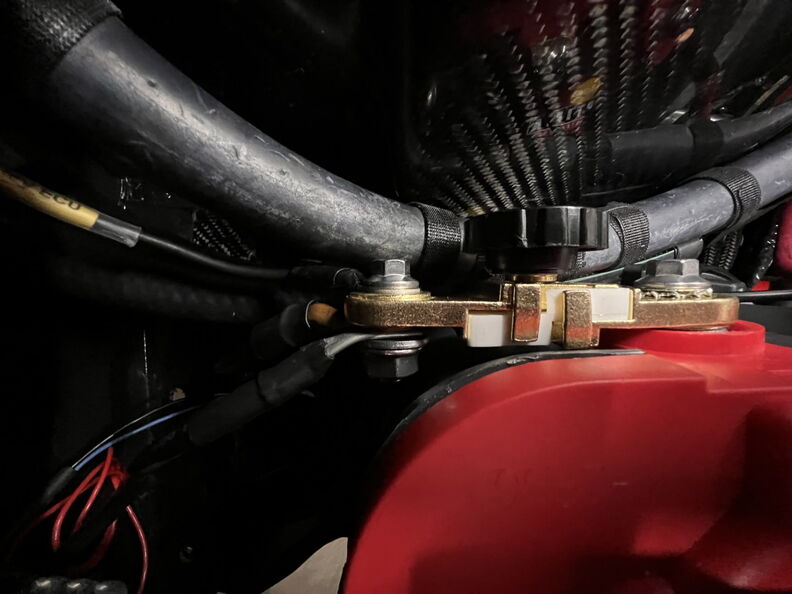

Since I bent the first brass battery shut off switch I need to swap it out with one that isn't bent.

http://garagescene.net/_data/i/uploa...55f7a21-me.jpg

I just hate the way the wires look on the kill switch.

http://garagescene.net/_data/i/uploa...d397ef8-me.jpg

I added a start washer so I don't have to worry about the bolts coming loose.

http://garagescene.net/_data/i/uploa...3e5a50f-me.jpg

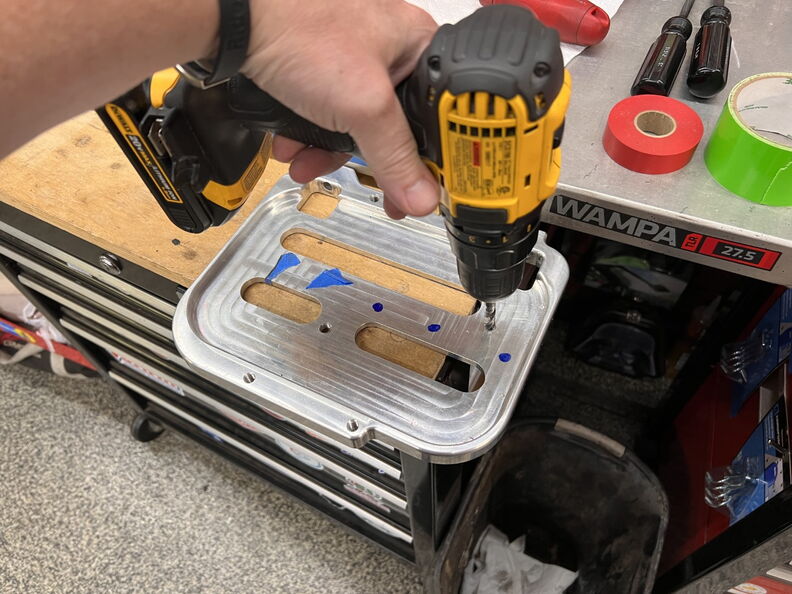

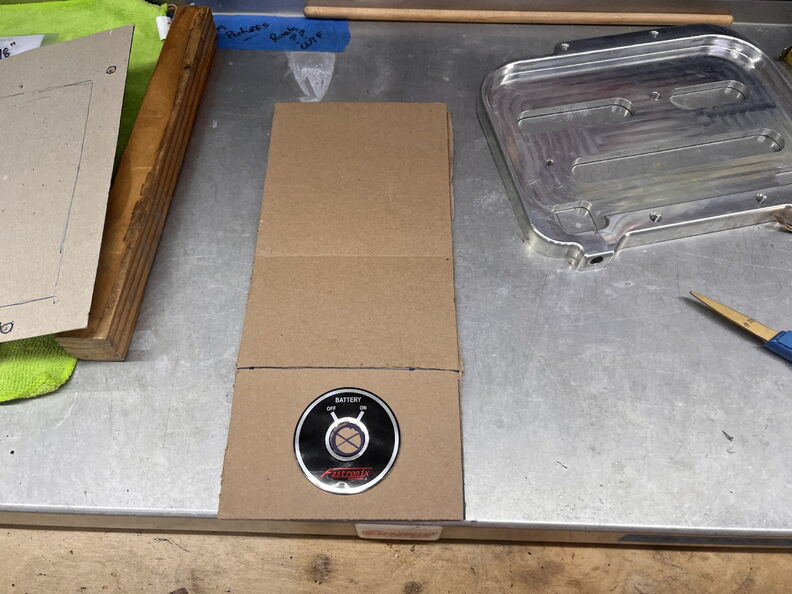

I think I am going to glue this board to the kneeling pad as I can't believe how useful it is.

http://garagescene.net/_data/i/uploa...94fd32a-me.jpg

I highly doubt this will be the last time I mess with the ground wiring.

http://garagescene.net/_data/i/uploa...e48a68f-me.jpg

Well I went and did it I now have a small padded cutting board.

http://garagescene.net/_data/i/uploa...4f6447a-me.jpg

https://i.postimg.cc/sxw13WQL/IMG-3789.jpg

:clap:

https://i.postimg.cc/P5cpL13s/IMG-3783.jpg

Billet Specialties vs Continental


So I am getting close to driving the car. Actually I could drive it but I just want to get some other stuff done before I drive it.

I dropped off the rims and tires at Village Auto for the guy to mount them and well the rear tires went on really easy. I can't say the same for the fronts.

http://garagescene.net/_data/i/uploa...dc55de3-me.jpg

http://garagescene.net/_data/i/uploa...0ba5a1b-me.jpg

http://garagescene.net/_data/i/uploa...e58cc30-me.jpg

He ran out of black wheels weights so I had to paint one set.

http://garagescene.net/_data/i/uploa...44e5f33-me.jpg

http://garagescene.net/_data/i/uploa...9ebd79e-me.jpg

Classic Industries Door Panel (( 08-17-23 )) Part 1


Next project is the passenger side door panel.

As you can see the holes didn't really line up.

http://garagescene.net/_data/i/uploa...d0f39d1-me.jpg

I gentle used the nut driver to push down on the backing to release it from the board so I could install the clips.

http://garagescene.net/_data/i/uploa...27ad84e-me.jpg

http://garagescene.net/_data/i/uploa...e93afd4-me.jpg

I decided to make a "E Flute" cardboard template for drilling holes in the door.

http://garagescene.net/_data/i/uploa...639d1b4-me.jpg

http://garagescene.net/_data/i/uploa...74222e0-me.jpg

http://garagescene.net/_data/i/uploa...5681486-me.jpg

http://garagescene.net/_data/i/uploa...198079c-me.jpg

Nailed it !!

http://garagescene.net/_data/i/uploa...2b5a1c5-me.jpg

http://garagescene.net/_data/i/uploa...6ff78a4-me.jpg

http://garagescene.net/_data/i/uploa...806d081-me.jpg

Clips installed

http://garagescene.net/_data/i/uploa...19ecba7-me.jpg

Everything lined up perfectly.

http://garagescene.net/_data/i/uploa...b2b3833-me.jpg

Since I have three points of contact (window crank & arm rest screws) I was able to used this for drilling all of the holes in the door.

http://garagescene.net/_data/i/uploa...6d68b76-me.jpg

I cut a small opening for the door handle to see how close I got.

http://garagescene.net/_data/i/uploa...b715f03-me.jpg

http://garagescene.net/_data/i/uploa...0ccd91a-me.jpg

Pictures doesn't show it but i was 3/8 of an inch to high.

http://garagescene.net/_data/i/uploa...c614276-me.jpg

Calling it a night

http://garagescene.net/_data/i/uploa...3858733-me.jpg

http://garagescene.net/_data/i/uploa...67cca21-me.jpg

why so many tools ?

http://garagescene.net/_data/i/uploa...789c205-me.jpg

This is kinda funny. Where the heck am i going to find one of these two size drill bits.

http://garagescene.net/_data/i/uploa...fb1ff6d-me.jpg

Cont. in next post

Classic Industries Door Panel (( 08-19-23 )) Part 2


I took a day off from the car and it was nice couple days off.

Back to the car and back to the reason why I posted so many pictures in the last post. I am hoping the amount of pictures I added
showed the amount of time it took to just do a simple door panel. If I had to quess I have at least 8 hours into just this one door and
I am hoping the drivers side goes much faster.

When I walked out to the garage I realized it was getting cluttered and I needed to clean it up.

http://garagescene.net/_data/i/uploa...212402e-me.jpg

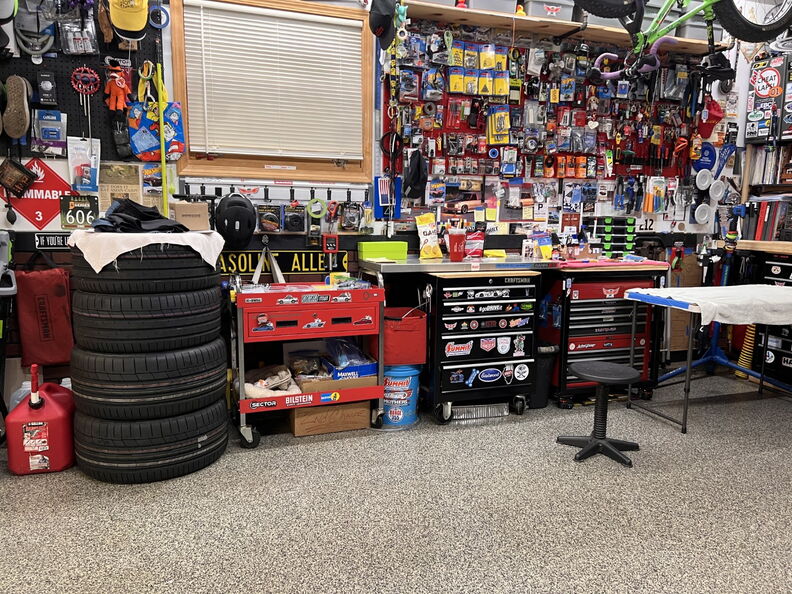

Minutes later it looked like this.

http://garagescene.net/_data/i/uploa...8309dde-me.jpg

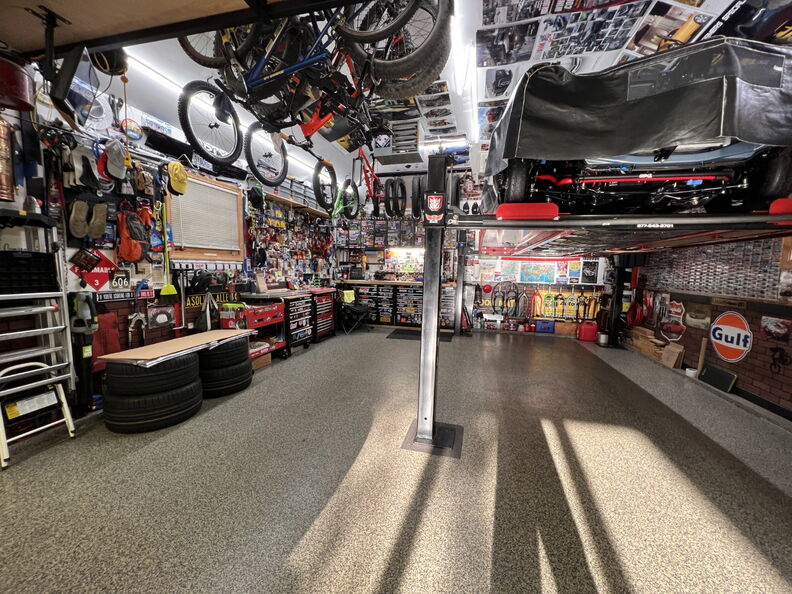

One hour later the floor was washed and the garage smelled like Simple Green and even made a table with the new wheels and tires.

http://garagescene.net/_data/i/uploa...4a463d0-me.jpg

My neighbors son came over and helped me with the door panel today. We marked all the holes that needed to be
drilled for the plastic clips and spent 15 minutes making holes and hoping they all were in the proper place.

http://garagescene.net/_data/i/uploa...0778752-me.jpg

http://garagescene.net/_data/i/uploa...fffbbf1-me.jpg

http://garagescene.net/_data/i/uploa...fffbbf1-me.jpg

We installed all of the clips on the back of the door panel.

http://garagescene.net/_data/i/uploa...ada169f-me.jpg

I am still considering adding a small red door pull toward the front and ordering the black window cranks from the guys at www.ScreamingChicken.com

http://garagescene.net/_data/i/uploa...6e716b8-me.jpg

https://screamingchicken.com/1970-81...-window-crank/

https://cdn11.bigcommerce.com/s-jooa...504685.jpg?c=2


and skip here is a Remy pic just for you

http://garagescene.net/_data/i/uploa...bcabd57-me.jpg

Parts going in the Attic (( 08-20-23 ))


I am finally cleaning up and moving the parts I no longer need to the Attic.

Of course I took a couple pictures so I remember what I put up there

http://garagescene.net/_data/i/uploa...a4b3dd7-me.jpg

http://garagescene.net/_data/i/uploa...f4f0394-me.jpg

Finally pulling the tape of the drivers door as it;s been on their since I rebuilt the hinges.

http://garagescene.net/_data/i/uploa...75bb67d-me.jpg

Oh the fun.

So, this turned out to be much harder then I expected.

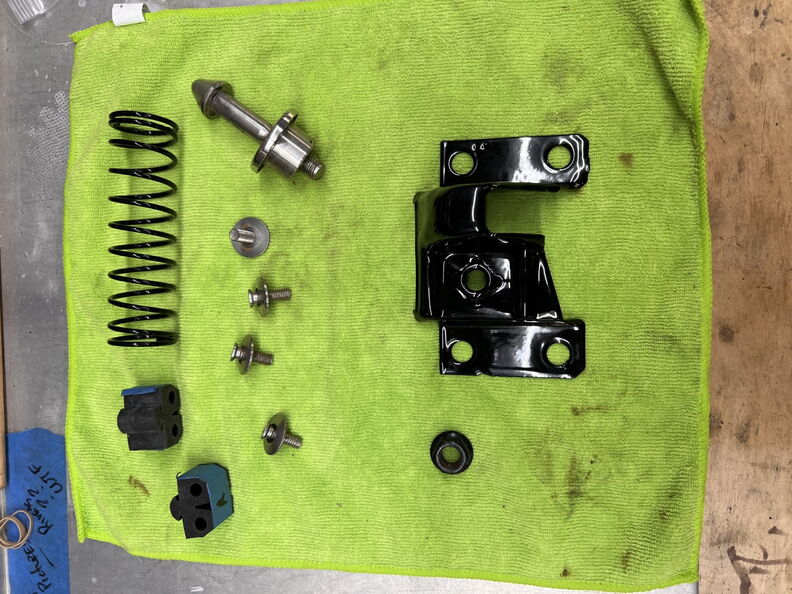

http://garagescene.net/_data/i/uploa...a28feb4-me.jpg

I couldn't get the stud started and I assumed it was because of the spring pressure.

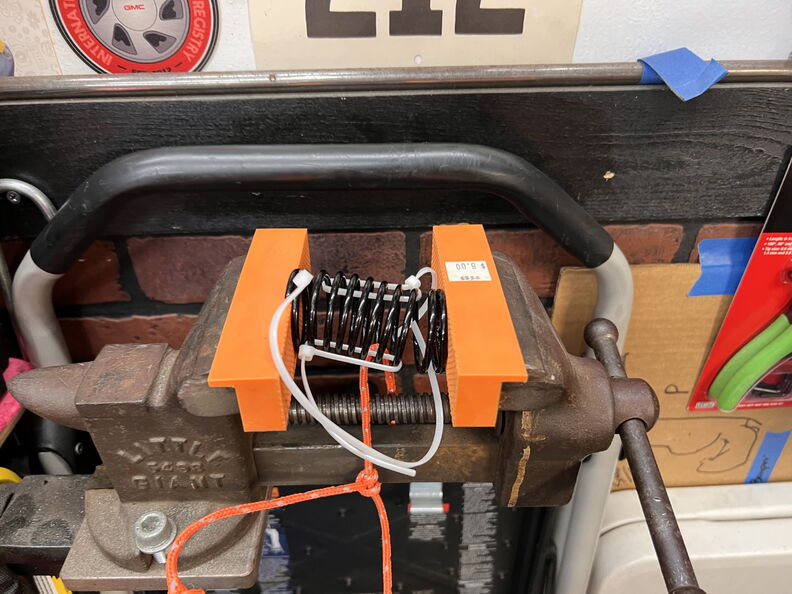

http://garagescene.net/_data/i/uploa...249ebe4-me.jpg

Opps, I dropped it

http://garagescene.net/_data/i/uploa...80068f9-me.jpg

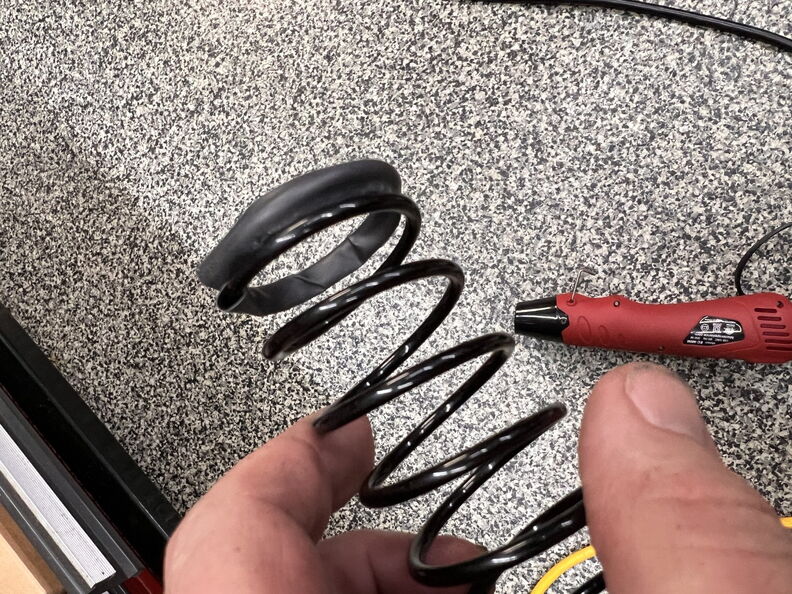

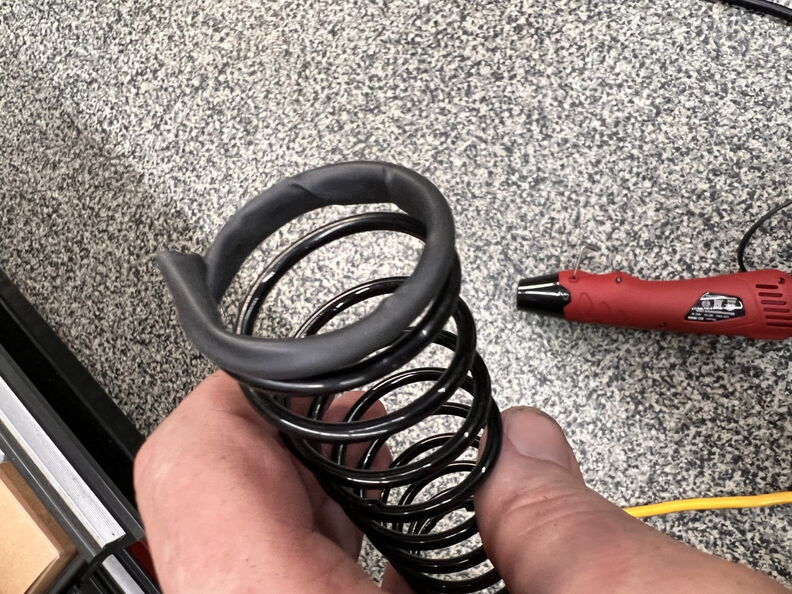

Since the part was freshly powder coated I added a small amount of heat shrink to the bottom of the spring to protect the paint.

http://garagescene.net/_data/i/uploa...55be884-me.jpg

That was fun.

http://garagescene.net/_data/i/uploa...5c4fa76-me.jpg

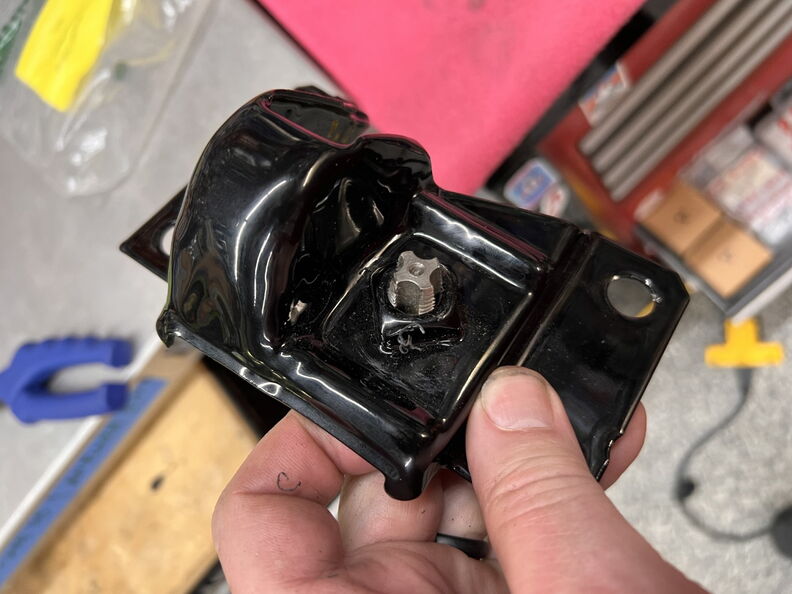

Apparently it was the paint that was keeping it from starting.

http://garagescene.net/_data/i/uploa...44cfe95-me.jpg

http://garagescene.net/_data/i/uploa...b6597c8-me.jpg

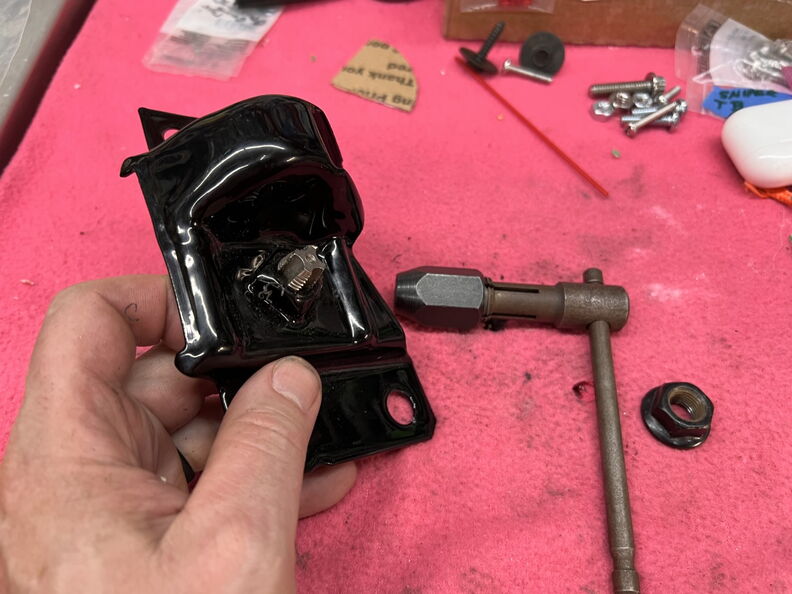

Got the tin man **** out.

http://garagescene.net/_data/i/uploa...38545d8-me.jpg

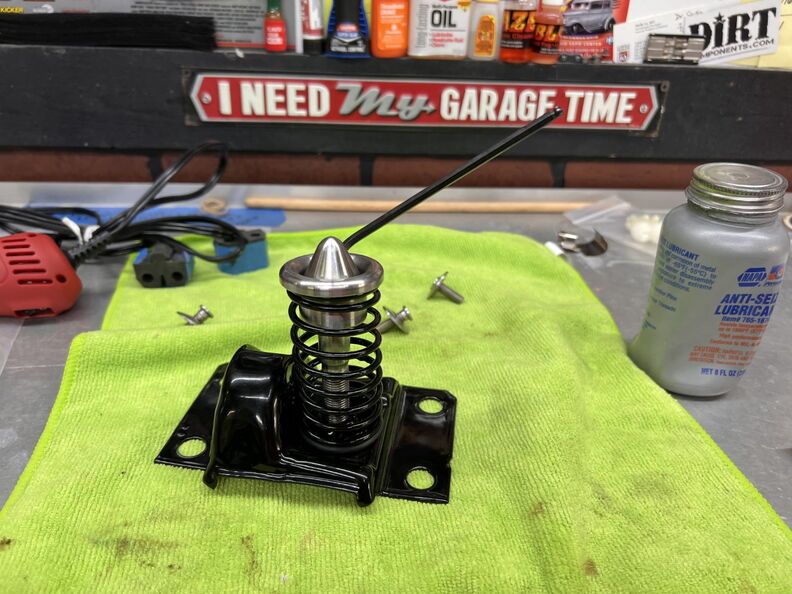

You use the allen wrench to spin it.

http://garagescene.net/_data/i/uploa...8425c35-me.jpg

Almost done

http://garagescene.net/_data/i/uploa...a8bad1e-me.jpg

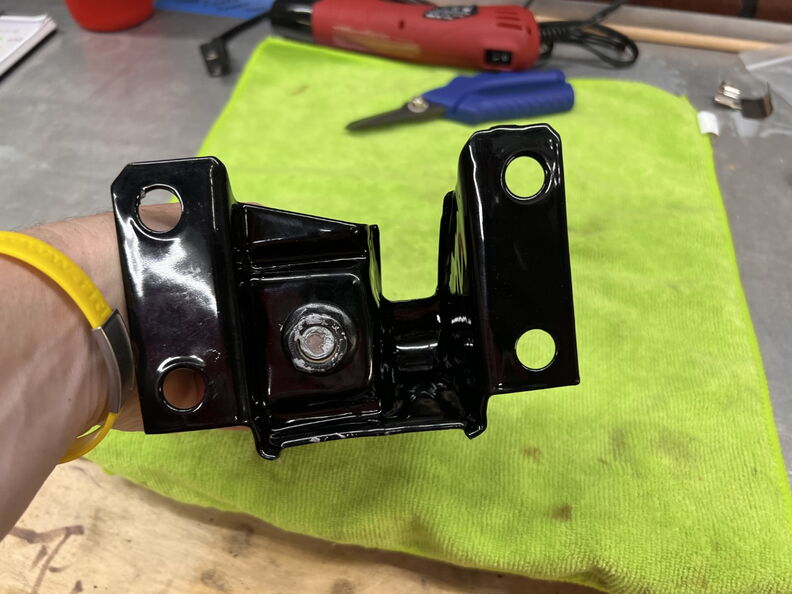

Nut is on and complete.

http://garagescene.net/_data/i/uploa...5b97b94-me.jpg

More Parts (( 08-20-23 ))

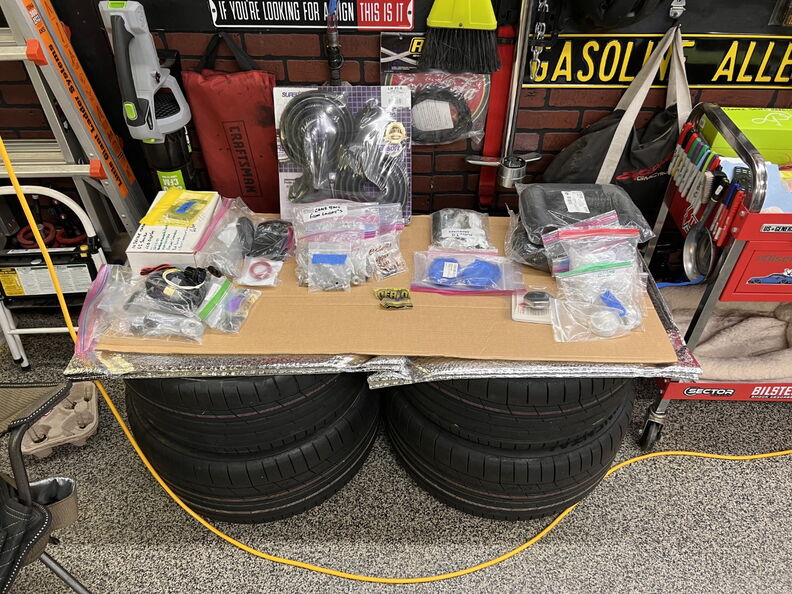

More Parts

http://garagescene.net/_data/i/uploa...b8a7dac-me.jpg

Still trying to figure out this Negative Battery Kill Switch an I kinda like this a little better.

http://garagescene.net/_data/i/uploa...3f6fb62-me.jpg

http://garagescene.net/_data/i/uploa...4bb9a78-me.jpg

http://garagescene.net/_data/i/uploa...b7196c5-me.jpg

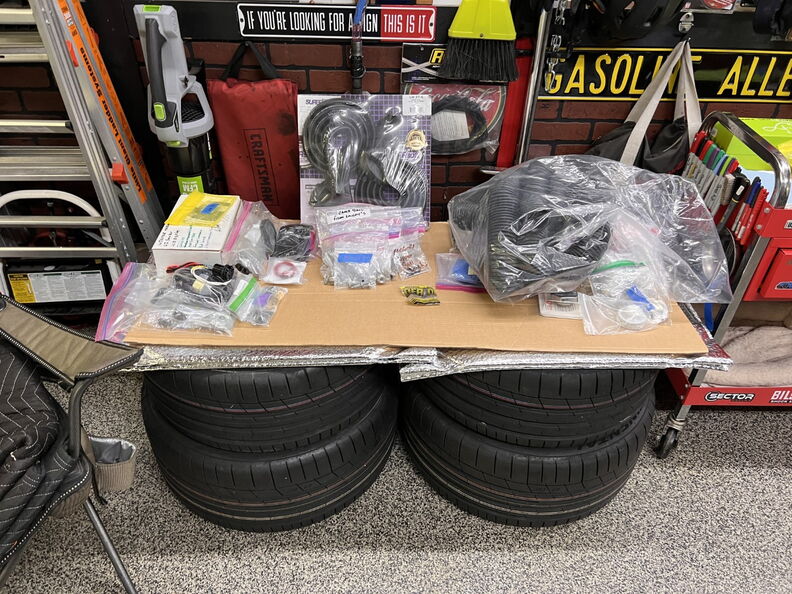

Pulled out more parts

http://garagescene.net/_data/i/uploa...68e21b0-me.jpg

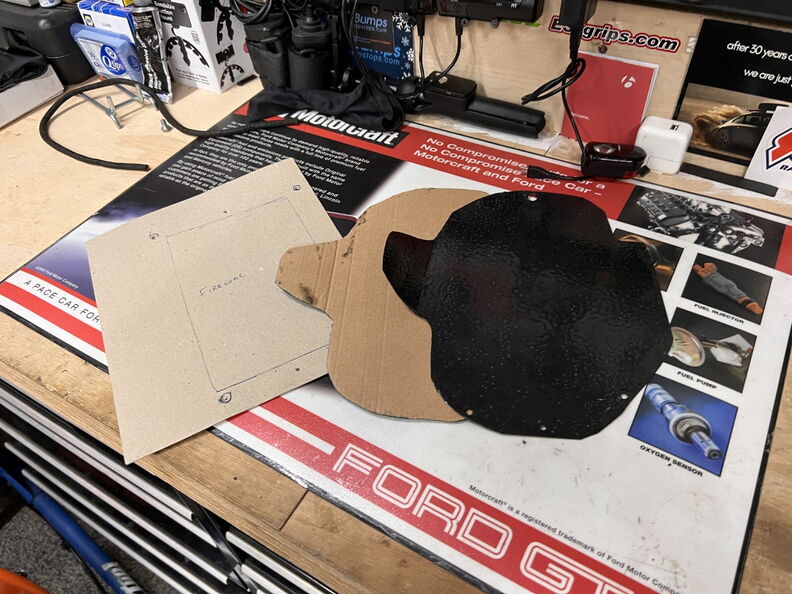

I will need to make a close out for the Drivers side this weekend.

http://garagescene.net/_data/i/uploa...1f1fa33-me.jpg

Vintage Air Defrost Ducts Piping (( 08-21-23 ))

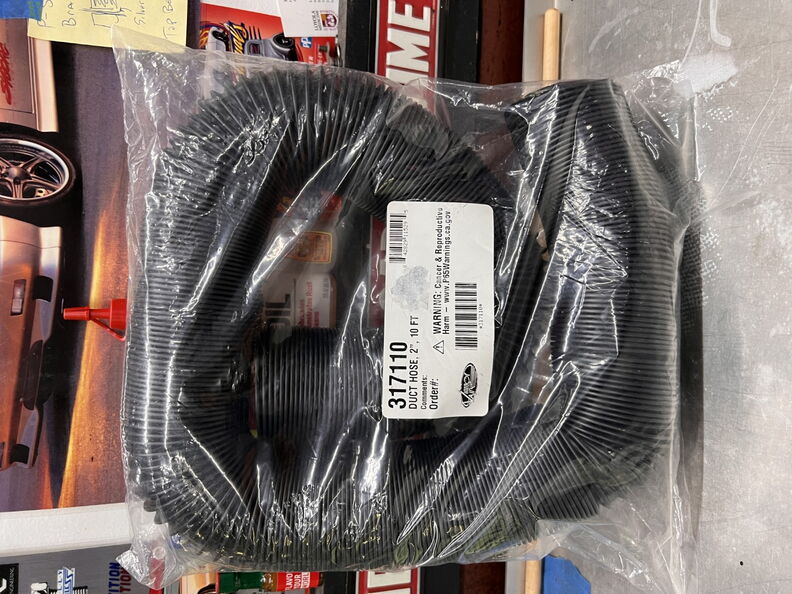

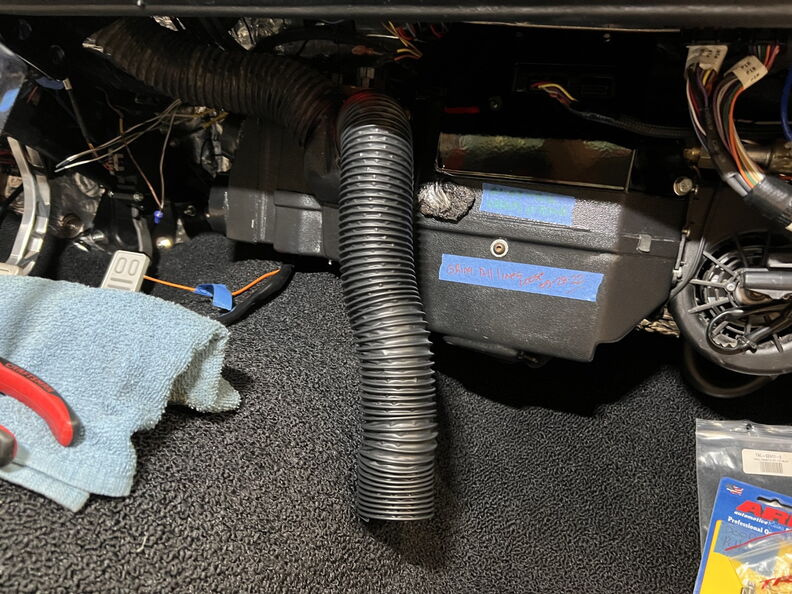

On the defrost ducts you use the 2" version.

http://garagescene.net/_data/i/uploa...d795a01-me.jpg

http://garagescene.net/_data/i/uploa...95ab357-me.jpg

http://garagescene.net/_data/i/uploa...121a44e-me.jpg

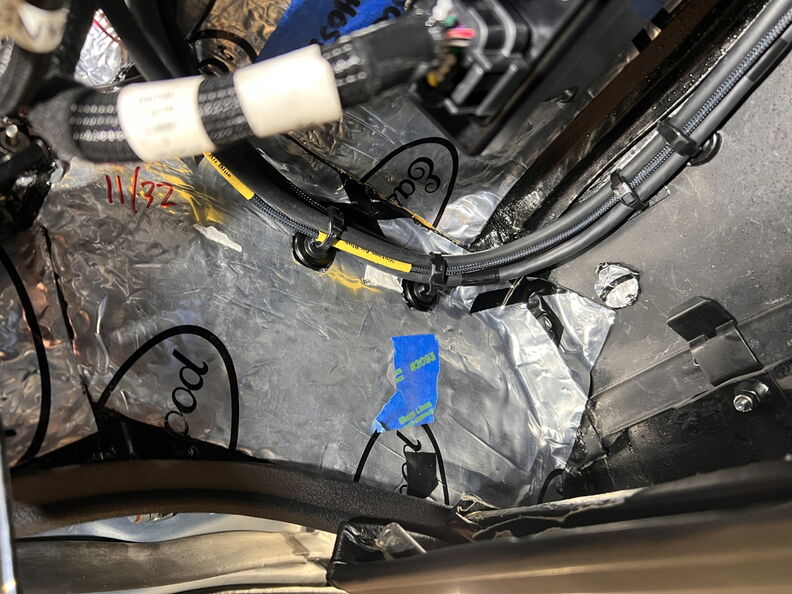

I started doing the final wire mounting with the Mag Daddy Magnets and I needed to move the Sound Deadening.

http://garagescene.net/_data/i/uploa...22fc13f-me.jpg

http://garagescene.net/_data/i/uploa...43e19fa-me.jpg

http://garagescene.net/_data/i/uploa...d6844d2-me.jpg

Token Remy Picture

http://garagescene.net/_data/i/uploa...9b7e758-me.jpg

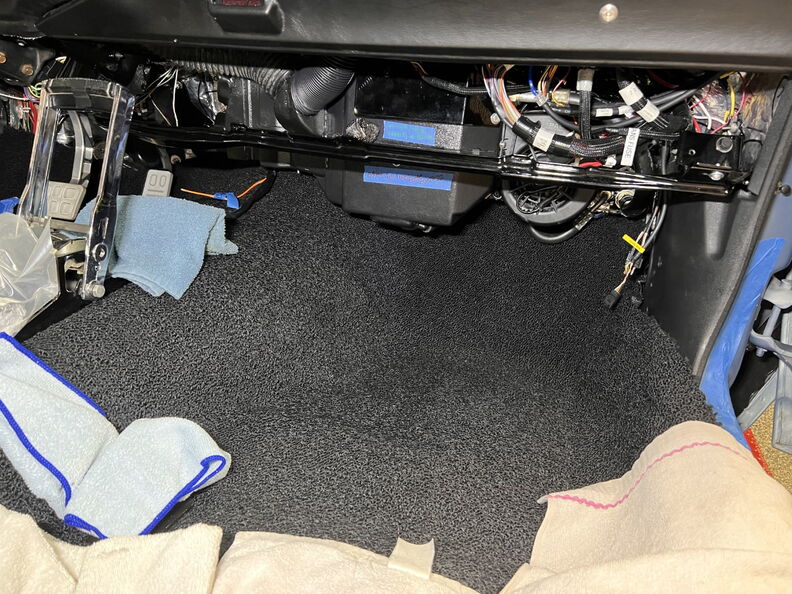

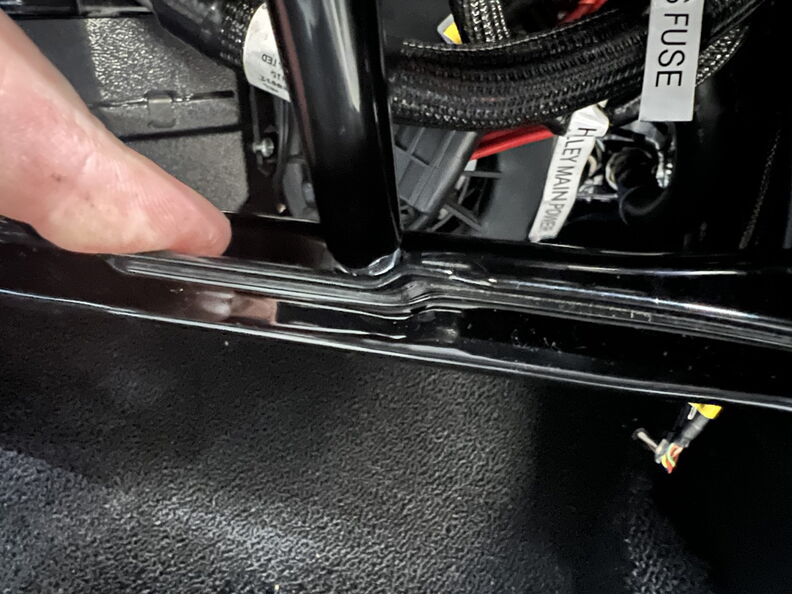

Lower Dash support bracket mounted.

http://garagescene.net/_data/i/uploa...120f611-me.jpg

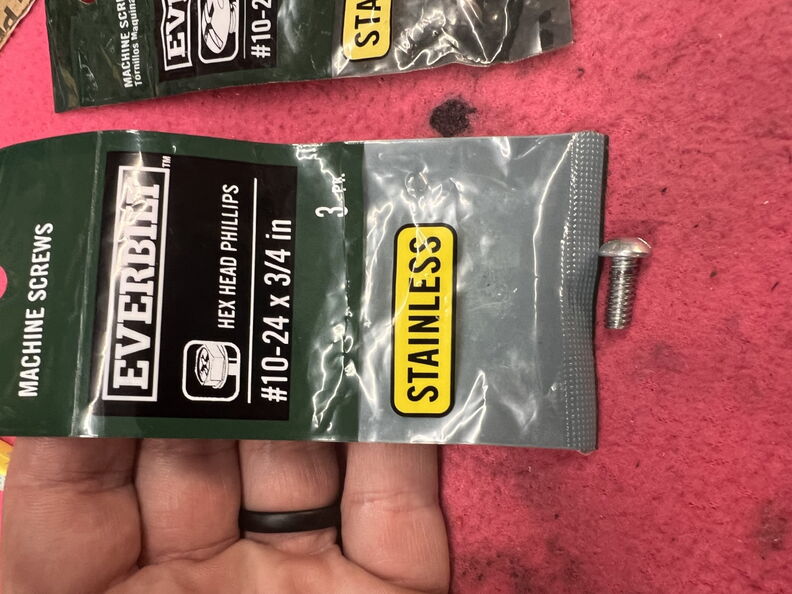

Of course I ran out of these and will need to go to Home Depot again.

http://garagescene.net/_data/i/uploa...3fc4f55-me.jpg

I needed to remove some paint off the upper dash support.

http://garagescene.net/_data/i/uploa...cc6124a-me.jpg

Apparently Remy needed to be closer to me and he even layed on top of me when I was lying under the dash.

http://garagescene.net/_data/i/uploa...e37c1eb-me.jpg

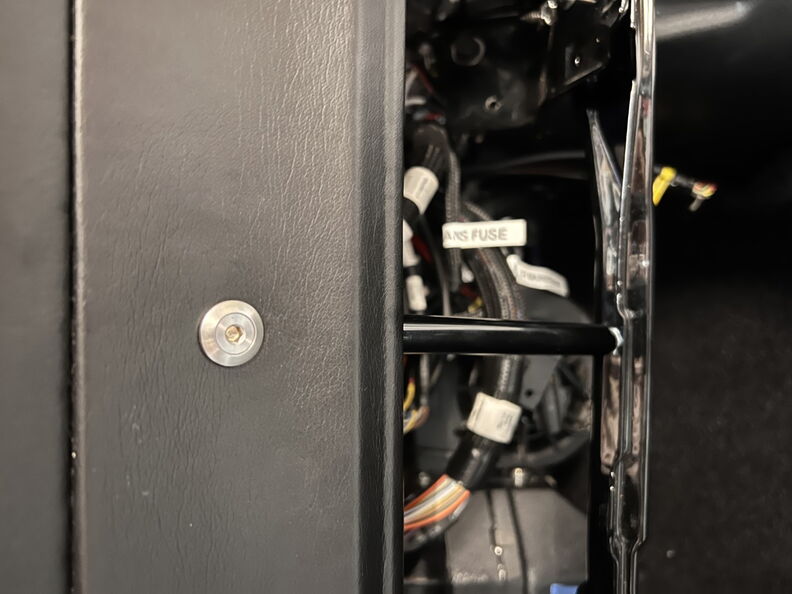

Dash Support installed.

http://garagescene.net/_data/i/uploa...384cd61-me.jpg

http://garagescene.net/_data/i/uploa...de65e2e-me.jpg

Final Battery Shut Off...I hope !!! (( 08-23-23 ))


I just don't like the other shut off as it looks like crap and it just doesn't work right.

http://garagescene.net/_data/i/uploa...867935d-me.jpg

Remy does really nice work lol

Marty,
I really dig the Mag Daddy clips you used. Great idea. The dash support you were tapping, is there only one of those? Where about does it go? I took my 70 apart about 6-8 yrs ago and I don’t remember those.

Thanks,
Jim

Hi Jim,

Since, I am not actually using the factory lower dash I needed this to support to hold up the dash pad.

http://garagescene.net/_data/i/uploa...f123355-me.jpg

Back to the new battery shut off (( 08-23-23 ))


So here we go again.

http://garagescene.net/_data/i/uploa...867935d-me.jpg

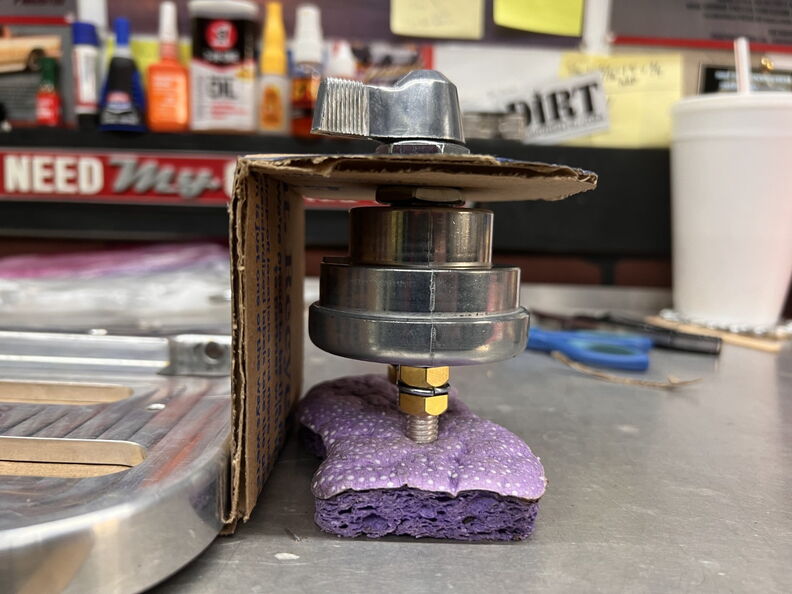

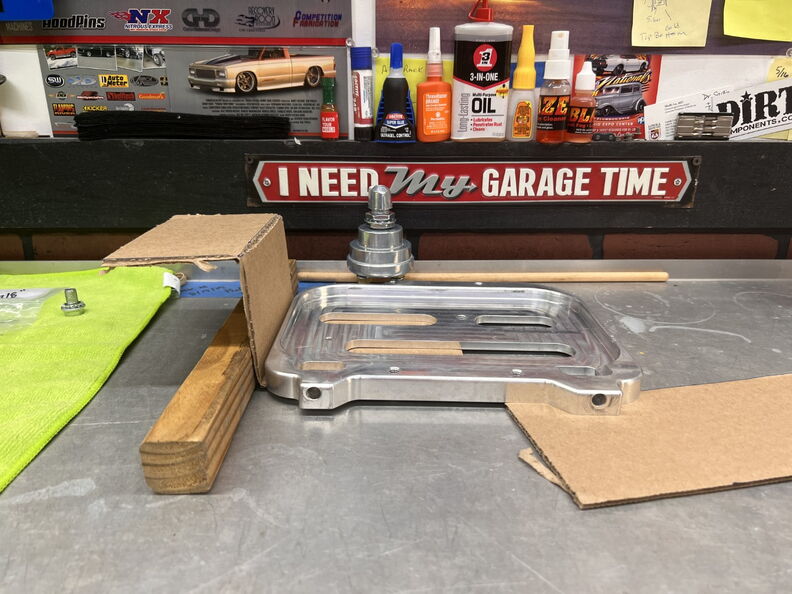

First concept

http://garagescene.net/_data/i/uploa...61edf6e-me.jpg

http://garagescene.net/_data/i/uploa...58b1a45-me.jpg

http://garagescene.net/_data/i/uploa...92b7bea-me.jpg

http://garagescene.net/_data/i/uploa...f6f05fa-me.jpg

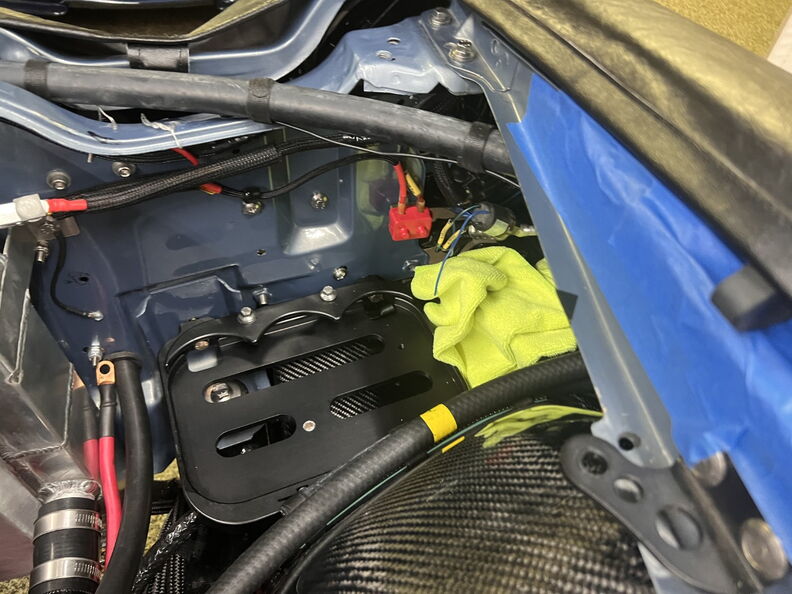

The switch will be located to the right of the battery hidden under the fender.

http://garagescene.net/_data/i/uploa...3cdbcc5-me.jpg

I forgot to take the picture of it sitting on the yellow towel.

http://garagescene.net/_data/i/uploa...d060ccb-me.jpg

ps I may go back and take a pictures so I have it for reference.

Here is the reference picture. (( Added 09-03-23 ))

http://garagescene.net/_data/i/uploa...414bce6-me.jpg

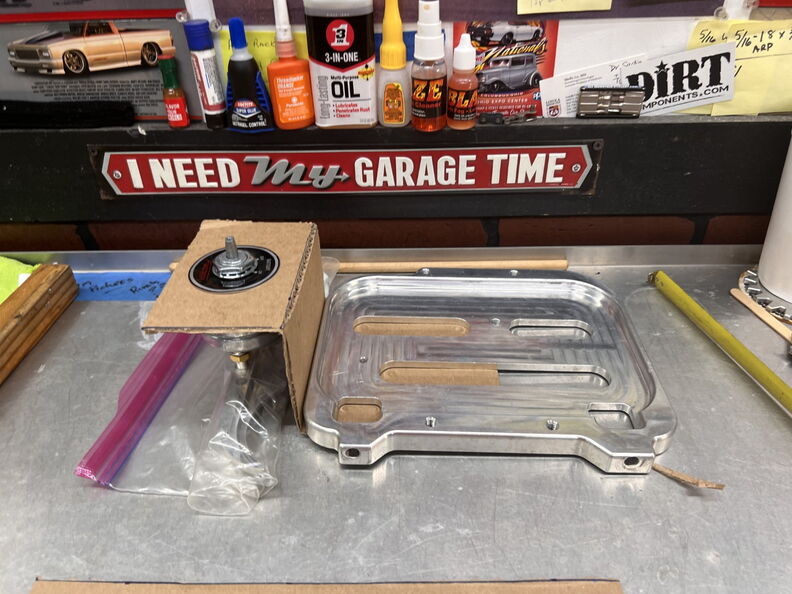

High Speed Welding for the Win (( 08-31-23 ))


I dropped off the cardboard mock the other day and I finally had time to pick it up from Dennis at High Speed Welding.

http://garagescene.net/_data/i/uploa...ac4f965-me.jpg

I plan to use one of the ''Raw'' Trays

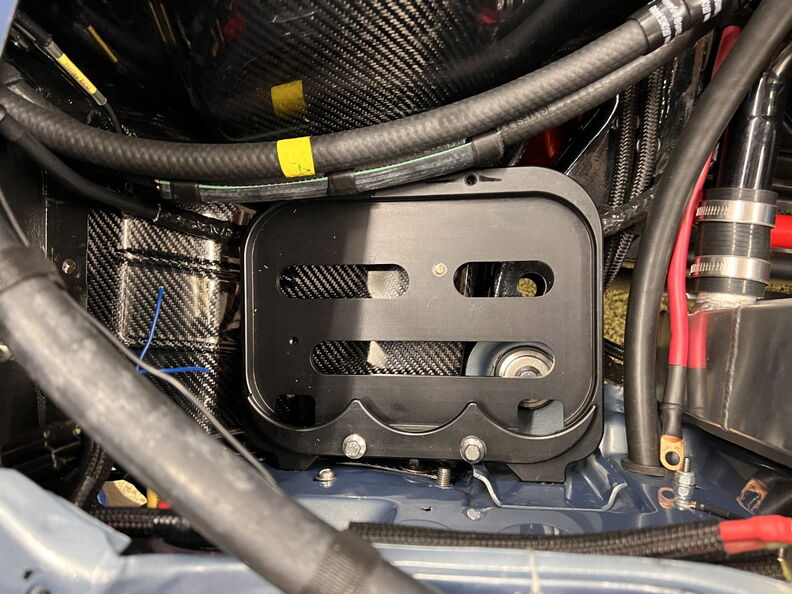

http://garagescene.net/_data/i/uploa...96dfa59-me.jpg

Here we go

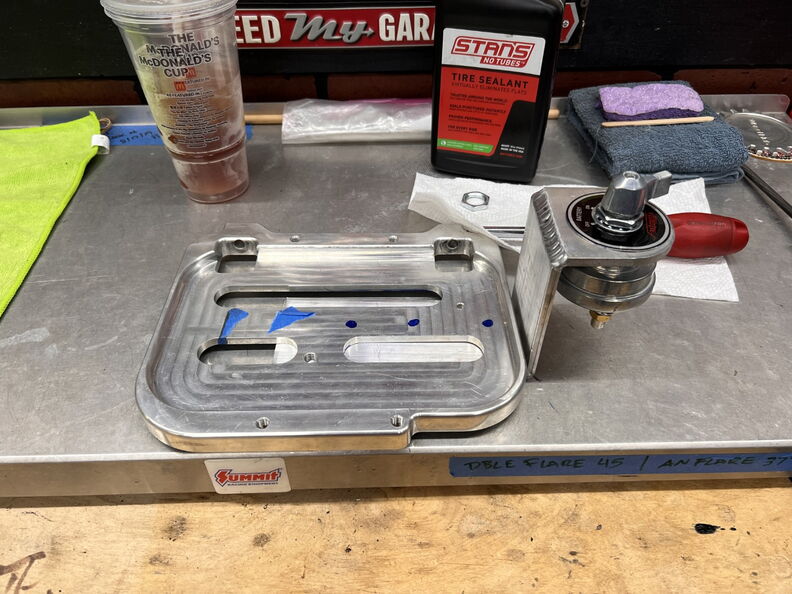

http://garagescene.net/_data/i/uploa...25a5729-me.jpg

First step is to remove the support bracket.

http://garagescene.net/_data/i/uploa...e483905-me.jpg

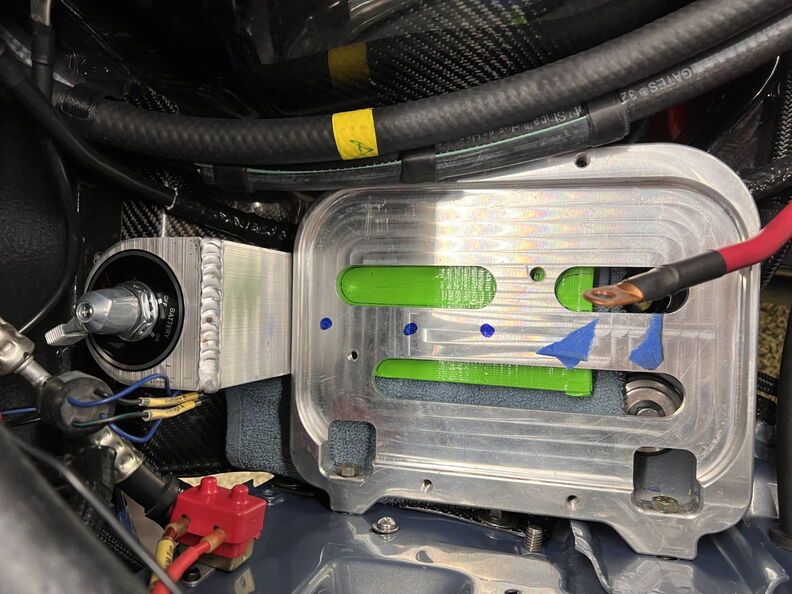

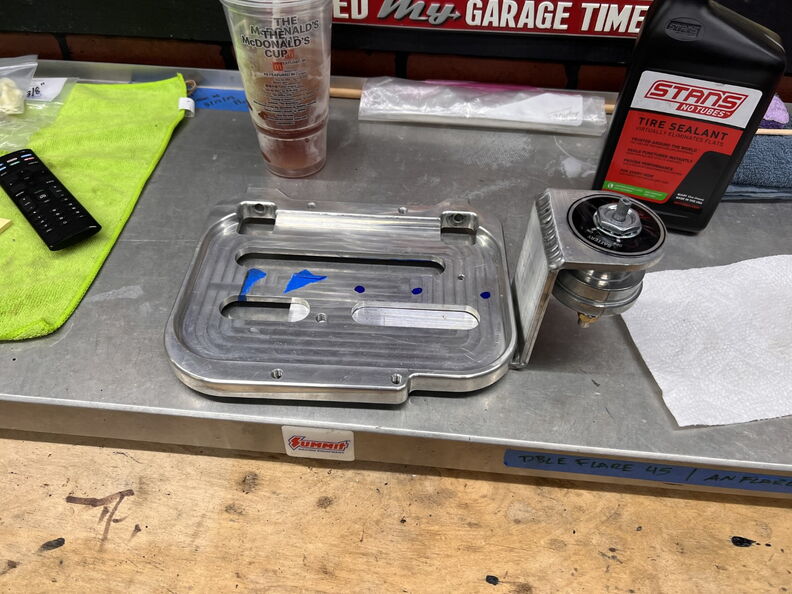

Testing to see if what I came up with actually works

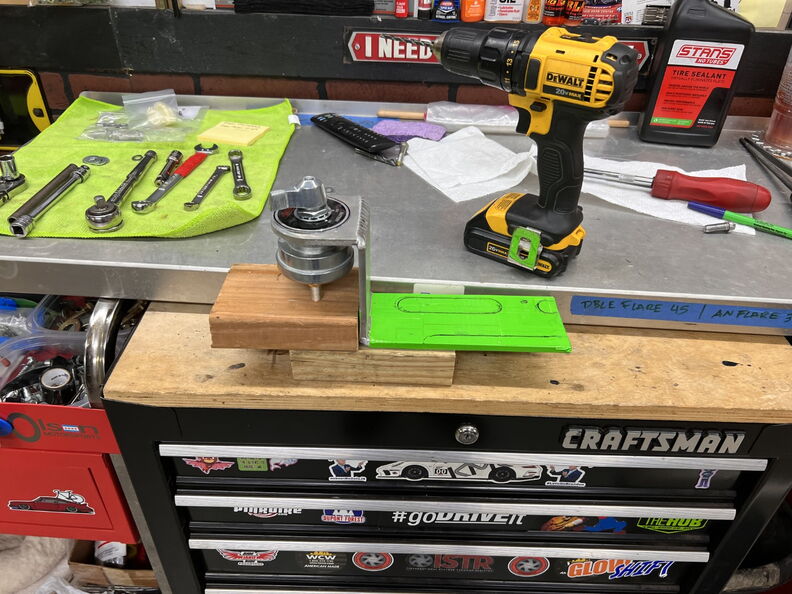

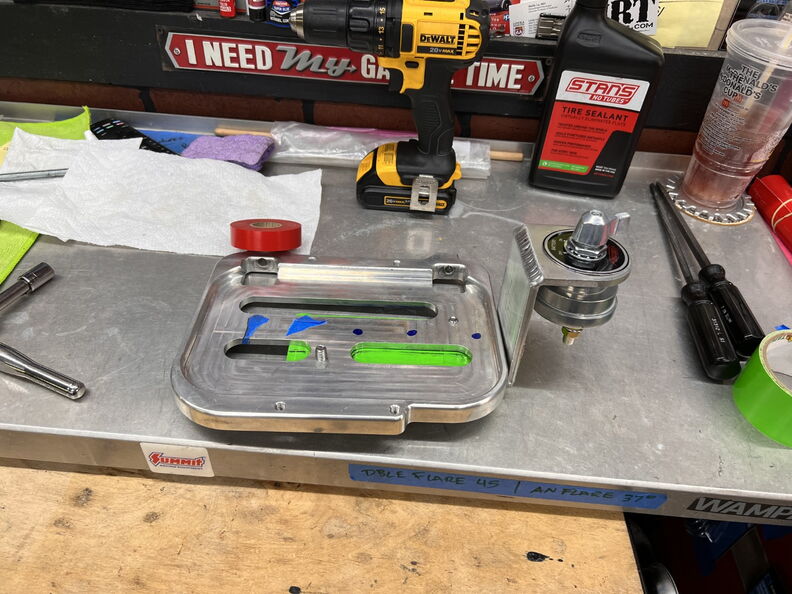

http://garagescene.net/_data/i/uploa...263d41a-me.jpg

http://garagescene.net/_data/i/uploa...135abcd-me.jpg

http://garagescene.net/_data/i/uploa...e497716-me.jpg

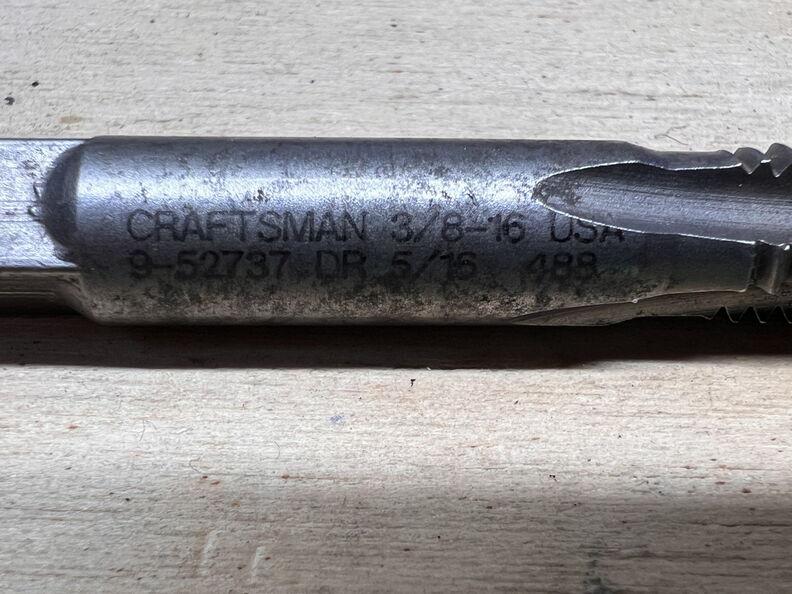

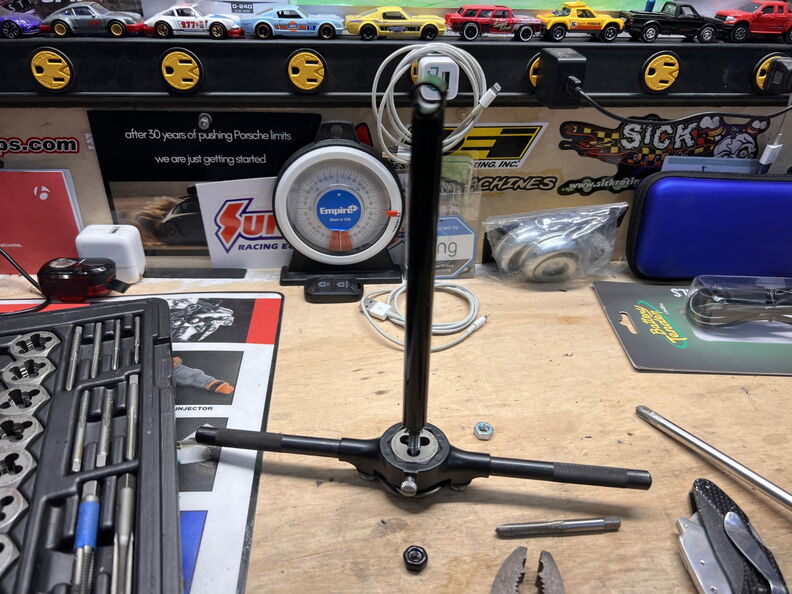

I need to tap the small hole closest to the switch so I can bolt the bracket to the bottom of the tray. Since my eye's don't work as well as they used to I needed to take a picture of the tap.

http://garagescene.net/_data/i/uploa...0ac342c-me.jpg

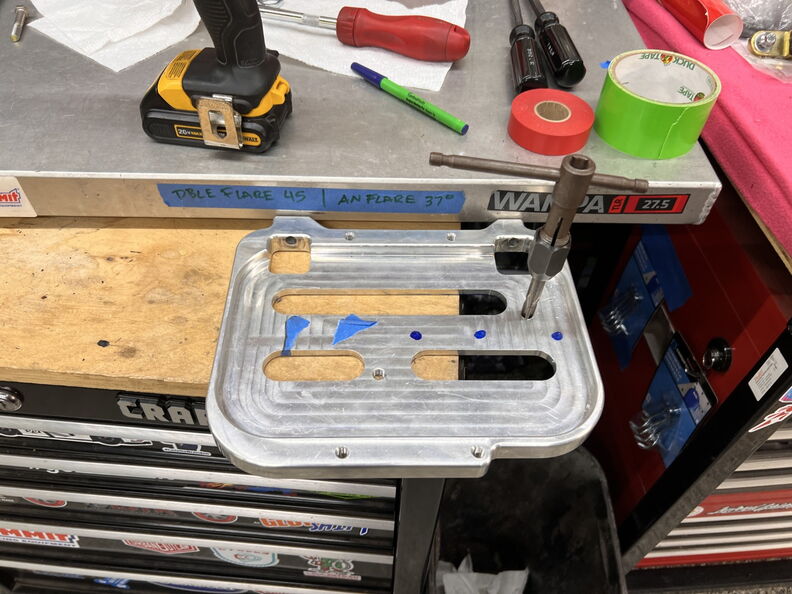

Drilled & Tapped

http://garagescene.net/_data/i/uploa...1d349ce-me.jpg

http://garagescene.net/_data/i/uploa...d3bc094-me.jpg

I covered the bracket in duct tape to protect the inner fender.

http://garagescene.net/_data/i/uploa...95fd942-me.jpg

http://garagescene.net/_data/i/uploa...0fd3f2d-me.jpg

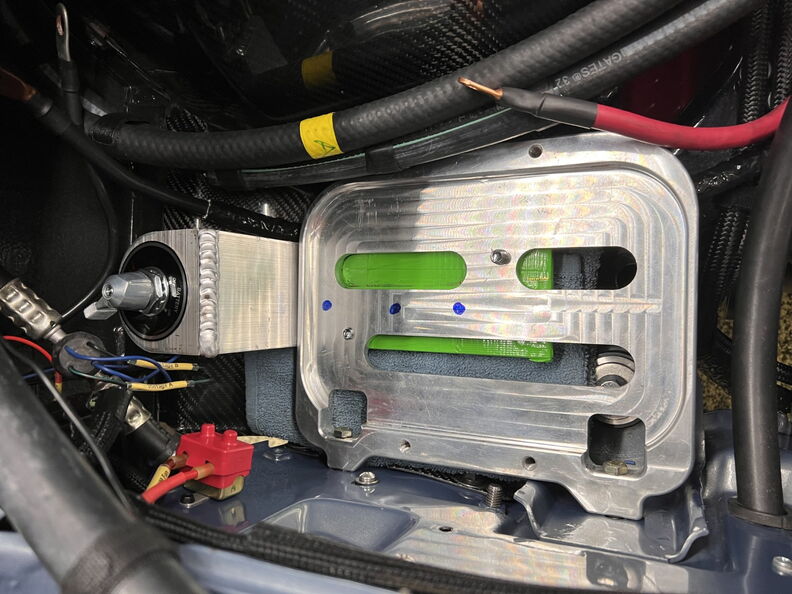

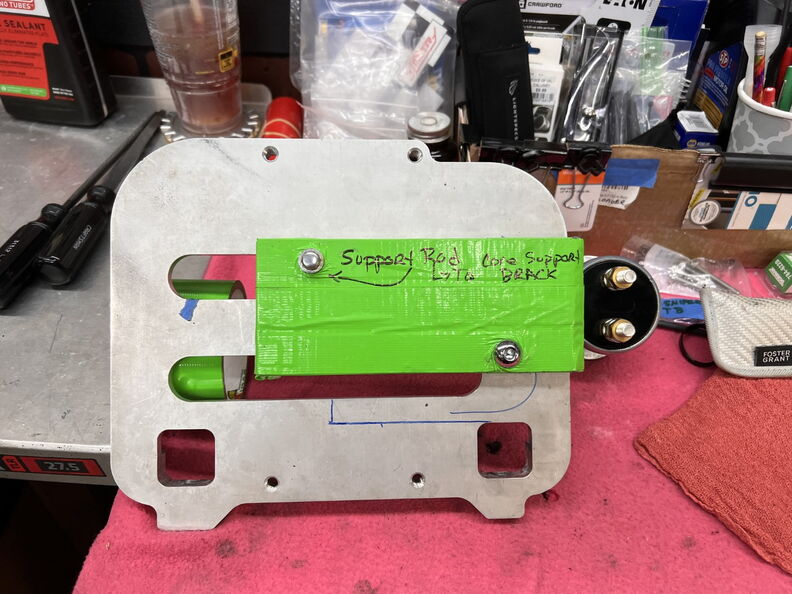

The support rod will go into the marked hole.

http://garagescene.net/_data/i/uploa...a0c3889-me.jpg

http://garagescene.net/_data/i/uploa...c28d918-me.jpg

http://garagescene.net/_data/i/uploa...d790f6e-me.jpg

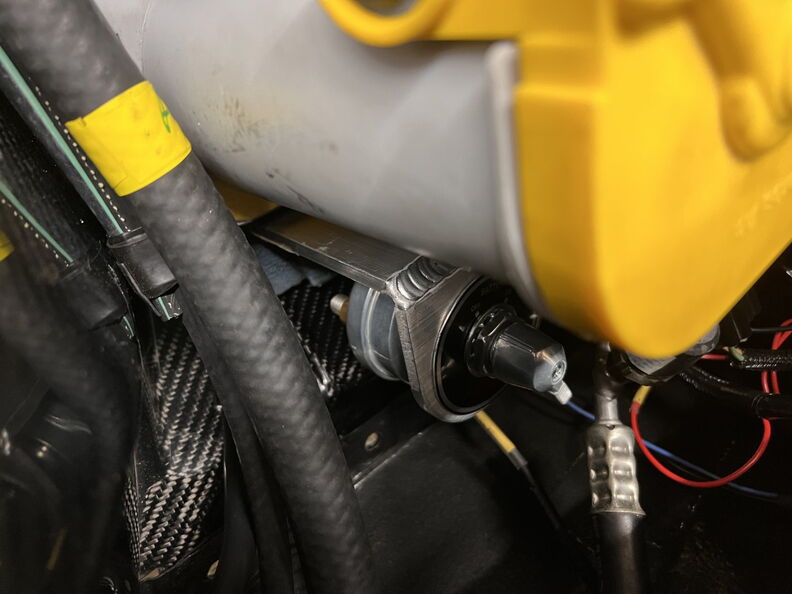

http://garagescene.net/_data/i/uploa...9a335cd-me.jpg
