Truck
Quote:
|
Update

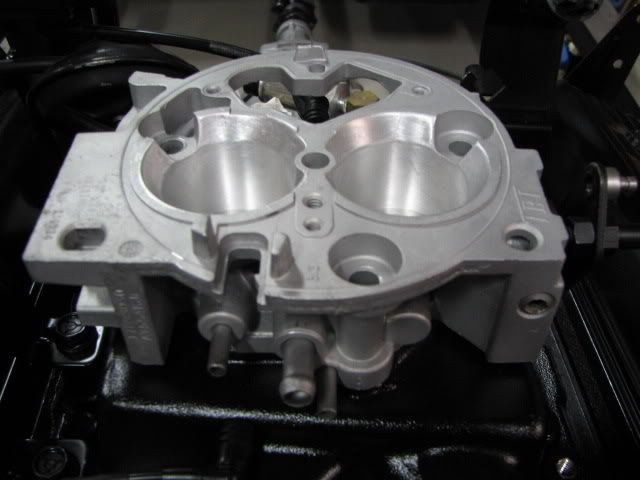

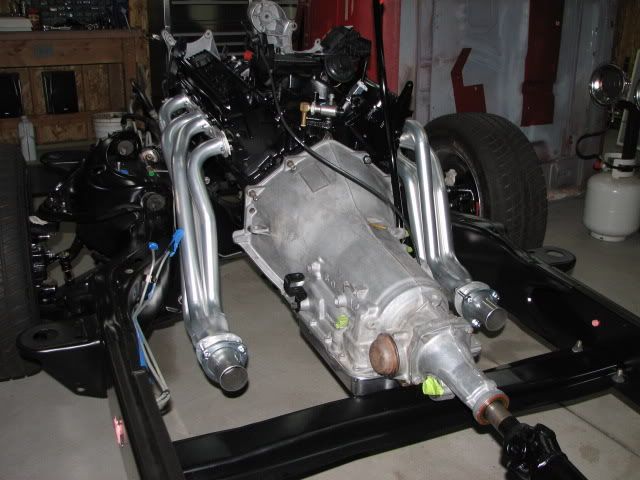

It’s been a while since I updated. I finished the heat shield for the drivers side under the cab. I put the long block back together. New valve seals, springs, retainers & keeper's, new cam & lifters Comp XE249. New oil pump, oil pump drive shaft w/steel collar, Eddy 3704 intake, Headman Elite HTC long tubes, 46mm TBI, adjustable FPR (Ultimate TBI mods.) etc. Headers were a very tight fit near the frame and UCA mount. I had to tape the areas and pound on them with a 1lb hammer to get enough clearance. There’s nothing like pounding on a set of new $300 dollar headers. I am very impressed with the strength of the coating, no chips, cracks or blems.
http://i89.photobucket.com/albums/k2...k/562219df.jpg http://i89.photobucket.com/albums/k2...k/c57063ef.jpg http://i89.photobucket.com/albums/k2...k/a7f5409f.jpg http://i89.photobucket.com/albums/k2...k/962246d5.jpg http://i89.photobucket.com/albums/k2...k/e0bbfb65.jpg |
Lookin good man. :thumbsup: Everything looks good together.
|
Quote:
|
That is going to be a gorgeous truck when finished, I cant wait to reach the same point you are at now, Ive just got my s10 frame back from sandblasting.
|
Exhaust mock-up

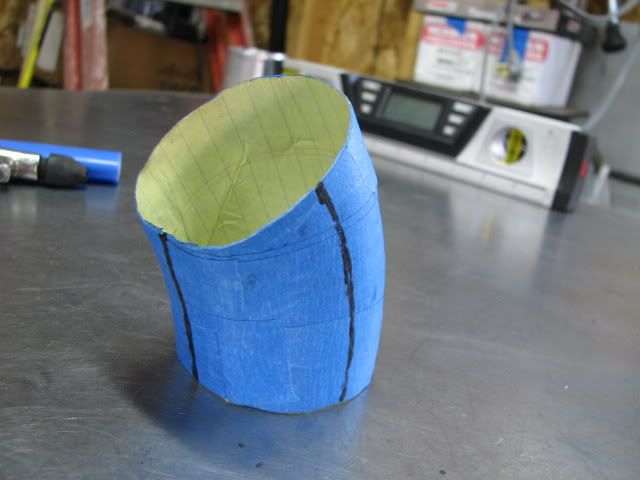

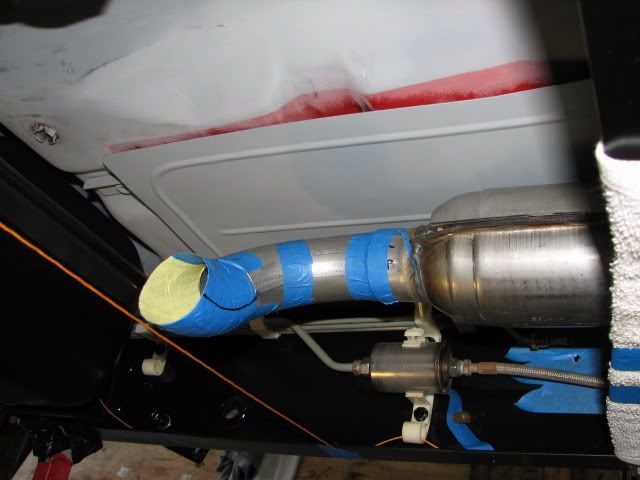

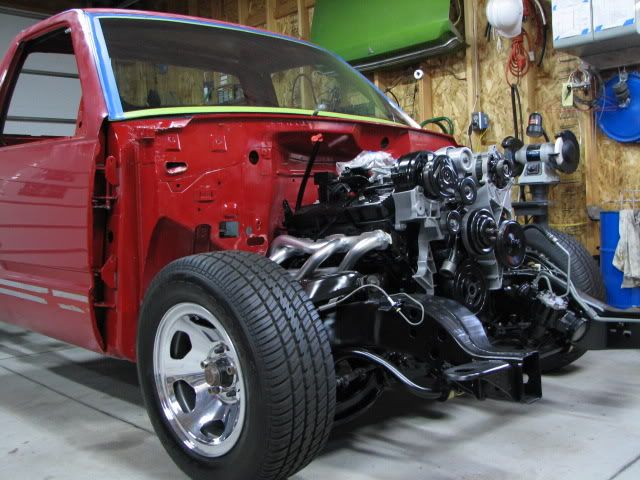

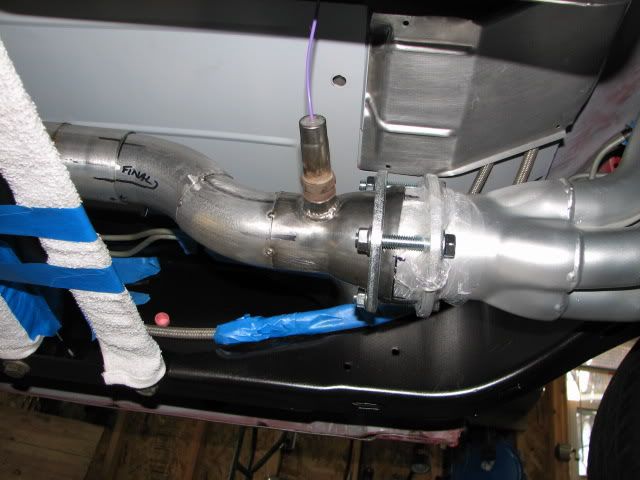

Just a teaser, a poor man has poor ways. I put the cab back on to mock up and install the exhaust. I ran out of mandrel 90's and made me some "paper & tape" 45's to keep going. I laid out a 45 on a 90 and wrapped it with a layer of paper and masking tape. I cut it down the inside seam, took it off and taped it back together. I'll post more pictures when I have time.
http://i89.photobucket.com/albums/k2...k/1392b183.jpg http://i89.photobucket.com/albums/k2...6/b64976c4.jpg http://i89.photobucket.com/albums/k2...6/855c9db6.jpg http://i89.photobucket.com/albums/k2...6/62138856.jpg http://i89.photobucket.com/albums/k2...6/6a5be6da.jpg http://i89.photobucket.com/albums/k2...6/ff02fc00.jpg |
looking good
keep up the good work |
Head pipe

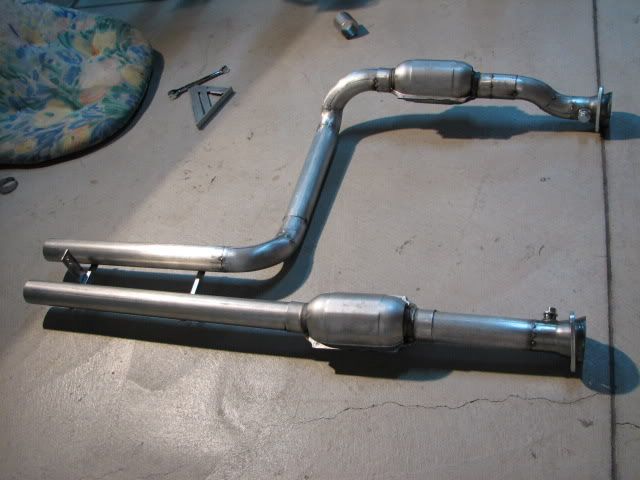

Here is the head pipe all tacked up. I am having a buddy TIG it for me.
http://i89.photobucket.com/albums/k2...k/1f531777.jpg |
Your attention to detail is unreal. Amazing work.
|
