you're a funny guy!!!!!!!!!! Just finished plumbing the engine, other than one final line from the filter to the engine. I want to wait and see exactly where the turbo downpipes end up first.

All the in-car and rear of car wiring is done, and everything works. Motor is completely wired along with the trans and paddle shifter. Got a couple friends coming over this weekend to do the downpipes and wastegate pipes, then the front clip can go back on and I can wire the front end. Took a while to figure out how I was going to get to the fuel rails; wanted it clean and there's very little room between the engine and firewall with the engine setback like it is.

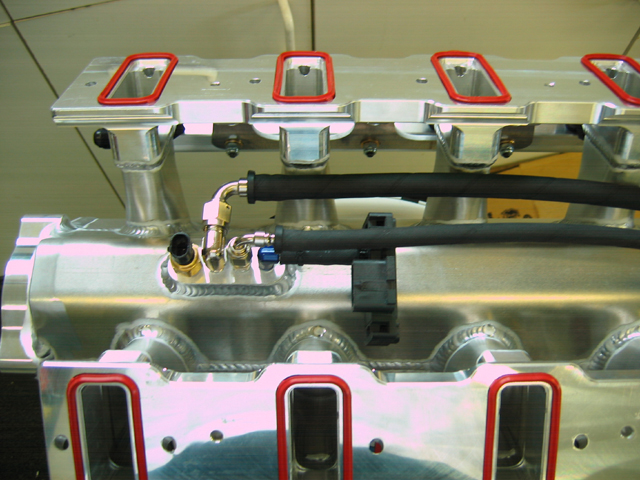

Here's how I plumbed the bottom of the Precision Machine intake. Intake air temp sensor is on the left, then a #6 line for power brakes, #4 for wastegates and boost gauge, and then the map sensor.

http://www.camcojb.com/temp/malitude%20376.jpg

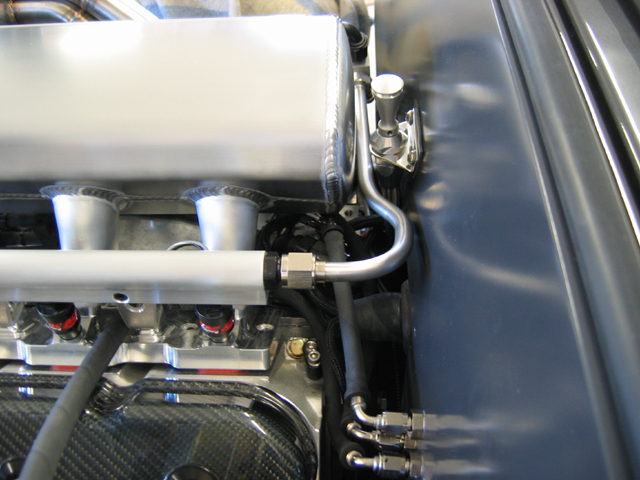

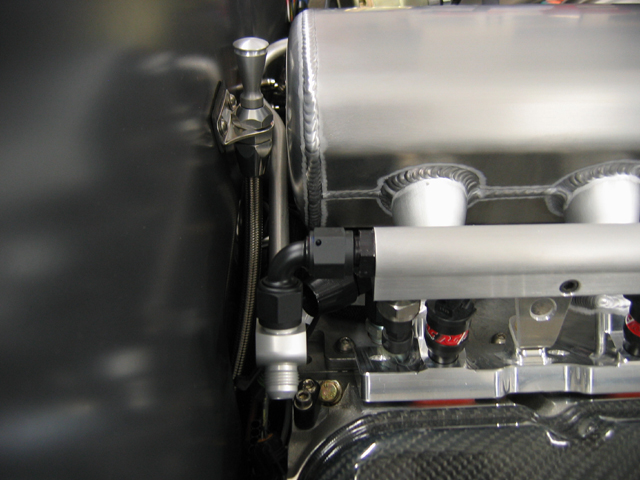

This is the 1/2" stainless hard line I fabbed up to "y" the main line into the rear of the rails. Stainless looks great, but is a pain to work with, next time I'd likely opt for aluminum. It looks crooked in the second pic, but that's the camera angle, it's actually parallel to the back of the manifold. Very close fit.

http://www.camcojb.com/temp/malitude%20386.jpg

http://www.camcojb.com/temp/malitude%20390.jpg

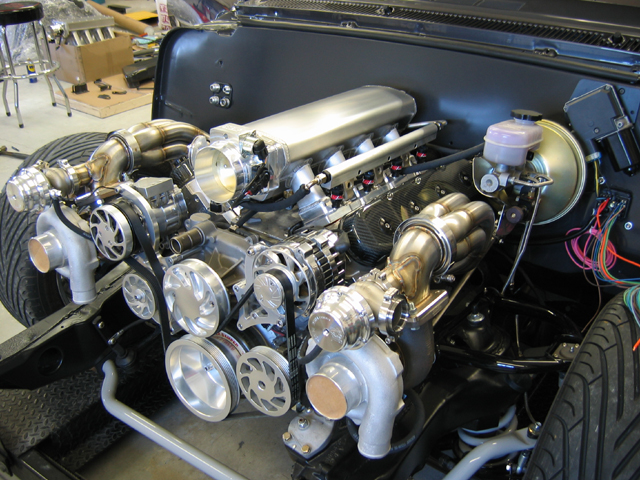

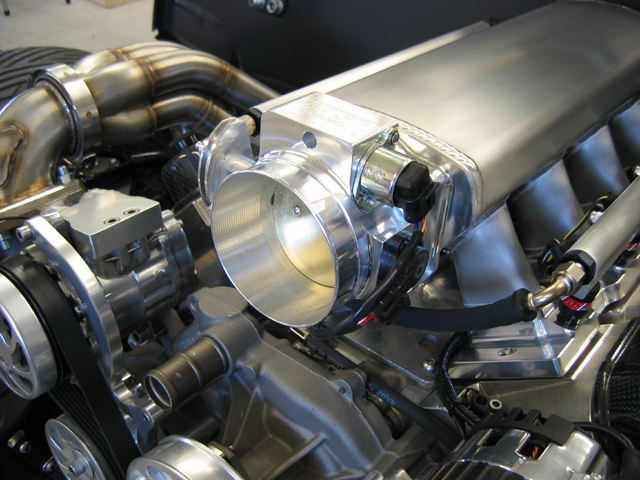

The last couple pics are the engine plumbed and my new Fast throttle body. Very nice piece.

http://www.camcojb.com/temp/malitude%20397.jpg

http://www.camcojb.com/temp/malitude%20399.jpg

Jody

Jody,

You owe me a new keyboard, I just shorted mine from the drool! Very nice!:lateral:

lol what more to say! :woot:


Paul

Looking great Jody! Hey where did you source oil for the turbos?

wow!! very nice work.. :hail:

Looks fantastic!!
Why did you do a cross over tube on the front of the fuel rails? As you know I'm very interested in your fuel system! ;)

Very nice I look forward to these updates.
Wayne

okay i've stared at these pictures long enough it's time to go to bed.

Wow is all I can say

Wow, looks great.

Just because. I've run them both ways, this time the crossover hose holds the iac/tps wiring up and makes it a bit less noticeable.

Jody

What hose system are you using? I like what I see!!

Xrp nickel fittings with black push-lock hose.

Jody

where you going to put the coils?

coils are going in the inner fenderwells, between the fenderwell and firewall.

Jody

^
^
^
new role model. :willy:

Kick ass, Jody. :bow:

I see the other intake in the background. The Hogan's is bad ass, but what a difference.

http://www.camcojb.com/temp/malitude%20397.jpg

That looks awesome Jody:hail:

THAT is just first class all the way...great taste on the interior, really ties it together nicely...what a beautiful car.:cheers:

on your website it says something about traction control, was that something that was added during the magazine time? care to speak a little more about that?

I have a RaceLogic traction control system I will be installing; have it here, but not installed yet. Will be easier due to the ATS fron spindles which have sensors already, so only have to mount the rear sensors and wire it up.

That sounds like a cool project you can do in your "spare time"...ya know when you are bored!! :lol:

Are you ready for the weekend...it should be totally tubular!!

yes, I get it................... tubular, doing exhaust tubes................ :D Yes, when this is done I'll be a happy man.

Jody

Your car just looks incredible. Looks like all your other projects helped you decide what you really want, and then you went and did it. I will be very interested to see how the RaceLogic system works. Keep us posted. Killer job Jody.

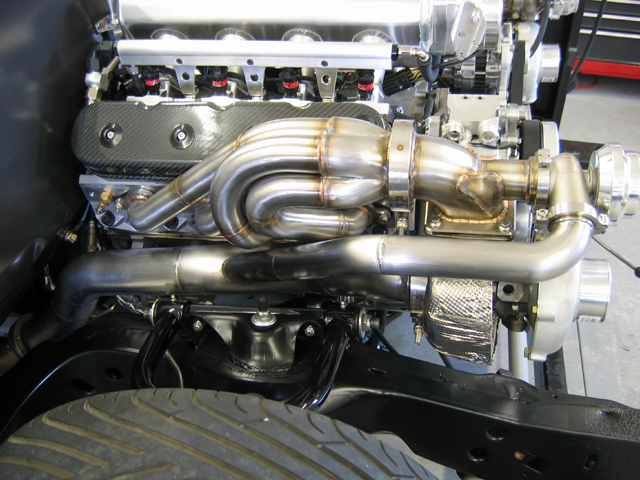

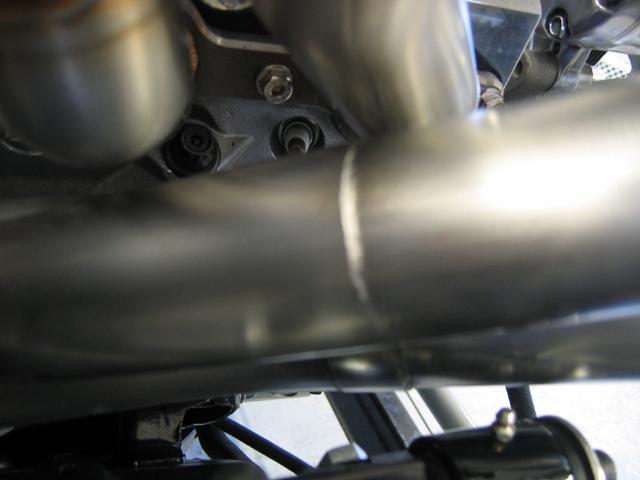

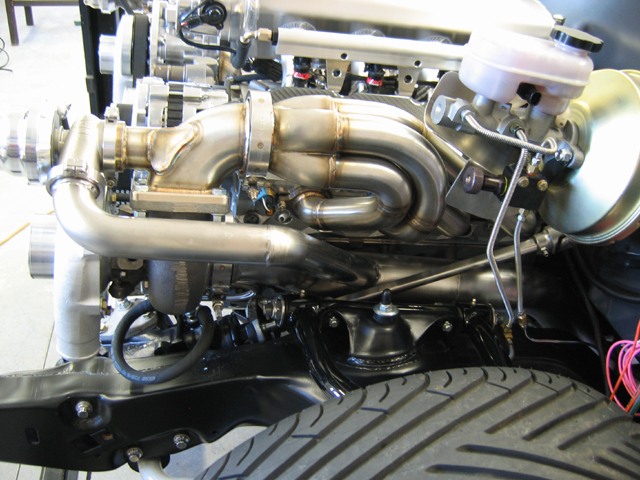

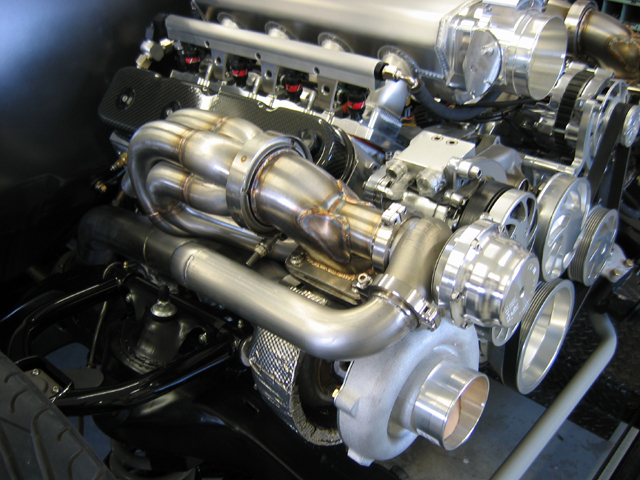

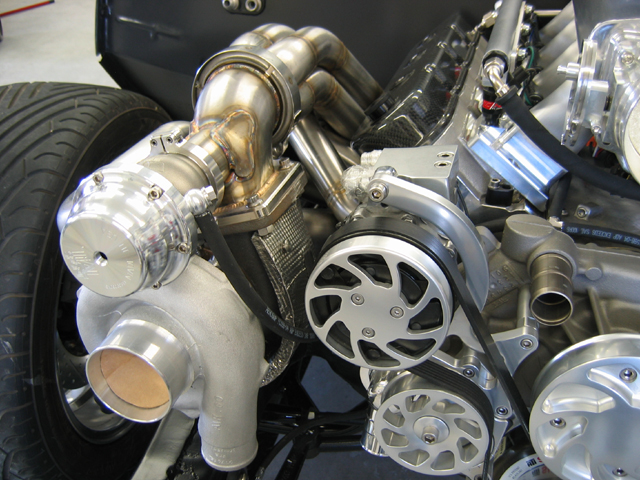

exhaust is done. Got a couple friends to come over Saturday; Troy (blown353 on the board) and his buddy (and now mine) Clint from Allied Machine Welding. They were there until 1:00 a.m. but got the downpipes and wastegate pipes completely done.

http://www.camcojb.com/temp/malitude%20424.jpg

http://www.camcojb.com/temp/malitude%20440.jpg

http://www.camcojb.com/temp/malitude%20431.jpg

http://www.camcojb.com/temp/malitude%20433.jpg

http://www.camcojb.com/temp/malitude%20439.jpg

I really like the turbo wrap.

ps - looks like i am going to copy more stuff

Jody that is looking really killer! Love the turbo blanket and the shield for the master cylinder...:thumbsup:

Looks great!! I'm sure you guys had a great time and the day just flew by!!

Jody car's coming out killer!!!!!! awesome job.. Hope to see it on the tour
We are using a traction control system in 1 of the G-max 66 chevelle's. Very interested in trying one of these out

The turbo wrap looks aircraft spec, years ago my first turbo job was on a small twin 6 seater and the wrap was a major pain to safety wire.

Very nice clean looking build.

color


Jody about a year ago I painted my car a new Lexus color "Smokey Granite Mica"..........I am wondering if its the same color..?
Cant tell by pictures but it looks the same....

Incredible Jody.

The turbo wrap is used in the aviation industry alot. Dealt with them being an aviation mechanic for many years.

this color is a BMW offering, called sparkling graphite. It does have mica/pearl in it.

Jody

thanks guys for the kind words. It's coming together, but time is getting short. I'm beat, been at this 6-12 hours a day, every day since it was painted.

Jody

Looks awsome! Hope to see it in person some day!

Don't femnine on us now Big Chief!! Get to work.

:lol:

Your hard work is definitely showing...just hope your not "feeling" it. 6-12 hours a day. :thumbsup:

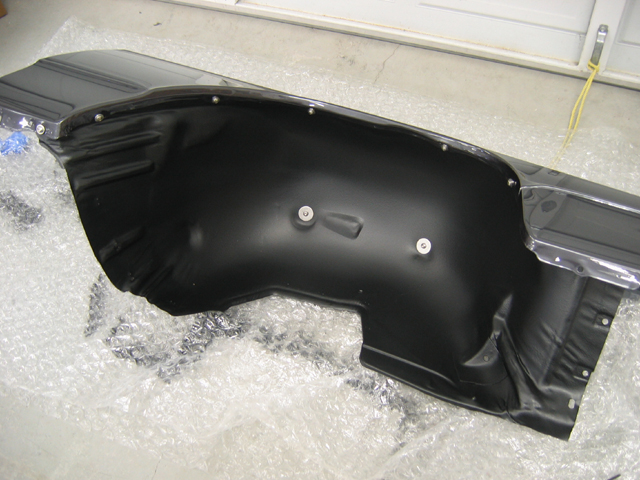

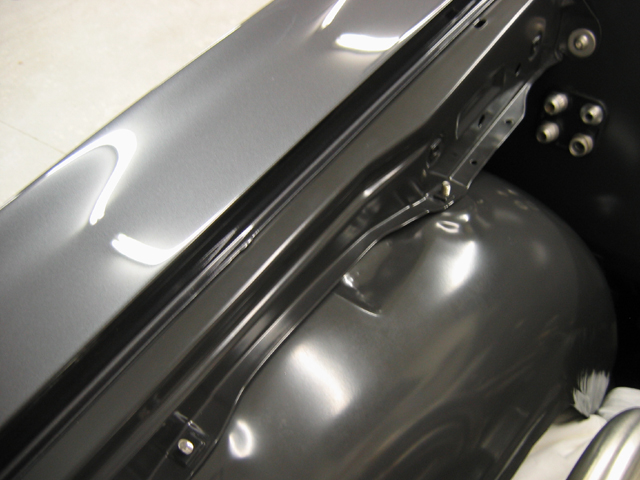

well, finished up the turbo water and oil lines. Need the front clip on to finish the oil filter and trans lines, so I hung a fender tonight. Started by undercoating the fender with some Wurth coating. Has a great texture.

http://www.camcojb.com/temp/malitude 449.jpg

http://www.camcojb.com/temp/malitude 450.jpg

Hey, starting to look like a car.....................

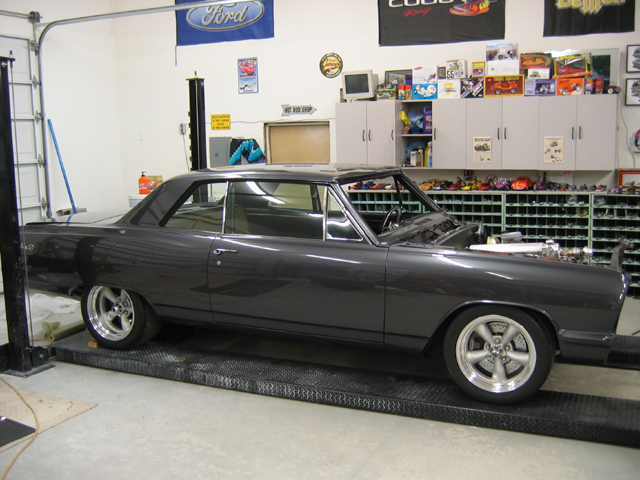

http://www.camcojb.com/temp/malitude 452.jpg

http://www.camcojb.com/temp/malitude 453.jpg

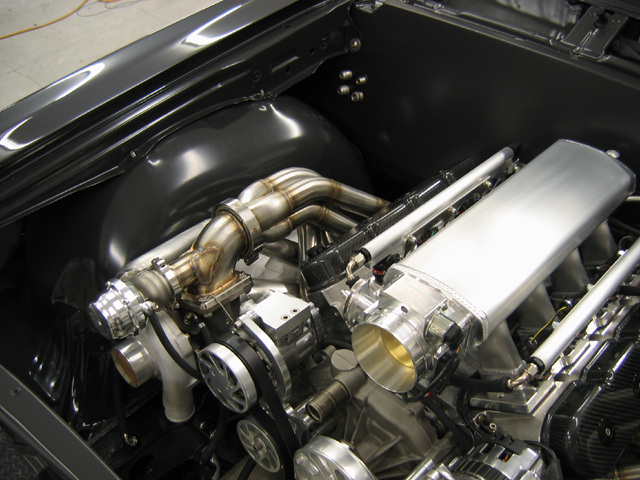

http://www.camcojb.com/temp/malitude 454.jpg
