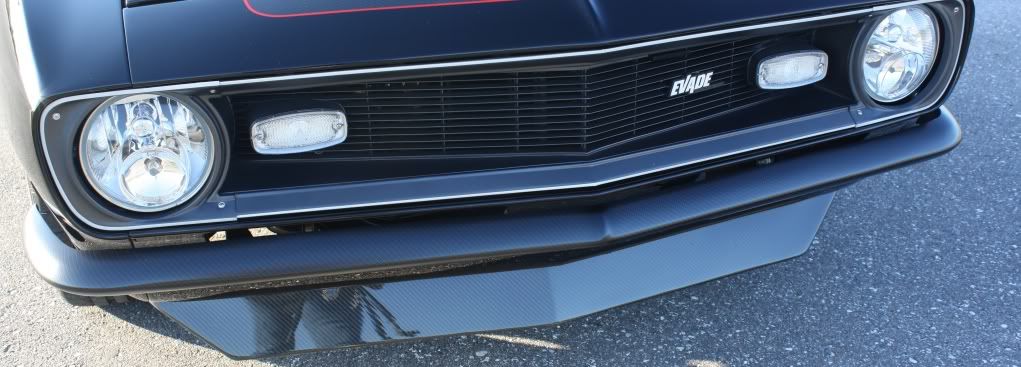

C F Bumpers


C F Bumpers on "Evade" by Tom Argue Design

http://i700.photobucket.com/albums/w...1/IMG_0140.jpg

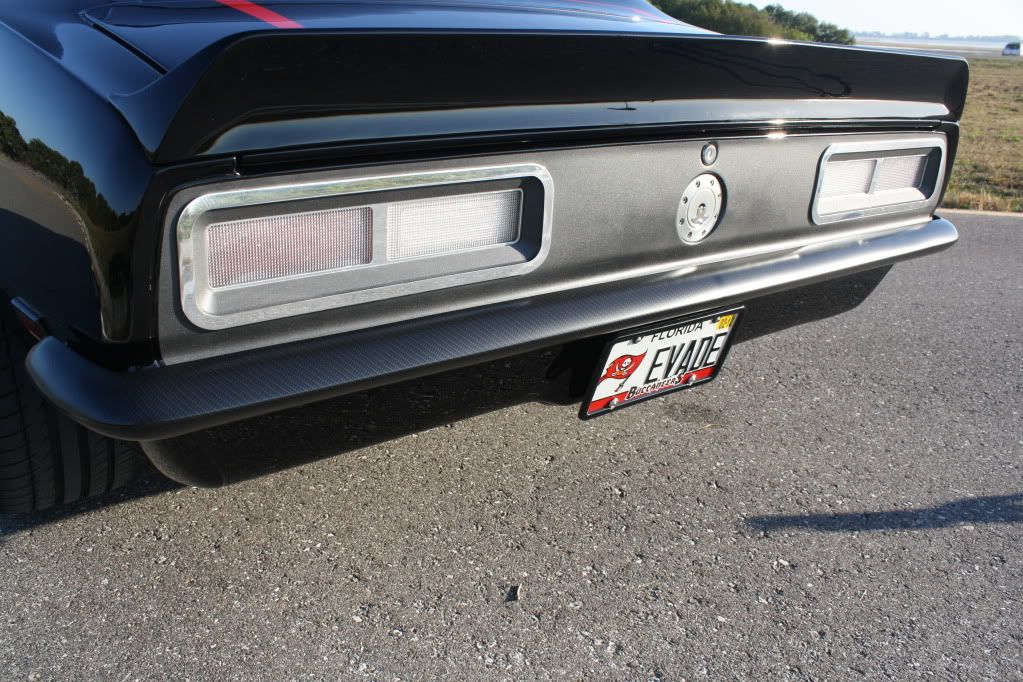

http://i700.photobucket.com/albums/w...1/IMG_0157.jpg

Bill - Looks very nice

Thanks Marty! Here ya go!
http://i700.photobucket.com/albums/w...1/IMG_0142.jpg

"What are we going to do tonight, Brain? The same thing we do every night Pinky, try and take over the world!"

With these further additions, it looks like Evade will continue its world domination of the 'SuperBadd '68 Camaro' category. :unibrow:

Thanks Skip!
a little tweak here and there you never know what could be next:cool:

Evade looks Killer Bill. Love the new wheels and bumpers. :thumbsup:

What Ryan said here. Looks great Bill.:thumbsup:

Updates


Sorry to hear that Bill, seems kind of early for the tranny to let go.

I've heard nothing but good things about the T56 Magnum, maybe look into one of those.

No tunnel mods, just had to cut the shifter hole further back. Mine is a standard T56 from an 2002 Camaro. I recently rebuilt it with a stage II kit from the Gearbox Co. And installed a new Spec Stage 3+ clutch

For the money I spent rebuilding it I should have just gone with the T56 Magnum.

Thanks Ryan!
BTW what cross member did you use was it the ATS?
because I currently have the Full Speed Tech Subframe

Yes ATS X-member, stock subframe. Your Speedtech frame should be fine. I'd check with Blake.

Bill, if you swap to a T56 Magnum, be sure to get some measurements on where the shifter will end up being located. It is about three inches further forward on a Magnum than an LS1 F Body T56. Not sure how those compare to a TKO. You might end up having to redo part of your center console, so be careful.

Matt

The speedtech frame has a pretty neat adjustable cross member, you shouldn't have any problems.

That's what's in my car now.

Can someone tell me what kind of seats this car is using?

Hi ATV !
The front seats are C-4 Corvette 1994 THRU 1996 the rear was custom made to match fronts
Thanks,
Bill Panouses

Bill where the heck you been??

Hey Mario! Well Ive been busy with work crazy :headspin:
Look for updates on the Evade with the T-56 Swap! :burnout: will be posting
Bill

Project Evade Upgrades from TKO-600 to Tremec T-56 Magnum


“To improve is to change; to be perfect is to change often”
A few months ago I finally pulled the trigger and decided to upgrade and install the T-56 Magnum here listed is the complete install
"Installation by Tom Argue Design"
Parts List:

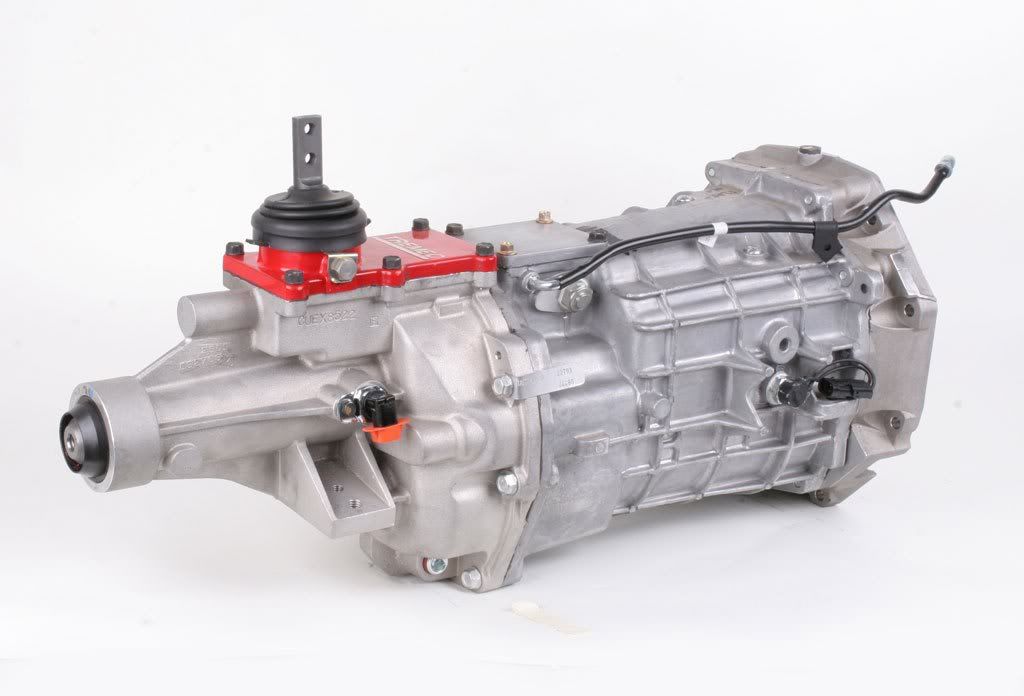

T-56 Magnum Transmission # TUET11009
GM
Engine LS
Torque Capacity:700(lb-ft.)
Speedo Type Mech/Elec
Spline Count: Input / Output 26 / 31
Gear Ratios
1st 2nd 3rd 4th 5th 6th Rev
2.66 1.78 1.30 1.00 .80 .63 2.90

http://i700.photobucket.com/albums/w...all/IMG-1b.jpg

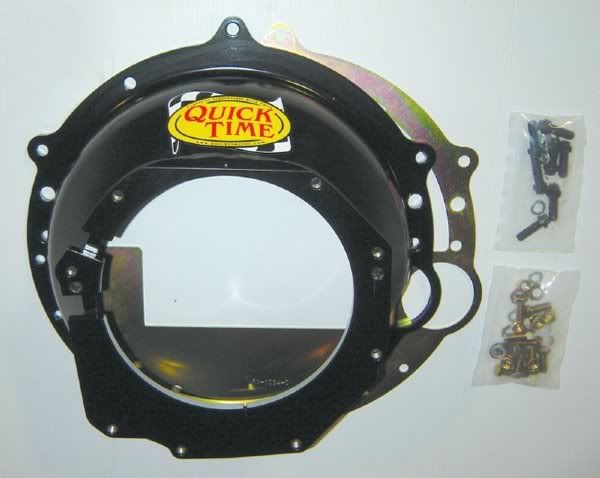

QuickTime Bellhousing Chevy LS to T56 # RM-8020
http://i700.photobucket.com/albums/w...ll/IMG-30a.jpg

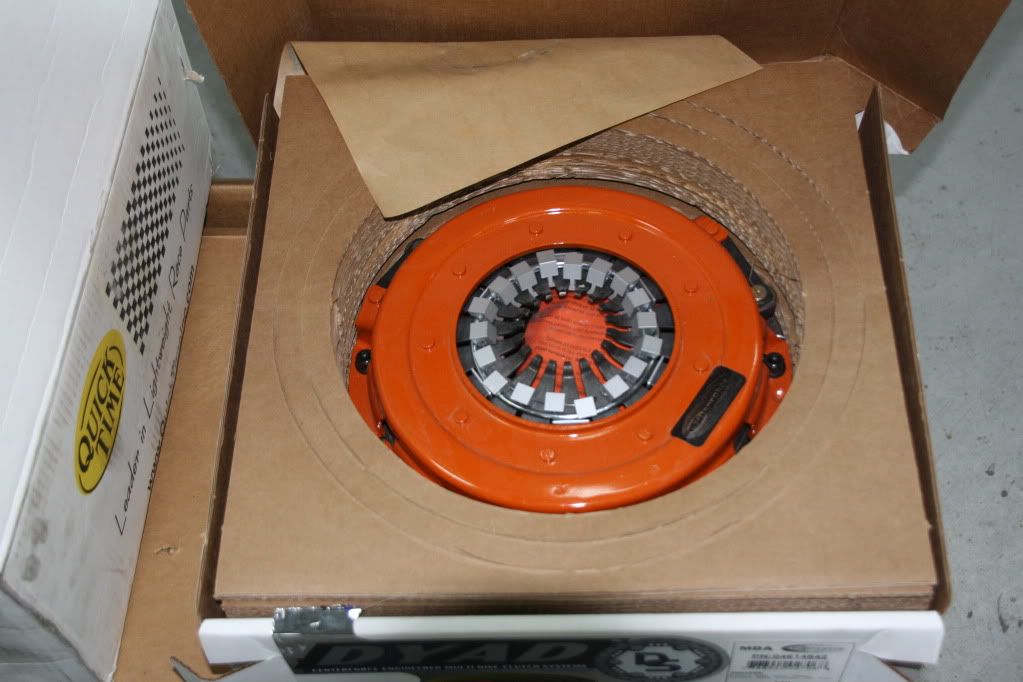

Centerforce New DYAD Clutch and Presser plate # 04614842
http://i700.photobucket.com/albums/w...ll/IMG_001.jpg

GM Performance Hydraulic throw-out bearing #24264182
http://i700.photobucket.com/albums/w...ll/IMG-30b.jpg

Parts for upgrade T-56

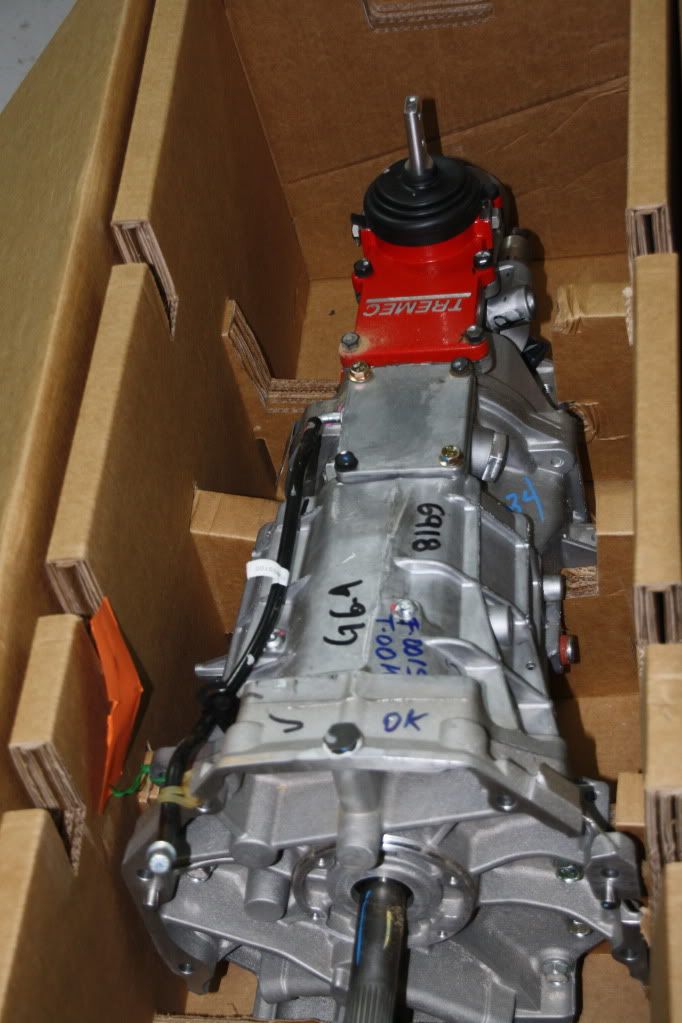

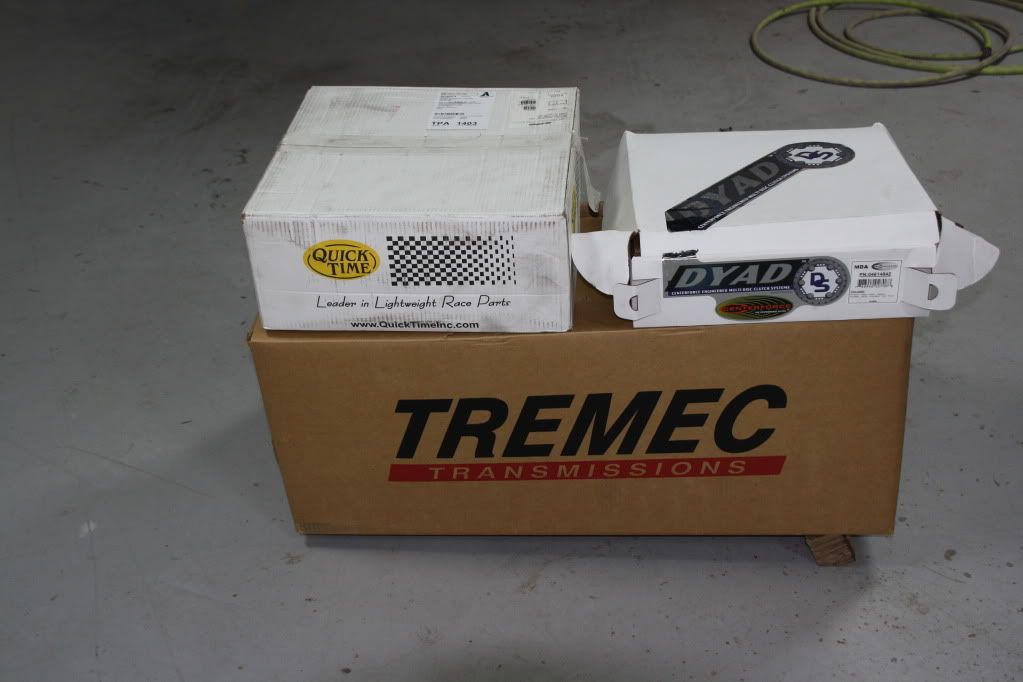

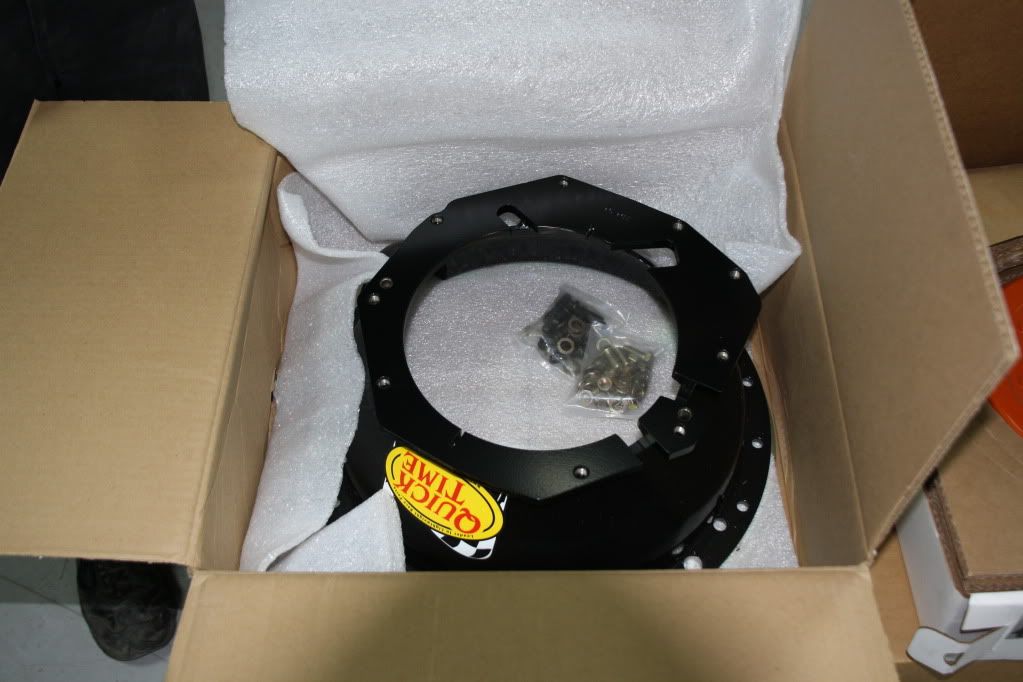

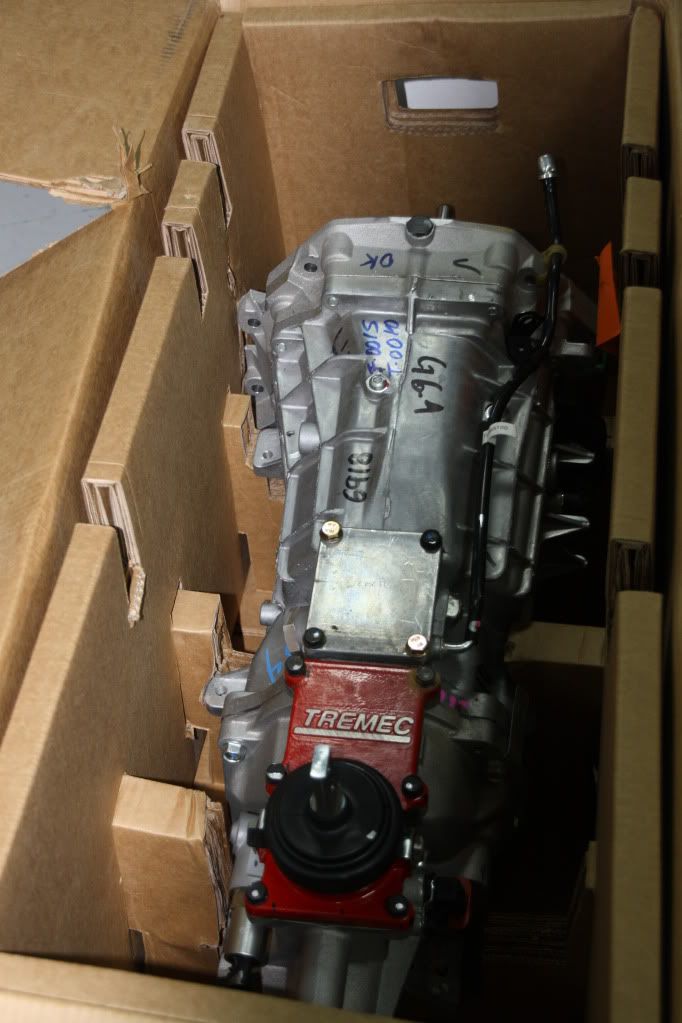

Here are the Parts that had arrived !!

http://i700.photobucket.com/albums/w...tall/IMG-2.jpg

http://i700.photobucket.com/albums/w...tall/IMG-5.jpg

http://i700.photobucket.com/albums/w...tall/IMG-6.jpg

http://i700.photobucket.com/albums/w...tall/IMG-3.jpg

http://i700.photobucket.com/albums/w...tall/IMG-4.jpg

Project Evade Upgrades from TKO-600 to Tremec T-56 Magnum

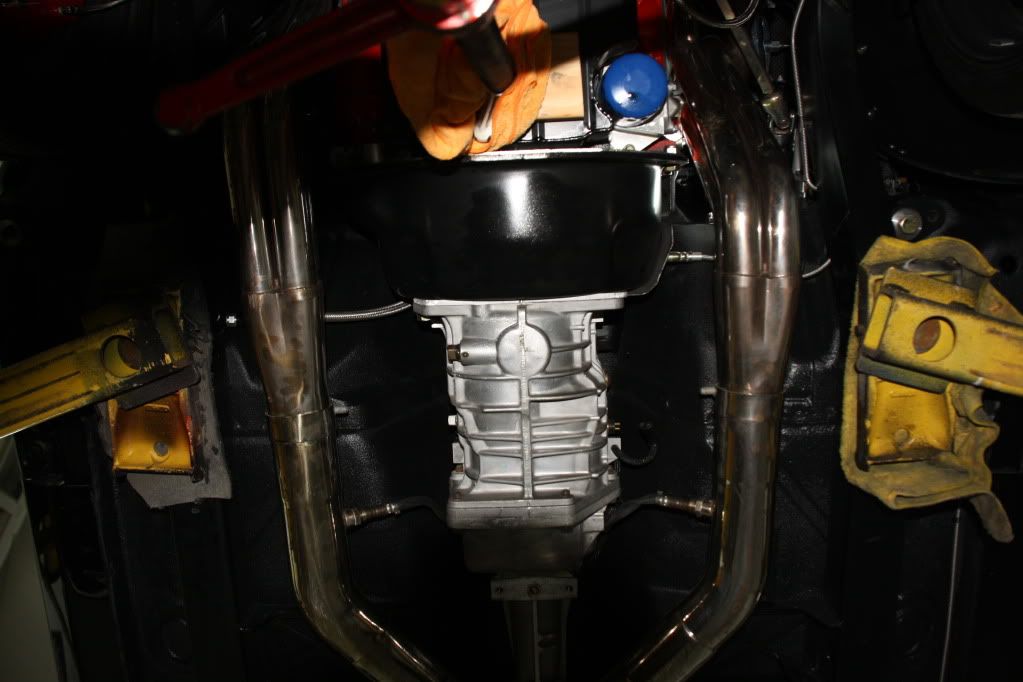

Here is the TKO before taken out

http://i700.photobucket.com/albums/w...all/IMG-11.jpg

http://i700.photobucket.com/albums/w...all/IMG-10.jpg

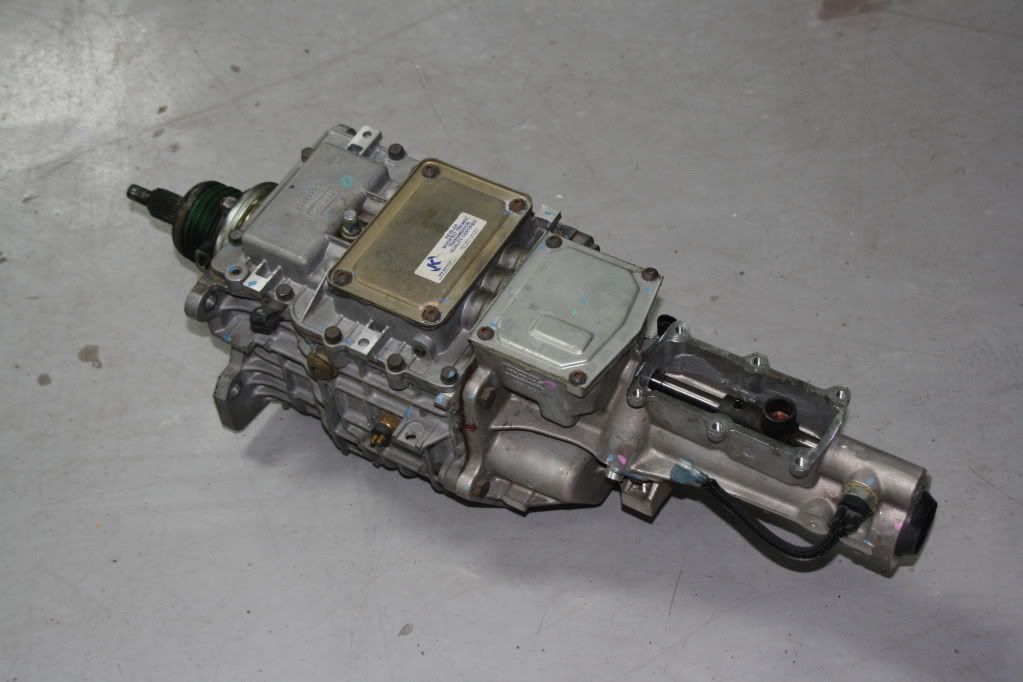

Here is the TKO out of the car!

http://i700.photobucket.com/albums/w...all/IMG-12.jpg

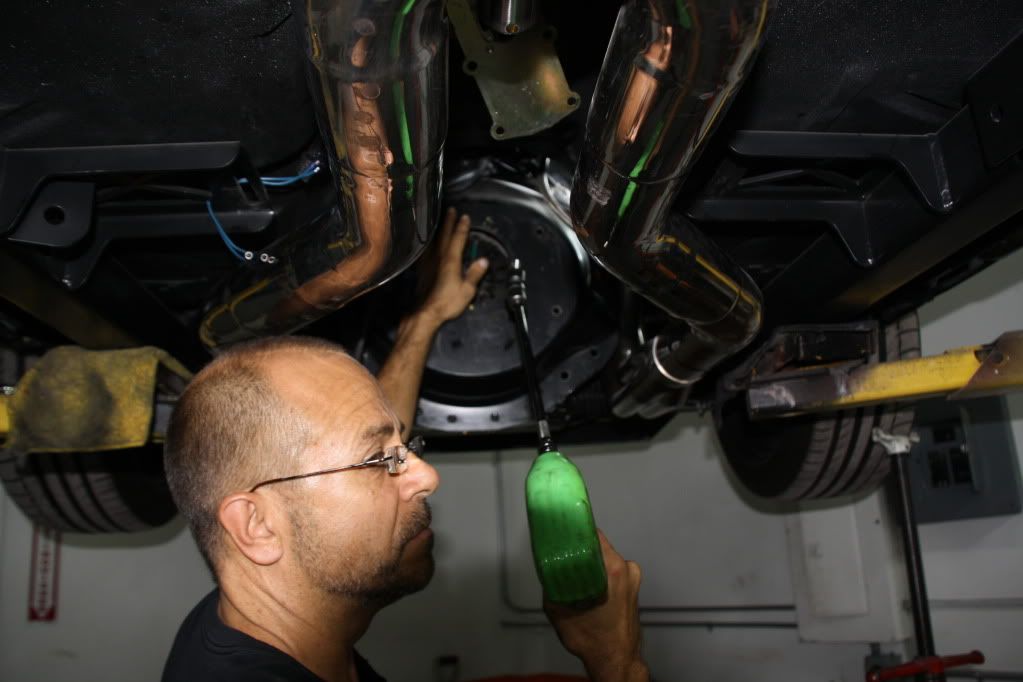

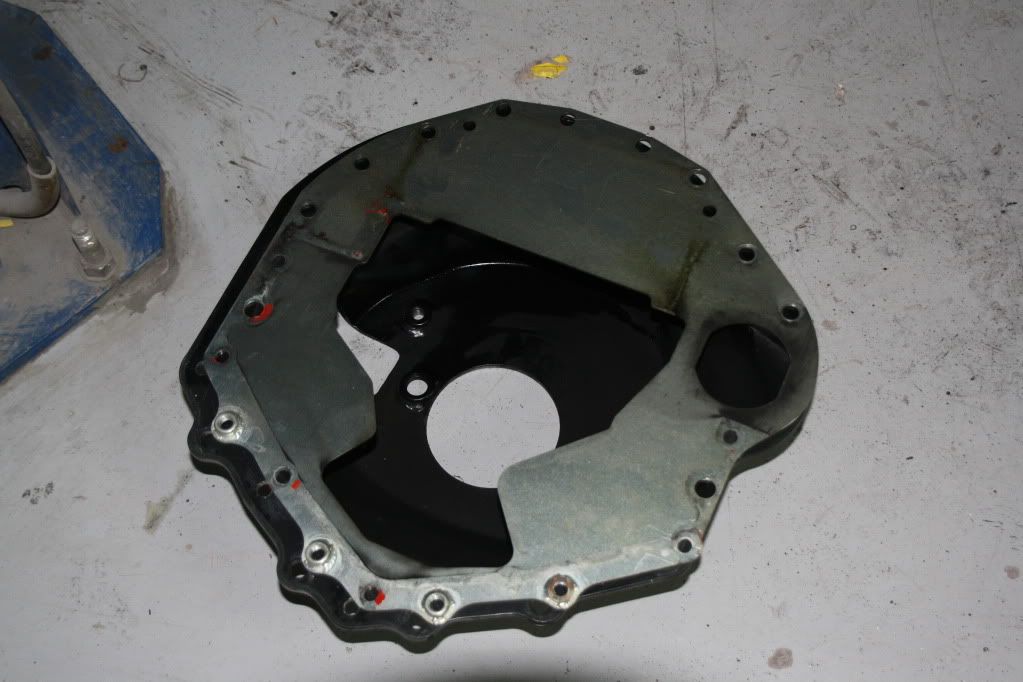

Removing the old Lakewood bell-housing

http://i700.photobucket.com/albums/w...all/IMG-13.jpg
http://i700.photobucket.com/albums/w...all/IMG-21.jpg

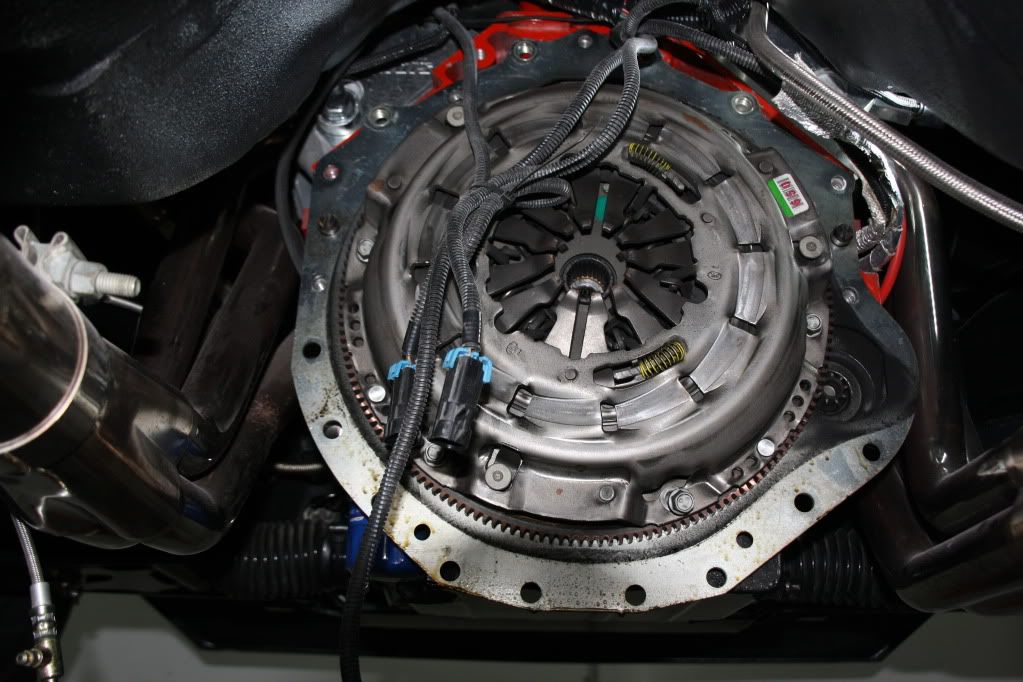

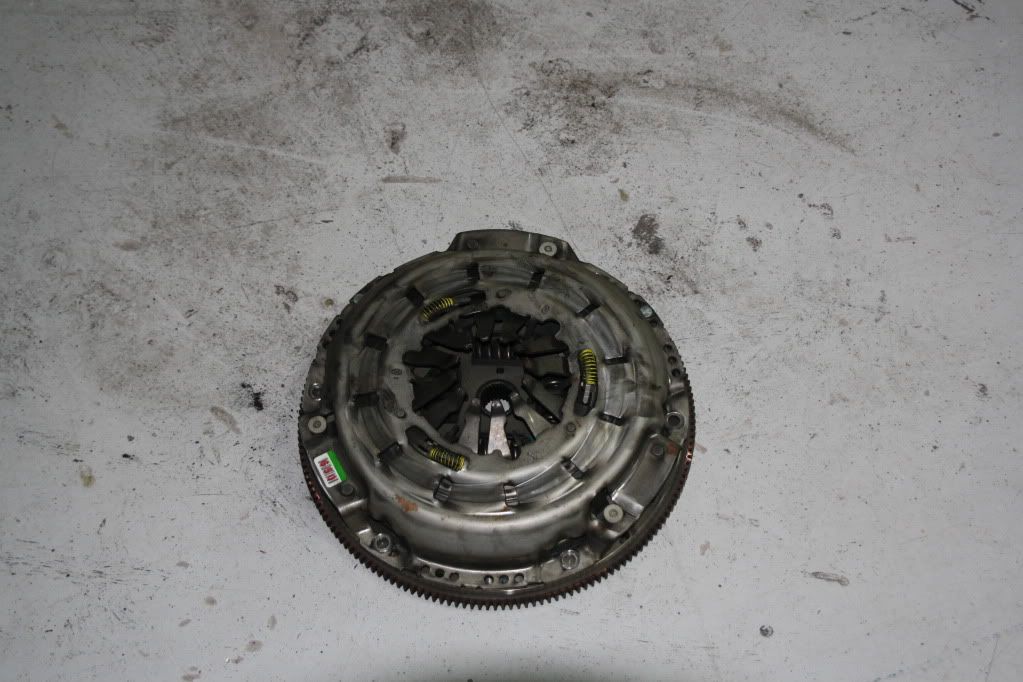

Removal of the GM Clutch and Pressure plate and Flywheel

http://i700.photobucket.com/albums/w...all/IMG-15.jpg

http://i700.photobucket.com/albums/w...all/IMG-20.jpg

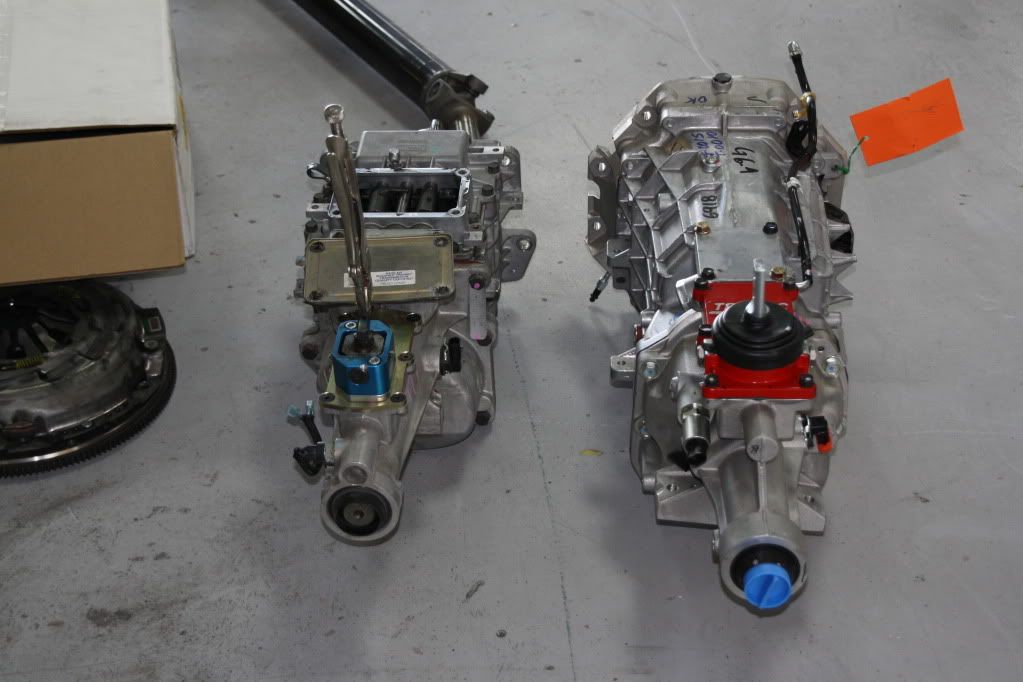

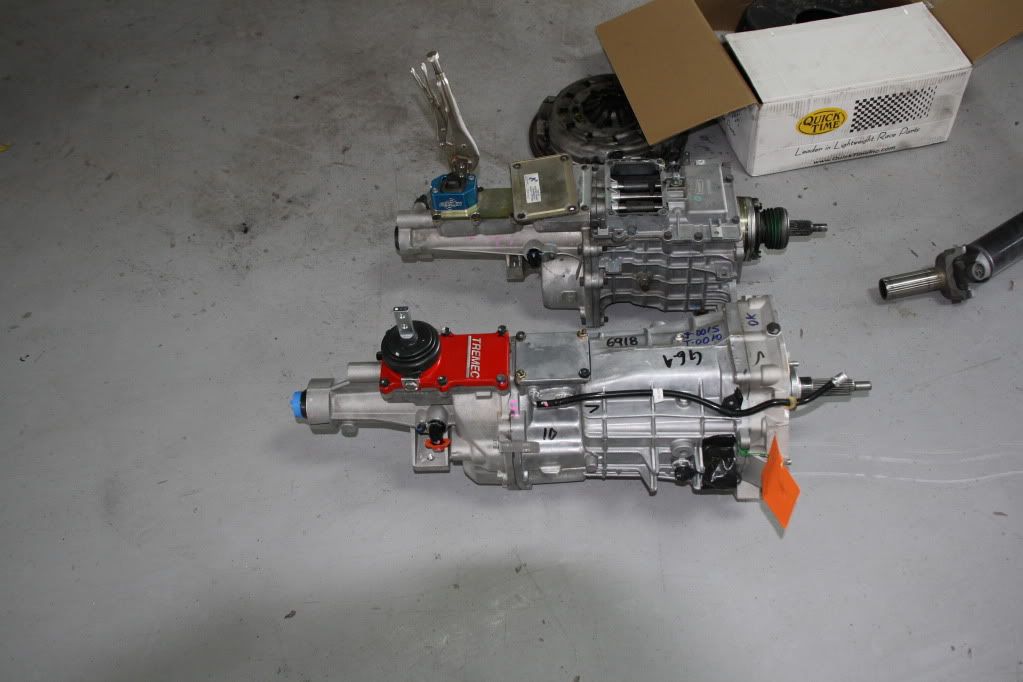

The new T-56 next to the TKO
http://i700.photobucket.com/albums/w...all/IMG-22.jpg
http://i700.photobucket.com/albums/w...all/IMG-23.jpg

Evade Upgrades from TKO-600 to Tremec T-56 Magnum


Getting the T-56 ready for install i did a lot of research for installing T-56 without Tunnel modifications ... The T56 is a larger transmission than your stock transmission. and the TKO If you are using the proper LS motor mount kit, the LS T56 will fit in the tunnel of the 1967-1974 Camaros without having to cut or enlarge the tunnel.
Note: If you are using incorrect LS motor mounts, if you have shorter, non-stock sub-frame bushings, or if your stock bushing are worn and compacted, the T56 may not fit within your tunnel without modifications

With having the Complete Speedtech sub-frame- LS Motor mounts and the Solid body mounts the T-56 fit like a glove !

Evade Upgrades from TKO-600 to Tremec T-56 Magnum

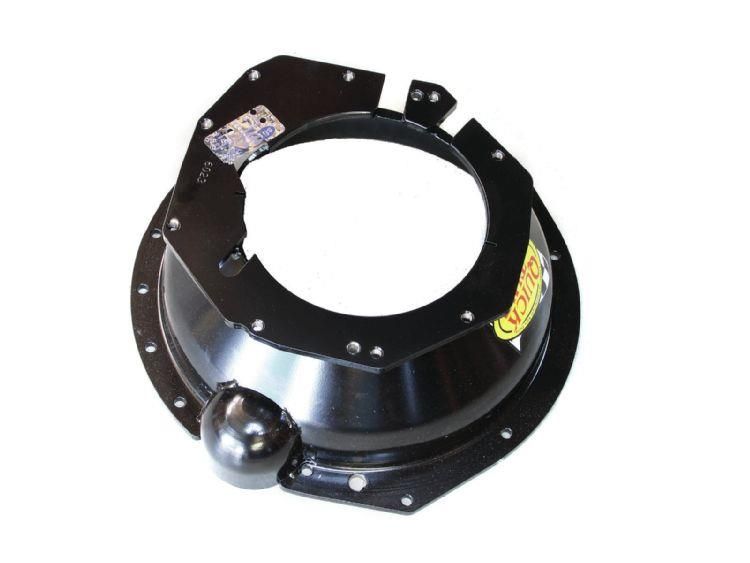

We changed the lakewood bellhousing to this SFI-approved Quicktime scattershield. The main benefit here is that its compact design takes up less space in our already crowded trans tunnel.

http://i700.photobucket.com/albums/w...cktimebell.jpg

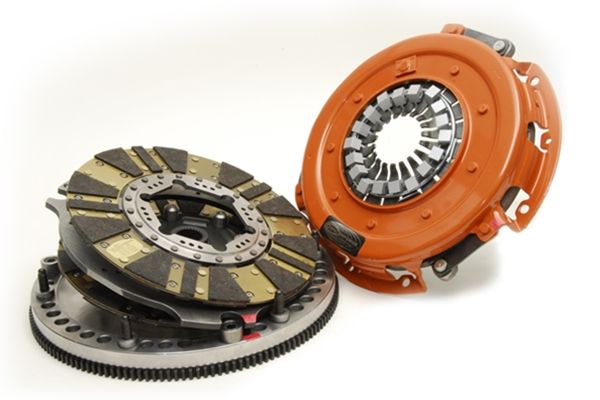

The new DYAD DS twin-disc Part # 04614842

http://i700.photobucket.com/albums/w...ll/IMG_001.jpg

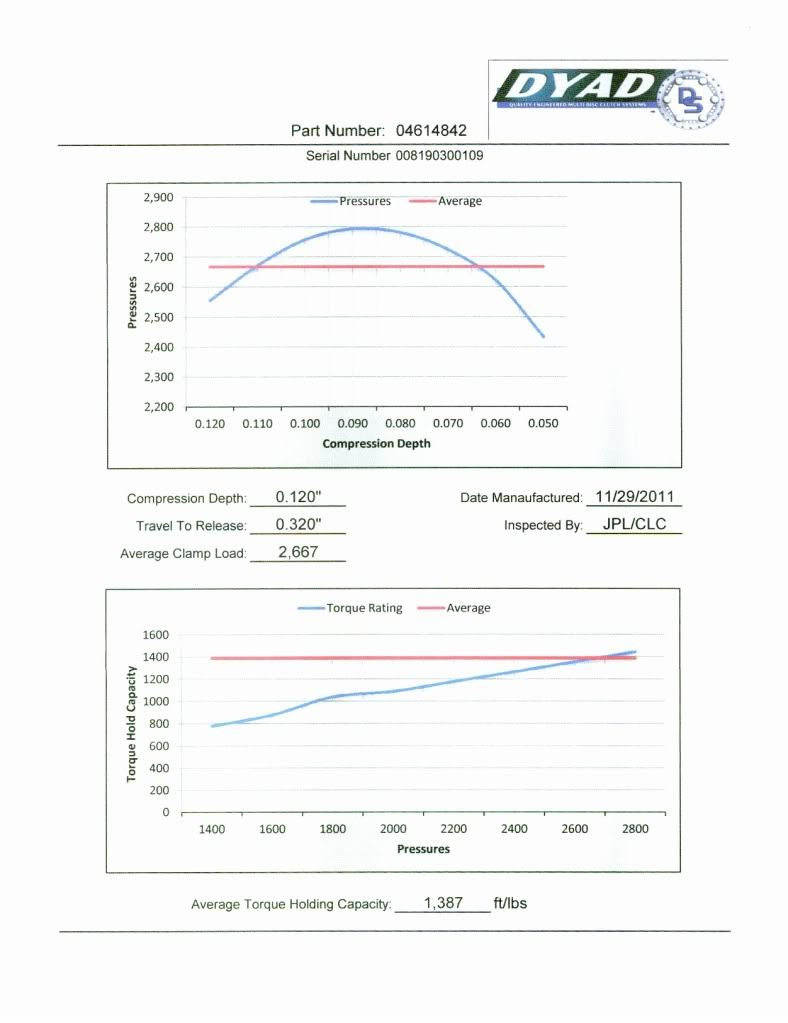

Every DYAD DS clutch that ships from Centerforce comes with what they call a “birth certificate” specific to that unit. It gives all sorts of helpful data like compression depth, travel to release, average clamp load, and most importantly, the average torque holding capacity. In our case it’s 1,387 pounds.

http://i700.photobucket.com/albums/w...HSPECS-1-a.jpg

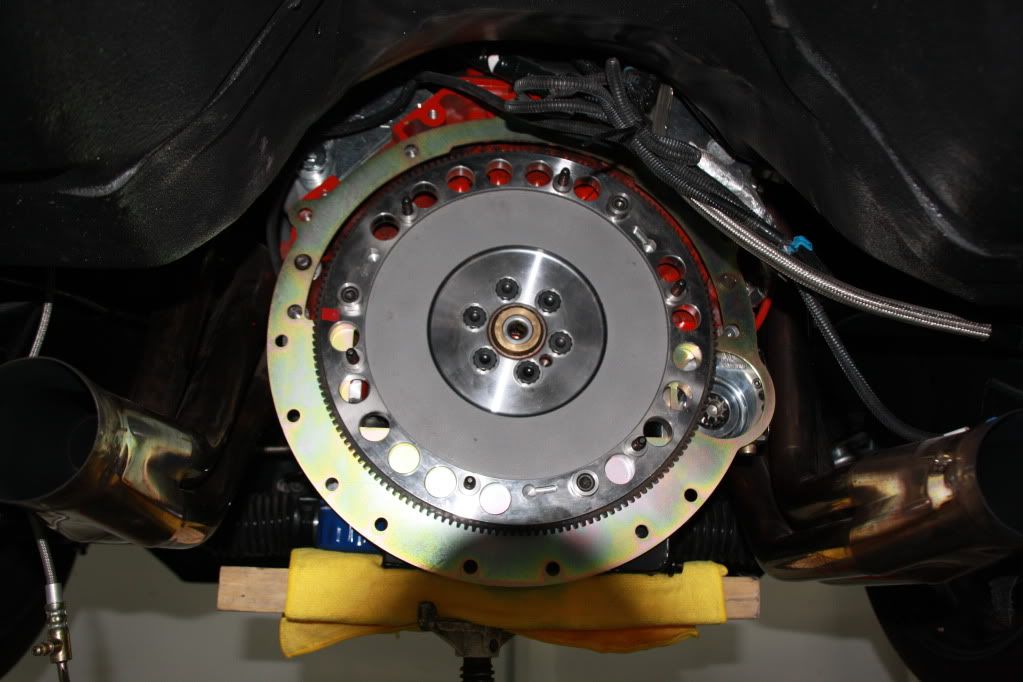

Centerforce’s solution was to lighten up a steel flywheel. By removing weight from the outer edge, the flywheel gains much of the benefit found in an aluminum flywheel.....“The entire assembly weighs 45.8 pounds!

http://i700.photobucket.com/albums/w...all/IMG-24.jpg

The DYAD DS is a ‘true sprung’ hub design with the main drive disc built from chromoly steel. The drive disc also has over an inch of spline engagement for stability and strength.

http://i700.photobucket.com/albums/w...all/IMG-25.jpg

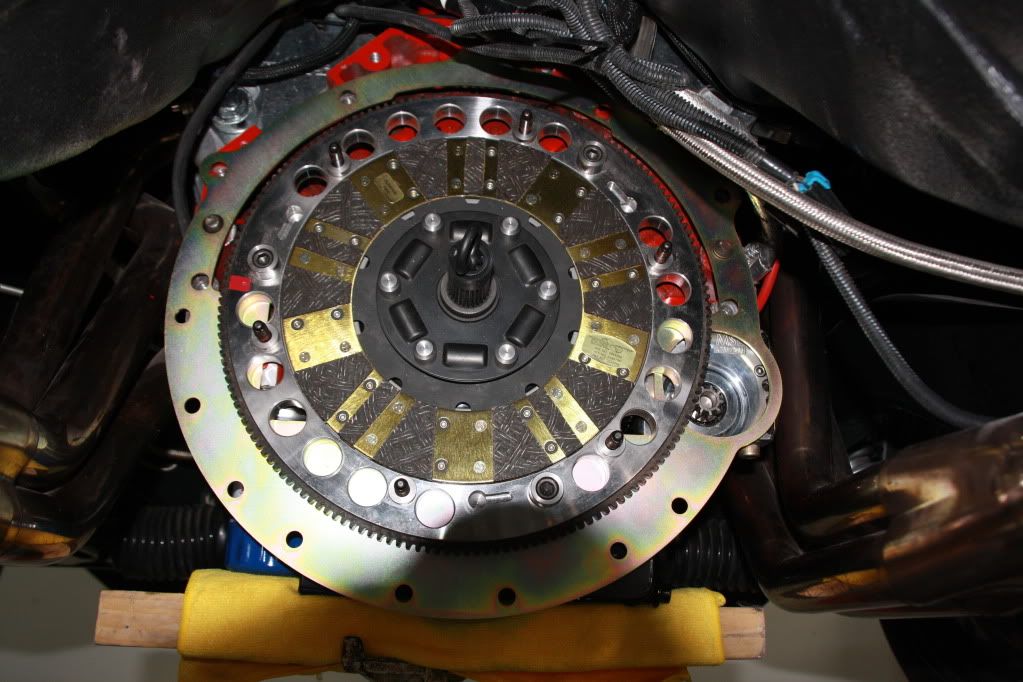

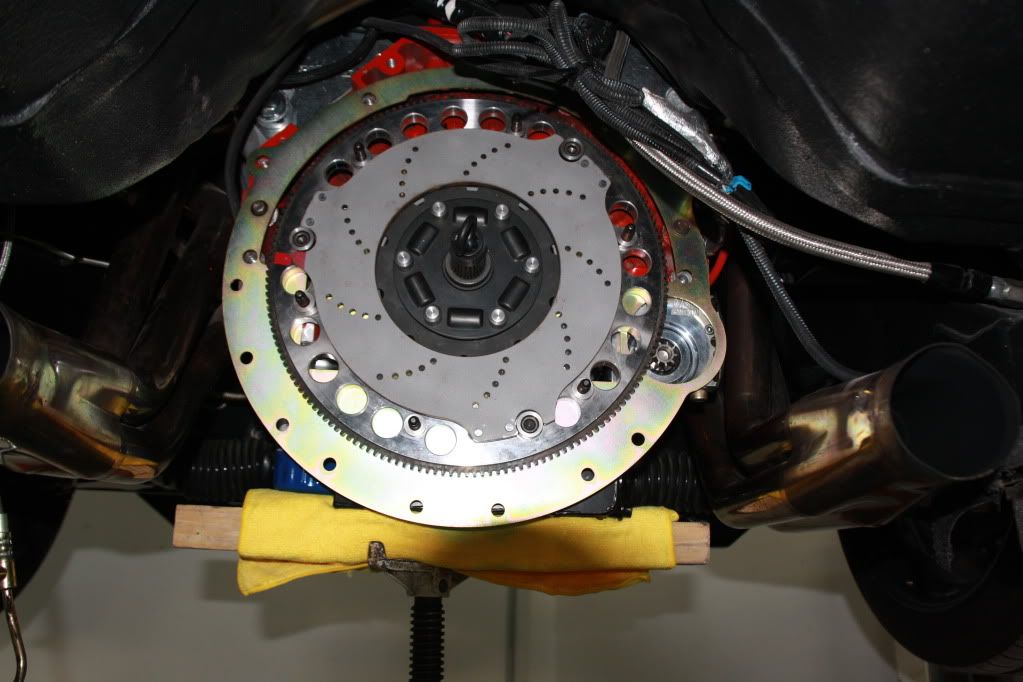

The floater then went on and was held in place by the three lugs on the flywheel. Centerforce marked both of these parts with machinist’s ink to let us know how to orientate them.

http://i700.photobucket.com/albums/w...all/IMG-26.jpg

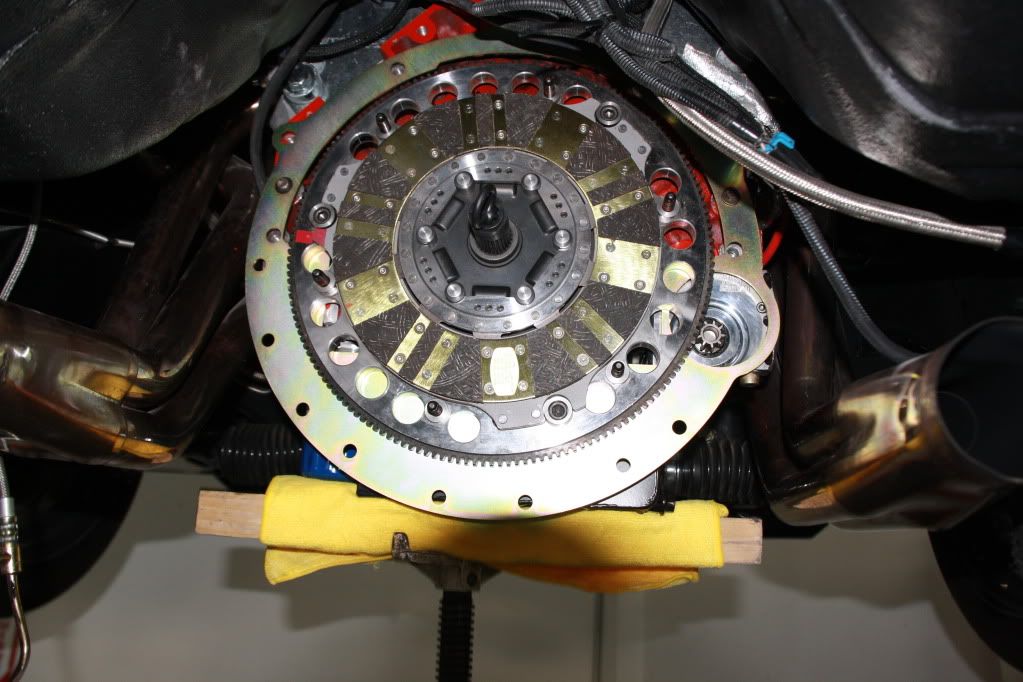

The floating disc is held by six drive pins rather than on the input shaft of the transmission. This meant aligning the clutch parts was a snap.

http://i700.photobucket.com/albums/w...all/IMG-28.jpg

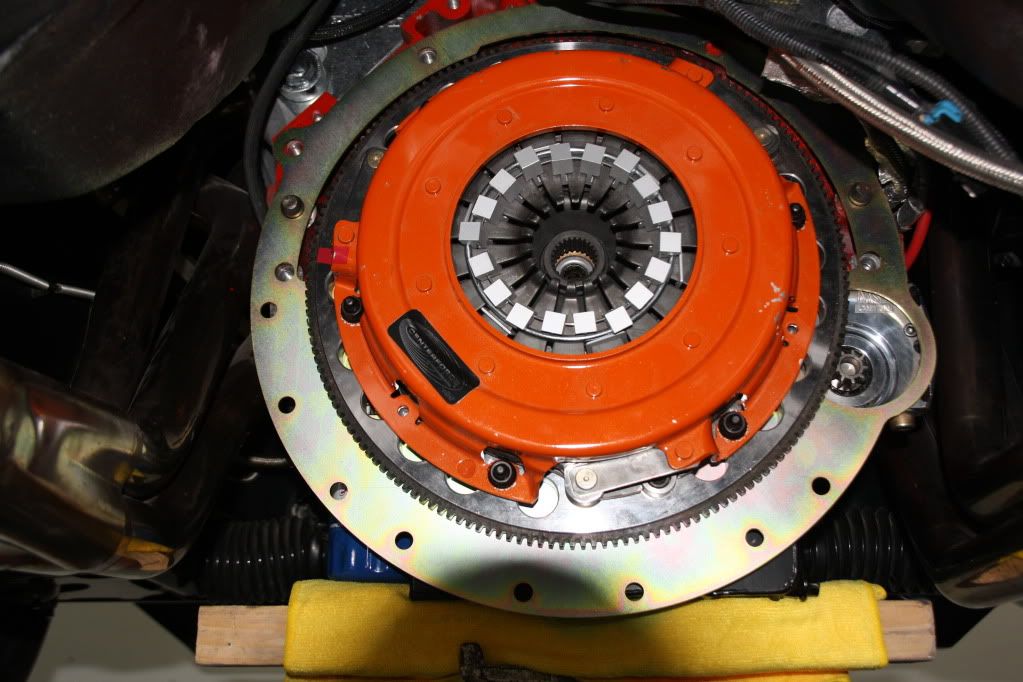

With all the discs in place, Tom could go ahead and install the pressure plate and secure it with the included high-strength fasteners.

http://i700.photobucket.com/albums/w...all/IMG-29.jpg

Evade Upgrades from TKO-600 to Tremec T-56 Magnum

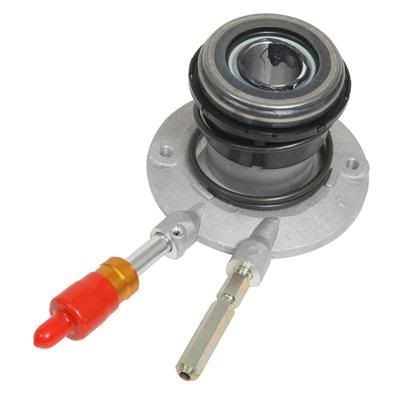

Before Stuffing the T-56 into the Evade Camaro we installed a new GM Performance Hydraulic throw-out bearing part #24264182

http://i700.photobucket.com/albums/w...ll/IMG-30b.jpg

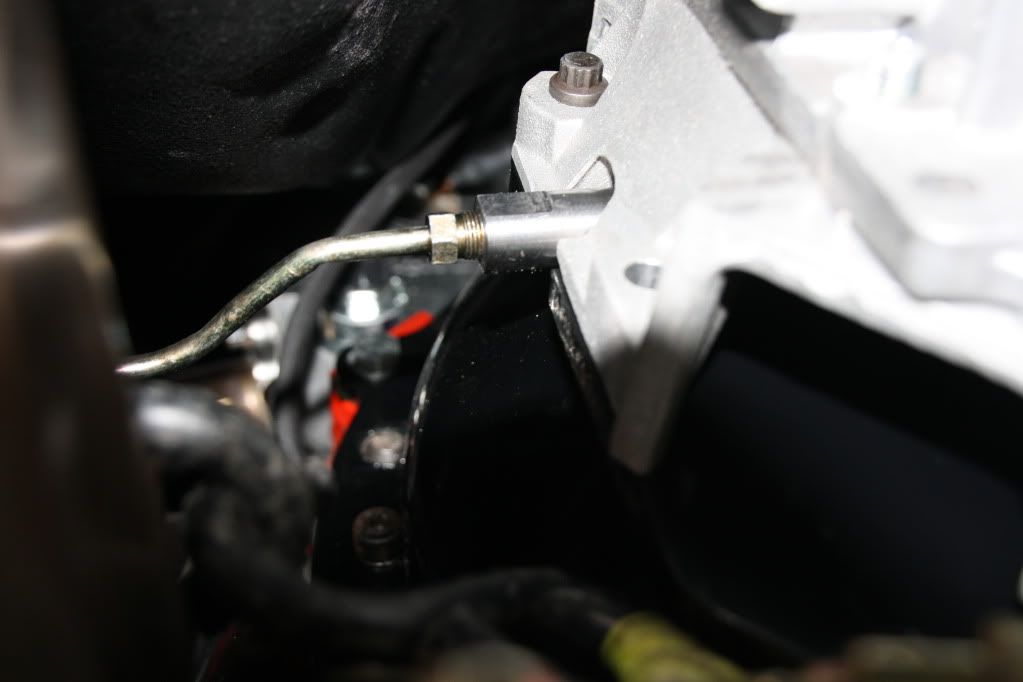

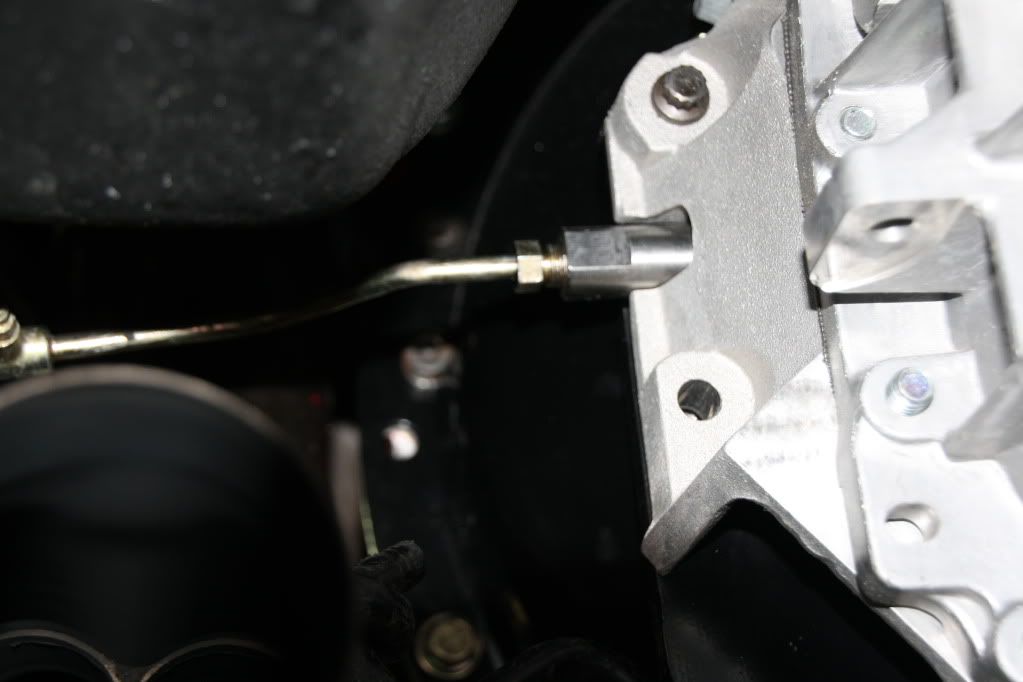

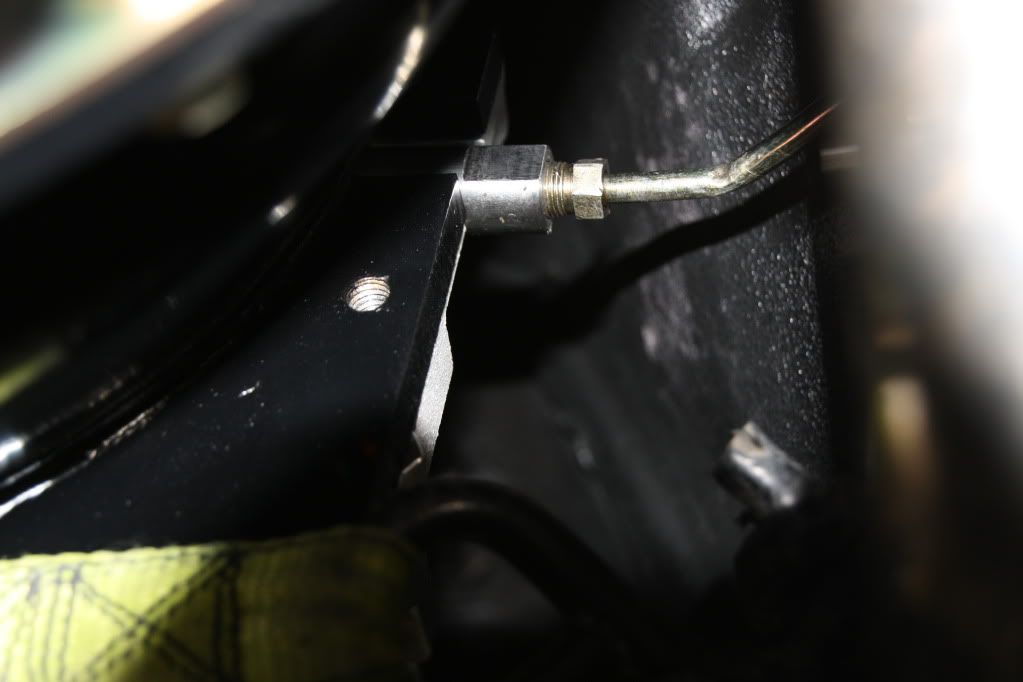

In order to connect the current Hydraulic line Tom had Custom made a billet slave insert to connect the line

http://i700.photobucket.com/albums/w...ll/IMG-30d.jpg
http://i700.photobucket.com/albums/w...ll/IMG-30e.jpg

http://i700.photobucket.com/albums/w...ll/IMG-30f.jpg

Evade Upgrades from TKO-600 to Tremec T-56 Magnum

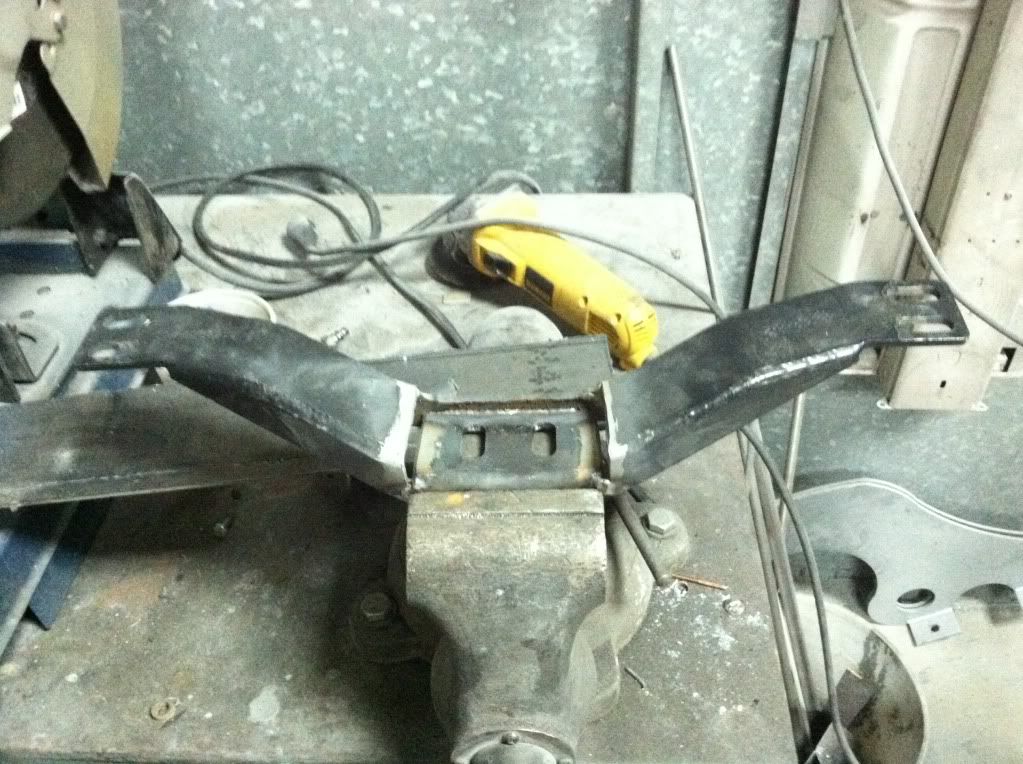

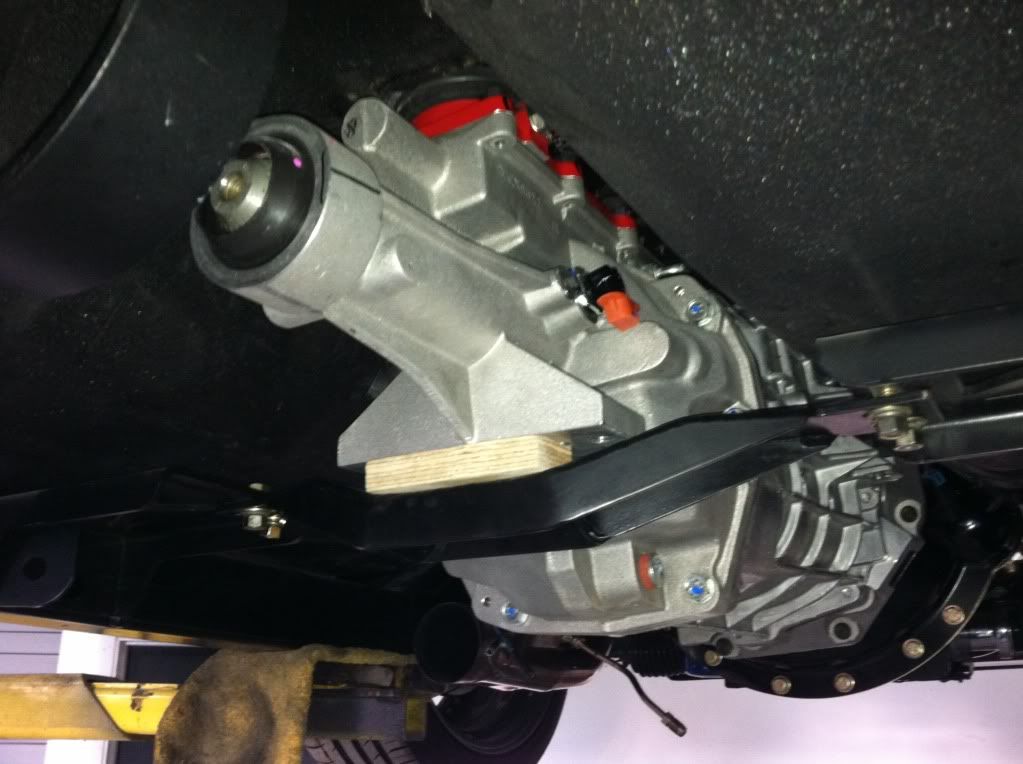

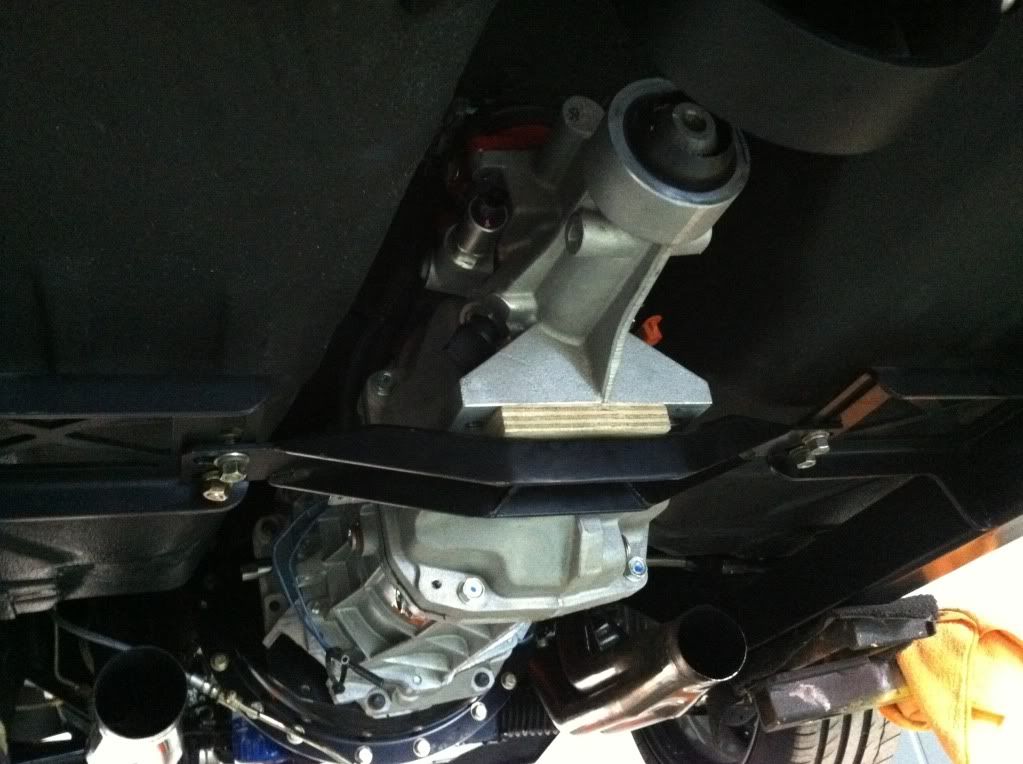

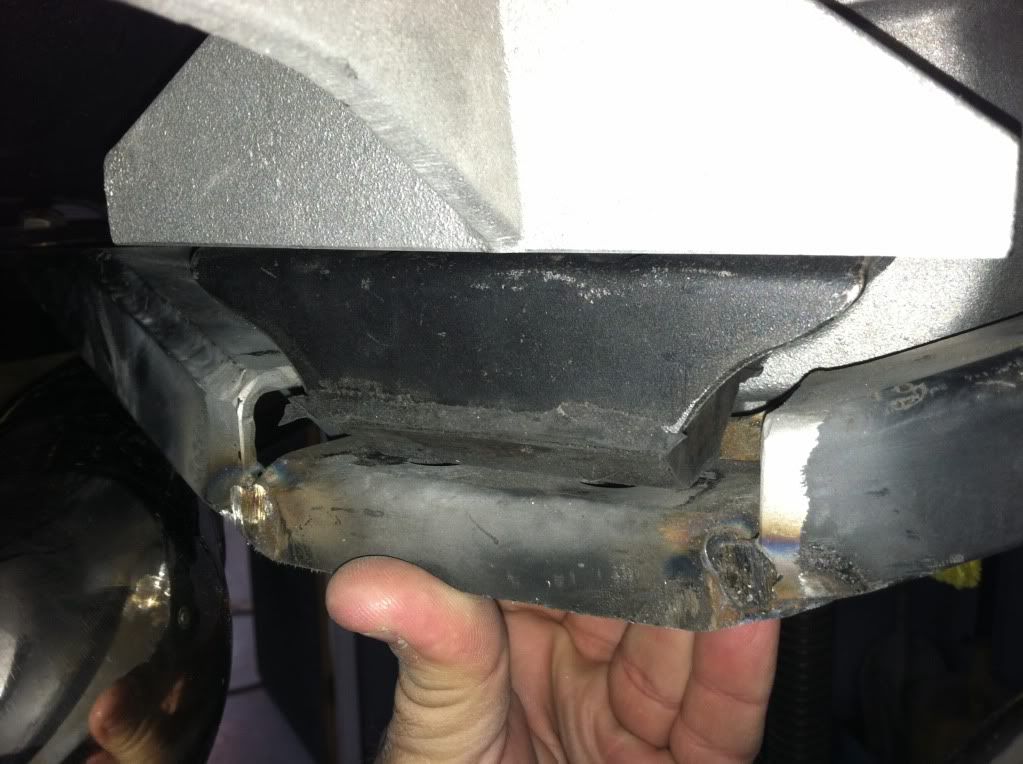

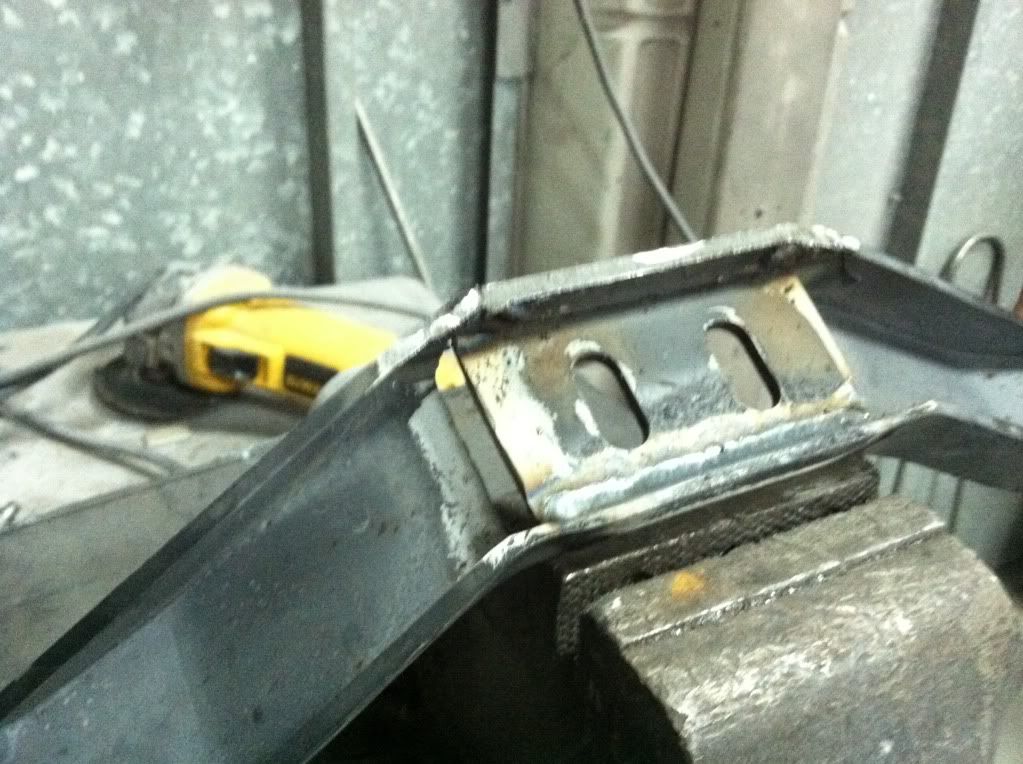

Now with the T-56 installed we adjusted the speed tech cross member back to fit and in order to get the correct pinion angle we to custom cut the cross member a half inch drop

http://i700.photobucket.com/albums/w...all/IMG-31.jpg
http://i700.photobucket.com/albums/w...all/IMG-32.jpg

http://i700.photobucket.com/albums/w...all/IMG-33.jpg

http://i700.photobucket.com/albums/w...all/IMG-35.jpg

http://i700.photobucket.com/albums/w...all/IMG-37.jpg

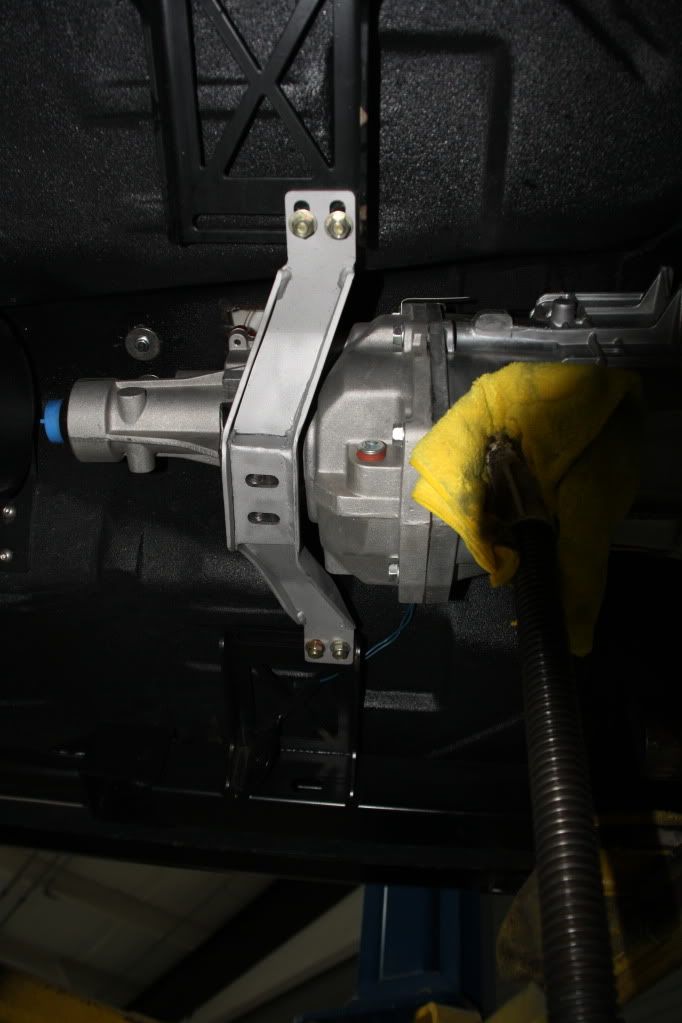

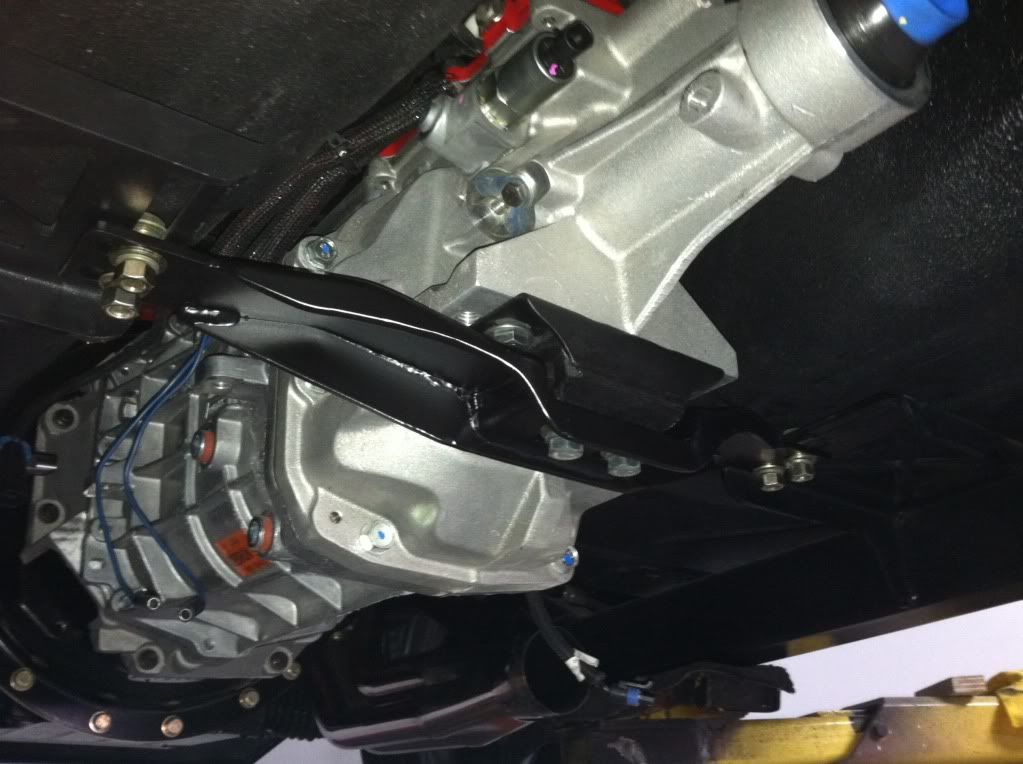

Now with the Cross-member all welded up fits perfect !

http://i700.photobucket.com/albums/w...all/IMG-41.jpg

http://i700.photobucket.com/albums/w...all/IMG-42.jpg

Excellent post Bill.

If you're back on the road, what are your impressions of the swap?

Evade Upgrades from TKO-600 to Tremec T-56 Magnum

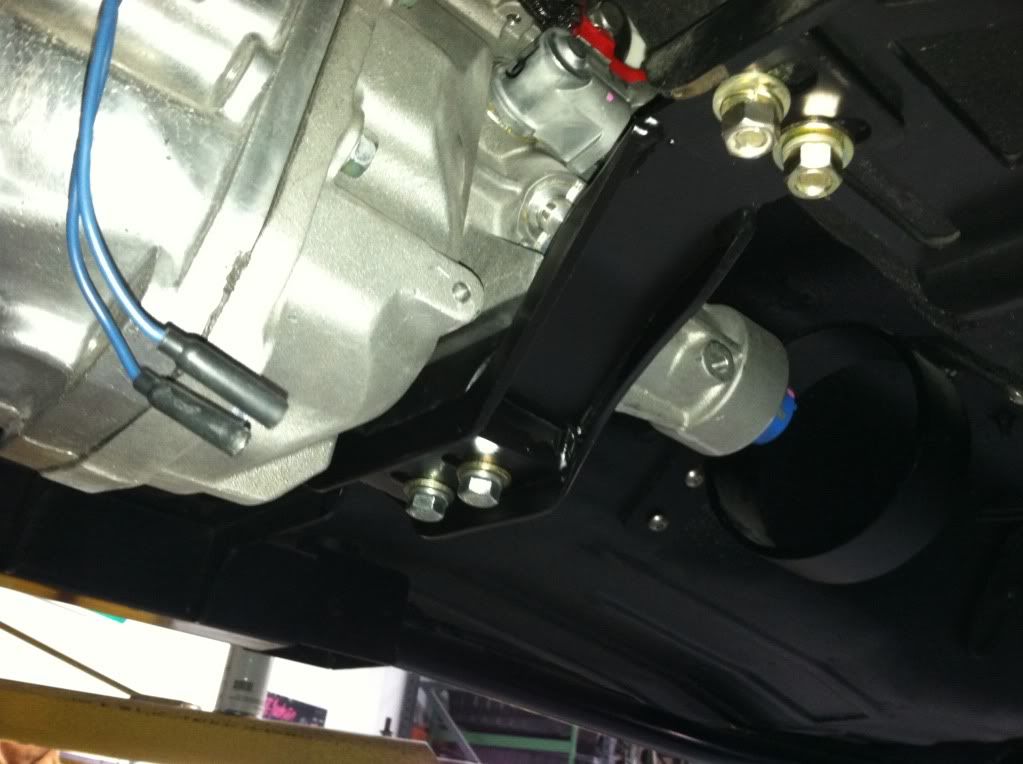

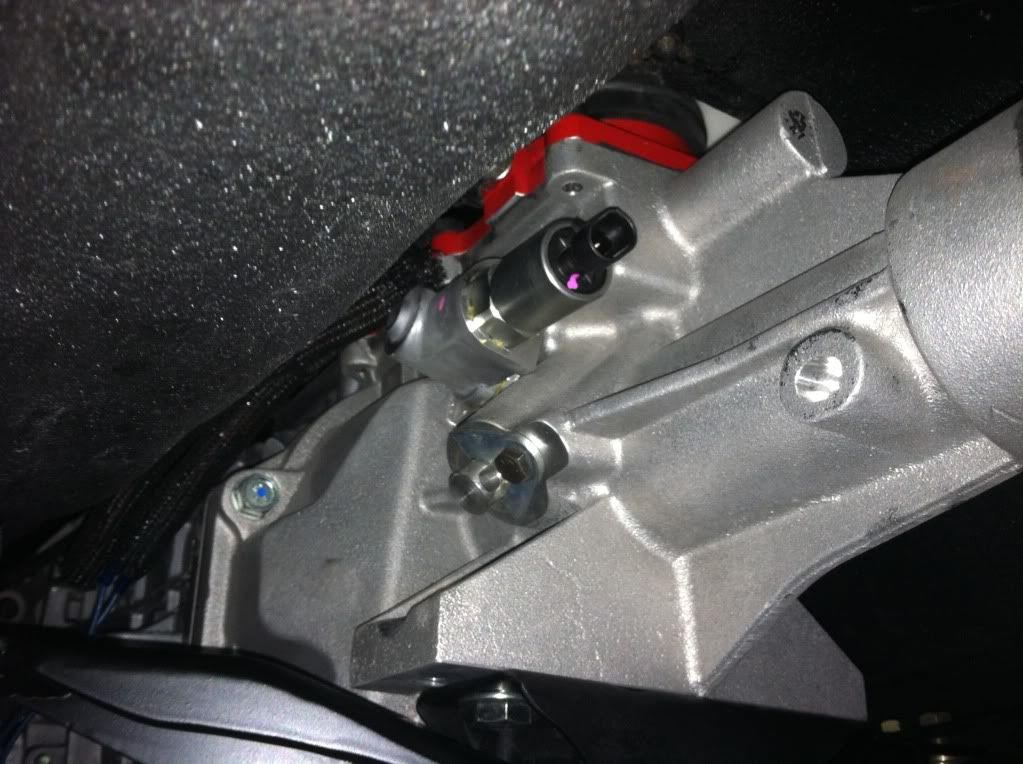

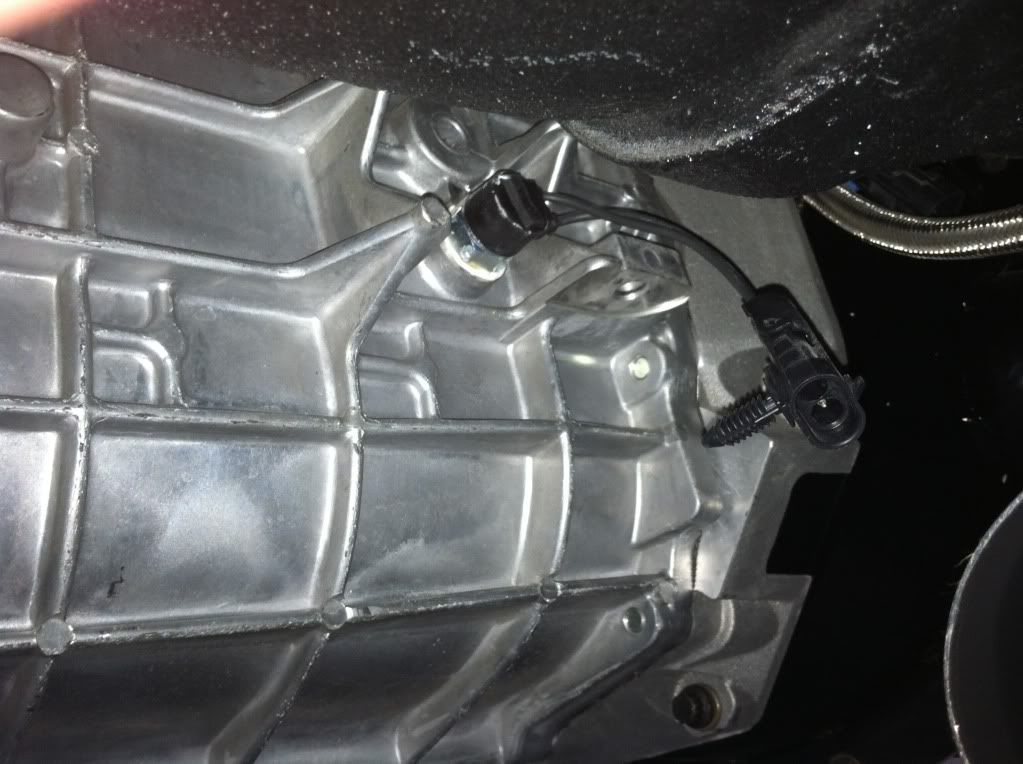

Next we sent out the drive shaft to Local Pyramid Machine for shortening up about 3inches.... next came all connectors

http://i700.photobucket.com/albums/w...all/IMG-44.jpg

http://i700.photobucket.com/albums/w...ll/IMG-45a.jpg

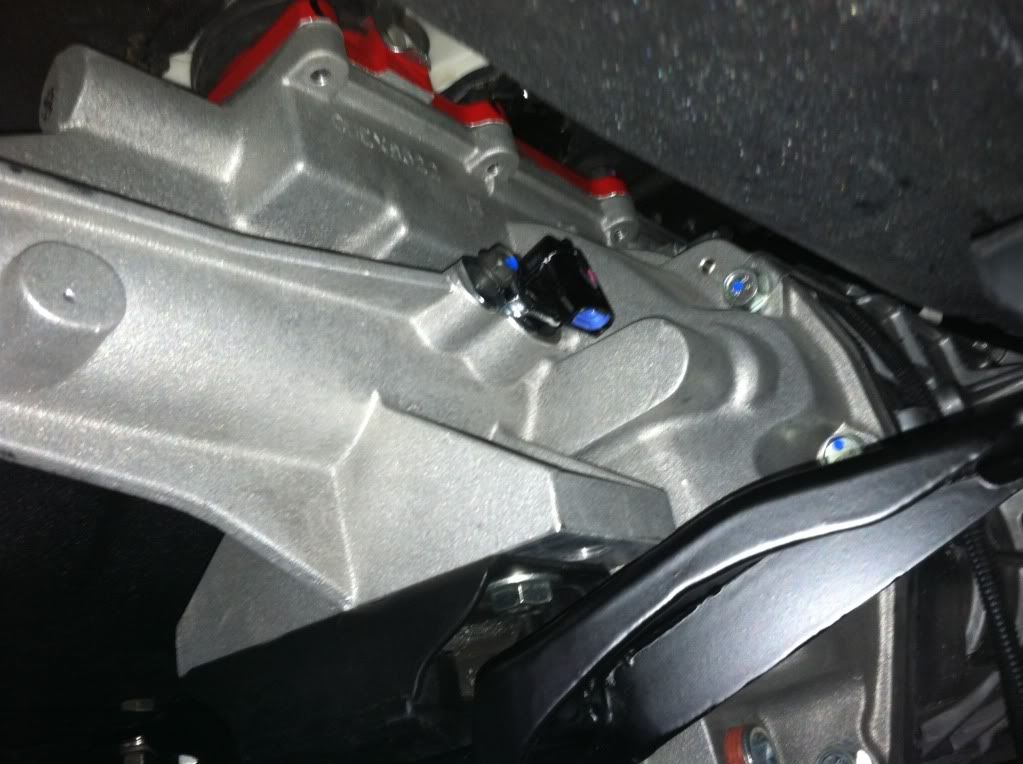

http://i700.photobucket.com/albums/w...ll/IMG-45b.jpg

http://i700.photobucket.com/albums/w...ll/IMG-45c.jpg

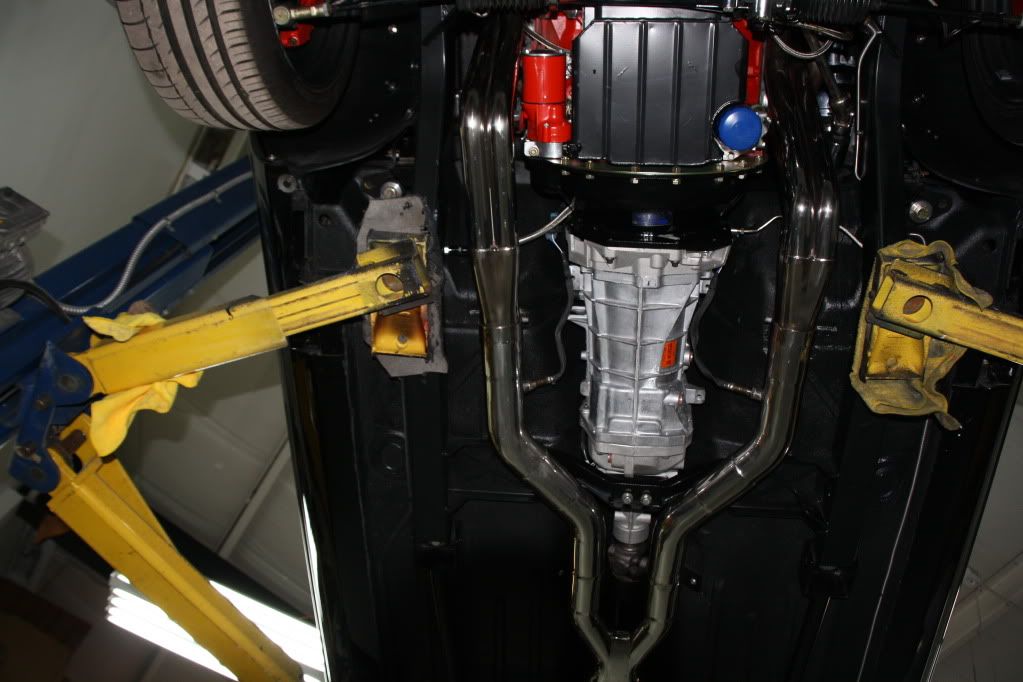

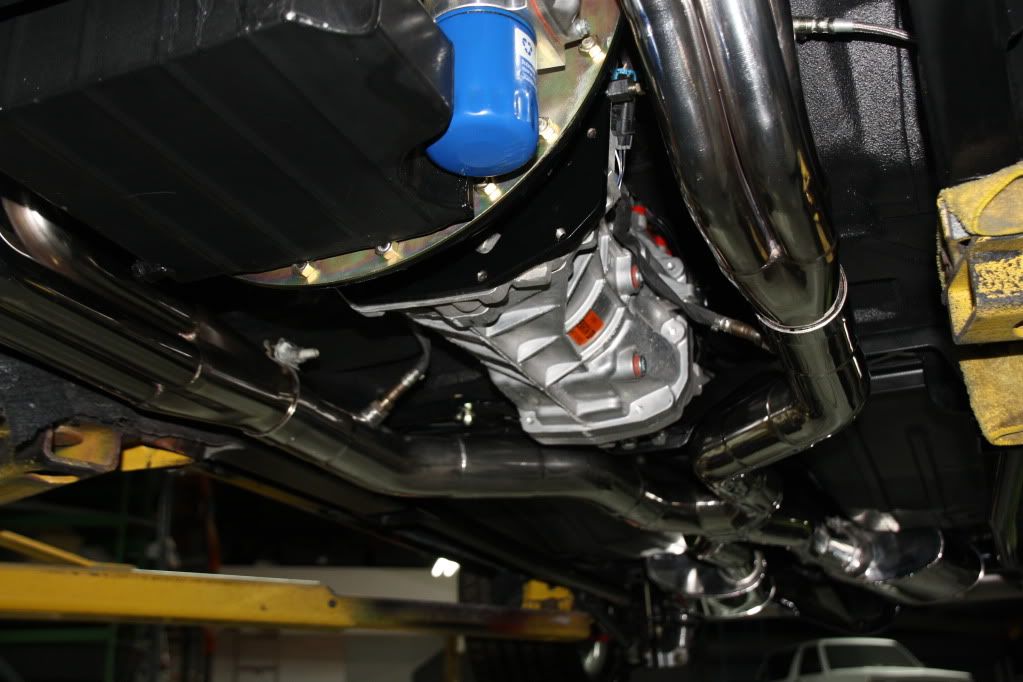

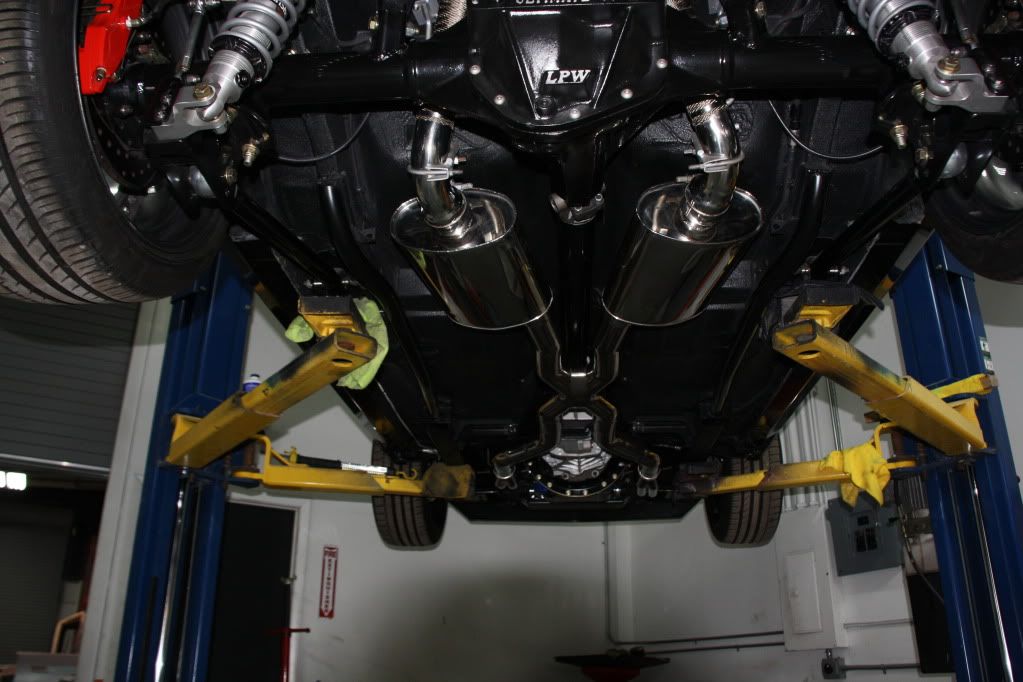

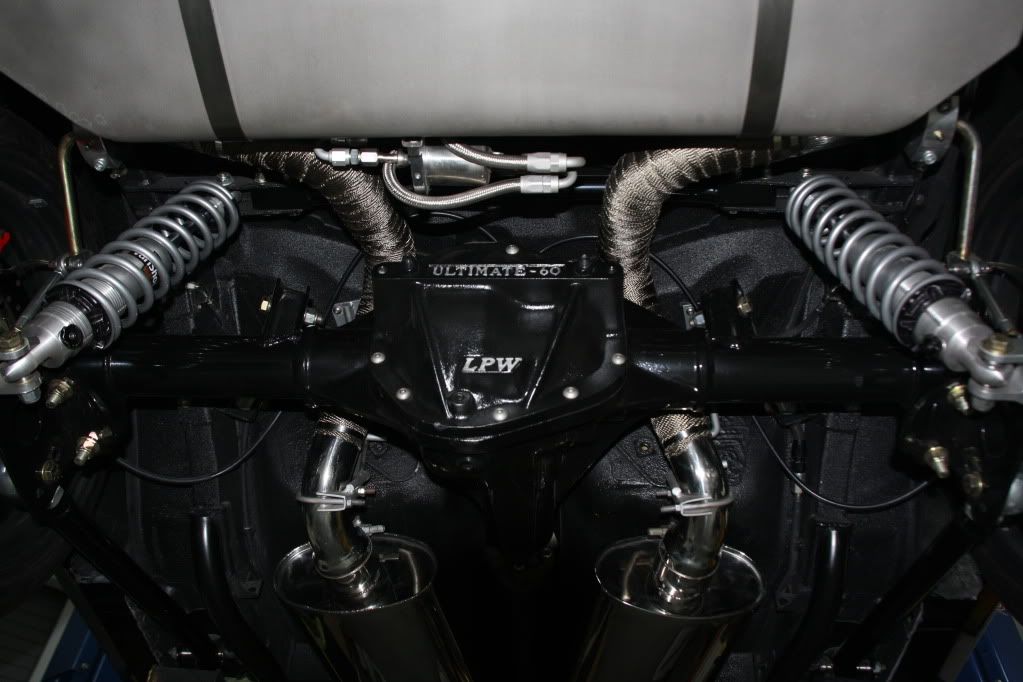

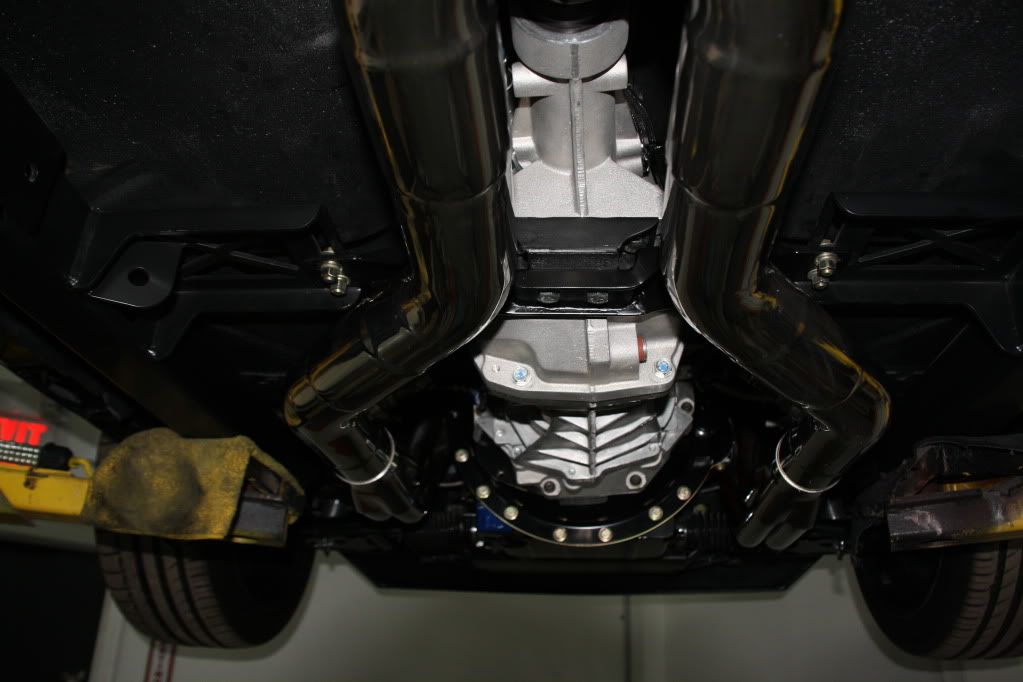

After install we went ahead and clean up and re polished all Stainless Works Exhaust
http://i700.photobucket.com/albums/w...all/IMG-48.jpg

http://i700.photobucket.com/albums/w...all/IMG-49.jpg

http://i700.photobucket.com/albums/w...all/IMG-51.jpg

http://i700.photobucket.com/albums/w...all/IMG-53.jpg

http://i700.photobucket.com/albums/w...all/IMG-54.jpg

"Evade" Ready for Testing T-56


After Completion we put about 350 miles plus to break in the T-56 and the Dyad Clutch .....

http://i700.photobucket.com/albums/w...11-resized.jpg

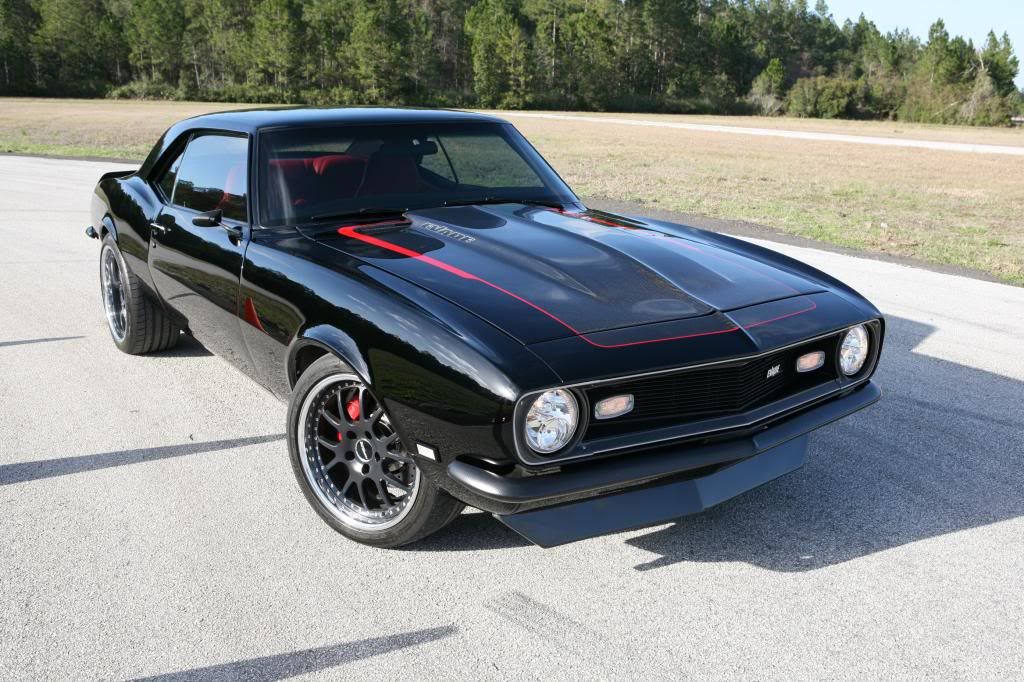

Super Chevy Magazine puts "Evade" to the test Editor Jim Campisano Drives "Evade" like he stole it! coming out "July's Issue

Wow Bill that was an awesome post /posts.

What's this about Super Chevy ??????? :headspin: :stirthepot:

Skip,
All can say is what a big difference in shifting and having a sixth gear! the shifting in between gears is so much smoother and the Dyad Clutch is awesome! driving on the highway i get 20mpg !! :wow:

Ops! :peepwall:

Nice work on the swap Bill :thumbsup:

"Evade" Ready for Testing T-56

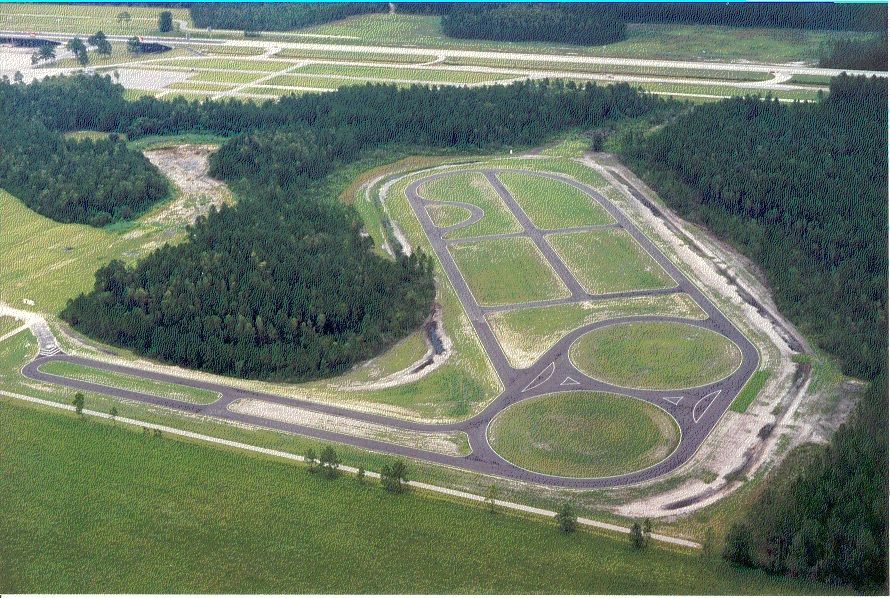

Here is the gainesville raceway now called auto plus raceway!
