I might grab some from my local Napa store tonight just to play with it and see how it bends. I am starting to enjoy bending brake lines.

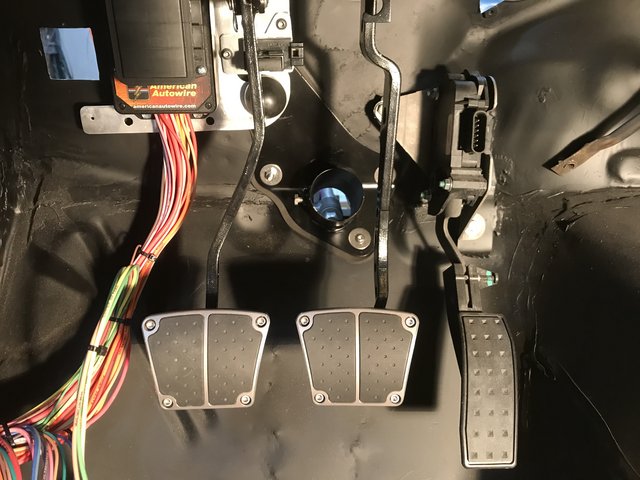

So I have stared at this and stared and this over and over. I put a seat in my car and looked at my wiring and noticed that when my left foot is
resting (road trip) it would actually lay right on top of the harness. So I moved all my wire to the side to keep them out of harms way. I have also
consider putting a dead pedal with some dimple die holes on the left to rest my foot. I will try to find a picture of what I am talking about. You
also have to remember we use our left foot to push ourselves back in the seat when when we are driving spiritly off the race track.


http://garagescene.net/_data/i/uploa...9830f61-me.jpg

214 Chevy and ScotI thanks for the compliments.

Marty, The wires are stretched out down and across the floor of the car at the moment. Once I get them correctly routed the will come out the fuse panel and loop up and over to the dash area with the exception of a few going to the rear of the car. I have actually contemplated flipping the fuse box so they come out the top.

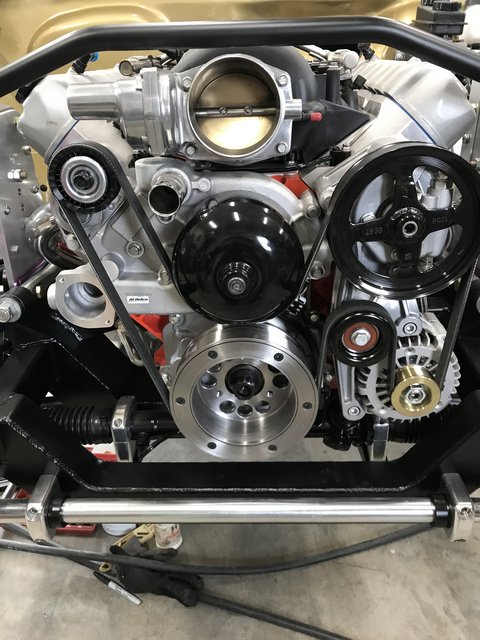

I finished up the pulleys and the serpentine belt.

https://i.postimg.cc/QtschZnT/EADC00...2-F09373-F.jpg

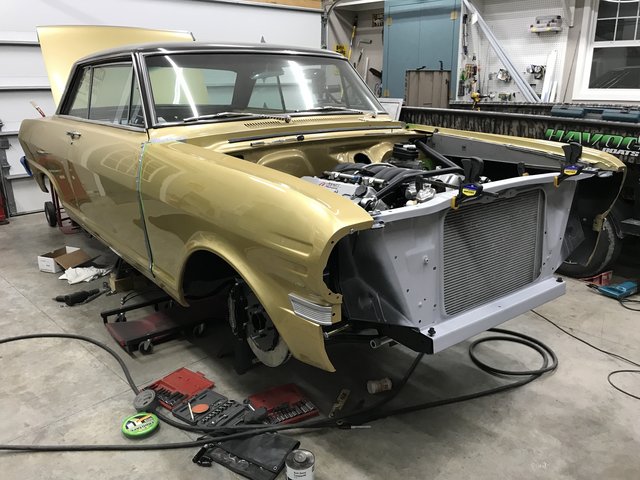

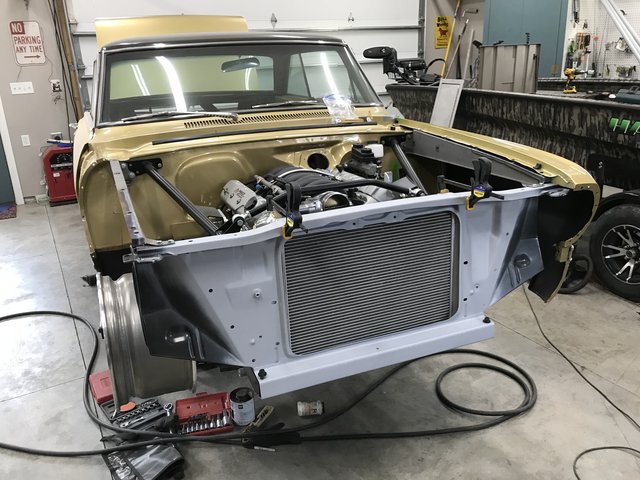

Then it was time to test fit the core support and mock up the front end. It’s still in primer until i see what other mods will be needed. It will all come back a part a few more times yet. Took several attempts of shimming the fender supports to get the spacing close. I have been test fitting the radiator and figuring out a mounting strategy. The original radiators bolted directly to the core support with no form of isolation or vibration control. I want to come up with a better solution. If anyone has some mounting options to share I would like to see them.

https://i.postimg.cc/t4Khvx3D/72-C54...866-C5-CB0.jpg

https://i.postimg.cc/FK00MHGv/35-D4-...062-EC0-A1.jpg

What about a simple cradle support for the radiator? GM used this design on later builds for many cars. I'm sure you could find brackets from other models you could integrate. Try Corvette since it used narrow straps on top and not a full width cover. Going this route will help with finding isolators that fit the brackets. Hopefully, it'll fit the radiator too.

Keep up the good work

Attached are a couple of photos of what Stielow used to mount the radiator on one of his recent builds, incorporating rubber isolators on top and bottom. I saw this after we had already fabricated mounts for mine; otherwise, would have tried to do something like this. The bottom of mine sits on rubber pads on the core support mount and the top sides are bolted to the core support.
https://uploads.tapatalk-cdn.com/202...b5db627f9d.jpg
https://uploads.tapatalk-cdn.com/202...0592098c05.jpg


Sent from my iPhone using Tapatalk

Attached are a couple of photos of what Stielow used to mount the radiator on one of his recent builds, incorporating rubber isolators on top and bottom. I saw this after we had already fabricated mounts for mine; otherwise, would have tried to do something like this. The bottom of mine sits on rubber pads on the core support mount and the top sides are bolted to the core support.
https://uploads.tapatalk-cdn.com/202...b5db627f9d.jpg
https://uploads.tapatalk-cdn.com/202...0592098c05.jpg


Sent from my iPhone using Tapatalk

Thanks Brian, I like the mounting ideas. Your car is approaching the finish line and looks great.

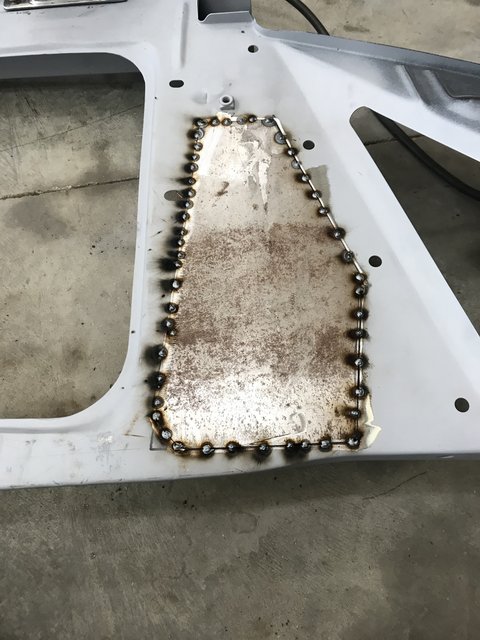

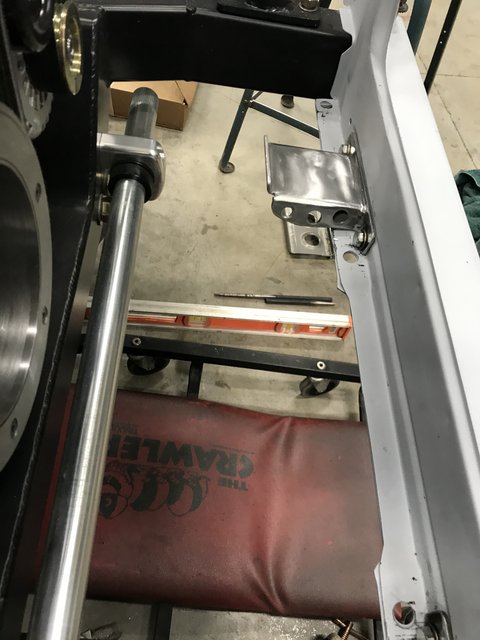

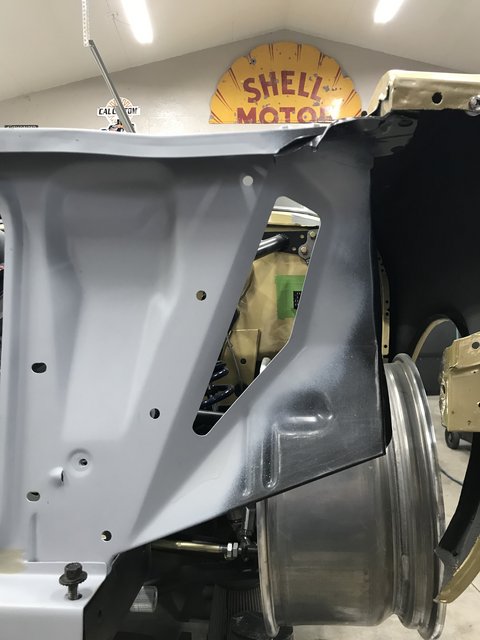

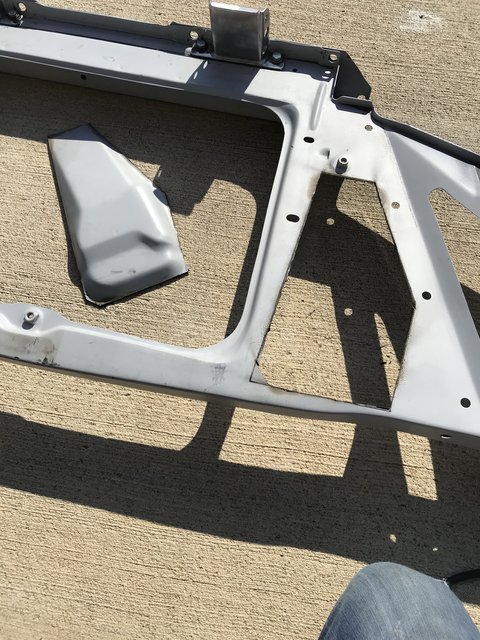

I have been sidelined with other things lately, but managed to get back to radiator mounting and core support modifications. I fabbed up some lower radiator mounts that bolt to the core support. I used riv. nuts to create the mounting threads. I cut a triangular opening on the left side to create a opening for the air intake. The area to the left of the radiator opening poised some issues due to the recesses and the way the sheet metal was formed. I wanted to use this area to mount the remote power steering reservoir. I decided to cut it out and make the panel flat, but have plans to further modify it to make more room.

https://i.postimg.cc/NfWvJxkc/B3-E12...E6-D54-AD3.jpg

https://i.postimg.cc/HsJC9N5z/DB1649...2-B59359-A.jpg

https://i.postimg.cc/7L48DYRt/EAF7-B...17-E10-CDF.jpg

https://i.postimg.cc/cLwyV8F8/E5894-...B729-E1797.jpg

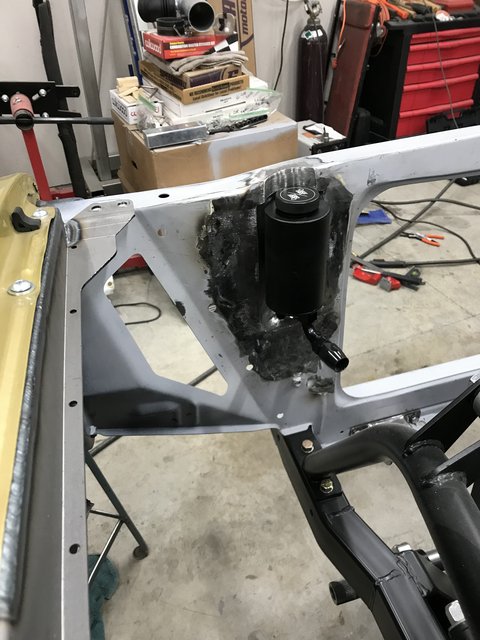

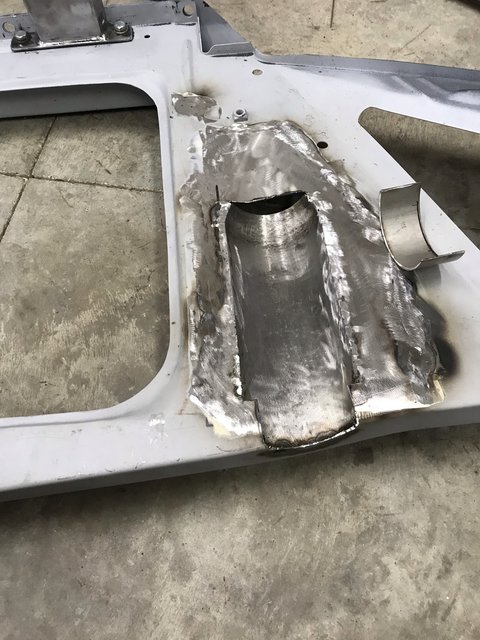

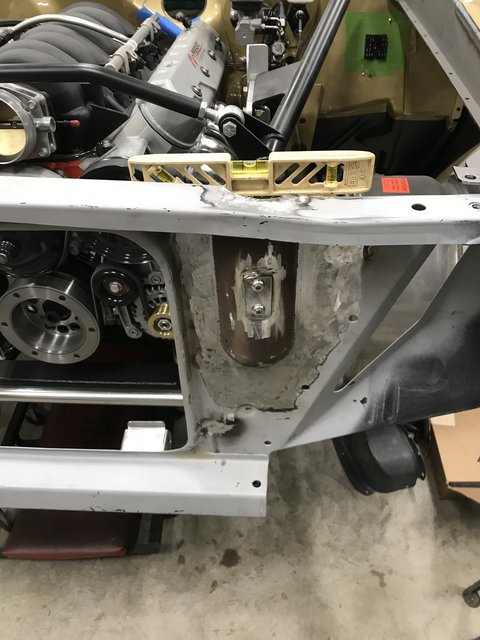

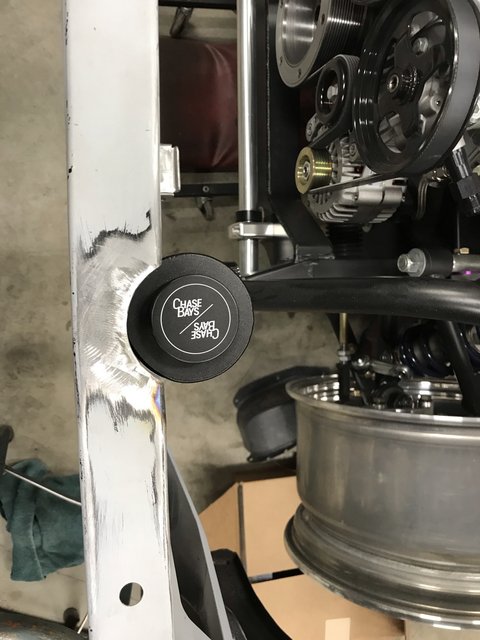

Put in a little more time on the core support today. I created a recessed area to accommodate the remote power steering reservoir.

https://i.postimg.cc/K8Jtzjpg/FB4-DF...7-C5-BC577.jpg

https://i.postimg.cc/GpfYFNCL/F92-E8...EC686-E748.jpg

https://i.postimg.cc/1tNFJHmp/38-A09...3028-EBF09.jpg

https://i.postimg.cc/pL2DRzCH/A84228...6-F8-F8-D9.jpg
