that's a very good analogy Bruce; now with the intercooler and intake plumbing it's more like 15 pounds in a five pound sack........... :faint:

Jody

Don't forget about the radiator hoses! ;) Your IC has one in and one out right? That should be a little easier than 2 in & 2 out like you had planned for the Camaro.

Are the A/C lines already fabbed up?

Keep up the pace, you'll make it!

Jody...We are running short on time. You need to round up the usual suspects and have them help fab that 10lbs of stuff.:willy:

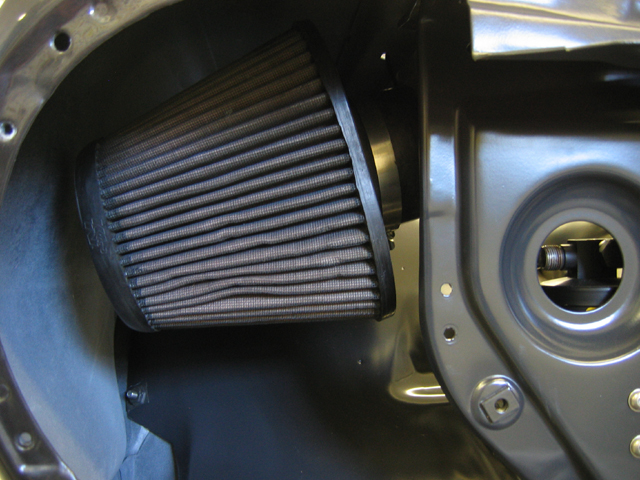

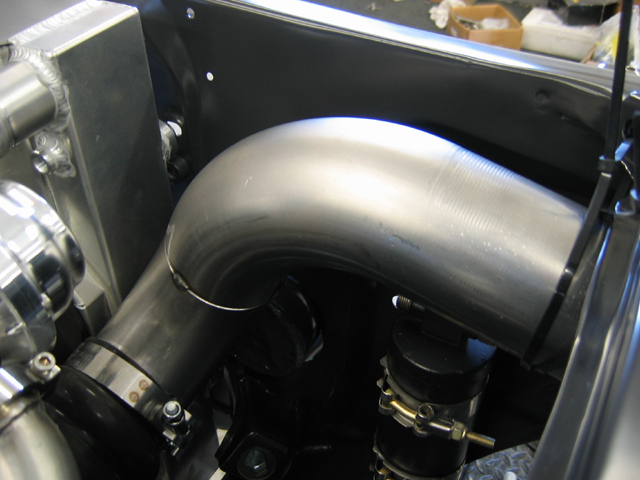

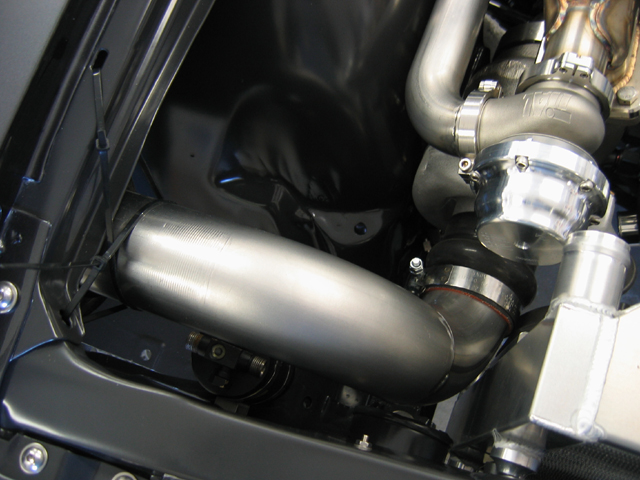

well, I started on the intercooler, air inlet, and radiator tubing today. Fabbed up the inlet first. Everything is just tacked as I have a guy who can copy my tacked together pieces and make it a one piece tube.


http://www.camcojb.com/temp/malitude%20491.jpg

http://www.camcojb.com/temp/malitude%20492.jpg

http://www.camcojb.com/temp/malitude%20496.jpg

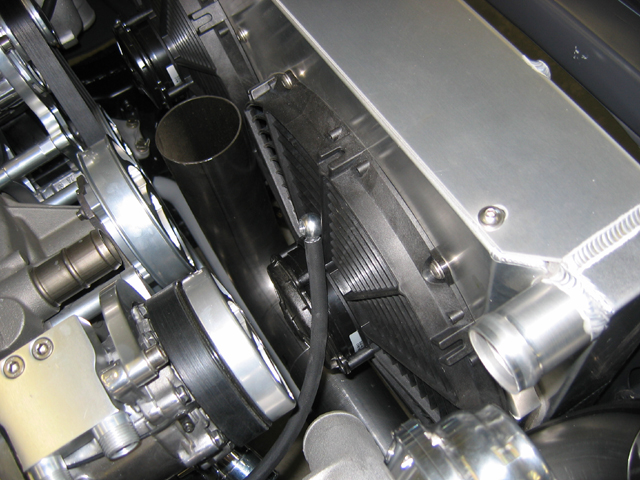

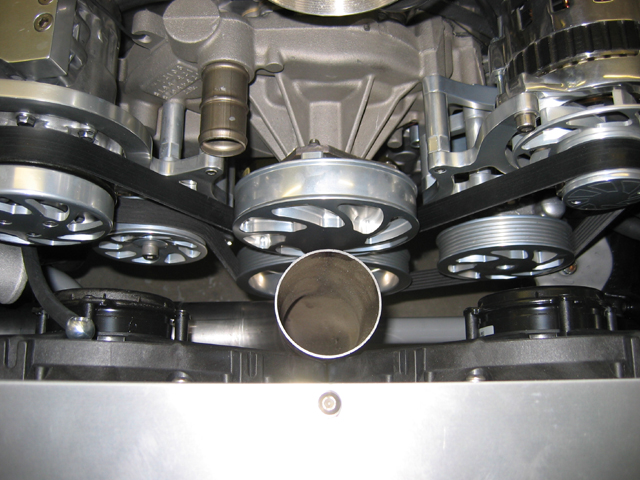

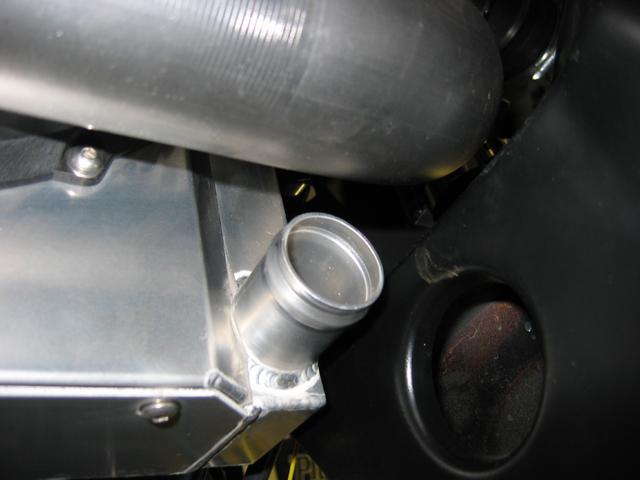

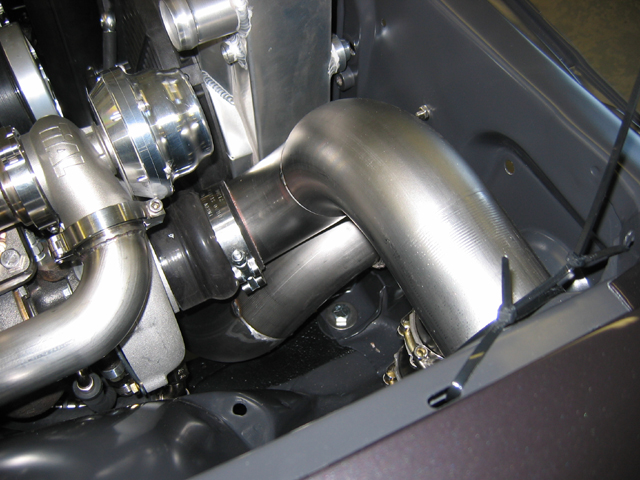

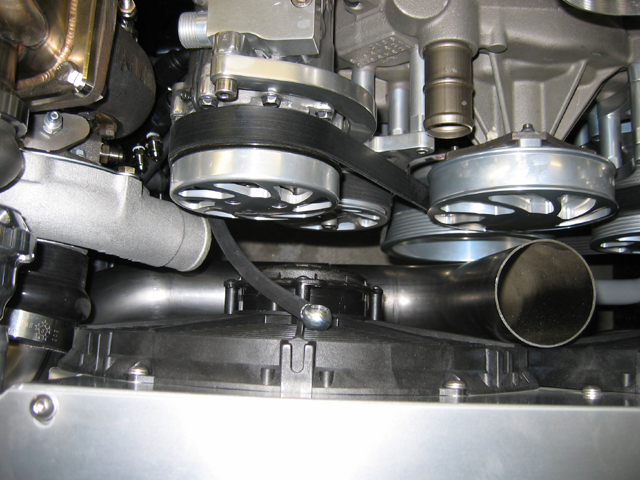

Then started the intercooler to throttle body. Very tight to get past the air inlet, turbo to intercooler hose, and lower radiator hose, but it clears.

http://www.camcojb.com/temp/malitude%20497.jpg

http://www.camcojb.com/temp/malitude%20499.jpg

http://www.camcojb.com/temp/malitude%20500.jpg

http://www.camcojb.com/temp/malitude%20503.jpg

http://www.camcojb.com/temp/malitude%20505.jpg

Very nice Jody. That intercooler tubing looks like a tight fit, but its looking great. The Malibu keeps looking better and better. Keep up the good work

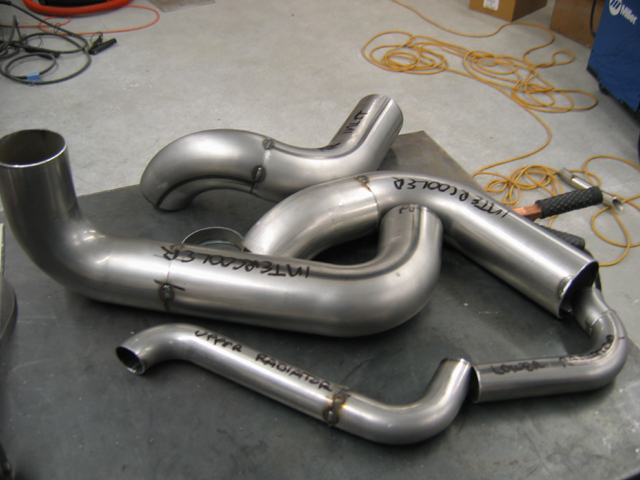

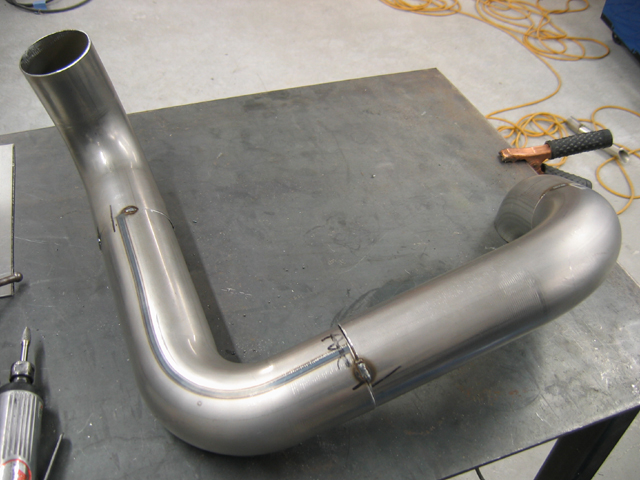

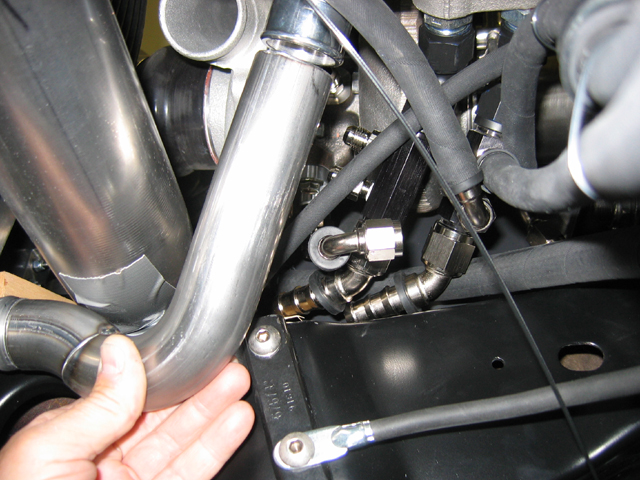

finished the intercooler to throttle body tubing (made it 2 piece as you cannot remove it as one piece), both radiator hoses, and the air inlets for both turbos. All that's left is the (2) turbo to intercooler lines, merging into one inlet; this will be the hardest part, so I saved it for last............. :yes:

Once finished I'll take all the individual lines I made and have them copied in stainless or steel as one-piece units, so no weld lines.

http://www.camcojb.com/temp/malitude 508.jpg

http://www.camcojb.com/temp/malitude 509.jpg

http://www.camcojb.com/temp/malitude 511.jpg

Jody

Not to be a broken record, but your car and attention to detail is awesome:bow:

thanks Tom. I've said it before, but detailing and neatness doesn't cost anything, just a bit of time and some forethought. Anybody can do it.

Jody

an awsome street monster Jody :wow:
love it man

Great progress this weekend!! :cheers:

Beautiful job. You have patience my friend.

thanks guys. I'm pretty much a zombie this morning, but I'll be back out there in a bit.

Jody

Proof he's a mortal! LOOK, extension cords on the floor... *LOL*
Simply amazing craftsmanship Jody.

Steve, I get creative with the camera angles, believe me! :rofl: The shop is blown up for the most part, but there's just no way to keep it perfect when you're building a car.

Jody

Absolutely Killer Jody!! You got alot done this past weekend. Let me say this guys...Pics don't do it justice, I was there last weekend. Looks even better in person. Very well packaged!! As said..Attention to detail is second to none :thumbsup:

Brent

I ordered some Ring Brothers 1/4", 5/16", and 3/8" bolts/washers for the front sheetmetal stuff in the engine compartment, along with the hood hinges and latches. These look incredible..............

They're only $7.40 each, which is cheap considering the machining involved, and the fact that you only need 15-20 for the average car.

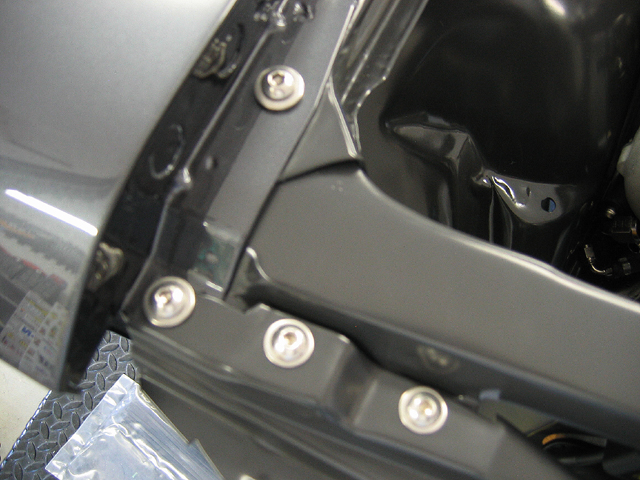

I liked the button head stainless bolts and washers I had on there.

http://www.camcojb.com/temp/malitude 518.jpg

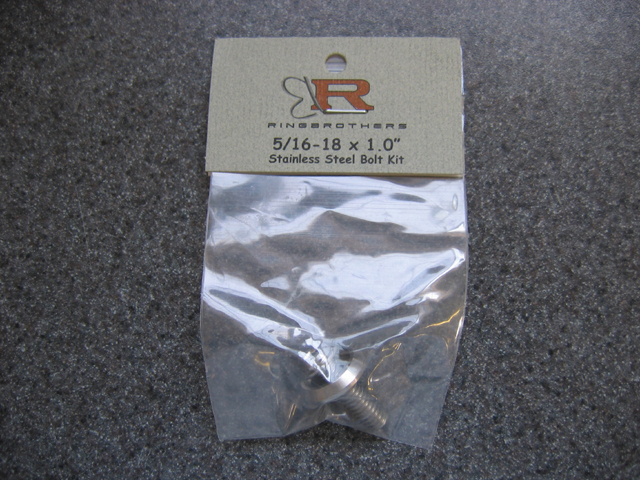

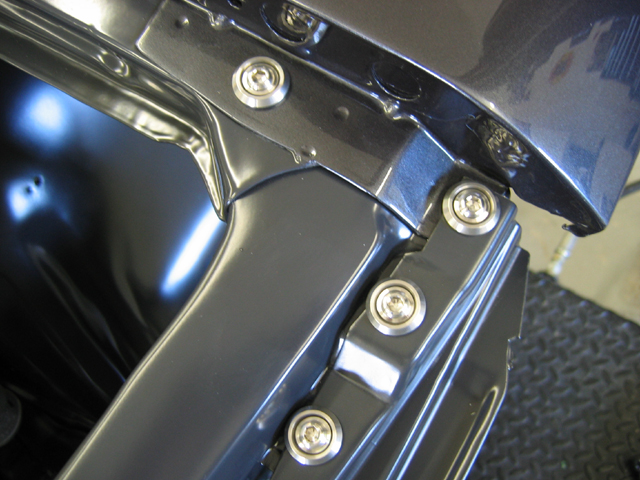

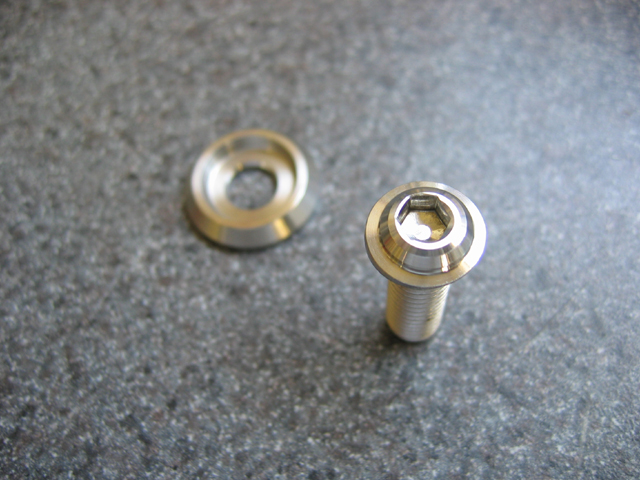

then I got these................


http://www.camcojb.com/temp/malitude 512.jpg


http://www.camcojb.com/temp/malitude 514.jpg


http://www.camcojb.com/temp/malitude 515.jpg

Thanks to the Ring Brothers for developing parts like these on cars like Reactor, and then letting us buy them!

http://www.ringbrothers.com/

Jody

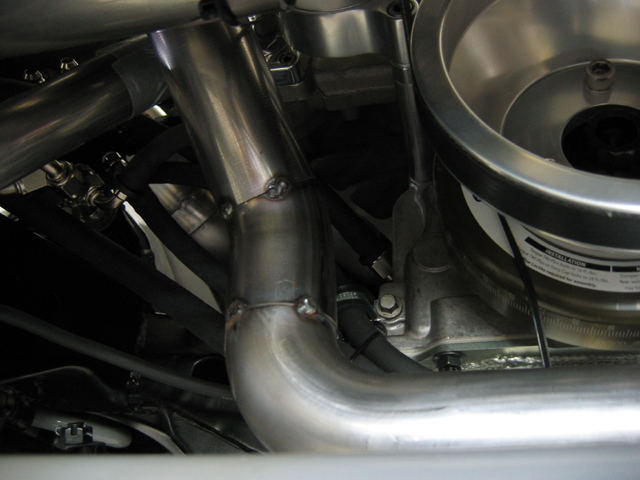

TONS OF ROOM!!!!!!!!!!! :wow: Well, at least 1/2" between the tubes, so for that I am grateful.

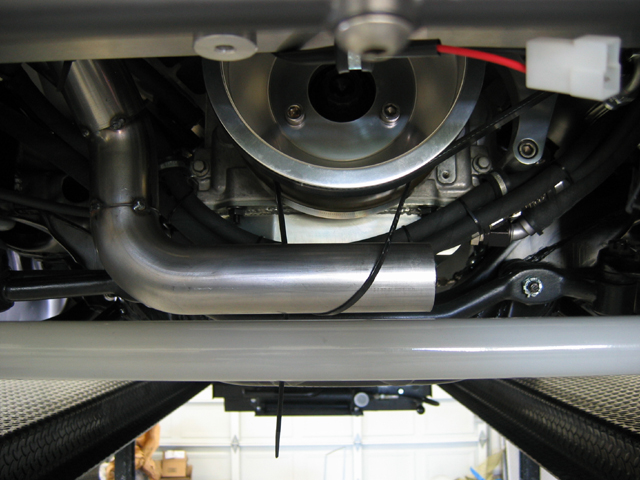

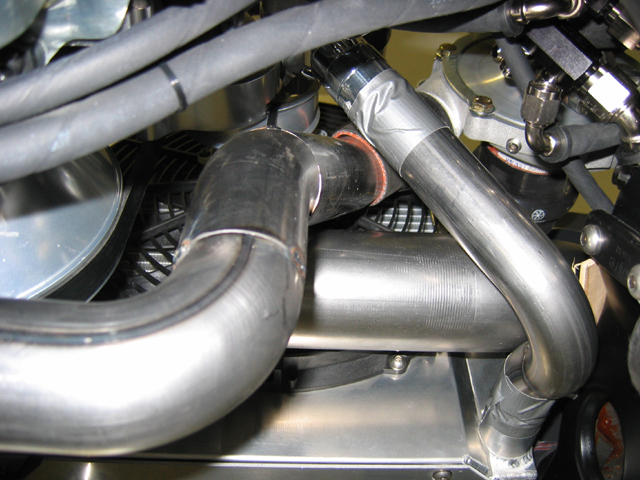

This is the passenger turbo outlet tube squeezing around the intercooler and radiator tubes, heading for the drivers side and intercooler inlet.

http://www.camcojb.com/temp/malitude 519.jpg

http://www.camcojb.com/temp/malitude 520.jpg

http://www.camcojb.com/temp/malitude 522.jpg

Jody

Nice hardware! The plumbing is coming together nicely! Do you have a shot of how Mark had it plumbed last time...was it as tight of a fit? If not, what changed with this install?

Keep up the good work!!! :thumbsup:

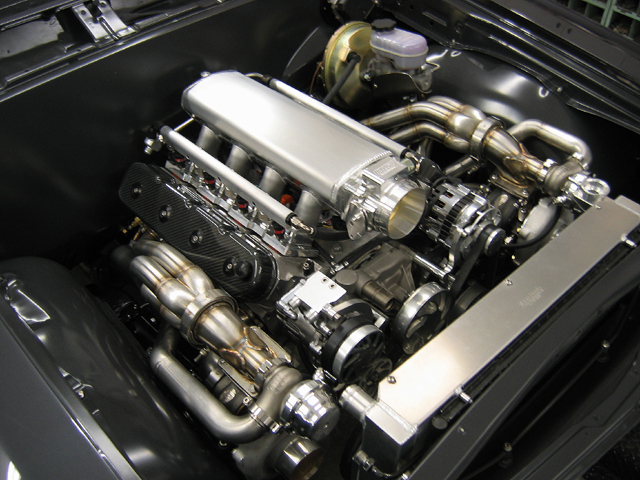

here's the previous engine. The turbos are much higher and further back in the compartment, which gives a ton more room.

http://www.camcojb.com/temp/malitudeengine.jpg

http://www.camcojb.com/temp/malitude%20487.jpg



Jody

Wow ! What an amazing change Jody !!!

Has Mark seen it - and if he has - what did he say ??

Jim

He hasn't seen it in person, but may have seen some pics here. I talked to him about the changes I was going to make, and he was all for it. He'll see it in June as long as I make it.

Jody

Sweetness Jody:hail: Looks like alot of progress in a short time lately. Don't you sleep? :D

...or work? :lol: Looks great!

not as much sleep as I'd like, and I'm self-employed, so I'm able to spend a zillion hours on this deal fortunately.

Jody

Thanks for the comparison pics! Yeah, it did have more room for plumbing last time!

Hey Jody,

Are you sleeping or what, nothing new on the car in two days?

Jan

have you fallen an can't get to the computr?????

I finished the fabbing of all the intercooler, air inlet, and radiator hard lines. I'll post some pics up when the final welding is done. Otherwise, progress isn't on stuff that would draw much interest as far as pics.

Jody

PICS!

OK, just picked up the piping after it was finish welded by a friend of mine, Warren at Midnight Performance in Rancho Cordova. I do all my dynoing at his shop. I originally built these pieces with the intention of having them copied in single pieces, but the compound angle and short distances between bends wouldn't allow most of them to be done as a single piece. That meant welding up what I had; since I can't operate my tig worth a darn I opted to let him weld them up for me.

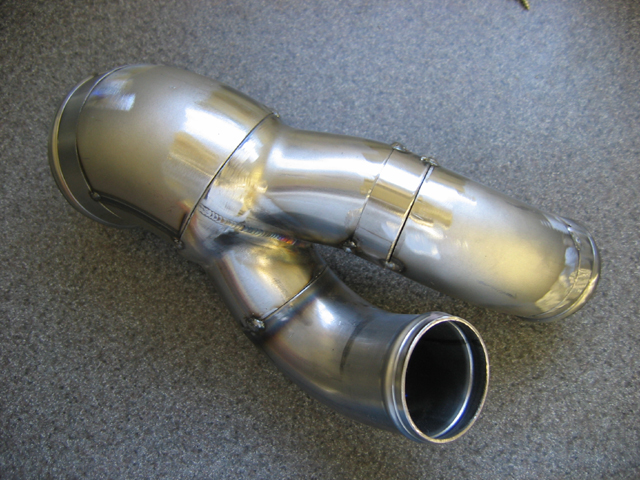

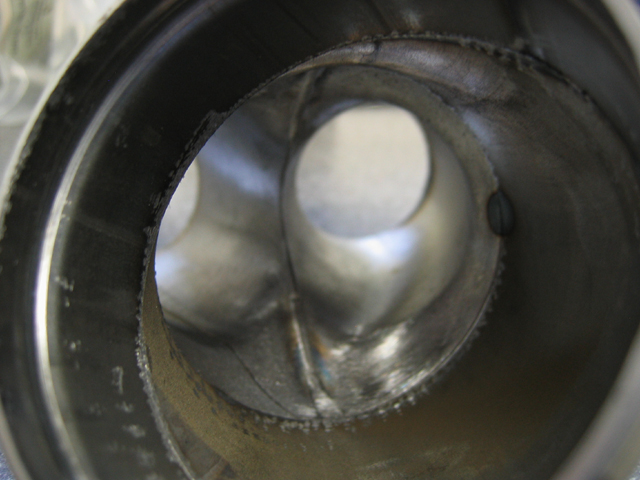

The hardest piece was the crossover tube from the passenger side, merging with the drivers side into the intercooler inlet. I bought a merge collector and fitted the pieces up. Lots of cutting and really special angles..............

http://www.camcojb.com/temp/malitude 539.jpg

http://www.camcojb.com/temp/malitude 542.jpg

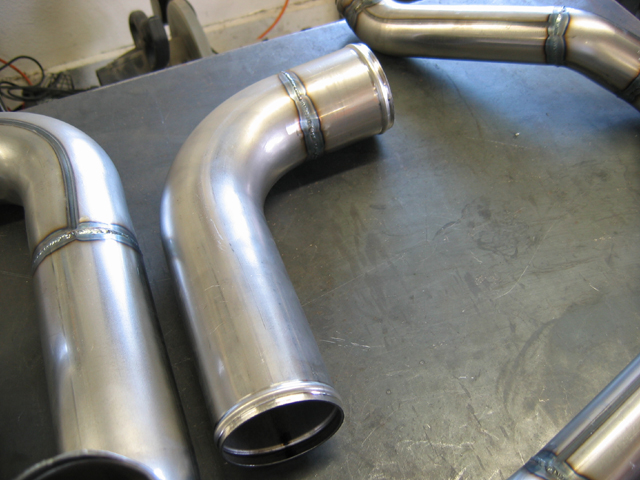

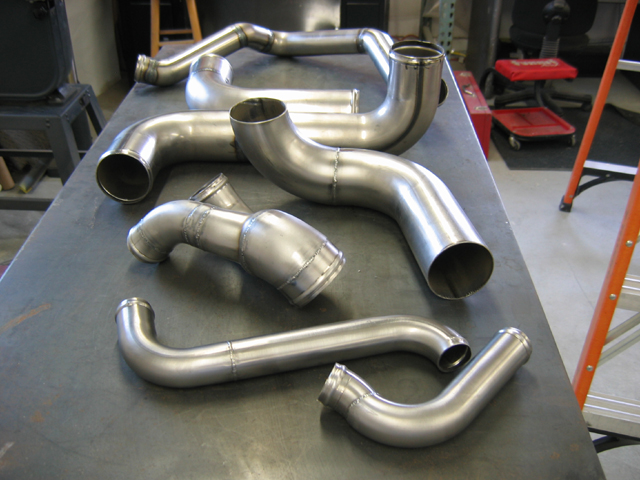

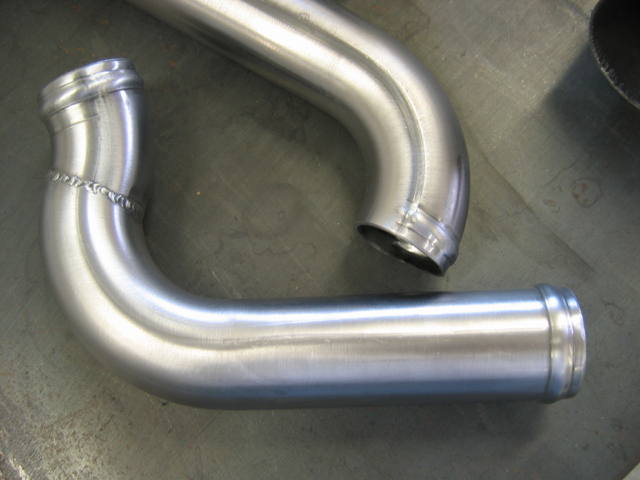

Here's the rest of the tubing. I'm going to final fit everything tonight and weld bracing brackets to a couple of the tubes that need it. Tomorrow they're off to the powdercoaters for titanium exhaust coating.

http://www.camcojb.com/temp/malitude 547.jpg

http://www.camcojb.com/temp/malitude 548.jpg

http://www.camcojb.com/temp/malitude 549.jpg

Jody

Damn thats some nice work.:thumbsup:

top notch as always:thumbsup:

Thanks Jody - now i'm late for work again

Your work looks great

Frankly, everything about this car is interesting. Pics of pretty much any of it are always welcomed, as you are taking a sweet car and turning it into something amazing. For such things, we like to see as much of the work as possible!

Lookin' good!

Shiny Side Up!
Bill

Sweet! That's a big hurdle behind you!! What's next?

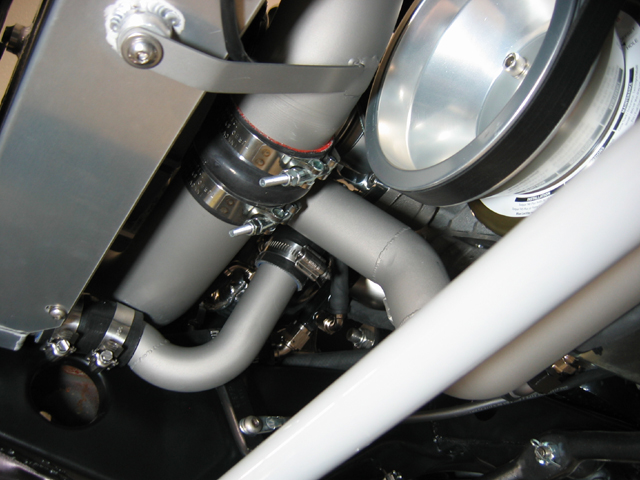

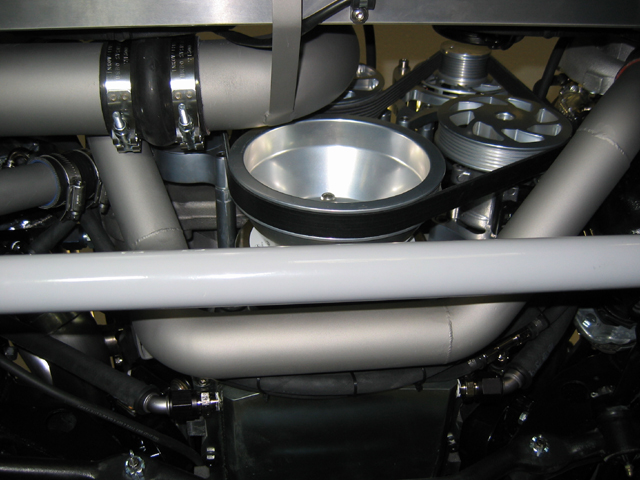

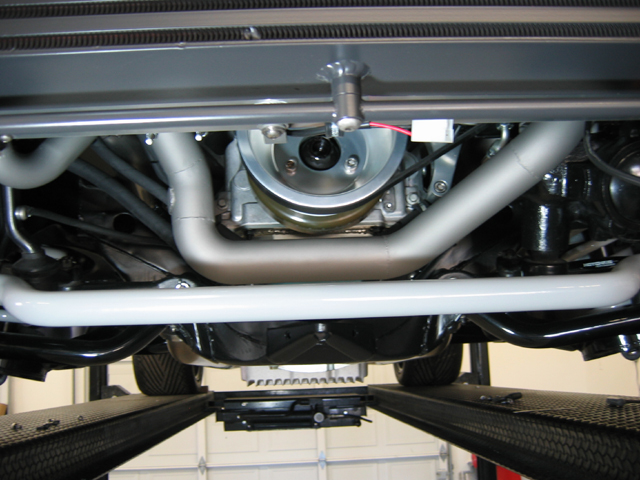

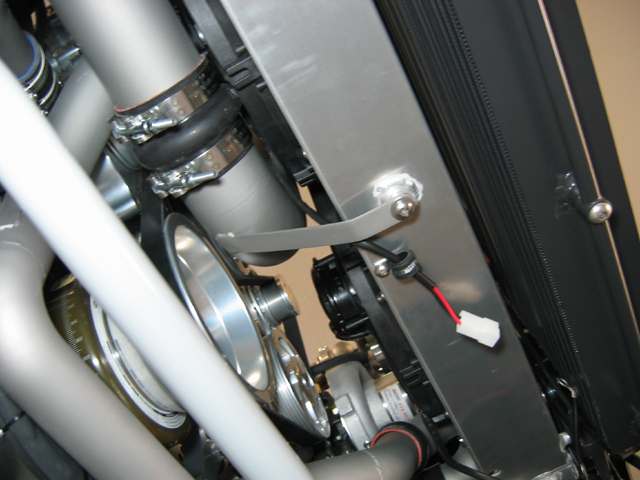

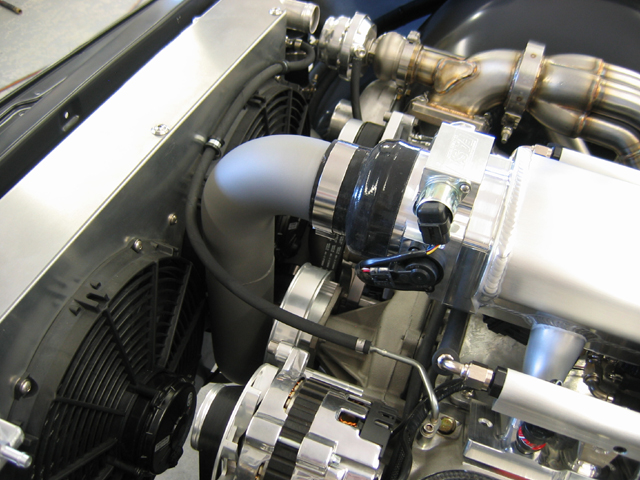

next, I sent the intake plumbing to be coated with titanium header coating. The color matches well with the car, but it sure scratches and scuffs easily. Might have to re-think that one later on. Big thanks to Steed at Perfect It powder coating in Rancho Cordova for helping me out, getting this back to me in one day.

http://www.camcojb.com/temp/malitude 552.jpg

http://www.camcojb.com/temp/malitude 556.jpg

http://www.camcojb.com/temp/malitude 557.jpg

http://www.camcojb.com/temp/malitude 558.jpg

http://www.camcojb.com/temp/malitude 569.jpg

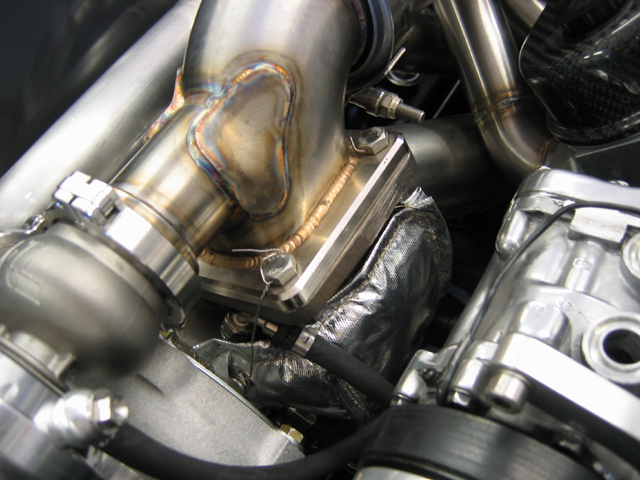

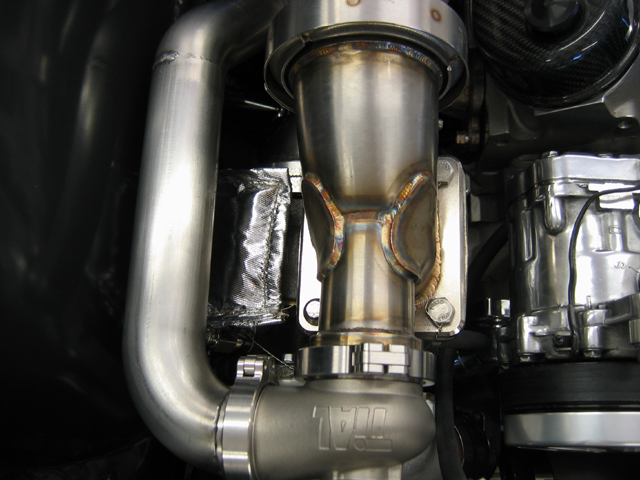

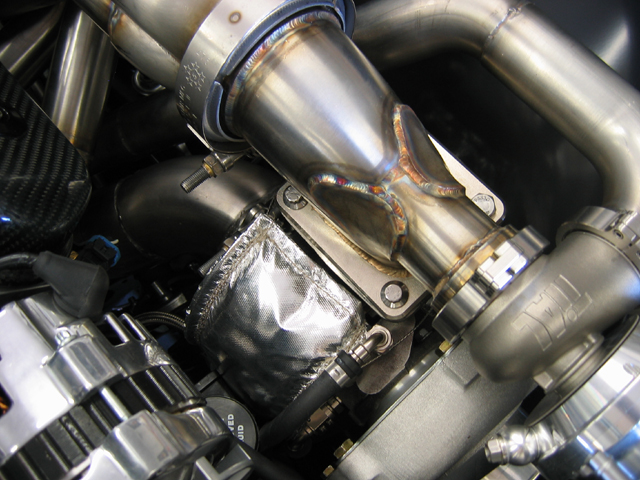

added some new turbo heatshield bags. The other ones I had on there didn't fit well, these are much nicer.

http://www.camcojb.com/temp/malitude 570.jpg

http://www.camcojb.com/temp/malitude 571.jpg

http://www.camcojb.com/temp/malitude 572.jpg

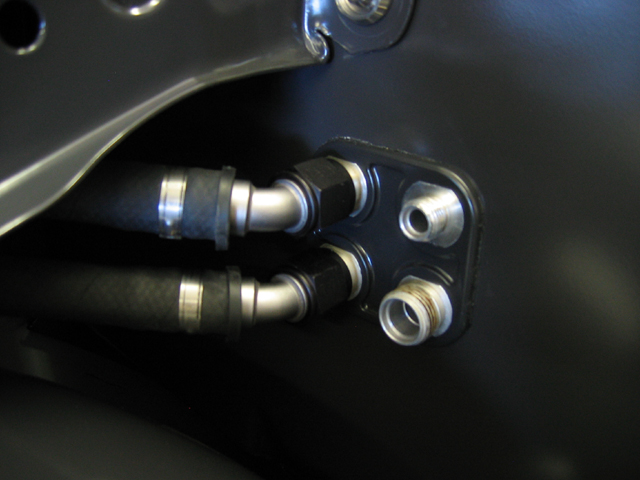

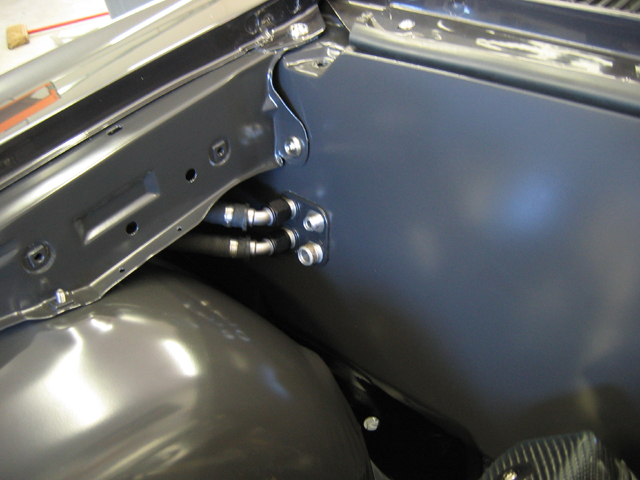

added my heater hoses

http://www.camcojb.com/temp/malitude 563.jpg

http://www.camcojb.com/temp/malitude 564.jpg

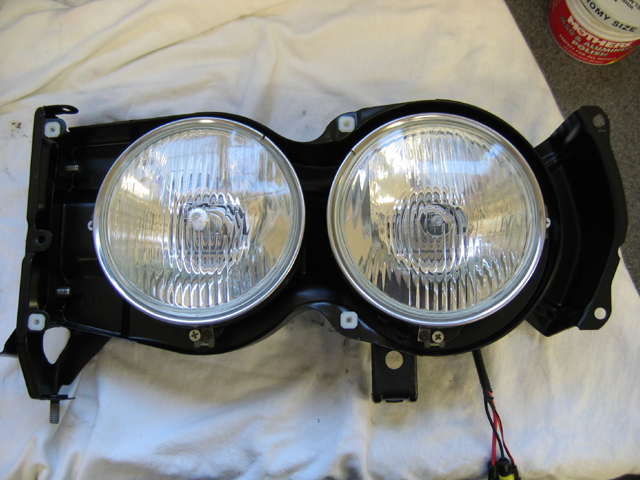

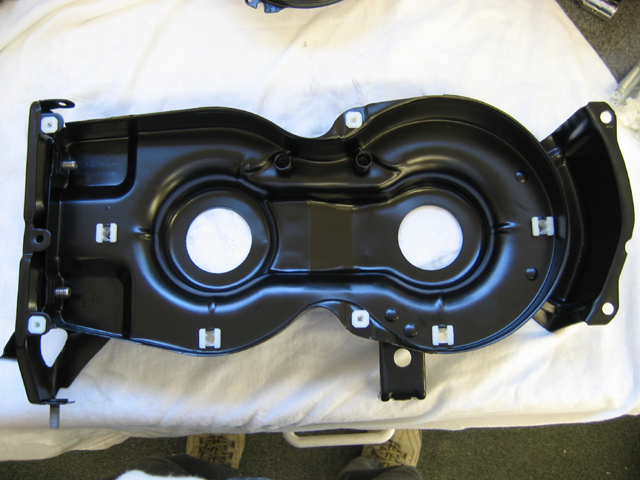

had my headlight frames powdercoated. Changed the halogen bulbs for true HID's, with HID low and high beam on the one bulb. I don't think I'll even plug in the normal inside high beam as it won't match and the two outside lights will be plenty.

http://www.camcojb.com/temp/malitude 574.jpg

http://www.camcojb.com/temp/malitude 576.jpg

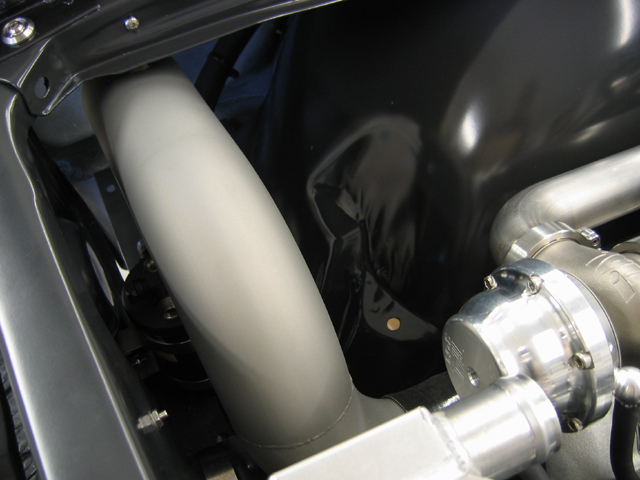

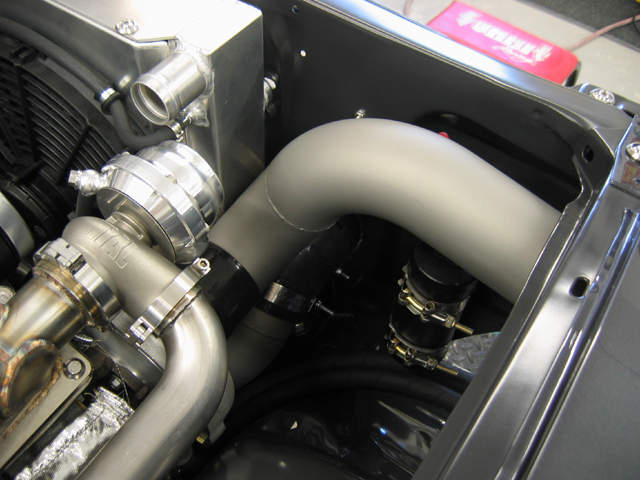

a quick pic of the air inlet tube. Has a little bracket that supports the end, from that small button-head allen screw just above the pipe. Filters are on order. Basically copied what Mark had in the car, seemed to work well.

http://www.camcojb.com/temp/malitude 577.jpg

http://www.camcojb.com/temp/malitude 578.jpg

Jody

It's looking awesome Jody!!! You're putting some great detail into it. I can't wait to get my car to that point.
