Marty the car was already repainted in the factory Summit white last year. This is were it got held up in paint jail, hence why we didn't make SEMA. Since we are updating the look, we will have to paint the new 2014 trunk, rear bumper, hood, front bumpers and rockers. Since all the ZL1 carbon stuff is now being replaced with Z/28 parts, rear spoiler, diffusers, flares, front splitter, hood insert and the carbon roof, those will also need to get satin clear. So in essence we will be redoing everything other than the quarters, doors, and front fenders.

Thanks Mike! Tom and Ted from Derale came by on Saturday to discuss SEMA display and mentioned as much as the picture show, it a must see in person.

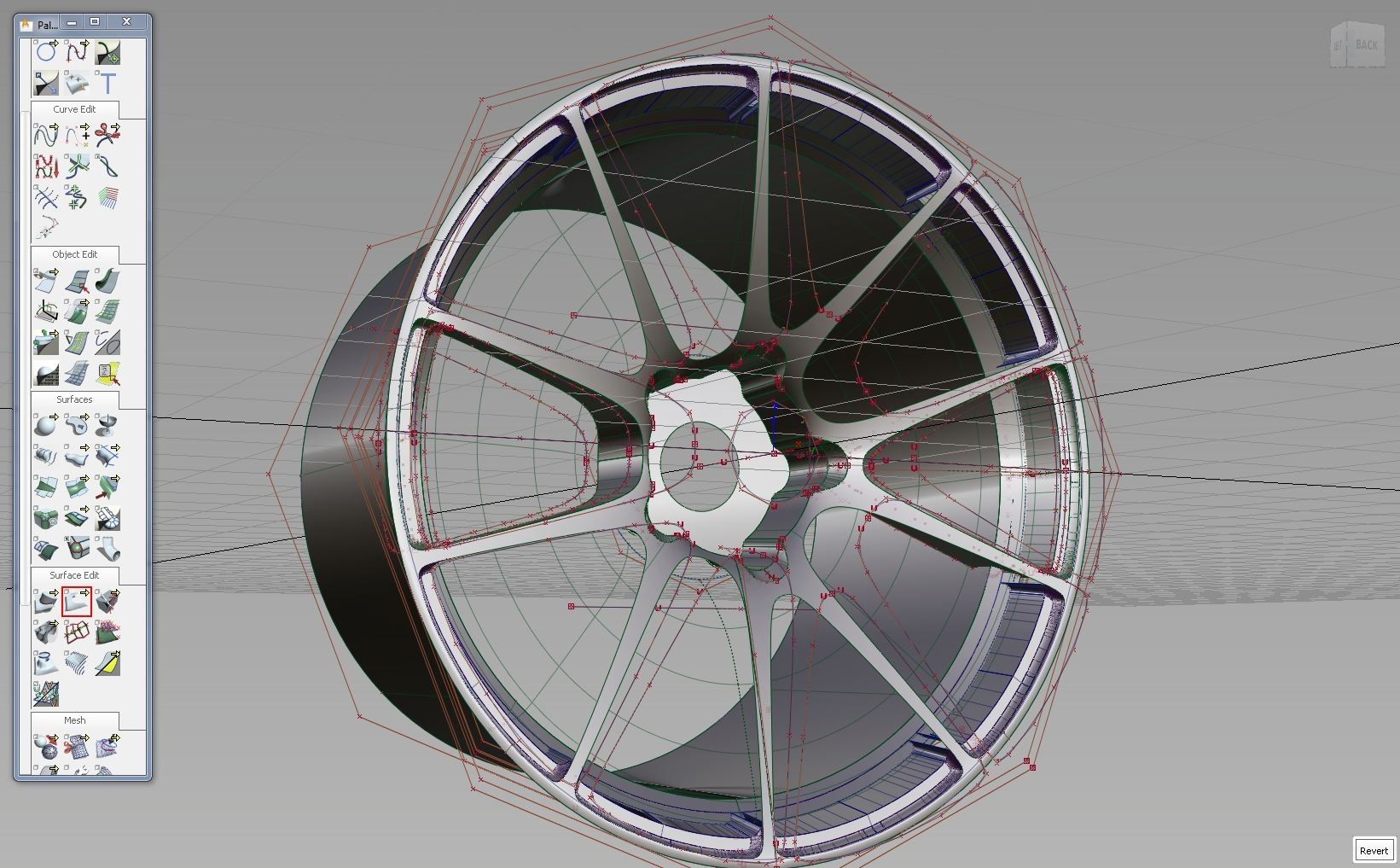

Regarding Dan's attention to detail, he is replicating the Forgeline in CAD! I thought the prelims were already incredible!

http://i1231.photobucket.com/albums/...psabf67782.jpg

Should have the final by tomorrow!

OK I have got to say it if I do say so myself!!!!


This is the "BADDEST freaking fifth gen Camaro in The UNIVERSE!!!" I can't thank Dan enough for all his hard work! He has literally blown it out of the park and has been an extreme pleasure to work with!

http://i1231.photobucket.com/albums/...ps6f53755e.jpg

Al empty your pm box please.

and holy sh!t is this rendering incredible and it makes me want to stop and buy the White z28 that I am going to look at today before joining the Power Tour !!!!!!!

Done. I'm trying to down size the picture so we can reload it as this image has lost a lot of the detail. The rendering is much nicer than what your seeing!

That's going to be a great looking car. Once finished, I think it would be cool to get a picture of it next to a stock Z28 just for comparison purposes.

Good luck to you guys!

That would be kinda cool. The Z/28 is an awesome car out of the box.

OK, so lets try these again.

http://i1231.photobucket.com/albums/...ps288eef6b.jpg

Well its still losing 90% of the detail and crispness. I try reducing the size more.

Here are a few more.

http://i1231.photobucket.com/albums/...ps44732a4e.jpg

http://i1231.photobucket.com/albums/...ps0ec1f4c6.jpg

http://i1231.photobucket.com/albums/...psac307954.jpg

Notice the factory plastic wicker bill is being replaced with an aluminum brush clear anodize version.

http://i1231.photobucket.com/albums/...ps1d8cb86f.jpg

The diffuser is going to be a combo of carbon and brushed aluminum.

WOW! This car it turning out super nice. That rendering is over the top. Your boys are doing an increadable job!

This just keeps getting better and better.

Thanks guys!

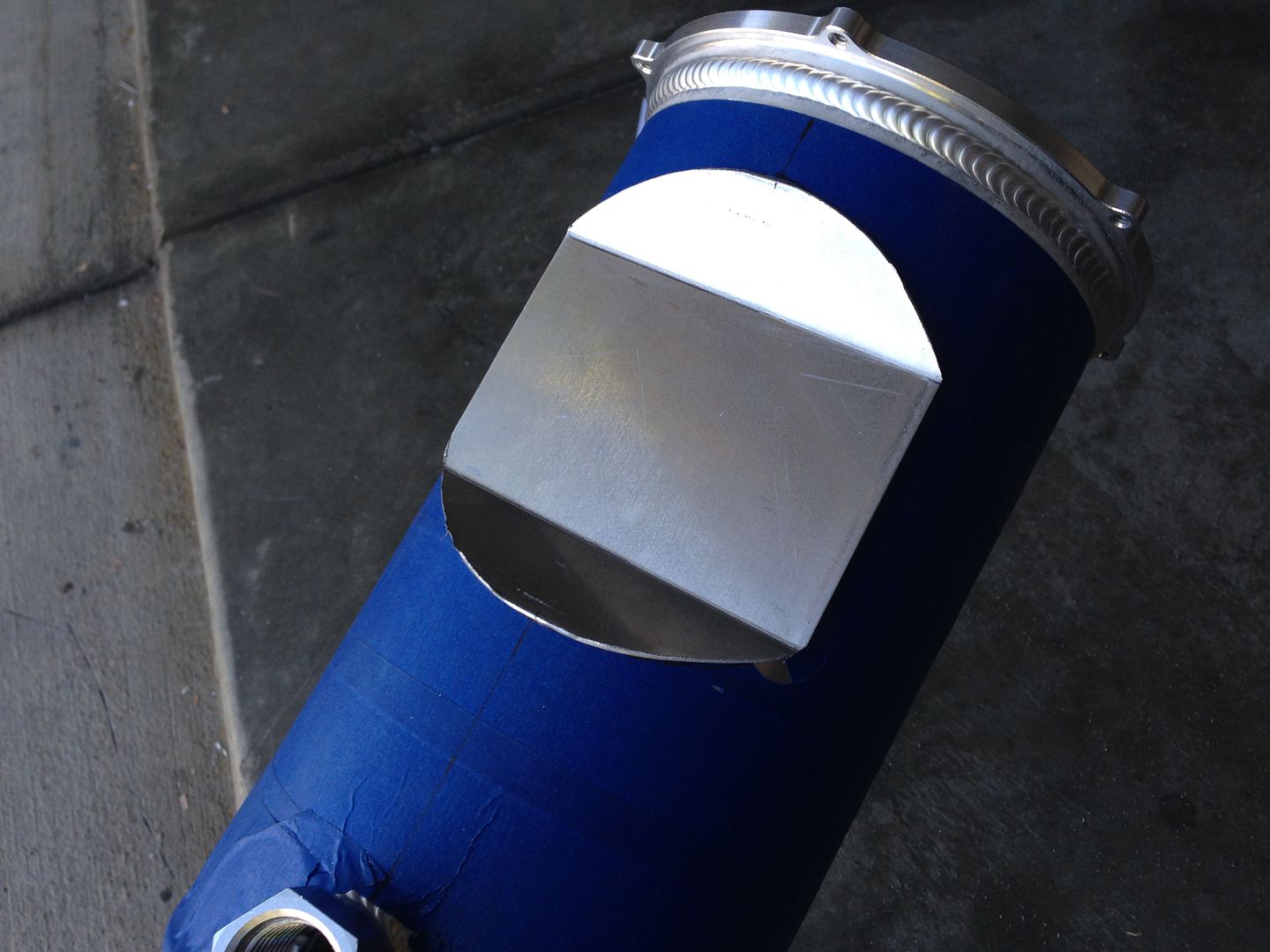

Dry sump plumbing time. The tank will need to notched into the frame rail for clearance. Breather is going on the other by the opposite to the brake booster to balance out both sides. All tanks (dry sump, breather, brake booster, PS, catch can and over flow) are getting anodize gray for continuity. Peterson used 5356 welding rod for the sump and breather tanks as normal welding rods will anodize in a different color and look funky.

http://i1231.photobucket.com/albums/...ps42f3b460.jpg

Justin is cruising

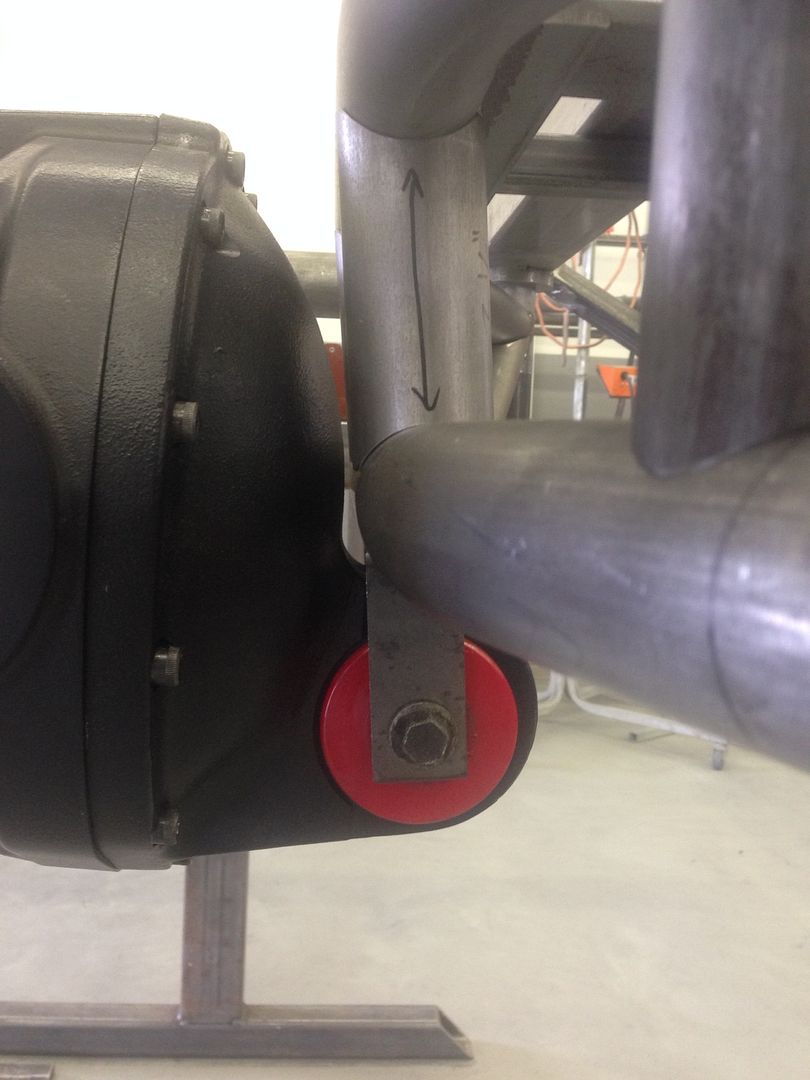

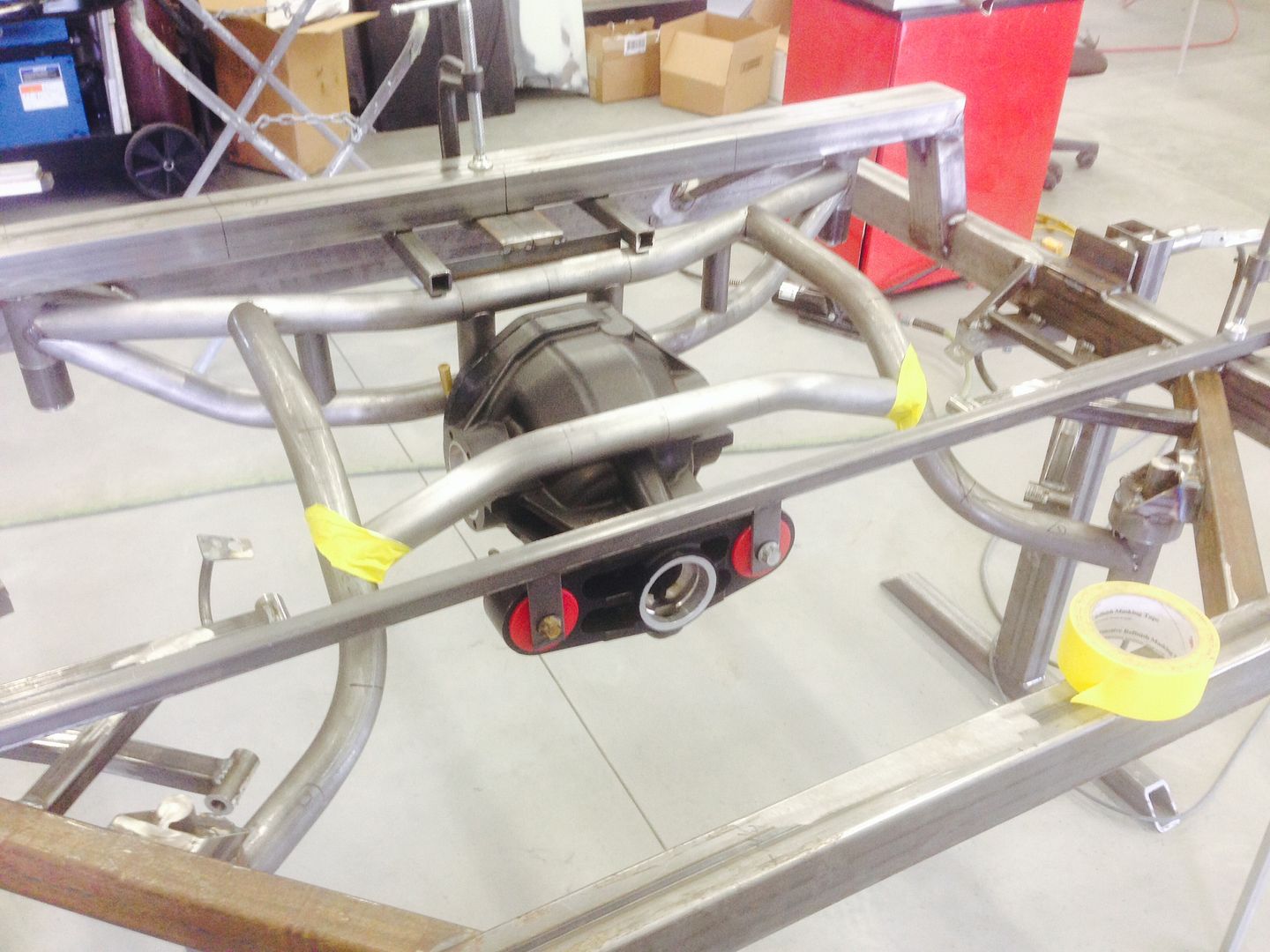

More progress on the rear cradle. The diff will have different mount point options to raise it.


Here is the before

http://i1231.photobucket.com/albums/...ps46c6d9eb.jpg


http://i1231.photobucket.com/albums/...ps3faf1b24.jpg

All the notches have super tight tolerances. Not an easy task.

http://i1231.photobucket.com/albums/...ps58e32fa2.jpg

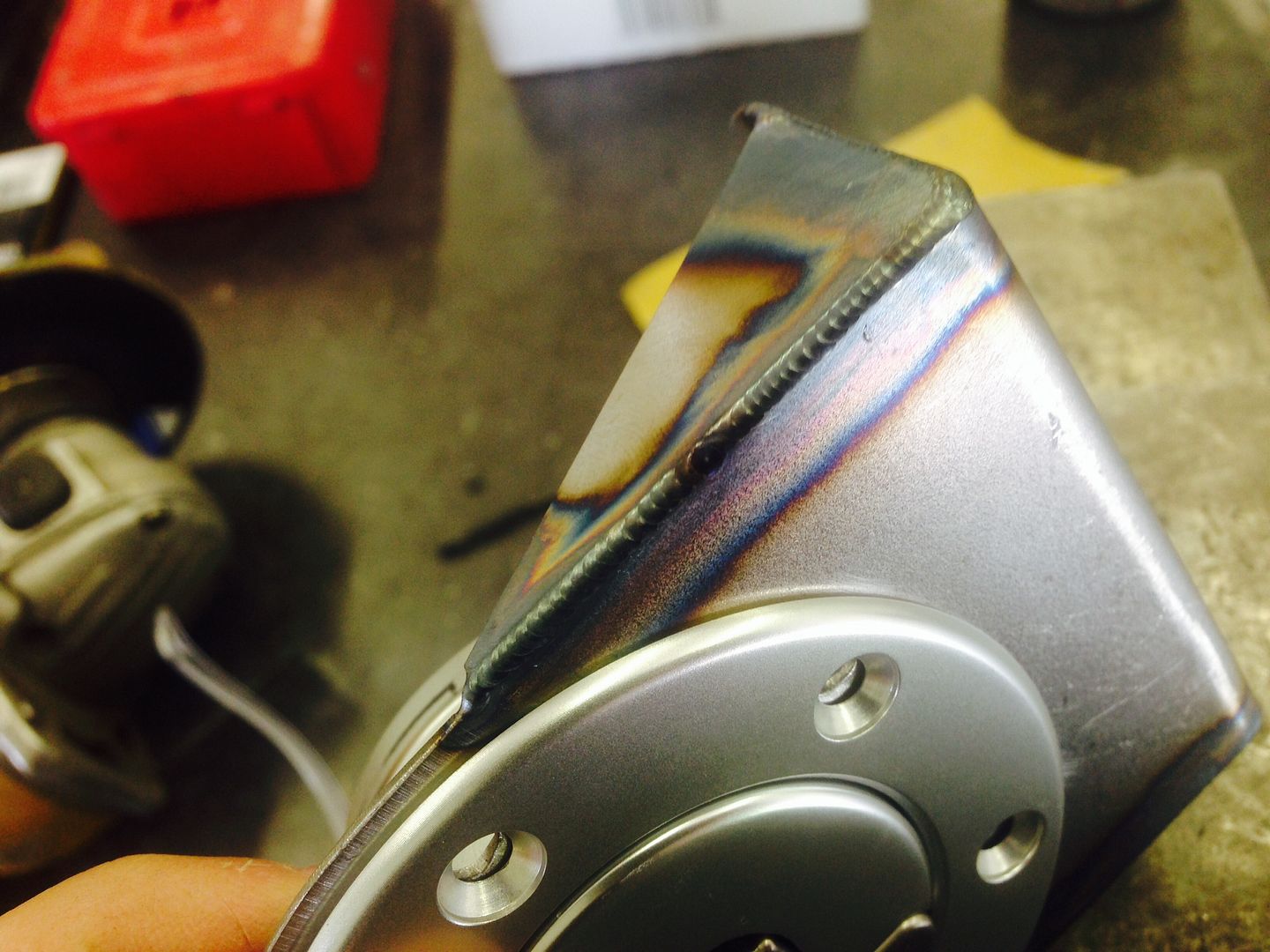

Fab up the bracket to relocated the gas filler cap in the trunk. The welds were done without any welding rod.

http://i1231.photobucket.com/albums/...ps4459d6b4.jpg

It will have a huge XRP super nickel -20 AN on the fitting with braided black hose routed to the tank. Should look cool.

Just Amazing!!!!!!!!!1st.Class build.Make's me want to run out and buy a 5th.gen and leave all crazyiness of working old rusted crap behind.:trophy-1302: :thumbsup: :thumbsup: :thumbsup: :thumbsup: :thumbsup:

We have a convert, LOL. Personally I'll take the old stuff any day of the week. It will stay cool forever! This is only cool for a season.

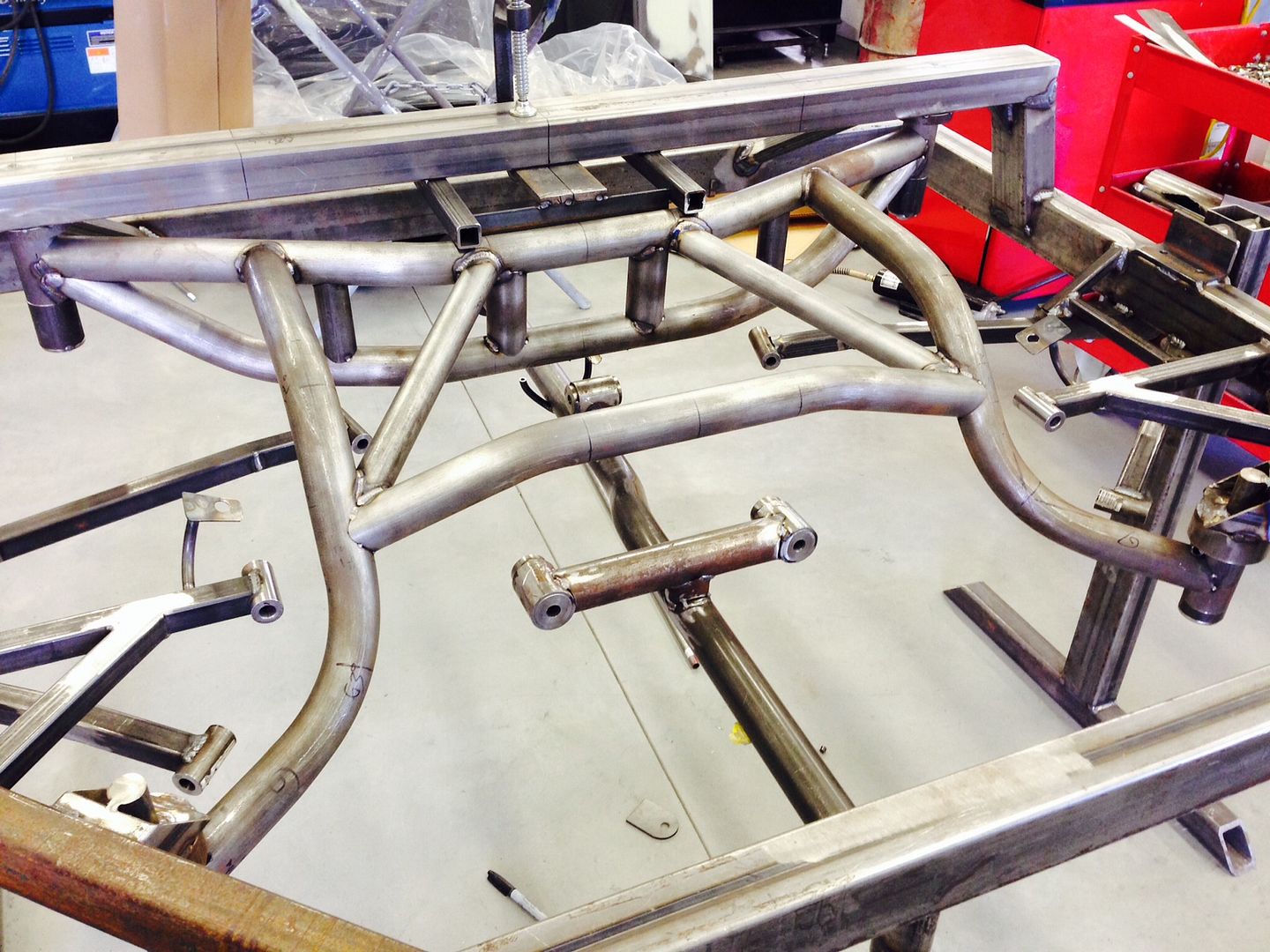

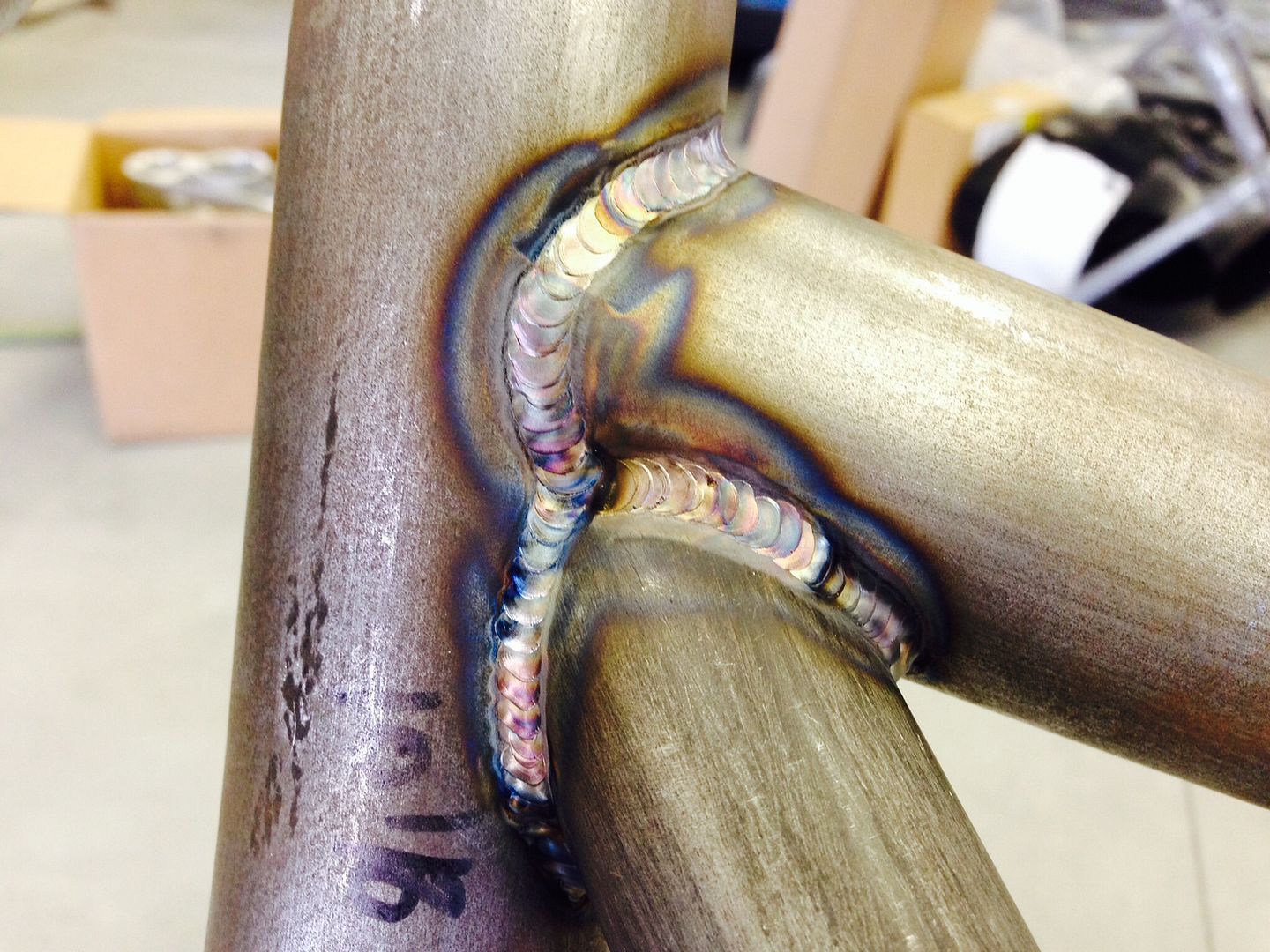

Lets call this tubular Thursday..... The basic cradle is done.

http://i1231.photobucket.com/albums/...ps593a2b66.jpg

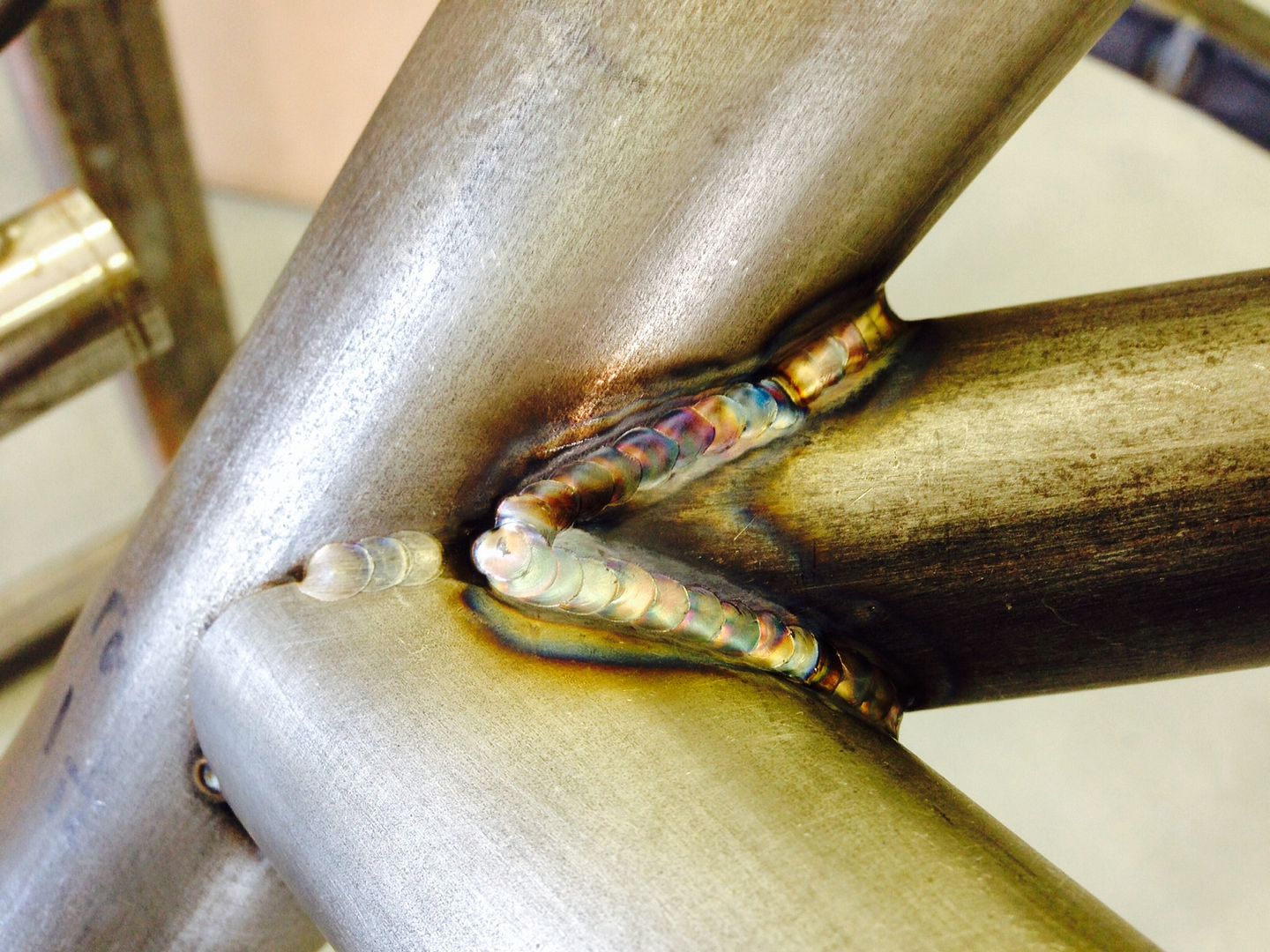

Now they are welding it up.

http://i1231.photobucket.com/albums/...psa7d7c2e0.jpg

http://i1231.photobucket.com/albums/...psa66e8a65.jpg

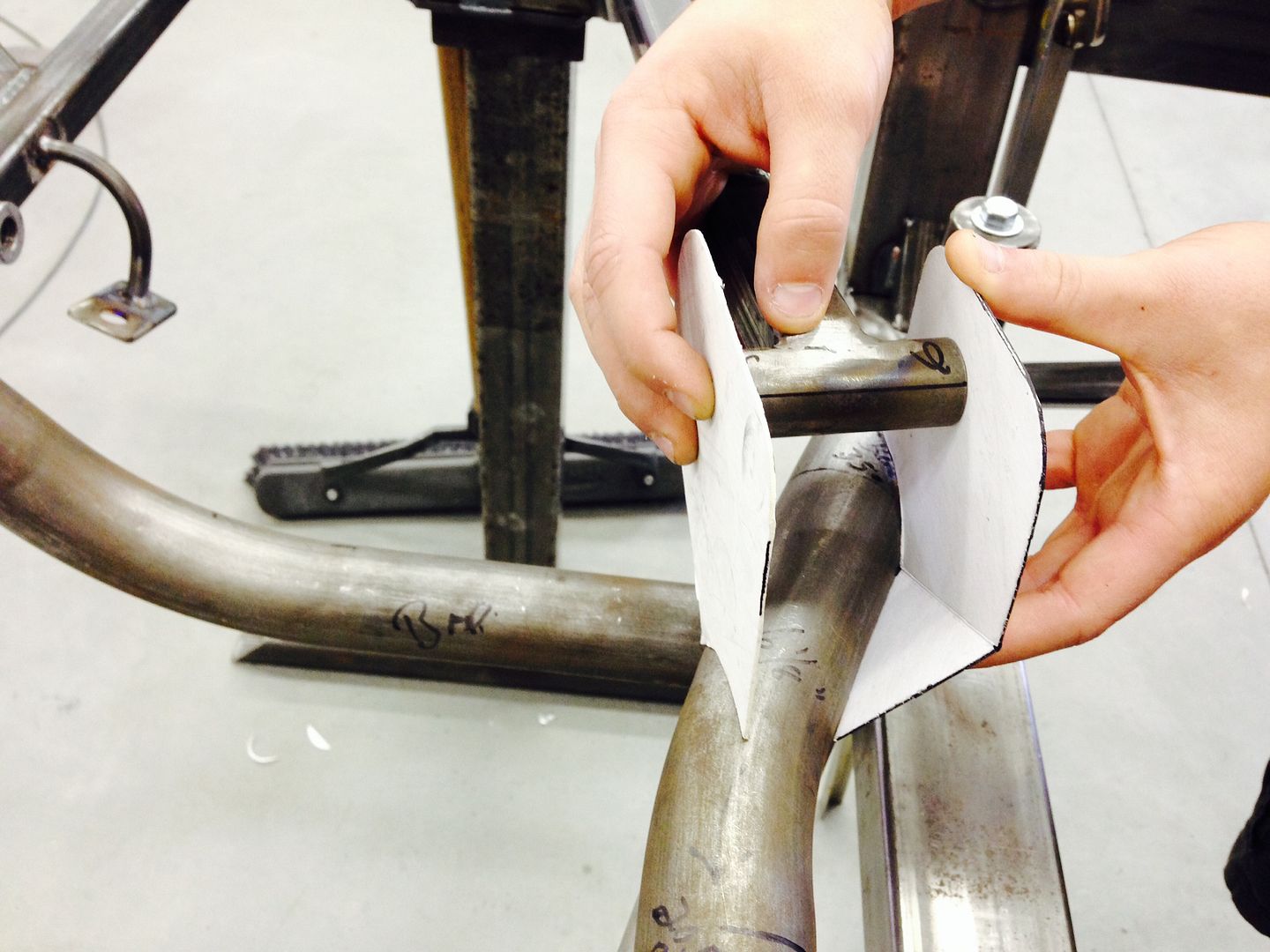

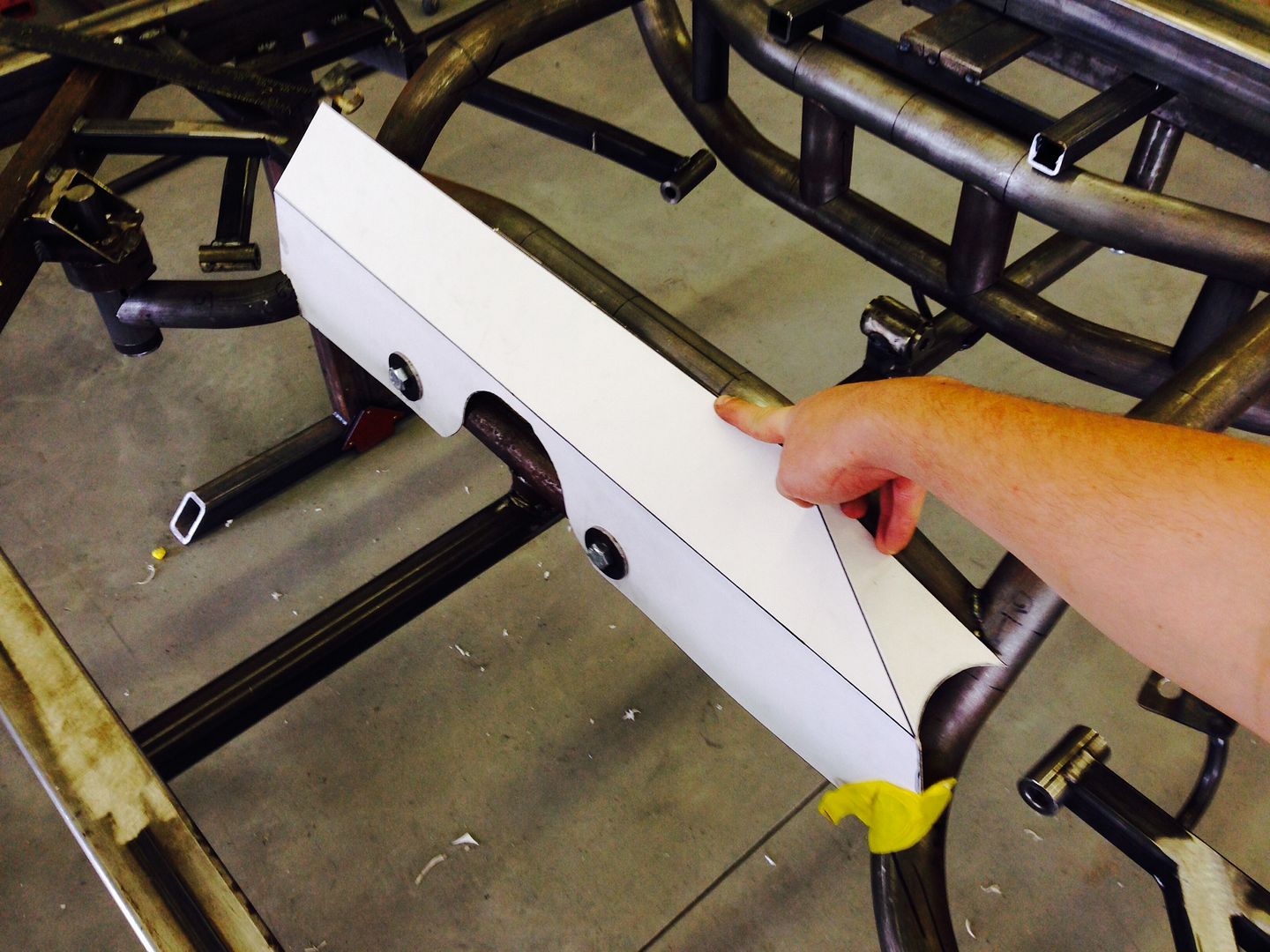

All the card board template are made to mount the arms. This one will be have triangle cuts to lighten it up.

http://i1231.photobucket.com/albums/...ps39790446.jpg

http://i1231.photobucket.com/albums/...psdd6f562e.jpg


Unfortunately its going to take two weeks to get the plates water jet so Justin wont be able to be able to complete the cradle in the three weeks he allotted to be in Wisconsin.




.

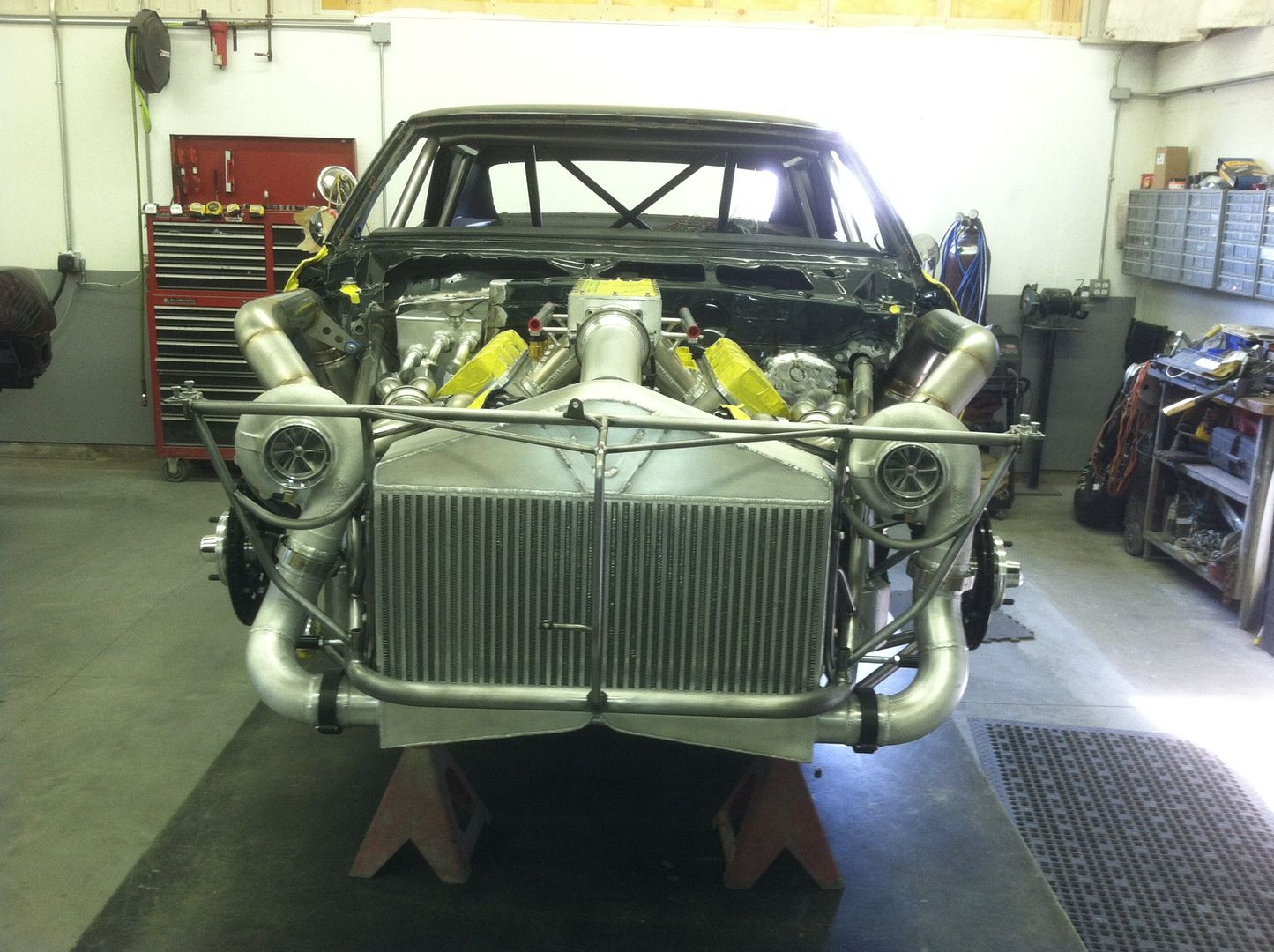

Here is another project going on at Xtreme. Not PT but still a cool 67 non the less.

http://i1231.photobucket.com/albums/...ps56de78ff.jpg

http://i1231.photobucket.com/albums/...pscb6ef068.jpg

http://i1231.photobucket.com/albums/...ps31ee5530.jpg

http://i1231.photobucket.com/albums/...ps14d8b7cc.jpg

http://i1231.photobucket.com/albums/...ps911be6df.jpg

http://i1231.photobucket.com/albums/...ps5461aa28.jpg

http://i1231.photobucket.com/albums/...ps1cf791a1.jpg

http://i1231.photobucket.com/albums/...psc022d434.jpg

That is sweet workmanship Al

2 weeks for water jetting? Where is this in Wisconsin? I know a couple places that might be able to get it done sooner.

Thanks Greg. Craig at Xtreme is a perfectionist for sure!

He's in Luxemburg. If you know someone who can pull it off it would be Huge! Justin is flying next Wednesday. Everywhere they check we're super busy.

Al,,, You will be at SEMA with the car this year.?

That's a ways from me but I know a few people. Does he have CAD files or templates or what? I can make a few calls. Wednesday is pretty tight though.

Mario, It will be in the Derale booth. Derale's booth is in a prime spot. Its right in the front of the main hall next to the Ford booth.

He has templates. Your right it is tight. Craig was thinking it would take two days to get them done, unfortunately everybody they checked with was back up. Thanks again for checking!

I just sent you a PM I've got at least a couple guys willing to sneak it in ASAP. First two on the PM'd list. Ones in Hartford WI and the other in Cambridge.

Let me know how it goes!

Looking awesome, love the rendering!

Hey Andre thanks for the help! They were able to find a shop that could do it by Tuesday morning. That leaves one day for Justin to get everything tack up.

Thanks Kevin. Dan did a Killer job for sure.

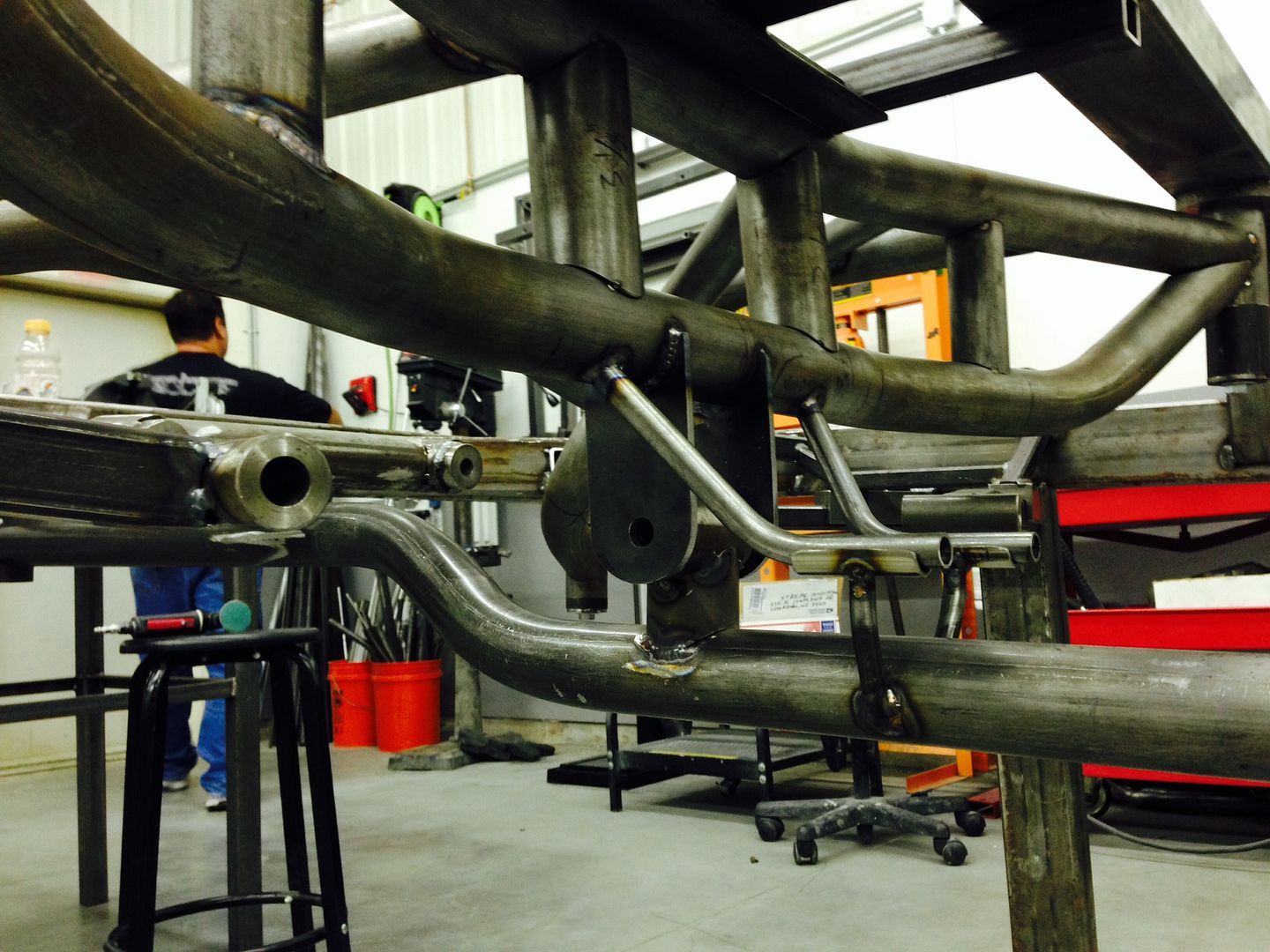

Got to give props to Justin. Hes doing an incredible job considering this is his first time making something like this.

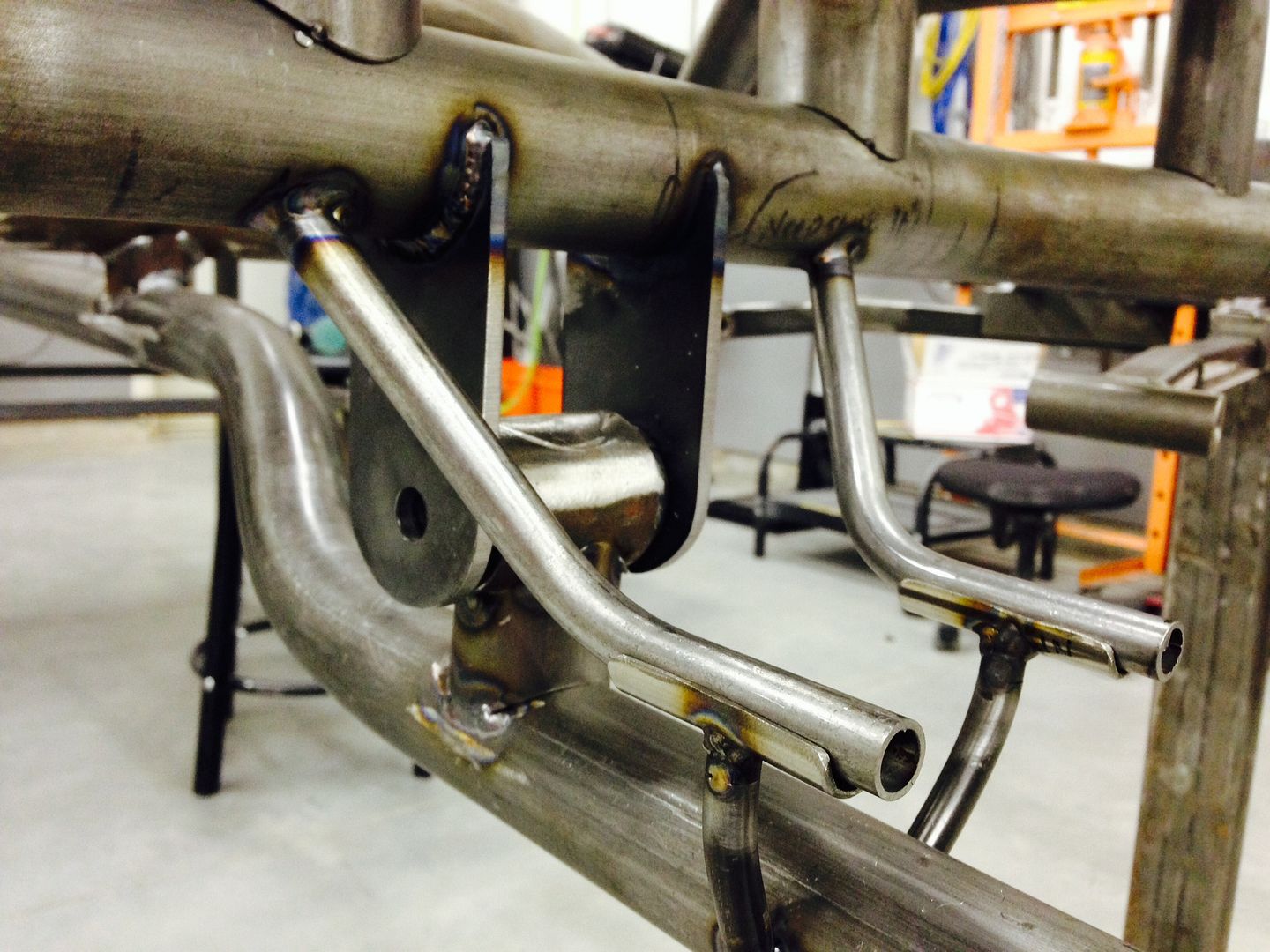

He did the did the exhuast hanger. They will be cap at the end. Also made the plate for the mount the diff cover to the cradle.

http://i1231.photobucket.com/albums/...ps94011d72.jpg



http://i1231.photobucket.com/albums/...ps7704fc02.jpg

Random updates:

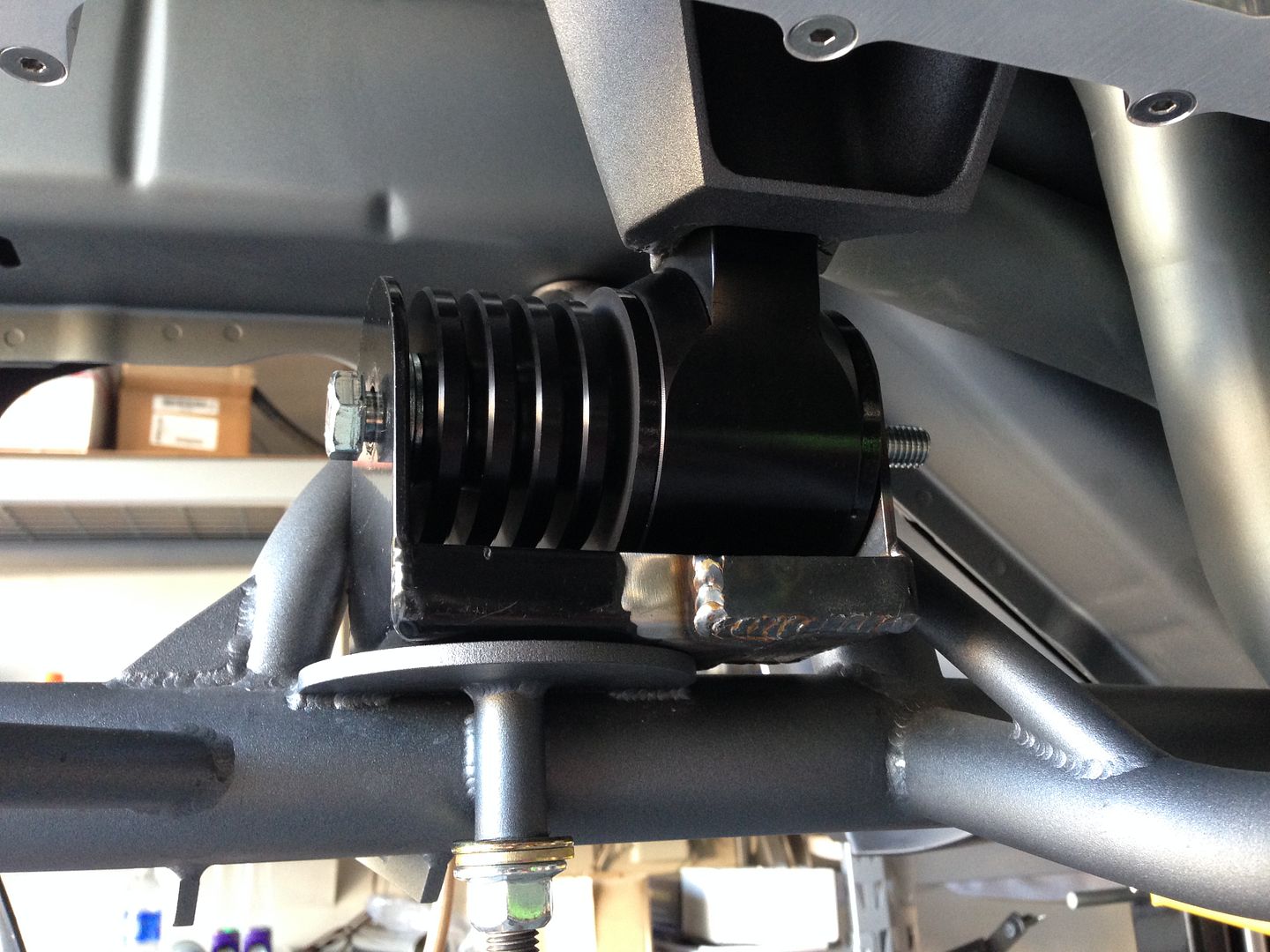

Justin modified the DSE motor mounts to allow for a 2" set back and 1/2" drop.

http://i1231.photobucket.com/albums/...ps86fb493f.jpg

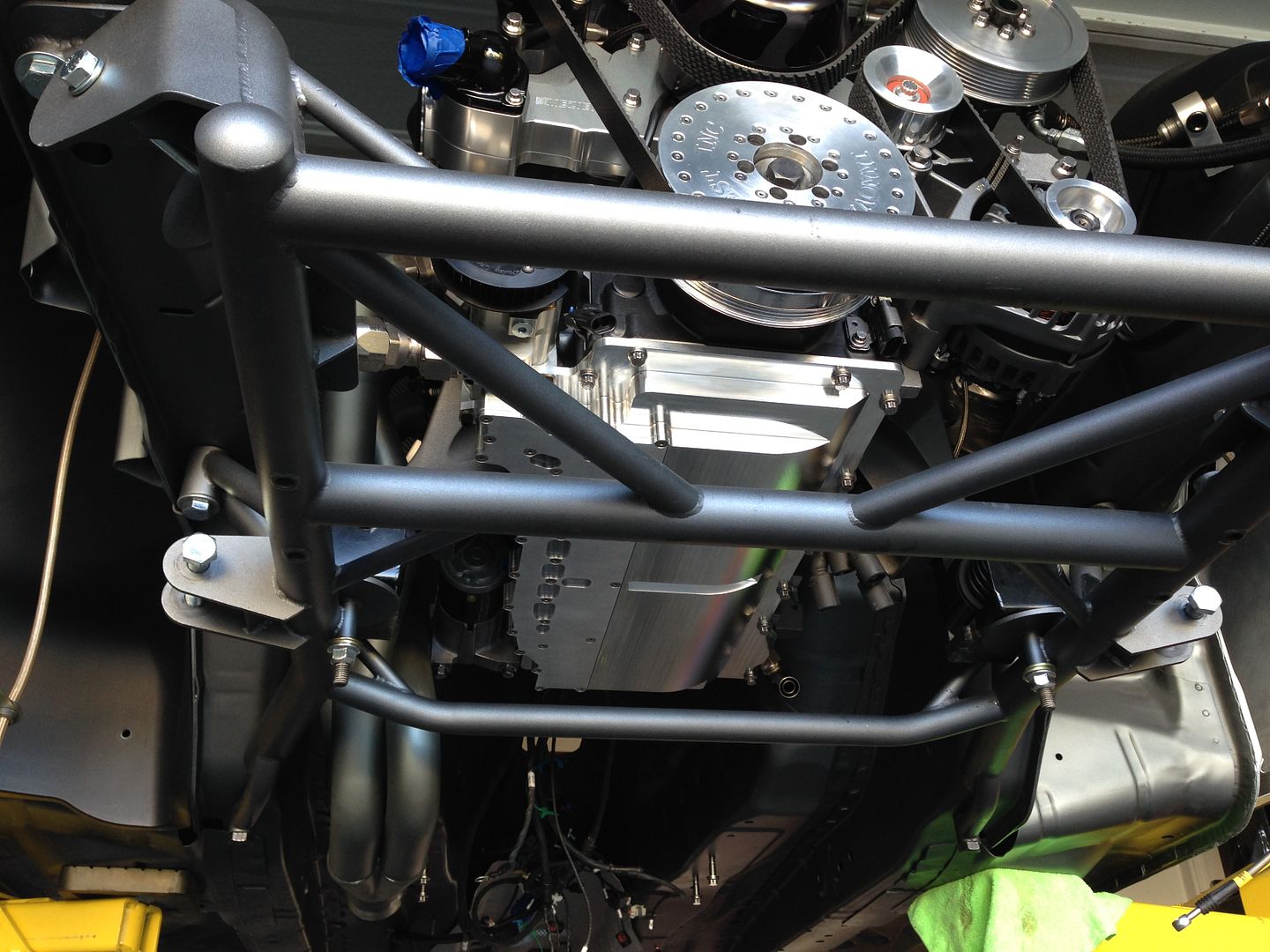

Dailey's dry sump is in.

http://i1231.photobucket.com/albums/...psa157937b.jpg

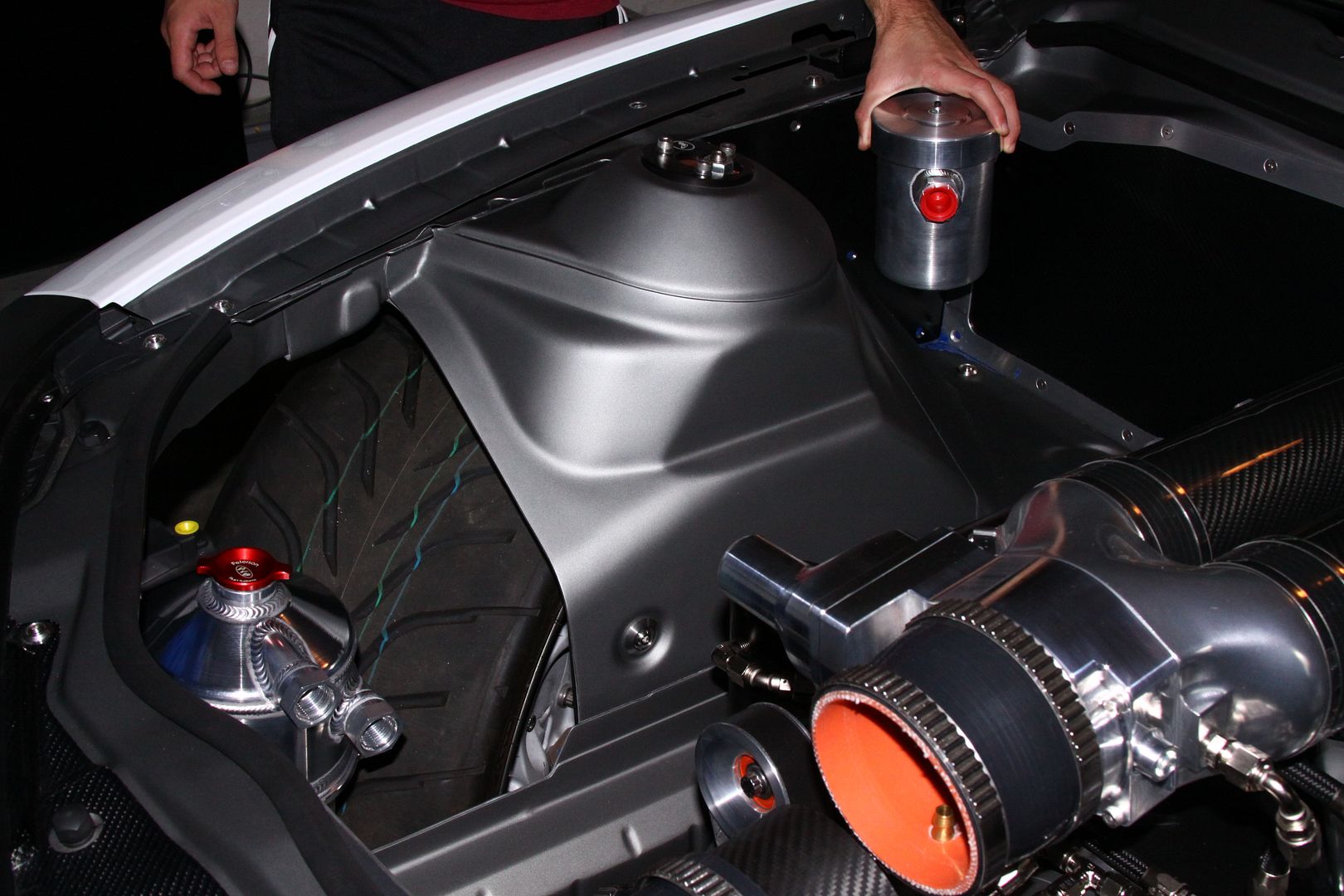

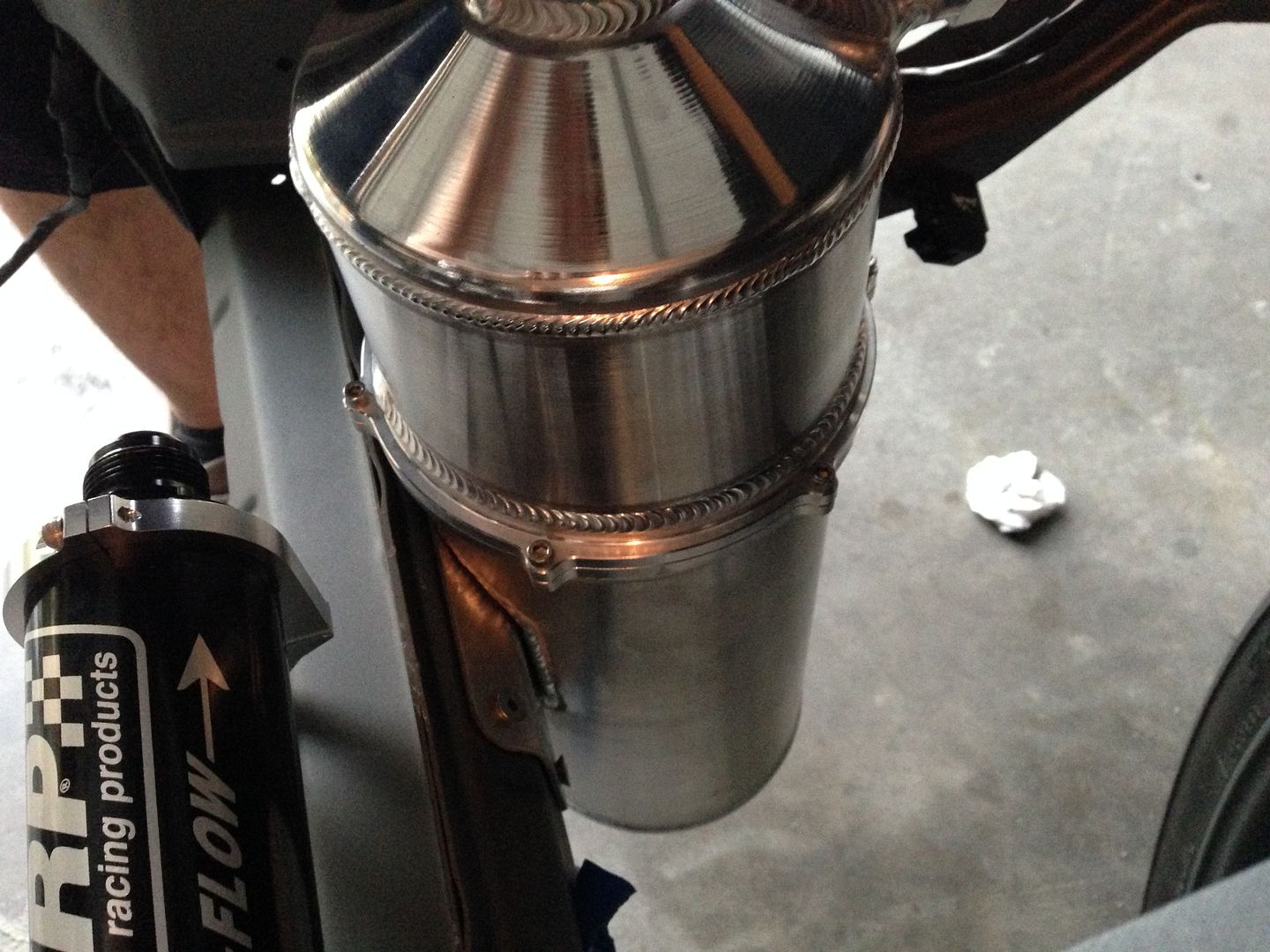

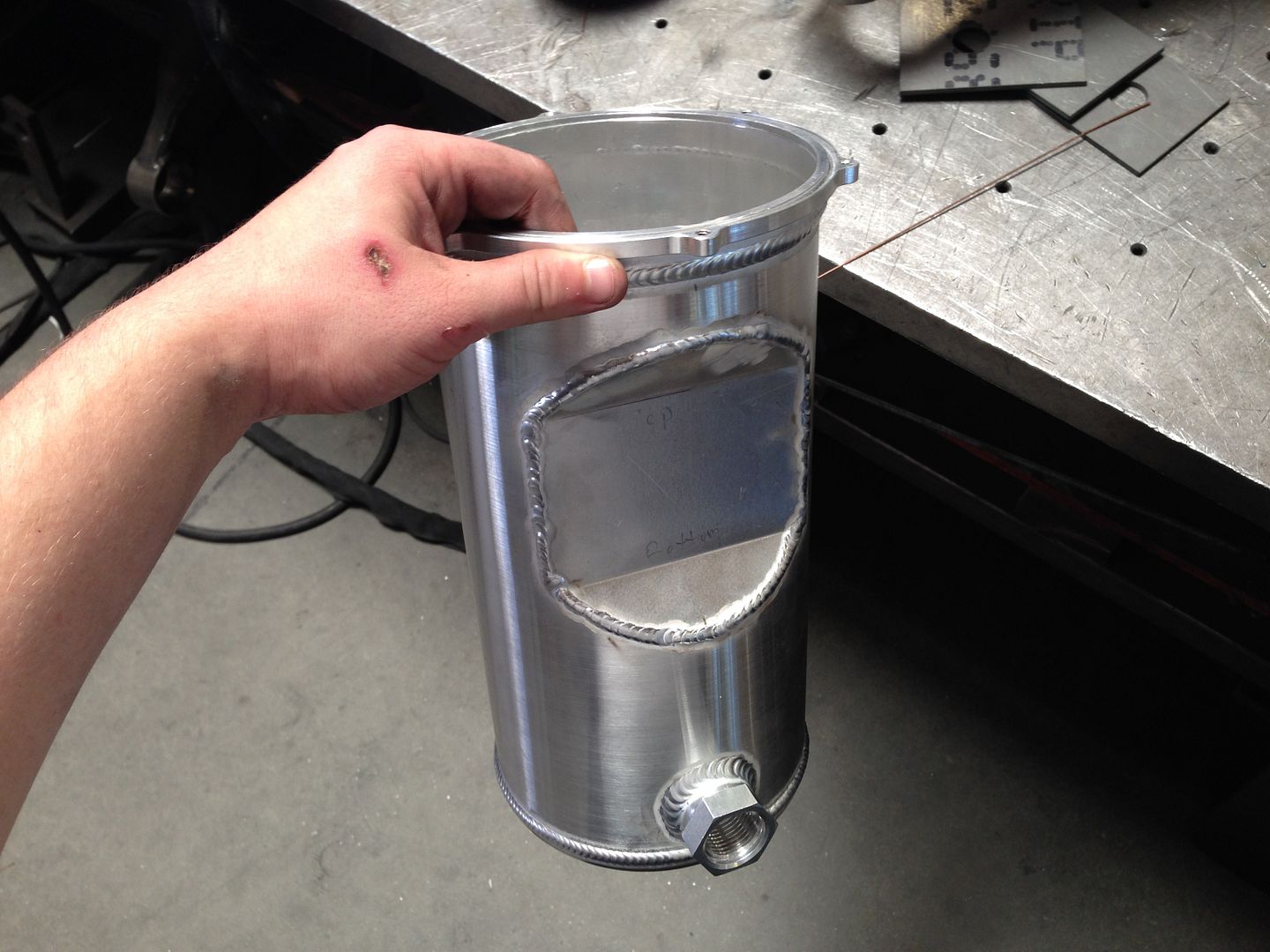

The dry sump tank was being mounted on the front right wheel well. Space was a a premium as the tire was hitting the tank when clocked inward. To gain 1" of clearance between the tank and tire required notching the tank, eliminating the mounting bracket and direct mounting it the frame rail.

http://i1231.photobucket.com/albums/...ps3e3dd71f.jpg

http://i1231.photobucket.com/albums/...psd9beb64b.jpg

http://i1231.photobucket.com/albums/...ps795cf215.jpg

http://i1231.photobucket.com/albums/...ps6cc9f1b4.jpg

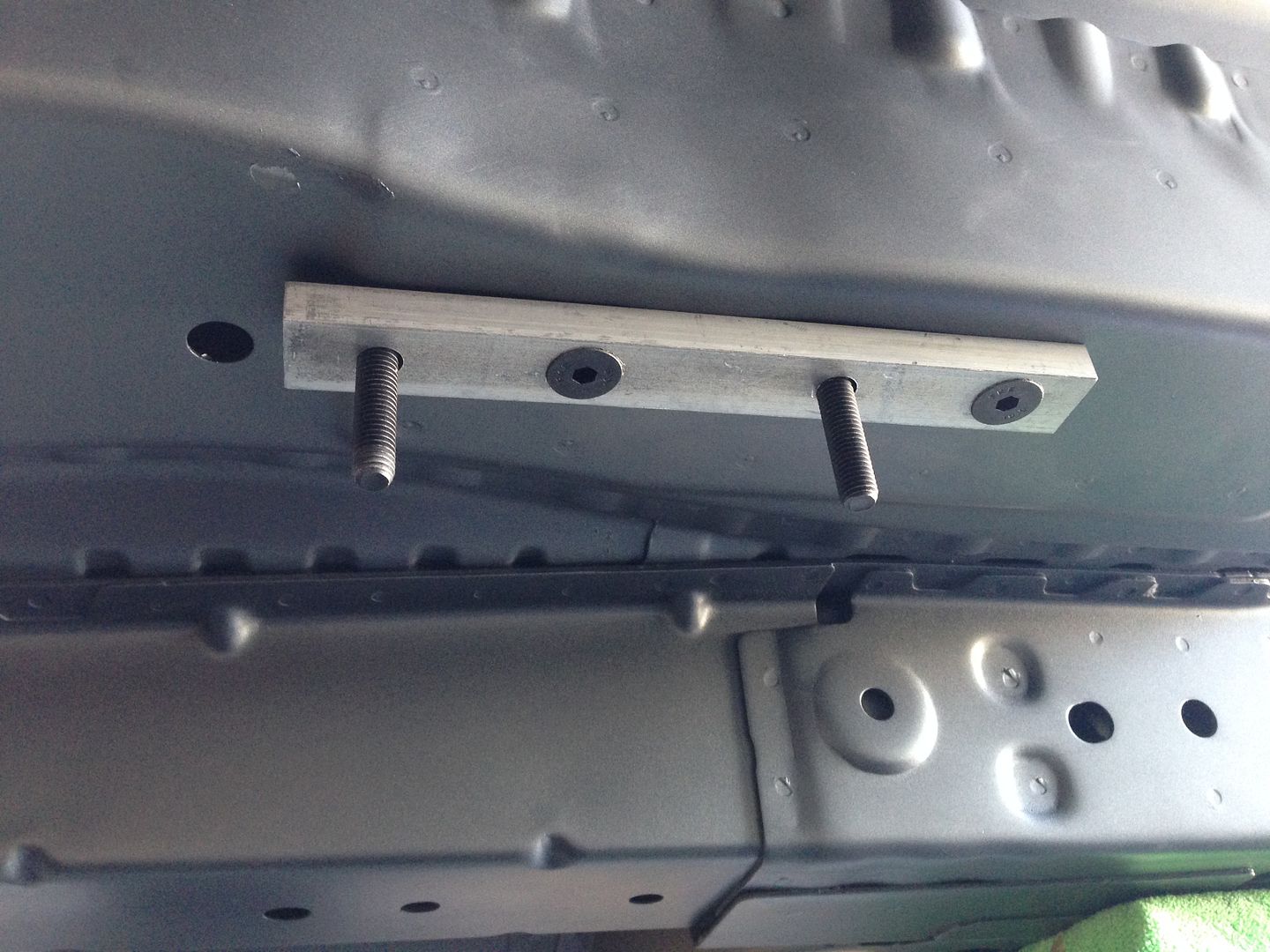

The trans mount needed to move back 2" and 1/2" back also. The was done by simple creating a 1/2" thick spacer that also relocated the mounting points.

http://i1231.photobucket.com/albums/...psd0d6edf8.jpg

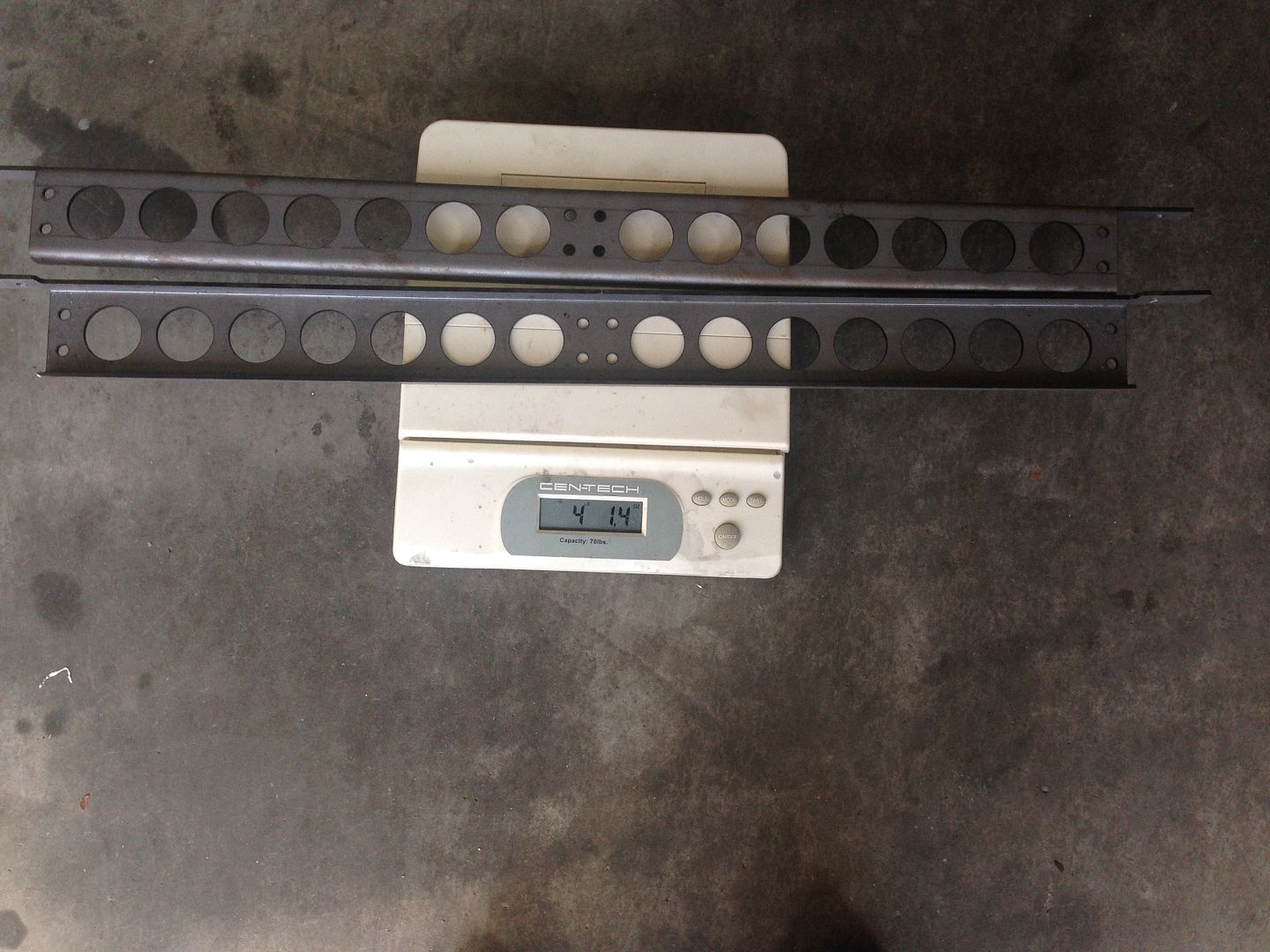

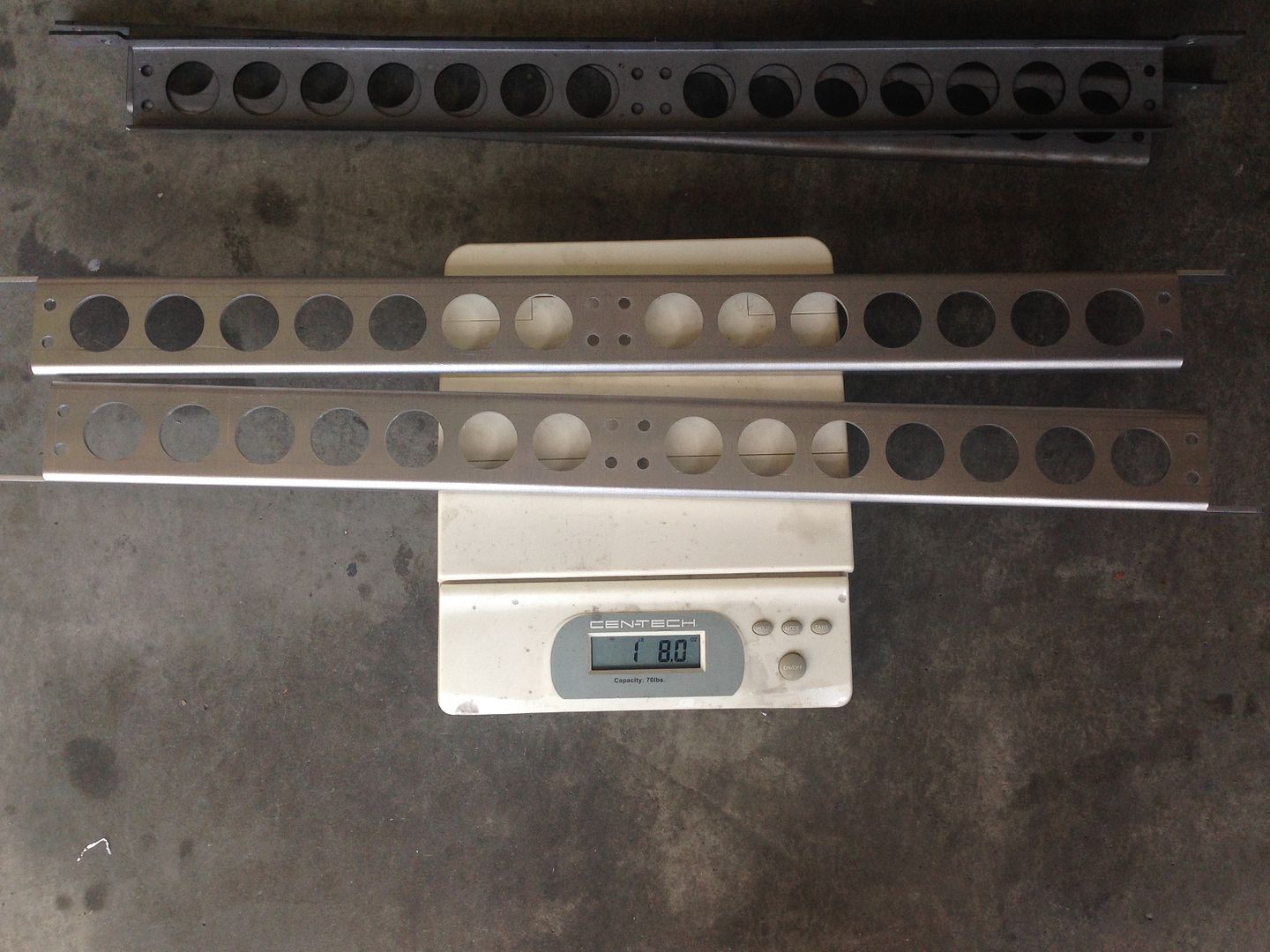

In the quest to shed as much weight as possible, our buddies at Derale are helping us out by remaking the steel brackets for the front coolers out of aluminum.

http://i1231.photobucket.com/albums/...psd7fe98e1.jpg

Every ounces helps.

http://i1231.photobucket.com/albums/...ps42e3047e.jpg

Katech is making a new set of valve covers for G5.R that won't have the bolts for their coil bracket as there's no need. They're also removing the filler caps since it's now dry sump, and lastly, they are also relocating the PCV NPT female fittings to the back of the valve covers, making for a really clean look. They sent us a set of the black anodized billet caps that go around each bolt so that we can strip and finish them to our liking. Part of the reason we didn't want the caps to be black is because the ones on the current carbon valve cover have now turn purple and look like crap.

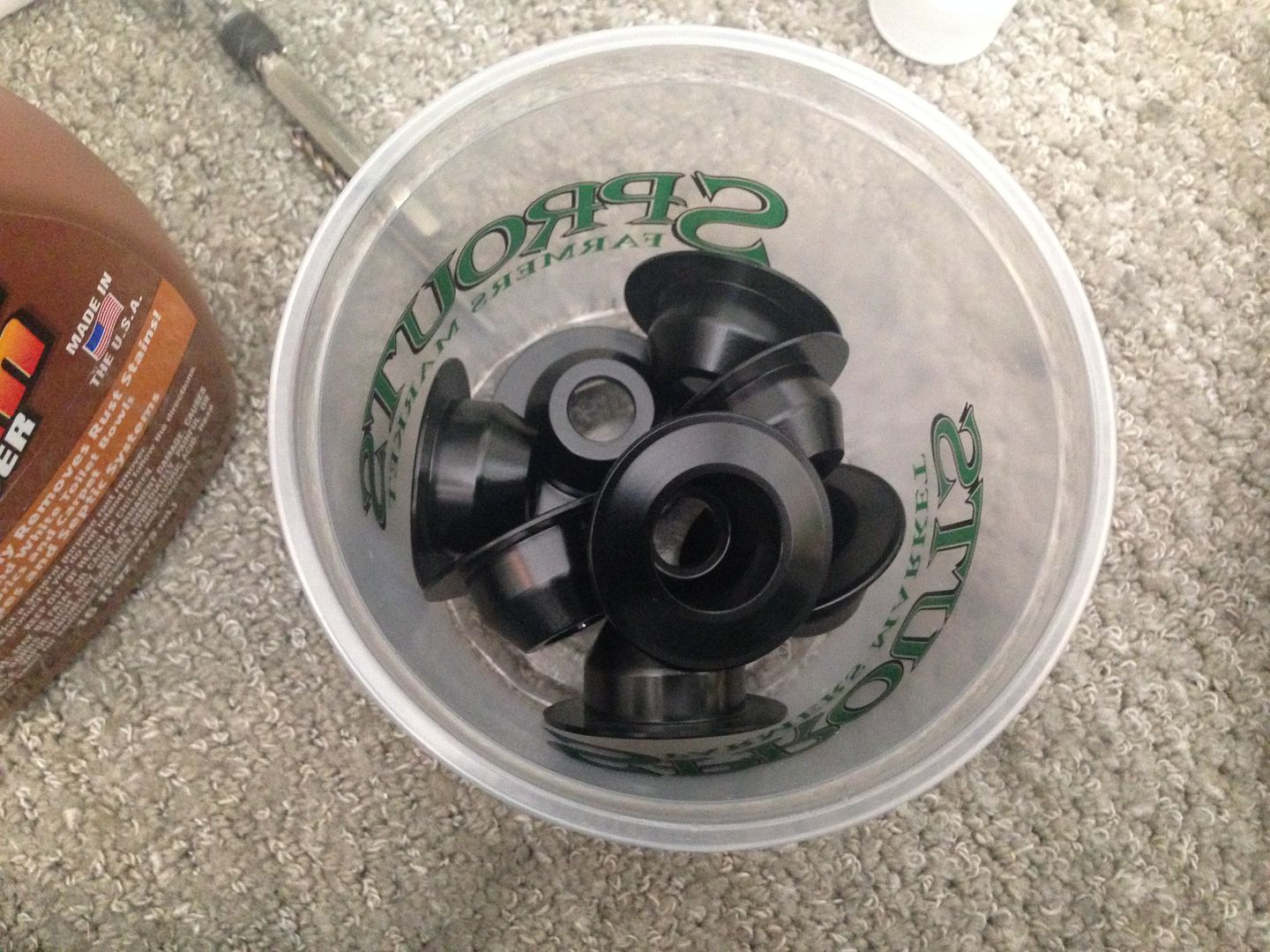

Here they are before the anodizing remover was poured in. Anybody interested in the product, let me know and I will post the info. It was really good stuff.

http://i1231.photobucket.com/albums/...ps253540ed.jpg

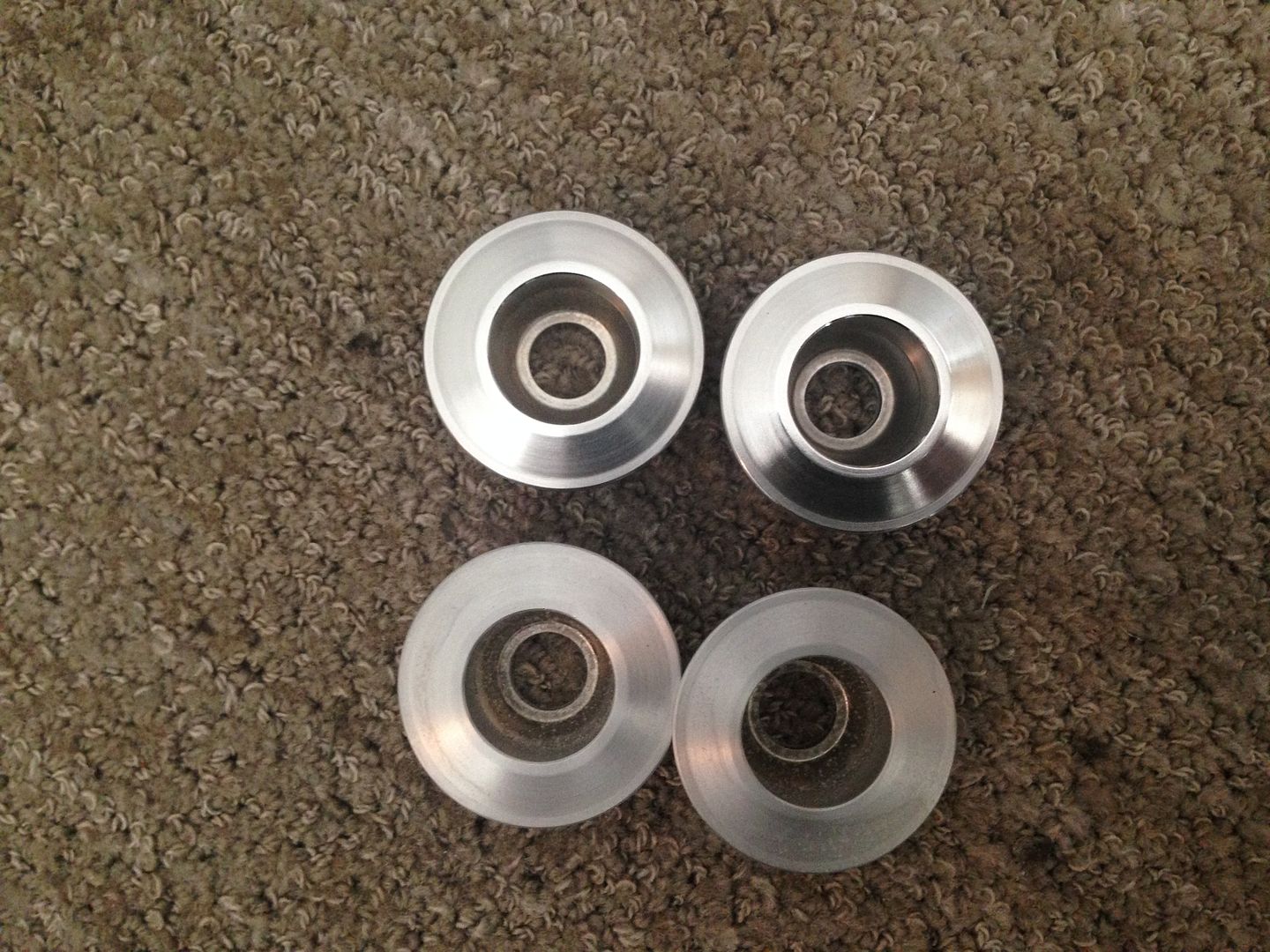

The two in the bottom have gone through the stripping process. The two on the top have been brush and hand polished with Mothers metal polish. That's really good stuff.

http://i1231.photobucket.com/albums/...ps8863322b.jpg

Lastly, Nathan started on the roof removal.

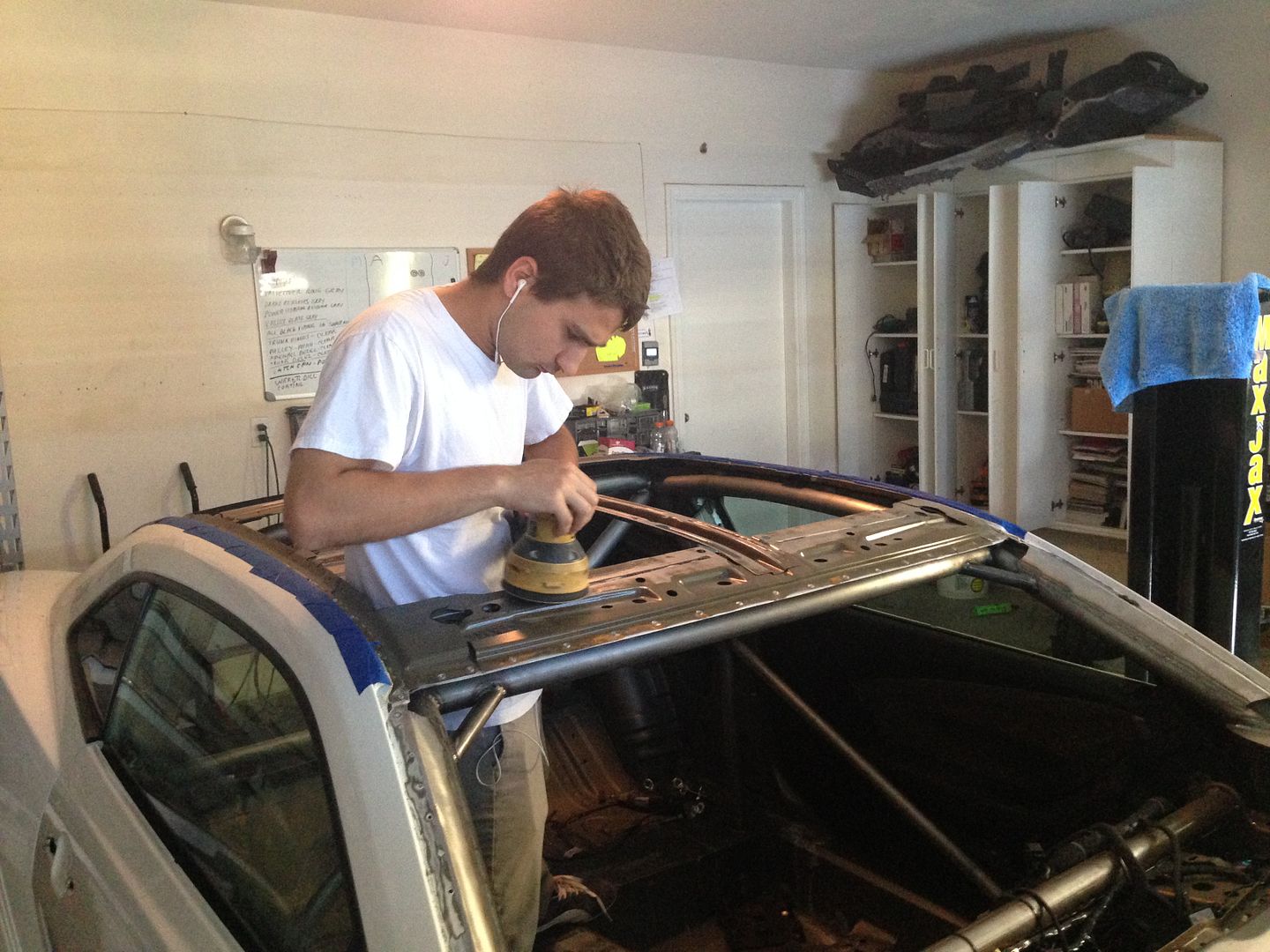

Here, he's cleaning off the paint to get a better view of where the stop welds are.

http://i1231.photobucket.com/albums/...psce48fc27.jpg

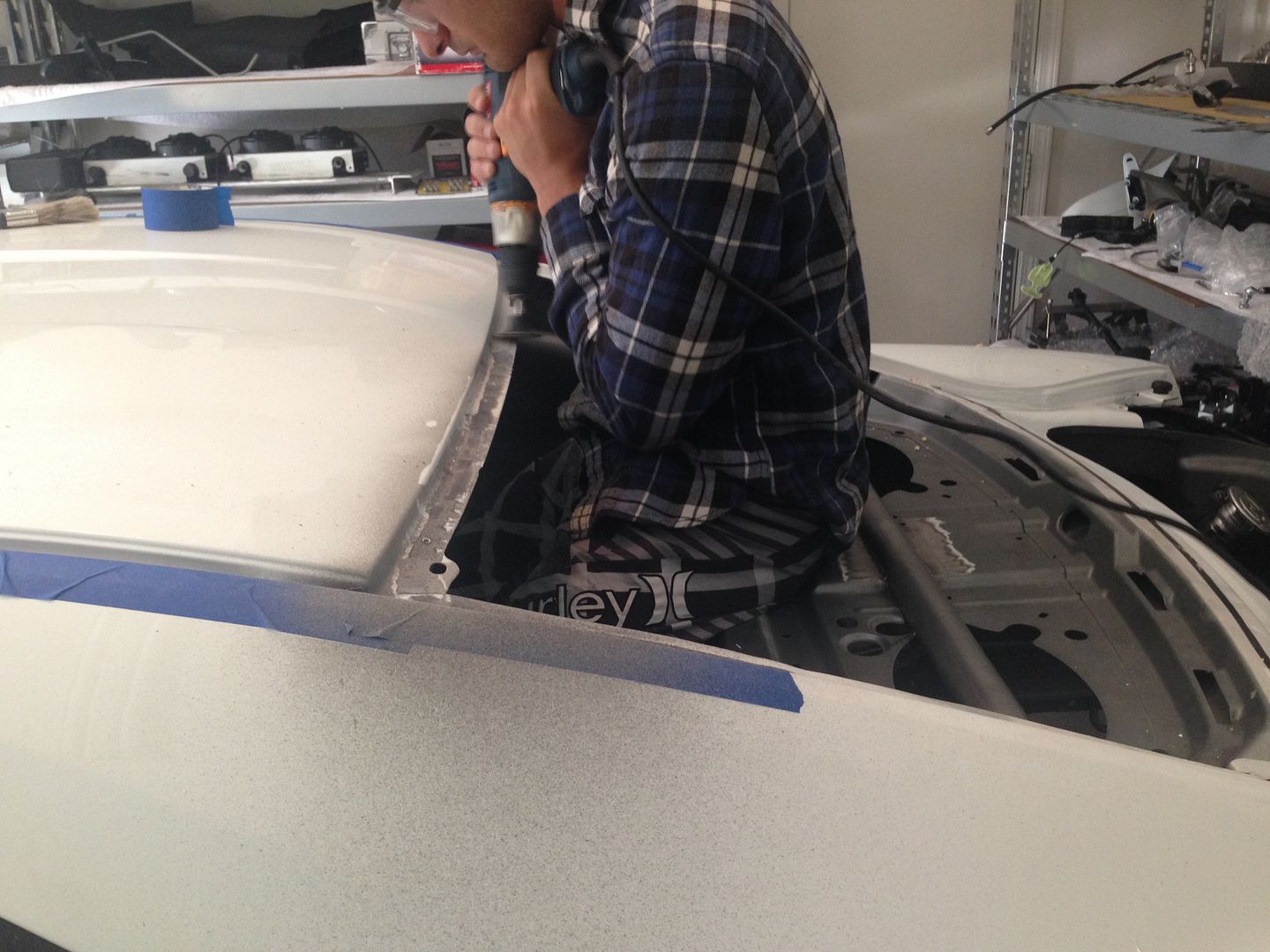

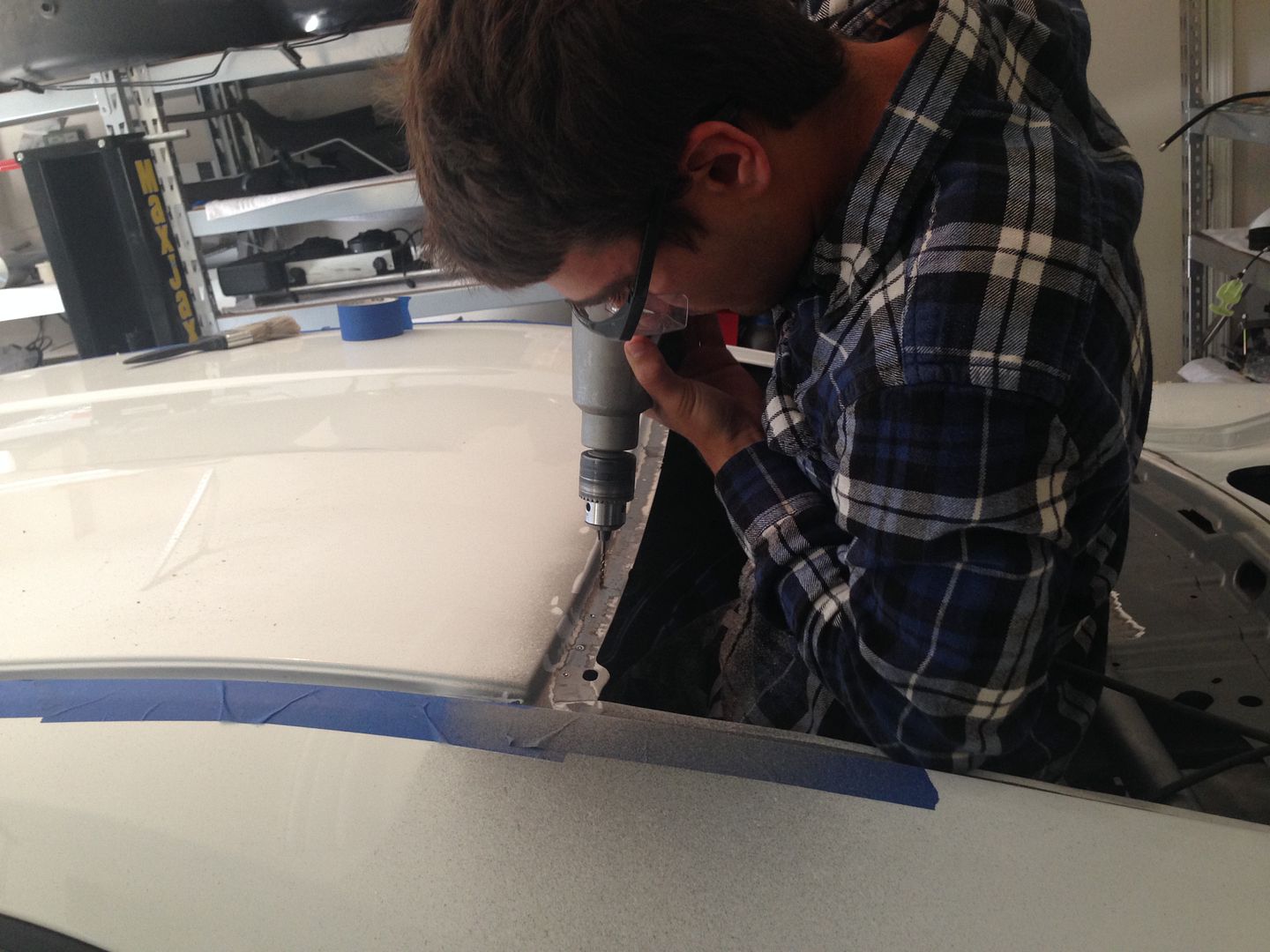

Next, he did a pilot hole.

http://i1231.photobucket.com/albums/...ps4a51c699.jpg

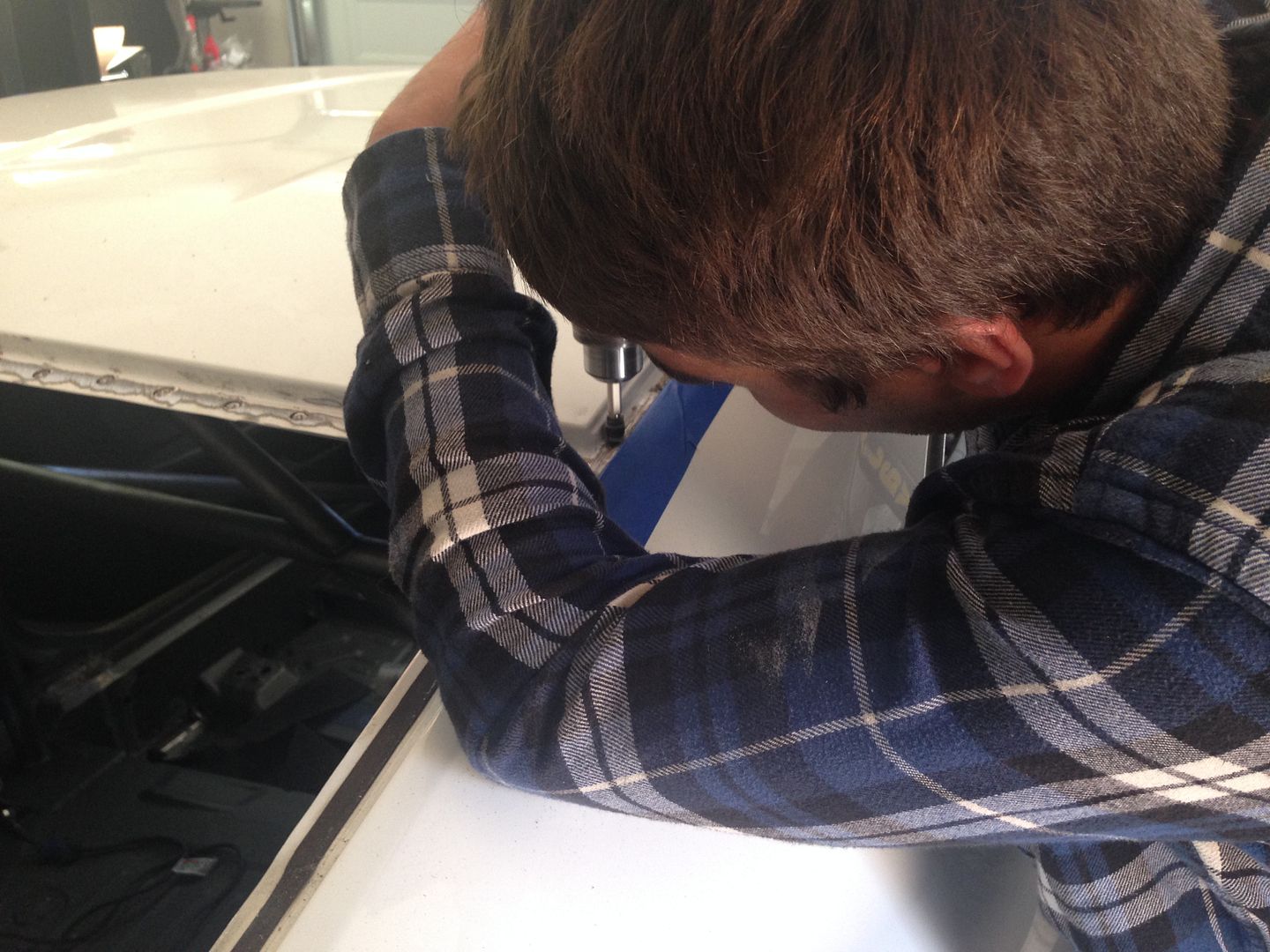

Next, drilling out the stop welds.

http://i1231.photobucket.com/albums/...ps1203f966.jpg

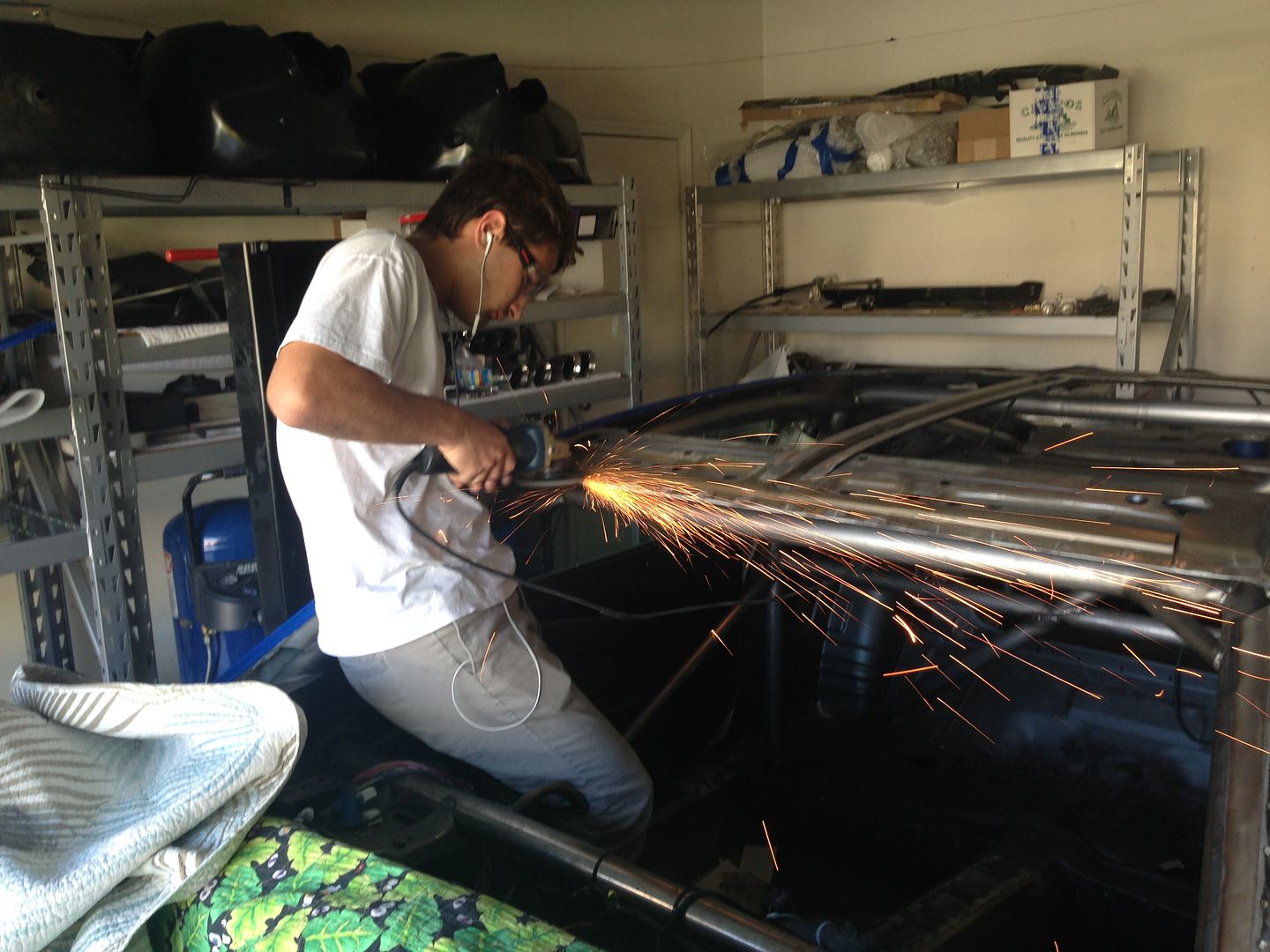

Grinding them down...

Finally

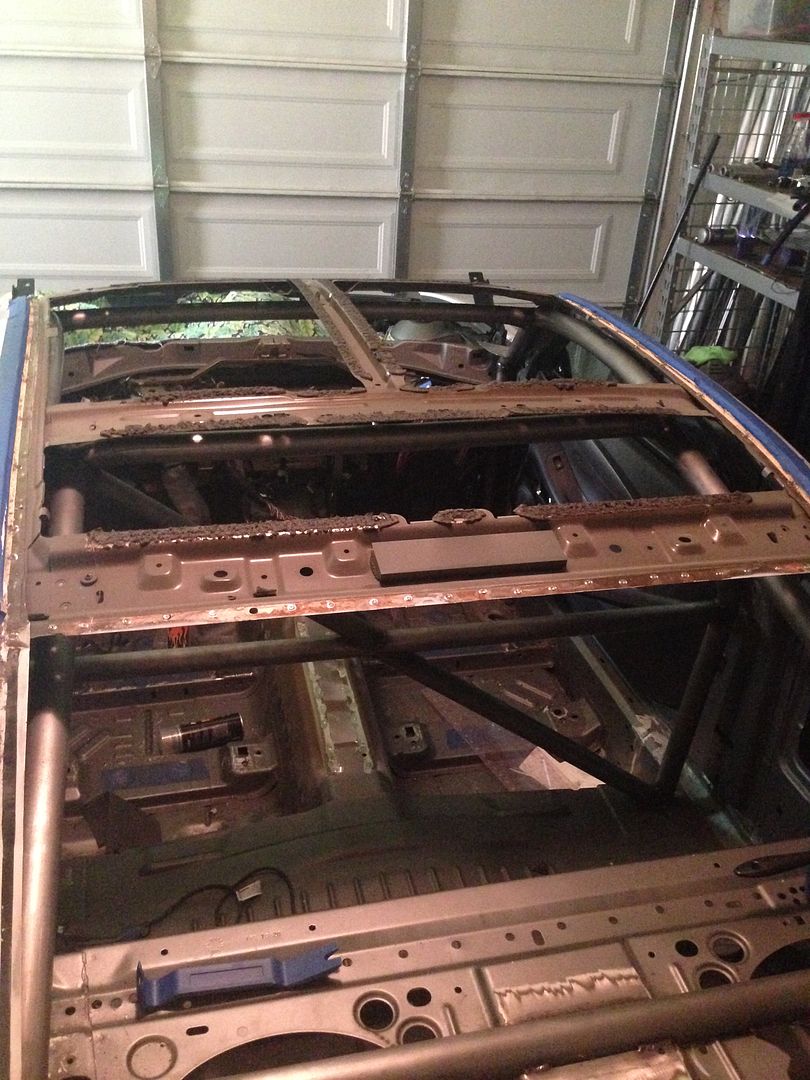

http://i1231.photobucket.com/albums/...psf620b330.jpg

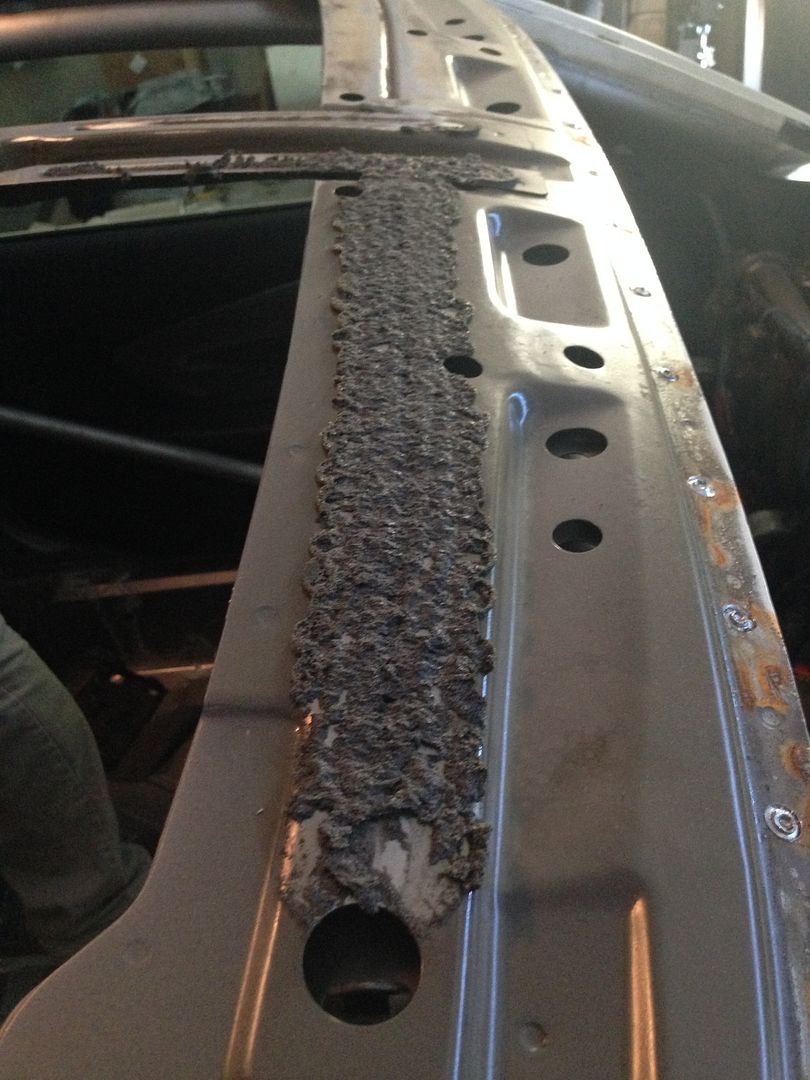

Next, cleaning the foam filler and spot welds.

http://i1231.photobucket.com/albums/...ps4dc8ac19.jpg

http://i1231.photobucket.com/albums/...ps5bc823e9.jpg

http://i1231.photobucket.com/albums/...ps43186939.jpg


I will post more updates tomorrow

Just went thru half this thread. :thumbsup:

IMHO lat-g needs to add a 'universe' smiley...lol

http://i87.photobucket.com/albums/k1...ps7aad01f3.jpg

Wow - this car is going to be incredible.

ps since you posted at 12:44am does that mean tomorrow like Monday ?

[QUOTE=Cosmo mentis;558951]Just went thru half this thread. :thumbsup:

IMHO lat-g needs to add a 'universe' smiley...lol

Skip that's too funny! Thanks for posting it. I'm going to make it my desk top, LOL

One more for today Marty,

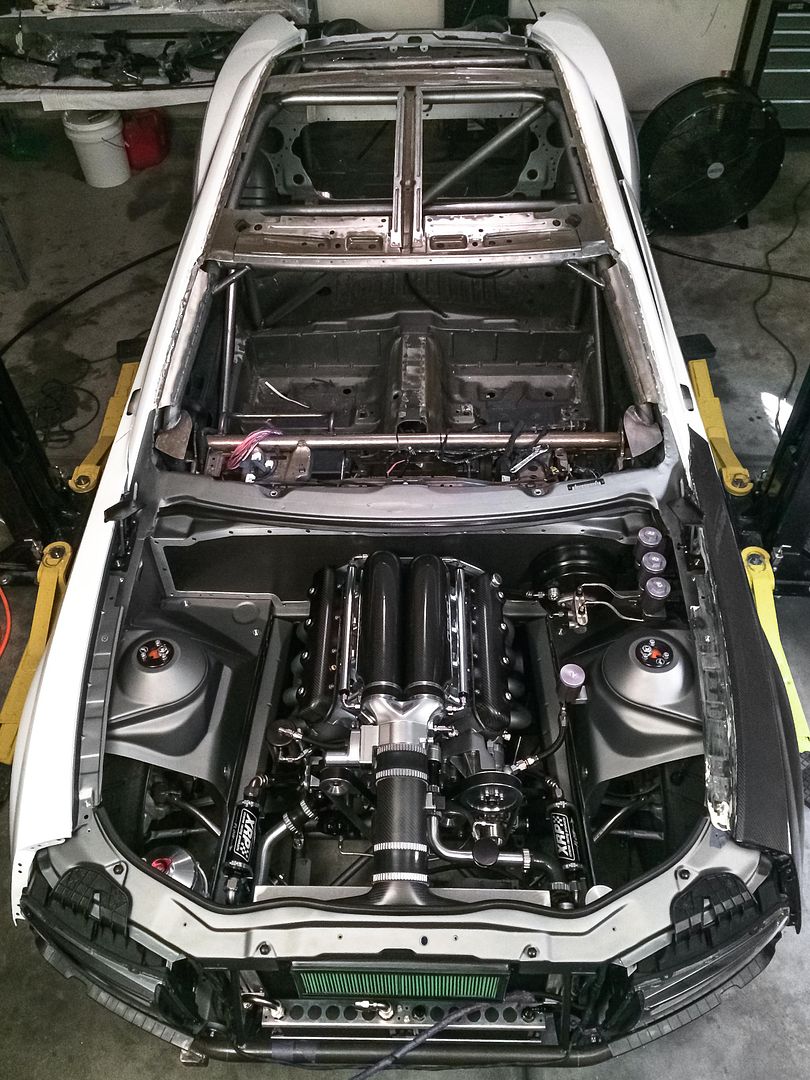

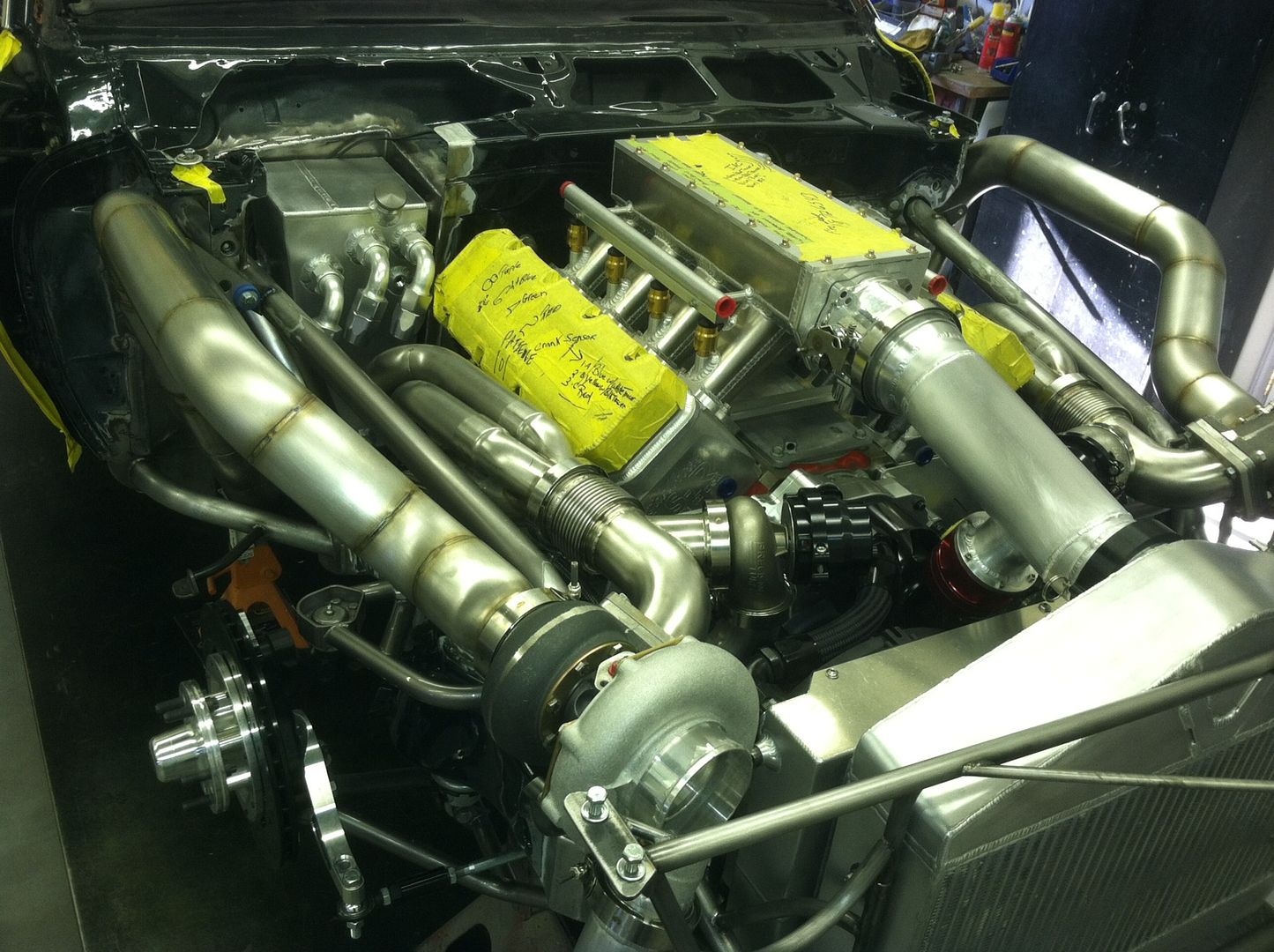

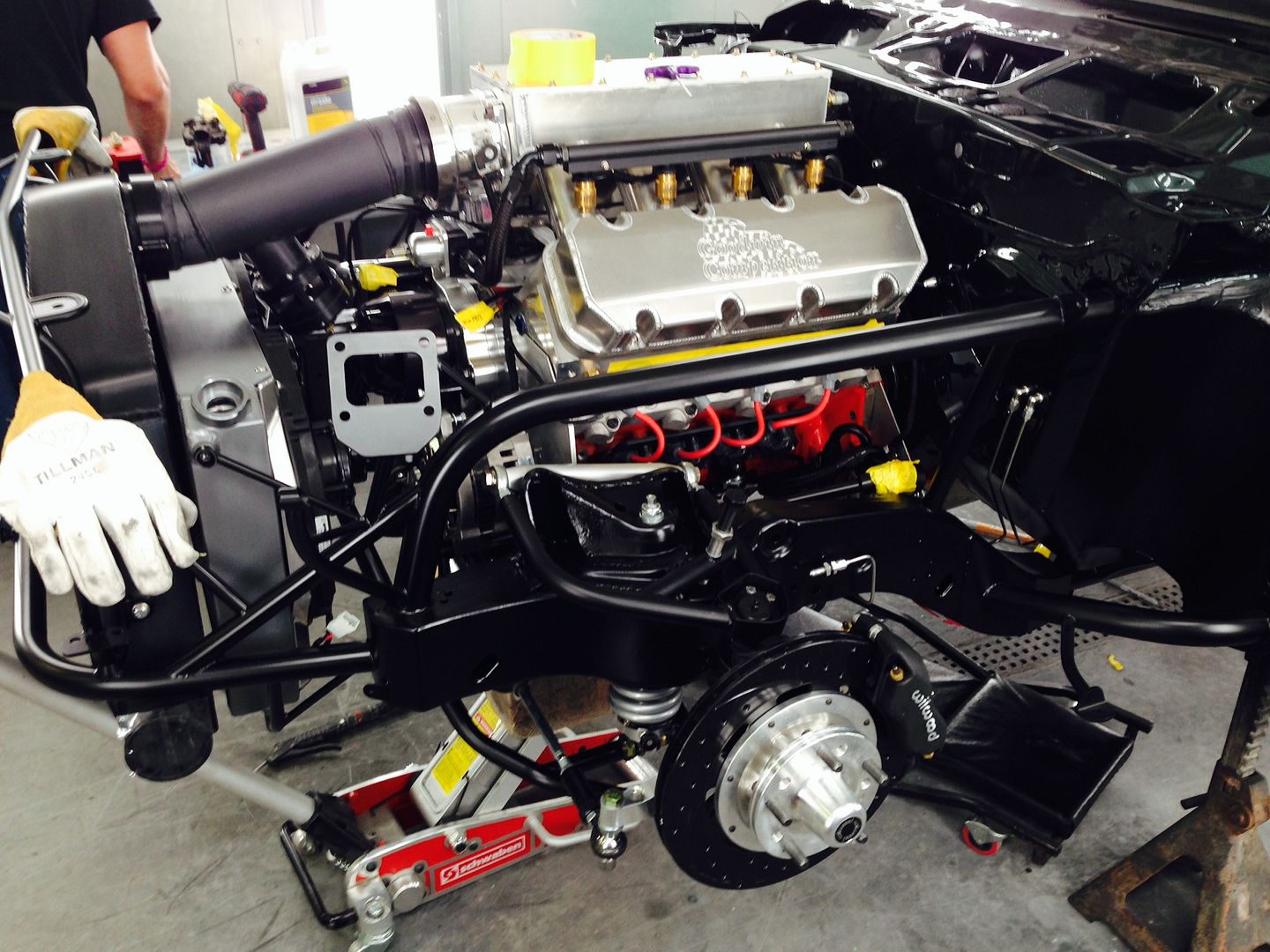

Intake tube was cut to size. XRP oil filters mounted. Having one on each side makes for a really symmetrical look. Still need to figure out best way to mount the breather tank on passenger side by firewall.

http://i1231.photobucket.com/albums/...ps38ea0a23.jpg

Pictures really don't do it justice as theres so much details. You just need to see it 3 dimensionally.

Wow !!!

[QUOTE=Al Moreno;558977]

I think this pic is gonna be on a lot of desktops Al... :wow: :thumbsup:

Wow, is right. What a great pic of the engine bay. Gorgeous!


Easy-Off oven cleaner takes anodizing right off. I believe it's the yellow can that you have to use though.

Great stuff Al! Your buys are doing good. Subframe is impressive.





Make sure you get the boys to wear a dust mask, CPOD is a bitch! I have early signs of Asthma due to metal grinding and spraying primer without a mask.

Even faster is CRYSTAL DRANO sold in a small can -- Home Depot etc --- put some in a plastic bucket --- add some water... put parts on some kind of wire and dip 'em... I use a clear plastic bucket so I can watch them boil -- because when you get the mix right --- it's friggin' boiling! And the anodize comes off in seconds... Rinse 'em off... and you're ready to polish or paint or whatever you're doing.

It looks amazing Al. The boys definitely have a ton of talent. I always look forward to seeing your updates.

They are doing a great job with the car. The engine bay looks outstanding.

One questions though, why did they take the roof off?

The Attention to detail is top notch! Great work , we are partial to how killer your engine combo came out, your OCD nature is inline with ours lol :hail: . Great build :thumbsup:

I don't know how I missed this thread but I just went through the whole thing and words cannot describe how awesome this build is. Every piece, the attention to detail is as the millennial generation says, "its off the chain".

Im glad you will be at SEMA this year as I will get to see it first hand and shake your boys hands. They have done an outstanding job Al. I know you are a super proud father.

Thanks guys for all the props. Coming from you guys on here means a lot.

[QUOTE=syborg tt;558979]Wow !!!

Hey Vince, thanks for the reminder.The crazy parts is they have a box of really nice mask but I still have to keep on them to use them.

Thanks for the tip G

Replacing with a carbon panel. The factory roof came in at approximately 22 lbs. Hoping to shed 15 of them.

Hey Jay that high praise indeed!

Justin design new coil bracket and rear cooler mounts.

Bracket will be welded to the tube frame.

http://i1231.photobucket.com/albums/...ps778e1237.png

http://i1231.photobucket.com/albums/...ps784e8726.png

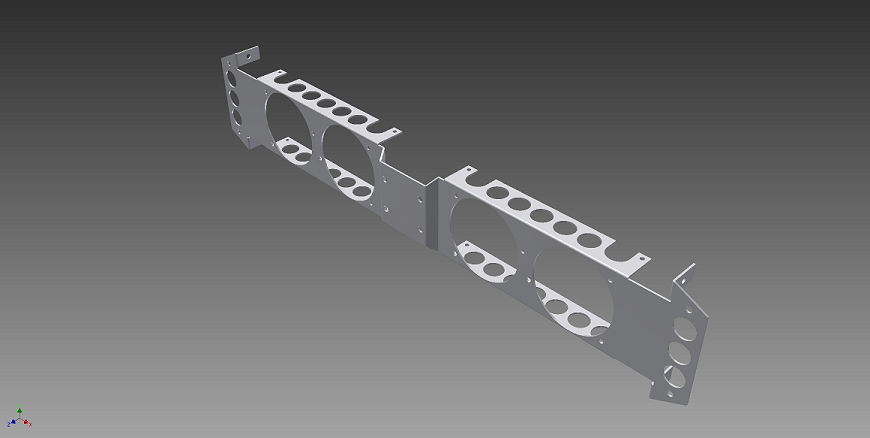

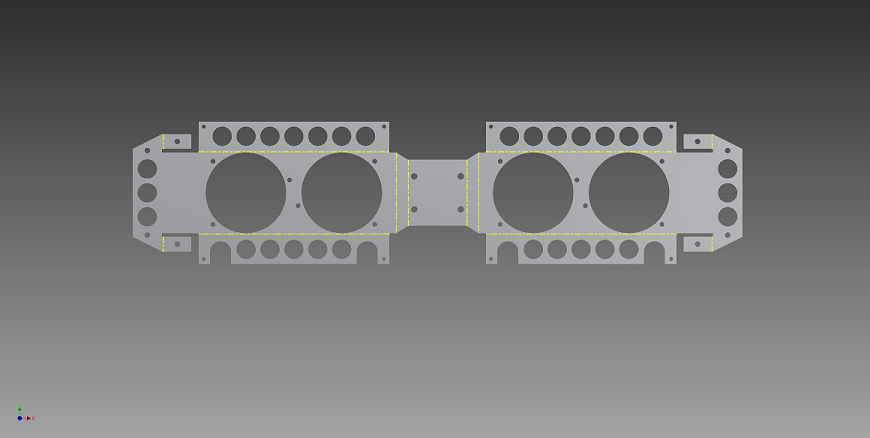

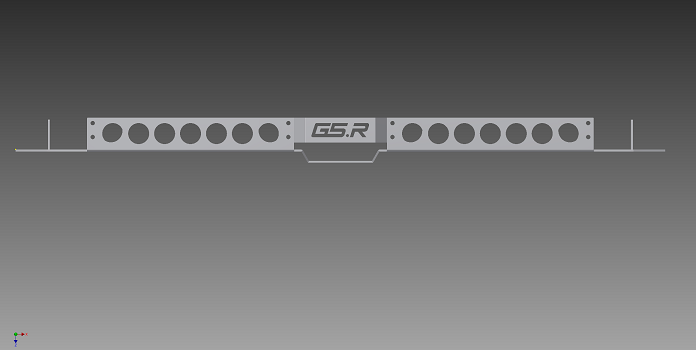

Rear mount trans and diff coolers bracket. The big holes are for the fans. The Triton pump will sit in the center.

http://i1231.photobucket.com/albums/...ps53797889.png

http://i1231.photobucket.com/albums/...ps616a8345.png

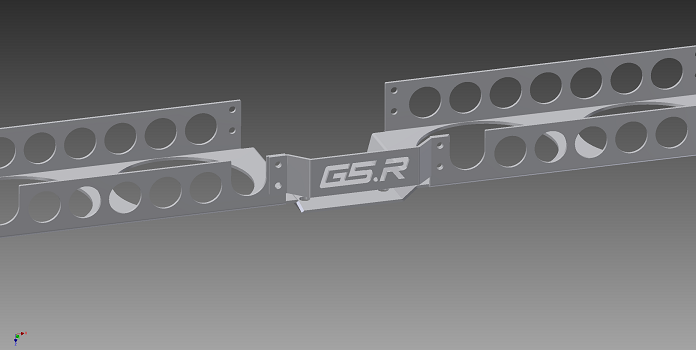

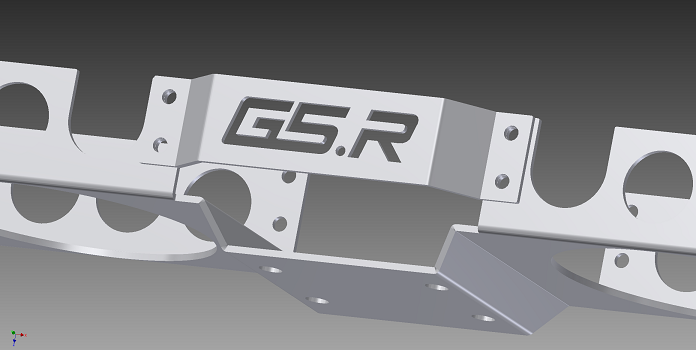

Got to give props to all the guys at Derale as they are helping the boys take it to the next level!

Nobody will see a lot of these details but who cares, LOL

http://i1231.photobucket.com/albums/...ps6c716382.png

http://i1231.photobucket.com/albums/...ps1c244ea8.png

http://i1231.photobucket.com/albums/...ps6aaef6a6.png

and that is the cool part of BB Build Threads we get to see it and when we are at shows and people walk up to the car people like us point out all of the crazy details that most would never see.

ps. I feel like I am watching a Rad Rides car being built.

I agree amazing!
