Looks great! Have you figured out what you’re doing with your cold air intake/filter? Not a lot of space in the engine bay for it...


Sent from my iPhone using Tapatalk

Nice fab on the core support for the p/s reservoir.

Awesome build and thanks for all the ideas. Was wondering what steering column you have installed in your car?

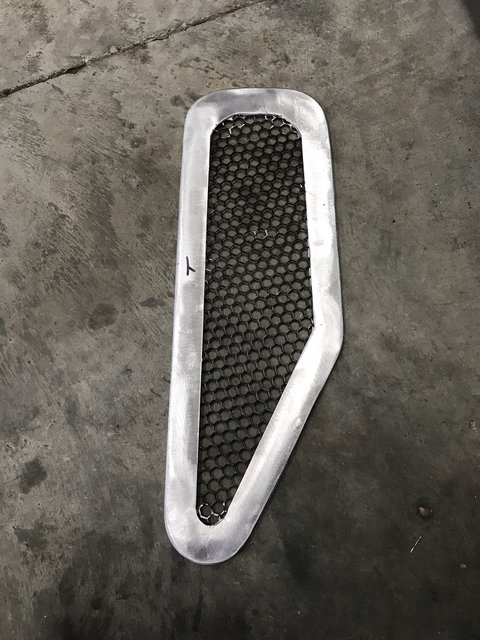

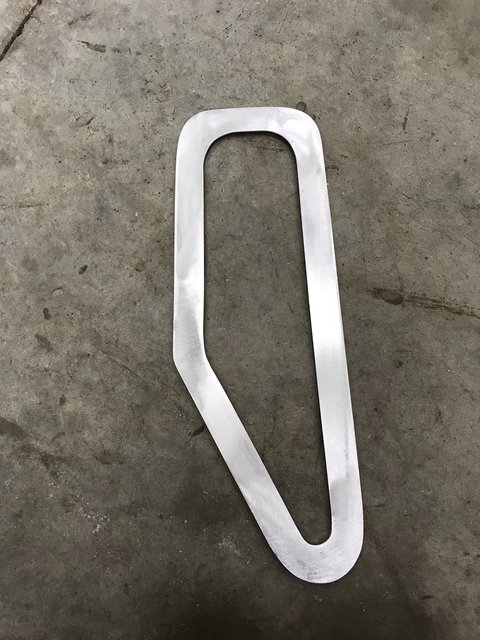

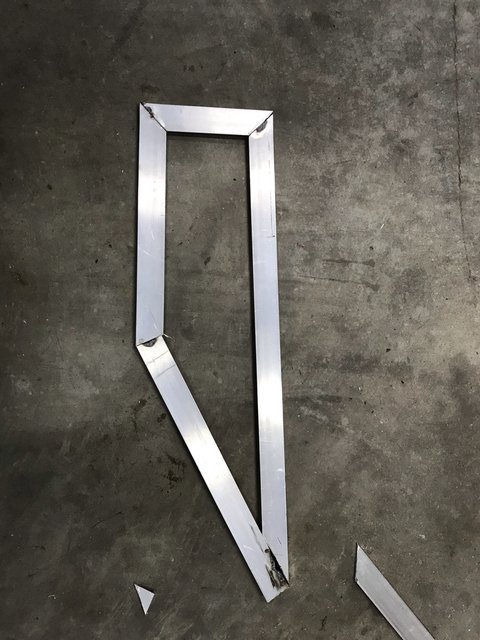

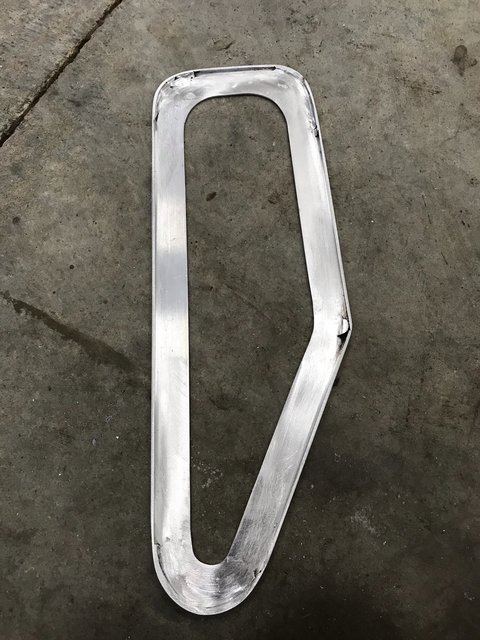

Thanks Brian, I am working on a plan to route CAI to the left side. The hole I cut in the core support is going to provide a air intake. I am building a screen to cover the opening. I started with some aluminum angle 3/4 x 3/4 that iI ripped one side down to create a recess for the screen. I cut and welded the pieces together added the screen then capped it with 3/4” wide flat stock. Here are a few pictures that might make more sense.

Thanks 214Chevy.

1965NOVA, The column is a Ididit brand.

https://i.postimg.cc/Hs1Sc7FQ/3723-E...BC99-A3-DE.jpg

https://i.postimg.cc/RV1gcZz2/00-EEA...4-CA41-D80.jpg

https://i.postimg.cc/VkYD4Pfv/CBF029...5355-B5-EE.jpg

https://i.postimg.cc/kgfwpYGc/3-ECC7...0-A0-C8-FB.jpg

Looks great! That should work nicely!


Sent from my iPhone using Tapatalk

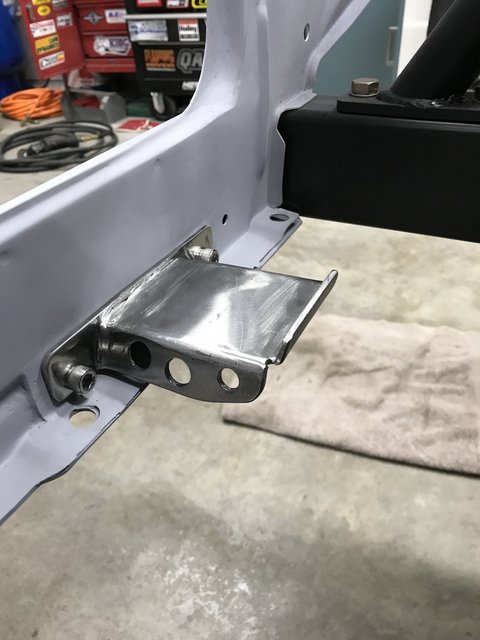

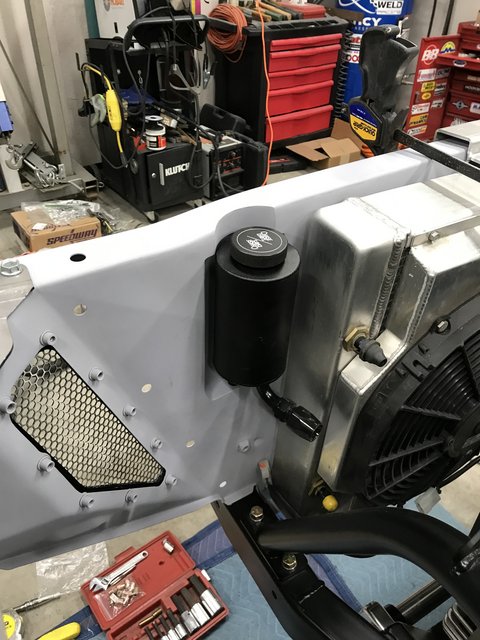

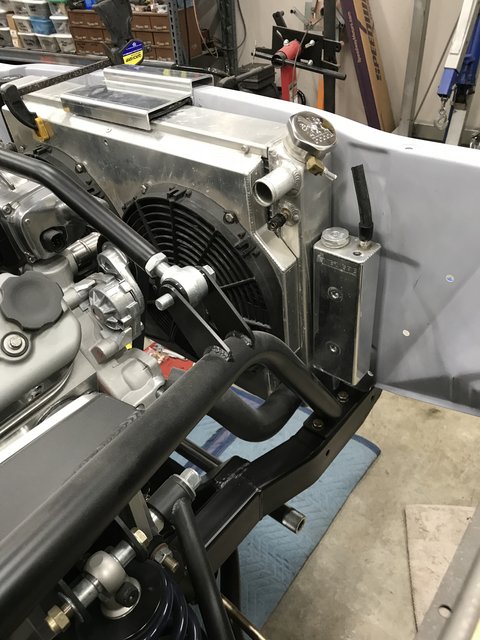

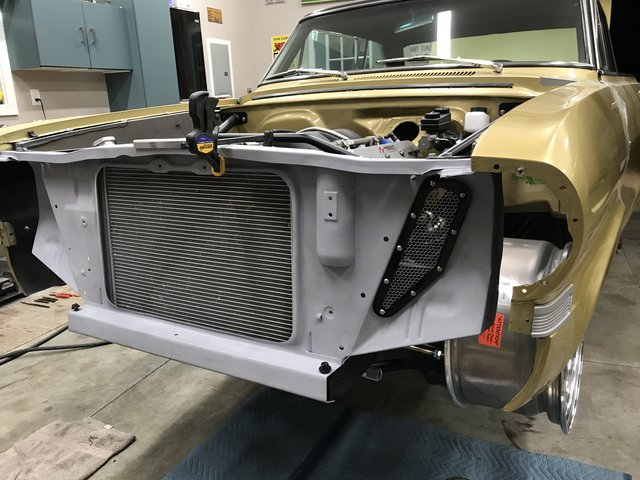

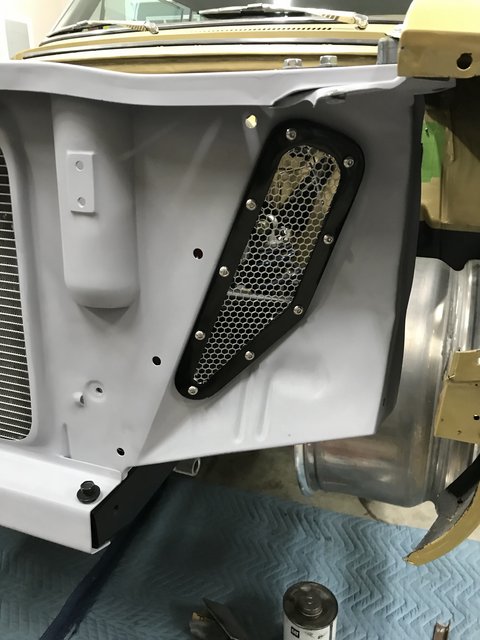

Been pulled away for a bit and haven’t had much time, I have the core support in primer and mocked up the overflow tank, PS tank, air intake screen and the lower radiator mounts. Still have the upper mount to complete.

https://i.postimg.cc/2yxDR8c3/30-F78...4-B1-CA036.jpg

https://i.postimg.cc/44vZhBfZ/8659-E...1-E822-E89.jpg

https://i.postimg.cc/wj49jM6m/4-A64-...-FEC4-A921.jpg

https://i.postimg.cc/qvvkrydr/D12532...CED3757-EF.jpg

https://i.postimg.cc/5N3xDpTp/8-E41-...9-D88191-A.jpg

I really like the air intake screen. That looks great. Good job!

Impressive work as always Mark!

Thanks Trey. It came out better than I thought it would.

Thanks Tom.

Built a aluminum hold down for the radiator. Trying out some dimple dies.

https://i.postimg.cc/3R5Stmtx/8-C7-C...972-F22945.jpg

Bracket for the accelerator pedal.

https://i.postimg.cc/26DGQm5q/A90-DF...-EBD5-EF56.jpg

https://i.postimg.cc/0yhcN7R0/07106-...2-A72-AF55.jpg

Then on to the fender supports.

https://i.postimg.cc/MHt9Z4qn/F212-F...1-D22-DC15.jpg

https://i.postimg.cc/bv2V03H5/E5-A69...DBD7-C14-C.jpg

https://i.postimg.cc/288H9z7h/E1-E19...E01-DE4-E7.jpg

https://i.postimg.cc/BZCYC8HJ/8-C1-E...43315-D794.jpg

https://i.postimg.cc/3JStPPt6/B1701-...AC6734-A73.jpg
