68 Pro-Tour Project finally underway!!!!


Just thought I would show some progress pics of the car I was trying to sell a few months ago. Glad I didn't get any serious takers. My good friend is almost finished with the rear end work, he was a good set of eyes. He works in the NASCAR industry as a fabricator, and was able to keep stock width frame rails for the use of stock fuel tank. Also I hope the roll cage will be hard to see at a glance as well. Give me some feed back and I will continue to post more pictures as well. This was a clas project for my Auto Tech students at my other school. I had to switch schools due to budget cuts and almost sold everything, but my new student are "GREAT" and are eagar to build this thing to the end as long as my money holds out.
Thanks,
Mike
"aka" juveteach

Sorry About the Pic had to re-size.



http://i143.photobucket.com/albums/r...c/untitled.jpg

http://i143.photobucket.com/albums/r...Misc/Trunk.jpg

http://i143.photobucket.com/albums/r...FrameTiein.jpg

http://i143.photobucket.com/albums/r...sc/Rearend.jpg

http://i143.photobucket.com/albums/r...c/RearView.jpg

From What I can see it looks good, but can you resize them to be a little larger when you open them? thanks

I am trying to get larger pics but when i load them the forum tells me they are to large to send. I have resized them and that is what i get I keep trying.

That's really cool, Mike. Keep us up to speed. :thumbsup:


As for the attachments, they are limited to no more than 1024x768 and 160kb.

Definitely keep us posted, Mike. It's cool that you're teaching these kids the "right" kind of car to be into.

Here's one more:

http://i143.photobucket.com/albums/r...rSideWheel.jpg

Thanks Bill for getting those pictures right size for me. You'll have to pm me and tell me how to do it so I can show the pics of the LS1 set in between the rails.
Thanks again.
Mike

What wheels are those? Size?

Budnik Tiller 5
17x11 rear 17x8 front
315/35/17 r
245/45/17 f

The reason I asked is because they look alot like my 18x12 budnik m5s. Looks great, keep us posted with pics/encouragement. :hail:
http://i9.photobucket.com/albums/a91...WITHWHEELS.jpg

fat lip


whow, that lip on those wheels seems endless..........

Only 4" BS ?

I just bought 10" wheels with 5.75 BS. I guess this is not even half the lip you guys have :mad:

Here are some more pictures of the progress we have completed so far. Let me know what ya'll think!! :unibrow:

Love this project! :thumbsup:

Those wheels will always look great! good choice!


Paul

one more :thumbsup:

Brake Mounting Brackets???


Just thought I'd ask, does anyone have any experience with KORE brake brackets? I am looking at them as well as Speed Tech's brake brackets. We have C5 front brakes but wondering about the abutment mounting brackets.

Any info on this would help out bunches!!

Thanks,
Mike

speed techs work great and look nice too, i might have a unused set i could sell you at a good deal , i will check, pm me.
jake

Thanks Jake...
PM sent.

Looks great! :cheers: Keep the pics coming.

You car looks great and seems to be coming


right along. I just noticed you are right down the road from me. My office is in Weddington and I live in Stallings.

Where are you teaching?

I teach in Concord

I'll send you a PM

Payton, you got to clear some PM's before I ca send you one

Mike

Nice job on your ride. Looks like you did your homework before you started. I definitely like the wheels too.

just cleared it


sorry about that

Some new pics!!


Got some more pics to show on the actual "ROLLER" I hope I have the means to finish this thing. Thanks for looking and any feed back is incouraged.
Thanks,
Mike

sorry have to fix pix size!! :mad:

Wow ! This is going to be just an amazing car ! I love it ! Could I get more pics on the IRS and if its possible some dimensions on the mounts so maybe I can get my buddy to fab them for me ?

New Pictures!!!

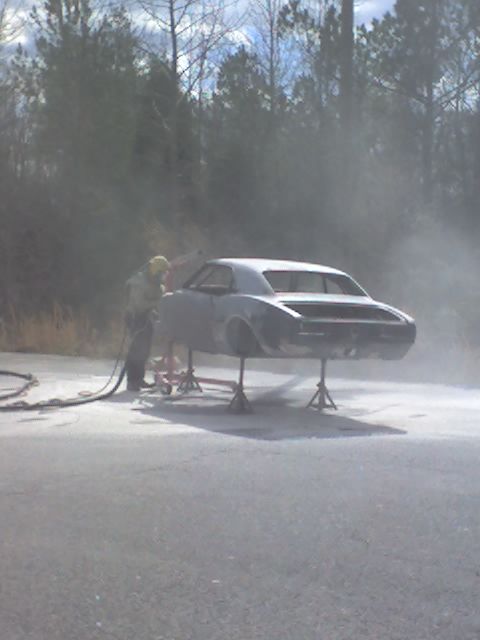

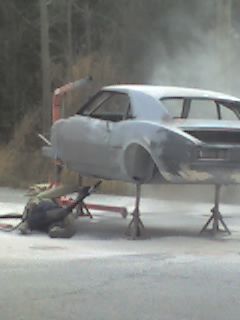

Here are some more pictures of the car not much different than before other than had it sand blasted.

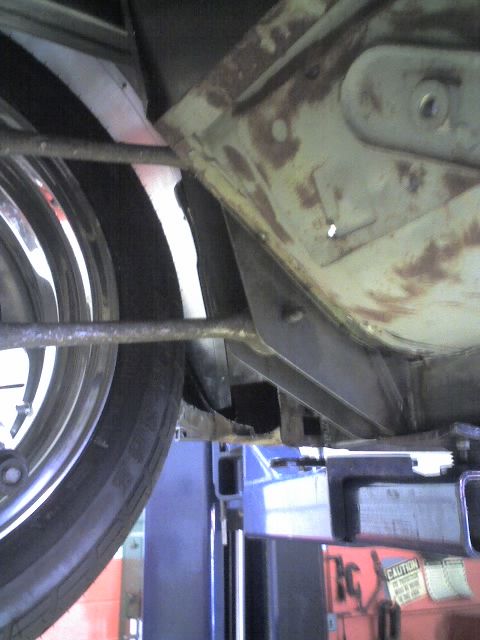

http://i244.photobucket.com/albums/g...h/media1-8.jpg

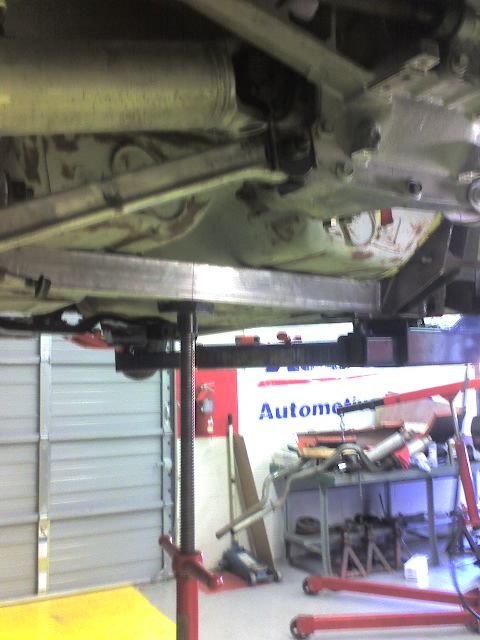

http://i244.photobucket.com/albums/g...h/media1-9.jpg

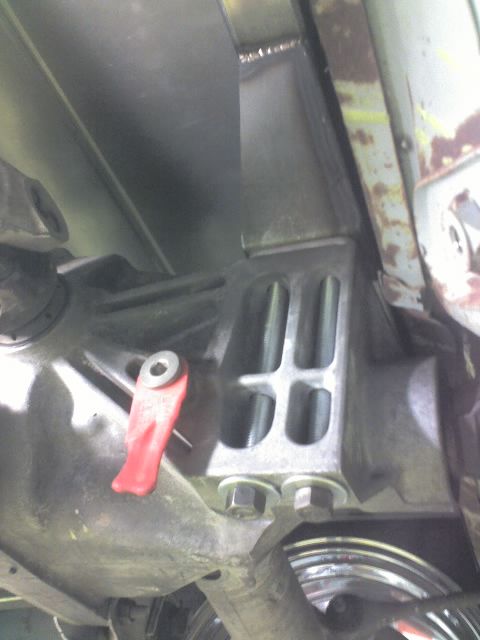

http://i244.photobucket.com/albums/g.../media1-10.jpg

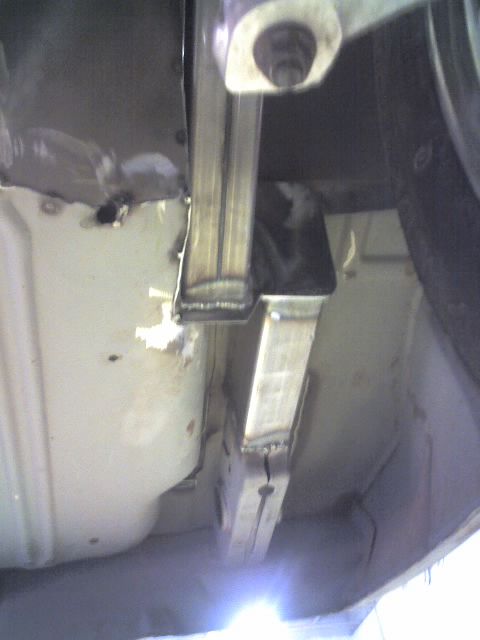

http://i244.photobucket.com/albums/g.../media1-11.jpg

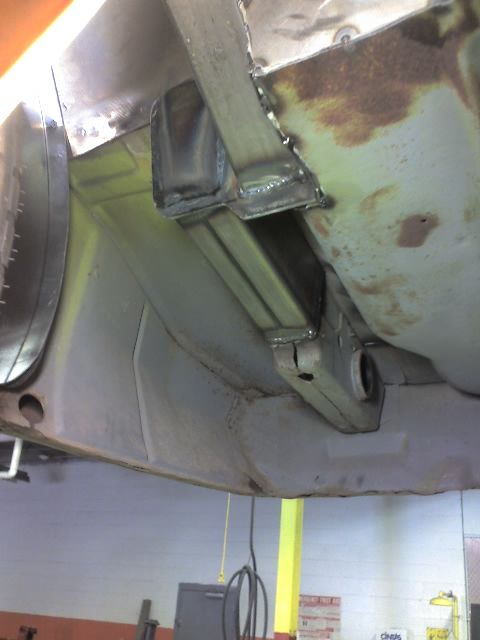

http://i244.photobucket.com/albums/g.../media1-12.jpg

more!!

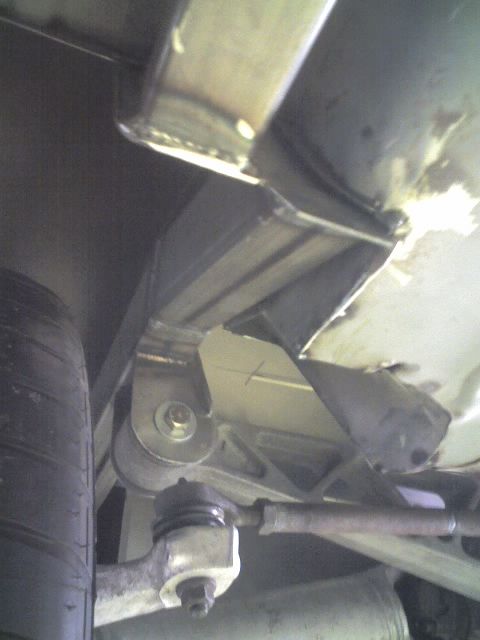

http://i244.photobucket.com/albums/g.../media1-13.jpg
http://i244.photobucket.com/albums/g.../media1-14.jpg

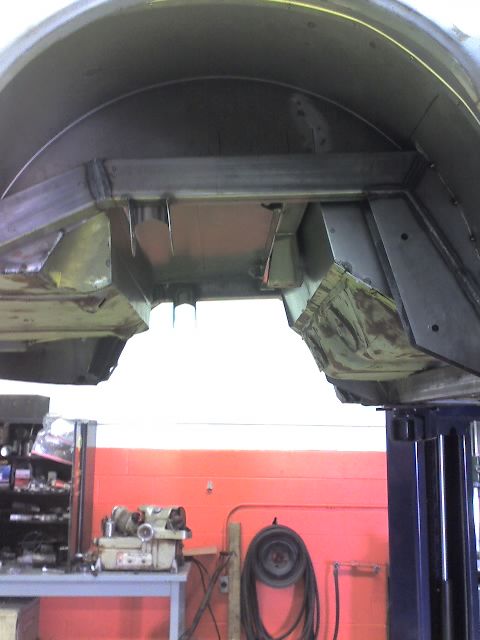

http://i244.photobucket.com/albums/g.../media1-15.jpg
http://i244.photobucket.com/albums/g.../media1-16.jpg
http://i244.photobucket.com/albums/g.../media1-17.jpg

Man, I hope mine comes out this nice :drool: ! Thanks for the pics :D !!!

I'm looking for some mini tubs also so I can fit 18x10's underneath. Who else makes mini tubs other than Detroit speed (kinda pricey) ?

DAZ,
Made mine. I had to go this big someone else started a back half on this car and had the big tubs already on one side then stopped. If you are handy with a cutoff wheel, then just cut your oem and add metal to em' and make them as wide as you want just remember the frame rails you'll have to move them or cut them.
:willy:

That's a cool idea ! I'm glad you said that cause I was thinking that exact same thing on my way into work today ! I saw a picture where someone just move his frame rails closer inboard along side of his tubs. What's the danger of cutting them ? I probably won't do that especailly since I'm adding frame connectors, I want the rigidity(is that a word?), so the car can actaully handle in real, real life !

Once I get my C4 IRS kit from KaptainKw I'll post before and after pics.

Man, I wish I could fabricate ! I gotta get my buddy at work to do all the work cause I can't afford to get a shop to do it cause I'm poor :( !

Oh well ! Thanks for the help, I deeply appreciate it :thumbsup: !
