'87 Buick turbo-T p.t. project...


Hey guys,
Here's a few pics of my ongoing restomod Buick project that I have in the works. I've been welding on the stock frame for the last few days that I had free and here's where I'm at so far...

Stock frame freshly removed.
http://i259.photobucket.com/albums/h...g?t=1206290140

Notice the lovely swiss cheese.
http://i259.photobucket.com/albums/h...g?t=1206290233

After blasting.
http://i259.photobucket.com/albums/h...g?t=1206290293

After 3 days of welding and grinding.
http://i259.photobucket.com/albums/h...g?t=1206290359

When time allows I'm hoping to have it boxed this week and then unto the underside of the frame for more welding and grinding...weeee!!!!!!!!!!!!

Looking good!!:thumbsup:

keep the pics coming great work

Frame looks great. Are you going to paint or powdercoat it?

It'll get powdercoated.

This is my first frame -off project and I'm glad I'm doing the car this way and also not surprised why the frame get's stress cracks at the suspension pick up points. The factory welds are horrible.

glad to see you are boxing the frame... the rear suspension mount points can do with alot of reinforcements... rear LCA mount should be reinforced to the frame.. and the rear UCA and LCA mounts tied together...

SC&C have a wattslink for g-bodys that wil ship in mid april, but of you want the race version that welds in it ships now as far as i know...

I started on the rear of the frame today. Re-welded the LCA mounts and I'll make some gussets to reinforce it better. I've also got a pair of support braces that tie the upper and lower control arms together :D

I'll have to get in touch with Mark about that watts-link...:unibrow:

Yeah the g body has a lot of holes for motor mounts since that frame had like 8 different engines for it.

a couple of other places one could weld in reinforcements are in the front like the SC&C frame brace.. but welded in place, and a bar in the rear to tie the frame rails together behind the fuel tank... its a big tuning fork back there...

what are you doung for body mounts, solid?? and what about a frame notch??

The front I can't do much with because of intercooler piping. I'll try the SC&C bar to see if it works but a removeable piece is more appealing since I can take it or leave it.

The rear bar sounds interesting and I'll definitely take a look at doing. You wouldn't have pictures of a similar set up would you ???

As far as the bushings go I'll probably end up using energy suspension pieces since they also come with the missing #5 GNX bushings.



More pics to come tomorrow :D

More progress...


Passanger side rail before..
http://i259.photobucket.com/albums/h...g?t=1206893269

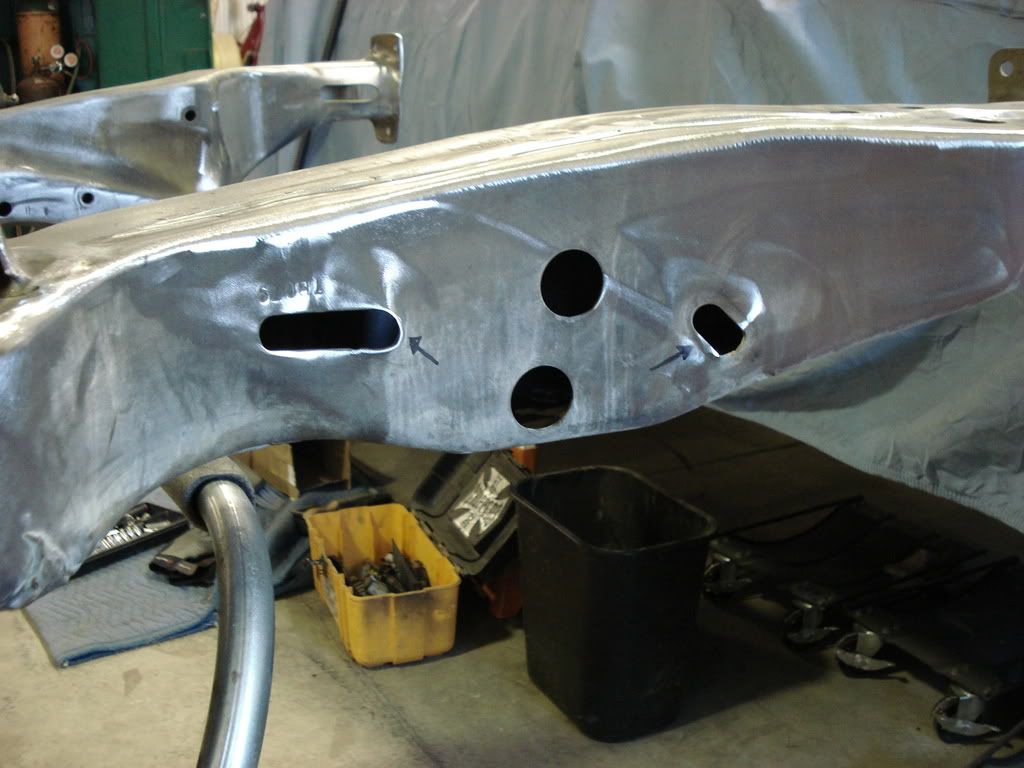

After blasting and straightening..
http://i259.photobucket.com/albums/h...g?t=1206892999

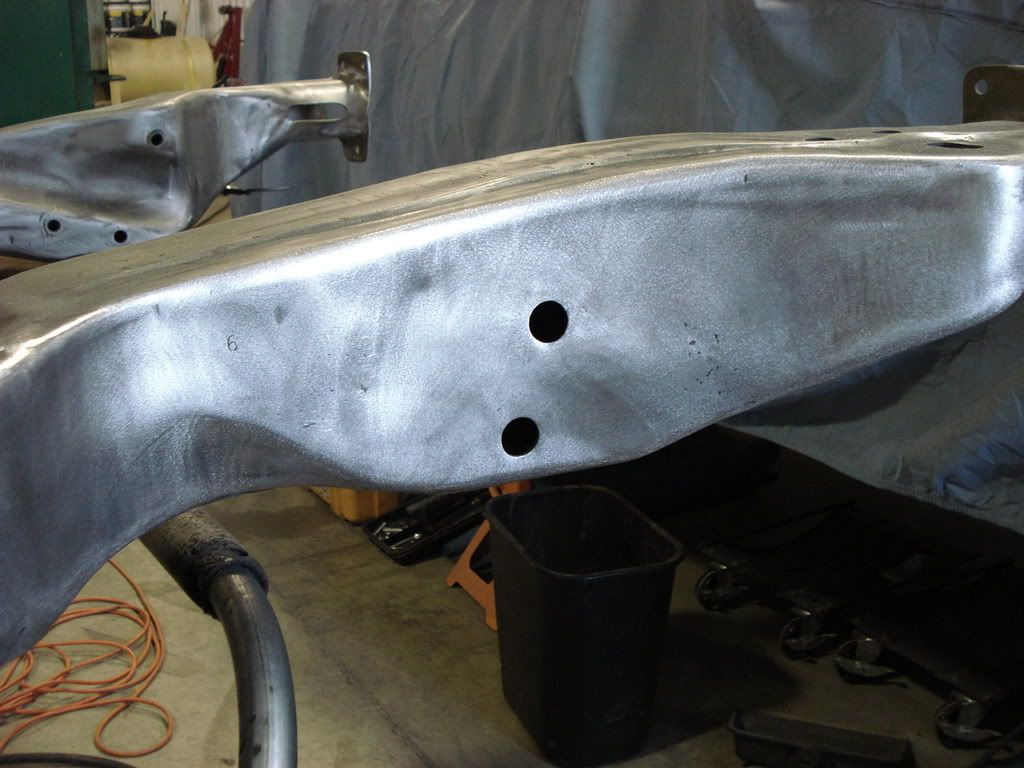

Welded up and smoothed out..
http://i259.photobucket.com/albums/h...g?t=1206893416


Here's the album with lots 'o pics...
http://s259.photobucket.com/albums/h...=nav_tab_album

Subscribing :thumbsup:

Me like !! :)

I have a spare frame for my Regal sitting upstairs, will be using some of your pics for inspiration.

Loving it :)

Looking good man!

Thanks guys :thumbsup:

I got to work on the hooptie today and I got the drivers side boxed in, I'll be back at it on the passanger side tomorrow. What a pain though :goofy:

More pics to come !!!

It only took two months but here's some new pics...

Finally boxed in :yes:

nice! just be sur eto make a hole so you can get the bottom half of the frame mount rubber (or alluminum if you go all out) and be sure to do it before you paint it...

looking good by the way

In the drivers side picture you can see I have a outline of where the bushing is going to go. I'll be ordering a set of poly bushings in the next day or so to get the proper size hole made.

BTW deuce,

I've got a SC&C watts kit sitting at the shop that'll get welded in soon :D

Thanks for the heads up on that :thumbsup:

looks good rob :thumbsup:

Nice! im really lookirg forward to seeing your build.. and i must admit that ýou have done a very nice job on that frame!

will you be adding GNX fenderflares or keep it stock regal??

Thank You, it's been a lot of work so far.

I go back and forth on the GNX flare thing, I like them but I also like an all steel car too...I can't make up my mind :goofy:
