Well its finally coming together Project "Evade" thank God for Tom Argue @ HydroIllusions! here is Project “Evade” LS2 Build specs
LS-2
Bore and stroke: 4.00 x 3.62 in.
Displacement: 364 cu. in. (5.967 liters)
Compression: 10.9:1
Induction System: Sequential fuel injection
Gross Horsepower (SAE net) 400 @ 6000 rpm
Gross Torque (SAE net) 400 lb.-ft. @ 4400 rpm
Block All-new 319-T5 Aluminum

Livernois Heads:
Stage 2 CNC Ported Stage 2 GM LS-Series Cylinder Heads
New GM 243 casting
5 axis CNC machined
220cc Intake Runner
Intake Flow Rate 305 CFM
Exhaust Flow Rate 235 CFM
2.000 intake valves / 1.550 exhaust valves
GM valve seals and locks
Livernois dual coil valve springs good to ~ .690 lift
Livernois titanium retainers.--Jessel 1.7 Rollor rockers

Livernois Motorsports LS-Series Stage 2 Camshaft
Intake Duration 232 @ .050
Exhaust Duration 232 @ .050
Intake Lift .595”
Exhaust Lift .595
LSA 114

Fast 92mm Intake ,Fast 92mm T.B. ,Fast Fuel Rails, 42lb Fuel Injectors, Katech Valve Covers
AutoKraft Oil Pan & Engine Mounts, Synister Billet LS Series Serpentine Belt Systems
SpearTech Custom Wiring Harness

Suspension/Chassis:
Front Sub Frame
Speed Tech Performance • NEW Design hi clearance upper and lower control arms with Moog TM Problem Solver ball joints, QA1 single adjustable coil over shocks, QA1 coil springs, Billet aluminum upper coil over mounts, Unisteer complete rack kit.Adjustable trans cross member will fit to a T56, 1.25"solid sway bar (only works with HiClearance control arm package) ,Adjustable motor Mounts, Brakes Front: Wilwood Disc Red 4 piston calipers Dynalite 12.19" Disc

Rear Suspension Chris Alston's Chassisworks Camaro g-Bar Suspension
With Pivot Ball Lower Link adjustable length link,
Low-friction, pivot ball mechanisms.,G-Bar Sliding-Link Adjustable Anti-Roll Bar,VariShock Single adjustable coil-Oversm,Wilwood Disc Red 4 piston calipers Dynalite 12.19" Disc

Keisler Engineering Inc. TKO-600 5 speed Lakewood SFI Steel Bellhousing for Chevrolet LS, Hydraulic Clutch Actuator Kit

Rear End: Strange Engineering
S60, S/T Series 35-spline axles, 1/2” studs, Trac-Lok Posi unit, 3.73 gears
Brakes Rear: Wilwood Disc Red 4 piston calipers Dynalite 12.19" Disc

Here is the Project before tear down
http://i700.photobucket.com/albums/w.../68camaro1.jpg

Out with the Old small block and front subframe
http://i700.photobucket.com/albums/w...68camaro19.jpg

Mocking up the New Speedtech Subframe and LS-2 Motor
http://i700.photobucket.com/albums/w...68camaro23.jpg

Speedtech Subframe and LS-2 Motor with Keisler Transmission
http://i700.photobucket.com/albums/w...Picture074.jpg

Very nice !! Looking forward to updates...

Jason

Yeah, looks like a fun project.
Keep us posted.:thumbsup:

Coming along nicely! Keep us updated!! :thumbsup:

I'm very interested on your opinions on your Speed-tech sub frame after the car is assembled. I really want to go with DSE, but it may be too much money.
Again, nice build!!:thumbsup:

I'm very very interested in a set of wheels like that!!:unibrow:

I've heard so much about it from Tom and It's good to see pics of the car.

Looks really nice - Looking forward to more updates.

Project "Evade" Undercarriage

Great looking project. That finish on the underbody looks fantastic !! What did you use on it?

Paul

Quote:

Originally Posted by thedude327 (Post 186507)

Great looking project. That finish on the underbody looks fantastic !! What did you use on it?

Paul

U-Pol Raptor Liner!

Very clean, looks good :thumbsup: :cheers:

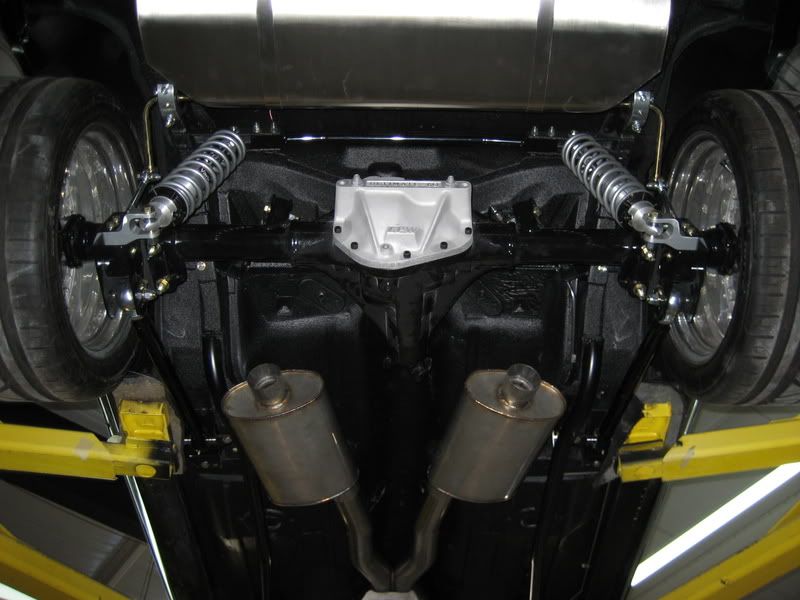

Here are a few updates Tom Installed the Strange-60 rear end and Chris Alston's Chassisworks Camaro g-Bar Suspension upgraded the Lower bars to the "Pivot Ball Lower Link" and added Sliding-Link 5/8”-diameter Adjustable Anti-Roll sway bar.

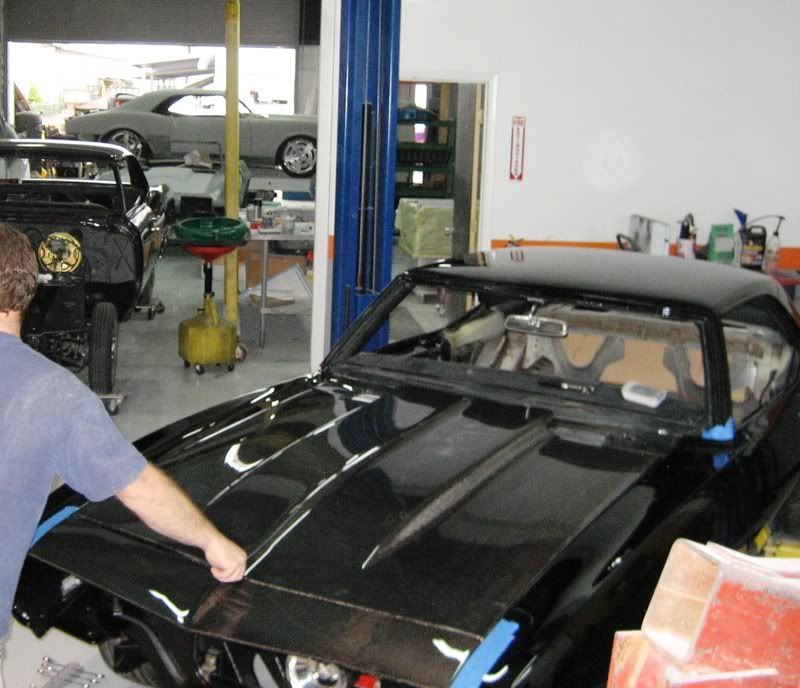

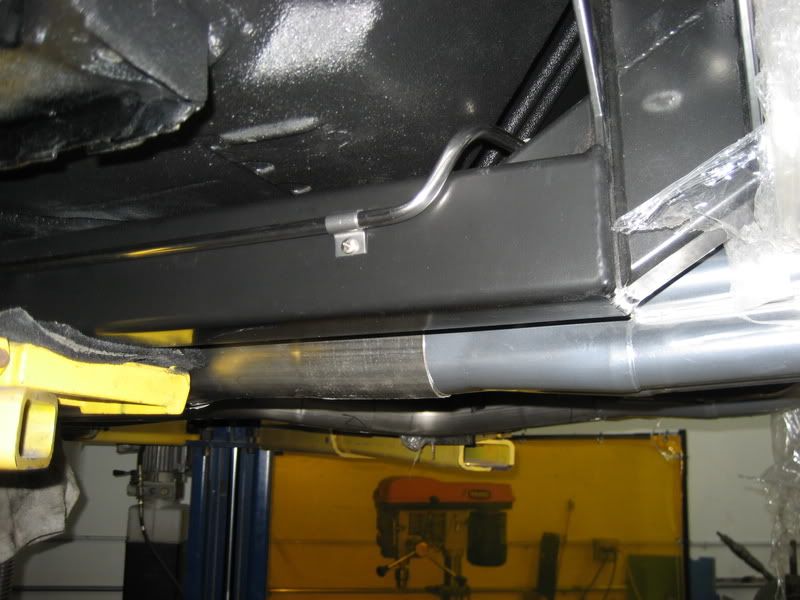

Installed Ricks Tank and ran the fuel rail see pics Also We are test fitting the "Stainless Works" 3' Exhaust !:razz:
http://i700.photobucket.com/albums/w...Picture009.jpg

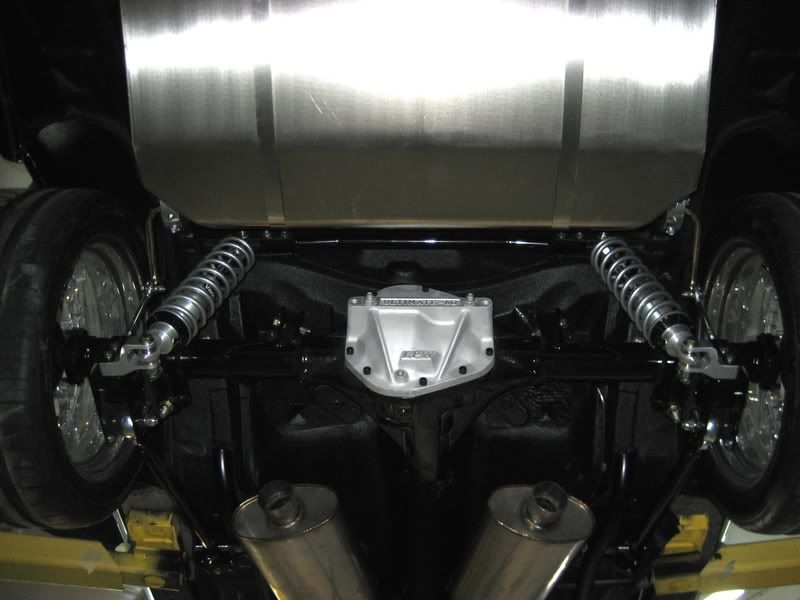

http://i700.photobucket.com/albums/w...cture008-1.jpg

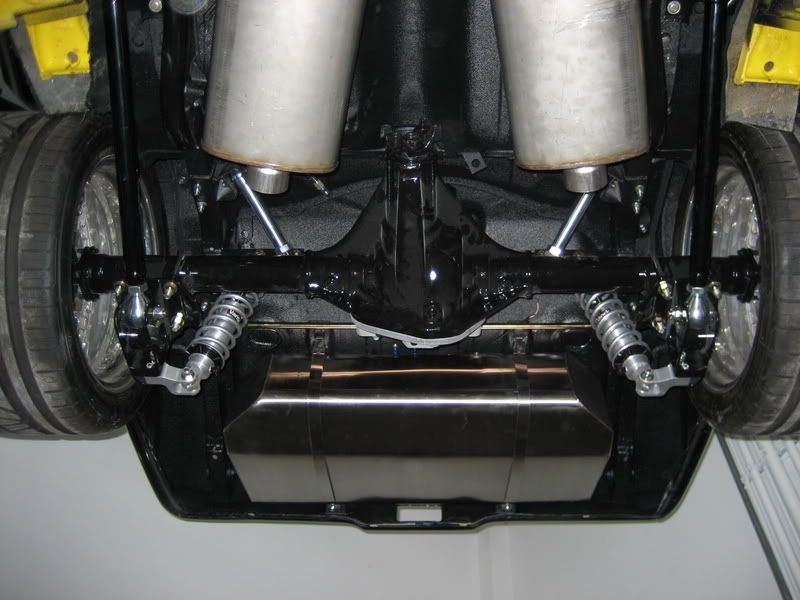

http://i700.photobucket.com/albums/w...Picture013.jpg

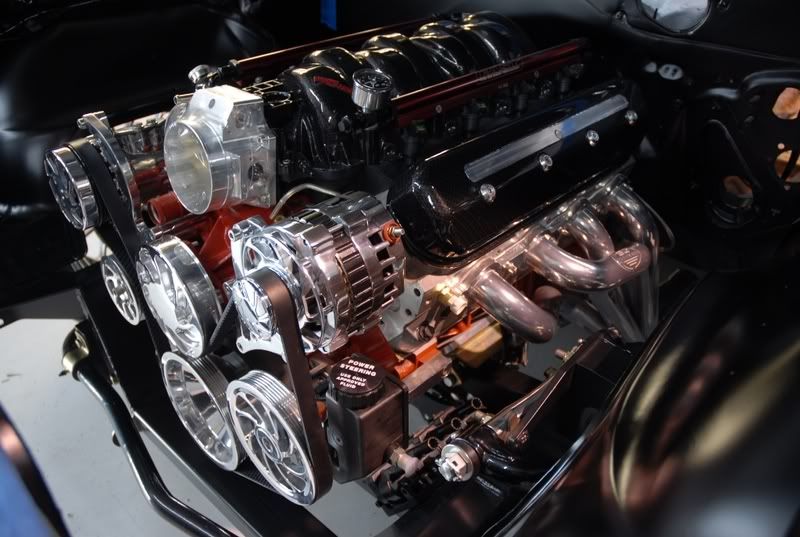

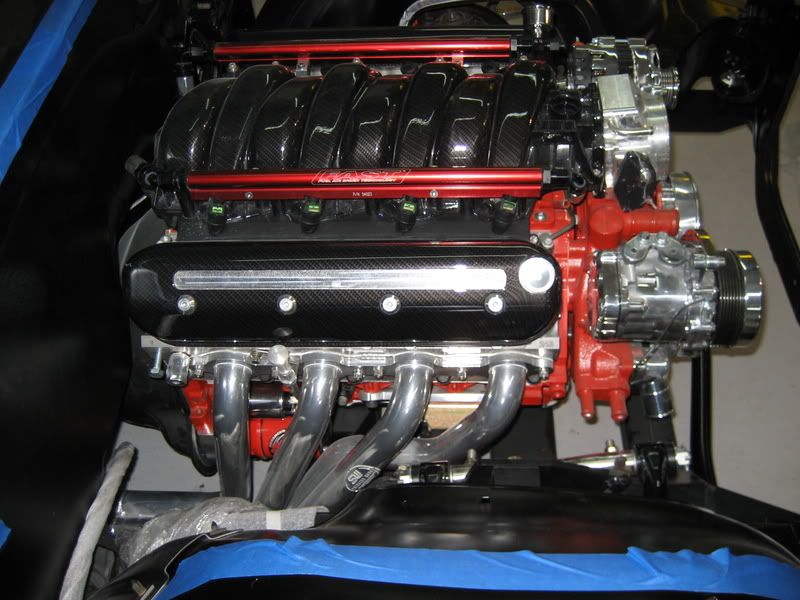

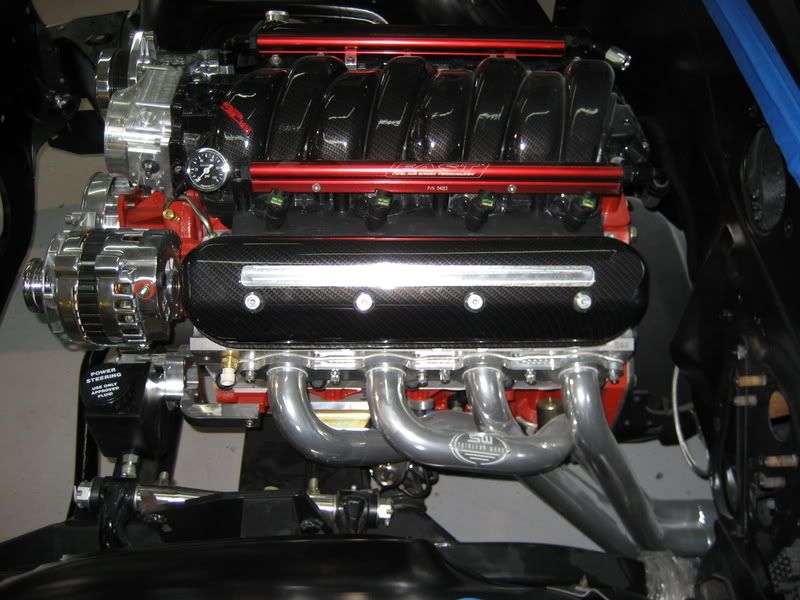

Also Tom Finished the Katech Valve Covers to match Intake
http://i700.photobucket.com/albums/w...Picture024.jpg

http://i700.photobucket.com/albums/w...Picture025.jpg

That car is looking awesome!!!
Keep us updated. I agree with the undercarriage, in that it looks GREAT!!:thumbsup:

Nice ride!
I don't stop and see Tom for a couple months and this is what he does. I guess i better stop by and take a look.

the car looks great - it's fun working with such a great guy as Tom.

ps - thanks for the sneak peak of the other 68

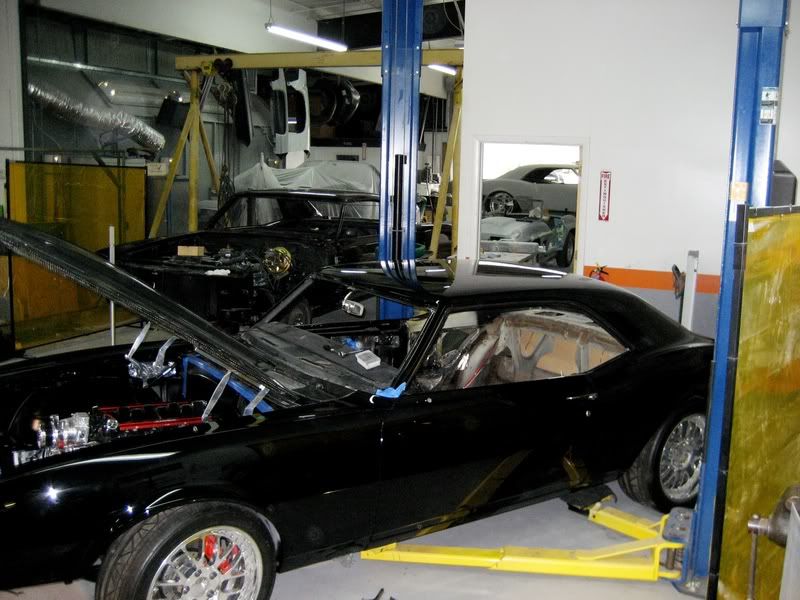

Great looking car! Im wondering though, that Camaro on the lift in the background, what type of wheels are those? Like to see a better shot of them, if you can get one. :thumbsup:

Quote:

Originally Posted by tony byram (Post 188976)

Great looking car! Im wondering though, that Camaro on the lift in the background, what type of wheels are those? Like to see a better shot of them, if you can get one. :thumbsup:

Those wheels are from Ryan at DPE Engineering. His stuff is over the top !!!!

http://dpengineering.cc/

[email protected]

they even have a myspace page ( really i need to get up with the times )

http://www.myspace.com/dpewheels

Quote:

Originally Posted by syborg tt (Post 188961)

the car looks great - it's fun working with such a great guy as Tom.

ps - thanks for the sneak peak of the other 68

That pic is just for you, Thought you would like it.

More sneak peaks to come??????

Thanks Bro,

Tom

Quote:

Originally Posted by Hemi Nova (Post 188693)

Nice ride!
I don't stop and see Tom for a couple months and this is what he does. I guess i better stop by and take a look.

Doors aways open?

it's been more than a couple of mouths?
Stop by a see the new little one.

Tom

Quote:

Originally Posted by syborg tt (Post 188961)

the car looks great - it's fun working with such a great guy as Tom.

ps - thanks for the sneak peak of the other 68

I Agree! Tom is Awesome! Excellent to work with!:thumbsup:

Quote:

Originally Posted by syclonetommy (Post 189017)

Doors aways open?

it's been more than a couple of mouths?
Stop by a see the new little one.

Tom

I know!
I'll see if i have some extra time Saturday.
Project looks good as always.

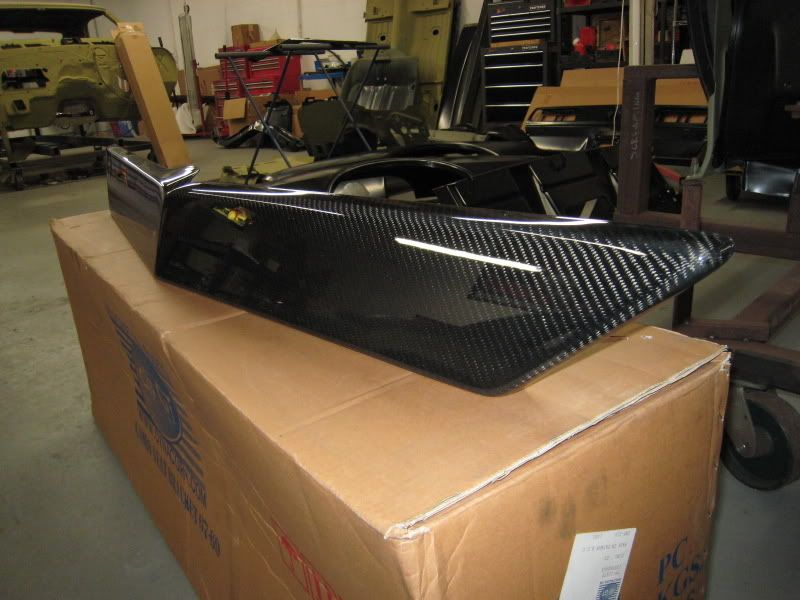

Here is the Front Carbon Fiber Spoiler from Brian @ Screamin' Performace

http://i700.photobucket.com/albums/w...o/IMG_3764.jpg

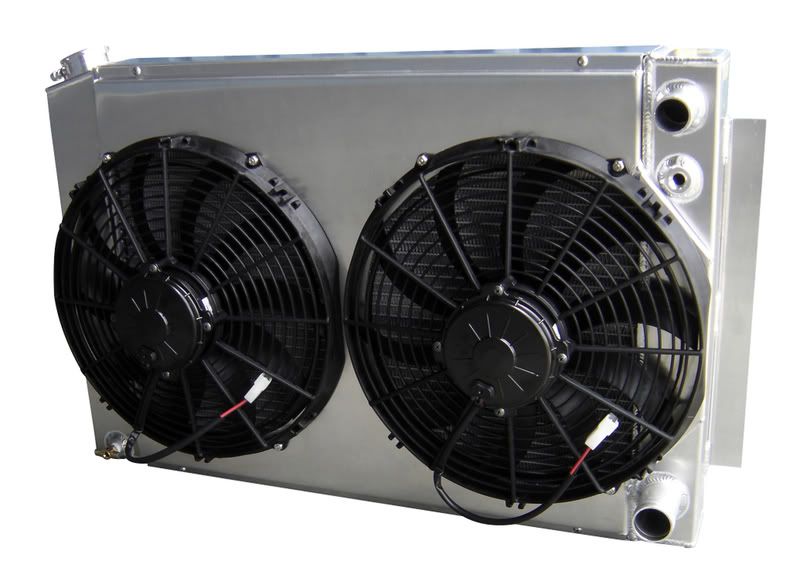

Also Received on Friday Prodigy Customs Cool Package LSX radiators Thanks Frank!
http://i700.photobucket.com/albums/w...amaroLS1FS.jpg

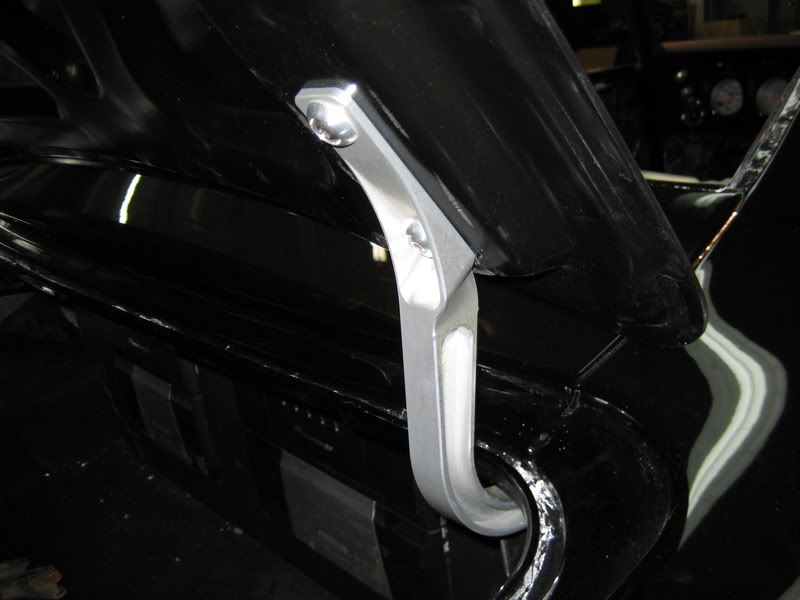

Love the hinges. How hard were they to put on and did it change the hieght of the deck lid?

Bill honestly................ car is wicked!
thanks for choosing us to help be a part of it

Quote:

Originally Posted by killer69 (Post 190298)

Bill honestly................ car is wicked!
thanks for choosing us to help be a part of it

Blake,
I cant thank you enough for your support you guys are Great to deal with! Awesome service!:thumbsup:

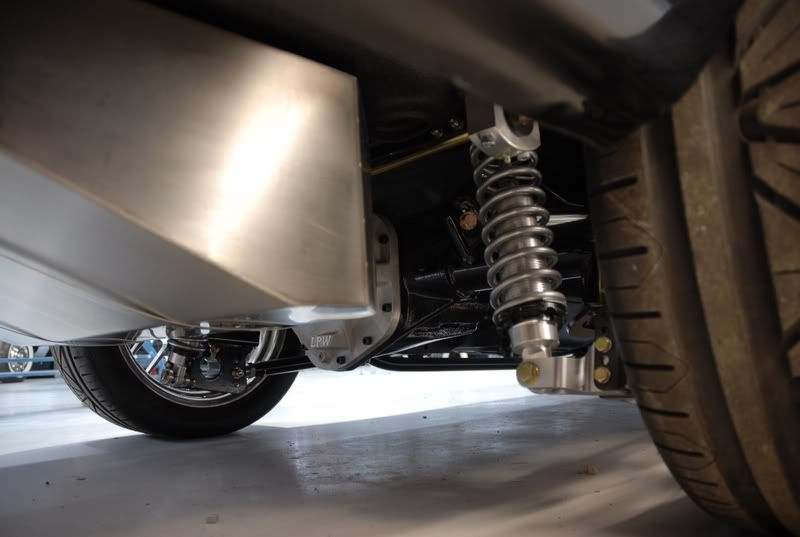

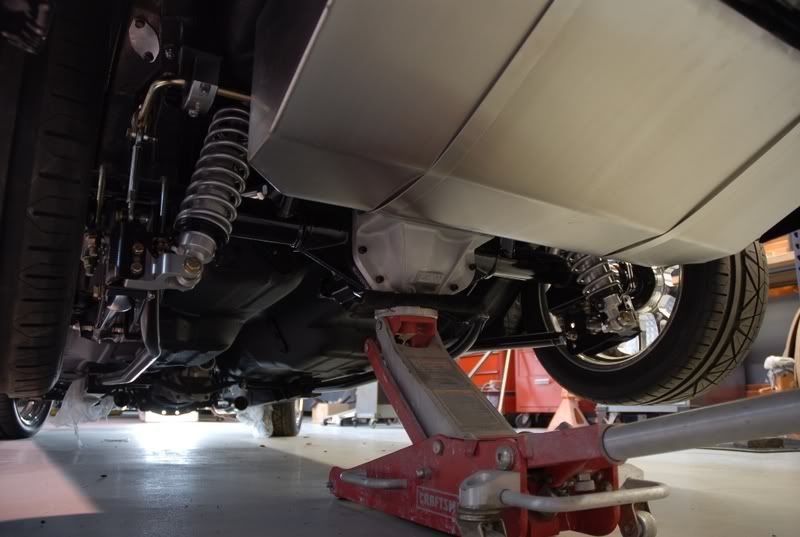

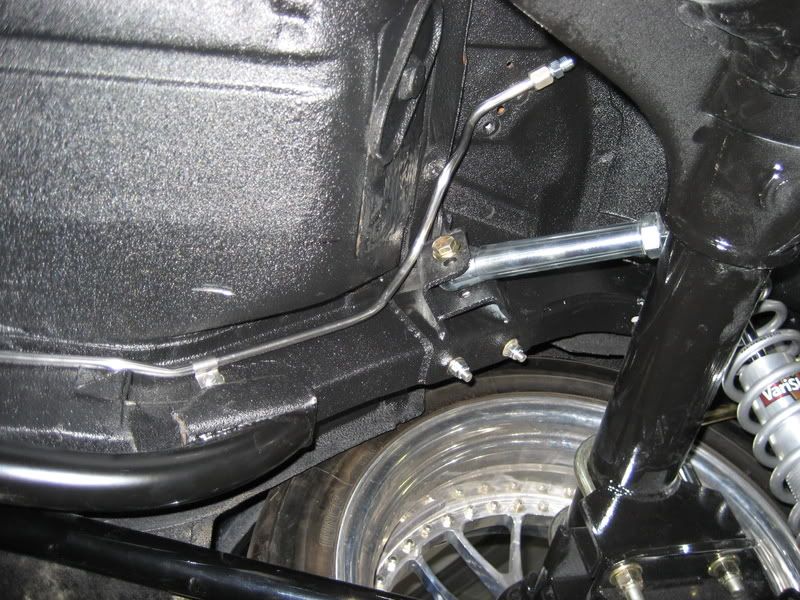

Peek at the rear with Chris Alston's G-Bar and Ricks Tank

http://i700.photobucket.com/albums/w...Picture069.jpg

http://i700.photobucket.com/albums/w...Picture070.jpg

wow looks like some quality work going on there.

Quote:

Originally Posted by syborg tt (Post 195700)

wow looks like some quality work going on there.

yes! Tom is doing a Great Job!!

Quote:

Originally Posted by 68/Camaro (Post 195744)

yes! Tom is doing a Great Job!!

I agree. Car is looking awesome.
Keep us posted please.:thumbsup:

Everything looks awesome very nice work. Sweet setup.

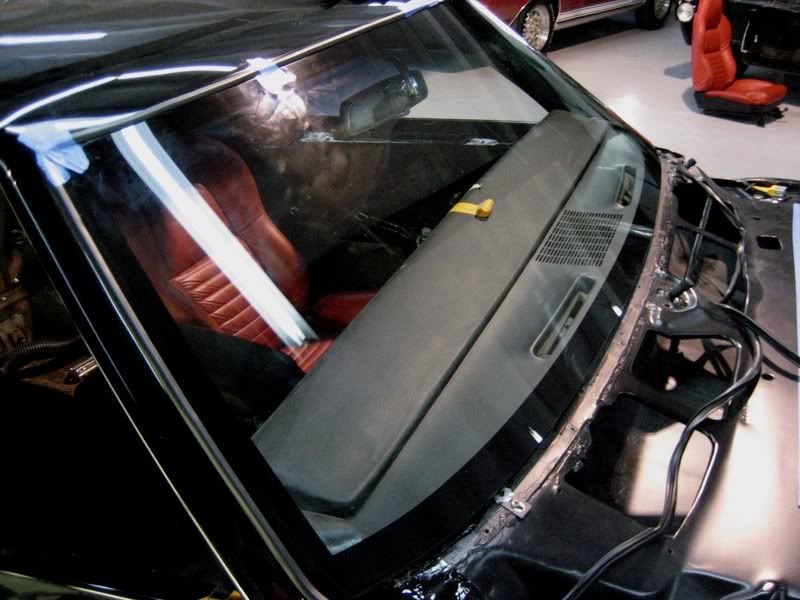

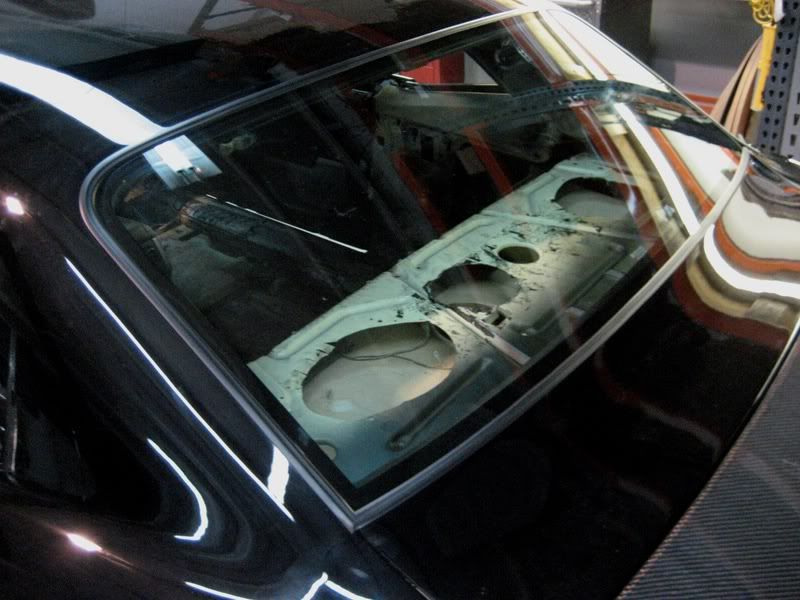

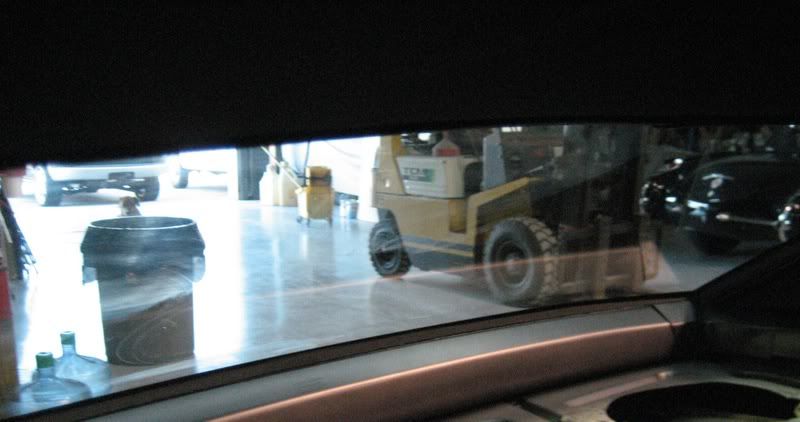

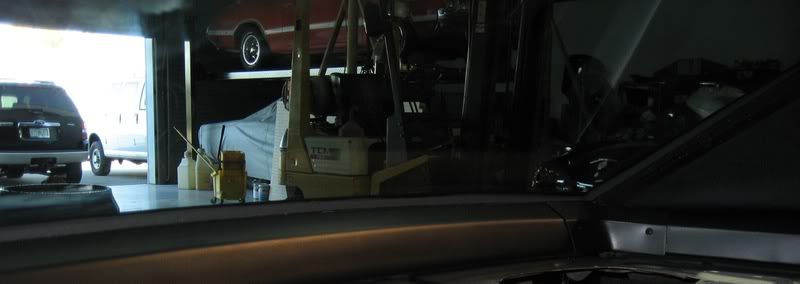

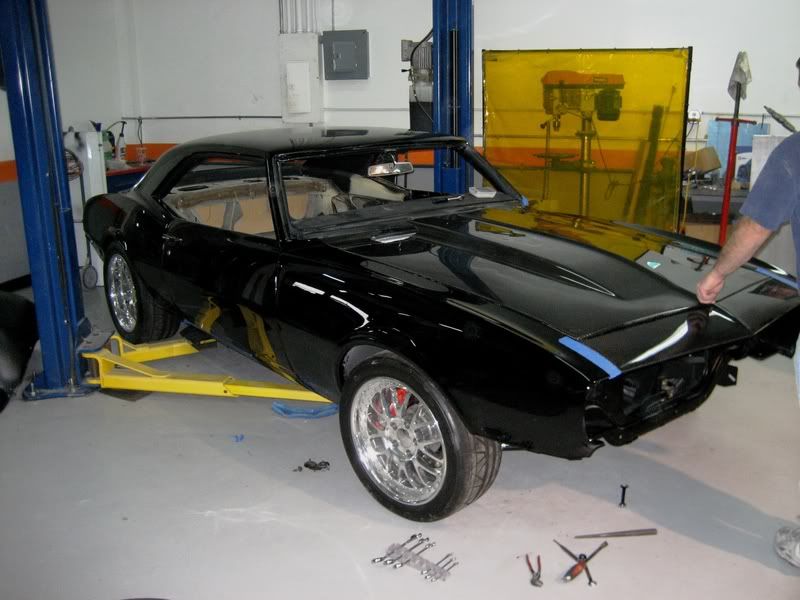

Installed Flush Mount Glass kit!

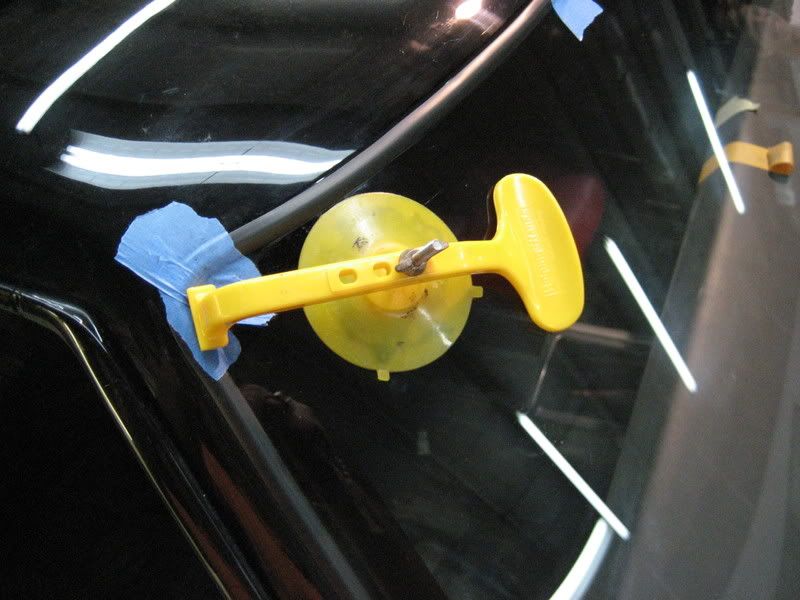

Well we just finished installing the (Flush Mount Glass System) by Classic Auto Glass Innovations! Thanks to Robert (Iamtheonlyreal1) on Pro-Touring.com able to get a set of Flush Mount Glass to us! http://classicautoglassinnovations.com/index.html
Guys this glass system is Excellent the pictures don’t do it justice in person it’s beautiful! If you’re looking to install yourself please I suggest contacting your local Auto Glass Company like I did it, and One phone call to Robert made it easier to install, Frank from C Thru Glass our local Glass installer stated it is an excellent product for updating the fist gen Camaro’s it took about 3 hrs from start to finish.
Take a look!

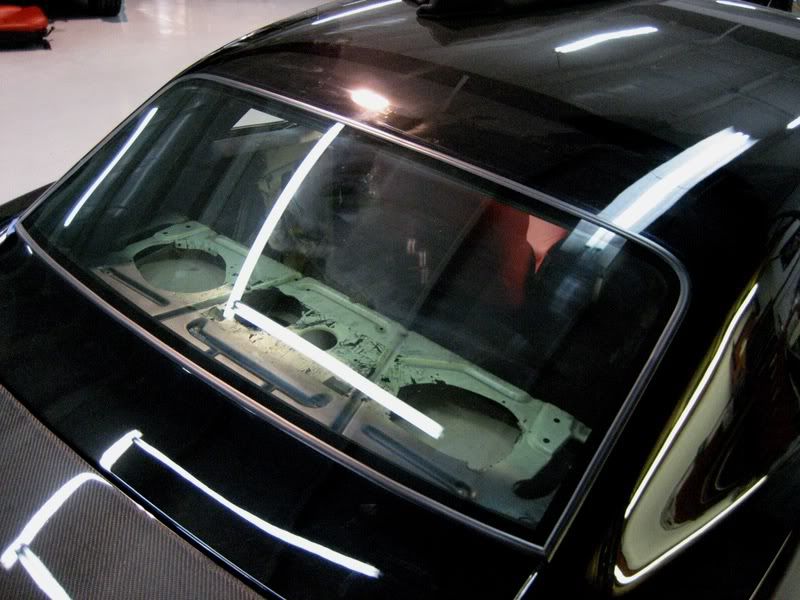

http://i700.photobucket.com/albums/w...Picture010.jpg
http://i700.photobucket.com/albums/w...Picture008.jpg

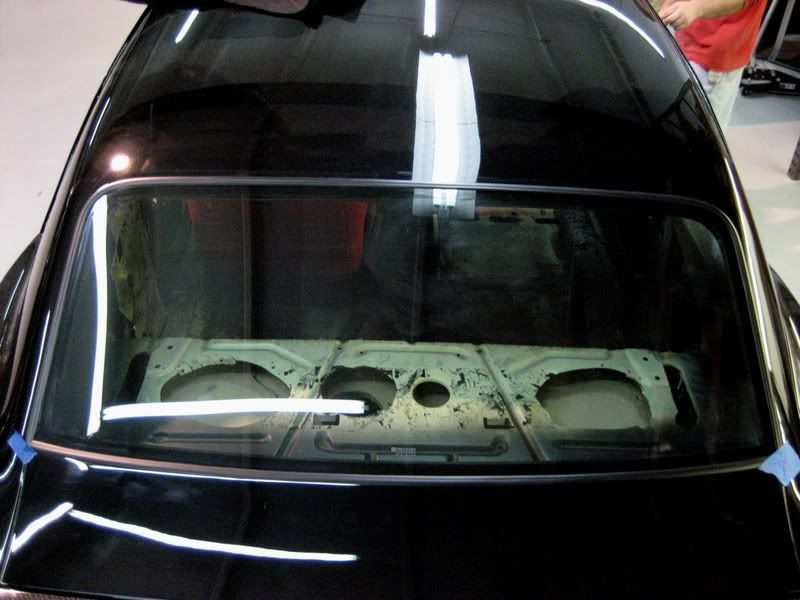

http://i700.photobucket.com/albums/w...Picture042.jpg

Installed Flush Mount Glass kit!

looking very good. The engine looks great
