Wargasser 1935 Chevy Pickup


Ill start by saying when the truck came to the shop i never thought it would be what it is today. Heres where the truck will be when finished.
http://i789.photobucket.com/albums/y...y/untitled.jpg
Heres a few of what we started with.
http://i789.photobucket.com/albums/y...y/71530019.jpg
http://i789.photobucket.com/albums/y...y/IMG_4075.jpg
http://i789.photobucket.com/albums/y...y/IMG_4074.jpg
In the follwoing posts i will be going threw the full build. i hope you all enjoy and if you have any question please feel free to ask.

Nice project. I like the 30's body styles.

Cool ride. How about pics of that 55? in the background.

Ill look and see if i have any the customer sold it a few months back.

Here's a few of the frame, and interior before disassembly. Oh and the pile of parts we started with.
The truck was started about 20 years ago buy the customer. He had Kugel Komponents install a front clip and Corvette independent suspension and run all the brake lines. To say the least things are about to change a bit.
http://i789.photobucket.com/albums/y...y/IMG_4077.jpg
http://i789.photobucket.com/albums/y...y/IMG_4078.jpg
http://i789.photobucket.com/albums/y...y/IMG_4086.jpg
http://i789.photobucket.com/albums/y...y/IMG_4085.jpg
http://i789.photobucket.com/albums/y...y/IMG_4071.jpg

Here's a few more.... Also the start of the disassembly.
http://i789.photobucket.com/albums/y...y/IMG_4084.jpg
http://i789.photobucket.com/albums/y...y/IMG_4181.jpg
http://i789.photobucket.com/albums/y...y/IMG_4178.jpg
http://i789.photobucket.com/albums/y...y/IMG_4179.jpg
http://i789.photobucket.com/albums/y...y/IMG_4184.jpg
http://i789.photobucket.com/albums/y...y/IMG_4177.jpg

So here's the start of some of the work on the frame. As you can see it pretty rough. The before shots
http://i789.photobucket.com/albums/y...y/IMG_4190.jpg
http://i789.photobucket.com/albums/y...y/IMG_4192.jpg
http://i789.photobucket.com/albums/y...y/IMG_4197.jpg
http://i789.photobucket.com/albums/y...y/IMG_4270.jpg
And heres after
http://i789.photobucket.com/albums/y...y/IMG_4271.jpg
http://i789.photobucket.com/albums/y...y/IMG_4272.jpg

http://i789.photobucket.com/albums/y...y/IMG_4199.jpg
http://i789.photobucket.com/albums/y...IMG_4218-1.jpg
http://i789.photobucket.com/albums/y...y/IMG_4200.jpg
http://i789.photobucket.com/albums/y...y/IMG_4336.jpg
http://i789.photobucket.com/albums/y...y/IMG_4337.jpg
http://i789.photobucket.com/albums/y...y/IMG_4338.jpg
As you can see we didnt leave any part of the frame untouched. this is just the start!

Here's one of the crossmembers that we wanted to close up to match the rest of the frame.
http://i789.photobucket.com/albums/y...y/IMG_4340.jpg
http://i789.photobucket.com/albums/y...y/IMG_4341.jpg
http://i789.photobucket.com/albums/y...y/IMG_4343.jpg

The frame looks great, nice work.

Thanks alot, wait till i get a few more pics im only just getting started. I think i might have 500 pics of this build.

Cheers

sweet project!!!
whats with all the wood? is that how they came back in the day?

Yes all the Chevy's came with wood structures for the sheetmetal in the cab that most likely why they never lasted like the Fords of that time.

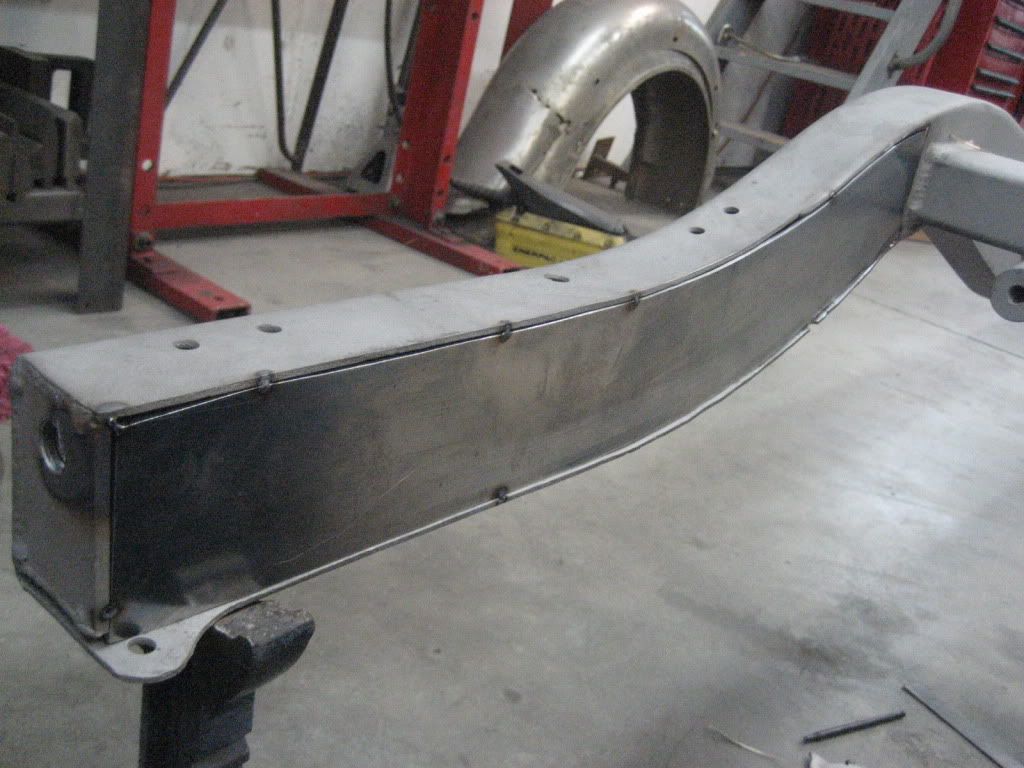

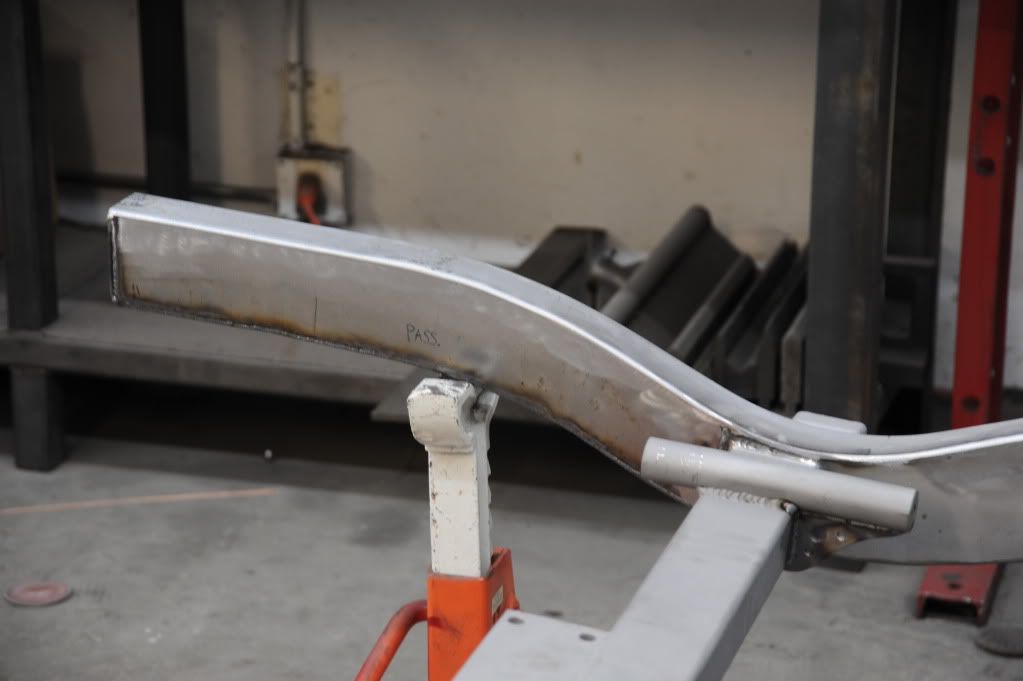

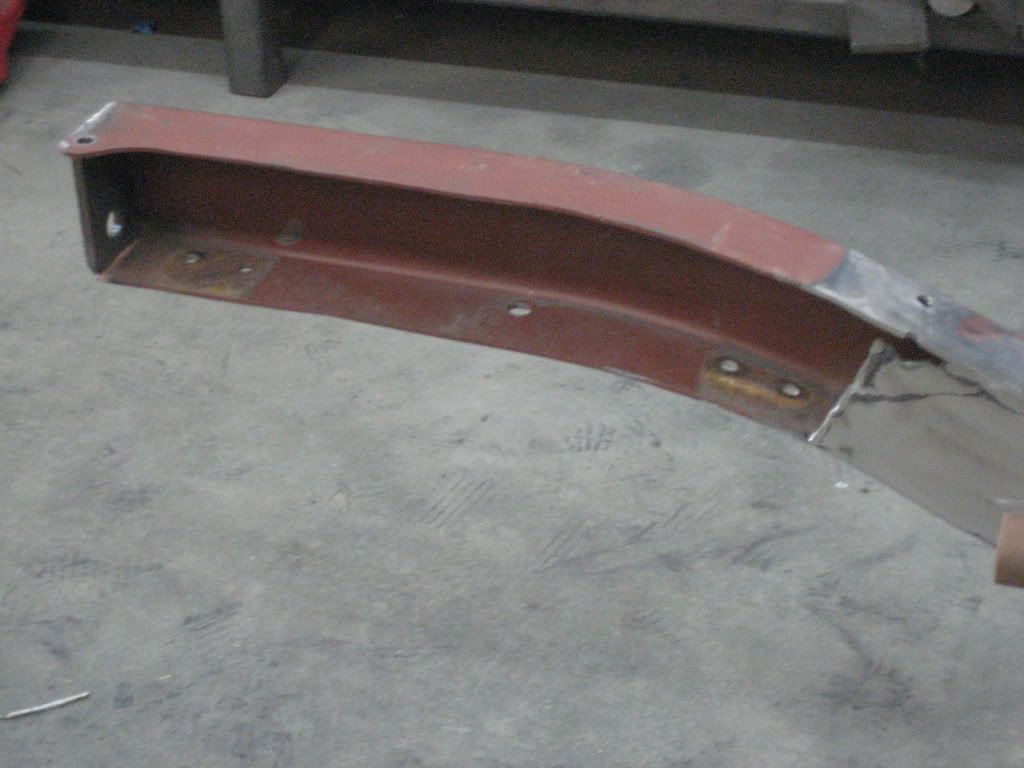

Here's a few more of the back section of the frame that we cut out the stock gas tank mounts and boxes to match the rest of the frame.
http://i789.photobucket.com/albums/y...y/IMG_4298.jpg
http://i789.photobucket.com/albums/y...IMG_4331-1.jpg
http://i789.photobucket.com/albums/y...y/DSC_0023.jpg
http://i789.photobucket.com/albums/y...y/DSC_0032.jpg
http://i789.photobucket.com/albums/y...y/DSC_0031.jpg

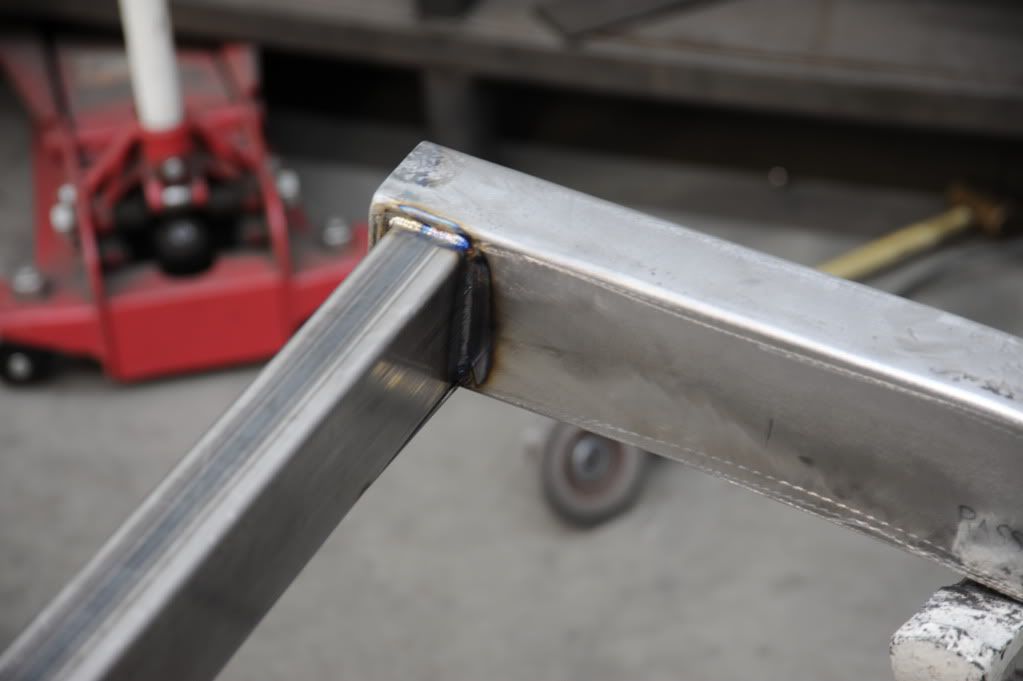

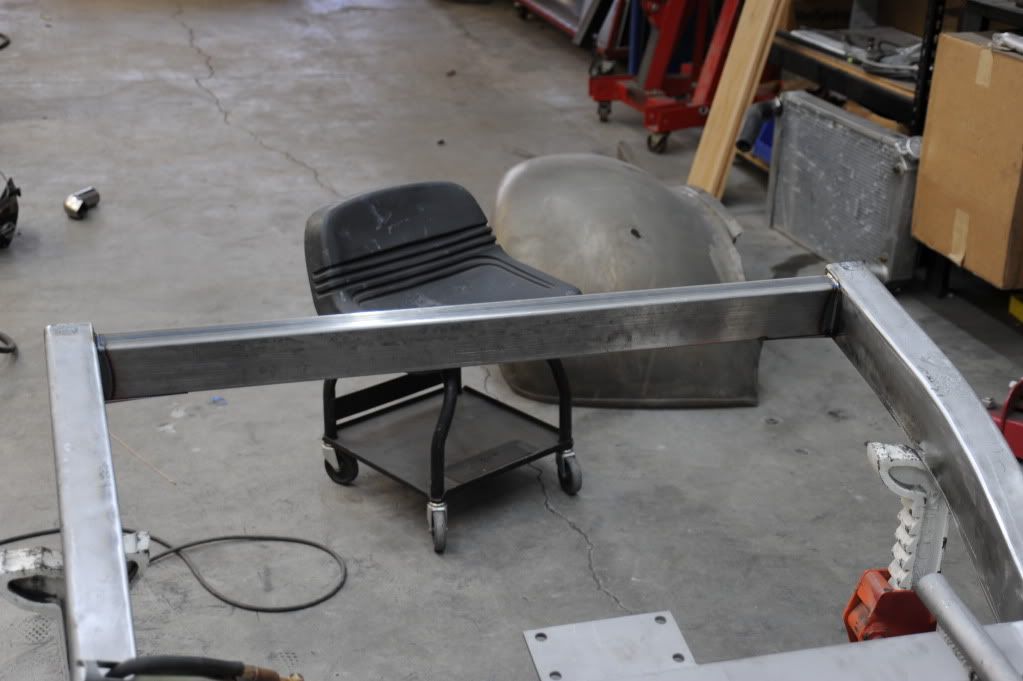

And heres the new rear cross brace that we added into the rear of the frame.

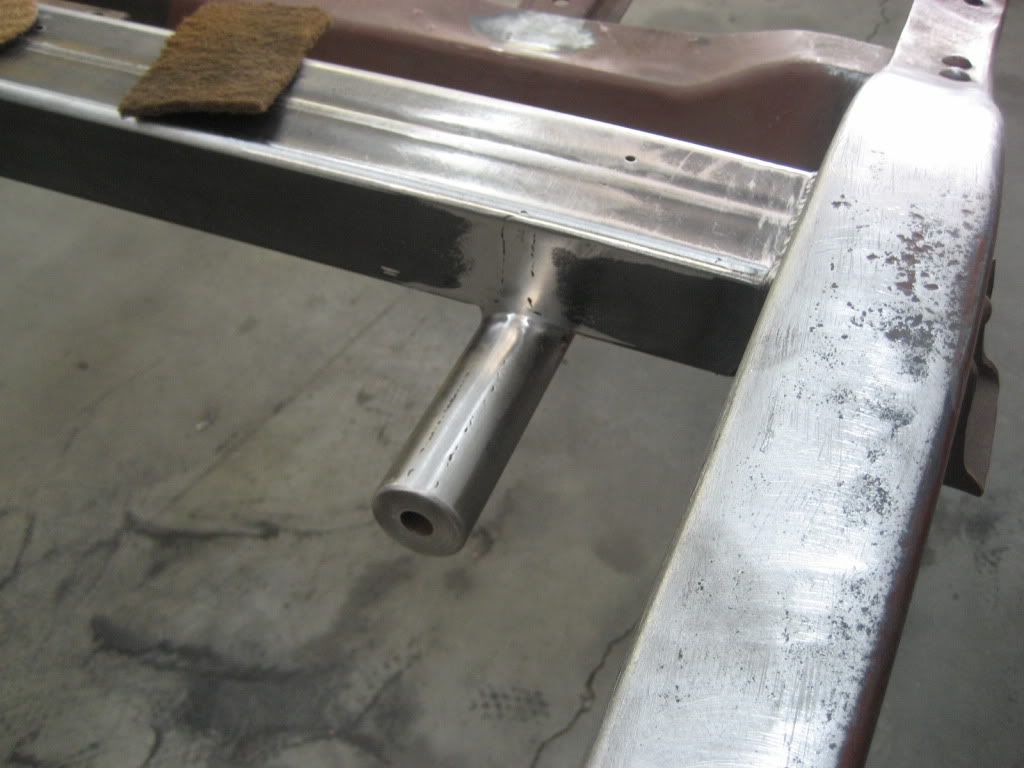

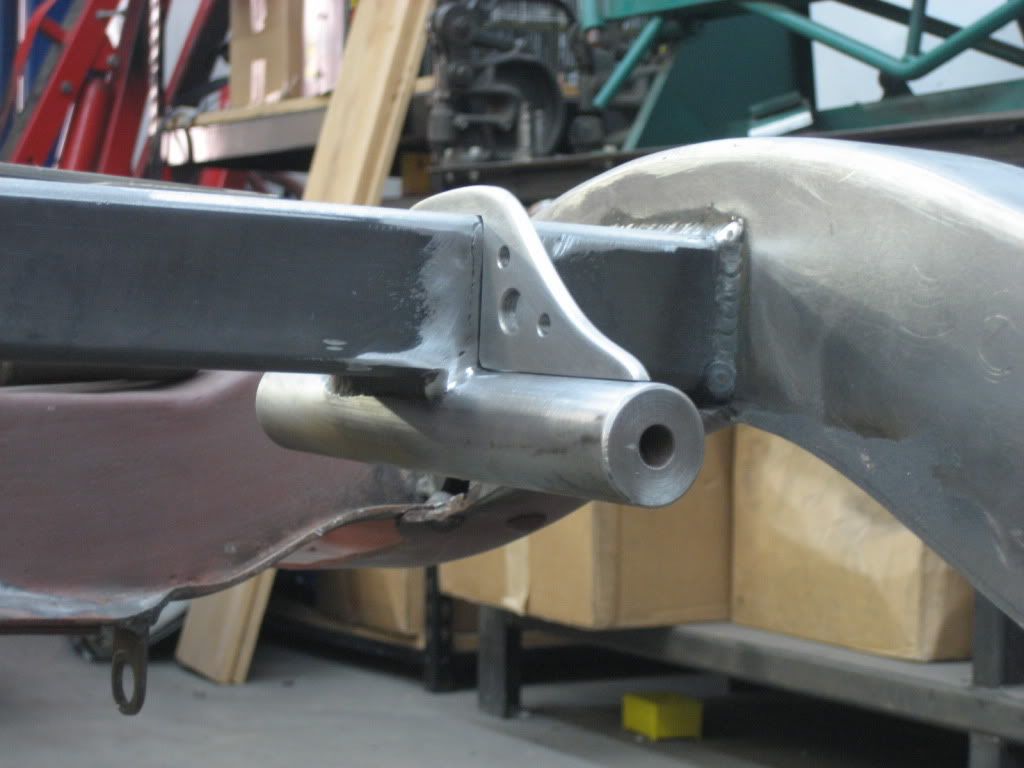

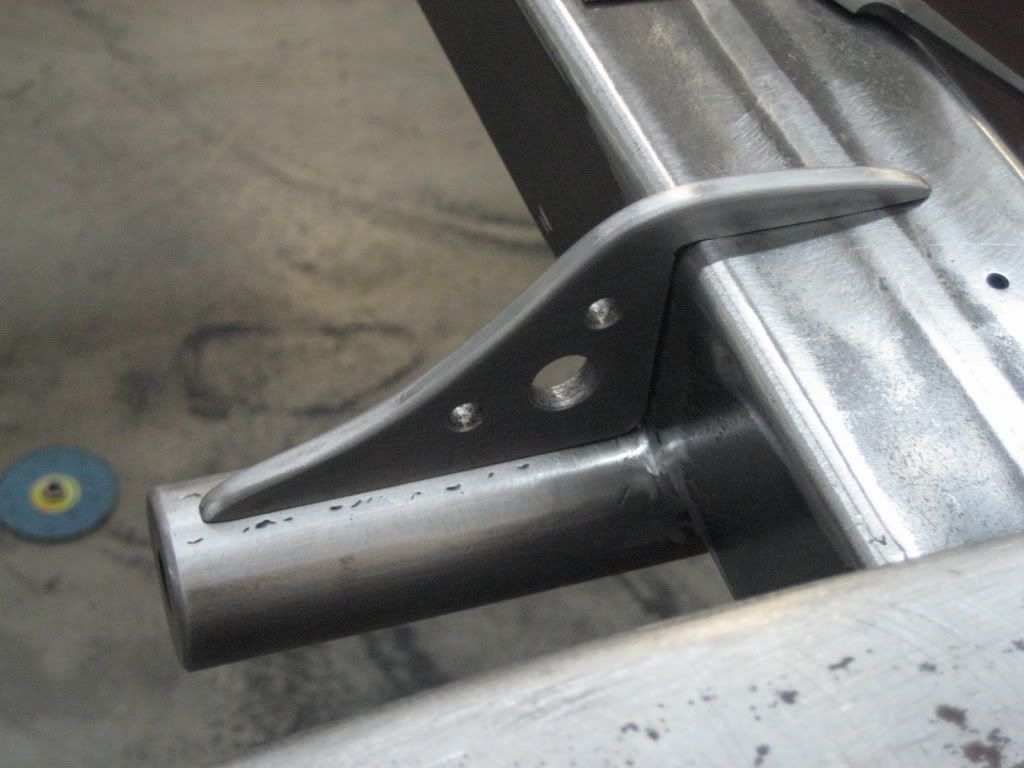

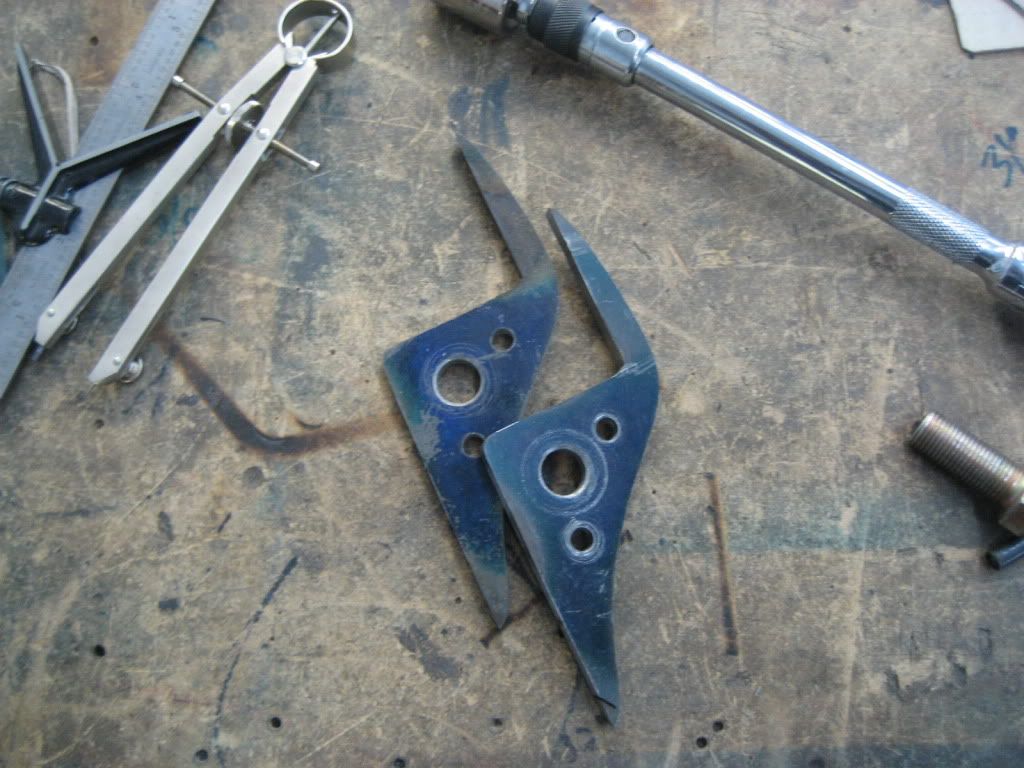

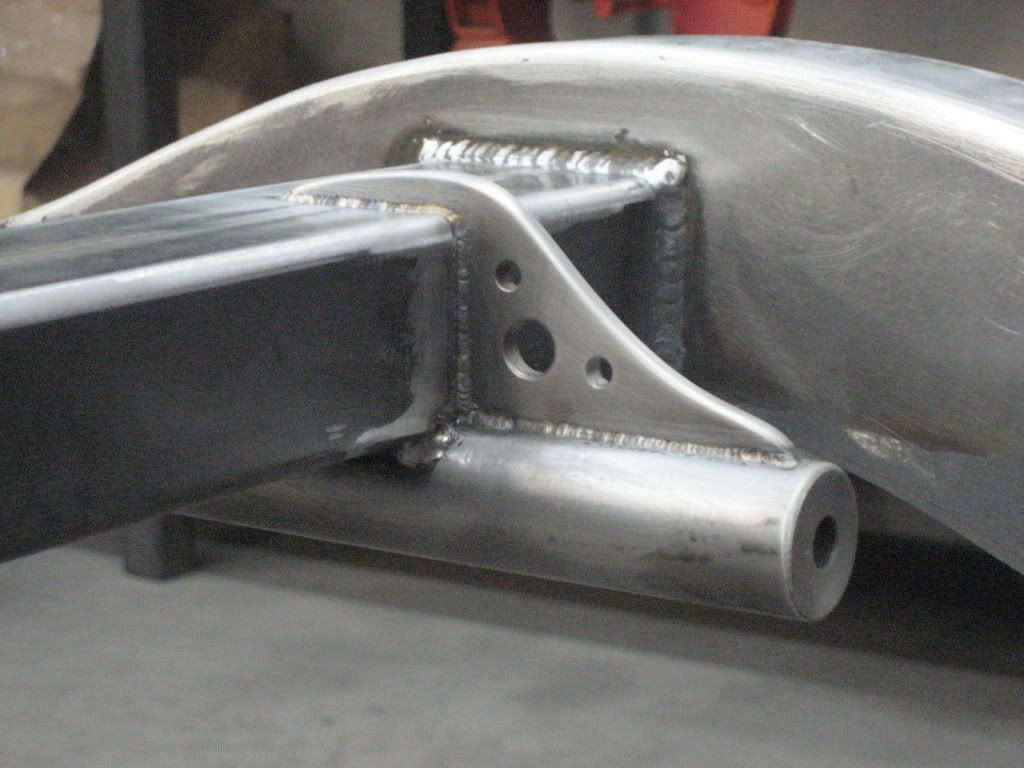

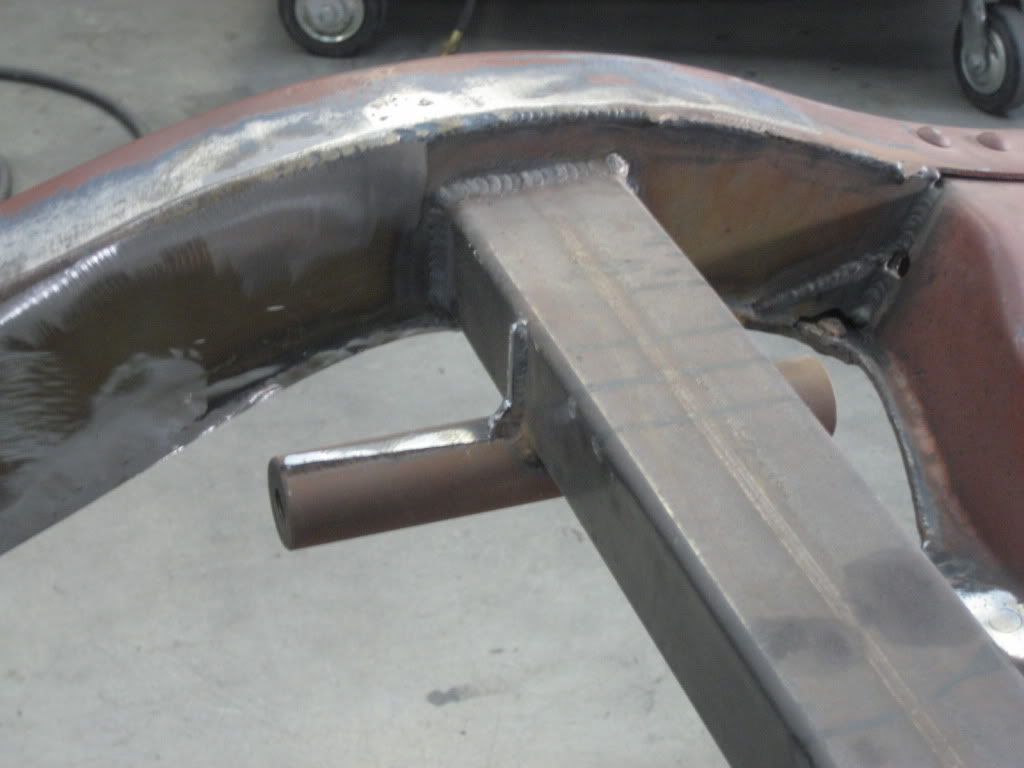

So the truck came with Dual rear shocks.... um not so kool but we did a little work to make the best of what we had. heres the start.
http://i789.photobucket.com/albums/y...y/IMG_4288.jpg
http://i789.photobucket.com/albums/y...y/IMG_4289.jpg
http://i789.photobucket.com/albums/y...y/IMG_4291.jpg
http://i789.photobucket.com/albums/y...y/IMG_4292.jpg
http://i789.photobucket.com/albums/y...y/IMG_4295.jpg
http://i789.photobucket.com/albums/y...y/IMG_4297.jpg

Looking good. Is it still going to have the double shock in hte rear?

Nope only one shock per side.

Nice work on the frame detail. I really like how well that cross member finished up.:cheers:

Thanks alot man.

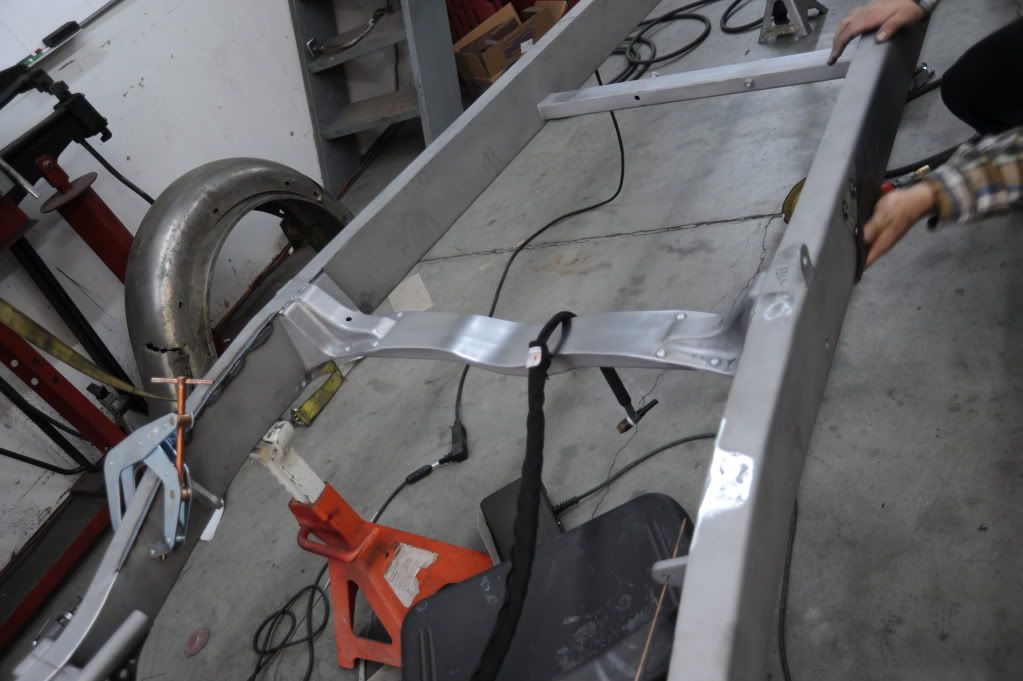

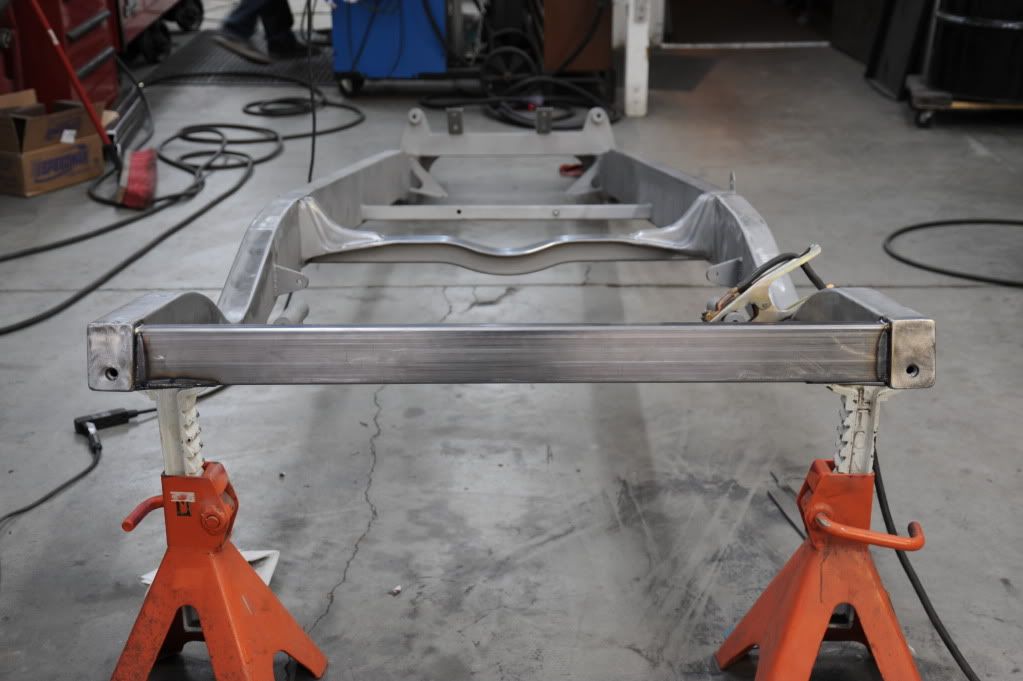

Heres the last ones i have of the frame. its kinda boring to me. this project really gets out of hand...
http://i789.photobucket.com/albums/y...y/DSC_0030.jpg
http://i789.photobucket.com/albums/y...y/DSC_0015.jpg

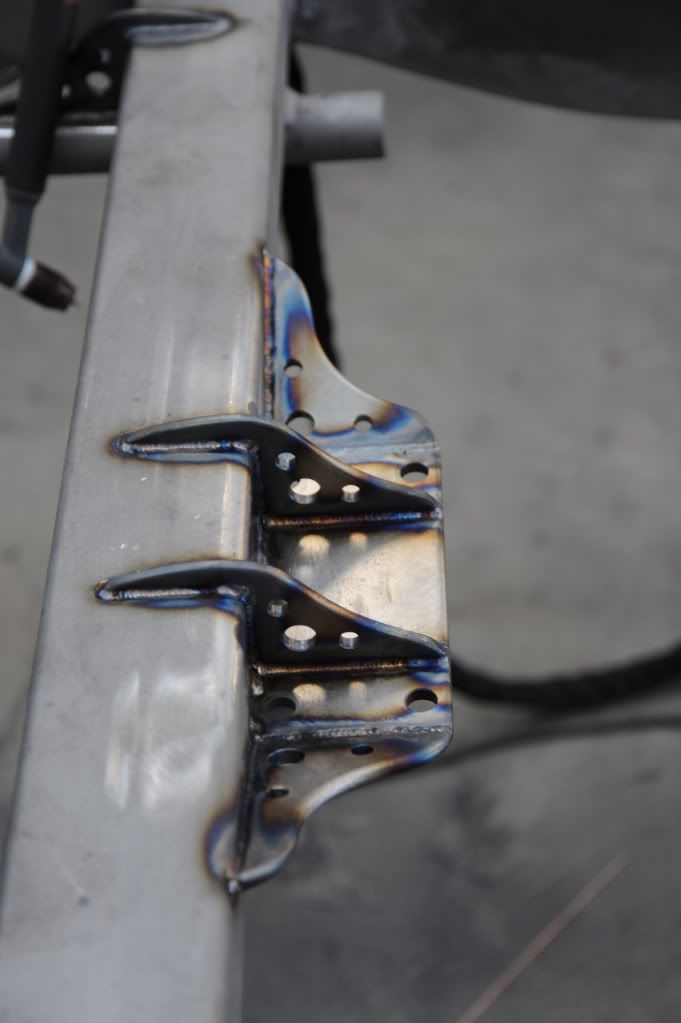

Upper diff mount.
http://i789.photobucket.com/albums/y...y/DSC_0046.jpg
http://i789.photobucket.com/albums/y...y/DSC_0052.jpg
http://i789.photobucket.com/albums/y...y/DSC_0048.jpg

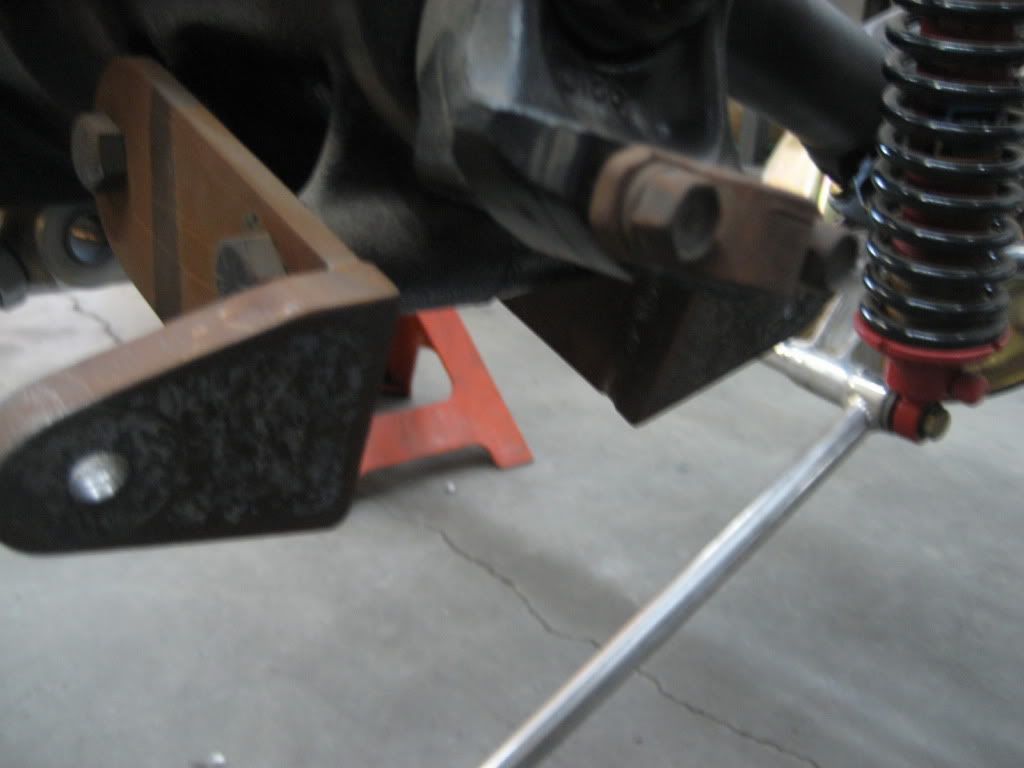

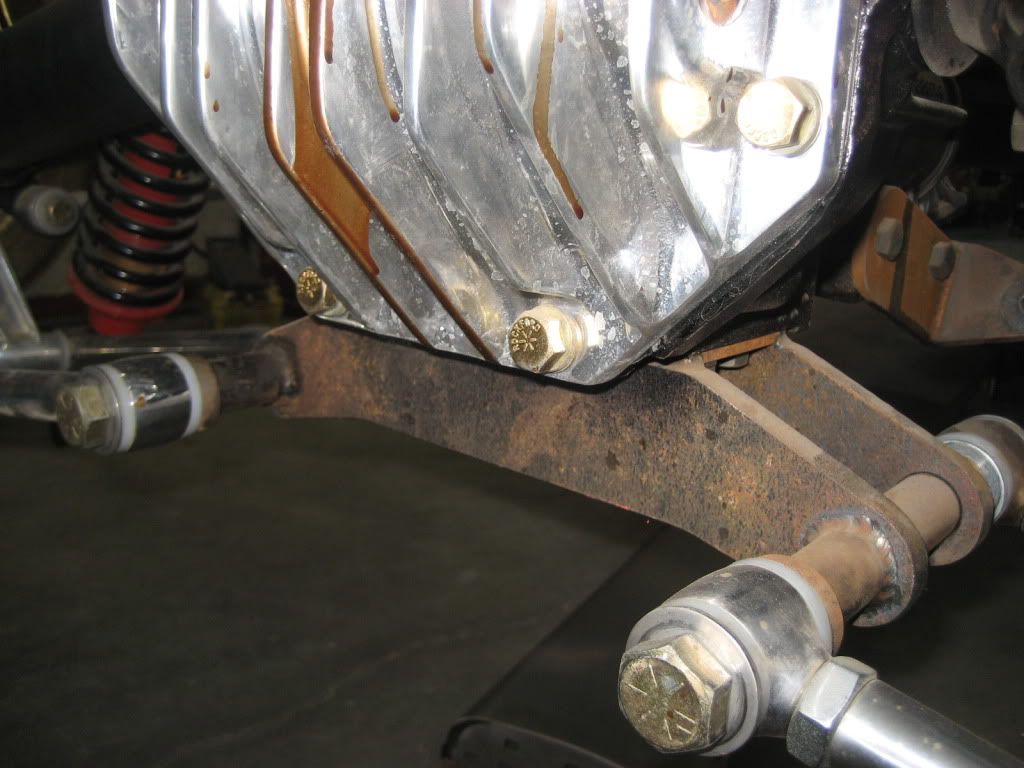

A few pics of what the lower diff bracket for the rear arms looked like when it showed up at the shop.
http://i789.photobucket.com/albums/y...y/IMG_4487.jpg
http://i789.photobucket.com/albums/y...y/IMG_4502.jpg

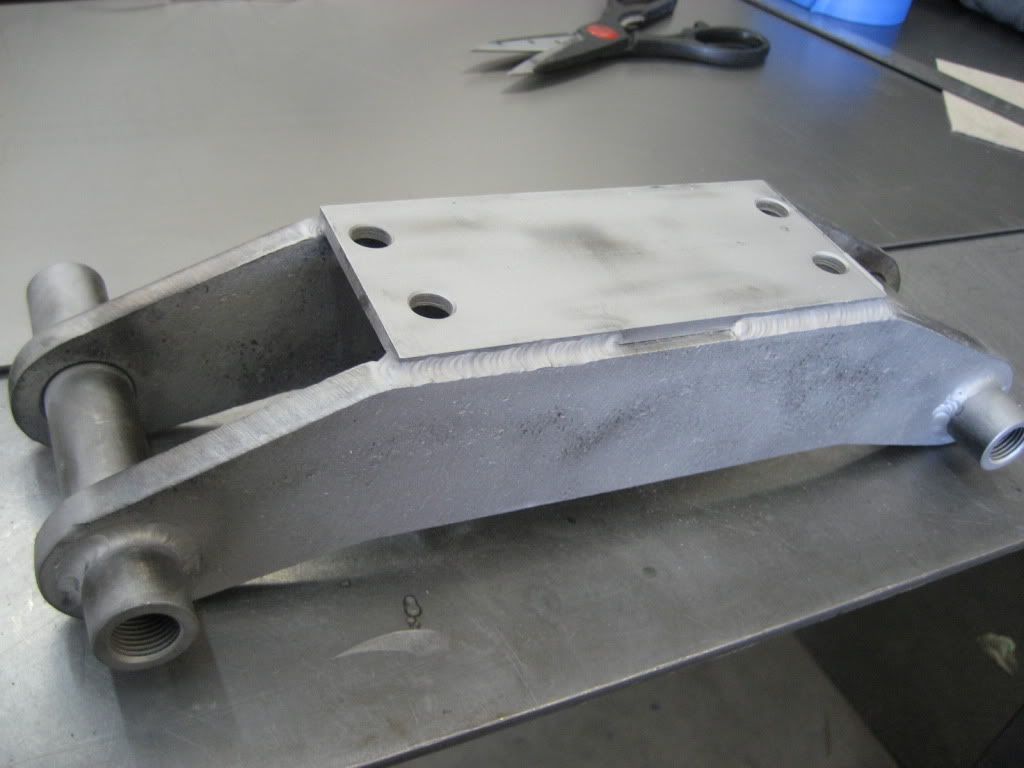

After sandblasting.
http://i789.photobucket.com/albums/y...y/IMG_4489.jpg

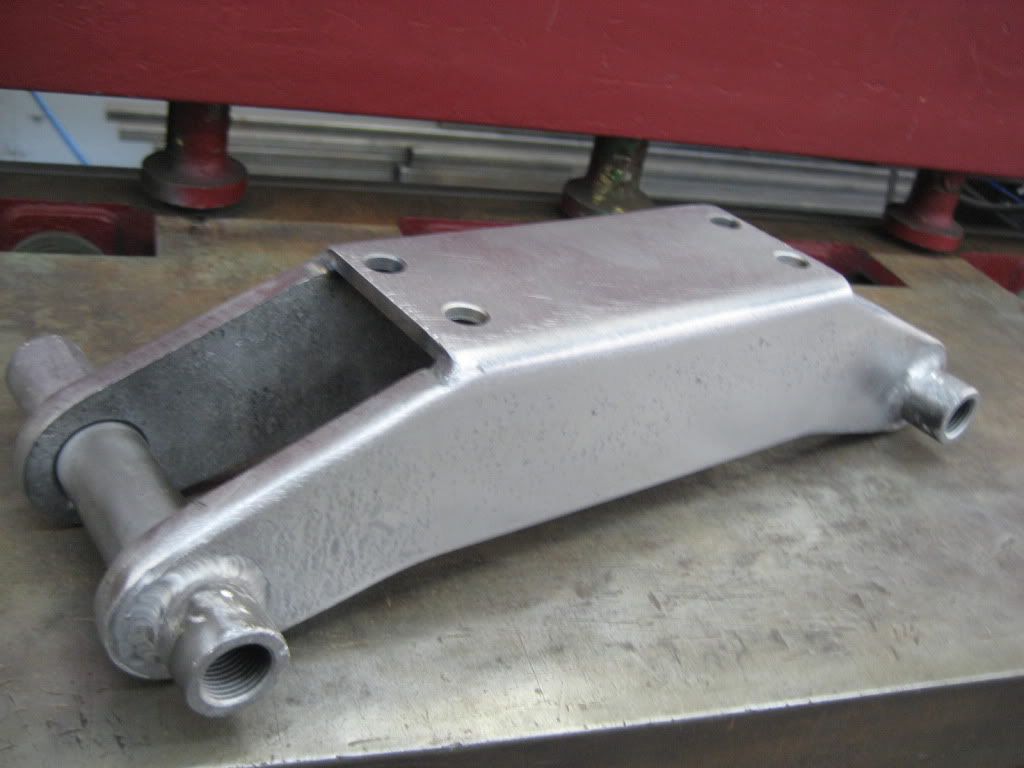

Welding and file finishing.
http://i789.photobucket.com/albums/y...y/IMG_4490.jpg

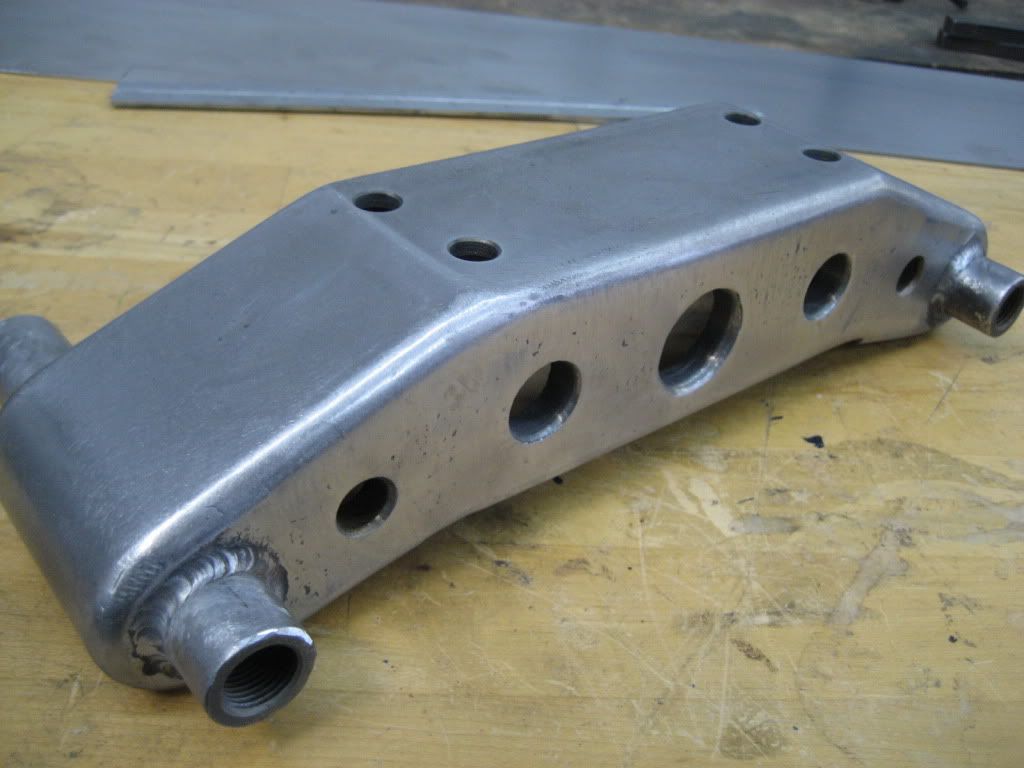

Next we gave it some style....
http://i789.photobucket.com/albums/y...y/IMG_4496.jpg

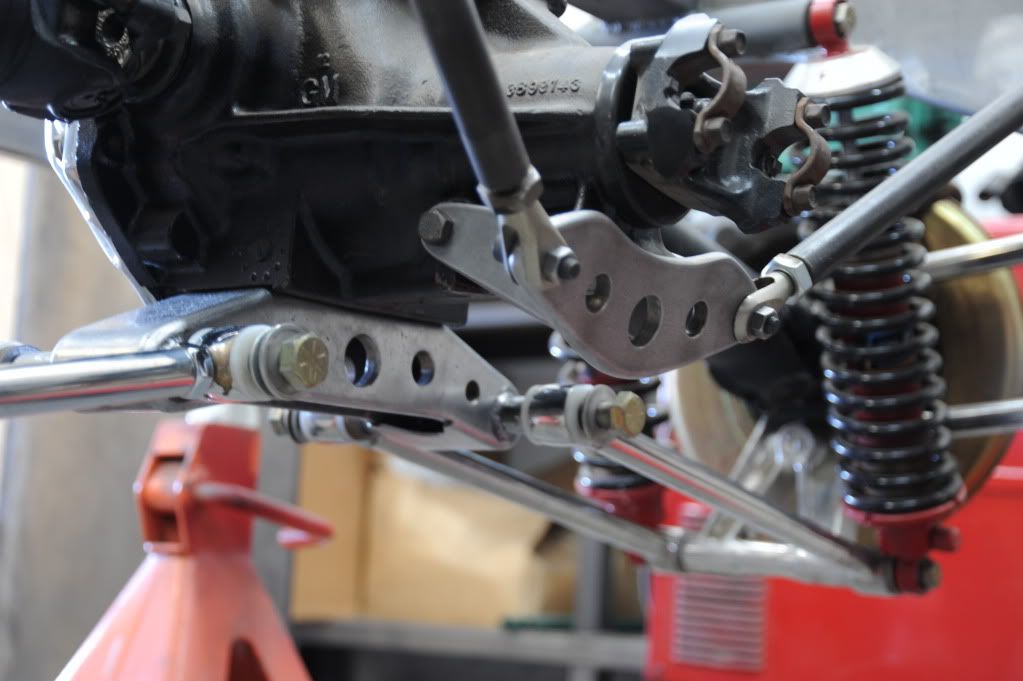

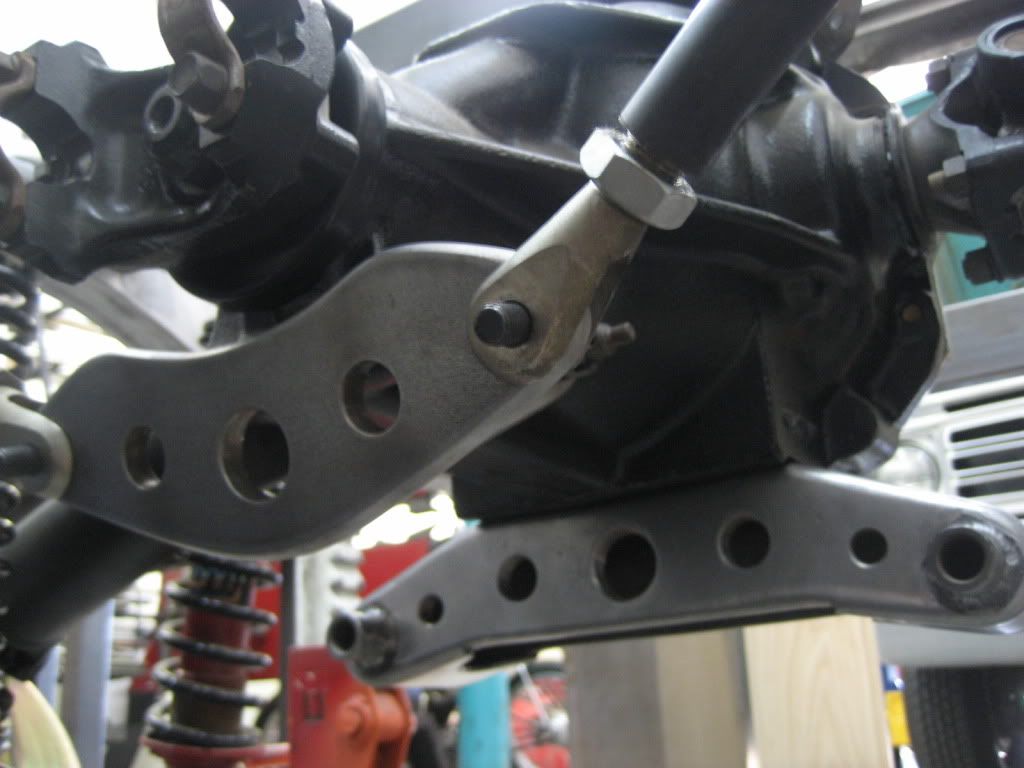

Heres the front mount after
http://i789.photobucket.com/albums/y...y/IMG_4503.jpg
http://i789.photobucket.com/albums/y...y/DSC_0644.jpg
You would think that would be enough work on some lower suspension brackets...... ummm nope just wait.

Great job guys. The build looks awesome.:thumbsup:

Thanks alot Tones

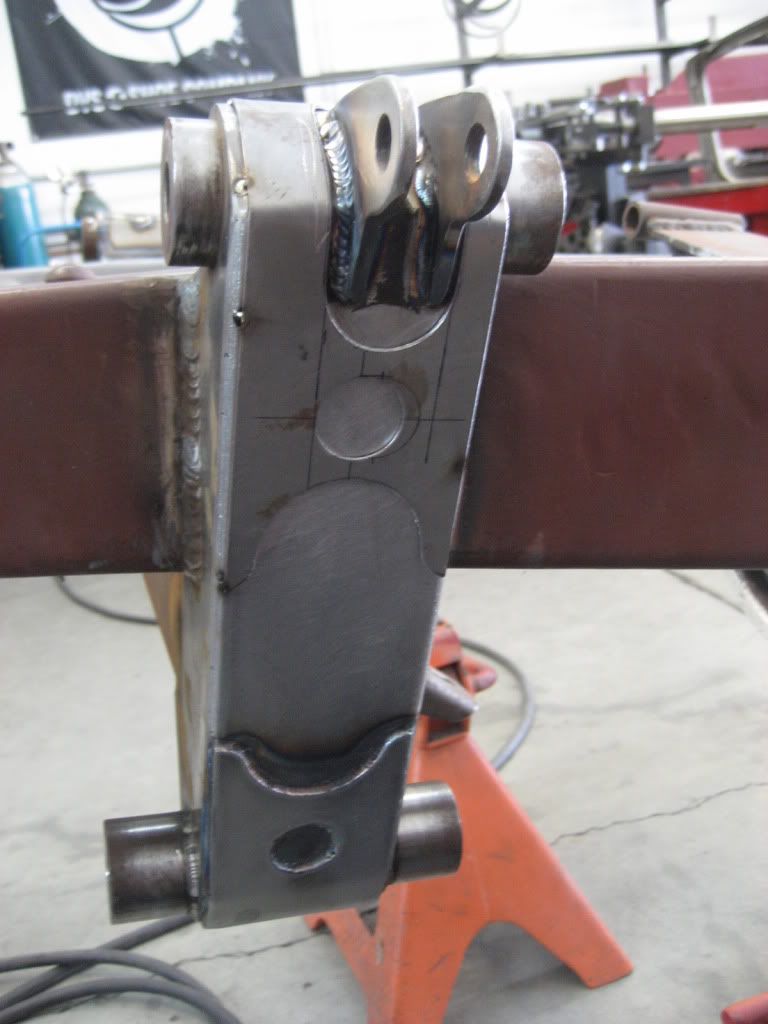

Here's a few of the front suspension wraps we put on and the braces to the plain rack mounts.
http://i789.photobucket.com/albums/y...y/IMG_4284.jpg
http://i789.photobucket.com/albums/y...y/IMG_4285.jpg

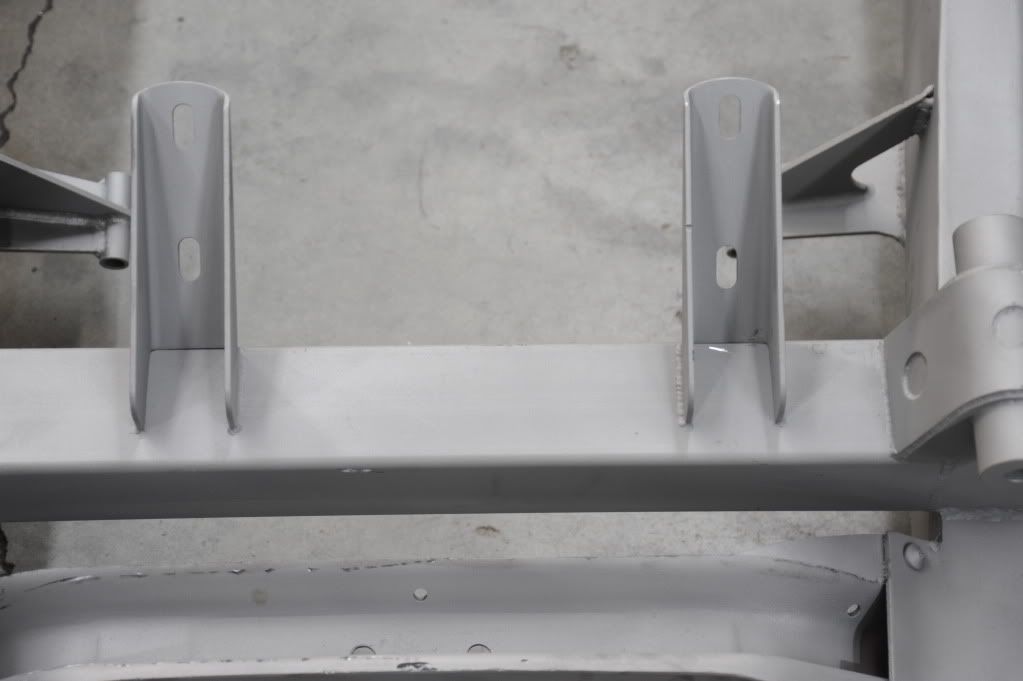

Before
http://i789.photobucket.com/albums/y...y/DSC_0040.jpg

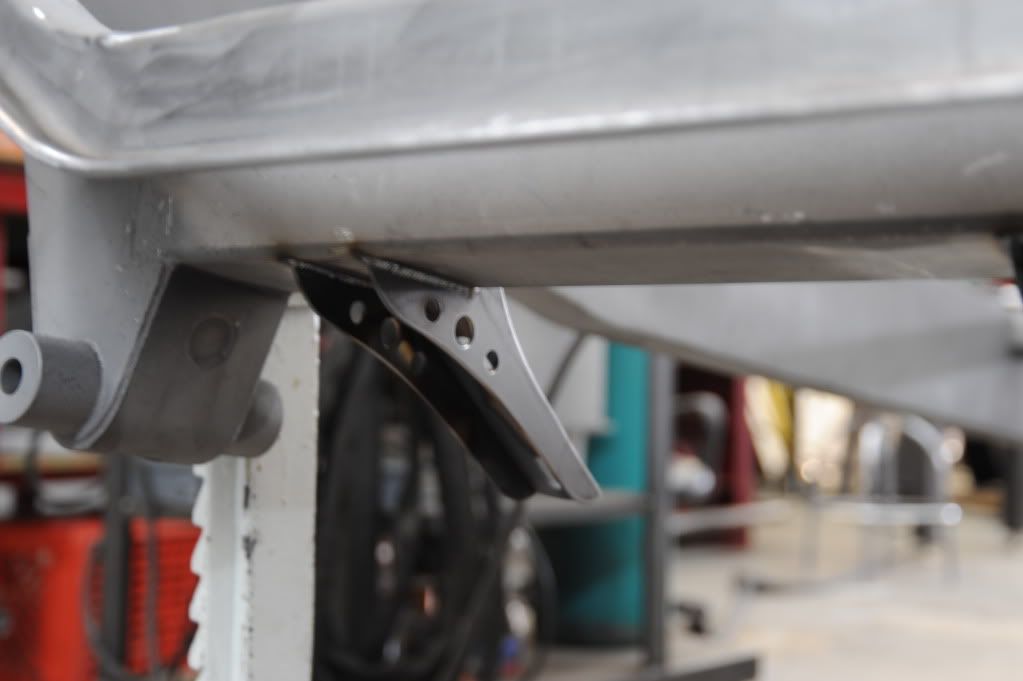

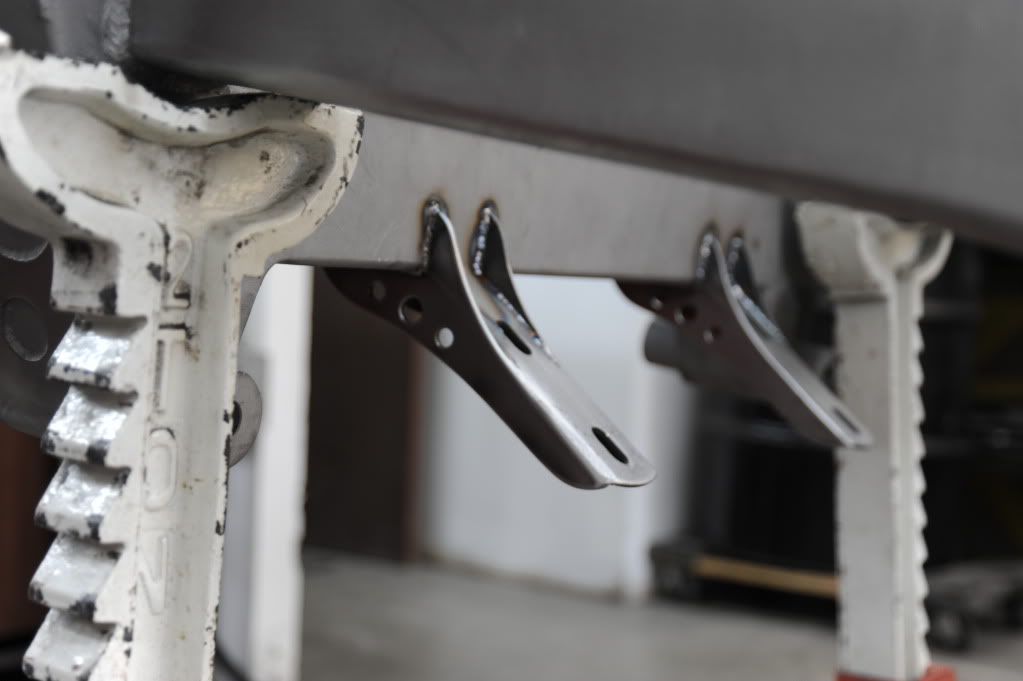

After
http://i789.photobucket.com/albums/y...y/DSC_0054.jpg
http://i789.photobucket.com/albums/y...y/DSC_0055.jpg

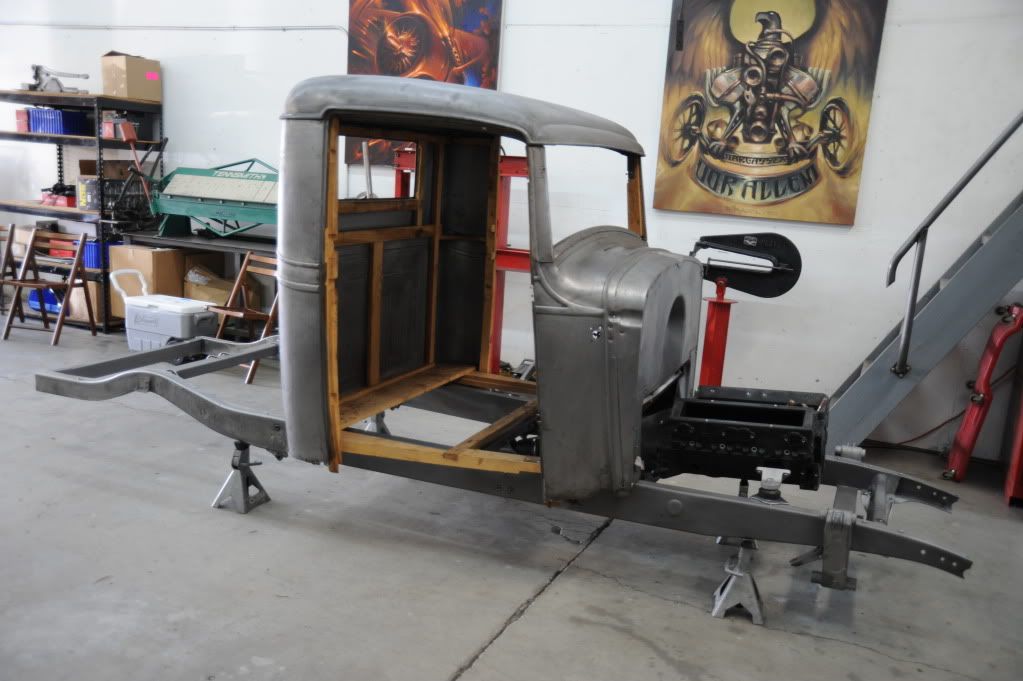

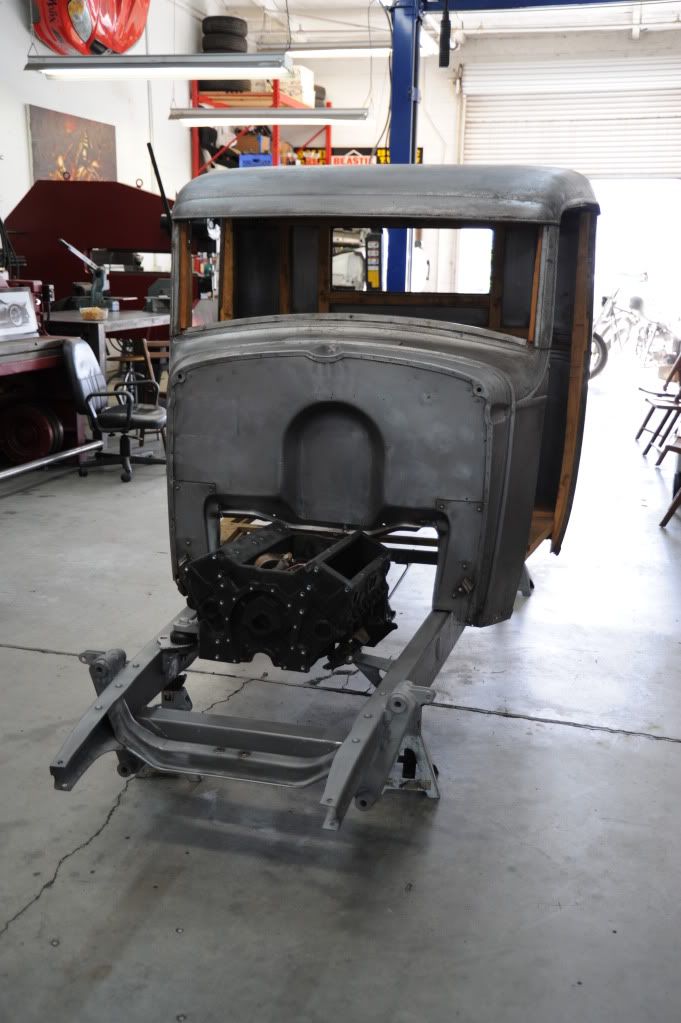

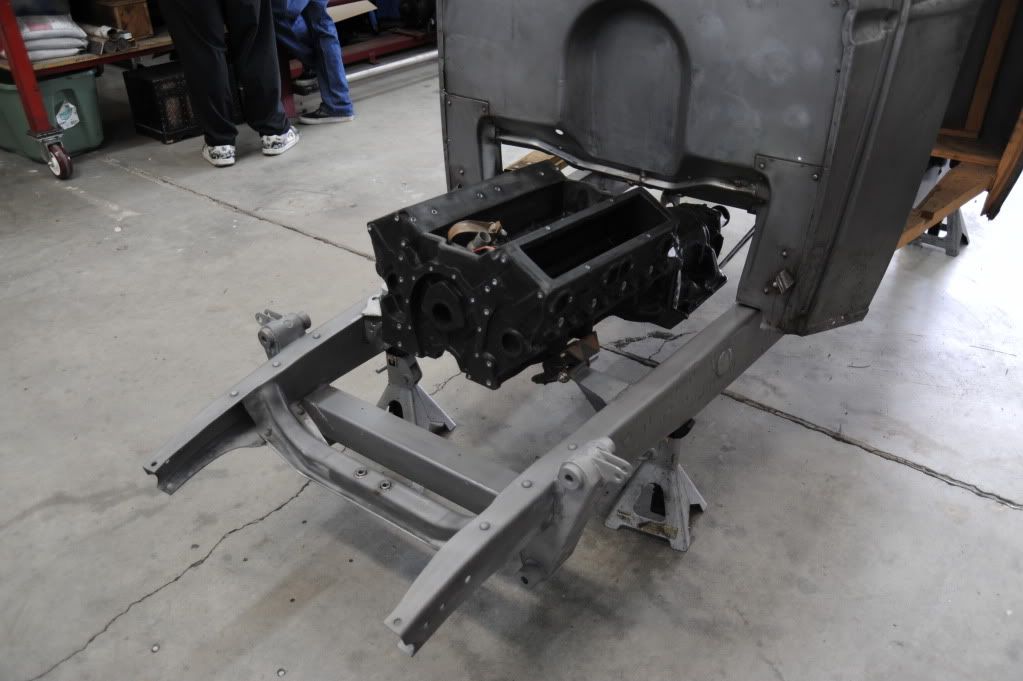

Here,s a couple quick shots of the frame and body all cleaned up and ready to start the real fab work.....
http://i789.photobucket.com/albums/y...p/DSC_0061.jpg
http://i789.photobucket.com/albums/y...p/DSC_0059.jpg
http://i789.photobucket.com/albums/y...p/DSC_0060.jpg

Good looking truck, this is my uncles 36 low cab. Mustang II front leaf spring rear, 420 HP crate engine. I always liked the body style.

Looks awesome Nick.

Very kool. thanks alot

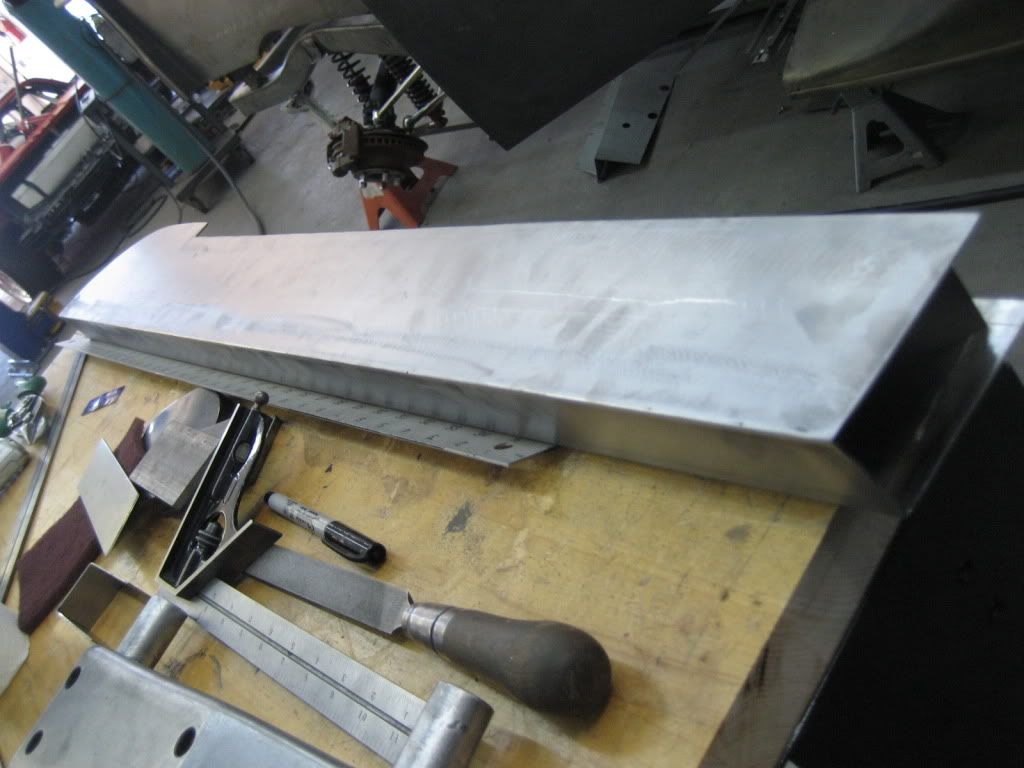

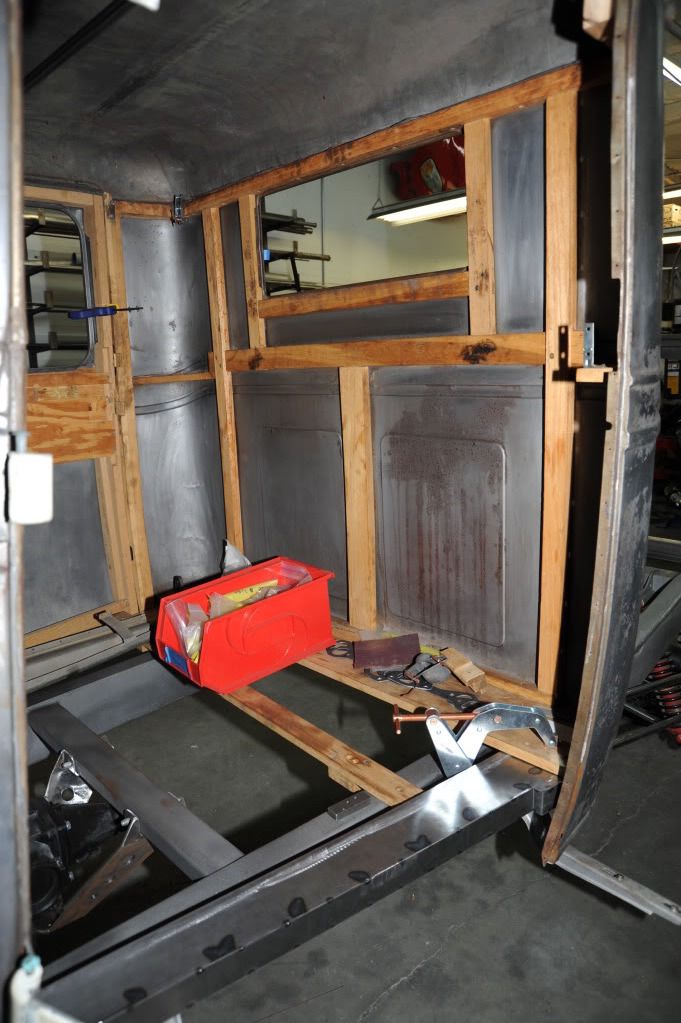

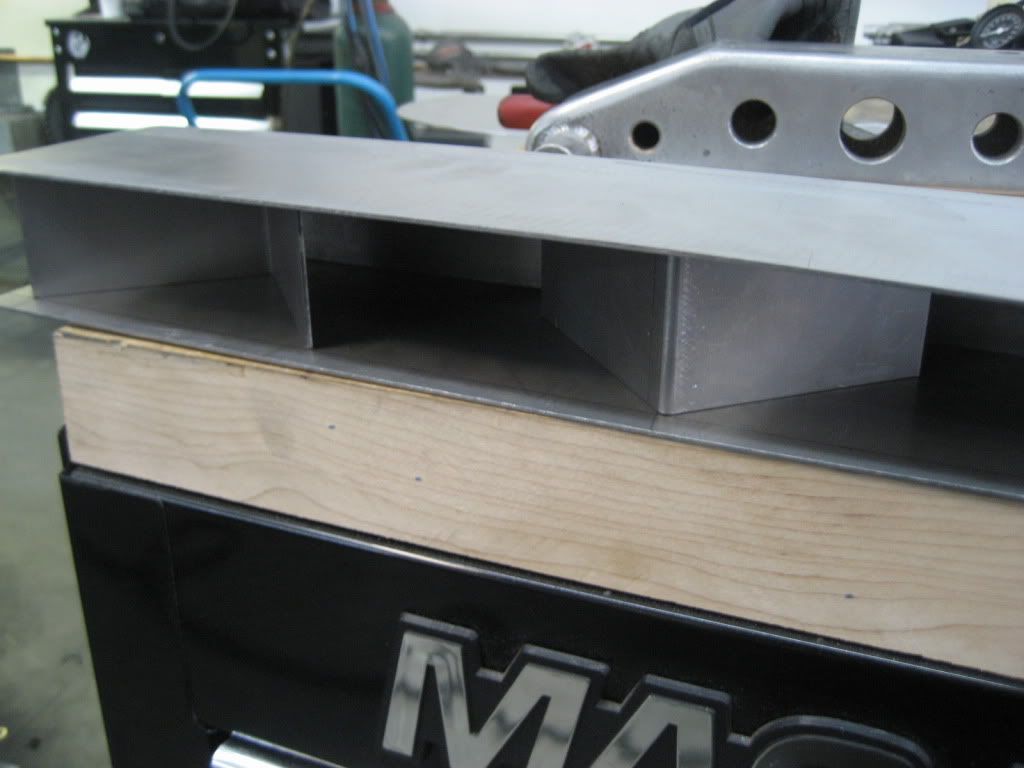

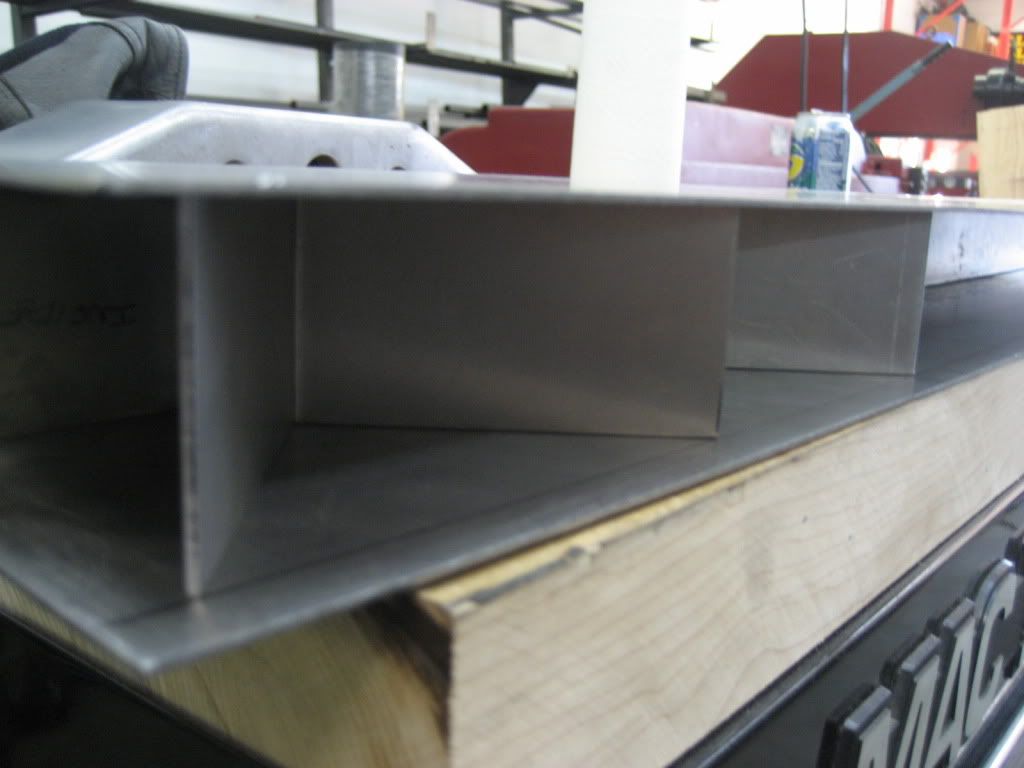

So as you can see the entire inside of the cab is structured with wood. One of the main reasons you dont see very many 30's chevy pickups and cars. So our first step was to replace all the wood with sheetmetal and replace all the rust also. Here the start of the left and right side of the floor structure.
We built it out of 16G cold roll sheet. Bent an angle then caped it and stiched in angels top and bottom to add strenght.

http://i789.photobucket.com/albums/y...y/IMG_4498.jpg
http://i789.photobucket.com/albums/y...y/IMG_4500.jpg
http://i789.photobucket.com/albums/y...y/IMG_4499.jpg

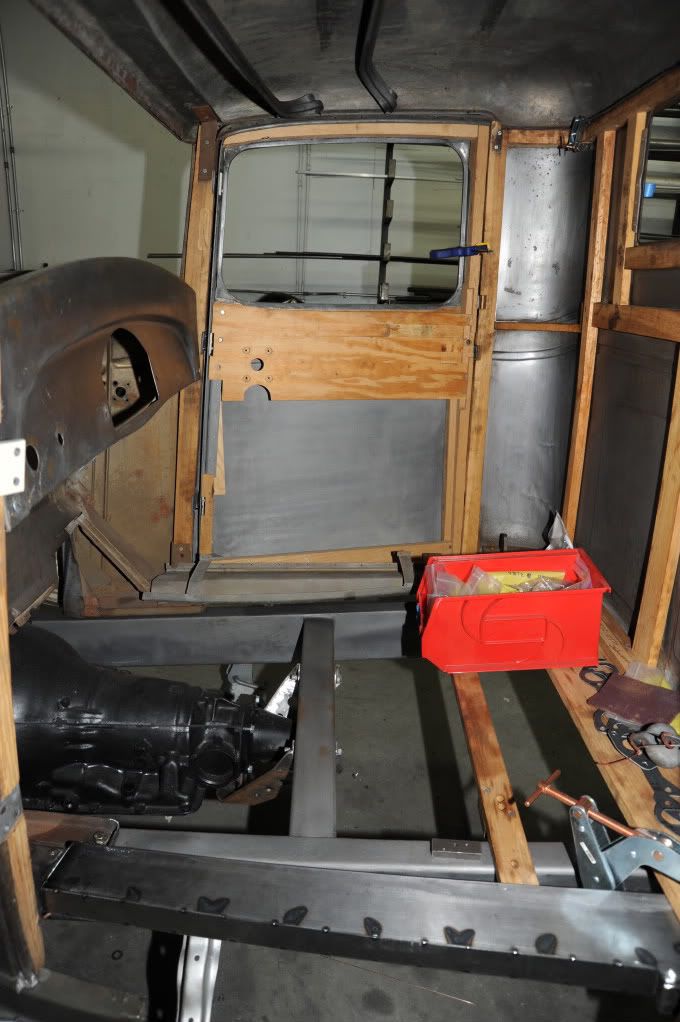

The drivers side tacked into place.
http://i789.photobucket.com/albums/y...y/DSC_0699.jpg
http://i789.photobucket.com/albums/y...y/DSC_0700.jpg

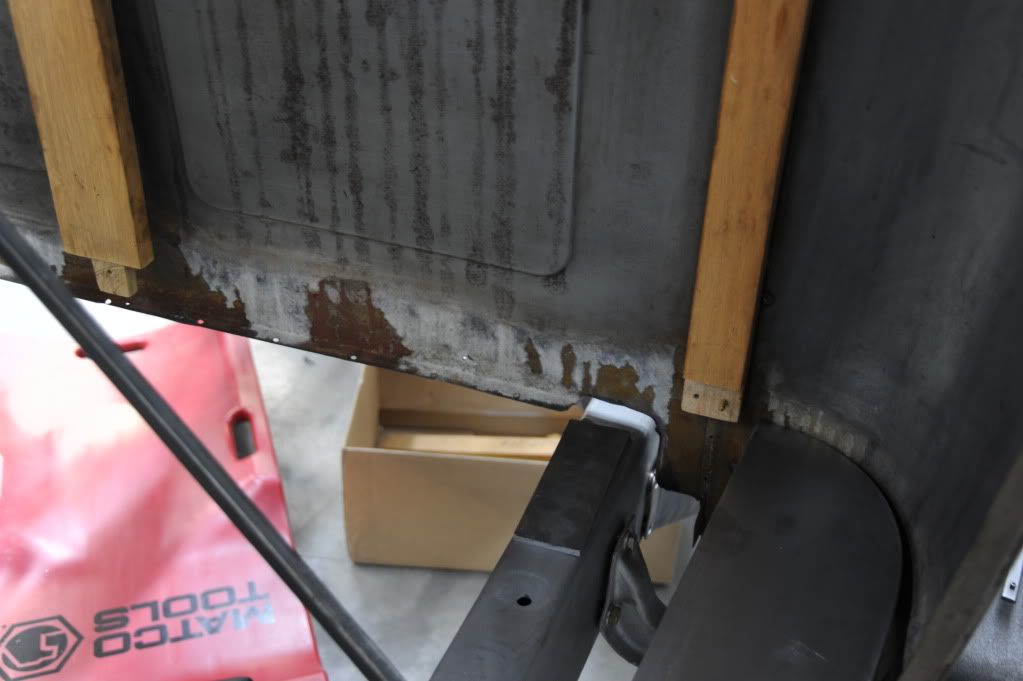

The back edge of the cab corner
http://i789.photobucket.com/albums/y...y/DSC_0711.jpg

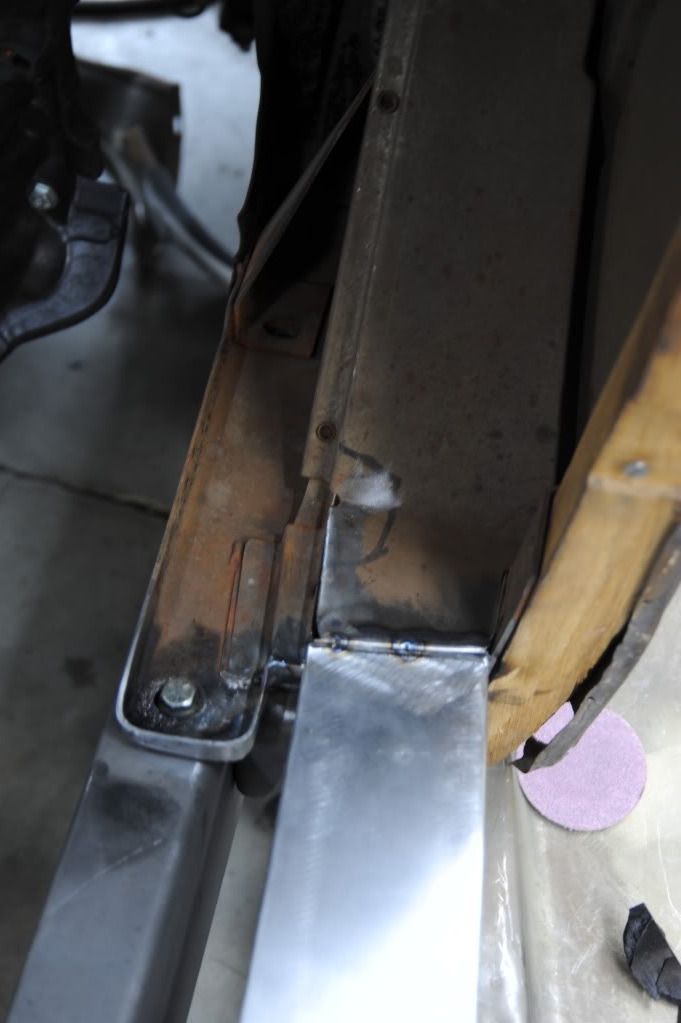

Front edge tacked to stock floor
http://i789.photobucket.com/albums/y...y/DSC_0712.jpg

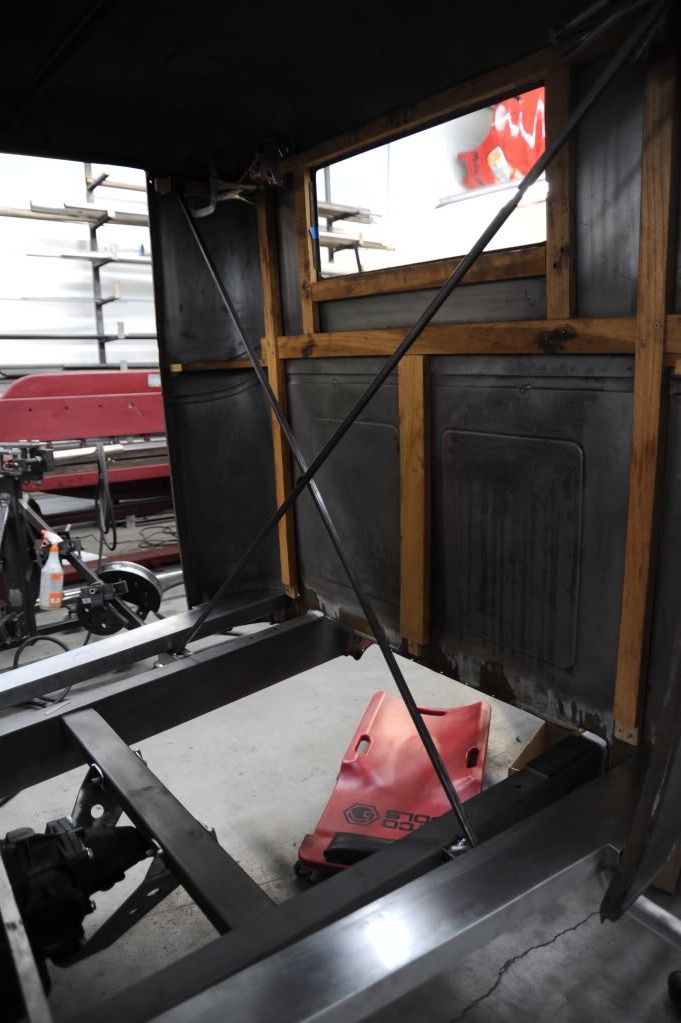

Here's both sides tacked into place.
http://i789.photobucket.com/albums/y...y/DSC_0709.jpg

Very nice that will stiffen it up.

Great work guys. Very nice.
Keep us posted.

For sure wait till i get to the cage build. thanks again

Thanks for sharing. I had a 36 many years ago. Nice to see an old Chevy getting a make over.

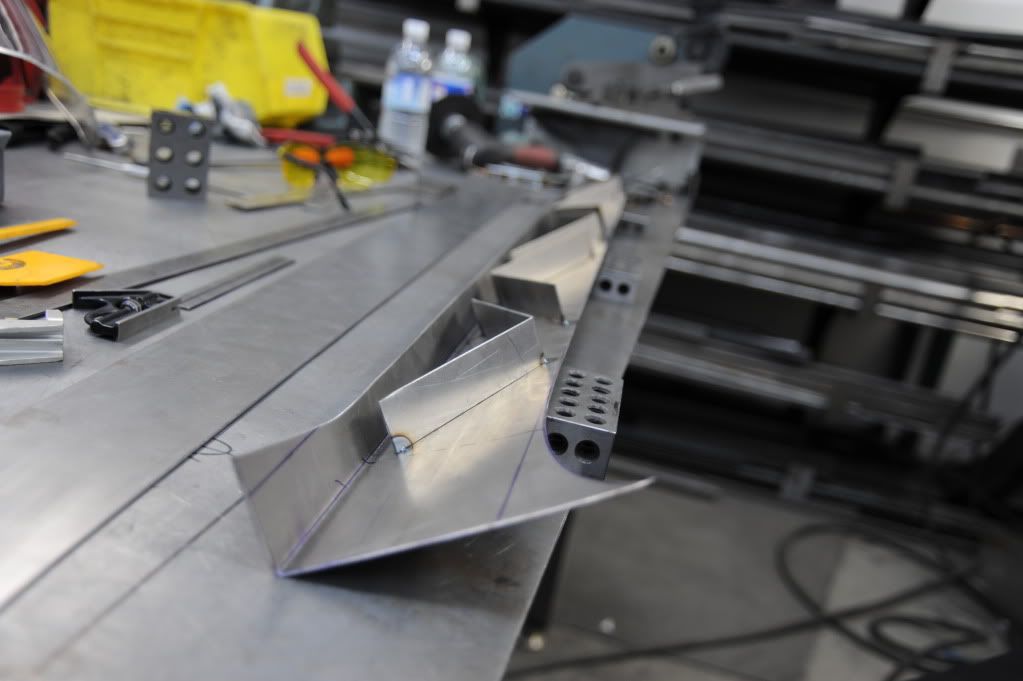

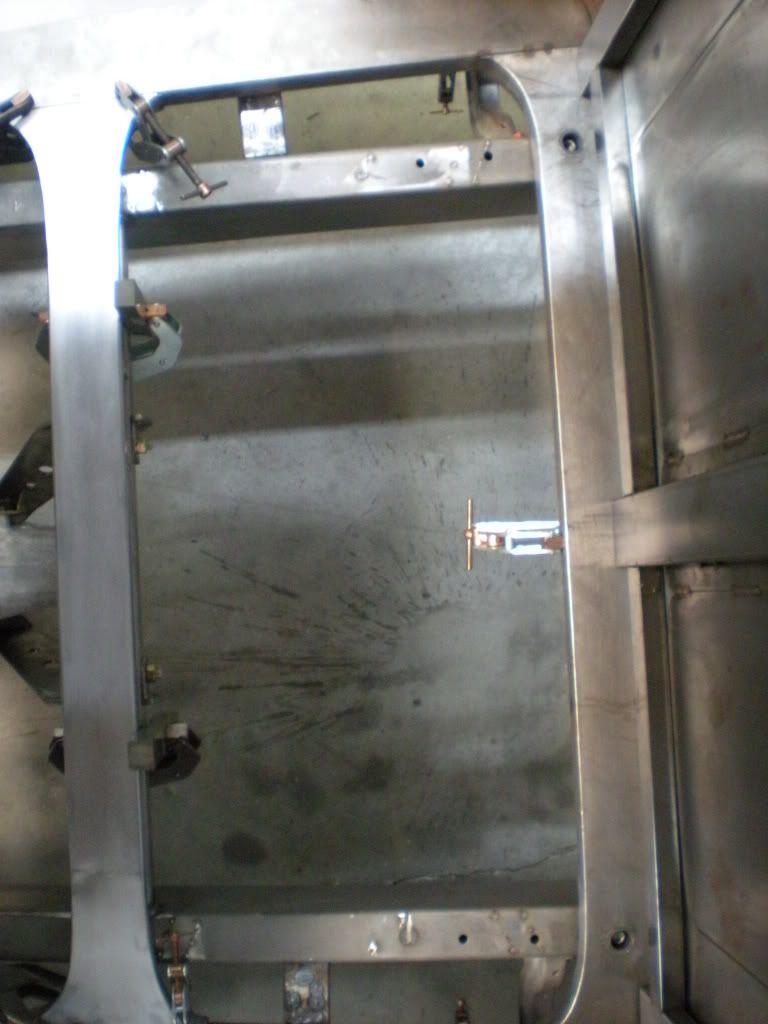

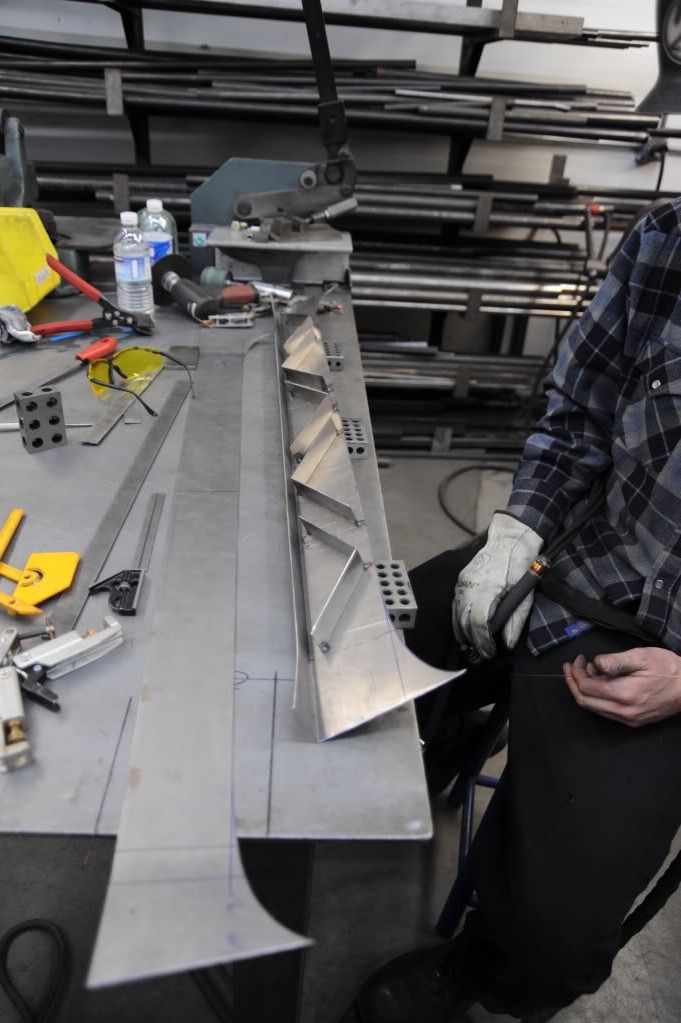

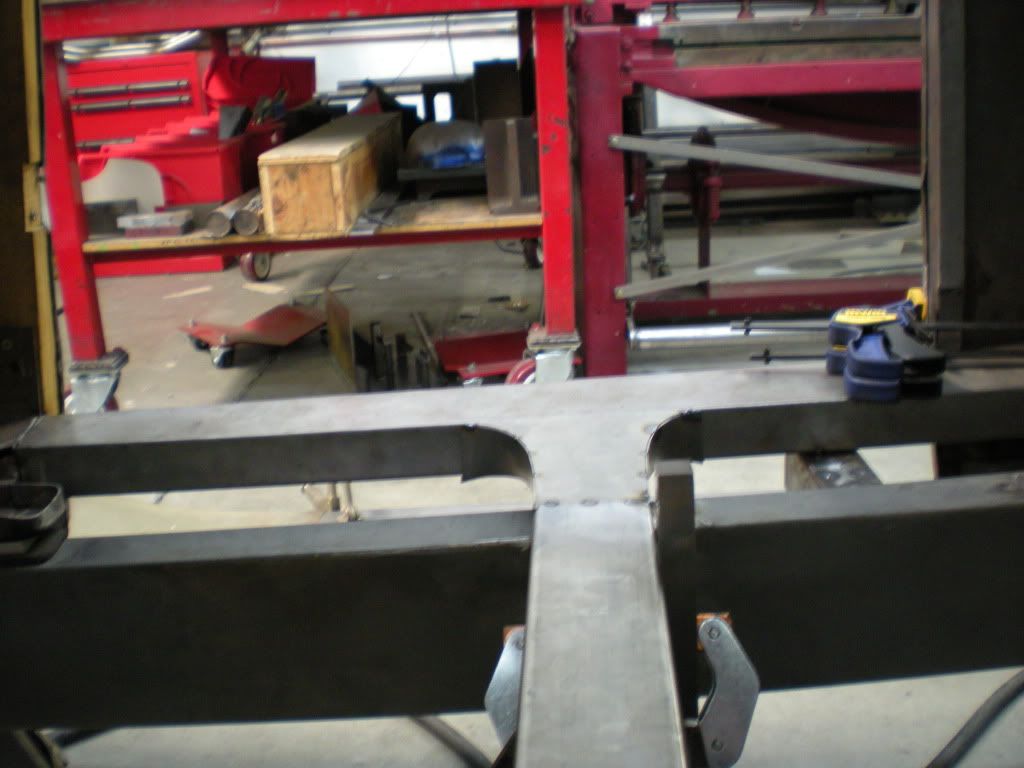

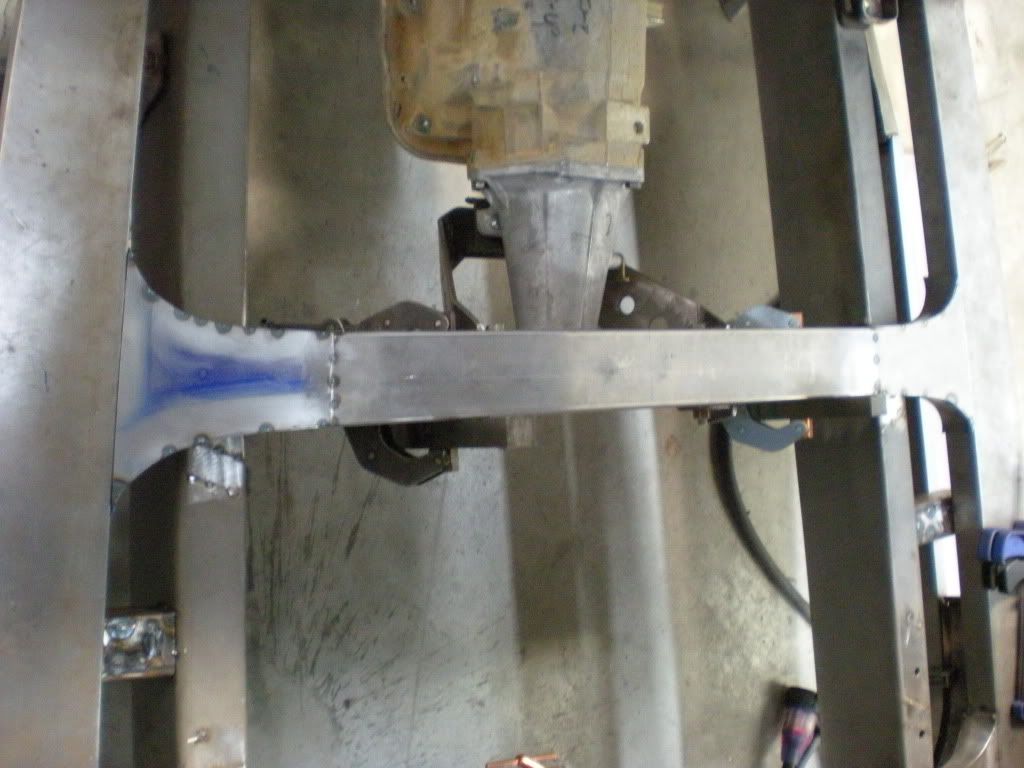

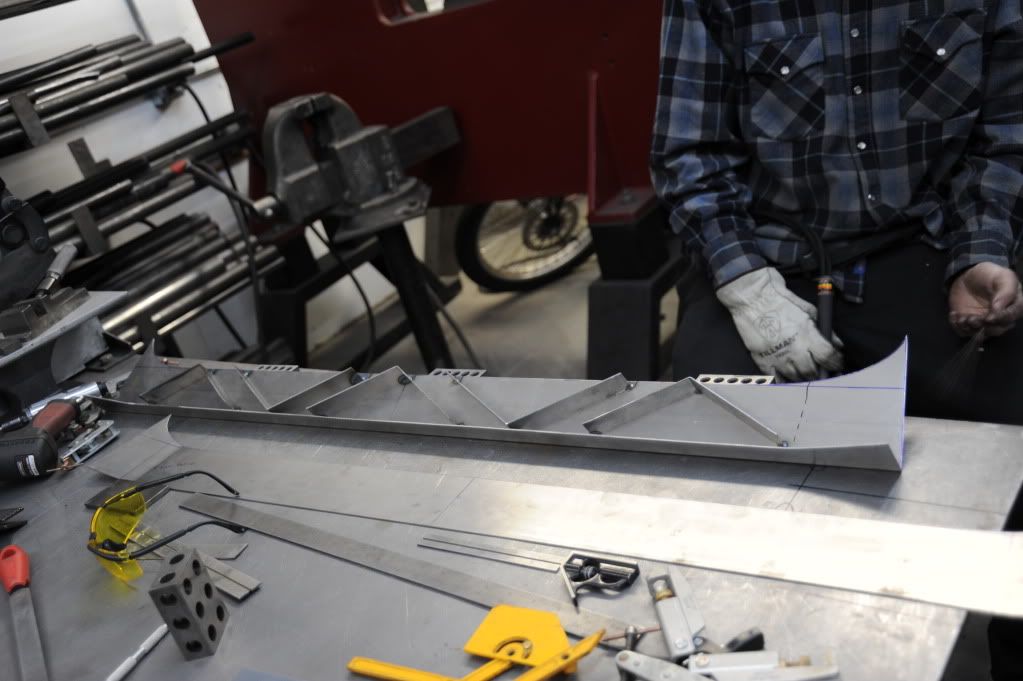

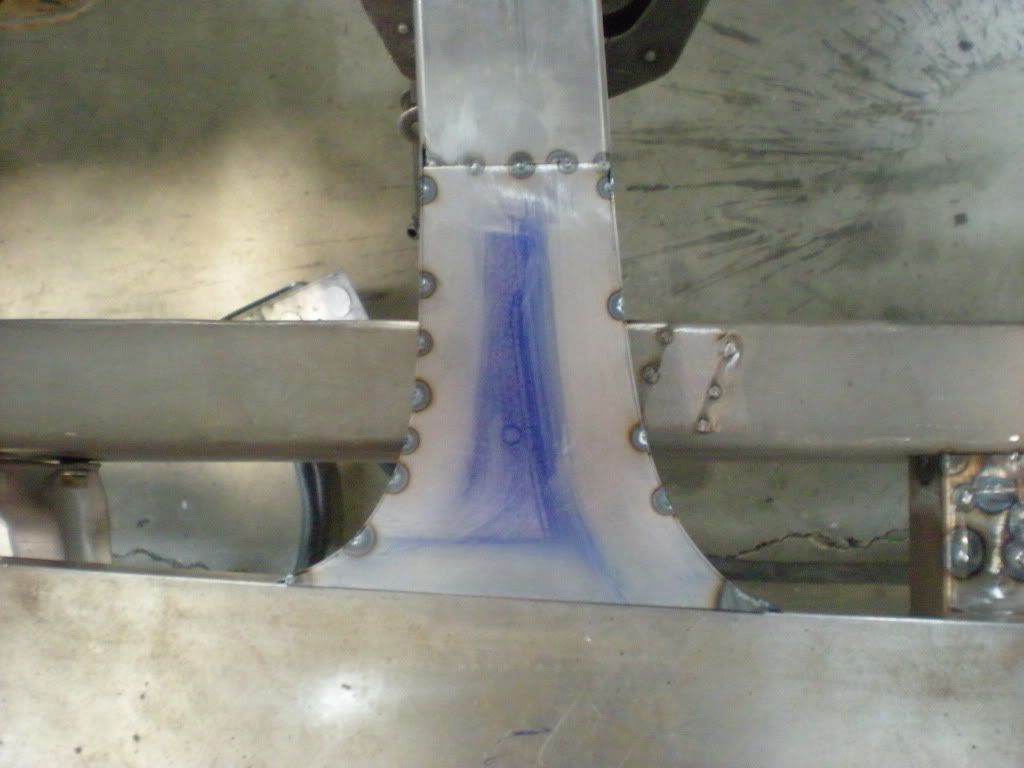

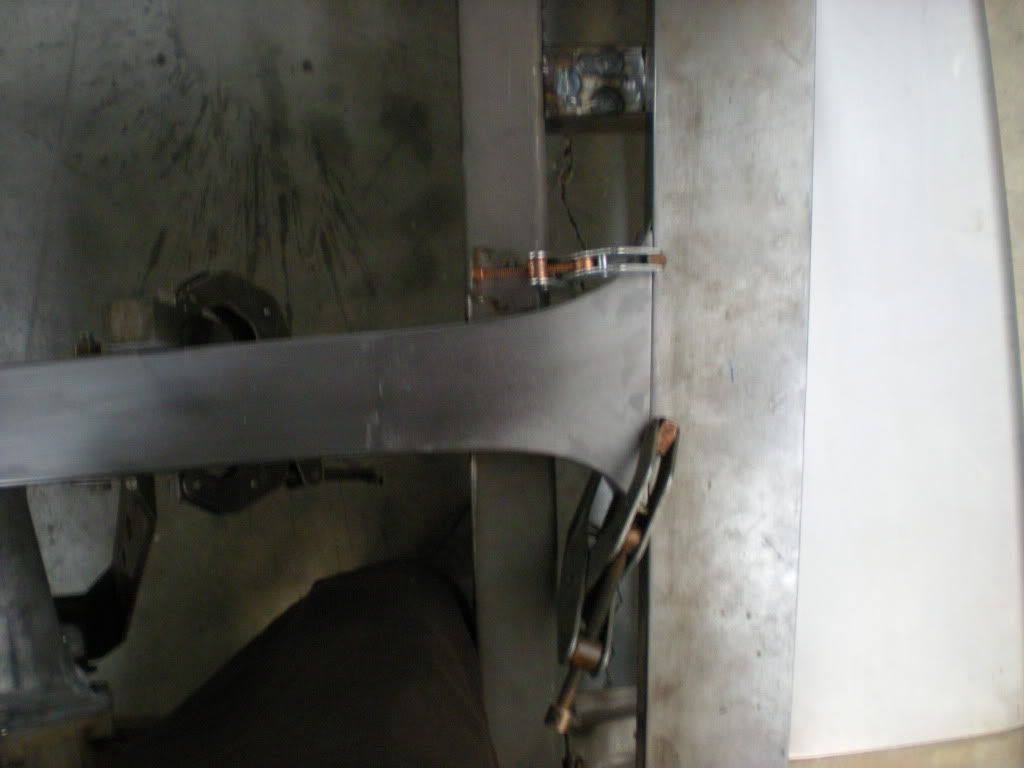

Here's the center crossmember that attaches the to rocker box panels. In the last pic you can see the rear section of the lower body strctor tacked in place.
http://i789.photobucket.com/albums/y...y/DSC_0705.jpg
http://i789.photobucket.com/albums/y...y/DSC_0707.jpg
http://i789.photobucket.com/albums/y...y/DSC_0706.jpg
http://i789.photobucket.com/albums/y...y/DSCN0957.jpg
http://i789.photobucket.com/albums/y...y/DSCN0947.jpg
http://i789.photobucket.com/albums/y...y/DSCN0946.jpg
http://i789.photobucket.com/albums/y...y/DSCN0945.jpg
http://i789.photobucket.com/albums/y...y/DSCN0950.jpg
