Sale on 1st. &2nd. Gen C-6 Camaro sub frames.


Guy's I have had alot of folk's asking about my C-6 camaro sub frames. So I am going to run a sale starting today until March 15th.You can buy a fully fabricated bare subframew/ bolt on steering arms,Speedway engineering splined sway bar & per bent arms w/ mounting hardware,welded motor mount's & tubular crossmember.Ready for shipping for $2,650.00.These have been retailing for $3,000.00.I have enough material for about 5 units so deliverly time will be about 2 weeks after full payment is recv.I will upload some good photo's tonight.You can email me at [email protected] or call the shop at 1-785-594-7481.I can also offer brand new C-6 componets.Thank's Scott Mock.

So glad


:D Scott be in touch tomm after I see the tax man. So either way that will be one down. Thanks for answering all those questions. Thanks Bill

some pics of my subframe.

somemore pics.

do I see a "certain" '69 Camaro in the background?:unibrow:

Yes Chris you do.That photo was taken right before I sent it to ti new home.That sub frame in the photo is a sub frame I built for a 1st.gen camaro Jody Bernard is working on.:thumbsup:

No problem Bill,Just hoping I find some good customers as your self that are willing to try my product's.I will work real hard to put out a good part at reasonable price.:thumbsup: Thank's Scott

Sent u email--jim

Jim you got mail.Thank's Scott.:thumbsup:

1st gen frame


Clear out your pm please.

It's All clear ghost rider.:thumbsup:I can be reached by phone also, at home 1-785-594-3299.shop1-785-594-7481.

Can you give us a quick run down on the pros/cons of the subframe. What else is required. Rack and pinion? Spindles?

Thanks

Hmm I don't think I've seen your subframe before. So yours comes with steering arms and the sway bar and ends?

I have a C5 front suspension so I have control arms and knuckles and hubs. What steering rack is yours designed for?

The pro's #1 it works,#2You use up to a 11 wide wheel,315 tire on 69 &70 camaros.#3 Lower cost,#4 my chassis come w/motor mounts,trans mount,and bolt on steering arms.Cons #1 it's not a DSE orAME. #2 Fabricated rails instead of bent or hydroforumed.You will need the following upper & lower C-5/C-6 a-arms,C-5/6 uprights & bearing hubs.A 79-93 fox bodied rack & pinion,15 inch long coil over's 550# spring SBC,LSX.650#springs BBC.I can send it complete and powder coated also but just adds to total cost and shipping is higher when it is a complete unit.I just shipped unit #19 to Cris G. at JCG Restorations on tues.I have owned my Welding and Machine Shop business since 1984.Built my first Corvette sub frame in 2004 using C-4 componets. When those componets got hard to find started using C-5 componets.I am in the process of finishing my 6th. complete PT. build right now. Thank's For looking.Scott

Just did a quick search and it looks like Mustang steering racks are pretty cheap so that's a definite plus. I don't know anything about fox body Mustangs though, do you have a recommendation for what year/trim level has a quick ratio?

Thanks

An ARG brand for 79-93 fox bodied mustang 15:1 or20:1 ratio's can be ordered from Jeg's for $249.99 includes tie rods. or a rebuilt unit are also avilable for around $130.00 plus core charges from local parts stores.I can supply brand in the box GM C-6 componets for $1,650.00.I cant buy the rack and pinion or coil overs any cheaper than my customers right now.Just trying to pass the savings.Thanks Scott

Thanks for all the extra info, I really wish I could swing one of these right now instead of going through my stocker. Nice looking piece Scott :thumbsup:

How far is valley center from baldwin city.You should come by and check out one of my sub frames.I am here 24/7 give me a call.

wish i knew about this months ago before i bought my speedtech frame. i would have loved 315's on the front on my camaro.

Sorry,I guess I need to post more photo's of my work.

please do, that frame looks killer. i will keep it in mind for future builds.

[QUOTE=coolwelder62;332150].Cons #1 it's not a DSE orAME.

BUT IT IS A "SME" !!!! The more I look--the more I like! will call u this wk end Scott---jim

[QUOTE=SWAPMEETCRAZY;332183]Jim,I will be in the shop most of sat.& sun 1.785.594.7481 or call in the eve 1.785.594.3299.enjoy visiting w/all the folks from lateral-g.Scott

I think you could sell a few of these if you offered Pontiac mounts. The volume is not there for the big companies but there might be some good voume for you.

Don

Scott any idea on weight comparisons?

Don,If I had a pontiac motor/trans to jig up would do so.If you are interested will build mounts for you N/C. Scott

Just shipped a bare sub frame to Cris at JCG Restoration's wed. it wt# 85#lbs.Less sway bar & motor mount's.

Hey Scott, thanks for the great offer but I've got to finish my GTO before starting my Firebird. I just gave away a complete 389 engine and trans a few weeks ago but I've got another 400 and turbo 350 here that you could borrow if you decide to go ahead. Not sure how far the drive is from here to your place. Pontiac engines are usually easy to find on Craigslist.

Don

Scott any idea what headers will work with LSX motors in your frame?

I been using the coated headers from Art Morrison.Speedway motors just come out w/a set of coated LS headers ($400.00) going to order some of those and work on the fitment.I am going to get back to work on my 63/67 nova chassis here in a few weeks.I have already built one but I need to narrow up the track width.59 inches is too wide for the shoebox nova's.Will be trying to get the track width down around 54 inches.

And when I throw the Buick somewhere in this mix---U will be busy!! lol :yes:

Jim,When you are ready just give me a call and I will work you in.I can build a weld in clip for you or I will weld in it for you.Would love to have a car like yours to add to my web site.:thumbsup: Scott

Scott- Just got my sub-frame in today!! Thanks! This is going to work out great for a 68 Camaro that I am working on.. Thanks again :thumbsup:

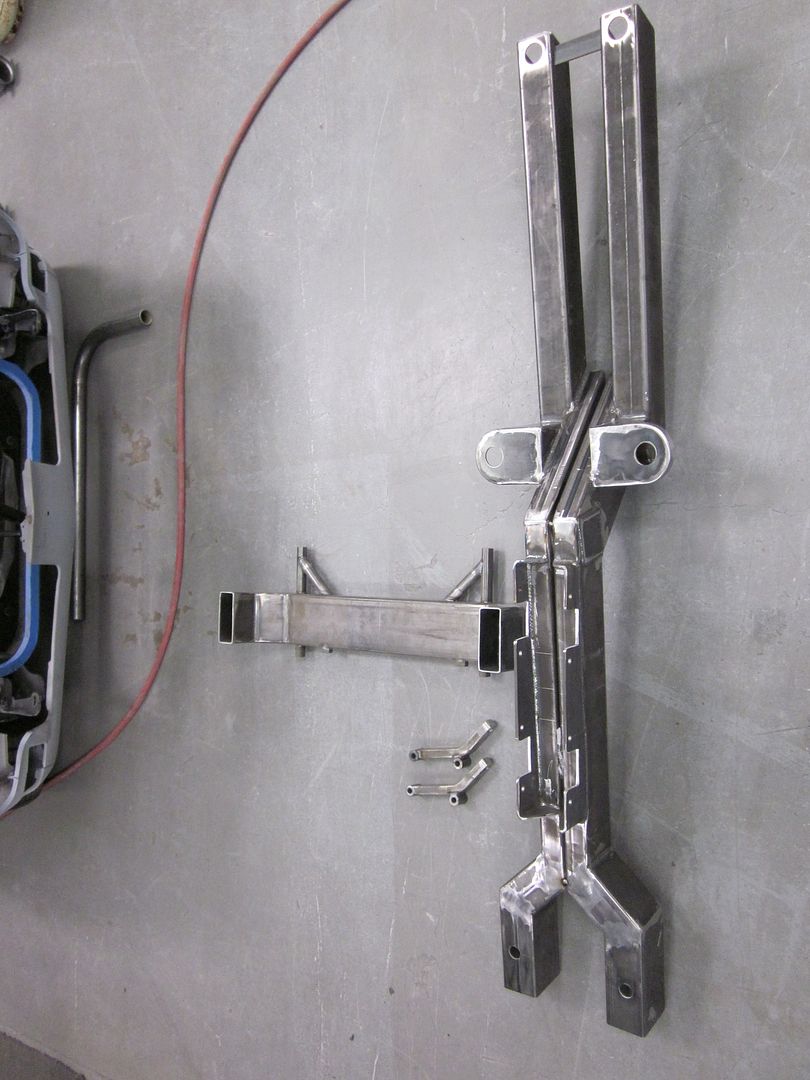

http://i1015.photobucket.com/albums/...n/IMG_0919.jpg

Would my ATS headers work,???

really thinking of the upgrade, my subframes a little rough, hows it come, in pieces like the pic above, or is it all welded??

I don't know if the ATS headers will work.I have been using the coated headers from art morrison nice pcs. less 1/2 price of stainless units.The sub frame I sent Cris is one of my prototype deluxe Uweld it kit's.I will be sending one more to Frankat Proigy to put togather.And then I will be ready to start selling those in late April.Thank's Scott:thumbsup:

Scott, Nice work. Still trying to figure out how to make this work for my Challenger!

Wes

frame


How much for a complete frame with all the bells and whistles? Thanks.

A subframe,splined sway bar,sway bar end links,ARG 15:1 or 20:1 rack w/tie rods,QA1 single ajustable coils w/springs,LSX motor adapters-poly mounts,poly trans mount,frame welded motor mounts,Tubular trans crossmember,Brand new GM C-6 componets(upper a-arms & lower a-arms,machined Spindles,Bearing hubs,Bolt on lower steering arms, complete Z-51 C-6 disc brakes w/pads &hoses),Complete hardware & shim kit,Satin or Gloss black powder coat,DSE soild body bushings.$6,950.00- including shipping.

frame


coolwelder; clear you pm again please. Thanks.

Sorry Garry,Been flooded w/pm's.All clear.:thumbsup:
