2nd gen backspace question with 335 ans mini tub


I would like to know what bs people are running with a mini tub and a 335/30 rear tire on a sec gen camaro

I have 18*9.5 rear wheels with 5.5bs and would like to know if I could get a big lig and still save the inner hoop on my wheels?

DSE runs a 5.5 bs with a 54 3/4 rear width

Thanks for the info, this really makes it easy on me I only need to swap out the outter hoop:thumbsup:

I'm running 6.5" BS (19x12) with 335/30's

just placed the order for my tires then im driving up to frogeline to have the wheels changed then I will measure for my rear, I think I might want to double check lol

Let's see some pics of those rear tires please.

Back from the dead lol Not sure if you want a pic of mine or not but here you go,

http://i224.photobucket.com/albums/d...wn383z/ab1.jpg

http://i224.photobucket.com/albums/d...3z/carview.jpg

Don't have too many...here's a few.

http://i835.photobucket.com/albums/z...M/IMG_1838.jpg

http://i835.photobucket.com/albums/z...M/IMG_0573.jpg

[QUOTE=MoonMan;401570]Don't have too many...here's a few.

Well just go and make me look bad haha,

I love the color!!! :thumbsup:

Need more info on the car

Ha, yours is looking good!

I've been meaning to start a build thread but haven't consolidated all my pics spread over three computers. I plan on doing it soon though.

The color is Natural Olive. It's a Kia color from a few years back. It's got an LS1, Heidt's 4-link rear and front suspension, Wilwood's, etc.

Both cars look great, more pics guys! Moonman start a thread :thumbsup:

Ditto..........MoonMan, are those wheels Boze Pro Lite?

rushforth rated x i believe

Yep, Mike is right...they are Rushforth Rated X's.

Build thread to start soon. Just need to get permission to use a particular image (doctored rendering).

How about some side shot pics? I am about to make a 5K + decision and need some examples. It is betweeen the Forgeline, Boze Lateral-G and these Rushforth Rated-X.

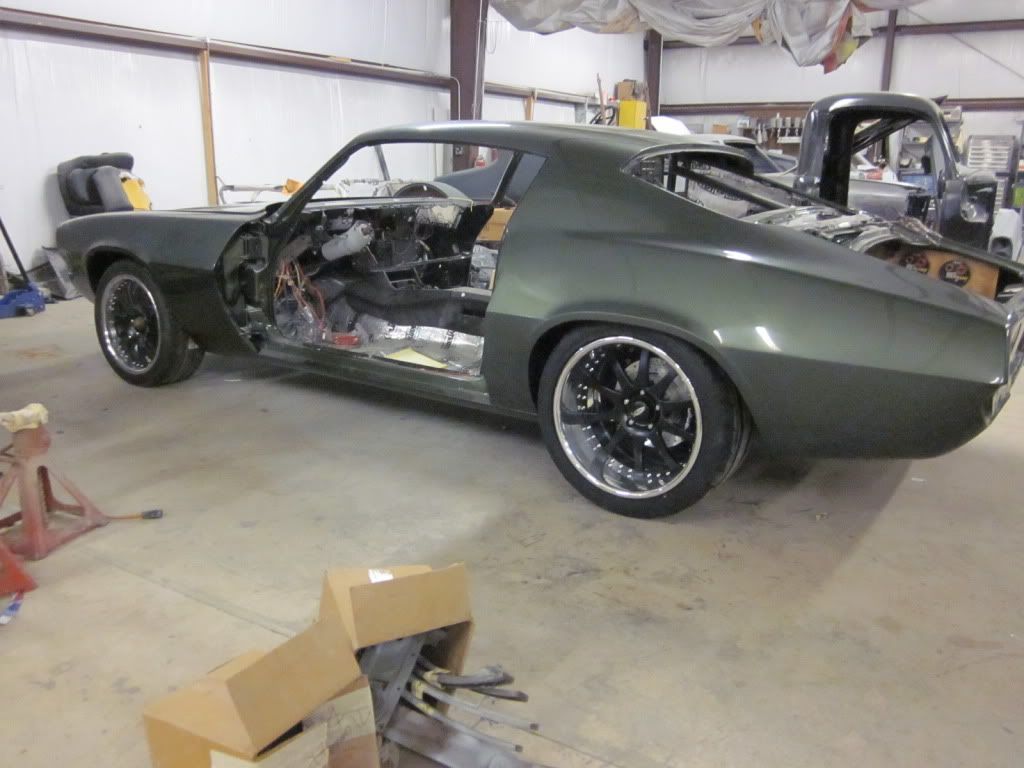

Here is the only side view I can find. The OP (brownz) has a side view of his sweet Forgelines on the first page of this thread. There is also a thread for a car named Professor that has Lateral G's (https://lateral-g.net/forums/show...ght=professor).

So you're covered on all 3!

Tim

http://i835.photobucket.com/albums/z...M/IMG_1839.jpg

Beautiful car Tim. Maybe the only one out there in that color. I don't like green on cars but your color is excellent. I called Zak at Boze yesterday and will be purchasing the Lateral-G. Zak is looking into Hydro Coating in a carbon fiber finish.

Excellent news. Post up some pics when they arrive.

I was able to fit 17x11 wheels, 315 tires on the rear with 5.75inch backspacing, stock tubs but it is a tight fit that requires hammering the seatbelt humps..

Hmmm. DSE told me 5.5" backspace but my rear is 56.250 flange to flange. If they run 5.5" with a 54-3/4", that's not gonna work for me.

Im running 5.5 backspace on 18x12 with DSE rear and quadralink

Ok so if that is true you are 1 3/4" shorter or a extra 7/8" longer on each side so then add that 7/8s on the backspacing of 5.5 backspacing since it would be to far out. That would give you a backspacing of 6.375 and put the outer lip of the rim in the same location DSE would have it if you used their specs

May I ask if your fender lips are rolled or trimmed? Any pics?

no need with a narrowed rear end.

Check this out Vince, that's why I am so concerned.

http://www.pro-touring.com/threads/1...for-DSE-Camaro

Lips are not rolled, i have 1 inch to the inner tub and 1.25 inches to the outer quarter lip. Cant remember exact length of rear but its DSE so they could tell you the correct length.

sorry posted same pic, i can take pics of the rear supension, fenderwells anything you want to see, just let me know.

Please, this whole set-up is spec'd by DSE but of course not going together as I envisioned. Pics would help a ton!

If anyone else can post pics of the wheel lips would be highly appreciated
