Nsane Hot Rodz- Project Snakebit


Hello everyone I wanted to share one of our builds at Nsane Hot Rodz.
http://i209.photobucket.com/albums/b...t/c10-sml2.jpg
The list:
V-10 Engine with six speed automatic trans
Wilwood brakes
Lexani 22" LX-6 Rims
9" Ford Floater
Porterbuilt dropmember
Challenger headlights
Custom grill
Vintage air
just to list a few!
Here's what we started with.
http://i209.photobucket.com/albums/b...ket/020-29.jpg
http://i209.photobucket.com/albums/b...ket/017-27.jpg
http://i209.photobucket.com/albums/b...ket/008-57.jpg

i like it. the grill looks good. i would make it only two single lights. that way people really have to look to notice it is custom. but it looks good that way also. why a v10 and not a ls9 to keep it all gm?

love it

Hurry up and finish it. My son and I are watching. We're looking for him a truck.

Like the frog says ...It aint easy being green .
V10

http://i209.photobucket.com/albums/b...ket/022-36.jpg
http://i209.photobucket.com/albums/b...ket/043-11.jpg
http://i209.photobucket.com/albums/b...t/023-Copy.jpg
http://i209.photobucket.com/albums/b...ket/044-12.jpg
http://i209.photobucket.com/albums/b...ket/007-77.jpg
http://i209.photobucket.com/albums/b...ket/049-12.jpg
http://i209.photobucket.com/albums/b...ket/027-22.jpg
http://i209.photobucket.com/albums/b...ket/015-50.jpg
http://i209.photobucket.com/albums/b...ket/032-14.jpg
http://i209.photobucket.com/albums/b...ket/037-10.jpg

Thanks, we're using Challenger headlights to kind of resemble the GMC front end. The owner seriously considered a LS9 but decided on the V-10 instead. He wanted something different that hasn't been done.
Thanks
Give me a call Monday:unibrow:
Sure:lol:

Always dug the C10 trucks. Waaaaaaaay to much greeeeeeeeeeeeen. Specifically in the grill and trim.

What trim?:lol: The rear of the truck is getting close to being finished. A few more bars and we'll be able to mount the bed.
http://i209.photobucket.com/albums/b...cket/081-2.jpg
http://i209.photobucket.com/albums/b...cket/078-3.jpg
http://i209.photobucket.com/albums/b...cket/080-3.jpg

Cool build looking killer is that the ride height?:yes: :yes:

How's that one piece floor fit. I'll be installing one soon in a 67.

We're close to the final ride height. I'm just waiting on the wheels for the final adjustments. Thanks

The floor fit pretty good. The holes for the A-pillar and B-pillar didn't line up very good. Just be sure and measure everything twice before you cut the floor out and weld the new floor in. If you have any questions during the install give me a call. Thanks

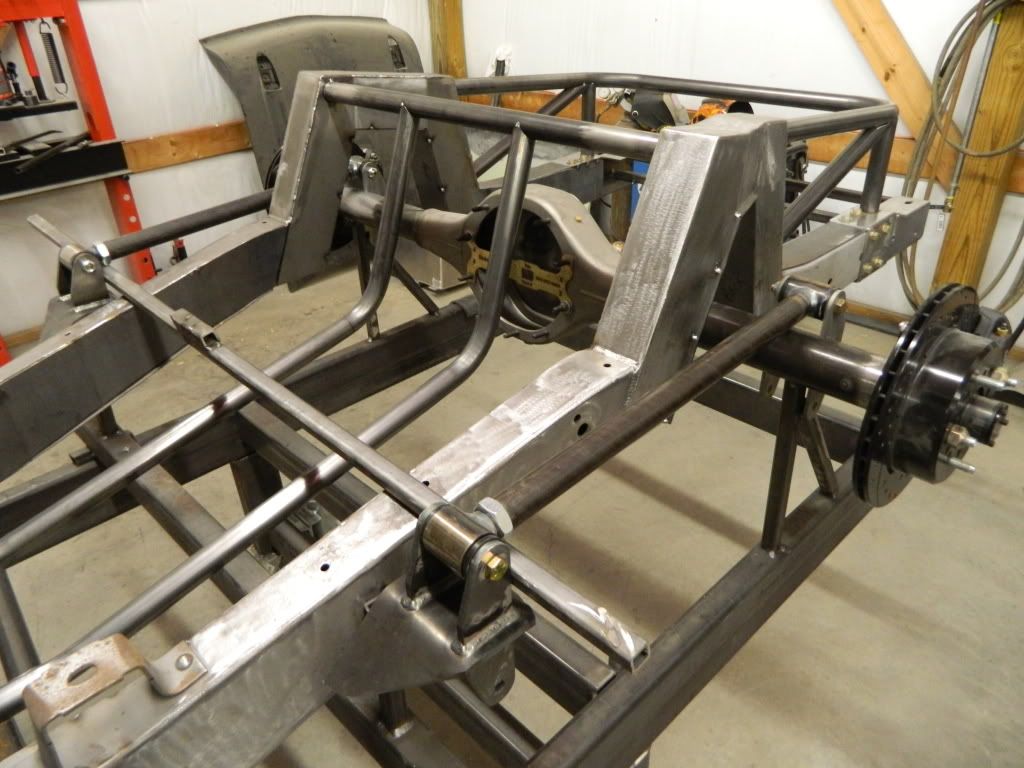

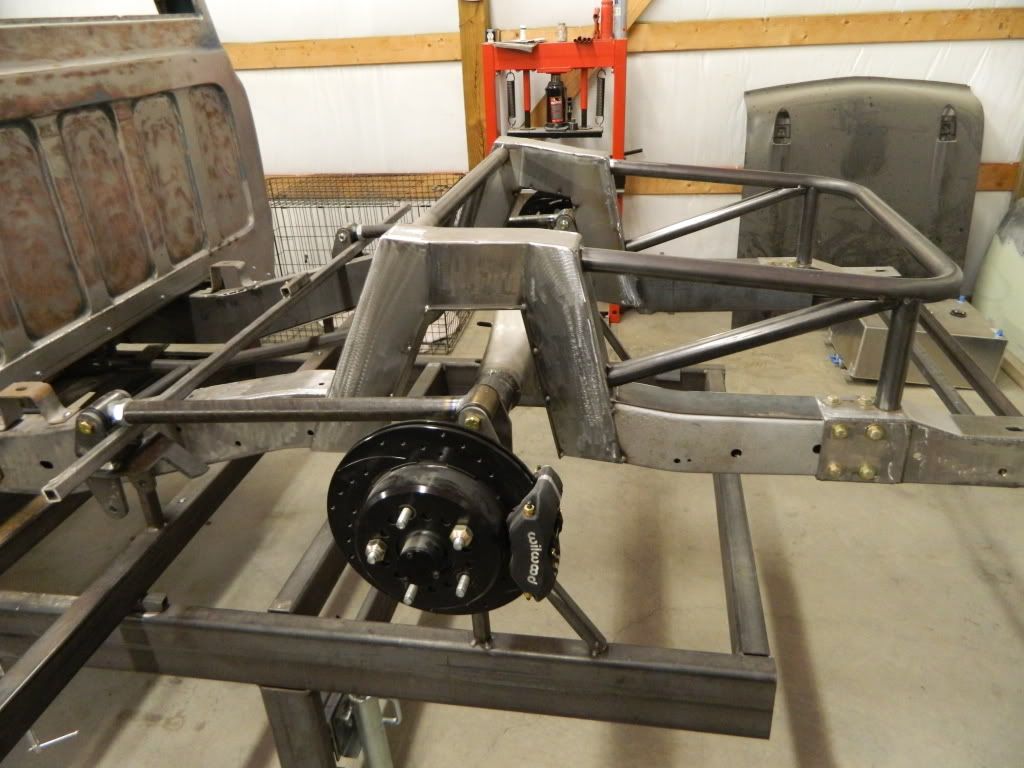

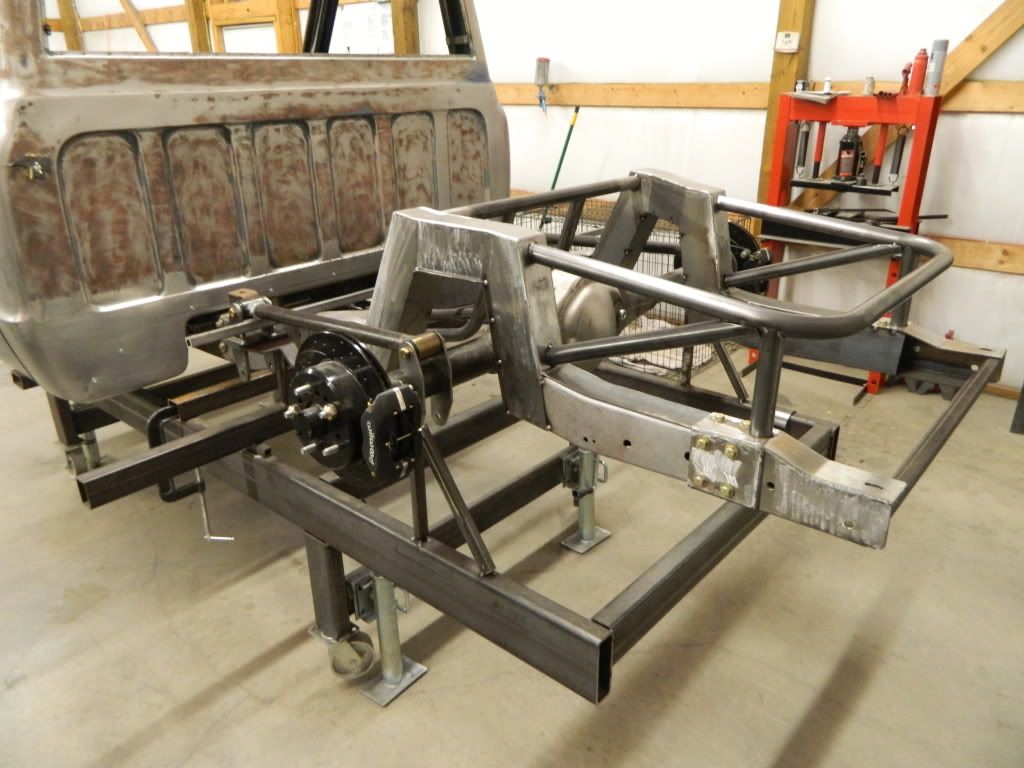

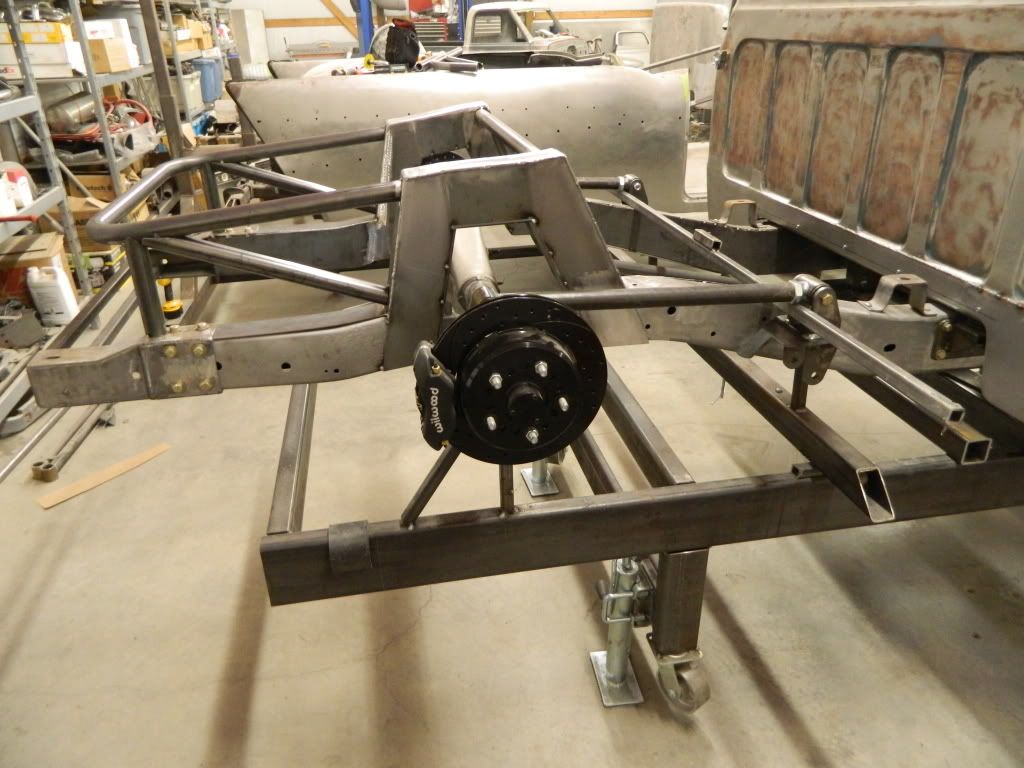

More pics...
http://i209.photobucket.com/albums/b...ket/011-69.jpg
http://i209.photobucket.com/albums/b...ket/009-72.jpg
http://i209.photobucket.com/albums/b...ket/008-85.jpg
http://i209.photobucket.com/albums/b...ket/001-96.jpg

One more thing to remember when you replace the floor. The 67' cab floor is different than the new floors. The 67's have two big inner "L" shape braces at the rear of the cab that attach to the back of the cab. The new floors have a small bracket for the rear cab mounts. Be sure to remove the small brackets from the new floor or you'll have alignment issues.:thumbsup:

Thanks for the tips!

Very nice .....cant wait to see ths one finished. Looks like some porterbuilt stuff or is it your own design ? Bodydrop etc ??

Dewayne love how clean your work is!

Yeah the front suspension is Porterbuilt. It is bodydropped 1". I'll post more pics and specs soon. Thanks

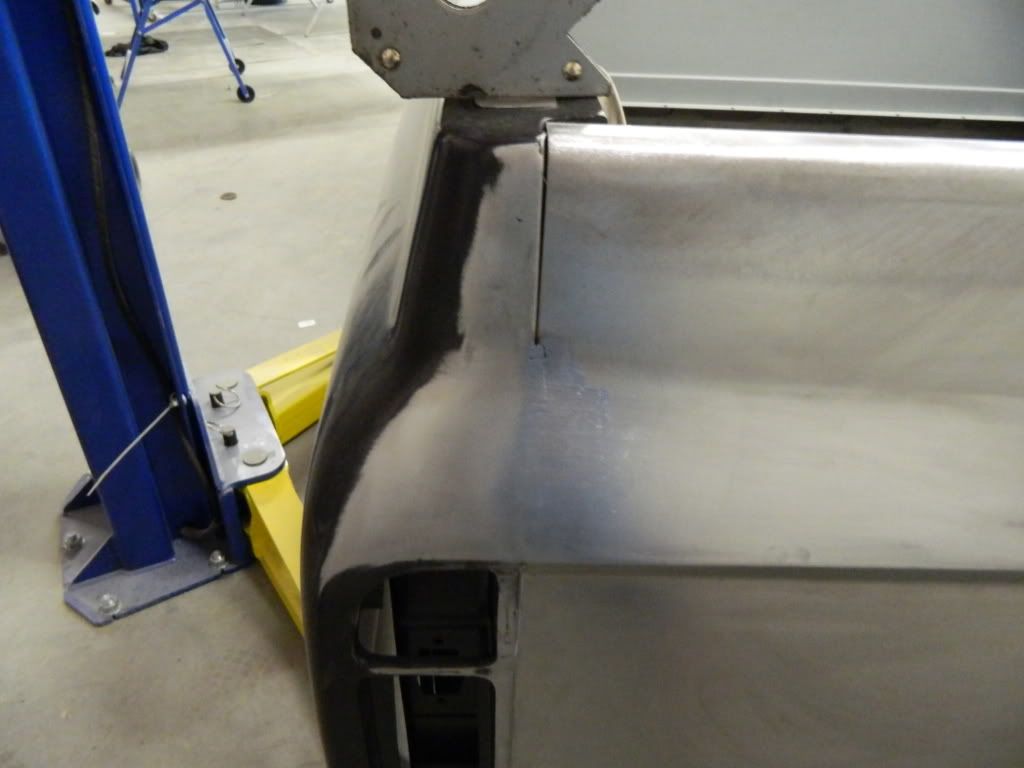

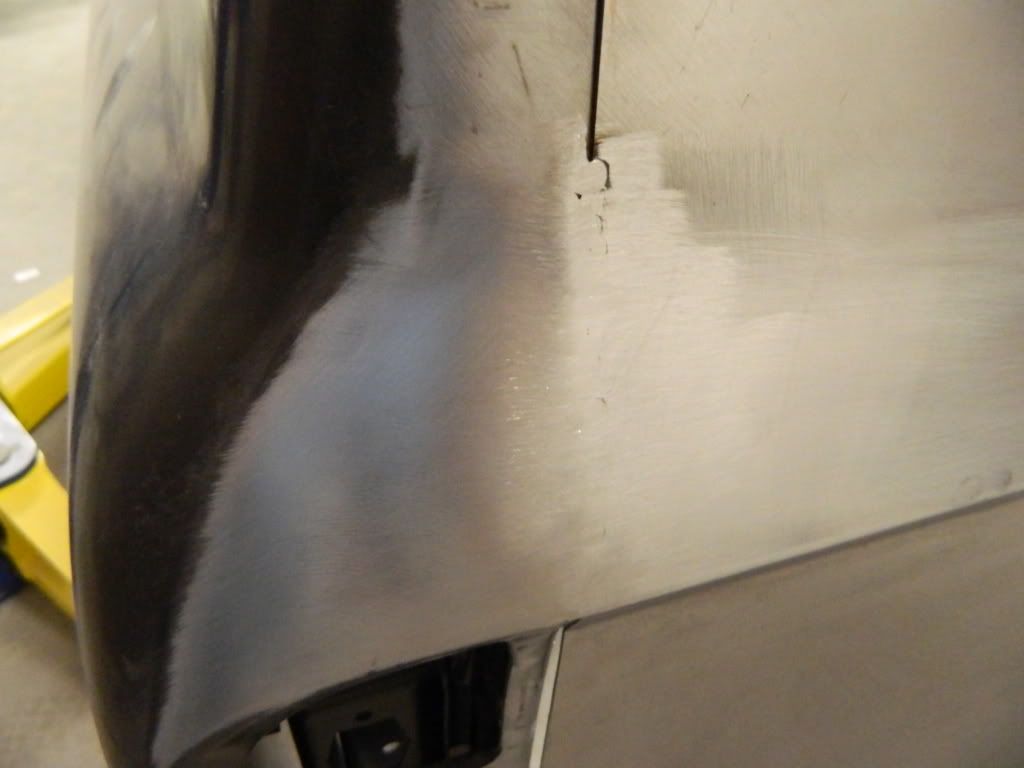

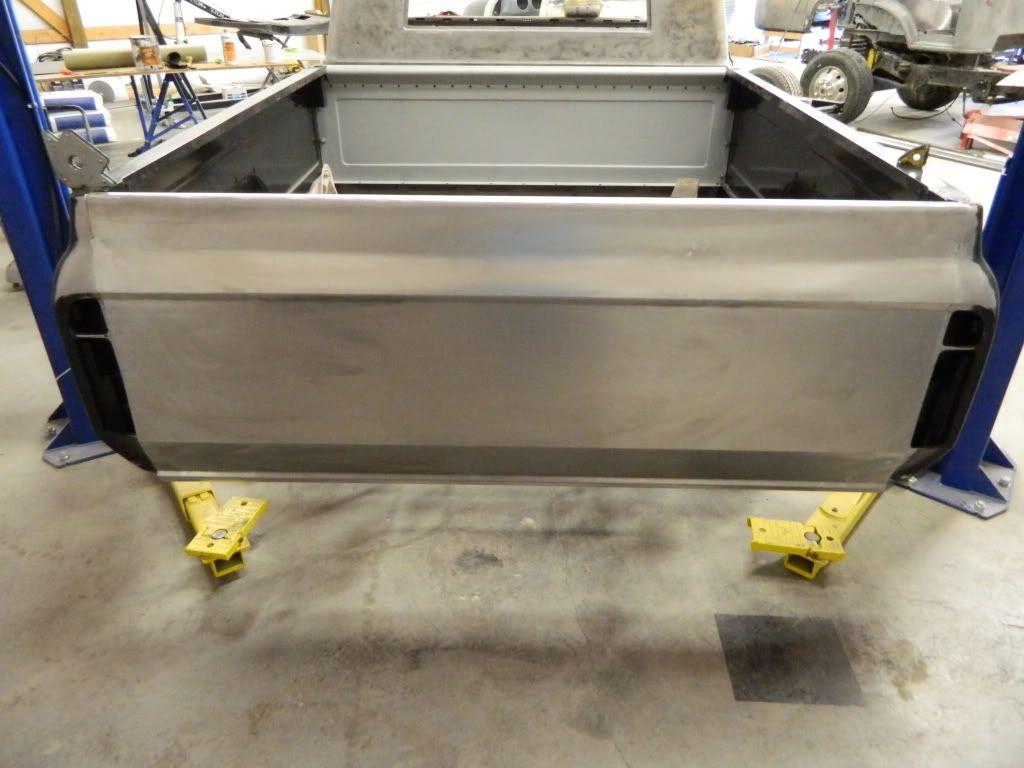

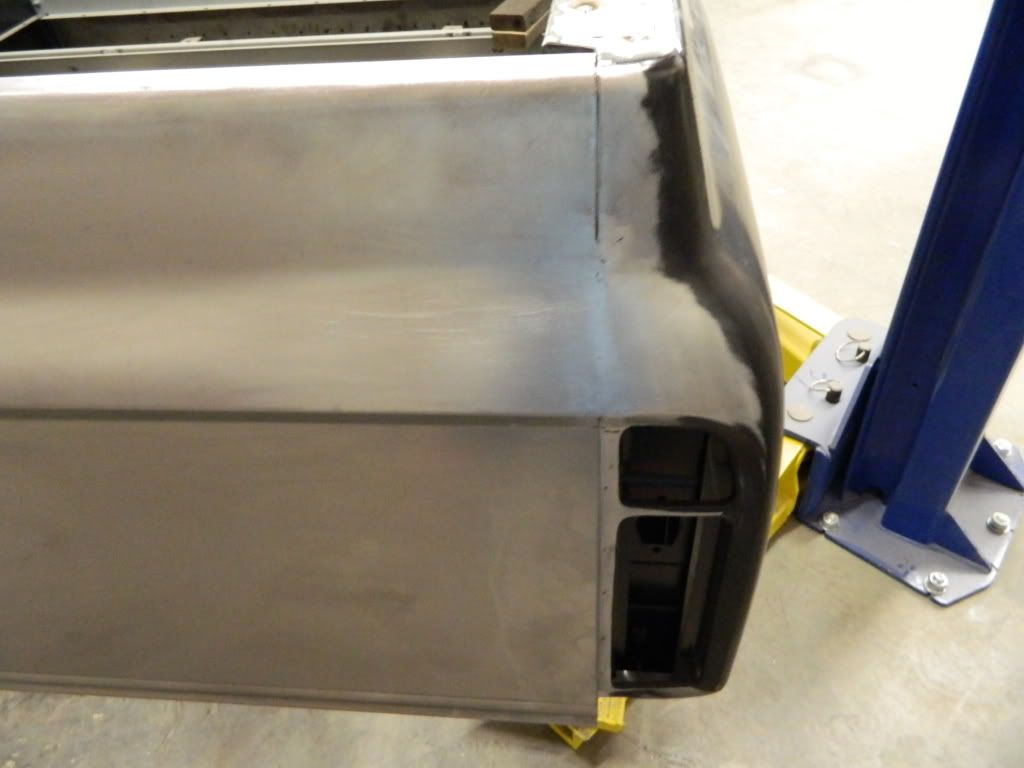

Thanks! I started on the bed today, but forgot my camera so I'll post more pics tomorrow.

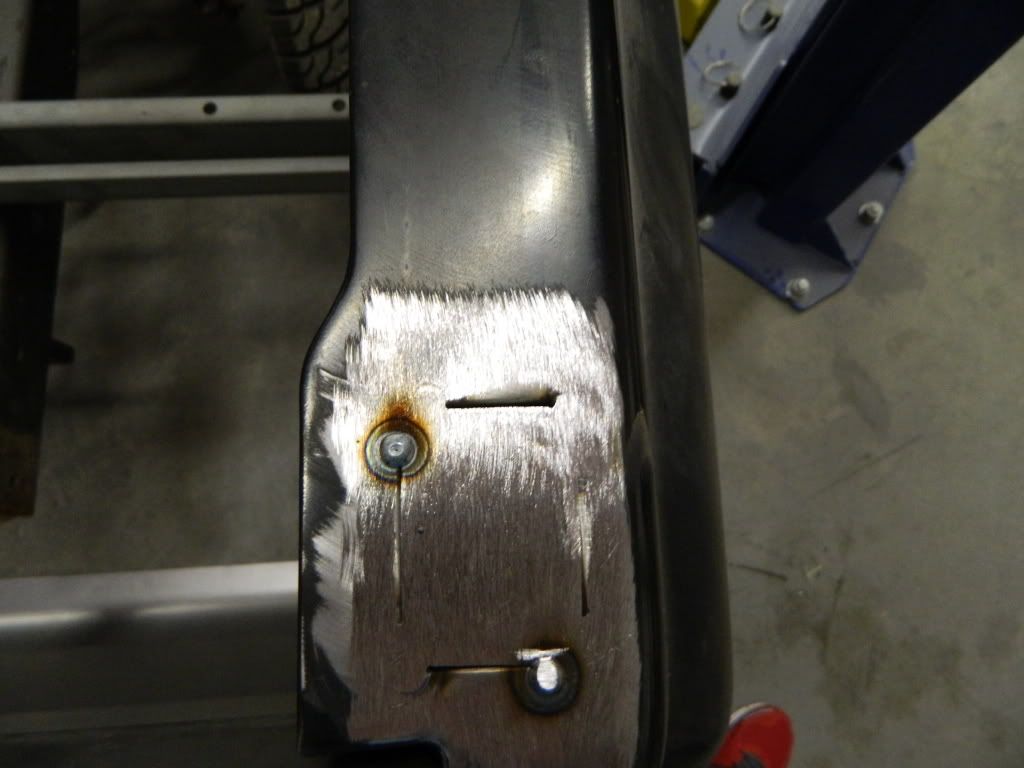

More pics...
http://i209.photobucket.com/albums/b...bucket/267.jpg
http://i209.photobucket.com/albums/b...bucket/269.jpg
http://i209.photobucket.com/albums/b...bucket/270.jpg
http://i209.photobucket.com/albums/b...bucket/271.jpg
http://i209.photobucket.com/albums/b...bucket/272.jpg
http://i209.photobucket.com/albums/b...bucket/274.jpg

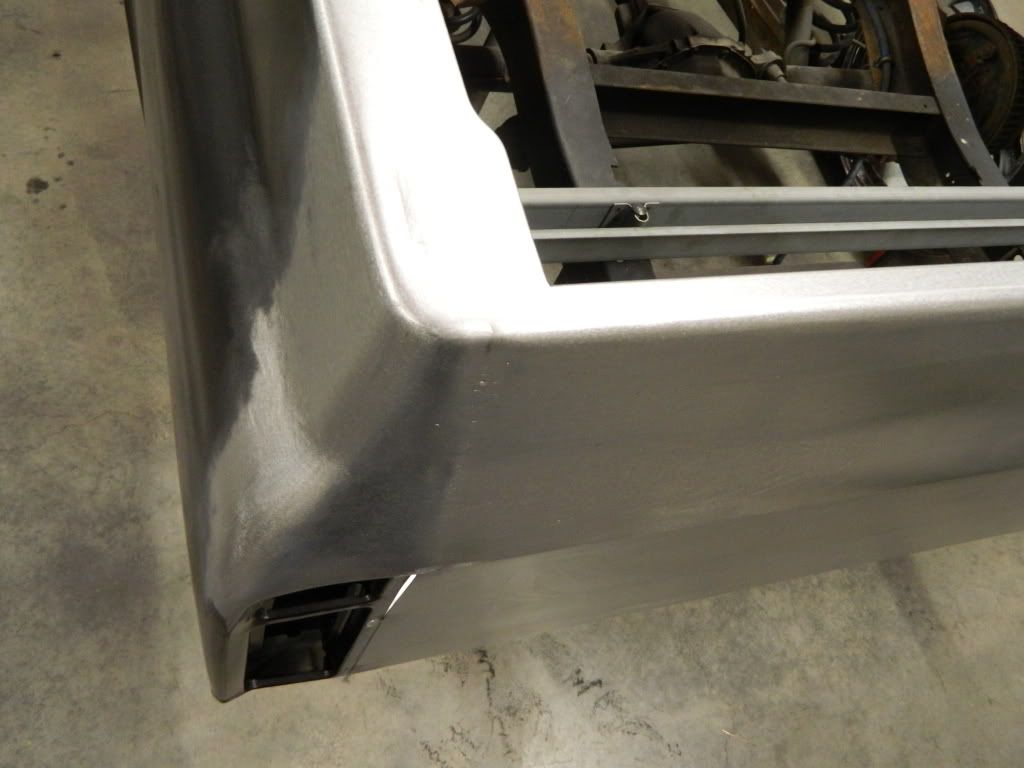

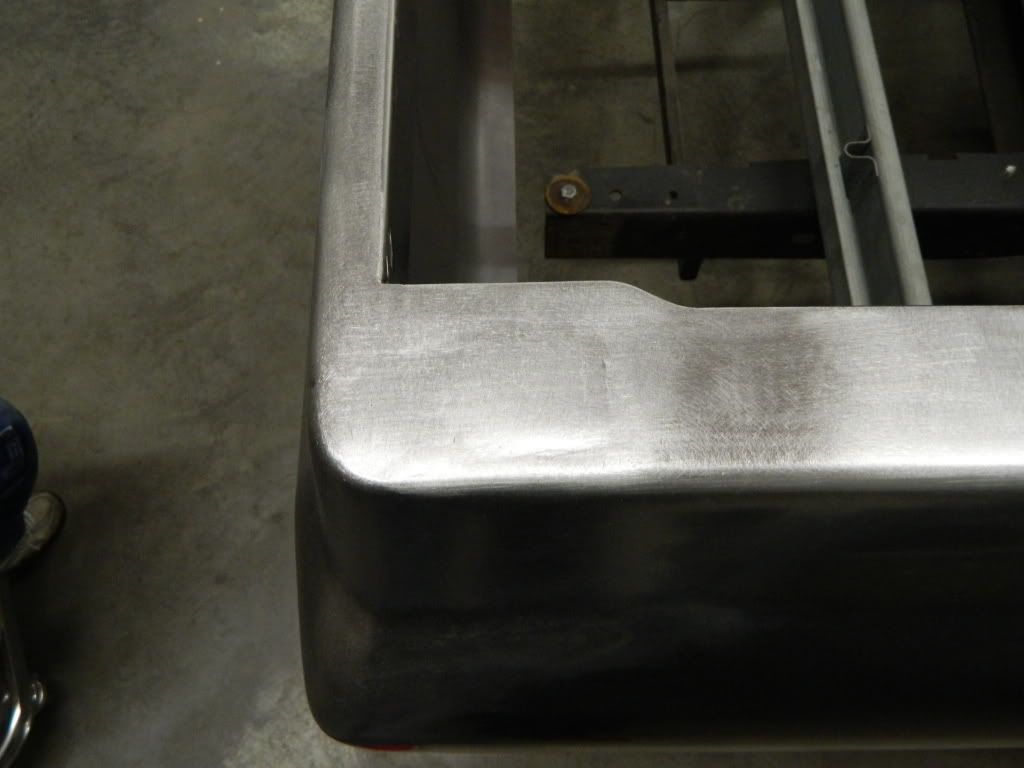

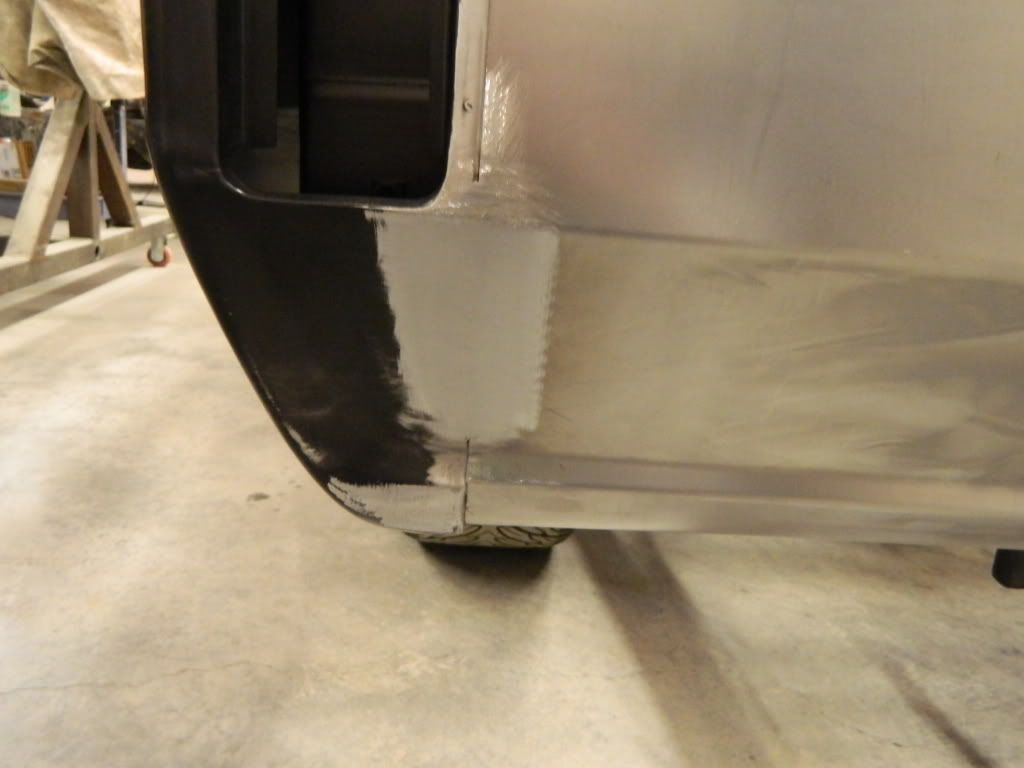

More pics...
http://i209.photobucket.com/albums/b...ket/018-47.jpg
http://i209.photobucket.com/albums/b...ket/015-52.jpg
http://i209.photobucket.com/albums/b...ket/012-63.jpg
http://i209.photobucket.com/albums/b...ket/010-68.jpg

Looking good guys!

I'd like to welcome Truckin' Magazine and Accuair to the build:unibrow: ! More progress... waiting on the wheels and a few other parts.
http://i209.photobucket.com/albums/b...-16x20-sml.jpg
http://i209.photobucket.com/albums/b...ket/006-87.jpg
http://i209.photobucket.com/albums/b...ket/005-83.jpg
http://i209.photobucket.com/albums/b...et/001-101.jpg
http://i209.photobucket.com/albums/b...ket/002-95.jpg

More pics. I started on the windshield frame today. The new cowl panel will be built and welded in with the cab later this week. Hoping to have it on the ground soon!
http://i209.photobucket.com/albums/b...ket/011-71.jpg
http://i209.photobucket.com/albums/b...ket/012-64.jpg
http://i209.photobucket.com/albums/b...ket/017-45.jpg
http://i209.photobucket.com/albums/b...ket/021-43.jpg
http://i209.photobucket.com/albums/b...ket/022-40.jpg
http://i209.photobucket.com/albums/b...ket/024-37.jpg

Thanks for the great deal on the engine! We're fitting the front sheet metal, installing the new headlights and building a new custom grill. I'm also thinking about cutting the hood to look similar to the Viper hood. :D More pics...
http://i209.photobucket.com/albums/b...ket/007-89.jpg
http://i209.photobucket.com/albums/b...ket/002-97.jpg
http://i209.photobucket.com/albums/b...ket/006-91.jpg
http://i209.photobucket.com/albums/b...ket/003-97.jpg
http://i209.photobucket.com/albums/b...ket/005-87.jpg

More pics...
http://i209.photobucket.com/albums/b...ket/018-49.jpg
http://i209.photobucket.com/albums/b...ket/016-52.jpg
http://i209.photobucket.com/albums/b...ket/017-46.jpg
http://i209.photobucket.com/albums/b...ket/014-57.jpg
http://i209.photobucket.com/albums/b...ket/007-91.jpg

what's your technique on grinding down your welds??? they look flawless!!!

I'll try to post a quick video in the next couple of weeks. I use a 3" 36grit Carbo Fire disc. It has alot to do with your grinding technique. Thanks
http://i209.photobucket.com/albums/b...ket/002-99.jpg
http://i209.photobucket.com/albums/b...ket/019-48.jpg
http://i209.photobucket.com/albums/b...ket/004-92.jpg

Great looking truck, I am going to watch this one:thumbsup:

Thanks! I just went through your build thread, very nice! More pics...
http://i209.photobucket.com/albums/b...ket/010-71.jpg
http://i209.photobucket.com/albums/b...ket/011-73.jpg
http://i209.photobucket.com/albums/b...ket/012-66.jpg
http://i209.photobucket.com/albums/b...ket/018-50.jpg
http://i209.photobucket.com/albums/b...ket/022-41.jpg

looking good. two days after is old my chevelle project off, i bought a running and already lowered 67 chevy c-10. i would blame you guys, and i do a little, but i wanted one since high school and i finally got one. thanks for the inspiration.

Your welcome:D ! I have a 67' shortbed that I'm building for my myself, that I've had it since high school. I'm getting close to getting it back on the road, and can't wait. I'll have more pics tomorrow!

i saw the pics on 67-72, where are those seats from? i got a under the bed tank coming and need a thinner seat. 6'5" dont equal comfy with stock interior. i got a budnik wheel coming also already. i am hitting the local salvage places looking for a 88-98 bench seat but i like the look of the seats you have in the truck.

The seats are from a Corvette. I'm 6'1" and the seats are very comfortable for me. They set just right for the truck. Not to high and not to low in the cab. Sounds like you have a nice project started, be sure to post pics!
http://i209.photobucket.com/albums/b...et/001-106.jpg
http://i209.photobucket.com/albums/b...et/002-100.jpg
http://i209.photobucket.com/albums/b...ket/005-92.jpg
http://i209.photobucket.com/albums/b...ket/008-89.jpg
http://i209.photobucket.com/albums/b...ket/012-68.jpg
http://i209.photobucket.com/albums/b...ket/014-59.jpg

only one i got right now. its cooler in person than the pics. not your truck kind of cool, but i like it. the body is straight and the drivetrain is new, so i am good to stock pile parts for a few months and then do all the new stuff at once. i like the old school paint on it. i am sure i will change it one day though. gets alot of thumbs up though. i will post up the pics when the tear down begins. i know a 572 is going in for sure.

http://i34.photobucket.com/albums/d1...ankee/my67.png

Very nice truck! More pics...
http://i209.photobucket.com/albums/b...ebit/006-1.jpg
http://i209.photobucket.com/albums/b...ebit/012-2.jpg
http://i209.photobucket.com/albums/b...ebit/015-2.jpg
http://i209.photobucket.com/albums/b...ebit/018-2.jpg
http://i209.photobucket.com/albums/b...ebit/020-1.jpg
http://i209.photobucket.com/albums/b...ebit/023-1.jpg

Even though these are beautiful picture and I am sure that everyone appreciates them, there just is never enough. I never get tired of looking at every nook and cranny of beautiful work. What an inspiration.

Pics from SEMA. The truck is almost finished now, I'll post a video of the first test drive next week.
http://i209.photobucket.com/albums/b...akebit/392.jpg
http://i209.photobucket.com/albums/b...akebit/390.jpg
http://i209.photobucket.com/albums/b...akebit/397.jpg
http://i209.photobucket.com/albums/b...akebit/398.jpg
http://i209.photobucket.com/albums/b...akebit/402.jpg

I like it. :hail: :hail: More pics??!!

Wow, that is cool. I love the four headlight grill.

Thanks, I'll post more pics this week.
Thanks, we wanted to keep the look of the GMC but with a twist. The flat eyebrows look mean!
