1963 Fairlane at the Roadster Shop


This is a pretty unique project that we are building for a repeat customer. He likes cars that are out of the norm, but definitely cool in their uniqueness. We are just getting underway with the latest, a 1963 Fairlane. The car will be built to look completely stock and give it a total grandma/sleeper look. Underneath the car will be a custom fully independent Fast Track chassis. Power is coming from a Jon Kaase Boss 9 motor with a Tremec 6-speed.

As the car showed up:
http://i563.photobucket.com/albums/s...ture219811.jpg

http://i563.photobucket.com/albums/s...ture219820.jpg

After removing the coils we played with a lot of ride heights until we got one that the owner was happy with. (the version that we were happy with was abut 4 inches lower! As the owner put it, "if it was up to you young guys every car would be so low you couldn't drive it")

http://i563.photobucket.com/albums/s...ideHeight2.jpg

The car was disassembled and the chassis was designed and built for the car with our Fast Track IFS and IRS

http://i563.photobucket.com/albums/s...ture220548.jpg

Test fitting the body on the chassis before it gets sent out to be media blasted.

http://i563.photobucket.com/albums/s...ture220498.jpg

The body came back from media blaster with all kinds of surprises!
http://i563.photobucket.com/albums/s...ture221208.jpg

http://i563.photobucket.com/albums/s...ture221210.jpg

http://i563.photobucket.com/albums/s...ture221214.jpg

A shot down into the bottom of the quarter revealed some real "custom" work. A true "specialist" must have been the one to originally restore this car. The bottom of the quarter was "constructed" from cardboard, spray foam, wire mesh, and a whole lot of bondo!

http://i563.photobucket.com/albums/s...ture221177.jpg

Beginning of the sheetmetal work. Since Fairlanes aren't all that popular, there literally isn't a single sheet metal replacement panel available. So everything had to be fabbed from scratch.

http://i563.photobucket.com/albums/s...ture221300.jpg

http://i563.photobucket.com/albums/s...ture221329.jpg

http://i563.photobucket.com/albums/s...ture221330.jpg

http://i563.photobucket.com/albums/s...ture221361.jpg

http://i563.photobucket.com/albums/s...ture221362.jpg

And then this showed up....
http://i563.photobucket.com/albums/s...ture221381.jpg

http://i563.photobucket.com/albums/s...ture221383.jpg

Cool project! you guys are waaay to good!

That motor is freakin' awesome!:thumbsup: Going to be a great build

:drool::drool::drool::drool::drool::drool:

Awesome, can't wait to see more.

Not a Ford guy, but damn that's sexy. :thumbsup:

Took the words right out of my mouth! SWEET !

One more reason I am a Ford guy. Those shotgun motors were way cool in the late 60s early 70s and still are today.

HELLO!!!!

Killer Project:hail: :hail: :hail: :hail:

Cool project. That engine is nasty!

This is going to be awesome! :thumbsup:

Time for an update


Some RS eye candy for the Ford guys please.

We have been fixing rust all around this car. Nothing too exciting yet. The only other Ford we have going on in the shop is this thing.:unibrow:
http://www.roadstershop.com/current-...-s-1969-torino

:thumbsup: Very nice sheet metal work.:thumbsup:

Funny I hadn't seen that posted on your site


It does look familiar for some reason. :_paranoid

I'm waiting to see the shotgun motor in the 63 that will be snug. :thumbsup:

Holy Mother of the Ford Gods.....

At the risk of loosing my car guy card, why do they call them shotgun motors?

Darren

ummmm, DITTO and friggin DITTO

http://i563.photobucket.com/albums/s...ture221381.jpg

mentioned in the first paragraph under background

http://www.nzmustang.com/history/boss429.htm

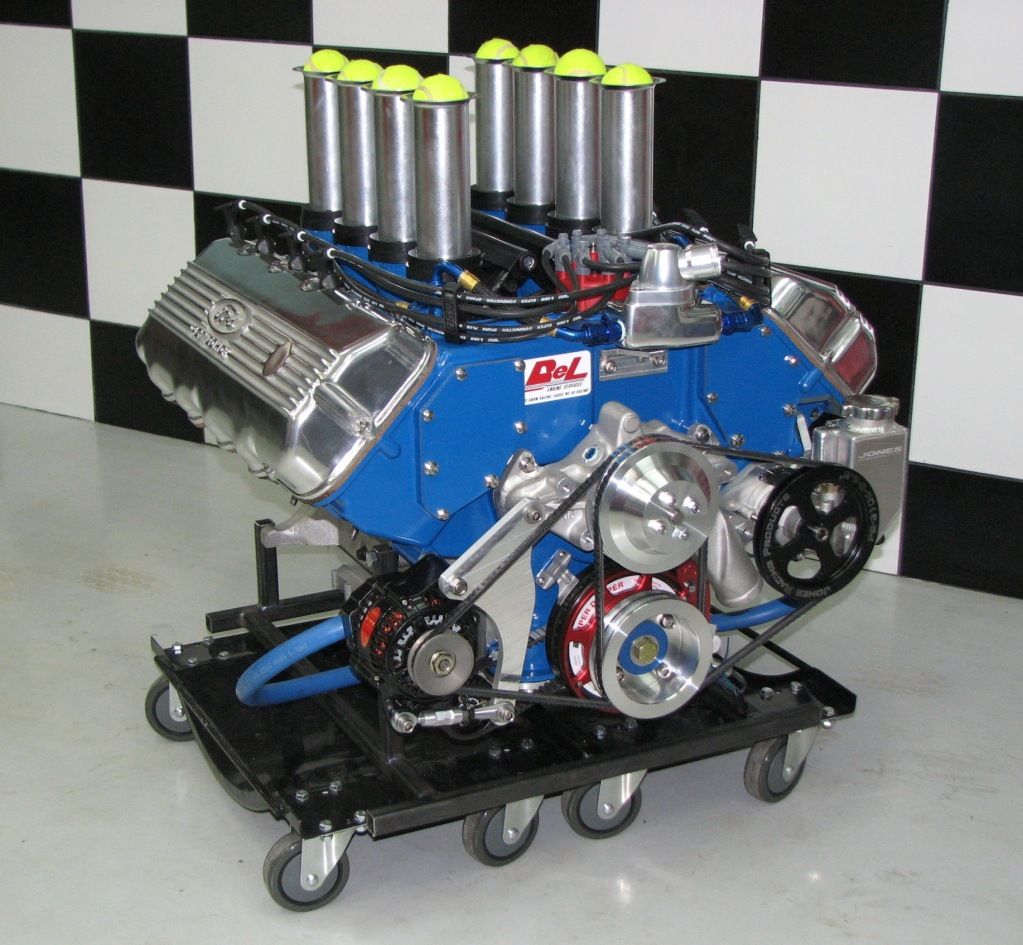

The first Ford Nascar motor with big round intakes was banned. Calling the shots from the bleachers I would stuff one of these in the Fairlane.

http://i291.photobucket.com/albums/l...a/Cammer-1.jpg

Thanks AJ. I had no idea.

Darren

We have been taking care of the rust issues all over this car. Not a single piece is available so everything has to be fabbed from scratch. It is turning out to be a rather involved project.

Lower quarter panels welded in place
http://i563.photobucket.com/albums/s...ture221969.jpg

http://i563.photobucket.com/albums/s...ture221966.jpg

http://i563.photobucket.com/albums/s...ture221870.jpg

http://i563.photobucket.com/albums/s...ture221820.jpg

Started on the inner and outer wheel houses as well. A lot of other smaller rust repair and panel fabrication has been done just about everywhere on the car. Rockers, floors, kick panel, cowl sides, top of the quarters, and just about everywhere behind the side trim has needed some attention.

http://i563.photobucket.com/albums/s...ture221824.jpg

http://i563.photobucket.com/albums/s...ture222070.jpg

I always love to see your fab work. Excelent job!

As always some stellar metalwork. To bad the owner won't let you tub it for some decent sized rubber. I get the close to stock height stock outward appearance thing; I don't get the no way to use any of the hp made by that shotgun thing. I guess there is an ultimate grandma burnout car scene somewhere.

ALL I CAN SAY IS WOW!!!!!

Man I need a Fairlane update....... Anyone else suffering withdrawal?

Me too!

more Pics:_paranoid :_paranoid :_paranoid

Im not a ford guy and I like where this is heading ..... :woot:

A couple of updates since you asked so nicely...:thumbsup:

Motor/trans and chassis are together and under the car so much of the internal sheetmetal work is underway.

http://i563.photobucket.com/albums/s...ture222122.jpg

Wheel tubs in with trunk floor and side panels coming togethern along with rear seat panel.

http://i563.photobucket.com/albums/s...Picture092.jpg

New floor sections to accommodate the chassis clearance areas

http://i563.photobucket.com/albums/s...ture222134.jpg

http://i563.photobucket.com/albums/s...ture222298.jpg

Also, given the height of this motor and the stacks, we need to add some clearance into the hood!

http://i563.photobucket.com/albums/s...ture222140.jpg
Template for the shape of the new hood
http://i563.photobucket.com/albums/s...cture099-1.jpg
Beginning the fab on the new skin
http://i563.photobucket.com/albums/s...Picture099.jpg

http://i563.photobucket.com/albums/s...ture221381.jpg


:hail: I'd proudly bolt that in my C-10

We got the hood wrapped up on the Fairlane last week - it stayed fairly subtle while giving us the necessary clearance for that tiny little motor...:_paranoid

http://i563.photobucket.com/albums/s...ture222285.jpg

http://i563.photobucket.com/albums/s...ture222296.jpg

http://i563.photobucket.com/albums/s...ture222363.jpg

http://i563.photobucket.com/albums/s...ture222393.jpg

http://i563.photobucket.com/albums/s...ture222527.jpg

http://i563.photobucket.com/albums/s...ture222528.jpg

Hood


Looks incredible as expected!!:thumbsup:

Novice question... how much room do you need above the velocity stacks to ensure you have enough air flow?

Ty - The guys at Jon Kaase (engine builder) recommended 2" of space above the stacks to allow enough room for air to enter.
