JCG Restoration & Customs 72 Chevelle Build


Here is another Chevelle that we have been working on for the last four months.. The owner’s mom bought it brand new in 72 & has some sentimental value to him… The owner wants some modern comfort creatures to the car.. so here is the laundry list..

JCG Complete Chassis with suspension
Maybe a new ZL-1 supercharged LS engine
4L65 Automatic
Vintage Air
Forgeline Wheels
Michelin Super Sports
JCG Body work & paint
JCG Interior Work
Kooks Headers
MagnaFow Exhaust

& much more!

We have completed all the Fab & rust repairs.. Car is currently in the body shop… next week we cut a new chassis for the car!

http://i1015.photobucket.com/albums/...IMG_2560-3.jpg

http://i1015.photobucket.com/albums/...IMG_2585-2.jpg

http://i1015.photobucket.com/albums/...IMG_2586-1.jpg

http://i1015.photobucket.com/albums/...IMG_2670-3.jpg

http://i1015.photobucket.com/albums/...n/IMG_2807.jpg

http://i1015.photobucket.com/albums/...n/IMG_2806.jpg

Nice start can't wait to see more pics of the ride height.

I love Chevelles. I'll be watching.

Me too and so will I!!:thumbsup: :thumbsup:

Subscribing

Here are some rendering ideas that Carter sent over this morning from his new software... This is what I like.. now time for the owner to get his input & make changes...

http://i1015.photobucket.com/albums/..._Chevelle1.jpg

http://i1015.photobucket.com/albums/...G_Chevelle.jpg

NASTY!!!!!!!!!:wow: :wow: :wow: :wow:

You said it Marcus. That is sick.:thumbsup:

We got the new motor in for the Chevelle yesterday... LSA CTS-V.. Ordered the top hat on the supercharger from a Zl-1 with the engine cover... We already modified the intercooler fittings for -10 An fittings... Trans is on the way with front track system.. Chassis is being laser cut... got lots of work ahead of with this one..

http://i1015.photobucket.com/albums/...n/IMG_2879.jpg

http://i1015.photobucket.com/albums/...n/IMG_2877.jpg

:wow: :wow: :wow: :wow:

I can't wait to see the outcome of this one. Chock 1 up for the chevelles!

thats crazy nice!!! those rendering just jump off the page!!!

The rendering and motor look wicked! :thumbsup:

Got a small update... Carter is wrapping up the rendering here pretty soon..

Got the new chassis fit up on the car.. we re-designed the way we were going to do the top link on the 3 link system were are using for stength & suspension travel... but required some minor modifications! :D

http://i1015.photobucket.com/albums/...n/IMG_2952.jpg

http://i1015.photobucket.com/albums/...n/IMG_2951.jpg

http://i1015.photobucket.com/albums/...n/IMG_3017.jpg

http://i1015.photobucket.com/albums/...n/IMG_3019.jpg

http://i1015.photobucket.com/albums/...n/IMG_3022.jpg

http://i1015.photobucket.com/albums/...n/IMG_3023.jpg

I'm liking it. :yes: And the bead rolling is on point too.:yes:

Thank you! Here is another pcs that we complete today...

http://i1015.photobucket.com/albums/...n/IMG_3028.jpg

:hail: :hail: :hail: :hail:

Nice. This thing is going to sit low isn't it?

I am getting some great ideas from this one! keep the updates coming.:thumbsup:

Just a little bit! The owner of this Chevelle is also gonna let me Auto-X in small events.. My job sucks sometimes...

We have 3 Chevelles going on so their will be plenty of new things we got coming for Chevelles.. I just am going to have to not sleep anymore & finally just move to the shop.. :D

Awesome, awesome work. We need updates as you guys go along. :thumbsup:

As much we would love you to move to the shop so you can inspire us. I think your daughter would miss her Daddy.

Just keep doing what your doing cause it's working.

Thanks Tony & Marty..

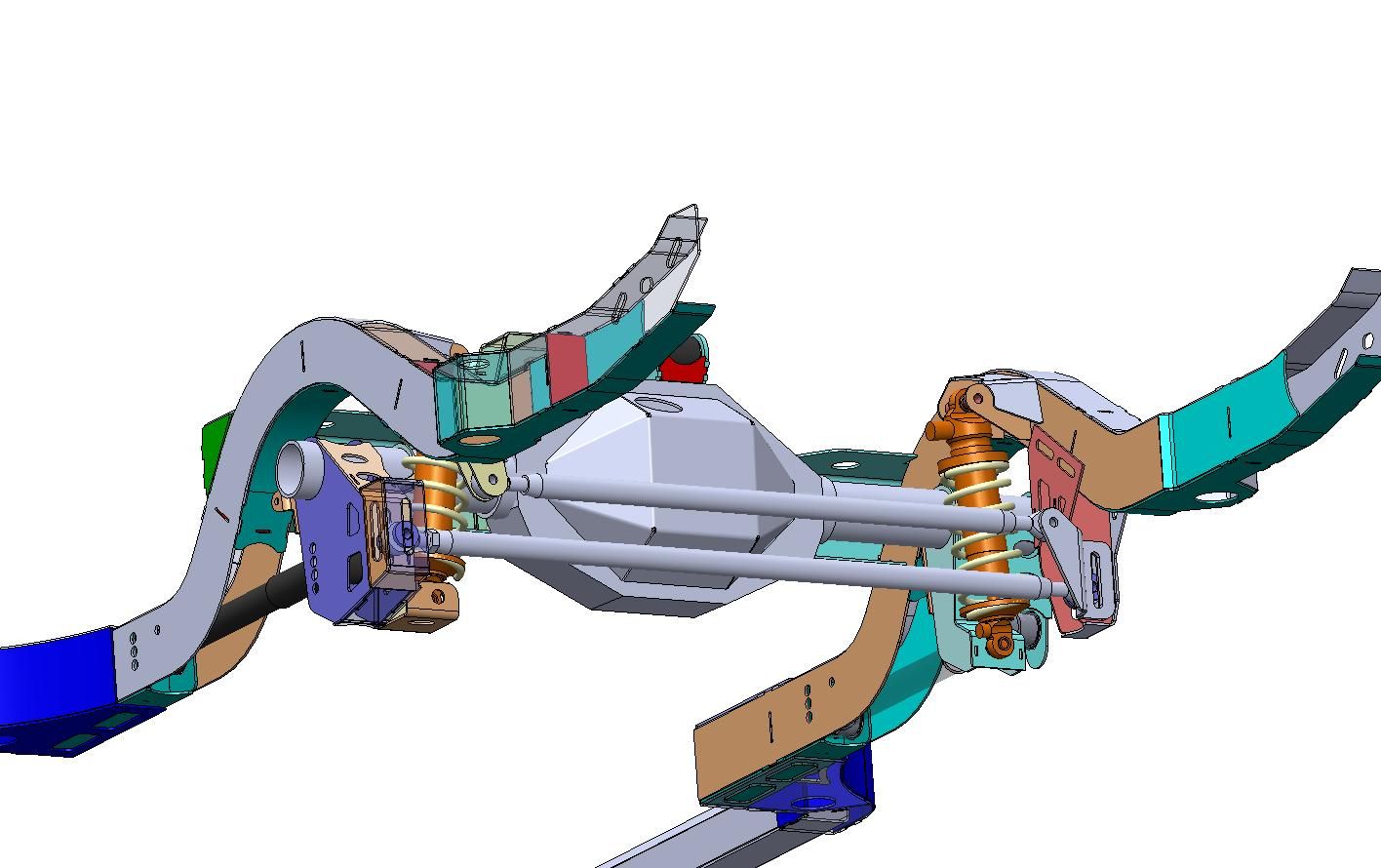

We finally got the rear suspension designed.. In Suspension design.. their is always compromise & packaging issues.. Glad that we are finally past this portion of the project..Get our parts back from laser cutting next week..

http://i1015.photobucket.com/albums/...psda1ac4c8.jpg

Rear link & shock buckets..

http://i1015.photobucket.com/albums/...psac5d591b.jpg

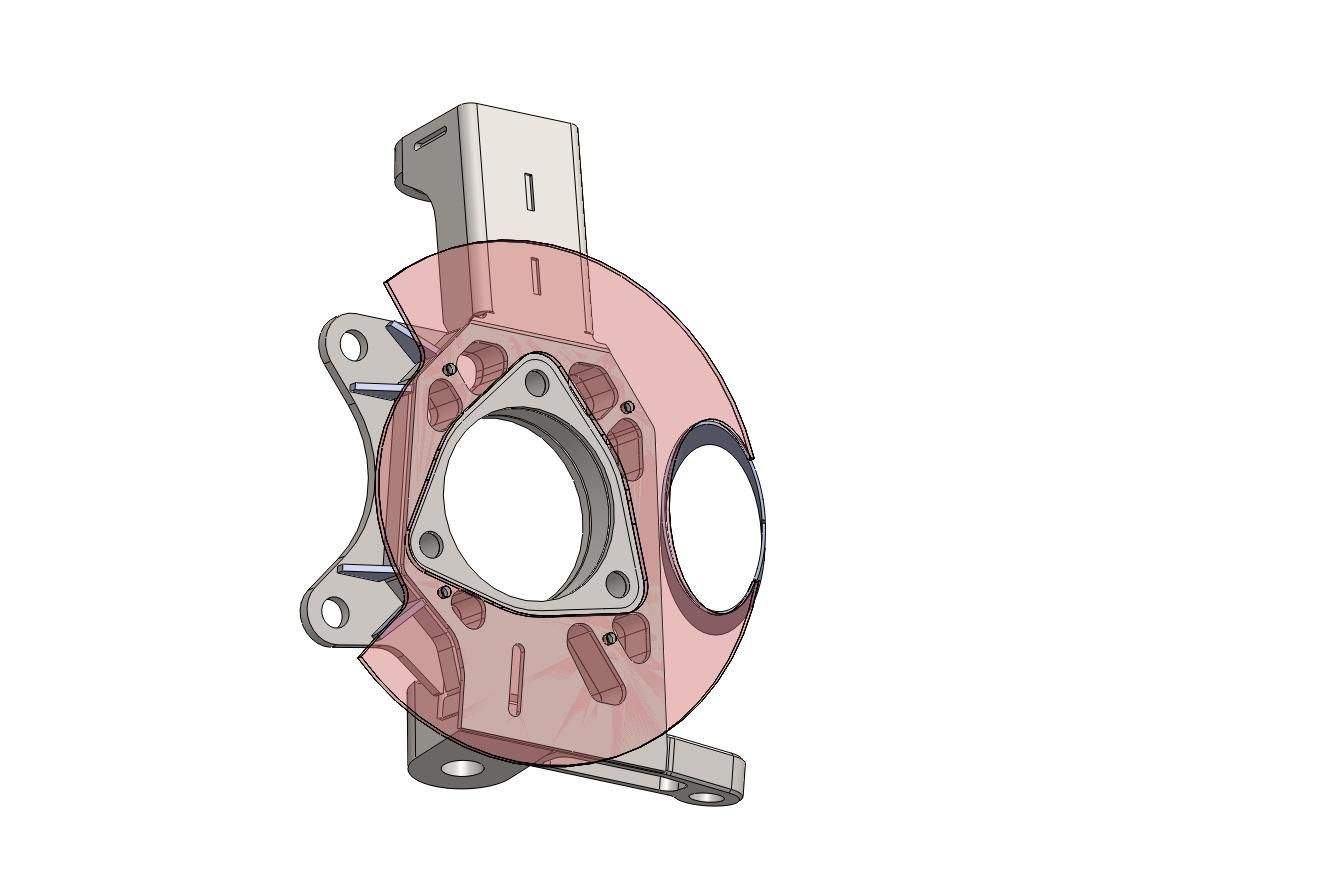

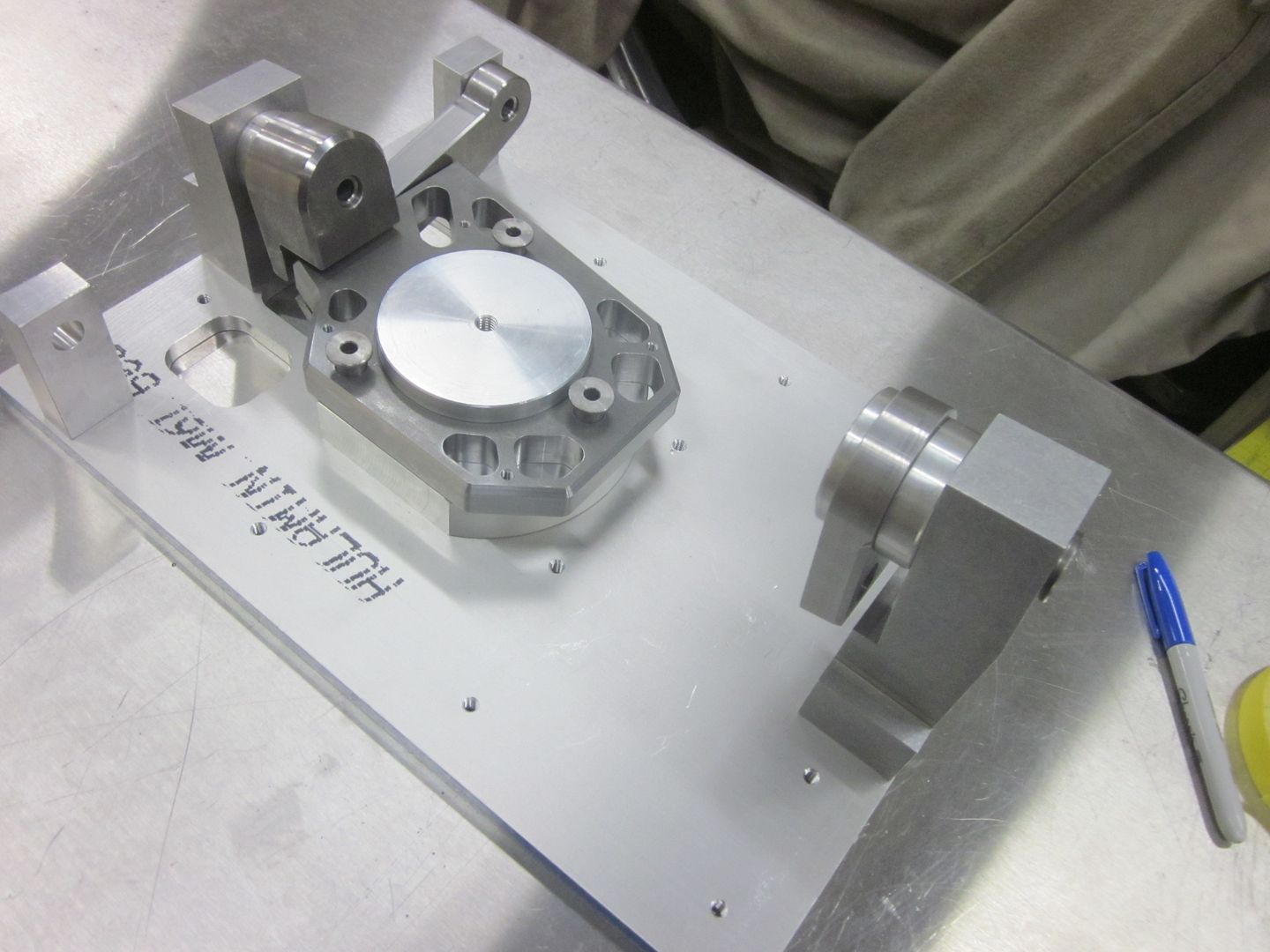

We also got our jig built for our C6 upright..

http://i1015.photobucket.com/albums/...psb1c1a952.jpg

http://i1015.photobucket.com/albums/...ps4451582b.jpg

We need updates!!!!!

Yeah, that's right!! :warning: Tell him again Scotty!!

Ok...we need updates!!!!

Hey Chris what ^^^^^ they said :hello:

It looks Sweet as always Cris !

Thanks Jay! You know I am a big fan of your work.. Your assembly details are some of the best I have seen..

Here are some quick updates!

Engine & trans in place
Upgraded to a 6L80
Trans tunnel with raising is complete
Hard Plumbing on underside of car is complete
Rear-end is getting cut with housing ends welded & axles on order

Owner comes in this week to get wheels on order! Forgelines!

http://i1015.photobucket.com/albums/...ps997c171c.jpg


http://i1015.photobucket.com/albums/...ps07f57fd8.jpg

http://i1015.photobucket.com/albums/...ps9ed837ca.jpg

http://i1015.photobucket.com/albums/...pscb0f130d.jpg

http://i1015.photobucket.com/albums/...psca44f4b7.jpg

http://i1015.photobucket.com/albums/...psf0e5d959.jpg

Plus week got our Chevelle gas tanks built.. Just need to finish the end caps & get some fuel module rings from Vaporworks..

http://i1015.photobucket.com/albums/...ps33f61c28.jpg

Here is what it looks like on the underside of the trans tunnel..

http://i1015.photobucket.com/albums/...psc6b14cc1.jpg

Ok those will work for now :king: very nice Chris!

Thank you sir. That is a big tunnel. This car must be going lowwww!
Please keep us updated!

Morning Chris,

This car is looking great.

I was just about to ask you about the gas tank. Will this tank be specific to your chassis because the car sits so low. In other words did you reduce the overall height of the tank vs the stock tank. I am working on Chevelle with a buddy and the tank is scrapping the ground and we are looking for a solution.

Hey Marty-

This tank will be specific to my chassis.. We just built the tank to look the best for the rear section of the car.. requires more modification to mount but wanted to keep the volume of fuel in the tank.. Basically we grabbed as much area we could & moved the sump of the tank to the front..

It will make more sense when I mount it in place..

That is what I thought.

Looks like we will be making a custom tank as the Ricks tank sits way to low

Marty, I'm dealing with a design now as well due to the IRS on my chassis. I knew I would have to get a custom tank, but I'm wanting to keep the volume like Chris said.

Were looking at doing a mustang style tank and dropping it into the trunk floor. Just raise the darn thing up and it should solve the problem.
