1965 Fastback with DSE
We will be installing DSE mini tubs, subframe connectors, front and rear suspension in this 1965 Fastback.
This is what we are starting with. http://img.photobucket.com/albums/v3...Mustang/01.jpg http://img.photobucket.com/albums/v3...Mustang/10.jpg The first step is to remove the undercoating before it goes to get media blasted. I have never seen so much undercoating. http://img.photobucket.com/albums/v3...Mustang/07.jpg You never know what you will find under the paint http://img.photobucket.com/albums/v3...Mustang/19.jpg http://img.photobucket.com/albums/v3...Mustang/23.jpg http://img.photobucket.com/albums/v3...Mustang/25.jpg |
Love that body style. :thumbsup: What's the owner going with for a drivetrain?
Don't let Matt near it.:rofl: :cheers: |
1 Attachment(s)
Subscribing... I plan on using the DSE front and rear systems in my 66 GT fastback, so I'm really interested in seeing the installation detail.
|
Quote:
|
There was a lot of bubbles and paint coming off so I decided to investigate before sending it to be blasted.
http://img.photobucket.com/albums/v3...Mustang/13.jpg http://img.photobucket.com/albums/v3...Mustang/14.jpg http://img.photobucket.com/albums/v3...Mustang/15.jpg |
Ha you guys always seem to end up with projects that have to be done the hard way.
|
We have repairs to do before we install the DSE mini tubbs.
The front crossmember had been hit so we replaced it http://img.photobucket.com/albums/v3...Mustang/31.jpg Before we installed the new one Brian cleaned up the surface rust than brushed a coat of SPI epoxy http://img.photobucket.com/albums/v3...Mustang/34.jpg http://img.photobucket.com/albums/v3...Mustang/36.jpg The left front apron has a little rust so Brian cut it out http://img.photobucket.com/albums/v3...Mustang/38.jpg http://img.photobucket.com/albums/v3...Mustang/39.jpg http://img.photobucket.com/albums/v3...Mustang/41.jpg There was also a little rust on the firewall. After drilling out the spot welds on the fender apron Brian patched it. http://img.photobucket.com/albums/v3...Mustang/42.jpg http://img.photobucket.com/albums/v3...Mustang/43.jpg http://img.photobucket.com/albums/v3...Mustang/44.jpg http://img.photobucket.com/albums/v3...Mustang/45.jpg |
Both quarter panels need to be replaced.
http://img.photobucket.com/albums/v3...Mustang/50.jpg After they were removed everything was epoxy primed http://img.photobucket.com/albums/v3...Mustang/51.jpg Lining up the new trunk floor http://img.photobucket.com/albums/v3...Mustang/57.jpg http://img.photobucket.com/albums/v3...Mustang/58.jpg |
Off to a good start :thumbsup:
|
Subscribed
Really looking forward to watching this build !!!!! |
65-66 mustangs look great--my dad had a burgundy one like that too.
Good to see one getting the DSE treatment. Nothing but quality parts and quality people.. Subscribed.:thumbsup: |
subscribed!!
|

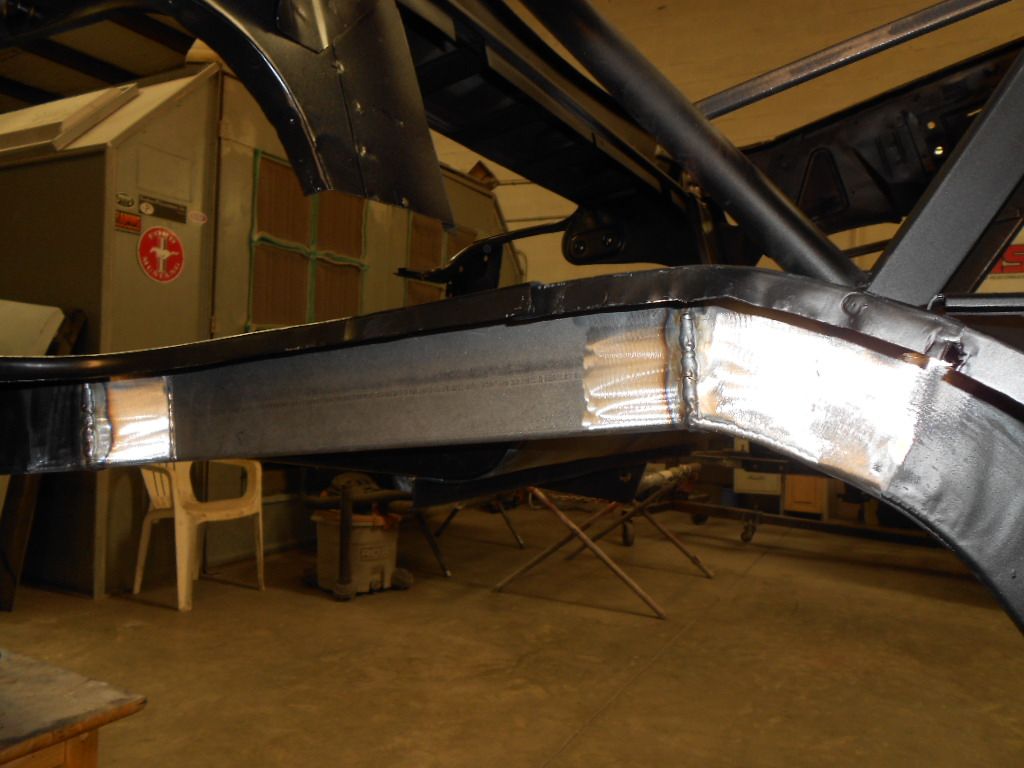

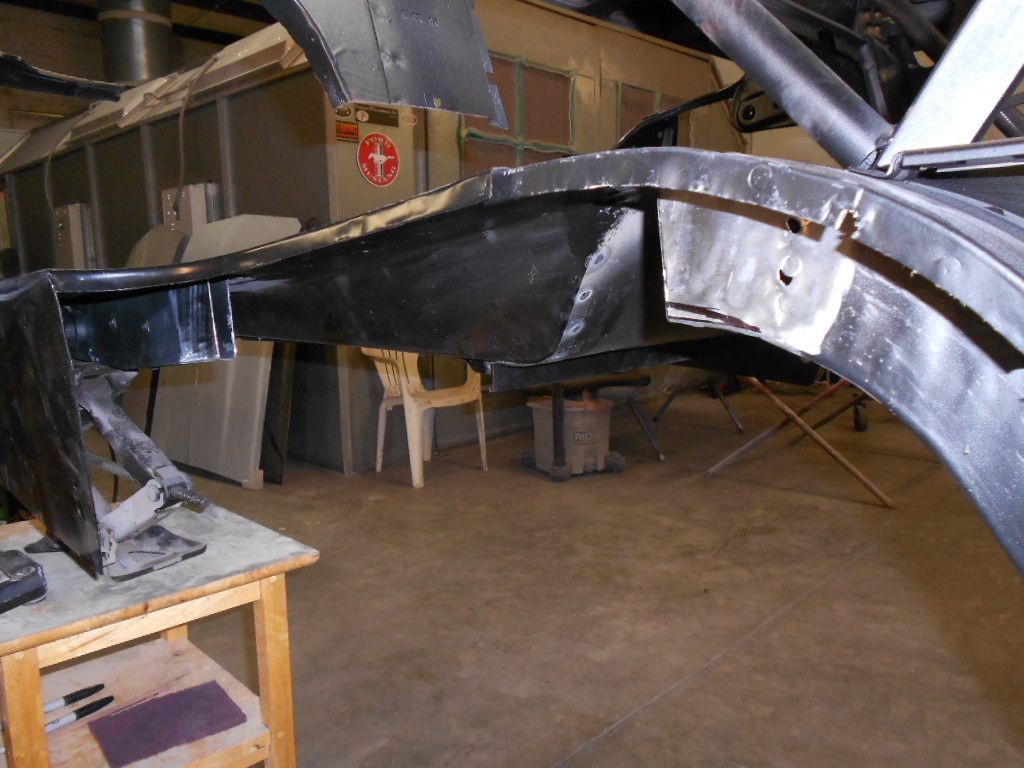

Brian wanted to fit the mini tubs before installing the quarter panels the first thing he did was cut out the frame rail to make room for the new one that come in the kit.

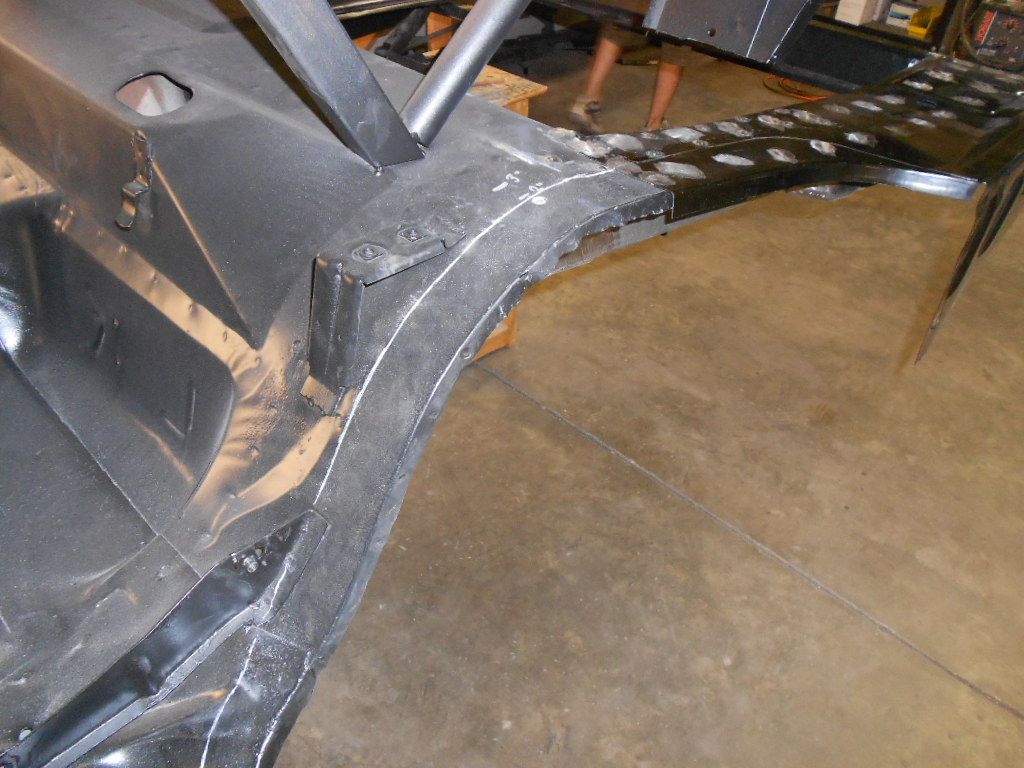

http://img.photobucket.com/albums/v3...Mustang/63.jpg http://img.photobucket.com/albums/v3...Mustang/64.jpg These braces come with the kit http://img.photobucket.com/albums/v3...Mustang/65.jpg This is what needs to be cut out for the new mini tub. You can go in 2" or 3" we chose 2" because in you go 3" you have to narrow the supplied frame rail 1" http://img.photobucket.com/albums/v3...Mustang/66.jpg |
I'm sorry I have forgotten to update

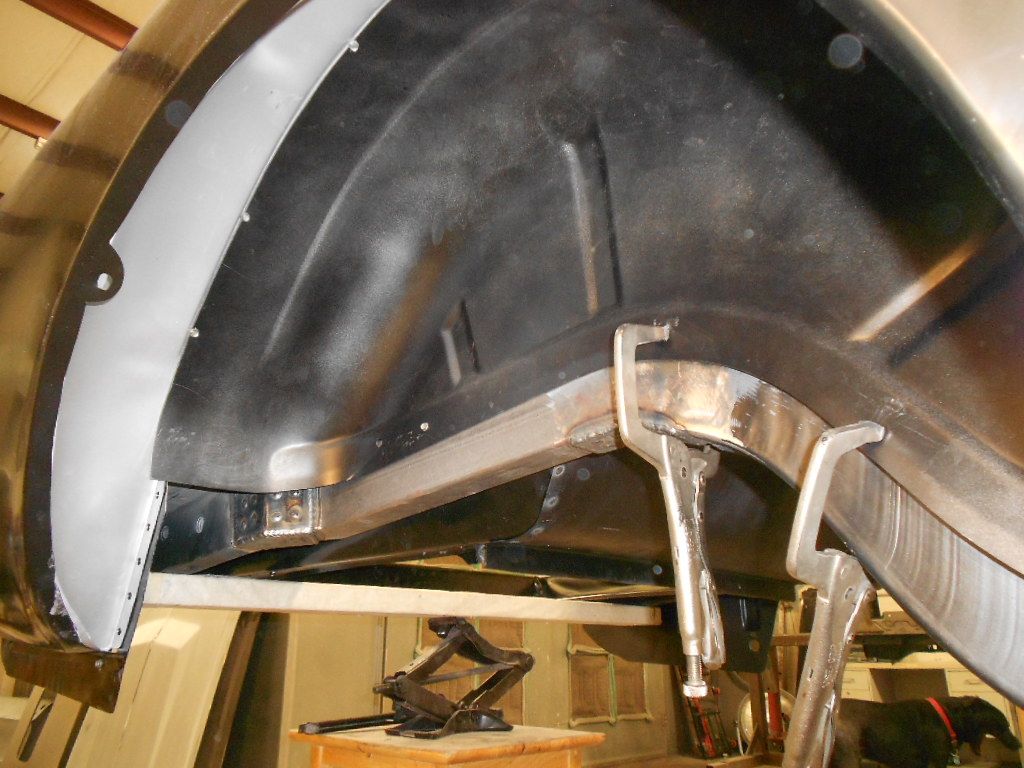

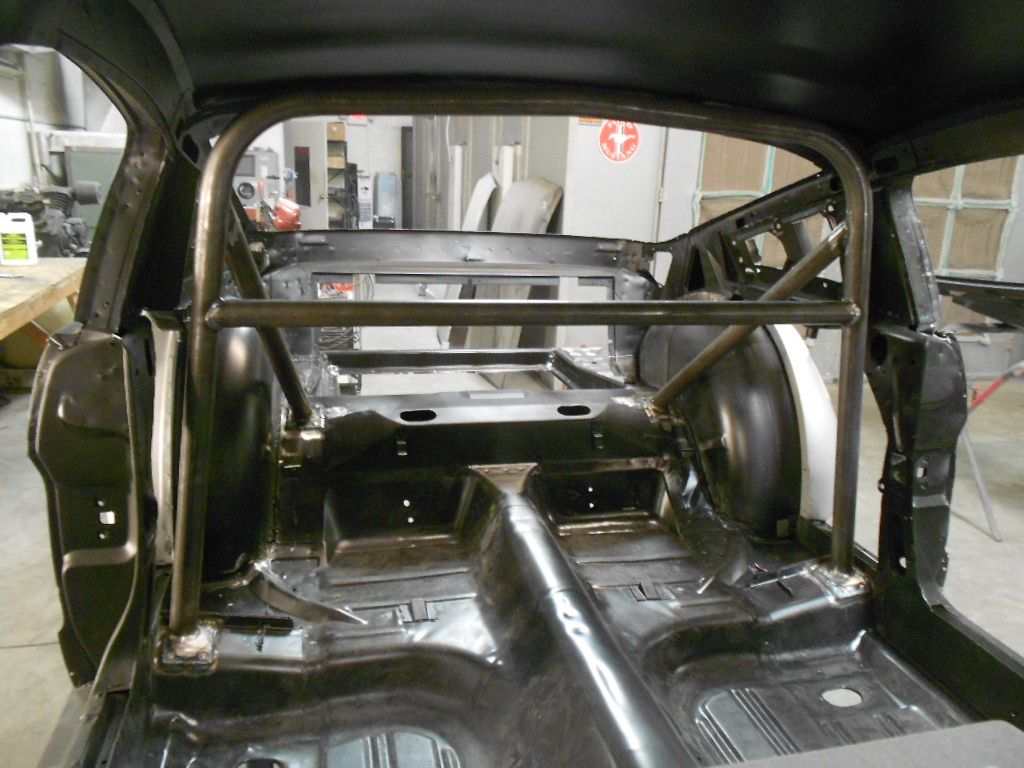

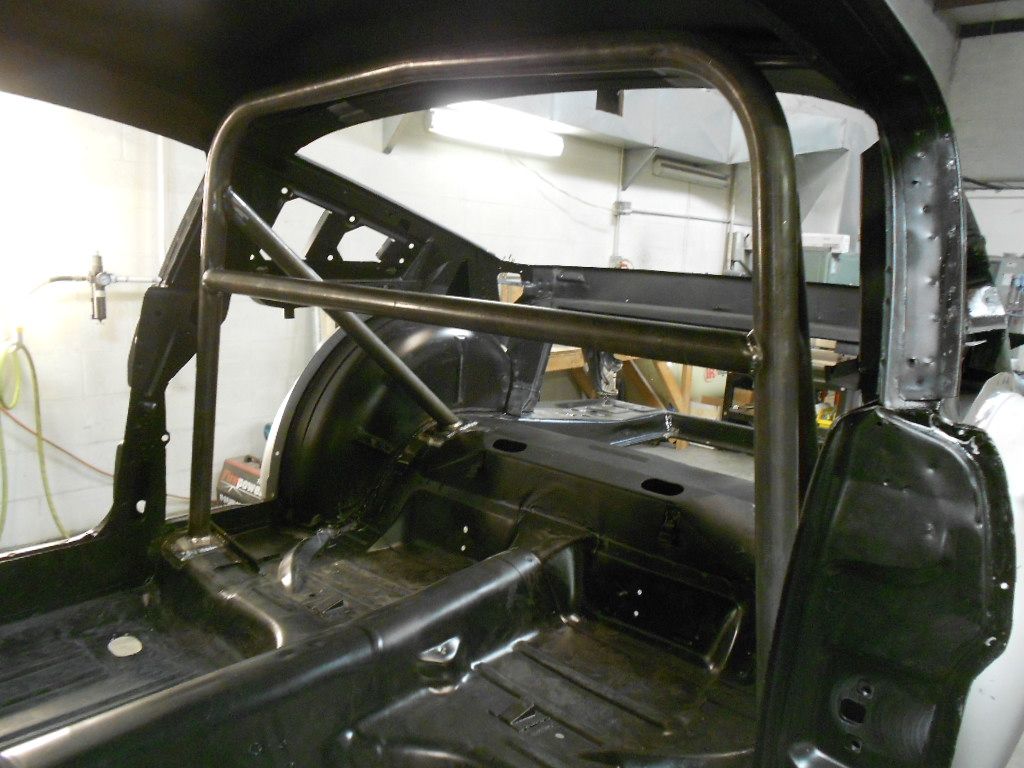

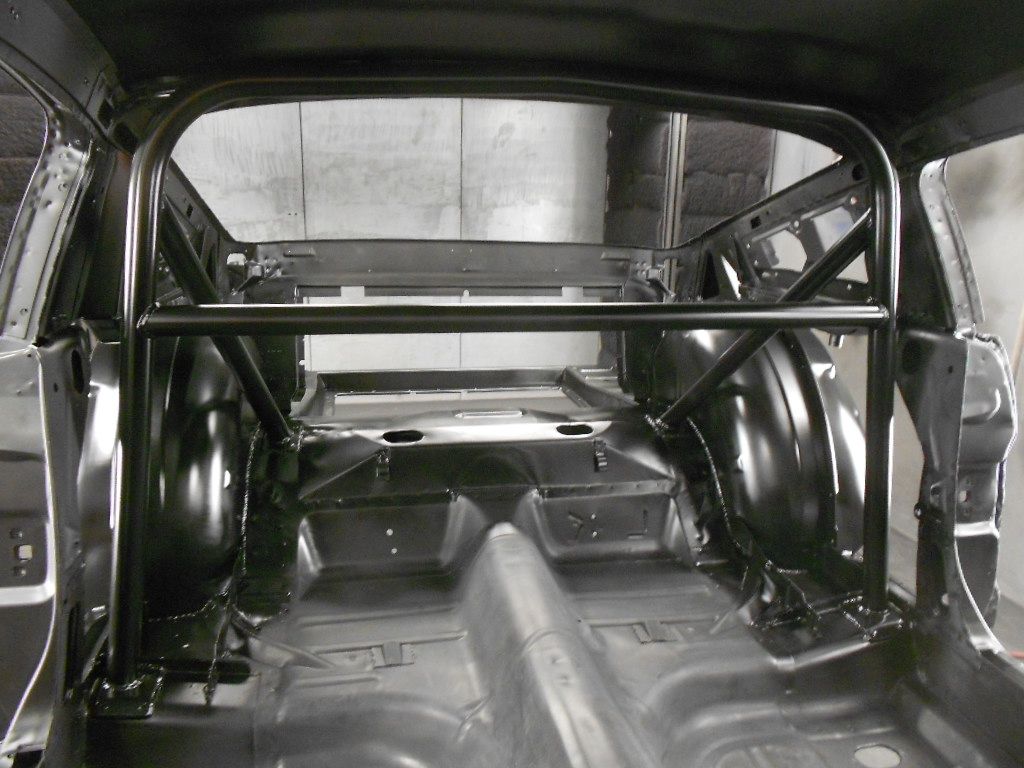

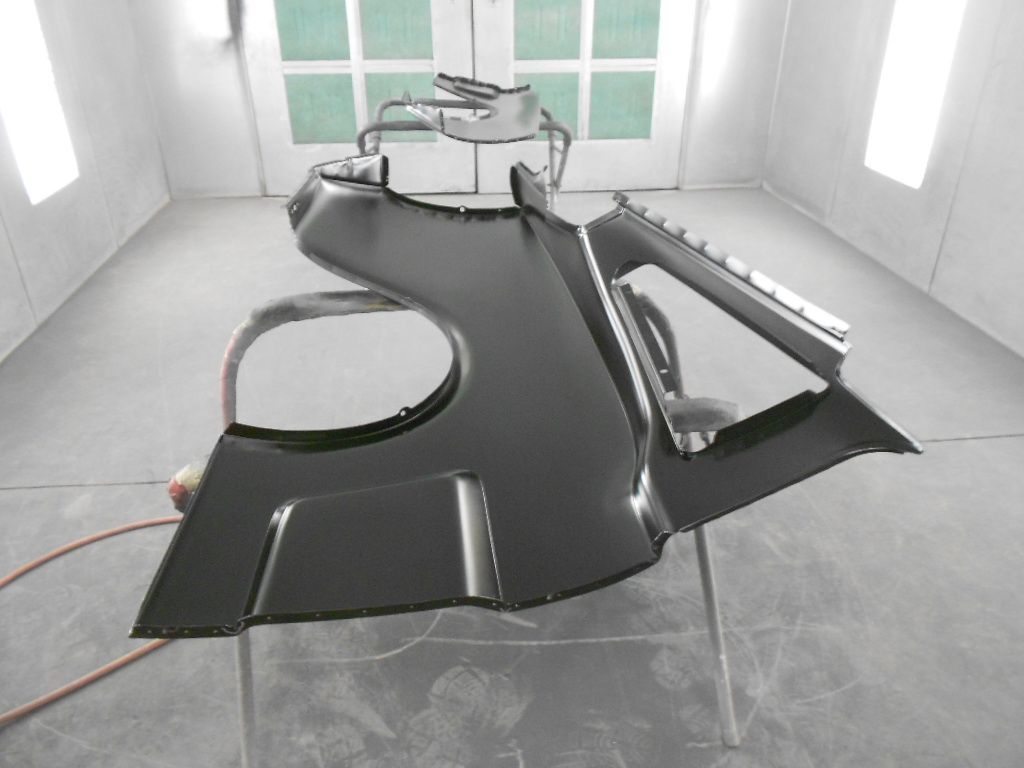

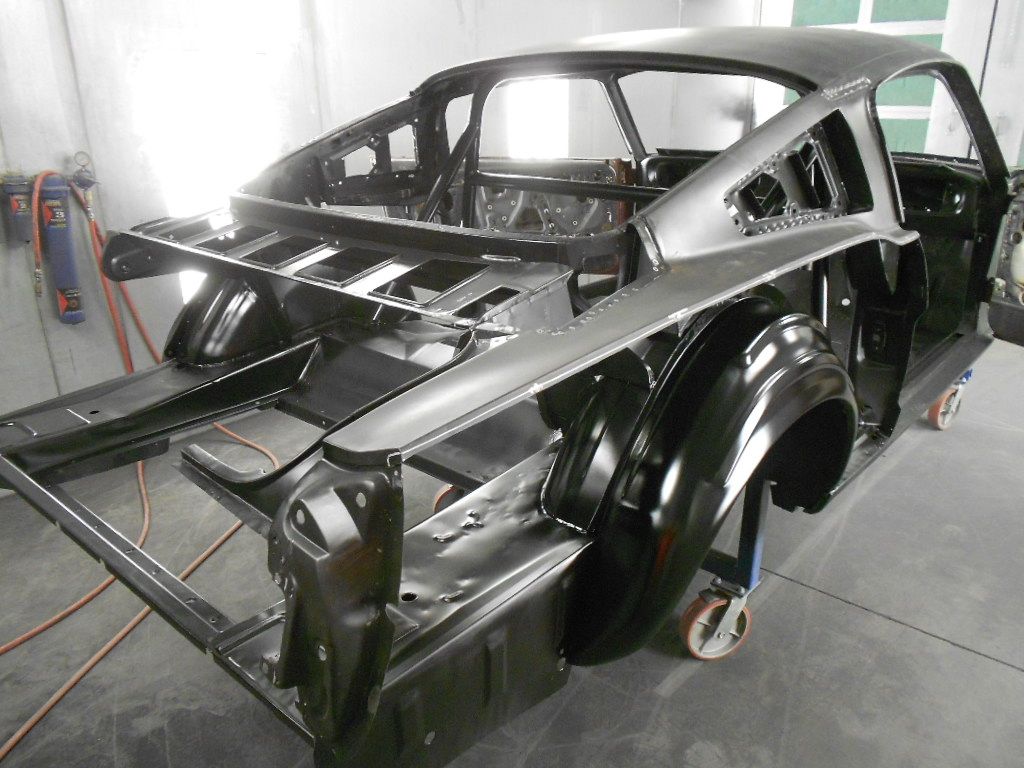

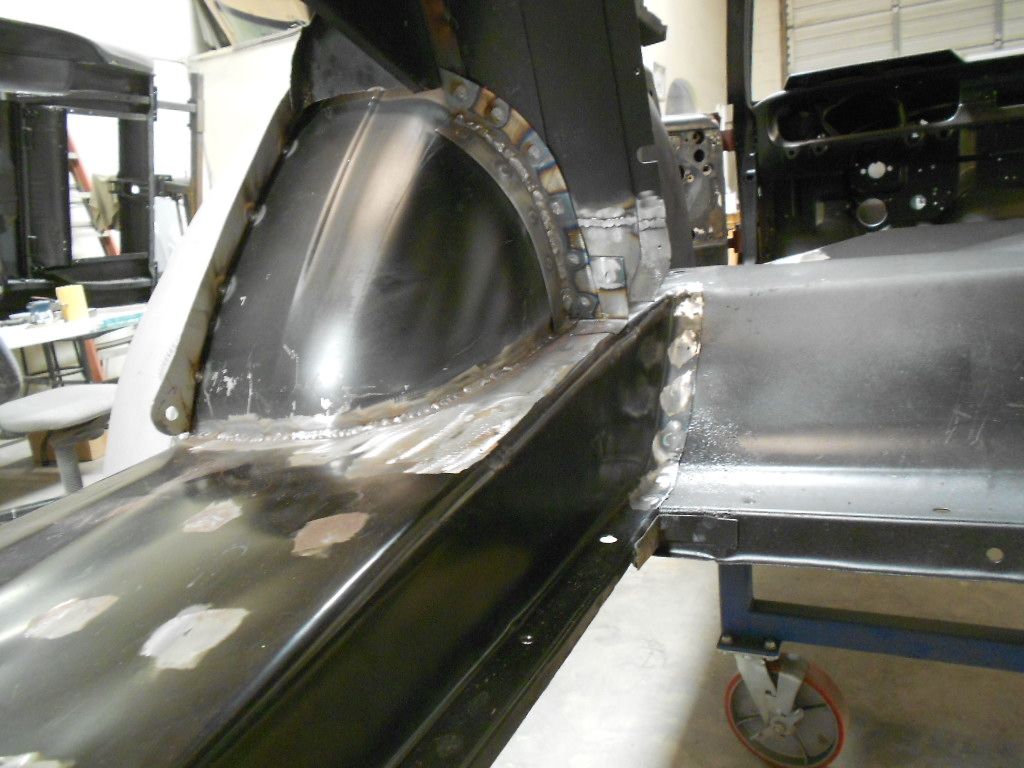

Test fitting the mini tub and quarter http://img.photobucket.com/albums/v3...Mustang/72.jpg http://img.photobucket.com/albums/v3...Mustang/82.jpg Epoxy primed the inside of the quarters http://img.photobucket.com/albums/v3...Mustang/86.jpg Installing the DSE mini tubs http://img.photobucket.com/albums/v3...Mustang/89.jpg http://img.photobucket.com/albums/v3...Mustang/90.jpg Roll bar installed before the quarters http://img.photobucket.com/albums/v3...Mustang/91.jpg http://img.photobucket.com/albums/v3...Mustang/93.jpg Couple of coats of SPI epoxy http://img.photobucket.com/albums/v3...Mustang/97.jpg http://img.photobucket.com/albums/v3...Mustang/99.jpg Quarters and taillight panel installed http://img.photobucket.com/albums/v3...ustang/101.jpg |

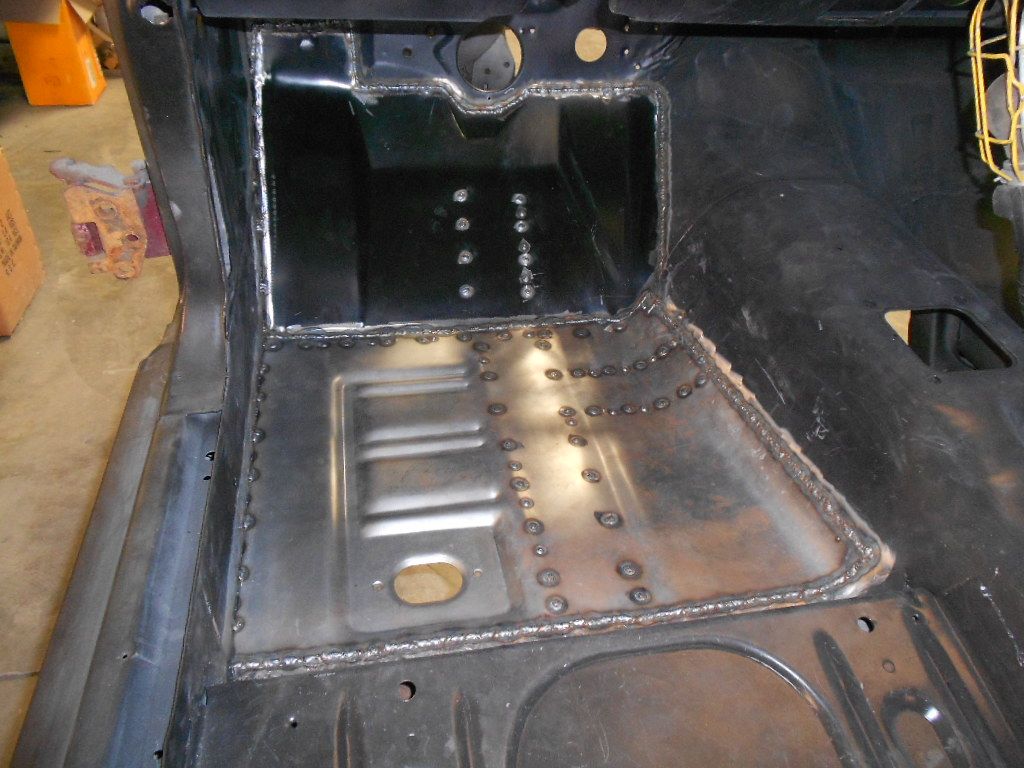

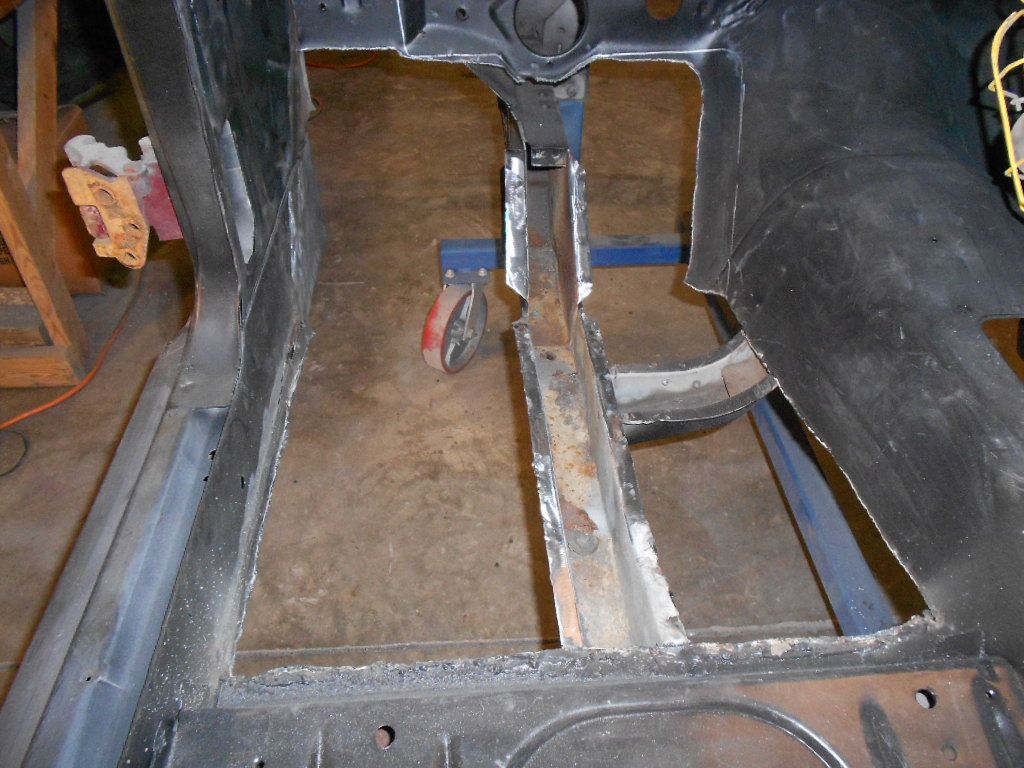

The floor pan had to be replaced

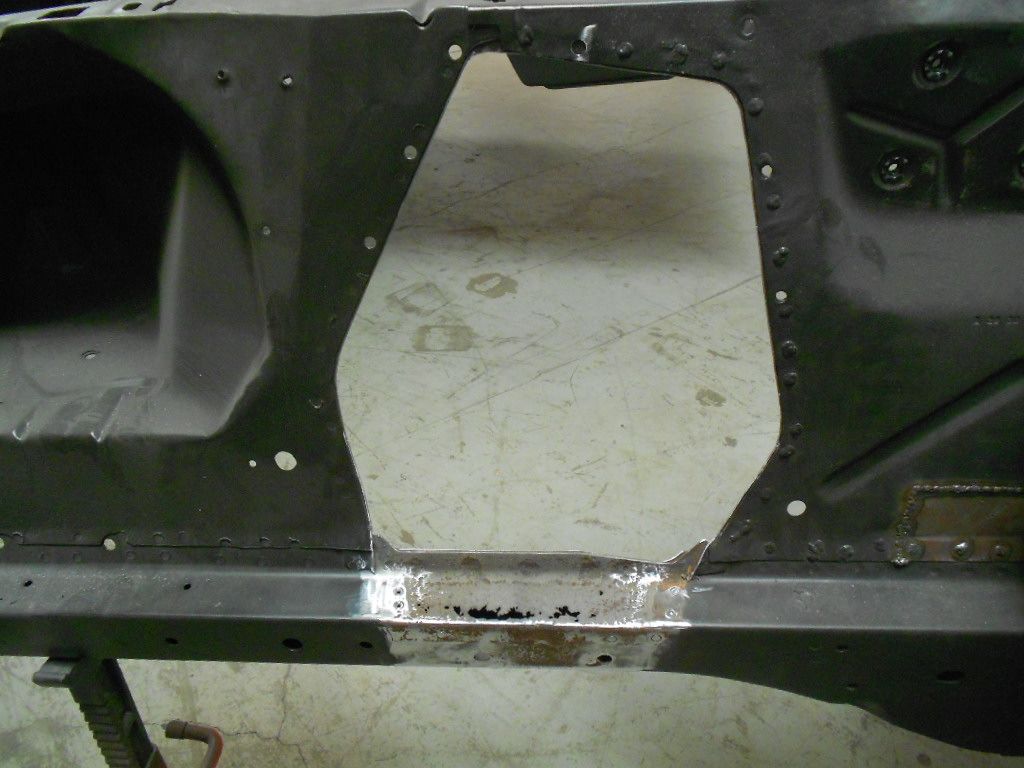

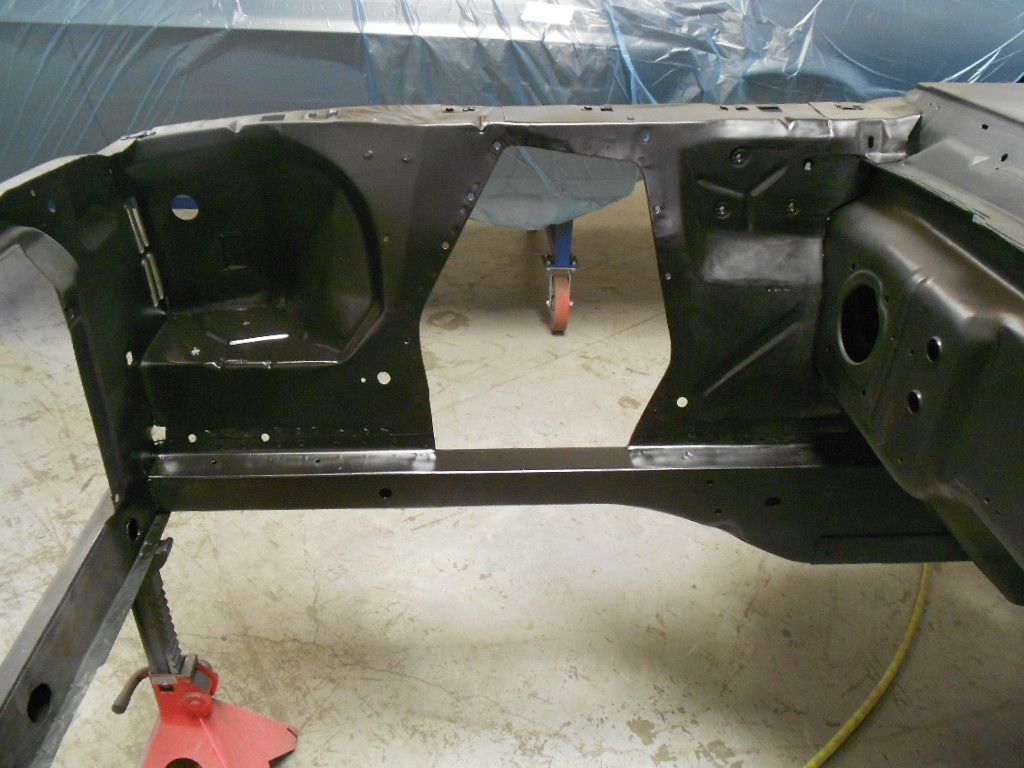

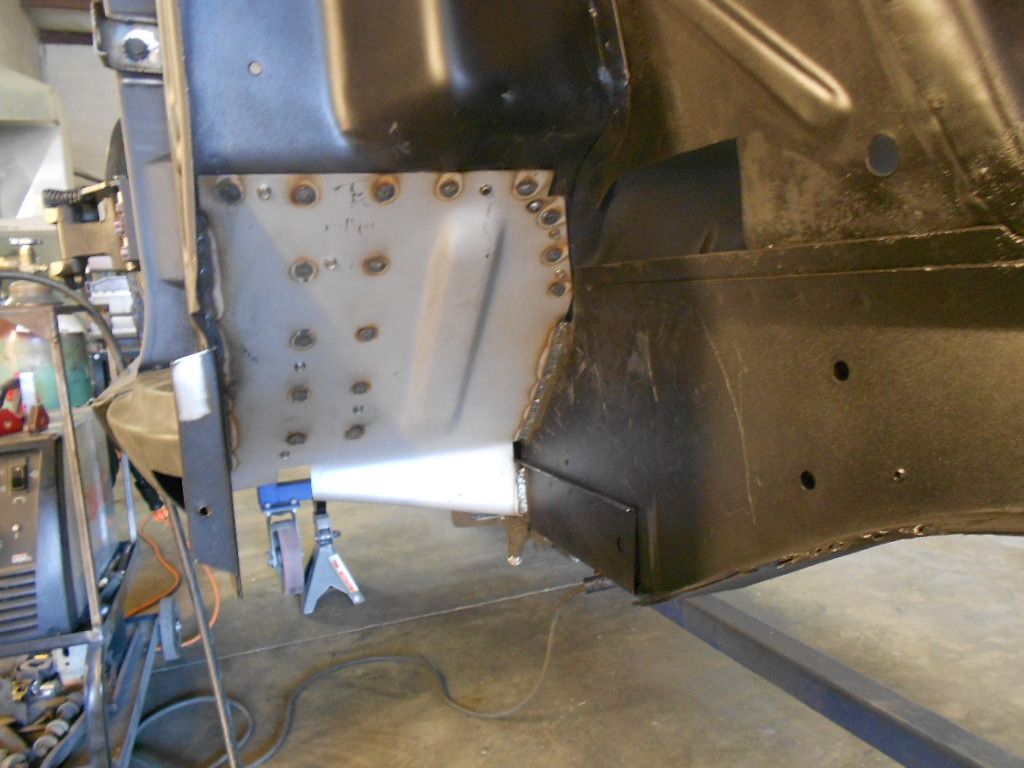

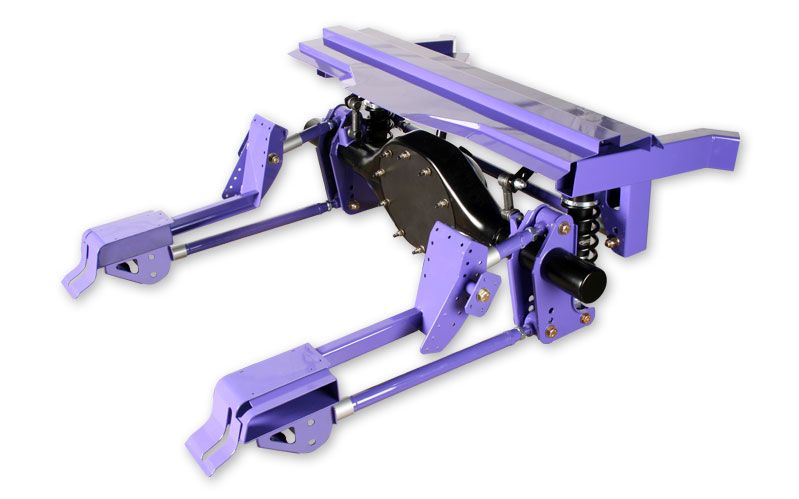

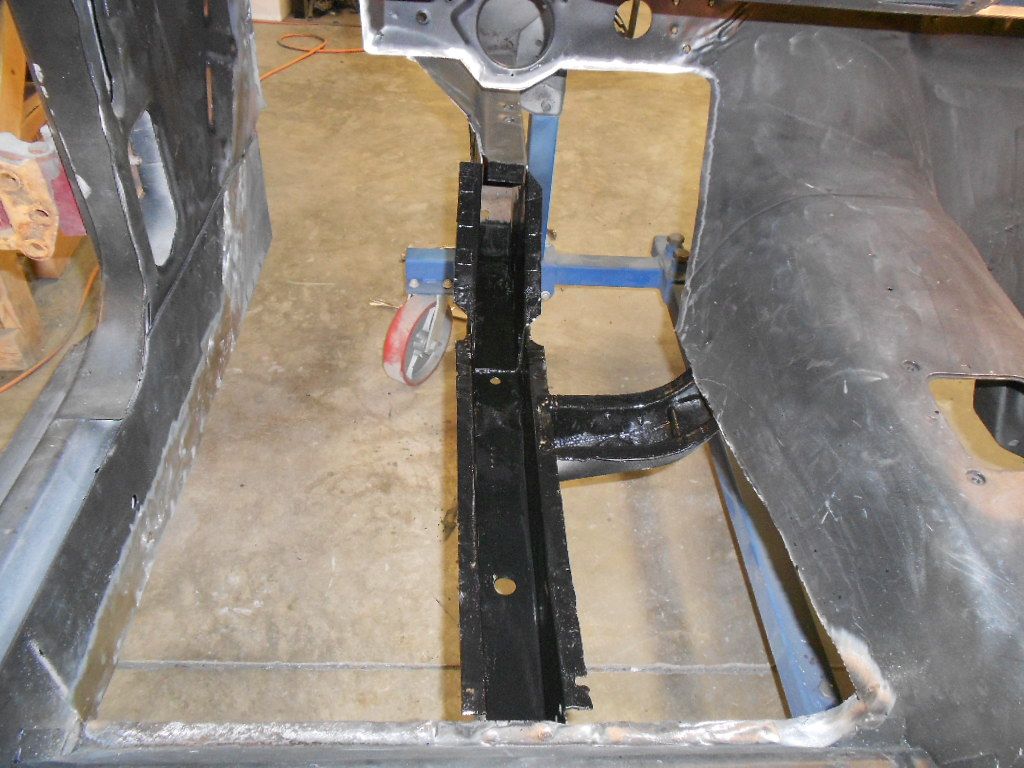

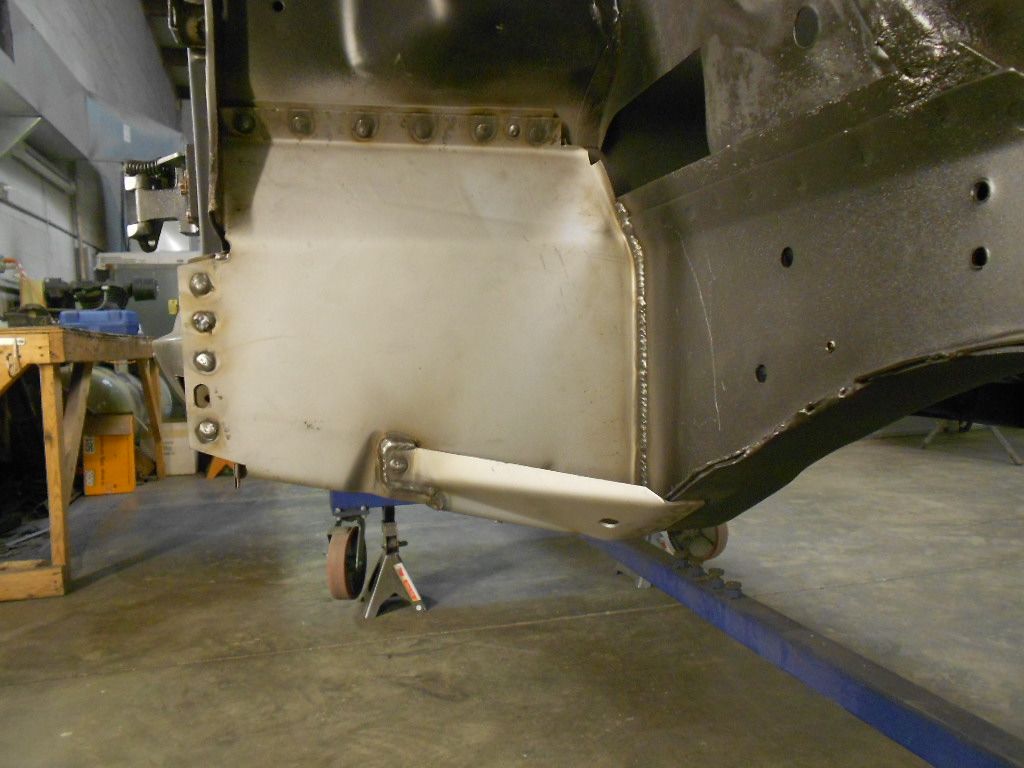

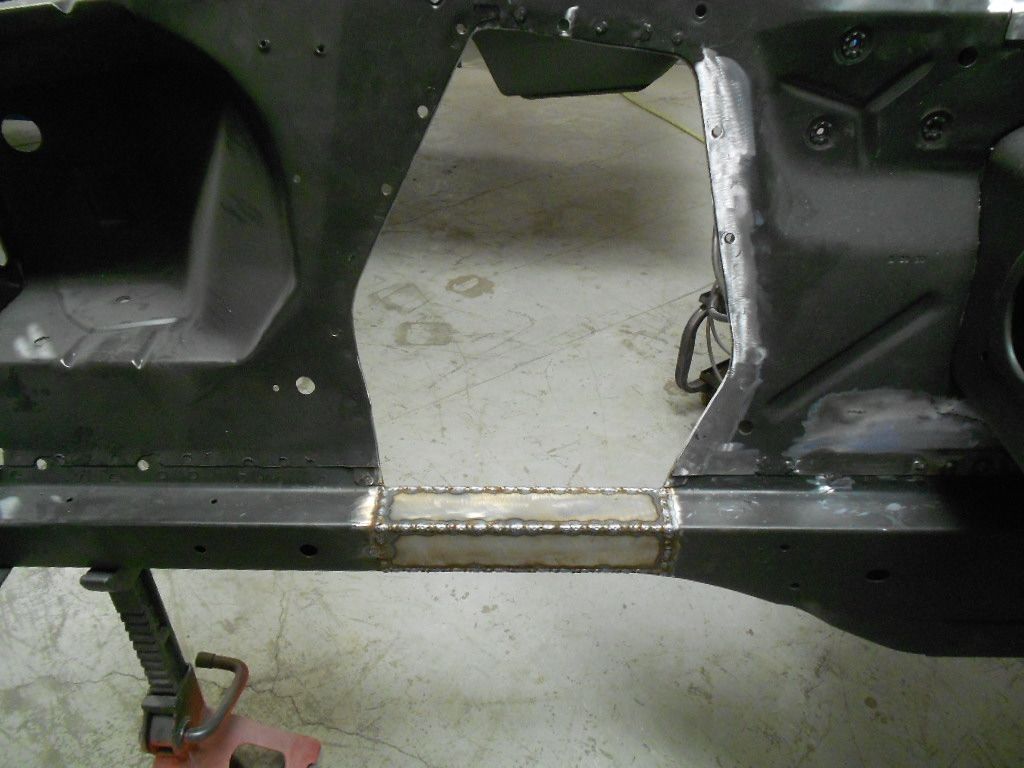

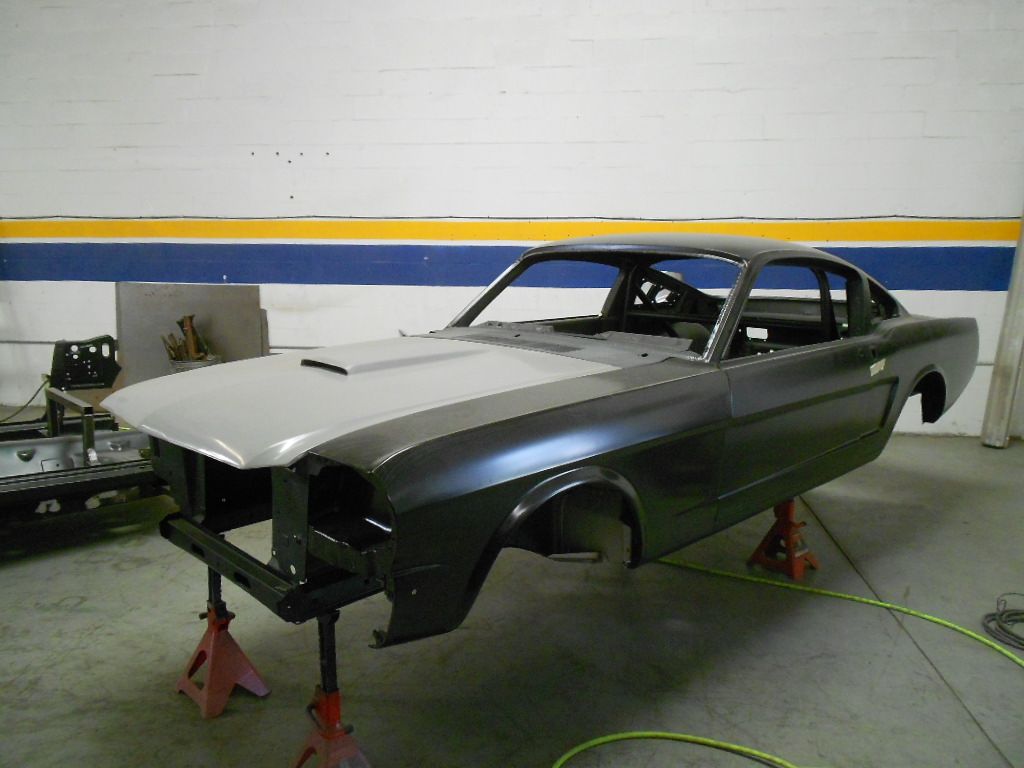

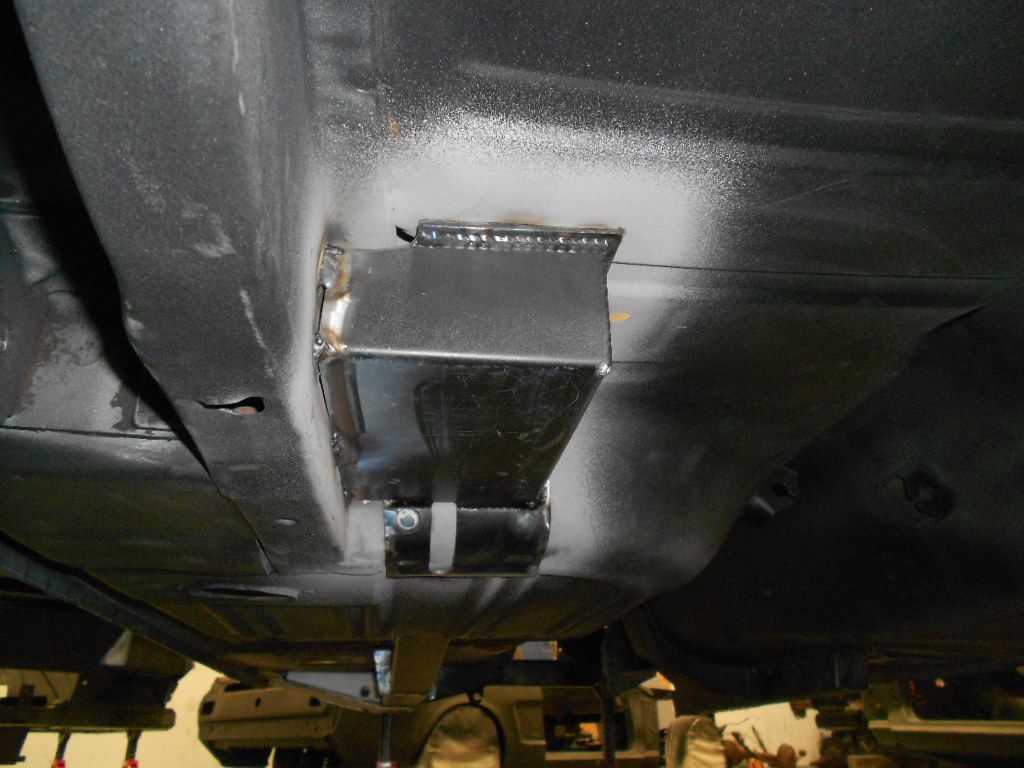

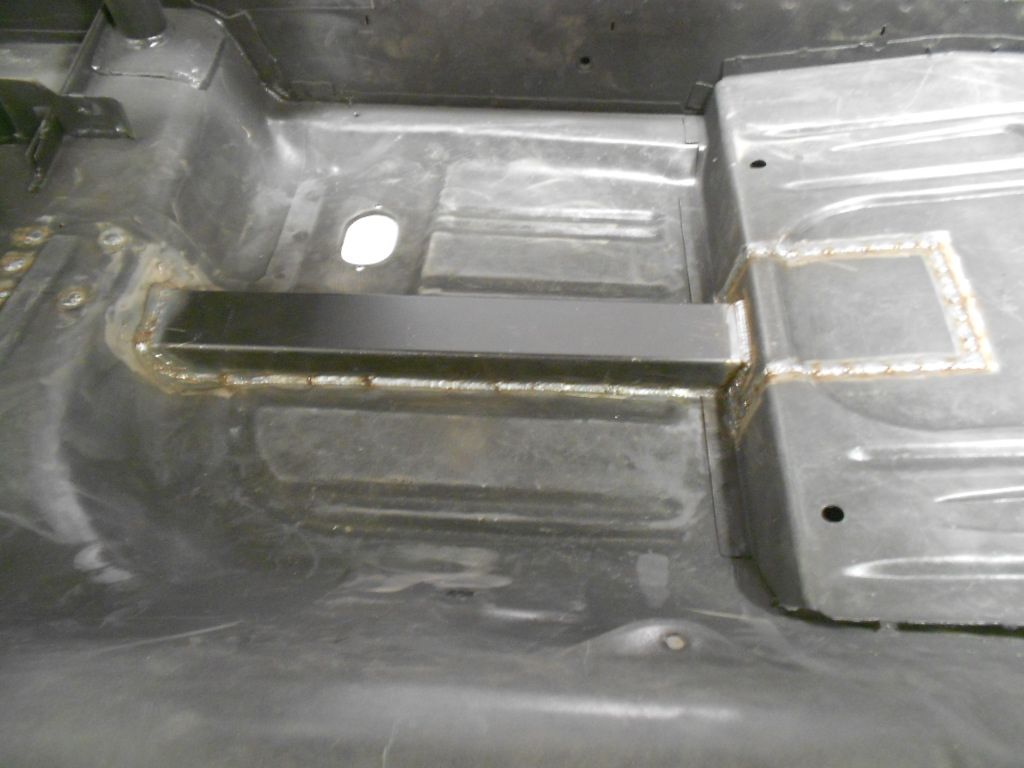

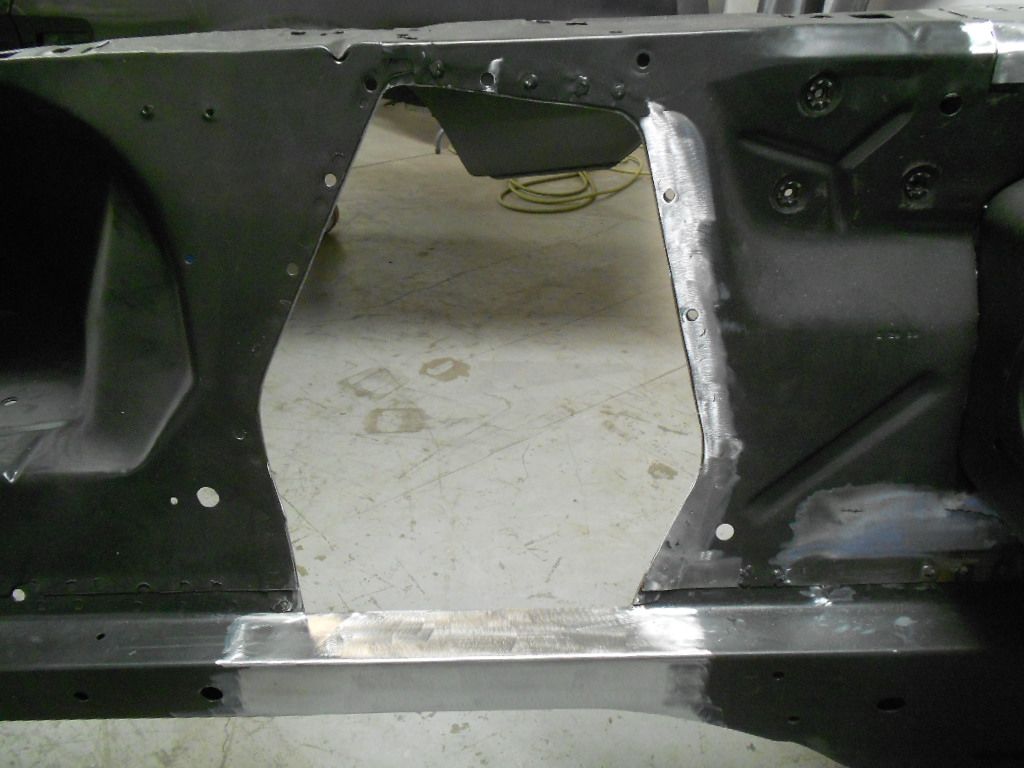

http://img.photobucket.com/albums/v3...ustang/119.jpg Brushed epoxy http://img.photobucket.com/albums/v3...ustang/120.jpg http://img.photobucket.com/albums/v3...ustang/121.jpg Installed torque boxes http://img.photobucket.com/albums/v3...ps628e4cce.jpg http://img.photobucket.com/albums/v3...pscc07c6f6.jpg Test fitting http://img.photobucket.com/albums/v3...ps241f1f60.jpg Installing DSE subframe connectors http://img.photobucket.com/albums/v3...ps496dfcd2.jpg http://img.photobucket.com/albums/v3...psa7270b0b.jpg http://img.photobucket.com/albums/v3...ps10e50f2e.jpg Both front frame rails had a little rust http://img.photobucket.com/albums/v3...ps1b4b2138.jpg http://img.photobucket.com/albums/v3...ps43c11e13.jpg http://img.photobucket.com/albums/v3...ps83475c51.jpg http://img.photobucket.com/albums/v3...ps5054d491.jpg We are waiting for the DSE rear suspension http://img.photobucket.com/albums/v3...psa4d11c80.jpg |
Very nice work guys,really like these cars,DSE parts sure are nice:thumbsup:
|
Great work as usual :cheers:
|
Quote:
|
Great to see another being brought back to life. Outstanding metal work as always!
|
Damned fine work. Subbing in.
|

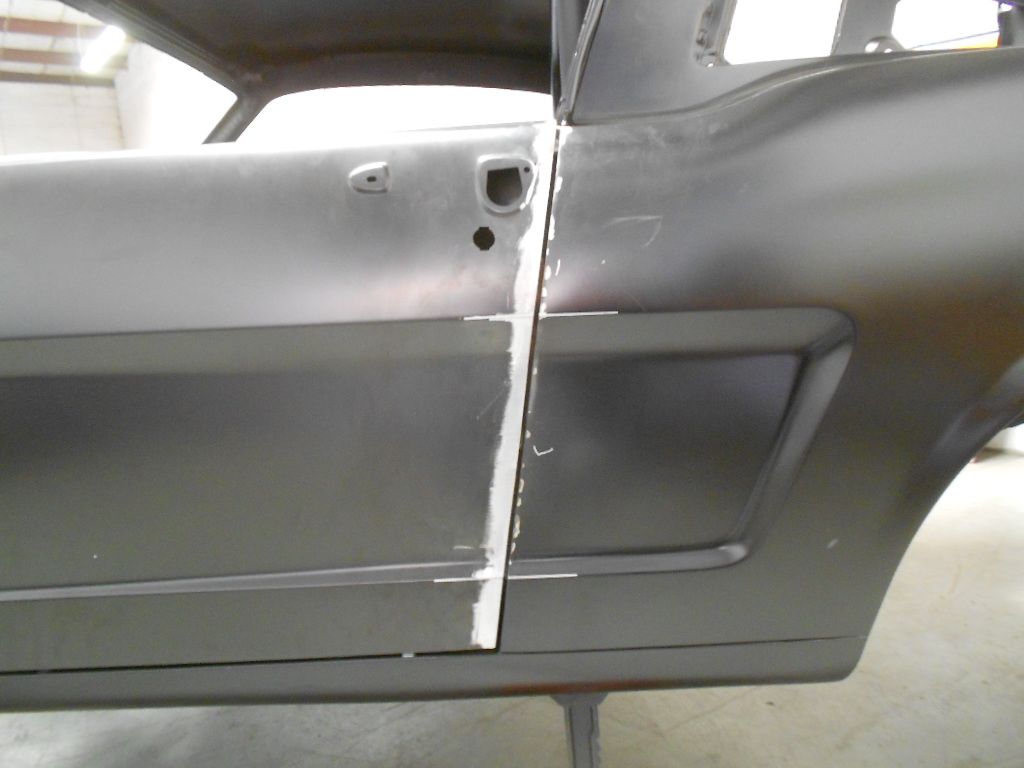

Fixing the door gap

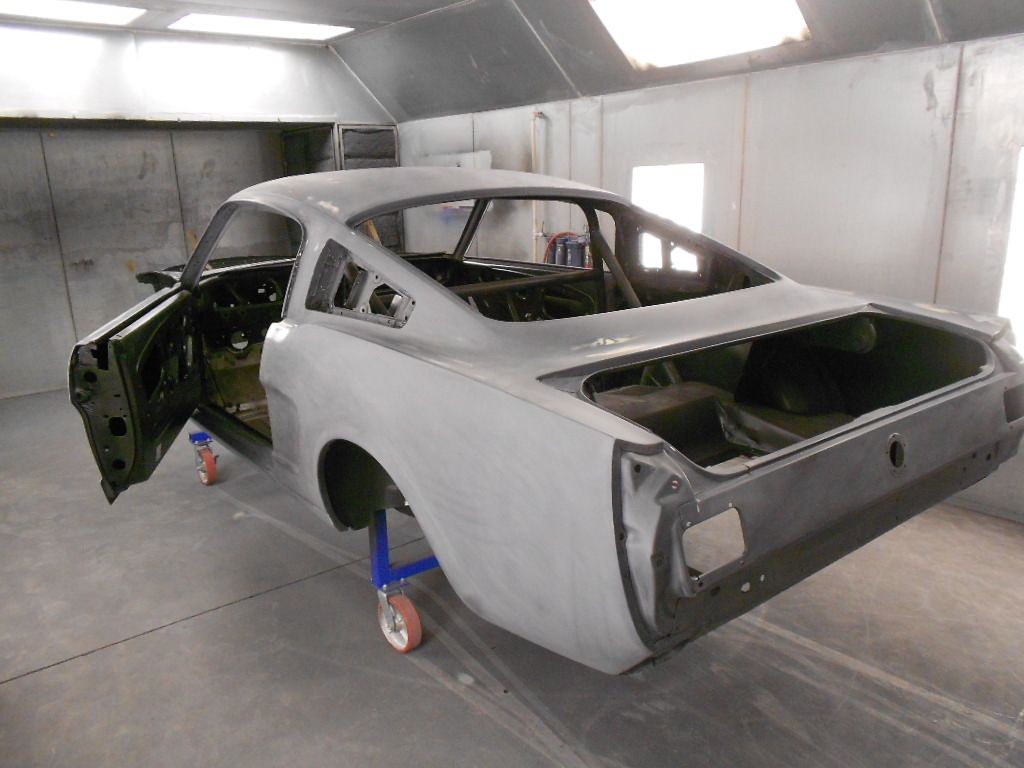

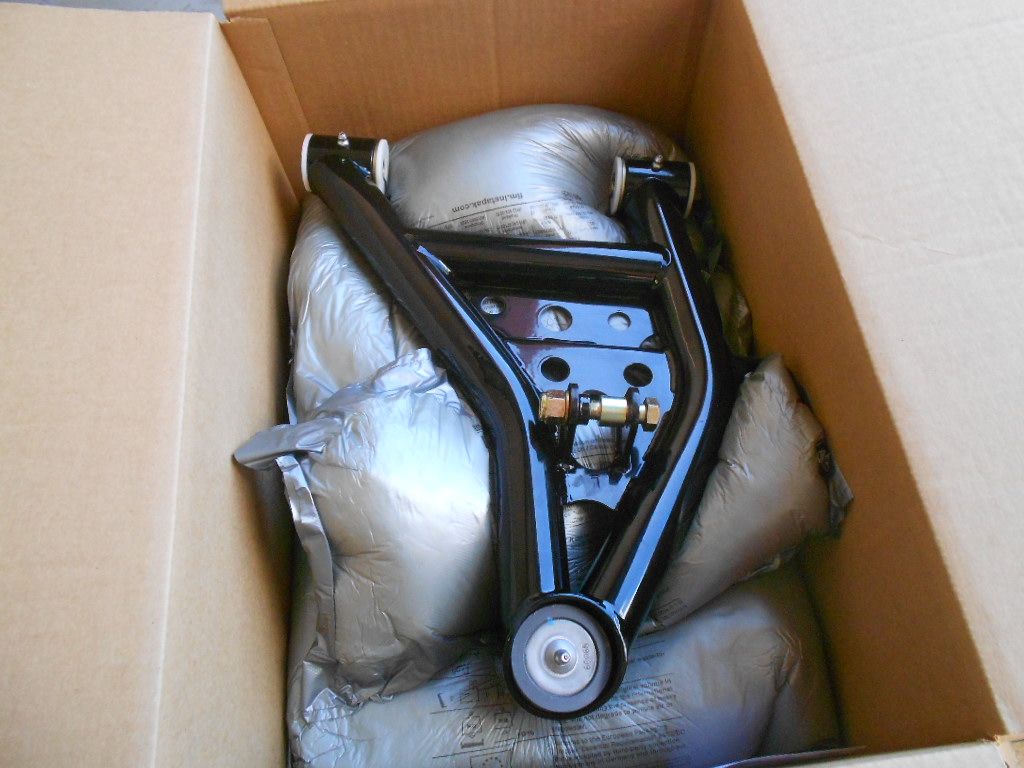

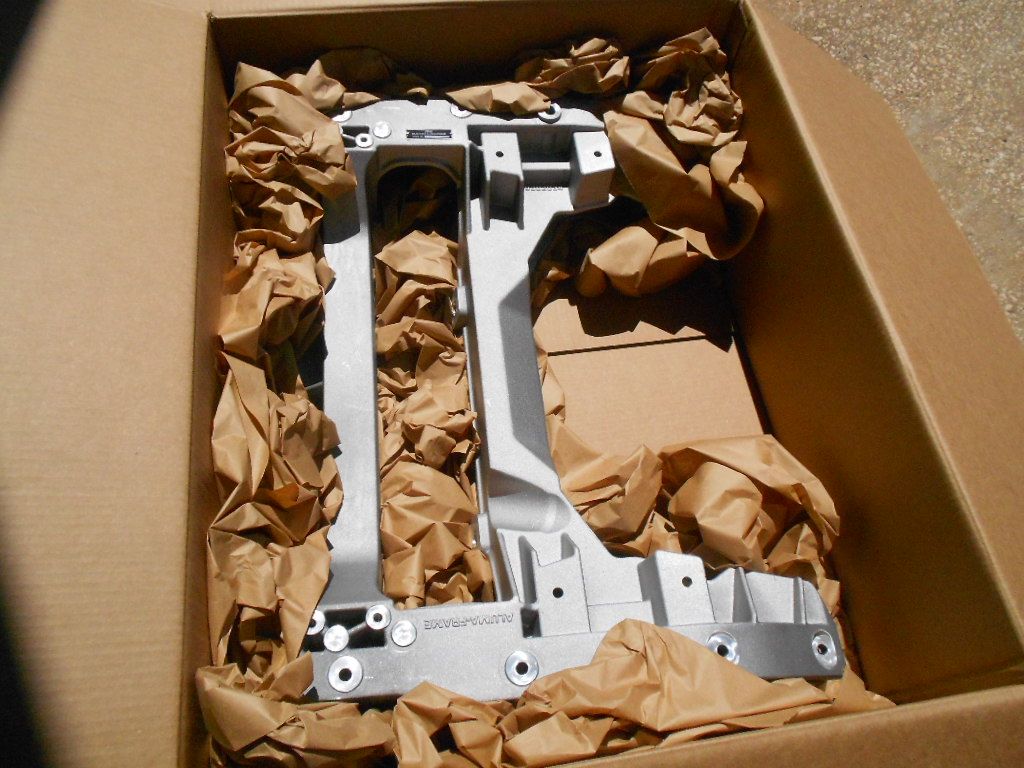

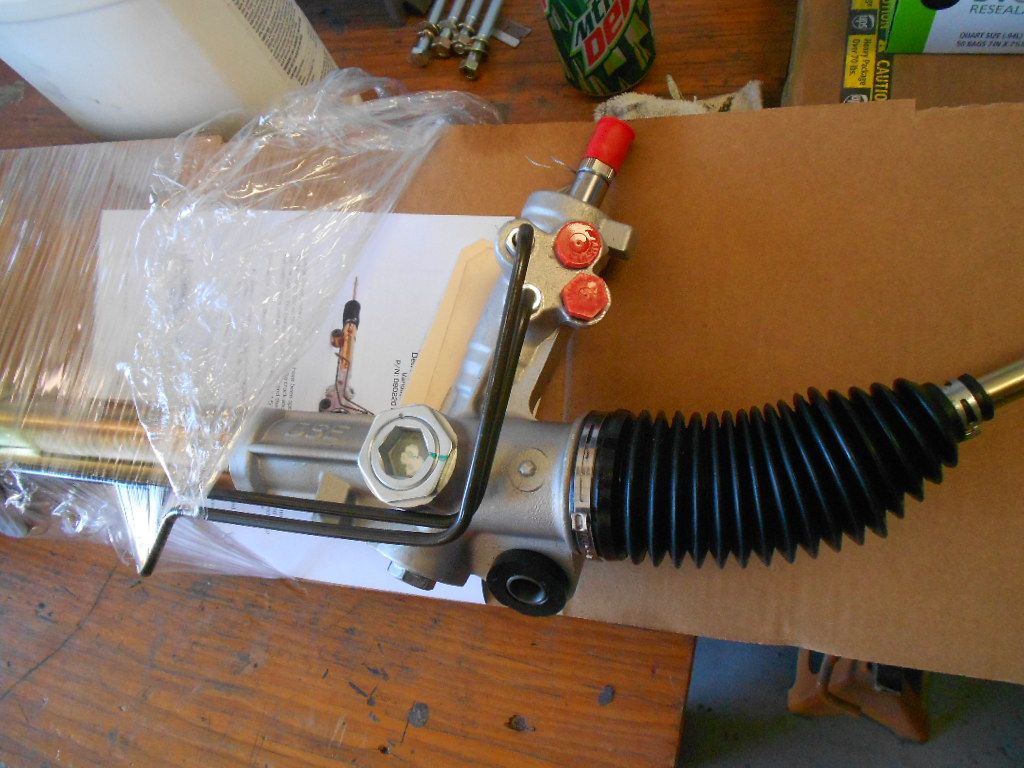

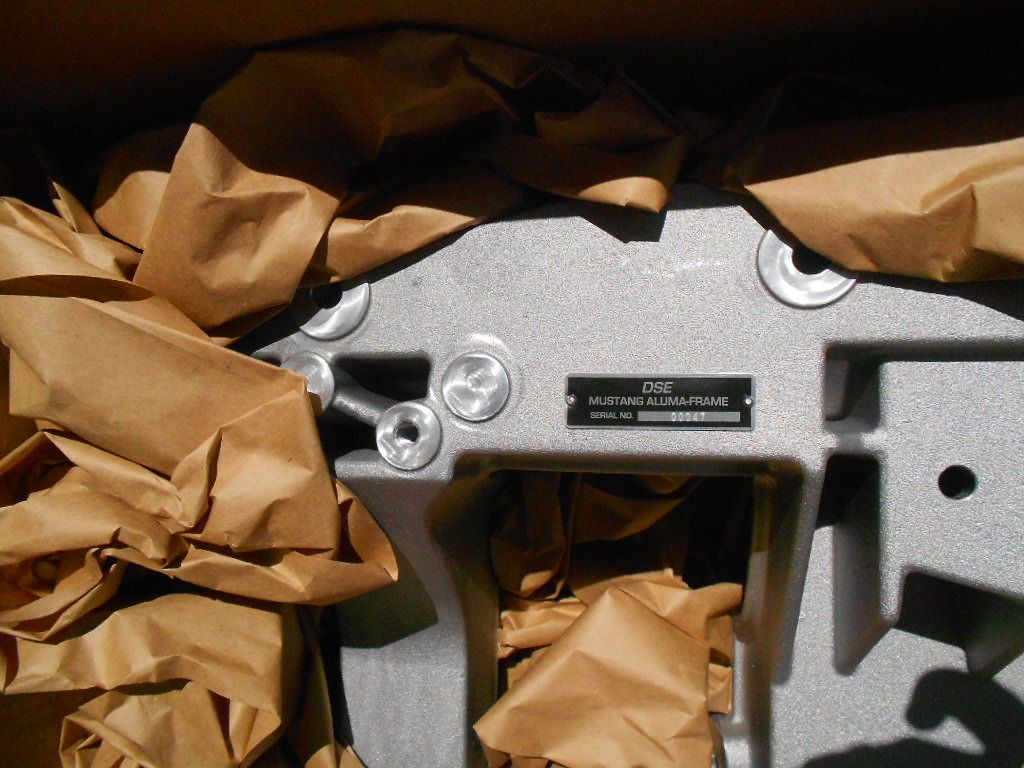

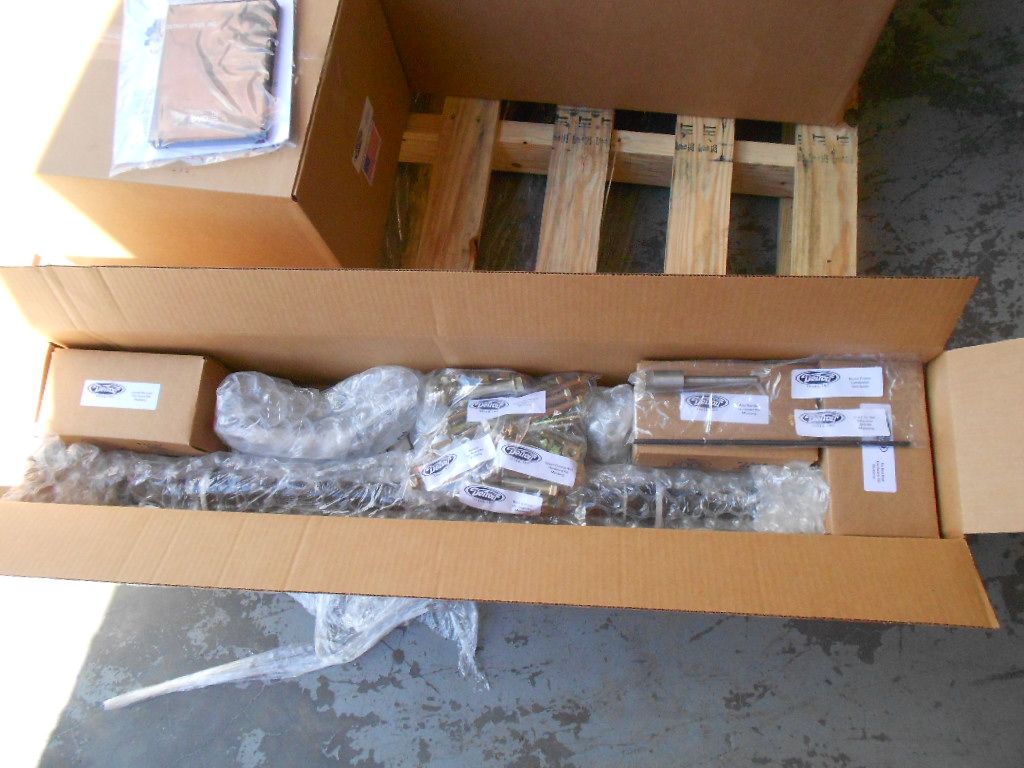

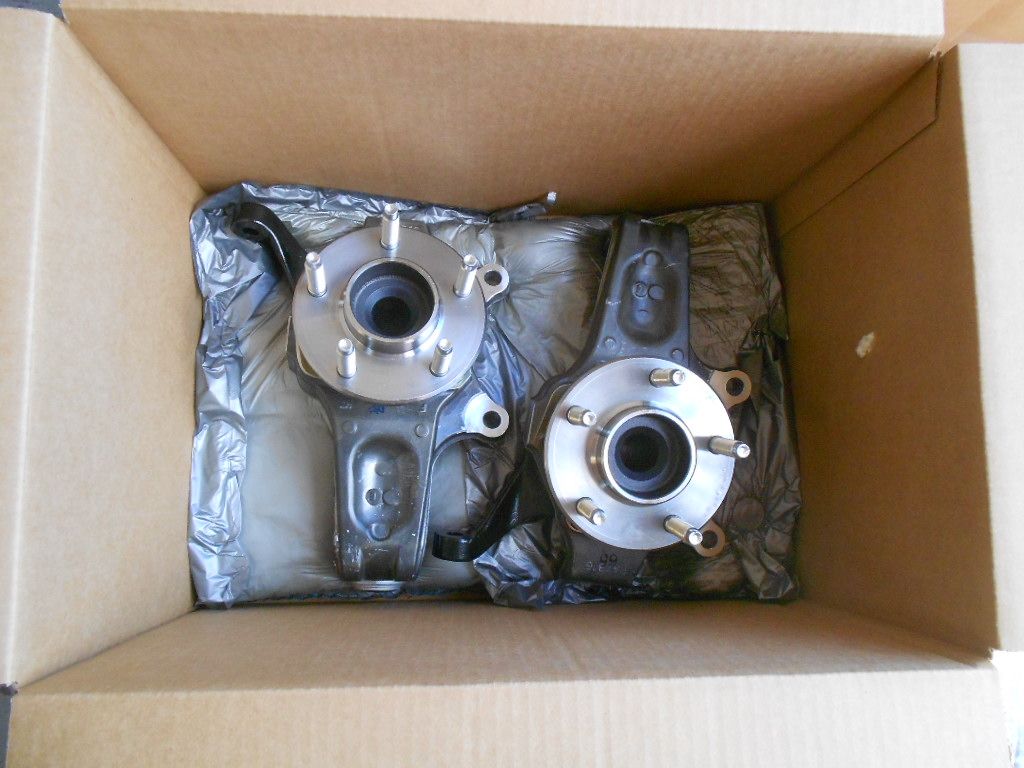

http://img.photobucket.com/albums/v3...ps8842c614.jpg Block sanded and ready for more primer http://img.photobucket.com/albums/v3...pse0a00701.jpg Two coats of SPI epoxy http://img.photobucket.com/albums/v3...ps927e98ab.jpg DSE parts came in except the rear housing. Now we just need to find the time to install all these cool parts. http://img.photobucket.com/albums/v3...psa15f02ff.jpg http://img.photobucket.com/albums/v3...psc7c9fabd.jpg http://img.photobucket.com/albums/v3...ps080b202f.jpg http://img.photobucket.com/albums/v3...ps74ac590d.jpg http://img.photobucket.com/albums/v3...pse2625c30.jpg http://img.photobucket.com/albums/v3...psd961efcd.jpg http://img.photobucket.com/albums/v3...ps5bc85f6f.jpg |
Wow, the cavalry just arrived. :cool:
Congrats on the progress...it all looks great. |
Fastback
Coming along nice
|
This turning out great.I love these fastback mustang's.And the DSE part's are a perfect fit.
|
whats going to be the drivetrain?
|
Quote:
|
excellent work:thumbsup:
|
When you epoxy prime the inside of the quarter panels and such, do you consider that good enough protection or do you plan on those surfaces eventually receiving another top coat as well ?
Maybe a dumb question, but I'm not sure how accessible some of those areas are whne you are ready for top coat. |
How is this build compared time wise to the Dynacorn body build ?
|
Quote:
We will prime again and paint whatever color the owner wants. |
Quote:
|

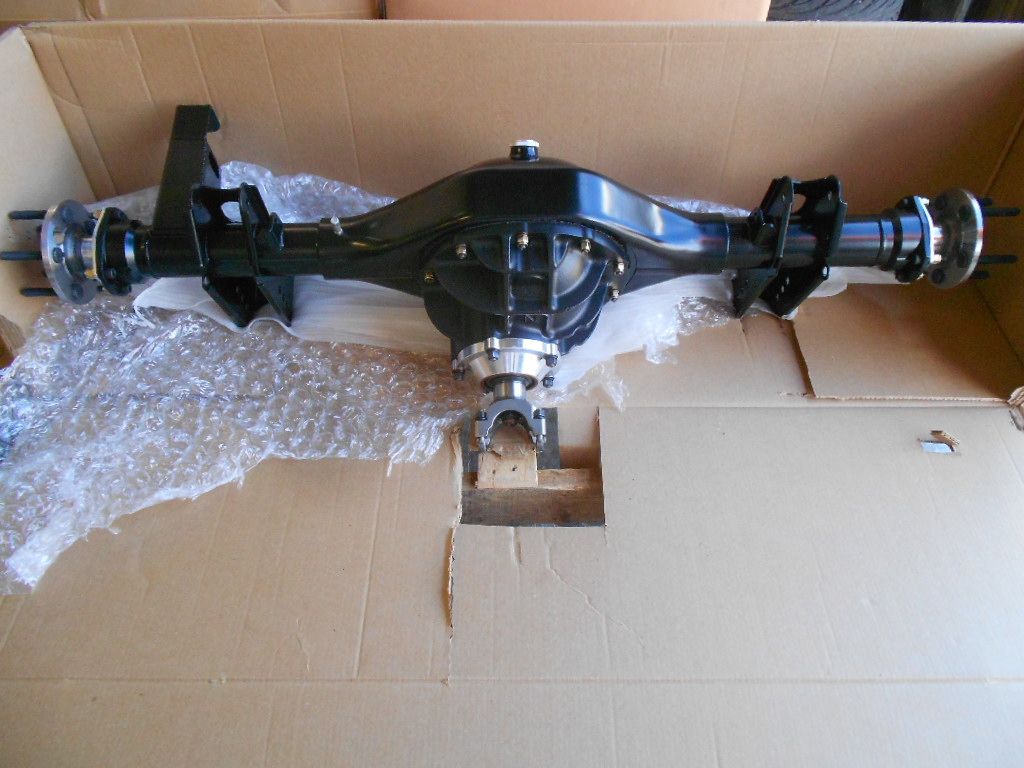

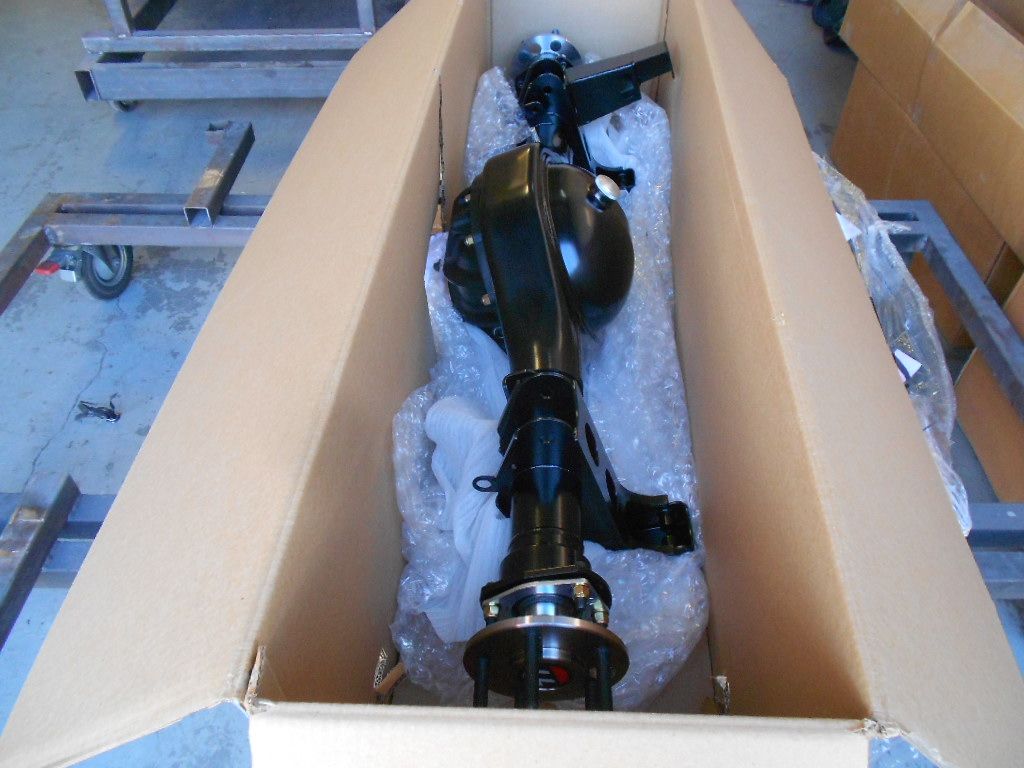

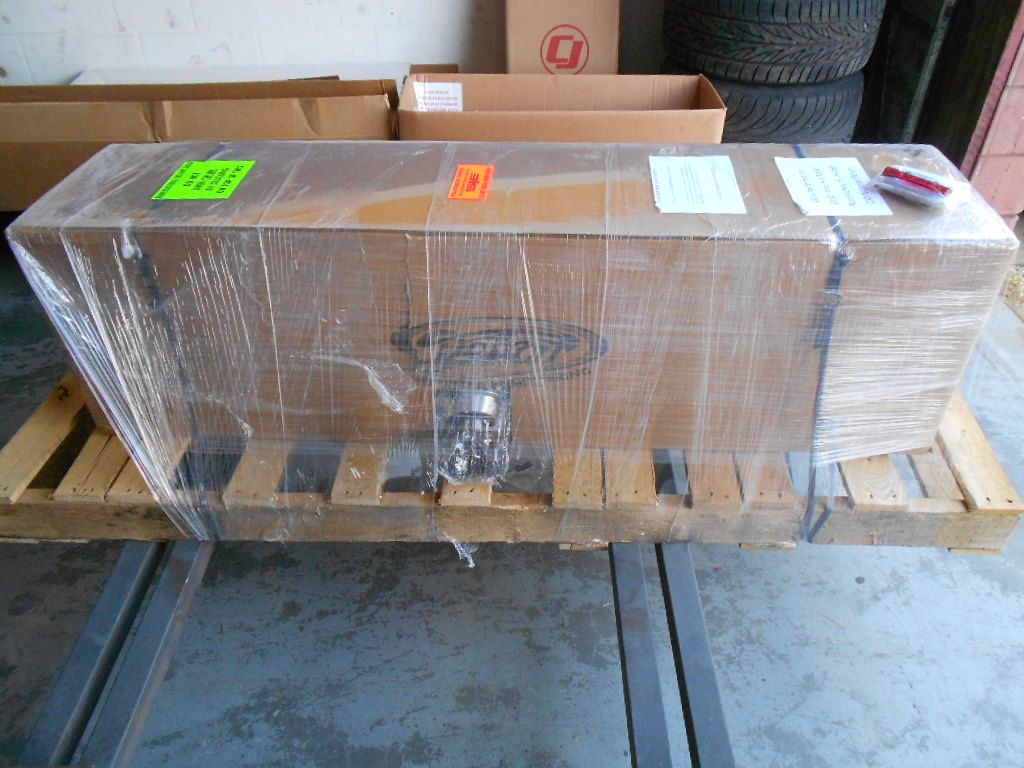

The rear end from DSE came in with the Quadra link brackets. Moser 9" 3.89 with 31 spline Truetrac
http://img.photobucket.com/albums/v3...ps6c22f892.jpg http://img.photobucket.com/albums/v3...psd4a493f0.jpg http://img.photobucket.com/albums/v3...psbbf773cb.jpg |
Updates? Awesome build.
|
Quote:
|
Damn, which I could afford to change my mind like that.
I got a new job so haven't been able to make it to any of the club meets. Possibly next week. |
Quote:
|
Great job on the build. Quick question on the rear end. Is it the same flange to flange width as a stock 65/66 (57.25")? It looks narrowed, and I imagine it has to be so the wheel and tire combo look good. Thanks in advance.
|
Gotta subscribe to this one --- You just have a fantastic shop Rusty!
|
some awesome bodywork going on, very nice build
|
Quote:
|
