VooDoo - 1969 Camaro by GAP Racing

VooDoo is a 1969 Camaro that came to us for Vintage Air, Suspension Upgrade, new wheels, and a few other minor mods. It soon changed direction and turned into a complete build. We started making some body mods and noticed the car had a lot of filler in it. So then we had it media blasted. Once the car became a full build, we sat down with the customer to come up with a game plan. The car titled "VooDoo" will have a Twin Turbo BBC, Full DSE Suspension, Custom Cowl Hood that extends to the windshield, Goolsby Door handles, Custom rear spoiler, 67/68 Fuel filler, Raised fuel tank into trunk floor, DSE Mini Tubs, Forgeline wheels, and a bunch of other body modifications.

http://i1337.photobucket.com/albums/...psc60e23c3.jpg

Big Thanks to Kris Horton for turning my vision into a really cool rendering.

The tear down begins
http://i1337.photobucket.com/albums/...ps5646662d.jpg

http://i1337.photobucket.com/albums/...ps18be43df.jpg

We started to smooth out the firewall and then ended up modifying the column area too
http://i1337.photobucket.com/albums/...ps37b3b1bd.jpg

http://i1337.photobucket.com/albums/...psda868715.jpg

Then we welded up a few items like side markers and the antenna hole
http://i1337.photobucket.com/albums/...ps240cd98e.jpg

Looks like its going to be a bad a$$ build! TTBBC!!!! Im watching this one! GL :popcorn2:

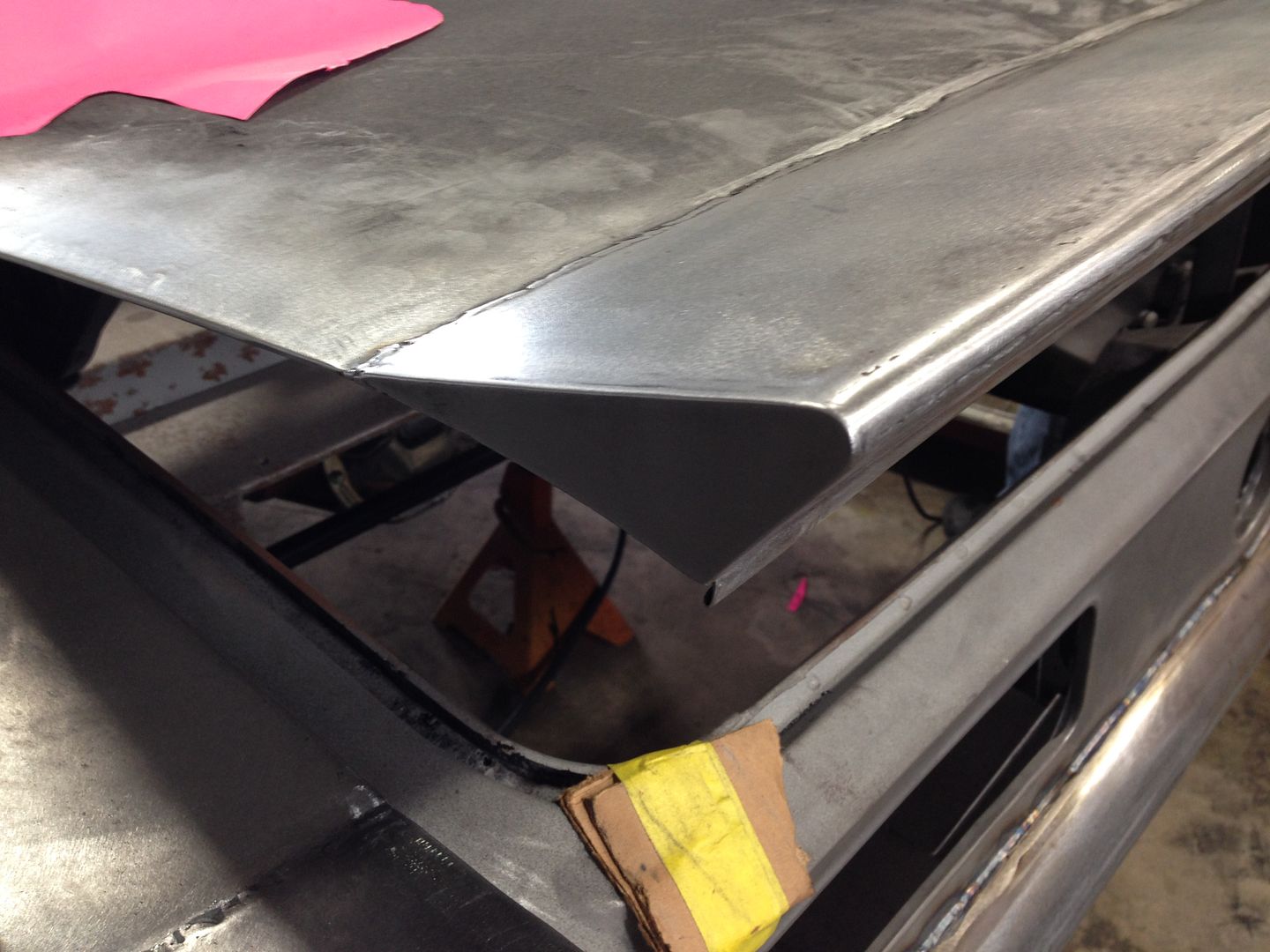

Working on the rear spoiler. Still a lot to do.

http://i1337.photobucket.com/albums/...ps2e412674.jpg

Where have you guys been hiding?You have been holding out on us with all this very impressive work,great job on all of these project updates your posting today.

Great job guys. I'm enjoying all your builds, so please keep posting :thumbsup:

Thanks guys. We have been a sponsor on here for a while. Just finally getting around to posting them up. I promise to post up more often. We have a lot more in the shop that I need to show off.

Quote:

Originally Posted by GAP Racing (Post 525894)

Thanks guys. We have been a sponsor on here for a while. Just finally getting around to posting them up. I promise to post up more often. We have a lot more in the shop that I need to show off.

Bad sponsor!! :twak: You've been withholding all of this awesomeness for all this time? You've got alot of catching up to do. :computer:

Hey 214Chevelle. Looks like you have an SRG IRS chassis in your photos. I have a build Im about to post up you might like. The guys at SRG just finished an IRS chassis for a 1970 Chevelle we are doing on air ride

How did you do the steering column at the firewall. I love how that really cleans it up. Can you provide some details?

Thanks,

David

Quote:

Originally Posted by Dave95z28 (Post 526117)

How did you do the steering column at the firewall. I love how that really cleans it up. Can you provide some details?

Thanks,

David

Yes. I have a lot more pics of that at the shop. Ill try to get them posted up tomorrow for you

Quote:

Originally Posted by tones2SS (Post 526160)

Looking good guys!

Thanks

Yes sir gentlemen!, looks great. Can't wait to see the other pics on the Camaro and the Chevelle

I'd say you need to slow down posting cars but knowing first hand what you haven't posted yet I'm sure you'll be able to keep this forum entertained a while.

William

Quote:

Originally Posted by GAP Racing (Post 525894)

Thanks guys. We have been a sponsor on here for a while. Just finally getting around to posting them up. I promise to post up more often. We have a lot more in the shop that I need to show off.

We double dawg dare ya to try and overwhelm us with pics.

:thankyou:

Quote:

Originally Posted by GAP Racing (Post 525894)

Thanks guys. We have been a sponsor on here for a while. Just finally getting around to posting them up. I promise to post up more often. We have a lot more in the shop that I need to show off.

Better later than never I always say. Great build

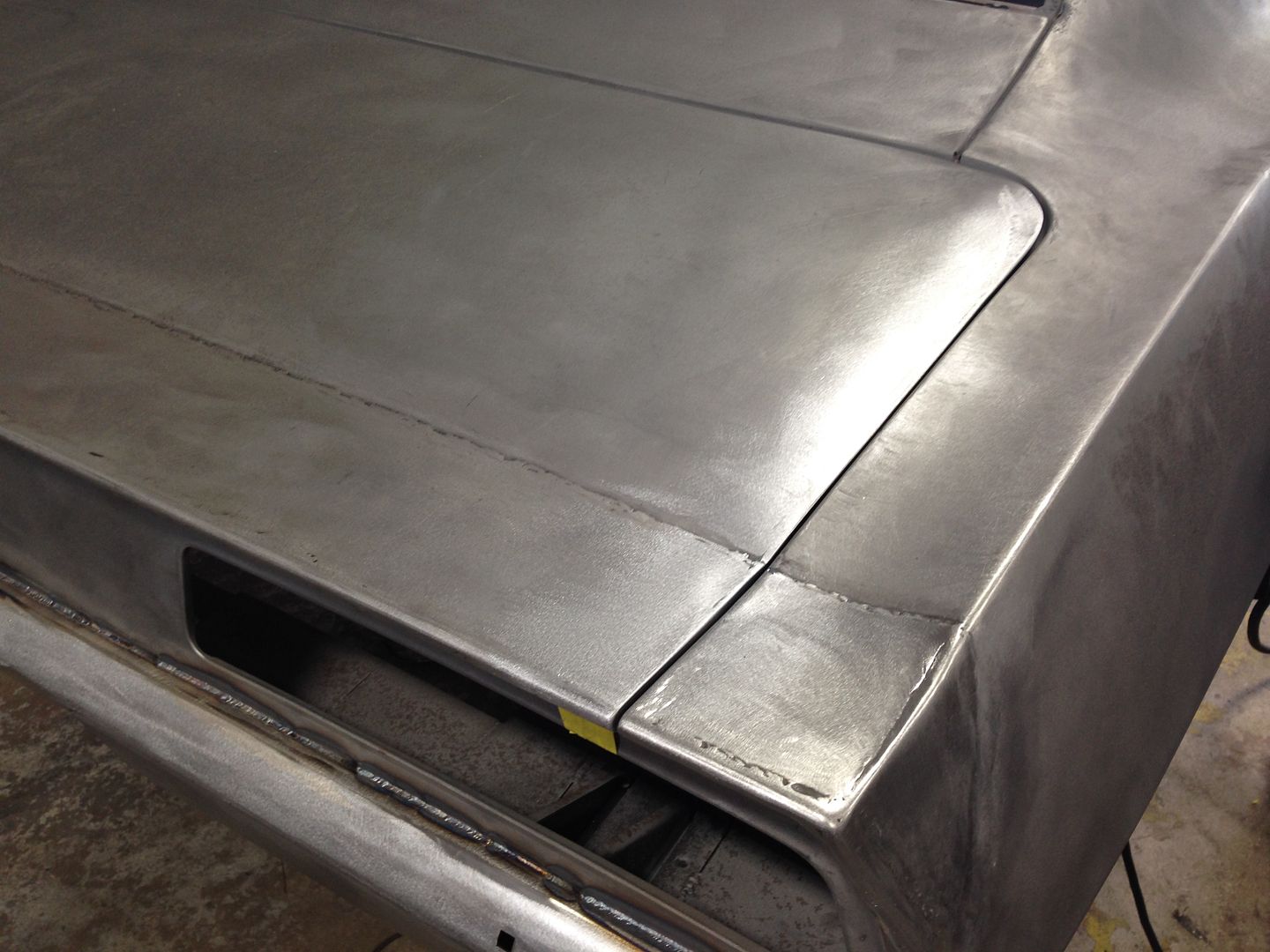

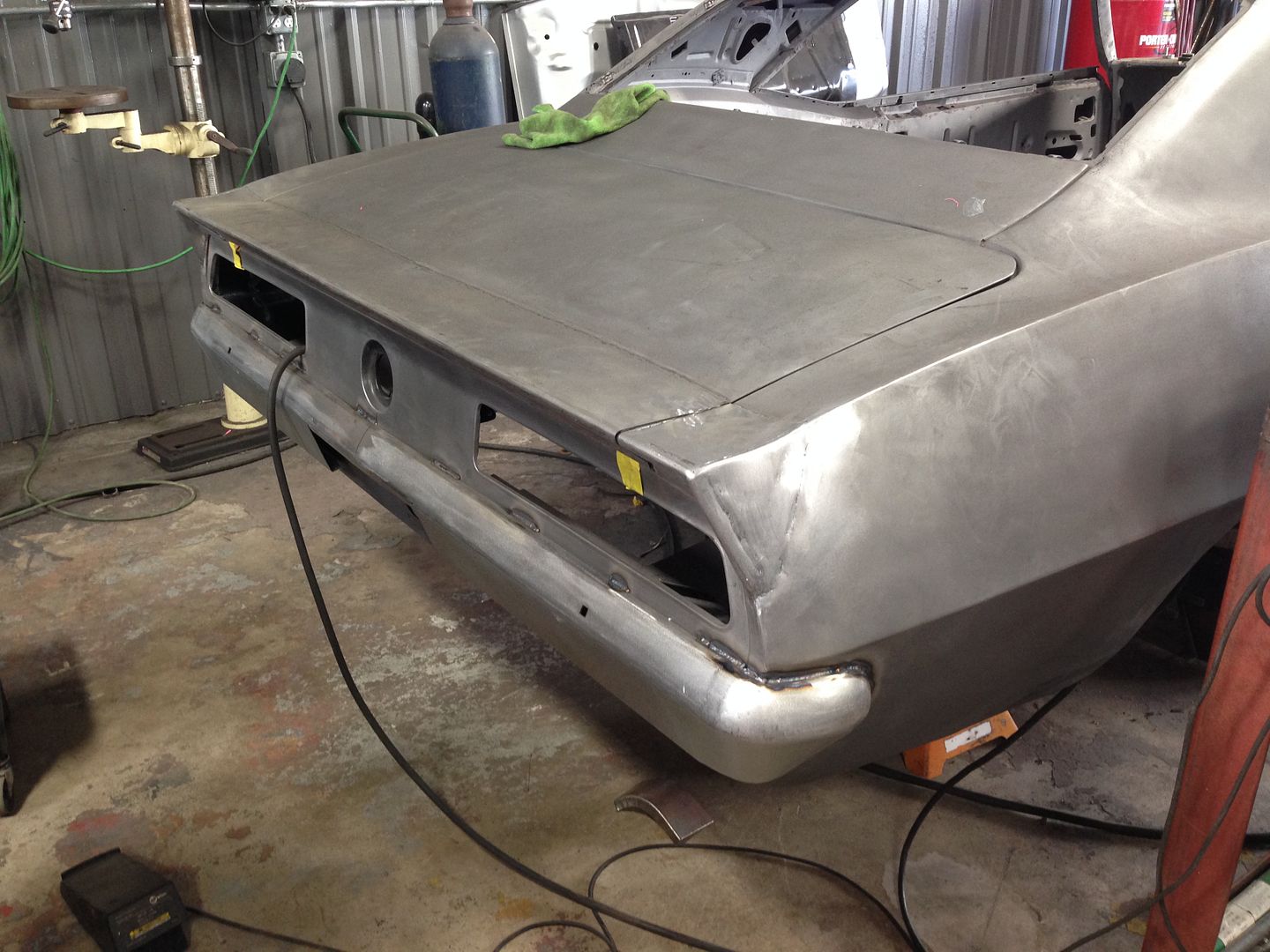

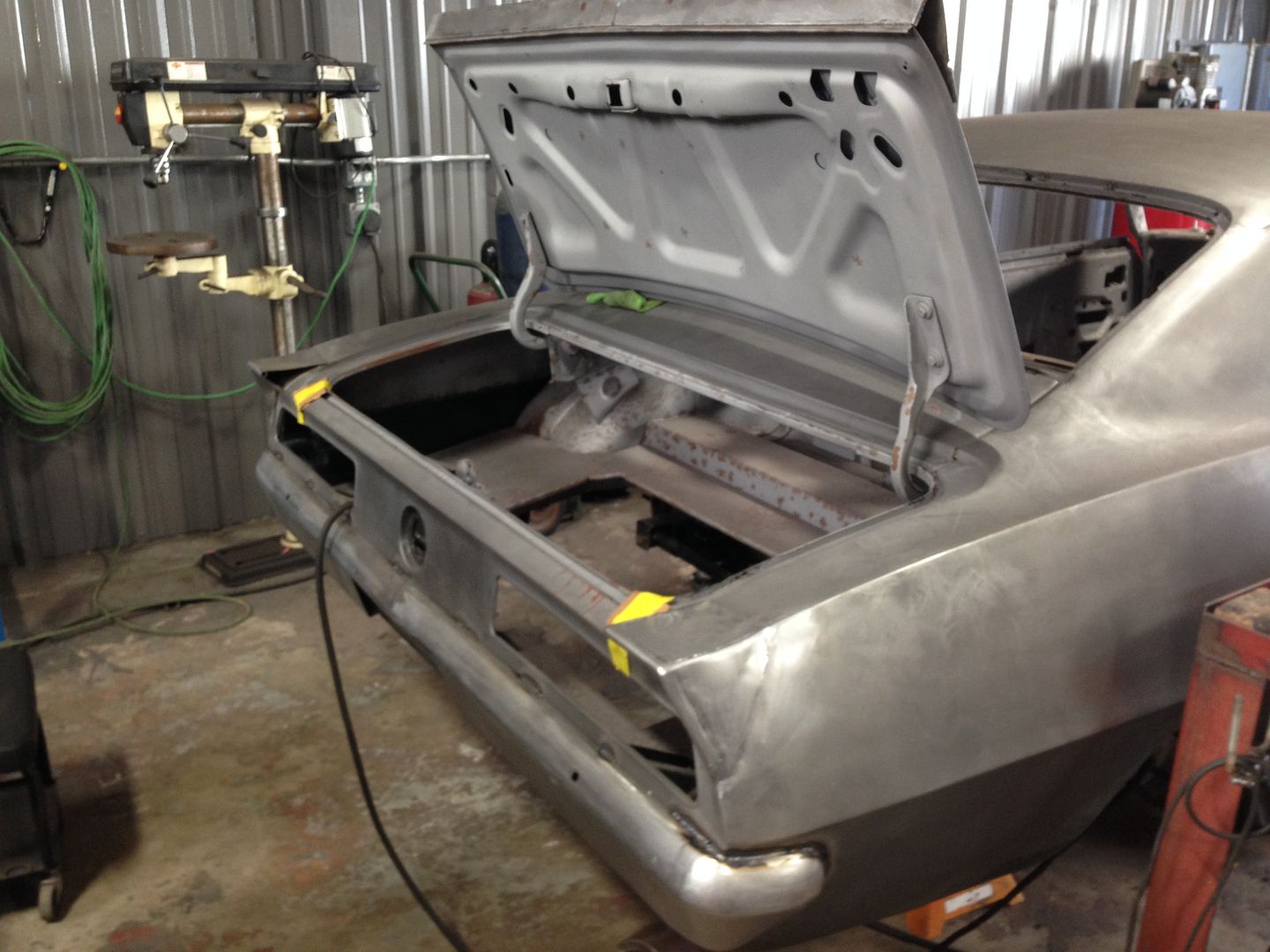

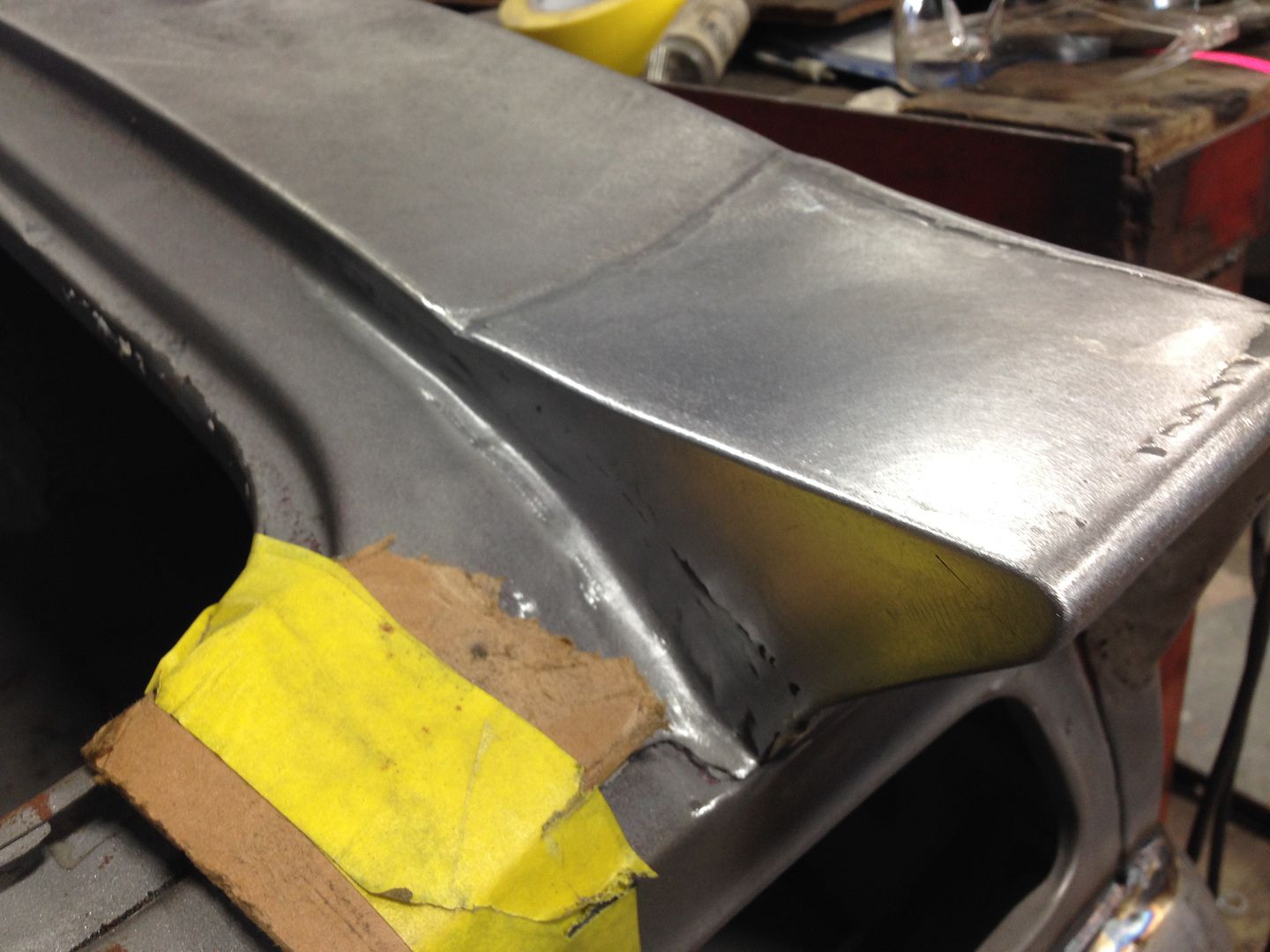

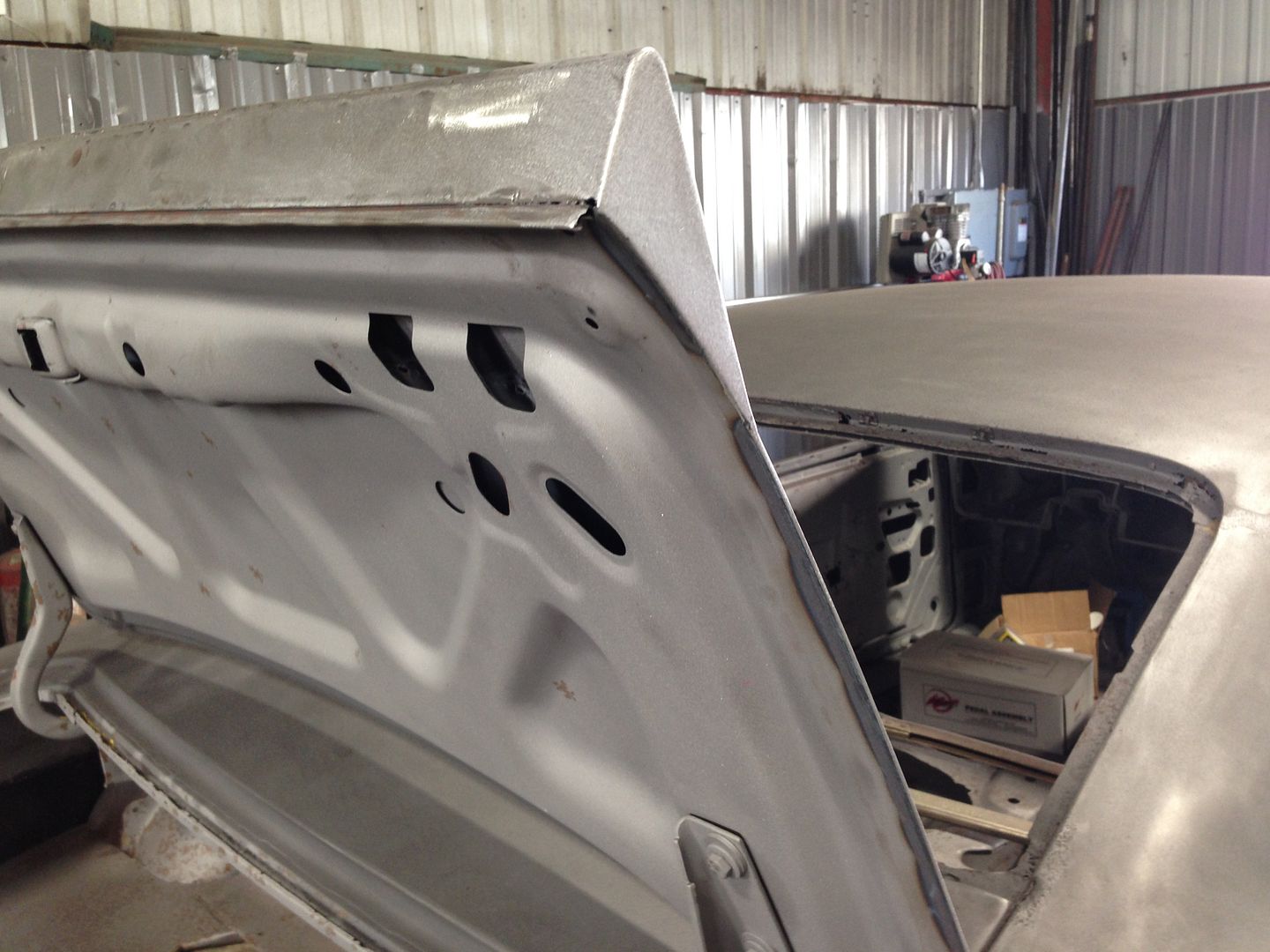

Finished up the rear spoiler and cut it open. Now I need to cap the ends off

http://i1337.photobucket.com/albums/...ps49xlk6mz.jpg

http://i1337.photobucket.com/albums/...psd9avim8j.jpg

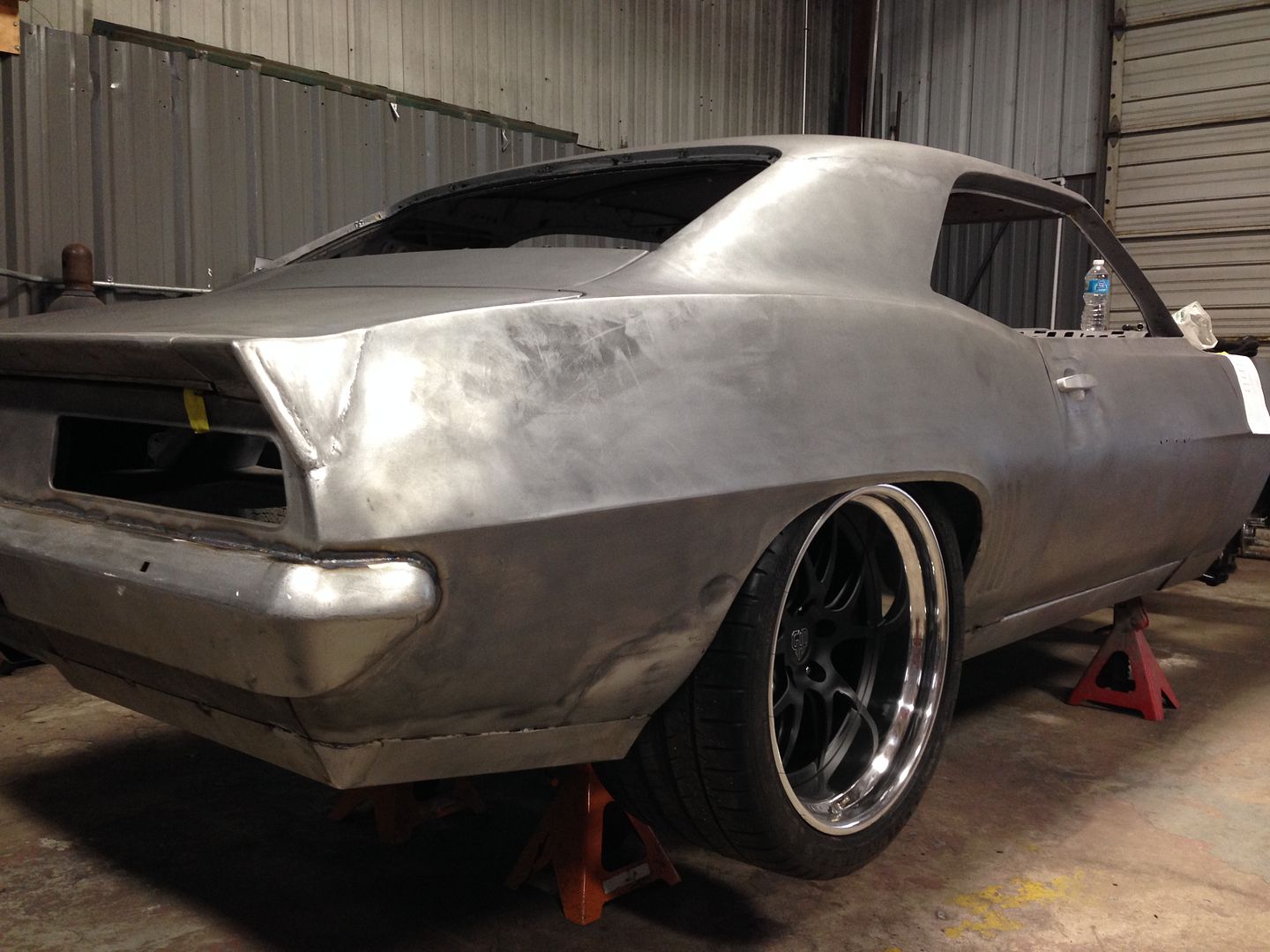

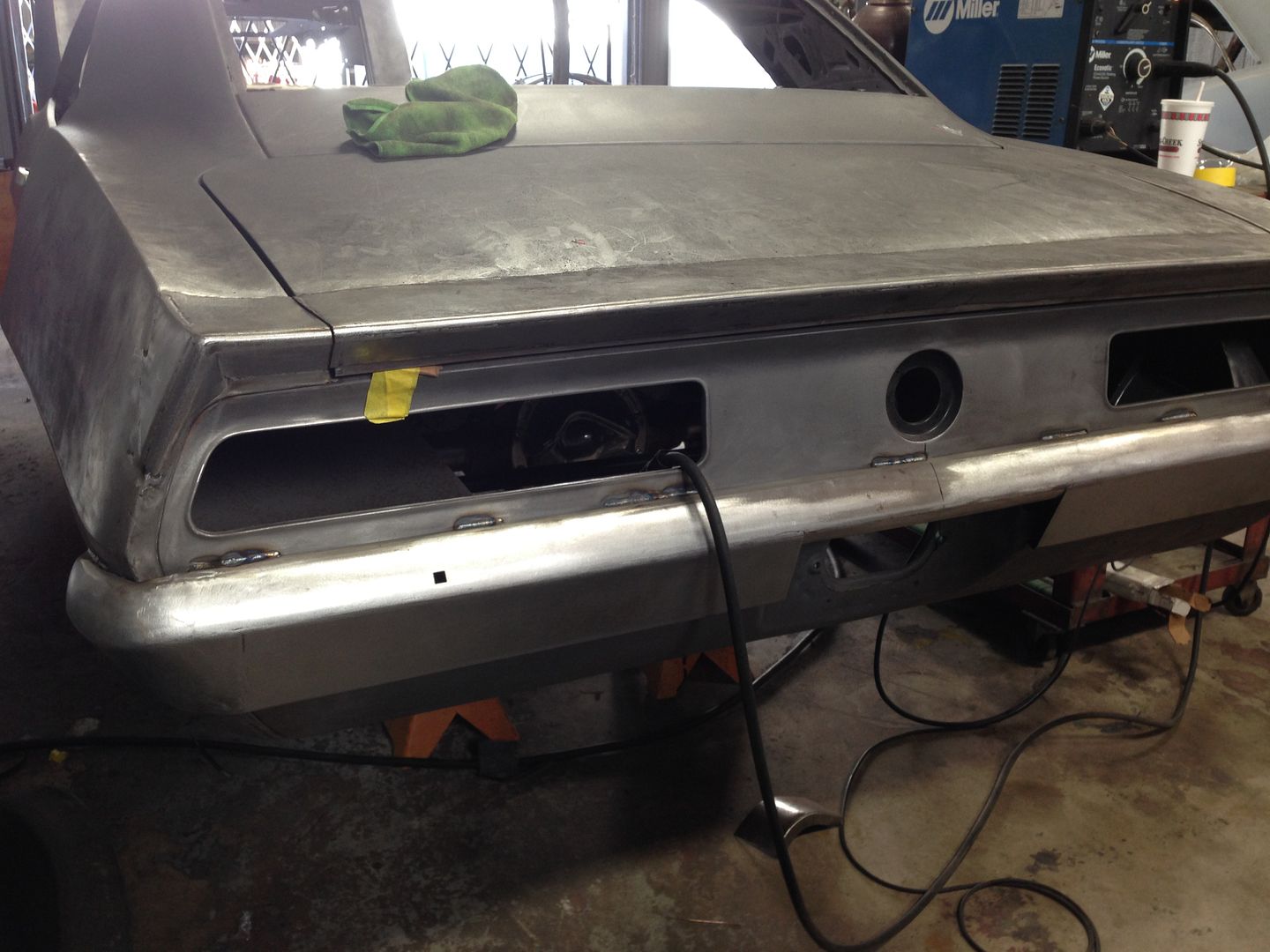

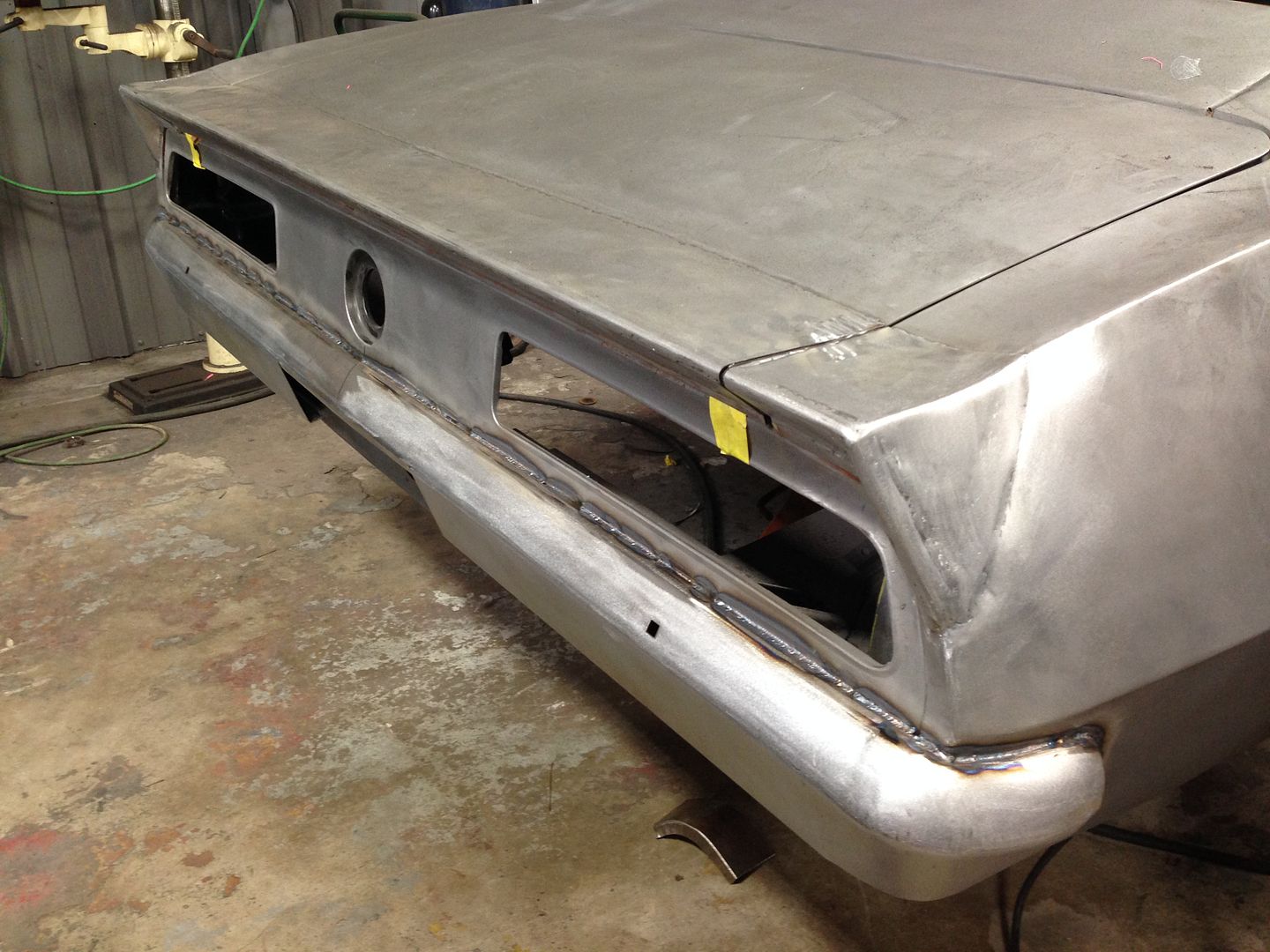

Also did more work on the rear bumper. We cut it down and made it tight to the body. Also added a little length to it to make it fit the look we were going after. Still need to build the license plate area and raise it up so we have room for the center exit exhaust. The bumper is going to be molded into the car.

http://i1337.photobucket.com/albums/...psfcyzydqt.jpg

http://i1337.photobucket.com/albums/...psdgpwjivp.jpg

You guys are turning out some awesome work,keep the pics coming:trophy-1302:

Awesome build! I can't wait to see more.

Quote:

Originally Posted by tubbed69 (Post 529074)

You guys are turning out some awesome work,keep the pics coming:trophy-1302:

Quote:

Originally Posted by waynieZ (Post 529129)

Awesome build! I can't wait to see more.

Thank you both. Should have more updates soon

Quote:

Originally Posted by GAP Racing (Post 526084)

Yeah, it's an SRG chassis. My chassis was the very first one Chris and the boys built. Can't wait to see pics of the air ride IRS you guys are building. You guys do great work! :flashie:

Quote:

Originally Posted by 214Chevelle (Post 529391)

Yeah, it's an SRG chassis. My chassis was the very first one Chris and the boys built. Can't wait to see pics of the air ride IRS you guys are building. You guys do great work! :flashie:

Im actually leaving this afternoon to head up to SRG to pick up our air ride chassis

Is this the look your going for in the rear?

Mario you got a nice rear end.

Quote:

Originally Posted by DOOM (Post 529435)

Is this the look your going for in the rear?

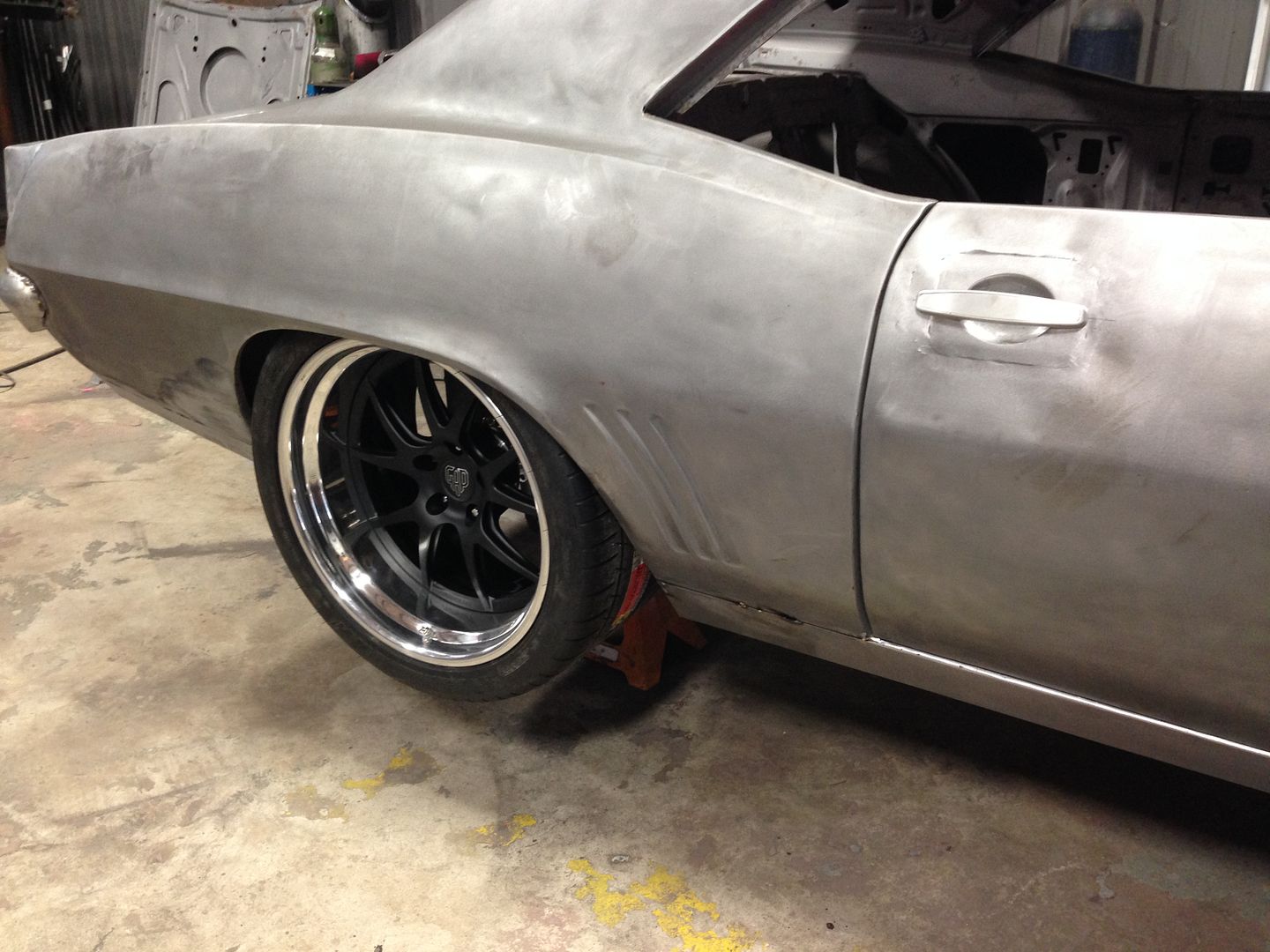

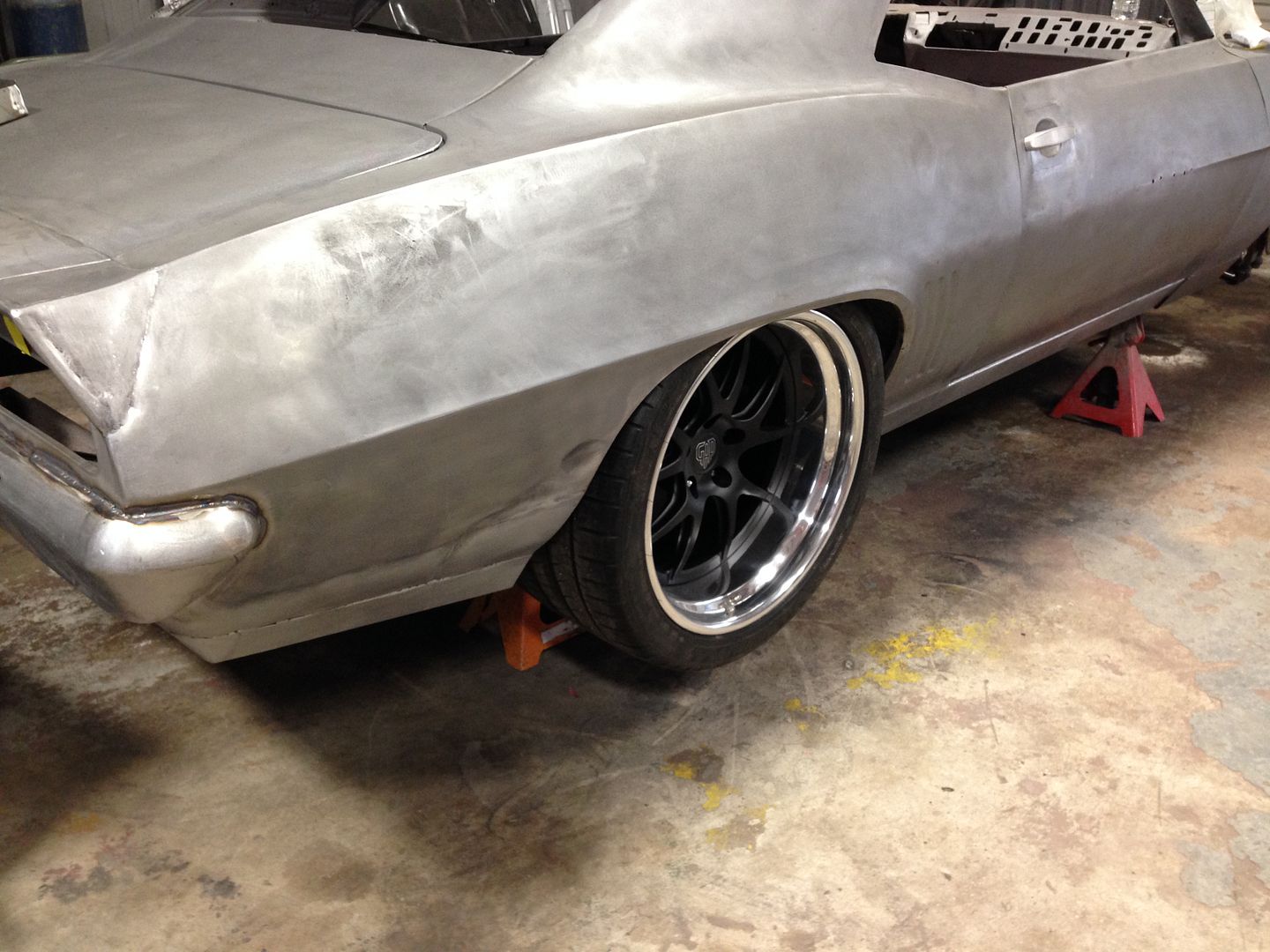

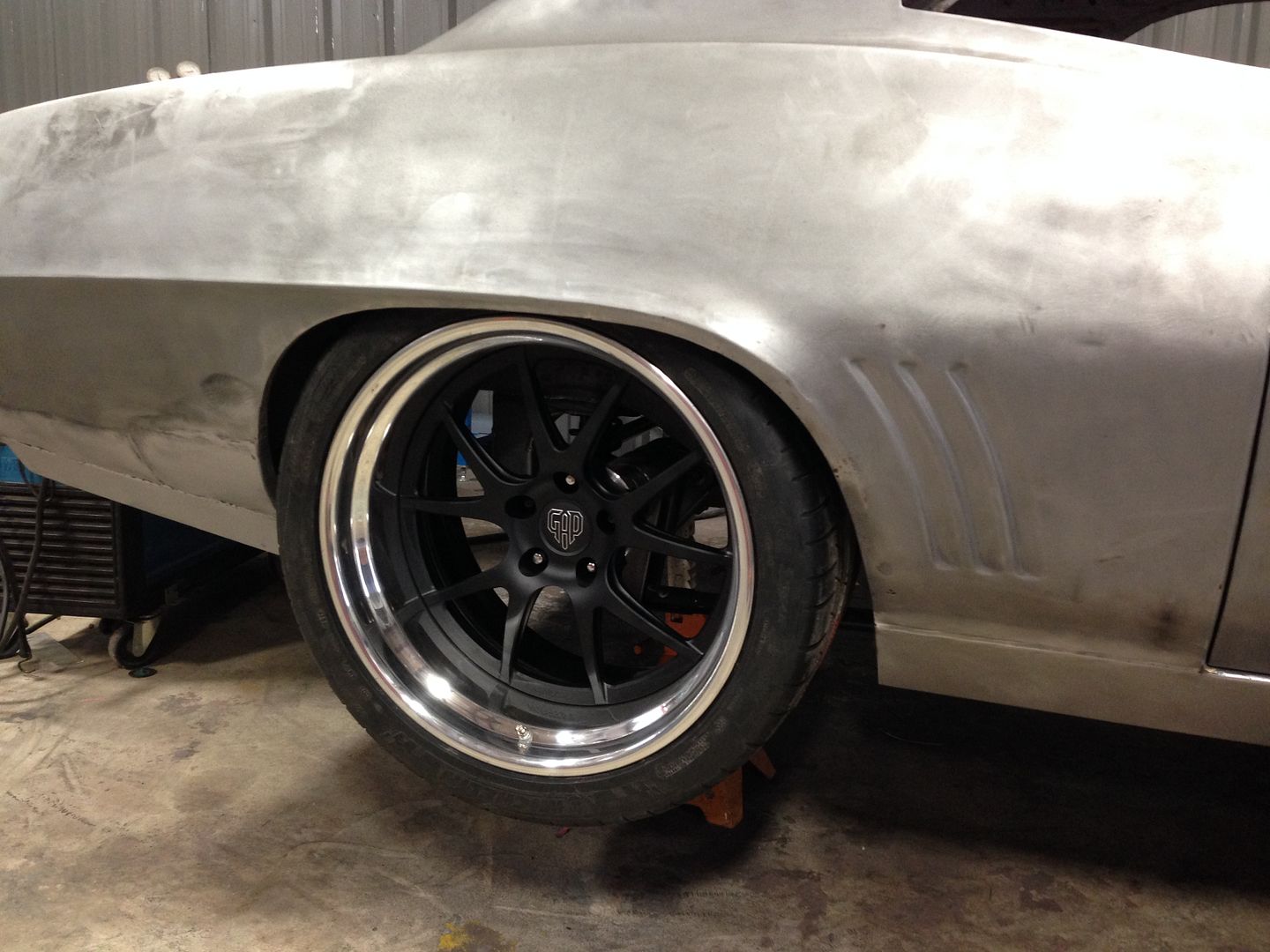

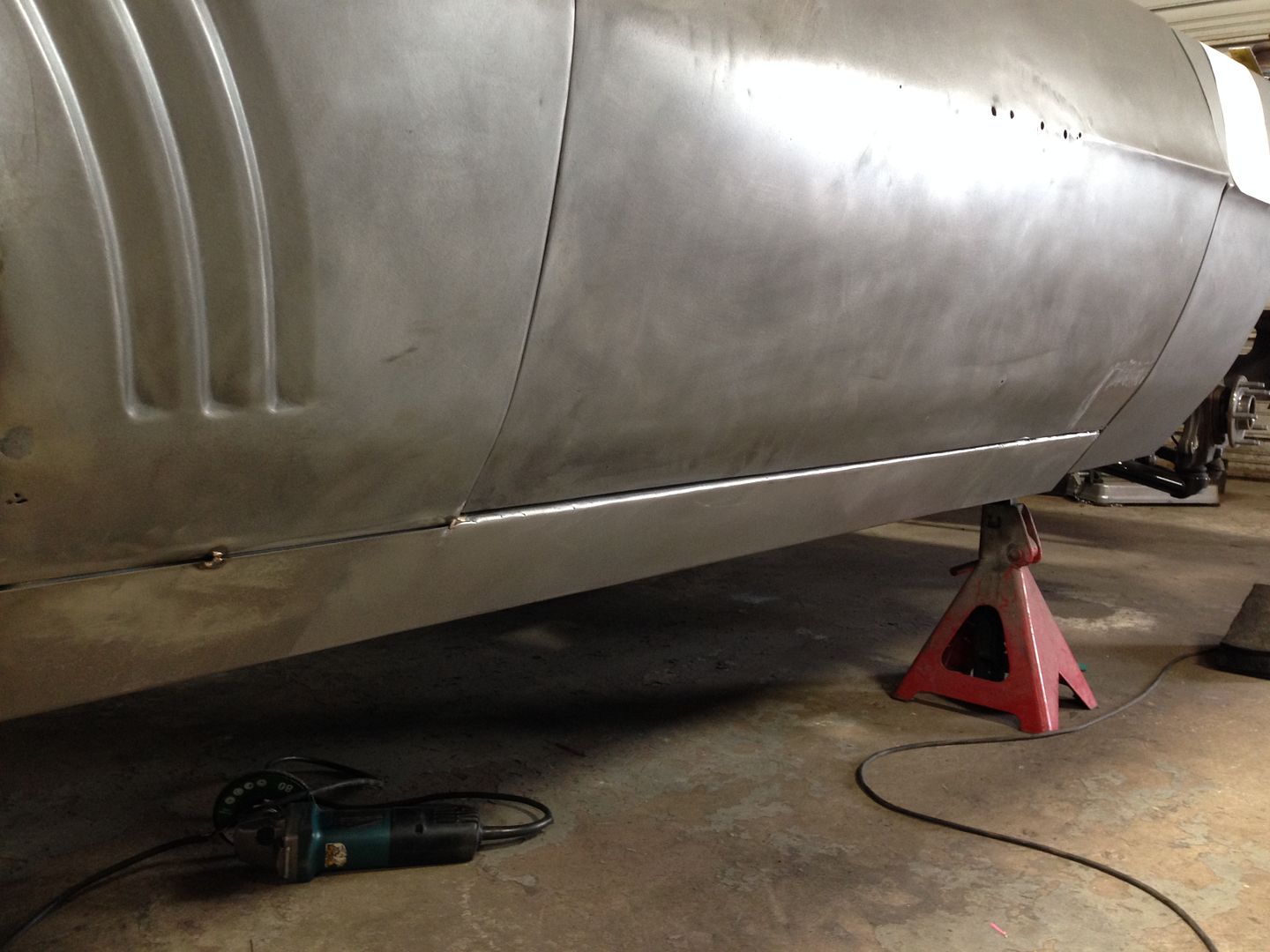

Started working on the extended rockers. They wrap around and attach at the pinch weld.

http://i1337.photobucket.com/albums/...psbqssdb4n.jpg

Just had to say, this build is looking amazing!

Question about tire size... What size rear are you going with?

Believe they're doing a 345/30/20 on a 20x13 GA3. I could be mistaken however.
