1970 Rally Sport Camaro - Pro Touring


After many years of talking about this one, it is underway. Plan is modern protouring style.

LS3 (650hp), Magnum T56, 12 Bolt with 3.7 gears
Tubbed, Detroit Speed Front Subframe & Quadralink.
Wheels (currently ) Forgeline GZ3, 18 x 10 front wearing 275/35 tyres, 18 x 12 back, wearing 325/30 tyres.
Colour, tba (not red).

I have commissioned Ben Hermance to do a design rendering, http://www.hermancedesign.com/, will post once happy with it

I heard from Bonnevile Engineering today that DSE suspension and LS3 engine was all OK to use

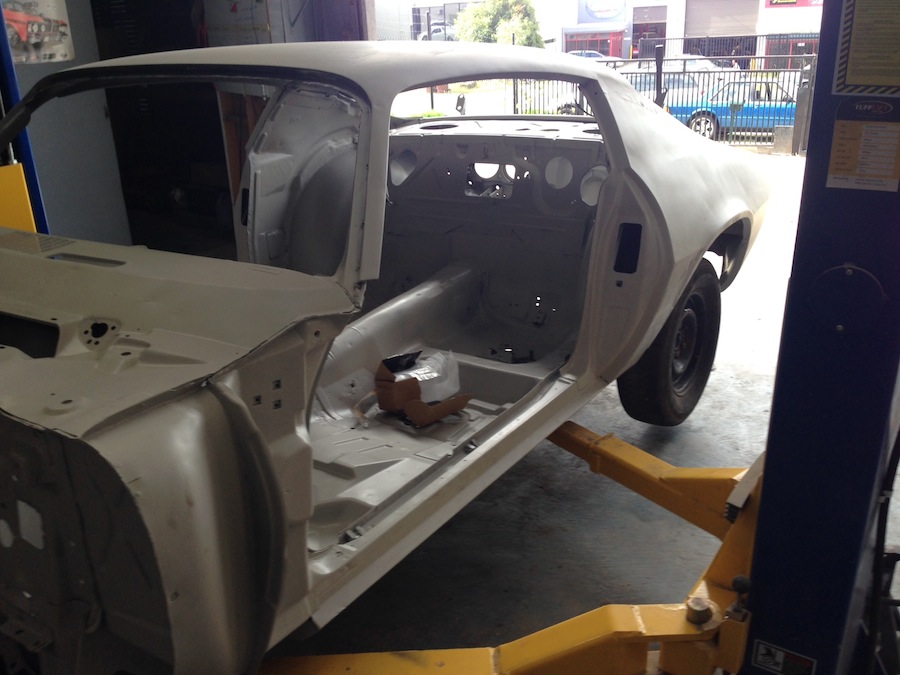

The car arrived at bodyworks on Saturday

Attachment 46916

Attachment 46917

Attachment 46918

Attachment 46919

And in a well timed arrival, the new body panels arrived today (thanks Classic Custom Imports), quarter panels, inner wheelhouse, cowl vent panel, trunk, floor pan patch panels & DSE Mini Tubs. All body panels are AMD, quality looks very good, now for the fit test.

Attachment 46920

Attachment 46921

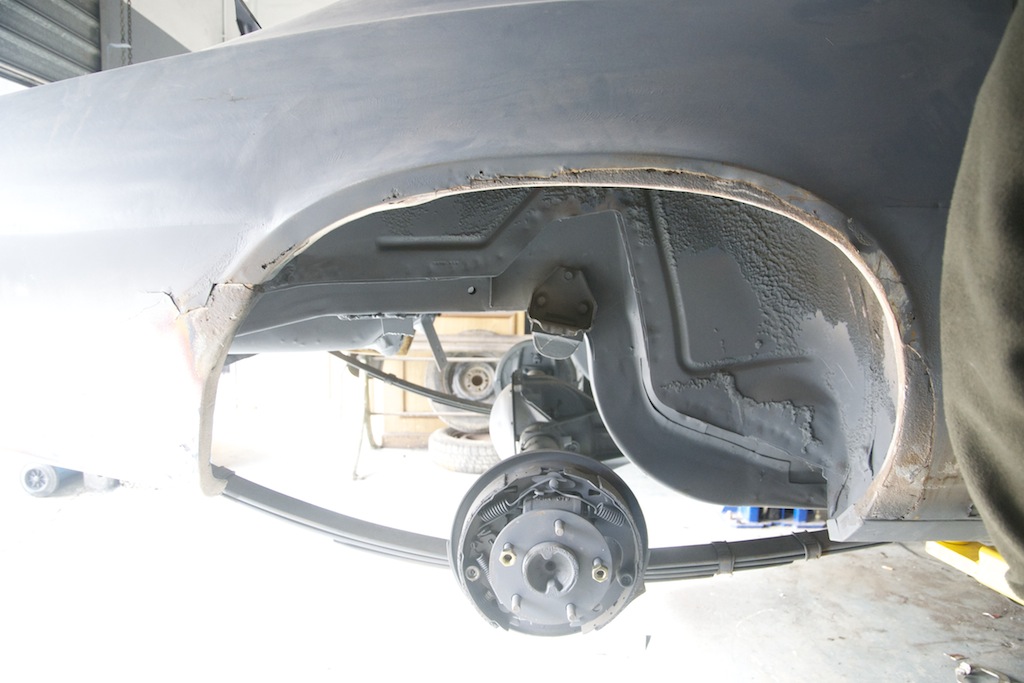

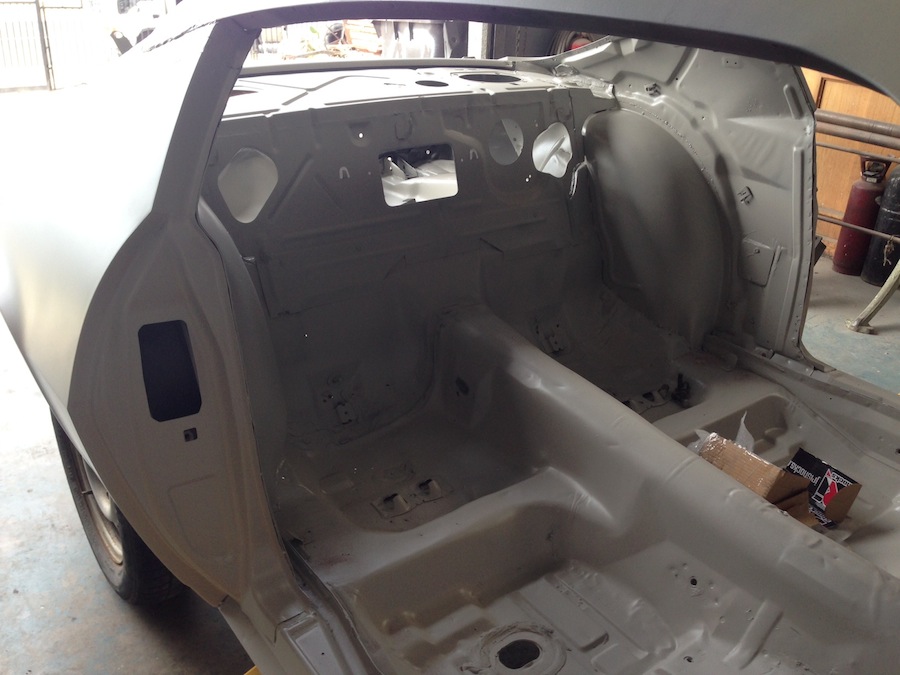

Purchased car disassembled. Had been torn down and media blasted. At least this way I know what I am getting, and with what I am planning there wouldn't have been much left of a nice car anyway.
Car had supposedly lived its life in Fresno. Underneath was very solid

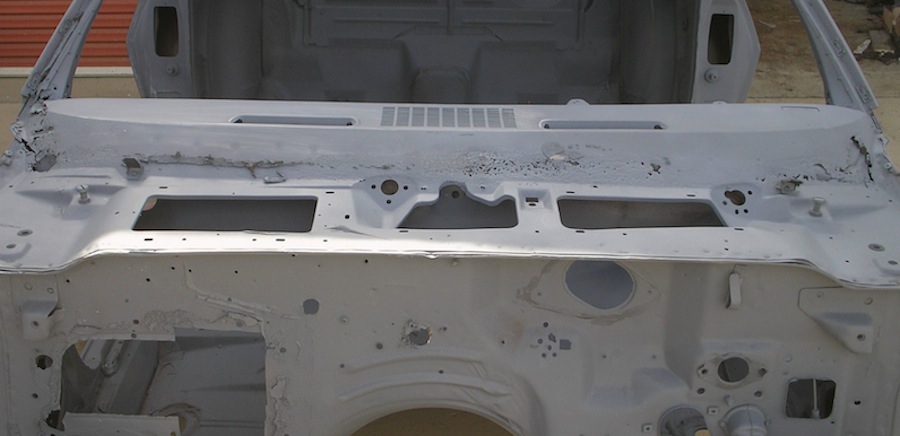

Major rust area was cowl area, there are some other small rust areas, lower tulip panel and pinholes in front floor plans near toe board. Assume had a leaky windscreen
Quarter panels are being replaced due to some previous butchery.

Attachment 46922

Attachment 46923

Attachment 46924

Attachment 46925

Rog is pulling out the big guns


Oh yeah getting after it! :superhack:

:bigun2:

looks like a pretty solid car to start with,on the east coast we would love to have cars that nice to start with,good luck

You betcha, hoping to bring it to USA for 2017 Power Tour.

Thanks

Is this one a left hand drive? looks like it based on the firewall....

Yes, left hand drive and staying that way

Very nice, i will be looking forward to watching this one come together as well...as you can tell i love 2nd gen's but love the 1st gen's just as much. Pretty much a Camaro guy, who loves Mustang's too, well, pretty much a car guy...

OK, so we lost a few posts here, thanks to everyone for their previous input

Had renderings done by Ben Hermance

Round 1
Brushed Bumpers
Attachment 47534

Dark Bumpers
Attachment 47535

Revision 1 - slightly darker body colour & raised a bit, to actual height
Attachment 47536
Attachment 47537

Round 2 - Including rear concepts

Brushed Bumper - with dark grille surround
Attachment 47538

Dark Bumpers
Attachment 47539

Ben added a colour coded bumper version
Attachment 47540

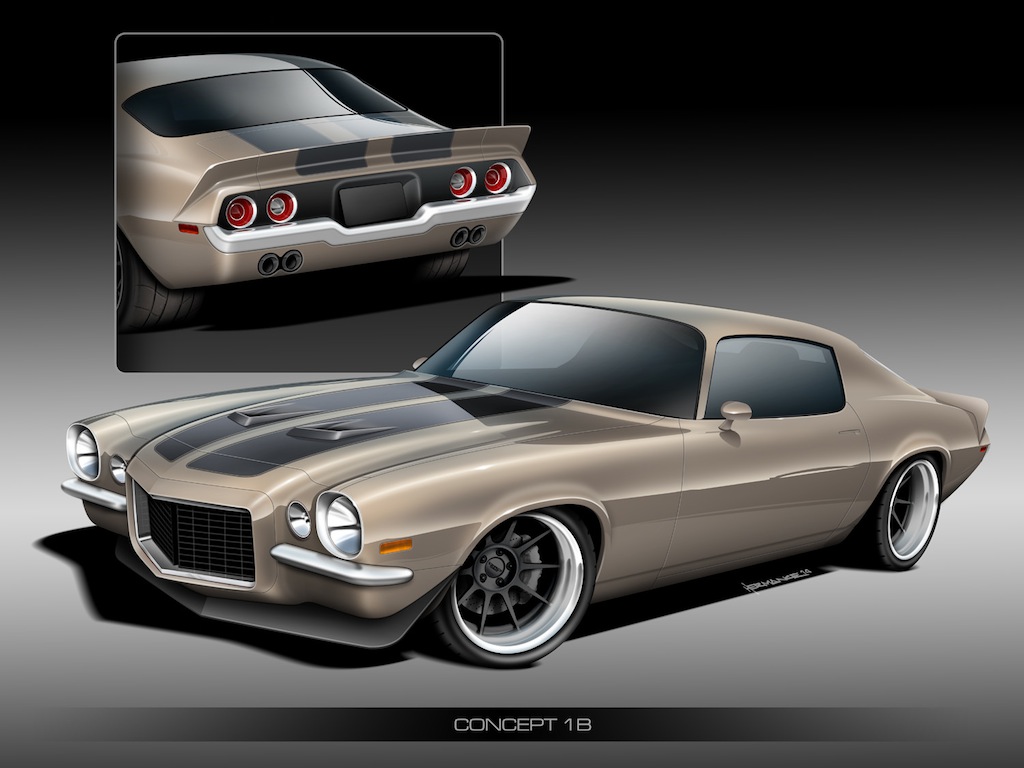

I had Ben do a revision to Brushed Bumper, adding dark tail panel & different exhaust exit treatment

Attachment 47542

After much feedback, all very positive, I decided to move forward with Concept 1A, much as I liked them all I felt this was nicer balance. I really liked black bar front, not so much back, opposite for color coded version (and Greg Weld liked it best :D ). But I will seriously consider doing 3 different sets of bumpers to trial on car when the time comes.

Had Ben do another update, put Grip Rebel rims on Concept 1, pulled Z28 stripes back to factory position, moved vents forward, color coded door handles, so this is now "final" rendering.

Attachment 47543

Ben has been great to work with, highly recommend him to anyone thinking of getting a rendering done

I like the way the hood looks better this way. I like the vents going closer to the nose and the factory stripes look better not so far up in the nose imo. Looks great.

And i'm also with you on the rear bumpers, i'm leaning towards colored, but the jury's still out....going be a fun build to watch. 68's 69's and 70's are my favorite F body's

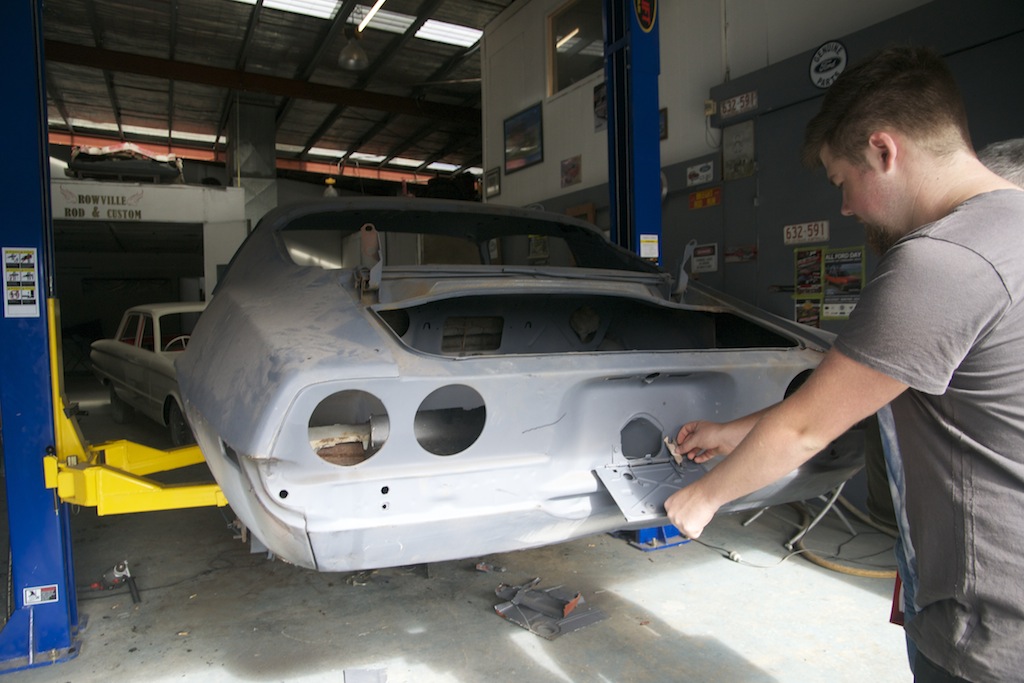

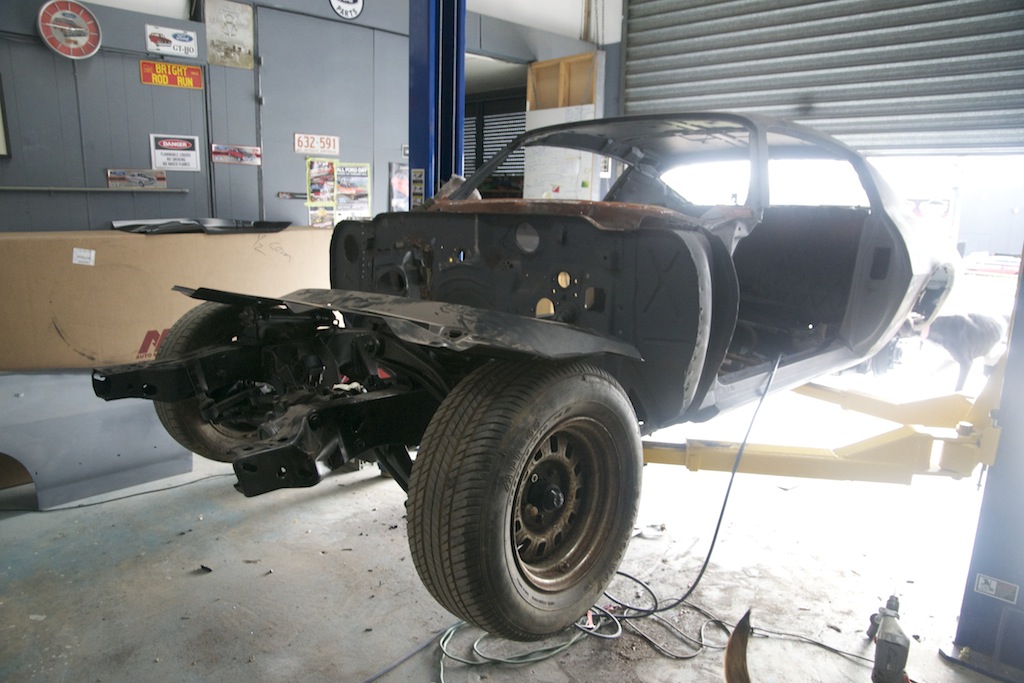

The journey begins. Rusty cowl out, front floor plans out. Started on removing quarters.
Good news, no more ugly found. Once rusty bits are all removed, car will be media blasted again and then primed. Good opportunity to get to some unreachable places to give a protective coating

Attachment 47859

Attachment 47860

Attachment 47861

Attachment 47862

Attachment 47863

Next container with parts due here May 21, but plenty to do till then

I love the exhaust on this one and when it moves around it won't rattle on the car.

Plus it looks bad ass

Good luck! It's going to look great when finished.

Well we did find some fugly. When they modded the quarters they also hacked in to the trunk drop offs. But as was commented they did such a good job with the fibreglass it was hard to tell until quarter panel was unpicked. The evidence of how much was hacked off

Attachment 48244

Unfortunately I was unable to get AMD drop offs, the Taiwanese ones don't appear to fit great, but won't be seen

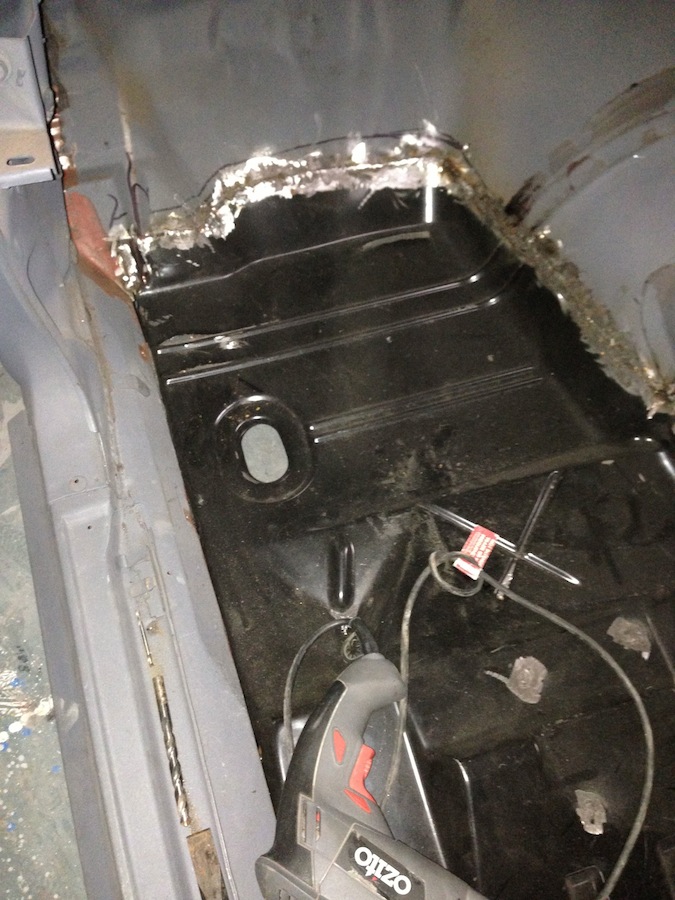

The progress, drivers side floor pan in place

Attachment 48245

Attachment 48246

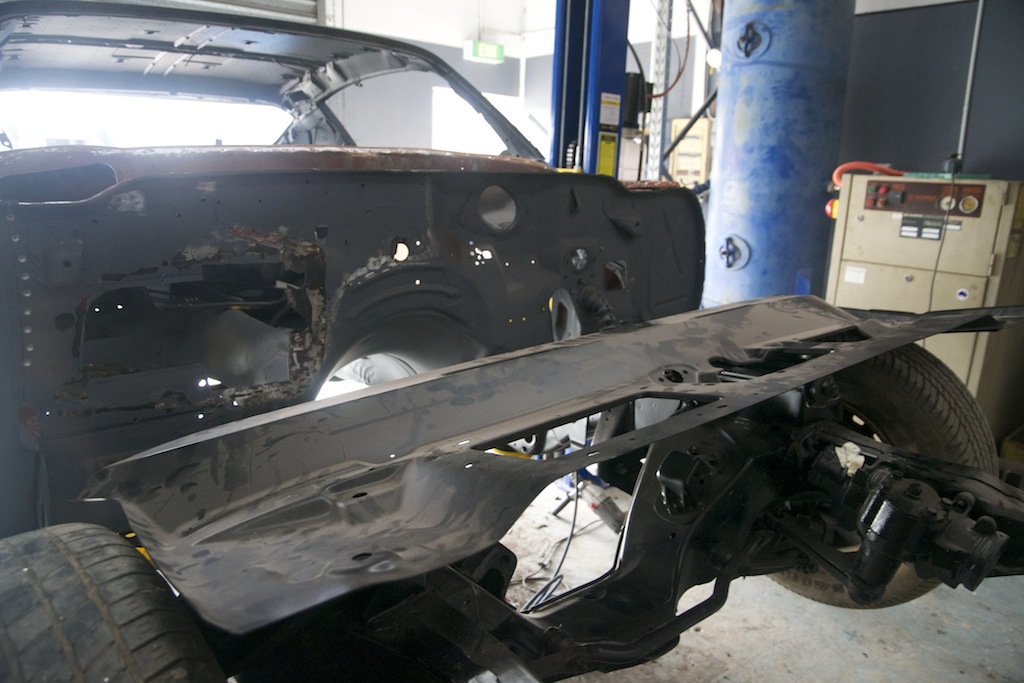

Outer Cowl Panel in place

Attachment 48247

Upper Cowl Panel in place

Attachment 48248

the before

Attachment 48249

The outer cowl panel is not AMD, note how good the fit on passenger side with original outer cowl panel

Attachment 48250

verses how poor the non original outer cowl panel fits to upper cowl

Attachment 48251

The shop is knocking over a few "paying" jobs and hope to get really stuck in to it next week

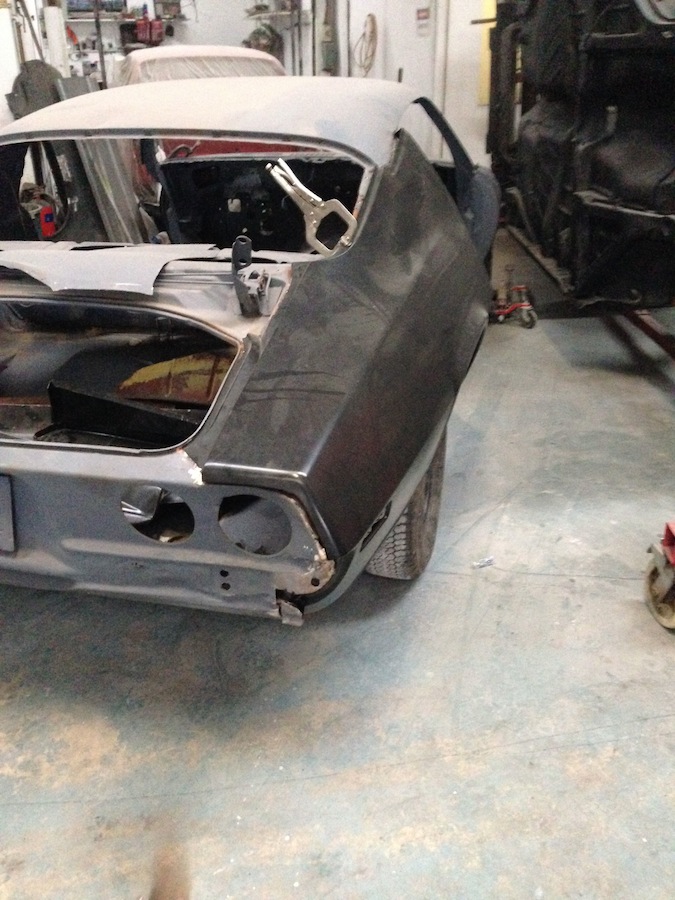

Rear quarter was trial fitted and appears to fit very well.

Attachment 48252

Now trunk drop offs are here, can do quarters and wheel tubs, also decided to replace trunk floor, rather than repair a few rust holes.

I love the rendering! Its going to look great.

That rendering is definitely sweet. I like that color a lot, good luck with it.

Thanks Guys

I can't wait to see this one on the ground in primer.

Are you going to be hand making the scoops on the hood ?

Me to :)

Bonnet Vents are an Anvil product, http://anvilauto.com/products/camaro...ood-vents.html

very cool

Popped in take a look at the progress

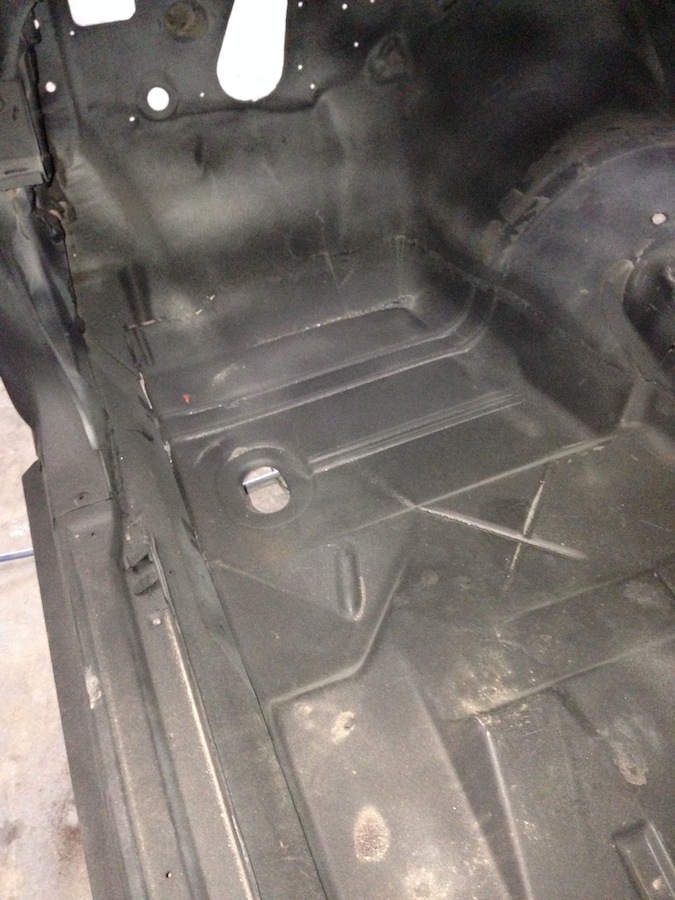

Floor pans

From last week

Attachment 48559

Attachment 48560

Yesterday

Attachment 48561

Attachment 48562

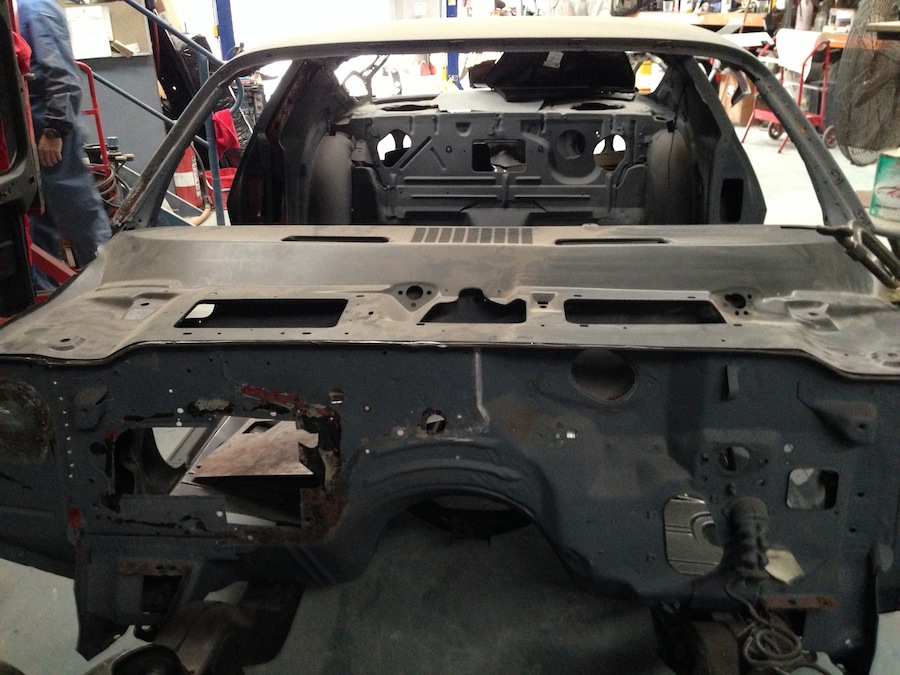

Cowl & Firewall

Last week

Attachment 48563

Attachment 48564

Yesterday

Attachment 48565

Attachment 48566

Attachment 48567

Attachment 48568

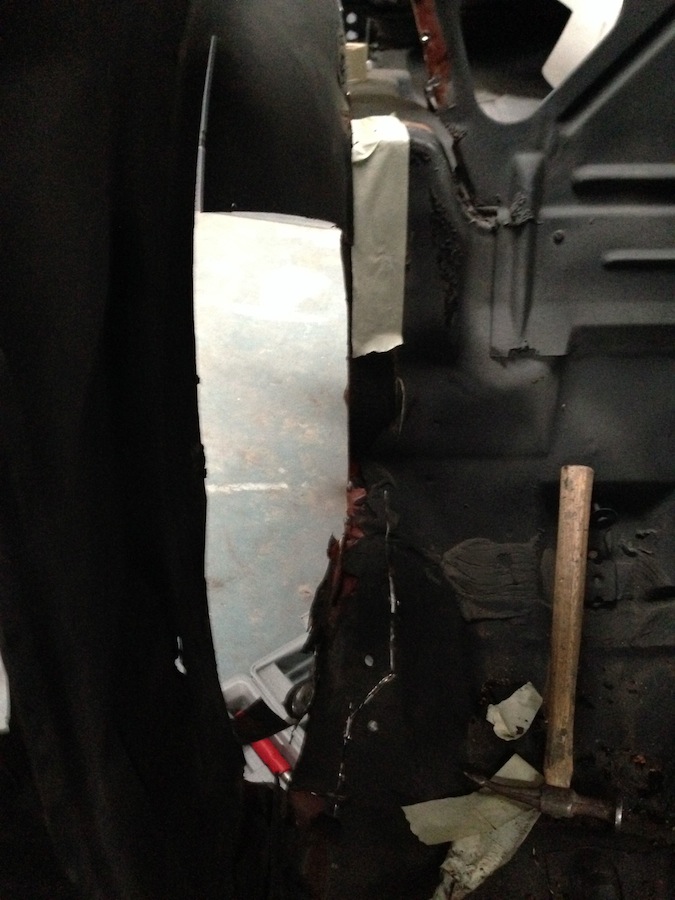

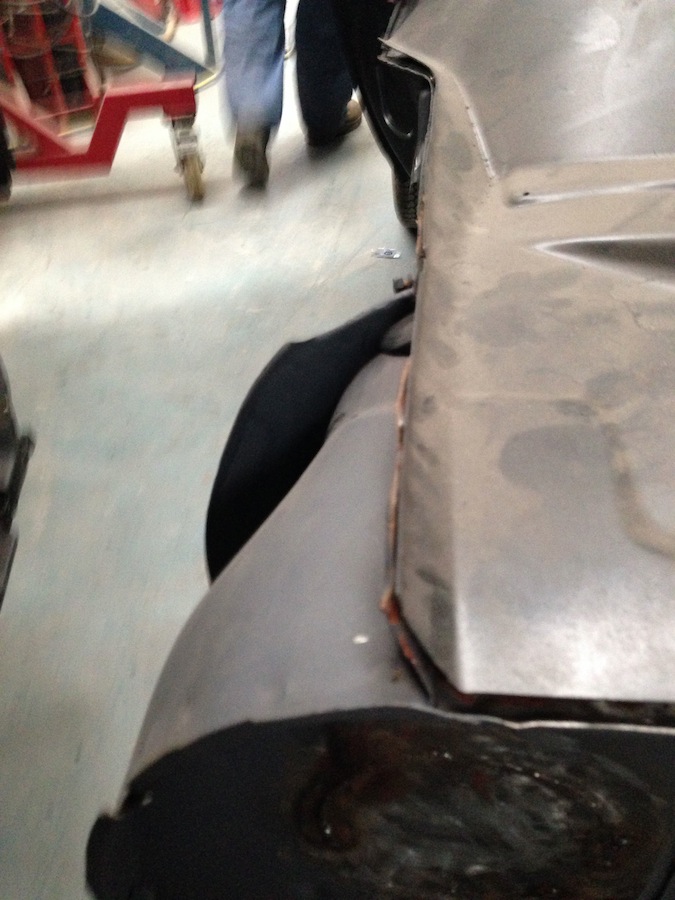

And most of the cutting has been done on right hand side for tubs

Holes, hopefully wheel tubs next week:excited:

Attachment 48569

Attachment 48570

Nice progress, Roger. You'll be in paint before too long.

looking good!!!!!

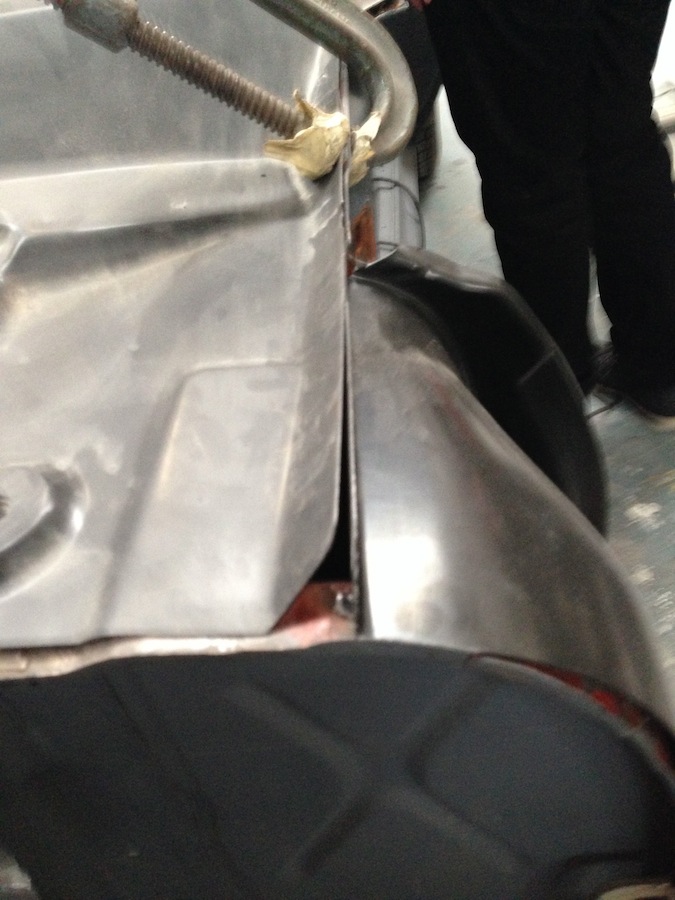

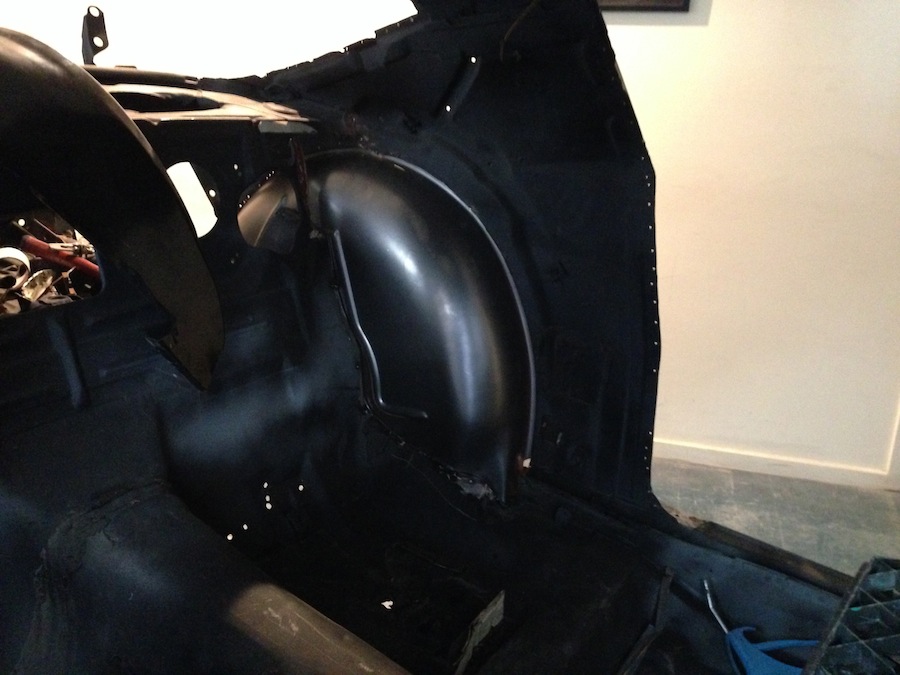

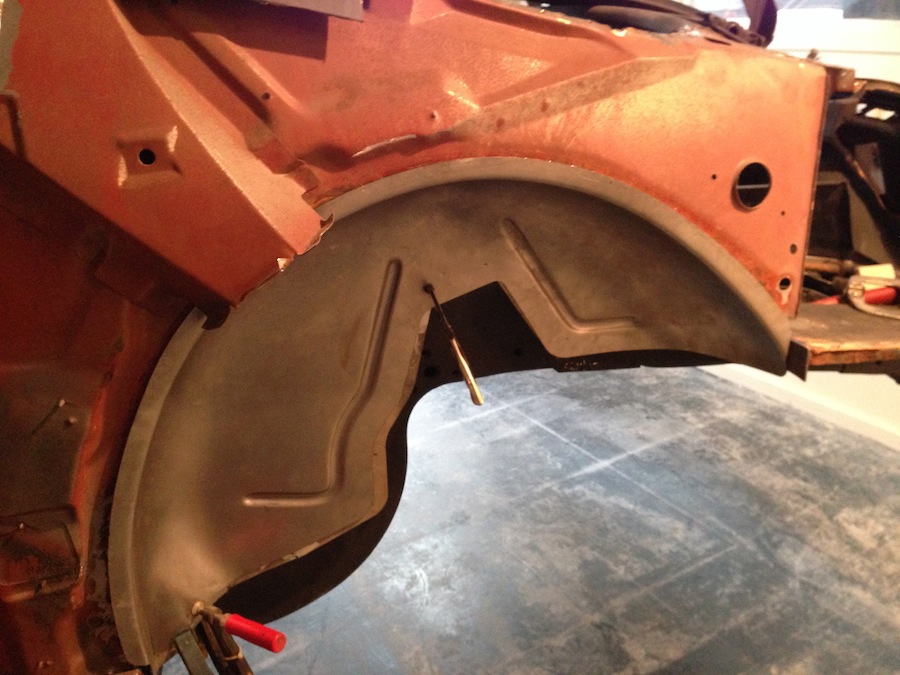

One tub in, quick photo for DSE tub v stock tub comparo

Attachment 48663

What are the options for 335/30 18 tire with matching 265/35 18 for primarily street driven car?

BFG seems to be the go-to tire

265 Rivals are not (quite) available yet. They were due out early spring but have been pushed back to July last I heard. I had a set on order and finally caved and went with Bridgestone RE11's in the front. Hopefully they will have them available soon.

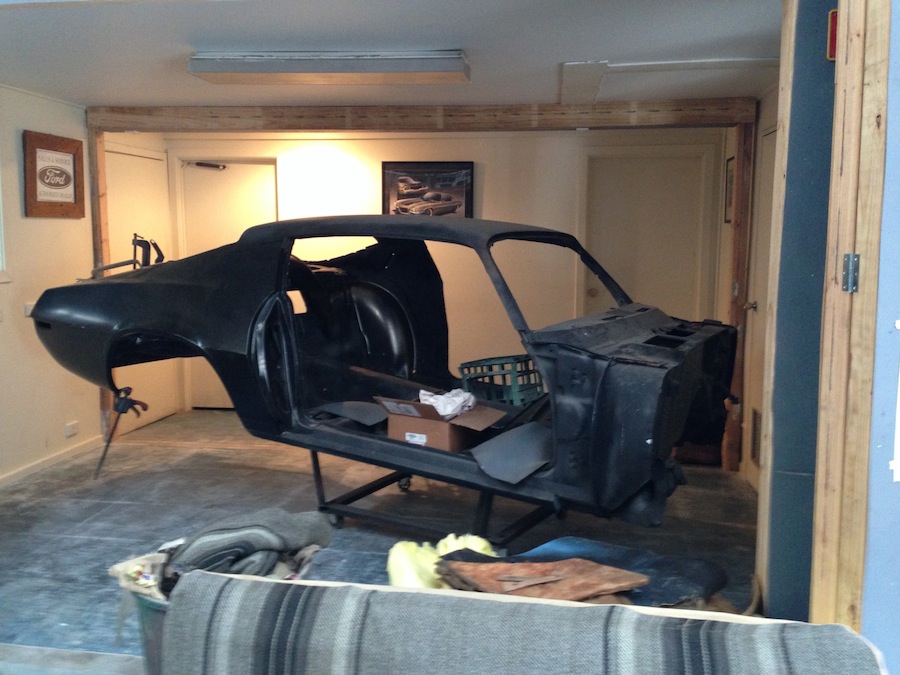

Well the boys did some construction work on the shop and built the Camaro it's own little room :thumbsup:

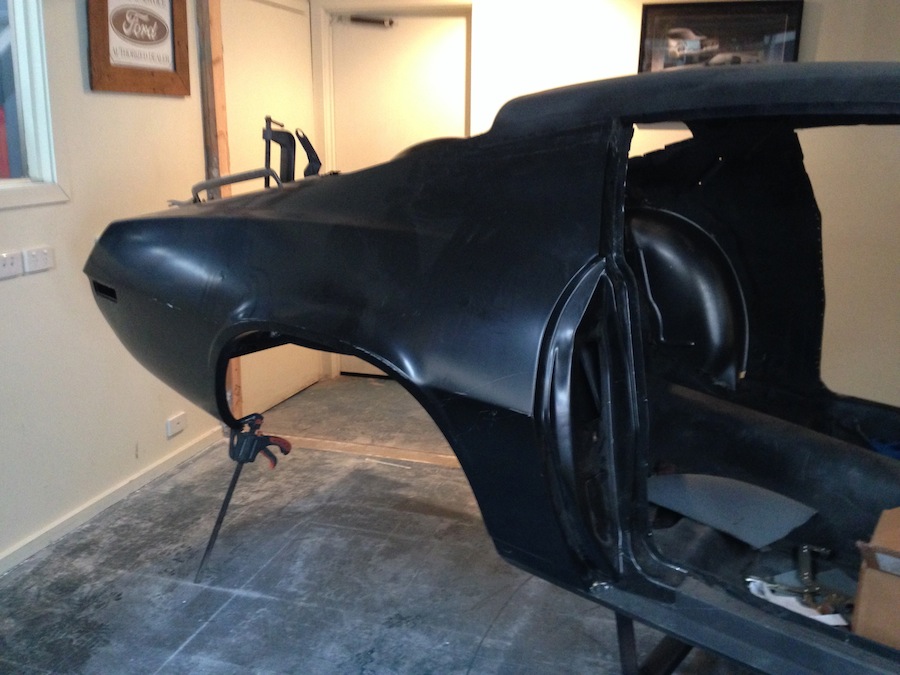

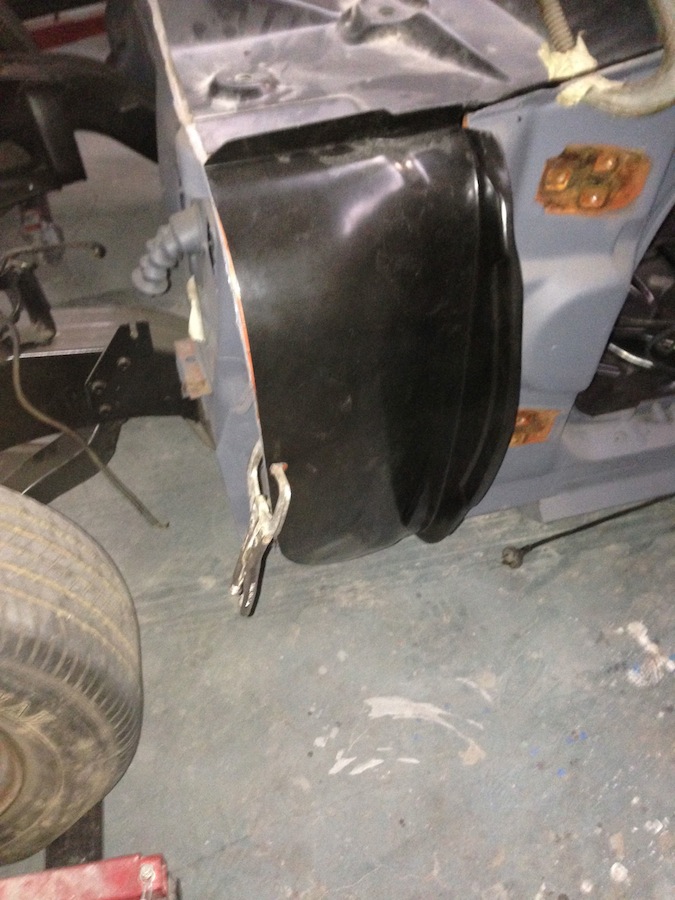

Right quarter now on permanently, left quarter and drop off removed, left mini tub in place. going to look like a car again very shortly.

QUADRALink, Moser 12bolt, Vaporworkz tank, Magnum T56, LS9 Clutch have all arrived :ups:

Subframe, Kore3 Z06 Brakes and some smaller parts on the water now, due here in next 2 weeks.

Attachment 49516

Attachment 49517

Attachment 49518

Attachment 49519

Attachment 49520

Looking nice Rodger, what qtrs did you use? I need to maybe change (haven't decided yet) one of my, I just build a new lower section.

We used AMD quarters, panel beater was very happy with the fit.

All the AMD stuff has been a good fit. The only bits, outer cowl & trunk drop offs, that I couldn't get from AMD, had fit issues.

Hey Roger,
Great progress! I have a 70 Camaro that needs all of the stuff you are going through too and have a mountain of parts. It is great to see a thread with progress, great photos, etc. Your comments about fitment are appreciated.
I have the DSE tubs, AME front and AME rear triangulated 4-bar to do too. My plan is to pull off the quarters, put in the DSE mini's, put in the new quarters, put in the new tailpan then tackle the rear subframe and floor rebuilt after the body work. Let me know what you think of the order of things based upon your experiences.
Best of luck with it !!

hey Roger -- what's up man! :hello:

:cheers:

Tailpan was very fiddly. If yours can be repaired I would go that way. If not make sure it is identical to the one you remove, check where fuel tank filler joins and outer trunk floor brackets.

We did it one side at a time, just felt it would maintain better rigidity and we had the other side for reference.

Hi Dave, just so busy, how you doing? Send me an email with any news.
Camaro needed some parts that we thought could be used, and has been a little slower than hoped for. Pulled engine down for refresh but found some things we didn't like. New pistons, cam and some other pieces, you know the drill.
No USA/SEMA trip at this stage :(. Two large work projects were delayed from October 1 to November 1 launch.
Trying to spend time at the cabin on the river, just back from 4 night stay which was super nice.

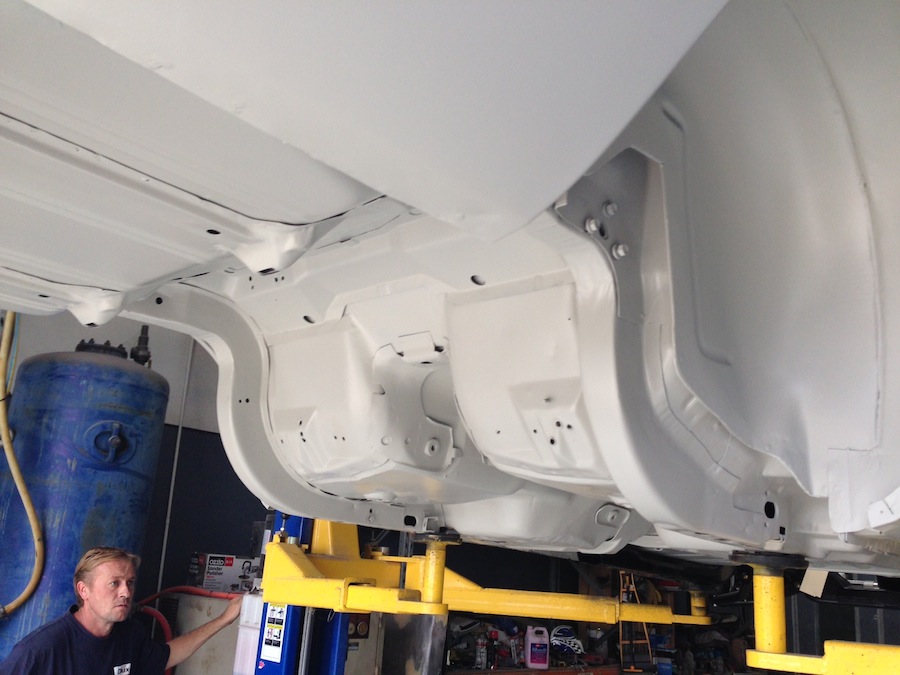

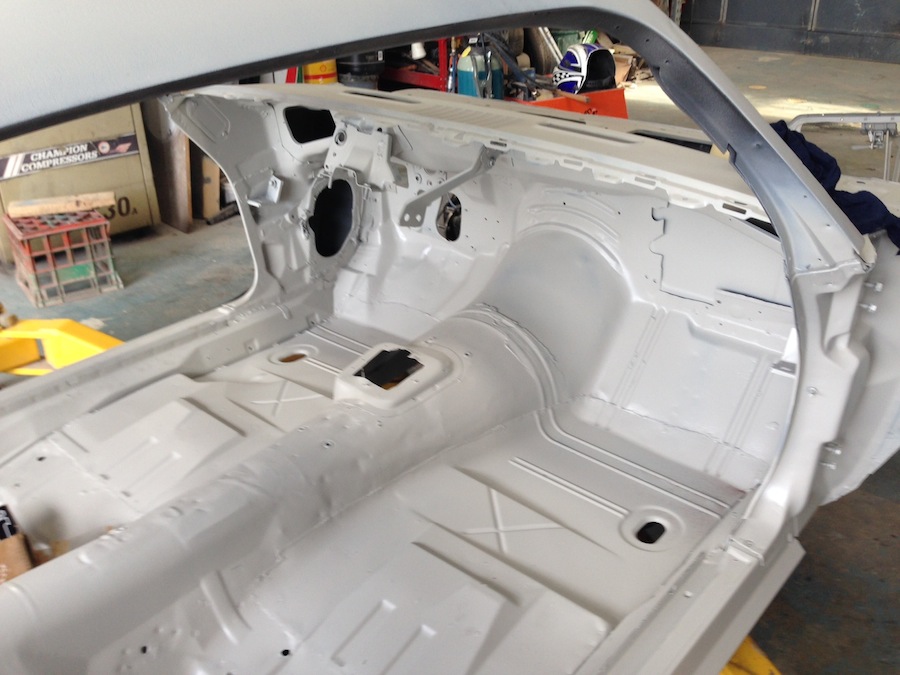

Well some progress. Body shell has all panels replaced and final welded, and is sprayed in epoxy primer.

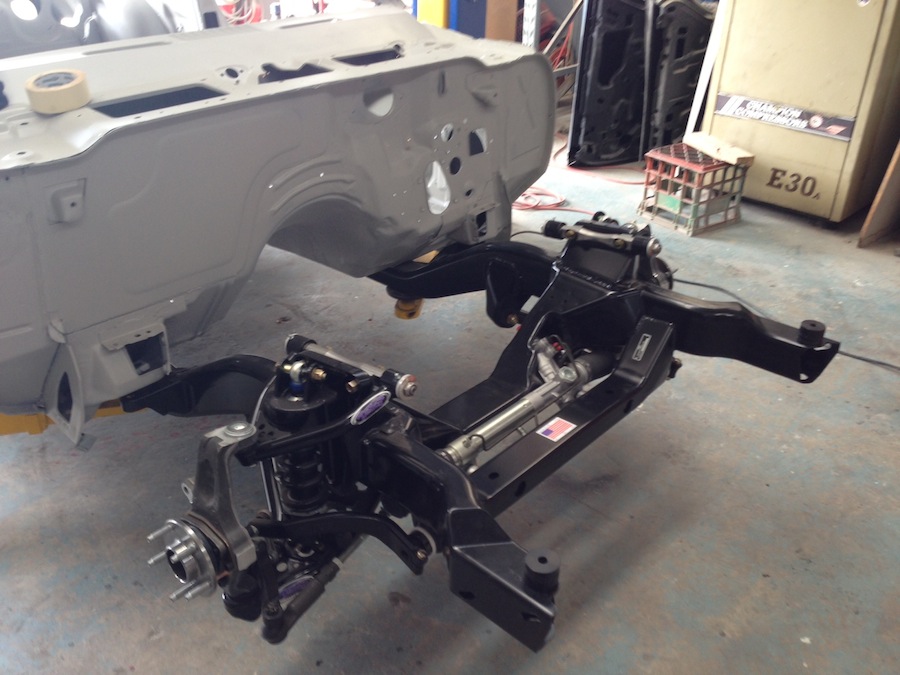

DSE subframe also now fitted

Attachment 53038

Attachment 53039

Attachment 53040

Attachment 53041

Attachment 53042

Attachment 53043

Hopefully all front panels and doors will be installed, and it will go off for installation of, QUADRALink, diff, engine, transmission, subframe connectors. This will conclude required cutting to floor.
Then will continue with assembly for mock up.

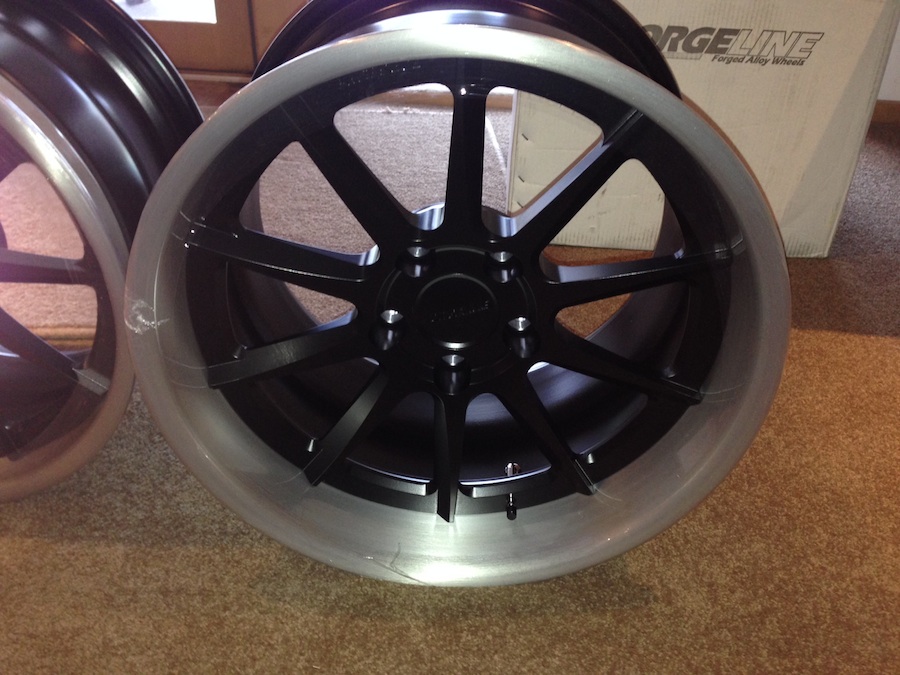

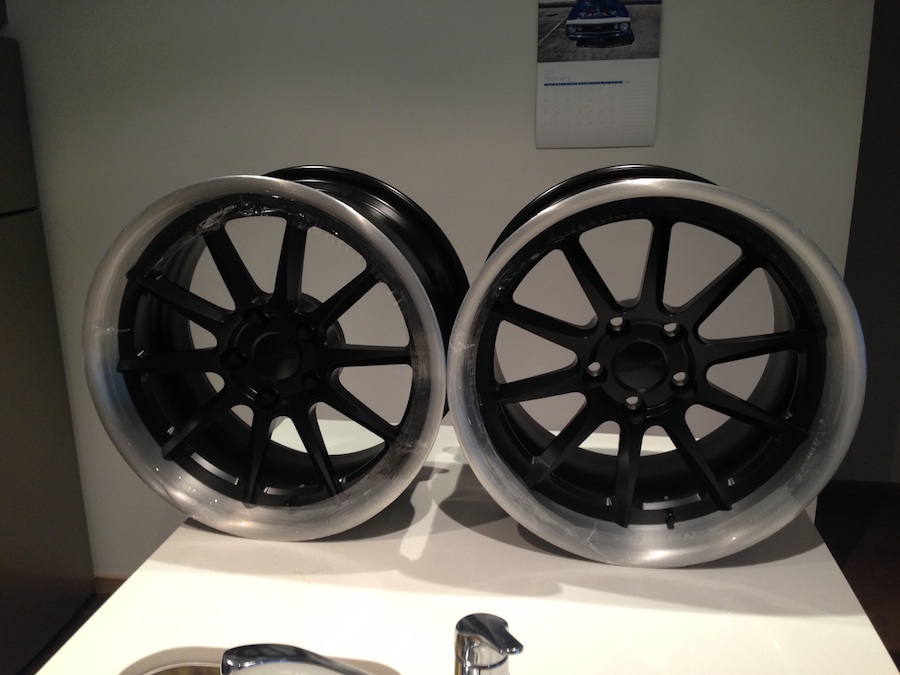

Also was able to collect wheels from shipping company yesterday.
Forgeline RB3
Front - 18 x 9.5" with 5.875" backspace
Rear - 18 x 12" with 8" backspace
Satin black Centre with brushed hoop

Attachment 53044
Attachment 53045

Rear tires due here Tuesday, so will get fitted and will be ready for test fitting with diff.

Still need to get radiator, decide on front drive and intake.

You've been a busy boy! Looks great. Love what your doing here. My next project will be a 70' camaro. Keep the pics coming.
