67' Camaro "Blue Demon" Upgrade!


I've already "finished" the restoration on my 67' and I've been driving it for a few years now. To bring everyone up to speed, I bought the car when I was 15, learned to drive in it, and drove it to high school. When I was 17 I started a full frame off restoration of the car. That took about 7 years and I've been driving it for a few years now. One area the car was lacking in was the rear suspension. During the restoration process I had already done all new wheel tubs, trunk pan and quarters and bought a new rear and springs and shocks. Only a few months later DSE released their mini tubs and Quadralink. I opted to not spend more money at the time and redo all the work that was just completed. Once I got to the front end I went with the DSE subframe so the rear has been lacking ever since. So.... The car is currently undergoing an upgrade. DSE mini tubs, Narrowed Moser 9", Quadralink. DSE subframe connectors, new wheels and a new exhaust system. Here is what the car looked like before the upgrade started..

http://i135.photobucket.com/albums/q...ps2c75e28b.jpg


So... I took it Legacy Innovations in York, Pa and they did all the cutting and welding for me... Here are a few shots of some of the metal work being done.

http://i135.photobucket.com/albums/q...psd445bb24.jpg

http://i135.photobucket.com/albums/q...ps5e93b31d.jpg

http://i135.photobucket.com/albums/q...ps2f14a59a.jpg

http://i135.photobucket.com/albums/q...psb4352023.jpg

http://i135.photobucket.com/albums/q...psf7394482.jpg

http://i135.photobucket.com/albums/q...ps8741d5ea.jpg

http://i135.photobucket.com/albums/q...ps89e9317e.jpg


Went with the black spatter paint inside the trunk..

http://i135.photobucket.com/albums/q...psa7fd55e4.jpg

http://i135.photobucket.com/albums/q...ps4b540016.jpg





I went with HRE wheels for the upgrade and wrapped them in Michelin rubber. These are by far the highest quality wheel I've ever seen. These are Satin Charcoal Centers with Polished Lips. Rears are 18"x11" and fronts are 18"x9".

http://i135.photobucket.com/albums/q...ps54898254.jpg

http://i135.photobucket.com/albums/q...psdb58d0cd.jpg

http://i135.photobucket.com/albums/q...ps3c40479c.jpg

http://i135.photobucket.com/albums/q...psd3d6d59d.jpg

Beautiful car you have,very nice build and sure some nice upgrades your doing on it,wheels look great:trophy-1302:

coming together nicely!!

Sweet and of course you know I love the wheels. :walkingdog:

Very nice! Is that your 69 in green primer, too?

Looks great. Love the car...what blue is that? I like it!!

Thanks guys! Appreciate it. The primer 69' is my dads current project car. And the Blue on mine is a custom mix color I had made up just for my car.

All the welding on the car is done, we threw the wheels on and brought the car home. I'll be tearing the rear back out to run all new brakes lines and a list of other mods. Here's some pics of the car with the wheels. None of the suspension is final adjusted so don't mind the stance! lol

http://i135.photobucket.com/albums/q...ps368bd18e.jpg

http://i135.photobucket.com/albums/q...ps75994b65.jpg

http://i135.photobucket.com/albums/q...psad38d18e.jpg

Nice car


That's a nice car you have. Color is very complimentary to the shape. Like the new wheels, I hope they didn't set you back as much as I think they may have. My optometrist's runs them on his BMWs and I think they are sharp. But he's told me that they are pricey. So I'll go lower budget for mine.

Very nice,
Tell us more about your drivetrain and what is next.

Also get Dad to post up that '69 build.

HRE's are pricey, but you get what you pay for.

As for drivetrain in my car, I'm currently running a built up 350 motor. Plans for a fuel injected LS motor are in the future, after I recover from this round of upgrades. lol. I'm running a blow-proof bell housing with a Centerforce clutch, transmission is a Tremec TKO600 5-speed and the rear is a narrowed Moser 9" with 3:89 gears. Of coarse the rear suspension is now a Detroit Speed Quadralink with adjustable coilovers. Front suspension is the Detroit Speed Hydroformed subframe with tubular A-Arms, C6 vette spindles and adjustable coilovers.

http://i135.photobucket.com/albums/q...ps12a6ac4f.jpg



Here's a shot from before I put the motor in... Good shot of the DSE subframe

http://i135.photobucket.com/albums/q...ps45257bdf.jpg

http://i135.photobucket.com/albums/q.../shaner146.jpg

"HRE's are pricey, but you get what you pay for."

Absolutely, it doesn't get any better than DSE and HRE.

Pretty car all around. Way to get after it! :thumbsup:

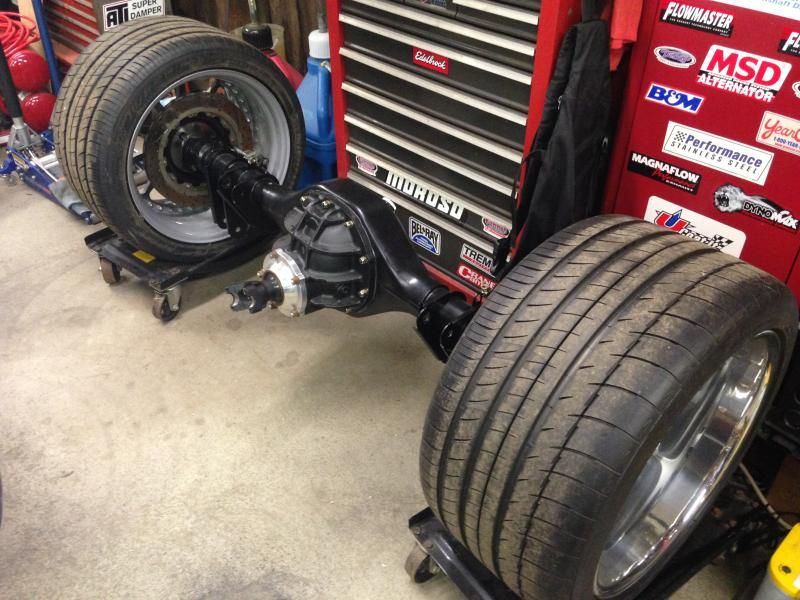

Thanks Guys! Pulled the rear back out to run all my brake lines. Since I switched from leaf springs to the Quadralink I need to re-route the lines on the body and make new ones for the new narrowed rear. Body lines are done and rear is ready to go! Went with some rock guard on the rear lines for added protection.

http://i135.photobucket.com/albums/q...ps563211dc.jpg
http://i135.photobucket.com/albums/q...pse4d33007.jpg
http://i135.photobucket.com/albums/q...ps84d1ddab.jpg
http://i135.photobucket.com/albums/q...ps04ddbe73.jpg

Looks good. Keep em coming.

:captain:

Do you have a list of the parts you used and where you got them? Im about to to do the same thing on the rear end and it would help me out a ton.

cwylie, do you mean suspension, rear end housing, brake parts, wheels or everything?

Nice job on the lines. Great upgrades and a beautiful car.

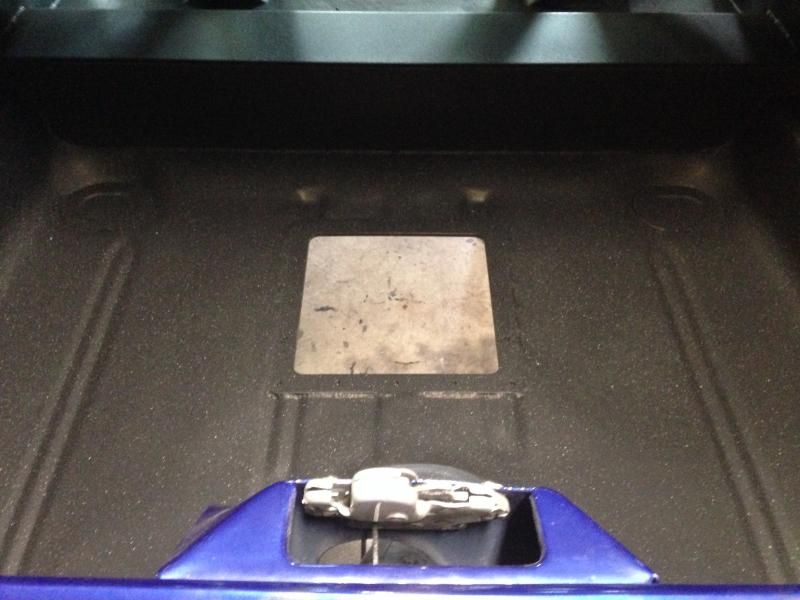

I got some work done in my trunk area this weekend. The hole in the middle of the trunk is one of Detroit Speeds new products, their Fuel Pump Access Door Kit. The Fuel Pump Access Door kit allows a bolt on cover to be located above the fuel pump so the fuel tank does not have to be removed to change or service the fuel pump. This is definitely a nice feature if you've ever had an issue with your fuel system, which I have. Also I mounted a Fuel & Differential Vent in the trunk. I went with II Much Fabrication vents which I also got through DSE. The II Much Fuel Vent helps eliminate fuel spills and odors and the diff vent will help with running at the track and pushing oil out of the rear. These vents are extremely nice quality and easy to mount. I just used a hole saw the exact size I needed. It's an easy upgrade. Once I had those mocked up I re mounted and re wired my stereo equipment which is a 500 watt Polk amp which I'm running to all Polk Momo speakers. It's getting there! Hopefully get the rear back in this week.

http://i135.photobucket.com/albums/q...ps0436568a.jpg

http://i135.photobucket.com/albums/q...ps1849d6bb.jpg

http://i135.photobucket.com/albums/q...psf427e85d.jpg

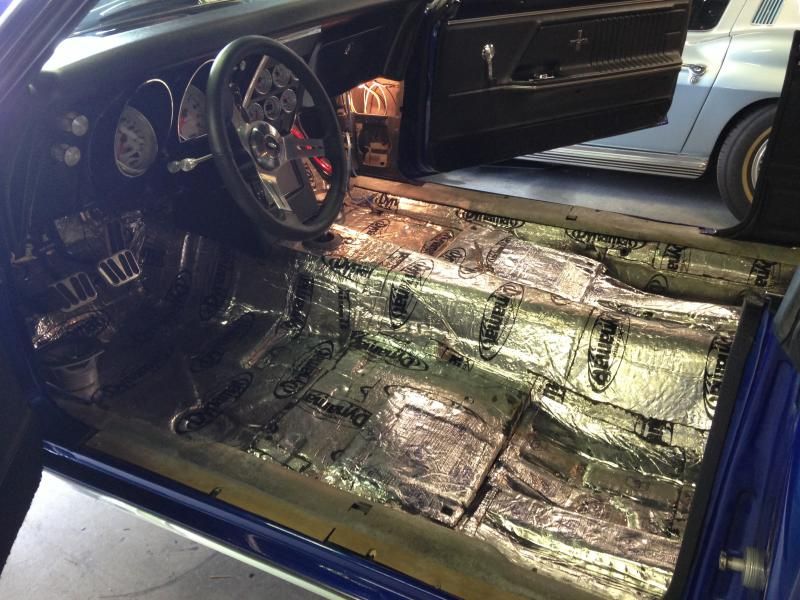

Starting to put the interior back together too...
http://i135.photobucket.com/albums/q...ps5fd4cce0.jpg

http://i135.photobucket.com/albums/q...psba66b41a.jpg

Just the part numbers and what you used for the brake lines on the rear axle. I need to plumb mine and it would be helpful if you had a list of what you used.

For brake lines I'm running 3/16" NiCopp (seamless copper/nickel) lines. They are nice and soft which makes them easy to bend and flair and they seal up good. Also they never rust. I got the line in a 25' foot roll I believe. It came from Jeggs, part #635800

I'm running Stainless Rockguard, Line Clamps and Fittings which I sourced through Inline Tube. Obviously the rockguard length and fitting sizes will depend on your specific application. Check them out @ inlinetube.com or you can call them at 586-532-1338.

Very nice upgrades! Taking her to a whole new level!

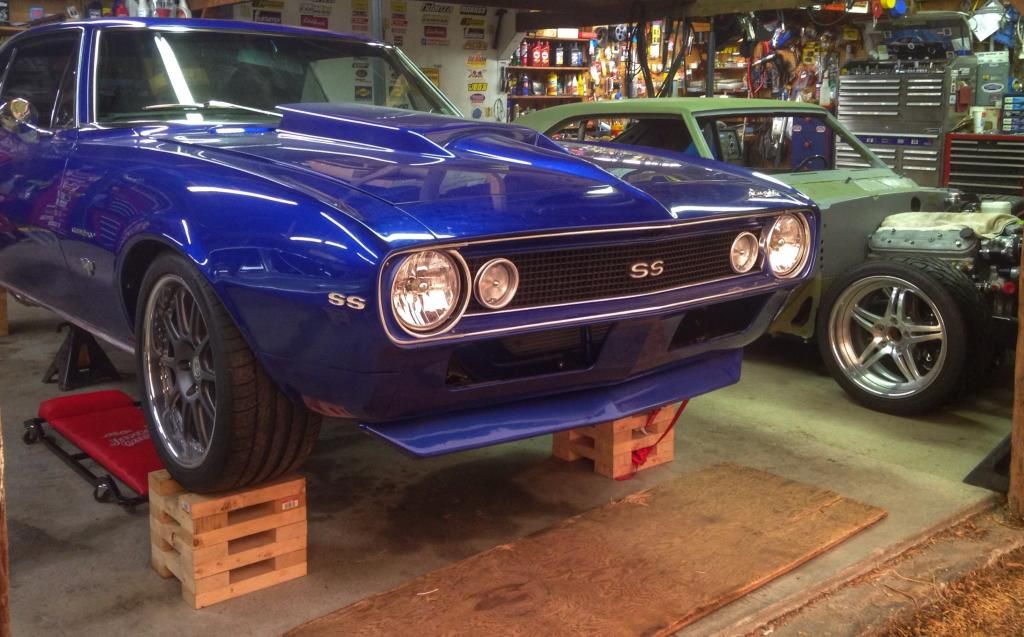

Spent the last couple days in the garage working on getting the rear back in the car, getting everything centered, setting ride height and hooking up the brake lines and drive shaft. Began mounting the rear sway bar but its not finished yet. So for now here's a couple photos from the garage...

Some RedBull to keep me going! lol
http://i135.photobucket.com/albums/q...psa8a951da.jpg

http://i135.photobucket.com/albums/q...ps4f662caf.jpg

Looks great, nice upgrades!! Now we need to hear the spics on your dad's car as well??

Looks like you have quite the collection there

Well it's been a little while since I posted with an update. Had a few set backs and I've been crazy busy lately, but the car is back together and on the street. Remember I already had the DSE Hydroformed frame...

Upgrades to the car this time around include...
-DSE Minitubs
-DSE Quadralink
-DSE Subframe Connectors
-Moser Narrowed 9" Rear
-HRE 593RS 3-Piece Wheels
-Michelin PS2 rubber
-II Much Fab rear housing and fuel tank vents
-DSE Trunk Access Door
-Custom Fabricated Stainless Side Exit Exhaust

I also eliminated the wheel well trim. I think it gives it a cleaner look with this setup.

http://i135.photobucket.com/albums/q...ps4f4ae04b.png

http://i135.photobucket.com/albums/q...ps7a16d147.png

Oh Yeah!!

:thumbsup: :thumbsup:

Looks great but can you clear anything with the exhaust? It looks awfully low in the pictures. Love the side exit though.

Sweet!

It looks lower in the pic than what it really is. But it is a tad on the low side. Just gotta watch the big stuff on the road. I love the side exit too. I think it gives it an old school road race look. Sounds awesome too 👍

Looks great!

How is the fitment of the DSE Subframe with a Gen1 SBC? Did you have steering shaft clearance issues with headers? Are you running a hydraulic clutch or did you opt for the Zbar on the DSE sub?

Fitment of the Small Block to the DSE frame is perfect. No issues what so ever. Same goes if you're running an LS platform. We have a 69' setup with a DSE frame and an LS7, everything fits perfect. I'm running "Dougs" headers and I had to dent one of my header tubes to make clearance for the steering shaft, which was no big deal. My clutch is manual so I'm running the Zbar setup off the frame. Works great. I've been running the front subframe for about 4 years now and have nothing but good things to say about it. The rear setup went together perfect, was easy to adjust and is driving great. Detroit Speed makes the best products on the market. Their stuff fits, its high quality, and it does what its advertised to do.

Nice, very nice.. car looks great!

Thanks!

Thanks guys. Appreciate it!! Here's another shot...

http://i135.photobucket.com/albums/q...ps7006556a.jpg

Sooo.... What's next? :D

I love that hood, thinking of gettin one for my 67. Who is the manufacture? Was there any fitment issues or hard labor to get the fit nice??

Appreciate you answering everyone's question ... thanks for sharing :flashie:

Michael

I'd like to change out the hood for an aluminum cowl hood... Just kindof over the stinger hood. Also I have a custom aluminum spoiler I'd like to get fit up and painted at the same time as the hood. After that, probably a year or two down the road, an LS motor will be in the works.:idea:

Sorry for the delayed response... I got the hood about 10 years ago from www.americanstreetrod.com or try www.americansportscar.com... They have 2 sites. I don't remember it being extremely hard to match up, however it was fit with the sheet metal when all the body work was done. A problem with fiberglass (that I was unaware of when buying) is that it moves or changes shape after a period of time. The hood does not fit correctly anymore and I would never run a fiberglass hood again, but that's my opinion. I would like to change to an aluminum hood in the future, which will just be a cowl hood.

Had a friend shoot some photos of the car... Thought I'd share a few with you guys. Doing another photoshoot this weekend with another photographer :rockin:

http://i135.photobucket.com/albums/q...ps7a57387a.jpg

http://i135.photobucket.com/albums/q...ps9ebd23c4.jpg

http://i135.photobucket.com/albums/q...psdf6e9956.jpg

great looking car!
