1969 Pro-touring Camaro, LSX454, 600+hp, Built to Drive!

Item Location (City/State): Keller, Texas

SOLD

Description:

Pro-Touring 1969 Camaro with an LSX454 pumping out over 600hp/ftlbs of torque. Only the best products were used in the build. Detroit Speed, Ridetech, Vintage Air, Dakota Digital, Optima Battery, Dynatech, Rushforth Wheels, Baer Brakes, Sparco, Ringbrothers, Dewitts Radiators, Dynamat, Flowmaster. Ricks Tanks, and the list goes on. Over $150k+ invested in the build. This Camaro can do it all. Cruise the boulevard, auto-cross, speed stop challenge, run a road course, hammer down the quarter mile, long haul a Power Tour, win an award at a car show, go grocery shopping, drop the kids off at school, take your spouse to dinner or enjoy a spirited ride out in the country. Extremely well sorted pro-touring Camaro you can drive anywhere. Contact Jay DeLuca at (817)894-5662 or [email protected] for more information.

Build thread: https://lateral-g.net/forums/show...ighlight=chaos

Details about the build:
-Engine is a GMPP LSX454 (621hp, 600tq/520rwhp, 493rwtq), hidden coils, lines, wires
-Dynatech headers, 3" exhaust with Flowmaster mufflers
-Street & Performance Chrome Polished Front Accessory Drive
-Dewitts Radiator and integrated oil cooler
-Ringbrothers hood hinges
-Eddie Motorsports fender braces
-Completely smoothed firewall, hidden DSE wiper motor, and smoothed inner fender wells, battery relocated to trunk with DSE Optima battery holder
-Tremec TKO600 5spd
-Baer 6 piston, 13" rotor front brakes, 4 piston, 12" rear brakes
-Front Suspension: Stock Subframe with Ride Tech Strong Arm's, Single Adjustable Coil Overs, Tru turn
-Rear Suspension: Ride Tech 4-Link, Hotchkis subframe connectors, Ride Tech Single Adjustable Coil Overs
-Rushforth Livewire Polished Chrome Wheels - 18x9" fronts, 19x10" rear
-Dunlop Direzza Zii Star Spec 275/35/18 front tires and Dunlop Direzza Zii 2755/35/19 rear tires
-DSE600 12.7:1 steering box and steering fluid cooler
-GM 12 bolt rearend with 4.11 gears
-Ricks Vaporworx Tank
-Vintage Air Gen IV System
-Polk audio system with JVC bluetooth deck and remote control
-LED taillights
-Sparco r505 seats with Sparco harnesses (stock standard black vinyl seats go with the car)
-Dakota Digital VHX Gauges (Carbon fiber and red), rosewood dash

Attachment 52409

http://i1372.photobucket.com/albums/...psd9cae153.jpg

http://i1372.photobucket.com/albums/...ps80b5339e.jpg

Attachment 52410

http://i1372.photobucket.com/albums/...ps8f74c347.jpg

http://i1372.photobucket.com/albums/...psece6df27.jpg

http://i1372.photobucket.com/albums/...ps27c3190f.jpg

http://i1372.photobucket.com/albums/...ps408332c4.jpg

Where was this last summer when I was shopping? :twak: lol

Quote:

Originally Posted by Spiffav8 (Post 590000)

Where was this last summer when I was shopping? :twak: lol

He had it for sale last July, if you search you will see the ad here on the forum.

Quote:

Originally Posted by AM.MSCL (Post 590032)

He had it for sale last July, if you search you will see the ad here on the forum.

That's not true...total lie. :sarcasm_smiley: :lol:

Seriously it's an awesome car and I think it will bring top dollar. GLWTS!

Has this Camaro been mini tubed?
Do you have any pictures of the underside?
Pictures of the dash clusters close up?
What all is part of the stereo system?
Thanks
Ray

Jay,,

sorry to take this off topic, how do the seat belts going threw the seats attach? floor, back of the seat?

Good luck with the sale, awesome car.

Stereo is a JVC heading with polk audio speakers. 6" rounds and tweeters in the kick panels, 2 6x9's in the package tray, a 10" subwoofer and amp concealed behind the seat in the trunk.

http://i1372.photobucket.com/albums/...ps8p1bcwhy.jpg

http://i1372.photobucket.com/albums/...psv4klmybz.jpg

More pics.

http://i1372.photobucket.com/albums/...psoqher4q4.jpg

http://i1372.photobucket.com/albums/...psrx1ujfei.jpg

After a weekend of GoodGuys Auto-cross dust with the Ricks Tank.

http://i1372.photobucket.com/albums/...ps557754a1.jpg

I was asked about floors. These were taken while dynamatting the interior.

http://i1372.photobucket.com/albums/...pspudnovyl.jpg

http://i1372.photobucket.com/albums/...ps3ufsszzu.jpg

Quote:

Originally Posted by Moose (Post 590109)

Jay,,

sorry to take this off topic, how do the seat belts going threw the seats attach? floor, back of the seat?

Good luck with the sale, awesome car.

Shoulder straps go through the openings in the Sparco seat, merge together and are run down the backside of the seat and into a mount through the floor. The lap belt is bolted into the stock locations on either side of the seat base. Hope this helps.

Appreciate the note on the sale of the car.

Hate to see you sell it

awesome car!! did you flip your rear coilovers to put the adjustment knob on the bottom?

Quote:

Originally Posted by paulk68 (Post 590179)

awesome car!! did you flip your rear coilovers to put the adjustment knob on the bottom?

Yes. Made it much easier to make adjustments between runs and back and forth to events or when I was planning to head out for a longer drive on the highway. Much more convenient.

Bump! Any interest out there? I'm willing to deal, consider offers or a trade for C7 Z51 with 7-speed.

Quote:

Originally Posted by chichirone (Post 592610)

Bump! Any interest out there? I'm willing to deal, consider offers or a trade for C7 Z51 with 7-speed.

1-3 months before I am really seriously looking. Have to get into my new home at the end of Feb.
Ray

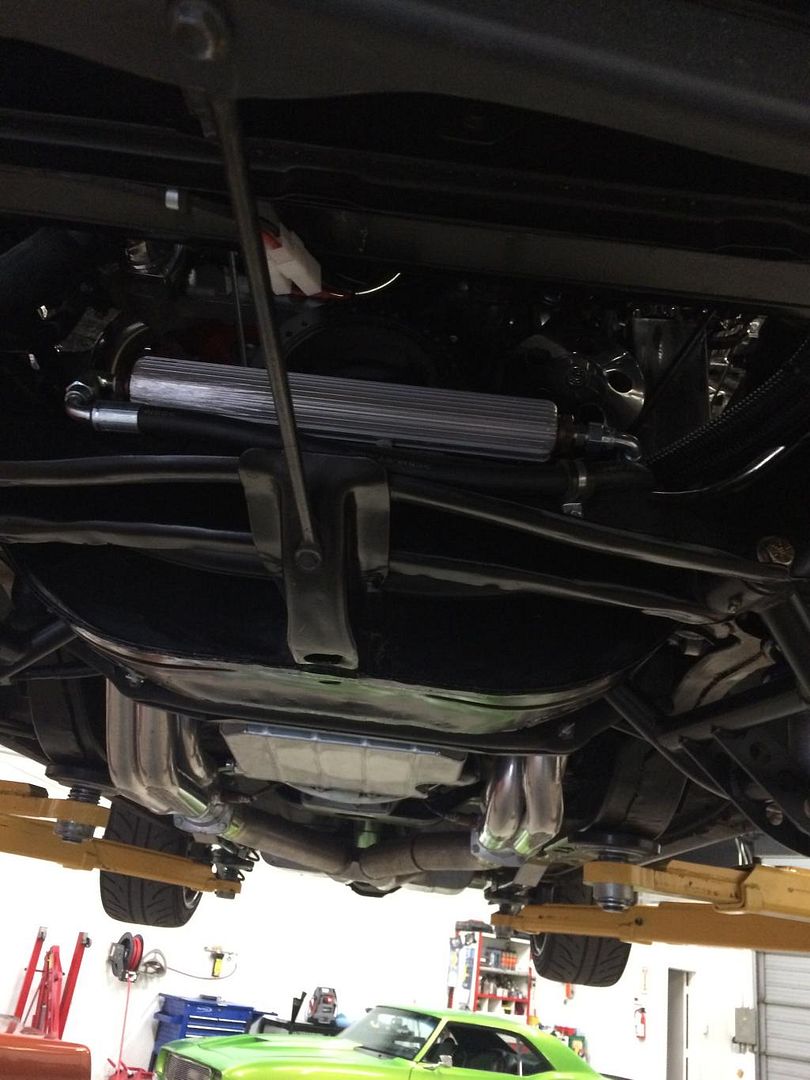

I finally got the car on a lift for a couple underside pics. Thanks to Mike Dusold and his team from Dusold Designs for helping out.

Camaro is detailed, serviced and ready to roll!

http://i1372.photobucket.com/albums/...pstx8uaocm.jpg

http://i1372.photobucket.com/albums/...psbhnqpo3s.jpg

http://i1372.photobucket.com/albums/...ps2gycmdny.jpg

Electric headlight motors?
Hydraulic clutch?
Looks like the headers have scraped; is ground clearance limited or just speed bumps?
Have Dyno sheet?
Have Paint codes?
How old is the paint and is the under side paint or some sort of under coating?
Bluetooth head unit?
What kit to hide the coils?
Back seats been recovered or originally installed at factory?
Any original front seats?
Have the firewall trim tag? What info does it have?
Thanks
Ray

Ray, I have answered your questions below. I will post the dyno sheet and pic of the trim tag ASAP.

Quote:

Originally Posted by AM.MSCL (Post 595142)

Electric headlight motors? Yes

Hydraulic clutch? Yes

Looks like the headers have scraped; is ground clearance limited or just speed bumps? No issues with ground clearance. Taller speed bumps will rub the exhaust and I made a mistake which caused the header scrape...I forgot to set the Ridetech coil overs back to street settings for my drive home from TMS after GG's event and bottomed out on a nasty bump.

Have Dyno sheet? Yes...I can scan it and post.

Have Paint codes? Previous owner said it is Tuxedo Black. We have color matched it using a spectrophotometer. Original color was lemans blue with a black vinyl top.

How old is the paint and is the under side paint or some sort of under coating? Paint is believed to be 8 years old. Underside is some sort of undercoating. It was undercoated prior to me buying the vehicle.

Bluetooth head unit? Yes, JVC head unit is bluetooth enabled and operational

What kit to hide the coils? The coil mounts were custom made.

Back seats been recovered or originally installed at factory? Back seat has not been recovered and my upholsterer said it looked factory original but I have no documentation indicating its original. The car originally came with a standard black vinyl interior so it is representative of how the car came from the factory

Any original front seats? Yes, original front seats can be purchased with the car.

Have the firewall trim tag? Yes.

What info does it have? I'll take a pic and post it. A resource in the North Texas Camaro Club decoded the trim tag as the following: X-11 Coupe. Built in Norwood, Ohio. Originally Lemans Blue with Black Vinyl Top and Standard Black Interior. The car came from the factory with AC, V8, 4 speed and black hockey stripes and a cowl hood.

Thanks
Ray

Let me know if you have any additional questions or are interested in speaking live about the car.

Jay
(817)894-5662

Ray, here is a pic of the trim tag:

http://i1372.photobucket.com/albums/...psm1voeidl.jpg

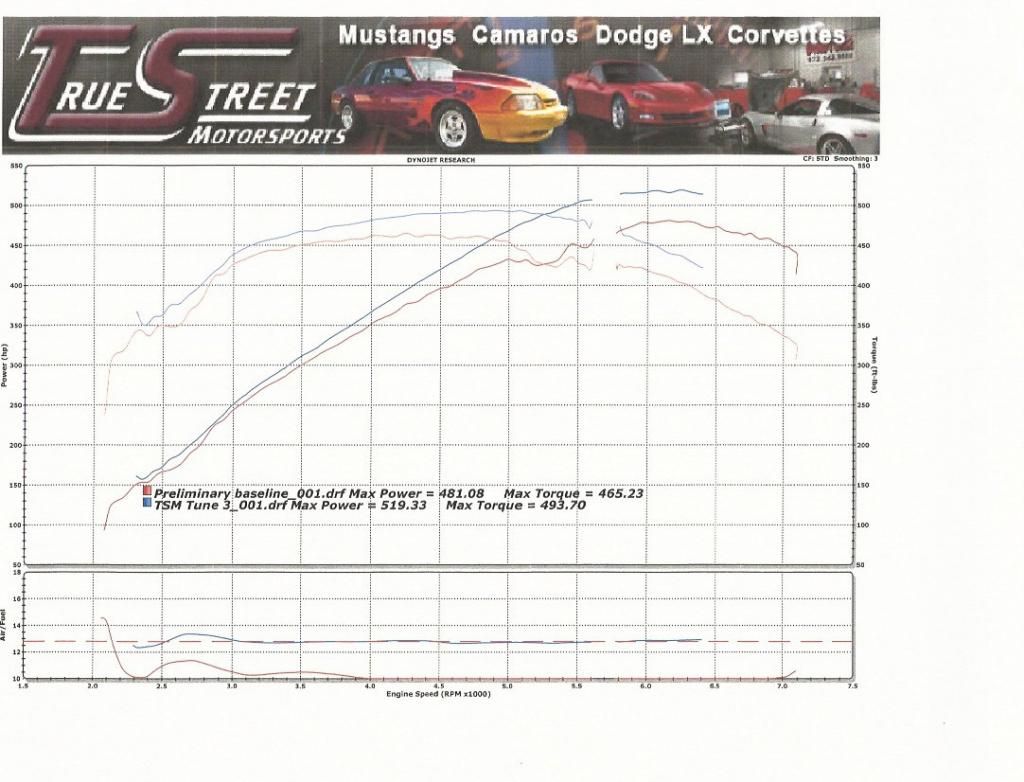

This is a scan of the dyno sheet done by True Street out of McKinney, TX:

http://i1372.photobucket.com/albums/...s5bf9d16c.jpeg

Let me know if there is any interest.

The car will be at GoodGuys at Texas Motor Speedway next weekend March 20-22nd and at the USCA event at TMS the following weekend March 28-29th if you are interested in checking it out.

I am usually lurking down around the auto-x.

Car is SOLD! Congrats Kurt. Enjoy it.
