1969 Camaro Custom Hood Vent Fabrication


This is not really a car build, but we had a customer approach us about building and installing some custom hood vents for his ‘69 Camaro. He liked the style of the vents in the carbon fiber hood on Mark Stielow’s Hellfire Camaro, but these would be steel. Stielow’s carbon fiber hood does not have the same underside structure as a stock steel Cowl Induction hood, so these would have to be a little different to fit into the opening in the structure without remaking the support structure.

Here is the inspiration:

http://v8tvshow.com/1969_Camaro_Hood...14-Live-01.jpg

First, Adam made a couple design sketches to land on an idea. The goal was to make a functional vent that would help pull air through the radiator and release underhood heat.

http://v8tvshow.com/1969_Camaro_Hood...ood_MG_003.JPG

http://v8tvshow.com/1969_Camaro_Hood...ood_MG_004.JPG

http://v8tvshow.com/1969_Camaro_Hood...ood_MG_001.JPG

The size and location were plotted on a ‘69 Camaro we have in the shop.

http://v8tvshow.com/1969_Camaro_Hood...ood_MG_006.JPG

http://v8tvshow.com/1969_Camaro_Hood...ood_MG_009.JPG

http://v8tvshow.com/1969_Camaro_Hood...ood_MG_008.JPG

http://v8tvshow.com/1969_Camaro_Hood...ood_MG_007.JPG

The sub-structure would dictate the position.

http://v8tvshow.com/1969_Camaro_Hood...ood_MG_002.JPG

Then he used the Mittler Brothers shear and Box Pan Brake to make a “staircase”, which would become the vents.

http://v8tvshow.com/1969_Camaro_Hood...ood_MG_017.JPG

He made a steel frame and used the Mittler Brothers bead roller to roll a contour edge into the frame. This is for stiffness and style.

http://v8tvshow.com/1969_Camaro_Hood...ood_MG_018.JPG

http://v8tvshow.com/1969_Camaro_Hood...ood_MG_010.JPG

Setting the vents into the frame gives you an idea of how the final piece will look.

http://v8tvshow.com/1969_Camaro_Hood...ood_MG_011.JPG

http://v8tvshow.com/1969_Camaro_Hood...ood_MG_012.JPG

http://v8tvshow.com/1969_Camaro_Hood...ood_MG_014.JPG

After some consideration, a revised vent style was quickly made to make the vent angle more aggressive and to have better function.

http://v8tvshow.com/1969_Camaro_Hood...ood_MG_022.JPG

The trailing edge of the frame was also flattened for a smoother appearance.

http://v8tvshow.com/1969_Camaro_Hood...ood_MG_021.JPG

http://v8tvshow.com/1969_Camaro_Hood...ood_MG_024.JPG

The vent holes were cut out, and the pieces TIG welded together and ground smooth.

http://v8tvshow.com/1969_Camaro_Hood...ood_MG_025.JPG
http://v8tvshow.com/1969_Camaro_Hood...ood_MG_026.JPG
http://v8tvshow.com/1969_Camaro_Hood...ood_MG_028.JPG
http://v8tvshow.com/1969_Camaro_Hood...ood_MG_031.JPG
http://v8tvshow.com/1969_Camaro_Hood...ood_MG_032.JPG

The hood is a reproduction 1969 Camaro Cowl Induction hood we obtained from Classic Industries.

http://v8tvshow.com/1969_Camaro_Hood....03.15_001.JPG

It’s always good to inspect your parts as soon as they arrive, as large panels are often times damaged in shipping. Our hood was in good shape except for a small dimple in the corner. Obviously, any new panel will need to be bodyworked to fit your car, but if the shipper causes major damage to a panel, catching it right when it comes off the truck is the best way to have the shipper compensate or replace the panel.

http://v8tvshow.com/1969_Camaro_Hood....03.15_003.JPG

The location for the vents was determined partially by appearance, but also because the underhood structure dictated their placement.

http://v8tvshow.com/1969_Camaro_Hood....06.15_012.JPG

The holes were cut in the hood and the panels were tack TIG welded in place. The tack welds were spaced out around the vents to make sure the hood didn’t warp from welding heat.

http://v8tvshow.com/1969_Camaro_Hood....16.15_001.JPG

Adam made a few more laps with the TIG welder to fully weld the vent, then he carefully sanded / ground the welds flush with the hood skin.

http://v8tvshow.com/1969_Camaro_Hood....17.15_001.JPG

http://v8tvshow.com/1969_Camaro_Hood....17.15_005.JPG

Some hammer and dolley work was required to tap the panel flat.

http://v8tvshow.com/1969_Camaro_Hood....17.15_009.JPG

http://v8tvshow.com/1969_Camaro_Hood....17.15_014.JPG

http://v8tvshow.com/1969_Camaro_Hood....18.15_009.JPG

http://v8tvshow.com/1969_Camaro_Hood....18.15_007.JPG

Some honeycomb shaped perforated steel was chosen to use as grille material for the extractors.

http://v8tvshow.com/1969_Camaro_Hood....25.15_003.JPG

A steel form was made the same shape as the opening in the heat extractor and welded to the workbench. Next, some welding rod was formed around the form to shape the rod into a frame for the grille.

http://v8tvshow.com/1969_Camaro_Hood....25.15_017.JPG

The Spitznagel Maxi dent pulling resistance welder was used to zap the grilles to their frames.

http://v8tvshow.com/1969_Camaro_Hood....25.15_005.JPG

http://v8tvshow.com/1969_Camaro_Hood....25.15_011.JPG

A small amount of current is all it takes to cleanly melt the wires together.

http://v8tvshow.com/1969_Camaro_Hood....25.15_010.JPG

The grilles were welded to the bottom side of the vents.

http://v8tvshow.com/1969_Camaro_Hood....25.15_034.JPG

http://v8tvshow.com/1969_Camaro_Hood....25.15_022.JPG

The final product, ready for bodywork and paint!

http://v8tvshow.com/1969_Camaro_Hood....25.15_043.JPG

http://v8tvshow.com/1969_Camaro_Hood....25.15_046.JPG

Wow nice work, very creative!

Thank you sir!

Nice work!

videos don't seem to be working for me Kevin....:computer:


What MB wheel dies did you use for the frame edge 5/16" step?

Clean !!!:thumbsup:

Very cool. Great work. Do one for my Monte...... :-)

They are just pics, Vince. No video on this one.

Whenever you're ready!

Great job guys. That looks really good!

looks so easy !

:thumbsup: :thumbsup:

Great tutorial!!

Adam does make this stuff look easy!

Awesome fabrication on this hood....looks great!

damn that looks really awesome, nice job!

That looks so mean...I'll take one! Great fab work
...man that looks killer

Thanks guys!

That is quite the fabricator you have there. I did it in the CADD system I have used & supported for over 20 years & it was somewhat of a PITA.

http://i242.photobucket.com/albums/f...kitt/vent1.jpg

Looks good, but Adam made the rear edge of the vent flush with the hood skin.

Very cool project. Nicely done.

Hmmm so it does. Working on it. Like I said, great fabricating skills there. Doing it in solid modeling is tough too. LOL

So where do I buy these? Looks awesome

How many hrs did it take?

Did Adam figure out all this in his head or draw it up first? It was a PITA

http://i242.photobucket.com/albums/f...kitt/vent2.jpg

cant wait to see this with paint!

Fresh Paint!


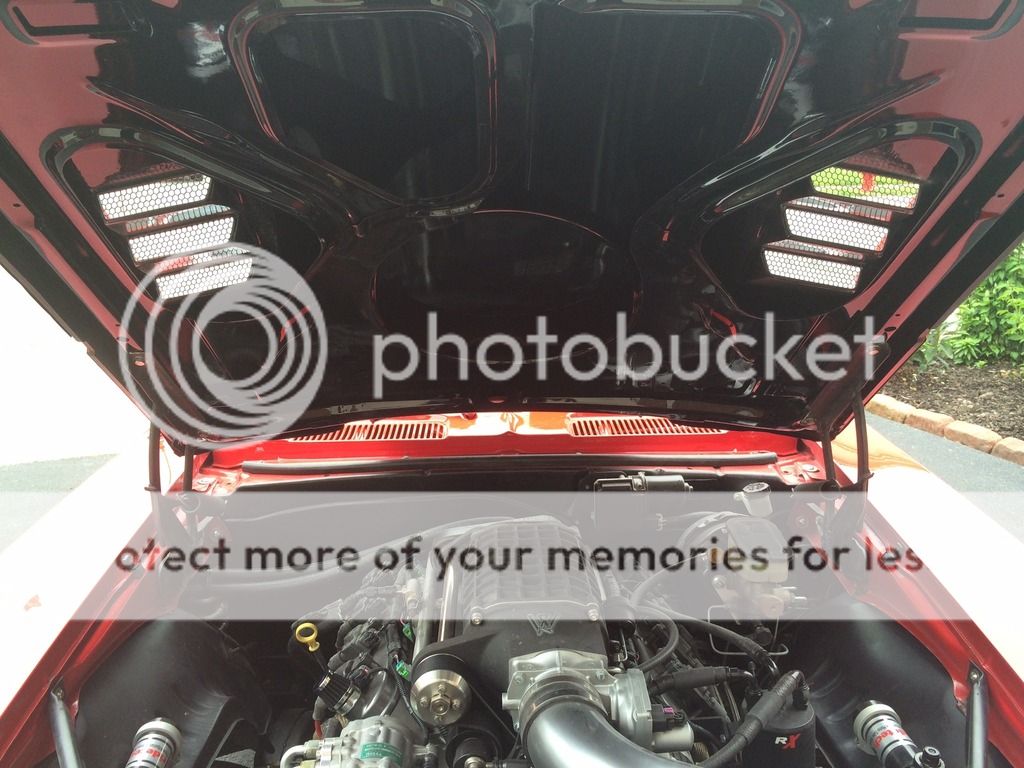

So finally got the new hood painted, and it looks awesome.

Thanks again to Kevin and Kelle and crew at V8 Speed and Resto for the outstanding work they did on the hood...couldn't be happier!!!

The whole reason for this hood was to keep the temps under control and after driving the car some, I'm seeing about 15* lower operating temps, so mission accomplished. Never got over 210 in stopped traffic with 90* weather yesterday.

http://i791.photobucket.com/albums/y...psijsxhbvf.jpg
http://i791.photobucket.com/albums/y...psqupx7nkg.jpg
http://i791.photobucket.com/albums/y...psibhppiui.jpga8d391617d3ea034d48d45_zpsgrkrkteg.jpg[/IMG]
http://i791.photobucket.com/albums/y...psgrkrkteg.jpg
http://i791.photobucket.com/albums/y...pspbjpoxbx.jpg

wow that looks awesome, what color red do you have on that thing?

They told me it was a BMW code when they matched it. Bought the car with that paint. A little too orange for me, but still looks nice.

WOW! What awesome work! It's great to see the progression of the process and a great looking recipient too! ;)

I just went to hit the "Like" button! Thanks guys!

Looks awesome Matt, we're all so glad you like it! Thanks again for letting our crew build it for you!

We are thinking of making a run of these vents for individuals to install in their own hoods via weld-in or bond-in construction.

If anyone is interested in a set, post a reply and we'll be able to determine costs with consideration to demand. We might make 5-10 sets if there is interest.
