Angry pumpkin 2.0


Well, I sold the procharger setup and decided to go twin turbo. This hobby is goung to kill me. I decided to run camaro ls3 manifolds flipped. Mostly for durability but also to save myself some fab time. Changed to turbo cam, comp short travel lifters and also went with the trunion upgrade for the rockers.

I will also be running traction control through the aem infinity. Hoping that the milder manners of a turbo setup will make it a little more subtle than the procharger setup.

http://i73.photobucket.com/albums/i2...ps1e7ba7fc.jpg

Out with the old

http://i73.photobucket.com/albums/i2...psnuwvsl38.jpg

In with the new

Painted the fast intake
http://i73.photobucket.com/albums/i2...psooavqjcn.jpg
http://i73.photobucket.com/albums/i2...psys4upba3.jpg

Made a glove compartment for the computer
http://i73.photobucket.com/albums/i2...pspnrtmkti.jpg
http://i73.photobucket.com/albums/i2...psrjwdcitk.jpg
Now to some precision turbo 6266 goodness and new wegner front drive
http://i73.photobucket.com/albums/i2...psdd8nldjn.jpg
http://i73.photobucket.com/albums/i2...psmoqo27vg.jpg
http://i73.photobucket.com/albums/i2...pszernt2oo.jpg

Flange to the camaro ls3 manifolds

http://i73.photobucket.com/albums/i2...pspyrbnz2h.jpg

Some of the hot side
http://i73.photobucket.com/albums/i2...psxzysbklz.jpg

:ohsnap:

looking good. With some powder coating, the manifolds will look good. You could spend some time smoothing out the casting, too. I bet that would help a lot in the looks department if you care. How are you planning to support the turbos?

LOVE it :thumbsup:

My plans is to coat them after it's tuned. Not sure if I'll smooth out the casting though.

I'm planning on supporting the turbo on the fender braces with pencil brackets.

Thanks!

Looks great. I will be watching this closely.

Dave

Some progress

http://i73.photobucket.com/albums/i2...psccnibprn.jpg

http://i73.photobucket.com/albums/i2...psy9uatwks.jpg

http://i73.photobucket.com/albums/i2...psfk8rpoue.jpg

http://i73.photobucket.com/albums/i2...psbuqgmsis.jpg

http://i73.photobucket.com/albums/i2...psq32wheor.jpg

http://i73.photobucket.com/albums/i2...psekpsmqwa.jpg

Awesome. Our turbo placement is very similar. Nice car and love the glovebox compartment. Still figuring that out.

Thanks man I appreciate it. Took a look at your build, beautiful work. How are u supporting the turbos?

They're small theyre just supported by the manifolds. They're small and with TiAL stainless housings which makes them even smaller/lighter.

We'll see how it works.

William

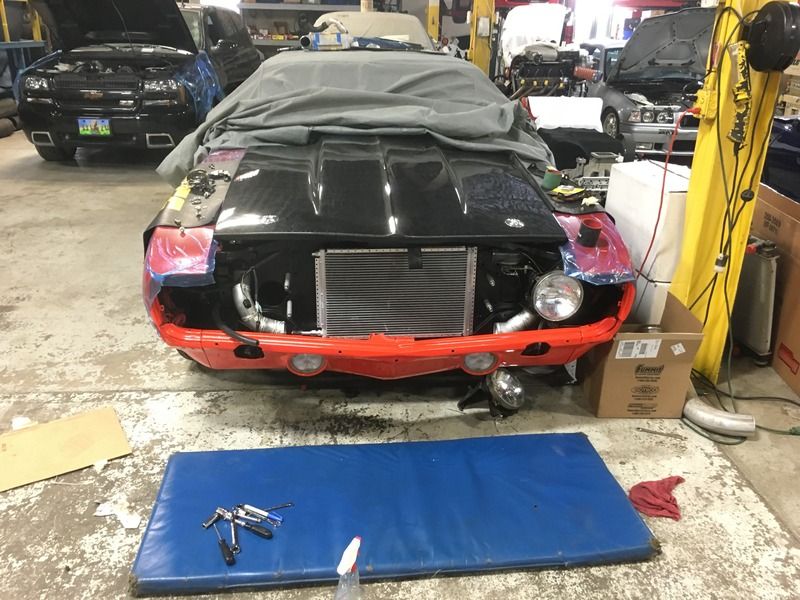

Ac final fit
http://i73.photobucket.com/albums/i2...psjzt60oq7.jpg

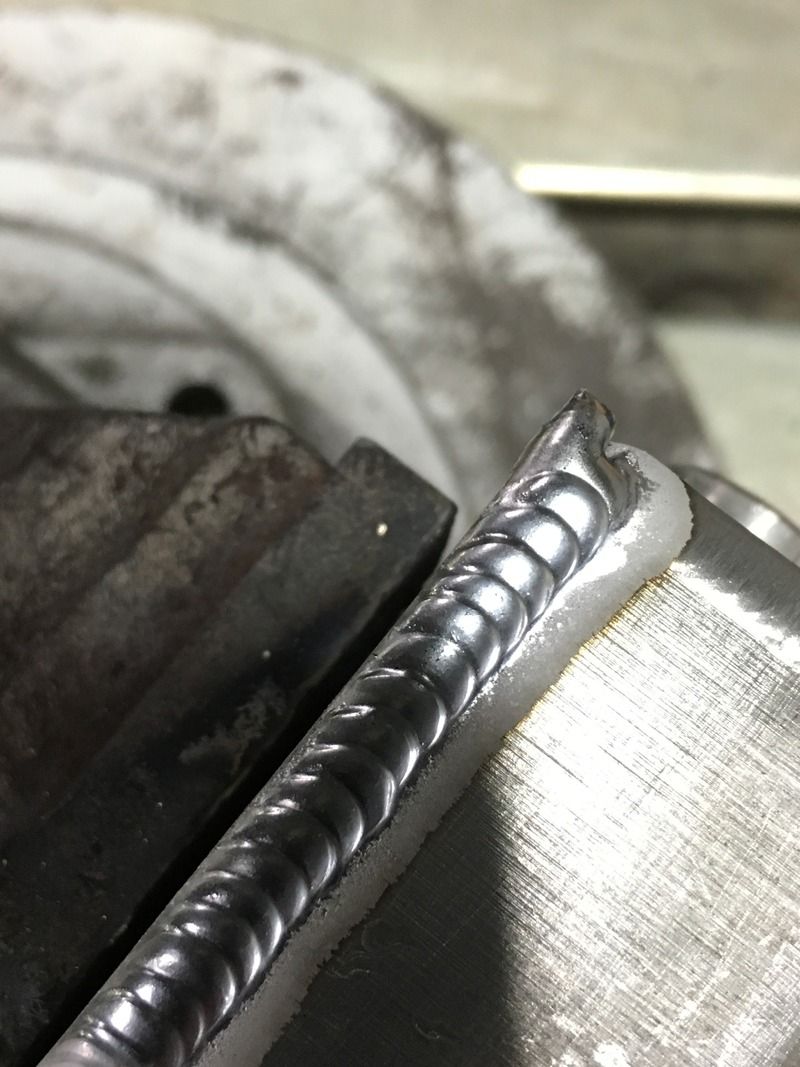

Gratuitous aluminum weld

http://i73.photobucket.com/albums/i2...pshsj7xysr.jpg

Intercooler and charge side done

http://i73.photobucket.com/albums/i2...ps1iim2ex0.jpg

Had to make the top radiator line out of aluminum to clear the intake charge pipe

http://i73.photobucket.com/albums/i2...pskj2hx57l.jpg

Looking good! How much longer til you think you'll have it running? Looks like you're almost there to me.

I'm hoping it'll be done in the next 2-4 weeks.

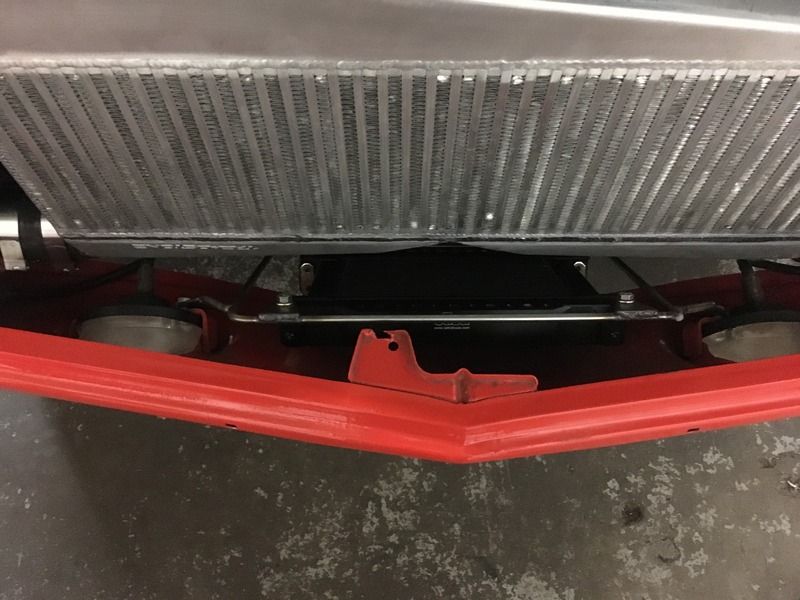

Oil cooler mount done

http://i73.photobucket.com/albums/i2...ps61o266li.jpg

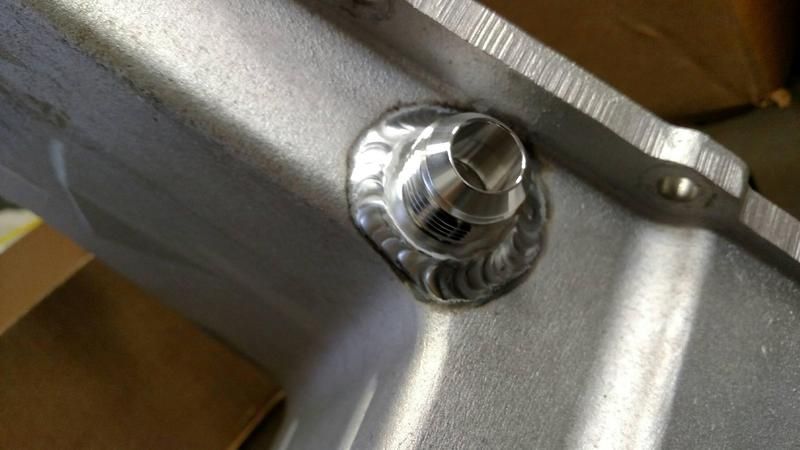

Drain fitting welded into oil pan

http://i73.photobucket.com/albums/i2...pspz3qwbm7.jpg
